EH-GNE3E - Hair Dryers PANASONIC - Free user manual and instructions

Product Type	Hair Dryer
Brand	Panasonic
Model	EH-GNE3E
Weight	Approx. 480 g (excluding nozzle)
Dimensions (H x W x D)	Approx. 22.5 x 8.5 x 14.0 cm
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	Approx. 1200-1600 W
Heat Settings	3 levels (High, Low, Cool)
Speed Settings	2 levels (High, Low)
Ion Technology	nanoe™ (moisture-infused ions)
Cool Shot Button	Yes
Concentrator Nozzle	Included (for targeted drying)
Diffuser	Not included (optional accessory)
Filter Type	Removable, washable mesh filter
Maintenance	Clean filter regularly; wipe body with damp cloth
Safety Features	Automatic shut-off (overheat protection)
Spare Parts / Repairability	Filter and nozzle available; professional repair recommended
General Information	Designed for fast drying with minimal damage

Frequently Asked Questions - EH-GNE3E PANASONIC

What is nanoe technology and how does it benefit my hair?

Can I use this hair dryer on wet hair immediately after washing?

Does the EH-GNE3E have a diffuser for curly hair?

How do I clean the filter?

What is the voltage range for this hair dryer?

Can I use this hair dryer with a voltage converter?

How long is the power cord?

Is the EH-GNE3E suitable for thick or coarse hair?

What should I do if the dryer stops working suddenly?

Where can I find replacement parts or accessories?

USER MANUAL EH-GNE3E PANASONIC

Line drawing of a medical device with a cylindrical device and attached tubing (no text or symbols)

Panasonic®

使用说明书

Operating Instructions

(家用 电吹风

(Household) Hair Dryer

型号

EH-NE34

EH-NE33

Model No. EH-GNE3E

中文 2

English 7

Before operating this unit, please read these instructions completely and save them for future use.

Illustration showing a person holding a medical device with a 'X' symbol and directional arrow indicating force or movement.

3 厘米以上

(图 1) (图 2)

如何使用电吹风

1 用温度选择开关选择气流的温度。

2 用电源开关选择气流的强度。

●注意

Illustration of a medical procedure showing two steps: initial insertion, followed by endoscopic view (no text or symbols)

Thank you for choosing a Panasonic hair dryer. Please read all instructions before use.

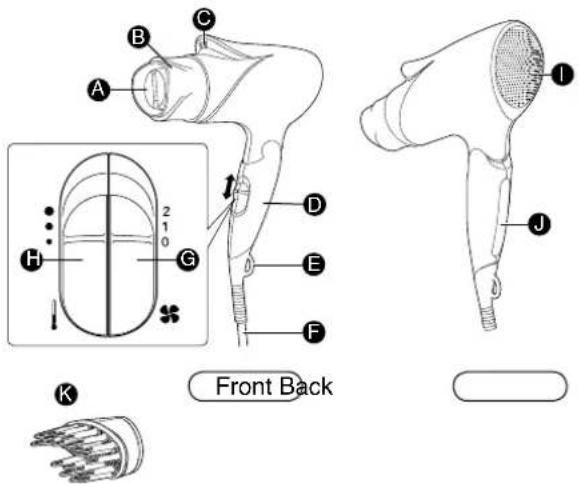

Parts identification

A B C D E F G H K Front Back I J

A Air outlet

B Quick-dry nozzle

© Platinum ion outlet

D Handle

E Ring for hanging

F Cord

GMain switch (✗)

2: Dry (Strong airflow)

1: Set (Gentle airflow)

0: Off

H Temperature selector (1)

●: Hot (Hot air)

●: Healthy (Warm air)

● : Cool (Cool air)

Air inlet

J Ion charge panel

K Diffuser

EH-NE34, EH-GNE3E only

(For creating full-bodied hair with lots of volume and styling)

Important

Please read the safety instructions before using this hair dryer. The safety instructions explained here help you to use this hair dryer safely and correctly, and also to prevent you from injuring yourself or others.

WARNING: Not following the instructions below may cause fire, burns, explosion, short circuiting or electric shock.

• The electric power supply should come from a properly wired outlet. Also, check the capacity of the outlet and use the dryer separately from other equipment.
• Always ensure the voltage to be used corresponds to the voltage stated on the unit.
- Never leave the dryer running.
• After use or power cut, unplug it from the outlet. When unplugging, always grasp the plug and unplug it from the outlet.
- If the dryer blows air intermittently, discontinue use immediately.

- Do not pull the cord with unnecessary force. Do not damage or modify the cord. Wrapping the cord around the hair dryer may cause fire and/or electric shock. If the cord or plug is damaged or gets hot, discontinue use of the dryer immediately.

• Avoid dropping the dryer or subjecting it to other excessive shock.
• Do not use the dryer near gas or other inflammable materials (such as benzine, paint thinner, sprays, etc.).
• The hair dryer should be installed in places where it will not come into contact with water when the bath or shower is in use. This is necessary also when the handle of the dryer is extended.
• When the hair dryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hair dryer is switched off.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

- Do not use the dryer with wet hands or in the bath or shower. Do not use this hair dryer near water contained in bath-tubs, basins or other vessels. Do not leave or store the dryer near a tub, sink or other place where it will be exposed to water and other liquids or high humidity.

Do not use the dryer in a bath or shower.

WARNING: This symbol on the hair dryer means "Do not use this hair dryer near water". Do not use this hair dryer near bathtubs, showers, basins or other vessels containing water.

• Do not use thinner, benzine or other solvents when cleaning the dryer.
• Be careful that hair is not sucked into the air inlet during use. Never insert foreign objects into the air inlet or outlet. Mechanical damage or shock can result. If the air inlet or outlet is blocked during use, the heater block or dryer may not operate. After removing the blockage from the air inlet or outlet, wait several minutes and the hair dryer should operate again. If not, please contact an authorized Panasonic service center.
• Avoid touching the quick-dry nozzle as it becomes hot during use.

• Do not direct the airflow towards the eyes or other sensitive areas.

• Please properly handle the product packaging bags to avoid accidents, such as infant and child choking. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• If the quick-dry nozzle or hair dryer is damaged, stop using it.
• Do not use the hair dryer for purposes other than drying and styling human hair.
• Do not use any attachments with this dryer other than those supplied by Panasonic.
• Some odd smell will come along with ion emission, but it does not do harm to health at all.

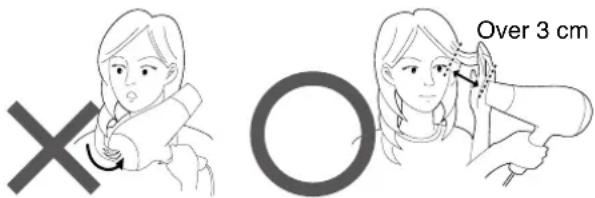

• Be careful of how you point the hair dryer and do not get the air inlet too close to your hair.
• Keep your hair over 10 cm away from the air inlet during use.

* Failure to do so may result in your hair becoming sucked in and trapped in the hair dryer. (Fig. 1)

- Please keep a distance of over 3 cm between the air outlet and your hair. (Fig. 2)

* Failure to do so may result in your hair being burned.

- Please keep the instructions well.

Over 3 cm

(Fig. 1) (Fig. 2)

How to use the hair dryer

1 Select the temperature of the airflow with the temperature selector.
2 Select the intensity of the airflow with the main switch.

Notes

- Before using the hair dryer, first set the main switch to position "0", then plug into a power outlet and turn on the main switch.

- After washing your hair, if you use cool air to dry your hair, set the main switch to position "1" or "2" and set the temperature selector switch to the "●cool air" position. If you want to dry your hair quickly, set the quick-dry nozzle in the direction shown in the illustration or set the temperature selector to the "●healthy air" or "●not air" position.

• When the main switch is set to position "1" or "2", platinum ion, which are invisible to the naked eye, are produced.
• Gripping the ion charge panel has the benefit of more platinum ion continuing to penetrate into the hair, supplementing the moisture content, moistening the hair and giving clearer results in relation to the platinum ion.
• For people who want (hair with) volume: Attach the diffuser to the hair dryer and apply your brush to your scalp, and turn and move the diffuser around as if drawing large circles. EH-NE34, EH-GNE3E only
• If you want to style your hair, brush your hair from the top of your head to the ends of your hair with the brush on the diffuser. EH-NE34, EH-GNE3E only
• Select "1: Set Mode" when using the diffuser. You may feel heat on your face or scalp when "2: Dry Mode" is selected. EH-NE34, EH-GNE3E only

- If you are worried about damaging your hair, set the switches to the “● healthy air” and “1” position respectively prior to use.

What are platinum ion?

Platinum Ion Generation method: High-voltage discharge

Platinum ion are particles that combine negatively charged oxygen and moisture in the air. Platinum ion are the platinum ion generated from the platinum electrode. These platinum ion are invisible to the naked eye because their diameter is just 1/1000th that of a particle of steam.

How platinum ion work?

In general, hair is easily positively charged. By exposing hair to the negatively charged platinum ion, the hair's static electricity can be neutralized and thus its smoothness can be enhanced. The platinum ion not only penetrate each and every strand of hair, but also coat the hair, and thus help it maintain the moisture content and alleviate the UV damage.

Notes - The effect of ion does not show up too much on person with features described below.

• Having original curl hair.
• Having hair to be furled easily.
• Having wonderful and tidy hair.
• Having hair straightening perm no more than 3-4 months.
• Having short hair.

What is an ion charging system?

When platinum ion are applied to the hair or the electrical balance of the hair is disturbed by brushing, individual hairs are more likely to repel each other and groups of hairs no longer sit well together. With this product's ion charge system it is possible to stabilize the electrical balance of your hair and improve its shape by simply gripping the body (Ion Charge Panel).

Repair and maintenance of the hair dryer

• Only qualified personnel should repair or disassemble the hair dryer.
• If the cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• When the hair dryer is blowing hot air, occasionally air may turn cool or sparks may be seen. This phenomenon is the result of the hair dryer's thermal switch. It is a protective device. The sparks do not pose a danger in and of themselves. In such cases, dust may have accumulated at the air inlet and/or the air outlet. Also, the air inlet may be being blocked by your hair, hands, etc. Slide the main switch to the "0" position and remove any dust that has accumulated.

● Maintenance of air outlet and air inlet (once a month or more)

- To clean the air outlet, set the temperature selector to "Cool" and the main switch to "1" or "2", and rake out with a brush while cool air is blowing out.

Illustration of two hands performing a medical procedure on a circular object, possibly a device or tool (no text or symbols present)

• To clean the air inlet, set the main switch to "0" and, with the airflow stopped, remove dust and hairs using a brush or vacuum cleaner.
• Be careful since dust may spray out.

Do not attempt to clean the platinum ion outlet. (The outlet has a structure which makes it difficult to insert the swab.)

Doing so results in losing its ability to release platinum ion.

Specifications

Product name Hair Dryer
Product model		EH-NE34, EH-NE33,EH-GNE3E
Power source		220 V~ 50 Hz
Power consumption		1600 W
Dimensions		80.8 (W) × 162.5 (D) ×227.0 (H) mm
Accessory	EH-NE34,EH-GNE3E	Quick-dry nozzle, Diffuser
	EH-NE33	Quick-dry nozzle
Place of origin China
Date of production		See engraving on thecommodity handle.
ExecutionStandard	Chinesestandard	GB4706.1 GB4706.15GB4343.1 GB17625.1
	Companystandard	Q/SXWBMJ 7

This product is intended for household use only.

CAUTION!

Failure to follow these safeguards could result in injury to fingers.

When extending the handle

DO NOT TOUCH the shaded area in the diagram below when holding the handle or using the hair dryer.

When folding the handle

DO NOT TOUCH the shaded area in the diagram below when folding the handle.

Panasonic

保修证

保修条款

(Address): 33, Wanbao North Street, Wanbao Industry Zone, Zhongcun, Panyu District, Guangzhou City, Guangdong Province, China

电话 (Tel): [phone]

传真 (Fax): [phone]

© Panasonic Corporation 2014
