Brand	Lorus
Model	W120
Product Type	Watch
Movement Type	Quartz (battery-powered)
Display Type	Analog (hour, minute, second hands)
Case Material	Stainless steel
Case Diameter	Approximately 40 mm
Case Thickness	Approximately 9 mm
Water Resistance	3 ATM (30 meters)
Crystal Type	Mineral glass
Strap Material	Stainless steel or leather (varies by variant)
Strap Width	20 mm
Clasp Type	Fold-over clasp with safety
Battery Type	SR626SW or equivalent
Battery Life	Approximately 2 years
Functions	Time (hours, minutes, seconds), Date display
Crown Position	Pull to set time and date
Weight	Approximately 80 grams (with metal strap)
Dimensions (without crown)	40 x 48 mm
Maintenance	Clean with soft cloth; avoid solvents
Safety	Keep away from strong magnetic fields
Reparability	Battery replacement by authorized service center

Frequently Asked Questions - W120 Lorus

How do I set the time on my Lorus W120?

Pull the crown out to the first position. Turn it clockwise or counterclockwise to set the correct time. Push the crown back in after setting.

How do I set the date on the Lorus W120?

Pull the crown out to the second position (fully out). Turn the crown clockwise to advance the date. Push the crown back in to complete.

What type of battery does the Lorus W120 use?

The watch uses a SR626SW silver oxide battery or equivalent. Replace every 2 years or as needed.

Is the Lorus W120 waterproof?

The water resistance is rated at 3 ATM, meaning it can withstand splashes, rain, and hand washing. Do not submerge or swim with it.

How do I adjust the metal strap length?

Remove links using a pin pusher or take it to a jeweler. The strap has removable pins connecting each link.

How do I download the user manual?

Visit notice-facile.com and search for Lorus W120. The manual is available as a free PDF download.

Is the crystal scratch-resistant?

The watch features a mineral glass crystal, which is durable but can scratch if subjected to hard contact.

How accurate is the Lorus W120?

Like most quartz watches, the accuracy is within ±20 seconds per month under normal conditions.

Can I replace the battery myself?

We recommend having the battery replaced by a professional to maintain water resistance. The case back must be opened carefully.

What should I do if the watch stops?

First, check if the crown is fully pushed in. If it still doesn't run, the battery may be depleted. Replace the battery or consult a service center.

USER MANUAL W120 Lorus

CAL. W121 (RB6 SERIES)

CAL. W130 (RBN SERIES)

■ CHARACTERISTICS

1. Time/calendar display: Hour, minute, seconds, date, day of the week and month.
2. Automatic calendar adjustment: Calendar adjusts automatically for odd and even months except February of leap years.
3. Time indication: Changeover between 12-hour and 24-hour indications is possible.
4. Stopwatch: 24 hour stopwatch with 1/100 second readout up to 1 hour and with 1 second readout after the first 1 hour. Split time measurement is available.
5. Alarm: The alarm rings at the designated hour and minutes for 20 seconds.
6. Hourly time signal: Can be set to ring every hour on the hour with a single "beep".
7. Illuminating light: The light illuminates the display in the dark.

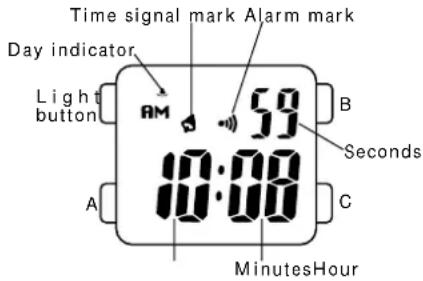

■ DISPLAY AND BUTTON OPERATION

- The design of the digital display differs depending on the calibre. The illustrations of the display shown in this manual refer to Cal. W120.

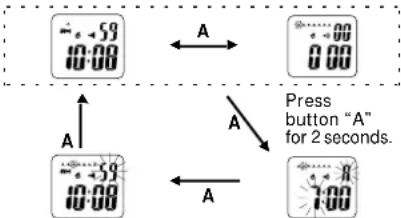

Button A : • Selection of the display.

The selection is made in the following order:

Time/ calendar display
Stopwatch display

Time/ calendar setting Alarm setting

Button B : • Calendar (month, date and day) display in the time/ calendar display.

• Start/stop in the stopwatch function.
• Selection of the digits to be adjusted in the alarm setting function and the time/calendar setting function.

Button C : • Alarm display in the time/cal-endar display.

• Split/ split release/ reset in the stopwatch function.
• Setting the digits in the alarm setting function and the time/calendar setting function.
• Stopping the alarm in any display.

Button B while keeping button C pressed: Engagement and disengagement of the alarm and the time signal.

Button C while keeping button B pressed: Changeover of the calendar (month and date) display.

Buttons B & C: Alarm test in the time/calendar display.

■HOW TO SET THE DUAL CALENDAR DISPLAY

①Press button "B" to show the calendar (month, date, and day) display. The calendar display is shown while button "B" is kept pressed.
② The month and the date change places with each other with each press of button "C" while keeping button "B" pressed.

* In the 12-hour indication, the AM/PM mark is displayed. In the 24-hour indication, there is no indication.

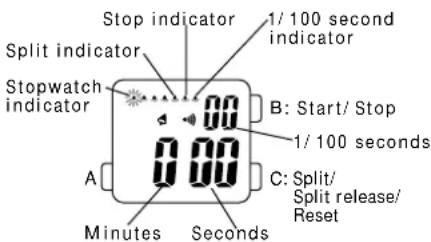

■HOW TO USE THE STOPWATCH

① Press button "A" to show the stopwatch display. (The stopwatch indicator starts flashing.)
The stopwatch can measure up to 24 hours and is displayed in minutes, seconds, and 1/100 seconds up to 1 hour, and in hours, minutes, and seconds after the first 1 hour. (The 1/100 second indicator flashes during the first 1 hour.)
When the measurement is over 24 hours, the stopwatch will be reset to "0:00oo" and start counting again.

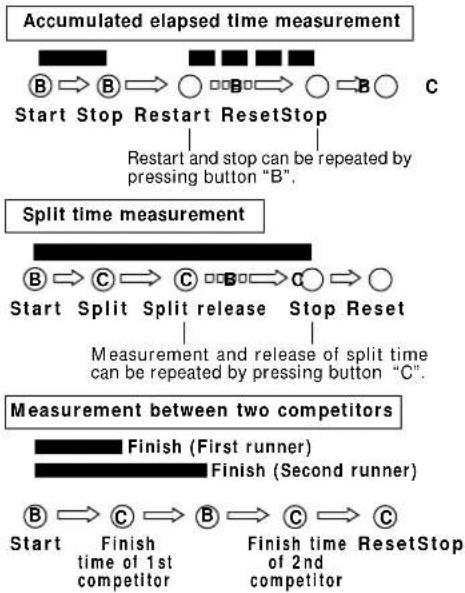

② Reset the digits to "0:00oo" before using the stopwatch. When the split and the stopwatch indicators are flashing, press button "B" to check that the stop indicator starts flashing, and then press button "C" twice to reset the digits to zero.
③ When measuring a long period of time, return the stopwatch to the time/calendar display after the stopwatch starts to prevent any possible mistaken operation.
* When button "B" or "C" is pressed in the stopwatch display, a single "beep" sounds to confirm the operation.

■HOW TO SET THE ALARM

①Press button "A" for 2 seconds to activate the alarm setting function. (The alarm set indicator starts flashing.)
②Press button "B" to activate the "Hour" or "Minute" setting. The display changes in the following order with each press of button "B".

③One digit (flashing) is advanced with each press of button "C". The digits are advanced quickly by keeping button "C" pressed.
④ After all the adjustments are completed, press button "A" to return to the time/calendar display. (The display returns directly to the time/calendar display and not to the time/calendar setting.)

Note: When setting the hour digits, be sure to check that the "A" (AM)/ "P" (PM) mark is correctly set.

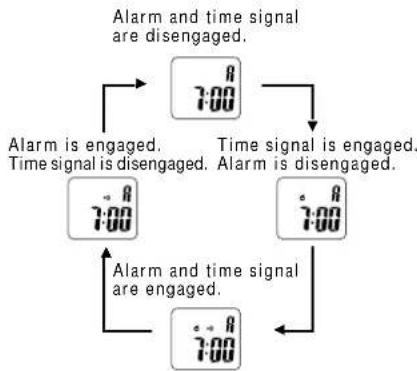

■ HOW TO ENGAGE AND DISENGAGE THE ALARM AND THE TIME SIGNAL

①Press button "C" in the time/calendar display to show the alarm display. The alarm display is shown while button "C" is kept pressed.

②With each press of button "B" while keeping button "C" pressed, the engagement and disengagement of the alarm and the time signal are made as follows:

■HOW TO STOP THE ALARM

The alarm rings at the designated time for 20 seconds and stops. However, the alarm can be stopped manually by pressing button "C" in any display.

■ ALARM TEST

The alarm can be tested with a beeping sound by pressing buttons "B" and "C" at the same time in the time/calendar display.

■ HOW TO SET THE TIME/CALENDAR

Time/ calendar setting indicator

①Press button "A" to activate the time/ calendar setting function. (The time/ calendar setting indicator and the second digits start flashing.)
②Selection of the digits to be adjusted (flashing) is made in the following order by pressing button "B".

③One digit (flashing) is advanced with each press of button "C". (The digits except seconds are advanced quickly by keeping button "C" pressed.)

- Seconds setting Press button "C" in accordance with a time signal. The seconds are reset to "00" and start immediately. When the seconds count any number from "30" to "59" and button "C" is pressed, one minute is added and the seconds are immediately reset to "00".

④ After all the adjustments are completed, press button "A" to return to the time/calendar display.

Note: When setting the hour digits, be sure to check that the AM/PM mark is correctly set.

■ HOW TO CHANGEOVER THE 12-HOUR AND THE 24-HOUR INDICATIONS

In the calendar or the alarm display, each press of button "A" changes over the time indication display from the 12-hour to the 24-hour and vice versa.

- Changeover in the calendar display

- Changeover in the alarm display

* When the "A" (AM)/ "P" (PM) mark disappears, the calendar or the alarm display is shown in the 24-hour indication.

■ LUMIBRITE WATCH

(dial, hands, buttons, case, bezel, strap, etc.)

☆ If your watch is a LORUS LUMIBRITE watch, it has following features.

LORUS LUMIBRITE watches absorb and store light energy from natural and artificial light sources and emit light in the dark. They are made of environmentally friendly material, and therefore, are harmless to human beings and the environment.

• With a full charge, LORUS LUMIBRITE watches glow in the dark hours longer than conventional luminous watches of this type. If exposed to a light of more than 500 lux (i.e., the brightness of a typical office) for approximately 10 minutes, or direct sunlight for 2 minutes, they will glow for hours.
• Since LORUS LUMIBRITE watches emit the light they store, the brightness will decrease gradually over time. The length of time they will glow may also differ slightly depending on such factors as the brightness of and distance from the light source used to charge the watch.

■ILLUMINATING LIGHT

When the light button is pressed and released in the time/calendar or stopwatch display, or in the alarm setting or time/calendar setting function, the light illuminates the display for 4 seconds for easy viewing in the dark.

■ ViViDiGi

ViViDiGi is a new type of liquid crystal panel that makes possible various colors and high contrast.

• Excellent light reflection and transmission make the display bright and clear.
• Various color options are available.
• Either the whole panel or the displayed data only can be illuminated.
  * Features vary in different models.

ViViDiGi

■ BATTERY CHANGE

The miniature battery PANASONIC CR2025 which powers your watch should last approximately 8 years. However, because it is inserted at the factory, the actual life of the battery once in your possession may be less than the specified period. Be sure to replace the battery to prevent any possible malfunction as soon as it runs down. To replace the battery, we recommend taking the watch to a local watch repair shop.

Note: If the alarm is used for more than 10 seconds a day and/or the illuminating light for more than 4 seconds a day, the battery life may be less than the specified period.

■ CARE OF YOUR LORUS WATCH

- BATTERY

Do not expose the old battery to fire or recharge it. Keep it at a place beyond the reach of children. If a child swallows it, consult a doctor immediately.

• WATER RESISTANT

Indication on the dial/ case back\Condition of use	Accidental contact with water, such as splashes and rain	Swimming and taking a shower	Skin diving	Scuba diving
No indication	NO NO	NO NO
WATER RESISTANT	YES NO	NO NO
WATER RESISTANT (50 M/5 BAR)*	YES YES	NO NO
WATER RESISTANT ( 100M/ \ 10BAR or \ ) above	YES YES	YES NO

* If your watch is 200 M/20 BAR, 100 M/10 BAR or 50 M/5 BAR water resistant, it is so indicated on the dial/case back.
- Do not operate the buttons when the watch is wet.
- If the watch is exposed to salt water, rinse it in fresh water and then wipe it thoroughly dry.

Caution:

Leather straps are not water resistant except so indicated, even if the watch head is water resistant.

- ALLERGIC REACTION Because the case and band touch the skin directly, it is important to clean them regularly. If not, shirt sleeves may be stained and those with delicate skin may develop a rash. Please wear the watch with some play to avoid any possible allergic reaction. If you develop a rash on your wrist, stop wearing and consult a physician.

• MAGNETISM

Your watch will not be affected by magnetism generated by household electric appliances.

• SHOCKS AND VIBRATIONS

Your watch may be worn for normal sports activities, but be careful not to drop it or hit it on hard surfaces.

• TEMPERATURE

Your watch is preadjusted so that constant accuracy may be insured at normal temperature.

■ SERVICE

When your LORUS watch requires repair or servicing, please see the enclosed WARRANTY/GUARANTEE.

Printed in China
