USER MANUAL ECS135 LA SOMMELIERE

Dual zone temperature wine cellar

ES

Please read carefully the seconds corresponding to the specific model you choose, and keep the manual properly so as to facilitate your reference at later me.

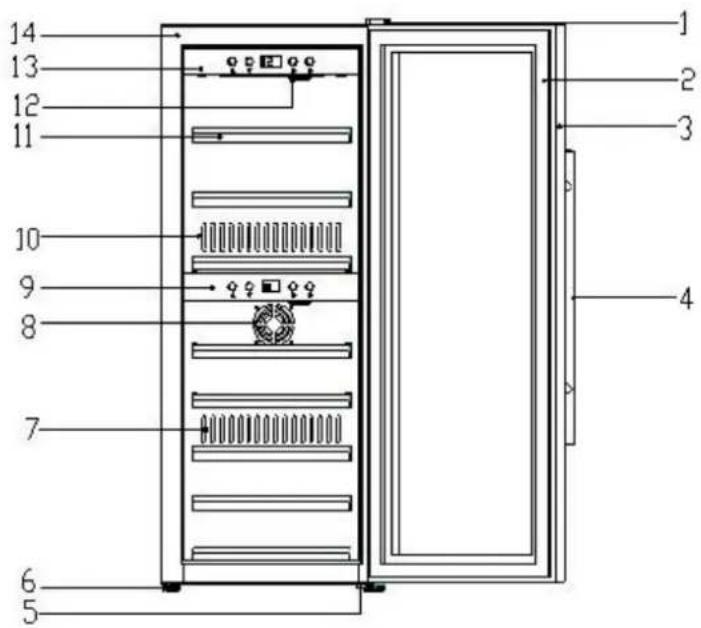

1. Structure

14 13 12 11 10 9 8 7 6 5 1 2 3 4

(1) Up Hinge Cover

(2) Door Sealing

(3) Door Frame

(4) Door Handle

(5) Down Hinge

(6) Foot

(7) Hot Air Outlet

(8) Air inlet

(9) Control Panel (Down)

(10) Cold Air Outlet

(11) Shelf

(12) Sensor Cap

(13) Control Panel (Up)

(14) Casing

The top compartment must always be set at a lower temperature than the boom compartment. The temperature difference between the top and boom cannot exceed 10^ C

2. Install Your Cabinet

(1) When moving your wine cabinet, do not incline it more than 45 and always toward side where the power lead is located.
(2) In order to reduce the working me and save power, install your cabinet where the room temperature is between 16^ C\~ 38^ C, and leave a sucient space to allow air to ow around the cabinet, so the heat produced by the condenser can be eliminated in me. Leave a space of at least 8cm between the wall and the back of your wine cabinet. Please keep your wine cabinet away from other domesc appliances like fridge, electric welding machine to avoid interference.
(3) Away from heat source.
(4) Place at proper humidity locaon. Not too wet (wash room, utility room, etc.). Never place your wine cabinet in a locaon liable to ooding.
(5) Install it on a at solid oor. Gently incline the wine cabinet backwards in order to adjust the front feet (screw adjustment) so that your wine cabinet stands at perfect straight level.

Aenon

(1) Aer unpacking your cabinet, take the discarded packaging, the majority of which is recyclable, to a waste collecon point.
(2) Do not wipe the back of wine cabinet with wet fabric.
(3) Do not place electric appliance or food on top of the cabinet.
(4) Not for outdoor use.
(5) Clean the dust on the rear condenser at least twice a year.
(6) The compressor starts working 3 minutes aer switching on the power. If the compressor does not start immediately, it does not mean faulty.
(7) Switch o the power and take out the power lead before moving the wine cabinet. Take out all boles before moving.
(8) Do not keep the door open longer than necessary.
(9) Do not allow children to climb, sit on, stand on or hang to the shelves of the wine cabinet. They could damage the wine cabinet and cause themselves serious injury.
(10) Take care to keep keys out of reach of children in order to avoid them locking themselves in the cabinet.
(11) Do not try to repair any damaged wire or electric components. Contact your distributor or service agent.

Warning:

Refrigerant and foaming material is ammable. Please take care during Maintenance, Installaon, Handling and processing. Please contact a specialized department for wasted products, and do not discard freely.

3. Temperature Seng

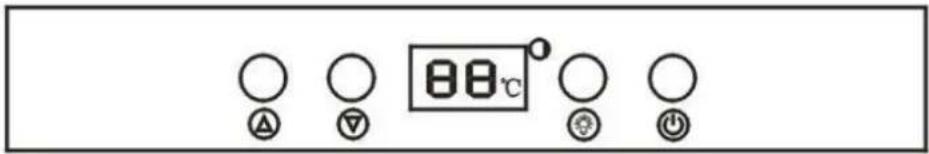

88℃ A V

Temperature seng range of cabinet is 3°C\~22°C (37°F-72°F)

You can reset the temperature according to your actual demands. The wine cabinet motor will run on until the desired temperature is achieved.

Switch C° to F°: Push the temperature key up and down for 5 seconds.

The temperature of the top compartment must be set lower than the one of the boom compartment, or must be set at the same temperature than the boom compartment, never at higher temperature.

Upper Control Panel

ON/OFF of the upper zone system

ON/OFF of inside Cabinet LED light

Temperature Up seng

Temperature down Seng

Lower Control Panel

ON/OFF of the Lower zone system

ON/OFF of inside Cabinet LED light

Temperature Up seng

Temperature down Seng

4. Loading and Storage of Wine Bole:

Bole Loading Method:

Two technical line drawings of cylindrical components arranged on trays (no text or symbols)

Wooden shelf capacity (depends on your model): 5, 9 or 11 boles / shelf Please maintain a minimum 20mm between bole and back plate

To ensure bole and shelf safety, please check the following ps:

A、Spread your boles out as evenly as possible over the shelves, so weight is not concentrated in one point; and make sure your boles will not touch the back of the cabinet
B、Make sure boles are not all grouped together at the top or boom of the cabinet.
C、Follow the loading instrucons provided in secon 6.1, according to the type of storage xtures with which your cabinet is equipped, and never stack boles on a sliding shelf.

Humidity percentage inside cabinet: 50%-80%

5. Installing the Handle

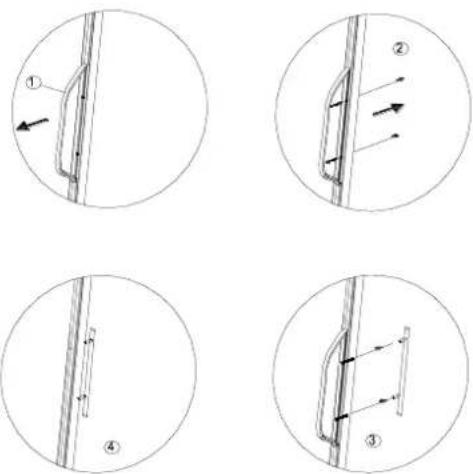

Technical diagram showing four steps of a mechanical or structural assembly with labeled components and directional arrows indicating motion.

Install the handle according to the following four steps:

1. Pull the door gasket out of the door in the handle screw holes area
2. Take the screws from the Manual Bag & Put them in the dedicated holes
3. Screw the door handle with a screwdriver
4. Ret the door gasket to its relevant posion

6. Wood shelf changing

If a wood shelf needs to be replaced, please check what kind of slider is used, between the two following sliders:

Close-up of a wooden shelf with metal fixtures and a small circular object, no visible text or symbols

(A)

Interior view of a ceiling-mounted room with warm lighting and a textured wall (no visible text or symbols)

(B)

If slider is (A), then simply remove the shelf and replace it with another new shelf. Make sure that the wood holes are matching the slider hooks.

If slider is (B), then you need to operate the following way:

1. Unscrew the wood shelf from the slider
2. Take out the old wood shelf and replace it with a new one
3. Screw the wood shelf again to the slider

7. Maintenance

In order to ensure a performing & long-lasng item, please follow the simple maintenance and cleaning operaons as below:

• Make sure the power cord is unplugged before cleaning the back of your cabinet, or before moving it.
• Clean the inside of your cabinet thoroughly once a year, aer unplugging and unloading (uses water and a mild cleaning item, then rinse carefully).
• To ensure that your wine cabinet provides long-lasng reliable performance, you should check it regularly and inform your dealer if anything unusual is found.

8. Winter posion: How does it work?

Winter funcon only works in the lower compartment

1. When the seng temperature is lower than the internal temperature of the cabinet, the machine will start to cool. The cold circuit operang indicator light will be on (green color).
2. When the seng temperature is higher than the internal temperature of the cabinet, the machine will stop cooling; the heang wire will start working to maintain the cabinet temperature.

9. Basic issues analyses

Problem	Problem analyses	Resolve method
Compressor not working	Power not connected	Check the power
	Power lead or wire damaged	Contact distributor or service agent
	Fuse broken	Change fuse
	Internal circuit fault	Contact distributor or service agent
	Power supply o	Check if power cut
	In heang process	Normal phenomena. When the temperature inside the cabinet is lower than the sengs, the cabinet will heat automacally
Compressor noisy or frequently on & o	Power supply not stable	Switch o the power, restart 3 minutes later
	Cabinet not on at oor	Adjust front feet to get the device straight
Not cold enough	Temperature set too high	Check temperature, reset it
	Door open too long or too oen	Only open when necessary
	Door gasket damaged	Contact your distributor or service agent
LED don’t light on	Electric circuit problem	Contact your distributor or service agent
	LED damaged	Contact your distributor or service agent
Door cannot close properly	Cabinet not straight	Adjust front feet to get the device straight
	Incorrect door moung aer changing the door side	Mount the door correctly
	Shelf out of the case	Put the shelf back to the right posion

If you sill face issues aer checking the above, please contact your service center or dealer.

Note: normal operaon for following phenomenon:

A) Compressor

Compressor will not start if room temperature is lower than desired temperature, but the item is sill working with the heater inside to achieve the desired temperature.

Compressor will stop working when the cooling system in the cabinet reaches preseng temperature, and re-start working until the desired temperature is achieved. Please allow a minimum of 5 minutes interval before re-starng.

B) Dew

Some frost can appear on the surface of the wine cabinet especially on the glass door if the item in placed in a damp room. This is due to the moisture in the air coming into contact with the cabinet. Please wipe it away with dry fabric.

C) Sound

You may hear the sound of the compressor when it starts or stops working, the owing sound of the refrigerant in the refrigeraon system or the evaporang sound of the refrigerant in the evaporator.

D) Condensaon

In a room with high level of humidity or if the door of wine cabinet has been le open for a long period or opened frequently, condensaon can appear; please wipe o the water from the door and walls and leave the door closed as long as possible.

E) Light

When the temperature inside the cabinet is out of range of setng temperature, both up and down

indicator light will be on. Once the temperature reaches the seng temperature, then the light will be o automacally.

La Sommelière Int.

Please contact your seller for any queson or response on the aer-sales service

CE
