USER MANUAL 6513DA SYLVANIA

13-INCH COLOR TV/DVD 6513DA

Line drawing of a vintage CRT television back panel with control buttons and ventilation grilles (no text or symbols)

(●)TruSurround™

If you need additional assistance for set-up or operating after reading owner's manual, please call TOLL FREE : 1-800-968-3429.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The caution marking is located on the rear of the cabinet.

IMPORTANT SAFEGUARDS

1. Read instructions- All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instructions should be retained for future reference.
3. Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions should be followed.
5. Cleaning-Unplug TV/DVD from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

1. Attachments-Do not use attachments not recommended by the TV/DVD manufacturer as they may cause hazards.
2. Water and Moisture-Do not use this TV/DVD near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
3. Accessories-Do not place this TV/DVD on an unstable cart, stand, tripod, bracket, or table. The TV/DVD may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or

table recommended by the manufacturer, or sold with the TV/DVD. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care.

PORTABLE CART WARNING AVERTISSEMENT POUR UNE TABLE ROULANTE PORTATIVE

Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Symbolic illustration of a person pushing a cart with a large object, enclosed in a circle (no text or symbols)

1. Ventilation-Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV/DVD and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV/DVD on a bed, sofa, rug, or other similar surface. This TV/DVD should never be placed near or over a radiator or heat register. This TV/DVD should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
2. Power Sources-This TV/DVD should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TV/DVDs intended to operate from battery power, or other sources, refer to the operating instructions.
3. Grounding or Polarization-This TV/DVD is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

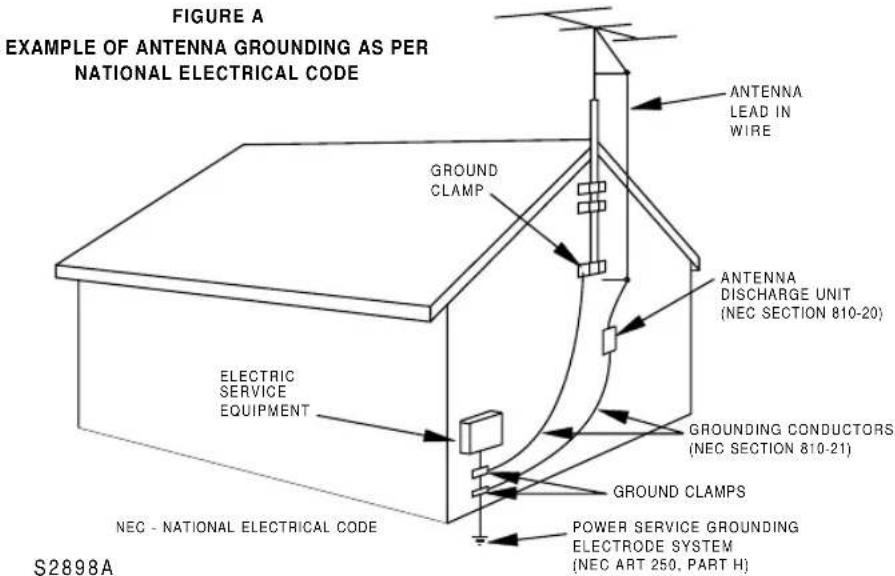

FIGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE GROUND CLAMP ELECTRIC SERVICE EQUIPMENT NEC - NATIONAL ELECTRICAL CODE ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) $2898A

1. Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

2. Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/DVD, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

3. Lightning-For added protection for this TV/DVD receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV/DVD due to lightning and power-line surges.

4. Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

5. Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind into this TV/DVD through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV/DVD.

1. Servicing-Do not attempt to service this TV/DVD yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service-Unplug this TV/DVD from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged or frayed.

b. If liquid has been spilled, or objects have fallen into the TV/DVD.

c. If the TV/DVD has been exposed to rain or water.

d. If the TV/DVD does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV/DVD to its normal operation.

e. If the TV/DVD has been dropped or damaged in any way.

f. When the TV/DVD exhibits a distinct change in performance-this indicates a need for service.

1. Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

2. Safety Check-Upon completion of any service or repairs to this TV/DVD, ask the service technician to perform routine safety checks to determine that the TV/DVD is in proper operating condition.

3. Heat-This TV/DVD product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

This Class B digital apparatus complies with Canadian ICES-003.

For safe operation and satisfactory performance of your TV/DVD, keep the following in mind when selecting a place for its installation:

• Shield it from direct sunlight and keep it away from sources of intense heat.
• Avoid dusty or humid places.
• Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.
  • Install unit in a horizontal position.
• Avoid locations subject to strong vibration.
• Do not place the TV/DVD near strong magnetic fields.
• Avoid moving TV/DVD to locations where temperature differences are extreme.

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug.
• If, by accident, water is spilled on your unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.
• Do not put your fingers or objects into the TV/DVD disc loading tray.
• Do not place anything directly on top of the unit.

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If a DVD is played in a TV/DVD which has moisture, it may damage the DVD and TV/DVD. Therefore when the condensation occurs inside the unit, turn the POWER button on and allow at least 2 hours for the unit to dry out.

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

The serial number of this product may be found on the back of the unit. No other TV/DVD has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.

■IMPORTANT SAFEGUARDS ....2

■PRECAUTIONS ....4

LOCATION 5

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE ....5

WARNING 5

■FEATURES....7

■SUPPLIED ACCESSORIES ....7

■OPERATING CONTROLS AND FUNCTIONS 8

■PREPARATION FOR USE....10

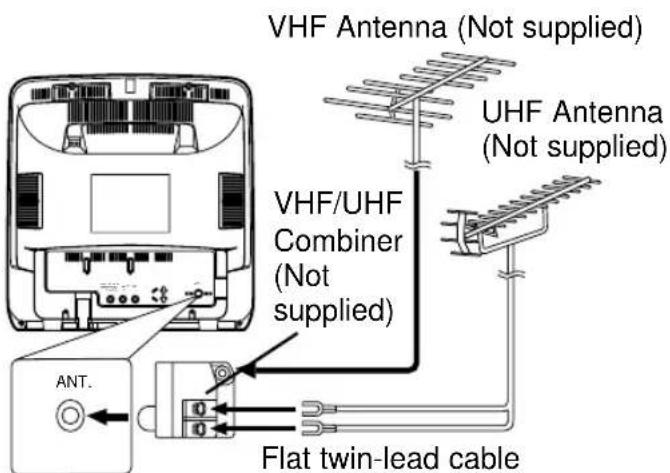

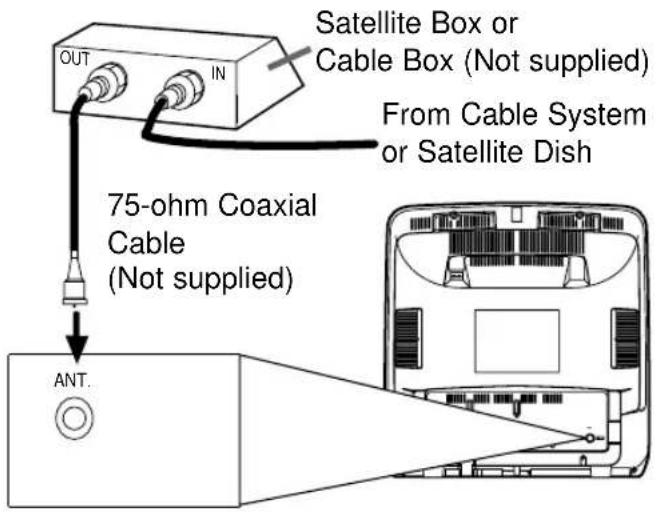

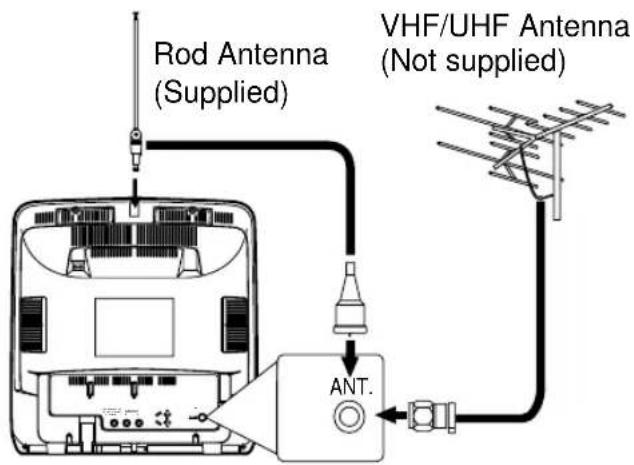

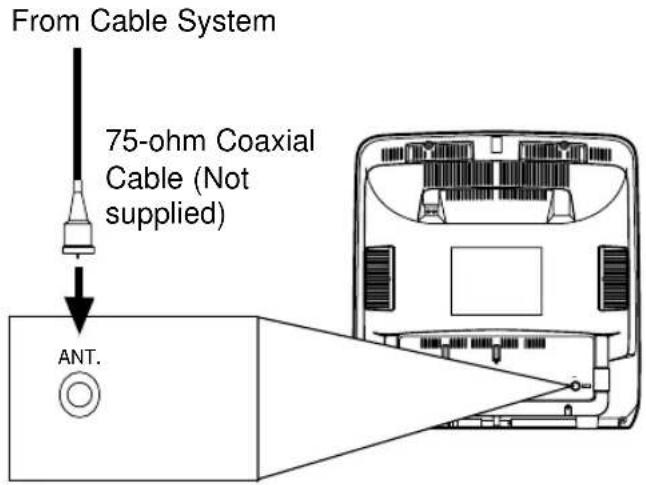

ANTENNA/CABLE CONNECTIONS .....10

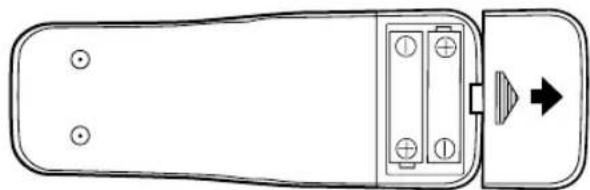

INSTALLING THE BATTERIES .....12

CONNECTING TO EXTERNAL INPUT JACKS .12

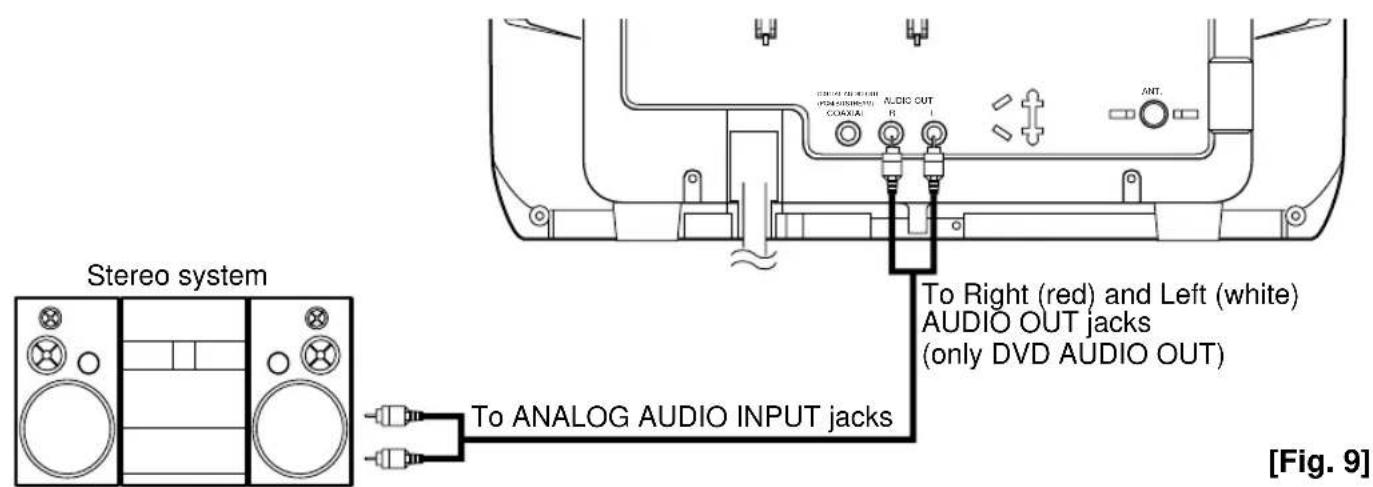

CONNECTING TO A STEREO SYSTEM (for DVD) .13

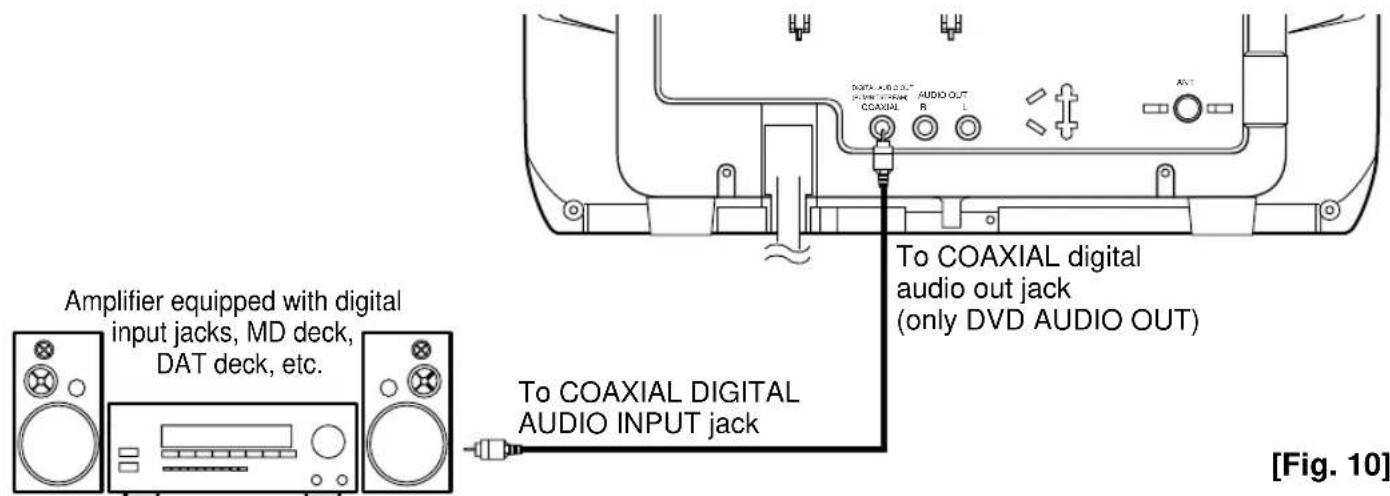

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS, MD DECK OR DAT DECK (for DVD) .....13

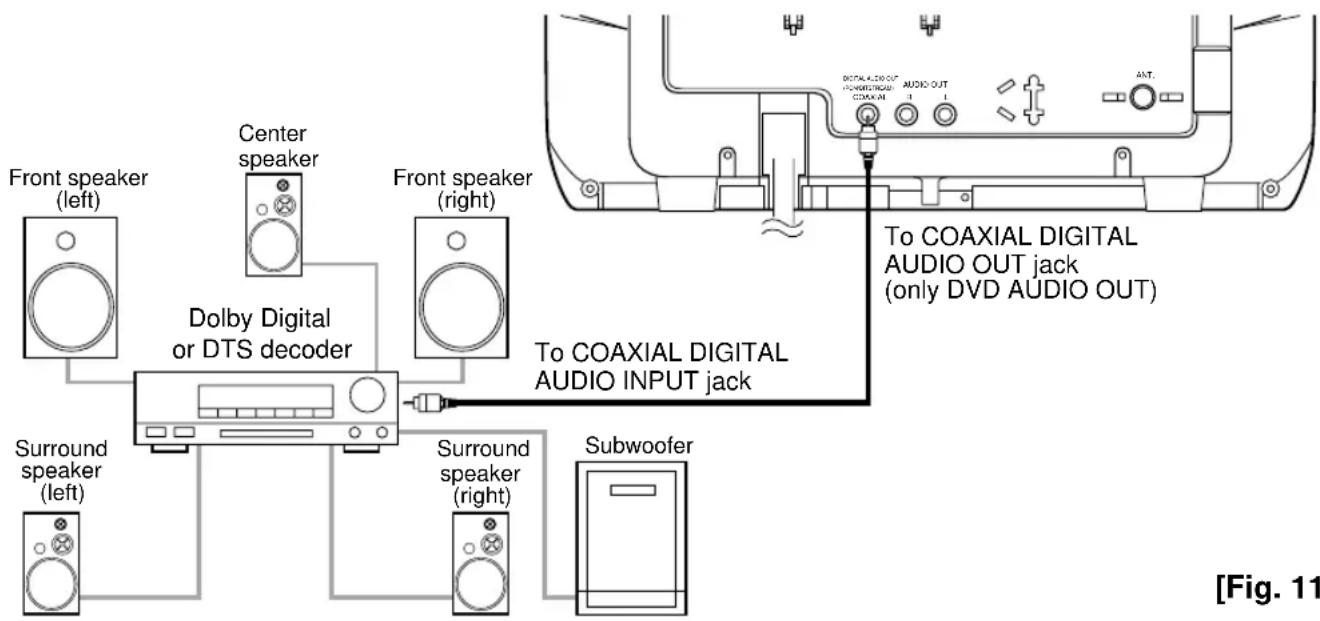

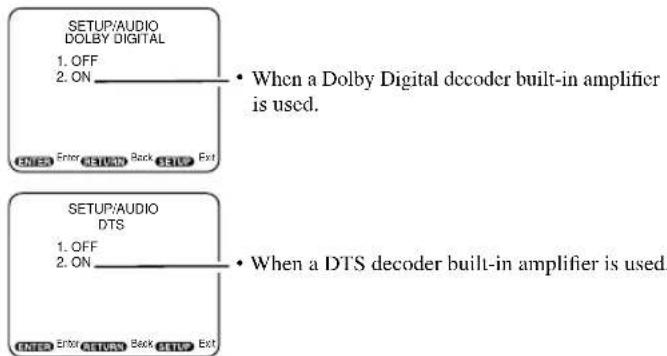

CONNECTING TO A DOLBY DIGITAL DECODER OR DTS DECODER (for DVD) ..14

TV SECTION

■SET UP FOR USE .....15

LANGUAGE SELECTION .....15

CHANNEL PRESETTING .....15

■OPERATIONS....16

WATCHING A TV PROGRAM .....16

SELECTING THE SLEEP TIMER .....16

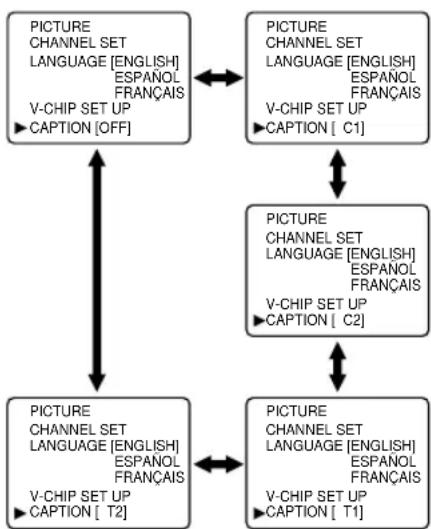

CLOSED CAPTION .....16

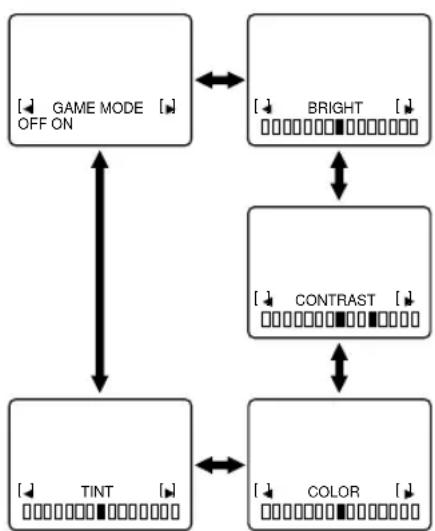

PICTURE ADJUSTMENT .....17

V-CHIP SET UP....18

DVD SECTION

■ABOUT THE DISCS....20

PLAYABLE DISCS .....20

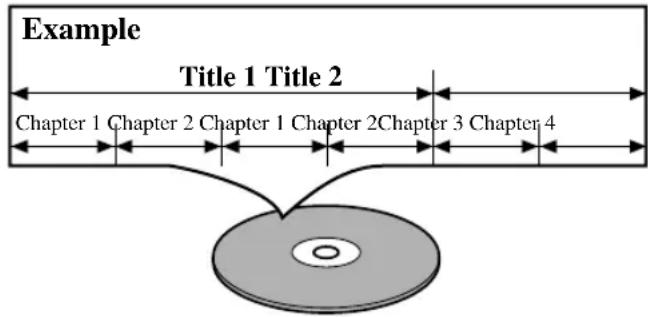

DISC TYPES .....20

SYMBOLS USED IN THIS MANUAL .....20

■PLAYING A DISC .....21

PLAYING A DVD VIDEO OR AN AUDIO CD .21

USING THE DVD MENUS .....21

USING THE TITLE MENU .....22

PAUSING PLAYBACK OR DISPLAYING A STILL PICTURE .....22

RESUMING PLAYBACK FROM THE POINT WHERE PLAYBACK STOPPED ....22

STEPPING THROUGH FRAMES .....22

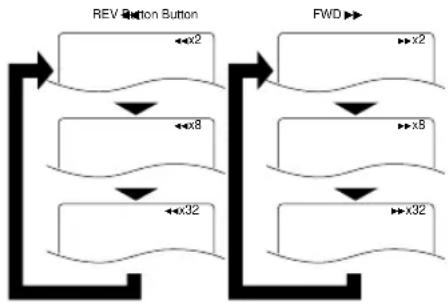

FAST FORWARD/REVERSE .....23

SLOW MOTION .....23

STARTING FROM A DESIRED TRACK ....23

STARTING FROM A DESIRED TIME COUNT .23

PLAYING FROM A DESIRED TITLE OR CHAPTER 24

RANDOM (Audio CD) .....24

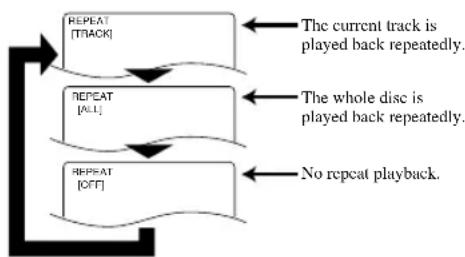

REPEAT 24

A-B REPEAT ....25

PROGRAM (Audio CD) .....25

■ SETTINGS 26

CHANGING THE AUDIO LANGUAGE OR SOUND MODE....26

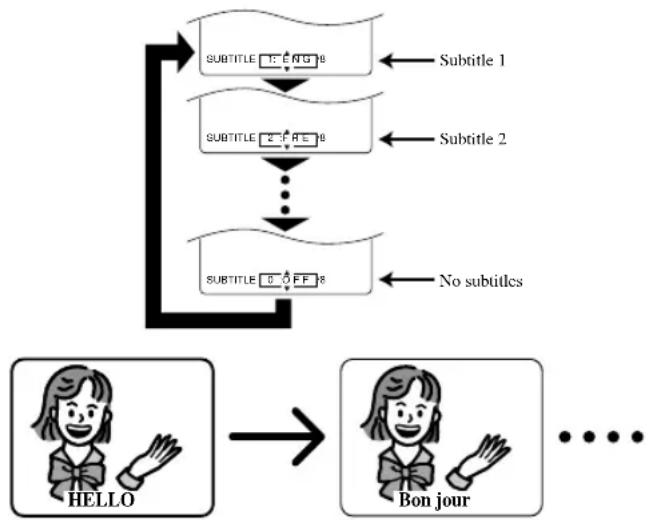

CHANGING THE SUBTITLE LANGUAGE . .27

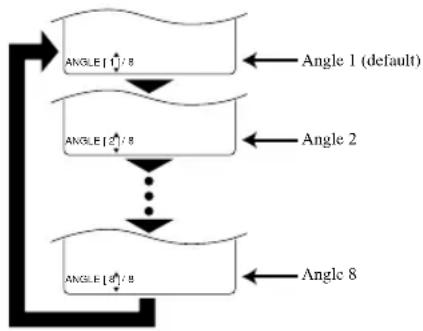

CHANGING THE CAMERA ANGLE (Multi-Angle Pictures) .....27

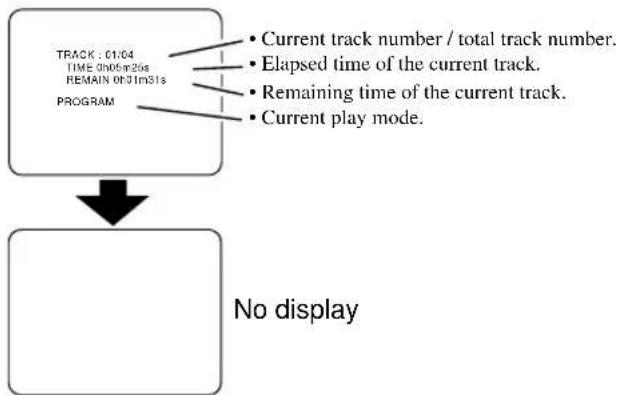

CHANGING THE ON-SCREEN DISPLAY . . .28

■CHANGING THE SETUP ITEMS .....29

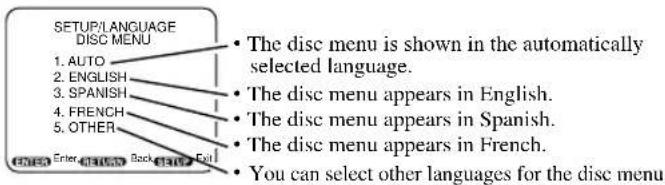

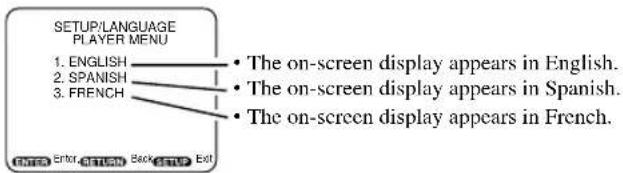

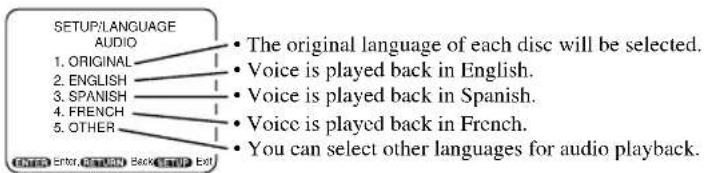

LANGUAGE SETTINGS .....29

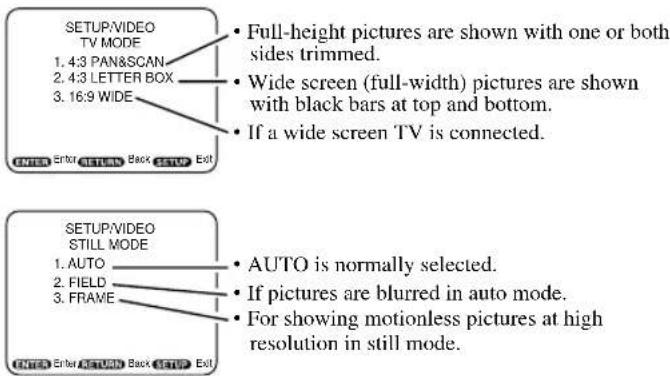

VIDEO SETTINGS ....30

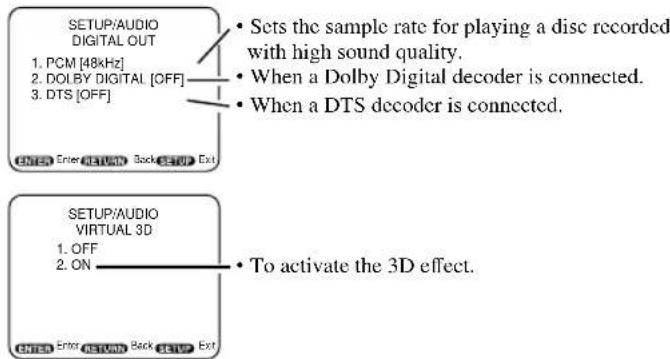

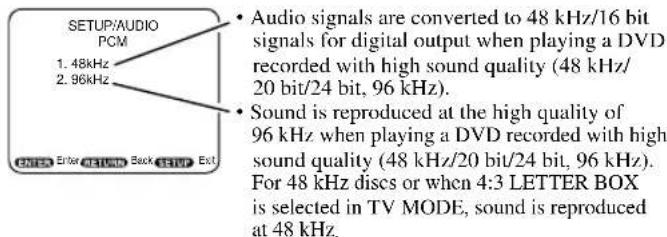

AUDIO SETTINGS ....30

PARENTAL LOCK ....31

OTHER SETTINGS ....32

■LANGUAGE CODE LIST....33

■TROUBLESHOOTING GUIDE ....34

■MAINTENANCE....37

DISC HANDLING ....37

■SPECIFICATIONS ....38

■ WARRANTY ....Back Cover

TV DVD

• Tinted, Bright Black Matrix Picture Tube
- 181 Channel Selection– All VHF/UHF channels plus up to 125 cable channels.
- PLL Frequency Synthesized Tuning– The latest PLL frequency synthesized electronic tuning system provides free and easy channel selection, and lets you tune directly to any channel using the channel number buttons (0\~9 and +100-key) on the remote control.
- On-Screen Function Display.
• Full-Function Remote Control
- Sleep Timer
- Closed Caption Decoder– You may view specially labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.
- Auto Shut Off Function—If there is no air signal input from the antenna terminal and no operation for 15 minutes, the TV will turn itself off automatically.
- V-CHIP– Enables parents to prevent their children from watching inappropriate material on TV.

• Dolby Digital sound— This player can handle Dolby Digital surround sound having 5.1 channels when connected to a Dolby Digital decoder.
• Still/fast/slow/step playback– Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.
• Random playback for audio CD— This player can shuffle the order of tracks to play them in random order.
• Program playback for audio CD– You can program the order of tracks to play them in any desired order.
• DVD menus in a desired language— You can display DVD menus in a desired language, if available on a DVD.
• Screen saver and auto power-off functions—Screen saver is automatically activated when there is no input from the player or the remote control for one minute in stop mode. The power is automatically turned off when there is no input for 31 minutes in still or stop mode.

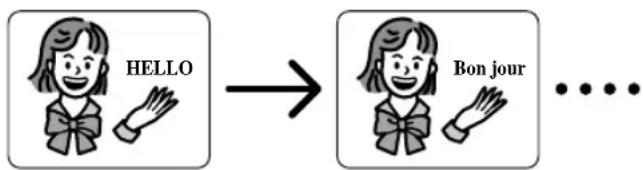

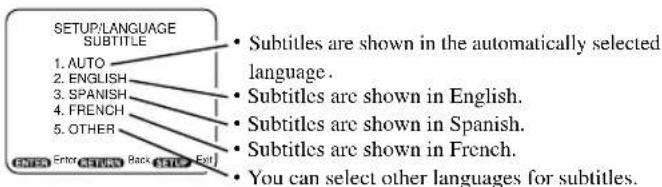

• Subtitles in a desired language— You can select a desired language for the display subtitles, if that language is available on a disc.
• Selecting a camera angle— You can select the desired camera angle, if a disc contains sequences recorded from different angles.
• Choices for audio language and sound mode— You can select the desired audio language and sound mode, if different languages and modes are available on a disc.
• Parental lock— You can set the control level to limit playback of discs which may not be suitable for children.
• Automatic detection of discs— This player automatically detects if a loaded disc is DVD or audio CD.

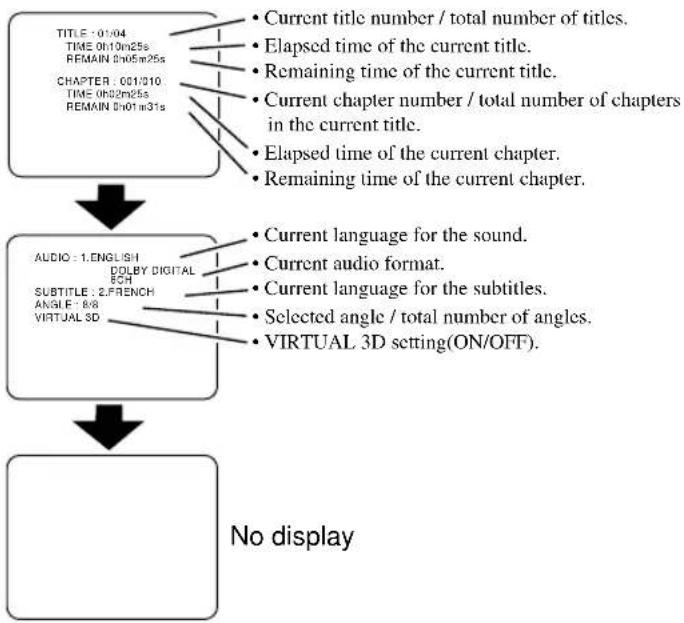

• On-screen display—Information about the current operation can be displayed on a TV screen, allowing you to confirm the currently active functions (such as program playback), on the TV screen using the remote control.

SUPPLIED ACCESSORIES

Remote Control Unit 2 AA Batteries Rod Antenna

PART NO. (N0285UD) PART NO. (0EMN00673)

• If you need to replace these accessories, please refer to the PART NO. under the illustrations and call 1-800-968-3429.

• Depending on your antenna system, you may need different types of Combiners (Mixer) or Separators (Splitter). Contact your local electronics store for these items.

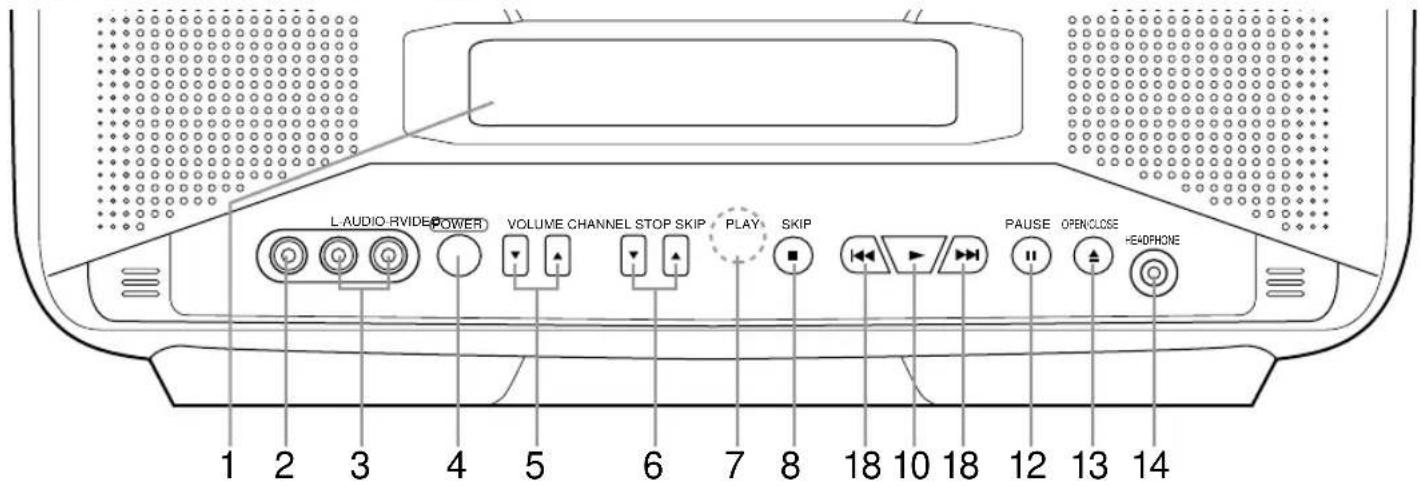

• TV/DVD FRONT PANEL - [Fig. 1]


L AUDIO-RVIDE POWER VOLUME CHANNEL STOP SKIP PLAY SKIP 1 2 3 4 5 6 7 8 18 10 18 12 13 14 PAUSE OPENCLOSE HEADPHONE

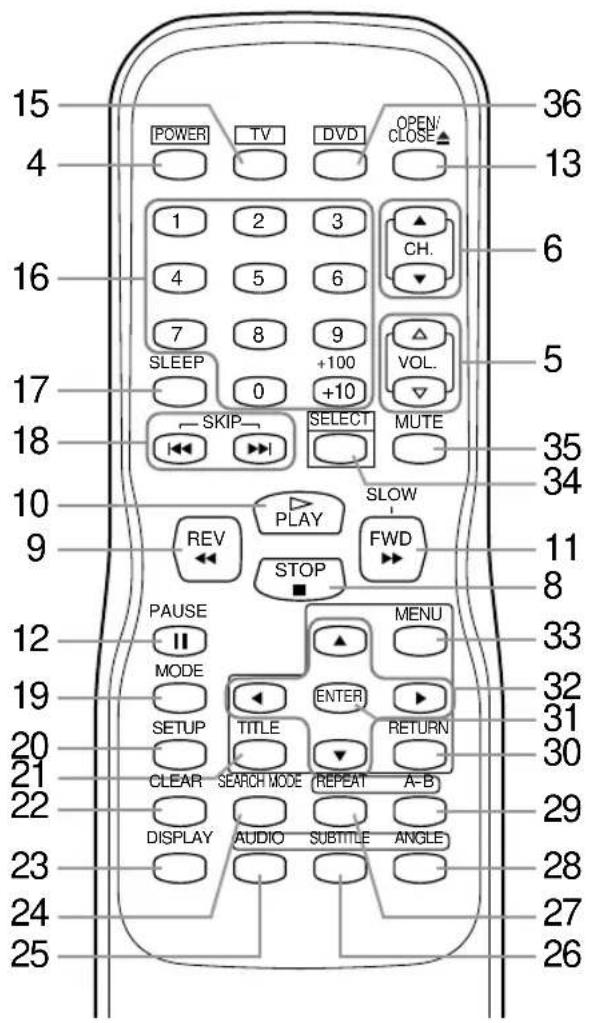

• REMOTE CONTROL - [Fig. 2]

15 4 1 16 17 18 10 9 12 19 20 21 22 23 24 25 POWER TV DVD OPEN/ CLOSE ▲ 1 2 3 ▲ 4 5 6 ▼ 7 8 9 △ SLEEP +100 VOL. 0 +10 MUTE SKIP SELECT REV PLAY SLOW STOP FWD PAUSE MENU MODE ENTER SETUP TITLE RETURN CLEAR SEARCH MODE (REPEAT A-B) DISPLAY AUDIO SUBTITLE ANGLE 36 13 6 5 35 34 11 8 33 32 31 30 29 28 27 26

• To use as TV remote control, press the TV button on the remote control after TV mode is selected. TV operation buttons have been indicated by blue or white.

• To use as DVD remote control, press the DVD button on the remote control after DVD mode is selected. DVD operation buttons have been indicated by yellow or white.

• Disc loading tray

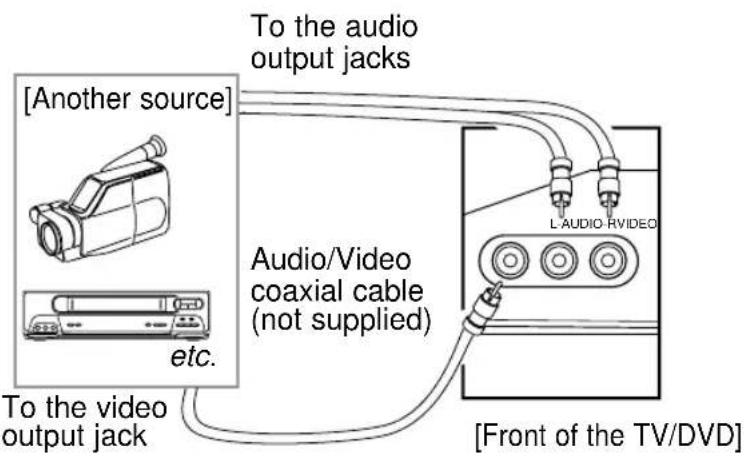

• VIDEO input jack- Connect to the video output jack of a video camera or VCR.

• AUDIO L/R input jacks—Connect to the audio output jacks of a video camera or VCR.

• POWER button- Press to turn the power on and off.

• VOLUME ▲/▼ buttons—Press to control the volume level for the DVD and TV.

• CHANNEL ▲/▼ buttons—Press to select memorized channel.

7.Remote Sensor Window

1. STOP button- Stops operation of the disc.

2. REV button- Fast reverses playback to a desired point.

3. PLAY button- Starts playback of the disc contents.

4. FWD button—Fast forwards playback to a desired point.

5. PAUSE button— Pauses the current disc operation.

6. OPEN/CLOSE button—Press to insert discs into or remove them from the tray.

7. HEADPHONE jack- To connect headphone (not supplied) for personal listening.

8. TV button- Press to do TV operations.

16.NUMBER button-

TV Mode:

Press two digits to directly access the desired channel.

Remember to press a "0" before a single digit channel.

+100 button-

Press to select cable channels which are equal or greater than number 100.

DVD Mode:

Press to enter the desired number.

+10 button-

Press to enter the desired numbers which are equal or greater than number 10.

1. SLEEP button—Press the SLEEP button to display the sleep timer and start the function. The shut off time can be determined by the number of times you press the button. (0, 10, 20, 30,..90, 0 minutes)
2. SKIP buttons—Skip chapters or tracks to a desired point.
3. MODE button- Activates program playback or random playback mode.
4. SETUP button—Press to enter the setup mode or to change setup items.
5. TITLE button- Displays the title menu.
6. CLEAR button- Resets a setting.
   23.DISPLAY button-

TV Mode:

Press to display the channel number on the screen. If you press it again, the channel number will disappear.

DVD Mode:

Displays the current status on the TV screen for checking purposes.

1. SEARCH MODE button- Press to locate a desired point.

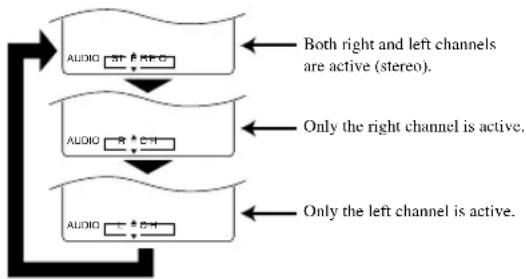

2. AUDIO button—Press to select a desired audio language or sound mode.
3. SUBTITLE button- Press to select a desired subtitle language.
4. REPEAT button- Repeats playback of the current disc, title, chapter or track.
5. ANGLE button—Press to change the camera angle to see the sequence being played back from a different angle.

6. A-B REPEAT button- Repeats playback of a selected section.

7. RETURN button—Returns to the previous operation.

8. ENTER button- Press to accept a setting.
9. Arrow buttons—

TV Mode:

Press to select a setting mode from the menu on the TV screen.

Press to select or adjust from a particular menu.

DVD Mode:

Use when making settings while watching the display on a TV screen.

1. MENU button- Displays the DVD and TV menus.
2. SELECT button- Press to change of TV mode, external input mode or DVD mode.
3. MUTE button—Press the MUTE button to turn off the sound portion of the TV program. (Volume level display turns LIGHT RED from LIGHT BLUE.) Press the MUTE button again or press the VOL(ume) ▲ or ▼ button to restore sound.
4. DVD button- Press to do DVD operations.
5. Power cord- Connect to a standard AC outlet (120V/60Hz).

NOTE: Remove the power cord from the hook to avoid breaking a wire before you connect to a standard AC outlet.

1. COAXIAL digital audio out jack—Connect to the other amplifier or decoder.

2. AUDIO L/R output jack- Connect to the other amplifier or decoder.

3. ANT. in jack- Connect to an antenna, cable system, or satellite system.

ANTENNA/CABLE CONNECTIONS

VHF/UHF COMBINED ANTENNA

The VHF/UHF Rod Antenna (supplied) is detachable. Insert the stem of the antenna into the hole on the upper-back portion of the TV/DVD. Connect the VHF/UHF Rod Antenna or VHF/UHF Combination Antenna to the ANT. terminal of the TV/DVD as shown in the diagram below. For the best reception, fully extend the VHF/UHF Rod Antenna and make the necessary adjustments. (Avoid touching the top section when adjusting.)

NOTE:

Before plugging the Rod antenna into antenna terminal, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into antenna terminal.

(Needs to be straightened)

(Straight pin)

Rod Antenna (Supplied) VHF/UHF Antenna (Not supplied) ANT.

[Fig. 4]

NOTE:

The connection of an indoor antenna may not always give acceptable TV reception.

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor antenna.

VHF Antenna (Not supplied) UHF Antenna (Not supplied) VHF/UHF Combiner (Not supplied) ANT. Flat twin-lead cable

[Fig. 5]

CABLE WITHOUT CONVERTER/DESCRAMBLER BOX

Use this connection if your cable system connects directly to your TV/DVD without a converter box.

From Cable System 75-ohm Coaxial Cable (Not supplied) ANT.

[Fig. 6]

CABLE WITH CONVERTER/ DESCRAMBLER BOX OR SATELLITE BOX

If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic connection shown here.

Satellite Box or Cable Box (Not supplied) From Cable System or Satellite Dish OUT IN 75-ohm Coaxial Cable (Not supplied) ANT.

[Fig. 7]

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

INSTALLING THE BATTERIES

1) Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.
2) Insert 2 "AA" penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.

3)Replace the cover.

Top-down schematic of a remote control device with buttons and an arrow indicating direction (no text or symbols)

CONNECTING TO EXTERNAL INPUT JACKS

When you watch a program recorded on an another source (VCR or video camera), use the audio/video input jacks on the front of the TV/DVD.

Connect the audio/video output jacks of another source to the AUDIO L/R and VIDEO jacks of this TV/DVD. Then press the SELECT button until "VIDEO" appears on the screen.

NOTE:

- When you connect a monaural VCR (another source) to this TV/DVD, connect the Audio output jack of the monaural VCR (another source) to the AUDIO L jack of this TV/DVD. The audio will output in both L and R channel equally.

[Another source] To the video output jack To the audio output jacks Audio/Video coaxial cable (not supplied) L AUDIO-RVIDEO [Front of the TV/DVD] etc.

[Fig. 8]

CONNECTING TO A STEREO SYSTEM (for DVD)

Stereo system To Analog AUDIO INPUT jacks To Right (red) and Left (white) AUDIO OUT jacks (only DVD AUDIO OUT) [Fig. 9]

NOTES:

• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the Owner's Manuals for your, stereo system and any other components to be connected to the TV/DVD.

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS, MD DECK OR DAT DECK (for DVD)

Use audio coaxial digital cables (commercially available) for the audio connections.

Amplifier equipped with digital input jacks, MD deck, DAT deck, etc. To COAXIAL DIGITAL AUDIO INPUT jack To COAXIAL digital audio out jack (only DVD AUDIO OUT) [Fig. 10]

NOTES:

• The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital sound by an MD or DAT deck.
• Be sure to turn off the power to all components in the system before connecting another component.
  • Refer to the Owner's Manuals for the components to be connected to the TV/DVD.
• Set DOLBY DIGITAL and DTS to OFF for audio output in the setup mode. Playing a TV/DVD using incorrect settings may generate noise distortion, and may also damage the speakers.
• When DOLBY DIGITAL is set to OFF and VIRTUAL 3D to ON for audio output in the setup mode and you select the audio source in a 5.1 channel Dolby Digital surround format, the audio will be muted.

CONNECTING TO A DOLBY DIGITAL DECODER OR DTS DECODER (for DVD)

If using this TV/DVD to play back a TV/DVD in a 5.1 channel Dolby Digital surround or DTS surround format, the TV/DVD outputs a Dolby Digital or DTS data stream from its COAXIAL digital audio out jack. By hooking the player up to a Dolby Digital or DTS decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound of a professional standard such as can be heard in movie theaters.

Use audio coaxial digital cables (commercially available) for the audio connections.

Front speaker (left) Center speaker Dolby Digital or DTS decoder Front speaker (right) Surround speaker (left) Surround speaker (right) Subwoofer To COAXIAL DIGITAL AUDIO INPUT jack To COAXIAL DIGITAL AUDIO OUT jack (only DVD AUDIO OUT) DIGITAL AUDIOOUT POWER/TRAUL COAXIAN AUDIO OUT ANT. Fig. 11

[Fig. 11]

NOTES:

• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the Owner's Manuals for the components to be connected to the TV/DVD.
• If connected to a Dolby Digital decoder, set DOLBY DIGITAL to ON for audio output in the setup mode.
• If connected to a DTS decoder, set DTS to ON for audio output in the setup mode.
• Unless connected to a Dolby Digital decoder or a DTS decoder, set DOLBY DIGITAL and DTS to OFF for audio output in the setup mode. Playing a TV/DVD using incorrect settings may generate noise distortion, and may also damage the speakers.
• When DOLBY DIGITAL is set to OFF and VIRTUAL 3D to ON for audio output in the setup mode and you select the audio source in a 5.1 channel Dolby Digital surround format, the audio will be muted.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992-1997 Dolby Laboratories, Inc. All rights reserved.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

SET UP FOR USE

Getting started

1

Connect the power cord to a standard AC outlet.

NOTE: If some digits appear in the corner of the screen, press the POWER button without unplugging the power cord.

2

Press the POWER button to turn on the TV/DVD.

3

Press the SELECT button on the remote control until channel number or "TV" appears on the screen.

Then press the TV button.

LANGUAGE SELECTION

If you want to change the language of the on-screen menu, follow the procedure below.

1

Press the MENU button so that the menu display appears on the TV screen.

▶ PICTURE CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [OFF]

2

Press the Arrow ▲ or ▼ button to point to "LANGUAGE".

PICTURE CHANNEL SET ▶ LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [OFF]

3

Select "ENGLISH", "ESPAÑOL" = Spanish or "FRANÇAIS" = French by using the Arrow ▶ or ◀ button.

4

Press the MENU button to exit the menu.

NOTE: An on-screen display language must be selected each for the TV mode and DVD mode.

CHANNEL PRESETTING

To preset a channel or to change a preset channel, follow the procedure below.

1

Press the MENU button so that the menu display appears on the TV screen.

▶ PICTURE CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [OFF]

2

Press the Arrow ▲or ▼button to point to "CHANNEL SET". Then, press the Arrow ▶button.


▶CHANNEL SET

LANGUAGE [ENGLISH]

ESPAÑOL

FRANÇAIS

V-CHIP SET UP

CAPTION [OFF]

3

Press the Arrow ▲ or ▼ button to point to "AUTO MEMO". Then, press the Arrow ▶ button.

The tuner scans and memorizes all active channels in your area.

ADD/DELETE AUTO MEMO

• The TV distinguishes between standard TV channels and cable channels.
• When AUTO MEMO action is completed, the lowest memorized channel reappears on the screen.
• When you press the Arrow ▲ or ▼ button after selecting AUTO MEMO, the tuner will stop at the memorized channels only.
• The TV may recognize TV channels to be CATV channels by the receiving conditions. In this case, try AUTO MEMO action again in the fine receiving conditions.

[ADD/DELETE FUNCTION]

1) Press the MENU button so that the menu display appears on the TV screen.
2) Press the Arrow ▲ or ▼ button to point to "CHANNEL SET". Then, press the Arrow ▶ button.
3) Press the Arrow ▶ button so that "ADD/DELETE" is selected.

4) Use the Arrow ▲ or ▼ button to select the channel you wish to put into memory or to erase from memory.

PICTURE CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [OFF]

NOTE: The display will return to the screen in about 10 seconds. Perform "ADD/DELETE" function while this display appears on the screen.

• Press the Arrow ▶ or ◀button to light up the channel number in LIGHT BLUE if you wish to add the channel into memory.

- Press the Arrow ▶ or ◀ button

▶ ADD/DELETE AUTO MEMO

to light up the channel number in LIGHT RED if you wish to erase the channel from memory.

5) Press the MENU button to exit the menu.

WATCHING A TV PROGRAM

1

Select the desired channel with the CH(annel) ▲ or ▼ button.

2

Adjust the volume to the desired listening level using the VOL(ume) ▲ or ▼ button.

3

Adjust picture controls for a natural looking image. (See "PICTURE ADJUSTMENT".)

SELECTING THE SLEEP TIMER

The sleep timer function enables you to shut off the power without pressing the POWER button after a desired time period.

1

Press the SLEEP button on the remote control.

2

You may change the sleep time with pressing the SLEEP button on the remote control repeatedly. The timer is set up to 90 minutes, 10

SLEEP 10

minutes each time the SLEEP button is pushed. (The timer display counts up and sleep timer will be displayed on the screen when you press the SLEEP button on remote control.)

To cancel the sleep timer:

Press the SLEEP button repeatedly until "SLEEP 0" is displayed.

NOTES:

• When you disconnect the unit from the AC outlet, or if you have a power failure, the sleep time will be lost.
• When the TV mode is changed to the DVD mode, the sleep time will be lost.

CLOSED CAPTION

This TV can receive C1 and C2 of Caption and Text.

CAPTION MODE

1) Characters can be displayed on the TV screen when the received broadcast signal contains the Caption Signals.
2) Paint-on mode: Displays input characters on the screen immediately.
Pop-on mode: Once characters are stored in memory, it is displayed all at once.
Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)

NOTE: If the CAPTION C1 or C2 is selected but the caption signal is not included, characters will not be displayed.

TEXT MODE

1) Displays the text on the screen by scrolling (max. 7 lines)
2) If the received broadcast signal does not contain the caption or text signal, no change will occur.

NOTES:

1) When your TV receives a special effects playback signal (i.e., Search, Slow, Still) from a VCR's video output channel (CH3 or CH4), your TV may not display the correct caption or text.
2) Captions and texts may not match the TV voice exactly.
3) Interference may cause the closed caption system not to function properly.
4) The caption or text characters will not be displayed while the menu display or function's display is shown.
5) If you see this screen!!

If your TV displays a black box on the screen, this means that your TV is set to TEXT mode. To clear screen, select CAPTION C1, C2 or CAPTION [OFF].

CLOSED CAPTION SELECTION

You may view specially labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

1

Press the MENU button so that the menu display appears on the TV screen.

2

Press the Arrow ▲ or ▼ button to point to "CAPTION".

3

Press the Arrow ▶ or ◀ button to select the mode you wish.

4

When done, press the MENU button to exit the menu.

: Press the Arrow ▶ or ◀ button.

PICTURE ADJUSTMENT

1

Press the MENU button so that the menu display appears on the TV screen.

2

Press the Arrow ▶ button so that "PICTURE" mode is selected.

3

Select the feature you wish to adjust with the Arrow ▲ or ▼ button and adjust it with the Arrow ▶ or ◀ button.

GAME MODE

Set to the most suitable position for TV GAME.

[▶] : ON

BRIGHT

Adjust until the whitest parts of the picture are as bright as you prefer.

[▶] : increase brightness

◀: decrease brightness

CONTRAST

Adjust to increase or decrease contrast.

[▶] : increase contrast

◀: decrease contrast

COLOR

Adjust to be brilliant or pale color.

[▶] : be brilliant color

◀: be pale color

TINT

Adjust to obtain natural skin tones.

[▶]: greenish tone

◀: reddish tone

NOTES:

- In the above steps, the picture adjustment display will disappear from the TV screen after about 10 seconds unless you press any buttons, even though you may not be finished. Press the MENU and Arrow ▶ button so that "PICTURE" mode is selected. Then, press the Arrow ▲ or ▼ button repeatedly until the display returns to the screen. - If you adjust the other Picture control after you set the Game mode to [ON], the Game mode is set to [OFF] automatically. If you want to set the Game mode, reset it to [ON].

: Press the Arrow ▲ or ▼ button.

V-CHIP SET UP

V-CHIP enables parents to prevent their children from watching inappropriate material on TV.

V-CHIP reads the ratings for programming (except for news and sports programs, unedited movies on premium cable channels, and Emergency Broadcast System signals), then denies access to programming if the program's rating meets the limitations you select. In this case, "PROTECTED PROGRAM by ..." message appears on the TV screen.

To block ratings, follow the steps below.

• Programming may be rated by the Motion Picture Association of America (MPAA) or according to the Television Parental Guidelines. In order to block any inappropriate programming, set your limits in both places (MPAA RATING and TV RATING).
• You cannot access the menu when the "PROTECTED PROGRAM by ..." message appears. In this case, change to the unblocked channel, then press the MENU button.

[MPAA RATING SET UP]

1

Press the MENU button so that the menu display appears on the TV screen.

2

Press the Arrow ▲or ▼button to point to "V-CHIP SET UP". Then, press the Arrow ▶button.


CHANNEL SET

LANGUAGE [ENGLISH]

ESPAÑOL

FRANÇAIS

▶ V-CHIP SET UP

CAPTION [OFF]

3

Press the Arrow ▲or ▼button to point to "MPAA RATING". Then, press the Arrow ▶button.

TV RATING

MPAA RATING

4

Press the Arrow ▲or ▼button to point to your desired item. Then, press the Arrow ▶button to select [BLOCK] or [VIEW].

G [VIEW]

PG [VIEW]

PG-13 [VIEW]

▶ R [BLOCK]

NC-17 [BLOCK]

X [BLOCK]

• G: General Audience
• PG: Parental Guidance suggested.
• PG-13: Unsuitable for children under 13
• R: Restricted; under 17 requires accompanying parent or adult guardian
• NC-17: No one under 17 admitted
• X: Mature audience only

• When you select the rating category and turn it [BLOCK], the higher rating will turn [BLOCK] automatically. Also, the lower rating will turn [VIEW] automatically.
• When you turn "G" to [BLOCK] or [VIEW], the all ratings will turn to [BLOCK] or [VIEW] automatically.
• When you turn "X" to [VIEW], the all ratings will turn to [VIEW] automatically.

5

Press the MENU button to exit the menu.

[TV RATING SET UP]

1

Press the MENU button so that the menu display appears on the TV screen.

2

Press the Arrow ▲or ▼button to point to "V-CHIP SET UP". Then, press the Arrow ▶button.


CHANNEL SET

LANGUAGE [ENGLISH]

ESPAÑOL

FRANÇAIS

▶ V-CHIP SET UP

CAPTION [OFF]

3

Press the Arrow ▲ or ▼ button to point to "TV RATING". Then, press the Arrow ▶ button.

TV RATING

MPAA RATING

4

Press the Arrow ▲ or ▼ button to point to your desired item. Then, press the Arrow ▶ button to select [BLOCK] or [VIEW].

TV-Y [VIEW]

TV-Y7 ( ) [VIEW]

TV-G [VIEW]

TV-PG ( ) [VIEW]

TV-14 ( ) [VIEW]

TV-MA ( ) [VIEW]

• TV-Y: Appropriate for all children
• TV-Y7: Appropriate for children seven and older
• TV-G: General Audience
• TV-PG: Parental Guidance suggested.
• TV-14: Unsuitable for children under 14
• TV-MA: Mature audience only

- When you select the rating category and turn it [BLOCK], the higher rating will turn [BLOCK] automatically. Also, the lower rating will turn [VIEW] automatically.

- When you turn "TV-Y" to [BLOCK] or [VIEW], the all ratings will turn to [BLOCK] or [VIEW] automatically.

- When you turn "TV-MA" to [VIEW], the all ratings will turn to [VIEW] automatically.

When you select TV-Y7, TV-PG, TV-14, or TV-MA and you press the Arrow ▶ button, the sub-ratings will appear on the TV screen.

If you select the rating category (example: TV-PG) and turn it [BLOCK] or [VIEW], the sub-ratings (example: V for Violence) will turn [BLOCK] or [VIEW] automatically.

You can set the sub-ratings to [BLOCK] or [VIEW] individually when the rating category is set to [BLOCK]. To set the sub-ratings individually, follow

the steps below.

- When you select [TV-Y7]: Press the Arrow ▲ or ▼ button to select "FV" (Fantasy Violence). Then, press the Arrow

▶button to select [BLOCK] or [VIEW].

- When you select [TV-PG], [TV-14] or [TV-MA]:

Press the Arrow ▲ or ▼ button to select "D"(Suggestive Dialog), "L"(Coarse Language), "S"(Sexual Situation), or "V"(Violence). Then, press the

Arrow ▶ button to select [BLOCK] or [VIEW].

NOTE: When you select [TV-MA], "D" does not appear on the TV screen.

- The sub-ratings which set to [BLOCK] appears next to the rating category in the TV RATING menu.

5

Press the MENU button to exit the menu.

PLAYABLE DISCS

The following discs can be played back on this TV/DVD.

	Logo	ContentsDis	DIP Size	Maximum Playback Time
DVD Video		Sound and Pictures	12 cm	Approx. 4 h (single-sided) Approx. 8 h (double-sided)
			8 cm	Approx. 80 min (single-sided) Approx. 160 min (double-sided)
Audio CD		Sound	12 cm	74 min
			8 cm (singles)	20 min

This player conforms to the NTSC color system. You cannot play discs recorded in other color systems such as PAL or SECAM.

- Some discs include region codes as shown below.

- The number inside the symbol refers to a region of the world, and a disc encoded in a specific region format can only be played back on TV/DVD with the same region code.

The following discs cannot be played back on this TV/DVD.

• DVD with region codes other than 1 or ALL.
- DVD-ROM
- DVD-R/DVD-RAM

(Never play back, otherwise malfunction may result.)

• CD-ROM
  • VSD
  • CDV

(Only plays back the audio part.)

- CD-G

(Only plays back the sound.)

- CD-R

(Never play back, otherwise malfunction may result.)

• CD-I

(Never play back, otherwise malfunction may result.)

• Photo CD (Never play back, otherwise malfunction may result.)
• Video CD (Never play back, otherwise malfunction may result.)

Any other discs without compatibility indications

DISC TYPES

[DVD]

Data on a DVD is divided into sections called "titles", and then into subsections called "chapters", each of which is given a title or chapter number. Playback conditions are preset on some DVD video discs, and these playback conditions take priority over user operations on this player. If a function you selected do not run as desired, refer to the manual accompanying the disc.

Example Title 1 Title 2 Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3 Chapter 4

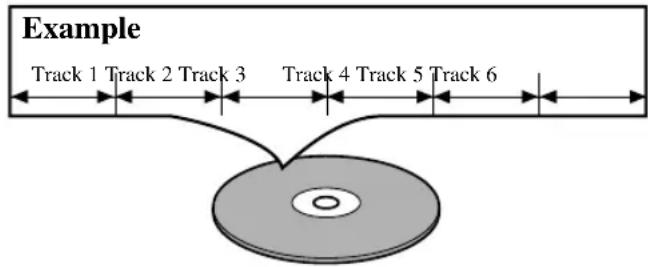

[AUDIO CD]

Data on an audio CD is divided into sections called "tracks", each of which is given a track number.

SYMBOLS USED IN THIS MANUAL

The following symbols appear below some headings and in some notes in this manual, with the following meanings.

DVD :

Description refers to playback of DVD video discs.

CD :

Description refers to playback of audio CDs.

Getting started

1

Turn on the power of amplifier and any other components which are connected to the TV/DVD. (Change the input system to suit the TV/DVD, and check that the sound volume is correct.)

2 Press the POWER button.

- The power will turn on.

3 Press the SELECT button on the remote control until "DVD" appears on the screen. Then press the DVD button.

PLAYING A DVD VIDEO OR AN AUDIO CD

DVD CD

1 Press the OPEN/CLOSE button.

- The disc loading tray will open.

2 Place a disc into the tray.

- Make sure the disc is sitting properly in the correct recess, with the label side up.

Line drawing of a hand operating a circular component mounted on a base plate (no text or symbols)

3 Press the PLAY button.

• The tray will close automatically, and playback will then start from the first chapter or track of the disc. You need to press the PLAY button only when the tray has been closed by pressing the OPEN/CLOSE button.
• When you play back the DVD which a title menu is recorded, the menu may appear on the screen. In this case, refer to "USING THE TITLE MENU".

4 Press the STOP button to stop play.

NOTES:

- A "prohibited icon" may appear at the bottom right on the TV screen during operation, warning that a prohibited operation has been encountered by the TV/DVD or the disc.

• If a disc is dirty or has scratches, the pictures may appear distorted and the playback operation may stop. In such cases, clean the disc and unplug the power cord and then plug it again before resuming playback.
• With DVDs that use some titles for playback program signals, playback may start from the second title, or it may skip these titles.
• The DVD functions are active only in the DVD mode.
• To run the DVD player, press the PLAY or OPEN/CLOSE button.

USING THE DVD MENUS

DVD

Some DVDs contain their own menus, such as a guidance menu which describes the contents of the disc or a selection menu for sound, language and other customized settings.

1 Press the MENU button.

- The DVD menu will appear.

2 Select the desired title.

- Press the Arrow buttons ( /// ) to change the setting, and then press the ENTER button.

3 Playback will start from the selected title.

USING THE TITLE MENU

DVD

With a DVD containing a title menu, you can select desired titles from the menu.

1 Press the TITLE button.

- The title menu will appear.

2 Select the desired title.

- Press the Arrow buttons ( /// ) to change the setting, and then press the ENTER button.

CALLING UP A MENU SCREEN DURING PLAYBACK

For DVDs

• Press the MENU button to call up the DVD menu.
• Press the TITLE button to call up the title menu.

NOTE:

- Contents of menus and corresponding menu operations may vary between discs. Refer to the manual accompanying the disc for details.

PAUSING PLAYBACK OR DISPLAYING A STILL PICTURE

DVD CD

1 Press the PAUSE button during playback.

- Playback will pause, with sound muted.

2 Press the PLAY button to resume playback.

RESUMING PLAYBACK FROM THE POINT WHERE PLAYBACK STOPPED

DVD

1 Press the STOP button during playback.

- Playback will stop, and "STOP" will appear at the top-right of the screen and then "MEMO ON" at the top-left.

2 Press the PLAY button. Playback will start from the point where the previous playback session was stopped.

NOTES:

• The resume function can be reset by pressing the STOP button twice or by opening the disc loading tray.
• The resume function is not available with audio CDs.

STEPPING THROUGH FRAMES

DVD

1 Press the PAUSE button while playback is paused.

- The next picture frame is displayed with sound muted each time the button is pressed.

2 Press the PLAY button to resume playback.

FAST FORWARD/REVERSE

DVD CD

1 Press the FWD ▶▶ or REV ◀◀ button during playback. (The sound for DVD is muted.)

• For DVDs, pressing the FWD ▶▶ or REV ◀◀ button cycles the playback speed in three steps.
• For audio CDs, the playback speed is fixed.

2 Press the PLAY button to return to normal playback speed.

SLOW MOTION

DVD

1 Press the FWD ▶▶button while playback is paused. (Sound remains muted.)

• Slow motion mode will be activated.
• Pressing the FWD ▶▶ button cycles the playback speed in three steps. Select an appropriate speed while referring to the speed indication on the screen.

2 Press the PLAY button to return to normal playback speed.

NOTES:

• Slow playback is not available with audio CDs.
• The reverse of slow playback is not available.

STARTING FROM A DESIRED TRACK

CD

1 Press the number buttons to enter the desired track number.

- The selected track will be located, and playback will start.

You can also press the SEARCH MODE button, use the number or ▲/▼buttons to enter the track number, and then press the PLAY button.

Pressing the SEARCH MODE button during playback causes the current track number to be displayed in square brackets.

TRICKS WITH THE SKIP BUTTONS (|◀◀, ▶▶|)

If the SKIP button ▶▶is pressed during playback or while playback is paused, the current track is skipped and the next track is played. When the SKIP button ▶◀◀ is pressed once, the top of the current track is located for replaying. When the SKIP button ▶◀◀is pressed again while playback is paused, the previous track is located. Each time the SKIP button ▶◀◀is pressed while playback is paused, the disc is searched backward track by track. Once playback has started, pressing the SKIP button ▶◀◀locates the top of the current track.

STARTING FROM A DESIRED TIME COUNT

DVD CD

1 Press the SEARCH MODE button.

- Press the button three times for DVDs or two times for audio CDs.

2 Press the number buttons to set the desired time count.
• Example: 1 hour, 23 minutes and 30 seconds

$$ 1 \rightarrow + 1 0 \rightarrow + 1 0 \rightarrow 3 \rightarrow $$

$$ + 1 0 \rightarrow + 1 0 \rightarrow + 1 0 \rightarrow 0 $$

- To enter 0 (zero), press the number 0 (zero) button or press the ▶button.

3 Press the PLAY button. Playback will then start from the set time count.

NOTES:

• Playback from a desired time count is not available with some discs.
• Specific time playback is not available with some discs or if the unit is in stop mode.

PLAYING FROM A DESIRED TITLE OR CHAPTER

DVD

• Press the number buttons to enter the desired chapter number during playback. The selected chapter will be located within the current title and then played back.
• Title search starts when any number button is pressed during stop mode.

You can also press the SEARCH MODE button, use the number or ▲/▼buttons to enter the chapter number, and then press the PLAY button.

- For title search, call up the chapter search screen, press the SEARCH MODE button, and then operate in the same manner as above.

Pressing the SEARCH MODE button during playback causes the current chapter or title number to be displayed in square brackets.

NOTE:

Playback from a desired title or chapter is not available with some DVDs.

RANDOM (Audio CD)

CD

1 Press the MODE button in stop mode.

- The program setting menu screen will appear.

2 Press the MODE button again.

3 Press the PLAY button. Random playback will then start.

NOTE:

- Program playback is not available during random playback.

REPEAT

DVD CD

1 Press the REPEAT button.

For DVDs

• A single title or chapter is played back repeatedly.
• Pressing the REPEAT button cycles the display on the screen as follows.

- If normal playback is performed after REPEAT CHAPTER has been selected without any chapter number entered, the first chapter is played back repeatedly. If the chapter number is changed using the number buttons or the SKIP buttons (|◀◀▶▶|) during playback, the newly selected chapter is played back repeatedly.

For audio CDs

• The whole disc or a single track is played back repeatedly.
• Pressing the REPEAT button cycles the display on the screen through REPEAT TRACK, REPEAT ALL and REPEAT OFF.

- If normal playback is performed after REPEAT TRACK has been selected without any track number entered, the first track will be played back repeatedly. If the track number is changed using the number buttons or the SKIP buttons (|◀◀▶▶|) during playback, the newly selected track is played back repeatedly.

If the REPEAT button is pressed during program playback, that program is played back repeatedly.

NOTE:

- Repeat playback is not available with some discs

A-B REPEAT

DVD CD

You can define a section to be played back repeatedly.

1 Press the A-B REPEAT button during play-back.

- The starting point (A) will then be selected.

2 Press the A-B REPEAT button again at the end point (B) of the desired section.

- The selected section will be played back repeatedly.

3 To exit A-B repeat playback, press the A-B REPEAT button and set it to OFF.

NOTES:

• If B is selected at a point which is earlier than point A, the previous setting of A is canceled and the point selected as B will become the setting for A.
• With DVDs, the A-B repeat section can be set only within the current title.
• With audio CDs, the A-B repeat section can be set across different tracks.
• A-B repeat is not available with some scenes in DVD.

PROGRAM (Audio CD)

CD

1 Press the MODE button in stop mode.

• The program screen will appear.

2 Press the number or ▲/▼ buttons to enter the desired track numbers, and then press the ENTER button to select the settings.

- The total playback time for the selected tracks will appear on the TOTAL line.

3 Press the PLAY button.

• Playback will start in the programmed order.
• The contents of the program are retained after the program playback ends.

NOTES:

• Addition or confirmation of programs is not possible during program playback. You must stop the current playback before such operations can be carried out.
• Press the CLEAR button to cancel a program. The most recently entered program will then be deleted.
• Up to 20 programs can be stored at any time.

• Numbers which exceed the number of tracks on the disc in the tray are not accepted.
• Playback from a desired track and random playback are not available during program playback.
• Program settings are cleared when the power is turned off or the disc loading tray is opened.

CHANGING THE AUDIO LANGUAGE OR SOUND MODE

DVD CD

The TV/DVD has a function which allows you to select the desired audio language and sound mode.

For DVDs

Press the AUDIO button during playback, and then press the ▲/▼buttons to select the desired audio language.

- The audio language can be changed if multiple languages are recorded on the DVD being played.

For audio CDs

Press the AUDIO button during playback.

- Pressing the ▲/▼buttons cycles the sound mode through STEREO, L-CH and R-CH.

NOTES:

• Pressing the ▲/▼buttons may not work on some DVDs with multiple audio languages (e.g. DVDs which allow audio language setting on the disc menu). Operation varies between discs, so refer to the manual accompanying the disc.
• If a desired language is not shown after pressing the ▲/▼ buttons several times, the disc does not have an audio source in that language.
• The audio language resets to the one which has been selected in the setup mode, every time the power is turned on or discs are replaced. If that language is not available on a disc, a language defined by the disc is selected.
• The screen display will disappear after about 15 seconds.
• If you use DIGITAL AUDIO OUT jack, the sound mode of audio CDs can not be changed.

CHANGING THE SUBTITLE LANGUAGE

DVD

The TV/DVD has a function which allows you to select the desired language for subtitles.

Press the SUBTITLE button during playback, and then press the ▲▼ buttons to select the desired subtitle language.

• The subtitle language can be changed if the subtitles are recorded in multiple languages on the DVD being played.
• The subtitle language cannot be changed if the subtitles are recorded in a single language on the DVD being played.

- Pressing the ▲/▼buttons cycles the subtitle language from SUBTITLE 1, SUBTITLE 2 and all the languages recorded through to OFF.

NOTES:

• Some discs allow subtitle language setting on the disc menu. (Operation varies between discs, so refer to the manual accompanying the disc.)
• If the desired language is not shown after pressing the ▲/▼ buttons several times, the disc does not have subtitles in that language.
• The subtitle language resets to the one which has been selected in the setup mode, every time the power is turned on or discs are replaced. If that language is not available on a disc, a language defined by the disc is selected.
• It may take time to display the subtitles in the selected language.
• The screen display will disappear after about 15 seconds.

CHANGING THE CAMERA ANGLE (Multi-Angle Pictures)

DVD

The TV/DVD has a function which allows you to select the desired camera angle.

1 Press the ANGLE button during playback.

• If the disc contains sequences recorded from different camera angles, the angle icon ( ) will appear at the bottom-right of the screen. You can change the camera angle when the icon appears on the screen.
• The camera angle cannot be changed if the disc does not contain sequences recorded from different camera angles.

2 Press the ▲/▼ buttons while the angle number is shown on the screen.

NOTE:

- The screen display will disappear after about 15 seconds.

CHANGING THE ON-SCREEN DISPLAY

DVD CD

You can check the information about the disc by pressing the DISPLAY button on the remote control.

For DVDs

Press the DISPLAY button.

- Pressing the DISPLAY button cycles the display on the screen.

NOTE:

- DOLBY DIGITAL 5.1 Channel is displayed as "DOLBY DIGITAL 6CH".

For audio CDs

Press the DISPLAY button.

- Pressing the DISPLAY button toggles the display on the screen.

DVD

LANGUAGE SETTINGS

1 Press the SETUP button.

- The setup screen appears.

2 Press the ▲/▼ or number buttons to select LANGUAGE, and then press the ENTER button.

3 Press the ▲/▼ or number buttons to select an item, and then press the ENTER button.

SETUP/LANGUAGE AUDIO 1. ORIGINAL 2. ENGLISH 3. SPANISH 4. FRENCH 5. OTHER • The original language of each disc will be selected. • Voice is played back in English. • Voice is played back in Spanish. • Voice is played back in French. • You can select other languages for audio playback.

SETUP/LANGUAGE DISC MENU 1. AUTO 2. ENGLISH 3. SPANISH 4. FRENCH 5. OTHER Enter Back Exit • The disc menu is shown in the automatically selected language. • The disc menu appears in English. • The disc menu appears in Spanish. • The disc menu appears in French. • You can select other languages for the disc menu

SETUP/LANGUAGE PLAYER MENU 1. ENGLISH 2. SPANISH 3. FRENCH • The on-screen display appears in English. • The on-screen display appears in Spanish. • The on-screen display appears in French.

4 Press the ▲/▼ or number buttons to select a desired item, and then press the ENTER button.

- If OTHER is selected on the AUDIO, SUBTITLE or DISC MENU setting screen, the COUNTRY CODE setting screen will appear. Press the number buttons to enter the desired language (country) code while referring to the list on page 33, and then press the ENTER button.

5 Press the SETUP button.

- The setup mode will be canceled and the ordinary screen will appear.

NOTES:

• If the automatically selected language in "AUTO" for subtitle is same as the selected language for "AUDIO", the subtitle will not be shown.
• If the number buttons are used in steps 2 to 4, the settings are immediately selected. (You do not need to press the ENTER button.)
• Language Setting for AUDIO and SUBTITLE is not available with some discs. Then use the AUDIO and SUBTITLE button. Details are on pages 26 and 27.
• An on-screen display language must be selected each for the TV mode and DVD mode.

VIDEO SETTINGS

1 Press the SETUP button.

• The setup screen will appear.

2 Press the ▲/▼ or number buttons to select VIDEO, and then press the ENTER button.

3 Press the ▲/▼ or number buttons to select an item, and then press the ENTER button.

SETUP/VIDEO TV MODE 1. 4:3 PAN&SCAN 2. 4:3 LETTER BOX 3. 16:9 WIDE AUTO Enter SETUP Back SETU Exit FULL-HEIGHT pictures are shown with one or both sides trimmed. Wide screen (full-width) pictures are shown with black bars at top and bottom. If a wide screen TV is connected. SETUP/VIDEO STILL MODE 1. AUTO 2. FIELD 3. FRAME AUTO is normally selected. If pictures are blurred in auto mode. For showing motionless pictures at high resolution in still mode.

4 Press the ▲/▼ or number buttons to select the desired item, and then press the ENTER button.

5 Press the SETUP button.

- The setup mode will be canceled and the ordinary screen will appear.

NOTE:

- If the number buttons are used in steps 2 to 4, the settings are immediately selected. (You do not need to press the ENTER button.)

AUDIO SETTINGS

1 Press the SETUP button.

- The setup screen will appear.

2 Press the ▲/▼ or number buttons to select AUDIO, and then press the ENTER button.

3 Press the ▲/▼ or number buttons to select an item, and then press the ENTER button.

SETUP/AUDIO DIGITAL OUT 1. PCM [48kHz] 2. DOLBY DIGITAL [OFF] 3. DTS [OFF] • Sets the sample rate for playing a disc recorded with high sound quality. • When a Dolby Digital decoder is connected. • When a DTS decoder is connected. ENTER Enter RETURN Back SETUP Ext SETUP/AUDIO VIRTUAL 3D 1. OFF 2. ON • To activate the 3D effect. ENTER Error RETURN Back SETUP Ext

4 Press the ▲/▼ or number buttons to select the desired item, and then press the ENTER button.

- If PCM, DOLBY DIGITAL or DTS is selected on the DIGITAL OUT setting screen, press the ▲/▼ or number buttons again to select a further item, and then press the ENTER button.

SETUP/AUDIO PCM 1.48kHz 2.96kHz • Audio signals are converted to 48 kHz/16 bit signals for digital output when playing a DVD recorded with high sound quality (48 kHz/ 20 bit/24 bit, 96 kHz). • Sound is reproduced at the high quality of 96 kHz when playing a DVD recorded with high sound quality (48 kHz/20 bit/24 bit, 96 kHz). For 48 kHz discs or when 4:3 LETTER BOX is selected in TV MODE, sound is reproduced at 48 kHz.

SETUP:AUDIO DOLBY DIGITAL 1. OFF 2. ON • When a Dolby Digital decoder built-in amplifier is used. SETUP:AUDIO DTS 1. OFF 2. ON • When a DTS decoder built-in amplifier is used.

5 Press the SETUP button.

- The setup mode will be canceled and the ordinary screen will appear.

NOTE:

- If the number buttons are used in steps 2 to 4, the settings are immediately selected. (You do not need to press the ENTER button.)

This unit employs TruSurround system

(●)TruSurround ^™ of SRS Labs, Inc. as the VIRTUAL 3D technology.

TruSurround and the (●) symbol are trademarks of SRS Labs, Inc. in the United States and selected foreign countries.

TruSurround technology is incorporated under license from SRS Labs, Inc.

PARENTAL LOCK

1 Press the SETUP button.

- The setup screen will appear.

2 Press the ▲/▼ or number buttons to select LOCK, and then press the ENTER button.

- To set the control level to 1 to 8 or none. - To cancel the current password and set a new one on the same screen.

3 Press the number buttons to enter the 4-digit password, and then press the ENTER button.

• When doing this for the first time, enter any 4 digits. That number will be used as the password from the second time onward.
• By entering the password, you can then change the control level and password settings.

4 Press the ▲/▼ or number buttons to select an item, and then press the ENTER button.

When LEVEL is selected

- Press the ▲/▼buttons to select an item from LEVEL 1 to LEVEL 8 or NONE, and then press the ENTER button.

SETUP/LOCK PARENTAL LOCK NONE LEVEL 8 [PLAY ALL] LEVEL 7 [NC-17] LEVEL 6 [R] LEVEL 5 LEVEL 4 [PG-13] LEVEL 3 [PG] LEVEL 2 LEVEL 1 [G]

When CHANGE PASSWORD is selected

- The password entry screen will be displayed and the password which has already been set will be cleared. The four digits entered in step 3 will then be set as the new password.

5

- The setup screen will appear.

CONTROL LEVELS

- Level 8

DVD software of any grade (adult/general/children) can be played back.

- Level 7 to 2

Only DVD software intended for general use and children can be played back.

- Level 1

Only DVD software intended for children can be played back, with those intended for adult and general use prohibited.

- None

Parental lock is canceled.

NOTES:

• With some DVDs, it may be difficult to find if they are compatible with parental lock. Be sure to check if the parental lock function operates in the way that you have set.
• If the number buttons are used in steps 2 to 4, the settings are immediately selected. (You do not need to press the ENTER button.)
• Record the password in case you forget it.

[Cannot remember your password?]

Reset the setup items and enter the new password by the following step:

- When the TV/DVD do not run in the DVD mode, and while pressing and holding the STOP button on the TV/DVD, press the CHANNEL ▲button on the TV/DVD.

OTHER SETTINGS

1 Press the SETUP button.

- The setup screen will appear.

2 Press the ▲/▼ or number buttons to select OTHERS, and then press the ENTER button.

3 Press the ▲/▼ or number buttons to select an item, and then press the ENTER button.

SETUP/OTHERS OSD MESSAGE 1. ON 2. OFF • Selects whether to display messages on the screen. Enter Enter Return Back Exit

SETUP/OTHERS ANGLE ICON 1. ON 2. OFF • Selects whether to display the angle icon. Enter Enter Back Exit

SETUP/OTHERS BACKGROUND 1. BLUE 2. GRAY • Turns the background to blue. • Turns the background to gray.

4 Press the ▲/▼ or number buttons to select a desired item, and then press the ENTER button.

5 Press the SETUP button.

- The setup mode will be canceled and the ordinary screen will appear.

NOTE:

- If the number buttons are used in steps 2 to 4, the settings are immediately selected. (You do not need to press the ENTER button.)

DVD

No.	Language	Country code
1	Afar 4747
2	Abkhazian 4748
3	Afrikaans 4752
4	Amharic 4759
5	Arabic 4764
6	Assamese 4765
7	Aymara 4771
8	Azerbaijani 4772
9	Bashkir 4847
10	Byelorussian 4851
11	Bulgarian	4853
12	Bihari	4854
13	Bislama	4855
14	Bengali;Bangla	4860
15	Tibetan 4861
16	Breton	4864
17	Catalan	4947
18	Corsican	4961
19	Czech	4965
20	Welsh	4971
21	Danish	5047
22	German (GER)	5051
23	Bhutani 5072
24	Greek	5158
25	English (ENG)	5160
26	Esperanto	5161
27	Spanish (SPA)	5165
28	Estonian	5166
29	Basque 5167
30	Persian 5247
31	Finnish	5255
32	Fiji	5256
33	Faroese	5261
34	French (FRE)	5264
35	Frisian	5271
36	Irish	5347
37	Scots Gaelic	5350
38	Galician	5358
39	Guarani	5360
40	Gujarati	5367
41	Hausa	5447
42	Hindi	5455
43	Croatian	5464
44	Hungarian	5467
45	Armenian	5471
46	Interlingua 5547
47	Interlingue 5551
48	Inupiak	5557
49	Indonesian	5560
50	Icelandic	5565
51	Italian (ITA)	5566
52	Hebrew	5569
53	Japanese (JPN)	5647
54	Yiddish	5655
55	Javanese	5669
56	Georgian	5747
57	Kazakh 5757
58	Greenlandic	5758
59	Cambodian	5759
60	Kannada	5760
61	Korean (KOR)	5761
62	Kashmiri	5765
63	Kurdish 5767
64	Kirghiz	5771
65	Latin	5847
66	Lingala	5860
67	Laothian	5861
68	Lithuanian	5866

No.	Language	Country code
69	Latvian; Lettish	5868
70	Malagasy	5953
71	Maori	5955
72	Macedonian	5957
73	Malayalam	5958
74	Mongolian	5960
75	Moldavian	5961
76	Marathi 5964
77	Malay	5965
78	Maltese	5966
79	Burmese	5971
80	Nauru	6047
81	Nepali 6051
82	Dutch (DUT)	6058
83	Norwegian	6061
84	Occitan 6149
85	(Afan) Oromo 6159
86	Oriya	6164
87	Panjabi	6247
88	Polish	6258
89	Pashto; Pushto	6265
90	Portuguese	6266
91	Quechua	6367
92	Rhaeto-Romance	6459
93	Kirundi	6460
94	Romanian	6461
95	Russian	6467
96	Kinyarwanda 6469
97	Sanskrit	6547
98	Sindhi	6550
99	Sangho	6553
100	Serbo-Croatian	6554
101	Singhalese 6555
102	Slovak	6557
103	Slovenian	6558
104	Samoan	6559
105	Shona	6560
106	Somali	6561
107	Albanian	6563
108	Serbian	6564
109	Siswat	6565
110	Sesotho 6566
111	Sundanese	6567
112	Swedish	6568
113	Swahili	6569
114	Tamil	6647
115	Telugu	6652
116	Tajik	6653
117	Thai 6654
118	Tigrinya 6655
119	Turkmen	6657
120	Tagalog	6658
121	Setswana	6660
122	Tonga	6661
123	Turkish	6664
124	Tsonga 6665
125	Tatar	6666
126	Twi	6669
127	Ukrainian	6757
128	Urdu	6764
129	Uzbek 6772
130	Vietnamese	6855
131	Volapuk	6861
132	Wolof	6961
133	Xhosa 7054
134	Yoruba	7161
135	Chinese (CHI)	7254
136	Zulu 7267

TV

Sometimes a performance problem can be easily solved by checking seemingly apparent but often overlooked possibilities. Before arranging for service, check these items. It could save your time and money.

Problem Corrective Action
Remote Control Doesn’t Work	• Is TV/DVD plugged in?• Power at outlet?• Check batteries in Remote Control.
Bars On Screen	• If outside antenna is being used, check for broken wire.• Check for local interference.
Picture Distorted or Blurred	• Try a new channel, if OK, then possible station trouble.• If outside antenna is being used, check for broken wire.
Picture Rolls Vertically Lines or Streaks in Picture	• Try a new channel, if OK, then possible station trouble.• If outside antenna is being used, check for broken wire.• Check for local interference.
No Color	• Try a new channel, if OK, then possible station trouble.• Is antenna connected to terminal on the back of the set?• If outside antenna is being used, check for broken wire.• Adjust COLOR control.
Poor Reception on Some Channels Ghosts in Picture	• Try a new channel, if OK, then possible station trouble.• Is antenna connected to terminal on the back of the set?• If outside antenna is being used, check for broken wire.• Check for local interference.
Weak Picture	• Try a new channel, if OK, then possible station trouble.• Is antenna connected to terminal on the back of the set?• If outside antenna is being used, check for broken wire.• Adjust CONTRAST & BRIGHT control.
Sound OK, Picture Poor	• Try a new channel, if OK, then possible station trouble.• Is antenna connected to terminal on the back of the set?• If outside antenna is being used, check for broken wire.• Check for local interference.• Adjust CONTRAST & BRIGHT control.
Picture OK, Sound Poor	• Try a new channel, if OK, then possible station trouble.• Check for local interference.
No Picture or Sound	• Try a new channel, if OK, then possible station trouble.• Is TV/DVD plugged in?• Power at outlet?• Is TV/DVD’S POWER button on?• Is antenna connected to terminal on the back of the set?• If outside antenna is being used, check for broken wire.• Turn off with POWER button and then turn it on after about a minute.
Closed Caption Problem Possible Remedy
My TV is showing captions that are misspelled.	·You are watching a live broadcast and spelling errors made by the closed captioning production company may pass through uncorrected. A prerecorded program will not show any misspelled words because of the normal time available for editing the captions.
My TV will not show the text in its entirety or there is a delay of what is being said.	·Captions that are delayed a few seconds behind the actual dialogue are common for live broadcast. Most captioning production companies can display a dialogue to a maximum of 220 words per minute. If a dialogue exceeds that rate, selective editing is used to insure that the captions remain up-to-date with the current TV screen dialogue.
My captions are scrambled with white boxes on the TV screen.	·Interference caused by building, power lines, thunderstorms, etc. may cause scrambled or incomplete captions to appear.
My program guide listed a TV show as being closed captioned but none of the captions were displayed.	·Broadcasters may at times use a time compression process to the actual program so that additional advertising time can be given. Since the decoder cannot read the compressed information, captions will be lost.
My TV screen shows a black box on certain channels.	·You are in the TEXT mode. Select CAPTION mode or CAPTION [OFF].

DVD

If the TV/DVD does not perform properly when operated as instructed in this Owner's Manual, check the player, consulting the following checklist.

Symptom Cause	Remedy
No power.	Loose power plug.	Insert the power plug firmly into the wall outlet.
The player does not respond to the remote control.	The remote control is not aimed at the sensor on the TV/DVD.Obstacles present between the remote control and the sensor.The remote control is too far away from the TV/DVD.Dead batteries.	Aim the remote control directly at the sensor on the TV/DVD.Remove the obstacles from the signal path.Use the remote control within 7m of the TV/DVD.Replace the batteries.
No picture	Loose video connection.Wrong disc.	Connect the video cables firmly.Insert a correct video disc that plays on this TV/DVD.
Disc cannot be played	No disc.Dirty disc.Disc is placed upside down.Parental lock is active.	Insert a disc.Clean the disc.Place the disc correctly, with the label side up.Cancel the parental lock or change the control level.
No sound	Loose audio connection.The power of the connected audio component is off.Wrong audio output settings.Wrong input settings on the connected audio component.	Connect the audio cables firmly.Turn the power of the audio component on.Correct the audio output settings.Correct the input settings on the audio component.
Distorted picture	Immediately after playing, press fast forward or in reverse.	There are some cases where pictures may be slightly distorted, which are not a sign of a malfunction.
Audio or subtitle language does not match the setup.	The selected language is not available for audio or subtitles on the DVD.	No malfunction.
The camera angle cannot be changed.	The DVD does not contain sequences recorded from different camera angles.	No malfunction.
Audio or subtitle language cannot be changed.	The DVD does not contain audio source or subtitles in the selected language.	No malfunction.
"Prohibited icon" appears on the screen, prohibiting an operation.	That operation is prohibited by the TV/DVD or disc.	No malfunction.

NOTES:

• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Owner's Manual for details on correct operations.
• Playback from a desired track and random playback are not available during program playback.

CABINET CLEANING

• Wipe the front panel and other exterior surfaces of the TV/DVD with a soft cloth immersed in lukewarm water and wrung dry.
• Never use a solvent or alcohol. Do not spray insecticide liquid near the TV/DVD. Such chemicals may cause damage and discoloration to the exposed surfaces.

SERVICING

- Should your TV/DVD become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power cord, and please call our help line at 1-800-968-3429, to locate an Authorized Service Center.

IF THE LASER OPTICAL PICKUP UNIT IS DIRTY

- If the player still does not perform properly when it is operated while referring to the relevant sections and to "TROUBLESHOOTING GUIDE" in this Owner's Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

DISC HANDLING

- Use discs which have the following logos on them. (Optical audio digital discs.)

- Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.

Line drawings of hands holding a CD and a disc (no text or symbols)

- Always store the disc in its protective case when it is not used.

Illustration of an open CD or DVD case with a hand pointing to a disc (no text or symbols present)

• To clean-off, use a soft cloth.
- Do not use a hard cloth since this will mar the disc.
- Wipe the disc in a straight line from center to edge.
- Never wipe with a circular motion.

Illustration of hands performing a medical procedure on a circular object, with arrows indicating direction (no text or symbols)

- Do not use detergent or abrasive cleaning agents.

RECORD CLEANING SPRAY THERN VOLKYLE SOLVENT

GENERAL SPECIFICATIONS

TV

Television system: NTSC-M

TV Standard

Closed caption system: §15.119/FCC

Channel coverage:

VHF: 2 \~ 13

UHF: 14 \~ 69

CATV: 2 \~13, A \~ W,

W + 1 W + 84,

A-5 \~ A-1, 5A

Tuning System: 181 channel

frequency synthesized

tuning system

Channel access: Direct access keyboard,

programmable

scan and up/down

DVD

Product type: DVD Player

Discs: DVD video, Audio CD

Output signal format: NTSC color

Frequency response

(out put jack)

DVD (linear sound): 20 Hz to 22 kHz

(sample rate: 48 kHz)

20 Hz to 44 kHz

(sample rate: 96 kHz)

CD: 20 Hz to 20 kHz

Signal-to-noise ratio

(S/N ratio)(out put jack)

CD: 100 dB (EIAJ)

Dynamic range

(out put jack)

DVD (linear sound): 85 dB

CD: 84 dB (EIAJ)

Total distortion factor

CD: 0.07% (EIAJ)

Wow and flutter: Below the measurement

limitation (+/-0.001%

W PEAK) (EIAJ)

ELECTRICAL SPECIFICATIONS

Sound output:

2 speakers, 1W, 8 ohm

OTHER SPECIFICATIONS

Terminals

Antenna input:

VHF/UHF/CATV

75 ohm unbalanced (F-type)

Video input:

RCA connector × 1

Audio L/R input:

RCA connector × 2

Headphone:

1/8" stereo (3.5 mm)

Coaxial digital

audio output

(only DVD):

One pin jack,

500m Vpp (75 ohm)

Analog audio L/R

output (only DVD):

RCA connector × 2

Remote control:

Digital encoded

infrared light system

Operating

temperature:

5^ to 40^

(41°F\~104°F)

Power requirements:

AC 120V, 60Hz

Power consumption

(Maximum):

75W

Picture tube:

13'

Dimensions:

H:15-13/16" (402mm)

W:15-3/16" (386mm)

D:14-13/16" (376mm)

Weight: 25.4 lbs (11.5kg)

Accessories:

Remote Control Unit with

2"AA"batteries

Rod Antenna

Owner's Manual

- Designs and specifications are subject to change without notice and without our legal obligation.

- If there is a discrepancy between languages, the default language will be English.

FUNAI CORP. will repair this SYLVANIA product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION:

PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Two (2) years for Picture Tube. Certain parts are excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This FUNAI CORPORATION Limited warranty does not apply to any product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES. ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED SERVICE CENTER. THIS WARRANTY IS VALID WHEN THE UNIT IS CARRIED-IN TO FUNAI AUTHORIZED SERVICE FACILITY.

WHEN YOU ARE RETURNING THE PRODUCT FOR SERVICE TO THE FACTORY SERVICE CENTER, PLEASE CONTACT THE FUNAI SERVICE DEPARTMENT TO RECEIVE A R.A. (REPAIR AUTHORIZATION) NUMBER PRIOR TO SHIPPING. ANY POSTAGE, INSURANCE AND SHIPPING COST, INCURRED IN PRESENTING OR SENDING YOUR SYLVANIA PRODUCT FOR SERVICE ARE SHIPPER'S RESPONSIBILITY.

CAREFULLY PACK WITH PROPER PACKING MATERIALS, PREFERABLY IN THE ORIGINAL CARTON AND IF NEEDED DOUBLE BOX IT.

ATTACH WRITTEN DOCUMENTATION DETAILING THE COMPLAINT, TO THE OUTSIDE OR INSIDE OF THE CAR-TON.

THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT. IF NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIRS COSTS WILL BE CHARGED.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE, IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

To locate your nearest SYLVANIA Authorized Service Center or for general service procedure, please call 1-800-968-3429 or write to the following:

FUNAI CORPORATION

Customer Service

100 North Street; Teterboro, NJ 07608

Tel :[phone]
