USER MANUAL KX-TG6872 PANASONIC

Operating Instructions

Digital Cordless Answering System

Model No. KX-TG6841

KX-TG6842

KX-TG6843

KX-TG6844

KX-TG6845

KX-TG6872

KX-TG6873

Illustration of a classic office telephone with a handheld case and keypad (no text or symbols visible)

DECT 6.0

Model shown is KX-TG6841.

Before initial use, see "Getting Started" on page 10.

Thank you for purchasing a Panasonic product.

Please read these operating instructions before using the unit and save them for future reference.

Consulte "Guía Rápida Española", página 60.

For assistance, visit our Web site: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico.

Please register your product: http://www.panasonic.com/prodreg

Table of Contents

Introduction

Model composition 3

Accessory information ....3

Important Information

For your safety 6

Important safety instructions ....7

For best performance 7

Other information 8

Specifications 9

Getting Started

Setting up 10

Note when setting up ....11

Intelligent eco mode 11

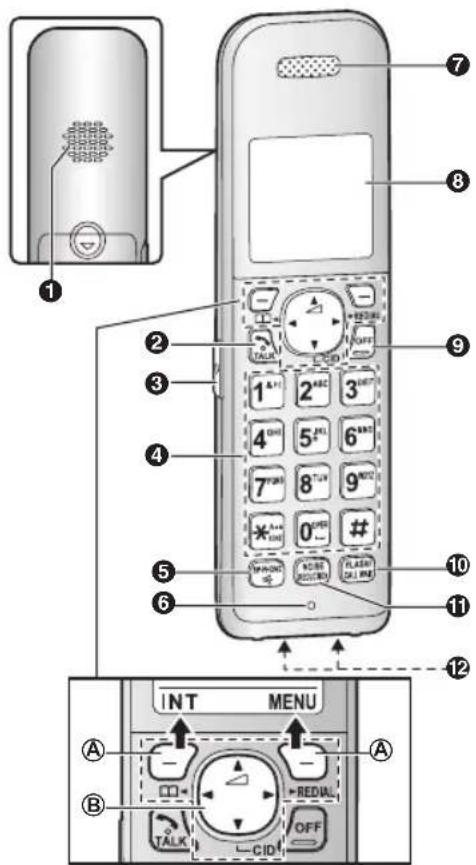

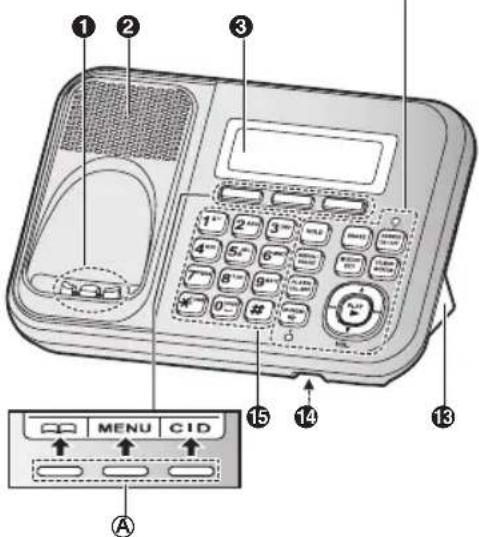

Controls 12

Belt clip 13

Display 13

Initial settings 14

Making/Answering Calls

Making calls 16

Answering calls 17

Useful features during a call 17

Power back-up operation 19

Shared Phonebook

Shared phonebook 22

Speed Dial

Speed dial 25

Programming

Programmable settings 26

Special programming 32

Registering a unit 35

Caller ID Service

Using Caller ID service ....36

Caller list 37

Answering System

Answering system 40

Turning the answering system on/off 40

Greeting message 40

Listening to messages using the base unit 41

Listening to messages using the

handset 42

Advanced new message alerting

features 43

Remote operation ....44

Answering system settings ....45

Voice Mail Service

Voice mail service 47

Intercom/Locator

Intercom 49

Handset locator ....49

Transferring calls, conference calls .....49

Useful Information

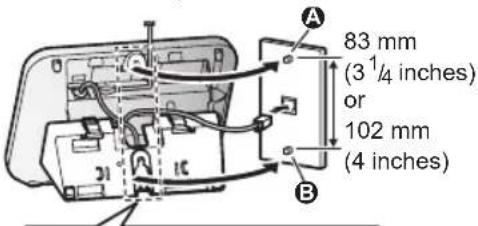

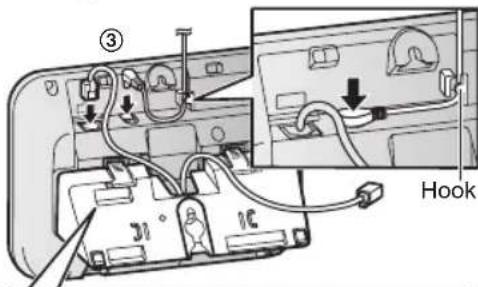

Wall mounting 51

Error messages 52

Troubleshooting ....53

FCC and other information ....57

Customer services 64

Warranty (For United States and Puerto Rico) 65

Index

Index......67

Model composition

■ KX-TG6841 series ■ KX-TG6872/KX-TG6873

Illustration of two vintage telephones with keypad and case (no text or symbols)

Illustration of two vintage telephones with a key and a keypad (no text or symbols)

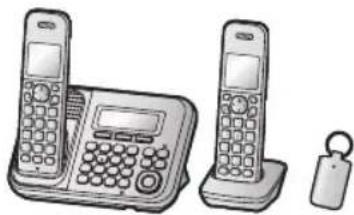

- Model shown is KX-TG6842. - Model shown is KX-TG6872.

Series Model No.		Base unit Handset
		Part No. Part No.	Quantity
KX-TG6841 series	KX-TG6841*1	KX-TG6841 KX-T	GA680 1
	KX-TG6842 KX-T	G6841 KX-TGA680	2
	KX-TG6843 KX-T	G6841 KX-TGA680	3
	KX-TG6844 KX-T	G6841 KX-TGA680	4
	KX-TG6845 KX-T	G6841 KX-TGA680	5
	KX-TG6872*2	KX-TG6841 KX-T	GA680 2
	KX-TG6873*2	KX-TG6841 KX-T	GA680 3

*1 Single handset models: Intercom calls can be made between handsets by purchasing and registering one or more optional handsets (page 5).
*2 A key detector (KX-TGA20) is supplied in this model. The key detector is pre-registered to the unit. By attaching the key detector to an easy-to-lose item in advance, you can locate and find the mislaid item. Read the installation guide for more information on the key detector.

Accessory information

Supplied accessories

No.	Supplied handset qty.	1 unit ^1	2 units ^2	3 units ^3	4 units ^4	5 units ^5
	Accessory item/Order number	Accessory quantity
1	AC adaptor/PNLV226Z	1 1 1 1	1

Introduction

No.	Supplied handset qty.	1 unit*1	2 units*2	3 units*3	4 units*4	5 units*5
	Accessory item/Order number	Accessory quantity
2	Telephone line cord/PQJA10075Z	1 1 1 1	1
3	Desk stand/Wall mounting adaptor*6/PNKL1038Z1	1 1 1 1	1
4	Rechargeable batteries/HHR-4DPA	2 4 6 8	10
5	Handset cover*7/PNYNTGA680BR	1 2 3 4	5
6	Belt clip/PNKE1268Z1	1 2 3 3	3
7	Charger/PNLC1040ZB – 1 2 3 4

*1 KX-TG6841
*2 KX-TG6842/KX-TG6872
*3 KX-TG6843/KX-TG6873
*4 KX-TG6844
*5 KX-TG6845
*6 The desk stand/wall mounting adaptor comes attached to the base unit.
*7 The handset cover comes attached to the handset.

■ For KX-TG6872/KX-TG6873

No.	Accessory item/Order number Quantity
8	Key detector/KX-TGA20 1
9	CR coin cell lithium battery/CR2032 1

①

⑤

⑥

Additional/replacement accessories

Please contact your nearest Panasonic dealer for sales information (page 64).

Accessory item Order number
Rechargeable batteries	HHR-4DPA*1To order, please call 1-800-332-5368 or visithttp://www.panasonic.com/batterystore
	Battery type:-Nickel metal hydride (Ni-MH)-2 x AAA (R03) size for each handset
Headset KX-TCA60,	KX-TCA93, KX-TCA400, KX-TCA430
T-adaptor KX-J66
Range extender	KX-TGA405*2
Key detector	KX-TGA20*3

*1 Replacement batteries may have a different capacity from that of the supplied batteries.
*2 By installing this unit, you can extend the range of your phone system to include areas where reception was previously not available. This product can be purchased online. Please visit our Web site: http://www.panasonic.com/RangeExtender
*3 By registering the key detector (4 max.) to a Panasonic Digital Cordless Phone and attaching it to an easy-to-lose item in advance, you can locate and find the mislaid item to which the key detector is attached. Please visit our Web site: http://panasonic.net/pcc/products/telephone/p/tga20/

Expanding your phone system

Handset (optional): KX-TGA680
You can expand your phone system by registering optional handsets (6 max.) to a single base unit.● Optional handsets may be a different color from that of the supplied handsets.

Important Information

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

• Use only the power source marked on the product.
• Do not overload power outlets and extension cords. This can result in the risk of fire or electric shock.
• Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
• Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.
• Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact the Panasonic Call Center at 1-800-211-PANA (1-800-211-7262).
• Unplug from power outlets and never touch the inside of the product if its casing has been broken open.
• Never touch the plug with wet hands. Danger of electric shock exists.

Installation

• To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
• Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

- Do not allow the AC adaptor or telephone line cord to be excessively pulled, bent or placed under heavy objects.

Operating safeguards

• Unplug the product from power outlets before cleaning. Do not use liquid or aerosol cleaners.
• Do not disassemble the product.
• Do not spill liquids (detergents, cleansers, etc.) onto the telephone line cord plug, or allow it to become wet at all. This may cause a fire. If the telephone line cord plug becomes wet, immediately pull it from the telephone wall jack, and do not use.

Medical

• Consult the manufacturer of any personal medical devices, such as pacemakers or hearing aids, to determine if they are adequately shielded from external RF (radio frequency) energy. (The product operates in the frequency range of 1.92 GHz to 1.93 GHz, and the RF transmission power is 115 mW (max.).)
• Do not use the product in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

CAUTION

Installation and location

• Never install telephone wiring during an electrical storm.
• Never install telephone line jacks in wet locations unless the jack is specifically designed for wet locations.
• Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
• Use caution when installing or modifying telephone lines.
• The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.
• This product is unable to make calls when:

– the handset batteries need recharging or have failed.

– there is a power failure.

Battery

• We recommend using the batteries noted on page 5. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.
• Do not mix old and new batteries.
• Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed.
• Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
• Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

Attention:

A nickel metal hydride battery that is recyclable powers the product you have purchased.

Please call 1-800-8-BATTERY (1-800-822-8837) for information on how to recycle this battery.

Important safety instructions

When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

For best performance

Base unit location/avoiding noise

The base unit and other compatible Panasonic units use radio waves to communicate with each other.

• For maximum coverage and noise-free communications, place your base unit:
  – at a convenient, high, and central location with no obstructions between the handset and base unit in an indoor environment.
  – away from electronic appliances such as TVs, radios, personal computers, wireless devices, or other phones.
  – facing away from radio frequency transmitters, such as external antennas of mobile phone cell stations. (Avoid putting the base unit on a bay window or near a window.)
• Coverage and voice quality depends on the local environmental conditions.

Important Information

- If the reception for a base unit location is not satisfactory, move the base unit to another location for better reception.

Environment

• Keep the product away from electrical noise generating devices, such as fluorescent lamps and motors.
• The product should be kept free from excessive smoke, dust, high temperature, and vibration.
• The product should not be exposed to direct sunlight.
• Do not place heavy objects on top of the product.
• When you leave the product unused for a long period of time, unplug the product from the power outlet.
• The product should be kept away from heat sources such as heaters, kitchen stoves, etc. It should not be placed in rooms where the temperature is less than 0 °C (32 °F) or greater than 40 °C (104 °F). Damp basements should also be avoided.
• The maximum calling distance may be shortened when the product is used in the following places: Near obstacles such as hills, tunnels, underground, near metal objects such as wire fences, etc.
• Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.

Routine care

• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine, thinner, or any abrasive powder.

Other information

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Notice for product disposal, transfer, or return

- This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

Notice

• This product is designed for use in the United States of America. Sale or use of this product in other countries may violate local laws.
• Cet appareil est conçu pour être utilisé aux États-Unis d'Amérique. La vente ou l'emploi de cet appareil dans certains autres pays peut constituer une infraction à la législation locale.
• Este producto está diseñado para usarse en los Estados Unidos de América. La venta o el empleo de este producto en ciertos países puede constituir violación de la legislación local.
• 本產品專為美國使用而設。若在其他國家銷售或使用，可能會違反當地法例。
• この製品は、日本国外での使用を目的として設計されており、日本国内での使用は法律違反となります。従って、当社では日本国内においては原則として修理などのサービスは致しかねます。

ENERGY STAR

As an ENERGY STAR® Partner, Panasonic has determined that this product meets the ENERGY STAR guidelines for energy efficiency. ENERGY STAR is a U.S. registered mark.

Specifications

• Standard:
  DECT 6.0 (Digital Enhanced
  Cordless Telecommunications 6.0)

• Frequency range:

1.92 GHz to 1.93 GHz

- RF transmission power: 115 mW (max.)

● Power source: 120 V AC, 60 Hz

• Power consumption: Base unit:

Standby: Approx. 0.8 W

Maximum: Approx. 3.6 W

Charger:

Standby: Approx. 0.1 W

Maximum: Approx. 1.8 W

- Operating conditions:

0^ - 40^ (32^ - 104^) 20% -80%

relative air humidity (dry)

Note:

• Design and specifications are subject to change without notice.
• The illustrations in these instructions may vary slightly from the actual product.

Getting Started

Setting up

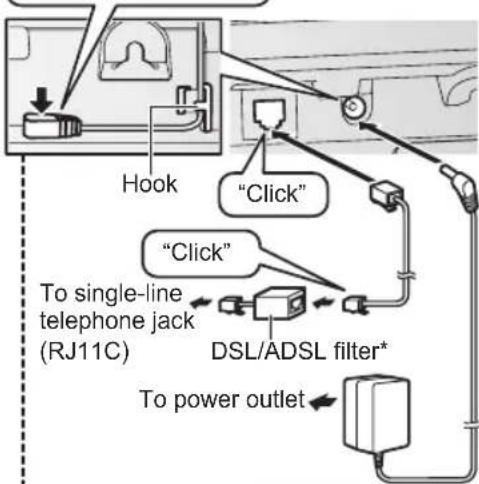

Connections

■ Base unit
- Use only the supplied Panasonic AC adaptor PNLV226.

Press plug firmly.

Correct

Incorrect

*DSL/ADSL filter (not supplied) is required if you have DSL/ADSL service.

- Charger

Battery installation

• USE ONLY Ni-MH batteries AAA (R03) size.
• Do NOT use Alkaline/Manganese/Ni-Cd batteries.
• Confirm correct polarities (+, -)

Illustration of two hands holding a handheld device with a circular pattern on the screen (no text or symbols)

Rechargeable Ni-MH ONLY

Diagram of a remote control panel with an arrow indicating a process or operation (no text or symbols present)

- When the date and time setting is displayed, see page 14.

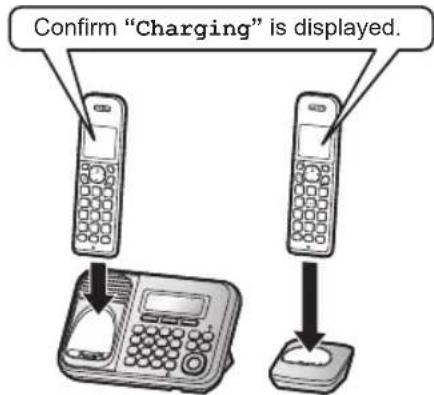

Battery charging

Charge for about 7 hours.

- When the batteries are fully charged, "Fully charged" is displayed.

Getting Started

Note when setting up

Note for connections

• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
• The AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet. Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptor may cause it to become disconnected.

Note for battery installation

• Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted on page 5, 7.
• Wipe the battery ends (⊕, ⊕ with a dry cloth.
• Avoid touching the battery ends (+, -) or the unit contacts.

Note for battery charging

• It is normal for the handset to feel warm during charging.
• Clean the charge contacts of the handset, base unit, and charger with a soft and dry cloth once a month. Before cleaning the unit, disconnect from power outlets and any telephone line cords. Clean more often if the unit is exposed to grease, dust, or high humidity.

Battery level

Icon Battery level
	High
	Medium
	Low
	Needs charging.
	Empty

Panasonic Ni-MH battery performance (supplied batteries)

Operation Operating	time
In continuous use	10 hours max.* ^1
Not in use (standby)	8 days max.* ^1

*1 If eco mode is on.

Note:

• Actual battery performance depends on usage and ambient environment.
• Even after the batteries are fully charged, the handset can be left on the base unit or charger without any ill effect on the batteries.
• The battery level may not be displayed correctly after you replace the batteries. In this case, place the handset on the base unit or charger and let it charge for at least 7 hours.

Intelligent eco mode

This feature automatically reduces handset power consumption by suppressing handset transmission power when the handset is close to the base unit.

• When this feature is activated, ECO
  displayed.

- Eco mode is turned off when the clarity booster is activated (page 18).

Getting Started

Controls

Handset

① Speaker
② 【】(TALK)
3 Headset jack
4 Dial keypad (※: TONE)
5 【◀】(SP-PHONE: Speakerphone)
6 Microphone
7 Receiver
8 Display
9 [OFF]
⑩ 【FLASH】【CALL WAIT】

⑪ [NOISE REDUCTION]
⑫ Charge contacts

■ Control type

Ⓐ Soft keys

The handset features 2 soft keys. By pressing a soft key, you can select the feature shown directly above it on the display.

⑧ Navigator key

• [▲], [▼], [◀], or [▶]: Scroll through various lists and items.
• △ (Volume: [▲] or [▼]): Adjust the receiver or speaker volume while talking.
  -【◀】: View the phonebook entry.
  -【▶】REDIAL: View the redial list.
  -【▼】CID (Caller ID): View the caller list.

Base unit

① Charge contacts

Getting Started

② Speaker
③ Display
④ [HOLD]
⑤ [REDIAL] [PAUSE]
⑥ [FLASH] [CALL WAIT]
⑦ 【◀】(SP-PHONE: Speakerphone) SP-PHONE indicator
8 [ERASE]
9 【ANSWER ON/OFF】 ANSWER ON/OFF indicator
⑩ [LOCATOR] [INTERCOM]
11 【■】(STOP) (EXIT)
⑫ (PLAY) Message indicator

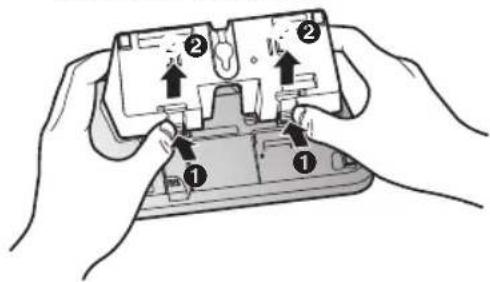

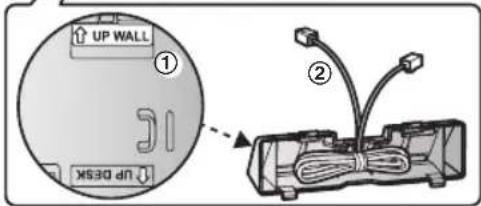

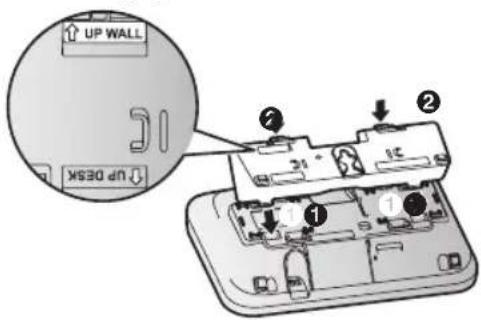

13 Desk stand/Wall mounting adaptor • The adaptor is a removable attachment for desk stand or wall mounting use (page 51).
14 Microphone
15 Dial keypad (※: TONE)
■ Control type Ⓐ Soft keys

The base unit features 3 soft keys. By pressing a soft key, you can select the feature shown directly above it on the display.

B Navigator key

• [▲], [▼], [◀◀], or [▶] Scroll through various lists and items.
• VOL. (Volume: [▲] or [▼]): Adjust the speaker volume while talking.
• 【】: Repeat/skip messages during playback.

Belt clip

■ To attach ■ To remove

Diagram of a device with a curved arrow indicating motion or force, no text or symbols present

Display

Handset display items

Item Meaning
Υ	Within base unit range
Υ	Out of base unit range
	The line is in use.When flashing:The call is put on hold.When flashing rapidly: An incoming call is now being received.
ECO	Eco mode is on. (page 11)
NR	Noise reduction is set.(page 19)
EQ	Equalizer is set. (page 19)
speaker	phone is on.(page 16)
	Ringer volume is off.(page 17)
	Silent mode is on. (page 32)
PRIV.	Call sharing mode is off.(page 29)
	Alarm is on. (page 32)
	Handset number
	Battery level
	Blocked call (page 33)

Getting Started

Item Meaning
BOOST	Clarity booster is on. (page 18)
In use	Answering system is being used by another handset or the base unit.
Line in use	Someone is using the line.

Base unit display items

Item Meaning
	Ringer volume is off. (page 17)
ZZ	Silent mode is on. (page 32)
PRIV.	Call sharing mode is off. (page 29)
In use	Answering system is being used by a handset.
Line in use	Someone is using the line.
GO	“Greeting only” is selected as the caller’s recording time. In this case, the answering system answers calls with a greeting message and caller messages are not recorded. (page 46)

Initial settings

■ Direct command code:

Programmable settings can be accessed by pressing [MENU], #, and then the corresponding code on the dial keypad (page 26).

Example: Press [MENU]#101.

■ Symbol meaning:

Example: [▲]: "Off"

Press [▼] or [▲] to select the words in quotations.

Date and time

Important:

- When you install the batteries for the first time, the handset may prompt you to set date and time. First press [SELECT], then proceed to step 2.

Handset

1 [MENU]# 1 0 1

2 Enter the current month, date, and year by selecting 2 digits for each.

Example: July 15, 2013

071513

3 [OK]

4 Enter the current hour and minute (12-hour clock format) by selecting 2 digits for each.

Example: 9:30

0930

5 ☒: Select "AM" or "PM".

6 [SAVE] → [OFF]

Note:

- When English is selected as the display language, 12-hour clock format is used. When Spanish is selected, 24-hour clock format is used.

- The date and time may be incorrect after a power failure. In this case, set the date and time again.

Display language

You can select either "English" or "Español" as the display language. The default setting is "English".

Handset / Base unit

1 [MENU]# 1 1 0

2 【◆】: Select the desired setting. → [SAVE]

3 Proceed with the operation for your unit. Handset: [OFF]

Base unit: [EXIT]

Getting Started

Voice guidance language

You can select either "English" or

“Español” as the voice guidance language of the answering system. The default setting is “English”.

Handset

1 [MENU]# 1 1 2
2 [▲]: Select the desired setting.
3 [SAVE] → [OFF]

Dialing mode

If you cannot make calls, change this setting according to your telephone line service. The default setting is "Tone".

"Tone": For tone dial service.

"Pulse": For rotary/pulse dial service.

Handset

1 [MENU]# 1 2 0
2 [▲]: Select the desired setting.
3 [SAVE] → [OFF]

Making/Answering Calls

Making calls

Using the handset

1 Lift the handset and dial the phone number.
- To correct a digit, press [CLEAR].

2 Press [\~] or [CALL].

3 When you finish talking, press [OFF] or place the handset on the base unit or charger.

Using the speakerphone

1 Dial the phone number and press [◀].
- Speak alternately with the other party.

2 When you finish talking, press [OFF].

Note:

• For best performance, use the
  speakerphone in a quiet environment.
• To switch back to the receiver, press [◀]/

Making a call using the redial list

The last 5 phone numbers dialed are stored in the redial list (each 48 digits max.).

1 [▶] REDIAL

2 [◆]: Select the desired phone number.

3 [ ]

Storing a number to the phonebook

Phone numbers of up to 24 digits can be stored in the phonebook.

1 [▶] REDIAL

2 [◆]: Select the desired phone number. → [SAVE]

3 To store the name, continue from step 3, "Editing entries", page 23.

Erasing a number in the redial list

1 [▶] REDIAL

2 [◀]: Select the desired phone number. → [ERASE]

3 [▲]: "Yes" → [SELECT]

4 [OFF]

Using the base unit

1 Dial the phone number.
• To correct a digit, press [CLEAR].

2 [◀]

3 When the other party answers, speak into the microphone.

- Speak alternately with the other party.

4 When you finish talking, press [✿].

Note:

• For best performance, use the speakerphone in a quiet environment.
• While on a call, you can switch from the base unit to the handset:
• Press [ ] on the handset, then press [ ] on the base unit with the call sharing mode on (page 29).
• If the handset is on the base unit, simply lift it.

Making a call using the redial list

The last 10 phone numbers dialed are stored in the redial list (each 48 digits max.).

1 [REDIAL]

2 [▲]: Select the desired phone number.

3 [◀]

Erasing a number in the redial list

1 [REDIAL]

2 [▲]: Select the desired phone number. → [ERASE]

3 [▲]: "Yes" → [SELECT]

4 [EXIT]

Adjusting the receiver or speaker volume

Handset / Base unit

Press [▲] or [▼] repeatedly while talking.

Pause (for PBX/long distance service users)

A pause is sometimes required when making calls using a PBX or long distance service. When storing a calling card access number and/or PIN in the phonebook, a pause is also needed (page 24).

Example: If you need to dial the line access number "9" when making outside calls with a PBX:

Handset

1 9 → [▲] (Pause)

2 Dial the phone number. → [ ]

Base unit

1 9 → [PAUSE]

2 Dial the phone number. → [◀]

Note for handset and base unit:

- A 3.5 second pause is inserted each time you press [▲] (Pause) on the handset or [PAUSE] on the base unit.

Answering calls

Using the handset

1 Lift the handset and press [ ] or [ ] when the unit rings.

- You can also answer the call by pressing any dial key from 0 to 9, ✕, or #. (Any key answer feature)

2 When you finish talking, press [OFF] or place the handset on the base unit or charger.

Auto talk

You can answer calls simply by lifting the handset off the base unit or charger. You do not need to press [\~]. To turn this feature on, see page 29.

Using the base unit

When a call is being received, the SP-PHONE indicator flashes rapidly.

1 Press [◀] when the unit rings.
2 Speak into the microphone.
3 When you finish talking, press [◀].

Adjusting the ringer volume

Handset / Base unit

■ While the unit is ringing for an incoming call:
Press [▲] or [▼] repeatedly to select the desired volume.

■ Programming the volume beforehand:

1 [MENU]#160

2 [▲]: Select the desired volume. → [SAVE]

3 Proceed with the operation for your unit.

Handset: [OFF]

Base unit: [EXIT]

Temporary ringer off

Handset

While the unit is ringing for a call, you can turn the ringer off temporarily by pressing [2].

Useful features during a call

Hold

This feature allows you to put an outside call on hold.

Handset

1 Press [MENU] during an outside call.

2 [▲]: "Hold" → [SELECT]

Making/Answering Calls

3 To release hold, press [ ]

• Another handset user can take the call by pressing [\~].
• The base unit user can take the call by pressing [◀].

Base unit

1 Press [HOLD] during an outside call.
2 To release hold, press [◀].

- A handset user can take the call by pressing [\~].

Note for handset and base unit:

• If a call is kept on hold for more than 9 minutes, an alarm tone starts to sound. After 1 additional minute on hold, the call is disconnected.
• If another phone is connected to the same line, you can also take the call by lifting its handset.
• While an outside call is on hold, the SP-PHONE indicator on the base unit flashes.

Mute

While mute is turned on, you can hear the other party, but the other party cannot hear you.

Handset / Base unit

1 Press [MUTE] during conversation.

• [MUTE] flashes.

2 To return to the conversation, press 【MUTE】again.

Note:

- [MUTE] is a soft key visible on the display during a call.

Flash

Handset / Base unit

[FLASH] allows you to use the special features of your host PBX such as transferring an extension call, or accessing optional telephone services.

Note:

- To change the flash time, see page 29.

For call waiting or Call Waiting Caller ID service users

To use call waiting or Call Waiting Caller ID, you must first subscribe with your service provider/telephone company. This feature allows you to receive calls while you are already talking on the phone. If you receive a call while on the phone, you will hear a call waiting tone.

If you subscribe to both Caller ID and Call Waiting with Caller ID services, the 2nd caller's information is displayed on the handset or base unit that is in use after you hear the call waiting tone.

Handset / Base unit

1 Press [CALL WAIT] to answer the 2nd call.
2 To switch between calls, press [CALL WAIT].

Note:

- Please contact your service provider/telephone company for details and availability of this service in your area.

Temporary tone dialing (for rotary/pulse service users)

You can temporarily switch the dialing mode to tone when you need to access touch-tone services (for example, answering services, telephone banking services, etc.).

Handset / Base unit

Press ☒ (TONE) before entering access numbers which require tone dialing.

Handset clarity booster

This feature can improve sound clarity when the handset is used in an area where there may be interference. During an outside call, this feature is turned on automatically when necessary.

- When this feature is turned on, BOOST displayed.

Handset noise reduction

This feature allows you to hear the voice of the person you are talking to clearly, by reducing the surrounding noise coming from the other party's telephone.

Press [NOISE REDUCTION] to turn on/off while talking.

Note:

• When this feature is turned on, NR is displayed while talking.
• Depending on the environment where this handset is being used, this feature may not be effective.
• This feature is not available using the speakerphone.
• When both the "Equalizer" setting and noise reduction are activated, NR is shown on the display.

Handset equalizer

This feature clarifies the voice of the person you are talking to, producing a more natural-sounding voice that is easier to hear and understand.

1 Press [MENU] while talking.
2 [▲]: "Equalizer" → [SELECT]

3 [▲]: Select the desired setting.

4 Press [OK] to exit.

Note:

• When this feature is activated, EQ is displayed while talking.
• Depending on the condition and quality of your telephone line, this feature may emphasize existing line noise. If it becomes difficult to hear, turn this feature off.
• This feature is not available while using the speakerphone.

Call share

You can join an existing outside call.

Handset

To join the conversation, press [→] when the other unit is on an outside call.

Base unit

To join the conversation, press [◀] when the handset is on an outside call.

Note for handset and base unit:

• A maximum of 4 parties (including 1 outside party) can join a conversation using 3 extensions. (4-way conference)
• To prevent other users from joining your conversations with outside callers, turn call sharing mode off (page 29).

Power back-up operation

When a power failure occurs, the charged handset temporarily supplies power to the base unit (power back-up mode). This allows you to make and receive calls using a handset during a power failure. The base unit will not perform any other functions. However, some functions such as Caller ID and shared phonebook are available only when using a handset other than the handset supplying power to the base unit. You can program "Power failure" and the default setting is "Auto" (page 29).

Important:

• If a handset is not placed on the base unit when a power failure occurs, "Base no power Press OFF" is displayed. After pressing [OFF] on the handset, place it on the base unit to start power back-up mode.
• Power back-up mode will not work if the battery level of the power supplying handset is ☐ or ☐
• Do not lift the power supplying handset from the base unit during power back-up mode.
• Do not touch the handset's charge contacts during power back-up mode.
• If the battery level is low, the unit will not work sufficiently during power back-up mode. In addition, in case handset battery power runs out, we recommend connecting a corded-type telephone (without AC adaptor) to the same telephone line or to the same telephone line jack using a Panasonic T-adaptor (page 5).

Making/Answering Calls

Panasonic Ni-MH battery performance (supplied batteries) during power back-up mode

When the batteries are fully charged, operating time of the handset in power back-up mode varies depending on usage.

• Continuous use of the handset in power back-up mode: 1.5 hours max.
• Continuous use of the handset other than a handset in power back-up mode: 2 hours max.
• Not in use in power back-up mode: 2 hours max.

Note:

- Actual battery performance depends on usage and ambient environment.

Making calls during a power failure

■ When only 1 handset is registered:

1 Lift the handset and dial the phone number.
2 Within 1 minute, place the handset on the base unit.
- Wait until speakerphone is turned on automatically and the call is made.
3 When the other party answers the call, keep the handset on the base unit and talk using the speakerphone.
4 When you finish talking, press [OFF].

Note:

- In step 2, if you do not place the handset on the base unit within 1 minute, the power back-up mode turns off. In this case, press [OFF] on the handset and dial the phone number. Then try again from step 2.

- When 2 or more handsets are registered: You should leave one handset on the base unit for supplying the power, and use another handset for making calls. For the operation, please see “Making calls”, page 16.

Note:

- During a call with the handset placed on the base unit (power back-up mode), the call

may be disconnected if you touch the handset. In such case, try to call back.

- The range of the base unit is limited during a power failure. Please use the handset close to the base unit.

Making a call using the redial list

■ When only 1 handset is registered:

1 Lift the handset.

2 [▶] REDIAL

3 [▲]: Select the desired phone number.

4 Within 1 minute, place the handset on the base unit.

- Wait until speakerphone is turned on automatically and the call is made.

■ When 2 or more handsets are registered:

You should leave one handset on the base unit for supplying the power, and use another handset for making calls. For the operation, please see "Making a call using the redial list", page 16.

Making a call using the shared phonebook

There must be at least 2 handsets registered to the base unit in order for the shared phonebook feature to be used during a power failure.

You should leave one handset on the base unit for supplying the power, and use another handset for making calls.

For the operation, please see "Finding and calling from a phonebook entry", page 23.

Answering calls during a power failure

■ When only 1 handset is registered:

1 When the unit rings, keep the handset on the base unit and press [ ] or [ ].

- Speakerphone is turned on.

2 When you finish talking, press [OFF].

■ When 2 or more handsets are registered: When the unit rings, use a handset which is not supplying power to the base unit. For the operation, please see "Answering calls", page 17.

- Do not use or lift the handset which is placed on the base unit during power back-up mode.

Note:

• During a call with the handset placed on the base unit (power back-up mode), the call may be disconnected if you touch the handset. In such case, try to call back.
• The range of the base unit is limited during a power failure. Please use the handset close to the base unit.

Shared Phonebook

Shared phonebook

The shared phonebook allows you to make calls without having to dial manually. The base unit and any handset registered to the base unit can use the shared phonebook. You can add 100 names and phone numbers to the shared phonebook, and assign each phonebook entry to the desired group.

Important:

• Only 1 person can access the shared phonebook at a time.
• Caller ID subscribers can use group ringer tone features (page 37).

Adding entries

Handset

1 [◀] → [MENU]
2 [▲]: "Add new entry" → [SELECT]
3 Enter the party's name (16 characters max.). → [OK]
4 Enter the party's phone number (24 digits max.). → [OK]
5 [♦]: Select the desired group. → [SELECT] 2 times • To add other entries, repeat from step 3.

6 [OFF]

Character table for entering names

While entering characters, you can switch between uppercase and lowercase by pressing ☒ (A→a).

Key Character
1 & '() * ,- . / 1
2 ABC	2
	a b c 2
3 DEF	3
	d e f 3

Key Character
4 GHI4
	ghi 4
5 JKL5
	jkl 5
6 MNO	6
	mno6
7 PQRS	S7
	pqrs7
8 TUV8
	tuv8
9 W X	YZ9
	wxyz9
0	0
# #

• To enter another character that is located on the same dial key, first press [▶] to move the cursor to the next space.
• If you do not press any dial key within 5 seconds after entering a character, the character is fixed and the cursor moves to the next space.
• in the above table represents a single space.

Erasing the character or number

Press [◀] or [▶]. → [CLEAR]

- Press and hold [CLEAR] to erase all characters or numbers.

Groups

Groups can help you find entries in the phonebook quickly and easily. When adding an entry to the phonebook, you can assign it to one of 9 groups. You can change the names of groups assigned for phonebook entries ("Friends", "Family", etc.) and then search for phonebook entries by group. The group ringer tone feature is available for Caller ID subscribers (page 37).

Changing group names

The default group name is "Group 1" to "Group 9".

Handset

1 [◀] → [MENU]
2 [▲]: "Group" → [SELECT]
3 【◆】: Select the desired group. → 【SELECT】
4 【▲】: "Group name" → [SELECT]
5 Edit the name (10 characters max.; page 22). → [SAVE]
6 [OFF]

Finding and calling from a phonebook entry

Scrolling through all entries

Handset / Base unit

1 Proceed with the operation for your unit.
Handset: [◀]
Base unit: [ ]
2 [▲]: Select the desired entry.
3 Proceed with the operation for your unit.
Handset: [\~]
Base unit: [◀]

Searching by first character

Handset / Base unit

1 Proceed with the operation for your unit.
Handset: [◀]
Base unit: [ ]

2 Press the dial key (0 - 9 or #) which contains the character you are searching for (page 22).

- Press the same dial key repeatedly to display the first entry corresponding to each character located on that dial key.

- If there is no entry corresponding to the character you selected, the next entry is displayed.

3 [◆]: Scroll through the phonebook if necessary.
4 Proceed with the operation for your unit.
Handset: [\~]
Base unit: [◀]

Searching by group

Handset / Base unit

1 Proceed with the operation for your unit.
Handset: [◀]
Base unit: [ ]

2 [GROUP]

3 【◆】: Select the group you want to search. → [SELECT]
- If you select "All groups", the unit ends the group search.

4 [▲]: Select the desired entry.

5 Proceed with the operation for your unit.

Handset: [\~]

Base unit: [◀]

Editing entries

Handset

1 Find the desired entry (page 23).
2 [MENU] → [◀]: "Edit" → [SELECT]
3 Edit the name if necessary (16 characters max.; page 22). → [OK]
4 Edit the phone number if necessary (24 digits max.). → [OK]
5 【◆】: Select the desired group (page 22). → [SELECT] 2 times
6 [OFF]

Erasing entries

Erasing an entry

Handset

1 Find the desired entry (page 23).
2 [MENU] → [▲]: "Erase" → [SELECT]
3 [▲]: "Yes" → [SELECT]

Shared Phonebook

4 [OFF]

Base unit

1 Find the desired entry (page 23).
2 [ERASE] → [▲]: "Yes" → [SELECT]
3 [EXIT]

Erasing all entries

Handset

1 [◀] → [MENU]
2 [▲]: "Erase all" → [SELECT]
3 [▲]: "Yes" → [SELECT]
4 [▲]: "Yes" → [SELECT]
5 [OFF]

Base unit

1 [ ]→[ERASE]
2 [▲]: "Yes" → [SELECT]
3 [▲]: "Yes" → [SELECT]

Chain dial

This feature allows you to dial phone numbers in the phonebook while you are on a call. This feature can be used, for example, to dial a calling card access number or bank account PIN that you have stored in the phonebook, without having to dial manually.

Handset / Base unit

1 Proceed with the operation for your unit.

During an outside call:

Handset: [MENU] → [◆]:

"Phonebook" → [SELECT]

Base unit: [ ]

2 [▲]: Select the desired entry.
3 Press [CALL] to dial the number.

Note:

- When storing a calling card access number and your PIN in the phonebook as one phonebook entry, press [▲] (Pause) to add pauses after the number and PIN as necessary (page 17).

- If you have rotary/pulse service, you need to press ✝ (TONE) before pressing [MENU] on the handset or [icon] on the base unit in step 1 to change the dialing mode temporarily to tone. When adding entries to the phonebook, we recommend adding ✝ (TONE) to the beginning of phone numbers you wish to chain dial (page 22).

Speed dial

You can assign 1 phone number to each of the dial keys (1 to 9) on the handset.

Adding phone numbers to speed dial keys

■ By entering phone numbers:

1 Press and hold the desired speed dial key (1 to 9). → [ADD]
2 [▲]: "Manual" → [SELECT]
3 Enter the party's name (16 characters max.). → [OK]
4 Enter the party's phone number (24 digits max.). → [OK]
5 [SELECT] → [OFF]

■ From the shared phonebook:

1 Press and hold the desired speed dial key (1 to 9). → [ADD]
2 [▲]: "Phonebook" → [SELECT]
3 [▲]: Select the desired entry.
4 [SAVE] → [OFF]

Note:

- If you edit a phonebook entry which is assigned to a speed dial key, the edited entry does not transfer to the speed dial key.

Editing an entry

1 Press and hold the desired speed dial key (1 to 9). → [MENU]
2 [◀]: "Edit" → [SELECT]
3 Edit the name if necessary (16 characters max.; page 22). → [OK]
4 Edit the phone number if necessary (24 digits max.). → [OK]
5 [SELECT] → [OFF]

Erasing an entry

1 Press and hold the desired speed dial key (1 to 9). → [MENU]
2 [▲]: "Erase" → [SELECT]
3 [▲]: "Yes" → [SELECT]
4 [OFF]

Viewing speed dial key assignments

You can see the speed dial key assignments on the handset display.

Press and hold the desired speed dial key (1 to 9).

Making a call using a speed dial key

1 Press and hold the desired speed dial key (1 to 9).
2 [ \~ ]

Programming

Programmable settings

You can customize the unit by programming the following features.

To access the features, there are 2 methods.

Handset / Base unit

■ Scrolling through the display menus

1 [MENU]

2 Press [▼] or [▲] to select the desired main menu. → [SELECT]

3 Press [▼] or [▲] to select the desired item from the next sub-menus. → [SELECT]

4 Press [▼] or [▲] to select the desired setting. → [SAVE]

• This step may vary depending on the feature being programmed.
• To exit the operation, press [OFF] on the handset or [EXIT] on the base unit.

■ Using the direct command code

1 [MENU] → Enter the desired code.

Example: Press [MENU]#110.

For available code:

• Handset: see page 26.
• Base unit: see page 30.

2 Select the desired setting. → [SAVE]

• This step may vary depending on the feature being programmed.
• To exit the operation, press [OFF] on the handset or [EXIT] on the base unit.

Note:

• In the following table, < > indicates the default settings.
• In the following table, indicates the reference page number.
• Display menu order and sub-menu may vary depending on your model.

Display menu tree and direct command code table

■ Handset

Main menu: "Phonebook"

Operation Code
Viewing the phonebook entry. #280 23

Main menu: "Caller list"

Operation Code
Viewing the caller list. #213 37

Main menu: "Answering device"

Sub-menu 1 Sub-menu	2 Settings Code
Play new msg. (msg.: message)	--#323 42

Programming

Sub-menu 1 Sub-menu	2 Settings Code
Play all msg.	-- #324 42
Erase all msg.*1	-- #325 42
Greeting	Record greeting*1	- #302 41
	Check greeting	- #303 41
	Pre-recorded*1 (Reset to pre-recorded greeting)	- #304 41
New message alert*1	Outgoing call - On/Off	1: On 0:	#338	43
	Outgoing call - Notification to	-
	Outgoing call - Remote code	1: Activate 0:
	Base unit beep	1: On 0:	#339	43
Settings	Ring count*1	2-7: 2-7 rings <4 rings>0: Toll saver	#211 45
	Recording time*1	1: 1 min3: <3 min>0: Greeting only*2	#305 46
	Remote code*1	<111> #306 44
	Screen call	1: <On> 0: Off	#310	40
Answer on*1	-- #327 40
Answer off*1	-- #328 40

Main menu: "V.M. access" (V.M.: Voice mail)

Operation Code
Listening to voice mail messages. #330 48

Main menu: •) Intercom"

Operation Code
Paging the desired unit. #274 49

Main menu: Set date & time"

Sub-menu 1 Sub-menu	2 Settings	Code
Date and time*1	-	-	#101	14

Programming

Sub-menu 1 Sub-menu	2 Settings Code			←
Alarm	-1: Once	2: Daily0:	#720 32
Time adjustment*1, *3	-1:ID auto>0: Manual	#226 -

Main menu: ⬆ Initial setting"

Sub-menu 1 Sub-menu 2 Settings Code
Ringer setting	Ringer volume	0-6: Off-6 <6>	#160	17
	Ringer tone*4, *5, *6	<Tone 1> #161 -
	Silent mode- On/Off	1: On 0: <Off>	#238	32
	Silent mode- Start/End	<11:00 PM/06:00 AM>	#237	33
Set date & time	Date and time*1	-	#101 14
	Alarm	1: Once2: Daily0: <Off>	#720 32
	Time adjustment*1, *3	1: <Caller ID auto>0: Manual	#226 -
Talking Caller ID	Handset	1: <On> 0: Off	#162	36
	Base unit*1	1: On 0: <Off>	#*162
Handset name	-	-	#104 33
Key detector setting*11- 1: Add new device (for Detector1)*12- 2: Add new device (for Detector2)- 3: Add new device (for Detector3)- 4: Add new device (for Detector4)	Change name*1	Detector1	#6561	-
		Detector2*13	#6562*14
		Detector3*13	#6563*14
		Detector4*13	#6564*14
	Registration	-	#6571	-
			#6572*14
			#6573*14
			#6574*14
	Deregistration	-	#6581	-
			#6582*14
			#6583*14
			#6584*14

Programming

Sub-menu 1 Sub-menu 2 Settings Code
Call block*1	--#217 33
	First ring*1	1:0: Off	#173	34
	Block w/o num*,2(Block calls without phone number)	1: On 0:	#240	34
Speed dial	--#261 25
Voice mail	Store VM access#1(VM: Voice mail)	- #331 47
	VM tone detect*1	1:0: Off	#332	47
LCD contrast(Display contrast)	-1-6: Level 1-6 <3> #145 -
Key tone*7	-	1:0: Off	#165	-
Caller ID edit(Caller ID number auto edit)	-	1:0: Off	#214	38
Auto talk*8	-	1: On 0:	#200	17
Set tel line	Set dial mode*1	1: Pulse2:	#120 15
	Set flash time*1, *9	0: 900 ms1: <700 ms>2: 600 ms3: 400 ms4: 300 ms5: 250 ms*: 200 ms#: 160 ms6: 110 ms7: 100 ms8: 90 ms9: 80 ms	#121 18
	Set line mode*1, *10	1: A 2:	#122	-
Call sharing*1	-	1:0: Off	#194	19
Registration Register handset		- #130 35
		Deregistration*2	- #131 35
Power failure	-	1:0: Off	#152	19
Change language	Display	1:2: Español	#110 14
	Voice prompt*1	1:2: Español	#112 15

Programming

Main menu: ?Customer support"

Operation Code
Displaying customer support Web address. #680 –

Main menu: ⓄKey detector" *11

Sub-menu 1 Sub-menu	2 Settings Code			#
Search	-- #655 -
Battery check	-	-

■ Base unit

Main menu: "Phonebook"

Operation Code
Viewing the phonebook entry. #280 23

Main menu: →Caller list"

Operation Code
Viewing the caller list. #213 37

Main menu: dAnswer device"

Sub-menu 1 Sub-menu	2 Settings Code
Screen call	-	<On>Off	#310	40

Main menu: ⬆ Initial setting"

Sub-menu 1 Sub-menu	2 Settings Code
Ringer setting	Ringer volume	Off-6 <1>	#160	17
	Silent mode - On/Off	On <Off>	#238	32
	Silent mode - Start/End	<11:00 PM/ 06:00 AM>	#237	33
Talking CID	-	On <Off>	#162	36
Call block*1	-	- #217	33
	First ring*1	<On> Off	#173	34
	Block w/o num*1,*2 (Block calls without phone number)	On <Off>	#240	34
LCD contrast (Display contrast)	-	Level 1-6 <3> #145	-

Programming

Sub-menu 1 Sub-menu	2 Settings Code
Caller ID edit (Caller ID number auto edit)	-Off #2	14 38
Change language (Display)	-	Español	#110 14

Main menu: ?Cust. Support"

Operation Code
Displaying customer support Web address. #680 –

*1 If you program these settings using one of the units, you do not need to program the same item using another unit.
*2 This menu is not displayed when scrolling through the display menus. It is only available in direct command code.
*3 This feature allows the unit to automatically adjust the date and time each time caller information including date and time is received.
To turn this feature on, select "Caller ID auto". To turn this feature off, select "Manual". (Caller ID subscribers only)
To use this feature, set the date and time first (page 14).
*4 If you subscribe to a distinctive ring service (such as IDENTA-RING), select a tone (tone 1 to 3). If you select a melody, you cannot distinguish lines by their ringers.
*5 If you select one of the melody ringer tones, it will continue to play for several seconds even if the caller has already hung up. You may either hear a dial tone or no one on the line when you answer the call.
*6 The preset melodies in this product are used with permission of © 2009 Copyrights Vision Inc.
*7 Turn this feature off if you prefer not to hear key tones while you are dialing or pressing any keys, including confirmation tones and error tones.
*8 If you subscribe to a Caller ID service and want to view the caller's information after lifting up the handset to answer a call, turn off this feature.
*9 The flash time depends on your telephone exchange or host PBX. Contact your PBX supplier if necessary. The setting should stay at "700 ms" unless pressing [FLASH] fails to pick up the waiting call.
*10 Generally, the line mode setting should not be changed. This setting automatically maintains receiver volume at the proper level depending on the current telephone line condition. Set the line mode to "A" if telephone line condition is not good.
*11 This setting is available when you have the key detector (KX-TGA20). Read the installation guide for more information on the key detector.
*12 For models with supplied key detectors, the display shows "1: Detector1".
*13 If you register 2 or more key detectors.
*14 If you have 2 or more key detectors.

Programming

Special programming

Alarm

An alarm sounds at the set time for 3 minutes once or daily. Alarm can be set for each handset.

Important:

- Set the date and time beforehand (page 14).

Handset

1 [MENU]#720

“Off” Turns	alarm off. Go to step 7.
“Once” An alarm sounds once at the set time.
“Daily” An alarm sounds daily at the set time. Go to step 4.

3 Enter the desired month and date. → [OK]
4 Set the desired time.
5 ☒: Select "AM" or "PM". → [OK]
6 【◆】: Select the desired alarm tone. → 【SELECT】

- We recommend selecting a different ringer tone from the one used for outside calls.

7 [SELECT] → [OFF]

- When the alarm is set, is displayed.

Note:

• To stop the alarm, press [OFF] or place the handset on the base unit or charger.
• When the handset is in use, the alarm will not sound until the handset is in standby mode.

Silent mode

Silent mode allows you to select a period of time during which the handset and/or base unit will not ring for outside calls. This feature

is useful for time periods when you do not want to be disturbed, for example, while sleeping. Silent mode can be set for each unit.

Important:

• Set the date and time beforehand (page 14).
• If you have set the alarm, the alarm sounds even if the silent mode is turned on.

Turning silent mode on/off

Handset

1 [MENU]#238
2 [←]: Select the desired setting. → [SAVE] • If you select "Off", press [OFF] to exit.
3 Enter the desired hour and minute you wish to start this feature.
4 ☒: Select "AM" or "PM". → [OK]
5 Enter the desired hour and minute you wish to end this feature.
6 ☒: Select "AM" or "PM".
7 [SAVE] → [OFF]

- When the silent mode is set, Z_Z_i is displayed.

Base unit

1 [MENU]#238
2 [♦]: Select the desired setting. → [SAVE] • If you select "Off", press [EXIT] to exit.
3 Enter the desired hour and minute you wish to start this feature.
4 [AM/PM]: Select "AM" or "PM". → [OK]
5 Enter the desired hour and minute you wish to end this feature.
6 [AM/PM]: Select "AM" or "PM".
7 [SAVE] → [EXIT]

- When the silent mode is set, Z_2i is displayed.

Programming

Changing the start and end time

Handset / Base unit

1 [MENU]#237

2 Continue from step 3 for handset or step 3 for base unit, "Turning silent mode on/off", page 32.

Changing the handset name

Each handset can be given a customized name ("Bob", "Kitchen", etc.). This is useful when you make intercom calls between handsets. You can also select whether or not the handset name is displayed in standby mode. The default setting is "No". If you select "Yes" without entering any handset name, "Handset 1" to "Handset 6" is displayed.

Handset

1 [MENU]# 1 0 4
2 Enter the desired name (max. 10 characters; see the character table, page 22). • If not required, go to step 3.
3 [SAVE]
4 【◆】: Select the desired setting. → 【SELECT】2 times
5 [OFF]

Call block (Caller ID subscribers only)

This feature allows the unit to reject calls when:

- the unit receives a call from a phone number stored in the call block list as unwanted ("Storing unwanted callers", page 33).

– the unit receives a call without phone number ("Blocking incoming calls without phone number", page 34).

When a call is received, the unit rings for a short time ^*1 while the caller is being identified. If the phone number matches an entry in the call block list, the unit emits no sound to the caller, and disconnects the call.

*1 This is called first ring. If you do not want the first ring to sound, turn this setting to "Off" (page 34).

Important:

• When the unit receives a call from a number that is stored in the call block list or a call without a recognized phone number, the call is logged in the caller list (page 37) with ➕ after the call is disconnected.
• You can program this setting using either the base unit or one of the handsets.

Storing unwanted callers

You can store up to 250 phone numbers in the call block list.

Important:

• We recommend storing 10 digits (including an area code). If only 7 digits are stored, all numbers that have the same last 7 digits will be blocked.
  ■ From the caller list:

Handset

1 [▼] CID
2 [▲]: Select the entry to be blocked.

- To edit the number: [MENU] → [◆]: "Edit" → [SELECT]

Press [EDIT] repeatedly until the phone number is shown in the 10-digit format. And then, press [SAVE]. Go to step 5.

3 [MENU]

4 [▲]: "Save CID" → [SELECT]
5 [▲]: "Call block" → [SELECT]
6 [▲]: "Yes" → [SELECT]
7 Edit the phone number if necessary (24 digits max.).
8 [SAVE] → [OFF]

Base unit

1 [CID]

Programming

2 [▲]: Select the entry to be blocked.

- To edit the number, press [EDIT] repeatedly until the phone number is shown in the 10-digit format.

3 [SAVE]

4 [▲]: "Call block" → [SELECT]

5 [▲]: "Yes" → [SELECT]

6 Edit the phone number if necessary (24 digits max.).

7 [SAVE] → [EXIT]

■ By entering phone numbers:

Handset

1 [MENU]#217

2 [MENU] → [▲]: "Add" → [SELECT]

3 Enter the phone number (24 digits max.). • To erase a digit, press [CLEAR].

4 [SAVE] → [OFF]

Base unit

1 [MENU]#217 → [ADD]

2 Enter the phone number (24 digits max.). • To erase a digit, press [CLEAR].

3 [SAVE] → [EXIT]

Blocking incoming calls without phone number

You can reject a call when no phone number is provided, such as a call just showing "Out of area".

Handset / Base unit

1 [MENU]#240

2 【◆】: Select the desired setting. → 【SAVE】

3 Proceed with the operation for your unit. Handset: [OFF] Base unit: [EXIT]

Setting the first ring for the call block list

Handset / Base unit

If you do not want the first ring from a number on the call block list to sound, turn the first ring setting to "Off". The default setting is "On".

1 [MENU]# 1 7 3

2 【◆】: Select the desired setting. → [SAVE]

3 Proceed with the operation for your unit. Handset: [OFF] Base unit: [EXIT]

Viewing/editing/erasing call block numbers

Handset

1 [MENU]#217

2 [◆]: Select the desired entry. • To exit, press [OFF].

3 To edit a number: [EDIT] → Edit the phone number. → [SAVE] → [OFF] To erase a number: [ERASE] → [▲]: "Yes" → [SELECT] → [OFF]

Base unit

1 [MENU]#217

2 [◆]: Select the desired entry. • To exit, press [EXIT].

3 To edit a number: [EDIT] → Edit the phone number. → [SAVE] → [EXIT] To erase a number: [ERASE] → [▲]: "Yes" → [SELECT] → [EXIT]

Note for handset and base unit:

• When editing, press the desired dial key to add, [CLEAR] to erase.
• When viewing, "Block w/o num" is displayed if the blocking incoming calls without phone number feature is turned on. To turn the feature off: [ERASE] → [▼]

Programming

→ [SAVE] → [OFF] (Handset) or [EXIT] (Base unit)

Registering a unit

Operating additional units

Additional handsets

Up to 6 handsets can be registered to the base unit.

Important:

- See page 5 for information on the available model.

Registering a handset to the base unit

The supplied handset and base unit are pre-registered. If for some reason the handset is not registered to the base unit, re-register the handset.

1 Handset:

[MENU]#130

2 Base unit:

Press and hold [LOCATOR] for about 5 seconds until the registration tone sounds.

• If all registered handsets start ringing, press [LOCATOR] again to stop, then repeat this step.
• The next step must be completed within 90 seconds.

3 Handset:

Press [OK], then wait until a long beep sounds.

Note:

• While registering, "Base in registering" is displayed on all registered handsets.
• When you purchase an additional handset, refer to the additional handset's installation manual for registration.

Deregistering a handset

A handset can cancel its own registration to the base unit, or other handsets registered to

the same base unit. This allows the handset to end its wireless connection with the system.

1 [MENU]# 1 3 1

- All handsets registered to the base unit are displayed.

2 [▲]: Select the handset you want to cancel. → [SELECT]

3 [▲]: "Yes" → [SELECT]

4 [OFF]

Caller ID Service

Using Caller ID service

Important:

- This unit is Caller ID compatible. To use Caller ID features, you must subscribe to a Caller ID service. Contact your service provider/telephone company for details.

Caller ID features

Handset / Base unit

When an outside call is being received, the caller information is displayed. Caller information for the last 50 callers is logged in the caller list from the most recent call to the oldest.

- If the unit cannot receive caller information, the following is displayed:

• "Out of area": The caller dials from an area which does not provide a Caller ID service.
• "Private caller" *1 / "Private"*2: The caller requests not to send caller information.
• “Long distance”*1/“Long dist.”*2: The caller makes a long distance call.

- If the unit is connected to a PBX system, caller information may not be properly received. Contact your PBX supplier.

*1 Handset

*2 Base unit

Missed calls

Handset / Base unit

If a call is not answered, the unit treats it as a missed call. The display shows "Missed call".

Note:

• Even when there are unviewed missed calls, "Missed call" disappears from the standby display if the following operation is performed by one of the units:
• A handset is replaced on the base unit or charger.
• Pressing [OFF] on a handset.
• Pressing [EXIT] on the base unit.

Phonebook name display

When caller information is received and it matches a phone number stored in the phonebook, the stored name in the phonebook is displayed and logged in the caller list.

Talking Caller ID

Handset / Base unit

This feature lets you know who is calling without looking at the display. To use this feature, you must:

– subscribe to a Caller ID service of your service provider/telephone company.

- turn this feature on (page 28, 30). When caller information is received, the handsets and base unit announce the caller's name or phone number received from your service provider/telephone company following every ring.

The unit announces in English only.

• Name pronunciation may vary. This feature may not pronounce all names correctly.
• Caller ID service has a limit of how many characters can be displayed. If the caller's name is too long, the unit may not be able to display or announce the entire name.

- The announcement is heard at the same level as the ringer volume (page 17, 28, 30).

- If you turn on the answering system and set the number of rings "2 rings" (page 45), the unit does not announce the caller information. If "Toll saver" is selected and there is a new message, the unit does not announce the caller information.

- When you receive a call while on the phone, the 2nd caller's name is not announced even if you subscribe to both Caller ID and Call Waiting with Caller ID services.

Phonebook name announcement

When caller information is received and it matches a phone number stored in the phonebook, the stored name in the phonebook is announced.

Ringer ID for handset

This feature can help you identify who is calling by using different ringer tones for different groups of callers. When adding an entry to the phonebook, you can assign it to the desired group (page 22). When a call is received from a caller assigned to a group, the ringer you selected for that group rings after caller information is displayed. If you select "Current ringer" (default), the unit uses the ringer tone you selected on page 28 when calls from this group are received.

Handset

1 [◀] → [MENU]
2 [▲]: "Group" → [SELECT]
3 【◆】: Select the desired group. → 【SELECT】
4 [◆]: Select the current setting of the ringer ID. → [SELECT]
5 [▲]: Select the desired ringer tone. → [SAVE]
6 [OFF]

Caller list

Important:

• Only 1 person can access the caller list at a time.
• Make sure the unit's date and time setting is correct (page 14).

Viewing the caller list and calling back

Handset / Base unit

1 Proceed with the operation for your unit. Handset: [▼] CID Base unit: [CID]
2 Press [▼] to search from the most recent call, or [▲] to search from the oldest call.
3 Proceed with the operation for your unit. Handset: - To call back, press [ ]

- To exit, press [OFF].

Base unit:

• To call back, press [◀].
• To exit, press [EXIT].

Note:

- If the entry has already been viewed or answered, “√” is displayed, even if it was viewed or answered using another unit. - In step 2, if ▶ is displayed, not all of the information is shown. To see the remaining information:

Handset:

Press [▶].

To return to the previous screen, press [◀].

Base unit:

Press [▶▶].

To return to the previous screen, press

Editing a caller's phone number before calling back

You can edit a phone number in the caller list by removing its area code and/or the long distance code "1".

Handset

1 [▼] CID
2 [▲]: Select the desired entry.
3 [MENU] → [▲]: "Edit" → [SELECT]
4 Press [EDIT] repeatedly until the phone number is shown in the desired format.

① Local phone number

Example: 321-5555

② Area code – Local phone number

Example: 555-321-5555

③ 1 – Area code – Local phone number

Example: 1-555-321-5555

Base unit

1 [CID]
2 [▲]: Select the desired entry.

Caller ID Service

3 Press [EDIT] repeatedly until the phone number is shown in the desired format.

① Local phone number Example: 321-5555
② Area code – Local phone number Example: 555-321-5555
③ 1 – Area code – Local phone number Example: 1-555-321-5555

4 [◀]

Caller ID number auto edit feature

Handset / Base unit

Once you call back an edited number, the unit which was used to call back remembers the area code and format of the edited number. The next time someone calls from the same area code, caller information is customized by the unit as follows:

• When the call is being received, the Caller ID number is displayed in the same format as the edited number.
• After the call has ended, the caller's phone number is displayed in the same format as the edited number, when reviewed from the caller list.

For example, you can use this feature to set the unit to ignore the area code of callers in your area, so that you can call these local numbers using caller information without dialing the area code.

To activate this feature, you must edit an entry in the caller list, then call that number. After that, phone numbers from that caller's area code are edited automatically.

This feature can be set for each unit (page 29, 31). The default setting is "On".

Note:

- Phone numbers from the 4 most recently edited area codes are automatically edited.

Erasing selected caller information

Handset / Base unit

1 Proceed with the operation for your unit. Handset: [▼] CID Base unit: [CID]
2 [▲]: Select the desired entry.
3 [ERASE] → [▲]: "Yes" → [SELECT]
4 Proceed with the operation for your unit. Handset: [OFF] Base unit: [EXIT]

Erasing all caller information

Handset / Base unit

1 Proceed with the operation for your unit. Handset: [▼] CID Base unit: [CID]
2 [ERASE] → [▲]: "Yes" → [SELECT]
3 Handset: [OFF]

Storing caller information to the phonebook

Handset

1 [▼] CID
2 [◆]: Select the desired entry.

- To edit the number: [MENU] → [◆]: "Edit" → [SELECT]

Press [EDIT] repeatedly until the phone number is shown in the desired format. And then, press [SAVE]. Go to step 5.

3 [MENU]

4 [▲]: "Save CID" → [SELECT]
5 [▲]: "Phonebook" → [SELECT]
6 Continue from step 3, "Editing entries", page 23.

Base unit

1 [CID]

2 [▲]: Select the desired entry.

- To edit the number, press [EDIT] repeatedly until the phone number is shown in the desired format.

3 [SAVE]

4 [▲]: "Phonebook" → [SELECT]

5 [EXIT]

Note for base unit:

• If you stored caller information to the phonebook using the base unit, the entry is automatically assigned to group 1.
• If you want to edit the caller name, you can do so using the handset (page 23).

Answering System

Answering system

The answering system can answer and record calls for you when you are unavailable to answer the phone.

You can also set the unit to play a greeting message but not to record caller messages by selecting "Greeting only" as the recording time setting (page 46).

Important:

• Only 1 person can access the answering system (listen to messages, record a greeting message, etc.) at a time.
• When callers leave messages, the unit records the day and time of each message. Make sure the date and time have been set correctly (page 14).

Memory capacity (including your greeting message)

The total recording capacity is about 18 minutes. A maximum of 64 messages can be recorded.

Note:

• When message memory becomes full:
• "Messages full" is shown on the handset and base unit display.
• The ANSWER ON/OFF indicator on the base unit flashes rapidly if the answering system is turned on.
• If you use the pre-recorded greeting message, the unit automatically switches to another pre-recorded greeting message asking callers to call again later.
• If you recorded your own greeting message, the same message is still announced to callers even though their messages are not recorded.

Turning the answering system on/off

Base unit

Press [ANSWER ON/OFF] to turn on/off the answering system.

Handset

1 To turn on:
[MENU]#327
To turn off:
[MENU]#328

2 [OFF]

Note for base unit and handset:

- When the answering system is turned on, the ANSWER ON/OFF indicator on the base unit lights up.

Call screening

Handset / Base unit

While a caller is leaving a message, you can listen to the call through the unit's speaker.

To adjust the speaker volume, press [▲] or [▼] repeatedly.

You can answer the call by pressing [→] on the handset or [◀] on the base unit.

Call screening can be set for each unit. The default setting is "On".

1 [MENU]#310

2 【◆】: Select the desired setting. → [SAVE]

3 Proceed with the operation for your unit.

Handset: [OFF]

Base unit: [EXIT]

Greeting message

When the unit answers a call, a greeting message is played to callers.

You can use either:

- your own greeting message

- a pre-recorded greeting message

- your own greeting message - a pre-recorded greeting message

Recording your greeting message

Handset

1 [MENU]#302
2 [▲]: "Yes" → [SELECT]
3 After a beep sounds, hold the handset about 20 cm (8 inches) away and speak clearly into the microphone (2 minutes max.).
4 Press [STOP] to stop recording.
5 [OFF]

Using a pre-recorded greeting message

The unit provides 2 pre-recorded greeting messages:

- If you erase or do not record your own greeting message, the unit plays a pre-recorded greeting asking callers to leave a message.

- If the message recording time (page 46) is set to "Greeting only", callers' messages are not recorded and the unit plays a different pre-recorded greeting message asking callers to call again.

- If you erase or do not record your own greeting message, the unit plays a pre-recorded greeting asking callers to leave a message. - If the message recording time (page 46) is set to "Greeting only", callers' messages are not recorded and the unit plays a different pre-recorded greeting message asking callers to call again.

Resetting to a pre-recorded greeting message

If you want to use a pre-recorded greeting message once you record your own greeting message, you need to erase your own greeting message.

Handset

1 [MENU]#304
2 [YES] → [OFF]

Playing back the greeting message

Handset

1 [MENU]#303
2 To exit, press [OFF].

Listening to messages using the base unit

When new messages have been recorded:

-【▶】on the base unit flashes.

- "New message" is displayed.

Press [▶] (PLAY).

• If new messages have been recorded, the base unit plays back new messages.
• If there are no new messages, the base unit plays back all messages.

Operating the answering system during playback

Key Operation
[▲] or [▼]	Adjust the speaker volume
[◄◄]	Repeat message^1
[►Skip message
[PAUSE] Pause	messageTo resume playback, press [►].
[■](STOP) Stop	playback
[ERASE] Erase	currently playing message

*1 If pressed within the first 5 seconds of a message, the previous message is played.

Calling back (Caller ID subscribers only)

If caller information was received for the call, you can call the caller back while listening to a message.

Press [◀] during playback.

- To edit the number before calling back, press [EDIT] repeatedly until the phone number is shown in the desired format (page 37).

Answering System

Erasing all messages

Press [ERASE] 2 times while the unit is not in use.

Listening to messages using the handset

When new messages have been recorded, "New message" is displayed.

1 To listen to new messages:

[PLAY]

or

【MENU】#323

To listen to all messages:

【MENU】#324

2 When finished, press [OFF].

*1 If there are no new messages in the answering system, [PLAY] is not displayed.

Note:

- To switch to the receiver, press [→].

Operating the answering system

[MENU] → [▲]: "Answering device" → [SELECT]

Key Operation
【▲】or【▼】	Adjust the receiver/speaker volume (during playback)
1 or【◀】 Repeat message (during playback)*1
2 or【▶】Skip message (during playback)
3	Enter the “Settings” menu
4 Play new messages
5 Play all messages
6 Play greeting message
7 6 Record greeting message
8 Turn answering system on
【PAUSE】	Pause message*2

Key Operation
9 or [STOP]	Stop recording Stop playback
0 Turn answering system off
× 4^*3	Erase currently playing message
× 5 Erase all messages
× 6 Reset to a pre-recorded greeting message

*1 If pressed within the first 5 seconds of a message, the previous message is played.

*2 To resume playback: [▲]: "Playback" → [SELECT]

*3 You can also erase as follows: [PAUSE] → [▲]: “Erase” → [SELECT] → [▲]: “Yes” → [SELECT]

Calling back (Caller ID subscribers only)

If caller information is received for the call, you can call the caller back while listening to a message.

1 Press [PAUSE] during playback.
2 [▲]: "Call back" → [SELECT]

Editing the number before calling back

1 Press [PAUSE] during playback.
2 [▲]: "Edit & Call" → [SELECT]
3 Press [EDIT] repeatedly until the phone number is shown in the desired format (page 37). → [✗]

Erasing all messages

1 [MENU]#325
2 [▲]: "Yes" → [SELECT] → [OFF]

Advanced new message alerting features

Audible message alert

This feature allows the base unit to beep to inform you of a new message arrival when new messages are recorded. The base unit beeps 2 times every minute until you listen to the messages, if the "Base unit beep" setting is turned on. The default setting is "Off".

Handset

1 [MENU]#339

2 【◆】: Select the desired setting. → 【SAVE】→【OFF】

Note:

- When the silent mode is activated (page 32), the base unit beeps will not sound.

New message alert by a call

This feature allows the unit to make a call to the pre-stored phone number and inform you that a new message has been received by announcement.

To use this feature, you must:

- store a phone number to which the unit makes the call to.

– turn on the new message alert setting. After you answer the new message alert call, you can listen to messages from that call (page 44).

Important:

- The unit makes a call to the pre-stored phone number after the new message is recorded:

- If the call is answered, the announcement is repeated for about 1 minute.

- If nobody answers within 1 minute, the unit will not retry the call.

Storing a phone number to which the unit makes an alert call

Handset

■ From the phonebook:

1 [MENU]#338

2 【◆】: "Notification to" → [SELECT] → [ADD]

3 [▲]: "Phonebook" → [SELECT]

4 [◆]: Select the desired phonebook entry. → [SAVE] → [OFF]

■ By entering a phone number:

1 [MENU]#338

2 [◆]: "Notification to" → [SELECT] → [ADD]

3 [▲]: "Manual" → [SELECT]

4 Enter the desired name (16 characters max.; page 22). → [OK]

5 Enter the desired number (24 digits max.). → [OK] → [SELECT] → [OFF]

Turning on/off the new message alert setting

Handset

1 [MENU]#338
2 [▲]: "On/Off" → [SELECT]
3 【◆】: Select the desired setting. → [SAVE] → [OFF]

Editing the set phone number

Handset

1 [MENU]#338
2 【▲】: "Notification to" → [SELECT]
3 [MENU] → [▲]: "Edit" → [SELECT]
4 Edit the name if necessary (16 characters max.; page 22). → [OK]
5 Edit the phone number if necessary (24 digits max.). → [OK] → [SELECT] → [OFF]

Answering System

Erasing the set phone number

Handset

1 [MENU]#338

2 [▲]: "Notification to" → [SELECT]

3 [MENU] → [▲]: "Erase" → [SELECT]

4 [▲]: "Yes" → [SELECT] → [OFF]

- The new message alert setting is turned off.

Activating/inactivating the remote access code to play messages

If you activate this feature, you must enter the remote access code (page 44) to play the new message from the new message alert call. This is so that unauthorized parties cannot listen to your messages. The default setting is "Inactivate".

• "Inactivate": You can listen to the message by pressing ④ to play new messages (without entering the remote access code).
• "Activate": You must enter your remote access code (page 44) and then press ④ to play new message.

Handset

1 [MENU]#338
2 [▲]: "Remote code" → [SELECT]
3 【◆】: Select the desired setting. → [SAVE] → [OFF]

Listening to messages

After you answer the new message alert, you can listen to the messages as follows.

■ When the remote access code is set to "Inactivate":
Press ④ to play the new message during the announcement.

■ When the remote access code is set to "Activate":

1 Enter the remote access code (page 44) during the announcement.
2 Press 4 to play the new message.

Note:

• After listening to new messages, you can press #9 during the call to turn off the new message alert by a call feature.
• Even if the unit makes a new message alert call, the handset redial list does not show the record. However, on the base unit redial list it is shown as "Message alert".

Remote operation

Using a touch-tone phone, you can call your phone number from outside and access the unit to listen to messages or change answering system settings. The unit's voice guidance prompts you to press certain dial keys to perform different operations.

Remote access code

A 3-digit remote access code must be entered when operating the answering system remotely. This code prevents unauthorized parties from listening to your messages remotely. The default setting is "111".

Important:

- To prevent unauthorized access to this product, we recommend that you regularly change the remote code.

Handset

1 [MENU]#306
2 Enter the desired 3-digit remote access code.
3 [SAVE] → [OFF]

Deactivating remote operation

Press ☒ in step 2 on "Remote access code", page 44.
- The entered remote access code is deleted.

Using the answering system remotely

1 Dial your phone number from a touch-tone phone.

Answering System

2 After the greeting message starts, enter your remote access code.
3 Follow the voice guidance prompts as necessary or control the unit using remote commands (page 45).
4 When finished, hang up.

Voice guidance

■ When the English voice guidance is selected

During remote operation, the unit's voice guidance starts and prompts you to press

① to perform a specific operation, or press
② to listen to more available operations.

■ When the Spanish voice guidance is selected

To start the voice guidance, press 9. The voice guidance announces the available remote commands (page 45).

Note:

- If you do not press any dial keys within 10 seconds after a voice guidance prompt, the unit disconnects your call.

Remote commands

You can press dial keys to access certain answering system functions without waiting for the voice guidance to prompt you.

Key Operation

1 Repeat message (during playback)*1

2 Skip message (during playback)

4 Play new messages

5 Play all messages

9 Stop playback*2Start voice guidance*3

0 Turn answering system off

※4 Erase currently playing message

※5 Erase all messages

※# End remote operation(or hang up)

*1 If pressed within the first 5 seconds of a message, the previous message is played.
*2 For English voice guidance only
*3 For Spanish voice guidance only

Turning on the answering system remotely

If the answering system is off, you can turn it on remotely.

1 Dial your phone number from a touch-tone phone.
2 Let the phone ring 15 times.

• A long beep is heard.

3 Enter your remote access code within 10 seconds after the long beep.

• The greeting message is played back.
• You can either hang up, or enter your remote access code again and begin remote operation (page 44).

Answering system settings

Number of rings before the unit answers a call

You can change the number of times the phone rings "Ring count" before the unit answers calls. You can select 2 to 7 rings, or "Toll saver".

The default setting is "4 rings".

"Toll saver": The unit's answering system answers at the end of the 2nd ring when new messages have been recorded, or at the end of the 5th ring when there are no new messages. If you call your phone from outside to listen to new messages (page 44), you know that there are no new messages when the phone rings for the 3rd time. You can then hang up without being charged for the call.

Handset

1 [MENU]#211
2 [▲]: Select the desired setting. → [SAVE] → [OFF]

Answering System

For voice mail service subscribers

If you subscribe to a flat-rate service package that includes Caller ID, call waiting, voice mail, and unlimited local/regional/long distance calls, please note the following:

• To use the voice mail service provided by your service provider/telephone company rather than the unit's answering system, turn off the answering system (page 40).
• To use this unit's answering system rather than the voice mail service provided by your service provider/telephone company, please contact your service provider/telephone company to deactivate your voice mail service.

If your service provider/telephone company cannot do this:

• Set this unit's "Ring count" setting so that this unit's answering system answers calls before the voice mail service of your service provider/telephone company does. It is necessary to check the number of rings required to activate the voice mail service provided by your service provider/telephone company before changing this setting.
• Change the number of rings of the voice mail service so that the answering system can answer the call first. To do so, contact your service provider/ telephone company.

Caller's recording time

You can change the maximum message recording time allowed for each caller. The default setting is "3 min".

Handset

1 [MENU]#305
2 [▲]: Select the desired setting. → [SAVE] → [OFF]

Selecting "Greeting only"

You can select "Greeting only" which sets the unit to announce a greeting message to callers but not record messages.

Select "Greeting only" in step 2 on "Caller's recording time", page 46.

Note:

- When you select "Greeting only":

• If you do not record your own message, the unit will play the pre-recorded greeting-only message asking callers to call again later.
• If you use your own message, record the greeting-only message asking callers to call again later (page 41).

Voice mail service

Voice mail is an automatic answering service offered by your service provider/telephone company. After you subscribe to this service, your service provider/telephone company's voice mail system answers calls for you when you are unavailable to answer the phone or when your line is busy. Messages are recorded by your service provider/telephone company, not your telephone. Please contact your service provider/telephone company for details of this service.

Important:

- To use the voice mail service provided by your service provider/telephone company rather than the unit's answering system, turn off the answering system (page 40). For details, see page 46.

Storing the voice mail (VM) access number

In order to listen to your voice mail messages, you must dial your service provider/telephone company's voice mail access number. Once you have stored your voice mail access number, you can dial it automatically (page 48).

Handset

1 [MENU]#331
2 Enter your access number (24 digits max.). → [SAVE] → [OFF]

Note:

- When storing your voice mail access number and your mailbox password, press [▲] (Pause) to add pauses (page 17) between the access number and the password as necessary. Contact your service provider/telephone company for the required pause time.

Example:

1-222-333-4444

VM access number

PPPP 8888

Pauses Password

To erase the voice mail access number

Handset

1 [MENU]#331
2 Press and hold [CLEAR] until all digits are erased. → [SAVE] → [OFF]

Voice mail (VM) tone detection

Handset / Base unit

Your service provider/telephone company sends special signals (sometimes called "voice mail tones" or "stutter tones") to the unit to let you know you have new voice mail messages. If you hear a series of dial tones followed by a continuous dial tone after you press [💡] on the handset or press [⇨] on the base unit, you have new voice mail messages. Soon after you hang up a call or after the phone stops ringing, your unit checks the phone line to see if new voice mail messages have been recorded.

Turn this feature off when:

• You do not subscribe to voice mail service.
• Your service provider/telephone company does not send voice mail tones.
• Your phone is connected to a PBX. If you are not sure which setting is required, contact your service provider/telephone company.

Turning VM tone detection on/off

The default setting is "On".

Handset

1 [MENU]#332
2 [▲]: Select the desired setting. → [SAVE] → [OFF]

Voice Mail Service

Listening to voice mail messages

The unit lets you know that you have new voice mail messages in the following way:

- “New Voice Mail” is displayed if message indication service is available.

Handset

1 [VM] \*1

or

[MENU]#330

- The speakerphone turns on.

2 Follow the pre-recorded instructions.

3 When finished, press [OFF].

*1 If there are no new messages in the voice mail, [VM] is not displayed.

Base unit

To listen to voice mail messages, you have to dial your voice mail access number manually.

Note for handset and base unit:

- If the handset and base unit still indicate there are new messages even after you have listened to all new messages, turn it off by pressing and holding # until the handset or base unit beeps.

Intercom

Intercom calls can be made:

- between handsets

– between a handset and the base unit

Note:

• When paging unit(s), the paged unit(s) beeps for 1 minute.
• If you receive an outside call while talking on the intercom, you hear 2 tones.
• To answer the call with the handset, press [OFF], then press [\~].
• To answer the call with the base unit, press [◀] 2 times.

Making an intercom call

Handset

1 [INT] *1

or [MENU] → [▲]: "Intercom" → [SELECT]

2 【◆】: Select the desired unit. → [SELECT]

• To stop paging, press [OFF].

3 When you finish talking, press [OFF].

*1 If there is a new message in the voice mail or answering system, [INT] is not displayed.

Base unit

1 Press [INTERCOM].

When 2 or more handsets are registered:

- To page a specific handset, enter the handset number.

- To page all handsets, press 0 or wait for a few seconds.

- To stop paging, press [INTERCOM].

2 When you finish talking, press [INTERCOM].

Answering an intercom call

Handset

1 Press [

to answer the page.

2 When you finish talking, press [OFF].

Base unit

1 Press [INTERCOM] to answer the page.
2 When you finish talking, press [INTERCOM].

Handset locator

You can locate a misplaced handset by paging it.

1 Base unit: Press [LOCATOR].
- All registered handsets beep for 1 minute.

2 To stop paging:

Base unit: Press [LOCATOR]

Handset: Press [→], then press [OFF].

Transferring calls, conference calls

Outside calls can be transferred or a conference call with an outside party can be made:

• between 2 handsets
  – between a handset and the base unit

Handset

1 During an outside call, press [MENU] to put the call on hold.
2 [◆]: "Intercom" → [SELECT]
3 [▲]: Select the desired unit. → [SELECT]

4 Wait for the paged party to answer.

- If the paged party does not answer, press [ ] to return to the outside call.

5 To complete the transfer:

Press [OFF].

- The outside call is being routed to the destination unit.

To establish a conference call: [MENU] → [▲]: "Conf." → [SELECT]

Intercom/Locator

• To leave the conference, press [OFF]. The other 2 parties can continue the conversation.
• To put the outside call on hold: [MENU] → [◆]: “Hold” → [SELECT]

To resume the conference: [MENU] → [◆]: "Conf." → [SELECT]

- To cancel the conference: [MENU] → [▲]: "Stop conference" → [SELECT]

You can continue the conversation with the outside caller.

Base unit

1 During an outside call, press [INTERCOM].

When 2 or more handsets are registered:

• To page a specific handset, enter the handset number.
• To page all handsets, press 0 or wait for a few seconds.

2 Wait for the paged party to answer.

- If paged party does not answer, press [INTERCOM] to return to the outside call.

3 To complete the transfer: Press [◀].

• The outside call is being routed to the handset.
  To establish a conference call: Press [CONF].
• To leave the conference, press [✿]. The other 2 parties can continue the conversation.
• To put the outside call on hold, press [HOLD]. To resume the conference, press [CONF].

Answering a transferred call

Handset

Press [\~] to answer the page.

Base unit

Press [◀] to answer the page.

Wall mounting

The base unit can be mounted on a wall by changing the wall mounting adaptor's position.

Note:

- Make sure that the wall and the fixing method are strong enough to support the weight of the unit.

Base unit

1 To remove the wall mounting adaptor, push down the release levers (①). Remove the adaptor (②).

2 ① Turn the adaptor so that the words "UP WALL" are facing up.

② Tuck the telephone line cord inside the wall mounting adaptor.
③ Connect the AC adaptor cord and telephone line cord.

3 Insert the lower tabs of the adaptor into the unit's bottom slots (①), then insert by pushing down the levers of the adaptor into the upper slots (②).

- The words "UP WALL" should be facing up.

4 Mount the unit on a wall then slide down to secure in place.

Charger

Drive the screws (not supplied) into the wall.

Error messages

Display message Cause/solution
Base no powerorNo link. Re-connect base AC adaptor.orNo link.	The handset has lost communication with the base unit. Move closer to the base unit and try again.Unplug the base unit's AC adaptor to reset the unit. Reconnect the adaptor and try again.The handset's registration may have been canceled. Re-register the handset (page 35).When “No link.” is displayed during a power failure, place a handset on the base unit to supply power to the base unit.
Busy	The called unit is in use.Other units are in use and the system is busy. Try again later.The handset you are using is too far from the base unit. Move closer and try again.
Call phone company for your access #	You have not stored the voice mail access number. Store the number (page 47).
Check tel line	The supplied telephone line cord has not been connected yet or not connected properly. Check the connections (page 10).
Error!!	Recording was too short. Try again.
Invalid	There is no handset registered to the base unit matching the handset number you entered.The handset is not registered to the base unit. Register the handset (page 35).
Requires subscription to Caller ID.	You must subscribe to a Caller ID service. Once you receive caller information after subscribing to a Caller ID service, this message will not be displayed.
Use rechargeable battery.	A wrong type of battery such as Alkaline or Manganese was inserted. Use only the rechargeable Ni-MH batteries noted on page 5, 7.

Troubleshooting

If you still have difficulties after following the instructions in this section, disconnect the base unit's AC adaptor, then reconnect the base unit's AC adaptor. Remove the batteries from the handset, and then insert the batteries into the handset again.

General use

Problem Cause/solution
The handset does not turn on even after installing charged batteries.	● Place the handset on the base unit or charger to turn on the handset.
The unit does not work. ● Make	sure the batteries are installed correctly (page 10).● Fully charge the batteries (page 10).● Check the connections (page 10).● Unplug the base unit's AC adaptor to reset the unit.Reconnect the adaptor and try again.● The handset has not been registered to the base unit.Register the handset (page 35).
I cannot hear a dial tone. ● The	base unit's AC adaptor or telephone line cord is not connected. Check the connections.● Disconnect the base unit from the telephone line and connect the line to a known working telephone. If the working telephone operates properly, contact our service personnel to have the unit repaired. If the working telephone does not operate properly, contact your service provider/telephone company.
The base unit beeps. ● New messages have been recorded. Listen to the new messages (page 41).

Programmable settings

Problem Cause/solution
The display is in a language I cannot read.	● Change the display language (page 14).
I cannot register a handset to a base unit.	● The maximum number of handsets (6) is already registered to the base unit. Cancel unused handset registrations from the base unit (page 35).

Battery recharge

Problem Cause/solution
The handset beeps and/orflashes.	● Battery charge is low. Fully charge the batteries (page 10)

Useful Information

Problem Cause/solution
I fully charged the batteries, but– ☐ still flashes,– ☐ is displayed, or– the operating time seems to be shorter.	Clean the battery ends (+) and the charge contacts with a dry cloth and charge again.It is time to replace the batteries (page 10).

Making/answering calls, intercom

Problem Cause/solution
is displayed.	The handset is too far from the base unit. Move closer.The base unit's AC adaptor is not properly connected.Reconnect AC adaptor to the base unit.The handset is not registered to the base unit. Register it (page 35).
Noise is heard, sound cuts in and out.	You are using the handset or base unit in an area with high electrical interference. Re-position the base unit and use the handset away from sources of interference.Move closer to the base unit.If you use a DSL/ADSL service, we recommend connecting a DSL/ADSL filter between the base unit and the telephone line jack. Contact your DSL/ADSL provider for details.
The handset does not ring. The ringer volume is turned off. Adjust the ringer volume (page 17, 28).Silent mode is turned on. Turn it off (page 32).
The base unit does not ring. The ringer volume is turned off. Adjust the ringer volume (page 17, 30).Silent mode is turned on. Turn it off (page 32).
I cannot make a call. The dialing mode may be set incorrectly. Change the setting (page 15).
I cannot make long distance calls.	Make sure that you have long distance service.

Caller ID/Talking Caller ID

Problem Cause/solution
Caller information is not displayed.	You must subscribe to Caller ID service. Contact your service provider/telephone company for details.If your unit is connected to any additional telephone equipment such as a Caller ID box or cordless telephone line jack, plug the unit directly into the wall jack.If you use a DSL/ADSL service, we recommend connecting a DSL/ADSL filter between the base unit and the telephone line jack. Contact your DSL/ADSL provider for details.The name display service may not be available in some areas. Contact your service provider/telephone company for details.Other telephone equipment may be interfering with this unit. Disconnect the other equipment and try again.
Caller information is displayed or announced late.	Depending on your service provider/telephone company, the unit may display or announce the caller's information at the 2nd ring or later.Move closer to the base unit.
Caller information is not announced.	The handset or base unit's ringer volume is turned off. Adjust it (page 17, 28, 30).The Talking Caller ID feature is turned off. Turn it on (page 28, 30).The number of rings for the answering system is set to “2 rings” or “Toll saver”. Select a different setting (page 45).If the base unit and another handset are having an intercom call, your handset does not announce caller information.
The caller list/incoming phone numbers are not edited automatically.	The Caller ID number auto edit feature is turned off. Turn it on and try again (page 29, 31).You need to call back the edited number to activate Caller ID number auto edit.
I cannot dial the phone number edited in the caller list.	The phone number you dialed might have been edited incorrectly (for example, the long distance “1” or the area code is missing). Edit the phone number with another pattern (page 37).
Time on the unit has shifted.	Incorrect time information from incoming Caller ID changes the time. Set the time adjustment to “Manual” (off) (page 28).

Useful Information

Problem Cause/solution
The 2nd caller's information is not displayed during an outside call.	In order to use Caller ID, call waiting, or Call Waiting Caller ID (CWID), you must first contact your service provider/telephone company and subscribe to the desired service.After subscribing, you may need to contact your service provider/telephone company again to activate this specific service, even if you already subscribed to both Caller ID and Call Waiting with Caller ID services (CWID).

Answering system

Problem Cause/solution
The unit does not record new messages.	The answering system is turned off. Turn it on (page 40).The message memory is full. Erase unnecessary messages (page 41).The recording time is set to “Greeting only”. Change the setting (page 46).If you subscribe to a voice mail service, messages are recorded by your service provider/telephone company, not your telephone. Change the unit’s number of rings setting or contact your service provider/telephone company (page 46).
I cannot operate the answering system remotely.	The remote access code is not set. Set the remote access code (page 44).You are entering the wrong remote access code. If you have forgotten your remote access code, enter the remote access code setting to check your current code (page 44).The answering system is turned off. Turn it on (page 45).
The unit does not emit the specified number of rings.	If the first ring is turned off, the number of rings decreases by 1 from the specified number of rings.

Liquid damage

Problem Cause/solution
Liquid or other form of moisture has entered the handset/base unit.	● Disconnect the AC adaptor and telephone line cord from the base unit. Remove the batteries from the handset and leave to dry for at least 3 days. After the handset/base unit are completely dry, reconnect the AC adaptor and telephone line cord. Insert the batteries and charge fully before use. If the unit does not work properly, contact an authorized service center.

Caution:

- To avoid permanent damage, do not use a microwave oven to speed up the drying process.

FCC and other information

This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:ACJ----.

If requested, this number must be provided to the telephone company.

• Registration No......(found on the bottom of the unit)
  • Ringer Equivalence No. (REN).....0.1B

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with the product. It is designed to be connected to a compatible modular jack that is also compliant.

The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for the product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3).

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be

advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment, for repair or warranty information, please contact a Factory Service Center or other Authorized Servicer. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.

If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section 68.316.

When you hold the phone to your ear, noise might be heard in your Hearing Aid. Some Hearing Aids are not adequately shielded from external RF (radio frequency) energy. If noise occurs, use an optional headset accessory or the speakerphone option (if applicable) when using this phone. Consult with your audiologist or Hearing Aid

Useful Information

manufacturer about the availability of Hearing Aids which provide adequate shielding to RF energy commonly emitted by digital devices.

WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST CALLS TO EMERGENCY NUMBERS:

1) Remain on the line and briefly explain to the dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such as early morning or late evenings.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone.

CAUTION:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Some cordless telephones operate at frequencies that may cause interference to nearby TVs and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV or VCR. If interference is experienced, move the cordless telephone further away from the TV or VCR. This will often reduce or eliminate interference.

FCC RF Exposure Warning:

• This product complies with FCC radiation exposure limits set forth for an uncontrolled environment.
• To comply with FCC RF exposure requirements, the base unit must be installed and operated 20 cm (8 inches) or more between the product and all person's body (excluding extremities of hands, wrist and feet).
• This product may not be collocated or operated in conjunction with any other antenna or transmitter.
• The handset may be carried and operated with only the specific provided belt-clip. Other non-tested belt-clips or similar body-worn accessories may not comply and must be avoided.

Notice:

- FCC ID can be found inside the battery compartment or on the bottom of the units.

Useful Information

Compliance with TIA-1083 standard:

Telephone handsets identified with this logo have reduced noise and interference when used with T-Coil equipped hearing aids and cochlear implants.

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at: 1-800-211-PANA (1-800-211-7262), Monday - Friday 9 am to 9 pm; Saturday - Sunday 10 am to 7 pm, EST.

TTY users (hearing or speech impaired users) can call 1-877-833-8855.

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:

[e-mail]

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)

(Monday - Friday 9 am to 9 pm, EST.)

Panasonic Service and Technology Company

20421 84th Avenue South, Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks.)

TTY users (hearing or speech impaired users) can call 1-866-605-1277.

Warranty (For United States and Puerto Rico)

PANASONIC CORPORATION OF NORTH AMERICA

One Panasonic Way, Secaucus, New Jersey 07094

Panasonic Telephone Products Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Parts Labor

One (1) Year

One (1) Year

During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” Limited Warranty period, there will be no charge for parts. You must mail-in your product prepaid during the Limited Warranty period. This Limited Warranty excludes both parts and labor for batteries, antennas, and cosmetic parts (cabinet). This Limited Warranty only applies to products purchased and serviced in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser and only covers products purchased as new.

Ship-In Service

For assistance in the continental United States and Puerto Rico in obtaining repairs please ship the product prepaid to:

Panasonic Exchange Center,

4900 George McVay Drive, Suite B Door #12, McAllen, TX 78503

[e-mail]

Online Repair Request

To submit a new repair and for quick repair status visit our web site at http://www.panasonic.com/help

When shipping the unit carefully pack in a padded shipping carton, include all accessories, and send it prepaid. Include a letter detailing the complaint, a return address and provide a day time phone number where you can be reached. P.O. Boxes are not acceptable. Keep the tracking number for your records. A copy of valid registered receipt is required under the 1 year parts and labor Limited Warranty.

For Limited Warranty service for headsets if a headset is included with this product please follow instructions above.

IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE

PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

For assistance, please visit http://www.panasonic.com/help

Appendix

Limited Warranty Limits And Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this excludes damages for lost time, lost calls or messages, cost of having someone remove or re-install an installed unit if applicable, travel to and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

When you ship the product

• Carefully pack your unit, preferably in the original carton.
• Attach a letter, detailing the symptom.
• Send the unit to Panasonic Exchange Center, prepaid and adequately insured.
• Do not send your unit to Panasonic Corporation of North America listed on the back cover or to executive or regional sales offices. These locations do not repair consumer products.

Index

# 4-way conference: 19

A Additional handset: 35

Alarm: 32

Answering calls: 17

Answering system

Call screening: 40

Erasing messages: 41, 42, 45

Greeting message: 40

Greeting only: 46

Listening to messages: 41, 42, 44

New message alerting: 43

Number of rings: 45

Recording time: 46

Remote access code: 44

Remote operation: 44

Ring count: 45

Toll saver: 45

Turning on/off: 40

Auto talk: 17, 29

B Battery: 10, 11

Belt clip: 13

Booster (Clarity booster): 18

C Call block: 33

First ring: 34

Call share: 19, 29

Call waiting: 18

Call Waiting Caller ID: 18

Caller ID number auto edit: 29, 31, 38

Caller ID service: 36

Caller list: 37

Caller list edit: 37

Chain dial: 24

CID (Caller ID): 37

Conference calls: 49

Control type: 12, 13

Customer support: 30, 31

D Date and time: 14

Dialing mode: 15

Direct command code: 26

Display

Contrast: 29, 30

Language: 14

E Eco mode: 11

Equalizer: 19

Error messages: 52

F Flash: 18, 29

G Groups: 22, 37

H Handset

Deregistration: 35

Locator: 49

Name: 33

Registration: 35

Hold: 17

I Intercom: 49

K Key detector: 28, 30

Key tone: 29

L Line mode: 29

M Making calls: 16

Missed calls: 36

Mute: 18

N Noise reduction: 19

P Pause: 17

Phonebook: 22

Power failure (power back-up

operation): 19

R Redialing: 16

Ringer ID: 37

Ringer tone: 28, 37

Rotary/pulse service: 18

S Silent mode: 32

Speed dial: 25

SP-PHONE (Speakerphone): 16

T Talking Caller ID: 36

Temporary tone dialing: 18

Time adjustment: 28

Transferring calls: 49

Troubleshooting: 53

TTY: 64

V VM (Voice mail): 47

Voice guidance language: 15

Voice mail: 46, 47

Volume

Receiver: 16

Ringer (Base unit): 17, 30

Ringer (Handset): 17, 28

Speaker: 16

W Wall mounting: 51

IMPORTANT!

If your product is not working properly. . .

① Reconnect AC adaptor to the base unit.
② Check if telephone line cord is connected.
③ Use rechargeable Ni-MH batteries.
(Alkaline/Manganese/Ni-Cd batteries CANNOT be used.)
④ Read troubleshooting page in the Operating Instructions.

Visit our Web site: http://www.panasonic.com/help

• FAQ and troubleshooting hints are available.

For your future reference

We recommend keeping a record of the following information to assist with any repair under warranty.

Serial No. Date of purchase

(found on the bottom of the base unit)

Name and address of dealer

Attach your purchase receipt here.

Panasonic Corporation of North America

One Panasonic Way, Secaucus, New Jersey 07094

© Panasonic System Networks Co., Ltd. 2012

Printed in China

*PNQX5760ZA*

PNQX5760ZA PT1212MG0 (E)
