USER MANUAL ICD281B GPX

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Cleaning and Care

To ensure the Bluetooth Keyboard functions properly over time, please consider the following warnings during use and storage.

• Do not allow the Bluetooth Keyboard to come into contact with sharp objects, oils, or chemicals.
• Do not squeeze or crush the Bluetooth Keyboard, especially when it is rolled up.
• Do not place heavy objects on top of the Bluetooth Keyboard.
• Do not expose the Bluetooth Keyboard to excessive heat or open flames.
• Do not stretch or distort the Bluetooth Keyboard.

When cleaning your Bluetooth Keyboard, use a damp cloth and gently wipe across and in between the keys on the keyboard.

Bluetooth Keyboard

Features and Included

• Roll-up bluetooth keyboard
- Stand for iPad
- Carry case
- Retractable USB cable
• Built-in rechargeable lithium battery

Power

Built-in rechargeable lithium battery.

To charge the built-in rechargeable lithium battery connect the Bluetooth Keyboard to a computer using the included Retractable USB cable.

Introduction

Pure technical line drawing of a mechanical component or bracket with no text, numbers, or symbols

Mini-USB port

Ex|

(Mac

Display Brightness

(Mac Only)

esc F1 F2 ~ 1 @ 2

Completely black image with no visible content, text, or symbols.

Pure horizontal line pattern with rounded rectangular cutouts, no text or symbols present

pose

; Only)

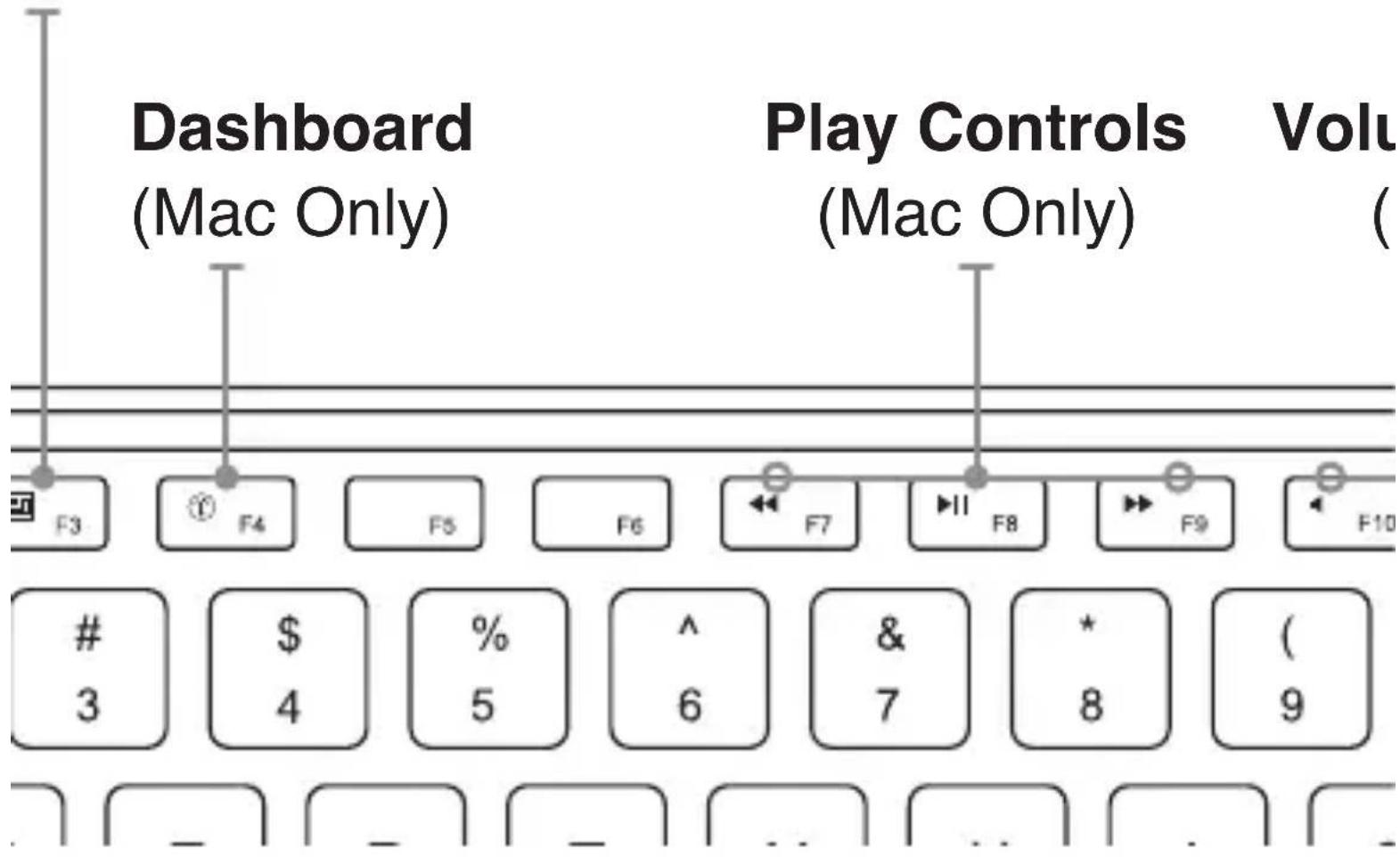

Dashboard (Mac Only) Play Controls (Mac Only) Volu ( F3 F4 F5 F6 F7 F8 F9 F10

$ % ^ & * (

3 4 5 6 7 8 9

Completely black image with no visible content, text, or symbols.

Pure electrical circuit lines without any symbols

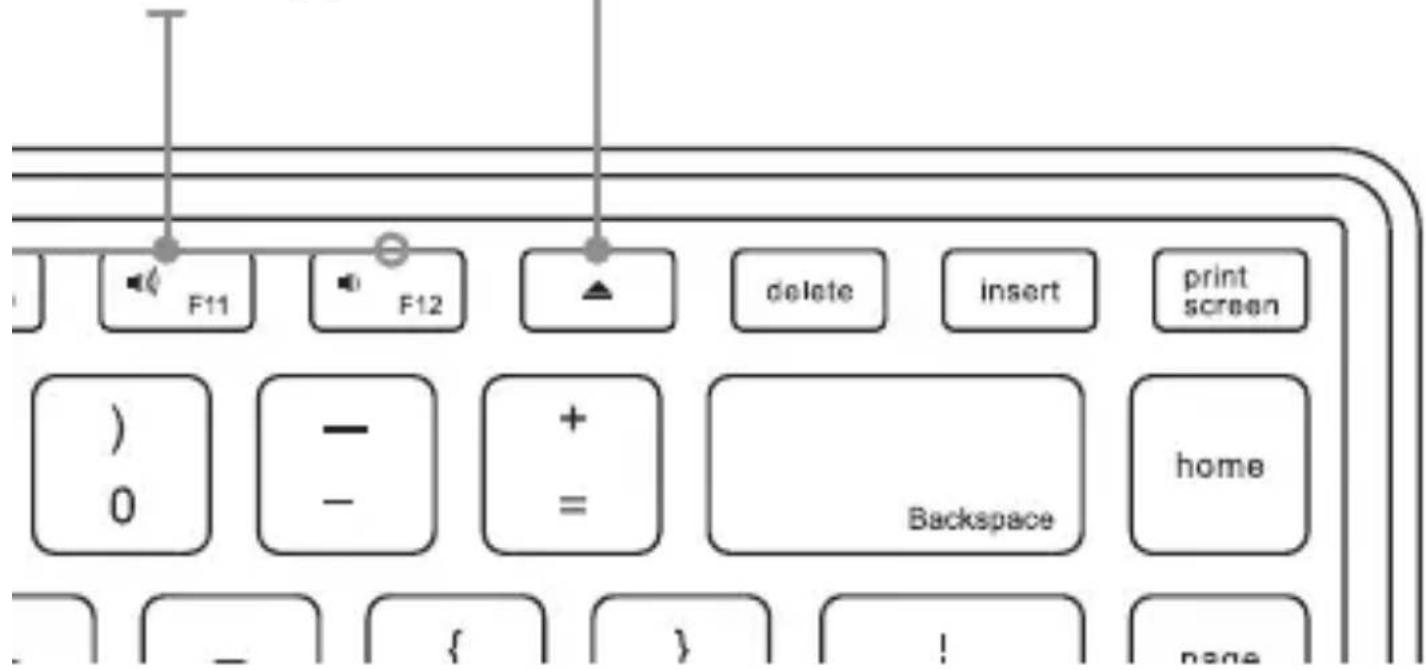

CD Eject

(Mac Only)

ime Controls

Mac Only)

F11 F12 delete insert print screen ) 0 - + = Backspace home page

Power Switch

Pairing

Press to pair the Bluetooth Keyboard with an iPod or computer.

Pure electrical circuit lines without any symbols

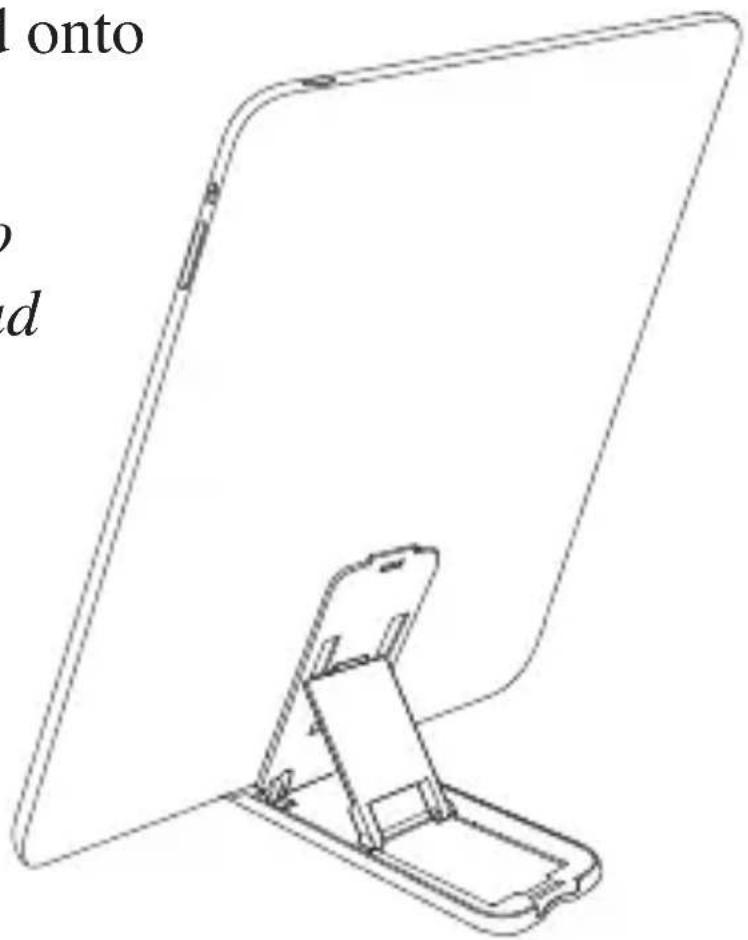

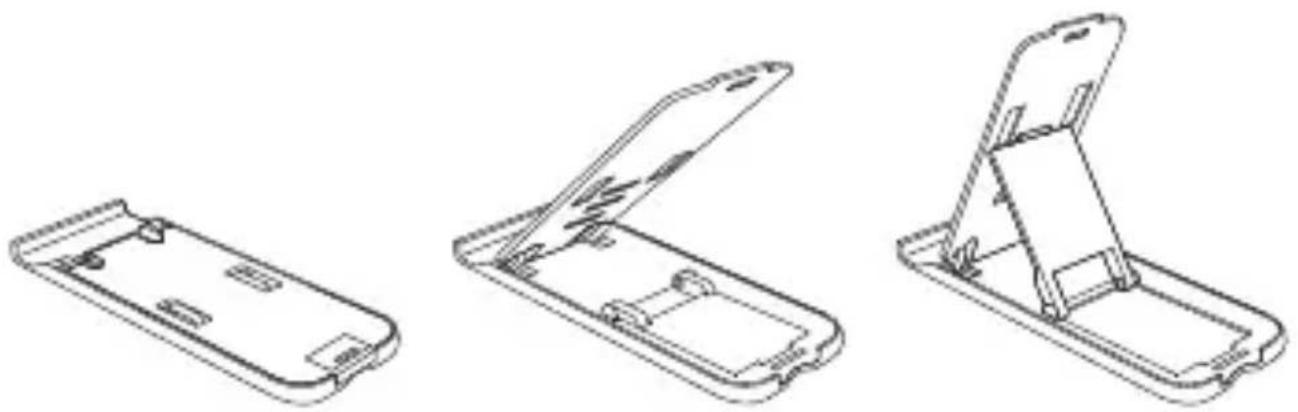

Stand for iPad

Three technical line drawings of a mobile phone chassis, showing front, side, and top views (no text or symbols)

1. Swing open the back stand for iPad.

2. Lock the small support into place at the rear of the back stand.

3. Place your iPad onto the stand.

Make certain to center your iPad on the stand so the weight is properly balanced against the stand.

onto , d

Company Information

International Support

To download this User's Guide in English, Spanish, or French, visit the support section at www.ilive.net.

Website: www.ilive.net

Connecting to an iPad

1. Adjust the Power switch on the Bluetooth Keyboard to the “ON” position.
2. Open the "Settings" on your iPad.
3. Navigate to “General” then “Bluetooth” in the Settings on your iPad.

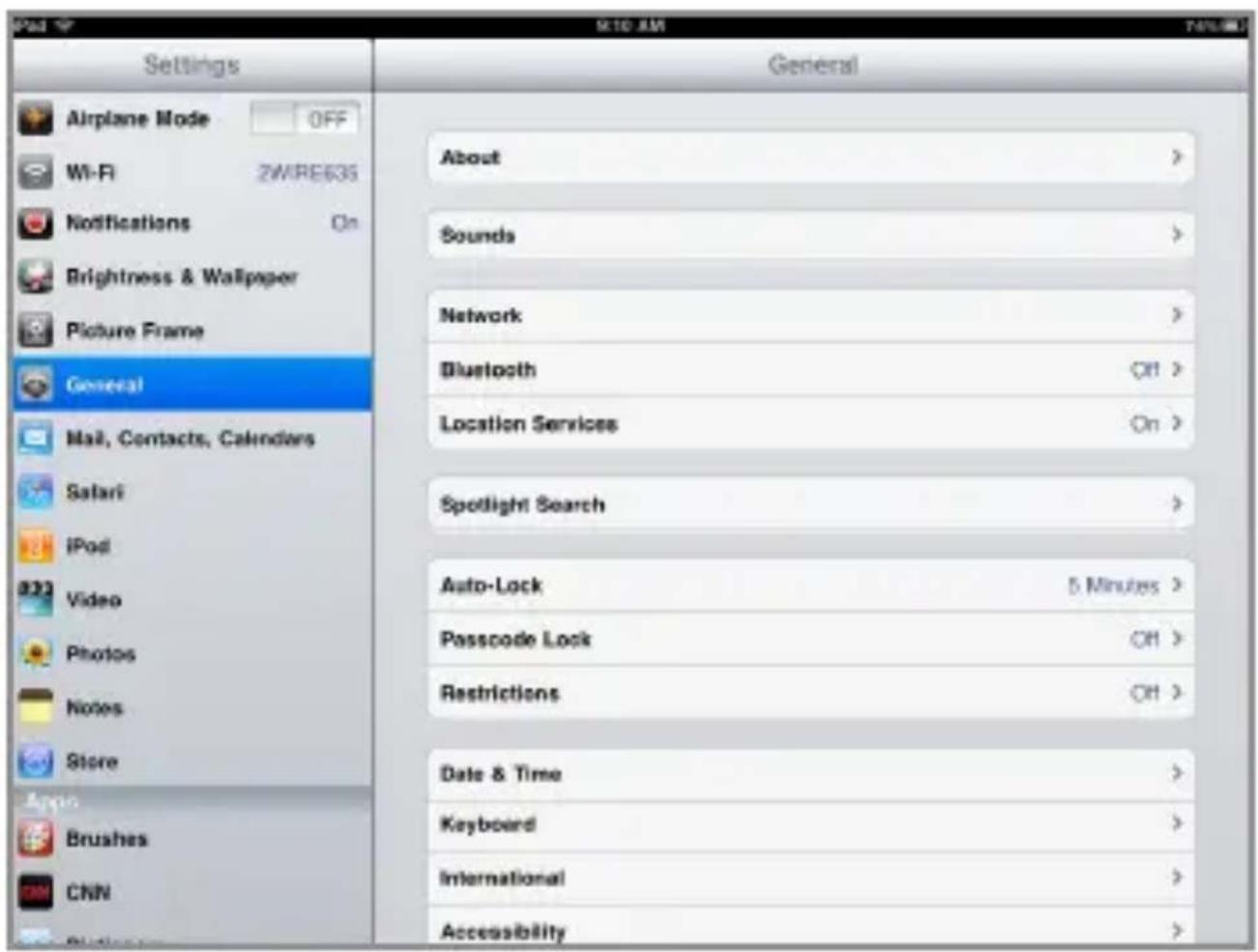

Settings Airplane Mode OFF Wi-Fi 2W/RE635 Notifications On Brightness & Wallpaper Picture Frame General Mail, Contacts, Calendars Salari iPod Video Photos Notes Store Apps Brushes CNN General About > Sounds > Network > Bluetooth Off > Location Services On > Spotlight Search > Auto-Lock 5 Minutes > Passcode Lock Off > Restrictions Off > Date & Time > Keyboard > International > Accessibility >

1. Turn the Bluetooth "ON".
2. Press the Pairing button on the back of the Bluetooth Keyboard.
3. On the iPad, touch the name of the Bluetooth Keyboard when it appears on the “Devices” list.

Settings Airplane Mode OFF Wi-Fi 2W1RE635 Notifications On Brightness & Wallpaper Picture Frame General Mail, Contacts, Calendars Salari iPod Video Photos Notes Store Apps Brushes CNN Bluetooth Bluetooth OFF

1. If this is your first time connecting this Bluetooth Keyboard to this iPad, the iPad will instruct you to type in a four digit code on the Bluetooth Keyboard and press enter or return.

2. Now that the Bluetooth Keyboard is connected, you can use it to wirelessly type on the iPad.

Settings Airplane Mode OFF Wi-Fi 2MIRE635 Notifications On Brightness & Wallpaper Picture Frame General Mail, Contacts, Calendars Safari iPod Video Photos Notes Store Apps Brushes CNN Bluetooth ON Bluetooth Device SONIQ CBT100 Connected Now Discovable

Connecting to an Apple Computer

Make sure that your computer has Bluetooth

Make sure that your computer has Bluetooth built-in or that a compatible Bluetooth adapter is connected. Open System Preferences (from the Apple menu, choose System Preferences), then choose Bluetooth from the View menu.

Turn on Bluetooth

In Bluetooth preferences, select the “On” checkbox (for earlier Mac OS X versions, click the Settings tab, then click Bluetooth Power: On). Make sure that you also enable Bluetooth on your device, too; refer to your device’s documentation for instructions. If you want your Mac to be discoverable, select that option as well.

Set up a new device

To set up a Bluetooth device, click “Set Up New Device” (in earlier Mac OS X versions, click the Devices tab in Bluetooth, then click “Set Up New Device”). Follow the onscreen instructions to set up your device.

Connecting to a Windows Computer

1. COMPUTER: Open Bluetooth Devices on the Windows computer, and then click Add.
2. BLUETOOTH KEYBOARD: Press the Pairing button on the bottom of the Bluetooth Keyboard.
3. COMPUTER: Select the check box, and then click Next.
4. COMPUTER: Click Choose a passkey for me, and then click Next.
5. BLUETOOTH KEYBOARD: Within 30 seconds, type the provided passkey and press ENTER key using your Bluetooth keyboard.
6. Do not use the keyboard number pad to enter the passkey.

Connecting to a Mobile Device

To connect the Bluetooth Keyboard to a mobile device, first make sure that your mobile device has bluetooth, then use the instructions included with your mobile device to setup the Bluetooth Keyboard.

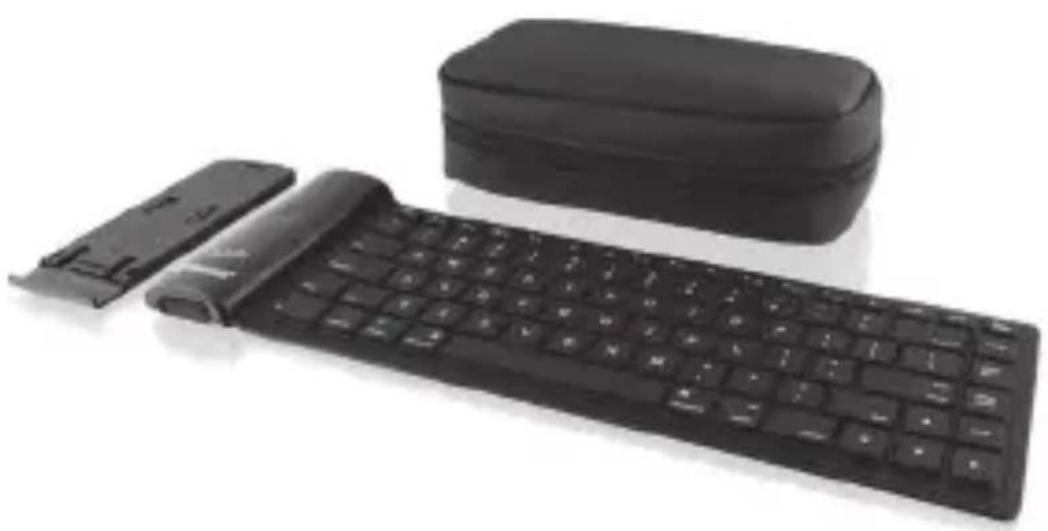

Black foldable keyboard and case with open lid, isolated on white background (no text or symbols)

ICD281

Bluetooth Keyboard for iPad

For the most up-to-date version of this User's Guide, go to www.ilive.net
