USER MANUAL Smartee Slim 9608G SPC

Silhouette of a rocket inside a circular frame (no text or symbols)

Smart Watch

SMARTEE WATCH SLIM

UPDATED INFO: support.spc-universe.com

¡ BIENVENIDO !

ES

Copyright © 2015 SPC

www.spc-universe.com

This guide includes all the information to make the most out of your SPC Smartee Watch Slim.

GET AN SPC ACCOUNT

Free advantages just one click away..

Before going on reading this manual, we strongly recommend you visiting www.spc-universe.com, SO YOU CAN CREATE AN SPC ACCOUNT AND REGISTER YOUR PRODUCT.

By doing this, you will be able to get into SPC universe: an exclusive club where our clients can get incredible offers and discounts and also upgrade or renew their products.

Moreover, having an account means free access to SPC services: tablet and smartphone apps, technical support...

This is SPC. A universe in technology.

THIS BOX CONTAINS

Smartee Slim Watch
USB Cable
■ Coupling part for battery charging
User's guide
- Guarantee card

FEATURES

■ Functions: Phone calls, contact list, notifications, remote music, alarms, remote camera, pedometer, sleep monitor, altimeter, thermometer, barometer. Application for Android and iOS
■ Weight and Dimensions: 40x45x9mm. 45g.

MINIMUM REQUIREMENTS

For most of the Smartee Watch features to run it is required to be connected to a SmartPhone. The minimum requirements are:

1. Switch on/off button
2. Speaker
3. Microphone
4. Plug charging connector
5. Micro-USB connector for charging

BATTERY CHARGING

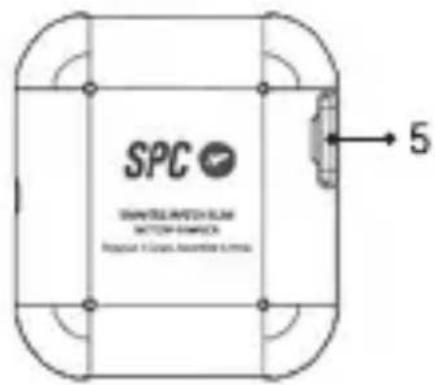

Place the watch inside the coupling part for battery charging in such a way that the charging points are in contact with the charging pins of the coupling part. Connect one end of the USB cable (micro USB) in the charging contact of the part (5). Then connect the USB end directly to computer's USB port or AC-DC of 5V power adapter.

Charge the watch for about 2 hours until the charging icon shows as fully charged.

Battery life in use (off screen): 20 hours (depending on usage)

Battery life in standby mode (without Bluetooth): 2-3 days

USE OF WATCH

SWITCHING ON / OFF THE WATCH

To switch on the watch keep the button pressed (1) for a few seconds until the screen lights up.

To switch off the watch follow the same procedure

If the screen turns off (for power saving), briefly press the button (1) to switch on, and do the same to switch it off.

NOTE: If at any moment the watch gets hanged, then in order to reset press the button (1) for more than 10 seconds in

NAVIGATING THROUGH THE MENUS

The Smartee Slim Watch has various menu screens. With the display on, slide your finger from right to left or vice versa, to move through them.

Also, slide your finger:

From right to left to enter into or to firm an option.

From left to right to go backwards or ing an option.

CHANGING THE WATCH INTERFACE

You can change the interface of the watch, by pressing for long the watch screen and sliding from right to left on available options. Press to choose the one you want to put.

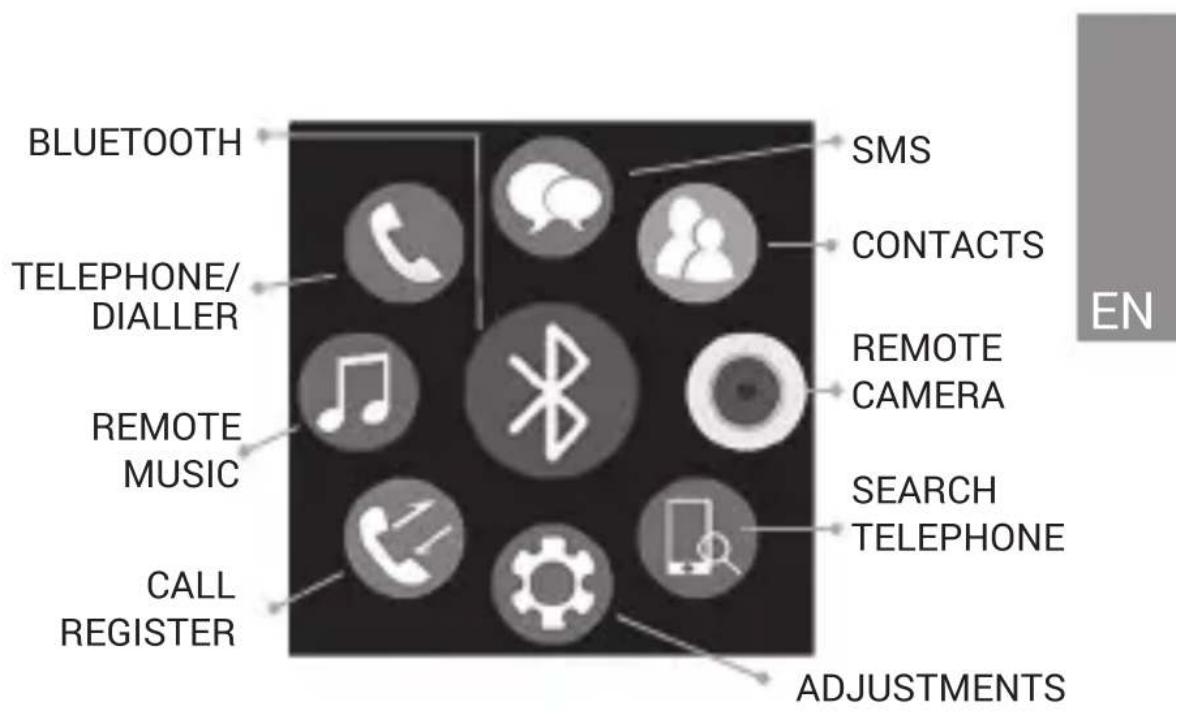

MAIN FUNCTIONS

BLUETOOTH

From here you can sync through BT with a Smartphone, make changes to the settings of BT (enable / disable, change visibility, and see the watch's BT name), or configure the alert distance (the watch vibrates if the connection to the mobile is lost). If you slide further from right to left in a BT connection, you may get it disconnected, erase the connection data and see a little help text as introduction

SMS

Access sent and received SMS messages from the mobile. If slide further from right to left in a message, you can call the sender, delete the message and see the details.

CONTACTS

View the contacts list of your mobile. If you click on a contact, you can call or see the details.

TELEPHONE / DIALLER

Dial a phone number to call from mobile. The call will be heard through the speaker and you will be able to speak through the watch with the help of the microphone

CALLS REGISTRY

Access the log for missed, dialled and received calls. If you click on a call registry, you can also see details or call using the phone.

REMOTE MUSIC

Access the music in your mobile, plays songs, forward or backward with one another and Increase or decrease the volume

REMOTE CAMERA

Access the camera of your mobile (in order to use this feature your phone have to be unlocked) and take a picture by sliding your finger from right to left. In case of iOS, the iPhone's camera will have to be opened first in order to use this feature.

SEARCH PHONE

A sound is made by the phone in order to locate it easily.

SETTINGS

Access the configuration settings of the watch:

■ Language: the language of the watch can be changed
■ Power saving: Enable or disable the power saving mode. In order to save battery power It is recommended to enable it
■ Ringtones: choose among the silence, vibration or different ringtones
■ Time setting: Change the time manually
■ Date setting: Change the date manually
■ Screen light: set the time after which the screen will turn off if not touched
■ Units configuration: choose between metric and imperial

■ About: View the information and the version installed in the watch
■ Default settings: Return to the factory configuration

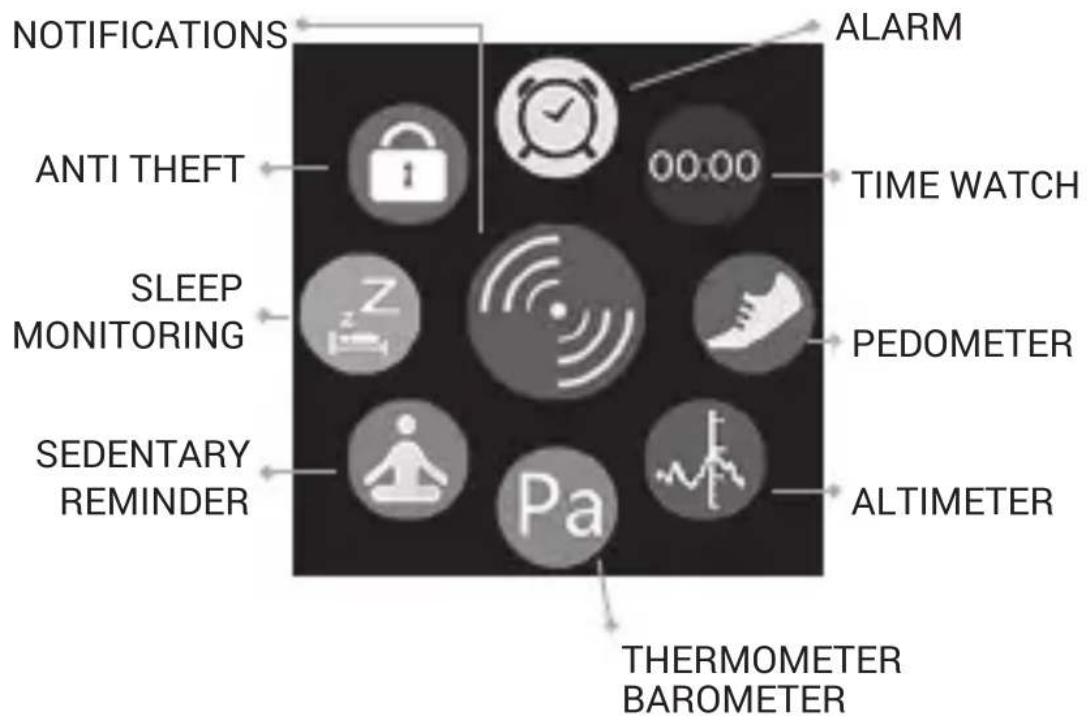

NOTIFICATION

View the mobile notifications.

NOTE: Depending on the version of the operating system you are using, it may be necessary to activate the application for receiving notifications. In Android 5.0, you must do so in the menu Settings Sound and notifications Accessing notifications.

Otherwise, the watch wont be able to access phone notifications.

ALARM

Set different alarms on the watch, configuration of the repetitions, the tone and type of alert can also be done. To save an alarm after setting it, you should slide your finger from right to left. The alarms sounding once can also be stopped, or make them sound again in 10 minutes.

ANTI THEFT

Enable or disable this feature. In case enabled and the distance between the mobile and the watch is greater than 15 meters, the watch will alert you.

TIME WATCH

Time watch feature.

PEDOMETER

Pedometer features. Configure your step and weight previously from this same menu. When you activate the pedometer it will begin to count steps and calculate the distance travelled and calories burned. You can also delete the saved data history.

MONITOR SLEEP

Activates or deactivates sleep mode, view the current sleep status, and delete the saved data history.

SEDENTARY REMINDER

If you activate the sedentary reminder, mobile will alert you if the set time elapses and the watch did not detect movement.

THERMOMETER / BAROMETER

Thermometer and barometer feature.

ALTIMETER

Relative altimeter feature.

NOTE: The sensors for altimeter, thermometer and barometer features are not meant for professional use measurements.

TELEPHONE CALLS

When you have the watch and mobile linked, and the mobile receives a call, the watch will notify you by vibrating or ringing (as configured) and you can take the call from the watch, talk through the microphone and listen through the built-in speaker. You can also hang up the call from the watch, and turn it mute when the watch is set to ring instead of vibrating.

LINKING YOUR WATCH WITH YOUR SMARTPHONE

FOR ANDROID MOBILES (WITH VERSION 4.3 OR HIGHER)

Search on GooglePlay the “SPC Smartee Connect” application and install it on your SmartPhone. Start the app “SPC Smartee Connect” to synchronize the SmartPhone with watch by following the below steps:

1- Make sure to have your SmartPhone Bluetooth activated and visible
2- Make sure to have Watch Bluetooth activated and visible (Bluetooth function Settings Status: Activated)
3- In the app, you'll see a green box "unlinked" click here and search the list Smartphone "SPC SLIM". Press to connect. The watch will ask for confirmation, you should accept it by sliding your finger from right to left. And the phone will also ask for confirmation, which must be accepted too.
4- In the app you will now see the green box "Linked"

NOTE: You can also make the link directly from the watch instead of following this procedure, although the right thing for an ideal and excellent linking is following the steps, i.e. initiate the link from the mobile..

NOTE: If the connection gives you a password error, try connecting directly from the watch(MENU - BLUETOOTH - YNCHRONIZE BY BT - SEARCH FOR NEW DEVICE and click on the selected one)

FOR IPHONE (WITH VERSION iOS7 0 HIGHER)

Search in AppStore the application “SPC Smartee Connect” application and install it on your SmartPhone. Initiate the App “SPC Smartee Connect” for synchronizing your iPhone with the watch by following these steps:

NOTE: Not all watch features, compatible with Android, are supported by operating system iOS.

1- Make sure you have your iPhone Bluetooth activated and visible

2- Make sure you have your watch Bluetooth activated and visible (feature Bluetooth→Settings Status: Activated)

3- From your iPhone, in the menu Settings → Bluetooth → scans devices. Select the “SPC SLIM” and launches the link request from your iPhone.

4- The watch will ask for confirmation, you should accept it by sliding your finger from right to left. And the mobile will also ask for confirmation, which should be accepted too.

5- Once linked, in the iPhone, go to the watch information "My devices" within the BT menu and activate notifications (by default they are deactivated)

6- Now launch the app “SPC Smartee Connect” look for “SPC SLIM” and click on it to connect

Features that are incompatible with iOS.

SMS

■ Synchronize pedometer and sleep data with the application

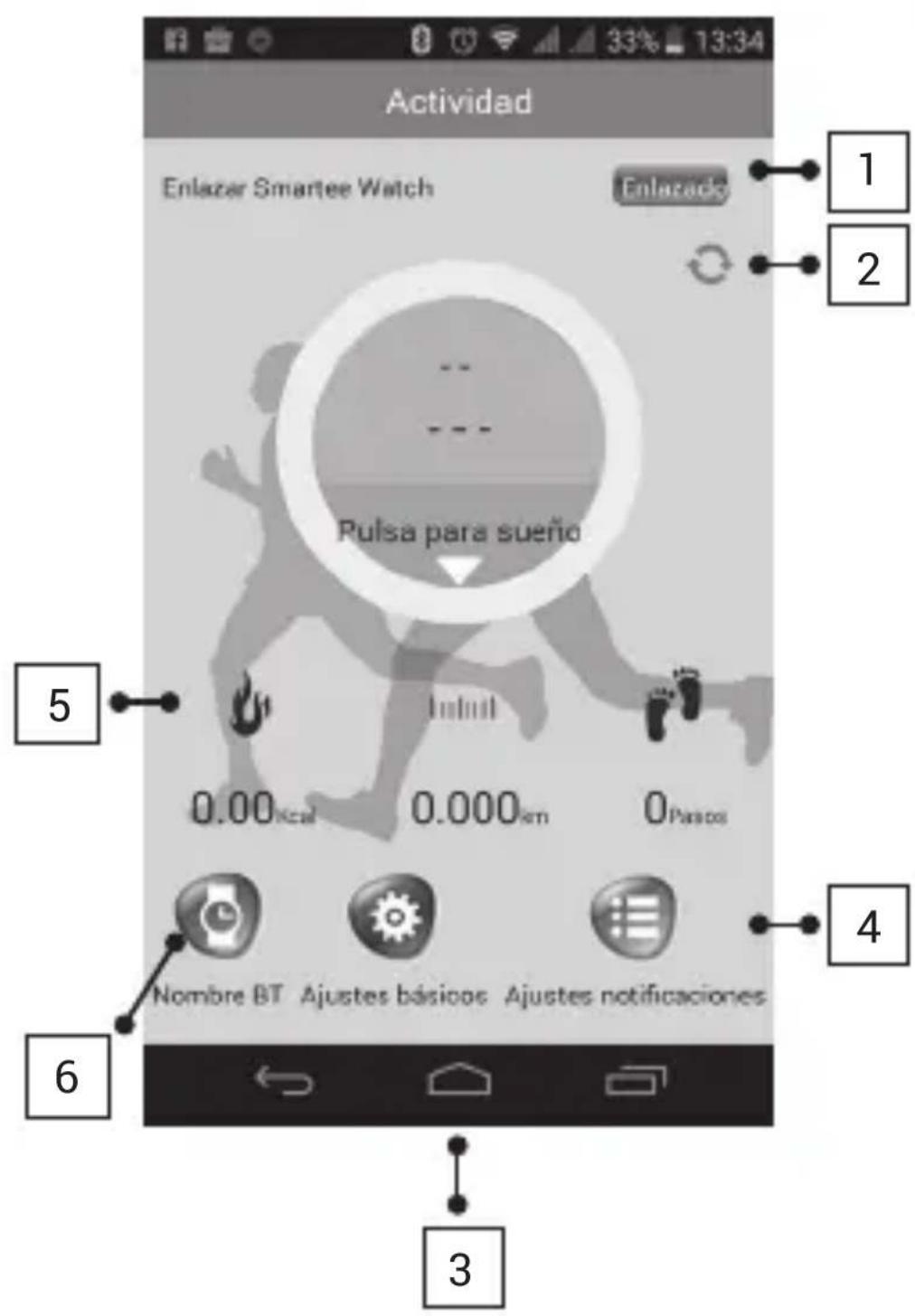

USE OF THE APPLICATION SPC SMARTEE CONNECT (only for ANDROID)

EN

1. LINK WITH WATCH

2. ACTIVITY / SLEEP: Synchronize the data with activity or sleep recorded by the watch. Synchronization can only be done manually by clicking on the icon

3. BASIC SETTINGS: You can make basic settings, enable or disable SMS alerts, call alerts, close the multimedia audio, or configure whether notifications are always sent or with locked screen.

4. SETTINGS NOTIFICATIONS: You can change the settings for accessibility (mandatory to activate it for receiving notifications), activate the notifications or select notifications what applications you want to receive on the watch.

5. DATA CALORIES / DISTANCE / STEPS: It is synchronized manually with the watch information

6. BT NAME Bluetooth name of the watch can be changed.

www.spc-universe.com

The information that this guide contains cannot be transmitted, played or distributed in any case without the written authorization of SPC.

COMERCIAL BRANDNAMES

SPC is a registered brandname of Telecom y Novatecno S.A.

NOTE: SPC reserves the right to modify the information of this guide in any moment. All the information and recommendations that we can find here do not guarantee anything.

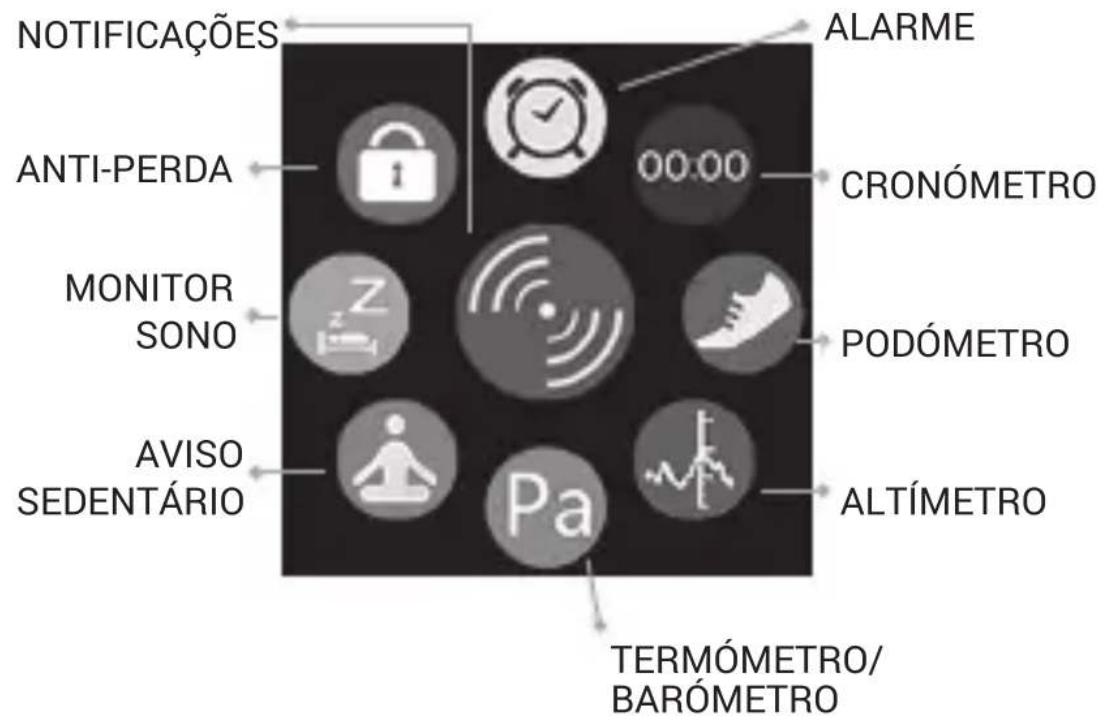

BEM-VINDO

PT

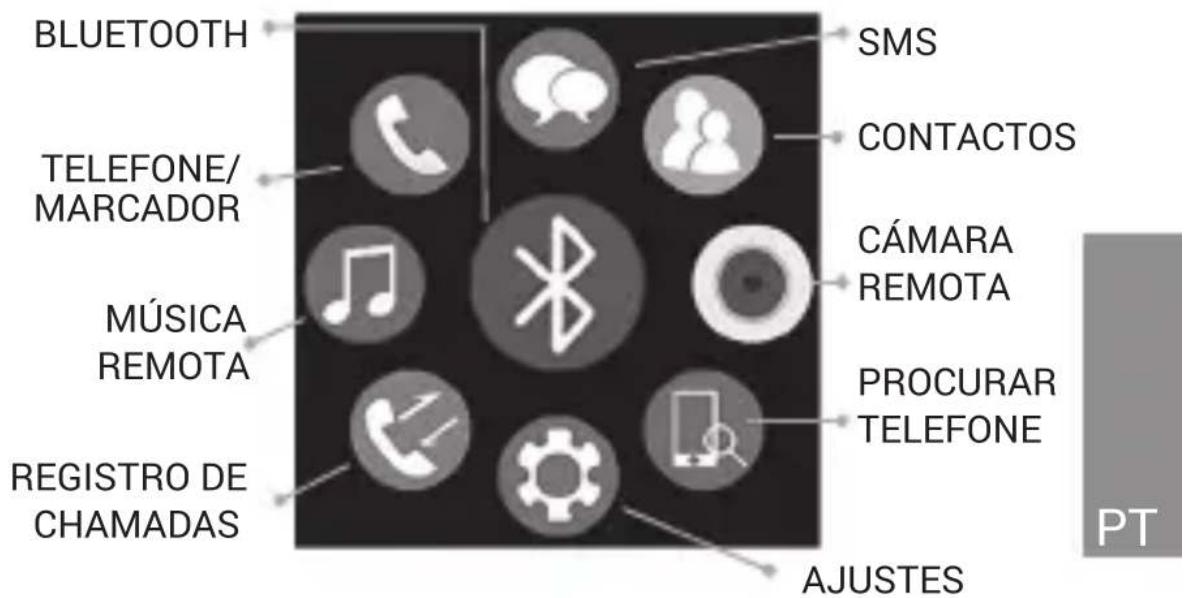

PRINCIPAIS FUNÇÕES

BLUETOOTH

Marca/Brand/Marca: SPC

Denominación comercial/Commercial Name/Nome comercial: 9608N / 9608G

NORMAS APLICADAS / APPLICABLE NORMS / NORMAS APLICÁVEIS

EN 301 489-1 V1.9.2 / EN 301 489-17 V2.2.1 / EN 300 328 V1.8.1 /

EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013 / EN

62479: 2010

FUNCIONALIDADES/FEATURES/CARACTERÍSTICAS

Director General/General Manager/Diretor-geral

This declaration of conformity is in compliance with the European Directive 1999/05/EC.
