Product Type	Home Theater System
Brand	Philips
Model	HTB3560K
Main Unit Dimensions (W x H x D)	360 x 58 x 325 mm
Main Unit Weight	2.4 kg
Power Consumption (Operating)	60 W
Power Consumption (Standby)	≤ 0.5 W
Power Supply	220-240 V~, 50 Hz (Europe/China/Russia/India); 110-240 V~, 50-60 Hz (Latin America/Asia Pacific)
Total Output Power	300 W RMS (30% THD)
Speaker Configuration	5.1 surround (center, front left/right, rear left/right, subwoofer)
Supported Disc Types	BD, DVD, CD, AVCHD, BD-R/RE, DVD±R/RW, CD-R/RW, Video CD/SVCD
Video Output	HDMI (ARC), Composite Video
Audio Formats	MP3, WMA, AAC, WAV, Dolby Digital, DTS
USB Port	Hi-Speed USB 2.0, supports FAT16/32/NTFS, up to 160 GB
Network Connectivity	Wired Ethernet, Wi-Fi ready (requires optional dongle Philips WUB1110)
FM Radio	Yes, with up to 40 presets
3D Playback	Blu-ray 3D
Remote Control Batteries	2 x AAA-R03-1.5 V
Cleaning and Maintenance	Use only a microfiber cloth; do not insert objects other than discs
Safety	Read manual before use; do not expose to rain or moisture; laser radiation when open
Spare Parts and Repairability	Contact Philips support for spare parts; do not attempt self-repair

Frequently Asked Questions - HTB3560K PHILIPS

Can I play 3D Blu-ray discs on the HTB3560K?

Yes, the HTB3560K supports Blu-ray 3D playback. You need a 3D-compatible TV, a high-speed HDMI cable, and 3D glasses. In the setup menu, ensure 'Watch 3D video' is set to 'Auto'.

How do I connect the home theater to my TV?

For best quality, use an HDMI cable with ARC. Connect the HDMI OUT (ARC) on the home theater to the HDMI ARC input on the TV. If your TV does not support ARC, use a standard HDMI connection plus an audio cable. Alternatively, use composite video for basic quality.

Why is there no sound from the speakers?

Ensure the audio cable is properly connected. If using HDMI ARC, no separate audio cable is needed. Mute the TV. Press SOURCE repeatedly to select the correct input. Reset the home theater to factory settings if needed.

How do I update the software?

You can update via the internet or USB. For internet: connect to a home network with internet, go to Setup > Advanced > Software Update > Network. For USB: download the update from www.philips.com/support, save to USB root, then use Setup > Advanced > Software Update > USB.

Can I play media from a USB drive?

Yes, connect a USB storage device (FAT or NTFS formatted) to the USB port. Press Home, select 'browse USB', and choose the file. Supported formats include MP3, WMA, AAC, WAV, DivX, MP4, MKV, and JPEG.

How do I set up the speakers?

Connect speakers using color-coded cables. Position them as described in the manual (center front, front left/right, rear left/right, subwoofer). Then adjust settings via Setup > Audio > Speaker Setup to set distances and levels.

What is EasyLink and how do I use it?

EasyLink uses HDMI-CEC to control multiple devices with one remote. Enable it in Setup > EasyLink > EasyLink > On. Also enable HDMI-CEC on your TV. Then you can use one-touch play and standby, and system audio control.

How do I listen to FM radio?

Extend the FM antenna. Press RADIO. If stations are not installed, press Play to auto-install. Use navigation buttons to tune, or presets to select stations. You can store up to 40 presets.

How do I play karaoke?

Connect a microphone to the MIC jack. Insert a karaoke disc. While playing, press OPTIONS, select Karaoke, and adjust microphone volume, echo, and key settings. Ensure the microphone is turned on in the karaoke menu.

What should I do if the disc won't play?

Clean the disc with a soft cloth. Check that the disc type (e.g., BD, DVD) and region code are supported. Ensure the disc is finalized if it's a DVD±RW. Try a different disc to isolate the issue.

USER MANUAL HTB3560K PHILIPS

Always there to help you

Register your product and get support at www.philips.com/support

HTB3560K

Black Philips 3D audio streaming setup with speakers and sound block (no visible text or symbols)

User manual

PHILIPS

Contents

1 Important 2

Safety 2

3D health warning 3

Care for your product 3

Care for the environment 3

2 Your home theater 4

Main unit 4

Connectors 4

Remote control 5

3 Connect and set up 7

Connect speakers 7

Connect to TV 7

Connect audio from TV and other devices 9

Set up speakers 10

Set up EasyLink (HDMI-CEC control) 10

Connect and set up a home network 11

4 Use your home theater 12

Access the home menu 12

Discs 12

Data files 14

USB storage devices 15

Audio, video, and picture options 15

Radio 17

MP3 player 17

YouTube videos 18

Picasa web albums 18

Smartphone control 18

Browse PC through DLNA 19

Karaoke 21

Choose sound 21

5 Change settings 23

Language settings 23

Picture and video settings 23

Audio settings 23

Parental control settings 24

Display settings 24

Energy saving settings 24

Speaker settings 24

Restore default settings 25

6 Update software 25

Check software version 25

Update software through the Internet 25

Update software through USB 26

7 Product specifications 27

8 Troubleshooting 30

9 Notice 32

Copyright 32

Open source software 32

RMVB end user agreement 32

11 Index 35

1 Important

Read and understand all instructions before you use your product. If damage is caused by failure to follow instructions, the warranty does not apply. Read and understand all instructions before you use your home theater. If damage is caused by failure to follow instructions, the warranty does not apply.

Safety

Risk of electric shock or fire!

• Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the product checked before use.
• Never place the product and accessories near naked flames or other heat sources, including direct sunlight.
• Never insert objects into the ventilation slots or other openings on the product.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
• Disconnect the product from the power outlet before lightning storms.
• When you disconnect the power cord, always pull the plug, never the cable.

Risk of short circuit or fire!

- Before you connect the product to the power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power outlet if the voltage is different.

Risk of injury or damage to the home theater!

• For wall-mountable products, use only the supplied wall mount bracket. Secure the wall mount to a wall that can support the combined weight of the product and the wall mount. Koninklijke Philips N.V. bears no responsibility for improper wall mounting that results in accident, injury or damage.
• For speakers with stands, use only the supplied stands. Secure the stands to the speakers tightly. Place the assembled stands on flat, level surfaces that can support the combined weight of the speaker and stand.
• Never place the product or any objects on power cords or on other electrical equipment.
• If the product is transported in temperatures below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.
• Visible and invisible laser radiation when open. Avoid exposure to beam.
• Do not touch the disc optical lens inside the disc compartment.
• Parts of this product can be made of glass. Handle with care to avoid injury and damage.

Risk of overheating!

- Never install this product in a confined space. Always leave a space of at least four inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

Risk of contamination!

• Do not mix batteries (old and new or carbon and alkaine, etc.).
• Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type.
• Remove batteries if they are exhausted or if the remote control is not to be used for a long time.
• Batteries contain chemical substances, they should be disposed of properly.

Risk of swallowing batteries!

• The product/remote control may contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion.
• If you suspect that a battery has been swallowed or placed inside any part of the body, seek immediate medical attention.
• When you change the batteries, always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery.
• If the battery compartment cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer.

This is CLASS II apparatus with double insulation, and no protective earth provided.

3D health warning

• If you or your family has a history of epilepsy or photosensitive seizures, consult a medical professional before exposing yourself to flashing light sources, rapid image sequences or 3D viewing.
• To avoid discomfort such as dizziness, headache or disorientation, we recommend not watching 3D for extended periods of time. If you experience any discomfort, stop watching 3D and do not immediately engage in any potentially hazardous activity (for example driving a car) until your symptoms have disappeared. If symptoms persist, do not resume watching 3D without consulting a medical professional first.

- Parents should monitor their children during 3D viewing and ensure they do not experience any discomfort as mentioned above. Watching 3D is not recommended for children under six years of age as their visual system is not fully developed yet.

Care for your product

• Do not insert any objects other than discs into the disc compartment.
• Do not insert warped or cracked discs into the disc compartment.
• Remove discs from the disc compartment if you are not using the product for an extended period of time.
• Use only microfiber cloth to clean the product.

Care for the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries. The correct disposal of these products helps prevent potentially negative consequences on the environment and human health. Your product contains batteries, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health. Please visit www.recycle.philips.com for additional information on a recycling center in your area.

2 Your home theater

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers (e.g. notification of product software upgrade), register your product at www.philips.com/welcome.

Main unit

This section includes an overview of the main unit.

① Disc compartment
② Display panel
③ ▲(Open/Close)

Open or close the disc compartment, or eject the disc.

④ ▶(Play/Pause)

Start, pause or resume play.

⑤ SOURCE

Select an audio or video source for the home theater.

⑥ ⏻(Standby-On)

Switch the home theater on or to standby.

Front panel display Indication
HONTE	Home
FAd 10	Radio
d ISC	Disc
RAH	Aux In
OPT 1	Optical In
AUD 10	Audio In

Front panel display Indication
OPEN	Open
CLOSE	Close
LOAD	Load
PAUSE	Pause
----	Mute

Connectors

This section includes an overview of the connectors available on your home theater.

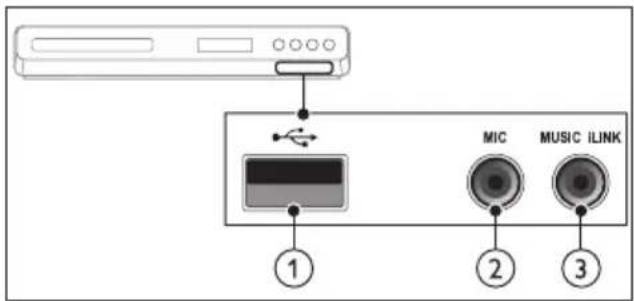

Front connectors

① (USB)

Audio, video or picture input from a USB storage device.

Connect to a Wi-Fi dongle (Model: Philips WUB1110, sold separately).

② MIC

Audio input from a microphone.

③ MUSIC iLINK

Audio input from an MP3 player.

Rear connectors

① AC MAINS

Connect to the power supply.

② SPEAKERS

Connect to the supplied speakers and subwoofer.

③ ANTENNA FM

Fixed FM antenna.

④ AUDIO IN-AUX

Connect to an analog audio output on the TV or an analog device.

⑤ VIDEO OUT

Connect to the composite video input on the TV.

⑥ HDMI OUT (ARC)

Connect to the HDMI input on the TV.

⑦ LAN

Connect to the LAN input on a broadband modem or router.

⑧ DIGITAL IN-OPTICAL

Connect to an optical audio output on the TV or a digital device.

Remote control

This section includes an overview of the remote control.

① ⏻(Standby-On)

- Switch the home theater on or to standby.

- When EasyLink is enabled, press and hold for at least three seconds to switch all connected HDMI CEC compliant devices to standby.

② (Home)

Access the home menu.

③ Source buttons

• DISC/POP-UP MENU : Switch to disc source.Access or exit the disc menu when you play a disc.
  • RADIO : Switch to FM radio.
  • AUDIO SOURCE : Select an audio input source.

④ BACK

• Return to a previous menu screen.
• In radio mode, press and hold to erase the current preset radio stations.

⑤ Navigation buttons

• Navigate menus.
• In radio mode, press left or right to start auto search.
• In radio mode, press up or down to tune the radio frequency.

⑥ OK

Confirm an entry or selection.

⑦ ▶ (Previous/Next)

• Skip to the previous or next track, chapter or file.
• In radio mode, select a preset radio station.

⑧ ■(Stop) / ▲(Eject/Open/Close)

• Stop play.
• Press and hold for three seconds to open or close the disc compartment, or eject the disc.

⑨ ◀◀ (Fast Backward / Fast Forward)

Search backwards or forward. Press repeatedly to change the search speed.

⑩ + / - (Volume)

Increase or decrease volume.

⑪ HISOUND SETTINGS

Access or exit sound options.

⑫ Alphanumeric buttons
Enter values or letters (using SMS style entry).

⑬ REPEAT

Select or turn off repeat mode.

⑭ TOP MENU

Access the main menu of a disc.

⑮ OPTIONS

• Access more play options while playing a disc or a USB storage device.
  • In radio mode, set a radio station.

⑯ ▶(Play)

Start or resume play.

⑰ II(Pause)

Pause play.

⑱ (Mute)

Mute or restore volume.

⑲ AUDIO

Select an audio language or channel.

⑳ SUBTITLE

Select subtitle language for video.

②1 Color buttons

Select tasks or options for Blu-ray discs.

3 Connect and set up

This section helps you connect your home theater to a TV and other devices, and then set it up.

For information about the basic connections of your home theater and accessories, see the quick start guide.

Note

• For identification and supply ratings, see the type plate at the back or bottom of the product.
• Before you make or change any connections, make sure that all devices are disconnected from the power outlet.

Connect speakers

The speaker cables are color-coded for easy connection. To connect a speaker to your home theater, match the color on the speaker cable to the color on the connector.

Speaker position plays a critical role in setting up a surround sound effect. For best effect, position all the speakers towards the seating position and place them close to your ear level (seated).

Note

- Surround sound depends on factors such as room shape and size, type of wall and ceiling, windows and reflective surfaces, and speaker acoustics. Experiment with the speaker positions to find the optimum setting for you.

Follow these general guidelines for speakers placement.

1 Seating position:
This is the center of your listening area.
2 FRONT CENTER (front center) speaker: Place the center speaker directly in front of the seating position, either above or below your TV.

3 FRONT LEFT (front left) and FRONT RIGHT (front right) speakers:

Place the left and right speakers in the front, and at equal distance from the center speaker. Make sure that the left, right, and the center speakers are at equal distance from your seating position.

4 REAR LEFT (rear left) and REAR RIGHT (rear right) speakers:

Place the rear surround speakers to the left and right side of your seating position, either in line with it or slightly behind it.

5 SUBWOOFER (subwoofer):

Place the subwoofer at least one meter to the left or right of the TV. Leave about 10-centimeter clearance from the wall.

Connect to TV

Connect your home theater to a TV to watch videos. You can listen to audio from TV programs through your home theater speakers. Use the best quality connection available on your home theater and TV.

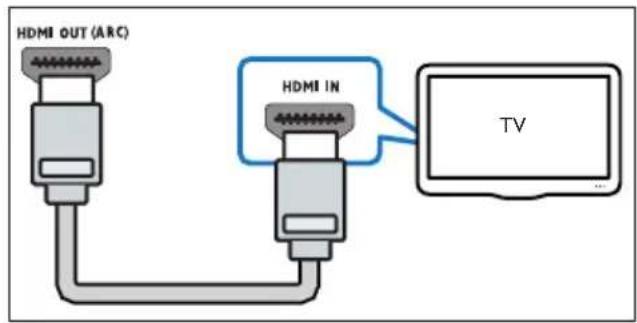

Option 1: Connect to TV through HDMI (ARC)

Best quality video

Your home theater supports HDMI version with Audio Return Channel (ARC). If your TV is HDMI ARC compliant, connect your home theater to the TV through the HDMI ARC connection for easy and quick setup. With HDMI ARC, you do not need an additional audio cable to play audio from TV through your home theater.

1 Using a High Speed HDMI cable, connect the HDMI OUT (ARC) connector on your home theater to the HDMI ARC connector on the TV. The HDMI ARC connector on the TV might be labeled HDMI IN or HDMI. For details on TV connectors, see the TV user manual.

2 On your TV, turn on HDMI-CEC. For details, see the TV user manual. → When you play a disc on your home theater, the video is automatically displayed on TV and the audio is automatically played on the home theater. 3 If audio from the TV does not play automatically on your home theater, set up the audio manually.

Option 2: Connect to TV through HDMI

Best quality video

If your TV is not HDMI ARC compliant, connect your home theater to the TV through a standard HDMI connection.

With a standard HDMI connection, you need an additional audio cable to play the audio from the TV through your home theater.

1 Using a High Speed HDMI cable, connect the HDMI OUT (ARC) connector on your home theater to the HDMI connector on the TV. The HDMI connector on the TV might be labeled HDMI IN.

2 On your TV, turn on HDMI-CEC. For details, see the TV user manual.

When you play a disc on your home theater, the video is automatically displayed on TV and the audio is automatically played on the home theater.

3 To play audio from TV programs through your home theater, connect an additional audio cable.

4 If audio from the TV does not play automatically on your home theater, set up the audio manually.

Note

- If your TV has a DVI connector, you can use an HDMI/DVI adapter to connect to TV.

Option 3: Connect to the TV through composite video

Basic quality video

If your TV does not have HDMI connectors, connect your home theater to the TV through a composite connection. A composite connection does not support high-definition video. With a composite connection, you need an additional audio cable to play the audio from the TV through your home theater.

1 Using a composite video cable, connect the VIDEO OUT connector on your home theater to the composite video connector on the TV. The composite video connector might be labeled AV IN, VIDEO IN, COMPOSITE, or BASEBAND.

2 On your TV, switch to the correct video input.
3 To play audio from TV programs through your home theater, connect an additional audio cable.
On your home theater, press SOURCE repeatedly to select the correct audio input.

Connect audio from TV and other devices

Play audio from TV or other devices through your home theater speakers.

Use the best quality connection available on your TV, home theater, and other devices.

Note

- When your home theater and TV are connected through HDMI ARC, an audio connection is not required.

Option 1: Connect audio through a digital optical cable

Best quality audio

1 Using an optical cable, connect the OPTICAL connector on your home theater to the OPTICAL OUT connector on the TV or other device. • The digital optical connector might be labeled SPDIF or SPDIF OUT.

Option 2: Connect audio through analog audio cables

Basic quality audio

1 Using an analog cable, connect the AUX connectors on your home theater to the AUDIO OUT connectors on the TV or other device.

Set up speakers

Set up the speakers manually to experience customized surround sound.

Before you start

Make the necessary connections described in the quick start guide, and then switch the TV to the correct source for your home theater.

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Audio] > [Speaker Setup].
4 Enter the distance for each speaker, and then listen to the test tones and change the volume. Experiment with the speaker positions to find the ideal setting.

Set up EasyLink (HDMI-CEC control)

This home theater supports Philips EasyLink, which uses the HDMI-CEC (Consumer Electronics Control) protocol. EasyLink-compliant devices that are connected through HDMI can be controlled by a single remote control.

Note

• Depending on the manufacturer, HDMI-CEC is known by many names. For information on your device, see the user manual of the device.
• Philips does not guarantee 100% interoperability with all HDMI-CEC devices.

Before you start

• Connect your home theater to the HDMI-CEC compliant device through HDMI connection.
• Make the necessary connections described in the quick start guide, and then switch the TV to the correct source for your home theater.

Enable EasyLink

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [EasyLink] > [EasyLink] > [On].
4 On your TV and other connected devices, turn on HDMI-CEC control. For details, see the user manual of the TV or other devices.
- On your TV, set the audio output to 'Amplifier' (instead of TV speakers). For details, see the TV user manual.

EasyLink controls

With EasyLink, you can control your home theater, TV, and other connected HDMI-CEC compliant devices with a single remote control.

• [One Touch Play] (One-touch play): When a video disc is in the disc compartment, press ▶(Play) to wake up the TV from standby, and then play a disc.
• [One Touch Standby] (One-touch standby): If one-touch standby is enabled, your home theater can switch to standby with the remote control of the TV or other HDMI-CEC devices.
• [System Audio Control] (System audio control): If system audio control is enabled, the audio of the connected device is output through your home theater speakers automatically when you play the device.
• [Audio Input Mapping] (Audio input mapping): If system audio control does not work, map the connected device to the correct audio input connector on your home theater (see 'Set up the audio' on page 11).

Note

- To change the EasyLink control settings, preset (Home), select [Setup] > [EasyLink].

Set up the audio

If you cannot hear the audio output of a connected device through your home theater speakers, check that you have enabled Easylink on all the devices (see 'Enable EasyLink' on page 10). Then, set up the EasyLink audio control.

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [EasyLink] > [System Audio Control] > [On].

- To play the audio from the TV speakers, select [Off], and skip the following steps.

4 Select [EasyLink] > [Audio Input Mapping].
5 Follow the onscreen instructions to map the connected device to the audio inputs on your home theater.

- If you connect your home theater to the TV through an HDMI ARC connection, make sure that the TV audio is mapped to the ARC input on your home theater.

Connect and set up a home network

Connect your home theater to a home network with internet access and enjoy:

• YouTube leanback
• Picasa web albums
  • BD-Live applications
• Software update

Caution

- Familiarize yourself with the network router and networking principles. If necessary, read documentation that accompanies the network components. Philips is not responsible for lost, damaged, or corrupt data.

Before you start

• For software updates, make sure that the network router has access to the Internet with high-speed connection and is not restricted by firewalls or other security systems.
  • Make the necessary connections described in the quick start guide, and then switch the TV to the correct source for your home theater.

Set up the wired network

What you need

• A network cable (RJ45 straight cable).
• A network router (with DHCP enabled).

1 Using a network cable, connect the LAN connector on your home theater to the network router.
2 Press (Home).
3 Select [Setup], and then press OK.
4 Select [Network] > [Network Installation] > [Wired (Ethernet)].
5 Follow the onscreen instructions to complete the setup.

- If connection fails, select [Retry], and then press OK.

6 Select [Finish], and then press OK to exit.

- To view the network settings, select [Setup] > [Network] > [View Network Settings].

Set up the wireless network

Your home theater is Wi-Fi ready. Connect a Wi-Fi dongle for easy access to a wireless network.

What you need

• A network router (with DHCP enabled). For best wireless performance, coverage, and compatibility, use 802.11n router;
• Connect a Wi-Fi dongle (Model: Philips WUB1110, sold separately) to the connector on your home theater.

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Network] > [Network installation] > [Wireless (Wi-Fi)], and then press OK.
4 Follow the onscreen instructions to select and set up the wireless network.
- If connection fails, select [Retry], and then press OK.
5 Select [Finish], and then press OK to exit.
- To view the network settings, select [Setup] > [Network] > [View wireless settings].

4 Use your home theater

This section helps you use the home theater to play media from a wide range of sources.

Before you start

• Make the necessary connections described in the Quick start guide and the user manual.
- Switch the TV to the correct source for the home theater.

Access the home menu

The home menu provides easy access to connected devices, setup and other useful features in your home theater.

1 Press (Home).
→ The home menu is displayed.

2 Press the Navigation buttons and OK to select the following:

• [play Disc]: Start disc play.
• [browse USB]: Access the USB content browser
• [Picasa]: Access Picasa web albums.
• [YouTube]: Access YouTube Leanback page.
- [browse PC]: Access the computer content browser.
- [Setup]: Access menus to change video, audio and other settings.

3 Press (Home) to exit.

Discs

Your home theater can play DVDs, VCDs, CDs, and Blu-ray discs. It can also play discs that you've made at home, such as CD-R discs of photos, videos, and music.

1 Insert a disc into the home theater.

2 If the disc does not play automatically, press DISC or select [play Disc] from the home menu.

3 Use the remote control to control play (see 'Play buttons' on page 13).

- It is normal to hear a little noise when you play a Blu-ray disc. This does not mean that your home theater is faulty.

Play buttons

Button Action
Navigation buttons	Navigate menus.
OK Confirm an entry or selection.
► (Play) Start or resume play.
■ Pause play.
■ Stop play.
◄/►Skip to the previous or next track, chapter or file.
◄◄/►Fast backward or fast forward. Press repeatedly to change the search speed.
AUDIO Select an audio language or channel.
SUBTITLE Select subtitle language for video.
DISC/POP-UPMENU	Access or exit the disc menu.
≡ OPTIONS	Access the advanced options when you play your audio, video, or media files (see 'Audio, video, and picture options' on page 15).
REPEAT	Select or turn off repeat mode.

Synchronize video and sound

If the audio and video are not synchronized, delay the audio to match the video.

1 Press SOUND SETTINGS.
2 Select AUD SYNC, and then press OK.
3 Press the Navigation buttons (up/down) to synchronize the audio with the video.
4 Press OK to confirm.

Play RMVB or RM file

Available only in Asia Pacific and China

An Real Media Variable Bitrate (RMVB) and RealMedia (RM) file contains both audio and video. You can copy an RMVB or RM file from your computer onto a recordable disc or USB storage device, and play them from your home theater.

1 Play a disc or USB storage device that contains a RMVB or RM file.

Note

• Make sure that the file extension is '.RMVB' or '.RM'.
- Make sure that the subtitle file has the exact same name as the video file.
- If the subtitles do not appear correctly, change the character set.

Play Blu-ray 3D disc

Your home theater can play Blu-ray 3D video. Read the 3D health warning before playing a 3D disc.

What you need

A 3DTV
• A pair of 3D glasses that are compatible with your 3D TV
• A 3D Blu-ray video
• A high speed HDMI cable

1 Using the high speed HDMI cable, connect your home theater to a 3D compatible TV.
2 Make sure that the 3D video setting is enabled. Press ⬆ (Home), select [Setup] > [Video] > [Watch 3D video] > [Auto].
- To play 3D discs in 2D mode, select [Off].

3 Play a Blu-ray 3D disc and put on the 3D glasses.

- During video search and in certain play modes, the video is displayed in 2D. The video display returns to 3D when you resume play.

Bonus View on Blu-ray

On Blu-ray discs that support the Bonus View, enjoy extra content such as commentaries in a small screen window. Bonus View is also known as picture-in-picture.

1 Enable Bonus View in the Blu-ray disc menu.
2 While you play the movie, press OPTIONS.
→ The options menu is displayed.

3 Select [PIP Selection] > [PIP].

• Depending on the video, PIP menu [1] or [2] is displayed.
  • To disable Bonus View, select [Off].

4 Select [2nd Audio Language] or [2nd Subtitle Language].

5 Select the language, and then press OK.

BD-Live on Blu-ray

Access additional features on the Blu-ray discs with BD-Live content, such as internet chats with the director, the latest movie trailers, games, wallpaper, and ringtones. BD-Live services and content vary from disc to disc.

What you need

• Blu-ray disc with BD-Live content
- a USB storage device, with at least 1 GB of memory

1 Connect your home theater to a home network with Internet access (see 'Connect and set up a home network' on page 11).

2 Connect a USB storage device to your home theater.

3 Press (Home) and select [Setup].

4 Select [Advanced] > [BD-Live Security] > [Off] to enable BD-Live.

• To disable BD-Live, select [On].

5 Select the BD-Live icon in the disc menu, and then press OK. → BD-Live starts to load. The loading time depends on the disc and your internet connection.

6 Press the Navigation buttons to navigate BD-Live, and then press OK to select an option.

Note

- To clear the memory on the storage device, press (Home), select [Setup] > [Advanced] > [Clear memory].

Data files

Your home theater can play pictures, audio and video files contained in a disc or a USB storage device. Before you play a file, check that the file format is supported by your home theater (see 'File formats' on page 27).

1 Play the files from a disc or USB storage device.

2 To stop play, press ■

- To resume the video from where you stopped, press ▶(Play). - To play the video from the start, press OK.

Note

- To play DivX DRM protected files, connect your home theater to a TV through an HDMI cable.

Subtitles

If your video has subtitles in multiple languages, select a subtitle language.

Note

• Make sure that the subtitle file has the exact same name as the video file. For example, if the video file is named 'movie.avi', name the subtitle file as 'movie.srt' or 'movie.sub'.
• Your home theater supports the following file formats: .srt, .sub, .txt, .ssa, .ass, smi, and .sami. If the subtitles do not appear correctly, change the character set.

1 While playing video, press SUBTITLE to select a language.
2 For DivX videos, if the subtitles do not appear correctly, continue the following steps to change the character set.
3 Press OPTIONS. → The options menu is displayed.
4 Select [Character Set], and then select a character set that supports the subtitle.

Asia Pacific and China

Character Set Language

[Standard] Albanian, Danish, Dutch, English, Finnish, French, Gaelic, German, Italian, Kurdish (Latin), Norwegian, Portuguese, Spanish, Swedish, Turkish

[Chinese] Simplified Chinese

[Chinese-Traditional] Traditional Chinese

[Korean] English and Korean

VOD code for DivX

Before you purchase DivX videos and play them on your home theater, register the home theater on www.divx.com using the DivX VOD code.

1 Press ⬆(Home).

2 Select [Setup], and then press OK.
3 Select [Advanced] > [DivX® VOD Code]. → The DivXVOD registration code for your home theater is displayed.

USB storage devices

Enjoy pictures, audio, and video stored on a USB storage device such as an MP4 player or digital camera.

What you need

• A USB storage device that is formatted for FAT or NTFS file systems, and complies with the Mass Storage Class.
• A media file in one of the supported file formats (see 'File formats' on page 27).

Note

- If you use a USB extension cable, USB HUB, or USB multi-reader, the USB storage device may not be recognized.

1 Connect a USB storage device to the (USB) connector on your home theater.
2 Press ⬆(Home).
3 Select [browse USB], and then press OK. → A content browser is displayed.
4 Select a file, and then press OK.
5 Press the play buttons to control play (see 'Play buttons' on page 13).

Audio, video, and picture options

Use advanced features when you play pictures, audio and video files from a disc or a USB storage device.

Audio options

While playing audio, repeat an audio track, a disc, or a folder.

1 Press OPTIONS repeatedly to cycle through the following functions:

• RPT TRACK / RPT FILE: Repeat the current track or file.
• RPT DISC / RPT FOLDER: Repeat all the tracks on the disc or the folder.
• RPT RANDOM: Play audio tracks in random order.
  • RPT OFF: Turn off the repeat mode.

Video options

While watching video, select options such as subtitles, audio language, time search, and picture settings. Depending on the video source, some options are not available.

1 Press OPTIONS.

→ The video options menu is displayed.

2 Press the Navigation buttons and OK to select and change:

• [Audio Language]: Select audio language for video.
- [Subtitle Language]: Select subtitle language for video.
- [Subtitle Shift]: Change the subtitle position on the screen.
• [Info]: Display information about what is playing.
- [Character Set]: Select a character set that supports the DivX subtitle.
- [Time Search]: Skip to a specific part of the video by entering the time of the scene.
• [2nd Audio Language]: Select the second audio language for Blu-ray video.
- [2nd Subtitle Language]: Select the second subtitle language for Blu-ray video.
• [Titles]: Select a specific title.
• [Chapters]: Select a specific chapter.

• [Karaoke]: Change the karaoke settings.
  • [Angle List]: Select a different camera angle.
  • [Menus]: Display the disc menu.
• [PIP Selection]: Display Picture-in-Picture window when playing a Blu-ray disc that supports the Bonus View.
• [Zoom]: Zoom into a video scene or picture. Press the Navigation buttons (left/right) to select a zoom factor.
  • [Repeat]: Repeat a chapter or title.
• [Repeat A-B]: Mark two points within a chapter or track to repeat play, or turn off the repeat mode.
  • [Picture Settings]: Select a predefined color setting.

Picture options

While viewing a picture, zoom into the picture, rotate it, add animation to a slideshow, and change the picture settings.

1 Press OPTIONS.

→ The picture options menu appears.

2 Press the Navigation buttons and OK to select and change the following settings:

• [Rotate +90]: Rotate the picture 90 degree clockwise.
  • [Rotate -90]: Rotate the picture 90 degree counter-clockwise.
• [Zoom]: Zoom into a video scene or picture. Press the Navigation buttons (left/right) to select a zoom factor.
  • [Info]: Display picture information.
  • [Duration per slide]: Select the display speed for each picture in a slide show.
• [Slide Animation]: Select animation for the slide show.
  • [Picture Settings]: Select a predefined color setting.
  • [Repeat]: Repeat a selected folder.

Musical slideshow

If the picture and audio files are from the same disc or USB storage device, you can create a musical slideshow.

1 Select an audio track, and then press OK.
2 Press BACK, and go to the picture folder.
3 Select a picture, and then press ▶ (Play) to start the slideshow.
4 Press ■ to stop slideshow.
5 Press ■ again to stop music.

Note

- Make sure that the picture and audio formats are supported by your home theater (see 'File formats' on page 27).

Radio

Listen to FM radio on your home theater, and store up to 40 radio stations.

Note

• AM and digital radio are not supported.
- If no stereo signal is detected, or if fewer than five stations are found, you are prompted to install the radio stations again.

1 Extend the FM antenna at the back of your home theater and place it away from the TV or other sources of radiation.
2 Press RADIO.

→ If you have already installed the radio stations, the last channel that you listened to is played.
→ If you have not installed any radio stations, the message AUTO INSTALL...PRESS PLAY appears on the display panel. press ▶(Play).

3 Use the remote control to listen or to change radio stations.

Button Action
orAlphanumeric buttons	Select a preset radio station.
Navigation buttons	Left/Right: Search for a radio station.Up/Down: Fine tune a radio frequency.
	Press to stop the installation of radio stations.
BACK Press and hold to erase the preset radio station.
OPTIONS Manual:1) Press OPTIONS.2)Press /▶ to select your preset.3)Press OPTIONS again to store the radio station.Automatic: Press and hold for three seconds to reinstall the radio stations.

Tuning grid

In some countries, you can toggle the FM tuning grid between 50 kHz and 100 kHz. Switching the tuning grid erases all preset radio stations.

1 Press RADIO.
2 Press ■
3 Press and hold ▶(Play) to toggle between 50 kHz or 100 kHz.

MP3 player

Connect a MP3 player to play audio files.

What you need

• An MP3 player.
• A 3.5mm stereo audio cable.

1 Using the 3.5mm stereo audio cable, connect the MP3 player to the MUSIC iLINK connector on your home theater.

2 Press AUDIO SOURCE repeatedly until MUSIC I-LINK appears on the display panel.
3 Press the buttons on the MP3 player to select and play audio files.

YouTube videos

Enjoy YouTube videos through your home theater.

1 Connect your home theater to a home network with a high-speed Internet access (see 'Connect and set up a home network' on page 11).
2 Press (Home).
3 Select [YouTube], and then press OK. → The YouTube Leanback page is displayed.
4 Follow the onscreen instructions to browse the YouTube page.
5 Use the remote control to select and navigate the application.

Button Action

Navigation buttons

Up: Access the onscreen keyboard. Down: Access the onscreen playback buttons. Left/Right: Select a video from the playlist.

- If you do not press a button within few seconds, the onscreen buttons and menu exit automatically.

6 Press (Home) to exit YouTube page.

Picasa web albums

Access Picasa Web Albums through your home theater.

What you need

• An account with Picasa Web Albums.

1 Connect your home theater to a home network with Internet access (see 'Connect and set up a home network' on page 11).
2 Press (Home).
3 Select [Picasa], and then press OK.
4 Log in to your Picasa web account.
- The first time you log in, select [New user], and then enter your user name and password. Save your login information for subsequent use.
- If you have logged in before, select a stored user name and enter the password.
5 Select the onscreen options to view the albums or photos.
6 Press (Home) to exit Picasa menu.

View slideshow

1 Select [My photos] from the Picasa menu, and then press OK.
→ The photo albums in your Picasa Web Albums are displayed.
2 Select a photo, and then press OK to view the photo in full screen.
3 Press OK again to view the photos in a slideshow.
4 While viewing a slideshow, press OPTIONS to access more play options.
5 Press BACK to return to the previous screen.

Smartphone control

Use your mobile device such as iPhone (iOS 3.1.3 and above), Android phone (2.1 and above), iPad, or tablet to:

• Control your home theater
- Browse a data disc or USB storage device
- Personalize your sound settings
- Stream and share content from the devices on your home network

Before you start

- Connect your home theater, mobile device, and other DLNA-compatible devices to the same home network.

- For better video quality, use wired connection whenever possible.

- Personalize the network name for your home theater.

- Download Philips MyRemote application on your mobile device.

- For iPhone or iPad, search for the app in App Store (App Store).

- For Android based phone or tablet, search for the app in Market (Market).

Control your home theater

1 On the mobile device, access MyRemote application.

2 Select your home theater (by its network name) from the home screen.

→ A browsing bar is displayed at the bottom of the screen.

- If your home theater is not found, check the network connection or tap the Devices tab on your mobile device to search again.

3 Select one of the following tabs to access more options.

- To return to the previous screen, press back button.

Option Action

AppHome	Return to the home screen of your device.
Media DISC:	Browse and play a file stored on a data disc.
	USB:Browse and play a file stored on a USB storage device.

Option Action

Remote Access the remote control on your mobile device. Swipe the screen to the left or right to access more buttons. Only the relevant buttons are enabled on your mobile device. Some functions such as standby and long press, are not available on the mobile device.

4 Follow the onscreen instructions to select an option or complete the set up.

Browse PC through DLNA

Access and play the pictures, audio and video files from a computer or media server on the home network through your home theater.

Before you start

• Install a DLNA-compliant media server application on your device. Make sure that you download an application that works best for you. For example,

• Windows Media Player 11 or higher for PC
• Twonky Media Server for Mac or PC

- Enable media sharing of files. For ease of use, we have included the steps for the following applications:

• Windows Media Player 11 (see 'Microsoft Windows Media Player 11' on page 20)
• Windows Media Player 12 (see 'Microsoft Windows Media Player 12' on page 20)
• Twonky Media for Mac (see 'Macintosh OS X Twonky Media (v4.4.2)' on page 20)

Note

- For additional help on these applications or other media servers, check the user manual of the media server software.

Set up media server software

To enable media sharing, set up the media server software.

Before you start

• Connect your home theater to a home network. For better video quality, use wired connection whenever possible.
• Connect the computer and other DLNA-compatible devices to the same home network.
• Make sure that your PC firewall allows you to run Media Player programs (or the firewall's exemption list has the media server software included).
• Switch on your computer and the router.

Microsoft Windows Media Player 11

1 Start Windows Media Player on your PC.
2 Click the Library tab, and then select Media Sharing.
3 The first time you select Media Sharing on your PC, a pop-up screen appears. Check the Share my media box and click OK. → The Media Sharing screen is displayed.

4 In the Media Sharing screen, make sure that you see a device marked as Unknown Device.

→ If you don't see an unknown device after a minute or so, check that your PC firewall is not blocking the connection.

5 Select the unknown device and click Allow. → A green tick appears next to the device.

6 By default, Windows Media Player shares from these folders: My Music, My Pictures, and My Videos. If your files are in other folders, select Library > Add to Library. → The Add to Library screen is displayed. • If necessary, select Advanced options to display a list of monitored folders.

7 Select My folders and those of others I can access, and then click Add.

8 Follow the onscreen instructions to add the other folders that contain your media files.

Microsoft Windows Media Player 12

1 Start Windows Media Player on your PC.
2 In Windows Media Player, click the Stream tab, and then select Turn on media streaming.
→ The Media streaming options screen is displayed.

3 Click Turn on media streaming.

→ You return to Windows Media Player screen.

4 Click the Stream tab and select More streaming options.

→ The Media streaming options screen is displayed.

5 Make sure that you see a media program in the Local network screen.

If you don't see a media program, check that your PC firewall is not blocking the connection.

6 Select the media program and click Allowed.

A green arrow appears next to the media program.

7 By default, Windows Media Player shares from these folders: My Music, My Pictures, and My Videos. If your files are in other folders, click the Organize tab and select Manage libraries > Music.

→ The Music Library Locations screen is displayed.

8 Follow the onscreen instructions to add the other folders that contain your media files.

Macintosh OS X Twonky Media (v4.4.2)

1 Visit www.twonkymedia.com to purchase the software, or download a free 30-day trial to your Macintosh.

2 Start Twonky Media on the Macintosh.

3 In the Twonky Media Server screen, select Basic Setup and First Steps.
→ The First steps screen is displayed.
4 Type a name for your media server, and then click Save changes.
5 Back in the Twonky Media screen, select Basic Setup and Sharing.
→ The Sharing screen is displayed.
6 Browse and select folders to share, and then select Save Changes.
Your Macintosh rescans the folders automatically so that they are ready to share.

Play files from your PC

Note

- Before you play multimedia content from the computer make sure that the home theater is connected to the home network, and the media server software is properly set up.

1 Press (Home).
2 Select [browse PC], and then press OK.
A content browser is displayed.
3 Select a device on the network.
The folders in the selected device are displayed. Depending on the media server, the folder names may vary.
- If you cannot see the folders, check that you have enabled media sharing on the selected device so that the content is available for sharing.
4 Select a file, and then press OK.
- Some media files may not play due to compatibility issues. Check the file formats supported by your home theater.
5 Press the play buttons to control play (see 'Play buttons' on page 13).

Karaoke

Play a Karaoke disc on your home theater and sing along with the music.

What you need

• A Karaoke microphone.
- Karaoke discs.

Note

• To prevent loud feedback or unexpected noise, turn the microphone volume to the minimum before you connect the microphone to your home theater.

Play karaoke music

1 While playing a karaoke disc, press :≡ OPTIONS.
→ The options menu is displayed.
2 Select [Audio Language], and then press OK.
3 Choose an audio channel that turns off the vocal, and then press OK.
4 Select [Karaoke], and then press OK. → The karaoke setup menu is displayed.
5 Press the Navigation buttons (up/down) and OK to change the following settings:

- [Microphone]: Turn the microphone on or off.

• [Microphone volume]: Change the microphone volume.

• [Echo]: Change the echo level.

• [Key]: Change the pitch to match your voice.

Choose sound

This section helps you choose the ideal sound for your video or music.

1 Press 18 SOUND SETTINGS.

2 Press the Navigation buttons (left/right) to access the sound options on the display.

Sound settings Description

SOUND Select a sound mode.

SURROUND Select surround sound or stereo sound.

TREBLE Change the high frequency output.

MID Change the middle frequency output.

BASS Change the low frequency output.

AUD SYNC Delay the audio to match the video.

3 Select an option, and then press OK.

4 Press BACK to exit. If you do not press a button within a minute, the menu exits automatically.

Sound mode

Select predefined sound modes to suit your video or music.

1 Press SOUND SETTINGS.

2 Select SOUND, and then press OK.

3 Press the Navigation buttons (up/down) to select a setting on the display:

• MOVIE: Enjoy a cinematic audio experience, specially enhanced for movies.
- MUSIC: Recreate the original recording environment of your music, in the studio or at a concert.
• ORIGINAL: Experience the original sound of your movies and music, without added sound effects.
• NEWS: Hear every word with optimized speech and clear vocals.
• GAMING: Enjoy thrilling arcade sounds, ideal for action-packed video games or loud parties.

4 Press OK to confirm.

Surround sound mode

Experience an immersive audio experience with surround sound modes.

1 Press 18 SOUND SETTINGS.
2 Select SURROUND, and then press OK.
3 Press the Navigation buttons (up/down) to select a setting on the display:

- AUTO: Surround sound based on the audio stream.

- MULTI-CH: Immersive multi-channel sound for an enhanced movie experience.

• STEREO: Two-channel stereo sound. Ideal for listening to music.

4 Press OK to confirm.

Equalizer

Change the high frequency (treble), mid frequency (mid), and low frequency (bass) settings of the home theater.

1 Press 1\$OUND SETTINGS.
2 Select TREBLE, MID or BASS, and then press OK.
3 Press the Navigation buttons (up/down) to change the frequency.
4 Press OK to confirm.

5 Change settings

The home theater settings are already configured for optimal performance. Unless you have a reason to change a setting, we recommend that you keep the default setting.

Note

• You cannot change a setting that is grayed out.
• To return to the previous menu, press ➕ BACK. To exit the menu, press ⬆ (Home).

Language settings

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference], and then press OK.
4 Press the Navigation buttons and OK to select and change:
- [Menu language]: Select a display language for menu.
• [Audio]: Select an audio language for discs.
- [Subtitle]: Select a subtitle language for discs.
- [Disc Menu]: Select a menu language for discs.

Note

- If your preferred disc language is not available, select [Others] from the list, and enter the 4-digit language code found at the end of this user manual (see 'Language code' on page 34).

- If you select a language that is not available on a disc, the home theater uses the default language of the disc.

Picture and video settings

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Video], and then press OK.
4 Press the Navigation buttons and OK to select and change:

- [TV Display]: Select a picture format to fit the TV screen.

- [HDMI Video]: Select the resolution of video signal that is output from HDMI OUT (ARC) on your home theater. To enjoy the selected resolution, make sure that your TV supports the selected resolution.

- [HDMI Deep Color]: Recreate the natural world on your TV screen by displaying vivid images using billion colors. Your home theater must be connected to a Deep Color enabled TV through an HDMI cable.

• [Picture Settings]: Select pre defined color settings for the video display.

- [Watch 3D video]: Set HDMI video to support 3D or 2D video.

Note

- If you change a setting, make sure that the TV supports the new setting.

Audio settings

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Audio], and then press OK.

4 Press the Navigation buttons and OK to select and change:

• [Night Mode]: For quiet listening, decrease the volume of loud sounds on your home theater. Night mode is only available for Dolby-encoded DVD and Blu-ray discs.
• [HDMI Audio]: Set the HDMI audio output from your TV, or disable HDMI audio output from the TV.
• [Default sound settings]: Restore the equalizer settings of all the sound modes to the default values.

Parental control settings

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference], and then press OK.
4 Press the Navigation buttons and OK to select and change:

- [Change Password]: Set or change your password for parental control access. If you do not have a password or have forgotten your password, enter 0000.

- [Parental Control]: Restrict access to discs that are recorded with age ratings. To play all discs, irrespective of the ratings, select 8 or [Off].

Display settings

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference], and then press OK.
4 Press the Navigation buttons and OK to select and change:

- [Auto Subtitle Shift]: Enable or disable automatic repositioning of subtitles on TVs that support this feature.

- [Display Panel]: Set the brightness of the home theater front panel display.

- [VCD PBC]: Enable or disable the content menu navigation of VCD and SVCD discs with Play Back Control feature.

Energy saving settings

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference], and then press OK.
4 Press the Navigation buttons and OK to select and change:

- [Screen Saver]: Switch the home theater to screen saver mode after 10 minutes of inactivity.

- [Auto Standby]: Switch the home theater to standby after 30 minutes of inactivity. This timer works only when a disc or USB play is paused or stopped.

- [Sleep Timer]: Set the duration of the sleep timer so that the home theater is switched to standby after the specified period.

Speaker settings

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced], and then press OK.
4 Press the Navigation buttons and OK to select and change:

- [Enhanced Audio]: Select [On] to enable audio post processing at the speaker and enable karaoke settings (if your product supports Karaoke). To play the original audio of the disc, select [Off].

Tip

- Enable audio post processing before you select a predefined sound mode (see 'Sound mode' on page 22).

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [Restore default settings], and then press OK.
4 Select [OK], and then press OK to confirm.
Your home theater is reset to its default settings except for some settings such as parental control and DivX VOD registration code.

6 Update software

Philips continually tries to improve its products. To get the best features and support, update your home theater with the latest software.

Compare the version of your current software with the latest version on www.philips.com/support. If the current version is lower than the latest version available on the Philips support website, upgrade your home theater with the latest software.

Caution

- Do not install a lower version of software than the current version installed on your product. Philips is not liable for problems caused due to software downgrade.

Check software version

Check the version of the current software installed on your home theater.

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [Version Info.], and then press OK.
→ The software version is displayed.

Update software through the Internet

1 Connect your home theater to a home network with a high-speed Internet access. (see 'Connect and set up a home network' on page 11)
2 Press (Home).
3 Select [Setup], and then press OK.

4 Select [Advanced] > [Software Update] > [Network].

If an upgrade media is detected, you are prompted to start or cancel the update.

5 Follow the instruction on the TV to confirm the update.

When the software update is complete, the home theater automatically switches off. If it does not, disconnect the power cord for a few seconds and then reconnect it.

Note

• If the home theater cannot connect to the Philips server, press ⬆(Home).
• Select [Setup] > [Network] > [Network Installation] to set up the network.

Update software through USB

What you need

• A USB flash drive that is FAT or NTFS-formatted, with at least 75MB of memory. Do not use a USB hard drive.
  • A computer with Internet access.
• An archive utility that supports the ZIP file format.

Step 1: Download the latest software

1 Connect a USB flash drive to your computer.
2 In your web browser, go to www.philips.com/support.
3 At the Philips Support website, find your product and locate the Software and drivers.
→ The software update is available as a zip file.

4 Save the zip file in the root directory of your USB flash drive.
5 Use the archive utility to extract the software update file in the root directory. → The files are extracted under the UPG folder of your USB flash drive.
6 Disconnect the USB flash drive from your computer.

Step 2: Update the software

Caution

- Do not switch off the home theater or remove the USB flash drive during the update.

1 Connect the USB flash drive containing the downloaded file to your home theater.
• Make sure that the disc compartment is closed and no disc inside.

2 Press (Home).

3 Select [Setup], and then press OK.

4 Select [Advanced] > [Software Update] > [USB].

5 Follow the onscreen instructions to confirm the update.

Once complete, the home theater automatically switches off. If it does not, disconnect the power cord for a few seconds and then reconnect it.

7 Product specifications

Note

- Specifications and design are subject to change without notice.

Region codes

The type plate on the back or bottom of the home theater shows which regions it supports.

Country	DVD		BD
Europe, United Kingdom
Asia Pacific, Taiwan, Korea
Latin America
Australia, New Zealand
Russia, India

Media formats

- AVCHD, BD, BD-R/ BD-RE, BD-Video, DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R/-R DL, CD-R/CD-RW, Audio CD, Video CD/SVCD, Picture files, MP3 media, WMA media, DivX Plus HD media, USB storage device

File formats

• Audio: .aac, .mka, .mp3, .wma, .wav
- Video: .avi, .divx, .mp4, .mkv, .mpg, .mpeg, .rmvb, .rm
• Picture: .jpg, .jpeg, .gif, .png

Audio formats

Your home theater supports the following audio files.

Extension	Container	Audio codec	Bit rate
.mp3	MP3	MP3	32 kbps ~ 320 kbps
.wma	ASF	WMA	64 kbps ~ 160 kbps
.aac	AAC	AAC, HE-AAC	192 kbps
.wav	WAV	PCM	1.4 Mbps
.m4a	MKV	AAC	192 kbps
.mka	MKA	PCM	27.648 Mbps
.mka	MKA	Dolby Digital	640 kbps
.mka	MKA	DTS core	1.54 Mbps
.mka	MKA	MPEG	912 kbps
.mka	MKA	MP3	32 kbps ~ 320 kbps
.mka	MKA	WMA	64 kbps ~ 160 kbps
.mka	MKA	AAC, HE-AAC	192 kbps

Video formats

If you have a high definition TV, your home theater allows you to play your video files with:

• Resolution: 1920 × 1080 pixels at
• Frame rate: 6 \~ 30 frames per second.

.avi files in AVI container

Audio codec	Video codec	Bit rate
PCM, Dolby	DivX 3.11,	10 Mbps max
Digital, DTS	DivX 4.x,
core, MP3,	DivX 5.x,
WMA	DivX 6.x
	MPEG 1,	20 Mbps (peak
	MPEG 2	40 Mbps)

Audio codec Video codec Bit rate
	MPEG 4 ASP 10 Mbps max
	H.264/AVC 20 Mbps (peak HP@4.1/4.0; 40 Mbps) MP@3.2/3.1/3.0

.divx files in AVI container

Audio codec Video codec Bit rate
PCM, Dolby	DivX 3.11,	10 Mbps max
Digital, MP3,	DivX 4.x,
WMA	DivX 5.x,
	DivX 6.x
	MPEG 1,	20 Mbps (peak
	MPEG 2	40 Mbps)
	MPEG 4 ASP 10 Mbps max

.mp4 or .m4v files in MP4 container

Audio codec Video codec Bit rate
Dolby Digital, MPEG, MP3, AAC, HE-AAC	MPEG 1, MPEG 2	20 Mbps (peak 40 Mbps)
	MPEG 4 ASP 10 Mbps max
	H.264/AVC HP@4.1/4.0; MP@3.2/3.1/3.0	20 Mbps (peak 40 Mbps)

.mkv files in MKV container

Audio codec	Video codec	Bit rate
PCM, Dolby	MPEG 1,	20 Mbps (peak
Digital, DTScore, MPEG,MP3, WMA,AAC, HE-AAC	MPEG 2	40 Mbps)
	MPEG 4 ASP 10 Mbps max
	H.264/AVC	20 Mbps (peak
	HP@4.1/4.0;	40 Mbps)
	MP@3.2/3.1/3.0

Amplifier

• Total output power: 300W RMS (30% THD)
• Frequency response: 20 Hz-20 kHz / ±3 dB
• Signal-to-noise ratio: > 65 dB (CCIR) / (A-weighted)
- Input sensitivity:
- AUX: 2V
- Music iLink: 1 V

Video

• Signal system: PAL / NTSC
- HDMI output: 480i/576i, 480p/576p, 720p, 1080i, 1080p, 1080p24

Audio

• S/PDIF Digital audio input:
• Coaxial: IEC 60958-3
- Optical: TOSLINK
- Sampling frequency:
• MP3: 32 kHz, 44.1 kHz, 48 kHz
• WMA: 44.1 kHz, 48 kHz
- Constant bit rate:
• MP3: 32 kbps - 320 kbps
• WMA: 48 kbps - 192 kbps

Radio

• Tuning range:
  • Europe/Russia/China: FM 87.5-108 MHz (50 kHz)
  • Asia Pacific/Latin America: FM 87.5-108 MHz (50/100 kHz)

• Signal-to-noise ratio: FM 50 dB

• Frequency response: FM 200 Hz-12.5 kHz / ±6 dB

USB

• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class (MSC)
• File system: FAT16, FAT32, NTFS
• Maximum memory support: < 160 GB

Main unit

• Power supply:
• Europe/China/Russia/India: 220-240 V\~, 50 Hz
• Latin America/Asia Pacific: 110-240 V\~, 50-60 Hz
• Power consumption: 60 W
- Standby power consumption: ≤ 0.5 W
• Dimensions (W × H × D): 360 × 58 × 325 mm
- Weight: 2.4 kg

Subwoofer

• Output power: 50 W RMS (30% THD)
- Impedance: 4 ohm
- Speaker drivers: 133 mm (5.25") woofer
• Dimensions (W × H × D): 160 × 265 × 265 mm
- Weight: 2.50 kg

Speakers

Center speaker:

• Output power: 50 W RMS (30% THD)
• Speaker impedance: 4 ohm
- Speaker drivers: 1 × 63.5 mm (2.5") woofer
• Dimensions (W × H × D): 84.5 × 89 × 89 mm
- Weight: 0.27 kg

Front speaker:

• Output power: 2 × 50 W RMS (30% THD)
- Speaker impedance: 4 ohm
- Speaker drivers: 1 × 63.5 mm (2.5") woofer
• Dimensions (W × H × D): 84.5 × 159 × 80 mm
• Weight: 0.35 kg/each

Rear speaker:

• Output power: 2 × 50 W RMS (30% THD)
- Speaker impedance: 4 ohm
- Speaker drivers: 1 × 63.5 mm (2.5") woofer
• Dimensions (W × H × D): 84.5 × 89 × 89 mm
• Weight: 0.27 kg/each

Remote control batteries

- 2 × AAA-R03-1.5 V

Laser

• Laser Type (Diode): InGaN/AlGaN (BD), AlGaInP (DVD/CD)
• Wave length: 405 +7 nm/-7 nm (BD), 655 +10 nm/-10 nm (DVD), 790 +10 nm/-20 nm (CD)
• Output power (Max. ratings): 20 mW (BD), 6 mW (DVD), 7 mW (CD)

8 Troubleshooting

Warning

- Risk of electric shock. Never remove the casing of the product.

To keep the warranty valid, never try to repair the product yourself.

If you have problems using this product, check the following points before you request service. If you still have a problem, get support at www.philips.com/support.

Main unit

The buttons on the home theater do not work.

- Disconnect the home theater from the power supply for a few minutes, then reconnect.


No picture.

- Make sure that the TV is switched to the correct source for the home theater.

No picture on a TV connected through HDMI.

• Make sure that you use a High Speed HDMI cable to connect the home theater and TV. Some Standard HDMI cables do not display properly for some images, 3D video, or Deep Color.
• Make sure that the HDMI cable is not faulty. If it is faulty, replace it with a new cable.
• Press (Home) and then 731 on the remote control to restore the default picture resolution.
• Change the HDMI video setting, or wait for 10 seconds for auto recovery (see 'Picture and video settings' on page 23).

Disc does not play high-definition video.

- Make sure that the disc contains high-definition video.

• Make sure that the TV supports high-definition video.
• Use an HDMI cable to connect to the TV.

Sound

No sound from home theater speakers.

• Connect the audio cable from your home theater to your TV or other devices. You do not need a separate audio connection when the home theater and TV are connected through an HDMI ARC connection.
• Set up the audio for the connected device (see 'Set up the audio' on page 11).
• Reset your home theater to its factory settings (see 'Restore default settings' on page 25), then switch it off and switch on again.
• On your home theater, press SOURCE repeatedly to select the correct audio input.

Distorted sound or echo.

- If you play audio from the TV through the home theater, make sure that the TV is muted.

Audio and video are not synchronized.

• 1) Press SOUND SETTINGS.

2) Press the Navigation buttons (left/right) to select AUD SYNC, and then press OK.
3) Press the Navigation buttons (up/down) to synchronize the audio with the video.

Play

Cannot play a disc.

• Clean the disc.
• Make sure that the home theater supports the type of disc (see 'Media formats' on page 27).
• Make sure that the home theater supports the region code of the disc (see 'Region codes' on page 27).
• If the disc is a DVD±RW or DVD±R disc, make sure that it is finalized.

Cannot play a DivX file.

• Make sure that the DivX file is encoded according to the 'Home Theater Profile' with the DivX encoder.
  • Make sure that the DivX file is complete.

DivX subtitles do not display correctly.

• Make sure that the subtitle file name is the same as the movie file name (see 'Subtitles' on page 15).
• Select the correct character set: 1) Press OPTIONS. 2) Select [Character Set]. 3) Select the supported character set. 4) Press OK.

Cannot read the contents of a USB storage device.

• Make sure that the format of the USB storage device is compatible with the home theater.
• Make sure that the file system on the USB storage device is supported by the home theater.

'No entry' or 'x' sign appears on the TV.

• The operation is not possible.

EasyLink does not work.

• Make sure that the home theater is connected to a Philips brand EasyLink TV, and the EasyLink option is turned on (see 'Set up EasyLink (HDMI-CEC control)' on page 10).
• For TVs from different manufacturers, the HDMI CEC could be called differently. Check the TV user manual on how to enable it.

When you switch on the TV, the home theater automatically switches on.

- This behavior is normal when you are using Philips EasyLink (HDMI-CEC). To make the home theater work independently, switch off EasyLink.

Cannot access BD-Live features.

- Make sure that the home theater is connected a home network with internet access (see 'Connect and set up a home network' on page 11).

- Make sure that the network is set up. Use a wired network installation (see 'Set up the wired network' on page 11) or wireless network installation (see 'Set up the wireless network' on page 12).

- Make sure that the Blu-ray disc supports BD-Live features.

- Clear memory storage (see 'BD-Live on Blu-ray' on page 14).

My 3D video played in 2D mode.

• Make sure that your home theater is connected to a 3D TV through an HDMI cable.
• Make sure that the disc is a Blu-ray 3D disc, and the Blu-ray 3D video option is on (see 'Play Blu-ray 3D disc' on page 13).

TV screen is black when you play a Blu-ray 3D video or a DivX copy protected video.

• Make sure that the home theater is connected to the TV through an HDMI cable.
- Switch to the correct HDMI source on the TV.

Poor playback on YouTube Leanback or Picasa.

• Make sure that the home theater is connected to a home network and is properly set up (see 'Connect and set up a home network' on page 11).
• Make sure that the internet connection speed is higher than 2 MBPS to obtain optimum performance.

Network

Wireless network distorted or not found.

• Make sure that the wireless network is not disturbed by microwave ovens, DECT phones, or other neighboring Wi-Fi devices.
• Place the wireless router and the home theater within five meters of each other.
• Use a USB extension cable to connect the Wi-Fi dongle to the home theater.
• If the wireless network does not work properly, try a wired network installation (see 'Set up the wireless network' on page 12).

9 Notice

This section contains the legal and trademark notices.

Copyright

Be responsible Respect copyrights

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

This product incorporates proprietary technology under license from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

Cinavia notice

This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

Open source software

Philips Electronics Singapore hereby offers to deliver, upon request, a copy of the complete corresponding source code for the copyrighted open source software packages used in this product for which such delivery is requested by the respective licenses. This offer is valid up to three years after product purchase to anyone in receipt of this information. To obtain source code, please send your request in English with product type to [e-mail]. If you prefer not to use email or if you do not receive confirmation receipt within 2 weeks after mailing to this email address, please write in English to "Open Source Team, Philips Intellectual Property & Standards, P.O. Box 220, 5600 AE Eindhoven, The Netherlands". If you do not receive timely confirmation of your letter, please email to the email address above. The texts of the licenses and acknowledgements for open source software used in this product are included on a separate leaflet.

RMVB end user agreement

Notes to End User:

By using this product with RealNetworks software and services, the end user agrees to the following terms of REALNETWORKS, INC:

- End User may only use the software for private, non-commercial use in accordance with the terms of RealNetworks EULA.

- End User is not allowed to modify, translate, reverse engineer, decompile, dissemble or use other means to discover the source code or otherwise replicate the functionality of the Real Format Client Code, except to the extent that this restriction is expressly prohibited by applicable law.

• RealNetworks Inc. disclaims all warranties and conditions other than those set forth in this Agreement which are in lieu of all other warranties, whether express

and implied, including but not limited to any implied warranties or conditions of merchantability and fitness for a particular purpose; and effectively exclude all liability for indirect, special, incidental and consequential damages, such as but not limited to lost profits.

10 Language code

Abkhazian 6566		Inupiaq 7375		Pushto 8083
Afar 6565		Irish 7165		Russian 8285
Afrikaans 6570		Íslenska 7383		Quechua 8185
Amharic 6577		Italiano 7384		Raeto-Romance 8277
Arabic 6582		Ivrit 7269		Romanian 8279
Armenian 7289		Japanese 7465		Rundi 8278
Assamese 6583		Javanese 7486		Samoan 8377
Avestan 6569		Kalaallisut 7576		Sango 8371
Aymara 6589		Kannada 7578		Sanskrit 8365
Azerhaijani 6590		Kashmiri 7583		Sardinian 8367
Bahasa Melayu 7783		Kazakh 7575		Serbian 8382
Bashkir 6665		Kernewek 7587		Shona 8378
Belarusian 6669		Khmer 7577		Shqip 8381
Bengali 6678		Kinyarwanda 8287		Sindhi 8368
Bihari 6672		Kirghiz 7589		Sinhalese 8373
Bislama 6673		Komi 7586		Slovensky 8373
Bokmål, Norwegian 7866		Korean 7579		Slovenian 8376
Bosanski 6683		Kuanyama; Kwanyama 7574		Somali 8379
Brezhoneg 6682		Kurdish 7585		Sotho; Southern 8384
Bulgarian 6671		Lao 7679		South Ndebele 7882
Burmese 7789		Latina 7665		Sundanese 8385
Castellano, Español 6983		Latvian 7686		Suomi 7073
Catalán 6765		Letzeburgesch; 7666		Swahili 8387
Chamorro 6772		Limburgan; Limburger 7673		Swati 8383
Chechen 6769		Lingala 7678		Svenska 8386
Chewa; Chichewa; Nyanja 7889		Lithuanian 7684		Tagalog 8476
中文 9072		Luxembourgish; 7666		Tahitian 8489
Chuang; Zhuang 9065		Macedonian 7775		Tajik 8471
Church Slavic; Slavonic 6785		Malagasy 7771		Tamil 8465
Chuvash 6786		Magyar 7285		Tatar 8484
Corsican 6779		Malayalam 7776		Telugu 8469
Česky 6783		Maltese 7784		Thai 8472
Dansk 6865		Manx 7186		Tibetan 6679
Deutsch 6869		Maori 7773		Tigrinya 8473
Dzongkha 6890		Marathi 7782		Tonga (Tonga Islands) 8479
English 6978		Marshallese 7772		Tsonga 8483
Esperanto 6979		Moldavian 7779		Tswana 8478
Estonian 6984		Mongolian 7778		Türkçe 8482
Euskara 6985		Nauru 7865		Turkmen 8475
Ελληνικά 6976		Navaho; Navajo 7886		Twi 8487
Faroese 7079		Ndebele, North 7868		Uighur 8571
Français 7082		Ndebele, South 7882		Ukrainian 8575
Frysk 7089		Ndonga 7871		Urdu 8582
Fijian 7074		Nederlands 7876		Uzbek 8590
Gaelic; Scottish Gaelic 7168		Nepali 7869		Vietnamese 8673
Gallegan 7176		Norsk 7879		Volapuk 8679
Georgian 7565		Northern Sami 8369		Walloon 8765
Gikuyu; Kikuyu 7573		North Ndebele 7868		Welsh 6789
Guarani 7178		Norwegian Nynorsk; 7878		Wolof 8779
Gujarati 7185		Occitan; Provencal 7967		Xhosa 8872
Hausa 7265		Old Bulgarian; Old Slavonic 6785		Yiddish 8973
Herero 7290		Oriya 7982		Yoruba 8979
Hindi 7273		Oromo 7977		Zulu 9085
Hiri Motu 7279		Ossetian; Ossetic 7983
Hrwatski 6779		Pali 8073
Ido 7379		Panjabi 8065
Interlingua (International)7365		Persian 7065
Interlingue 7365		Polski 8076
Inuktitut 7385		Português 8084

11 Index

2

2nd audio language 14

2nd subtitle language 14

3

3D disc in 2D mode 13

3D safety 3

3D video 13

5

5.1 speakers 7

A

advanced settings 24

amplifier 28

audio connection (optical cable) 9

audio formats 27

audio from other devices 9

audio input mapping 11

audio language 23

audio options 16

audio post processing 24

audio settings 23

audio setup 11

auto standby 24

auto subtitle shift 24

B

batteries 29

BD-Live 14

Blu-ray 12

Bonus View 14

brightness 24

C

change password 24

character set 15

clear BD-Live memory 14

connectors 4

control buttons (disc) 13

control buttons (USB) 13

copyright protection 32

D

data files 14

deep color 23

default settings 25

disc language 23

disc menu 23

display panel 24

DivX 14

E

Easylink (HDMI-CEC) 10

eject disc 4

enhanced audio 24

F

factory settings 25

file formats 27

H

HDMI audio 23

HDMI-CEC 10

home menu 12

home network 11

|

internet 11

K

karaoke 21

L

language code 34

M

main unit 4

manual setup 10

media formats 27

media sharing 19

menu language 23

MP3 17

musical slideshows 17

N

network 11

night mode 23

O

one-touch play 10

one-touch standby 10

options 15

P

parental control 24

PBC (play back control) 24

Picasa web albums 18

picture options 16

picture resolution 23

picture settings 23

picture-in-picture 14

play disc 12

play from PC 21

play music 17

play radio 17

play USB storage device 15

power settings 24

predefined sound mode 22

preference 23

program radio stations 17

R

radio 17

region codes 27

remote control 5

repeat 16

S

shuffle 16

sleep timer 24

slide animation 16

software update 25

software version 25

sound 21

speaker position 7

speaker setup 10

speaker specifications 27

subtitle language 23

subtitle position 24

surround sound 22

synchronize picture and sound 13

system audio control 11

T

troubleshooting (network) 31

troubleshooting (picture) 30

troubleshooting (play) 30

troubleshooting (sound) 30

tune radio stations 17

tuning grid 17

U

update software (through Internet) 25

update software (through USB) 26

USB storage device 15

V

VCD 24

video formats 28

video options 16

video settings 23

VOD code (DivX) 15

W

watch 3D 13

wired network 11

wireless network 12

"Blu-ray 3D ™" and "Blu-ray 3D ™" logo are trademarks of Blu-ray Disc Association.

Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. ©DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274.

DivX ^® , DivX Certified ^® , DivX Plus ^® HD and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

ABOUT DIVX PLUS® HD: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video, including DivX® Plus HD video (H.264/. MKV) up to 1080p and premium content. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO: DivX ^ is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ^ device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVXVIDEO-ON-DEMAND: This DivX Certified ^ device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC in the United States and other countries.

RealNetworks, Real, the Real logo, RealPlayer, and the RealPlayer logo are trademarks or registered trademarks of RealNetworks, Inc.
