EH7700W - Video projector OPTOMA - Free user manual and instructions

Product Type	Video Projector
Brand	Optoma
Model	EH7700W
Native Resolution	WUXGA (1920 x 1200)
Display Technology	DLP
Lamp System	Dual Lamp (Dual/Relay/Lamp1/Lamp2 modes)
Lens Shift	Motorized, vertical and horizontal
Interchangeable Lenses	WT1, WT2, ST1, TZ1, TZ2
Throw Ratio Range	0.77 to 6.98 (depending on lens)
Projection Image Size	30" to 500"
Input Connections	2x HDMI, 2x VGA, BNC (YPbPr/RGBHV), Component, S-Video, Composite Video
Output Connections	VGA monitor loop-through, 12V trigger (3.5mm mini jack)
Control Interfaces	RS-232 (9-pin DIN), RJ-45 (Ethernet), Wired Remote
Network Control Protocols	Crestron RoomView, Extron, AMX Device Discovery, PJLink, Telnet
Power Consumption	350W max; Standby Eco < 0.5W
Operating Temperature	5°C to 40°C
Operating Humidity	80% max, non-condensing
Security Features	Password protection, security timer, keypad lock, Kensington lock
Accessories Included	Remote control, power cord, VGA cable, RS232 cable, DVI/HDMI cable, 2x AAA batteries, 2x security eye bolts, spring and flat washers

Frequently Asked Questions - EH7700W OPTOMA

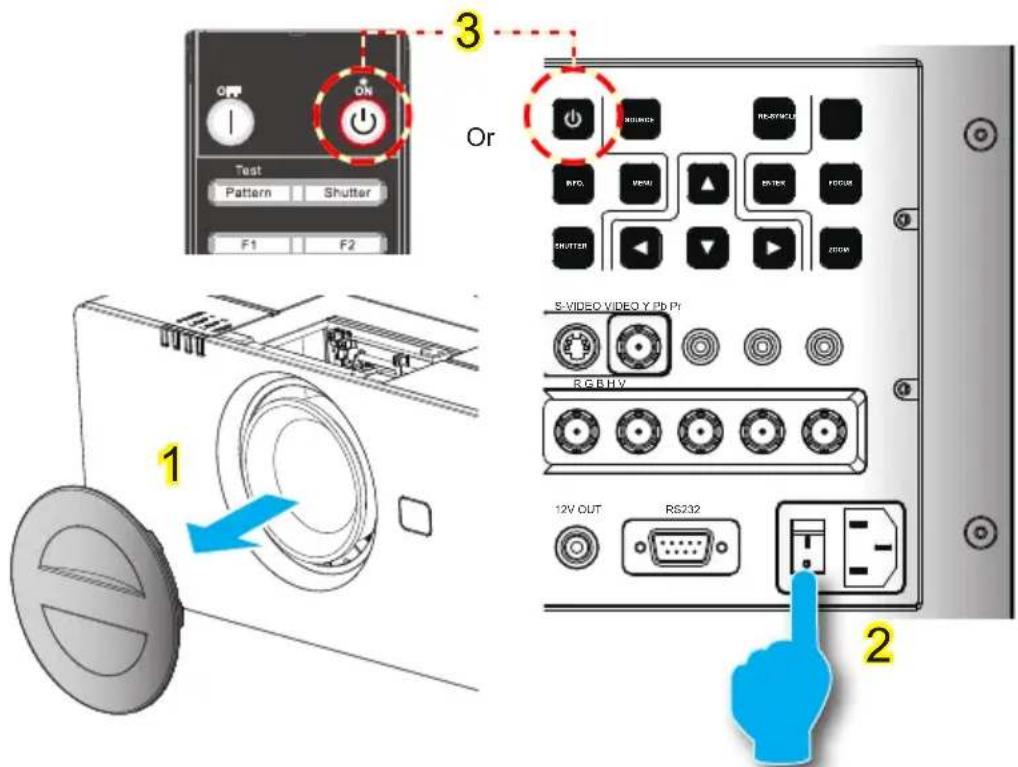

How do I power on the Optoma EH7700W projector?

Remove the projector cap, securely connect the power cord and signal cable, switch on the power switch, then press the Power button on the control panel or remote control. The startup screen appears in about 10 seconds.

How do I replace the lamp?

Turn off the projector and let it cool for at least 30 minutes. Disconnect the power cord. Unscrew the lamp door and housing screws, carefully remove the old lamp module, and insert the new one. Reverse steps to reassemble, then reset the lamp hour counter via OPTION > Lamp Settings.

What is the native resolution of the EH7700W?

The native resolution is WUXGA (1920 x 1200).

How can I connect a computer to the projector?

Use a VGA cable to connect the computer's VGA output to the VGA1-In or VGA2-In connector on the projector. Alternatively, use an HDMI or DVI/HDMI cable. Ensure the projector is set to the correct input source via the remote or control panel.

How do I adjust the projected image size and focus?

Use the motorized zoom and focus controls: press the ZOOM and FOCUS buttons on the control panel or remote control. For lens shift, use the LENS SHIFT function in the menu or remote.

Can I control the projector via network?

Yes, the EH7700W supports Crestron, Extron, AMX Device Discovery, PJLink, and Telnet. Connect the projector to your network via RJ-45, set up an IP address in SETUP > Network > LAN Settings, and use compatible control software.

What should I do if no image appears on screen?

Check that all cables are securely connected, the lens cap is removed, and the projector is powered on. Ensure the correct input source is selected. If using a PC, verify the display resolution is set to WUXGA or lower. Press the RE-SYNC button.

How do I clean the projector?

Turn off and unplug the projector. Use a soft, dry cloth with mild detergent to clean the housing. Do not use abrasive cleaners, wax, or solvents. Avoid blocking ventilation slots.

What does the warning indicator mean?

If the POWER LED flashes red and a LAMP or TEMP LED is lit red, there is a lamp failure or overheating. The projector will shut down automatically. Unplug the power cord, wait 30 seconds, and try again. If the problem persists, contact service.

How can I set a password for projector security?

Go to SETUP > Security and set Security to On. Enter a 4-digit password using the remote control number keys. The default password is '1234'. You can also set a security timer under the same menu.

USER MANUAL EH7700W OPTOMA

Table of Contents ......1

Usage Notice 2

Safety Information 2

Precautions 3

Eye Safety Warnings ....5

Product Features ....5

Introduction ......6

Package Overview 6

Product Overview 7

Main Unit 7

Control Panel 8

Input/Output Connections 9

Remote Control 10

Installation 11

Connecting the Projector ....11

Install the Projection Lens 11

Connect to Computer/Notebook ..... 12

Connect to Video Sources 13

Powering the projector On / Off .....14

Powering On the Projector 14

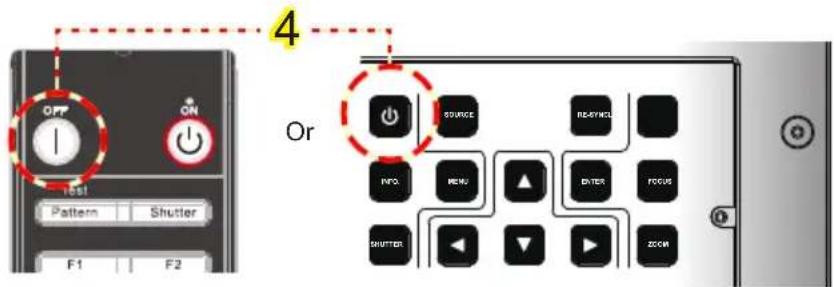

Powering Off the Projector 15

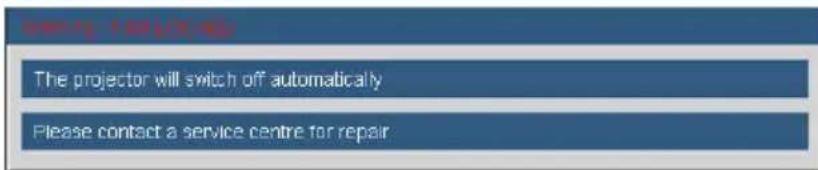

Warning Indicator 16

Adjusting the Projected Image .....17

Adjusting the Projector's Height .....17

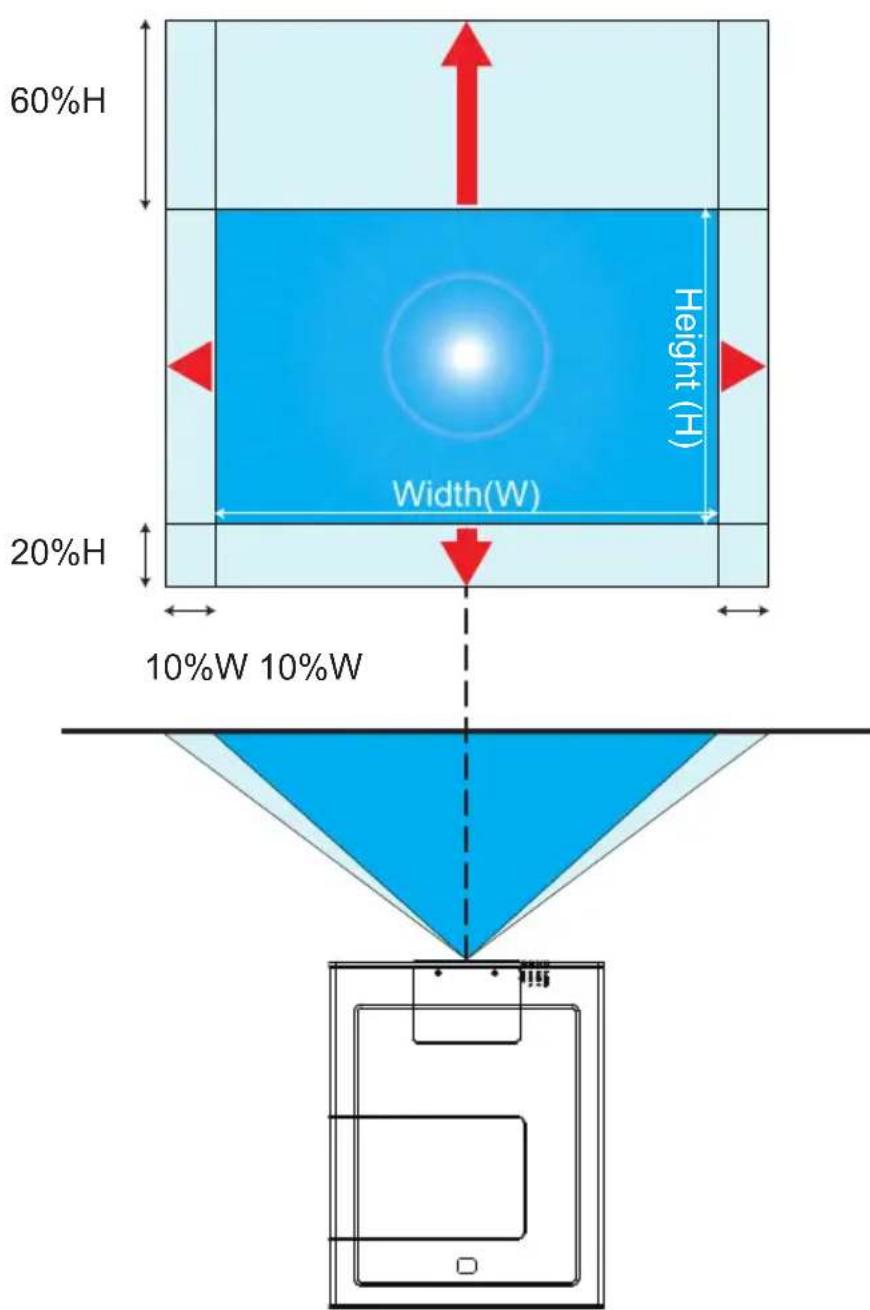

Adjusting the Projector's Position ..... 18

User Controls ....20

Control Panel & Remote Control .....20

Control Panel 20

Remote Control 21

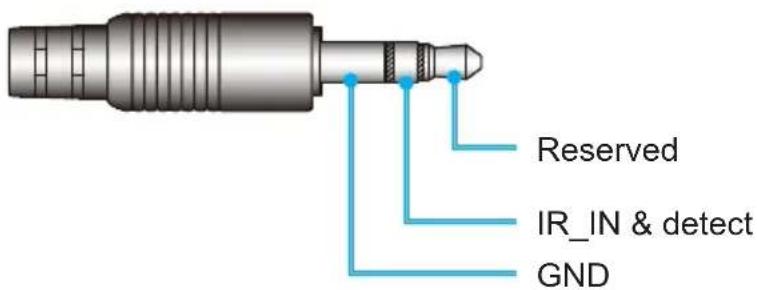

Using a Wire Remote Control ...... 23

Remote Code Setting 24

On-screen Display Menus .....25

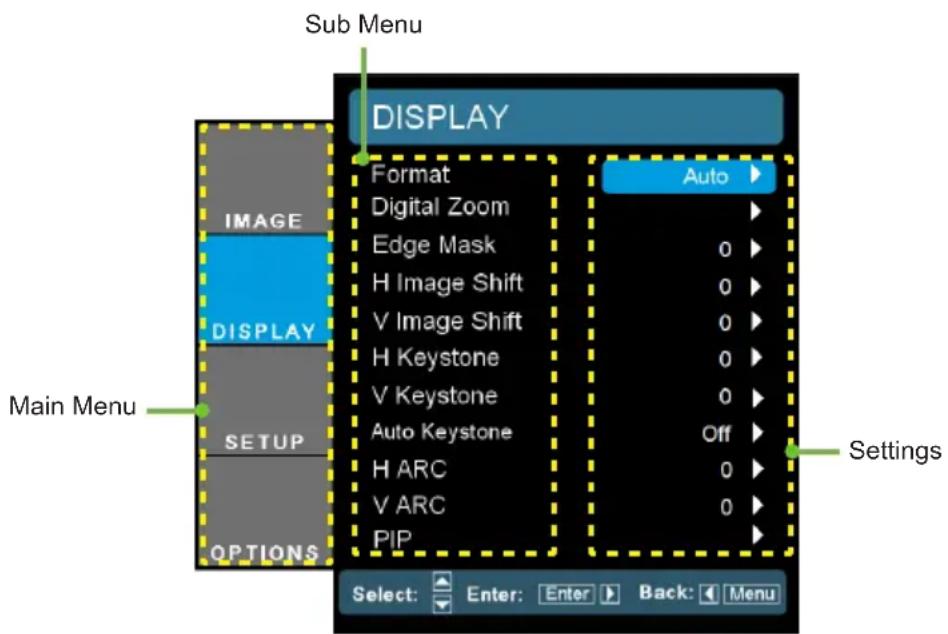

How to operate 25

Menu Tree 26

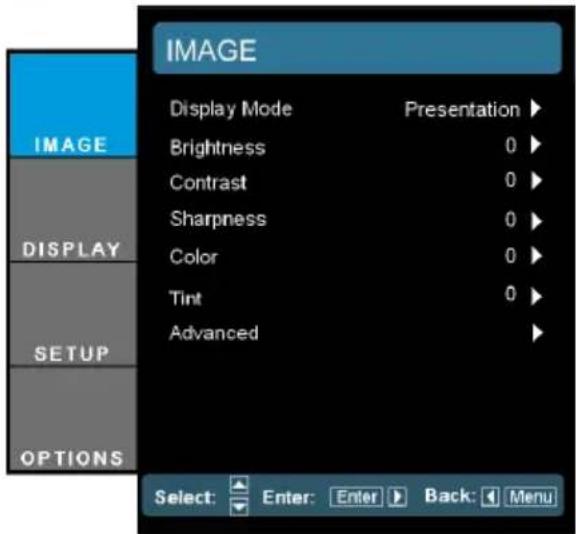

IMAGE 28

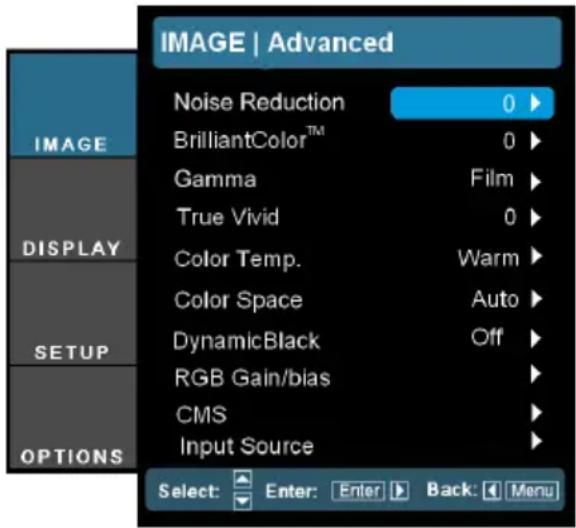

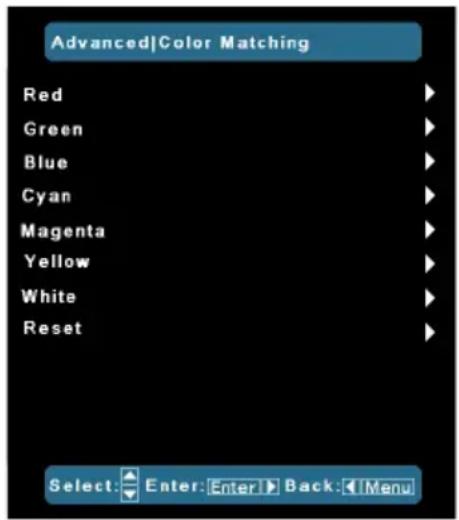

IMAGE | Advanced 30

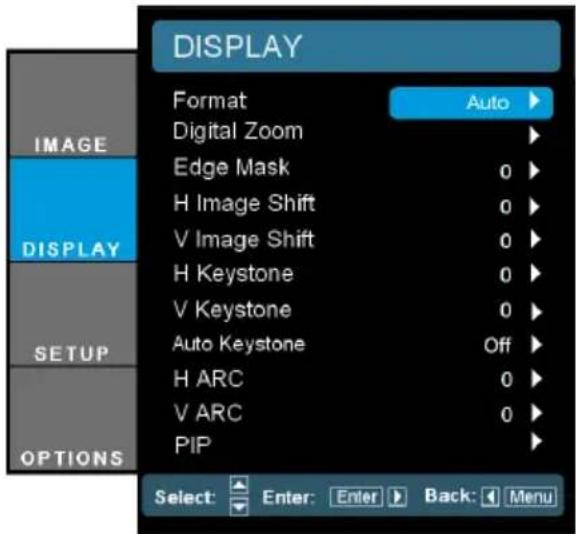

DISPLAY 33

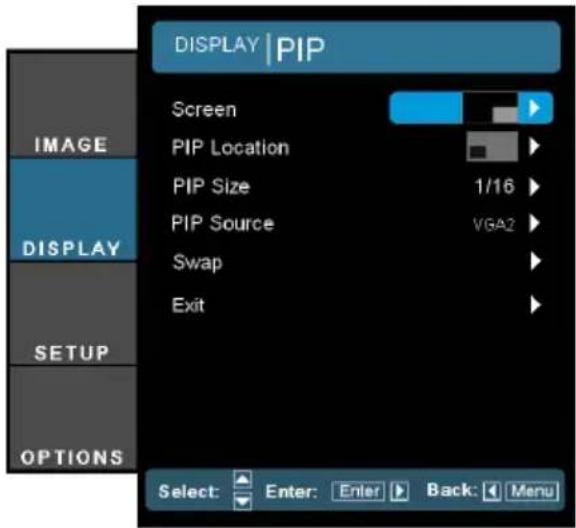

DISPLAY|PIP 36

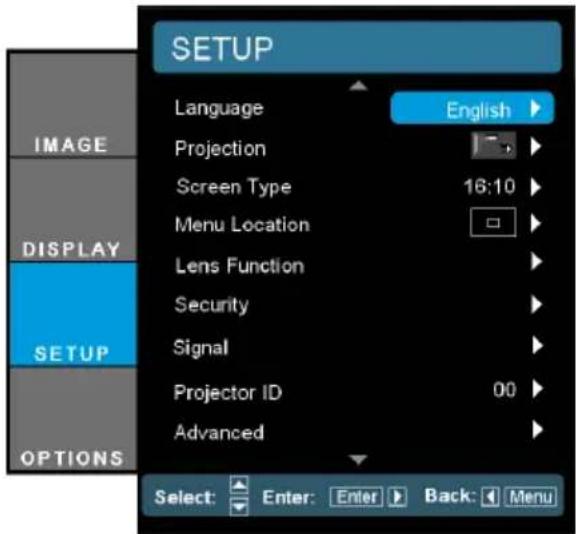

SETUP 37

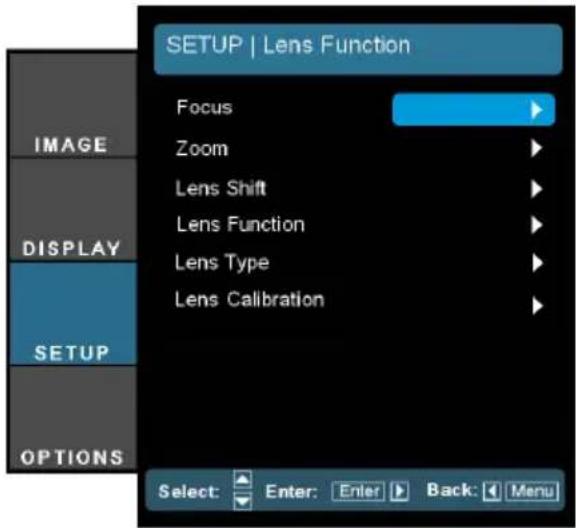

SETUP | Lens Function 39

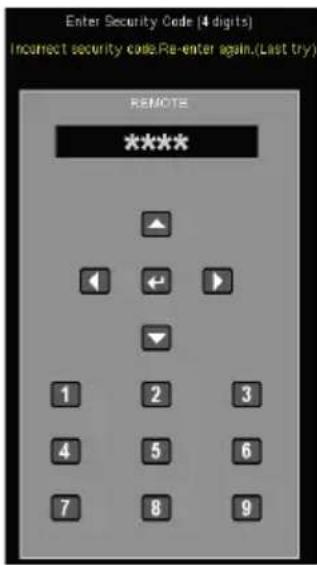

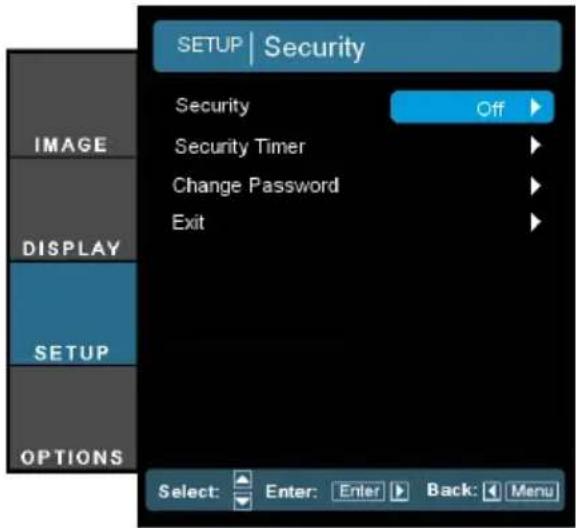

SETUP | Security 40

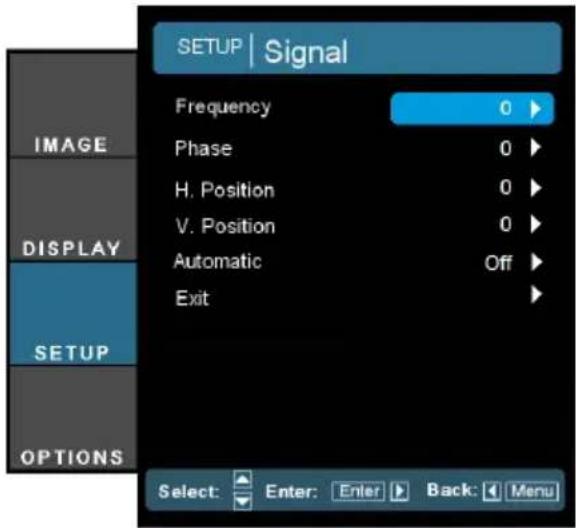

SETUP | Signal (RGB) 42

SETUP | Signal (Video) 43

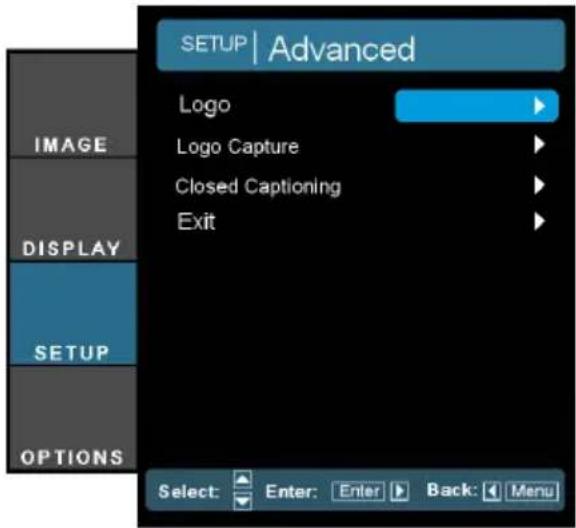

SETUP | Advanced 44

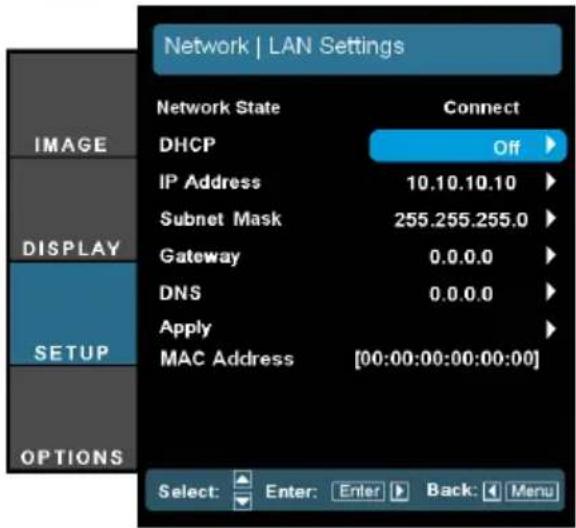

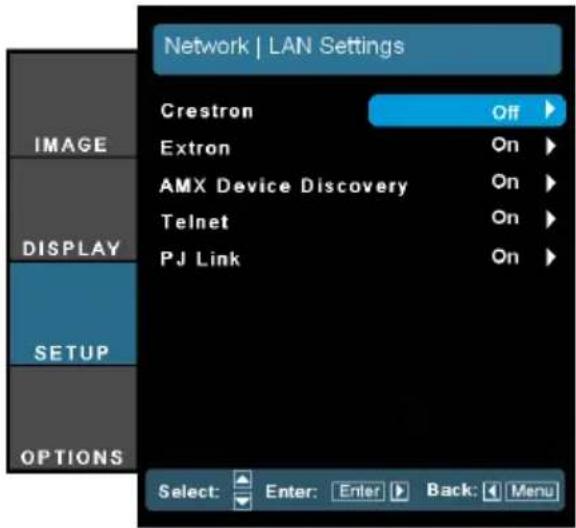

SETUP | Network | LAN Settings ..... 45

SETUP | Network | Control Settings . 48

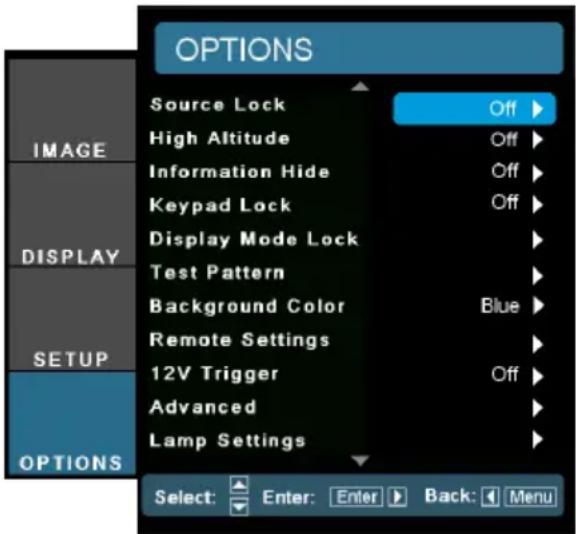

OPTION 49

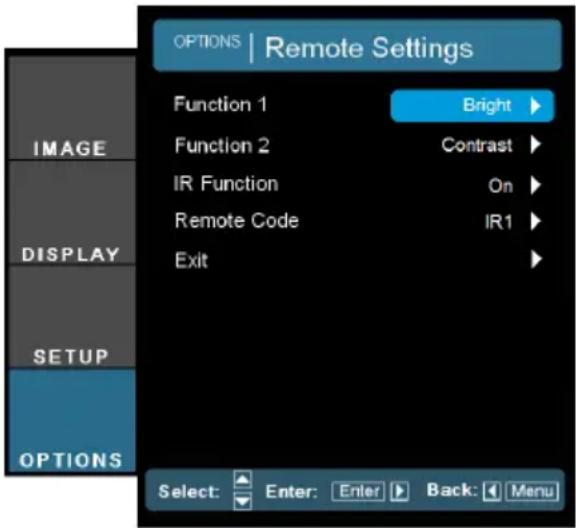

OPTION | Remote Settings .....51

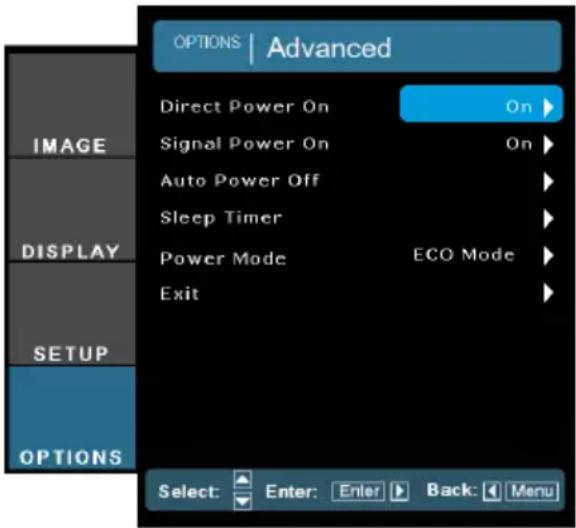

OPTION | Advanced 52

OPTION | Lamp Settings 53

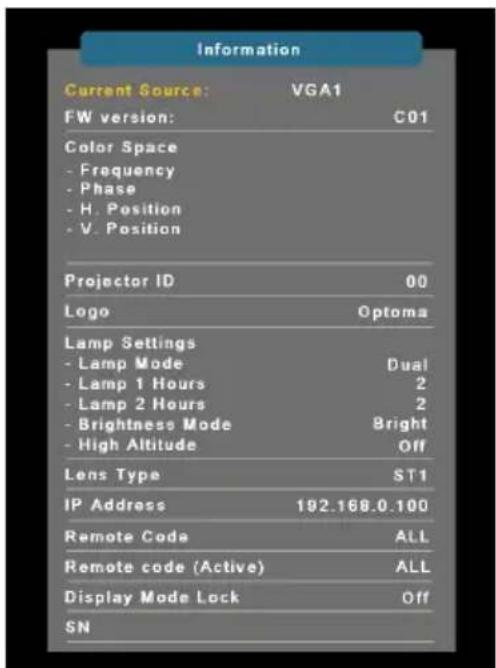

OPTION | Information 54

Appendices ....55

Troubleshooting 55

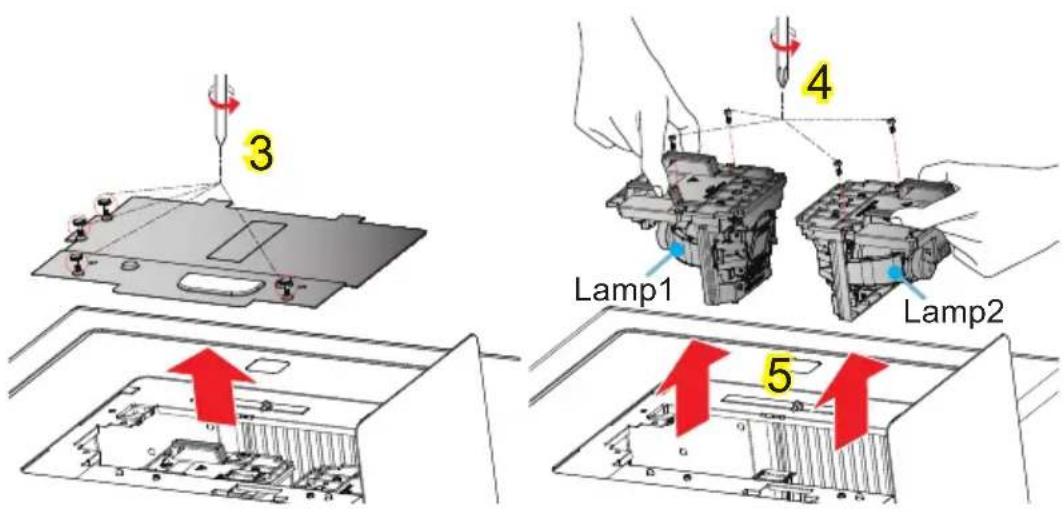

Replacing the lamp 60

Compatibility Modes ......62

Computer Compatibility (PC/Mac) ..... 62

Video Compatibility 63

RS232 Commands and Protocol

Function List 64

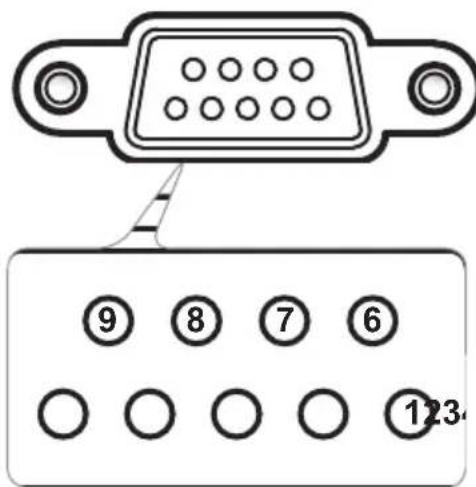

RS232 Pin Assignments 64

RS232 Protocol Function List 65

Telnet Commands 69

AMX Device Discovery commands ...69

PJLink™ supported commands .....70

Trademarks 72

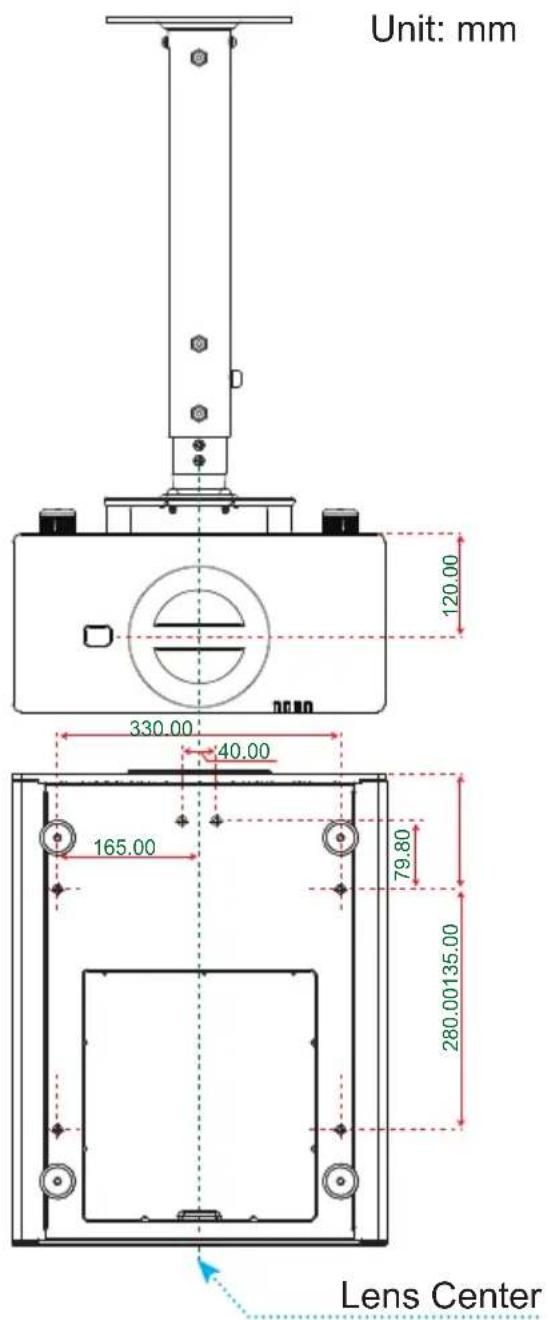

Ceiling Mount Installation .....75

Ceiling Mount Safeguards ......76

Optoma Global Offices ....78

Regulation & Safety Notices ....80

Safety Information

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Class A emissions limits

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
2. Do not use the projector near water or moisture. To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specified by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

Unit has been dropped.
☐ Power supply cord or plug has been damaged.
☐ Liquid has been spilled on to the projector.
☐ Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside. Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.

1. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

2. See projector enclosure for safety related markings.

3. The unit should only be repaired by appropriate service personnel.

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Warning- Do not look into the projector's lens when the lamp is on. The bright light may hurt and damage your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture.
Warning- Please do not open or disassemble the projector as this may cause electric shock.
Warning- When replacing the lamp, please allow the unit to cool down. Follow instructions as described on pages 60-61.
Warning- This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.
Warning- Reset the "Lamp Reset" function from the on-screen display "OPTION | Lamp Settings" menu after replacing the lamp module (refer to page 53).
Warning- When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 60 seconds for the projector to cool down.
Warning- Do not use lens cap when projector is in operation.

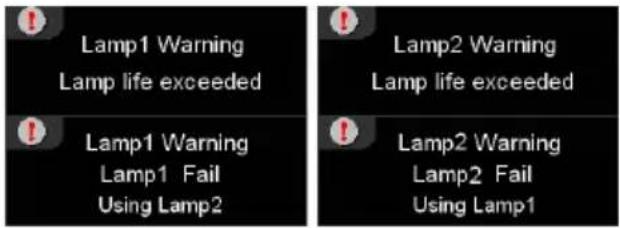

Warning- When the lamp is approaching the end of its lifetime, the message “Lamp Warning: Lamp life exceeded.” will show on the screen. Please contact your local reseller or service center to change the lamp as soon as possible.
Warning- Do not look into or point the laser pointer on your remote control into your or someone's eyes. Laser pointer can cause permanent damage to eyesight.

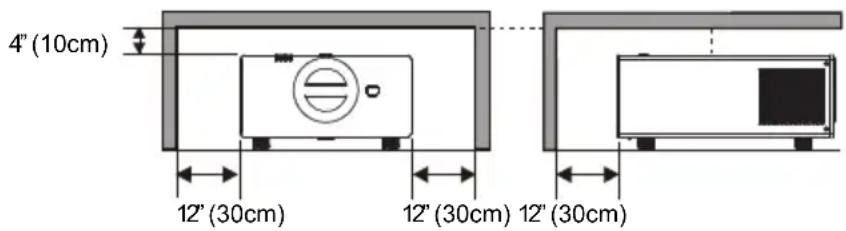

Warning- Allowing the proper amount of space on the top, sides, and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The dimensions shown here indicate the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained.

Do:

Turn off and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Do not:

Block the slots and openings on the unit provided for ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:

- In extremely hot, cold or humid environments.

▶ Ensure that the ambient room temperature is within 5 - 40°C.
▶ Relative Humidity is 5 - 40°C, 80% (Max.), non-condensing.

• In areas susceptible to excessive dust and dirt.
• Near any appliance generating a strong magnetic field.
• In direct sunlight.

Eye Safety Warnings

Symbolic illustration of a computer monitor with a red X mark and eye, enclosed in an oval (no text or numbers present)

Avoid staring/facing directly into the projector beam at all times. Keep your back to the beam as much as possible.
When projector is used in a classroom, adequately supervise students when they are asked to point out something on the screen.
In order to minimize the lamp power, use room blinds to reduce ambient light levels.

Product Features

WUXGA (1920 x 1200) Native resolution
HD compatible – 1080p supported
Extensive optional lens
Wide lens shift range for installation flexibility
Dual lamp system
Comprehensive input/output terminals and control interfaces
Network support

Package Overview

Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.

Line drawing of a white electronic device with a circular vent and ventilation grille (no text or symbols)

Projector

Line drawing of a cord with two connectors and a separate terminal plug (no text or symbols)

Power Cord 3.0m

Pure electrical circuit lines without any symbols

VGA Cable 1.8m

Due to different applications in each country, some regions may have different accessories.

Illustration of two connected cables with connectors (no text or symbols)

RS232 Cable 1.8m

Line drawing of a USB cable with a connector, no text or symbols present

DVI/HDMI Cable 30cm

IR Remote Control

Documentation :

User's Manual
√ Warranty Card
Quick Start Card
☑ WEEE Card (for EMEA only)

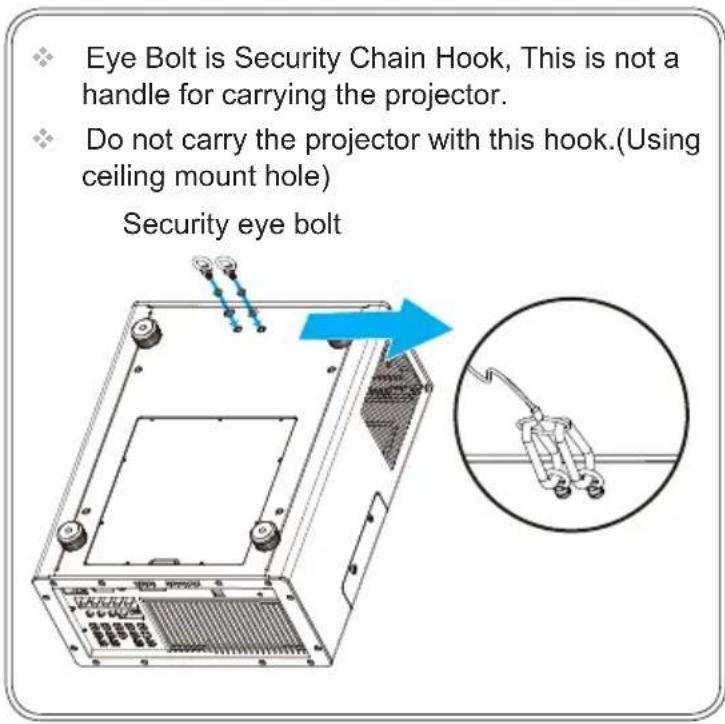

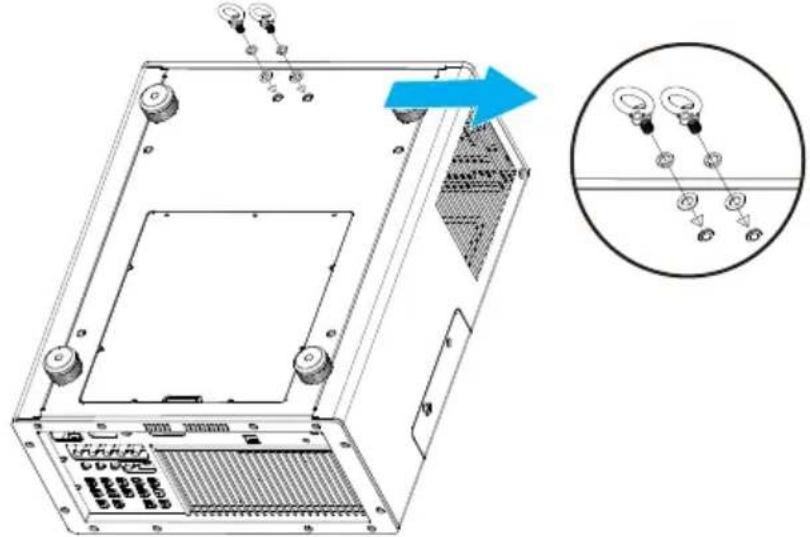

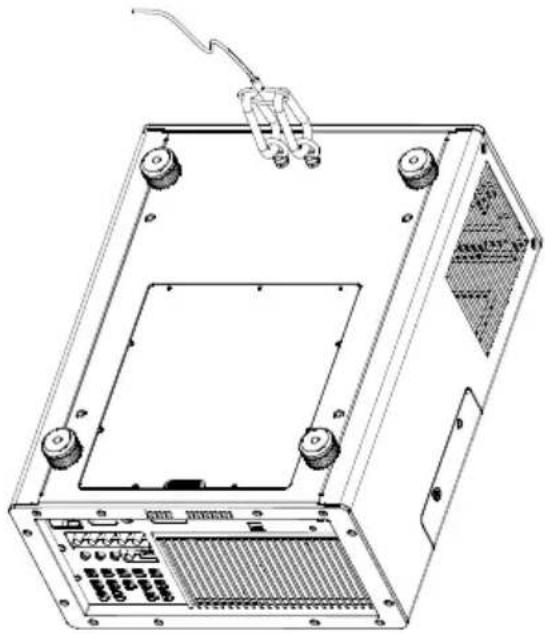

2 × Security Eye Bolt

2 × AAA Batteries

2 × Spring Washer 2 × Flat Washer

Product Overview

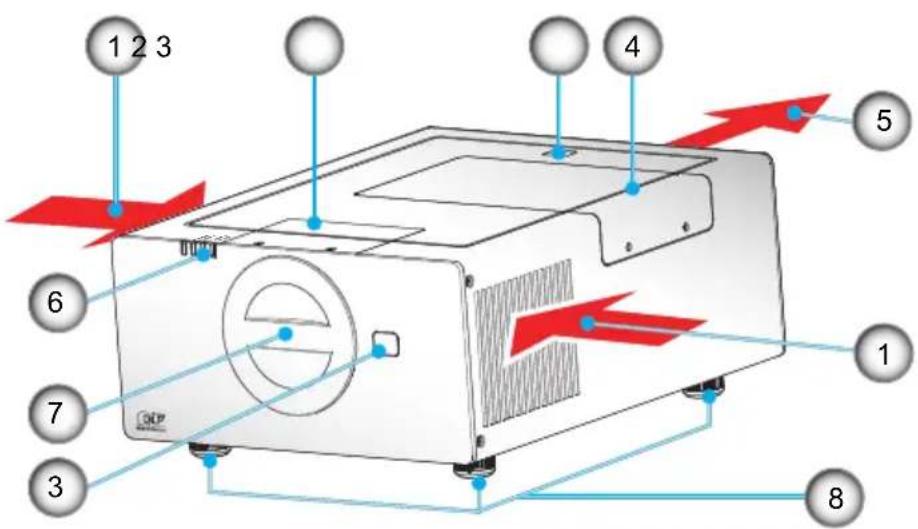

Main Unit

1. Ventilation (inlet)
2. Lens Door
3. IR Receivers
4. Lamp Door
5. Ventilation (outlet)
6. Indicator LED
7. Projector Cap

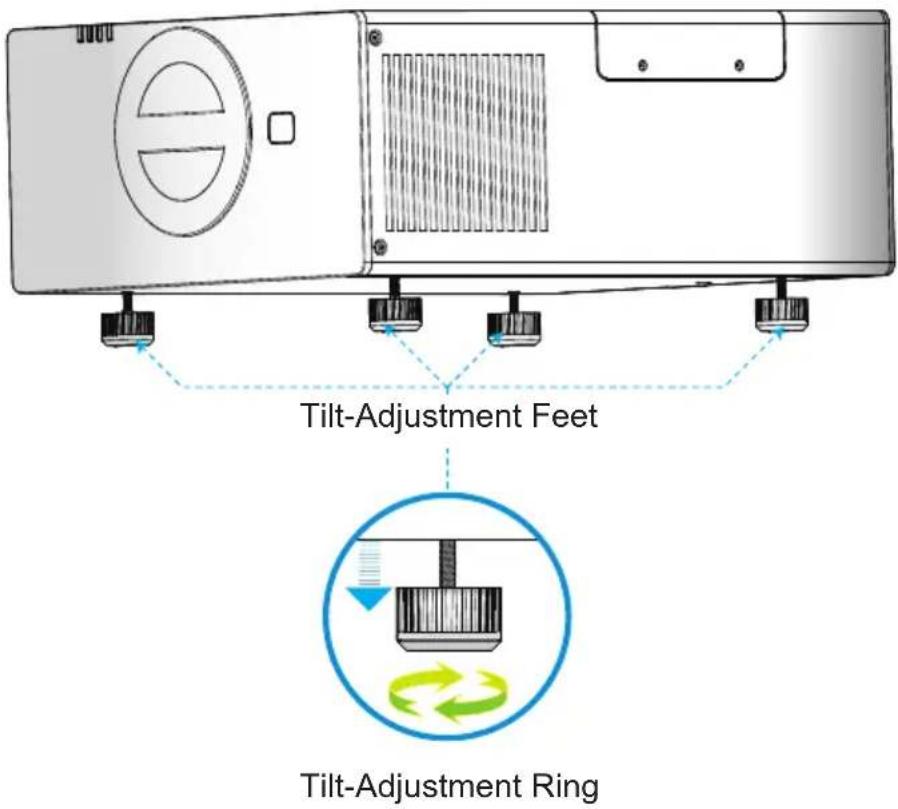

8. Tilt-Adjustment Feet

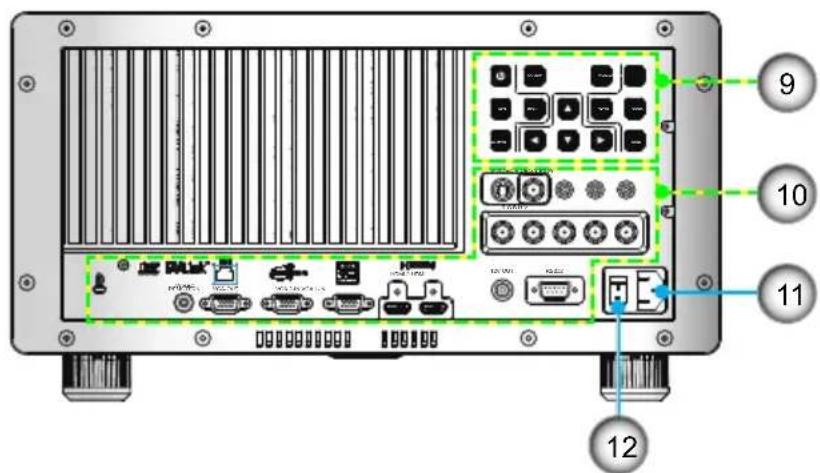

9. Control Panel

10. Input / Output Connections
11. Power Socket
12. Power Switch

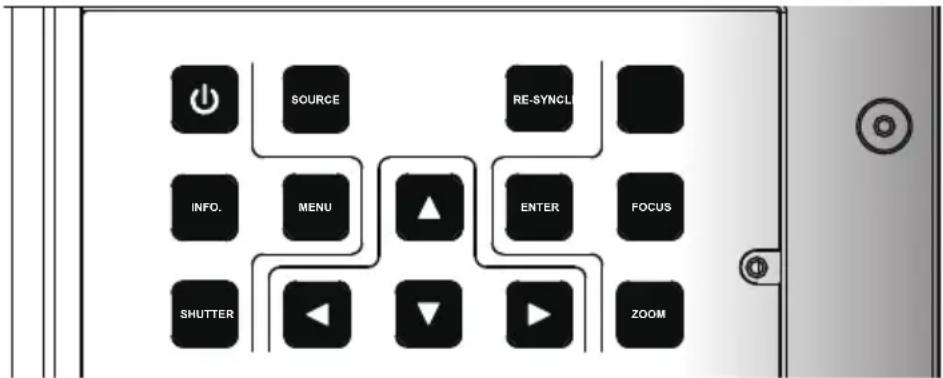

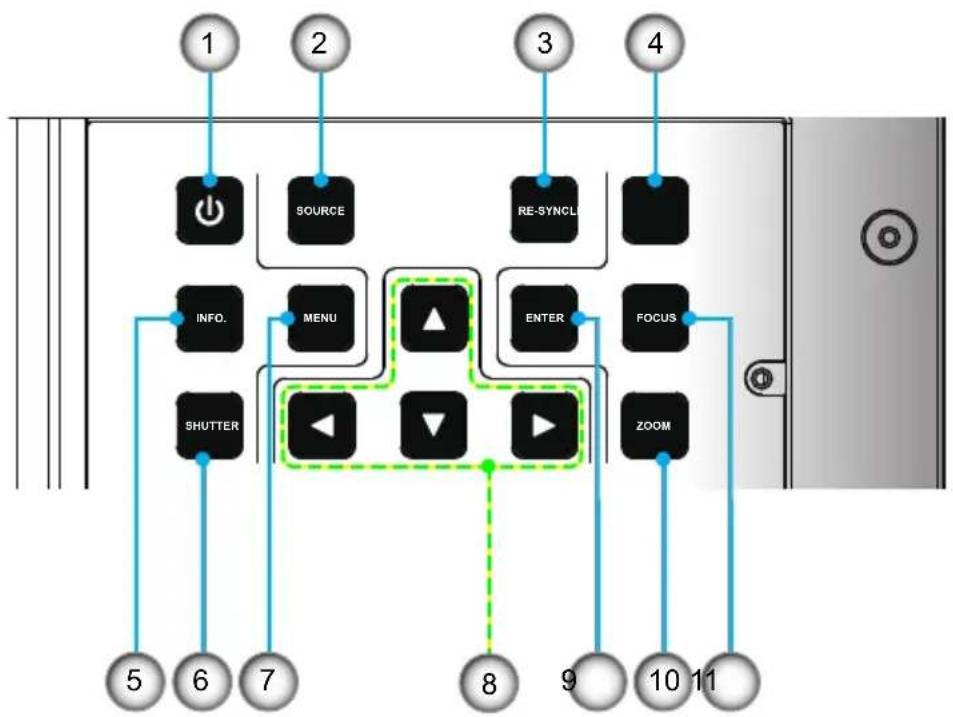

Control Panel
    W["Green dashed box highlights the central button region"]
    X["Blue dashed line connects 8 to N"]

1. Power button
2. SOURCE
3. RE-SYNC
4. LENS
5. Information
6. SHUTTER
7. MENU
8. Four Directional Select Keys
9. ENTER
10. ZOOM
11. FOCUS

Input/Output Connections

5

1. S-Video Input Connector
2. Composite Video Input Connector
3. Component Video Input Connector (YPbPr)
4. BNC Input Connector (YPbPr/RGBHV)
5. Kensington ^TM Lock Port
6. Wired Remote Input Connector
7. RJ-45 Networking Connector
8. VGA-Out Connector (Monitor Loop-through Output)
9. VGA2-In/YPbPr Connector (PC Analog Signal/Component Video Input/HDTV/YPbPr)
10. VGA1-In/YPbPr Connector (PC Analog Signal/Component Video Input/HDTV/YPbPr)
11. HDMI 1 Connector
12. HDMI 2 Connector
13. 12V Trigger Relay Connector (12V, 250mA. 3.5mm Mini Jack)
14. RS-232 Connector (9-pin DIN Type)
15. Power Switch
16. Power Socket

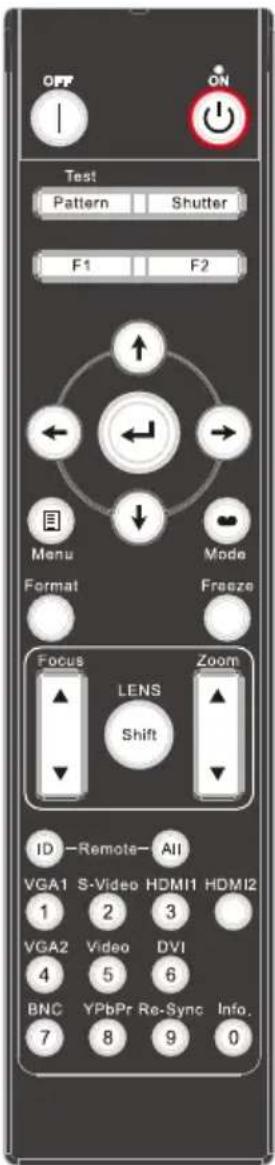

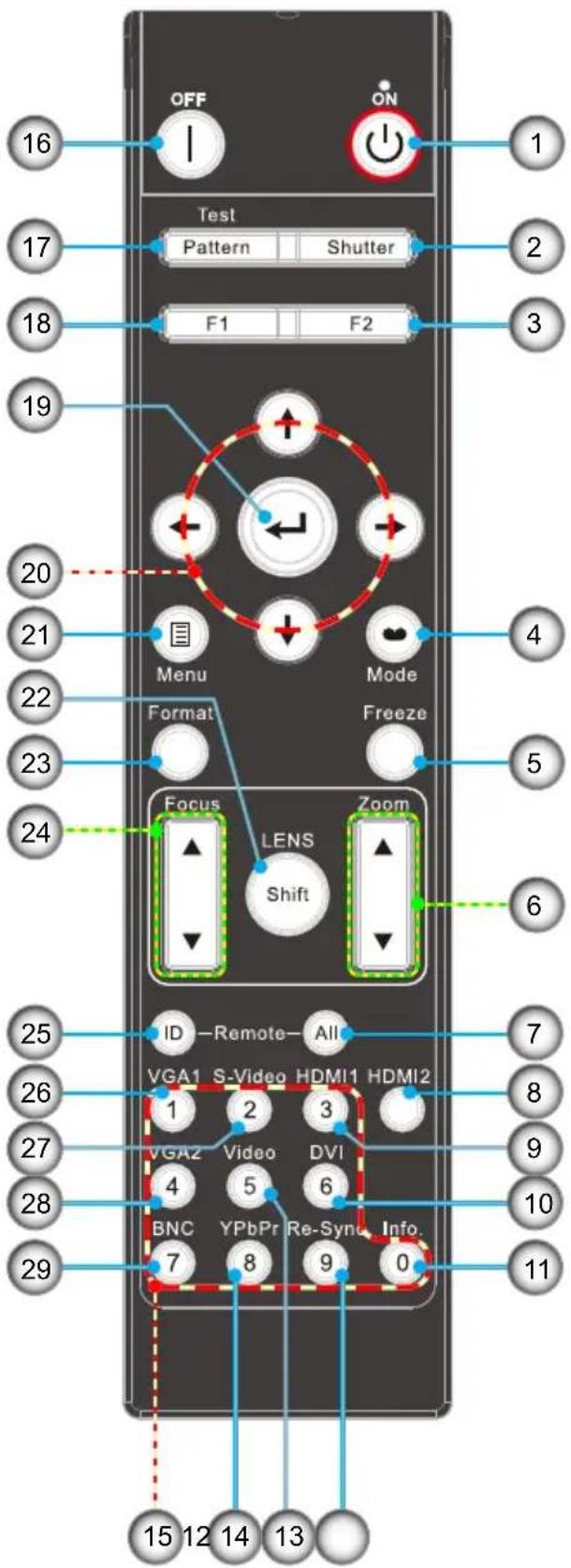

Remote Control

◇◇◇

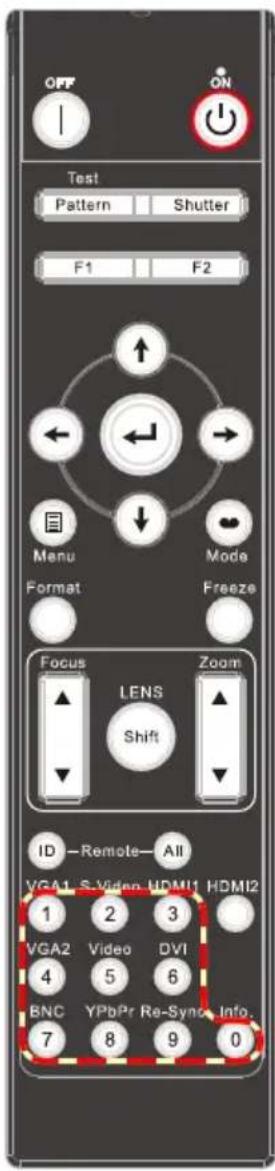

Number keypad (for password input exclude "0", "0" can not use as part of the password)

1. Power On
2. Shutter
3. Function 2 (Programmable see P.51)
4. Display Mode
5. Freeze
6. Lens Zoom +/-
7. All
8. HDMI 2
9. HDMI 1
10. DVI (Reserved Key)
11. Information
12. Re-Sync
13. Video
14. YPbPr
15. Numbered keypad (for password input)
16. Power Off
17. Pattern
18. Function 1 (Programmable see P.51)
19. Enter/Help
20. Four Directional Select Keys
21. Menu
22. Lens Shift
23. Format (Image Aspect Ratio)
24. Lens Focus +/-
25. ID
26. VGA 1
27. S-Video
28. VGA 2
29. BNC

Connecting the Projector

Install the Projection Lens

Before install or replacing the lens, switch off the power to the projector
Avoid using the remote control or projector keypad button to adjust the lens shift or zoom/ focus while the lens attachment process is carried out.

PCB (Printed Circuit Boards)

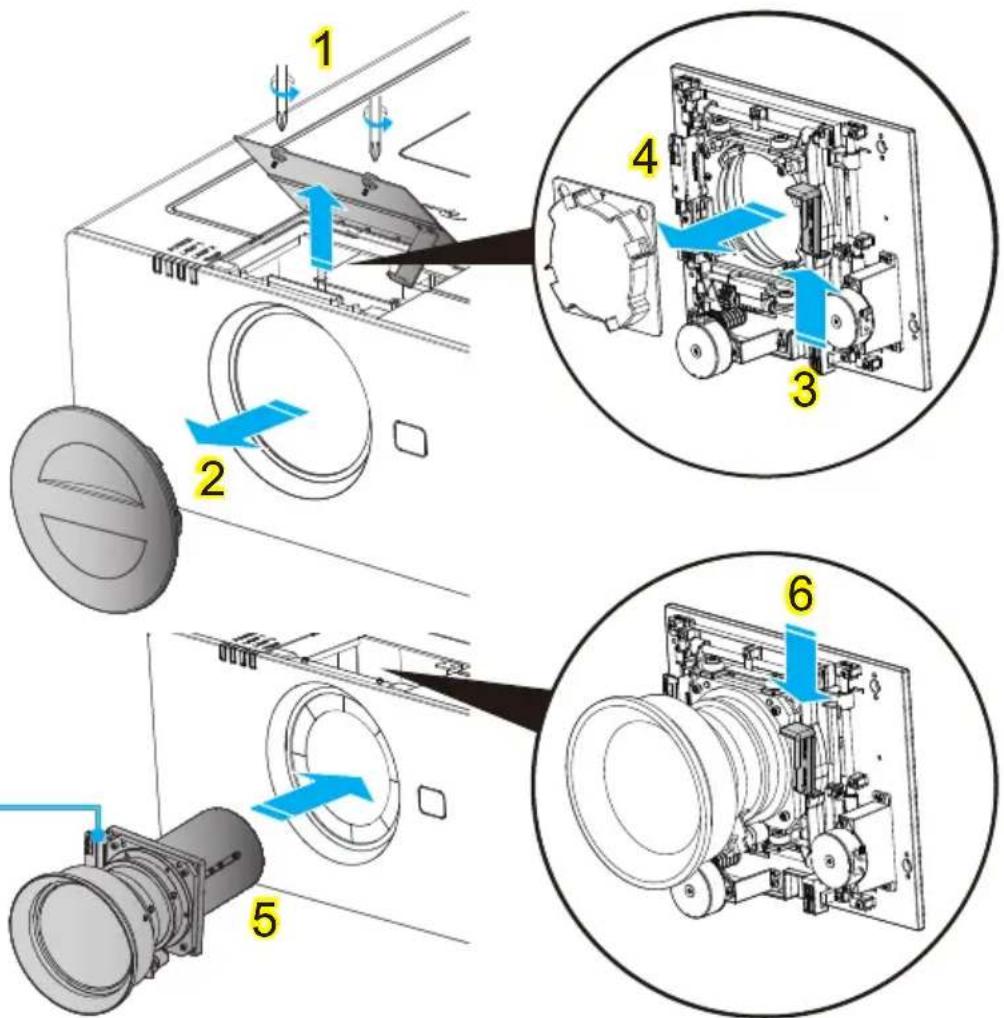

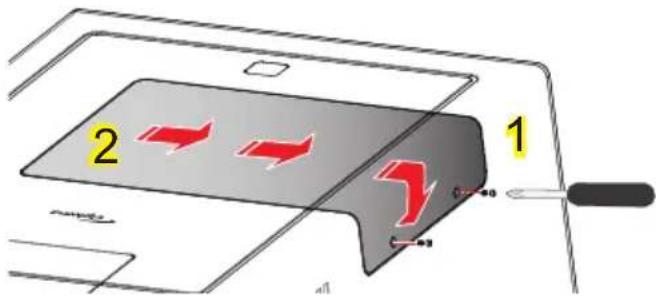

Install Lens Procedure:

1. Unscrew the 2 screws and lift up the lens door.
2. Remove the projector cap. 2
3. Push the release lever up to release the lock. 3
4. Remove the lens cap. 4
5. Push the lens into position. 5
6. Push the release lever down to lock the lens in place. 6
   (Please note that need to align the PCB)
   To replace the lens, reverse the previous steps.

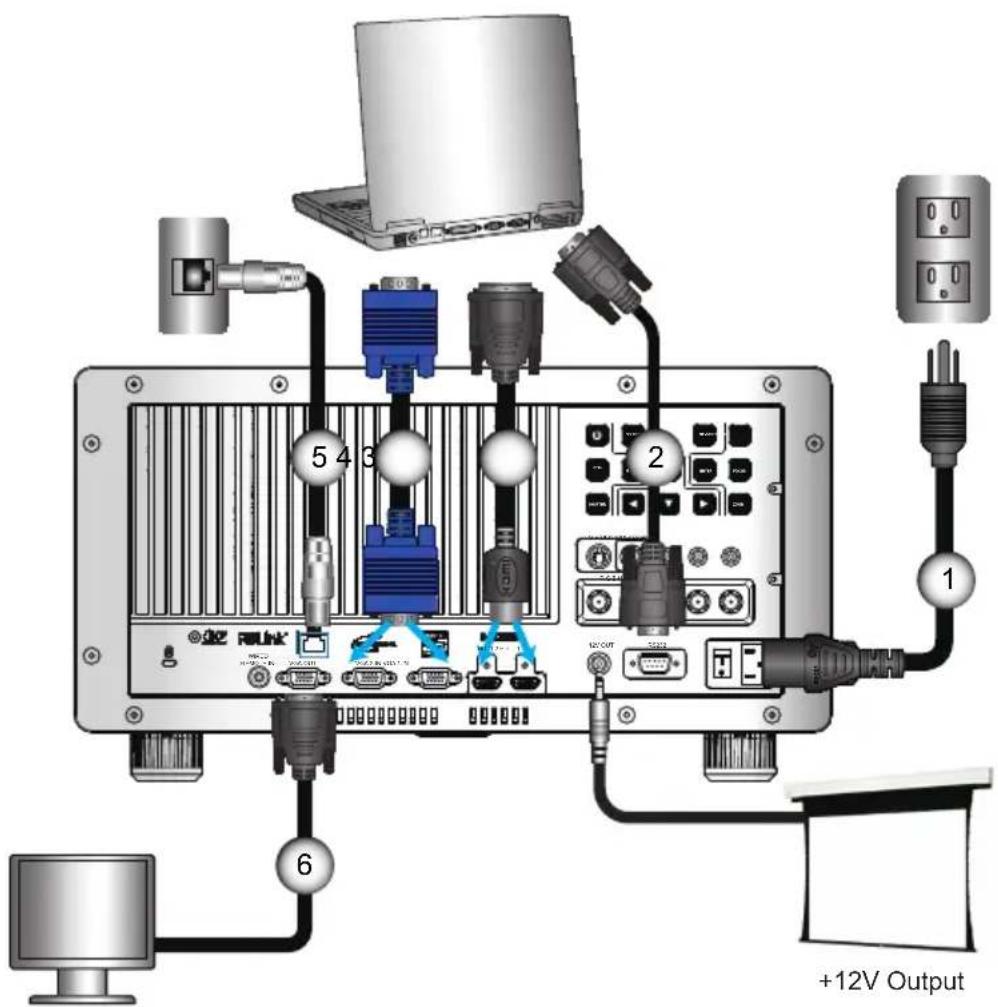

Connect to Computer/Notebook

Due to the difference in applications for each country, some regions may have different accessories.

(*) Optional accessory

1Power Cord
2....RS232 Cable
3. DVI/HDMI Cable
4....VGA Cable
5....*Network Cable
6....*VGA Output Cable

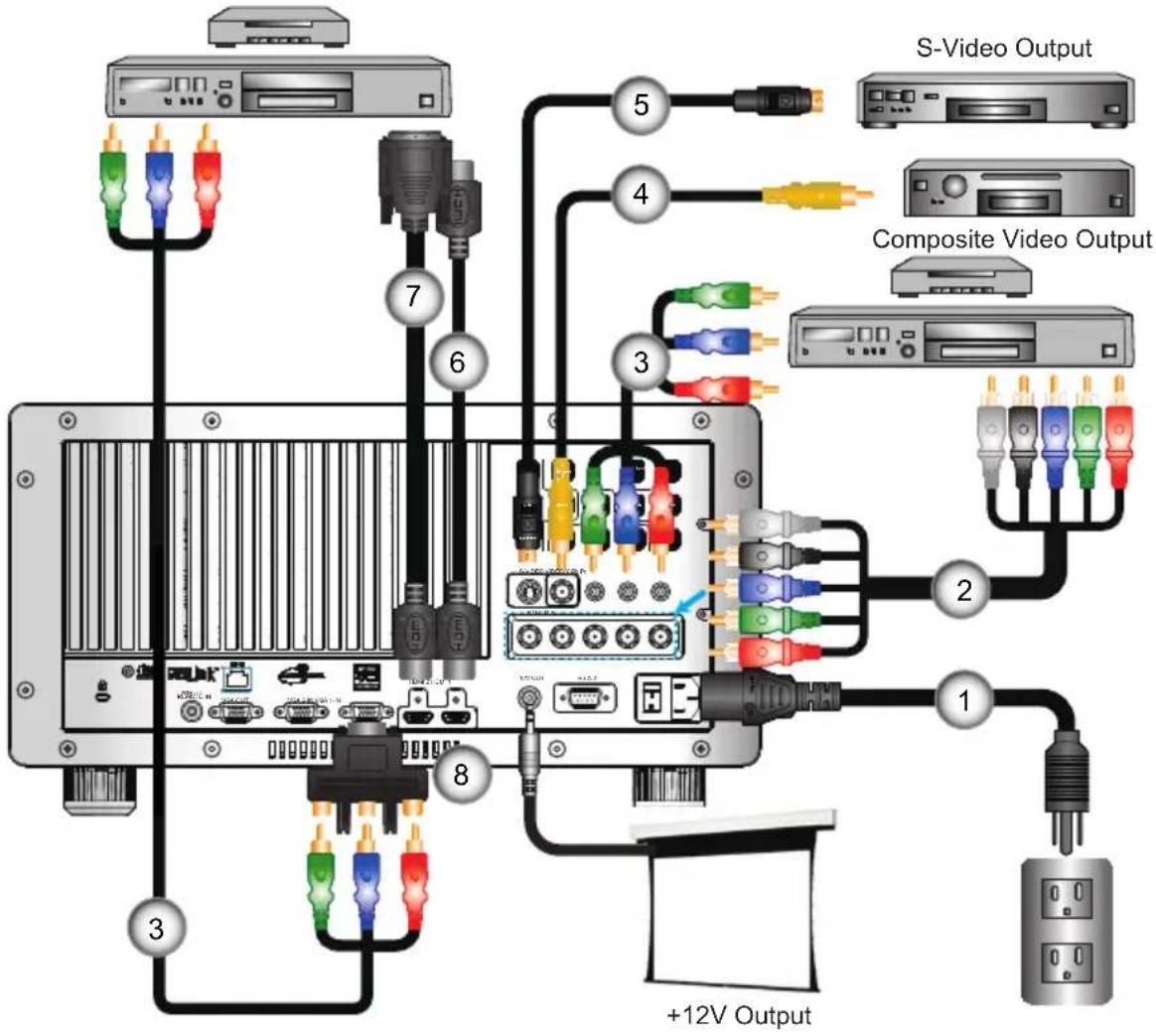

Connect to Video Sources

DVD Player, Set-top Box, HDTV receiver

Due to the difference in applications for each country, some regions may have different accessories.

(*) Optional accessory

1....Power Cord
2....*BNC Cable
3....*3 RCA Component Cable
4....*Composite Video Cable
5. *S-Video Cable
6....*HDMI Cable
7......DVI/HDMI Cable
8....*15-Pin to 3 RCA Component/HDTV Adaptor

Powering the projector On / Off

Powering On the Projector

When Power mode (Standby) is set to Eco, the VGA and RJ45 will be deactivated when the projector is in standby.

1. Remove the projector cap. 1

2. Securely connect the power cord and signal cable. Power on the switch 2 and the Power LED flashes Red.

3. Turn on the lamp by pressing "button either on the rear of the projector or on the remote. The POWER LED will now turn Blue. 3

The startup screen will display in approximately 10 seconds. The first time you use the projector, you will be asked to select the preferred language and power saving mode.

1. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, push menu button and go to "OPTION".

Make sure that the "Source Lock" has been set to "Off".

If you connect multiple sources at the same time, press the "SOURCE" button on the control panel or direct source keys on the remote control to switch between inputs.

Turn on the projector first and then select the signal sources.

Powering Off the Projector

1. Press the "I" button on the remote control or press the "☐" button on the control panel to turn off the projector. 4 The following message will be displayed on the screen.

Press the “” button on the remote control or press the “ ⏻ ” button on the control panel again 4 to confirm otherwise the message will disappear after 15 seconds. When you pressing for the second time, the projector will shut down.

1. The cooling fans continue to operate for about 60 seconds for cooling cycle and the POWER LED will flash Blue. When the POWER LED turns red, the projector has entered standby mode.

If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press the "1" button on the remote control or press the "b" button on the control panel to restart the projector. 4

1. Power off the switch. 2

2. Disconnect the power cord from the electrical outlet and the projector.

3. Do not turn on the projector immediately following a power off procedure.

Contact the nearest service center if the projector displays these symptoms. See pages 78-79 for more information.

Warning Indicator

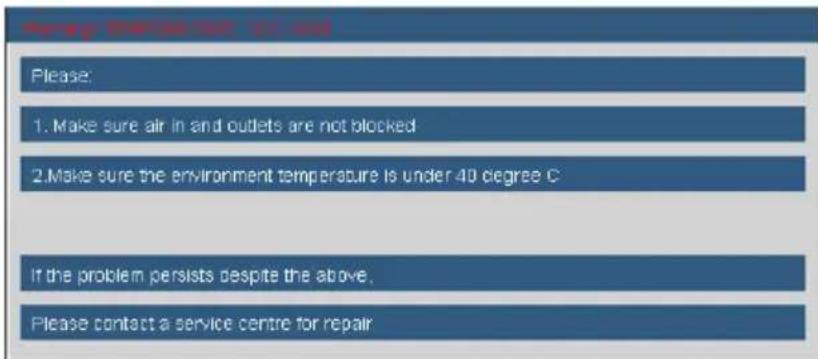

When the warning indicators (see below) come on, the projector will automatically shutdown:

“LAMP1” or “LAMP2” LED indicator is lit red and if “POWER” LED indicator flashes red.
“TEMP” LED indicator is lit red and if “POWER” LED indicator flashes red. This indicates the projector has overheated. Under normal conditions, the projector can be switched back on.
“TEMP” LED indicator flashes red and if “POWER” LED indicator flashes red.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up again, please contact your nearest service center for assistance.

Adjusting the Projected Image

Adjusting the Projector's Height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to modify on the underside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining feet as needed.

Adjusting the Projector's Position

To determine where to position the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Example:

ST1 Lens: The projector will focus at distances from 3.08 to 68.6 feet (0.94 to 20.9 meters).

Lens

Optoma Model Name WT1	WT2 ST1 TZ1	TZ2
Focal Length (f) (mm) 11.7	3 18.1~21.72 21	.5~28.7 28.6~54	4.33 54.06~102.7
F number 2.2 2.2-3.33 2.0	3.0 2.2-3.0 2.3~	3.16
Zoom Range (Ratio)	Fixed	1.2x	1.33x	1.9x	1.9x
Zoom & Focus Adjustment	Motorized
Throw Ratio	0.77	1.2~1.45	1.45~1.94	1.94~3.67	3.67~6.98
Throw Distance (m)	0.5~8.3	0.78~15.6	0.94~20.9	1.25~39.5	2.37~75.2
Throw Distance (feet)	1.64~27.23	2.56~51.18	3.08~68.57	4.10~129.59	7.78~246.72
Projection Image Size	30"~500" inches
Motorized Lens Shift	Fixed	Horizontal: +/-10% offset,Vertical: -20%~+60% offset

This table is for user's reference only.

Control Panel & Remote Control

Control Panel

Using the Control Panel

Power	Refer to the “Power On/Off the Projector” section on pages 14-15.
SOURCE	Press “SOURCE” to select an input signal.
RE-SYNC	Automatically synchronize the projector to the input source.
LENS	Adjust Lens shift up/down/left/right
Information	Display the projection's information.
SHUTTER	Open/close the built-in shutter.
MENU	Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, Press “Menu” again.
Four Directional Select Keys	Use ▲▼to select items or make adjustments to your selection.
ENTER	Confirm your item selection.
ZOOM	Adjust lens zoom function.
FOCUS	Adjust lens focus function.

Remote Control

Using the Remote Control
Power On	Refer to the “Power On/Off the Projector” section on pages 14-15.
Power Off I	Refer to the “Power On/Off the Projector” section on pages 14-15.
Function 2	Adjust Function 2 settings.
Lens Zoom +/-	Adjust lens zoom function.
Lens Shift	Adjust lens shift function.
Pattern	Display a test pattern.
Mode	Select the display mode from Presentation, Bright, Movie, sRGB, Blackboard and DICOM SIM..
ID	Set the remote code.
All	Restore the default remote code.
YPbPr	Press “YPbPr” to choose component video (YPbPr) input connector source.
Re-SYNC	Automatically synchronizes the projector to the input source.
VGA 1	Press “VGA 1” to choose VGA1-In input connector source.
VGA 2	Press “VGA 2” to choose VGA2-In input connector source.
BNC	Press “BNC” to choose BNC (YPbPr/RG-BHV) input connector source.
S-Video	Press “S-Video” to choose S-Video input connector source.

Using the Remote Control
Numbered keypad	Press “0~9” to input a password in the “Security” settings.
Freeze	Press “Freeze” to pause the screen image. Press this button again to unlock.
Shutter	Open/close the built-in shutter.
Function 1	Adjust Function 1 settings.
Lens Focus +/-	Adjust lens focus function.
Enter ↕Information ?	← Confirm your item selection. ? Display the projector's information.
Four Directional Select Keys	Use ▲▼to select items or make adjustments to your selection.
Menu ☐	Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, press “Menu” again.
Format	Select the desired aspect ratio (refer to page 33).
Info. (Information)	Display the projection's information.
HDMI 1	Press “HDMI 1” to choose HDMI 1 input connector source.
HDMI 2	Press “HDMI 2” to choose HDMI 2 input connector source.
Video	Press “Video” to choose composite video source.
DVI	This button is Reserved Key and does not function on this projector.

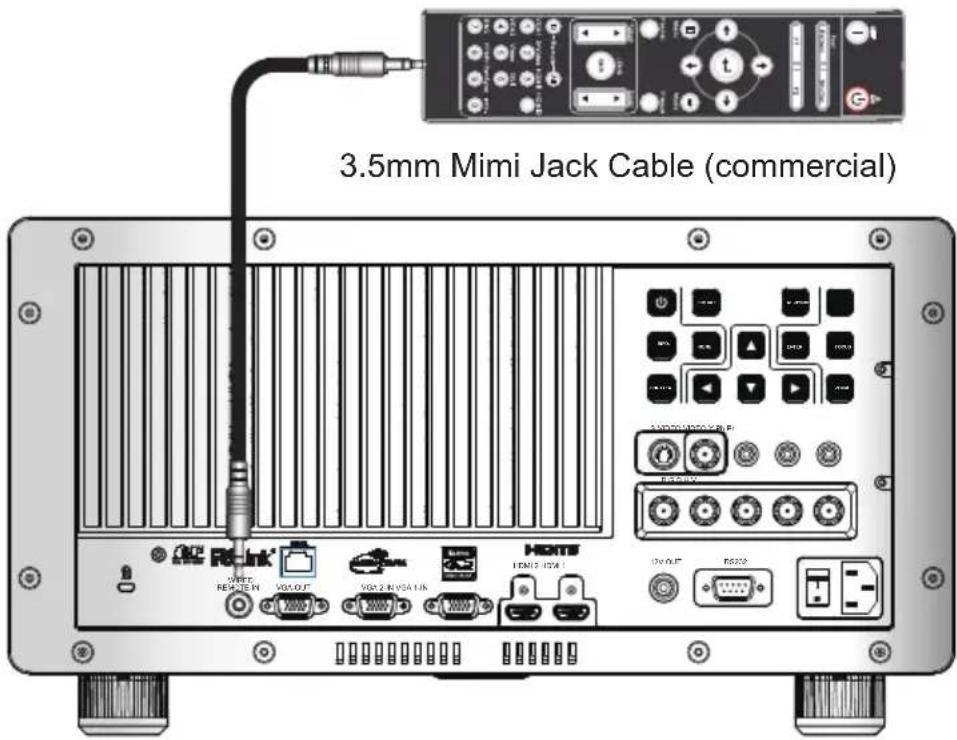

Using a Wire Remote Control

To connect the projector and remote control with a 3.5mm mini jack commercial cable through the “wire remote in” terminal to control the projector.

Use the 3 pin type 3.5mm mini jack cable of length 20mm or less, if the cable length exceed 20m, the remote control may not work normally.

The 3 pin 3.5mm mini jack cable connector is shown below:

Remote Code Setting

Default code setting (common code): 00

The default code of remote control can be set by pressing "All" key continuously until LED indicator quickly blinking 3 times. (around 3 seconds) Regardless of projector's remote code, the remote control can operate each projector simultaneously if the remote code of remote control is set at default code.

Remote code setting: 01 \~ 99

The remote code of the remote control can be changed by pressing the "ID" continuously until LED indicator slowly blinking (around 3 seconds,), and then pressing double digit numbered buttons (01\~99) as the code number. The LED indicator will blink three times quickly as setting success. If the setting process don't be completed in 10 seconds, the process will be time out and keep original remote code.

Sleep mode

Remote control will enter sleep mode as below conditions:

No key press ❖

Press multi keys simultaneously ❖

Press one key over 60 seconds continuously ❖

Backlight

Backlight will turn on as pressing any key ❖

If backlight turn on 10 seconds continuously and no operated, the ◆ backlight will turn off gradually in 5 seconds.

When remote code is "ALL (00)", this remote can control any projector. When remote code is "0\~99", this remote only can control the projector with same remote code in OSD (detail page 51):

Press "Info."(detail in page 54) can show what is remote code (Active) in remote and what is the remote code setting in projector.

On-screen Display Menus

The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings.

How to operate

1. To open the OSD menu, press "Menu" on the Remote Control or Projector Keypad.
   2 When OSD is displayed, use ◀▶ keys to select any item in the main menu. While making a selection on a particular page, press ▼ or “Enter” key to enter sub menu.
2. Use ▲▼ keys to select the desired item and adjust the settings using ◀▶ key.
3. Select the next item to be adjusted in the sub menu and adjust as described above.
4. Press "Enter" to confirm, and the screen will return to the main menu.
5. To exit, press "MENU" again. The OSD menu will close and the projector will automatically save the new settings.

Menu Tree

Main Menu Sub Menu Settings
Image	Display Mode	Presentation / Bright / Movie / sRGB / Blackboard / DICOM SIM.
	Brightness -50 ~ +50
	Contrast -50 ~ +50
	Sharpness 0~15
	*1Color -50 ~ +50
	*1Tint -50 ~ +50
	Advanced Noise Reduction 0 ~ 10
	BrilliantColorTM	0 ~ 10
	Gamma Film / Graphics / 1.8 / 2.0 / 2.2 / 2.6
	True Vivid 0 ~ 5
	Color Temp. Warm / Medium / Cold
	Color Space AUTO / RGB / YUV	*2 AUTO / RGB(0-255) / RGB(16-235) / YUV
	Dynamic Black On / Off

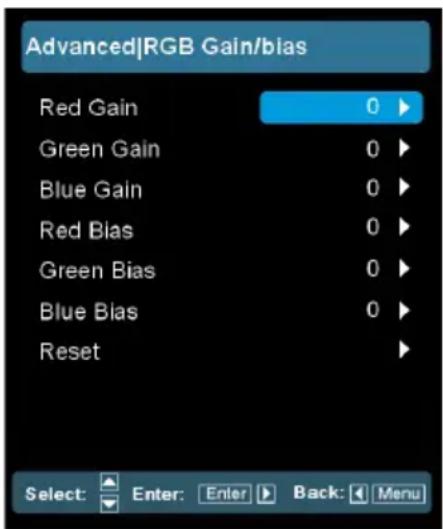

	RGB Gain/Bias	Red Gain / Green Gain / Blue Gain / Red Bias / Green Bias / Blue Bias / Reset / Exit
	Color Matching Hue / Sat	Red Gain / Green Gain / Blue Gain / Red Bias / Green Bias / Blue Bias / Reset / Exit
		White Red / Green / Blue
		Reset
		Exit
	Input Source	HDMI 1 / HDMI 2 / BNC / VGA1 / VGA2 / Component / S-Video / Video / Exit
Display	Format	4:3 / 16:9 / 16:10 / LBX / Native / AUTO
	Digital Zoom	Zoom -20 ~ +50
		H Zoom 0 ~ 100
		V Zoom 0 ~ 100
		Exit
	Edge Mask	0 ~ 5
	H Image Shift	-100 ~ +100
	V Image Shift	-100 ~ +100
	H Keystone	-20 ~ +20
	V Keystone	-20 ~ +20
	Auto Keystone	On / Off
	H ARC	-10 ~ +10
	V ARC	-10 ~ +10
	PIP	Screen
		PIP Location
		PIP Size 1/16, 1/25, 1/36
		PIP Source
		Swap
		Exit

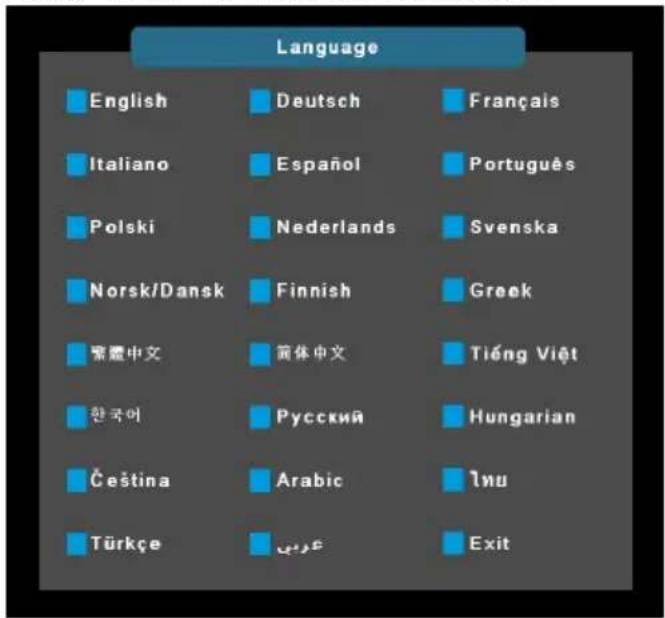

Setup	Language	English / Deutsch / Français / Italiano / Español / Português / Svenska / Nederlands / Norsk/Dansk / Polski / Suomi / Русский / ελληνικά / Magyar / Čeština / فرسي / 燃機中文 / 简体中文 / Việt / 한국어 / Kuwait / Türkçe
	Projection
	*3Screen Type	16:10 (1920 x 1200) / 16:9 (1920 x 1080)
	Menu Location
	Lens Function	Focus
		Zoom
		Lens Shift
		Lens Function Lock / Unlock
		Lens Type WT1 / WT2 / ST1 / TZ1 / TZ2
		Lens Calibration Yes / No
	Security	Security On / Off
		Security Timer Month / Day / Hour
		Change Password

Main Menu Sub Menu Settings

Setup	Signal (RGB) Automatic Enable / Disable
		Phase 0 ~ 63
		Frequency -5 ~ +5
		H. Position -5 ~ +5
		V. Position -5 ~ +5

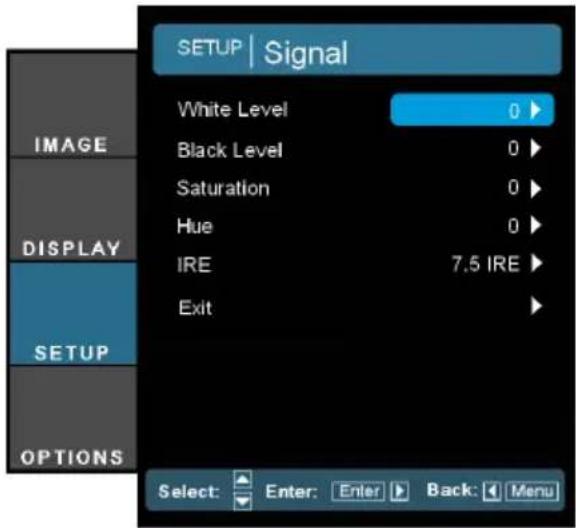

	Signal (Video) White Level 0 ~ 31
		Black Level -5 ~ +5
		Saturation -5 ~ +5
		Hue -5 ~ +5
		IRE	0 / 7.5
	Projector ID		00 ~ 99
	Advanced	Logo	Optoma / Neutral / User
		Logo Capture
		Closed Captioning	Off / CC1 / CC2

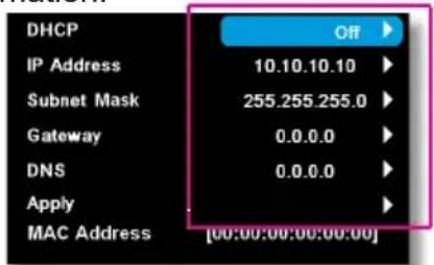

	Network	LAN Settings	Network State
			DHCP
			IP Address
			Subnet mask
			Gateway
			DNS
			Apply Yes / No
			MAC Address

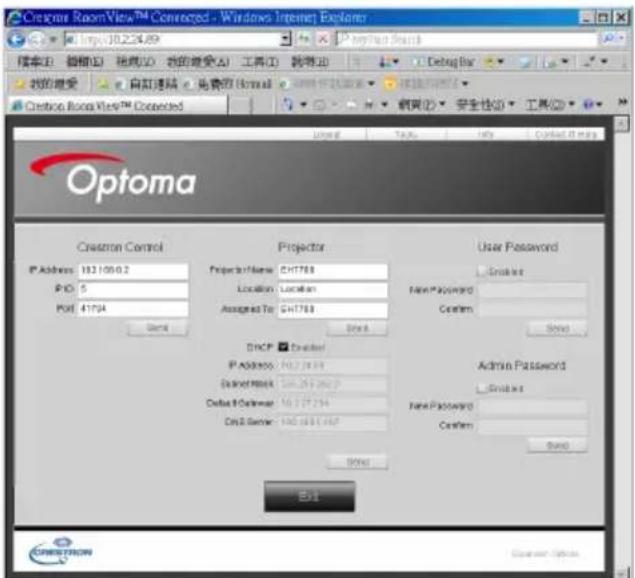

		Control Settings	Crestron On / Off
			Extron On / Off
			AMX Device Discovery On / Off
			Telnet On / Off
			PJ Link On / Off
Option	Source Lock		On / Off
	High Altitude		On / Off
	Information Hide		On / Off
	Keypad Lock		On / Off
	Display Mode Lock		On / Off
	Test Pattern		None / Grid / Grid / Grid / White
	Background Color		Black / Red / Blue / Green / White
	Remote Settings	Function 1	Brightness / PIP / Color Matching / Zoom / Projection / V ARC+ / H ARC+
		Function 2	Contrast / PIP Source / PIP Swap / Color / V ARC- / H ARC- / Lamp Settings
		IR Function On / Front / Top / Off
		Remote Code	All / 1~99
	12V Trigger		On / Off
	Advanced	Direct Power On	On / Off
		Signal Power On	On / Off
		Auto Power Off (min.)	0 ~ 180
		Sleep Timer (min.)	0 ~ 995
		Power Mode (Standby)	Eco. / Active

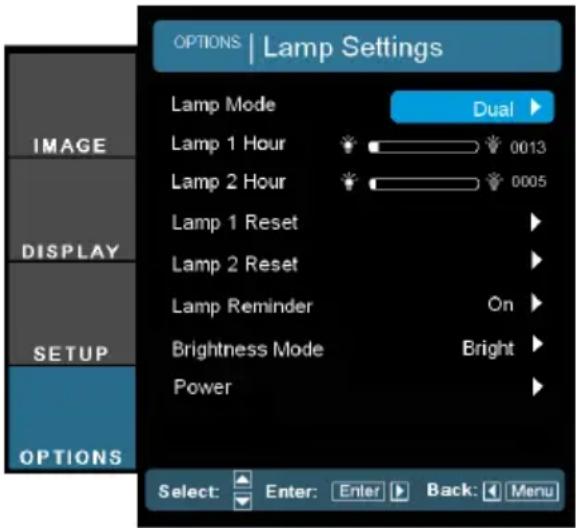

	Lamp Settings	Lamp Mode Dual / Relay / Lamp 1 / Lamp 2
		Lamp 1 Hours
		Lamp 2 Hours
		Lamp 1 Reset	Yes / No
		Lamp 2 Reset	Yes / No
		Lamp Reminder	On / Off
		Brightness Mode	Bright / STD / Power
		Power	350W / 340W / 330W / 320W / 310W / 300W / 290W / 280W
	VGA Out		Auto / VGA 1 / VGA 2
	Information
	Reset		Yes / No

Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using.

(#1) "Color" and "Tint" are only supported in Video mode.
(#2) For HDMI model only.
(#3) Input 1920x1200 or 1600x1200 resolution, 16:9 selection of screen type and format will be gray out.


Display Mode

There are many factory presets optimized for various types of images.

Presentation: Good color and brightness from PC input.
Bright: Maximum brightness from PC input.
▶ Movie: For home theater.
sRGB: Standardised accurate color.
Blackboard: This mode should be selected to achieve optimum color settings when projecting onto a blackboard (green).
DICOM SIM.: This display mode simulates the greyscale/gamma performance of equipment used for “Digital Imaging and Communications in Medicine” (DICOM).

IMPORTANT: This mode should NEVER be used for medical diagnosis, it is for education/training purposes only.

Brightness

Adjust the brightness of the image.

Press the ◀ to darken image.
Press the ▶ to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Press the ◀ to decrease the contrast.
Press the ▶ to increase the contrast.

“Color” and “Tint” functions are only supported under Video mode.

Sharpness

Adjust the sharpness of the image.

Press the ◀ to decrease the sharpness.
Press the ▶ to increase the sharpness.

Color

Adjust a video image from black and white to fully saturated color.

Press the ◀ to decrease the amount of saturation in the image.
Press the ▶ to increase the amount of saturation in the image.

Tint

Adjust the color balance of red and green.

Press the ◀ to increase the amount of green in the image.
Press the ▶ to increase the amount of red in the image.

IMAGE | Advanced

Noise Reduction

The motion Adaptive Noise Reduction reduces the amount of visible noise interlaced signals. The range is from "0" to "10". (0: Off)

BrilliantColor™

This adjustable item utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in picture. The range is from "0" to "10". If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.

Gamma

This allows you to set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output. Choose the Gamma type from Film, Graphics, 1.8, 2.0, 2.2 or 2.6

True Vivid

This adjustable item utilizes a new color-processing algorithm and enhancements to enable the picture's vividness to be significantly increased.

Color Temp

If set to cold temperature, the image looks more blue. (cold image) If set to warm temperature, the image looks more red. (warm image)

(*) For HDMI only.

Color Space

Select an appropriate color matrix type from AUTO, RGB, RGB(0-255) ^() RGB(16-235) ^() or YUV.

Dynamic Black

Dynamic Black enables the projector to automatically optimize the brightness of the display during dark/light movie scenes to be shown in incredible detail.

RGB Gain/Bias

Press ← into the next menu as below and then use ▲ to ▼ select item.

Red Gain/Green Gain/Blue Gain/Red Bias/Green Bias/Blue Bias: Use for Red, Green, or Blue for brightness (Gain) and contrast (Bias).
Reset: Choose "Yes" to return the factory default settings for color adjustments.

CMS means “Color Matching System (CMS)”.

Color Matching

Press ← into the next menu as below and then use ▲ to ▼ select item.

Red/Green/Blue/Cyan/Magenta/Yellow: Use for to select Hue, Saturation and Gain Colors.

Hue/Saturation/Gain/Exit: Using Hue, Saturation and Gain setting to adjust the color is selecting.

White: Use for to select Red, Green and Blue Colors.
R/G/B/Exit : Using R (Red) ,G (Green) and B(Blue) settings to adjust the color temperature of white point.

Reset: Choose "Yes" to return the factory default settings for color adjustments.

Input Source

Use this option to enable / disable input sources. Press ← to enter the sub menu and select which sources you require. Press "Enter" to finalize the selection. The projector will not search for inputs that are not selected.

DISPLAY

Format

Use this function to choose your desired aspect ratio.

4:3: This format is for 4×3 input sources.
16:9: This format is for 16×9 input sources, like HDTV and DVD enhanced for Wide screen TV.
16:10: This format is for 16x10 input sources like high resolution computer graphical applications and for large workspace for report viewing.
LBX: This format is for non-16x9, letterbox source and for users who use external 16x9 lens to display 2.35:1 aspect ratio using full resolution.
Native: This format displays the original image without any scaling.
AUTO: Automatically selects the appropriate display format.

16:10 Screen 480i/p 576i/p 1080i/p 720p PC
4:3 1600 x 1200 center
16:9 1920 x 1080 center
16:10 1920 x 1200 center
LBX	1920 x 1440 center, then get the central 1920 x 1200 image to display
Native	No resize image, 1:1 mapping and centered. This format shows original image without scaling.

16:9 or 16:10 depend on "Screen Type" setting.
16:9 screen type is not supported when input source is 1920x1200 or 1600x1200.

Auto	If this format is select, Screen type will auto become 16:10 (1920 x 1200)If source is 4:3, auto resize to 1600 x1200If source is 16:9 auto resize to 1920x1080If source is 16:10 auto resize to 1920x1200

16:9 Screen 480i/p 576i/p 1080i/p 720p PC
4:3 1440 x 1080 center
16:9 1920 x 1080 center
LBX	1920 x 1440 center, then get the central 1920 x 1080 image to display
Native	No resize image, 1:1 mapping and centered. This format shows original image without scaling.
Auto	If this format is select, Screen type will auto become 16:9 (1920x1080)If source is 4:3, auto resize to 1440 x1080If source is 16:9 auto resize to 1920x1080If source is 16:10 auto resize to 1920 x 1200 and cut 1920x1080 area to display

Each I/O has different setting of "Edge Make".
“Edge Make” and “Digital Zoom” can’t work at same time.

Digital Zoom

Zoom: Press the ◀ or ▶ to reduce or magnify the size of an image.
H Zoom: Press the ◀ or ▶ to zoom out or zoom in the projected image horizontally.
V Zoom: Press the ◀ or ▶ to zoom out or zoom in the projected image vertically.

Edge Mask

Edge mask function removes the noise in a video image. Edge mask the image to remove video encoding noise on the edge of video source.

H Image Shift

Shift the projected image position horizontally.

V Image Shift

Shift the projected image position vertically.

H Keystone

Press the ◀ to adjust image distortion horizontally. If the image looks trapezoidal, this option can help make the image rectangular.

V Keystone

Press the ◀ or ▶ to adjust image distortion vertically. If the image looks trapezoidal, this option can help make the image rectangular.

Auto Keystone

Automatically adjusts vertical image distortion.

H ARC

Corrects optical pincushion distortion horizontally.

V ARC

Corrects optical pincushion distortion vertically.

DISPLAY | PIP

Screen

Single: Projection single screen.
PIP Window: Main Screen is large screen; PIP Screen is small and displays in the corner of the main screen.
Split Screen: Main Screen and PIP Screen equal size and side by side.

PIP Location

Choose the PIP screen position on the display screen.

PIP Size

Choose the PIP size from 1/16, 1/25 or 1/36 on the display screen.

PIP Source

Choose the PIP source to switch PIP screen source.

Swap

Press ← to swap main screen and PIP screen.

Some source/signal combinations may not be compatible with PIP function. Please refer to the table below:

		VGA-2 HDMI-2 YPbFr
		Static Images Full Motion Video Static Images Full Motion Video Video
VGA-1	Static Yes	Yes--
	Dynamic	-	-	-	-	-
HDMI-1	Static Yes	Yes--
	Dynamic	-	-	-	-	-
BNC (RGB)	Static	Yes	-	Yes	Yes	-
	Dynamic	-	-	Yes	Yes	-
Video	Dynamic	Yes	-	-	-	-
S-Video	Dynamic	Yes	-	Yes	Yes	-

If you still experience issues, try altering the refresh rate or resolution of one or more of the source devices.

SETUP

Language

Choose the multilingual OSD menu. Press or into the sub menu and then use the ▲ or ▼ key to select your preferred language. Press "Enter" to finalize the selection.

Rear-Desktop and Rear-Ceiling are to be used with a translucent screen.

Projection

Front-Desktop

This is the default selection. The image is projected straight on the screen.

Rear-Desktop

When selected, the image will appear reversed.

When selected, the image will turn upside down.

When selected, the image will appear reversed in upside down position.

Screen Type

Choose the screen type from 16:10 (1920 x 1200) or 16:9 (1920 x 1080).

Menu Location

Choose the menu location on the display screen.

Projector ID

ID definition can be set up by menu (range 0-99), and allow user control an individual projector by RS232. Refer to pages 65-68 for the complete list of RS232 commands.

SETUP | Lens Function

Focus

Adjust focus function on the projected image.

Zoom (Optical Zoom)

Adjust zoom function on the projected image.

Lens Shift

Adjust the lens shift up/down/left/right.

Lens Function

Shift the projected image.

Lock: This function can not be used by user.
Unlock: This function can be used by user.

Lens Type

Choose the lens type from WT1, WT2, ST1, TZ1 or TZ2.

Lens Calibration

Perform calibration and return lens to the center position.

SETUP | Security

Security

On: Choose "On" to use security verification when turning on projector.
▶ Off: Choose "Off" to be able to switch on the projector without password verification.

Password default value is "1234" (first time).

Security Timer

Use this function to set the how long (Month/Day/Hour) the projector can be used. Once this time has elapsed you will be requested to enter your password again.

Change Password

▶ First time:

1. Press "←" to set the password.
2. The password has to be 4 digits.
3. Use number button on the remote to enter your new password and then press "←key to confirm your password.

Change Password:

1. Press "←" to input old password.
2. Use number button to enter current password and then press "←" to confirm.
3. Enter new password (4 digits in length) using the number buttons on the remote, then press “←” to confirm.
4. Enter new password again and press "←" to confirm.

Always keep the password in your files. If the password is forgotten or lost, the projector will have to be sent to your local authorized service center.

If the incorrect password is entered 3 times, the projector will automatically shut down.
If you have forgotten your password, please contact your local office for support.

SETUP | Signal (RGB)

"Signal" is only supported in Analog VGA (RGB) signal.

Frequency

Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if the image appears to flicker vertically.

Phase

Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

H. Position

Press the ◀ to move the image left.
Press the ▶ to move the image right.

V. Position

Press the ◀ to move the image down.
Press the ▶ to move the image up.

Automatic

Automatically detects the signal. If you use this function, the Phase, frequency items are grayed out, and if Signal is not automatic, the phase, frequency items will appear for user to manually tune and saved in settings after that for next time projector turns off and on again.

SETUP | Signal (Video)

“Signal” is not supported when the source is HDMI or DVI-D.

White Level

Allow user adjust White Level when inputting S-Video or Video/CVBS signals.

Black Level

Allow user adjust Black Level when inputting S-Video or Video/CVBS signals.

Saturation

Adjust a video image from black and white to fully saturated color.

Press the ◀ to decrease the amount of saturation in the image.
Press the ▶ to increase the amount of saturation in the image.

Hue

Adjust the color balance of red and green.

Press the ◀ to increase the amount of green in the image.
Press the ▶ to increase the amount of red in the image.

“IRE” is only supported on NTSC signal.

IRE

Adjust measurement of composite video signals.

SETUP | Advanced

Logo

Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.

Optoma: The default startup screen.
Neutral: Logo is not displayed on startup screen.
User: Use stored picture from "Logo Capture" function.

Logo Capture

Press to capture an image of the picture currently displayed on screen.

Closed Captioning

If changes are made they will take effect the next time the projector is powered on.

For successful logo capture, please ensure that the input signal does not exceed the projector's native resolution. (1920x1200 or 1920x1080).

Off: select "off" to turn off the closed captioning feature.
CC1: CC1 language: American English.
CC2: CC2 language (depending on the TV channel of the user): Spanish, French, Portuguese, German, Danish.

Do not use signal with de-interlace.

Do not turn off the projector during logo capturing.

SETUP | Network | LAN Settings

Network State

Display the network connection status.

DHCP

Use this function to select your desired startup screen. If you change the setting from one to another, when you exit the OSD menu, the new setting will take effect on next open.

On: Assign an IP address to the projector from an external DHCP server automatically.
Off: Assign an IP address manually.

IP Address

Select an IP address.

Subnet Mask

Select subnet mask number.

Gateway

Select the default gateway of the network connected to the projector.

DNS

Select DNS number.

Apply

Press “←” and then choose “Yes” to apply the selection.

MAC Address

Display an MAC address.

User Controls

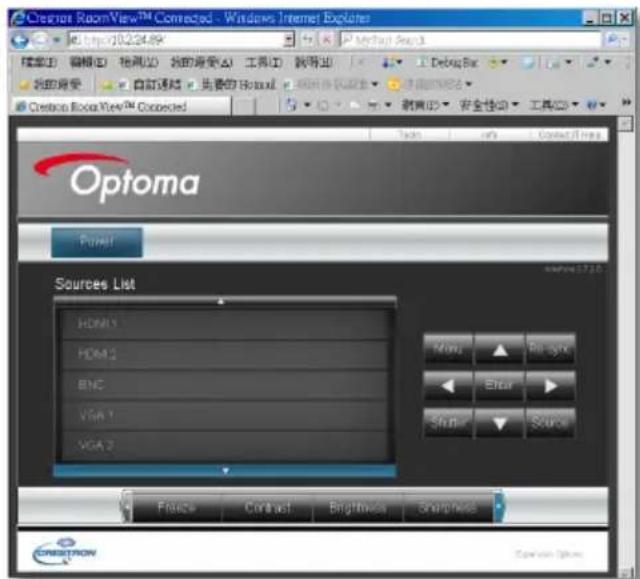

How to use web browser to control your projector

1. Turn on DHCP to allow the DHCP server to automatically assign an IP, or manually enter the required network information.

1. Then choose apply and press “←” button to complete the configuration process.
2. Open your web browser and type in the projector's IP address from the OSD LAN screen. The following web page will display as below:

1. If connecting the projector to external Crestron control hardware, the settings can be found in the [tools] tab. (see picture).

Please note, each field can only contain a limited number of characters, as shown in the table below. (spaces and the other punctuation included):

Category Item		Input-Length (characters)
Crestron Control	IP Address 15
	IP ID 2
	Port 5
Projector	Projector Name 10
	Location 9
	Assigned To 9
Network Configuration	DHCP (Enabled) (N/A)
	IP Address 15
	Subnet Mask 15
	Default Gateway 15
	DNS Server	15
User Password	Enabled	(N/A)
	New Password	15
	Confirm	15
Admin Password	Enabled	(N/A)
	New Password	15
	Confirm	15
Source List	HDMI1, HDMI2, BNC, VGA1, VGA2, Component, S-Video, Video.
The adjust list bottom	Freeze, Contrast, Brightness, Sharpness, Digital Zoom, Zoom, Focus.

When making a direct connection from your computer to the projector

Step 1: Find an IP Address (192.168.0.100) from LAN function of projector.

IP Address

10.10.10.10

Step 2: Select apply and press "Enter" button to submit function or press "menu" key to exit.

Step 3: To open Network Connections, click Start, click Control Panel, click Network and Internet Connections, and then click Network Connections. Click the connection you want to configure, and then, under Network Tasks , click Change settings of this connection.

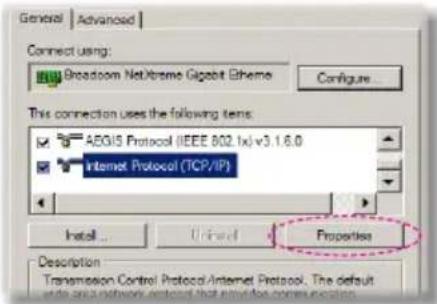

Step 4: On the General tab, under This connection uses the following items, click Internet Protocol (TCP/IP), and then click "Properties."

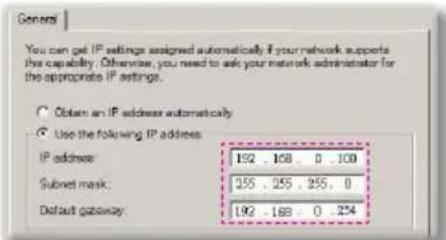

Step 5: Click Use the following IP address, and type in as below:

1) IP address: 192.168.0.100
2) Subnet mask: 255.255.255.0
3) Default gateway:192.168.0.254

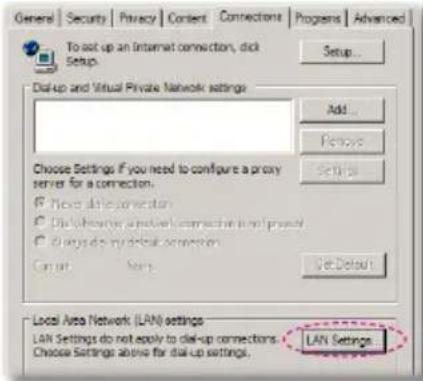

Step 6: To open Internet Options, click IE web browser, click Internet Options, click the Connections tab and click "LAN Settings..."

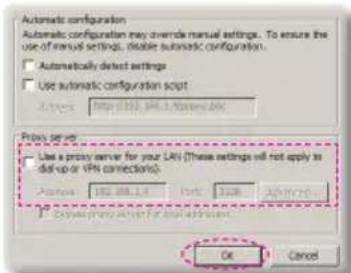

Step 7: The Local Area Network (LAN) Setting dialog box appears, In the Proxy Server area, cancel the Use a proxy server for your LAN check box., then click "OK" button twice.

Step 8: Open your IE and type in the IP address of 192.168.0.100 in the URL then press "Enter" key.

SETUP | Network | Control Settings

Control Settings: Allow you to configure network settings.

Creston

Turn on or off Crestron. (Note: Port 41794)

Extron

Turn on or off Extron. (Note: Port 2023)

AMX Device Discovery

Turn on or off AMX Device Discovery. (Note: Port 1023)

Telnet

Turn on or off Telnet. (Note: Port 23)

PJ Link

Turn on or off PJ Link. (Note: Port 4352)

OPTION

Press direct source key on remote controller, it will change source directly and automatically set the Source Lock to "ON".
To turn off the keypad lock, press and hold "Enter" key on top of the projector for 5 seconds.
(*) There are 3 Grid. 1^st Grid in White, 2^nd Grid in Green, 3^rd Grid in Magenda.
When "Display Mode Lock" is "On", the all setting under display mode will be gray out.

Source Lock

On: The projector will only search current input connection.
Off: The projector will search for other signals if the current input signal is lost.

High Altitude

When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Information Hide

On: Choose "On" to hide the info message.
Off: Choose "Off" to show the "searching" message.

Keypad Lock

When the keypad lock function is "On", the control panel will be locked however, the projector can be operated by the remote control. By selecting "Off", you will be able to reuse the control panel.

Display Mode Lock

Choose "On" or "Off" to lock or unlock adjusting display mode settings.

Test Pattern

Display a test pattern. There are Grid(*), White pattern and None.

Background Color

Use this feature to display a "Black", "Red", "Blue", "Green" or "White", screen when no signal is available.

12V Trigger

12V trigger provides a standard trigger for motorized screens.

VGA Out

Use this feature to display the screen from input source.

Auto: In standby mode (active), the default VGA out loops through from VGA1; unless VGA2 locked in last operation, VGA2 will loop through to VGA out.
VGA 1: Choose the VGA 1-In input connector.
VGA 2: Choose the VGA 2-In input connector.

Reset

Choose "Yes" to return the display parameters on all menus to the factory default settings.

OPTION | Remote Settings

Default setting of "Function 1" is "Color Matching".
Default setting of "Function 2" is "Contrast".

Function 1

Choose your desired function from "Brightness", "PIP", "Color Matching", "Zoom", "Projection", "V ARC+" or "H ARC+".

Function 2

Choose your desired function from "Contrast", "PIP Source", "PIP Swap", "Color", "V ARC-", "H ARC-" or "Lamp Settings".

IR Function

On: Choose "On", the projector can be operated by the remote control.
Front: Choose "Front", the projector can be operated by the remote control from front IR receiver.
Top: Choose "Top", the projector can be operated by the remote control from top IR receiver.
▶ Off: Choose "Off", you will only be able to use the control panel keys.

Remote Code

Set remote code of the projector. (refer to page 24)

▶ Default code (common code): 00
Remote code: 01-99

OPTION | Advanced

Direct Power On

Choose "On" to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the "☐key on the projector control panel or on the remote control.

Signal Power On

The projector will power on when it receives a signal. This eliminates the need to use the “Power” button on the remote control or the projector keypad.

Auto Power Off (min)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Eco (<0.5W) mode will disable the VGA-out and RJ45 function when the projector is in standby.

Sleep Timer (min)

Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Power Mode (Standby)

Eco.: Choose "Eco." to save power dissipation further < 0.5W.
Active: Choose "Active" to return to normal standby and the VGA out port will be enabled.

OPTION | Lamp Settings

Lamp Mode

Select single/dual lamp mode of the projector.

Dual: Default value for this function.
▶ Relay: When the difference in lamp life between the two lamps reaches 48 hours, the system will automatically switch to the lamp with the lower usage.
Lamp 1: One lamp illuminates. (Lamp1 is always used.)
Lamp 2: One lamp illuminates. (Lamp2 is always used.)

Lamp 1 Hour

Display the projection time for lamp 1.

Lamp 2 Hour

Display the projection time for lamp 2.

Lamp 1 Reset

Reset the lamp hour counter after replacing the lamp for lamp 1.

Lamp 2 Reset

Reset the lamp hour counter after replacing the lamp for lamp 2.

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed.

The message will appear 30 hours before suggested replacement of lamp.

Brightness Mode

BRIGHT: Choose "BRIGHT" to increase the brightness.
▶ STD: Choose "STD" to dim the projector lamp which will lower power consumption and extend the lamp life.
Power: Select the lamp power. When you choose this function, you can select the lamp power type.

Bright STD Power
Lamp Power 350W 280W			280W / 290W / 300W / 310W / 320W / 330W / 340W / 350W

Power

Choose lamp power type from "350W", "340W", "330W", "320W", "310W", "300W", "290W", or "280W".

OPTION | Information

Information

Display the projector information for source, resolution, and software version on the screen.

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

No image appears on-screen

▶ Ensure all the cables and power connections are correctly and securely connected as described in the “Installation” section.
▶ Ensure all the pins of connectors are not bent or broken.
▶ Check if the projection lamp has been securely installed. Please refer to the “Replacing the lamp” section.
Make sure you have removed the lens cap and the projector is switched on.
▶ Ensure that the “Shutter” feature is not turned on.

? Partial, scrolling or incorrectly displayed image

Press "Re-SYNC" on the remote control or control panel.

▶ If you are using a PC:

For Windows 95, 98, 2000, XP, Windows 7:

1. Open the "My Computer" icon, the "Control Panel" folder, and then double click on the "Display" icon.
2. Select the "Settings" tab.
3. Verify that your display resolution setting is lower than or equal to WUXGA (1920 × 1200).
4. Click on the "Advanced Properties" button.

If the projector is still not projecting the whole image, you will also need to change the monitor display you are using. Refer to the following steps.

1. Verify the resolution setting is lower than or equal to WUXGA (1920 × 1200).

2. Select the "Change" button under the "Monitor" tab.

3. Click on "Show all devices". Next, select "Standard monitor types" under the SP box; choose the resolution mode you need under the "Models" box.

4. Verify that the resolution setting of the monitor display is lower than or equal to WUXGA (1920 × 1200).

▶ If you are using a Notebook:

1. First, follow the steps above to adjust resolution of the computer.
2. Press the appropriate keys listed below for your notebook manufacturer to send signal out from notebook to projector. Example: [Fn]+[F4]

Acer [Fn]+[F5] IBM/Lenovo [Fn]+[F7] Asus [Fn]+[F8] HP/Compaq [Fn]+[F4] Dell [Fn]+[F8] NEC [Fn]+[F3] Gateway [Fn]+[F4] Toshiba [Fn]+[F5]

Mac Apple:

System Preference Display Arrangement Mirror display

If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.

The screen of the Notebook or PowerBook computer is not displaying your presentation

If you are using a Notebook PC

Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information.

? Image is unstable or flickering

Use "Phase" to correct it. See page 42 for more information.
Change the monitor color setting on your computer.

? Image has vertical flickering bar

Use "Frequency" to make an adjustment. See page 42 for more information.
▶ Check and re-configure the display mode of your graphic card to make it compatible with the projector.

? Image is out of focus

Make sure the projector cap is removed.
Adjust the Focus function on the projector lens.
Make sure the projection screen is between the required distance. See pages 18-19.

The image is stretched when displaying 16:9 DVD title

When you play anamorphic DVD or 16:9 DVD, the projector will show the best image when the projector display mode is set to 16:9 in the OSD.
If you play 4:3 format DVD titles, please change the format to 4:3 in the projector OSD.
If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

Use of Keystone is not recommended.

? Image is too small or too large

Move the projector closer to or further from the screen.
Press "Menu" button on the remote control or projector panel, go to "DISPLAY → Format" and try the different settings.

? Image has slanted sides

If possible, reposition the projector so that it is horizontally centered on the screen and below the bottom of the screen.
Press "Keystone" button on the remote control, until the sides are vertical.

? Image is reversed

Select "SETUP → Projection" from the OSD and adjust the projection direction.

The projector stops responding to all controls

If possible, turn off the projector, then unplug the power cord and wait at least 60 seconds before reconnecting power.
▶ Check that "Keypad Lock" is not activated by trying to control the projector with the remote control.

Lamp burns out or makes a popping sound

When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the “Replacing the Lamp” section on pages 60-61.

? LED lighting message

Message	POWER LED Temp LED Lamp LED 1 Lamp LED 2
	(Red/Blue) (Red) (Amber) (Amber)
Standby State (Input power cord & Switch on)	Flashing Red	○	○	○
Power on (Warm-ing)	Flashing Blue	○	○	○
Lamp lighting Blue		○	○	○
Power off (Cooling)	Flashing Blue	○	○	○
Error (Lamp 1 fail)	Flashing Red	○		○
Error (Lamp 2 fail)	Flashing Red	○	○
Error (Fan fail)	Flashing Red	Flashing	○	○
Error (Over Temp.)	Flashing Red		○	○
Error (Lens shift)	Flashing Red	○
Shutter on	Red/Blue Steady light	○	○	○

Steady light No light ○

On Screen Messages

▶ Temperature warning:

Fan failed:

Lamp warning:

▶ Out of display range:

If the remote control does not work

▶ Check the operating angle of the remote control is within ±15^ both horizontally and vertically of one of the IR receivers on the projector.
Make sure there are not any obstructions between the remote control and the projector. Move to within 7 m ( ±0^ ) of the projector.
Make sure the batteries are inserted correctly.
Replace batteries if they are exhausted.
▶ Ensure that you have set your remote to the correct IR code set (see page 24).

Replacing the lamp

The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a warning message.

When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

CAUTION!

HIGH PRESSURE LAMP MAY EXPLODE IF IMPROPERLY HANDED. REFER TO LAMP REPLACEMENT INSTRUCTIONS.

ATTENTION:

Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. "Caution must be used to prevent any loose parts from falling out of projector."

Warning: Lamp compartment may be hot! Allow it to cool down before changing the lamp!

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

The screws on the lamp cover and the lamp cannot be removed.
The projector cannot be turned on if the lamp cover has not been placed back on the projector.
Do not touch the glass area of the lamp. Hand oil can cause the lamp to shatter. Use a dry cloth to clean the lamp module if it was accidentally touched.

- Lamp Replacement Procedure:

1. Switch off the power to the projector by pressing the "button."
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Unscrew the two screws on the lamp door. 1
5. Slide the lamp door sideways, then hook it round the bottom of the projector. 2
6. Unscrew the four screws on the lamp cover. 3
7. Unscrew the two screws on the lamp housing. 4
8. Lift up the lamp handle and remove the lamp module slowly and carefully. 5
   To replace the lamp module, reverse the previous steps.
9. Turn on the projector and use "Lamp Reset" after the lamp module is replaced.

Lamp Reset: (i) Press "Menu" → (ii) Select "OPTION" → (iii) Select "Lamp Settings" → (iv) Select "Lamp 1 Reset" or "Lamp 2 Reset" → (v) Select "Yes".

Compatibility Modes

Computer Compatibility (PC/Mac)

For widescreen resolution (WXGA), the compatibility support is dependent on Notebook/PC models.
Please note that using resolutions other than native 1920 x 1200 (WUXGA model) may result in some loss of image clarity.
(#1) Windows 8 Standard timing.
(#2) Only support RB (reduced blanking).
(#3) must support native resolution.

Mode Resolution		V-Sync (Hz)
		PC(Analog)	PC(Digital)	Mac(Analog)	Mac(Digital)
VGA 640 × 480 60 60 60 60
VGA 640 × 480 67 ---
VGA 640 × 480 72 - 72 72
VGA 640 × 480 85 - 85 85
SVGA 800 × 600 56 ---
SVGA 800 × 600 60 60 60 60
SVGA 800 × 600 72 72 72 72
SVGA 800 × 600 85 85 85 85
XGA 1024 × 768 60 60 60 60
XGA 1024 × 768 70 70 70 70
XGA 1024 × 768 75 75 75 75
XGA 1024 × 768 85 85 85 85
WXGA 1280 × 768 60 60 60 -
WXGA 1280 × 768 75 75 75 75
WXGA 1280 × 768 85 85 85 -
WXGA 1280 × 800 60 60 60 60
SXGA 1280 × 1024 60 60 60 60
SXGA 1280 × 1024 75 75 75 75
SXGA 1280 × 1024 85 85 -
WXGA (#1)	1366 × 768 60 60 - -
SXGA+ 1400 × 1050 60 60 - -
UXGA 1600 × 1200 60 60 - -
WUXGA (#2)	1920 × 1200 48 (#3)	48 (#3)	-	-
WUXGA (#2)	1920 × 1200 50 (#3)	50 (#3)	-	-
WUXGA (#2)	1920 × 1200 60 60 60 60
HD 1920 × 1080 24 24
HD 1920 × 1080 50 50
HD 1920 × 1080 60 60

Input 1920x1080, the black bar (120 pixel height) will be on image bottom side.

Mode Resolution	V-Sync (Hz)
	Analog Digital	Mac (Analog)	Mac (Digital)
HDTV(1080i) 1920 × 1080 - 50	--
HDTV(1080i) 1920 × 1080 - 60	--
HDTV(1080p) 1920 × 1080 24 24	--
HDTV(1080p) 1920 × 1080 - 30	--
HDTV(1080p) 1920 × 1080 50 50	--
HDTV(1080p) 1920 × 1080 60 50	60 60
HDTV(720p) 1280 × 720 50 50	--
HDTV(720p) 1280 × 720 60 60	60 60
SDTV(480i) 720 × 576	- 50 --
SDTV(480p) 720 × 576	- 50 --
SDTV(576i) 720 × 480	- 60 --
SDTV(576p) 720 × 480	- 60 --

Video Compatibility

NTSC M (3.58MHz), 4.43 MHz

PAL B, D, G, H, I, M, N

SECAM B, D, G, K, K1, L

SDTV 480i/p@60Hz, 576i/p@50Hz

HDTV 720p@50Hz/60Hz, 1080i@50Hz/60Hz, 1080p@24Hz/50Hz/60Hz

RS232 Commands and Protocol Function List

RS232 Pin Assignments

RS232 shell is grounded.

1. There is a after all ASCII commands.
2. 0D is the HEX code for in ASCII code.

Baud Rate : 9600

Data Bits: 8

Parity: None

Stop Bits: 1

Flow Control : None

UART16550 FIFO: Disable

Projector Return (Pass): P

Projector Return (Fail): F

XX=00-99, projector's ID,

XX=00 is for all projectors

SEND to projector

232 ASCII Code	HEX Code	Function	Description
~XX00 1 7E 30 30 30 30 20 31 0D Power ON
~XX00 0 7E 30 30 30 30 20 30 0D Powcr OFF
~XX00 1 ~nnnn	7E 30 30 30 30 20 31 20 a 0D	Power ON with Password	~nnnn = ~0000 (a=7E 30 30 30 30) - ~9999(a=7E 39 39 39 39)
~XX01 1 7E 30 30 30 31 20 31 0D Resync
~XX04 1 7E 30 30 30 34 20 31 0D Freeze
~XX04 0 7E 30 30 30 34 20 30 0D Unfrczcz
~XX307 1	7E 30 30 33 30 37 20 31 0D	Zoom Plus
~XX307 2	7E 30 30 33 30 37 20 32 0D	Zoom Minus
~XX308 1	7E 30 30 33 30 38 20 31 0D	Focus Plus
~XX308 2	7E 30 30 33 30 38 20 32 0D	Focus Minus
~XX07 1 7E 30 30 30 37 20 31 0D Up (Image shift under zoom)
~XX08 1 7E 30 30 30 38 20 31 0D Down (Image shift under zoom)
~XX09 1 7E 30 30 30 39 20 31 0D Left (Image shift under zoom)
~XX10 1 7E 30 30 31 30 20 31 0D Right (Image shift under zoom)
~XX11 1 7E 30 30 31 31 20 31 0D IR function		On
~XX11 0 7E 30 30 31 31 20 30 0D		Off
~XX11 2 7E 30 30 31 31 20 32 0D		Front
~XX11 3 7E 30 30 31 31 20 33 0D		Top
~XX12 1 7E 30 30 31 32 20 31 0D Direct Source Command		HDMI 1
~XX12 4 7E 30 30 31 32 20 34 0D		BNC
~XX12 5 7E 30 30 31 32 20 35 0D		VGA 1
~XX12 6 7E 30 30 31 32 20 36 0D		VGA 2
~XX12 9 7E 30 30 31 32 20 39 0D		S-Video
~XX12 10	7E 30 30 31 32 20 31 30 0D		Video
~XX12 14	7E 30 30 31 32 20 31 34 0D		Component RCA
~XX12 15	7E 30 30 31 32 20 31 35 0D		HDMI 2
~XX20 1 7E 30 30 32 30 20 31 0D Display Mode		Presentation
~XX20 2 7E 30 30 32 30 20 32 0D		Bright
~XX20 3 7E 30 30 32 30 20 33 0D		Movie
~XX20 4 7E 30 30 32 30 20 34 0D		sRGB
~XX20 7 7E 30 30 32 30 20 37 0D		Blackboard
~XX20 13	7E 30 30 32 30 20 31 33 0D		DICOM SIM.
~XX348 1	7E 30 30 33 34 38 20 31 0D	Display Mode Lock	On
~XX348 0	7E 30 30 33 34 38 20 30 0D	Display Mode Lock	Off
~XX21 n	7E 30 30 32 31 20 a 0D	Brightness	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX22 n	7E 30 30 32 32 20 a 0D	Contrast	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX23 n	7E 30 30 32 33 20 a 0D	Sharpness	n = 1 (a=31) ~ 15 (a=31 35)
~XX24 n	7E 30 30 32 34 20 a 0D	RGB Gain/Bias	Red Gain n = -50 ~ 50
~XX25 n 7E 30 30 32 35 20 a 0D		Green Gain n = -50 ~ 50
~XX26 n	7E 30 30 32 36 20 a 0D	Color Matching	Blue Gain n = -50 ~ 50
~XX27 n	7E 30 30 32 37 20 a 0D		Red Bias n = -50 ~ 50
~XX28 n	7E 30 30 32 38 20 a 0D		Green Bias n = -50 ~ 50
~XX29 n	7E 30 30 32 39 20 a 0D		Blue Bias n = -50 ~ 50
~XX327 n	7E 30 30 33 32 37 20 a 0D		Red Hue n = -127 ~ 127
~XX328 n	7E 30 30 33 32 38 20 a 0D		Green Hue n = -127 ~ 127
~XX329 n	7E 30 30 33 32 39 20 a 0D		Blue Huc n = -127 ~ 127
~XX330 n	7E 30 30 33 33 30 20 a 0D		Cyan Hue n = -127 ~ 127
~XX331 n	7E 30 30 33 33 31 20 a 0D		Magenta Hue n = -127 ~ 127
~XX332 n	7E 30 30 33 33 32 20 a 0D		Yellow Hue n = -127 ~ 127
~XX333 n	7E 30 30 33 33 33 20 a 0D		Red Saturation n = -127 ~ 127
~XX334 n	7E 30 30 33 33 34 20 a 0D		Green Saturation n = -127 ~ 127
~XX335n	7E 30 30 33 33 35 20 a 0D		Blue Saturation n = -127 ~ 127
~XX336 n	7E 30 30 33 33 36 20 a 0D		Cyan Saturation n = -127 ~ 127
~XX337 n	7E 30 30 33 33 37 20 a 0D		Magenta Saturation n = -127 ~ 127
~XX338 n	7E 30 30 33 33 38 20 a 0D		Yellow Saturation n = -127 ~ 127
~XX339 n	7E 30 30 33 33 39 20 a 0D		Red Gain n = -127 ~ 127
~XX340 n	7E 30 30 33 34 30 20 a 0D		Green Gain n = -127 ~ 127
~XX341 n	7E 30 30 33 34 31 20 a 0D		Blue Gain n = -127 ~ 127
~XX342 n	7E 30 30 33 34 32 20 a 0D		Cyan Gain n = -127 ~ 127
~XX343 n	7E 30 30 33 34 33 20 a 0D		Magenta Gain n = -127 ~ 127
~XX344 n 7E 30 30 33 34 34 20 a 0D Yellow Gain n = -127 ~ 127
~XX345n 7E 30 30 33 34 35 20 a 0D R n = -50 ~ 50
~XX346 n 7E 30 30 33 34 36 20 a 0D G n = -50 ~ 50
~XX347 n 7E 30 30 33 34 37 20 a 0D B n = -50 ~ 50
~XX34 n 7E 30 30 33 34 20 a 0D BrilliantColor TM n = 0 (a-30) ~ 10 (a-31 30)
~XX35 1 7E 30 30 33 35 20 31 0D Gamma Film
~XX35 3 7E 30 30 33 35 20 33 0D Graphics
~XX35 5 7E 30 30 33 35 20 35 0D 1.8
~XX35 6 7E 30 30 33 35 20 36 0D 2.0
~XX35 7 7E 30 30 33 35 20 37 0D 2.2
~XX35 8 7E 30 30 33 35 20 38 0D 2.6
~XX36 1 7E 30 30 33 36 20 31 0D Color Temp. Warm
~XX36 2 7E 30 30 33 36 20 32 0D Medium
~XX36 3 7E 30 30 33 36 20 33 0D Cold
~XX37 1 7E 30 30 33 37 20 31 0D Color Space Auto * HDMI w/o Color Space item
~XX37 2 7E 30 30 33 37 20 32 0D RGB\RGB (0-255)* * RGB (0-255) supports when HDMI is detected
~XX37 3 7E 30 30 33 37 20 33 0D YUV
~XX37 4 7E 30 30 33 37 20 34 0D RGB(16-235)* supports when HDMI is detected
~XX39 n 7E 30 30 33 39 20 a 0D Input Source n=1/4/5/6/7/8/9/10 (HDMI1/BNC/VGA1/VGA2/HDMI2/Component/S-video/video)
~XX44 n 7E 30 30 34 34 20 a 0D Tint n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX45 n 7E 30 30 34 35 20 a 0D Color (Saturation) n = -50 (a=2D 30 30) ~ 50 (a=35 30)
~XX60 1 7E 30 30 36 30 20 31 0D Format 4:3
~XX60 2 7E 30 30 36 30 20 32 0D 16:9
~XX60 3 7E 30 30 36 30 20 33 0D 16:10
~XX60 5 7E 30 30 36 30 20 35 0D LBX
~XX60 6 7E 30 30 36 30 20 36 0D Native
~XX60 7 7E 30 30 36 30 20 37 0D AUTO
~XX61 n 7E 30 30 36 31 20 a 0D Edge masking n = 0 (a=30) ~ 5(a=35)
~XX62 n 7E 30 30 36 32 20 a 0D Digital Zoom n = -20 (a=2D 32 30) ~ 50 (a=35 30)
~XX63 n 7E 30 30 36 33 20 a 0D H Image Shift n = -100 ~ +100
~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = -100 ~ +100
~XX65 n 7E 30 30 36 35 20 a 0D H Keystone n = -20 (a=2D 32 30) ~ 20 (a=32 30)
~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -20 (a=2D 32 30) ~ 20 (a=32 30)
~XX69 1 7E 30 30 36 39 20 31 0D Auto Keystone On
~XX69 0 7E 30 30 36 39 20 30 0D Auto Keystone Off
~XX70 1 7E 30 30 37 30 20 31 0D Language English
~XX70 2 7E 30 30 37 30 20 32 0D German
~XX70 3 7E 30 30 37 30 20 33 0D French
~XX70 4 7E 30 30 37 30 20 34 0D Italian
~XX70 5 7E 30 30 37 30 20 35 0D Spanish
~XX70 6 7E 30 30 37 30 20 36 0D Portugucesc
~XX70 7 7E 30 30 37 30 20 37 0D Polish
~XX70 8 7E 30 30 37 30 20 38 0D Dutch
~XX70 9 7E 30 30 37 30 20 39 0D Swedish
~XX70 10 7E 30 30 37 30 20 31 30 0D Norwegian/Danish
~XX70 11 7E 30 30 37 30 20 31 31 0D Finnish
~XX70 12 7E 30 30 37 30 20 31 32 0D Greek
~XX70 13 7E 30 30 37 30 20 31 33 0D Traditional Chinese
~XX70 14 7E 30 30 37 30 20 31 34 0D Simplified Chinese
~XX70 16 7E 30 30 37 30 20 31 36 0D Korean
~XX70 17 7E 30 30 37 30 20 31 37 0D Russian
~XX70 18 7E 30 30 37 30 20 31 38 0D Hungarian
~XX70 19 7E 30 30 37 30 20 31 39 0D Czechoslovak
~XX70 20 7E 30 30 37 30 20 32 30 0D Arabic
~XX70 21 7E 30 30 37 30 20 32 31 0D Thai
~XX70 22 7E 30 30 37 30 20 32 32 0D Turkish
~XX70 23 7E 30 30 37 30 20 32 33 0D Farsi
~XX70 25 7E 30 30 37 30 20 32 35 0D Vietnamese
~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop
~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop
~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling
~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling
~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left
~XX72 2 7E 30 30 37 32 20 32 0D Top Right
~XX72 3 7E 30 30 37 32 20 33 0D Centre
~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left
~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right

\~XX90 1 7E 30 30 39 30 20 31 0D Screen Type 16:10 \~XX90 0 7E 30 30 39 30 20 30 0D 16:9

~XX91 1 7E 30 30 39 31 20 31 0D Signal		Automatic	On
~XX91 0 7E 30 30 39 31 20 30 0D Automatic		Off
~XX73 n	7E 30 30 37 33 20 a 0D		Frequency	n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX74 n	7E 30 30 37 34 20 a 0D		Phase	n = 0 (a=30) ~ 63 (a=36 33) By signal
~XX75 n	7E 30 30 37 35 20 a 0D		H. Position	n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX76 n	7E 30 30 37 36 20 a 0D		V. Position	n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX200 n 7E 30 30 32 30 30 20 n 0D White Level		n = 0 (a=30) ~ 31 (a=33 31) By signal
~XX201 n 7E 30 30 32 30 31 20 n 0D Black Level		n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX202 7E 30 30 32 30 32 20 n 0D Saturation		n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX203 n 7E 30 30 32 30 33 20 n 0D Huc		n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX204 n 7E 30 30 32 30 34 20 n 0D IRE		n=1/0 (0/7.5)

\~XX77 n 7E 30 30 37 37 20 aabbcc 0D Security Security Timer Month/Day/Hour n = mm/dd/hh

mm = 00 (aa=30 30) \~ 12 (aa=31 32)

dd = 00 (bb=30 30) \~ 30 (bb=33 30)

hh = 00 (cc=30 30) \~ 24 (cc=32 34)

\~XX78 1 7E 30 30 37 38 20 31 0D Security On

\~XX78 0 7E 30 30 37 38 20 30 0D Off (0/2 for backward compatible)

\~XX79 n 7E 30 30 37 39 20 a 0D Projector ID

\~XX82 1 7E 30 30 38 32 20 31 0D Logo

\~XX82 2 7E 30 30 38 32 20 32 0D Neutral

\~XX82 3 7E 30 30 38 32 20 32 0D User

\~XX83 1 7E 30 30 38 33 20 31 0D Logo Capture

\~XX349 n 7E 30 30 33 34 39 20 a 0D

\~XX84 n 7E 30 30 38 34 20 a 0D Lens Shift

\~XX88 0 7E 30 30 38 38 20 30 0D

\~XX88 1 7E 30 30 38 38 20 31 0D cc1

\~XX88 2 7E 30 30 38 38 20 32 0D cc2

\~XX92 n 7E 30 30 39 32 20 a 0D Lamp mode

\~XX100 1 7E 30 30 31 30 30 20 31 0D

\~XX100 0 7E 30 30 31 30 30 20 30 0D

\~XX101 1 7E 30 30 31 30 31 20 31 0D

\~XX101 0 7E 30 30 31 30 31 20 30 0D

\~XX102 1 7E 30 30 31 30 32 20 31 0D

\~XX102 0 7E 30 30 31 30 32 20 30 0D

\~XX103 1 7E 30 30 31 30 33 20 31 0D

\~XX103 0 7E 30 30 31 30 33 20 30 0D

\~XX192 0 7E 30 30 31 39 32 20 30 0D

\~XX192 1 7E 30 30 31 39 32 20 31 0D

\~XX1950 7E303031393520300D

\~XX195 1 7E 30 30 31 39 35 20 31 0D

\~XX1952 7E303031393520320D

\~XX1953 7E 30 30 31 39 35 20 33 0D

\~XX1954 7E303031393520340D

\~XX104 1 7E 30 30 31 30 34 20 31 0D

\~XX104 2 7E 30 30 31 30 34 20 32 0D

\~XX104 3 7E 30 30 31 30 34 20 33 0D

\~XX104 4 7E 30 30 31 30 34 20 34 0D

\~XX104 5 7E 30 30 31 30 34 20 35 0D

\~XX1051 7E303031303520310D

\~XX105 0 7E 30 30 31 30 35 20 30 0D

\~XX106 n 7E 30 30 31 30 36 20 a 0D

\~XX107 n 7E 30 30 31 30 37 20 a 0D

\~XX108 n 7E 30 30 31 30 38 20 a 0D

\~XX1131 7E 30 30 31 31 33 20 31 0D

\~XX113 0 7E 30 30 31 31 33 20 30 0D

\~XX114 1 7E 30 30 31 31 34 20 31 0D

\~XX1140 7E303031313420300D

\~XX109 1 7E 30 30 31 30 39 20 31 0D

\~XX109 0 7E 30 30 31 30 39 20 30 0D

\~XX110 1 7E 30 30 31 31 30 20 31 0D

\~XX1102 7E303031313020320D

\~XX1103 7E 30 30 31 31 30 20 33 0D

\~XX326 n 7E 30 30 33 32 36 20 a 0D

\~XX326 n 7E 30 30 33 32 36 20 a 0D

\~XX326 n 7E 30 30 33 32 36 20 a 0D

\~XX326 n 7E 30 30 33 32 36 20 a 0D

\~XX326 n 7E 30 30 33 32 36 20 a 0D

\~XX326 n 7E 30 30 33 32 36 20 a 0D

\~XX326 n 7E 30 30 33 32 36 20 a 0D

\~XX326 n 7E 30 30 33 32 36 20 a 0D

\~XX111 1 7E 30 30 31 31 31 20 31 0D

\~XX1112 7E303031313120320D

\~XX116 1 7E 30 30 31 31 36 20 31 0D

\~XX116 2 7E 30 30 31 31 36 20 32 0D

\~XX112 1 7E 30 30 31 31 32 20 31 0D

\~XX112 2 7E 30 30 31 31 32 20 32 0D

\~XX191 1 7E 30 30 31 39 31 20 31 0D

\~XX191 0 7E 30 30 31 39 31 20 30 0D

\~XX300 n 7E 30 30 33 30 30 20 n 0D

\~XX301 n 7E 30 30 33 30 31 20 n 0D

\~XX302 n 7E 30 30 33 30 32 20 n 0D

\~XX303 n 7E 30 30 33 30 33 20 n 0D

\~XX304 n 7E 30 30 33 30 34 20 n 0D

\~XX305 n 7E 30 30 33 30 35 20 n 0D

\~XX306 7E 30 30 33 30 36 20 0D

\~XX307 n 7E 30 30 33 30 37 20 n 0D

\~XX308 n 7E 30 30 33 30 38 20 n 0D

\~XX325 1 7E 30 30 33 32 35 20 31 0D

\~XX325 0 7E 30 30 33 32 35 20 30 0D

n = 00 (a=30 30) \~ 99 (a=39 39)

Optoma

n=1/2(Lock/Unlock) n=3/4/5/6(Up/Down/Left/Right)

Off

n=1/2/3/4 (Dual/Rclay/Lamp1/Lamp2)

On

Off

On

Off

On

Off

On

Off

[Non-Text]

On

None

Grid(White)

White

Grid(Green)

Gird(Magenta)

Blue

Black

Red

Green

White

Direct Power On On

Off

Auto Power Off (min) n = 0 (a=30) \~ 180 (a=31 38 30), stcp=1

Sleep Timer (min) n = 000 (a=30 30 30) \~ 995 (a=39 39 35), step=5

Lamp Hour n=1/2 (Lamp1 hour / Lamp2 hour)

Signal Power on on

Signal Power on off

Power Mode(Standby) Active

Eco (<=1W)

Lamp Reminder On

Off

Brightness Mode Bright

STD

Power

Power=350w n=0

Power=340w n=1

Power=330w n=2

Power=320w n=3

Power=310w n=4

Power=300w n=5

Power=290w n=6

Power=280w n=7

Lamp1 Reset Yes

No

Lamp2 Reset Yes

No

Yes

No

Dynamic Black On

Off

H ARC n=-10 - +10

V ARC n=-10 - +10

Screen n=0/1/2 (Off/PIP/SBS)

PIP location n=1/2/3/4 (Top left/ Top right / Bottom left / Bottom right)

PIP size n=1/2/3 (1/16/1/25/1/36)

PIP source n=1/2/14/15/6/4/9/10 (HDMI1/VGA1/ Component/ HDMI2/ VGA2/

BNC/ S-video/video)

SWAP

Zoom n=1/2 (Zoom-/Zoom-)

Focus n=1/2 (Focus+/Focus-)

On

Off

SEND from projector automatically

232 ASCII Code	HEX Code	Function	Projector Return	Description
		System status INFOn n : 0/1/2/3/4/6/7/8 - Standby/Warming/Cooling/Out of Range/Lamp fail/ Fan Lock/Over Temperature/Lamp Hours Running Out

READ from projector

232 ASCII Code	IEX Code	Function	Projector Return	Description
~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source OKa a : 0/2/3/4/5 /6/7/8/11= None /VGA1/VGA2/S-Video/Video/BNC/
~XX122 1 7E 30 30 31 32 32 20 31 0D Software Version OKdddd dddd: FW version				HDMI1/ HDMI2/Component
~XX123 1 7E 30 30 31 32 33 20 31 0D Display Mode OKa a : 0/1/2/3/4/7/12 = None /Presentation/Bright/Movie/sRGB/
				/Blackboard/ DICOM SIM.
~XX124 1 7E 30 30 31 32 34 20 31 0D Power State			OKa a : 0/1 = Off/On
~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness			OKa
~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast			OKa
~XX127 1	7E 30 30 31 32 37 20 31 0D	Aspect Ratio	OKa	a: 0/1/2/4/5/6 = 4:3/16:9/16:10/LBX/Native/Auto depend on Screen Type setting
~XX128 1 7E 30 30 31 32 38 20 31 0D Color Temperature			OKa a : 0/1/2 = Warm/Medium/Cold
~XX129 1	7E 30 30 31 32 39 20 31 0D	Projection Mode	OKa	a : 0/1/2/3 = Front-Desktop/Rear-Desktop/Front-Ceiling/Rear-Ceiling
~XX150 1 7E 30 30 31 35 30 20 31 0D Information			OKabbbbccddddee
				a : 0/1 = Off/On bbbb: Lamp Hour cc: source 00/02/03/04/05/06/07/08/09= None/VGA1/VGA2/ S-Video/Video/ BNC /HDMI1/HDMI2/Component dddd: FW version cc : Display mode 0/1/2/3/4/7/10 None/Presentation/Bright/Movie/sRGB /Blackboard/DICOM SIM.
~XX151 1 7E 30 30 31 35 31 20 31 0D Model name OKa a: 11=EH7700

Telnet Commands

Port: support 3 ports of 23/1023/2023•

Multi-connections: Projector could receive commands from different ports at the same time

Command Format: Follow RS232 command format (support both of ASCII and HEX)

Command Response: Follow RS232 return message.

Lead Code	Projector ID		Command ID space variable			carriage		return
~ X X X X X n	CR
Fix code One Digit~	00 Defined by Optoma 2 or 3 Digit. See the Follow content					One Digit Per item Definition	Fix code One Digit

When the data length is greater or shorter than indicated by the data length code, the projector returns the error code to computer.

AMX Device Discovery commands

• UDP : 239.255.250.250
- Port No.: 9131
• Each UDP broadcast information as below are updated around 40 seconds

Command	Description	Remark (Parameter)
Device-UUID	MAC address (Hex value without'':' separator)	12 digits
Device-SKD-Class	The Duet DeviceSdk class name VideoProjector
Device-Make	Maker name	MakerPXLW
Device-Model	Model name	Projector
Config-URL	Device's IP addressLAN IP address is shown up if LAN IP address is valid.Wireless LAN IP address is shown up if Wireless LAN IP address is valid.	http://xxx.xxx.xxx.xxx/index.html
Revision	The revision must follow a major.minor.micro scheme. The revision is only increased if the command protocol is modified.	1.0.0

This AMX function is only to support AMX Device Discovery.
The broadcast information only send out through valid interface.
Both LAN and Wireless LAN interfaces could be supported at the same time.
If "Beacon Validator" was used. Please take care below information

PJLink™ supported commands

The table below shows commands to control the projector using the PJLink ^TM protocol.

Command Description Remark (Parameter)

Command	Description Remark (Parameter)
POWR Power	control 0 = Standby
		1 = Power on
POWR? Inquiry	about the power state	0 = Standby
		1 = Power on
		2 = Cooling down
		3 = Warming up
INPT INPT Input switching 11 = VGA1
INPT? Inquiry	about input switching	12 = VGA2
		13 = Component
		14 = BNC
		21 = VIDEO
		22 = S-VIDEO
		31 = HDMI 1
		32 = HDMI 2
AVMT Mute control 30 = Video and audio mute disable
AVMT? Inquiry	about the mute state	31 = Video and audio mute enable
ERST? Inquiry	about the error state	1st byte: Fan error, 0 or 2
		2nd byte: Lamp error, 0 to 2
		3rd byte: Temperature error, 0 or 2
		4th byte: Cover open error, 0 or 2
		5th byte: Filter error, 0 or 2
Command Description Remark (Parameter)
ERST? Inquiry	about the error state	6th byte: Other error, 0 or 2
		0 to 2 mean as follows:0 = No error detected, 1 = Warning, 2 = Error
LAMP? Inquiry	about the lamp state	1st value (1 to 5 digits): Cumulative LAMP operating time (This item shows a lamp operating time (hour) calculated based on that LAMP MODE is LOW.)
		2nd value: 0 = Lamp off, 1 = Lamp on
INST? Inquiry	about the available inputs	The following value is returned.“11 12 21 22 31 32”
NAME? Inquiry	about the projector name	The projector name set on the NET-WORK menu or the ProjectorView Setup window is returned
INF1? Inquiry	about the manufacturer name	“Optoma” is returned.
INF2? Inquiry	about the model name	“EH7700” is returned.
INF0? Inquiry	about other information	No other information is available. No parameter is returned.
CLSS? Inquiry	about the class information	“1” is returned.

This projector is fully compliant to the specifications of JBMIA PJLink™ Class 1. It supports all the commands defined by PJLink™ Class 1, and the compliance has been verified with the PJLink™ standard specifications Version 1.0.

Trademarks

DLP is trademarks of Texas Instruments.

IBM is a trademark or registered trademark of International • Business Machines Corporation.

Macintosh, Mac OS X, iMac, and PowerBook are trade-• marks of Apple Inc., registered in the U.S. and other countries.

Microsoft, Windows, Windows Vista, Internet Explorer and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

HDMI, the HDMI Logo and High-Definition Multimedia • Interface are trademarks or registered trademarks of HDMI Licensing LLC.

AMX Device Discovery •

The projector is monitored and controlled by the control system of AMX.

Crestron RoomView Connected™ •

The projector is monitored and controlled by the control system and software of Crestron Electronics, Inc.

PJLink™ •

PJLink trademark is a trademark applied for registration or is already registered in Japan, the United States of America and other countries and areas.

This projector supports standard protocol PJLink™ for projector control and you can control and monitor projector's operations using the same application among projectors of different models and different manufacturers.

Other product and company names mentioned in this • user's manual may be the trademarks or registered trademarks of their respective holders.

About Crestron RoomView Connected™ •

Electronics, Inc. to facilitate configuration of the control system of Crestron and its target devices.

To use this technology, it is necessary to set CONTROL SYSTEM in the NETWORK menu. (See pages 48.)

For details, see the website of Crestron Electronics, Inc.

URL http://www.crestron.com

URL http://www.crestron.com/getroomview/

About AMX Device Discovery facilitate configuration of the control system of AMX and its target devices.

To use this technology, it is necessary to set CONTROL SYSTEM in the NETWORK menu. (See pages 48.)

For details, see the website of AMX.

URL http://www.amx.com/

About PJLink™•

To use PJLink ^TM Function, the PJLink ^TM application software is required.

To use this function, set the network certification properly according to the setting of the network application to be used. (See page 48.)

For the specifications of JBMIA PJLink™ access to the Web site of Japan Business Machine and Information System Industries Association (JBMIA).

(http://pjlink.jbmia.or.jp/english)

This projector is full to complaint to the specifications • of JBMIA PJLink™ Class 1. It supports all the commands defined by PJLink™ Class 1, and the compliance has been verified with the PJLink™ standard specifications Version 1.0.

Important:•

For the commutation for PJLink ^™ , see the table on the next page.

The control may not be performed correctly or the monitoring data may not be obtained correctly in the following conditions:

During standby

During zoom/focus adjustment

During lens shift adjustment

During input source switching

During auto position execution

During Shutter

During command processing

Before the splash screen disappears after the power is turned on.

During zoom/focus adjustment, lens shift adjustment, Shutter, etc., it may take approx. 5 seconds to receive a response to a command.

Appendices

Use 1 controller to control/monitor 1 projector.

For how to control/monitor using PJLink™, see the operation

manual of the PJLink ^TM application you use.

When you monitor the projector's operating status using this

function by issuing inquiry commands

successively, issue an inquiry command after receiving the

response to the previous inquiry command from the projector.

Ceiling Mount Installation

Please note that damage resulting from incorrect installation will void the warranty.

1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

Screw type: M8*4
Recommended screw length: 10mm

Warning:

1. If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.
2. Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
3. Avoid installing the projector near a heat source.

Ceiling Mount Safeguards

1. Stocktaking of projector accessories

M8 eye bolt screw*2

Simple line drawing of a screw with a circular head (no text or symbols)

Spring washer*2

Flat washer*2

2. Bring your own installer

Hook : It is recommended to prepare 4 stainless steel hooks with a diameter of 10 mm or larger.

Steel wire: It is recommended to prepare a steel wire with a length of less than 120 cm and a diameter of 4 mm or larger.

Pure electrical circuit lines without any symbols

3. Installation procedures

Lock the M8 eye bolt screw, spring washer, flat washer to the projector in order of the shown.

Pass through the rope at each end of 2 hooks.

Buckle the 2 hooks on the one end to the eye bolt screw and the 2 hooks on the other end to the stable bracket to finish the installation.

Technical line drawing of a device chassis with labeled components and wiring (no text or symbols)

Optoma Global Offices

For service or support please contact your local office.

USA

3178 Laurelview Ct. 888-289-6786

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Canada

2420 Meadowpine Blvd., Suite #105 (888-289-6786)

Mississauga, ON, L5N 6S2, Canada 1510-897-8601

www.optoma.ca [e-mail]

Europe

42 Caxton Way, The Watford Business Park

Watford, Hertfordshire,

WD18 8QZ, UK [phone]

www.optoma.eu [phone]

Service Tel : [phone] [e-mail]

France

Unit A, 27/F Dragon Centre, 79 Wing Hong Street, [phone] Cheung Sha Wan, [phone] Kowloon, Hong Kong www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd., Changning District Shanghai, 200052, China [phone] [phone] www.optoma.com.cn

Regulation & Safety Notices

This appendix lists the general notices of your projector.

FCC notice

This device has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class A digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2004/108/EC (including amendments)
- Low Voltage Directive 2006/95/EC
• R & TTE Directive 1999/5/EC (if product has RF function)

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
