Product Type	VGA Wall Plate Video and Audio Extender over CAT5 Kit
Model	STUTPWALLA
Brand	StarTech.com
Video Connector	DE-15 VGA Female
Audio Connector	3.5mm Stereo Mini-Jack (Input on transmitter, Output on receiver)
Rear Connectors	RJ45 Female, Terminal Block for Power
Maximum Resolution	1920x1200 @ 60Hz (up to 50 m)
Maximum Distance	300 meters (at 800x600 resolution)
Power Adapter Output	12VDC, 600mA (included per unit)
Material	Metal
Color	White
Weight (Unit)	136 g (transmitter), 136 g (receiver)
Dimensions (each)	105 mm x 42 mm x 38 mm
Brightness Adjustment	GAIN control on both units
Sharpness Adjustment	EQ control on receiver
Signal Inversion	H/V inversion switches on both units
Supported Cable Types	CAT5, CAT5e, CAT6
Included Accessories	2 x Power Adapters, 2 x Terminal Block Adapters, User Manual
Warranty	1 Year
Compliance	FCC Class B
Application	Extending VGA video and stereo audio over long distances

Frequently Asked Questions - STUTPWALLA StarTech.com

How do I install the STUTPWALLA VGA extender?

Turn off your PC and monitor. Connect the transmitter unit (STUTPTXWLA) to your PC's VGA output using a male-to-male VGA cable. Connect the receiver unit (STUTPRXWLA) to the monitor's VGA input. Link the two units with a CAT5 (or better) cable. Finally, connect the power adapters to both units and turn on the equipment.

What is the maximum resolution supported?

The maximum resolution is 1920x1200 at 60 Hz when using CAT5/CAT5e cable up to 50 meters. For longer distances, resolution must be reduced.

What is the maximum transmission distance?

The maximum distance is 300 meters at a resolution of 800x600 using CAT5/CAT5e. With CAT6 cable, distances vary: up to 30 m at 1920x1440 or up to 100 m at 800x600.

Does the extender support audio?

Yes, both stereo audio and microphone signals are supported. The transmitter has a 3.5mm audio input and a 3.5mm microphone input, while the receiver provides a 3.5mm audio output.

What type of cable is required?

Standard CAT5, CAT5e, or CAT6 UTP cable with RJ45 connectors is required. The wiring follows T568A/B standards; see manual for pinout.

How do I adjust the brightness or sharpness?

Use the GAIN knob on both units to adjust brightness. The receiver also has an EQ control to adjust sharpness based on cable length.

What do the H-INV and V-INV switches do?

These switches invert the horizontal (H) or vertical (V) sync signals to correct noise or sync issues. Set both transmitter and receiver to the same position (default OFF).

Is the unit wall-mountable?

Yes, the units are designed as wall plates for installation into a standard wall receptacle. They have a compact metal housing for flush mounting.

What power adapter is used?

Each unit requires a 12VDC, 600mA power adapter (included). The adapter connects via a terminal block. Note polarity: center pin is +12V.

Does StarTech.com provide technical support?

Yes, lifetime technical support is available. Visit www.startech.com/support for online tools, documentation, and assistance.

USER MANUAL STUTPWALLA StarTech.com

STUTPRXWLA STUTPTXWLA STUTPWALLA

Instruction Manual

VGA Video Extender over CAT5

VGA Wall Plate Video and Audio Extender over CAT5 Receiver

VGA Wall Plate Video and Audio Extender over CAT5 Transmitter

StarTech.com Making hard-to-find easy!®

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction ...... 1

Packaging Contents....1

System Requirements ....1

Installation 2

Transmitter Unit (STUTPTXWLA) 2

Receiver Unit (STUTPRXWLA) 3

Hardware Installation ....4

Wiring Information and Coding 5

Distances and Resolutions ...... 6

Adapter Output Polarity 6

Specifications 7

Technical Support 8

Warranty Information 8

Introduction

Packaging Contents

1 x STUTPTXWLA (transmitter) or STUTPRXWLA (receiver) •

* both units included in STUTPWALLA kit

1 x Power Adapter •

* 2 included in STUTPWALLA kit

1 x User Manual•

1 x Terminal Block adapter for power adapter •

* 2 included in STUTPWALLA kit

System Requirements

Open wall receptacle for Transmitter/Receiver unit installation•

Available power outlet•

Both Transmitter (STUTPTXWLA) and Receiver (STUTPRXWLA) • units

VGA video source•

VGA enabled display device•

Installation

Transmitter Unit (STUTPTXWLA)

Front View

* picture may vary from actual product

DE-15 VGA Female Connector•

3.5mm Mini-Jack Audio Input•
3.5mm Mini-Jack Microphone Input•

GAIN – Adjust brightness•

Power LED•

Control H/V signal inverting switch•

The default setting of H-INV is "OFF". If H-INV is set to "ON", the horizontal signal output is adjusted. H-INV on the receiver must also be set to "ON".

The default setting of V-INV is "OFF". If V-INV is set to "ON", the vertical signal output is adjusted. V-INV on the receiver must also be set to "ON".

Use this setting when noise or sync issues are detected in the signal transfer.

Rear View

* picture may vary from actual product

Power Terminal Block Connector•

RJ-45 Female Connector•

Receiver Unit (STUTPRXWLA)

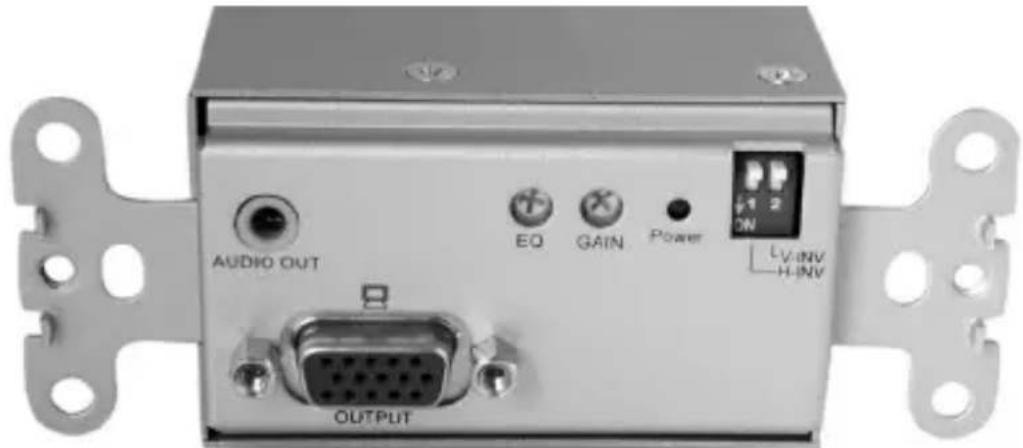

Front View

* picture may vary from actual product

DE-15 VGA Female Connetor•

3.5mm Mini-Jack Audio Output•

EQ – Equalization length adjust (Adjust sharpness)•

GAIN – Adjust brightness •

Power LED•

Control H/V signal inverting switch•

The default setting of H-INV is "OFF". If H-INV is set to "ON", the horizontal signal output is adjusted. H-INV on the transmitter must also be set to "ON".

The default setting of V-INV is “OFF”. If V-INV is set to “ON”, the vertical signal output is adjusted. V-INV on the transmitter must also be set to “ON”.

Use this setting when noise or sync issues are detected in the • signal transfer.

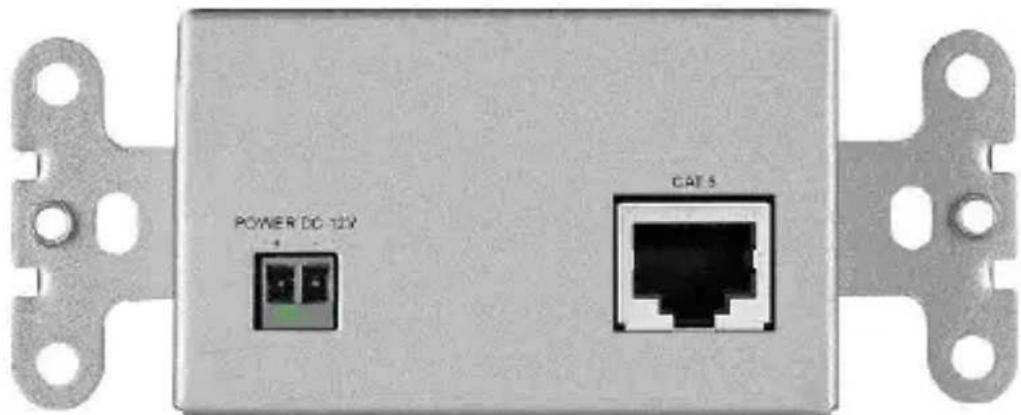

Rear View

* picture may vary from actual product

Power Terminal Block Connector•

RJ-45 Female Connector•

Hardware Installation

Turn off the PC and remote monitor.1.

Connect STUTPTXWLA Transmitter unit DE-15 VGA female 2. connector with a DE-15 VGA male to male cable to PC video card.

Connect STUTPTXWLA Transmitter and STUTPRXWLA Receiver 3. units together with CAT5 UTP cable.

Connect STUTPRXWLA Receiver unit DE-15 VGA female connector 4. with a DE-15 VGA male to male cable to the monitor/display.

Connect the power adapter on each unit.5.

Turn on the monitor and PC.6.

Wiring Information and Coding

Conductor RJ45 Pin	Conductor Colour Code
Pair 1	5 White-Blue
	4 Blue
Pair 2	1 White-Orange
	2 Orange
Pair 3	3 White-Green
	6 Green
Pair 4	7 White-Brown
	8 Brown

Distances and Resolutions

CAT5/CAT5e	50m 1920x1200
	100m 1600x1200
	180m 1280x1024
	200m 1024x768
	300m 800x600
CAT6	30m 1920x1440
	50m 1280x1024
	100m 800x600

Adapter Output Polarity

Pin Output Level	Conductor Colour
1 +12V Black-White
2 RTN (-) Black

Specifications

Video Connector	15-pin VGA (DE-15)
Audio Connector	3.5mm stereo Mini-Jack
Rear Connectors	RJ45Terminal Block
Maximum Resolution	1920x1200@60Hz (at 50 m)
Maximum Distance	300 meters (at 800x600)
Power Adapter Output	12VDC, 600mA
Material	Metal
Color	White
Weight	136 g (transmitter)136 g (receiver)
Dimensions	105.0 mm x 42.0 mm x 38.0 mm

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
