USER MANUAL UBR223 UNIDEN

Portable Digital Wireless Baby Monitor UBR223 User's Guide

Illustration of two connected devices: a beige Uniden device with antenna and control panel, and a digital device with display and control buttons (no text or symbols on main body)

Customer Care

At Uniden ^® , we care about you!

If you need assistance, please do NOT return this product to your place of purchase. Our customer care specialists are available to serve you.

Quickly find answers to your questions by:

1. Reading this owner's manual.
2. Visiting our customer support website at www.uniden.com.
3. Calling our customer care specialists at 1-800-297-1023.

ImPortaNt saFetY PreCautIoNs

This manual contains important information about this product's operation. If you are installing this product for others, you must leave this manual or a copy with the end user.

When using your equipment, always follow basic safety precautions to reduce the risk of fire, electric shock and injury to persons, including the following:

• The camera is NOT weatherproof. It is an indoor camera
- To avoid any risk of electric shock from lightning, avoid handling any electronic devices (except battery-powered ones) during an electrical storm.
- Use only the power cord indicated in this manual.
- Never tug or pull on any power cord; be sure to leave some slack in the cord when placing your equipment, and always use the plug to unplug cord from the wall outlet.
- Never leave power cords where they can become crushed, cut, or frayed; when running power cords, avoid letting them rub against any sharp edges or lie across any high traffic areas where people might trip over them.
- Do not use the device if the adapter cords or plugs have been damaged, the monitor has been exposed to liquids, or the monitor/camera has been dropped or is damaged.

Four circular icons with different symbols: no prohibition, water droplet, book cover, and sun (no text or labels)

WarNING to PareNts aND otHer users

Failure to follow these warnings and the assembly instructions could result in serious injury or death. This product is not designed or intended for use as a medical monitor, nor should this product be used as a substitution for medical or parental supervision. Always be sure that both the transmitter and receiver are working properly, and are within range of each other.

• STRANGULATION HAZARD. Keep the adapter cords out of the reach of children.
- WARNING: KEEP OUT OF THE REACH OF CHILDREN. This product is not a toy and is not intended for use by any children under the age of 13. If you are between the ages of 13 and 18, review these terms, conditions and safety warnings with your parents or guardian to make sure that you and your parent or guardian understand these terms, conditions, and safety warnings.
- Allow for proper ventilation when units are in use. Do not cover the camera or receiver with any object such as a blanket. Do not place it in a drawer or in any location which would muffle the sound or interfere with the normal flow of air.

SAVE THESE INSTRUCTIONS!

FOR BEST RESULTS

To avoid damage to your equipment, follow these simple precautions:

• Do not drop, puncture or disassemble any part of the equipment. There are no user-serviceable parts inside.
• Do not expose the equipment to high temperatures, and avoid leaving the equipment in direct sunlight for more than a few minutes. Heat can damage the case or electrical parts.
• Do not place heavy items on top of the equipment or expose the equipment to heavy pressure.
• Remove the power adapter during long periods between usages.
  • Clean only with a dry cloth.

Failure to follow the instructions in this operating manual will void the warranty. Uniden assumes no liability for damages to property or injury to persons caused by improper handling or failure to comply with these safety instructions.

CONTENTS

OVERVIEW ....5

FEATURES 5

Camera 5

Monitor 6

USING THE MANUAL 6

GETTING STARTED 8

WHAT'S INCLUDED 8

MONITOR INSTALLATION 8

CAMERA INSTALLATION 9

Placement Considerations 9

Wall Mount ....10

Suction Mount ....10

Clip-Mount ....10

Connect Power 10

BASIC OPERATION 12

WIRELESS CAMERA 12

WIRELESS MONITOR 14

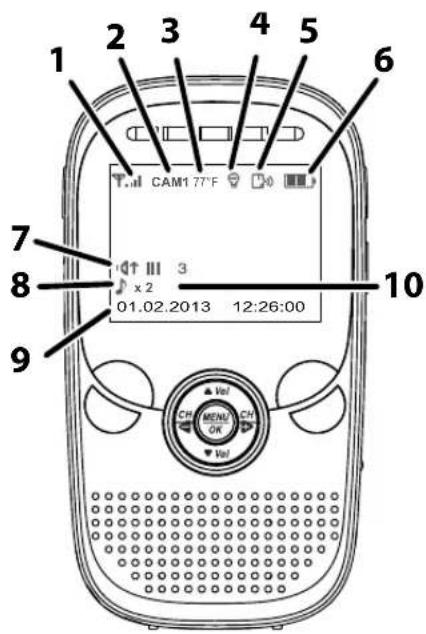

LCD DISPLAY 16

USING THE UBR223 18

Viewing Modes 18

Common Operations 19

SYSTEM MENU DESCRIPTIONS ...... 20

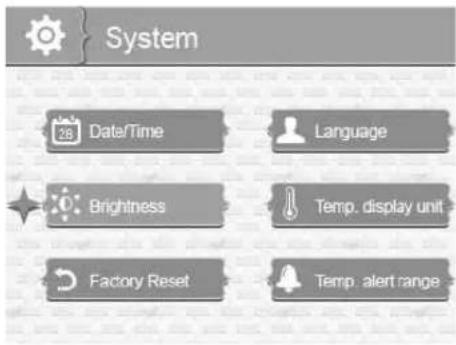

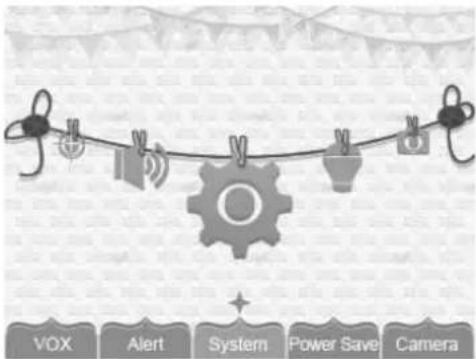

SYSTEM 20

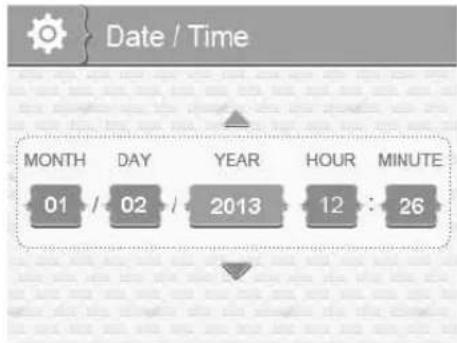

Date/Time 21

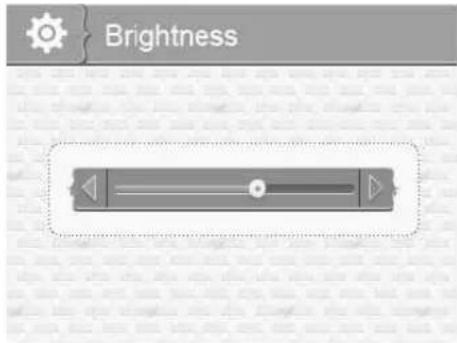

Brightness 22

Factory Reset 22

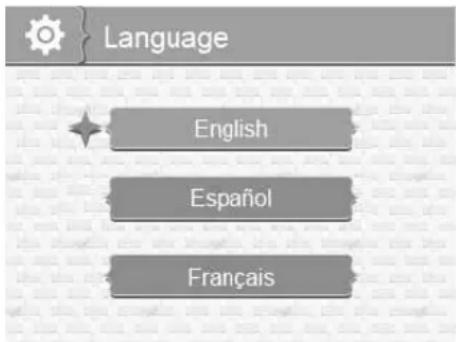

Language 23

Temperature Display Unit 23

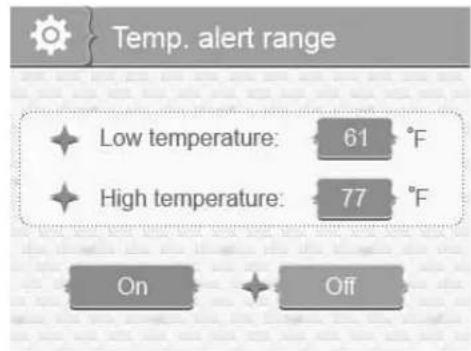

Temperature Alert Range 24

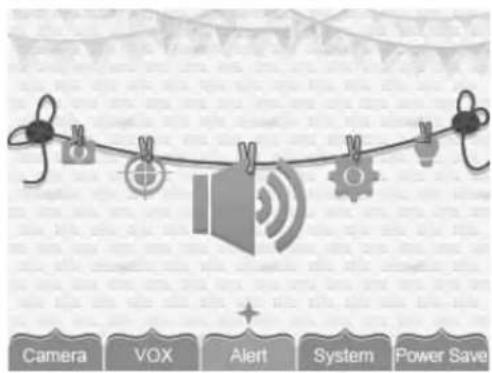

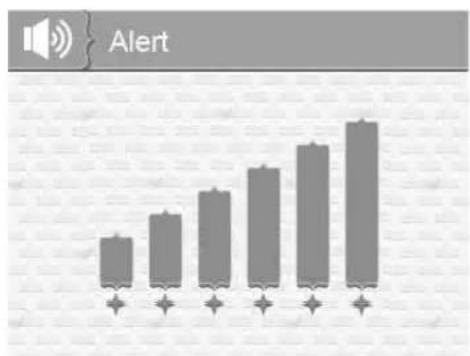

ALERT 25

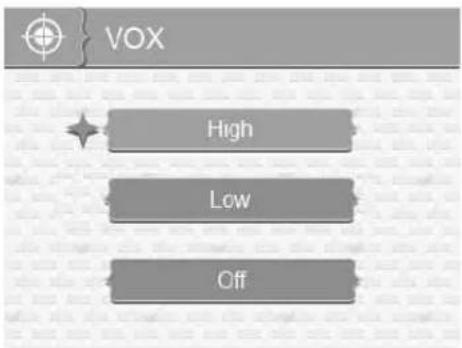

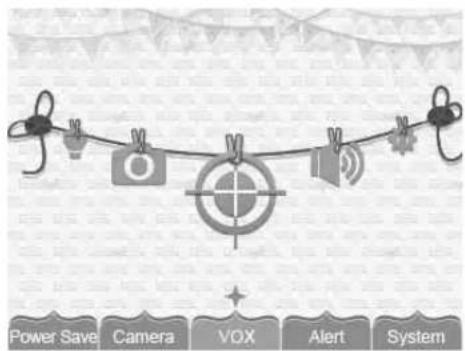

VOX 26

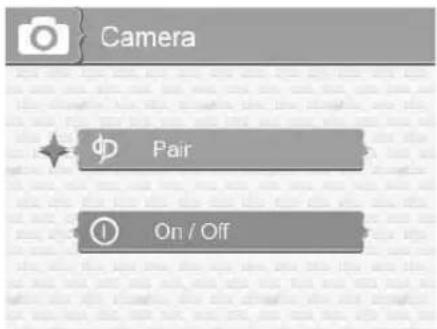

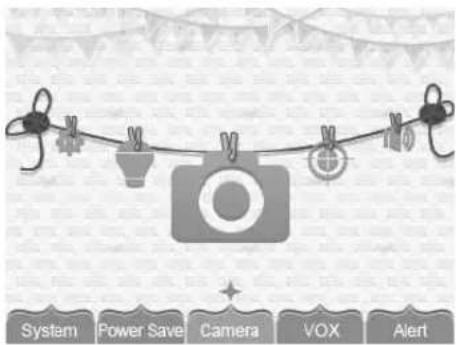

CAMERA 27

Pair 27

On/Off 28

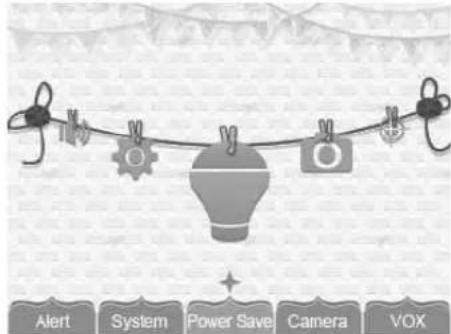

POWER SAVE 29

SPECIAL FEATURES ...... 31

ZOOM 31

NIGHT LIGHT 31

LULLABIES 31

USING THE INTERCOM 32

CAMERA PAIRING 32

MAINTAINING YOUR SYSTEM 33

MONITOR 33

CAMERA 33

SOLVING PROBLEMS 34

SPECIFICATIONS 35

GENERAL 35

CAMERA 35

MONITOR 36

FCC Notices 36

FCC Compliance Information 36

RF Exposure Information ....37

IC Compliance Information 37

Radio Equipment Notice 37

Three-Year Limited Warranty 37

Uniden surveillance products are not manufactured and/or sold with the intent to be used for illegal purposes. Uniden expects consumer's use of these products to be in compliance with all local, state and federal law. For further information on video surveillance and audio recording legal requirements, please consult your local, state and federal law enforcement agency.

© 2013. All rights allowed by law are hereby reserved.

OVERVIEW

FEATURES

• Digital wireless technology provides excellent image quality and clarity

• Interference free, secure, and private signal
- Up to 500 ft. transmission range

Maximum open space transmission range. The actual range varies depending on building materials and other obstructions in wireless signal path.

• Exceptional sound clarity
• Out of range notification
• Four lullaby selections
• Monitor/Camera-controlled night light
• System expandable up to 4 cameras (one camera included; additional cameras sold separately)
- Two-way audio communication
- Camera room temperature display on monitor; temperature range alert

Camera

• VGA resolution camera
• Built-in microphone
- Night light control
- Lullaby control
• Built-in battery for true portable wireless operation
• Night vision allows for low light viewing up to 15 feet / 4.5 meters

IR illumination range of 15ft./4.5m under ideal conditions. Objects at or beyond this range may be partially or completely obscured, depending on the camera application.

Monitor

• 2.3" color LCD monitor with superior image quality
- Rechargeable lithium polymer battery for true portability
• Audio level indicator
- Intercom
• Room temperature display
- Remote night light control
- Remote lullaby control

If any items are missing or damaged, contact our Customer Care Line immediately. Never use damaged products!

USING THE MANUAL

This manual is set up in eight sections:

• Overview. This general section lists the system's features. It also tells you how to use this manual.
  • Getting Started. This section lists the hardware you should have in your box and how to set it up.
• Basic Operations. This section describes your equipment's function keys in detail. It also provides a list of basic operations in an abbreviated format, referencing screen details in the next section.
• Uniden UBR223 Screen Descriptions. Here you will find detailed descriptions of each screen and how it is used.

• Special Features. This section tells you about the UBR223 special features.

• Maintaining Your System. This section provides tips on how to keep your UBR223 hardware clean and in excellent working condition.

• Solving Problems. Troubleshooting tips are located here.
• Specification. This last section contains hardware and software specifications.

Getting started

WHAT's INCLuDeD

The system comes with the following components:

Digital Wireless Monitor (1) Digital Wireless Camera (1) Suction Cup Adapter Bar (1)

AC Power Adapter (2) Screws and Anchors Owner's Manual

If any items are missing or damaged, contact our Customer Care Line immediately. Never use damaged products!

moNitor INstaLLatIoN

1. Place the monitor in a location with clear reception from your camera(s). Place it a minimum of 3 feet from the crib.

2. Plug the AC adapter power plug into the monitor's DC adapter input jack.

3. Plug the power plug into a 120 volt AC (standard indoor) power outlet or surge protector.

4. Press and hold POWER to turn the unit on or off. Let the monitor charge for 6 hours prior to first time use so the built-in rechargeable monitor battery is fully charged. DO NOT remove the power cable from the monitor during the initial charge process. After the initial charge, recharge the monitor as needed.
5. Out of range displays until you turn on the camera, .

CAMERA INSTALLATION

The UBR223 camera and mounting clip are a complete unit. The UBR223 does come with a separate suction cup bar. With it installed, you can mount the camera on glass or smooth metallic surfaces.

Placement Considerations

• The camera included with your monitor is NOT weatherproof; it is an indoor camera.
• The clearest line-of-sight between the camera and monitor is best. Walls, especially brick and concrete, can affect reception quality.
• Avoid having a direct light source in view of the camera (ceiling or floor lamps).
• Carefully plan where and how the camera will be positioned, and where you will route the cable that connects the camera to the power adapter. Place it a minimum of 3 feet from the crib.
• When you are positioning the camera, bring the monitor along; it's much easier to get the camera into the right position when you have the display handy. Check the image on the monitor before you install the camera.
• Out of range displays when the camera is out of range, turned off, or unsuccessfully paired to the monitor. It also displays when the monitor is out of range.

You can install additional cameras (maximum of 4 cameras). When adding cameras that were not included in the original box, you will need to pair the cameras with the monitor. Refer to page 29.

Wall mount

The UBR223 camera mounting clip has two slots that fit over screws to mount the unit on the wall.

1. Mark the position of the screw holes on the wall.
2. Drill holes and insert the anchors and screws provided. Be sure to leave room for the mounting to fit over the screw heads.
3. Place the mounting over the installed screws and push it downwards, locking it into place.
4. Adjust the camera as needed.

suction mount

1. Insert the suction base into the mounting clip as shown.
2. Firmly press the camera with the suction base attached onto glass or metallic surfaces.
3. Adjust the camera as needed.

Clip-mount

Clip the UBR223 on ledges and shelves.

1. Press the mounting clip as shown.
2. Place the unit over the mounting surface and release.
3. Adjust the camera as needed.

Connect Power

1. Insert the AC adapter power plug into the camera's DC adapter input jack.
2. Plug the other end into a 120 volt AC (standard indoor) power outlet or surge protector. The charging LED turns on. If the battery is not fully charged, the LED is red. If it is fully charged, the LED is green.
3. Press Power. The green power LED turns on and the monitor now displays camera video. If it doesn't, try reconnecting the AC adapter, making sure the power outlet isn't controlled by a wall switch.

S. WALL

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

BASIC OPERATION

WIRELESS CAMERA

Left side 1 2 3 4 5 6 7 8 9 Front 10 11 12 13 14 15 16 17 18 19 20 Right side NOTE: The RESET button is on the back.

Item What it is
1	Camera Antenna: Sends and receives signals to or from the monitor.
2	Temperature sensor: Detects temperature at camera side and displays it on the monitor LCD.
3	PAIR: Pairs the camera to the monitor.
4	Mounting Clip: This fastener can attach the camera to shelves or ledges.
5	Suction base: Attach to mount the camera on glass or metallic surfaces.
6	▲Vol: Increase speaker volume.
7	▼Vol: Decrease speaker volume.
8	LULLABY PLAY/STOP: Press this button to play lullabies. See page 28 for details.
9	LULLABY SKIP: Press to play next lullaby. See page 28 for details.
10	LED night light bars.
11	IR LEDs (Covered): Infrared LEDs provide viewing in no/low light conditions.
Item	What it is
12	Light sensor: Measures light intensity on the camera side.
13	Lens: Camera lens.
14	Microphone: Receives sounds for the area near the camera, and transmits sound from the camera to the monitor.
15	Speaker: Produces the sound transmitted from the monitor.
16	PoWer : Turns the camera ON or OFF.
17	NIGHT LIGHT : Press to turn the night light ON or OFF.
18	Charging LED:Red = ChargingGreen = Fully chargedOff = Camera and power adapter are disconnected or power adapter is disconnected from power source.
19	Power LED:Green = Camera is turned on.Green (Blinking) = Battery is low.
20	DC 5V Power: Connects the DC 5V power adapter to the camera.

WIRELESS MONITOR

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 UNiden TALE DALE NOTE: The RESET button is on the back behind the kickstand.

Item What it is
1	Monitor Antenna: Sends & receives signals to or from the camera.
2	LED light bar. The left LED indicates power and the remaining LEDs indicate sound.
3	POWER: Turns the camera on and off.
4	2.3 inch LCD screen.
5	▲Vol:Increase speaker volume.In Menus: Scroll up.In Lullaby: Increase volume.In Zoom: Scroll up.
6	ZOOM: Displays the camera image in double size (see page 28).
7	LULLABY PLAY/STOP: Press this button to remotely play lullabies. See page 28 for details.
8	CH◄:In Menus: Scroll left.In Zoom: Scroll left.In Live view: Switch between available cameras.
9	Microphone.
10	▼Vol:Decrease speaker volume.In Menus: Scroll down.In Lullaby: decrease volume.In Zoom: Scroll down.
11	MENU/OK: Select a menu option or accept a setting.
12	TALK: Activate Intercom function (see page 29).
13	BACK: In Menus: Back one level.
14	CH►:In Menus: Scroll right.In Zoom: Scroll right.In Live view: Switch between available cameras.
15	NIGHT LIGHT: Remotely turn the camera night light ON or OFF.The monitor's night light function is only available when the camera is paired to the monitor.
16	LULLABY SKIP: Skips to the next lullaby in the series. See page 28 for details.
17	Charge LEDRED = ChargingGreen = Charging completeIf the monitor becomes unplugged from the adapter, this LED turns off.
18	DC 5V Power: Connects the DC 5V power adapter to the monitor.

LCD DIsPLaY

1 2 3 4 5 6 CAM1 77°F 7 8 9 01.02.2013 12:26:00 10

Item Icon What it is
1		Signal Indicator (displays in full screen mode only). The number of bars in the signal indicator shows the strength of the signal received from the camera. One or no bars indicates the signal is poor, and 4 bars indicate a very strong signal.
		Signal Strength Indicator Warning
		Strong	Y..II	None
		Good	Y..II	None
		Fair	Y..I	None
		Low	Y..	None
		No Signal	Y	Out of Range
2	CAM1	Camera Indicator. indicates which camera is displaying. Press CH► or CH◄ on the monitor to switch between available cameras. It will cycle in the following order:CH► : CAM1—CAM2—CAM3—CAM4—QUAD—AUTO SCAN — CAM1CH◄ : CAM1—Auto SCAN—QUAD—CAM4—CAM3—CAM2—CAM1
3	77°F	Temperature indicator (displays in full screen mode only). Displays the temperature on the camera side.
4		Night light indicator (displays in full screen mode only). Displays when the night light is turned on. (See page 28)
5		Intercom (Talk). Displays in full screen mode only when you press and hold TALK on the monitor (see page 29).
6		Battery level. Indicates the amount of power left in the battery. The [IMAGE]on displays when the battery is charging.
7		Volume indicator. Displays when ▲ Vol or ▼ Vol is pressed on the monitor. If the volume is muted, [IMAGE] displays.
8		Lullaby. Displays in full screen mode only when a lullaby is playing. The number indicates which melody is playing (see page 28).
9		Date and Time (displays in full screen mode only). Displays the time as set through the monitor.01.02.2013 12:26:00 = month.day.year hour:minute:second
10		ZOOM indicator. If you press ZOOM, X2 displays after the Lullaby indicator (item 8). The zoomed image displays as the background image.

USING THE UBR223

Viewing Modes

Live view displays live images from the cameras in the following modes:

• Quad mode: Monitor displays video from all cameras on a single screen in 4 quadrants. Any channel that does not have a camera is blank.
• Single mode: Monitor displays video from one camera at a time.
• Scan mode: Monitor displays video from one camera at a time, but cycles through all cameras one by one.

Use CH▶ or CH◀ to cycle through these modes.

Your system comes with a single camera; therefore, it only displays in Single mode in Live view or a single quadrant in Quad view.

Common Operations

To... Do This...
Change between quad view, single view, and scan for Live view	Press CH▶ to cycle through the Live modes in the following order: CAM1—CAM2—CAM3—CAM4—QUAD—AUTO Scan — CAM1
Check the temperature The	temperature displays on the monitor screen when the camera is in full screen mode. See page 21.
Turn on the night light Press	NIGHT LIGHT on the side of the camera (page 11) or on the monitor (page 13). See page 28 for details.
Set the date and time See page 19.
Set the room temperature range for the temperature alert	See page 22.
Use the Lullaby function See page 28.
Adjust UBR223 volume	Press ▲Vol (increase volume) or ▼Vol (decrease volume) on either the camera or the monitor.
Use the Intercom 1. Press and hold TALK on the monitor.

SYSTEM MENU DESCRIPTIONS

Press MENU/OK to access system menus. Use the navigating buttons to navigate up (▲Vol), down (▼Vol), left (CH◀), and right (CH▶) in the menus, then press MENU/OK to confirm a setting. Use CH▶ or CH◀ to focus on the 5 different system menu selections on the clothesline.

• System
• Power Save
• Camera
  • VOX
• Alert

SYSTEM

VOX Alert System Power Save Camera

Move the focus to the System option and press MENU/OK to access the six System options:

• Date/Time
• Brightness
• Factory Reset
• Language
• Temp. display unit

- Temp. alert range

System Date/Time Language Brightness Temp. display unit Factory Reset Temp. alert range

Date/Time

This option allows you to set the system date and time. The display format is Month.Day.Year Hour:Minute (Default = 01.02.2013 12:26)

1. From the System menu, select Date/Time and press MENU/OK. The Date/Time screen displays.

1. Press ▲Vol or ▼Vol to increase/decrease the number for that setting.
2. Press CH▶ or CH◀ to save the current setting and move to the next setting.
3. Press MENU/OK to save the completed date and time setting and return to the main System options. Press the BACK button to step backwards one level until you are out of the menu system.

Brightness

This option allows you to adjust the brightness level for each camera. (Default = 3)

1. From the System menu, select Brightness and press MENU/OK. The Brightness screen displays.

Brightness

1. Press CH▶ or CH◀ to increase or decrease the brightness level (6 levels).
2. Press MENU/OK to save the setting and return to the main System options. The new brightness level displays the next time you are in Live view.

Factory Reset

This option allows you to restore your system to factory settings. (Default = No)

1. From the System menu, select Factory Reset and press MENU/OK. The Factory Reset screen displays.

Factory Reset Reset to Factory Defaults? No Yes

1. Press ▲Vol or ▼Vol to select or cancel a reset to factory defaults.

2. Press MENU/OK to save the setting and return to the main System options.

Camera pairing settings and Date/Time setting will NOT be affected by a reset. Cameras will remain paired with the monitor.

Language

This option allows you to select the system's display language from English, Español, or Français. (Default = English)

1. From the System menu, select Language and press MENU/OK. The Language screen displays.

Language English Español Français

1. Press ▲Vol or ▼Vol to select a language.
2. Press MENU/OK to save the setting and return to the main System options.

Temperature Display Unit

This option allows you to set the temperature to display in Celsius (C) or Farenheit (F). (Default = F)

1. From the System menu, select Temp. display unit and press MENU/OK. The Temp. display unit screen displays.

Temp. display unit °C °F

1. Press ▲Vol or ▼Vol to select °C or °F.
2. Press MENU/OK to save the setting and return to the main System options.

Temperature Alert Range

Your UBR223 measures the ambient room temperature where the camera is. If the temperature falls outside of a preset range, the system alerts you. Temp. alert range lets you set that range. [Default = Low Temperature: 61°F; High Temperature; 77°F; Off]

1. From the System menu, select Temp. alert range and press MENU/OK. The Temp. alert range screen displays.

Temp. alert range Low temperature: 61 °F High temperature: 77 °F On Off

1. Press CH▶ or CH◀ to select Low temperature or High temperature.
2. Press ▲Vol or ▼Vol to increase or decrease the temperature value.

3. After setting the temperature range, press CH▶ or CH◀ to select the On/Off row.

4. Press CH▶ or CH◀ to toggle between On (Enable) or Off (disable). Either button will work.

5. Press meNu/oK to save the settings and return to the main System options.

aLert

Temperatures out of range or a camera out of range triggers alerts. This option allows you to set the alert volume. There are 6 levels available. [Default = Zero (Mute)]

Camera VOX Alert System Power Save

1. From the main menu selections, select Alert and press meNu/oK. The Alert screen displays.

Alert

1. Press CH▶ or CH◀ to adjust the volume.
2. Press meNu/oK to save the selection and return to the main menu selections.

VOX

This option allows you to set the sound sensitivity for the camera. (Default = High)

Power Save Camera VOX Alert System

1. From the main menu selections, select VOX and press MENU/OK. The VOX sensitivity screen displays.

VOX High Low Off

1. Press ▲Vol or ▼Vol to select a level (High, Low, or Off).
2. Press MENU/OK to save the selection and return to the main menu selections.

CAMERA

This option allows you to pair the monitor with cameras (up to 4 cameras supported) or to turn on/off an individual camera. The cameras are still powered on but no longer visible to the monitor.

System Power Save Camera VOX Alert

1. From the main menu selections, select Camera and press MENU/OK.
2. The Camera options screen displays. Two options display: Pair and On/Off.

Camera φ Pair ① On / Off

Pair

Pairing allows you to introduce additional cameras to the monitor. The monitor can then recognize and display video from them. The camera that comes with this system is already paired.

Before pairing additional cameras, be sure they are powered and turned on. See page 10.

1. Select Pair from the Camera options screen. The camera selection screen displays.

Pair Camera 1 Camera 2 Camera 3 Camera 4

1. Press ▲Vol or ▼Vol to select the camera you want to pair, then press MENU/OK. The monitor prompts you to press PAIR on the back of the camera within 30 seconds.

2. Press PAIR on the back of the camera within 30 seconds.

3. That camera's video displays on the monitor when pairing is successful.

Pair the cameras to the monitor before mounting them.

PAIR

On/Off

This option allows you to turn individual cameras on/off so their video is not visible through the monitor. (Default = Camera 1 - On; Cameras 2 - 4 - Off)

1. Select On/Off from the Camera options screen. The On/Off screen displays.

On / Off Camera 1 Camera 2 Camera 3 Camera 4 On Off Off Off

1. Press ▲Vol or ▼Vol to select a camera.

2. Press CH▶ orCH◀ to toggle between On and Off for that camera. Either button will work.

3. Press ▲Vol or ▼Vol to select another camera.

4. Press MENU/OK to accept that setting and return to the Camera options screen.

POWER SAVE

Activating the Power Save feature turns off the LCD after two minutes of inactivity. This option allows you to enable or disable this function. (Default = Off)

Voice Activation (VOX) will turn the LCD back on. Be sure that VOX is activated, however (see page 24). If VOX is deactivated, press any button on the monitor to turn the LCD back on. Even with the LCD off, the LED light bar is still active.

Alert System Power Save Camera VOX

1. From the main menu selections, select Power Save and press MENU/OK. The Power Save screen displays.

Power Save ⚠ Turn Off LCD After 2 minutes of inactivity I On Off

1. Press ▲Vol or ▼Vol to toggle between turning the Power Save feature on or off.
2. Press MENU/OK to accept that setting and return to the main menu selections.

SPECIAL FEATURES

ZOOM

ZOOM displays the camera image in double size. Press ▲Vol, ▼Vol, CH▶, or CH◀ to see the parts of the image not displayed on the LCD screen. Press ZOOM again to return to normal view.

NIGHT LIGHT

You can control the UBR223 night light using the NIGHT LIGHT button on the right side of either the monitor or the camera. However, if you want to control it from the monitor, you must place that camera in full screen mode.

1. To turn the night light on from the monitor, place the night light camera in full screen mode.
2. Press NIGHT LIGHT on the side of the monitor or the camera. The camera's night light turns on and a night light icon displays on the monitor.
3. Press NIGHT LIGHT again to turn it off.

LULLABIES

Your system comes with four preprogrammed lullabies. You can control the lullabies from either the monitor or the camera. However, if you want to control them from the monitor, the camera you want to play them through must be in full screen mode.

When you press LULLABY PLAY/STOP to turn on the lullaby feature, Lullaby #1 begins playing. It will repeat until you press LULLABY SKIP to move to the next lullaby.

The Lullaby feature can also play all lullabies one after the other. Press LULLABY PLAY/STOP to turn on the Lullaby system and begin playing Lullaby #1. Press LULLABY SKIP four (4) times after Lullaby #1 begins playing. Lullaby #1 restarts and then cycles through the rest of the lullabies.

1. To control the lullabies from the monitor, decide which camera you want to play lullabies and make it the full screen live view camera.
2. Press LULLABY PLAY/STOP on the monitor or camera. The system plays Lullaby #1 then repeats it.

3. Press LULLABY SKIP to skip to Lullaby #2. The system plays Lullaby #2 then repeats it.

4. Press LULLABY SKIP to skip to Lullaby #3. The system plays Lullaby #3 then repeats it.

5. Press LULLABY SKIP to skip to Lullaby #4. The system plays Lullaby #4 then repeats it.
6. Press LULLABY SKIP to skip to Lullaby #1. The system plays Lullaby #1 then cycles through all lullabies.
7. Press ▲Vol and ▼Vol on the monitor or camera to adjust the volume. Press ▼Vol all the way down on the monitor to mute the lullaby playing through the monitor.

USING THE INTERCOM

The Intercom feature lets you talk to whomever is within camera range.

1. Decide which camera you want to establish an intercom link with, and make it the full screen live view camera.
2. Press and hold TALK the monitor.
3. Speak clearly into the microphone.
4. Release TALK to listen to the response.

CAMERA PAIRING

The system comes with one camera that has already been paired. It will communicate with the monitor when it is powered on.

The pairing function lets you add up to 3 additional cameras to your system. It also lets you re-pair your first camera if needed.

Pair the cameras to the monitor before mounting the cameras.

1. Verify that the monitor is powered on (see page 10).
2. Install and power on the accessory cameras according to the procedures beginning on page 8.
3. Pair the accessory cameras according to the procedures on page 25.
4. Once the camera has been paired, it will be immediately viewable on the monitor.

malNtaINING Your sYstem

moNltor

As you use your monitor, keep the screen clean by wiping it with a microfiber cloth to remove fingerprints, dust, etc.

Camera

When dust and grime builds up on the camera lens and glass, it affects the camera's "vision." Use a microfiber cloth to regularly clean the camera(s) or when night vision video is cloudy or unclear.

soLVING ProBLEms

If you have problems with the system, there is often a quick and simple solution. Please try the following:

If Try
There is no picture from the camera	·checking all connections to the camera. Make sure the adapter is plugged in.·making sure that the cameras and monitor are both ON.·making sure that the camera is in range of the monitor.
The picture is dropping ·moving the	camera closer to the monitor.·repositioning the camera, monitor or both to improve the reception.·adjusting the monitor and camera antennas to vertical position.
There are audio problems ·making	sure that there is sound within range of the camera microphone.·moving the camera or monitor farther apart if the unit emits a loud screeching noise (feedback).
The picture has become choppy The	picture may become choppy when experiencing a lower frame rate. Try:·moving the camera closer to the monitor.·removing obstructions between the monitor and camera.·adjusting the monitor and camera antennas to vertical position.
The monitor picture has frozen Use	a blunt object like an unbent paper clip to press RESET and reset the monitor. The monitor turns off. Press POWER to turn it back on again.
There is an irregular beeping coming from the monitor	That is the Alert tone. Go to the Alert screen to turn the alert volume down or off (see page 23).

sPeCIFICatioNs

GeNeraL

	Camera Monitor
Operating Frequency Range 2.400 ~ 2.4835GHz
TX Power 15dBm NA
RX Sensitivity NA -81dBm
Type of Spread Spectrum Used FHSS
Type of Modulation Used GFSK
Communication Range 500ft. Line of Sight

Camera

Image Sensor Type

Manufacturer/ Model # 1/6.5" Color CMOS Image sensor

Effective Pixel 640 x 480
Image Processing MJPEG
Lens 3.0mm / F2.8
Exposure Auto
White Balance	Auto
Power Requirement	5.0VDC +/-5%
Power Consumption	150mA Max (IR OFF)730mA Max (IR ON)440mA Max (Charging)
Operating Temperature Range	14°F ~ 104°F (-10°C ~ 40°C)
Operating Humidity Range	Within 80% RH
RoHS Compliance	Yes
Housing Material	Plastic

MONITOR

Display Size/Type 2.3” TFT LCD
Resolution 320 x 240
Power Requirement 5.0VDC +/-5%
Power Consumption	260mA Max (Normal)740mA Max (Charging)
Operating Temperature Range 14°F ~ 104°F (-10°C ~ 40°C)
Operating Humidity Range Within 85% RH
RoHS Compliance	Yes
Battery Life 4.5 hours
Housing Material Plastic

FCC Notices

FCC Compliance Information

Part 15 Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communication may not be ensured when using this device.

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules and ETSI (EN) 300328. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Move the equipment away from the monitor.
- Plug the equipment into an outlet on a circuit different from that to which the monitor is connected.
- Consult the dealer or an experienced radio/television technician for additional suggestions.

CAUTION! Any changes or modifications to this equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

RF Exposure Information

The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm (7.9") from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.

IC Compliance Information

Radio Equipment Notice

The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Privacy of communications may not be ensured when using this device.

Three-Year Limited Warranty

Important: Evidence of original purchase is required for warranty service.

WARRANTOR: UNIDEN AMERICA CORPORATION ("Uniden") ELEMENTS OF WARRANTY: Uniden warrants, for three years, to the original retail owner, this Uniden Product to be free from defects in materials & craftsmanship with only the limitations or exclusions set out below.

WARRANTY DURATION: This warranty to the original user shall terminate & be of no further effect 36 months after the date of original retail sale. The warranty is invalid if the Product is (A) damaged or not maintained as reasonable or necessary, (B) modified, altered, or used as part of any conversion kits, subassemblies, or any configurations not sold by Uniden, (C) improperly installed, (D) serviced or repaired by someone other than an authorized Uniden service center for a defect or malfunction covered by this warranty, (E) used in any conjunction with equipment or parts or as part of any system not manufactured by Uniden, or (F) installed or programmed by anyone other than as detailed by the owner's manual for this product.

STATEMENT OF REMEDY: In the event that the product does not conform to this warranty at any time while this warranty is in effect, warrantor will either, at its option, repair or replace the defective unit & return it to you without charge for parts, service, or any other cost (except shipping & handling) incurred by warrantor or its representatives in connection with the performance of this warranty. Warrantor, at its option, may replace the unit with a new or refurbished unit.

THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE & ENTIRE WARRANTY PERTAINING TO THE PRODUCT & IS IN LIEU OF & EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow this exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you.

LEGAL REMEDIES: This warranty gives you specific legal rights, & you may also have other rights which vary from state to state. This warranty is void outside the United States of America & Canada.

PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after following the instructions in the owner's manual you are certain that the Product is defective, pack the Product carefully (preferably in its original packaging). Disconnect the battery from the Product & separately secure the battery in its own separate packaging within the shipping carton. The Product should include all

parts & accessories originally packaged with the Product. Include evidence of original purchase & a note describing the defect that has caused you to return it. The Product should be shipped freight prepaid, by traceable means, to warrantor at:

Uniden America Service

743 Henrietta Creek Rd.

Roanoke, TX 76262

[phone], 8 a.m. to 5 p.m., Central, Monday through Friday
