Steering Wheel Handsfree Phone Kit - Car hands-free kit WAGAN - Free user manual and instructions

Type de produit	Car Hands-Free Kit
Marque	WAGAN
Modèle	Steering Wheel Handsfree Phone Kit
Dimensions	5.5 x 1.5 x 0.8 inches
Poids	3.2 oz
Alimentation	12V DC car cigarette lighter adapter
Connectivité	Bluetooth 2.1+EDR
Autonomie de la batterie	Up to 8 hours talk time
Fonctions principales	Bluetooth hands-free calling, noise cancellation, voice control, volume adjustment
Montage	Steering wheel clip, adjustable angle
Compatibilité	Most Bluetooth-enabled smartphones
Entretien et nettoyage	Wipe with dry cloth; avoid moisture
Sécurité	Use hands-free functions only when safe; comply with local driving laws
Pièces détachées	Replacement battery, clip, and speaker available
Informations générales	Easy installation, no tools required

Frequently Asked Questions - Steering Wheel Handsfree Phone Kit WAGAN

How do I pair my phone with the WAGAN Steering Wheel Handsfree Kit?

Turn on the kit and enable Bluetooth on your phone. Search for 'WAGAN' in the Bluetooth settings and select it. The kit will confirm pairing with a beep.

Can I use this kit with any smartphone?

Yes, it works with most Bluetooth-enabled smartphones, including iOS and Android devices.

How is the kit powered?

It is powered via a 12V car cigarette lighter adapter. The kit does not require batteries.

Does the kit have noise cancellation?

Yes, the kit features noise cancellation technology to reduce background noise during calls.

How do I adjust the volume?

Use the volume buttons on the kit to increase or decrease the call volume.

Can I mount the kit on any steering wheel?

The kit comes with an adjustable clip that fits most steering wheels, including those with thick rims.

How do I answer or end a call?

Press the call button on the kit to answer or end a call. You can also use voice commands if supported by your phone.

What should I do if the kit does not charge?

Check the cigarette lighter socket and the adapter connection. If the problem persists, try a different 12V outlet.

Is the kit safe to use while driving?

Yes, it is designed for hands-free use, but always keep your eyes on the road and comply with local driving laws.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com. Search for 'WAGAN Steering Wheel Handsfree Phone Kit'.

USER MANUAL Steering Wheel Handsfree Phone Kit WAGAN

Steering Wheel Handsfree Phone Kit

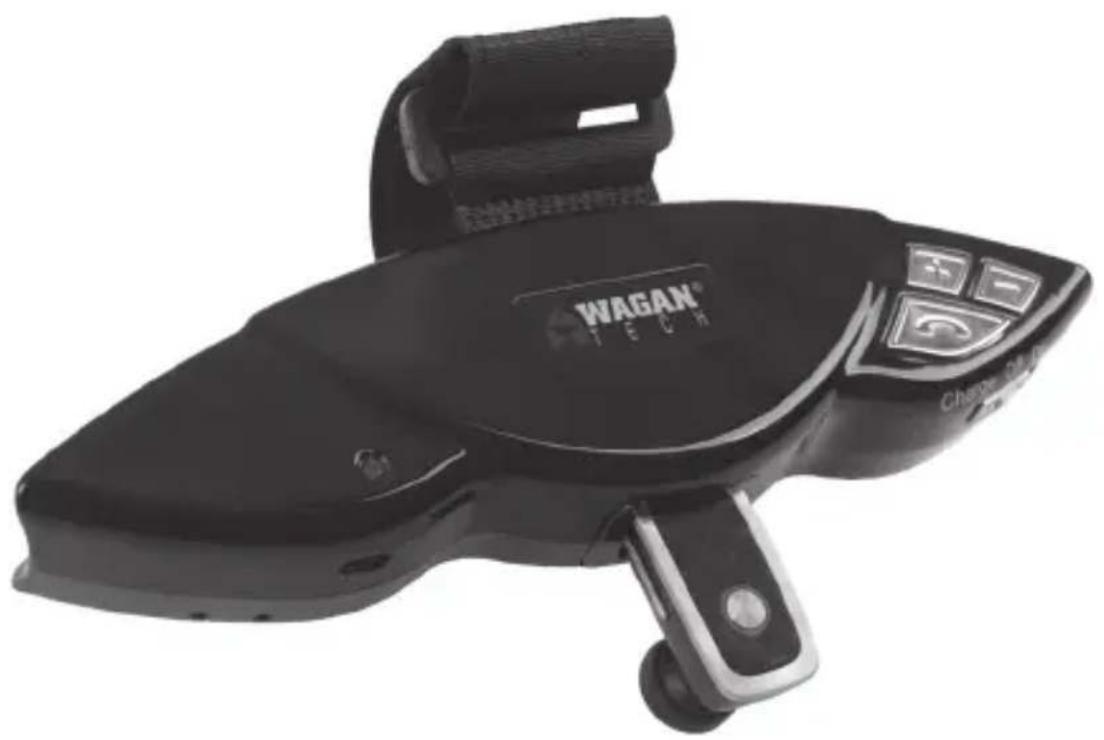

Black WAGAN brand light device with control panel and buttons (no visible text or symbols on body)

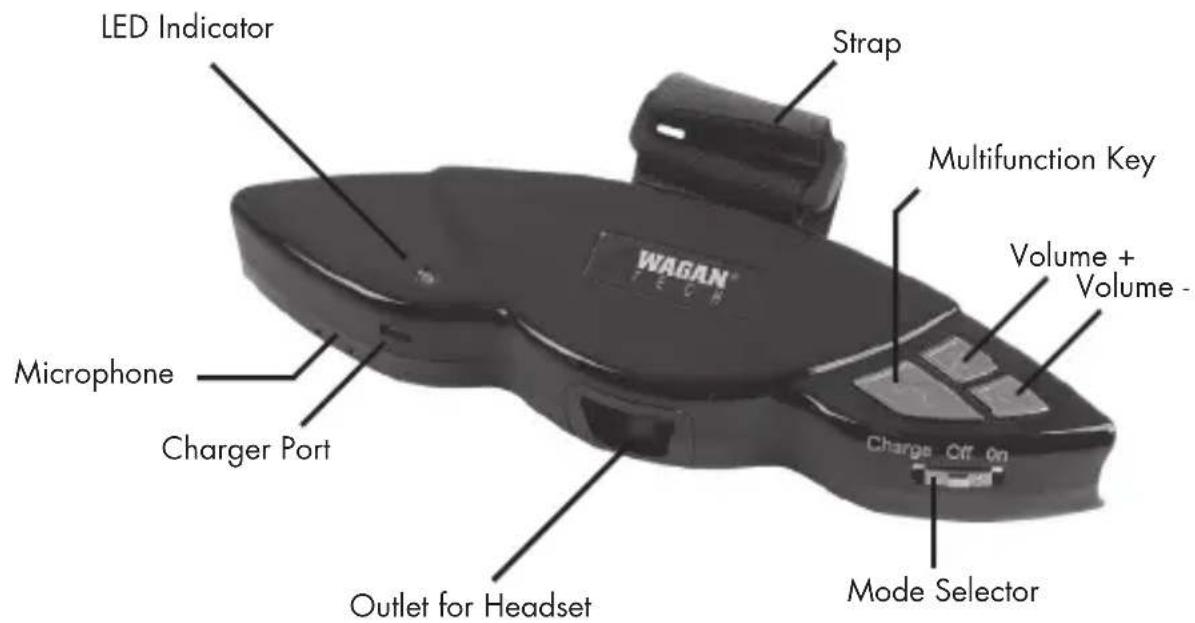

PRODUCT COMPONENTS

LED Indicator Strap Multifunction Key WAGAN® TECH Volume + Volume - Charge Off On Microphone Charger Port Outlet for Headset Mode Selector

Headset device with black and white buttons, no visible text or symbols on the device itself

Abstract curved line drawing with no text or symbols

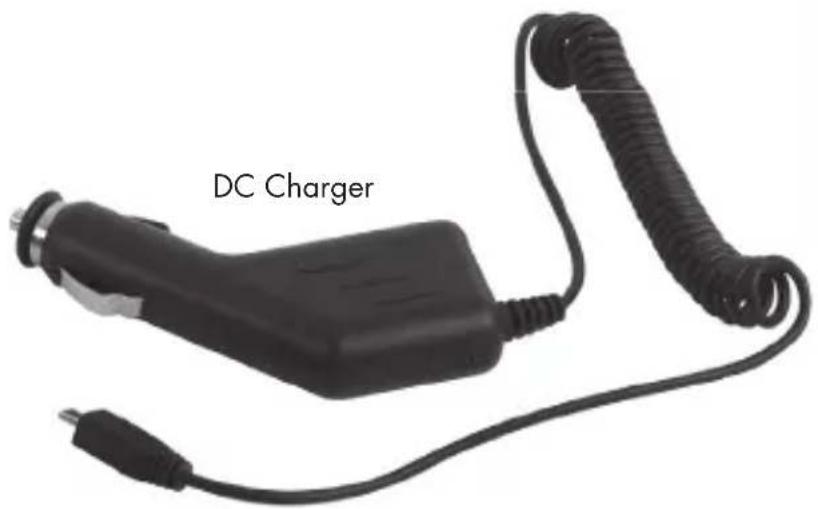

Black DC Charger with coiled cable and connector (no text or symbols on device body)

Black and white photo of a black strap with a hook attached, no text or symbols visible

MAIN FEATURES

• High echo cancellation.
- SmartAudio noise suppression function to ensure crystal clear communication even in noisy environments.
- One flexible and convenient multifunction key to pair devices, voice dial, answer, reject and redial the last number.
• Supports FM stereo frequency transmission.
• Ergonomic steer wheeling design.
- Use headset separately for private calls or when you leave the car.

CHARGING THE STEERING WHEEL KIT

The Steering Wheel Handsfree Phone kit comes with a built-in rechargeable battery. Prior to using the device, it is recommended to charge the battery fully for the first time.

Important: the charging indicator will be delayed about 15 minutes if the headset has not been used for a long time or the battery is drained.

Select the "CHARGE" position to use the device while charging the headset.

NORMAL CHARGING TIME

Normal charging time for a full charge is under 4 hours. When the battery is fully charged the LED indicator will turn off.

SWITCHING ON AND OFF

To turn the device on slide the mode selector to the "ON" position. To switch off, while in standby mode slide to the "OFF" position. The LED will turn off.

CONNECTING THE HANDSFREE KIT TO A BLUETOOTH DEVICE

1. Switch on the handsfree kit.
2. Insert the detachable headset into the outlet of the steering wheel kit.
3. Press and hold the "Multifunction" key for 5 seconds until the headset LED alternately flashes red and blue. Its now ready for pairing.
4. Activate your Bluetooth ^® enabled device and search for the Bluetooth headset: EL-2591.
5. Select Bluetooth device: EL-2591.
6. Enter the password or PIN "0000" and confirm.
7. After pairing is complete, the headset LED will flash blue 3 times.
8. Turn on a nearby FM radio and tune it to FM frequency 107.9MHz to ensure the point-to-point wireless connection with the Bluetooth device has been completed.

You also can pair the headset with your Bluetooth device successfully prior to inserting the headset into the steering wheel kit outlet.

NOTE: Please adjust your phone and car volume to moderate levels before using the Steering Wheel Handsfree Phone Kit.

ANSWERING A CALL

When the headset is connected to your Bluetooth device and you receive an incoming call, press the "Multifunction" key for 0.1 seconds to answer.

REJECTING A CALL

When receiving an incoming call, you will hear a beep. Press and hold the "Multifunction" key for 2 seconds if you wish to reject the call.

ENDING A CALL

Press the "Multifunction" key once to end a call.

VOICE DIALING FROM HANDSFREE PHONE KIT

If your mobile is equipped with a voice dialling function, simply press the "Multifunction" key on the steering wheel kit. When you hear a beep, say the voice tag to dial out a call.

(Note: please make sure to record the voice tag into your Bluetooth device before using the voice dialing function)

REDIALING THE LAST NUMBER

Under standby mode, press the "Multifunction" key twice rapidly.

SAVING A NUMBER

The Steering Wheel Handsfree Phone Kit can save a phone number to memory. Use it to conveniently call home or quickly dial an emergency care center. When in a call, press and hold the "Multifunction" key for 2 seconds to save the number into headset. When you hear a beep the number is saved.

DIALING THE SAVED NUMBER

When the steering wheel kit is connected to your phone in standby mode, press and hold the "Multifunction" key for 2 seconds to dial the saved number.

ADJUSTING THE VOLUME

Adjust the volume with the "+" and "-" keys to reach your desired level. You can also adjust the Bluetooth device volume or car audio if using the FM transmitter.

CARE AND PRECAUTIONS

• Never mount or store your headset over any air bag deployment area as serious injury may result if the air bag deploys.
• Never allow children to play with the headset: small parts may be a choking hazard.
• Do not attempt to disassemble or damage the headset or built-in battery. Do not disassemble the charger as it may expose you to dangerous high voltages and other risks.
• Only use the supplied charger when charging the headset. Please recharge the headset when its indicator flashes red.
• Do not use the charger outdoors in damp areas. Avoid charging the headset in extremely high and low temperatures.
• Do not expose the headset to extremely high or low temperatures (below 32^ F ( 0^ C) or above 122^ F ( 50^ C).
• Use your mobile phone and headset while driving in accordance with your local laws. Please pay attention and focus on the road to drive in a responsible and safe manner if you use the headset while driving.
• Observe all signs that require an electrical devices or RF radio products to be switched off in designated areas. These could include hospitals, blasting areas and potentially explosive atmospheres.
• Turn off you headset prior to boarding any aircraft. Do not use in flight.
• NOTE: Check local regulations regarding the disposal of batteries. Do not dispose of as household waste.

PRODUCT SPECIFICATIONS

Bluetooth standard Bluetooth V2.0
Frequency range 2.4GHz
Application scope Excellent compatibility with Bluetooth enabled devices such as mobile phones, PC, PDA and more
FM transmission frequency 107.9 MHz
FM working range up to 6 meters
Battery type Rechargeable lithium polymer
Steering Wheel Kit Standby Time	Up to 300 hours
Steering Wheel Kit Charging time About 4 hours
Headset Talk Time Up to 4 hours
Headset Standby Time 160 hours
Headset Charging Time	2.5 hours
Charging current ≤250mA
Charging voltage 5VDC
Dimensions 167 x 42.5 x 25 mm
Working temperature 0~50°C
Working humidity	10-90%.

√ Please activate my limited warranty for WAGAN Corp.

Name
Mailing address
City
State, Zip code
E-mail address
Item purchased		Item no.
Store name
Date of purchase
Signature		Date

All WAGAN Corporation Products must be registered within (30) days of purchase to activate this warranty. Mail the complete registration form, along with a copy of the original sales receipt to:
Attn: Customer Service WAGAN Corporation 31088 San Clemente S Hayward, CA 94544

WAGAN CORP. LIMITED WARRANTY

All WAGAN Corporation products are warranted to the original purchaser of this product.

Warranty Duration: This product is warranted to the original purchaser for a period of one (1) Year from the original purchase date, to be free of defects in material and workmanship. WAGAN Corporation disclaims any liability for consequential damages. In no event will WAGAN Corporation be responsible for any amount of damages beyond the amount paid for the product at retail. In the event of a defective item, please contact WAGAN Corporation at [phone] to obtain a Returned Merchandise Authorization number (RMA#), and return instructions. Each item returned will require a separate RMA#. After you have received the RMA# and the return instructions from WAGAN Corporation, please follow the instructions and send the item with PREPAID SHIPPING, along with all of the required documentation, a complete explanation of the problem, your name, address and daytime phone number. WAGAN Corporation will, at its option, replace or repair the defective part.

A Returned Merchandise Authorization number (RMA#) is REQUIRED when sending in any defective item. WAGAN Corporation is not responsible for any item(s) returned without an official Returned Merchandise Authorization number. The item(s) must be returned with prepaid shipping. WAGAN Corporation is not responsible for any shipping charges incurred in returning the item(s) back to the company for repair or replacement. This warranty is void if the product has been damaged by accident, in shipment, unreasonable use, misuse, neglect, improper service, commercial use, repairs by unauthorized personnel or other causes not arising out of defects in materials or workmanship. This warranty is effective only if the product is purchased and operated in the USA and does not extend to any units which have been used in violation of written instructions furnished.

Warranty Disclaimers: This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to assume any other liability in connection with the sale of our products. There shall be no claims for defects or failure of performance or product failure under any theory of tort, contract or commercial law including, but not limited to negligence, gross negligence, strict liability, breach of warranty and breach of contract.

Warranty Performance: During the above one (1) Year warranty period, a product with a defect will be replaced with a comparable model when the product is returned to WAGAN Corporation with an original store receipt. The replacement product will be in warranty for the balance of the one (1) Year warranty period. ©2008 WAGAN Corp. Updated August 2008
