USER MANUAL R9841760 Barco

LampKilforiQ/SIM4/0VDR120Projectors

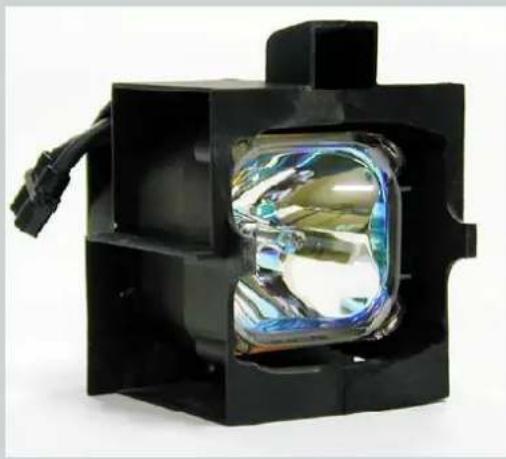

Close-up of a black rectangular electronic device with a transparent lens and cable, no visible text or symbols.

InstallationManual

R9841770-R9841771

R9841100-R9841111

R9841760-R9841761

Barco nv Presentations

Noordlaan 5, 8520 Kuurne

Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

Visit us at the web: www.barco.com

Copyright©

All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded, transmitted or storedinaretrievalsystemwithoutthepriorwittenconsentofBarco.

FederalCommunicationsCommission(FCCStatement)

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the user will be responsible for correcting any interference.

Trademarks

Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders. All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for the products or their manufactures.

1.SAFETY

1.1 SafetyGuidelines

This procedure is intended for use only by qualified service technicians who have been trained and authorized by BARCO!

WARNING: Hot Surface and Risk of Explosion: Switch the projector to stand by and let it cool down for at least 15 minutes. These lamps consist of a quartz arc tube operating at very high temperature and high pressure which may explodes suddenly. There is a risk of personal injury and property damage from hot quartz arctube particles if handled incorrectly.

WARNING: Risk of Electrical Shock: Power down the projector and unplug the power cord from the wall outlet. Oncetheprojectoriscooleddownandthepowerisoff, continuewiththeprocedure.

WARNING: Lamp Runtime Warning: Do not exceed the indicated maximum total lifetimeofthelampforsafe operation in normal power mode. Do not use it longer! Always replace the lamp with the BARCO lamp kit.

1.2 Recyclingguidelines

WARNING: Do not break or crush lamps because this may pose health and environmental risks when mercury vaporsarereleased.

CAUTION: To avoid breaking the lamps, repack carefully when storing and transporting them.

CAUTION: Lamps may not be disposed as normal household trash.

Contactyourlocalwastedisposalfacilityforinf Discharge)lampsinyourarea. ormationontherecyclingprogramforHID(HighIntensity

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Image1-1

Disposaloptionsformercury-containinglamps

• Recycle through a municipal or solid waste district household hazardous waste collection program in accordance with local regulations.
  •Directshipmenttolamprecycler
• Shipmentthroughahazardouswastetransporter

2. KITCONTENT

2.1 Contents

Overview

Depending on the Kitnumber ordered the kit may contain 1 or 2 lamps, the lamp power may also differ according to the type of Projector.

	KitnumberDescription		Quantity	Manual
IQ200/OVDR120	R9841771120WLamp1R5976375
	R9841770120WLamp2R5976375
IQ300/MGP10/SIM4	R9841111200WLamp1R5976375
	R9841100200WLamp2R5976375
IQ350/400/500 ^1	R9841761250WLamp1R5976375
	R9841760250WLamp2R5976375

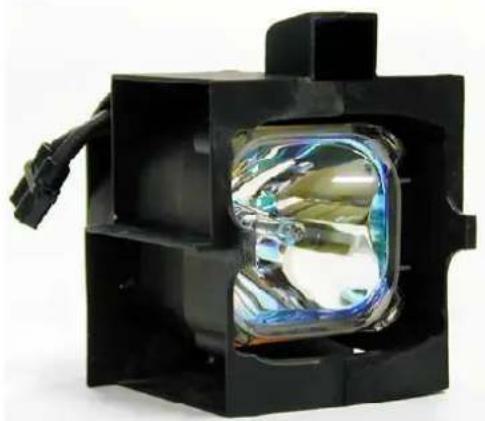

Close-up of a black rectangular electronic device with a transparent lens and cable, no visible text or symbols.

Image2-1

CAUTION: Do not touch the cover glass with your fingers. If the lamp is touched, finger prints can be removed bycleaningthelampwithalcohol.

3. REPLACEMENTPROCEDUREINCASEOFANIQ PROJECTOR

Overview

• Resetlampruntime
• Accesstothelampunit(s)intheiQprojector
  -Removingthelampunit(s)
• MountingtheLampUnit
• Mountingthecover.
• Cleaning

3.1 Resetlampruntime

3.1.1 Resetruntime

Whentoresetthelampruntime?

Thelampruntimeshouldonlyberesetwhenplacinganewlamp.

WARNING: Lamp runtime reset as well as the lamp replacement can only be done by a Barco authorized technician.

HowtoresetthelampruntimeintheiQ/iD?

1. PressMENUtoactivatetheToolbar
2. Press→ toselecttheLampitem
3. Press ↓ to Pull down the Lamp menu
4. Use or to select Reset runtime
5. Press→ topulldownthemenu

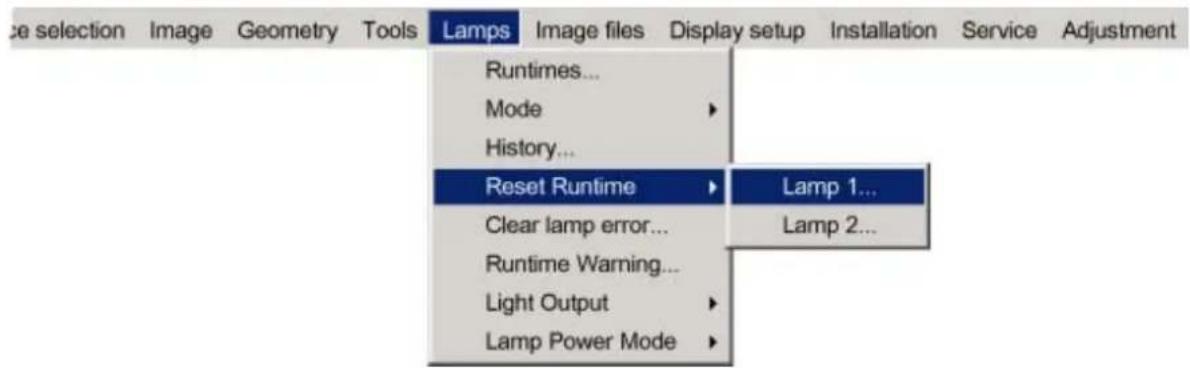

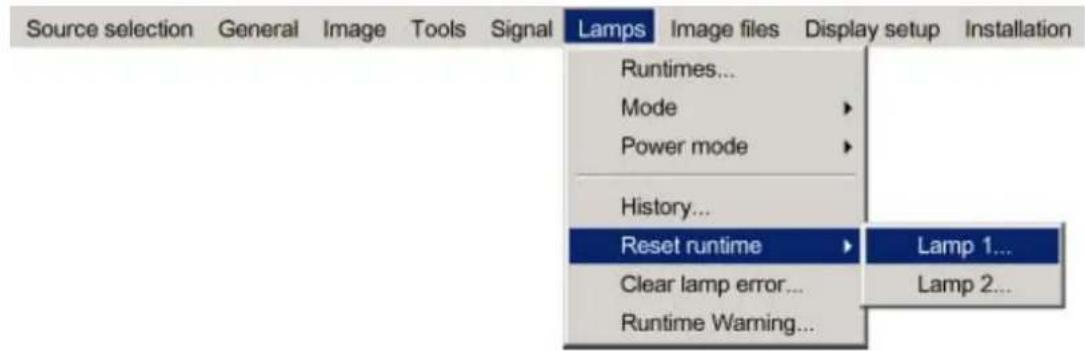

6. Use or to select the lamp to be reset (image 3-1)

7. PressENTER

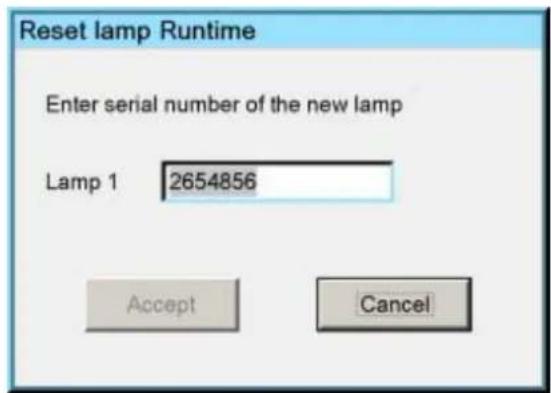

Adialogboxisdisplayed(image3-2)

1. Use ← or →, the numeric keys on the remote, or the keypad to change the serial number of the lamp (serial number 0000000 will not be accepted).

Image3-1

Image3-2

WARNING: Lamp runtime reset as well as the lamp replacement can only be done by a Barco authorized technician.

HowtoresetthelampruntimeintheSIM5Plus?

1. PressMENUtoactivatetheToolbar
2. Press→ toselecttheLampitem
3. Press↓ to Pulldownthe Lampmenu
4. Use ↑ or ↓ to select Reset runtime
5. Press→ topulldownth emenu
6. Use ↑ or ↓ to select the lamp to be reset (image 3-3)
7. PressENTER

Adialogboxisdisplayed(image3-4)

1. Use ← or →, the numeric keys on the remote, or the keypad to change the serial number of the lamp (serial number 0000000 will not be accepted).

Image3-3

Image3-4

WARNING: Lamp runtime reset as well as the lamp replacement can only be done by a Barco authorized technician.

3.2Accesstothelampunit(s)intheiQprojector

3.2.1 Removingthebackcover

Necessarytools

aflatscrewdriverof10mm

Necessaryparts

Noparts.

WARNING: Ri sk of Electrical Shock: For replacement procedures power down the projector and unplug the powercordfromthewalloutlet. Oncetheprojectoriscooleddownandthepowerisoff, continuewiththe replacementprocedure.

Removingthebackcover

1. TurnwithascrewdriverthecoverlockscrewAquarterturncounterclockwise.(image3-5)

2. Removethebackcover.

Seeimag e3-6, image3-7.

Close-up of a white electronic device with a small circular button on the side (no visible text or symbols)

Image3-5 rearcoverlockscrew

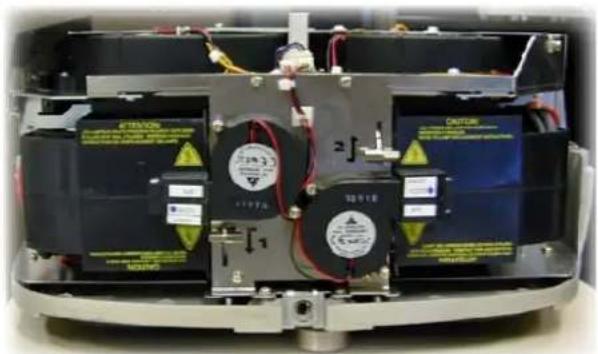

Interior view of a device showing internal components with labeled parts (no readable text or symbols)

Image3-6 rearcoverremoved

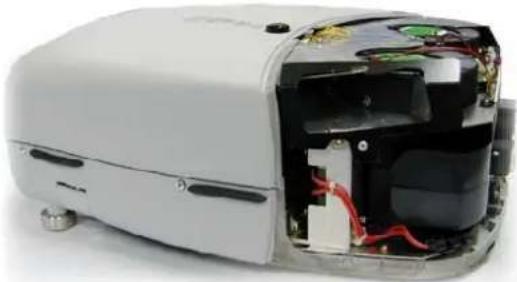

Interior view of a white electronic device showing exposed internal components and wiring (no text or symbols visible)

Image3-7 rightviewoftheprojector, rearcoverremoved

3.3Removingthelampunit(s)

3.3.1 Removingthelampunit(s)

Whathastobedone?

1. Thelamppowerconnectionhastobedisconnected.
2. Thelampunithastoberemoved.

Perform the procedure for both lamps if necessary. In this procedure lamp1 is replaced, the procedure being the same for lamp2.

Necessarytools

Notools.

Necessaryparts

Noparts.

Howtoremovethelampunit?

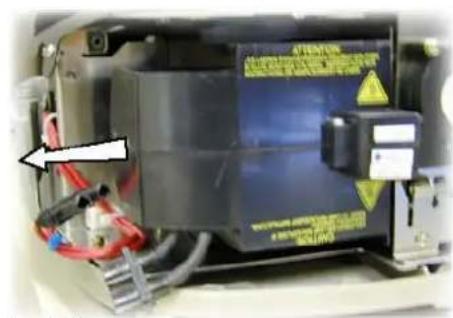

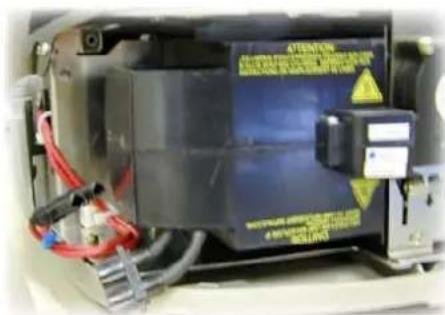

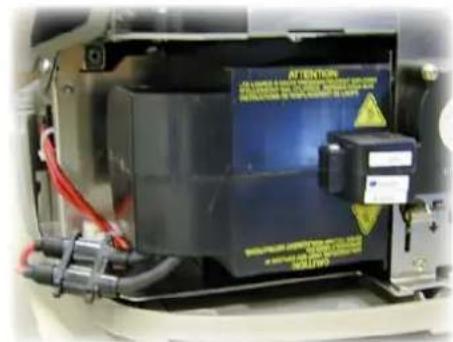

1.Disconnectthel amp(image3-8)

Seeimage3-9.

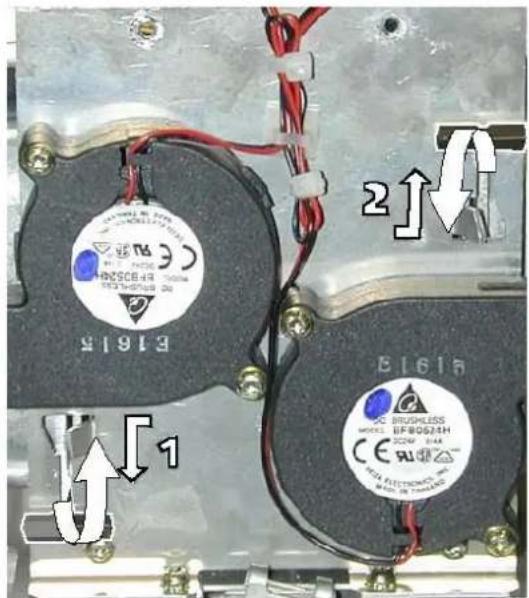

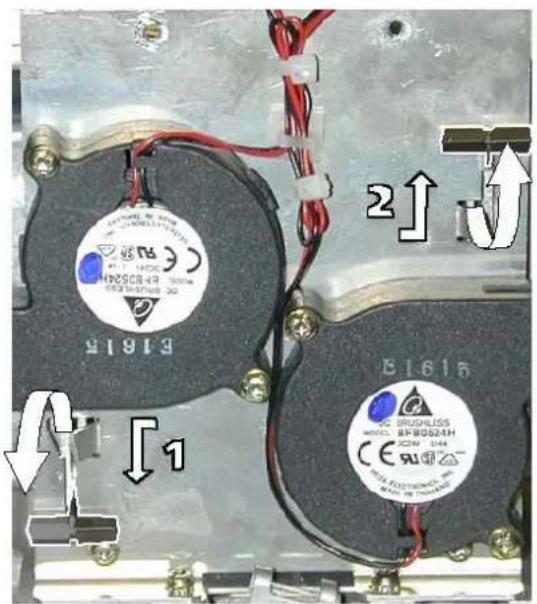

1. Push the lamp locking handle slightly to the left (or to the right for lamp 2) and turn it over to unlock the lamp (image 3-10)

2. Takeoutthelampunit(image3-11)

Seeimage3-12.

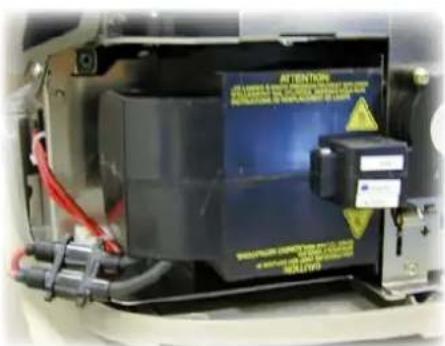

Image3 -8 lampcon nector

Image3-9 disconnectedlampconnector

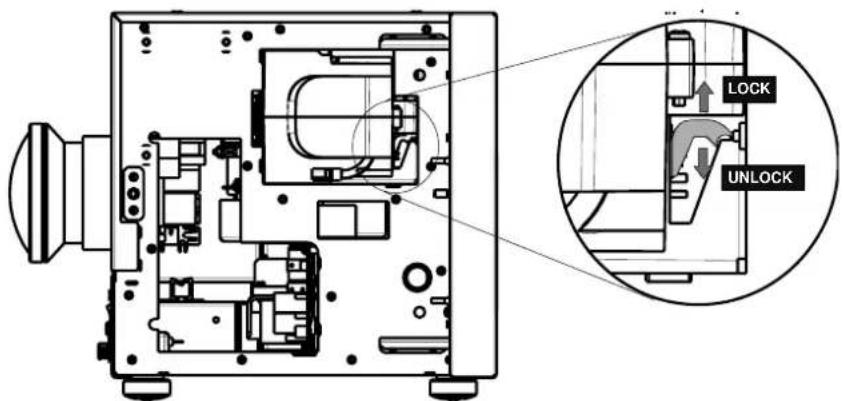

Image3-10 unlockinglamp1&lamp2

Image3-11

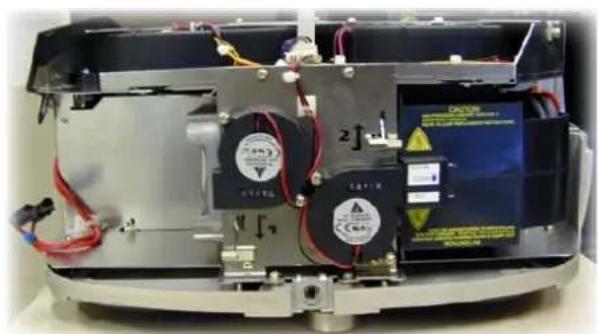

Interior view of an electronic device with visible components and wiring (no readable text or symbols)

Image3-12 Lamp1removed

3.4MountingtheLampUnit

3.4.1 Mountingthelampunit(s)

Whathastobedone?

1. Thelamphastobemounted
2. Thelamphastobeconnected.

Perform the procedure for both lamps if both lamp shavetobereplaced. In this procedure lamp1 is replaced, the procedure being the same for lamp2.

Necessarytools

Notools.

Necessaryparts

Noparts.

Howtomountthelampunit?

1. Placecarefullythelampagainststtheframe

2. Pushthelampinwardsandturnthelamplockinghandleovertolockthelamp(image3-13)

3. Connectthelamp(image3-14)

Image3-13
lockinglamp1&lamp2

Image3-14
Lampconnected

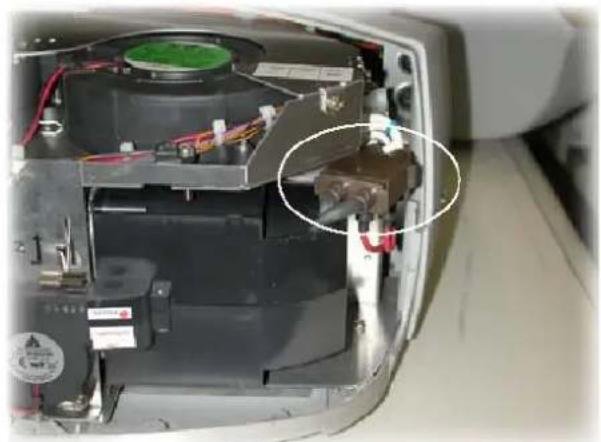

The new 120W lamp driver (B4006511K) has a different connector, therefore an adapting connector is used on the120W lampunit.

Interior view of a device showing internal components and wiring, with a circled area highlighting a specific component (no visible text or symbols)

Image3-15

3.5Mountingthecover.

Mountingthebackcover

1. Replacethebackcover.
2. Turn with a screwdriver the cover lock screw a quarter turn clockwise to lock the cover. (image 3-16)

Close-up of a white electronic device with a small circular button on the side (no visible text or symbols)

Image3-16

3.6Cleaning

Howtocleanthedustfilters?

1. Placetheprojectorsoastoaccesseasilythefiltertobecleaned

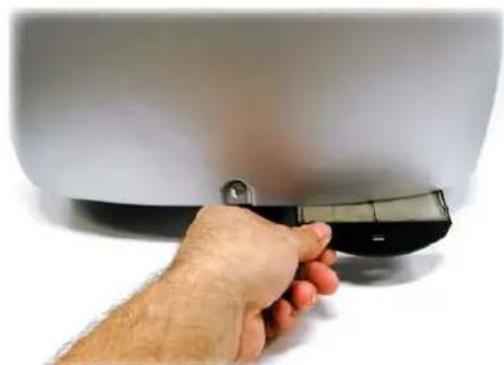

2. Push the handled downward stounlock the filter. (image3-17)
   3.Slideoutthefilter(image3-18,image3-19,image3-20)

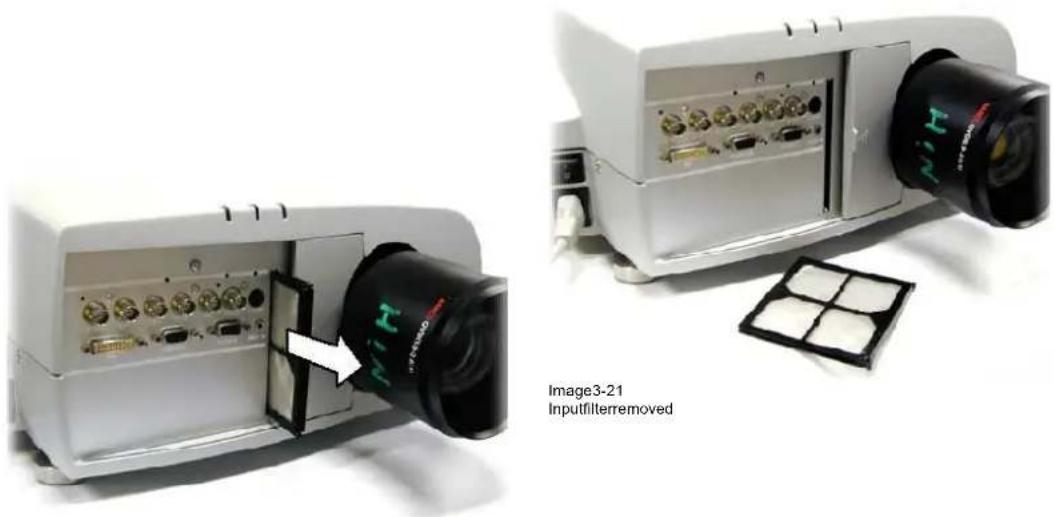

   Seeimage3-21.
3. Cleanthedustfilterwithadrycloth.
4. Re-insertthedustfilterbyslidingitbackinthefilterhousing.

Exterior view of a modern office building (no signage)

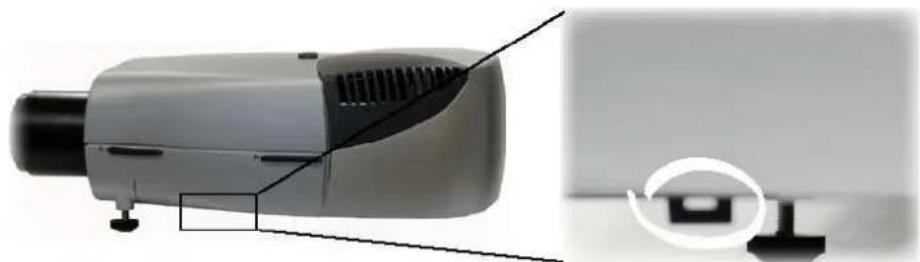

Image3-17
Locationofthex-cubefilteranditshandle

Hand holding a black plastic clip attached to a white cylindrical object (no text or symbols visible)

Three rectangular filter panels with grid patterns, displayed against a white background (no text or symbols visible)

Image3-19
lamp&X-Cubefiltersremoved
Image3-18
Lampfilterremoval

Image3-20

Inputfilterremoval

If the air flow is falling under a predetermined threshold value a warning will be displayed on the screen.

Message

An insufficient airflow is detected

Please check your dustfilter

at the airflow entrance

Image3-22

At that time it is strongly recommended to replace or clean the dustfilter under the X-cube. Failing to do so, willstronglyreducethelifetimeoftheLCD'sandtheanalyzers.

The manufacturer reserves itself the right to refuse warranty repair if the projector was working with dirty dustfilters.

4. REPLACEMENTINCASEOFASIM4/OVDR120 PROJECTOR

4.1 Lampreplacement

CAUTION: Do not touch the cover glass with your fingers. If the lamp is touched, finger prints can be removed bycleaningthelampwithalcohol.

Whentoreplacethelamp?

Thelampmustbereplacedattheendoflifetime.

Necessarytools

hexagonalballdriver(5)

Startup

1. Push the cursor key or to highlight Reset Lamp Run Time. (menu 4-1)
2. PressENTER.

The following warning will be displayed:

Riskofelectricalshock. Resetlampruntimeisreservedtoqualifiedservicepersonnel.(menu4-2)

1. PressENTER
   Seemenu4-3.
   4.Entertheserialnumberofthenewlamp
2. PressENTER

Menu 4-1

Menu 4-2

Menu 4-3

Howtoreplacethelamp?

1. Unscrew the hexagonalscrew(image4-1)
2. Openthesidedoor(image4-2)
   3.Disconnectthelamp(image4-3)
3. Usethelongscrewdrivertomovelockinghandledownwardstounlockthelamp.(image4-4)
4. Removethelamp(image4-5)
5. Mountthenewlamp
6. Movelamplockinghandleupwards
7. Close and secure the sided door

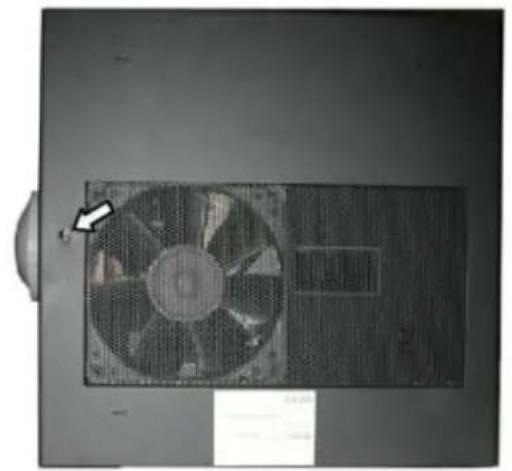

Top-down view of a mechanical fan component with a white arrow pointing to a specific part (no visible text or symbols)

Image4-1 Locationofsidedoorscrew

Interior view of an electronic device showing internal components like CPU, drive, and fan (no visible text or symbols)

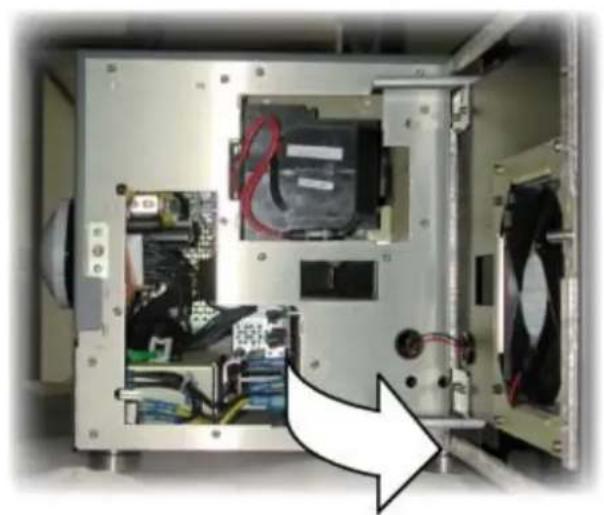

Image4-2 sidedooropen

Interior view of a mechanical or electronic device with a black box, red wires, and connectors (no visible text or symbols)

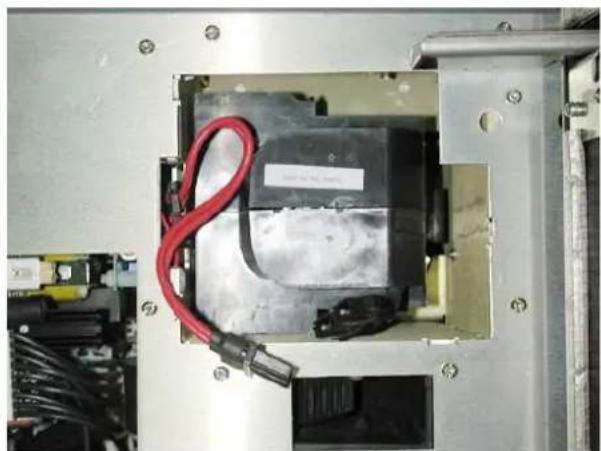

Image4-3 Lampdisconnected

Image4-4 Lamplockinghandle

Close-up of a metallic mechanical component with red wires and a central circular light source (no visible text or symbols)

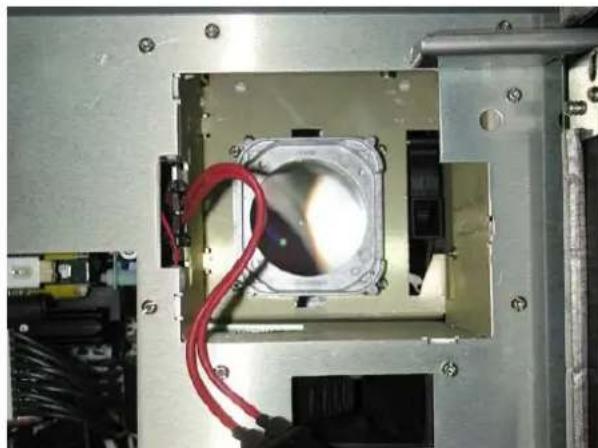

Image4-5 Lampremoved

When replacing the lamp it is strongly recommended to check and clean (or replace if necessary) the dustfilters.
