Product Type	Smartphone with integrated GPS navigation
Brand	Garmin
Model	Garminfone (also known as nüvifone)
Dimensions	110 x 60 x 12.7 mm
Weight	130 g
Display	3.5-inch HVGA (320x480) capacitive touchscreen
Processor	600 MHz Qualcomm MSM7227
RAM	256 MB
Storage	4 GB internal, expandable via microSD (up to 32 GB)
Rear Camera	3 MP with autofocus and video recording
Battery	1300 mAh Li-ion, removable
Connectivity	Wi-Fi 802.11 b/g, Bluetooth 2.0, microUSB 2.0, 3.5mm audio jack
Operating System	Android 1.6 (Donut) with Garmin navigation suite
Navigation	Built-in GPS with turn-by-turn directions, preloaded maps
Sensors	Accelerometer, proximity sensor, ambient light sensor
Input	Touchscreen, capacitive buttons
Audio	Speakerphone, microphone, 3.5mm headphone jack
Power Supply	Charging via microUSB, 5V / 1A adapter (not included)
Maintenance & Cleaning	Clean with soft, dry cloth; avoid liquids and abrasive cleaners
Safety	Do not expose to extreme temperatures; avoid water immersion; use only specified charger
Spare Parts & Repairability	Battery, screen, and back cover are replaceable; other components require professional service
General Information	Released in 2010; integrates Garmin navigation with smartphone features; supports 2G and 3G networks

Frequently Asked Questions - Garminfone GARMIN

How do I update the maps on my Garminfone?

Connect the device to Wi-Fi and use the Garmin navigation app to check for map updates. You can also update via Garmin Express on a computer.

Can I expand the storage on the Garminfone?

Yes, the Garminfone supports microSD cards up to 32 GB. Insert the card into the slot behind the back cover.

How do I reset the Garminfone to factory settings?

Go to Settings > Privacy > Factory data reset. Note that this erases all user data.

Is the battery replaceable?

Yes, the battery is removable. Power off the device, remove the back cover, and lift out the battery.

What Android version does the Garminfone run?

It runs Android 1.6 (Donut) with Garmin's custom interface and navigation software.

Does the Garminfone support 4G LTE?

No, the device supports 2G and 3G networks only.

How do I use GPS navigation on the Garminfone?

Press the dedicated navigation button or open the Garmin navigation app from the home screen. The integrated GPS provides turn-by-turn directions.

Can I install apps from the Google Play Store?

The Garminfone runs Android 1.6, which does not support the modern Play Store. You can install apps from compatible sources using APK files.

What type of charger does the Garminfone use?

It uses a standard microUSB charger. A 5V/1A adapter is recommended.

How do I transfer files between the Garminfone and a computer?

Connect the device to your computer via microUSB cable. Select 'Mass storage' mode on the phone to access the internal memory and SD card.

USER MANUAL Garminfone GARMIN

© 2010 Garmin Ltd. or its subsidiaries and ASUSTeK Computer Inc.

All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin and ASUS. Garmin and ASUS hereby grant permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Garmin and ASUS reserve the right to change or improve their products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Go to www.garminasus.com for current updates and supplemental information concerning the use and operation of this and other Garmin-Asus products.

The combined Garmin-Asus logo is a trademark of Garmin Ltd. and ASUSTeK Computer Inc.

Garmin ^® is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. cityXplorer ^™ , Ciao! ^™ , Garminfone ^™ , nüMaps Guarantee ^™ , and are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.

The Bluetooth ^® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin or ASUS is under license. Wi-Fi is a registered mark of the Wi-Fi Alliance. Adobe is a registered trademark of Adobe Systems Incorporated. Mac is a trademark of Apple Inc., registered in the U.S. and other countries. Microsoft, Exchange ActiveSync, Excel, Outlook, and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Google, Gmail, Panoramio, and Android are trademarks of Google Inc. MPEG Layer-3 audio coding technology licensed from Fraunhofer ^® IIS and Thomson ^® .

Other trademarks and trade names are those of their respective owners.

Based on traffic data provided with the permission of one or more third parties.

Introduction

The Garminfone is a multi-media mobile phone with integrated navigation and services.

Getting Support

1. Go to www.t-mobile.com.
2. Click Support.

Updating the Software

1. Go to www.garminasus.com /support.
2. Select your region.
3. Under the Garminfone, click Software Updates.
4. Follow the on-screen instructions.

Buying Additional Maps

1. Go to www.garminasus.com /support.
2. Select your region.
3. Under the Garminfone, click Map Updates.
4. Follow the on-screen instructions.

Getting Help

1. From the application tray, touch Help.
2. Touch a topic.

CE0700①

Table of Contents

Table of Contents

Introduction ......i

Getting Support ......i

Updating the Software ....i

Buying Additional Maps ......i

Getting Help......i

Getting Started ....1

Device Features ....1

Setting Up the Device 2

Completing the Setup ....5

Getting to Know Your Device 6

About the Keys ......6

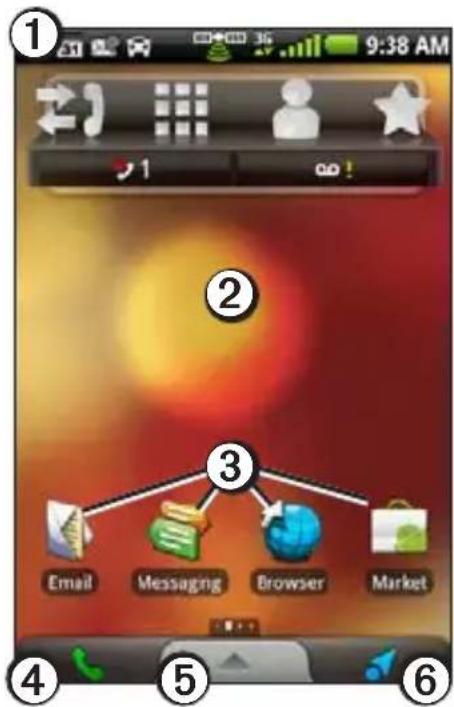

Using the Home Screen .....7

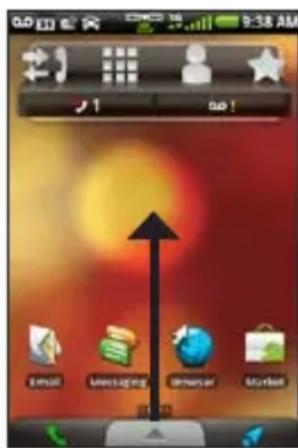

Using the Application Tray ......8

Viewing Notifications ......9

Setting the Default Ringtone......9

Customizing the Home Screen ....10

Changing the Volume .....12

Rotating the Device 12

Using the Touchscreen 13

Using the On-screen Keyboard ...13

About the Automatic Screen Lock 14

About the Headset 15

Status and Notification Icons .....16

Using the Phone ......18

Dialing a Number ......18

Calling a Found Location .....18

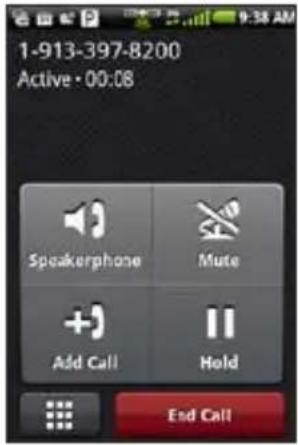

Using In-Call Options......18

Ending a Call 19

Answering a Call....19

Silencing an Incoming Call ......19

Sending an Incoming Call to Voice Mail 19

Activating Call Waiting 20

Using Call Waiting 20

Setting Up Voice Mail ......20

Calling Voice Mail 20

Using Call History ......21

Placing a Conference Call .....22

Forwarding Calls....23

Turning On Airplane Mode .....23

Table of Contents

Multitasking....24

Managing Your Contacts .....25

Adding a Contact 25

Adding a Number in Call History to Contacts 25

Calling a Contact 25

Searching for a Contact 25

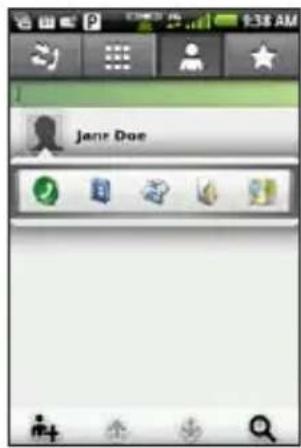

Using the Contact Shortcut Menu 26

Editing and Deleting Contacts .....26

Starting a Route to a Contact .....28

Managing Your SIM Contacts .....28

Searching for Locations .....30

About GPS Signals 30

Finding a Point of Interest......30

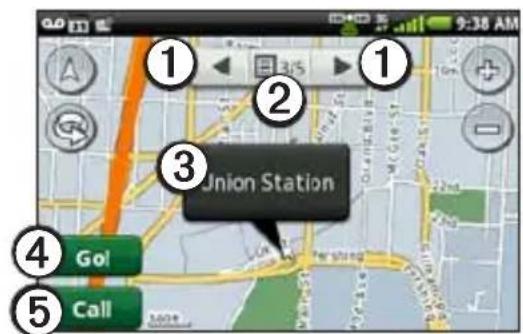

Working with Found Locations ....31

Changing the Search Area ......32

Saving and Editing Locations .....32

Sharing Locations 34

Finding Your Parking Spot ......35

Finding Your Current Location .....35

Setting Your Home Location ......36

Finding an Address 36

Finding Local Businesses ......37

Finding Recently Found Locations ....37

Finding Upcoming Events......38

Finding Panoramio™ Photos ......38

Finding Fuel Prices ......39

Finding Cities 39

Using the White Pages Phone Directory ....39

Entering Coordinates .....40

Finding Intersections .....41

About Extras 41

Following Your Route .....42

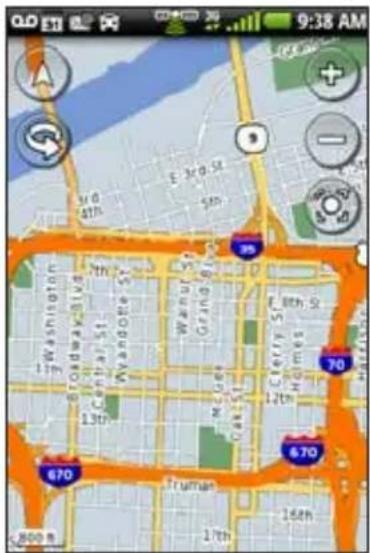

About the Map 42

Using the Map 42

About Usage Modes 43

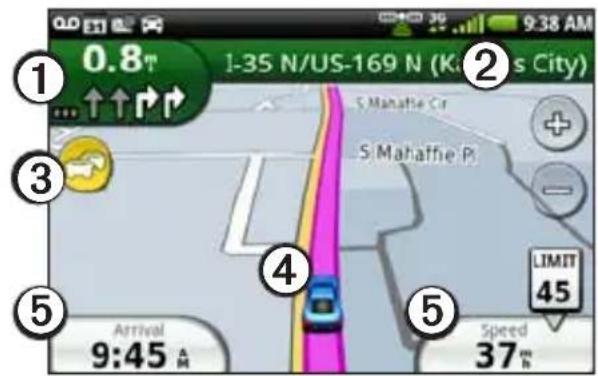

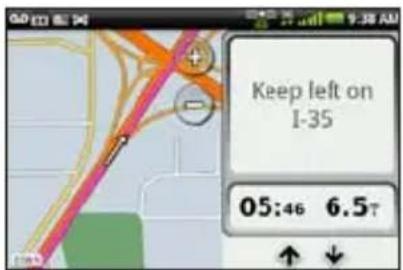

Navigating in Driving Mode......44

About Traffic 46

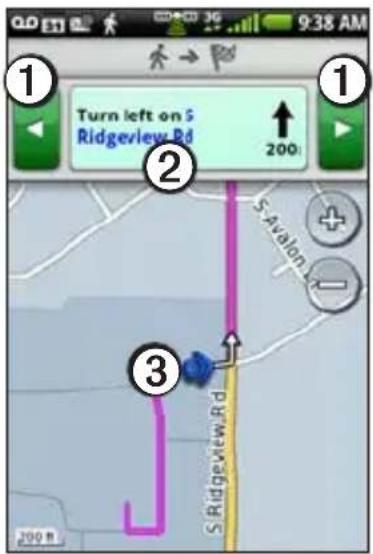

Navigating in Walking Mode .....48

Taking a Detour 50

Stopping the Route ....50

Table of Contents

Working with Routes ....51

Viewing Your Trip Log ....52

Sending and Receiving

Messages ....53

Sending a Text Message ....53

About Multimedia Messages .....53

Reading Messages ....54

Setting Up SMS Cell Broadcast...56

Using Email 57

Using Ciao!™ 60

Registering Your Device and Joining Ciao! 60

Changing Your Display Name.....61

Inviting a Friend ......61

Accepting or Declining an Invitation 61

Sending a Location Update ......61

Automatically Sending Location Updates ....61

Updating Your Status 62

Viewing Friends 62

Adding a Friend to Contacts ......62

Sending a Message to a Friend ..62

Starting a Route to a Friend's Location 62

Removing an Invitation ......63

Removing a Friend 63

Hiding and Revealing Your Location 63

Viewing Ciao! Networks 63

Disabling Ciao! 63

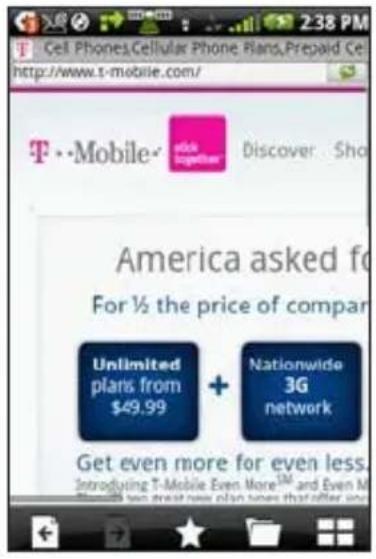

Browsing the Web ......64

Saving a Web Page to Favorites 66

Viewing Your History 66

Sharing a URL 67

Opening a Web Site in a New Window 67

Deleting a Web Site from a List ...67

Setting Your Browser Home Page 67

Table of Contents

Downloading Files ......68

Playing Music......69

Music Player File Types ......69

Playing a Song 70

Changing the Music Player View 70

About Playlists 70

Searching the Music Player ......72

Saving a Song as a Ringtone .....72

Streaming Online Music .....72

Taking and Viewing Pictures and Videos ....73

Taking a Picture 73

Taking a Picture with GPS Information ....73

Recording a Video 74

Changing the Camera and Video Settings 74

Viewing Pictures 75

Viewing a Video 75

Viewing a Slideshow 75

Sharing Pictures and Videos .....75

Setting Your Wallpaper ......76

Editing Pictures and Videos .....76

Adding a Picture to a Contact .....76

Starting a Route to a Photograph or Video 77

Changing the Gallery Settings .....77

Organizing Your Life .....79

Using the Calendar 79

Viewing a Document 80

Checking the Weather Forecast ..82

Using the Clock 82

Using the Converter......84

Checking Flight Status......86

Finding Movie Times......87

Connecting with Other Devices ....88

Synchronizing Your Device with Your Computer 88

Synchronizing Your Device with an Exchange Server ....89

Synchronizing with a Google™ Account 89

Table of Contents

Using Bluetooth Technology .....90

Transferring Files ......91

About Wi-Fi 92

Customizing Your Device ....94

Wireless Manager....94

Audio Settings 95

Display Settings 95

Phone Settings 96

Home Screen Settings......97

Navigation Settings......98

Email Account Settings ......100

Contacts Settings ....101

Calendar Settings ......101

Messaging Settings ......102

Browser Settings ......102

Quick Search Settings .....104

Managing Applications......104

Accounts and Sync Settings .....105

Security and Location Settings ..105

Changing the Text Language .....107

Keyboard Settings ......107

Date and Time Settings .....107

Units Settings ...... 108

Privacy Settings ......108

Clearing All User Data ......109

Changing the Storage Settings..109

Viewing Software Information ....109

Appendix 110

About Satellite Signals......110

About Connected Services ......110

Battery Information 111

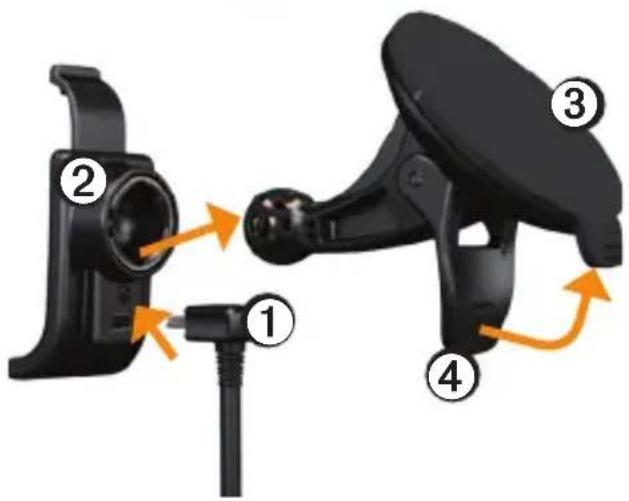

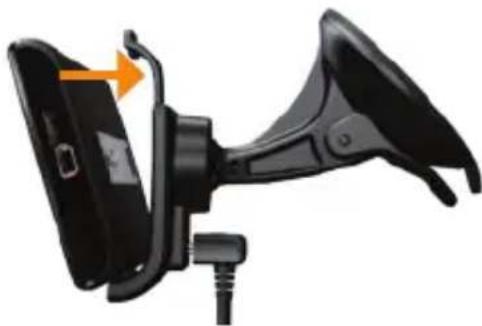

Mounting on Your Dashboard .... 112

Removing the Device, Cradle, and Mount 112

Resetting the Device .....113

Caring for Your Device...... 113

Specifications 114

Troubleshooting 116

Index 118

Getting Started

WARNING

See the Important Safety and Product Information document in the product box for product warnings and other important information.

NOTICE

To avoid unexpected data charges, it is strongly recommended that you obtain a data plan for this phone.

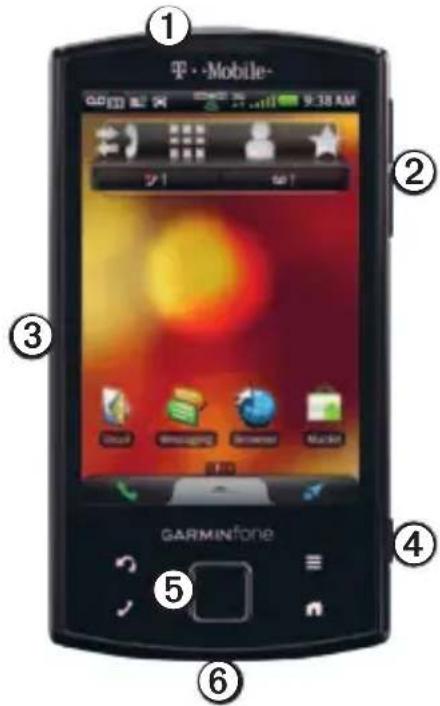

Device Features

1	Power key
2	Volume keys
3	Power connector for the navigation cradle
4	Camera key
5	Direction pad
6	Mini-USB connector

Getting Started

Setting Up the Device

1. Remove the battery cover (page 2).
2. Install the SIM card and optional microSD ^TM card (page 2).
3. Install the battery (page 2).
4. Replace the battery cover (page 3).
5. Charge the battery (page 3).
6. Register the device and check eligibility for a free map update (page 5).

Removing the Battery Cover

Slide the battery cover ① off the back of the device.

Close-up of a black printer with an orange arrow indicating motion, no visible text or symbols on the device itself.

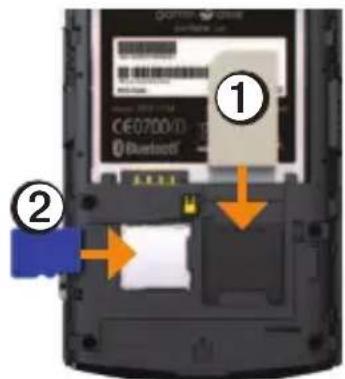

Installing the SIM and microSD Cards

1. Insert the SIM card ① in the holder with the gold contacts facing down and the notched corner toward the center of the device.

1. Insert the optional microSD card ② in the microSD slot with the gold contacts facing down.

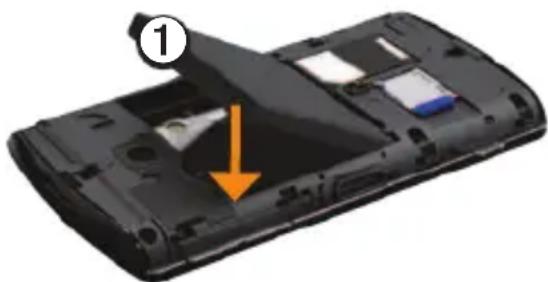

Installing the Battery

1. Locate the battery that came in the product box.

2. Locate the metal contacts on the end of the battery and in the battery compartment.

3. Insert the battery ① with the Garmin-Asus logo facing up and the metal contacts on the battery aligned with the contacts in the battery compartment.

Close-up of a black electronic device casing with an orange arrow pointing to a component, labeled with number 1 (no text or symbols on the device itself)

Replacing the Battery Cover

Slide the battery cover onto the back of the device until it clicks.

Charging the Battery

NOTICE

Your device will not charge if it has exceeded 140^ F ( 60^ C). If the device is mounted in the windshield, remove it from the mount and place it somewhere out of direct sunlight to allow the battery to charge.

To ensure optimal performance, you should charge the battery for at least four hours before using the device on battery power for the first time.

If you completely discharge the battery, recharge it for at least 20 minutes before turning on your device.

1. Insert the plug into the AC power adapter, if necessary.
2. Plug the USB cable into the AC adapter.
3. Connect the mini-USB end of the USB cable to the connector on the device.
4. Plug the AC adapter into a power outlet.

Getting Started

Alternate Charging Methods

There are several ways to charge the device in addition to the method described on page 3.

• (Preferred) Use the vehicle power cable connected to the cradle, with the device in the cradle.
- Use the vehicle power cable connected to the device (not the cradle).
- Use the USB cable connected to your device and a computer.
- Use the battery charger accessory. For more information about accessories, go to www.garminasus.com.

Mounting Your Device

! WARNING

This product contains a lithium-ion battery. To prevent the possibility of personal injury or product damage caused by battery exposure to extreme heat, remove the device from the vehicle when exiting or store it out of direct sunlight.

1. Plug the vehicle power cable ① into the power connector on the back of the cradle ②.

1. Remove the clear plastic from the suction cup ③.
2. Clean and dry your windshield and the suction cup with a lint-free cloth.
3. Place the suction cup on the windshield.
4. Flip the lever ④ back, toward the windshield.
5. Snap the cradle onto the suction cup arm.
6. Fit the gold contacts on the left side of your device into the cradle.
7. Tilt the device back until it snaps into the cradle.

Close-up of a black handheld device with attached cable and connector (no visible text or symbols)

1. Plug the other end of the vehicle power cable into a power outlet in your vehicle.

Registering Your Device

1. Go to www.garminasus.com /support.
2. Select your region, if necessary.
3. Under the Garminfone, click Product Registration.
4. Follow the on-screen instructions.

After registering, click Maps to see if you are eligible for one or more map updates.

Completing the Setup

Complete these optional tasks to finish setting up your device.

• Set up voice mail (page 20).
• Set up an email account (page 57).
  • Synchronize the device (page 89).

Getting to Know Your Device

Getting to Know Your Device

About the Keys

Key Use
	Touch to open the phone.
	Touch to send a call.
	Touch to return to the Home screen.
	From the Home screen, touch to quickly switch panes.
	Touch and hold to open a menu of recently used applications.
	Touch to go back to the previous screen or to exit the current application.
	Touch to view a menu of options for the current screen or application.
Volume Up and Down	Press to increase or decrease the audio level.

Key Use
Direction pad	Press up, down, left, or right to highlight items or to scroll through lists.
	Press the center of the directional pad to select a highlighted item.
Camera Press	ss to take a picture.
	Press to take a screenshot, when enabled.

Using the Home Screen

The Home screen is designed with several panes that can be customized.

• Drag ①toward the bottom of the screen to view notifications (page 9). The status bar displays notification icons, status icons, and the current time.
• Drag your finger across the screen ② to view the other Home screen panes.
• Touch any icon ③ on the Home screen to open the application.
• Touch ④ to open the phone application.
• Drag ⑤ toward the top of the screen to open the application tray (page 8).
• Touch ⑥ to view the Where To? pane.

Getting to Know Your Device

Switching Home Screen Panes

Use any of the following options to switch to another pane:

• To switch to the next pane, slide your finger across the screen from right to left.
• To switch to the previous pane, slide your finger across the screen from left to right.
• To quickly switch to the Where To? pane, touch
• To quickly switch to a specific pane, touch 📋 and touch a pane.

About the Where To? Pane

The Where To? pane provides quick access to the navigation features of your device, such as the map, points of interest, and location search.

The Where To? pane is the far left pane on the Home screen.

Using the Application Tray

The application tray contains shortcuts for the applications on the device.

NOTE: The application tray is available on all Home screen panes except for the Where To? pane.

1. From the Home screen, touch and drag the application tray toward the top of the screen.
2. Touch and drag to scroll through all of the shortcuts.
3. Touch a shortcut icon to start an application.

Viewing Notifications

When a notification icon appears in the status bar, open the notification window to view more information.

1. Touch and drag the status bar toward the bottom of the screen.

The notification window expands to fill the screen.

1. Touch an item to view more details or to go to the application.

Hiding the Notification Window

Touch and drag the bottom of the notification window to the top of the screen.

Setting the Notification Tone

You can select a tone that sounds when you receive a notification.

1. From the Home screen, touch Settings > Audio and Display > Notifications.
2. Touch a tone.
3. Touch Save.

Setting the Default Ringtone

1. From the Home screen, touch >Settings >Audio and Display >Ringtones.
2. Touch a ringtone.
3. Touch Save.

Getting to Know Your Device

Customizing the Home Screen

You can customize the Home screen to suit your needs.

NOTE: You cannot customize the Where To? pane.

Changing the Home Screen Wallpaper

1. From the Home screen, touch Wallpaper.

1. Select an option.

2. Select an image to use as the wallpaper (background).

3. Touch Save or Set Wallpaper.

About the Home Screen Items

You can add widgets, shortcuts, and folders to a pane. Widgets are small applications that are attached to a pane. Shortcuts provide quick access to applications or other items in your phone. You can use folders to organize shortcuts or other items on the Home screen.

Adding Items to a Pane

1. From the Home screen, switch to the pane to which you want to add items.
2. Touch and hold an empty area of the pane.
3. Touch the type of item to add.
4. If necessary, enter additional information.

Removing Items from a Pane

1. From the Home screen, switch to the pane from which you want to remove items.
2. Touch and hold the item to remove.
3. Drag the item to

Adding Home Screen Folders

You can use folders to organize content on the Home screen.

1. From the Home screen, switch to the pane to which you want to add a folder.
2. Touch and hold on an empty area of the pane.
3. Touch Folders.
4. Touch the type of folder that you want to add.
5. If necessary, enter a folder name, and touch OK.

You can drag a shortcut onto the folder to add the shortcut to the folder.

Renaming a Home Screen Folder

Before you can rename a folder, you must add a folder to the Home screen.

1. From the Home screen, touch the folder.
2. Touch and hold the folder name at the top of the folder window.
3. Enter the name, and touch OK.

Arranging Items on the Home Screen

You can move widgets, shortcuts, and folders to arrange them on the Home screen.

1. Touch and hold the item you want to move until the device vibrates.
2. Drag the item to a new location.

• To move an item to an adjacent pane, drag the item to the edge of the screen, and hold it until the adjacent pane appears.

Getting to Know Your Device

- To move a shortcut into a folder, drag the shortcut onto the folder.

Changing the Volume

You can change the volume for certain features, such as the ringer, music player, navigation prompts, and messaging notifications.

1. Open the application for which you want to change the volume.
2. Press the Volume Up or Volume Down key.

TIP: You can also access the volume settings from the application tray. Touch Settings >Audio and Display >Volume Levels.

1. Select an option:

- Continue pressing the Volume Up or Volume Down key to adjust the volume.

• Touch 📋 to quickly turn on the ringer, when available.
• Touch to set the ringer to vibrate, when available.
• Touch to get the ringer to ring and vibrate, when available.
• Touch to silence the ringer, when available.

Rotating the Device

NOTE: Some applications can be viewed in one orientation only. For example, the camera is available in landscape mode only.

Rotate the handset to alternate between vertical (portrait) mode and horizontal (landscape) mode.

TIP: To change the rotation settings, from the Home screen, touch 📋 Settings > Audio and Display > Orientation.

Using the Touchscreen

NOTE: The touchscreen requires direct contact with your skin. The device does not respond if you touch the touchscreen with your fingernail or with a glove.

• Touch and drag your finger to slowly scroll the screen.
• Scroll the screen both vertically and horizontally, when available.
• Touch, drag, and quickly remove your finger (flick the screen) to quickly scroll the screen.
• Touch the screen to stop scrolling.
• Touch two points near the center of the page, and drag your fingers apart to zoom in, when available.
• Touch two points near opposite edges of the page, and drag your fingers toward the center of the page to zoom out, when available.

Using the On-screen Keyboard

A keyboard appears when you need to enter text.

• Touch a key to enter text.
• Touch to backspace.
• Touch to shift.
• Touch and hold to turn on caps lock.
• Touch to close the keyboard.
• Touch 1023 display numbers and symbols.
• Touch t88c isplay an alphabetic keyboard.
• Touch change the keyboard, if more than one keyboard is enabled (page 107).
• Touch the text or numbers on the screen to insert a cursor.

Getting to Know Your Device

Using Text Completion

The device includes a text-completion feature that recognizes words you are typing.

NOTE: To adjust the text-completion settings, see page 107.

1. Begin typing a word.
   A row of suggested auto-text words appears above the keyboard. The closest match is highlighted.

2. Continue typing.

The text-completion words may change or disappear.

1. Touch a text-completion word to accept it.

NOTE: The highlighted word is inserted automatically when you enter a space or a punctuation mark.

Selecting an Input Method

The device includes multiple input methods, such as text editing and language-specific keyboards.

Before you can select an input method, you must enable additional input methods using the keyboard settings (page 107).

1. Touch and hold a text field.
2. Touch Input Method.
3. Select an option.

About the Automatic Screen Lock

The device automatically locks if you do not use it for a specified amount of time.

If the device is in the mount with external power, the screen will not automatically lock.

Manually Locking the Device

Press the Power key.

Unlocking the Device

To adjust the unlock settings, see page 106.

1. Quickly press the Power key, if necessary.
2. Tap and drag to the right.

Adjusting the Screen Timeout Length

1. From the Home screen, touch Settings > Audio and Display > Screen Timeout.
2. Select a time.
3. Touch Save.

About the Headset

You can use the wired headset (included in some packages) or a Bluetooth wireless headset to listen to audio and talk on the phone.

To connect a Bluetooth headset, see page 90. For information on using a Bluetooth headset, see the instructions that came with the headset.

Connecting the Headset

1. Connect 3.5 mm headphones to the 3.5 mm adapter on the headset.
2. Connect the mini-USB connector on the headset to the device.

Using the Headset

• Press to answer a call.
• Press to end a call.
• Speak into the adapter on the headset, which contains the microphone.
• Use the Volume knob to adjust the audio volume.
• Press to pause and play music.
  For information on using a Bluetooth headset, see the instructions that came with the headset.

Status and Notification Icons

Icon Description
	Current time. The time is supplied by your network provider based on the location of the device or on the selected time zone.
	Battery life.
	External power is connected, and the battery is charging.
	Mobile signal strength. The more colored bars that appear, the stronger the signal. A red bar indicates there is no mobile signal.
[8044]	Airplane mode.
[2YGW]	Wi-Fi® connectivity. This icon appears in place of the network connectivity icon when the device is using Wi-Fi.
[74W6]	Bluetooth wireless technology is enabled, but no wireless device is connected.
[71HZ]	The Garminfone is connected to a device using Bluetooth® wireless technology.
	Teletypewriter (TTY) mode is activated (page 97).
[8467]	Hearing aid mode (HAC) is activated (page 97).
[6V7G]	Network connectivity. This icon appears when the device is connected for Internet access. The connection types are as follows: G—GPRS, E—Edge, 3G—3G, H—HSDPA 3.5G.
[7B84]	GPS satellite strength (page 30). The more colored bars that appear, the stronger the satellite signal. A red “X” indicates no satellite signals.
[7TZD]	Vibrate mode.

Getting to Know Your Device

Icon	Description
	Silent mode.
	Speaker phone.
	In a phone call.
	Calls are being forwarded.
	Text or MMS message received.
	Email message received.
	Appointment reminder.
	New voice mail message.
	Parking spot has been saved.
	You are currently navigating a route in driving mode.
	You are currently navigating a route in walking mode.
	An alarm is enabled.
	Connected to the computer using the USB cable.
	Synchronizing data with your computer, email account, or Exchange ActiveSync® account.
	There is an error synchronizing data.

Using the Phone

Using the Phone

Dialing a Number

1. Touch .
2. Dial the number.
3. Touch Call.

Calling a Found Location

You can call a location that you have found in the Where To? menu if the location has a phone number associated with it.

1. From the Home screen, touch
2. Find a location (page 30).
3. Touch Call.

Using In-Call Options

While you are in a call, you can use these options.

• Touch Speakerphone to activate the speakerphone.
• Touch Audio to select the audio output when a wireless hands-free device is connected (page 90).

• Touch Mute to mute the audio input.

• Touch Add Call to place a new call (page 22).

• Touch Hold to place the current call on hold.
• Touch to display a numeric keypad for automated systems that require numeric entries.

Ending a Call

Touch End Call.

Answering a Call

• If the screen is locked, drag the right.
• If the screen is unlocked, touch Answer.

Silencing an Incoming Call

When you receive a call, press the Volume Up or Volume Down key.

Sending an Incoming Call to Voice Mail

There are a few ways to send an incoming call to voice mail.

• Press the Power key.
• If the screen is locked, drag the left.
• If the screen is unlocked, touch Ignore.

Using the Phone

Activating Call Waiting

From the Home screen, touch ▲

Settings > Phone > Call Waiting On > Save.

Using Call Waiting

If call waiting is activated, use these call waiting options when you receive an incoming call.

• Touch Answer + Hold to answer the new call and place the original call on hold.
• Touch Switch to switch between the original call and the new call.
• Touch Answer + End to answer the new call and end the original call.
• Touch Ignore to send the new call to your voice mail.

Setting Up Voice Mail

1. From the Home screen, touch > Settings > Phone > Voice Mail Number.
2. Verify that your voice mail number is correct.
3. Touch 🔒 .
4. Touch and hold 1.
5. Follow the voice prompts.

Calling Voice Mail

When you have new voice mail, appears in the status bar.

1. Touch and drag the status bar toward the bottom of the screen.
2. Touch New Voice Mail.

TIP: You can also touch Call > 1 to call your voice mail.

Using Call History

1. Touch

Calls are organized into three categories:

Icon Description
	Dialed call
	Received call
	Missed call

1. Touch a call.
2. Select an option.

Calling a Number using Call History

1. Touch
2. Touch

contact.

Deleting a Call from the Call History

1. Touch

1. Touch a call.
2. Touch
   elete from Call

History > OK.

Adding a Number in Call History to Contacts

1. Touch

1. Touch a call.
2. Touch
   dd to Contacts >

Create new contact.

1. Touch a phone type.

2. Touch
   Name, enter a name, and Next.

3. If nece
   ssary, enter more contact nation.

4. Touch Save.

Using the Phone

Viewing Related Calls

Related calls are calls made to or received from the same number, which is displayed as one item in the call history.

1. Touch
2. Touch a call.
3. Touch ➕ View Related Calls.

A list of related calls appears showing the length of each call or a status message.

Using Reverse Lookup

This service is not available in all areas. This service may be available as a paid subscription. A data connection is required for this feature. Your regular data usage charges apply.

A reverse lookup allows you to search for the address of a phone number that called you.

1. Touch 📋.

2. Touch a call.

3. Touch □ > Reverse Lookup.

Deleting All Calls from the Call History

Touch 📋 >> > Clear Call Log.

Placing a Conference Call

You can host a conference call with two other callers.

TIP: If you receive a call while you are already on another call, you can start a conference call by touching Merge.

1. Place a call to the first phone number.
2. Touch Add Call.
3. Place a call to the second phone number.

4. Touch Merge.

5. Touch to view the other members of the conference call (optional).

Speaking Privately During a Conference Call

You can speak privately with another member of the conference call.

1. During the conference call, touch

2. Touch next to the contact with whom you would like to speak. The other members of the conference call can continue to speak to each other.

Touch Merge to end the private conversation.

Forwarding Calls

1. From the Home screen, touch ☐ > Settings > Phone > Call Forwarding.
2. Select a forwarding option.
3. Enter a number to forward calls to.

Turning On Airplane Mode

Airplane mode turns off the phone and data connections for situations such as an airplane flight.

From the Home screen, touch > Settings > Wireless Manager > Airplane Mode.

When Airplane mode is on, the telephone, the network, and Bluetooth features are deactivated. You cannot send or receive calls, email messages, or SMS/MMS messages.

Using the Phone

Multitasking

Use the keys to help you multi-task.

Placing a Call While Navigating

1. If you are driving, pull over and stop.
2. Touch 📋 and place the call.
3. Touch to return to the map.
4. Carry on your conversation using the speakerphone.

Answering a Call While on the Web

1. While browsing the Internet, touch Answer when the phone rings.
2. Touch to return to the browser.
3. Carry on your conversation using the speakerphone.

Placing a Call While on the Web

1. While browsing the Internet, touch 📋, and place the call.
2. Touch 📄 to return to the browser.
3. Carry on your conversation using the speakerphone.

Ending a Call While Multitasking

To hang up, touch 📋 End Call.

Managing Your Contacts

Adding a Contact

1. From the application tray, touch
2. Enter the contact information.
3. Touch Save.

Adding a Number in Call History to Contacts

1. Touch ▶ .
2. Touch a call.
3. Touch ▶ Add to Contacts > Create new contact.
4. Touch a phone type.
5. Touch Name, enter a name, and touch Next.
6. If necessary, enter more contact information.
7. Touch Save.

Calling a Contact

1. Touch 🔒 .

TIP: You can also open Contacts using the application tray.

1. Touch a contact.

2. Touch Call.

3. If the contact has more than one phone number, touch the phone number to call.

Searching for a Contact

1. From the application tray, touch Contacts >

2. Enter part of the contact name.

3. Touch the contact.

Managing Your Contacts

Using the Contact Shortcut Menu

1. From the application tray, touch Contacts.

2. Touch the contact image.

A shortcut menu opens, which provides quick access to commonly used items relating to contacts.

1. Touch an icon.

Editing and Deleting Contacts

Editing a Contact

1. From the application tray, touch Contacts.

2. Touch a contact.

3. Touch ▷ Edit.

4. Edit the contact:

- Touch an item to edit the information.

- Touch to delete the information.

1. Touch Save.

Adding a Picture for a Contact

1. From the application tray, touch Contacts.

2. Touch a contact.

3. Touch ▷ Edit.

4. Touch the picture of the contact.

5. Select an option: Take a Photo or Select Photo from Gallery.

6. Take or choose a picture.
7. Touch and drag the square to crop the picture, and touch Save.
8. Touch Save.

Assigning a Location to a Contact

1. From the application tray, touch Contacts.
2. Touch a contact.

3. Touch ▶ Edit > Add Address >

4. Select the location:

5. Touch the location on the map.

6. Touch, and search for the location.

7. Touch Select this Location > Save.

Setting a Ringtone for a Contact

1. From the application tray, touch Contacts.
2. Touch a contact.
3. Touch More Info > ☑ Contact Options > Ringtone.
4. Touch a ringtone.
5. Touch Save.

Sending all Calls from a Contact to Voice Mail

1. From the application tray, touch Contacts.
2. Touch a contact.
3. Touch More Info > ▶ Contact Options.
4. Select the Incoming Calls check box.

Managing Your Contacts

Deleting a Contact

1. From the application tray, touch Contacts.
2. Touch a contact.
3. Touch ▶ Delete > OK.

Starting a Route to a Contact

Before you can start a route to a contact, you should assign a location for the contact (page 27).

1. From the application tray, touch Contacts.
2. Touch a contact.
3. Touch Go!.

Managing Your SIM Contacts

Importing Contacts from Your SIM Card

1. From the application tray, touch Contacts.

2. Touch ▶ SIM Phone Book > Import Contacts from SIM.

3. Touch a method to import contacts:

4. Touch Import All Contacts.

5. Select the check box for the contact.

6. Touch Import.

Exporting Contacts to Your SIM Card

1. From the application tray, touch Contacts.

2. Touch ▶ SIM Phone Book > Export Contacts to SIM.

3. Touch a method to export contacts:

- Touch Export All Contacts.

- Select the check box for the contact.

1. Touch Export.

Creating a New SIM Contact

1. From the application tray, touch Contacts.
2. Touch SIM Phone Book > View SIM Contacts > Create New SIM Contact.
3. Touch Name, enter the name, and touch Done.
4. Touch Primary Number, enter the phone number, and touch Done.
5. Touch Done.

Call or Send a Message to a SIM Contact

1. From the application tray, touch Contacts.
2. Touch SIM Phone Book > View SIM Contacts.

3. Touch a contact.

4. Touch Call or Send Message.

Editing Contacts on Your SIM Card

1. From the application tray, touch Contacts.
2. Touch ≧ SIM Phone Book > View SIM Contacts.
3. Touch a contact.
4. Touch ▲ Edit.
5. Edit the information as needed.
6. Touch Done.

Deleting Contacts on Your SIM Card

1. From the application tray, touch Contacts.
2. Touch SIM Phone Book > View SIM Contacts.
3. Touch a contact.
4. Touch ▶ Delete > OK.

Searching for Locations

Searching for Locations

The Where To? menu provides several different categories you can use to search for locations and destinations.

About GPS Signals

Before you can navigate or use location-based applications, your device must acquire satellite signals.

When you start an application that requires GPS signals, the device begins acquiring satellite signals. Acquiring satellite signals can take a few minutes.

TIP: If you are having difficulty acquiring satellite signals, go outdoors to an open area, away from tall buildings and trees.

For more information on GPS satellite signals, see page 110 and page 116.

Finding a Point of Interest

The detailed maps loaded in your device contain points of interest, such as restaurants, hotels, and auto services.

Finding a Point of Interest by Category

1. From the Home screen, touch view the Where To? pane.

1. Touch Browse Places.
2. Touch a category.
3. Touch a subcategory, if necessary. A list of items near your current location appears.
4. Touch a location.

Finding by Spelling the Name

1. From the Home screen, touch view the Where To? pane.
2. Touch the text entry field.

3. Enter part or all of the location name, and touch 🔒

4. Touch a location.

Working with Found Locations

After you find a location, the location appears on the map. An information balloon displays the name of the location.

• Touch ① to view the other locations on the map.
• Touch ② to return to the search results list.

• Touch ③ to view additional details, such as the address and the phone number, if known.

• Touch ④ to create a route to the location.

• Touch ⑤ to dial the phone number of the location, if available.

Starting a Route to a Location

1. Find a location (page 30).
2. Touch Go!.
3. Touch a navigation mode, if necessary.

Calling a Location

1. Find a location (page 30).
2. Touch Call.

Finding a Nearby Location

1. Find a location (page 30).
2. Touch ▶ Search Near.
3. Select an option.

Searching for Locations

Adding a Location to Contacts

1. Find a location (page 30).
2. Touch the information balloon.
3. Touch ▶ Add to Contacts.
4. Select an option.

Changing the Search Area

By default, your device finds locations near your current location.

1. From the Home screen, touch to view the Where To? pane.

2. Touch Browse Places > ☐ Change Location.

3. Select the location:

4. Touch the location on the map.

5. Touch, and search for the location.

6. Touch Select this Location.

Saving and Editing Locations

Saving a Found Location

1. Find a location (page 30).
2. Touch the information balloon.
3. Touch Save.

Saving Your Current Location

1. From the Home screen, touch view the Where To? pane.

2. Touch View Map.

3. Touch the vehicle icon.

4. Touch Save.

5. Enter a name, and touch Done, if necessary.

Finding Saved Locations

To save a location, see page 32.

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Saved Locations.
3. Touch the left or right arrow to search different categories, if necessary.
4. Touch an item.

Editing Saved Locations

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Saved Locations.
3. Touch and hold a location.
4. Touch Edit.
5. Touch an item to edit it.
6. Touch Save.

Deleting a Saved Location

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Saved Locations.
3. Touch and hold a location.
4. Touch Delete > Confirm.

Creating Categories

When you save a location, it is automatically assigned to a category. You can create your own categories to help organize your saved locations.

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Saved Locations.
3. Touch and hold a location.
4. Touch Edit > Categories > Enter New Category.
5. Enter a name for the category, and touch OK.

Searching for Locations

1. Touch Done > Save.

Assigning Saved Locations to Categories

1. From the Home screen, touch view the Where To? pane.

1. Touch Browse Places > Saved Locations.
2. Touch and hold a location.
3. Touch Edit > Categories.
4. Touch the categories to assign to this location.
5. Touch Done > Save.

Sharing Locations

Sharing a Found Location

1. Find a location (page 30).
2. Touch the information balloon.
3. Touch Share, and select an option to send the location.

4. Touch To, add a recipient, and touch Done.

5. Touch Message, enter a message, and touch Done.

6. Touch Send.

Sharing Your Current Location

1. From the application tray screen, touch Where Am I?.
2. Touch Share.
3. Select an option to send the location.
4. Touch To, add a recipient, and touch Done.
5. Touch Message, enter a message, and touch Done.
6. Touch Send.

Finding Your Parking Spot About the Parking Spot Feature

When the My Parking Spot feature is enabled, the location of your parking spot is saved automatically if you are receiving satellite signals when you remove the device from the cradle.

When your parking spot is saved, P appears in the status bar.

Starting a Route to Your Parking Spot

1. Touch and drag the status bar toward the bottom of the screen.
   TIP: You can also access your Parking Spot from Browse Places > Saved Locations.

2. Touch Saved Parking Spot > Go!.

Finding Your Current Location

Use the Where Am I? page to view information about your current location. This is a helpful feature if you need to tell emergency personnel your location.

1. From the application tray, touch Where Am I?.
2. Touch the information balloon to open the Where Am I? page to view your location coordinates and nearby items, such as fuel stations.
   TIP: You can also open the Where Am I? page by touching the vehicle icon on the map.

Searching for Locations

Setting Your Home Location

You can save a home location and quickly generate a route to it.

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Home.
3. Select an option.

Starting a Route to Your Home

Before you can create a route to your home location, you must set your home location.

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Home > Go!.

Finding an Address

NOTE: Depending on the version of the built-in map data on your device, the button names and the order of steps could be different than the following steps.

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Address.
   TIP: To change the search area, touch Change State/Country, and touch a state, province, or country.
3. Touch Enter House Number, enter the house number, and touch Next.
4. Enter all or part of the street name or number, and touch Done.
5. Select the street, if necessary.
6. Enter and select the correct city, if necessary.
7. Select the correct address, if necessary.

Finding Local Businesses

Local search enables you to search for local businesses. In addition to searching by spelling the name of a location, you can also spell the names of categories, like “salon” or “coffee.”

This service is not available in all areas. A data connection is required for this feature. Your regular data usage charges apply.

1. From the Home screen, touch to view the Where To? pane.
2. Touch Browse Places > Local Search.
3. Enter your search term, and touch
4. Touch an item.

Finding Recently Found Locations

Your device stores the last 50 locations you have found.

1. From the Home screen, touch to view the Where To? pane.
2. Touch Browse Places > Recently Found.
3. Touch a location.

Clearing the Recently Found List

1. From the Home screen, touch to view the Where To? pane.
2. Touch Browse Places > Recently Found.
3. Touch ▲ Clear > OK.

The list of recently found locations is cleared. These locations are not deleted from the map data.

Searching for Locations

Finding Upcoming Events

Search for upcoming events, such as art shows and sporting events.

This service is not available in all areas. This service may be available as a paid subscription. A data connection is required for this feature. Your regular data usage charges apply.

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Upcoming Events.
3. Touch a category.
4. Touch the arrows or the date to select a different date, if necessary.
5. Touch an event to view more information.
6. Select an option:

- If the event begins within two hours, touch Go! to navigate to the event.

- If the event begins in more than two hours, touch Remind Me! to add the event as an appointment on your calendar.

Finding Panoramio™ Photos

Panoramio photographs contain information about the location where the photograph was taken. You can use this information to navigate to locations and landmarks shown in Panoramio photographs.

This service is not available in all areas. A data connection is required for this feature.

1. From the Home screen, touch view the Where To? pane.

1. Touch Browse Places > Panoramio.

A list of photographs from nearby locations appears.

1. Touch a photograph.

Finding Fuel Prices

This service is not available in all areas. This service may be available as a paid subscription. A data connection is required for this feature. Your regular data usage charges apply.

1. From the Home screen, touch view the Where To? pane.

2. Touch Browse Places > Fuel Prices.

A list of fuel prices near your current location appears.

Changing the Fuel Type

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Fuel Prices.
3. Touch □ and select a fuel type.

Finding Cities

1. From the Home screen, touch to view the Where To? pane.
2. Touch Browse Places > Cities.
3. Enter the name, and touch Done. TIP: To view a list of nearby cities, touch 📋 Nearby Cities.
4. Touch a city.

Using the White Pages Phone Directory

This service is not available in all areas. This service may be available as a paid subscription. A data connection is required for this feature. Your regular data usage charges apply.

Finding by Name

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > White Pages > By Name.

Searching for Locations

1. Enter all or part of the last name, and touch Next.
2. Enter all or part of the first name (optional), and touch Done.
3. Touch Search.
4. Enter the postal code, if necessary.

Finding by Phone Number

This service may not be available for all phone numbers.

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > White Pages > By Phone Number.
3. Enter the area code and phone number.
4. Touch Search.

Entering Coordinates

If you know the geographic coordinates of your destination, you can use your device to navigate there. This can be especially helpful when geocaching.

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Coordinates.
3. Touch a cardinal-direction button to change the direction.
4. Touch a field to enter the latitude and longitude data.
5. Touch View Map.

Changing the Map Coordinate Format

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Coordinates > Coordinate Format.

1. Touch a format.

Finding Intersections

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Intersections.
3. If necessary, touch Change State/ Country to change the state, country, or province.
4. Touch Enter Street 1.
5. Enter all or part of the street name.
6. Touch the correct street.
7. Repeat for the second street.
8. Touch the correct intersection, if necessary.

About Extras

You can download additional content, such as custom POIs, from www.garminasus.com.

Custom POIs are customized points on the map. They can contain alerts that let you know if you are near a designated point or if you are traveling faster than a specified speed.

You can create or download custom POI lists and install them on your device using POI Loader software available at www.garminasus.com. See the POI Loader Help file for more information.

Finding Extras

1. From the Home screen, touch view the Where To? pane.
2. Touch Browse Places > Extras.
3. Touch a category.

Following Your Route

Following Your Route

Before you can navigate with your device, you must acquire satellites (page 30).

About the Map

NOTICE

The speed-limit icon feature is for information only and does not replace the driver's responsibility to abide by all posted speed-limit signs and to use safe driving judgment at all times. Garmin will not be responsible for any traffic fines or citations that you may receive for failing to follow all applicable traffic laws and signs.

From the Home screen, touch View Map to display your current location. The vehicle icon displays your position on the map. A speed-limit icon may appear as you travel on major roadways.

Using the Map

1. From the Home screen, touch view the Where To? pane.

1. Touch View Map.

2. Touch anywhere on the map.

• Touch and drag to view different parts of the map.
• Touch and to zoom in and out.

° As you zoom out, the map changes to a digital elevation map showing the contours of the area.
° Zoom far out to view a globe. Touch and drag to spin the globe.

- Touch to rotate the map.

- Touch to view the map in two dimensions.

- Touch to view the map in three dimensions.

- Touch to center the map on your location.

- Touch anywhere on the map. An arrow points to the location.

- Touch for more options.

NOTE: You can only see detailed map information for areas for which you have maps loaded on your device.

About Usage Modes

You can navigate to a destination in Driving mode or in Walking mode. The navigation tools vary slightly based on your usage mode.

In Driving mode, your device calculates routes for automobiles. These routes obey traffic rules, such as for one-way streets. Your device uses typical automobile speeds when estimating your arrival time.

In Walking mode, your device calculates routes for walking. These routes avoid highways in favor of smaller streets. Your device uses typical walking speeds when estimating your arrival time. If you have cityXplorer™ maps installed, your device may include public transit systems in walking routes.

Following Your Route

Navigating in Driving Mode

Starting a Route in Driving Mode

1. From the Home screen, touch view the Where To? pane.

1. Find a location (page 30).

2. Touch Go! > Driving.

NOTE: When the device is in the mount, Driving is automatically selected.

The device creates a route to the location and opens the map.

Using the Map to Navigate in Driving Mode

Your route is marked with a magenta line.

As you travel, your device guides you to your destination with voice prompts, arrows on the map, and directions at the top of the map.

If you deviate from the original route, your device recalculates the route and provides new directions.

• Touch ① to view the next turn.
• Touch ② to view the route details.
• Touch ③ to view the Traffic menu, when available. Traffic services require an additional subscription and data plan charges.

- Touch ④ to open the Where Am I? page.

- Touch ⑤ to view the trip computer.

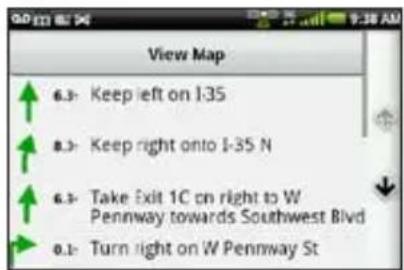

Viewing the Route Details

When you are navigating in Driving mode, you can view all of the turns for your entire route and the distance between turns.

1. While navigating to a destination, touch the text bar on the top of the map.

1. Touch a turn on the list to view details for the turn.

Viewing the Entire Route on the Map

1. From the map, touch the text bar on the top of the screen.

2. Touch View Map.

The map appears with your route marked with a magenta line.

Viewing the Next Turn

When you are navigating in Driving mode, you can view the turn on the map and the distance and time left before you reach the turn.

1. While navigating to a destination, touch the turn indicator on the map.

1. Touch the arrows to see more turns in the route.

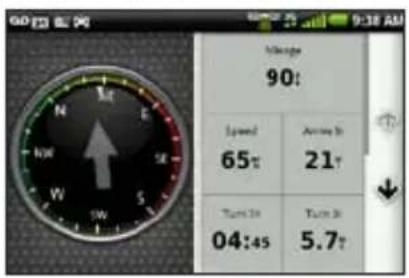

Viewing the Trip Computer in Driving Mode

The trip computer displays a compass, your current speed, and other helpful statistics about your trip.

While you are navigating in Driving mode, from the map, touch Speed.

Following Your Route

Resetting the Trip Computer in Driving Mode

Reset the trip computer before beginning a trip.

1. While you are navigating in Driving mode, from the map, touch Speed > ☐
2. Touch an item to reset.

Avoiding Road Features

1. From the Home screen, touch ☐ > Settings > Navigation > Avoidances.
2. Select the check boxes to mark the road features to avoid.

About Traffic

This service is not available in all areas. This service may be available as a paid subscription. A data connection is required for this feature. Your regular data usage charges apply.

NOTE: Garmin and ASUS are not responsible for the accuracy of the traffic information.

Turning on Traffic

Before you can receive traffic information, you must turn on background data.

1. From the Home screen, touch Settings >Navigation.
2. Select the Background Data check box.

About the Traffic Icon

The traffic icon on the map changes color to indicate the severity of traffic conditions.

Icon Definition
Gray Traffic information is not available.
Green Traffic is flowing freely.
Yellow Traffic is moving but there is a delay. There is moderate traffic congestion.
Red Traffic is not moving or is moving very slowly. There is a severe delay.

Traffic on Your Route

When calculating your route, the device examines the current traffic and automatically optimizes the route for the shortest time.

If a severe traffic delay occurs on your route while you are navigating, the device automatically recalculates the route. You might still be routed through traffic if no better alternative routes exist.

If a non-severe traffic delay occurs on your route, the traffic icon displays how much time the delay has added to your route. This time is already included in your estimated arrival time.

Avoiding Traffic Automatically

You can enable the device to automatically avoid traffic.

1. From the Home screen, touch

$$ \begin{array}{l} \text { > Settings > Navigation > } \ \text { Avoidances. } \end{array} $$

1. Select the Traffic check box.

Manually Avoiding Traffic on Your Route

1. While you are navigating in Driving mode, from the map, touch the traffic icon.

2. Touch Traffic On Route.

Following Your Route

1. Touch the arrows to select a traffic delay, if necessary.
2. Touch ☐ Avoid to avoid the selected traffic delay.

You might still be routed through traffic if no better alternative routes exist.

Viewing the Traffic Map

The traffic map displays color-coded traffic flow and delays on nearby roads.

To return to the normal map, touch the traffic icon, and touch Show Normal Map.

1. On the map, touch the traffic icon.
2. Touch Show Traffic Map.

Viewing Traffic Delays

1. On the Map page, touch the traffic icon.

2. Touch Traffic Search to view a list of traffic delays.

3. Touch an item to view the delay on a map and details about the delay.

4. If there is more than one delay, touch the arrows to view the additional delays.

Navigating in Walking Mode

Starting a Route in Walking Mode

1. From the Home screen, touch to view the Where To? pane.
2. Find a location (page 30).
3. Touch Go! > Walking. NOTE: The device must be out of the mount to be able to select Walking.

The device creates a route to the location and opens the map.

Using the Map to Navigate in Walking Mode

Your route is marked with a magenta line.

• Touch ① to view the next turn or previous turn.
• Touch ② to view the itinerary page.
• Touch ③ to view the Where Am I? page.

Viewing the Itinerary Page

While navigating a route in Walking mode, touch ➕ View Itinerary.

Using the Compass to Navigate

1. From the Map page, touch Trip Computer.

As you travel, the compass rotates to indicate your direction of travel.

1. Move in a circle until the arrow points at the bug indicator.

The bug indicator is the inverted triangle at the top of the compass, which indicates your current heading.

1. Continue traveling in this direction, toward your destination.

Following Your Route

Calibrating the Compass

1. From the Home screen, touch view the Where To? pane.
2. Touch View Map > Trip Computer > Calibrate Compass.
3. Follow the on-screen instructions.

Resetting the Trip Computer in Walking Mode

Reset the trip computer before beginning a trip.

1. From the Home screen, touch View Map > Trip Computer > .

2. Touch an item to reset.

Taking a Detour

While navigating a route, you can use detours to avoid obstacles ahead of you, such as construction zones.

1. While navigating a route, touch

2. Touch and drag the status bar toward the bottom of the screen. The notification window opens.

3. Select an option:

- Touch Detour when in Driving mode.

- Touch Recalculate when in Walking mode.

If the route you are currently taking is the only reasonable option, the device might not calculate a detour.

Stopping the Route

1. While navigating a route, touch

2. Touch and drag the status bar toward the bottom of the screen. The notification window opens.

3. Touch Stop.

Working with Routes

Adding Points to the Active Route

1. While navigating a route, touch
2. From the Home screen, touch view the Where To? pane.
3. Find a location (page 30).
4. Touch the intermediate destination.
5. Touch Go! > Insert Via Point.

Planning a New Route

1. From the application tray, touch Routes > Create New Route.
2. Touch the text field, and enter a route name.
3. Touch Add Location.

4. Select the location:

5. Touch the location on the map.

6. Touch, and search for the location.

7. Touch Select this Location.

8. Repeat steps 3–5 as necessary.

9. Touch Save.

Editing a Route

1. From the application tray, touch Routes.
2. Touch a route.
3. Touch Edit.

4. Edit the route:

5. Touch Add Location to add more locations.

6. Touch and drag or to move the location down or up in the route.
7. Touch to delete a location.

Optimizing and Reversing a Saved Route

1. From the application tray, touch Routes.
2. Touch a route.
3. Touch Edit >

Following Your Route

1. Touch Optimize Route or Reverse Route.
2. Touch Save.

Deleting a Saved Route

1. From the application tray, touch Routes.
2. Touch a route.
3. Touch Edit > Delete Route > OK.

Starting to Navigate a Saved Route

1. From the application tray, touch Routes.
2. Touch a route.
3. Touch Go!.

Viewing Your Trip Log

You can record the path you travel (called a trip log) and display it as a dotted line on the map.

1. From the Home screen, touch > Settings > Navigation.
2. Select the Trip Log check box for the Automobile and/or Pedestrian settings.

The trip log appears on the map.

Clearing the Trip Log

From the Home screen, touch > Settings > Navigation > Clear Trip Log.

Sending and Receiving Messages

Your regular messaging fees apply when sending and receiving messages.

Sending a Text Message

You can send Short Message Service (SMS) text messages.

1. From the application tray, touch Messaging > New Text Message.
2. Enter a phone number or a contact name, and touch a recipient.
3. Enter the text message.
4. Touch for additional options.
5. Touch Send.

About Multimedia Messages

A multimedia (MMS) message is similar to a text message, but it includes an attachment, such as a photo, a video, a contact, or a calendar event.

Sending an MMS

1. From the application tray, touch Messaging > New Text Message.
2. Enter a phone number or a contact name, and touch a recipient.
3. Enter the text message.
4. Touch ➕ Attach.
5. Touch a media type.
6. Touch the file to attach.
7. Touch Send.

Sending and Receiving Messages

Sending a Location Message

CAUTION

Use caution when sharing your location information with others.

Location messages allow you to send your current location information to other people.

1. From the application tray, touch Messaging > New Text Message.

2. Enter a phone number or a contact name, and touch a recipient.

3. Enter the text message.

4. Touch

1. Select the location:

2. Touch the location on the map.

3. Touch, and search for the location.

4. Touch Select this Location.

5. Touch Send.

Reading Messages

A number on the Messaging icon displays the number of unread messages in your inbox.

1. From the Home screen, touch Messaging.
   The inbox opens, containing SMS and MMS messages received from other devices.
   Unread messages are displayed in bold.

2. Touch a message to read it.

TIP: Touch and hold a message to view more options.

1. Touch for more options.

Replying to a Message

1. From the Home screen, touch Messaging.
2. Touch a message.
3. Touch the data-entry field.
4. Enter a message.
5. Touch Send.

Forwarding a Message

1. From the Home screen, touch Messaging.
2. Touch a message.
3. Touch and hold a message in the thread.
4. Touch Forward.
5. Enter a phone number or a contact name, and touch a recipient.
6. Touch Message to edit the message, if necessary.
7. Touch Send.

Deleting a Message

1. From the Home screen, touch Messaging.
2. Touch a message.
3. Touch and hold a message in the thread.
4. Touch Delete Message.

Deleting a Thread

1. From the Home screen, touch Messaging.
2. Touch a message.
3. Touch ☒ Delete Thread.

Sending and Receiving Messages

Setting Up SMS Cell Broadcast

If SMS Cell Broadcast is supported by your service provider and region, you can receive text messages that are broadcast to multiple subscribers in the area.

1. From the Home screen, touch
   Settings > Messaging.
2. Select the Cell Broadcast Service check box.
3. Touch Select Language, select the language you want to receive messages in, and touch Save.
4. Touch Manage Channels.
5. Select the Receive Channel List check box.
6. Select the channels you want to receive.
   TIP: You can also add a channel that does not appear in the list.

Adding a New Channel

1. From the Home screen, touch
   Settings > Messaging > Manage Channels.

1. Touch

1. Touch the Channel Number field, and enter the channel number.

2. Touch the Description field, and enter a description for the channel.

3. Touch the Note field, and enter a note about the channel.

4. Touch Save.

About Cell Broadcast Messages

When you receive a cell broadcast message, it is displayed in the notification bar (page 9).

Using Email

Adding an Email Account

Contact your email account provider for your email configuration information.

NOTE: To add a Gmail™ account, see page 89. Access the messages using the Gmail application.

1. From the application tray, touch Email > Other (POP3/IMAP4).
2. Enter the email address and the email password.
3. Touch Save.
4. If necessary, enter account-configuration information from your service provider.
5. Touch Next > Save.

Adding an Exchange ActiveSync Email Account

Contact your network administrator to obtain the necessary information for your network.

For more information about Exchange ActiveSync, see page 89.

1. From the application tray, touch Email > Exchange ActiveSync.
2. Enter your email address and your email password.
3. Touch Next.
4. If necessary, enter or correct the information.
5. Touch Next.
   The device verifies the account settings.

Sending an Email Message

1. From the application tray, touch Email > Compose.

Sending and Receiving Messages

1. Touch the fields on the screen to enter recipients, to enter a subject, and to add attachments.
2. Touch Message.
3. Enter the text message.
4. Touch for more options (optional).
5. Touch Send.

Viewing an Email Message

1. From the application tray, touch Email.
2. Touch to check for new email messages, if necessary.
3. Touch an email message.

4. Select an option:

5. Touch to view the location information, if available.

6. Touch to open the attachment, if available.

Deleting Email Messages

1. From the application tray, touch Email >
2. Touch the messages to delete.
3. Touch Delete.

Searching for an Email Message

NOTE: This only searches the sender name and headers of the messages, not the message text.

1. From the application tray, touch Email.
   TIP: To search a different folder, touch ➕ View Folders, and touch a folder, if necessary.

2. Touch ☑ Search Current Folder.

3. Enter the search text, and touch Done.

Changing Email Folders

1. From the application tray, touch Email.
2. Touch ➕ View Folders.
3. Touch a folder.

Setting an Email Signature

You can set an email signature for each email account you have added.

1. From the application tray, touch Email > Manage Accounts.
2. Touch an account.
3. Verify the Use Signature check box is selected.
4. Touch Signature.
5. Enter a signature.
6. Touch Save.

Changing the Email Account Password

1. From the Home screen, touch Settings > Email.
2. Select an account.
3. Touch Account Info > Password.
4. Enter the new passwords.
5. Touch Save.

Adding Another Email Account

1. From the application tray, touch Email > Manage Accounts > Add New Account.
2. Select the account type, and follow the correct instructions on page 57.

Changing Email Accounts

1. From the application tray, touch Email.
2. Touch and .

Using Ciao!

Using Ciao!™

Ciao! periodically sends your location to our partner networks and downloads the most-recent location of your friends. This application only submits your location when you tell it to, unless you enable automatic updates.

This service is not available in all areas. A data connection is required for this feature. Your regular data usage charges apply.

CAUTION

Use caution when sharing your location information with others.

Registering Your Device and Joining Ciao!

1. From the application tray, touch Ciao!.

2. Read and accept the on-screen messages.

3. Follow the steps to register your device.
   After registering, you will receive an SMS message for verification.

4. Open the SMS message received from myGarmin.
5. Touch the link to complete the verification process.
6. Touch OK. The Ciao! registration page opens.
7. Select the check box to verify that you are of legal age to use Ciao!.
8. Touch Next.
9. Enter a display name, and touch Done.
10. Touch a type of location update: Manual or Automatic.
11. Touch the link to read the terms of service for the displayed network or networks.
12. Touch Accept.

Your location is updated and becomes available to your friends.

Changing Your Display Name

1. From the application tray, touch Ciao! > My Details > ☑ Change Name.
2. Enter a new name.
3. Touch Done.

Inviting a Friend

1. From the application tray, touch Ciao! > Invite.
2. Select an option to find a friend.
3. Touch Done.

Your invited friend must accept the invitation before you can receive location updates from that friend.

Accepting or Declining an Invitation

1. From the application tray, touch Ciao!.
2. Touch the friend that sent you the invitation.
3. Touch Accept or Decline.

Sending a Location Update

From the application tray, touch Ciao! > My Details > Send Update.

Automatically Sending Location Updates

CAUTION

Use caution when sharing your location information with others.

By default, your location is only sent when you manually send it.

Using Ciao!

1. From the application tray, touch Ciao! > My Details.
2. Touch ☑ Change Location Updates > Automatic > Done.

Updating Your Status

1. From the application tray, touch Ciao! > My Details > Change Status.
2. Enter a new status message.
3. Touch Done.

Viewing Friends

Your list of friends displays the status of, the distance to, and the direction to your friends.

1. From the application tray, touch Ciao!.
2. Touch a friend.
   The location for the friend appears on a map.

Viewing All Friends on the Map From the application tray, touch Ciao! > View Map.

Adding a Friend to Contacts

1. From the application tray, touch Ciao!.
2. Touch a friend.
3. Touch ▶ Add to Contacts.

Sending a Message to a Friend

1. From the application tray, touch Ciao!.
2. Touch a friend.
3. Touch Message.

Starting a Route to a Friend's Location

1. From the application tray, touch Ciao!.

2. Touch a friend.

3. Touch Go!.

Removing an Invitation

1. From the application tray, touch Ciao!.
2. Touch an invited friend.
3. Touch Uninvite.

Removing a Friend

1. From the application tray, touch Ciao!.
2. Touch a friend.
3. Touch the information balloon.
4. Touch □ > Remove Friend > Yes.

Hiding and Revealing Your Location

- From the application tray, touch Ciao! > ≧ Hide > Hide.

Your current location is hidden from your friends.

- To stop hiding, touch Ciao! > □> Stop Hiding > Stop Hiding.

Viewing Ciao! Networks

1. From the application tray, touch Ciao!.
2. Touch ☑ Privacy > ☑ Networks.

Disabling Ciao!

1. From the application tray, touch Ciao!.
2. Touch ☑ Privacy > ☑ usable Ciao! > OK.

All the Ciao! information stored on your device is removed. You no longer send any position updates.

To enable Ciao!, you must join Ciao! again.

Browsing the Web

Browsing the Web

1. From the application tray, touch Browser.
2. Touch the URL bar.
3. Enter a search term or a URL, and touch Go.

Using the Browser

• Touch to refresh the current Web page.
• Touch to stop loading the Web page.
• Touch and drag the screen to scroll the Web page.
• Touch two points near the center of the page, and drag your fingers apart to zoom in.
• Touch two points near opposite edges of the page, and drag your fingers toward the center of the page to zoom out.
• Touch links, text-entry boxes, and other interactive items to activate them.

• Touch and hold interactive items to view a menu of additional options.

• Touch to return to the previous Web page in your history.

• Touch to go to the next Web page in your history.
• Touch to add this Web page to your favorites, if it is not already added.
• Touch remove this Web page from your favorites, if it is already added.
• Touch to view a list of recently viewed Web sites (), favorite Web sites (), and most-viewed Web sites ().
• Touch to view other active browser windows.

- Touch ☐ use the following options:

• Touch Go To URL to enter a URL.
• Touch Refresh to refresh the Web page.
• Touch Share to send the URL in a text message or an email.
• Touch Find on Page to find text in the current Web page.
• Touch Select Text to copy text from the current Web page to the system clipboard. Touch and drag across the text to copy. When you lift your finger, the selected text is copied to the clipboard.
• Touch View Downloads to view your Download History.

Browsing the Web

Viewing Multiple Browser Windows

You can view another Web page without closing the current page by launching another browser window.

1. From the application tray, touch Browser > New Page.

2. Select an option:

3. Touch a Web site.

4. Touch the URL bar to enter a web address, which opens the new Web page.

5. Touch

6. Touch an active browser window.

Saving a Web Page to Favorites

1. Open the Web page to save.

2. Touch ★

When you view one of your favorite Web pages, appears gold.

Removing a Web Site from Favorites

1. Open the Web page to remove.

2. Touch ★

Opening a Favorite Web Page

1. From the application tray, touch Browser > ▶. ★

2. Touch a Web page to view in the browser.

Viewing Your History

1. From the application tray, touch Browser > ▶.

2. Touch a Web page to view in the browser.

Clearing Your Web Page History

From the Home screen, touch > Settings > Browser > Clear History > Yes.

Sharing a URL

1. From the application tray, touch

Browser >

1. Touch a category.

2. Touch and hold a Web page.

3. Touch Share.

4. Select an option to send the URL.

Opening a Web Site in a New Window

1. From the application tray, touch

Browser >

1. Touch a category.

2. Touch and hold a Web page.

3. Touch Open in New Window.

Deleting a Web Site from a List

1. From the application tray, touch Browser >
2. Touch a category.
3. Touch ✗
4. Touch next to the Web site to remove the site from the list.
5. Touch again to delete.
6. Touch Done.

Setting Your Browser Home Page

1. From the Home screen, touch ▶ Settings > Browser > Set Home Page.
2. Enter a URL.
3. Touch OK.

Browsing the Web

Downloading Files

1. From the application tray, touch Browser.
2. Open a Web page that contains a download link.
3. Touch the download link.

The download history page appears, and a progress bar indicates the status of the download.

TIP: Touch and hold the progress bar to cancel or pause the download.

1. Touch □ and select an option, if necessary:

2. Touch Clear All to clear the download history. This option does not remove downloaded files from the device.

3. Touch Pause All to pause all in-progress downloads.

4. Touch Resume All to resume all paused downloads.

5. Touch Cancel All to cancel all in-progress downloads. This option does not remove downloads that have already completed.

6. When the progress bar is full, touch the file name to view the downloaded file.

Viewing Downloads

1. From the application tray, touch Browser > ☐ View Downloads.

2. Touch the file.

Playing Music

Music Player File Types

The music player supports the following file types:

• MP3
- MPEG4
• WMA
- AAC/AAC+/eAAC+
- WAV
• MIDI
- OGG

All supported music files on your device are displayed in the music player.

Music Player Information

Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), streaming applications (via internet, intranets and/or other networks), other content distribution systems (pay-audio or audio-on-demand applications and the like) or on physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com.

Playing Music

Playing a Song

You must transfer music files to your device before playing songs or creating playlists (page 91).

1. From the application tray, touch Music.

2. Select an option:

3. Touch All Songs.

4. Touch a category and subcategory, if necessary.

All the songs in the selected category are added to the current playlist.

1. Touch a song.

The music player plays the selected song and the following songs.

Changing the Music Player View

While playing a song, touch the following icons to change the music player view:

• Touch 📄 ew the current playlist.
• Touch ▶ View the current track, cover art, and a progress slider.
• Touch 📋Browse Music Library to browse the music library without stopping the music.

About Playlists

A playlist is a list of songs that can be saved. The current playlist appears on the playlist screen of the music player. You can also create and save playlists for future playback.

Creating a Playlist

1. From the application tray, touch Music > Playlists > +
2. Enter a new name, and touch Save.
3. Touch the new playlist.
4. Touch +
5. Touch a category and subcategories, if necessary.
6. Select the check box next to each song to add to the playlist.
7. Touch Add to Playlist.
8. Repeat steps 4–7 to add additional songs.
9. Touch Done > Save.
10. Touch and drag the song to a new position in the list to change the order of the playlist (optional).
11. Touch Save.

Playing a Playlist

1. From the application tray, touch Music > Playlists.
2. Touch a playlist.
3. Touch a song to begin playing the playlist.

Editing a Playlist

1. From the application tray, touch Music > Playlists.
2. Touch a playlist.
3. Touch ▶ Edit Playlist.

4. Select an option to edit the playlist:

5. Touch to add songs to the playlist.

6. Touch to remove a song from the playlist.

7. Touch and hold, and drag the song to a new position in the playlist.

8. Touch Save.

Playing Music

Searching the Music Player

1. From the application tray, touch Music.
2. Touch
3. Enter all or part of the song title, album, or artist.
4. Touch Done.

Saving a Song as a Ringtone

1. From the music player playlist view, touch and hold the song.
2. Touch Add to ringtone list.

Streaming Online Music

You can stream supported music files without saving them on the device.

1. From the application tray, touch Browser.
2. Select an option:
3. Enter a URL.
4. Navigate to a page with a link to a supported music file.
5. Touch the music file link.
   The music player launches and plays the song. The URL for the song appears.
6. If possible, touch ☑ Save to save the song.

Taking and Viewing Pictures and Videos

If it is not already removed, remove the plastic film from the camera lens before using the camera.

Taking a Picture

1. Press the Camera key.
2. Use the screen as a viewfinder, and point the camera lens at the subject to photograph.
3. Press the Camera key halfway down, and hold the camera still.
   A flashing gray box appears on the screen. The device focuses on the object inside of the box. When the camera is in focus, the box turns green and stops flashing.
4. Press the Camera key fully down to take the picture.

Taking and Viewing Pictures and Videos When you hear the camera click, the photo is taken and displayed for review for 3 seconds.

1. Select an option:

2. Touch ⓘ for more options, such as to set the image as the wallpaper or as a contact icon.

3. Touch to share the image.
4. Touch to erase the image.
5. Touch take a new picture.

TIP: You can also touch to take a picture.

Taking a Picture with GPS Information

If you are receiving GPS signals, the device can assign a GPS location to the photo.

1. Press the Camera key.
2. Touch

Taking and Viewing Pictures and Videos

TIP: Before taking pictures with GPS information, you may need to wait a few moments for the device to acquire satellite signals.

1. Use the screen as a viewfinder, and point the camera lens at the subject to photograph.
2. Press and hold the Camera key, and hold the camera still.
3. Release the Camera key to take the picture.

When you hear the camera click, the photo is saved.

Recording a Video

1. Press the Camera key.
2. Touch to select video.
3. Use the screen as a viewfinder, and point the camera lens at the subject to be recorded.
4. Touch to begin recording.
5. Touch □ to stop recording.

The video is saved automatically.

TIP: Touch 📄 to find and view the video.

Changing the Camera and Video Settings

1. From the application tray, touch Camera > ≧ Camera Settings.

2. Select an option:

3. Touch Color Effect to select a color effect to apply to photos you take.

4. Touch Lighting Adjustment to select a lighting condition, or select Automatic.
5. Touch Picture Resolution to select the resolution at which to capture photos. Higher settings use more storage memory to provide better-quality photos.

6. Touch Shutter Sound to turn the shutter sound on or off.

7. Touch Auto Review to turn the review page on or off. The review page displays the photo briefly after you take it.

8. Touch Video Quality to select the resolution at which to record video.

NOTE: Video Quality can only be adjusted when MP4 is selected as the Video Format.

- Touch Video Format to select the video format to use when saving videos.

NOTE: Only 3GPP videos can be sent as a multimedia message.

Viewing Pictures

1. From the application tray, touch Gallery.
2. Touch a picture.
3. Touch the arrows to view additional photos.

Viewing a Video

1. From the application tray, touch Gallery.
2. Touch a video.

Videos are indicated by

1. Touch
2. Touch the screen to view the playback controls.

Viewing a Slideshow

1. From the application tray, touch Gallery.
2. Touch ▶ View Slideshow.

Sharing Pictures and Videos

1. From the application tray, touch Gallery.
2. Touch the picture or video.
3. Touch
4. Select an option to share the image.

Taking and Viewing Pictures and Videos

Setting Your Wallpaper

You can select and prepare a photo to serve as wallpaper.

1. From the application tray, touch Gallery.
2. Touch a picture.
3. Touch ▶ Set As > Wallpaper.
4. Touch and drag the edges of the rectangle to crop the photo.
5. Touch Save.

Editing Pictures and Videos

1. From the application tray, touch Gallery.
2. Touch a picture or video.
3. Touch
4. Select an option:

- Touch Rotate to turn the photo left or right.

• Touch Crop, touch and drag the edges of the rectangle to crop the photo, and touch Save.
  A new file with the crop is created.
• Touch More Info > ☐ > Rename Picture or Rename Video to rename files.

Adding a Picture to a Contact

1. From the application tray, touch Gallery.
2. Touch a picture.
3. Touch ☐ Set As > Contact Photo.
4. Touch a contact.
5. Touch and drag the edges of the square to crop the photo.
6. Touch Save.

Starting a Route to a Photograph or Video

You can route to photographs that have GPS location information (see page 73).

1. From the application tray, touch Gallery.
2. Touch a picture.
3. Touch Go!.

Changing the Gallery Settings

1. From the application tray, touch Gallery > ≧ Gallery Settings.

2. Select an option:

3. Touch Grouping to select the criteria by which to group your pictures.

4. Touch Display Size to select the size of the picture previews.

Taking and Viewing Pictures and Videos

• Touch Sort Order to select the order in which to sort your pictures.
• Touch Slideshow Interval to select the amount of time that each picture should be displayed in the slideshow.
• Touch Slideshow Transition to select the transition effect to use when changing pictures in the slideshow.
• Select the Repeat Slideshow check box to play the slideshow multiple times.
• Select the Shuffle Slides check box to display the slides in random order.

Taking and Viewing Pictures and Videos

MPEG-4 EULA

This product is licensed under the MPEG-4 Visual Patent Portfolio License for the personal and non-commercial use of a consumer for (i) encoding video in compliance with the MPEG-4 visual standard (“MPEG-4 Video”) and/or (ii) decoding MPEG-4 video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed by MPEG LA to provide MPEG-4 video. No license is granted or shall be implied for any other use. Additional information including that relating to promotional, internal, and commercial uses and licensing may be obtained from MPEG LA, LLC. See www.MPEGLA.com.

AVC EULA

This product is licensed under the AVC Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC standard (“AVC Video”) and/or (ii) decode AVC video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See www.MPEGLA.com.

Organizing Your Life

You can synchronize your phone with your computer, Google account, and Exchange account to keep your inbox, contacts, and calendar up to date in all locations (page 89).

Using the Calendar

Viewing an Appointment

1. From the application tray, touch Calendar.

2. Select an option, if necessary:

3. Touch to view the current day. The number in the circle is the current day of the month.

4. Touch to view an agenda of upcoming appointments.

5. Touch to view appointments for today.

6. Touch 📄 to select a date on the monthly calendar.

7. Touch or to change the day or month.

8. Touch an appointment to view details.

Creating an Appointment

1. From the application tray, touch Calendar.
2. Touch .+
3. Touch Subject, enter a subject, and touch Done.
4. Touch Location, and select an option to enter a location:

- Enter the full address or location name, and touch Done.

- Touch Add Location, touch the location on the map, and touch Select this Location > Done.

- Touch Add Location, touch 🔒, find the location, and touch Select this Location > Done.

Organizing Your Life

1. Select the duration of the appointment:

2. Select start and end times.

3. Select the All Day check box to create an all-day appointment.

4. Touch Reminder, select a reminder time, and touch Save, if necessary.

5. Touch Repeat, select how often the appointment recurs, and touch Save, if necessary.
6. Touch Calendar to select a calendar, if you have more than one calendar on the device.
7. Touch Note to make notes about the meeting (optional).
8. Touch Invites to invite people to the appointment, if necessary.

You can invite people to the meeting if you are using a Google or Exchange ActiveSync account.

1. Touch Save.

Starting a Route to an Appointment

If the appointment has location information, you can start a route to the location.

1. From the application tray, touch Calendar.
2. Touch the appointment.
3. Touch Go!.

Viewing a Document

You can view the following document types using the document viewer: Microsoft® Word, Excel®, PowerPoint®, Adobe® PDF, HTML, and plaintext files. For more information on transferring files, see page 91.

1. From the application tray, touch Document Viewer.

TIP: To display files of a certain type, touch ☑ Show By File Type, and touch a file type.

1. Touch the document.

NOTE: You can also open a document attached to an email or linked on a Web page.

1. Perform any of the following actions:

2. Touch or to move backward or forward one page.

3. Touch Page, and enter a page number.
4. Touch two points near the center of the page, and drag your fingers apart to zoom in.

5. Touch two points near opposite edges of the page, and drag your fingers toward the center of the page to zoom out.

6. Touch ☐ > Search to search the document.

7. Touch ☑Rotate to rotate the document 90° clockwise.
8. Touch Share to send the document.

Searching a Document

1. Open the document in the Document Viewer (see page 80).
2. Touch ▲ Search.
3. Enter a search term.
4. Touch 🔒
5. Touch or to find the next occurrence or the previous occurrence of the search term.
6. Touch 📞 to close the search bar.

Organizing Your Life

Checking the Weather Forecast

This service is not available in all areas. A data connection is required for this feature. Your regular data usage charges apply.

TIP: To change the units of measure, see page 108.

1. From the application tray, touch Weather.

The current local weather conditions and a six-day forecast are displayed.

1. Touch a day to view a detailed forecast for that day.

Viewing the Forecast in Other Cities

1. From the application tray, touch Weather > Edit Favorite Cities > Add City.
2. Enter the city name.
3. Touch Done.
4. Touch the city.
5. Touch Done.
6. Touch or to view the forecast in your favorite cities.

Using the Clock

For information on manually changing the time or the time zone, see page 107.

Adding Cities to the Time List

1. From the application tray, touch Clock > ▶ . +
2. Enter all or part of a city name.
3. Touch Done.
4. Touch the city.

Setting an Alarm

1. From the application tray, touch Clock > Add New Alarm.
2. Touch Alarm Message, enter a message for the alarm, and touch OK.
3. Touch Start, select an alarm time, and touch Done.
4. If necessary, touch Repeat, select how often the alarm should repeat, and touch OK.
5. Select the Enabled check box.
6. Touch Ringer, touch a ringer, and touch Done (optional).
7. Touch Save.

Managing Alarms

• Select or clear the check box next to an alarm to enable or disable the alarm.
• To delete an alarm, touch an alarm, and touch ➞ Delete Alarm.
• When the alarm sounds, touch Snooze to hear the alarm again in 10 minutes, or touch Dismiss.

Using the Stop Watch

1. From the application tray, touch Clock >
2. Touch Start to start the timer.
3. Touch Lap to record the lap time and the split time (optional).
4. Touch Stop to stop the timer.
5. Touch the Lap and Split times to view details (optional).
6. Touch Reset to reset the timer (optional).

Organizing Your Life

Viewing the World Map

1. From the application tray, touch

Clock >

The globe displays areas of daylight and night across the world.

1. Perform any of the following actions:

2. Touch and drag the globe to change the speed or the direction of rotation.

3. Touch the globe to stop the rotation.

- When the globe is stopped, touch again to view a flat map view.

- Touch the map to switch back to the globe view.

Using the Converter

Converting Units

1. From the application tray, touch Converter.
2. Touch the button next to Convert.
3. Touch the type of items to be converted.
4. Touch Done.
5. Touch a unit of measurement.
6. Touch the unit type.
7. Touch Done.
8. Touch a number.
9. Enter the number of units to be converted.
10. Touch Done.

TIP: To clear the number of units, touch ≧ Clear.

Converting Currency

1. From the application tray, touch Converter.
2. Touch the button next to Convert.
3. Touch Currency > Done.
4. Touch a currency button. TIP: Touch and drag the tab to quickly scroll through the currencies.
5. Touch a currency.
6. Touch Done.
7. Touch the amount below the currency to convert.
8. Enter the amount.
9. Touch Done.

Updating the Currency Rates

A data connection is required for this feature.

1. From the application tray, touch Converter.
2. Touch the button next to Convert.
3. Touch Currency > Done > Update.

Setting Conversion Rates Manually

1. From the application tray, touch Converter.
2. Touch the button next to Convert.
3. Touch Currency > Done.
4. Touch a currency button.
5. Touch the currency for which you want to set the conversion rate, and touch Done.

Organizing Your Life

1. Repeat step 5 to set the other currency, if necessary.
2. Touch ≧ Custom.
3. Touch a conversion tab to change how the currencies are converted.
4. Touch a conversion rate.
5. Enter a new conversion rate, and touch Done.

Checking Flight Status

A data connection is required for this feature. Your regular data usage charges apply.

1. From the application tray, touch Flight Status.

2. Perform a search:

- Touch Current Location to search for flights in airports near your current location.

- Touch Another City to search for flights in airports near the city you select.

A list of airports appears. Major airports are listed first, and all other airports are sorted by distance.

1. Touch an airport.

TIP: Touch to view the airport on the map.

1. Select an option.

2. Touch a flight.

Finding Movie Times

This service is not available in all areas. A data connection is required for this feature. Your regular data usage charges apply.

Finding a Movie by the Title

1. From the application tray, touch Movie Times > Movies.
2. Touch the arrows or the date to select a different date, if necessary.
3. Touch a movie.
4. Touch Theatres.
5. Touch a theatre.
6. Select an option.

Finding a Movie by Theatre

1. From the application tray, touch Movie Times > Theatres.

2. Touch a theatre.

3. Touch the arrows or the date to select a different date, if necessary.

4. Touch a movie.
5. Select an option.

Starting a Route to a Movie Theatre

After you select a movie and theatre, you can create a route to the theatre.

Touch Go!.

Setting an Appointment for a Movie

After you select a movie and theatre, you can set an appointment for the movie time.

1. Touch ≧ Remind Me.
2. Touch a movie time.

Connecting with Other Devices

Connecting with Other Devices

Synchronizing Your Device with Your Computer

Synchronize your device with your computer to transfer your contacts and calendar events to your device.

Downloading and Installing Garmin-Asus PC Sync

NOTE: Garmin-Asus PC Sync software is not compatible with Mac® computers.

1. Go to www.garminasus.com /pcsync.
2. Follow the on-screen instructions to download and install Garmin-Asus PC Sync software.

Synchronizing With Your Computer

1. Verify that you have downloaded and installed Garmin-Asus PC Sync software on your computer.
2. Connect the mini-USB cable to the connector on the bottom of the device (not the cradle).
3. Connect the cable to your computer. The USB Connected page opens on the device.

NOTE: If the USB Connected page does not open, open the Notification bar, and touch USB Connected.

1. Touch Sync.

Your Microsoft Outlook ^® contacts, calendar events, and tasks are synchronized with your device contact list and calendar.

Synchronizing Your Device with an Exchange Server

Synchronize your contacts, calendar, and email with an Exchange

ActiveSync account. You must have a data connection to use this feature.

Contact your network administrator to obtain the necessary information for your network.

See page 57 for more information about setting up an Exchange ActiveSync account.

You can select the types of data (email, contacts, and calendar) to synchronize and how the device synchronizes data (page 105).

Synchronizing with a Google™ Account

You can synchronize your Google account data with the calendar, contacts, and Google Mobile Services.

1. From the Home screen, touch ➕ Settings > Accounts and Sync > Add New Account > Next.

2. Select an option:

3. Touch Sign In to sign into an existing Google account. Enter your user name and password, and touch Sign In.

4. Touch Create to create a new Google account. Follow the on-screen instructions.

5. Select the types of data you want to synchronize.

Data in your Google accounts synchronizes automatically with the applications on your device.

Connecting with Other Devices

Removing a Google Account From the Home screen, touch 📋 Settings > Accounts and Sync > Google > Remove Account.

Using Bluetooth Technology

Use Bluetooth wireless technology to connect with other devices wirelessly.

Turning On Bluetooth

1. From the Home screen, touch > Settings > Wireless Manager > Bluetooth.
2. Select the Bluetooth check box.

Pairing with a Device

You can wirelessly connect to a device with Bluetooth technology.

1. Place the device to pair with in discoverable/pairing mode.
2. From the Home screen, touch > Settings > Wireless Manager > Bluetooth.

90 Garminfone Owner's Manual

1. Select the Bluetooth check box.
2. Select the Discoverable check box.
3. Touch Scan for Devices.
   NOTE: You might have to wait a moment for the names of the devices to appear.
4. Select the device to pair with in the list.
5. Enter the passkey of the device.
6. Touch OK.

Connecting to a Paired Device Before you can connect to another device, you must pair it with your device.

1. From the Home screen, touch > Settings > Wireless Manager > Bluetooth.
2. Touch a paired device.
3. Touch Connect.

Changing Your Device Name

You can change the name that identifies your device on other Bluetooth devices.

1. From the Home screen, touch > Settings > Wireless Manager > Bluetooth.
2. Touch Device name.
3. Enter a name.
4. Touch Save.

Disconnecting a Device

1. From the Home screen, touch > Settings > Wireless Manager > Bluetooth.
2. Touch the device.
3. Touch Disconnect.

The device is disconnected, but it remains paired with your device.

Removing a Paired Device

1. From the Home screen, touch > Settings > Wireless Manager > Bluetooth.

2. Select an option:

3. Touch a device, and touch Unpair.

4. Touch ▶ Clear Device List to remove all paired devices.

Removing all Paired Devices

From the Home screen, touch 📄 > Settings > Wireless Manager

Bluetooth > 📋 Clear Device List > Yes.

Transferring Files

You can transfer files, such as MP3s and JPEGs, to your device.

1. Insert the microSD card (page 2).
2. Connect the mini-USB cable to the connector on the bottom of the device (not the cradle).

Connecting with Other Devices

1. Connect the cable to your computer.
   The USB Connected page opens.
2. Touch File Transfer.
   NOTE: If the USB Connected page does not open, open the Notification bar, and touch USB Connected.
   Two additional drives (volumes) appear in the list of drives on your computer. One is the internal memory of the device. The other is the memory card.
3. Copy and paste the files to be transferred into the appropriate folders in the new drives.

About File Transfer Mode

NOTICE

If you are not sure about the purpose of a file, do not delete the file. Your device memory contains important system files that should not be deleted. Be especially cautious of files located in folders entitled “Garmin.”

File transfer mode is also referred to as USB mass storage mode. Use file transfer mode to add files to the device. The computer does not need Garmin-Asus PC Sync installed to use file transfer mode.

About Picture and Video File Types

Your device supports the following file types:

• Picture: JPEG, PNG, BMP, GIF
• Video: 3GP, WMV, MP4

About Wi-Fi

Connect to the Internet using a Wi-Fi connection. You must be in a Wi-Fi coverage area (Wi-Fi hotspot) to use Wi-Fi.

Connecting to a Wi-Fi Network

1. From the Home screen, touch > Settings > Wireless Manager > Wi-Fi.

Connecting with Other Devices

1. Select the Wi-Fi check box. The device searches for Wi-Fi networks.
2. If necessary, touch Scan for Wi-Fi Networks.
3. Touch a network.
4. Enter the network encryption key, if necessary.
5. Touch Connect.
6. If necessary, enter your user name and password.

Adding a Network

You can add non-broadcasting networks or other networks that your device does not automatically detect.

1. From the Home screen, touch > Settings > Wireless Manager > Wi-Fi.
2. Select the Wi-Fi check box.

3. Touch +xt to Add Wi-Fi Network.

4. Touch the field below Network SSID.

5. Enter the network SSID, and touch Done.

6. Touch the field below Security.

7. Touch a security type.

8. Enter a password, and touch Done.

9. Touch Save.

Removing a Remembered Network

After you have connected to a Wi-Fi network, the device remembers the network for future use. Remembered networks appear in the network list even when they are out of range.

1. From the Home screen, touch > Settings > Wireless Manager > Wi-Fi.
2. Touch the network.
3. Touch Forget.

Customizing Your Device

Customizing Your Device

Wireless Manager

From the Home screen, touch > Settings > Wireless Manager.

• Airplane Mode—see page 23.
• Wi-Fi—see page 92.
- Data—see below.
NOTE: Data charges apply when the data connection is On.
- Bluetooth—see page 90.
- VPN—allows you to configure and connect to a Virtual Private Network (VPN). Contact your network administrator for the necessary information.

Data Connection Settings

NOTICE

There may be additional charges from your service provider to use the data connection while roaming.

From the Home screen, touch ⚠️ Settings > Wireless Manager > Data.

• Data Connection—turns on the data connection.
  NOTE: Data charges apply when the data connection is On.
• Data Roaming—turns on the data connection when roaming.
  NOTE: There may be additional charges from your service provider to use the data connection while roaming.
• Internet Sharing—shares the data connection with the computer when connected with a USB cable.

• Network Preference—allows you to select your preferred type of network.
- Access Point Names—displays connected data service access points.

Audio Settings

From the Home screen, touch ⚠️ Settings > Audio and Display.

• Volume Levels—allows you to adjust the volume levels of each output.
- Ringtones—allows you to select a ringtone for phone calls.
- Notifications—sets the ringtone for notifications, such as text messages.
- Ring Style—sets the ring style to Ring Only, Vibrate Only, Ring + Vibrate, or Silent.
- Audible Touch Tones—plays a tone when you dial.

• Audible Selection—plays a tone when you touch the screen.
• Haptic Feedback—sets the device to vibrate when you press certain soft keys.
• SD Card Notifications—sets the device to vibrate when you eject or remove the memory card.

Display Settings

From the Home screen, touch > Settings > Audio and Display.

- Brightness—changes the brightness of the screen. Decreasing the brightness can save battery power. Auto Brightness sets the brightness based on the ambient lighting.

Customizing Your Device

• Color Mode—sets a light background (Daytime), a dark background (Nighttime), or automatically switches between the two based on the sunrise time and sunset time for your current location (Auto).
- Screen Timeout—sets how the screen automatically shuts off if the device is inactive for the selected length of time.
- Orientation—allows the phone to rotate the screen display as you rotate the device.
- Animation—enables animations when you open or close windows.
- Screenshot—allows you to take a picture of the device screen.

Taking a Screenshot

1. From the Home screen, touch Settings > Audio and Display > Screenshot.
2. Press the Camera key to take a picture of a screen.

Screenshots are saved in the "Screenshot" folder on the device.

Phone Settings

From the Home screen, touch > Settings > Phone.

• Call Waiting—see page 20.
• Call Forwarding—see page 23.

• Caller ID—sets a preference for sending caller ID information when you make phone calls.
  • Voice Mail Number—sets the number to access voice mail, usually the same as your phone number.

• TTY—enables TTY (teletypewriter) mode. This requires the use of a TTY adapter (part number 010-11371-04), available at www.garminasus.com /a50/tty_adapter.

• Hearing Aid Mode—optimizes the phone speaker for use with hearing aids.
• Fixed Dialing Numbers—enables you to set up your device so that it can only dial certain phone numbers.
  • Network Operators—searches for local networks.

Enabling and Adding Fixed Dialing Numbers

Before you can change the Fixed Dialing Numbers (FDN) settings, you must acquire the FDN PIN for your SIM card from your service provider.

1. From the Home screen, touch ☐ > Settings > Phone > Fixed Dialing Numbers > Enable FDN.
2. Enter the FDN PIN, and touch Save.
3. Touch Manage FDN List > ☑ Add contact.
4. Enter a name and number, and touch Save.
5. Enter the FDN PIN to add the contact to the FDN phone number list.

NOTE: You must enter the FDN PIN to disable FDN.

Home Screen Settings

• Home Screen Style—changes the Home screen to the Classic Home or the Breeze Home, which uses panes.
• Change Wallpaper—see page 10.

Customizing Your Device

Navigation Settings

• Voice—sets the language used for all voice prompts and messages.
- Traffic Service—enables the traffic service.
- Safe Mode—prevents you from entering data when your vehicle is in motion.
- Background Data—enables Garmin Connected Services to access data in the background.

Changing the Navigation Voice

1. From the Home screen, touch ☒ Settings > Navigation > Voice.
2. Select a language.
3. Touch OK.

Turning Off the Traffic Service

1. From the Home screen, touch ▷ Settings >Navigation.

2. Touch the Traffic Service check box to clear it and turn off the traffic service.

Automobile and Pedestrian Navigation Settings

You can adjust the navigation settings for Automobile (Driving) and Pedestrian (Walking) usage modes.

From the Home screen, touch ⚠ Settings > Navigation.

• Route Preference—sets the preference for calculating routes.
• Map Detail—sets the level of detail on the map. More detail may result in slower map drawing.
• Map View—sets the perspective of the Map page.

- Track Up displays the map in two dimensions (2-D) with your direction of travel at the top.

° North Up displays the map in 2-D with North at the top.
° 3-D displays the map in three dimensions, with Track Up orientation (default).

- Avoidances—types of roads and maneuvers the device should attempt to avoid when creating routes, available for Automobile (Driving) mode only.

- Notification Type—sets the method for which you are notified of maneuvers in the route, available for Pedestrian (Walking) mode only.

- Vehicle or Avatar—changes the icon to represent your position on the map.

• Auto Dim Brightness— automatically dims the backlight while navigating.

- Trip Log—displays the path of your travels on the map.

Changing Public Transportation Navigation Settings

Public Transportation settings are available when cityXplorer maps are loaded.

1. From the Home screen, touch > Settings > Navigation > Public Transportation.

2. Select the types of public transportation you would like to take.

Disabling Proximity Points

If you have loaded proximity points, such as safety cameras and custom POIs, you can disable them without removing them from the device.

1. From the Home screen, touch ☒ Settings > Navigation > Proximity Points.

Customizing Your Device

1. Clear the check box for the type of proximity points you want to disable.

Downloading Safety Cameras

CAUTION

Garmin and ASUS are not responsible for the accuracy of, or the consequences of using, a custom point of interest (POI) or a safety camera database.

This service may be available as a paid subscription. This service is not available in all areas. A data connection is required for this feature.

1. From the Home screen, touch

1. Select a region or regions.

2. Touch Download.

Viewing Map Information

From the Home screen, touch 📋 Settings >Navigation >Map Info.

A list of installed maps appears.

NOTE: Select or clear the check box next to a map to enable or disable the map.

Email Account Settings

From the Home screen, touch > Settings > Email, and touch an account.

• Account Info—contains information about this account, such as the password (page 59).
• Email Check Interval—sets the frequency for checking for new email.
• Email Sync Back Days—sets the length of time to synchronize email.
  • Calendar Sync Back Days—sets

the length of time to synchronize the calendar.

• Email Notifications—sets how you are notified when you receive an email.
• Select Ringtone
• Vibrate
• Use Signature
• Signature—page 59.

Setting the Default Email Account

1. From the Home screen, touch > Settings > Email > Set Default Account.
2. Touch an account.
3. Touch Done.

Contacts Settings

From the Home screen, touch ⚠ Settings > Contacts.

- Sort Contacts By—sorts contacts

by first or last name.

- Hide Contacts with No Phone—hides contacts that do not have a phone number.

Calendar Settings

From the Home screen, touch > Settings > Calendar.

• Set Default Reminder Time—sets the number of minutes before an appointment that the device should notify you of the appointment.
• Reminder Style—sets how the device notifies you of an upcoming appointment.
• Set Reminder Ringtone—sets the ringtone that notifies you of an upcoming appointment.
• Set Snooze Time—sets the amount of time to snooze when you touch Snooze on a calendar notification.
  • Vibrate—sets whether the device

Customizing Your Device

vibrates to notify you of an upcoming appointment.

Messaging Settings

From the Home screen, touch ⚠️ Settings > Messaging.

• Delivery Reports—requests a delivery report for each SMS and MMS message you send.
• Manage SIM card messages—allows you to copy or delete SMS messages stored on your SIM card.
• SMSC—allows you to change the SMSC (short message service center) number, if necessary.
• Read Reports—requests a read report for each MMS message you send.
• Auto-retrieve—retrieves MMS messages automatically when you are not roaming.
  • Roaming Auto-retrieve—retrieves

MMS messages automatically when you are roaming.

• Creation Mode—limits the size and type of MMS message attachments for compatibility with all service providers.
• Notifications—displays a notification in the status bar when you receive a message.
• Select Ringtone—sets a ringtone to play when you receive a message.
• Vibrate—sets how the device vibrates when you receive a message.
  • Cell Broadcast Service—page 56.

Browser Settings

General Browser Settings

From the Home screen, touch > Settings > Browser.

- Set Home Page—sets the browser home page (page 67).

• Block Pop-ups—blocks pop-up windows while browsing.
• Auto-fit Web Pages—resizes Web pages to fit the screen.
• Load Images—allows you to view images on Web pages.
• Set Text Size—sets the size of text that the browser uses to display Web pages.
• Enable JavaScript—allows JavaScript.
• Map URL Handling—adjusts how map URLs are opened:

- Enable Support—allows map URLs to be opened in Garmin maps.

- Set as Default—opens map URLs in Garmin maps by default.

Browser Privacy Settings

From the Home screen, touch

Settings > Browser.

• Accept Cookies
• Remember Form Data
• Clear Cache
• Clear History
• Clear Cookies
• Clear Form Data

Browser Security Settings

From the Home screen, touch

Settings > Browser.

• Remember Passwords—saves user names and passwords for Web sites.
  • Show Warnings—displays a warning when the browser detects a problem with the security of a Web site.
• Clear Passwords—clears saved password information.

Customizing Your Device

Quick Search Settings

From the Home screen, touch

Settings > Quick Search.

• Searchable Items—sets what is searched when using the Search widget.
• Clear Search Shortcuts—clears the shortcuts to recently selected search results.
• Google Search Settings—changes the search settings for Google Mobile Services.

Managing Applications

NOTICE

Cleared data cannot be restored.

1. From the Home screen, touch

   Settings > Application Management > Manage Applications.

A list of applications appears, showing the amount of memory used for each application.

1. Touch ☐ to sort or filter the list (optional).

2. Touch an application to view details, including storage size, cache size, defaults, and permissions.

3. Select one or more options:

4. Touch ☐ to sort or filter the list (optional).

5. Touch an application to view details, including storage size, cache size, defaults, and permissions.

6. Select one or more options:

7. Touch Uninstall to remove the application from your device, if available.

8. Touch Clear data to clear stored data associated with the application.
9. Touch Clear cache to clear cached data for the application.
10. Touch Clear defaults to clear application defaults.
11. Touch Force Stop to close the application.

Allowing the Installation of Applications

You can allow the installation of applications from outside the Android™ Market.

1. From the Home screen, touch

   Settings > Application
   Management > Manage Applications.

2. Select the Unknown Sources check box.

Accounts and Sync Settings

From the Home screen, touch 📋 Settings > Accounts and Sync.

• Background Data—allows applications, such as Email, to send and receive data at any time.
• Auto-sync—allows applications, such as email, to synchronize with the server automatically.

- Select an account to change the sync settings.

For information about email account settings, see pages 100–101.

Security and Location Settings

From the Home screen, touch ⚠️ Settings > Security and Location.

• My Parking Spot—saves your parking spot when you remove the device from the mount while power is applied to it.
• Use Wireless Networks—determines your location using Wi-Fi and mobile networks.
• Use GPS Satellites—determines your location using GPS satellites.

Customizing Your Device

Using a Pattern to Unlock the Screen

When the screen-unlock pattern is turned on, you must enter a pattern to unlock the device. You can still use the device to contact emergency services without using the screen-unlock pattern.

1. From the Home screen, touch
   Settings > Security and Location

   Set Unlock Pattern.

1. Follow the on-screen instructions to create an unlock pattern.

If you forget your pattern, contact Product Support. Your device can be unlocked, but all personal information is erased in the process. See page 109 for more information.

Locking the SIM Card

Use these settings to require a PIN to enable all non-emergency features of the device. You can still use the device to contact emergency services without a PIN. You can remove the SIM card to use the non-telephone features of the device.

1. From the Home screen, touch
   Settings > Security and Location

   Set up SIM Card Lock > Use SIM Card Lock.

1. Enter a PIN, and touch OK.

If you forget your SIM PIN, contact your service provider to obtain a Personal Unblocking Key (PUK).

Viewing Passwords as you Type Them

1. From the Home screen, touch
   Settings > Security and Location.

1. Select the Visible Passwords check box.

Setting a Credential Storage Password

You can store security credentials, such as passwords and certificates, for quick access.

1. From the Home screen, touch ☑ Settings > Security and Location > Set Password.
2. Enter a password, and touch OK. Use Secure Credentials is automatically selected.

Changing the Text Language

NOTE: Changing the text language does not change the language of map data, such as street names or user-entered data.

1. From the Home screen, touch ☐ > Settings > Language and Keyboard > Language.

2. Touch a language for all on-screen text.

Keyboard Settings

From the Home screen, touch ⚠ Settings > Language and Keyboard.

• Text Completion—displays suggested words as you enter text.
  • Auto Capitalization— automatically capitalizes the first word in a field.
• Enable Keyboards—enables keyboards for different languages.

Date and Time Settings

From the Home screen, touch > Settings > Date and Time.

- Automatic—uses the network settings for the date and time. If you clear the Automatic check box, you can set the following items:

Customizing Your Device

• Set Date—allows you to set the date manually.
• Set Time—allows you to set the time manually.

• Set Time Zone—allows you to select a time zone manually.

• Date Format—sets the date format.

• Time Format—sets the time format to 12-Hour, 24-Hour, or UTC.

Units Settings

From the Home screen, touch > Settings > Units.

• Distance—units of measure for distance.
• Temperature—units of measure for temperature.
• Coordinates—units of measure for the coordinates format.

Privacy Settings

From the Home screen, touch > Settings > Privacy.

NOTE: Sharing your location information and feedback requires the use of your data plan, and any associated charges would apply.

• Share with Google—allows Google applications to use location information.
• Connected Services Feedback—allows Garmin to collect your speed, direction, and location information and share it with strategic partners and service providers to enhance the quality of the content the device receives.

Clearing All User Data

NOTICE

This process restores all settings to factory defaults and removes all user data.

Any items that you have saved on your device, such as Saved Locations, photos, and contacts, are erased.

Any applications you have purchased and downloaded are removed. You should be able to download and install the applications again.

Map data is not erased.

Cleared data cannot be restored.

From the Home screen, touch > Settings > Privacy > Master Clear.

Changing the Storage Settings

1. From the Home screen, touch ▷ Settings > Storage.
2. Scroll to view the total space and available space for each storage type.
3. Touch Default Storage.
4. Select Internal Storage or SD Card.
5. Touch Save.

Viewing Software Information

1. From the Home screen, touch ▷ Settings > About Phone.

2. Touch an item.

Appendix

Appendix

About Satellite Signals

The GPS status icon appears in the upper-right corner of the status bar to indicate the GPS signal strength. When at least one of the lines is green, your device has acquired satellite signals. The more green lines stronger the GPS signal. If the device is not receiving GPS signals,

For troubleshooting information about acquiring satellites, see page 116.

Viewing Detailed GPS Signal Information

1. From the application tray, touch Where Am I?.
2. Touch the information balloon.
3. Touch ▶ Satellite Info.

About Connected Services

Use connected services to search for location-relevant information such as traffic, weather data, and flight status.

These services are not available in all areas. A data connection is required for these services. Your regular data usage charges apply.

Additional services may be available with a subscription. For more information, go to www.garminasus.com.

Battery Information

The icon in the status bar indicates the status of the internal battery. To increase the accuracy of the battery gauge, fully discharge the battery and then fully charge it. Do not unplug the device until it is totally charged.

Maximizing the Battery Life

• From the Home screen, touch

Settings > Audio and Display
Brightness to turn down the backlight.

• From the Home screen, touch

Settings > Display > Screen Timeout to reduce the timeout length.

- Do not leave your device in direct sunlight.

- Avoid prolonged exposure to excessive heat.

Replacing the Battery

CAUTION

Do not use a sharp object to remove the battery. A sharp object may puncture the battery, which may present a risk of fire, chemical burn, electrolyte leak, and/or injury.

Only use the correct battery type. Using an incorrect battery may present a risk of explosion.

NOTICE

To avoid losing your customized settings, replace the battery within five minutes of removing it from your device.

Contact your local waste disposal department for information on properly disposing of the battery and device.

Appendix

If you need to replace the battery in the device, use an SBP-20 lithium-ion battery. For more information on purchasing a replacement battery, go to www.garminasus.com.

Mounting on Your Dashboard

NOTICE

The permanent mounting adhesive is extremely difficult to remove after it is installed.

A mounting disk is included in some device packages. Use the mounting disk to mount your device to the dashboard and comply with certain state and local regulations.

1. Clean and dry the dashboard where you are placing the disk.
2. Remove the backing from the adhesive on the bottom of the disk.

3. Place the disk on the dashboard.

4. Remove the clear plastic cover from the top of the disk.

5. Place the suction cup mount on top of the disk.
6. Flip the lever down (toward the disk).

Removing the Device, Cradle, and Mount

Removing the device from the Cradle

1. Press up on the tab on the top of the cradle.
2. Tilt the device forward.

Removing the Cradle from the Mount

1. Turn the cradle to the right or left.
2. Apply pressure until the socket on the cradle releases the ball on the mount.

Removing the Suction Cup Mount from the Windshield

1. Flip the lever on the suction cup mount toward you.
2. Pull the tab on the suction cup toward you.

Resetting the Device

CAUTION

Do not use a sharp object to remove the battery. A sharp object may puncture the battery which may present a risk of fire, chemical burn, electrolyte leak, and/or injury.

If the device stops functioning, you may need to reset the device.

1. Turn off the device, and then turn on the device.
2. If necessary, remove and replace the battery (see page 111).
   The device should restart and operate normally.

Garminfone Owner's Manual 113

Caring for Your Device

• Avoid dropping your device and operating it in high-shock and high-vibration environments.
• Do not expose the device to water. Contact with water can cause this device to malfunction.
• Do not store the device where prolonged exposure to extreme temperatures can occur, because it can cause permanent damage.
• Never use a hard or sharp object to operate the touchscreen, or damage may result.
• To help avoid theft, remove the device and mount from sight when not in use.
• Remove the residue on the windshield left by the suction cup.

Appendix

Specifications

Physical size (W × H × D):

2.45 × 4.57 × 0.50 in.

(62.30 × 116 × 12.75 mm)

Weight: 5.29 oz. (150 g)

Display: 3.5 in. diagonal, 320 × 480 pixels; HVGA display with white backlight and touchscreen

Case: IP51 (Not waterproof)

Operating temperature range: from 5°F to 104°F (from -15°C to 40°C)

Storing temperature Range: from -4°F to 158°F (from -20°C to 70°C)

Battery charging temperature range: from 32°F to 140°F (from 0°C to 60°C)

Connector: Mini-USB for power, computer, or audio headphones

Battery type: User-replaceable 1150 mAh lithium-ion battery

Battery life: 4 hours talk time, 250 hours standby time, depending on usage and settings

Charge time: Approximately 3 hours

Power input: AC input using mini-USB connector and AC charger, or DC input using vehicle power cable

Usage: 3 W max.

GPS receiver: High-sensitivity

Acquisition times\*:

Warm: <1 sec.

Cold: <38 sec.

Factory Reset: <45 sec.

*Average acquisition times for a stationary receiver with a clear view of the sky.

Frequency band: 3G Bands I and IV; 2G (GSM) 850/900/1800/1900

Other connectivity: Bluetooth 2.0+EDR; 802.11 b/g (Wi-Fi); mini-USB 2.0

Platform: Android™ platform

Camera: 3.0 MP camera

Computer interface: Plug-and-play USB mass storage

Data storage: Internal memory and removable microSD card. Data stored indefinitely.

Appendix

Troubleshooting

Issue/Question Solution
The device is not acquiring satellite signals.	From the Home screen, touch > Settings > Security and Location. Select the Use GPS Satellites check box.
	Ensure that the GPS has enough time to initialize. When the GPS is turned on for the first time, it may take a few minutes to initialize.
The device will not turn on.	Charge the battery (page 3 and page 4).
	Replace the battery (page 111).
The device will not charge.	Replace the fuse in the vehicle power cable.
	As a safety precaution in high-temperature environments, the device will suspend charging and use battery power.If the device is mounted in a vehicle, remove the device from the mount and place it out of direct sunlight.
I cannot place a phone call.	The call function may have been suspended because of low battery power. In low-battery situations, you might be prompted to turn off the call functions. You can still navigate in these situations.
	From the Home screen, touch > Settings > Wireless Manager.Clear the Airplane Mode check box.
Do not delete necessary files.	In mass storage mode, do not delete or format the original directories, such as Garmin and Documents. Do not delete files for which you do not know the purpose.

Appendix

How can I improve the cell signal?	Step outside your vehicle.
	Use a hands-free headset.
	Move the device outside, to an open area.
	Walk to a window to improve indoor reception.
	Avoid windows with reflective metal film.
	Move to a higher elevation.
	Move the device away from electronic equipment.

Appendix

Index

Symbols

2-D map view 99

2G 95

3-D map view 99

3G 95

3GP 92

12-hour time format 108

A

additional maps i

address, finding 36

alarm, setting 83

answering a call 19

applications managing 104

appointment

adding 79

routing to 80

saving local event as 38, 87

setting movie time as 87

settings 101

audio

notifications 9

ringtone 9

volume 6

avoiding

road closures 50

road features 46, 99

traffic 47

B

backlight brightness 95

battery

charging 3

information 111

removing 111

Bluetooth technology 90–91

BMP 92

brightness 95

browsing the map 42

browsing the Web 64–68, 102

connection icon 16

cookies 103

history 103

home page 67

security 103

settings 102–103

bus 99

C

calendar 79–80

settings 101

caller ID 96

calls 18, 21, 22, 25

ending 19

forwarding 23, 96

history 21

options 18

waiting 20,96

camera 73

screen shot 96

care information 113

cell broadcast 56

Ciao! 60–63

accepting invite 61

hiding location 63

inviting 61

joining 60

registering 60

Appendix

removing a friend 63

status 62

viewing friends 62

clock 82–84, 107

setting 107

compass 49

calibrating 50

computer

connecting to 88

synchronizing with 88

conference call 22, 23

connected services 110

currency converter update 85

flight status 86

fuel prices 39

local business search 37

movie times 87

safety cameras 100

subscription 110

traffic 46

upcoming events 38

weather 82

white pages 39

contacts 25–29

adding 25

assigning location 27

deleting 26

editing 26, 26–28

managing SIM 28–29

navigating to 28

ringtone 27

saving 21

setting picture for 26, 73, 76

shortcut menu 26

converting

currency 85

units 84

cookies 103

coordinates 40

cradle 4,5

D

data connection

settings 94–96

share 94

date, setting 107

deleting

all user data 109

call history 22

recently found locations 37

detour 50

device hardware keys 6

digital elevation map 43

display settings 95

document searching 81

transferring 91

viewing 80–81

downloading files 68

driving route 43, 44–46, 50

settings 98–100, 99–100

E

e-mail 57-59

signature 59

emergency assistance 35

emergency mode 106

Exchange ActiveSync Server 89

Appendix

F

file

downloading 68

media gallery 92

music 69

transferring 91

fixed dialing 97

flight mode 23

flight status 86

folders 10

forwarding a message 55

fuel prices 39, 120

G

gallery 92–93

gas prices 39

geocaching 40

geographic coordinates 40

globe view 43

go home 36

Google

search settings 104

sync with account 89

H

headset 15

hearing aid 97

help file i

history 103

holding a phone call 19

home location 36

home screen

customizing 10–12

folders 11–17

|

ignoring a call 19

Internet. See browsing the Web

Internet sharing 94

J

JPEG 92

K

keyboard 13, 107

keys on the device 6

L

language

keyboard 107–109

text 107–109

limited dialing 97

lithium-ion battery 111

local events 38

local search 37

location information 31

changing update method 62

location messages 54

locking the device 14

automatically 15

locking the SIM 106

M

making a phone call 18

map

additional i

browse 42

contours 43

detail 98

moving 42

settings 98–99

zoom 42

MapSource i

maximum speed,

resetting 46, 50

media gallery 92–93

Appendix

messages (SMS/MMS)

new 53

read 54

messaging

forward 55

mini-USB 1

MMS 53

money exchange rates 85

mounting

removing from

mount 112

movie times 87

MP4 92

mute 12, 18

N

navigation

settings 98–99

voice 98

network type 95

0

odometer 46, 50

on-screen keyboard 13

P

Panoramio photos 38

parking spot 35

phone 18–24

turn off (airplane) 23


file types 92

take 73

view 75

playing music 69

PNG 92

public transportation 98, 99

R

receiving a call

19

recently found locations 37

registering 60

removing the mount 112

resetting 113

device 113

maximum speed 46, 50

odometer 46, 50

trip computer 46, 50

restrict dialing 97

reverse lookup 22

ringer mode 95

ringtone

for a contact 27

for appointments 101

for calls 9, 95

for e-mail 101

for messages 102

for notifications 95

saving song as 72

style 95

rotating screen 12

routing

add stops 51

detour 50

editing 51

navigating saved

route 52

planning 51–52

starting driving

route 44

starting walking

route 48

stopping 50

Appendix

to a Ciao friend'slocation 62	brightness 95	your location 54
	lock 14	setting picture as
to a contact 28	orient 12	contact icon 26, 76
to a found location 31	rotate 12	wallpaper 76
to a friend'slocation 62	timeout 15	settings 94–109
	use the touchscreen 13	sharing
to a location 31	screenshot 96	documents 81
to a movie 87	searching for locations 30	feedback 108
to an appointment 80	address 36	found location 34
to an upcomingevent 38	change the searcharea 32	picture 73
to a photographlocation 77	favorites 33	pictures and videos 75
	item on the map 42	URL 65, 67
to your home 36	navigate to acontact 28	your location 34
to your parking spot 35	points of interest 30	sharing Internetconnection 94
viewing turns in 45	recently found 37	shortcut menu forcontacts 26
	spell name 30	shortcuts 10
e mode 98	security settings 105–106,107–108	signature 59
ety cameras 99,100–109		silencing the ringer 19
ed locations 33	sending	silent 12, 95
ing your currentlocation 32	e-mail 57	SIM card
	found location 34	copy contacts 28
	SMS 53	installing 2
een	text 53	locking 106

S

Appendix

slideshow 75

SMS 53–59

cell broadcast 56

software

update i

view information 109

speakerphone 18

specifications 114

spelling the location 30

status bar 16

stop watch 83

storage 109

storing the device 113

streaming music 72

synchronizing 88

with a Google account 89–90

with computer 88

with Exchange Server 89

T

teletypewriter 97

text completion 14, 107

text message 53–59

theft, ways to avoid 113

time, setting 107

traffic 46–52

avoid 47–52

icon 47

train 99

transfer files 91–92

trip computer 46, 50

trip log 52

clearing 52

TTY 97

U

underground transit 99

units of measure 108

updating

maps i

software i

user data, deleting 109

V

vibrating notifications 12

for alarm 83

for appointments 101

for e-mail

messages 101

for messages 102

for phone call 95

video

file types 92

recording 74, 74–78

voice mail 19, 20

volume 12

VPN 94

W

walking routes 99

settings 98

wallpaper 10, 73, 76

weather 82

Where Am I? 35

Where To? pane 8

white pages 39–40

Wi-Fi 92–93

WMV 92

Z

zoom 13,42,43,64,81

For the latest free software updates (excluding map data) throughout the life of your device, go to www.garminasus.com.

garmin asus

© 2010 Garmin Ltd. or its subsidiaries and ASUSTeK Computer Inc.

For model 01000846

August 2010 Part Number 190-01171-10 Rev. A Printed in China
