Product Type	DECT Cordless Phone
Brand	Philips
Model	SE6302S
Number of Handsets	2
Talk Time	Up to 12 hours
Standby Time	Up to 150 hours
Battery Type	2 x AAA NiMH rechargeable per handset
Phonebook Memory	Up to 250 entries
Call Log Memory	Up to 50 entries
SMS Memory	Up to 50 messages (40 inbox, 10 drafts)
Display	Backlit LCD with icons
Operating Range	Up to 50m indoors, 300m outdoors
Power Supply	220-240V AC, 50/60Hz
Dimensions (Handset)	Approx 160 x 50 x 25 mm
Weight (Handset with batteries)	Approx 130 g
Key Features	Intercom, Caller ID, Call Waiting, SMS, Baby Monitor, Alarm Clock, Games
Security	PIN code protection, Call Barring
Included Accessories	2 handsets, base station, chargers, line cord, batteries, user manual
Registration Capacity	Up to 5 handsets per base
Base Station Weight	Approx 200 g

Frequently Asked Questions - SE6302S PHILIPS

How do I charge the batteries for the first time?

Place the handset on the base station and leave it for at least 24 hours before first use. The charging animation stops when fully charged.

What should I do if there is no dial tone?

Check that the base station is plugged into a working power outlet and the telephone line cord is connected. Ensure the batteries are charged. If still no tone, reset the phone by unplugging the base power for a few seconds.

How can I extend the range of my phone?

Place the base station in a central location, away from large metal objects and electrical appliances. The indoor range is up to 50 meters.

How do I register an additional handset?

Press and hold the paging button on the base for 3 seconds. Within 1 minute, go to the handset menu: Advanced Set > Registration, enter the master PIN (default 0000), and select the base.

Why does my handset display 'Out of Range'?

The handset is too far from the base station. Move closer. The icon blinks when out of range. Maximum outdoor range is about 300 meters.

How do I set the alarm clock?

Press MENU, scroll to Clock & Alarm, select Alarm, choose On Once or On Daily, then set the time. The alarm sounds for 1 minute; press any key to stop.

How do I use the intercom feature?

Press the conf key on the handset in standby mode. If more than 2 handsets are registered, select the handset number. Intercom is free for internal calls.

How do I save a caller's number to the phonebook from the call log?

Access the call log (press up arrow key), select the entry, press SELECT, choose Copy to Phbk, edit name and number, then press OK.

What is the master PIN and how do I change it?

The default master PIN is 0000. To change it, go to Advanced Set > Change PIN, enter the current PIN, then enter a new 4-digit PIN twice. Keep it safe.

Why am I not receiving SMS messages?

Ensure SMS reception is enabled in SMS Settings (default On). Check that the SMS service center numbers are correctly set. If the inbox is full (max 40), delete old messages.

USER MANUAL SE6302S PHILIPS

Charge the handset(s) 24 hours before use.

Contents

EN

4 Important Information

4 For your safety

4 Installation requirements

4 Need Help?

5 What's in the box?

6 Y o u r S E 6 3 0

6 Overview of the handset
9 Overview of the base station
9 Main features of your SE630

II Connect
12 Install
I7 Call
21 Phonebook
25 Call log
27 SMS
34 Clock & Alarm
35 Personal Settings
40 Advanced Settings
47 Network Services
50 Games
51 Troubleshooting
53 Information
54 Index

Important Information

For your safety

In the event of a power failure, you cannot use this handset to make or receive calls. Alternative arrangements should be made for access to emergency calls.

Your PIN code is preset to 0000. If you change your PIN code, keep the PIN details in a safe place where you have easy access to them. Do not lose the PIN code.

To avoid damage or malfunction:

• Do not allow the product to come into contact with liquid.
• Do not open it as you could be exposed to high voltages.
• Never use any battery type other than the one supplied.
• Do not expose the phone to excessive heat caused by heating equipment or direct sunlight.
• Do not drop your phone or allow objects to fall on your phone.
• Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives as these may harm the set.
• Active mobile phones in the vicinity may cause interference.
• Do not use the product in places where there are explosive hazards.
• Do not let small metal objects come into contact with the product. This can deteriorate audio quality and damage the product.

About operating and storage temperatures:

• Operate in a place where temperature is always between 0 and 35^ (32 to 95^ ).
• Store in a place where temperature is always between -20 and 45°C (-4 to 113°F).
• Battery life may be shortened in low temperature conditions.

Installation requirements

This product requires an electrical supply of 220-240 volts, alternating monophased power, excluding IT installations defined in standard EN 60-950. In case of power failure, the communication can be lost.

The electrical network is classified as hazardous according to criteria in the standard EN 60-950. The only way to power down this product is to unplug the power supply unit from the electrical outlet. Ensure the electrical outlet is located close to the apparatus and is always easily accessible.

The voltage on the network is classified as TNV-3 (Telecommunication Network Voltages), as defined in the standard EN 60-950.

Need Help?

For more information on troubleshooting and FAQs:

Troubleshooting: page 51

Online Help

www.p4c.philips.com

What's in the box?

EN

The following accessories are included with your SE630:

Handset

Line drawing of a Philips electric oven with control panel and side arm (no text or symbols)

Base station

Power supply for base station

Line cord

2 AAA rechargeable batteries

Battery door

User Guide

Quick Start Guide

Warranty card

The line adaptor may not be attached to the line cord. In this case, you have to connect the line adaptor to the line cord first before plugging the line cord to the line socket.

In multihandset packs, you will find one or more additional handsets, chargers with power supply units and additional rechargeable batteries.

Overview of the handset

Your SE630

EN

Handset keys

Press To
	Enter the main menu from stand-by mode.Select the function displayed on the handset screen directly above it.Activate mute function during a call.
	Go to redial list from stand-by mode.Select the function displayed on the handset screen directly above it.
	Answer an incoming external or internal call.Insert R for operator services when on the line.
	Hang up a call.Long press from menu browsing to return to stand-by mode, short press to return to previous menu.Long press in stand-by mode to switch off the handset, short press to switch on the hand-set again.
[4TH46]	Access call log from stand-by mode.Scroll up a menu list or go to the previous phonebook or call log record.Increase earpiece volume during a call.Go to the previous character in editing mode.
[42Y7]	Access phonebook from stand-by mode.Scroll down a menu list or go to the next phonebook or call log record.Decrease earpiece volume during a call.Go to the next character in editing mode.
	Initiate an internal call.
[3BHW]	Answer an incoming call in handsfree mode.Activate and deactivate the loudspeaker* during a call.
	Dial # in stand-by mode.Long press to mute the ringer in stand-by mode.Insert a pause in dialling mode.Switch between upper and lower case in editing mode.
(H203)	Dial * in stand-by mode.Long press to activate and deactivate keypad lock.

Soft key

BACK	Short press from menu browsing to return to the previous menu.

*WARNING Handsfree activation can suddenly increase the volume in the earpiece to a very high level. Make sure the handset is not too close to your ear.

Display icons & symbols

In stand-by mode, several icons & symbols may be displayed on the handset.

	The handset is registered and within range of the base station. It blinks when the handset is out of range or is searching for a base.
	Battery symbol indicating 3 different battery levels.
	The ringer volume is set to zero.
	There is an external incoming call, an external call is connected or an external call is held.
	There is an internal incoming call, an internal call is connected or an internal call is held.
	The loudspeaker is ON.
	Alarm clock is activated.
	Blinks when there is a missed call, or when new SMS or voicemail messages are received and not read yet. Steady when there are received SMS messages in the SMS box.

Your SE630

EN

Overview of the base station

Main features of your SE630

The following is an overview of the menu options that are available in your SE630. For detailed explanation of the menu options, please refer to the corresponding sections in this User Guide.

Menu To Page
	SMS Setup, write/read SMS, etc 27
	PHONEBOOK Add, edit and manage phonebook entries 21
	CLOCK & ALARM	Set date and time, alarm and alarm tone 34
	PERSONAL SET	Set Handset tone, Wallpaper, Contrast level, Screensaver, Handset name, Auto pickup/Hang-up, Languages and Babysit mode	35
	ADVANCED SET	Set Recall time, Dial mode, Call barring, Baby call mode, Register/Unregister handset, Select Base, Change PIN, Reset phone, Auto prefix, Country and Conference mode	40
	NET. SERVICE	Set Call forwarding, Voice mail, Call back, Caller ID	47
[BT3K]	GAMES Play games 50

Menu navigation

The basic steps of navigating through the menus and options are as follows:

Task Action Illustration
Enter main menu/menu options.	ChooseMENUby pressing the key directly below it (left soft key ).
Go to a specific menu/optionConfirm your selection	Presskey to scroll to your desired menu/option.ChooseSELECTby pressing the key directly below it (left soft key ).
In this example, the alarm is On Once.To change your selectionTo confirm your selectionReturn to pre level or stand-by screen	Presskey to scroll to your desired option.ChooseSELECTby pressing the key directly below it (left soft key ).ChooseBACKby pressing the key directly below it (right soft key ).

Connect

EN

The location of your base station can have an effect on the range and performance of your SE630 (see TIP below).

Connecting the Base Station

1. Place the base station in a central location near the telephone line socket and electricity sockets.
2. Connect the line cord and the power cable to the proper connector at the back of the base station.

1. Connect the other end of the line cord to the telephone line socket and the other end of the power cable to the electricity socket.

The line adaptor may not be attached to the line cord. In this case, you have to connect the line adaptor to the line cord first before plugging the line cord to the line socket.

TIP Avoid placing the base station too close to large metal objects such as filing cabinets, radiators or electrical appliances. This can impair the range and sound quality. Buildings with thick internal and external walls may impair transmission of signals to and from the base.

WARNING The base station does not have an ON/OFF switch. Power is applied when the power adaptor is plugged into the unit and connected to the electricity socket. The only way to power down the unit is to unplug the power adaptor from the electricity socket. Therefore, ensure that the electricity socket is easily accessible.

The power adaptor and telephone line cord have to be connected correctly, as incorrect connection could damage the unit.

Always use the telephone line cord supplied with the unit. Otherwise, you may not get a dial tone.

Install

Install battery

Your SE630 is supplied with 2 rechargeable batteries allowing approximately up to 12 hours of talk-time and up to 150 hours stand-by time. Before using the handset, the batteries have to be installed and fully charged.

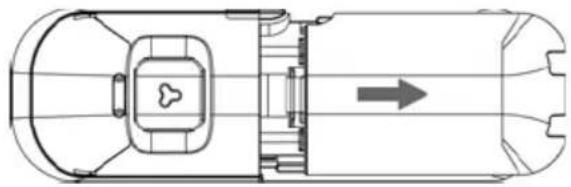

1. Slide out the battery cover.

Top-down schematic of a vehicle or road intersection with directional arrow (no text or labels)

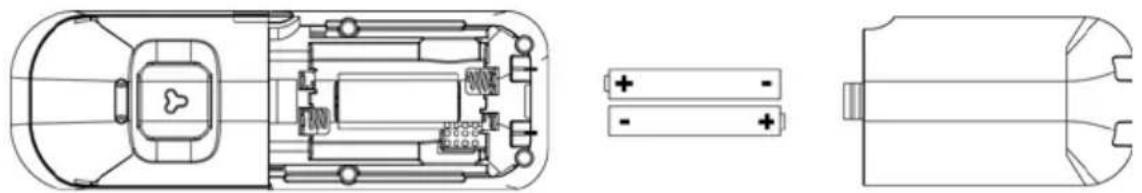

1. Place the batteries as indicated and replace the cover.

Technical line drawing of a vehicle interior with battery pack and rear view (no text or symbols)

Charge battery

1. Place the handset on the charging cradle of the base station. A beep is emitted if the handset is placed correctly.
2. A charging animation on the handset indicates that the battery is charging.

1. Leave it there until the batteries are fully charged (at least 24 hours).
2. The handset is fully charged when the charging animation stops and is displayed.

The handset must be charged for at least 24 hours before using it for the first time.

Install

EN

Battery life and range

Talk time and stand-by time

When the battery is fully charged, the talk time of your SE630 is approximately 12 hours and the stand-by time is approximately 150 hours.

Low battery warning

The battery level is shown at the top left of the handset screen. When the battery level becomes low, the low battery sensor alerts you by sounding an audible tone and blinking the battery icon.

If the battery level becomes exceedingly low, the phone automatically switches off shortly after the alert and any function in progress will not be saved.

The approximate power levels of your battery are indicated as follows:

Battery is fully charged - 3 bars in the battery icon

Battery is partially charged - 2 bars in the battery icon

Battery is running low - 1 bar in the battery icon

Battery is fully discharged - 0 bar in the battery icon

Out of range warning

The indoor and outdoor range of the phone is up to 50 metres and 300 metres respectively. When the handset moves beyond operation range, the antenna icon 📋 blink.

Before you use your SE630, you need to configure it according to the country of use. After charging it for a few minutes, the WELCOME screen appears. Follow these steps to configure your phone:

I. Press any key to display the list of countries.
2. Scroll ☐ to your country.
3. Press ☐ SELECT to confirm your selection.
4. Scroll ☐ to your operator (if necessary).
5. Press ☐ SELECT again to confirm your selection.
6. The default line settings and menu language for the selected country will be automatically configured.

You can still make outgoing calls or receive incoming calls without first defining your country selection.

Depending on your country, the WELCOME screen may not appear. In this case, you are not required to select your country/operator/language settings.

Set date and time

I. Press MENU.
2. Scroll ☐ to Clock & Alarm and press ☐ SELECT.
3. Press ☐ SELECT to enter Set Date/Time.
4. Enter current time (HH:MM) and current date (DD/MM/YY) and press SELECT.

WARNING If your phone is connected to an ISDN line through an adaptor, the date & time may be updated after each call. The availability of date & time update is dependent on your network provider. Please check the date & time settings in your ISDN system or contact your network provider.

Now, you are ready to use your phone.

Basic operations of your SE630

Make a call

Enter the phone number (maximum 24 digits) and press 📄 to dial the number.

For details, please refer to "Make a call" on page 17.

Answer or end a call

Press 🤒 key to answer a call.

Press ☐ key to end a call.

For details, please refer to "Answer a call" and "End a call" on page 18.

Switch the handset on/off

Press and hold √ key for 5 seconds to switch off the handset in stand-by mode.

Short press 📂 key to switch on the handset again.

Keypad lock/unlock

Press and hold *n key for 2 seconds to lock and unlock the keypad in stand-by mode.

Paging

The paging feature enables you to locate a missing handset if the handset is in range and contains charged batteries.

Press •••• key on the base until the handset starts to ring.

Once retrieved, press 📄 to end the paging.

Install

EN

Stand-by mode

If the handset is idle for 30 seconds in settings mode, review mode, edit mode, etc. it will automatically return to stand-by mode. It will also return to stand-by mode automatically when the handset is placed back on the base station.

Screen and keypad backlight

The backlight remains on for 20 seconds after each activation such as an incoming call, key presses, lifting up the handset off the base station, etc. The color of the keypad backlight is AMBER.

Event LED

If you have subscribed to Caller Line identification, the event LED on your handset blinks when there is a new event such as a new call, a new SMS or a new voice mail message.

Text and number entry

Key Assignment
1	space 1 @ _ # = < > ( ) & £ $ ¥ [ ] { } ☑ §
2	a b c 2 à ä ç å æ
3	d e f 3 é è Δ Φ
4	g h i 4 i Γ
5	j k l 5 Λ
6	m n o 6 ñ ò õ
7	p q r s 7 β Π Θ Σ
8	t u v 8 ù ü
9	w x y z 9 ø Ω Ξ Ψ
0	. 0 , / : ; “ ‘! i ? * + - % \ ^ ~ |

For example, to enter the name "Philips":

1. Press 7 once: P
2. Press twice: Ph
3. Press three times: Phi
4. Press 5 three times: Phil
5. Press 9 three times: Phili
6. Press 7 once: Philip

Install

7. Press 2 four times: Philips

By default, the first letter of a word is in upper case. Press #_n^a to switch between upper and lower case.

Default settings

Ringer Volume Medium
Earpiece Volume Volume 3
Speaker Volume Volume 3
Key Beep On
Wallpaper
Contrast Level 2
Screensaver On
Auto Pick-up Off
Auto Hang-up On
Babysit mode Off
Alarm clock Off
Barring mode Off
SMS reception On
Master PIN 0000

Call

EN

Make a call

Predialling

I. Enter the phone number (maximum 24 digits).
2. Press 🎨 to dial the number.

Direct dialling

1. Press 🤒 or 🏠 to take the line.
2. Enter the phone number.

Call from redial list

1. Press ☐ in stand-by mode.
2. Scroll ☐ to an entry in the redial list.
3. Press ☐ to dial the number.

TIP The handset stores the last 20 numbers dialled. The last number dialled will appear first in the redial list. If the redial number matches a phonebook entry, the name will be displayed instead.

Call from the call log

1. Press 🔒 in stand-by mode.
2. Press ☐ SELECT to enter call log.
3. Scroll ☐ to an entry in the call log.
4. Press ☐ to dial the number.

You need to subscribe to Caller Line Identification service to be able to see the caller's number or name in the call log. See "Call log" on page 25 for details.

Call from the phonebook

1. Press ▼ in stand-by mode.
2. Scroll ☐ to a phonebook entry.
3. Press ☐ to dial the number.

TIP Instead of scrolling 17 to browse the phonebook entries, press the numeric key corresponding to the first letter of the entry you wish to locate. For example, pressing 2 will show the entries starting with A. Pressing 2 again will show the entries starting with B, etc...

Answer a call

When the phone rings, press 🔒 key.

Handsfree answering

When the phone rings, press 🔒 key.

Incoming call has priority over other events. Whenever there is an incoming call, other status in progress such as phone setting, menu navigation, etc will be aborted.

TIP If Auto Pick-up mode (see page 38) is activated, you can simply lift up the handset from its base station to answer the call. This feature is deactivated by default.

WARNING When the handset rings during an incoming call, please do not hold the handset too close to your ear as the volume of the ringing tone may damage your hearing.

End a call

Press key.

The call duration will be displayed on the handset screen for about 5 seconds.

TIP If Auto Hang-up mode (see page 38) is activated, you can simply place the handset back to its base station to end the call. This feature is activated by default.

Calls in-progress

The following options are available during a call:

Adjust earpiece volume

1. Press ☐ to select from Volume 1 to Volume 5.

Mute/unmute the handset

1. During a call, press ☐ MUTE to turn off the microphone so that your correspondent cannot hear you.

2. Press ☐ UNMUTE to turn on the microphone.

Loudspeaker mode

1. Press ☐ key to activate loudspeaker mode.

Call

EN

1. Press ☐ key again to return to normal mode.

WARNING Activation of loudspeaker can suddenly increase the volume in the earpiece to a very high level. Make sure the handset is not too close to your ear.

Adjust loudspeaker volume

1. Press ☐ key to select from Volume 1 to Volume 5.

Intercom

This feature is only available when there are at least 2 registered handsets. It allows you to make free internal calls, transfer external calls from one handset to another and use the conference option.

Intercom another handset

To be able to use intercommunication feature, you must have at least 2 handsets registered to station (see page 43 "To register an additional handset").

1. Press □conf key in stand-by mode.

2. Intercom is established immediately if there are only 2 registered handsets. If there are more than 2 registered handsets, the handset numbers which are available for intercom will be displayed. Press ☐ ALL to call all the handsets or press the handset number to select a specific handset, e.g. press ☐ to call handset 2.

If the handset does not belong to keep the same range, this function may not be available.

Transfer an external call to another handset

I. Press ☐conf key to put the external call on hold (the caller can no longer hear you).

1. Intercom is established immediately if there are only 2 registered handsets. If there are more than 2 registered handsets, the handset numbers which are available for intercom will be displayed. Press ☐ ALL to call all the handsets or press the handset number to select a specific handset, e.g. press ☐ to call handset 2. The called handset rings.

If there is no answer from the called handset, press ☐conf key to resume the external call.

1. Press ☐ key on the called handset to answer the internal call, where both internal callers can talk.

2. Press ☐ key on the first handset to transfer the external call to the called handset.

Switch between an internal and external call

1. Press Uconf key once to switch between an internal call and external call.

Three-party conference call

The conference call feature allows one external call to be shared with two handsets (in intercom). The three parties can share the conversation and no network subscription is required.

I. Press ☐ to put the external call on hold (the caller can no longer hear you).
2. Intercom is established immediately if there are only 2 registered handsets. If there are more than 2 registered handsets, the handset numbers which are available for establishing a conference call will be displayed. Press ☐ ALL to call all the handsets or press the handset number to select a specific handset, e.g. press ☐ to call handset 2.

The called handset rings.

1. Press ☐ key on the called handset to answer the internal call, where both internal callers can talk.

2. Press CONF soft key on the first handset to start the three-party conference.

TIP If Conference mode is activated (see page 46), a three-party conference call is automatically established if the second handset takes the line when there is already an external call in progress.

Call waiting

If you have subscribed to Call Waiting service, the earpiece will emit a beep tone to inform you that there is a second incoming call. The number or name of the second caller will also be displayed if you have subscribed to Caller Line Identification service (CLI). Please contact your network provider for more information on this service.

To answer the second call, press 📊 + 🔒 (may be different according to your network).

Caller Line Identification

Caller Line Identification (CLI) is a special service that you may subscribe from your network operator. If you have subscribed to CLI service, and provided the identity of the caller is not withheld, the number or name of the caller (if stored in the phonebook) will be displayed when the phone rings so that you may decide whether to answer the call or not. Please contact your network provider for more information on this service.

Phonebook

EN

Phonebook

New Entry

List Entry

Edit Entry

Delete Entry

Delete All

Direct Memory

Copy from SIM

Phbk transfer

Your SE630 can store up to 250 phonebook memories, including 9 direct access memories (☐ to ☐). Each phonebook entry can have a maximum of 24 digits for the phone number and 12 characters for name.

Access phonebook

1. Press [I] in stand-by mode or press MENU, scroll to Phonebook and press SELECT, scroll to List Entry and press SELECT.

2. The phonebook entries will be listed in alphabetical order.

3. Press ☐ to browse the phonebook.

To view the details of a phonebook entry, press VIEW.

To dial a number from the phonebook, scroll ☐ to the phonebook entry and press 📄.

TIP Instead of scrolling 4 to browse the phonebook entries, you can press the numeric key corresponding to the first letter of the entry you wish to locate. For example, pressing 2 will show the entries starting with A. Pressing 2 again will show the entries starting with B, etc...

Store a contact in the phonebook

1. Press ☐ MENU, scroll ☐ to Phonebook and press ☐ SELECT, press ☐ SELECT to enter New Entry.

2. Enter the name of the contact (maximum 12 characters) and press OK.

3. Enter the number (maximum 24 digits) and press OK.

4. Enter the SMS Box number and press OK (only for UK).

Phonebook

1. Scroll ☐ to choose a group (, , , ) and press SELECT to confirm.

A long confirmation beep tone is emitted.

You can assign individual contacts to specific groups of your choice. For example, Group A contains phone numbers of all your co-workers. You can also assign a specific ring melody to that group (see "Group Melody" on page 36). If you have subscribed to Caller Line Identification service from your network provider, every time someone from that group calls you, you will hear the designated ringtone for that group.

TIP You can store up to 250 phonebook entries. You cannot store a new phonebook entry when the memory is full. In this case, you have to delete existing entries to make space for new entries.

Edit a phonebook entry

I. Press ☐ MENU, scroll ☑ to Phonebook and press ☐ SELECT, scroll ☑ to Edit Entry and press ☐ SELECT.
2. Scroll ☐ to the entry you wish to edit and press ☐ SELECT.
3. Press ☐ CLEAR to erase the letters one by one, edit the name and press ☐ OK.
4. Press ☐ CLEAR to erase the digits one by one, edit the number and press ☐ OK.
5. Enter the SMS Box number and press OK (only for UK).
6. Scroll ☐ to a group (, , , ) and press ☐ OK to confirm.

A long confirmation beep tone is emitted.

Delete a phonebook entry

I. Press ☐ MENU, scroll ☐ to Phonebook and press ☐ SELECT, scroll ☐ to Delete Entry and press ☐ SELECT.
2. Scroll to the entry you wish to delete and press SELECT.

A long confirmation beep tone is emitted.

Delete all phonebook entries

I. Press ☐ MENU, scroll ☐ to Phonebook and press ☐ SELECT, scroll ☐ to Delete All and press ☐ SELECT.
2. Press ☐ SELECT again to confirm.

A long confirmation beep tone is emitted.

Phonebook

EN

Store direct access memory

You can store up to 9 direct access memories (Key ☐ to ☑). A long press on the keys in stand-by mode will automatically dial the stored phone number.

I. Press ☐ MENU, scroll ☑ to Phonebook and press ☐ SELECT, scroll ☑ to Direct Memory and press ☐ SELECT.
2. Select a key (Key 1 to Key 9) and press VIEW. If there is a stored number in that key, the number/name will be displayed.
3. If there is no number stored for the selected key or if you want to change the number currently stored, press ☐ SELECT and press ☐ SELECT again to select Add.
4. Press OK to display the phonebook list and scroll to the entry you wish to store as direct access memory.
5. Press OK to confirm.

A long confirmation beep tone is emitted.

Delete a direct access memory

I. Press ☐ MENU, scroll ☐ to Phonebook and press ☐ SELECT, scroll ☐ to Direct Memory and press ☐ SELECT.
2. Select a key (Key 1 to Key 9) and press VIEW.
3. Press MENU and scroll to Delete.
4. Press ☐ OK to confirm.

A long confirmation beep tone is emitted.

Copy phonebook from SIM card

This feature allows you to copy the SIM card phonebook of your mobile phone to the phonebook of your handset.

1. Open the SIM card tray and remove it from the base station.

EN

Phonebook

1. Slide the SIM card between the retaining clips, microchip facing up, until it stops.

Top-down architectural diagram of a building layout with a central square and curved roof (no text or symbols)

1. Put the SIM card tray back in the slot on the base station and push into place until it latches.
2. On the handset, press MENU, scroll to Phonebook and press SELECT, scroll to Copy from SIM and press SELECT.
3. Scroll ☐ to Copy All or Select Entry. If you choose Copy All then all entries in the SIM card will be copied to your phonebook. If you choose Select Entry, you can browse the SIM card entries and select the ones you wish to copy.
4. Press ☐ SELECT to confirm.
5. Enter the PIN code of the SIM card (if required). The copy progress will be displayed on the screen.
6. A message Transferred! will be displayed upon successful completion.

Your handset should be able to read all standard SIM phonebook contents. If the handset is unable to read the SIM card, or no SIM card is detected, the screen will display an error message No SIM Card! and return to previous menu.

TIP You can select ┌─ CANCEL anytime to abort the process.

Transfer phonebook

This feature allows you to transfer the phonebook from one handset to another handset when there are at least 2 handsets registered to your base station.

I. Press ☐ MENU, scroll ☐ to Phonebook and press ☐ SELECT, scroll ☐ to Phbk transfer and press ☐ SELECT.
2. The handset numbers which are available for transfer will be displayed. If there are more than 2 handsets, you can scroll ☐ to select a specific handset.
3. Press ☐ SELECT to confirm.
4. The called handset will be prompted with a message Transfer from Handset X.
5. To accept the transfer of phonebook, press ☐ SELECT on the called handset; to reject the transfer, press ☐ CANCEL.
6. A message Transferred! will be displayed upon successful completion.

Call log

EN

The call log can store up to 50 entries. If you have subscribed to Caller Line Identification (CLI), and provided the identity of the caller is not withheld, the name (or number) of the caller will be displayed together with the date & time of the call (if provided by the network). The calls (missed and received) are displayed in chronological order with the most recent call at the top of the list. When the call log is empty, the screen displays List Empty.

Access call log

I. Press ⚠ in stand-by mode, press ⏻ SELECT to enter Call Log and scroll ⌘ to view the entries.

Save call log entry to phonebook

I. Press ▲ in stand-by mode, press — SELECT to enter Call Log and scroll 🔊 to select an entry.
2. Press ☐ SELECT and press ☐ SELECT again to Copy to Phbk.
3. Enter name and press OK.
4. Edit number if necessary and press OK.
5. Enter the SMS Box number and press OK (only for UK).
6. Scroll ☐ to choose a group (, , , ) and press SELECT to confirm.

A long confirmation beep tone is emitted.

Delete call log entry

1. Press ⚠ in stand-by mode, press ⏻ SELECT to enter Call Log and scroll ⏱ to select an entry.
2. Press ☐ SELECT and scroll ☑ to Delete.
3. Press ☐ SELECT to confirm.

A long confirmation beep tone is emitted.

Delete all call log

I. Press ⚠ in stand-by mode, press ⏚ SELECT to enter Call Log.
2. Press ☐ SELECT and scroll ☑ to Delete All and press ☐ SELECT.
3. Press ☐ SELECT again to confirm.

A long confirmation beep tone is emitted.

Access redial list

I. Press ☐ in stand-by mode and scroll ☑ to view the entries.

View details of a redial list entry

1. Press ☐ in stand-by mode and scroll ☐ to select an entry.
2. Press ☐ SELECT and press ☐ SELECT again to View.

Save redial list entry to phonebook

1. Press ☐ in stand-by mode and scroll ☐ to select an entry.
2. Press ☐ SELECT, scroll ☐ to Copy to Phbk and press ☐ SELECT.
3. Enter name and press OK.
4. Edit number if necessary and press OK.
5. Enter the SMS Box number and press OK (only for UK).
6. Scroll ☐ to choose a group (, , , ) and press SELECT to confirm.

A long confirmation beep tone is emitted.

Delete a number from redial list

1. Press ☐ in stand-by mode and scroll ☐ to select an entry.
2. Press ☐ SELECT and scroll ☐ to Delete and press ☐ SELECT.

A long confirmation beep tone is emitted.

Delete all redial list

1. Press - in stand-by mode.
2. Press ☐ SELECT and scroll ☑ to Delete All and press ☐ SELECT.
3. Press ☐ SELECT again to confirm.

A long confirmation beep tone is emitted.

SMS

Write a SMS

Inbox

Draft box

SMS Settings

SMS stands for Short Message Service. To benefit from this service, you must subscribe to Caller Line Identification Service (CLI) together with SMS service from your network provider. SMS messages can be exchanged with a phone (mobile or compatible fixed lines), provided the receiver has also subscribed to CLI and SMS services.

The factory settings on your SE630 correspond to the main national operator. If you wish to send or receive SMS messages through another service provider, you must set the corresponding numbers (see page 32).

You can create up to 10 SMS boxes (Box 0 to Box 9) and protect each box with a password (only for UK). Your SE630 can store up to 50 SMS messages (40 SMS in the Inbox and 10 SMS in the Draft box) shared by all the SMS boxes and the maximum length of each message is 160 characters.

In order to send and receive SMS messages, there must be at least one SMS Box. Box 9 with empty password is created by default (only for UK). For more information, please refer to "SMS Box (only for UK)" on page 31.

Write and send new SMS

I. Press ☐ MENU, press ☐ SELECT to enter SMS, press ☐ SELECT again to enter Write a SMS.
2. Scroll ☐ to the desired SMS Box (Box 0 to Box 9) and press ☐ SELECT to enter password (only for UK).
3. Enter the password (if needed) and press OK.

Key Operation
[ ]	Press to move cursor left by 1 position. Press and hold to jump to the 1st character/digit.
[ ]	Press to move cursor right by 1 position. Press and hold to jump to the last character/digit.
[ ] CLEAR	Press to erase the previous character/digit. Press to return to the previous menu if there are no characters/digits on the input screen. Long press to delete all characters/digits.

1. Enter the text and press OK.

You can enter up to 160 characters for an SMS.

If you receive a call while writing an SMS, the operation will be interrupted. However, your SMS will be saved in the Draft box. To retrieve it, go to Draft box in your SMS menu (see page 30).

EN

SMS

1. Enter the destination phone number and press OK. Or press PHBK to browse the phonebook list to select a phone number, press SELECT and press OK.
2. Enter the destination box number (0 to 9) directly and press OK (only for UK).

By default, the destination box is 9 (the default destination box depends on the country).

1. Press ☐ SELECT to Send the message or scroll ☐ to Save as Draft to save the message in the Draft box and press ☐ SELECT to confirm.
2. If you select Send, the message will be sent immediately. SMS Sent! will be displayed if the message has been sent successfully.

If the message cannot be sent successfully, the screen will display SMS not Sent! and the message will be saved in the Draft box.

WARNING When composing your SMS, if no keys are pressed for 60 seconds, the handset will return to stand-by mode. The edited message will be automatically saved in the Draft box.

Inbox

The messages in the Inbox are listed according to the time of receipt, with the newest message appearing first. The Inbox can store up to 40 messages (shared between Box 0 to Box 9).

Each time an SMS is received, you will be alerted by a beep tone (see "SMS Tone" on page 36) and the screen displays the number of new messages received. If LED is activated, the event LED will blink until the SMS has been reviewed.

WARNING When the message box is full, you will not be able to receive new messages. In this case, you need to delete some old messages in order to receive new ones

View Inbox messages

I. Press ☐ MENU, press ☐ SELECT to enter SMS, scroll ☐ to Inbox press ☐ SELECT.
2. Scroll ☑ to your desired box number and press ☐ SELECT (only for UK).
3. Enter the password and press OK (Password is not required for Box 9).
4. Browse the list of SMS messages and select the message you wish to read. The message list will be displayed with the sender's phone number or corresponding name (if the number matches the phonebook record).
5. Press VIEW to view the message content.

TIP While reading an SMS, press Ⓜ to scroll to the next or previous row. At the end of the message, the sender's phone number and the date and time of reception are shown.

SMS

EN

1. When viewing the message content, you can press ☐ MENU to access the following options:

Reply Send a reply to the sender of the message.
Edit Forward the message to another recipient.
Copy to Phbk Save the sender's number to your phonebook.
Delete Delete the selected message.
Delete All	Delete all messages in the Inbox.

1. To return to SMS menu, press 📄.

Press ☐ while viewing the message content/sender number/date/time stamp will abort the SMS function and dial the sender's phone number.

Press 📂 to return to Inbox message list.

Reply to an Inbox message

I. While viewing the message content, press MENU to display the Inbox menu options.
2. Scroll ☐ to Reply and press ☐ SELECT to start editing.
3. After editing, press OK to confirm the message.
4. Refer to steps 5 to 7 in "Write and send new SMS" on page 27 to send the message or select Save as Draft to save the message in the Draft box.

Forward an Inbox message

I. While viewing the message content, press ☐ MENU to display the Inbox menu options.
2. Scroll ☑ to Edit and press ☐ SELECT to start editing it if you wish.
3. After editing, press OK to confirm message.
4. Refer to steps 5 to 7 in "Write and send new SMS" on page 27 to forward the message or select Save To Draft to save the message in the Draft box.

Save sender's phone number to phonebook

I. While viewing the message content, press ☐ MENU to display the Inbox menu options.
2. Scroll ☐ to Copy to Phbk and press ☐ SELECT to enter a name for this new contact.
3. Enter the name and press OK to modify number.
4. To confirm the number, press OK again.
5. Enter the SMS Box number and press OK (only for UK).
6. Scroll ☐ to select a group you wish to assign for this contact and press ☐ SELECT to confirm. A long confirmation beep is emitted and the screen returns to display the message content.

Delete an Inbox message

I. While viewing the message content, press ☐ MENU to display the Inbox menu options.
2. Scroll ☑ to Delete and press ☐ SELECT to confirm deletion.

Delete all Inbox messages

I. While viewing the message content, press ☐ MENU to display the Inbox menu options.
2. Scroll ☐ to Delete All and press ☐ SELECT.
3. Press ☐ SELECT again to confirm deletion.

Draft box

In addition to SMS messages saved as drafts, all the SMS messages that are not successfully sent will be automatically stored in the Draft box. The Draft box can store up to 10 messages.

Review Draft messages

I. Press MENU, press SELECT to enter SMS, scroll to Draft box and press SELECT.
2. Scroll ☑ to your desired box number and press ☐ SELECT (only for UK).
3. Enter the password and press OK (Password is not required for Box 9).
4. Browse the list of SMS messages and select the message you wish to review.
5. Press VIEW to view the message content.
6. When viewing the message content, you can press ☐ MENU to access the following options:

Send Send the message immediately.
Edit Edit the message and send or save as draft.
Delete Delete the message.
Delete All	Delete all messages in the Draft box.

Send a message from Draft box

I. While viewing the message content, press ☐ MENU to display the Draft box menu options.
2. Press ☐ SELECT to Send the message.
3. Press ☐ SELECT again to confirm or scroll ☐ to Save as Draft to save the message in the Draft box and press ☐ SELECT.
4. If you select Send, the message will be sent immediately. SMS Sent! will be displayed if the message has been sent successfully.

Edit a Draft message

1. While viewing the message content, press ☐ MENU to display the Draft box menu options.
2. Scroll ☐ to Edit and press ☐ SELECT to start editing.
3. After editing, press OK to confirm message.
4. Refer to steps 5 to 7 in "Write and send new SMS" on page 27 to send the message or select Save as Draft to save the message in the Draft box.

Delete a Draft message

I. While viewing the message content, press ☐ MENU to display the Draft box menu options.

SMS

EN

1. Scroll ☐ to Delete and press — SELECT to confirm deletion.

Delete all Draft messages

1. While viewing the message content, press ☐ MENU to display the Draft box menu options.
2. Scroll ☐ to Delete All and press ☐ SELECT.
3. Press ☐ SELECT again to confirm deletion.

SMS settings

This menu allows you to set up the server for sending and receiving SMS messages. Your SE630 can receive messages from 3 service centers.

Each service center consists of 2 numbers:

• Incoming number
• Outgoing number

The maximum length of an incoming/outgoing number is 24 digits.

The incoming and outgoing numbers of your SE630 are already set to work on your country network. We advise you not to modify these settings. For more details or in case of any problems, please contact your local network provider.

SMS reception

Your SE630 can receive SMS messages from another phone if you have subscribed to the CLI and SMS services from your network provider. By default, SMS reception is set to On so that you can receive SMS messages.

To activate or deactivate the reception of SMS

I. Press ☐ MENU, press ☐ SELECT to enter SMS, scroll ☐ to SMS Settings and press ☐ SELECT, press ☐ SELECT to enter SMS Reception.

1. Scroll ☐ to On or Off and press ☐ SELECT to confirm.

Even if SMS reception is Off, you can still send SMS messages.

SMS Box (only for UK)

In order to send and receive SMS messages, there must at least be 1 SMS Box created. Box 9 with empty password is created by default.

You can create a maximum of 10 SMS boxes (Box 0 to Box 9), and you can protect each box with a password.

To create a new SMS Box (only for UK)

I. Press MENU, press SELECT to enter SMS, scroll to SMS Settings and press SELECT, scroll to SMS Boxes and press SELECT.
2. Press ☐ MENU and press ☐ SELECT to Add New Box.

EN

SMS

1. Enter box name (maximum 12 characters) and press OK.

2. Enter a password (maximum 8 digits) and press OK.

3. Enter the password again and press OK.

You can choose to leave the password empty. If no password is required, simply press OK when prompted to enter password.

1. Enter the SMS box number and press OK.

If the confirmation password is correct, the new SMS box will be created. A long confirmation beep is emitted and the screen returns to SMS box list.

To change the password of an SMS Box (only for UK)

1. Press MENU, press SELECT to enter SMS, scroll to SMS Settings and press SELECT, scroll to SMS Boxes and press SELECT.
2. Scroll ☐ to the SMS box for which you wish to change password and press - SELECT.
3. Scroll ☐ to Change Passwd and press — SELECT.
4. Enter old password and press OK.
5. Enter new password, press OK and enter the new password again for confirmation.
6. Press OK to confirm password change.

To delete an SMS Box (only for UK)

1. Press MENU, press SELECT to enter SMS, scroll to SMS Settings and press SELECT, scroll to SMS Boxes and press SELECT.
2. Scroll ☐ to the SMS box you wish to delete and press ☐ MENU.
3. Scroll ☐ to Delete Box and press — SELECT.
4. Enter password (if needed) and press OK to confirm box deletion.

To change the box number of an SMS Box (only for UK)

1. Press MENU, press SELECT to enter SMS, scroll to SMS Settings and press SELECT, scroll to SMS Boxes and press SELECT.
2. Scroll ☐ to the SMS box you for which wish to change the box number and press ☐ MENU.
3. Scroll ☐ to Change Box Nr and press ☐ SELECT.
4. Enter the new box number and press OK to confirm box number change.

To set outgoing number

The incoming and outgoing numbers of your SE630 are already set to work on your country network.

We advise you not to modify these settings. For more details or in case of any problems, please contact your local network provider.

I. Press MENU, press SELECT to enter SMS, scroll to SMS Settings and press SELECT, scroll to SMS Center 1, SMS Center 2 or SMS Center 3 and press SELECT.
2. Press ☐ SELECT to enter Outgoing Nr..

SMS

EN

1. Enter the number and press OK to confirm.

A confirmation beep is emitted.

The maximum length of an outgoing number is 24 digits.

To set incoming number

I. Press MENU, press SELECT to enter SMS, scroll to SMS Settings and press SELECT, scroll to SMS Center 1, SMS Center 2 or SMS Center 3 and press SELECT.
2. Scroll ☐ to Incoming Nr. and press ☐ SELECT.
3. Enter the number and press OK to confirm.

A confirmation beep is emitted.

The maximum length of an incoming number is 24 digits.

Default SMS center

The default SMS center number is 1.

To set default SMS center

I. Press ☐ MENU, press ☐ SELECT to enter SMS, scroll ☐ to SMS Settings and press ☐ SELECT, scroll ☐ to Default Ctr. and press ☐ SELECT.
2. Scroll ☐ to SMS center that you wish to set as default center (SMS Center 1, SMS Center 2 or SMS Center 3) and press ☐ SELECT.

A confirmation beep is emitted.

I st ring

When this function is set to Off, the first ring from a voice call will not sound. This is particularly useful in countries where calling line identity is sent after the first ring, so no phones in the house would ring when a message arrives.

To set 1st ring

I. Press MENU, press SELECT to enter SMS, scroll to SMS Settings and press SELECT, scroll to Set 1st Ring and press SELECT.
2. Scroll ☐ to On or Off and press ☐ SELECT to confirm.

Clock & Alarm

Set Date/Time

Alarm

Alarm Tone

Set date and time

I. Press ☐ MENU, scroll ☐ to Clock & Alarm and press ☐ SELECT, press ☐ SELECT again to enter Set Date/Time.
2. Enter the current time (HH:MM) and current date (DD/MM/YY) and press ☐ SELECT.

Enter the date in Day/Month/Year format and the time in 24-hour format.

1. A confirmation beep is emitted and the screen returns to Clock & Alarm menu.

Once the date and time are set, there will be time & date recovery when the batteries are removed, or when there is a power failure.

Set Alarm

I. Press ☐ MENU, scroll ☐ to Clock & Alarm and press ☐ SELECT, scroll ☐ to Alarm and press ☐ SELECT.
2. Scroll ☐ to Off, On Once or On Daily and press ☐ SELECT.
3. If you have selected On Once or On Daily, enter the time for the alarm and press SELECT. A confirmation beep is emitted and the screen returns to previous menu.

The alarm tone and alarm icon will only sound/blink for 1 minute when the alarm time is reached. To mute the alarm tone, simply press any key on the handset.

Alarm tone

I. Press ☐ MENU, scroll ☐ to Clock & Alarm and press ☐ SELECT, scroll ☐ to Alarm Tone and press ☐ SELECT.
2. Scroll ☐ to the desired melody (Melody 1, Melody 2 or Melody 3) to play the melody.
3. Press ☐ SELECT to set the alarm tone.

Personal Set

Handset Tones

Wallpaper

Contrast

Screensaver

Handset Name

Auto Pick-up

Auto Hang-up

Language

Babysit Mode

Handset Tones

Ring Volume

There are 5 ringer volume options (Silence, Low, Medium, High and Progressive). The default level is Medium.

To set ring volume

I. Press ☐ MENU, scroll ☐ to Personal Set and press ☐ SELECT, press ☐ SELECT to enter Handset Tones and press ☐ SELECT again to enter Ring Volume.

1. Scroll ☐ to your desired volume level and press ☐ SELECT to confirm. A confirmation beep is emitted and the screen returns to previous menu.

When Silence is activated, the icon 📋 is displayed on the screen.

WARNING When the handset rings during an incoming call, please do not hold the handset too close to your ear as the volume of the ringing tone may damage your hearing.

Ring Melody

There are 10 ring melodies available on your handset.

To set Ring Melody

I. Press MENU, scroll to Personal Set and press SELECT, press SELECT to enter Handset Tones, scroll to Ring Melody and press SELECT.

1. Scroll ☐ to your desired melody to play the melody.

Personal Settings

1. Press ☐ SELECT to set the ring melody.

A confirmation beep is emitted and the screen returns to previous menu.

Group Melody

To benefit from this feature, you must subscribe to the Caller Line Identification service. See "Caller Line Identification" on page 20.

This menu enables you to select and set the melodies to be played when there is an external incoming call from a contact whose name is stored in your phonebook and is part of a group. You can associate I ring melody to each group.

There are three phonebook groups (Group A, B, C) available for you to organize your contacts. Each group can be assigned a unique melody.

To set Group Melody

I. Press MENU, scroll to Personal Set and press SELECT, press SELECT to enter Handset Tones, scroll to Group Melody and press SELECT.
2. Scroll ☐ to the group for which you wish to set melody and press ☐ SELECT.
3. Scroll ☐ to the desired melody to play the melody.
4. Press ☐ SELECT to set the group melody. A confirmation beep is emitted and the screen returns to previous menu.

Key Beep

A single beep is emitted when a key is pressed. You can enable or disable this key beep. By default, the key beep is On.

To set key beep On/Off

I. Press MENU, scroll to Personal Set and press SELECT, press SELECT to enter Handset Tones, scroll to Key Beep and press SELECT.
2. Scroll ☐ to On or Off and press — SELECT to confirm. A confirmation beep is emitted and the screen returns to previous menu.

SMS Tone

A tone is emitted when a new SMS is received. You can enable or disable this SMS Tone. By default, SMS tone is On.

To set SMS tone On/Off

I. Press MENU, scroll to Personal Set and press SELECT, press SELECT to enter Handset Tones, scroll to SMS Tone and press SELECT.
2. Scroll ☐ to On or Off and press ☐ SELECT to confirm. A confirmation beep is emitted and the screen returns to previous menu.

Personal Settings

EN

Wallpaper

This feature allows you to select the wallpaper to be displayed in stand-by mode. There are 4 wallpapers pre-installed on your phone. Please see "Default settings" on page 16 for the default wallpaper.

To set wallpaper

I. Press ☐ MENU, scroll ☐ to Personal Set and press ☐ SELECT, scroll ☐ to Wallpaper and press ☐ SELECT.
2. Scroll ☑ to your desired wallpaper and press ☐ SELECT to confirm. A confirmation beep is emitted and the screen returns to previous menu.

Contrast level

There are 3 contrast level options (Level 1, Level 2 or Level 3). The default contrast level is Level 2.

To set contrast level

I. Press ☐ MENU, scroll ☐ to Personal Set and press ☐ SELECT, scroll ☐ to Contrast and press ☐ SELECT.
2. Scroll ☐ to your desired contrast level (Level 1, Level 2 or Level 3) and press ☐ SELECT to confirm. A confirmation beep is emitted and the screen returns to previous menu.

Screensaver

Screensaver will be activated automatically after 1 minute in stand-by mode.

To set screensaver

I. Press ☐ MENU, scroll ☐ to Personal Set and press ☐ SELECT, scroll ☐ to Screensaver and press ☐ SELECT.
2. Scroll ☐ to On or Off and press ☐ OK to confirm. A confirmation beep is emitted and the screen returns to previous menu.

Handset Name

You can name the handset and display the handset name in stand-by mode. The default handset name of your handset is PHILIPS.

To rename the handset

I. Press ☐ MENU, scroll ☐ to Personal Set and press ☐ SELECT, scroll ☐ to Handset Name and press ☐ SELECT.

1. Edit the handset name and press OK to confirm.

A confirmation beep is emitted and the screen returns to previous menu.

Maximum length of the handset name is 12 characters and the default handset name is PHILIPS.

Auto Pick-up

This function enables you to answer a call automatically by simply lifting the handset from the base station. By default, the Auto Pick-up feature is Off.

To set Auto Pick-up mode

I. Press ☐ MENU, scroll ☐ to Personal Set and press ☐ SELECT, scroll ☐ to Auto Pick-up and press ☐ SELECT.
2. Scroll ☐ to On or Off and press ☐ SELECT to confirm.

A confirmation beep is emitted and the screen returns to previous menu.

Auto Hang-up

This function enables you to end a call automatically by simply replacing the handset on the base station. By default, the Auto Hang-up feature is On.

To set Auto Hang-up mode

1. Press MENU, scroll to Personal Set and press SELECT, scroll to Auto Hang-up and press SELECT.
2. Scroll ☐ to On or Off and press ☐ SELECT to confirm.

A confirmation beep is emitted and the screen returns to previous menu.

Language

Your SE630 can support different display languages.

To change the language

I. Press ☐ MENU, scroll ☐ to Personal Set and press ☐ SELECT, scroll ☐ to Language and press ☐ SELECT.
2. Scroll ☐ to your desired language and press — SELECT to confirm.

A confirmation beep is emitted and the screen returns to previous menu.

Personal Settings

EN

Babysit mode

You must have at least 2 handsets registered to your base station to be able to use this feature (see page 43 "To register an additional handset").

This feature allows you to monitor, e.g. the baby's room. Place the handset in the room to be monitored. If the sound level around the microphone of the handset exceeds a certain threshold, the handset can automatically call another handset registered on the same base station.

To use the Babysit feature you need to activate it (e.g. on handset 1) and enter the number of the handset to be called (e.g. handset 2) in the event that there are noises in the monitored room. Place the handset which is in Babysit mode (e.g. handset 1) in the room to be monitored. If this handset detects a sound level greater than a certain threshold, it will automatically initiate an internal call to the selected handset (e.g. handset 2).

To activate Babysit mode

I. Press ☐ MENU, scroll ☐ to Personal Set and press ☐ SELECT, scroll ☐ to Babysit mode and press ☐ SELECT.

1. Enter the number of the handset you wish to call to and press OK to activate.

In Babysit mode, all keys are deactivated except for ☐ key. Babysit mode is displayed on the screen when this function is activated and the handset cannot make or receive calls.

To deactivate Babysit mode

I. Press ☐, select Off and press ☐ OK.

Advanced Set

Recall Time

Dial Mode

Call Barring

Baby call

Registration

Select Base

Unregistration

Change PIN

Reset

Auto prefix

Country

Conference

Recall Time

Recall time (or dial delay) is the time delay by which the line will be disconnected after you press 🔥 key. It can be set to short, medium or long.

The default value of recall time that is preset in your SE630 should be the best suited for your country network and therefore you should not need to change it.

To set recall time

1. Press ☐ MENU, scroll ☐ to Advanced Set and press ☐ SELECT and press ☐ SELECT to enter Recall Time.
2. Scroll to select Short / Medium / Long and press ☐ SELECT to confirm. A confirmation beep is emitted and the screen returns to previous menu.

This setting is useful when using network services. The use of some services accessed with [☐ + ☐], [☐ + ☐], [☐ + ☐] (call waiting, call forward...) will depend on your recall time setting. Please contact your network provider for more details on this feature.

Advanced Settings

EN

Dial Mode

The default value for dial mode that is preset in your SE630 should be the best suited for your country network and therefore you should not need to change it.

There are 2 dial modes: Tone or Pulse.

To set dial mode

I. Press ☐ MENU, scroll ☐ to Advanced Set and press ☐ SELECT, scroll ☐ to Dial Mode and press ☐ SELECT.
2. Scroll ☐ to Tone or Pulse and press ☐ SELECT to confirm.

A confirmation beep is emitted and the screen returns to previous menu.

Call Barring

Call barring enables you to restrict selected handsets from dialling a phone number beginning with certain numbers. You can set up to four different barring numbers, with each number containing up to 4 digits.

If you have modified the Master PIN before and it is not the default 0000, you will be required to enter the Master PIN before you can activate or deactivate call barring mode, add or modify call barring number.

To activate/deactivate Call Barring mode

I. Press ☐ MENU, scroll ☐ to Advanced Set and press ☐ SELECT, scroll ☐ to Call Barring and press ☐ SELECT.
2. Enter the Master PIN when prompted and press OK to confirm.
3. Press ☐ SELECT to enter Barring Mode.
4. Scroll ☐ to On or Off and press ☐ SELECT to confirm.

A confirmation tone is emitted and the screen returns to previous menu.

To modify Call Barring number

I. Press ☐ MENU, scroll ☐ to Advanced Set and press ☐ SELECT, scroll ☐ to Call Barring and press ☐ SELECT.
2. Enter the Master PIN when prompted and press OK to confirm.
3. Scroll ☐ to Barring Number and press ☐ SELECT.
4. Scroll ☐ to Number 1, Number 2, Number 3 or Number 4 and press ☐ SELECT to confirm.
5. Enter a maximum of 4 digits and press OK to confirm.

A confirmation beep is emitted and the screen returns to stand-by mode.

If a restricted number is dialled, the call will not be connected. When this happens, the phone emits an error tone and returns to stand-by mode.

Baby Call

When activated, the Baby Call feature enables you to dial a number by pressing any key on your handset. This feature is very useful for direct access to emergency services.

You can enter up to 24 digits for baby call number.

If you have modified the Master PIN before and it is not the default 0000, you will be required to enter the Master PIN before you can activate or deactivate Baby Call mode or change Baby Call number.

To activate Baby Call mode

1. Press ☐ MENU, scroll ☐ to Advanced Set and press ☐ SELECT, scroll ☐ to Baby call and press ☐ SELECT.
2. Enter the Master PIN when prompted and press OK to confirm.
3. Press ☐ SELECT to enter Mode.
4. Scroll ☐ to On and press - OK to confirm.

When Mode is activated but the Baby Call number is not set yet, your handset will prompt you to enter a number.

1. Enter the Baby Call number and press OK to confirm. A confirmation message will be displayed on the screen.

To deactivate Baby Call mode

I. Long press ☐ MENU (when Baby Call mode has been activated before).
2. Scroll ☐ to Off and press ☐ SELECT to confirm.

To change Baby Call number

I. Press ☐ MENU, scroll ☐ to Advanced Set and press ☐ SELECT, scroll ☐ to Baby call and press ☐ SELECT.
2. Enter the Master PIN when prompted and press OK to confirm.
3. Scroll ☐ to Number and press — SELECT.
4. The last stored Baby Call number is displayed (if any).
5. Enter the new Baby Call number and press OK to confirm. A long confirmation beep is emitted and the screen returns to previous menu.

Advanced Settings

EN

Registration

The procedures described below are the procedures that you will find in your SE630 handset. The procedures may vary according to the handset you want to register. In this case, please refer to the manufacturer of the additional handset.

Additional handsets must be registered to the base unit before you can use them. Up to 5 handsets can be registered to one base station.

The Master PIN is required before you can register or unregister handsets. The default PIN is 0000.

To register an additional handset

1. On the base station, press and hold ⬆ for 3 seconds in stand-by mode. After that, the registration procedure has to be done within 1 minute.

Within 1 minute, the base station is able to accept registration from a handset. If no key is pressed within 10 seconds, the registration procedure will be aborted.

1. At the same time, on the handset, press MENU, scroll to Advanced Set and press SELECT, scroll to Registration and press SELECT.
2. Enter the Master PIN when prompted and press OK to start registration.
3. Press ☐ to select the Base to be registered to and press ☐ OK to confirm.

If the base is found and the PIN is correct, the unused handset numbers will be displayed and you can select a handset number by entering the number directly.

If the PIN is incorrect, Incorrect PIN will be displayed and the handset returns to stand-by mode.

A long confirmation tone is emitted to indicate successful registration and the screen returns to stand-by mode.

Select Base

One SE630 handset can register up to 4 different SE630 Base stations. By default, the handset will register to BASE 1. If you select Any Base, the handset will register to the nearest base station.

To manually select a base station

I. Press ☐ MENU, scroll ☐ to Advanced Set press ☐ SELECT, scroll ☐ to Select Base and press ☐ SELECT.
2. Scroll ☐ to the desired base station and press ☐ OK to confirm.
3. The handset will start searching for the base station. If the selected base is found, a long confirmation tone is emitted.

Unregistration

To unregister a handset

I. Press ☐ MENU, scroll ☐ to Advanced Set and press ☐ SELECT, scroll ☐ to Unregistration and press ☐ SELECT.

1. Enter the Master PIN when prompted and press OK to confirm.

2. Press on the handset keypad the handset number corresponding to the handset that you wish to unregister.

If there are no key presses within 15 seconds, the unregistration procedure will be aborted and the handset returns to stand-by mode.

A long confirmation beep is emitted to indicate successful unregistration and the screen shows Unregistered.

Change Master PIN

The Master PIN is used for setting call barring/baby call number and for registration/unregistration of handsets. The default Master PIN number is 0000. The length of the PIN is 4 digits. This PIN is also used to protect the settings of your handset. Your handset will prompt you whenever the PIN is required.

To change Master PIN

I. Press ☐ MENU, scroll ☐ to Advanced Set and press ☐ SELECT, scroll ☐ to Change PIN and press ☐ SELECT.

1. Enter the current Master PIN when prompted and press OK to confirm. The PIN entered will be shown as asterisks (*) on the screen.

If an incorrect PIN is entered, Incorrect Pin will be displayed and the screen returns to stand-by mode.

If your PIN number is the default 0000, step 2 is skipped.

1. Enter new PIN and press OK.

2. Enter new PIN again and press OK to confirm PIN change. A confirmation tone is emitted, the message New PIN Stored appears and the screen returns to previous menu.

If the Master PIN is modified, you will be required to enter the Master PIN before you can modify Call Barring and Baby Call settings.

Reset

Reset to default settings

I. Press ☐ MENU, scroll ☐ to Advanced Set and press ☐ SELECT, scroll ☐ to Reset and press ☐ SELECT.

1. Enter the Master PIN when prompted and press OK.

If your PIN number is the default 0000, step 2 is skipped.

1. Scroll ☐ to Yes and press ☐ SELECT.

A confirmation beep is emitted, and the unit is reset to its default settings (please see "Default settings" on page 16).

The WELCOME mode will appear again after master reset.

Auto Prefix

The maximum length of an auto prefix number is 5 digits. Once the number is set, it will be automatically inserted at the beginning of each number that will be dialled.

To set auto prefix number

I. Press ☐ MENU, scroll ☐ to Advanced Set and press ☐ SELECT, scroll ☐ to Auto prefix and press ☐ SELECT.
2. The last stored auto prefix number is displayed (if any).
3. Enter the number and press ☐ SELECT to confirm.

A confirmation beep is emitted and the screen returns to previous menu.

Country Setting

The availability of this menu is dependent on your country.

You can select another country different from the one chosen during Welcome mode.

I. Press ☐ MENU, scroll ☐ to Advanced Set and press ☐ SELECT, scroll ☐ to Country and press ☐ SELECT.

1. Enter the Master PIN when prompted and press OK to confirm.

You need to enter the Master PIN even if your PIN is 0000 (default PIN).

EN

Advanced Settings

1. Scroll ☐ to the country of your choice and press ☐ SELECT to confirm.

Once the country is selected, the default line settings for the selected country will be applied to the phone automatically (e.g. Recall time, Dial mode, Language, etc).

Conference Mode

When Conference mode is activated, you can initiate a three-party conference call with a second handset registered to your base station automatically if the second handset takes the line when there is already an external call in progress.

The default setting for this mode is Off.

To activate/deactivate conference mode

I. Press ☐ MENU, scroll ☐ to Advanced Set and press ☐ SELECT, scroll ☐ to Conference and press ☐ SELECT.

1. Scroll ☐ to On or Off and press — SELECT to confirm.

A confirmation beep is emitted and the screen returns to previous menu.

Net. Service

Call Forward

Call Fwd Busy

Call Fwd UnAns

Voice Mail

Call Back

Cancel Call Bk

Withhold ID

This menu provides a convenient means for you to access, activate or deactivate some network services that are country/subscription dependent. Contact your network provider for more information about these services.

The default numbers and values that are preset in your SE630 should be the best suited for your country network and therefore you should not need to change them.

Call Forward

There are 3 call forwarding options available: Unconditional Call Forwarding, When Busy and When Unanswered.

Set up Call Forward number

I. Press ☐ MENU, scroll ☐ to Net. Service and press ☐ SELECT.
2. Scroll ☐ to the type of call forwarding option you wish to set (Call Forward / Call Fwd Busy / Call Fwd UnAns) and press ☐ SELECT.
3. Scroll ☑ to Settings and press ☐ SELECT to enter the number for forwarding.
4. Press OK to confirm.

Activate Call Forward

I. Press MENU, scroll to Net. Service and press SELECT.
2. Scroll to the type of call forwarding option you wish to set (Call Forward / Call Fwd Busy / Call Fwd UnAns) and press ☐ SELECT.
3. Press ☐ SELECT to Activate.
4. The number string for that selected service will be dialled.
5. When the number has been dialled, press ☐ to return to stand-by mode.

When this feature is activated, depending on the call forwarding option you have set, your incoming calls will be forwarded to the number of your choice.

Deactivate Call Forward

I. Press MENU, scroll to Net. Service and press SELECT.

EN

Network Services

1. Scroll ☐ to the type of call forwarding option you wish to set (Call Forward / Call Fwd Busy / Call Fwd UnAns) and press ☐ SELECT.
2. Scroll ☐ to Deactivate and press ☐ SELECT to confirm.
3. The number string for that selected service will be dialled.
4. When the number has been dialled, press to return to stand-by mode.

Voice Mail

This feature allows the caller to leave a voice message when you are unable, or do not wish to take a call yourself. The availability of this feature is dependent on your country and your subscription with your network provider. Charges often apply for you to retrieve messages, as these are stored by the network rather than on the handset itself. Contact your network provider for more information about this feature.

Set up Voice Mail number

I. Press ☐ MENU, scroll ☐ to Net. Service and press ☐ SELECT, scroll ☐ to Voice Mail and press ☐ SELECT.
2. Scroll ☐ to Voice Mail 1 or Voice Mail 2 and press ☐ SELECT.
3. Scroll ☐ to Settings and press ☐ SELECT.
4. Modify the voice mail number and press OK.

Activate Voice Mail

I. Press ☐ MENU, scroll ☑ to Net. Service and press ☐ SELECT, scroll ☑ to Voice Mail and press ☐ SELECT.
2. Scroll ☐ to Voice Mail 1 or Voice Mail 2 and press ☐ SELECT.
3. Press ☐ SELECT to Activate.
4. The number string for that selected service will be dialled.
5. When the number has been dialled, press ☐ to return to stand-by mode.

Call Back

Setting

I. Press ☐ MENU, scroll ☐ to Net. Service and press ☐ SELECT, scroll ☐ to Call Back and press ☐ SELECT.
2. Scroll ☐ to Settings and press ☐ SELECT.
3. Enter the required number for call back and press OK.

Activate Call Back

I. Press ☐ MENU, scroll ☑ to Net. Service and press ☐ SELECT, scroll ☑ to Call Back and press ☐ SELECT.
2. Press ☐ SELECT to Activate.
3. The number string for that selected service will be dialled.

1. When the number has been dialled, press 📄 to return to stand-by mode.

Cancel Call Back

Setting

I. Press ☐ MENU, scroll ☑ to Net. Service and press ☐ SELECT, scroll ☑ to Cancel Call Bk and press ☐ SELECT.
2. Scroll ☐ to Settings and press — SELECT.
3. Enter the required number for cancelling of call back and press OK.

Activate Cancel Call Back

I. Press ☐ MENU, scroll ☑ to Net. Service and press ☐ SELECT, scroll ☑ to Cancel Call Bk and press ☐ SELECT.
2. Press ☐ SELECT to Activate.
3. The number string for that selected service will be dialled.
4. When the number has been dialled, press to return to stand-by mode.

Withhold ID

Setting

I. Press ☐ MENU, scroll ☐ to Net. Service and press ☐ SELECT, scroll ☐ to Withhold ID and press ☐ SELECT.
2. Scroll ☐ to Settings and press — SELECT.
3. Enter the required number for withholding ID and press OK.

Activate Withhold ID

I. Press ☐ MENU, scroll ☐ to Net. Service and press ☐ SELECT, scroll ☐ to Withhold ID and press ☐ SELECT.
2. Press ☐ SELECT to Activate.
3. The number string for that selected service will be dialled.
4. When the number has been dialled, press 📄 to return to stand-by mode.

Deactivate Withhold ID

I. Press ☐ MENU, scroll ☐ to Net. Service and press ☐ SELECT, scroll ☐ to Withhold ID and press ☐ SELECT.
2. Scroll ☐ to Deactivate and press ☐ SELECT to confirm.
3. The number string for that selected service will be dialled.
4. When the number has been dialled, press to return to stand-by mode.

Games

Memory

Tetris

Memory

The objective of this game is to find and match different pairs of graphics in the shortest possible time using your memory. To win, you have to complete matching all 8 pairs of graphics in a 4x4 matrix.

To start the game

I. Press ☐ MENU, scroll ☐ to Games and press ☐ SELECT, press ☐ SELECT to enter Memory game.

1. An instruction screen is displayed.

Press 2 / 4 / 6 / 8 keys to move up / down / left / right respectively. Press 5 to select.

1. Press ☐ SELECT or press ☑ to start the game.
2. To exit from the game, press

Tetris

You can rotate each shaped block as they fall such that they fit neatly into horizontal blocks. The more blocks you can gather within the same level, the more you will score.

To start the game

I. Press ☐ MENU, scroll ☐ to Games and press ☐ SELECT, scroll ☐ to Tetris and press ☐ SELECT.
2. An instruction screen is displayed.

Press 2 / 4 / 6 / 8 keys to rotate / move left / move right / move down respectively.

1. Press ☐ SELECT to start the game.
2. To exit from the game, press

Troubleshooting

EN

Troubleshooting of the phone

Problem Causes Solution
Theiconis not blinkingwhen the handset is placedon the base	Bad battery contactDirty contactBattery is full	Move the handset slightlyClean the battery contact with acloth moistened with alcoholNo need to charge
No dialling tone • No power	Batteries are emptyYou are too far from the base stationWrong line cableLine adaptor (when needed) isnot connected to the line cord	Check the connections. Resetthe phone: unplug and plugback in the mainsCharge the batteries for at least24 hoursMove closer to the base stationUse the line cable providedConnect the line adaptor (whenneeded) to the line cord
Poor audio quality • You are	too far from the base stationThe base station is too close toelectrical appliances, reinforcedconcrete walls or metaldoorframes	Move closer to the base stationMove the base station at leastone metre away from any elec-trical appliances
Theiconis blinking • Handset is not registered tothe base stationThe handset is too far from thebase station		Register the handset to the base stationMove closer to the base station
The copy from my mobilephone SIM card to SE630phonebook is not complete.	Only phonebook entries fromyour mobile phone SIM card willbe transferred; the phonebookentries that are stored on yourmobile phone memory will not betransferred.	Transfer the phonebook entriesthat are on your mobile phonenumber to your mobile phoneSIM card and then to your SE630.

Troubleshooting

Problem Causes Solution
The handset displays "not available"when attempting to add another handset to the base stationwhen using a handset	The procedure to add a handset has failedMaximum number of handsets (5) has been reachedBase station is already busy with another handset	Try again by disconnecting and connecting the base station power supply and follow the procedure to register a handset (see page 43)Remove and place back the handset batteriesUnregister a handset so as to register the new handsetWait until it is available
Noise interference on your radio or television	Your SE630 base station or mains power pack are too close to electrical appliances	Move the power pack or base station as far away as possible
Caller Line Identification (CLI) service does not work	The service is not activated Check your subscription with your network operator
No ring tone The ring tone is deactivated Increase the volume
A phonebook entry cannot be stored	The phonebook is full Delete an entry to free memory
Cannot receive new SMS • SMS storage space is fullWrong SMS settings		Delete old SMSCheck your SMS settings (see page 31)
Cannot send or receive new SMS	The outgoing or incoming SMS center numbers are not set or are wrongYou have no subscriptionAnother SMS-enabled phone is also on your lineThere is a problem of compatibility between operatorsThe identity is withheld	Refer to "SMS settings" on page 31Contact your provider for more informationDeactivate the SMS reception mode on one of the deviceContact your provider for more informationShow identity (see "Withhold ID" on page 49)

Information

EN

Electric, Magnetic and Electromagnetic Fields ("EMF")

1. Philips Royal Electronics manufactures and sells many consumer oriented products which usually, as with any electronic apparatus, have the ability to emit and receive electro magnetic signals.
2. One of Philips' leading Business Principles is to take all necessary health and safety precautions for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.
3. Philips is committed to develop, produce and market products that cause no adverse health effects.
4. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.
5. Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardisation for early integration in its products.

Conformity

The Declaration of conformity is available on www.p4c.philips.com.

Hereby, Philips Consumer Electronics, BLC P&ACC, declares that the SE630x is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Recycling and disposal

Disposal instructions for old products

The WEEE Directive (Waste Electrical and Electronic Equipment: 2002/96/EC) has been put in place to ensure that products are recycled using best available treatment, recovery and recycling techniques to ensure human health and give utmost protection to the environment.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Do not dispose of your old product in your general household waste bin. Inform yourself about the local separate collection system for electrical and electronic products marked by this symbol:

Use one of the following disposal options:

1. Dispose of the complete product (including its cables, plugs and accessories) in the designated WEEE collection facilities
2. If you purchase a replacement product, return your old product, in its entirety, to the retailer. He should accept it as required by the WEEE Directive.

Philips has marked the packaging with standard symbols designed to promote the recycling and appropriate disposal of your eventual waste.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

A financial contribution has been paid to the associated national recovery & recycling system.

The labelled packaging material is recyclable.

Index

A

Accessories 5

Alarm 34

Alarm tone 34

Answer a call 14, 18

Auto Hang-up 38

Auto Pick-up 38

Auto Prefix 45

B

Baby Call 42

Babysit mode 39

Backlight 15

Basic operations 11

Battery level 13

C

Call 41

Call Back 48

Call Barring 41

Call Forward 47

Call log 17, 25

Call waiting 20

Caller Line Identification 20

Calls in-progress 18

Charge battery 12

Clock & Alarm 34

Conference call 20

Conformity 53

Connect Base Station 11

Contrast 37

Copy phonebook from SIM

card 23

Country Setting 46

D

Date & time 34

Date and time 14

Default SMS center 33

Default settings 16

Delete SMS message 29

Delete call log 25

Delete phonebook 22

Dial Mode 40

Direct access memory 23

Direct dialling 17

Draft box 30

E

Earpiece volume 18

Edit Draft message 30

Edit phonebook 22

End a call 14, 18

Event LED 15

F

Forward SMS message 29

G

Group melody 36

H

Handset Name 37

Handset Tones 35

Handsfree answering 18

|

Icons & symbols 8

Inbox 28

Incoming number 33

Install battery 12, 13, 14, 16

Intercom 19

Intrusion Mode 46

K

Key Beep 36

Keypad lock 14

Keypad lock/unlock 14

Keypad unlock 14

L

Language 38

Loudspeaker 18

Loudspeaker mode 18

Loudspeaker volume 19

M

Make a call 14

Master PIN 44

Memory 50

Menu navigation 10

Mute 18

Mute handset 18

N

Noise interference 52

O

Other network services 49

Out of range 13

Outgoing number 32

Overview of the base station 9

Overview of the handset 6

P

Paging 14

Personalize 35

Phonebook 17, 21

Predialling 17

R

Recall Time 40

Recycling and disposal 53

Redial list 17, 25

Registration 43

Reply SMS message 29

Reset Unit 45

Ring Melody 35

Ring Volume 35

S

SMS 27

SMS Boxes 31

SMS Tone 36

SMS reception 31

SMS settings 31

Save redial list 26

Screensaver 37

Select Base 43

Send SMS 27

Stand-by mode 14

Store a contact 21

Switch handset on/off 14

T

Tetris 50

Text and number entry 16

Transfer an external call 19

Transfer phonebook 24

U

Unmute 18

Unregister 44

V

Voice Mail 48

W

Wallpaper 37

Withhold ID 49

Write a SMS 27

Specifications are subject to change without notice.

Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

2006 © Koninklijke Philips Electronics N.V. All rights reserved.

www.philips.com

3111 285 26593
