Product Type	Short-throw Interactive Video Projector
Display Technology	DLP
Native Resolution	1280 x 800 (WXGA)
Maximum Supported Resolution	1920 x 1080 (1080p)
Brightness	Not specified in manual
Contrast Ratio	Not specified in manual
Lamp Type	P-VIP (typical for DLP projectors)
Lamp Life	Not specified, warning at 30 hours before end of life
Throw Ratio	Short throw: focus distance 495-661 mm for 77-100" diagonal
Image Size Range	77" to 100" diagonal
Focus	Manual via focus ring
Keystone Correction	Vertical ±40 degrees
Built-in Speakers	Yes (wattage not specified)
Interactive Pen Support	Yes (optional accessory, supports dual pen)
3D Support	DLP-Link and IR 3D modes
Inputs	VGA (x2), HDMI 1.3, Composite Video, S-Video, Audio (3.5mm + RCA), RS232, RJ45, USB (for wireless dongle/storage), Mini-USB (for display and interactive)
Outputs	VGA-Out (monitor loop through), Audio Out (3.5mm variable), 12V Trigger
Networking	RJ45 for web control, Crestron RoomView, wireless via USB dongle
Security	Kensington lock, security bar, password protection
Rapid Shutdown	Yes, cooling fans run for ~10 seconds after power off

Frequently Asked Questions - TW695UTi-3D OPTOMA

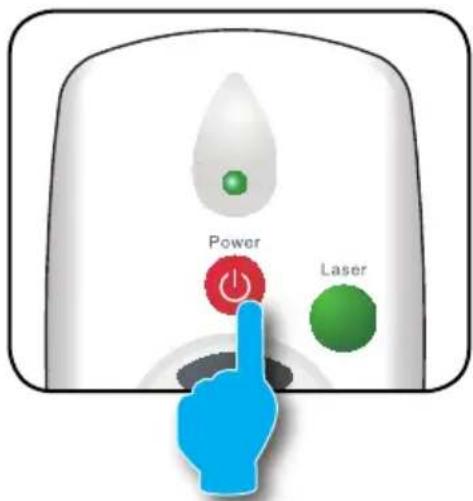

How do I power on the projector?

Securely connect the power cord and signal cables. The POWER/STANDBY LED will turn Amber. Press the Power button on the projector or remote to turn on the lamp. The LED will turn Green. The startup screen appears in about 10 seconds. Select your language and power saving mode on first use.

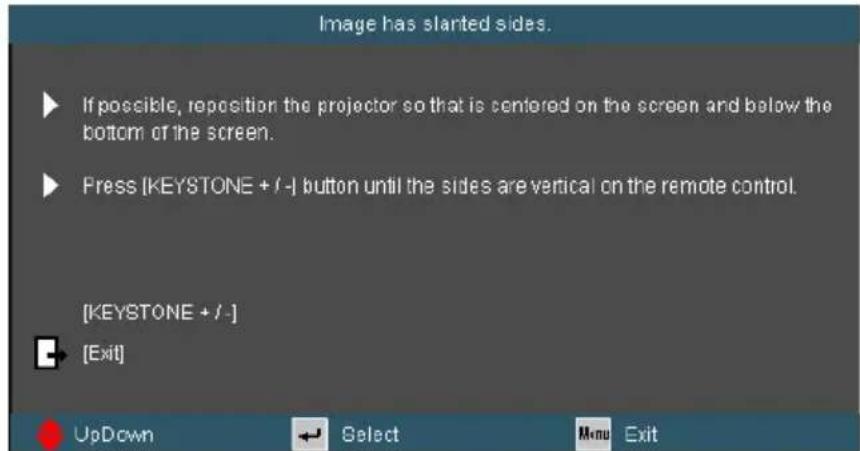

How do I adjust keystone distortion?

Press the Keystone +/- buttons on the remote or control panel. Use the arrow keys to adjust vertical keystone correction up to ±40 degrees. This corrects trapezoidal distortion caused by tilting the projector.

How do I connect the projector to a computer?

Connect the computer to the projector using a VGA cable or HDMI cable. For VGA, connect to VGA1 or VGA2 input. For HDMI, use the HDMI input. Ensure the correct source is selected via the Source button or direct source keys on the remote.

How do I use the interactive pen?

Insert AAA batteries into the pen and turn it on. Ensure the projector's Interactive function is enabled in the OSD menu under 'Options > PointBlank'. The pen works with VGA, HDMI, wireless, and USB display inputs. The nib acts as a mouse left click; the button functions can be customized in the PointBlank menu.

How do I enable 3D mode?

Press the 3D button on the remote or go to the OSD menu under 'Display > 3D'. Choose DLP-Link or IR depending on your 3D glasses. You also need a compatible 3D source and content. Use '3D Sync Invert' if left/right frame order appears reversed.

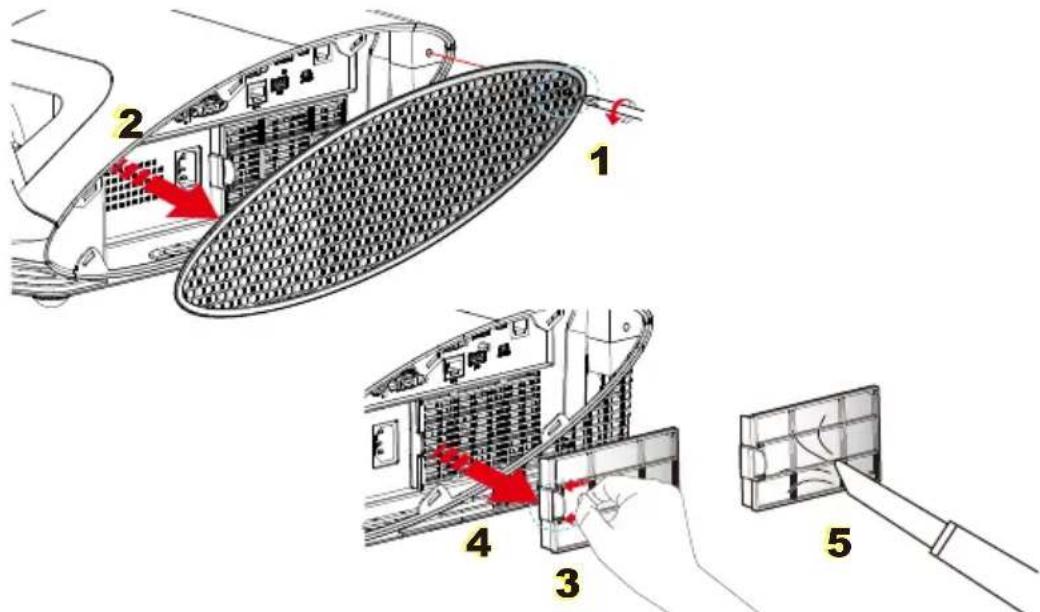

How do I clean or replace the dust filter?

Turn off the projector and disconnect power. Remove the cable cover by unscrewing the screw. Push the latch and carefully remove the dust filter. Clean it with a soft brush or replace it. Reinstall the filter and cable cover. Reset the filter warning in 'Options > Reset Filter Warning'.

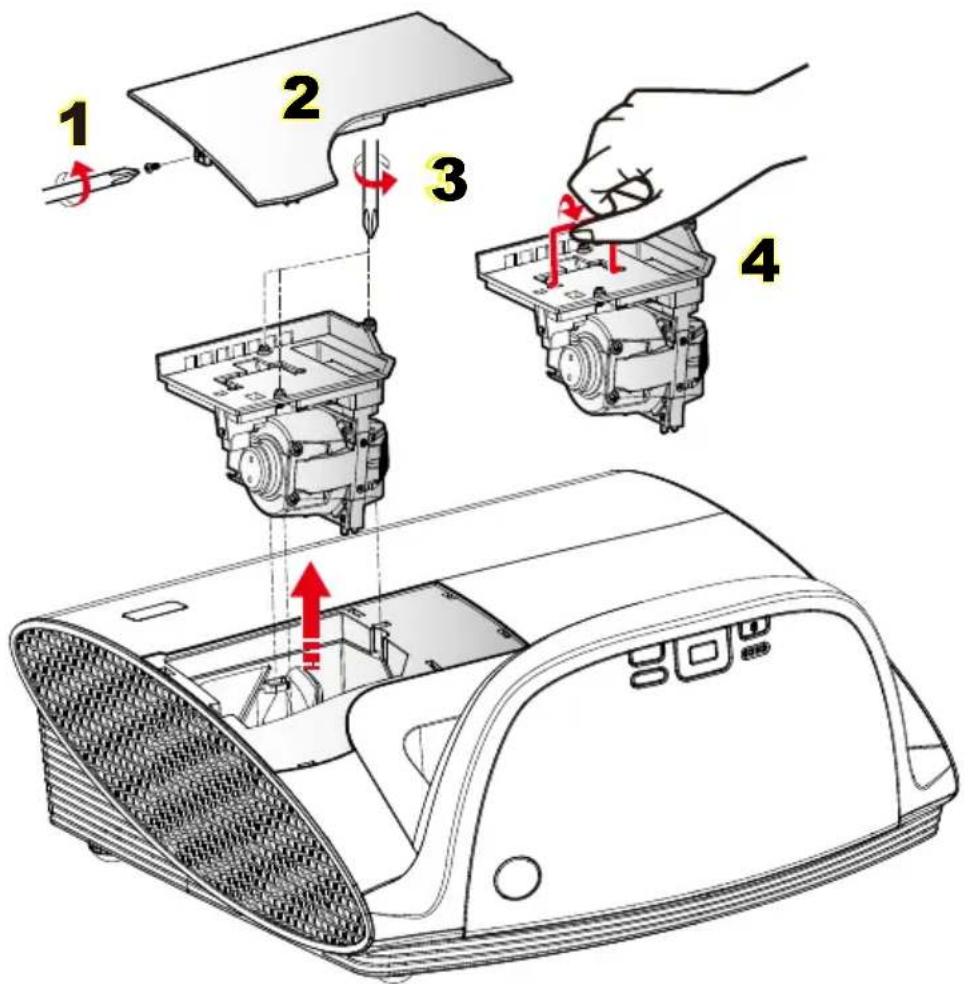

How do I replace the lamp?

Switch off the projector and let it cool for at least 30 minutes. Disconnect power. Remove the lamp cover screw and cover. Unscrew the three screws on the lamp module, lift the handle, and carefully remove the lamp. Insert the new lamp, replace screws and cover. Power on and reset the lamp hour counter in 'Options > Lamp Settings > Lamp Reset'.

How do I reset the lamp timer?

After replacing the lamp, go to the OSD menu: press Menu, select 'Options', then 'Lamp Settings', then 'Lamp Reset'. Choose Yes to reset the lamp hour counter. This ensures accurate lamp life monitoring.

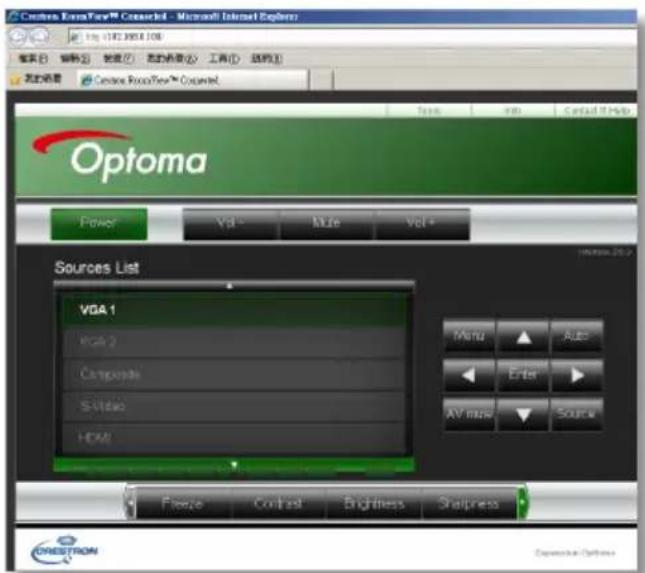

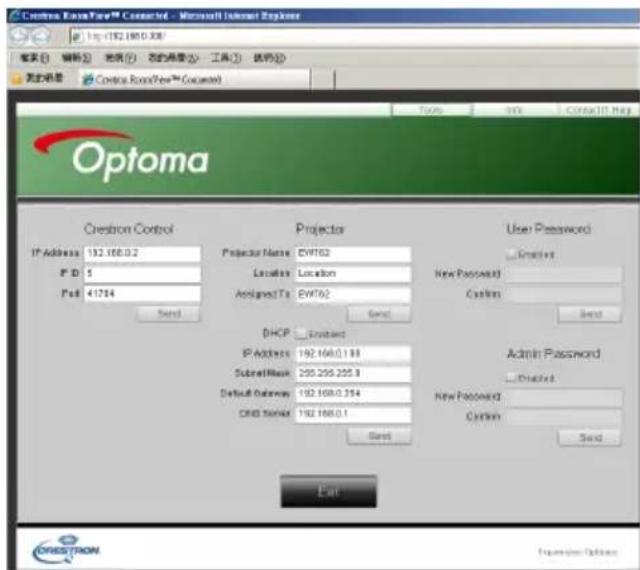

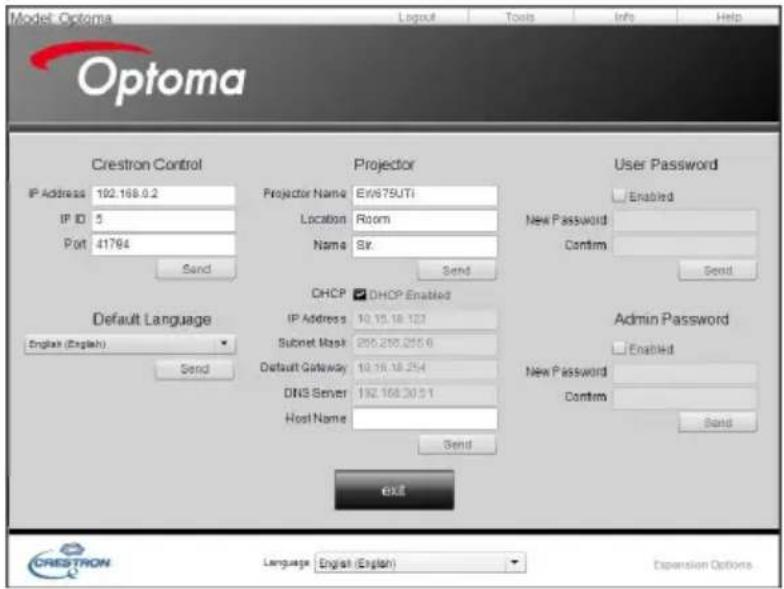

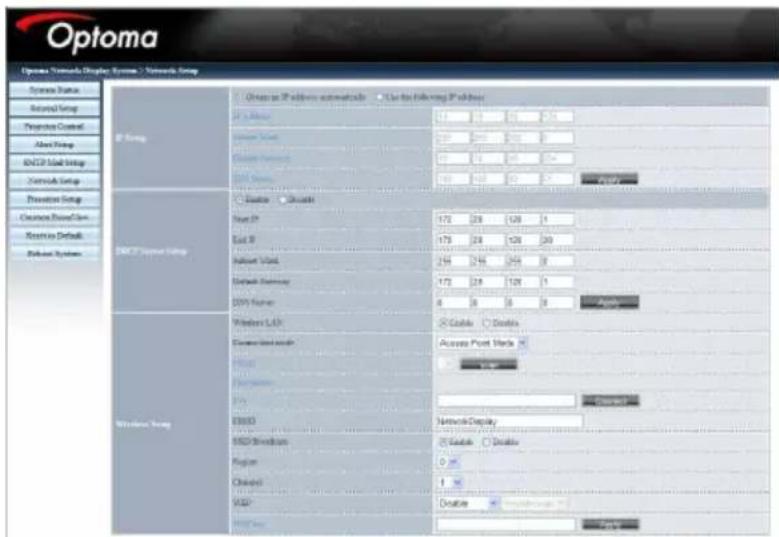

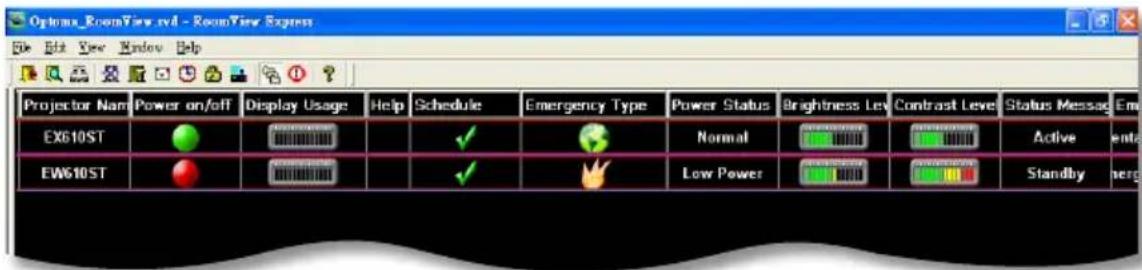

How do I control the projector over a network?

Connect the projector to your network via RJ45 or USB wireless dongle. In the OSD menu under 'Setup > Network', set DHCP on or manually assign an IP address. Then open a web browser and enter the projector's IP address. Use the web interface to power on/off, switch sources, adjust settings, and monitor status. Crestron RoomView is also supported.

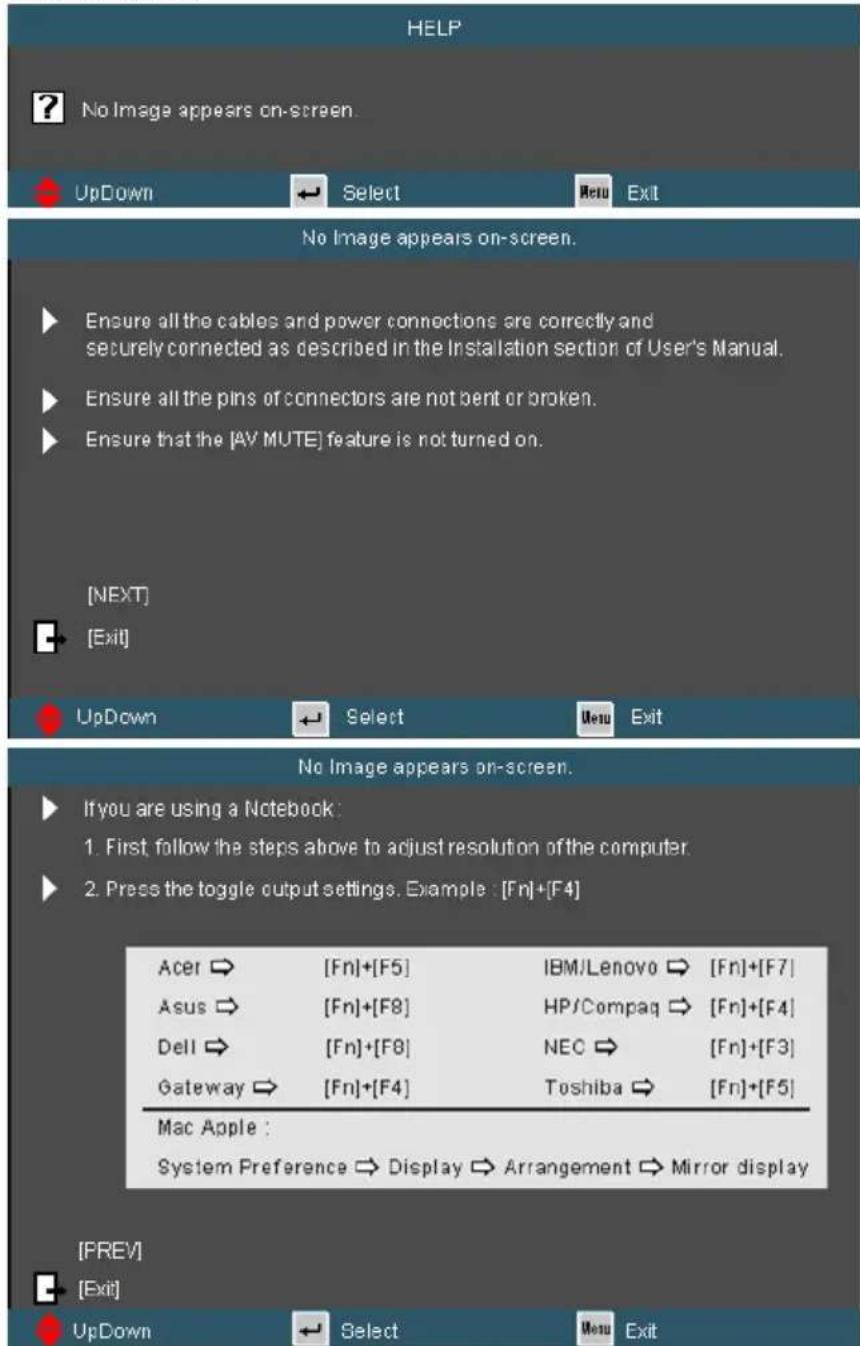

What should I do if no image is displayed?

Check all cable connections are secure. Remove the lens cap. Ensure the projector is powered on (green LED). Press Re-SYNC on the remote. Verify the correct source is selected. Check that AV Mute is not active. If using a laptop, press the appropriate function key combination (e.g., Fn+F4) to output to external display.

USER MANUAL TW695UTi-3D OPTOMA

Table of Contents ......1

Usage Notice 2

Safety Information 2

Precautions 3

Eye Safety Warnings 5

Product Features ....5

Introduction ......6

Package Overview 6

Product Overview 7

Main Unit 7

Control Panel 8

Input/Output Connections 9

Remote Control 10

Interactive Pen 11

Installation 12

Connecting the Projector ....12

Removing and Attaching the Cable Cover 12

Connect to Computer/Notebook ..... 13

Connect to Video Sources 14

Powering the projector On / Off .....15

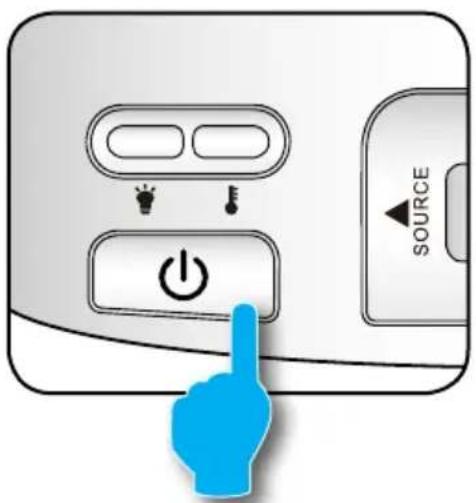

Powering On the Projector 15

Powering Off the Projector 16

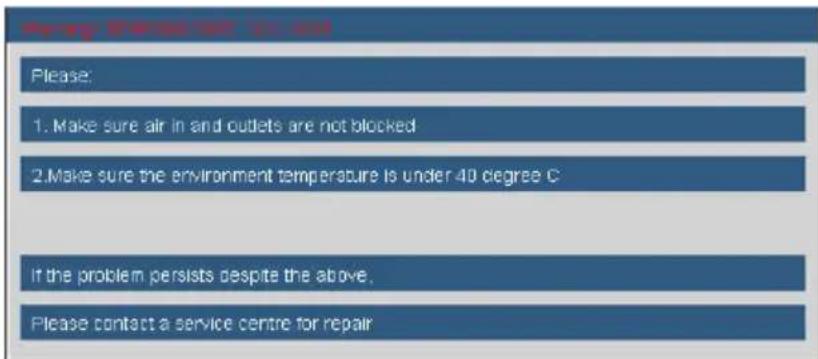

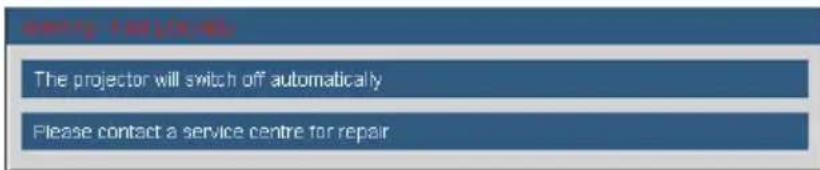

Warning Indicator 16

Adjusting the Projected Image .....17

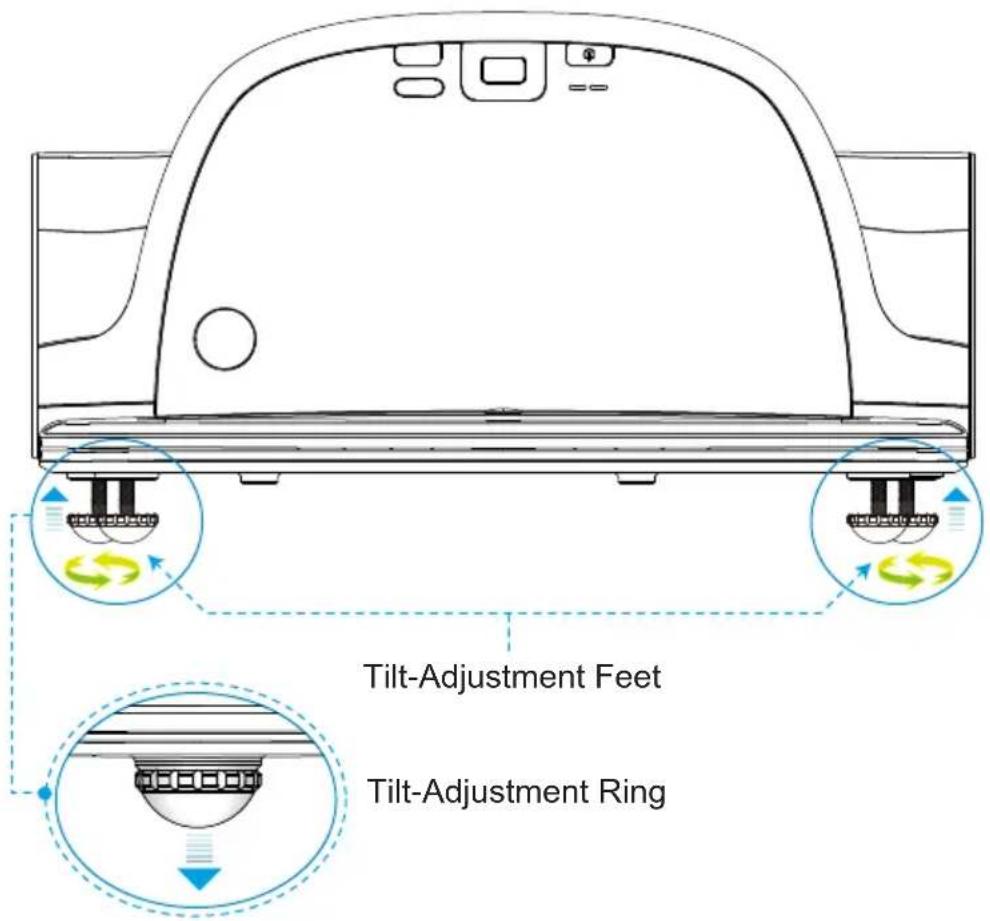

Adjusting the Projector's Height .....17

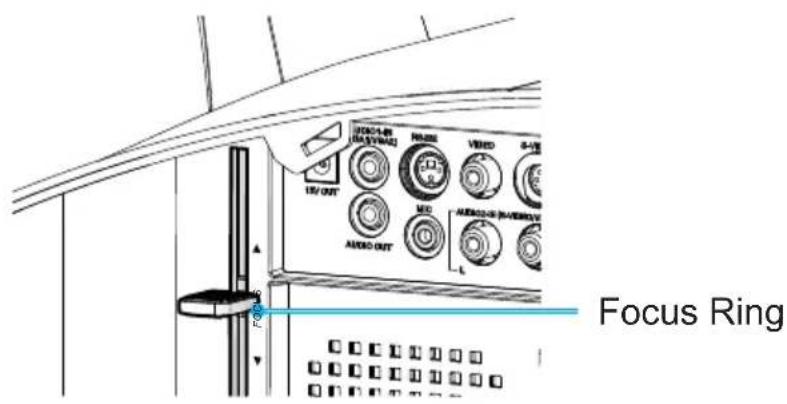

Adjusting the Projector's Focus ...... 18

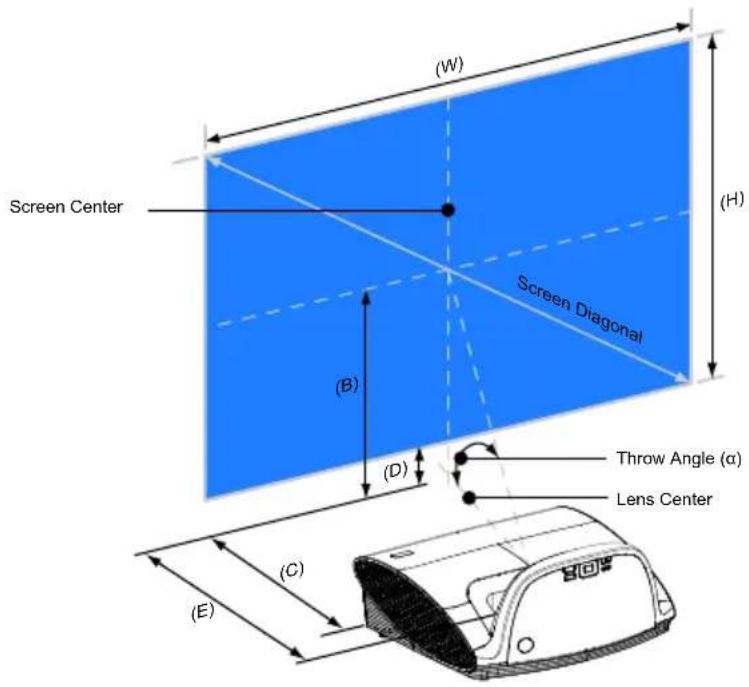

Adjusting Projection Image Size ..... 18

User Controls ....20

Control Panel & Remote Control .....20

Control Panel 20

Remote Control 21

Interactive Pen 22

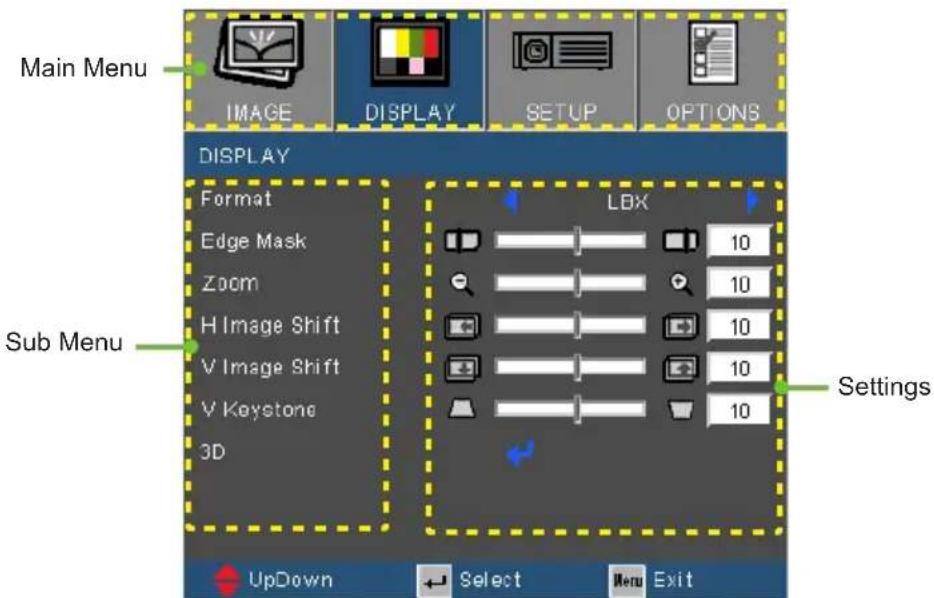

On-screen Display Menus ......26

How to operate 26

Menu Tree 27

IMAGE 30

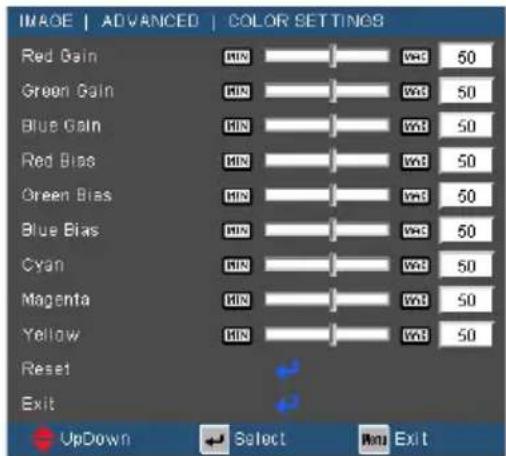

IMAGE | Advanced 32

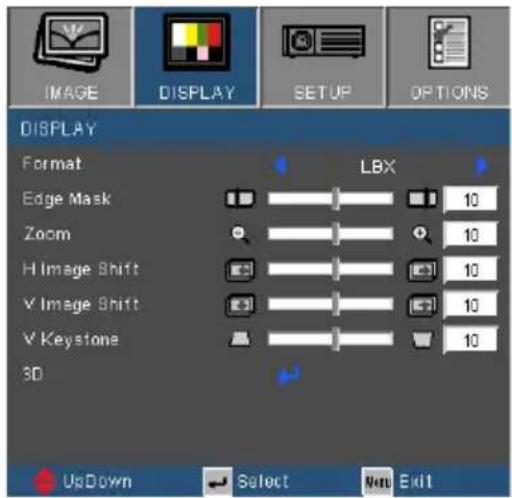

DISPLAY 34

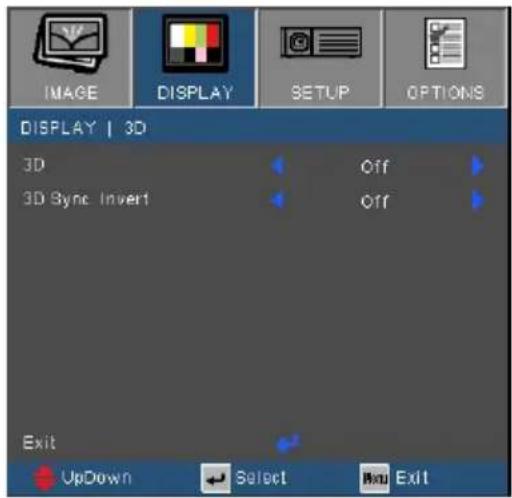

DISPLAY|3D 37

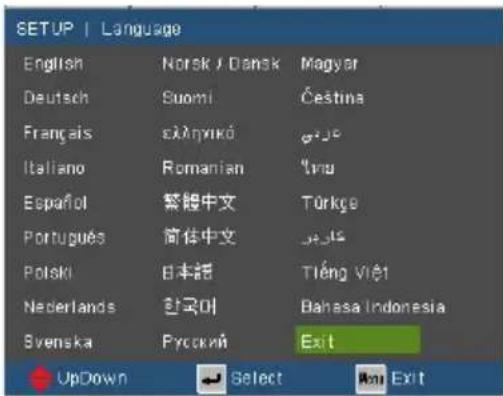

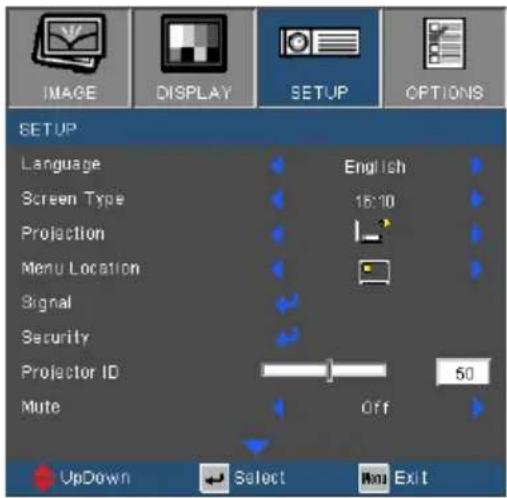

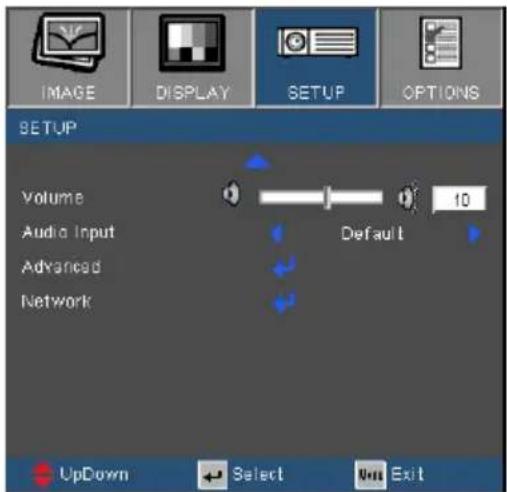

SETUP 38

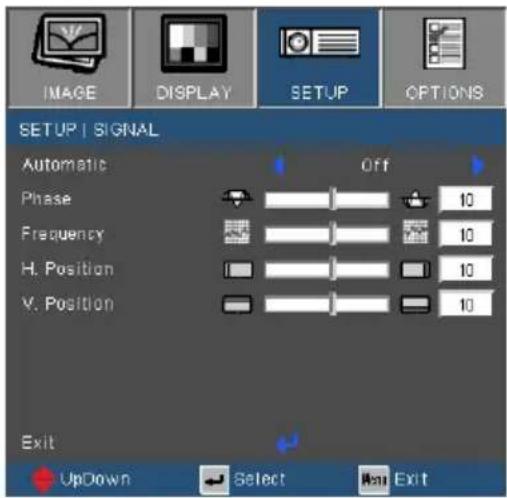

SETUP | Signal (RGB) 41

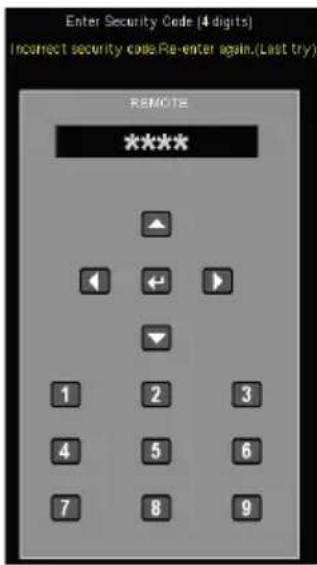

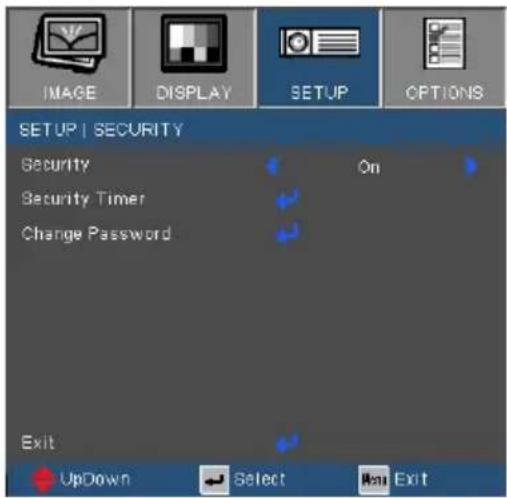

SETUP | Security 42

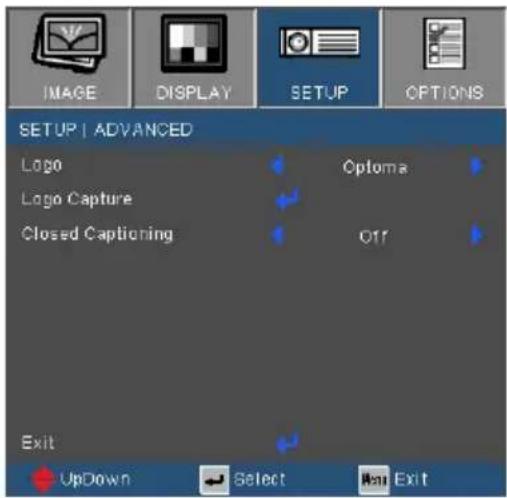

SETUP | Advanced 44

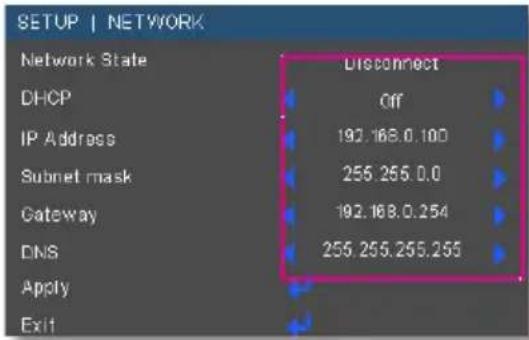

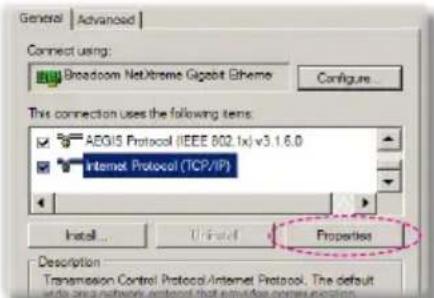

SETUP | Network 45

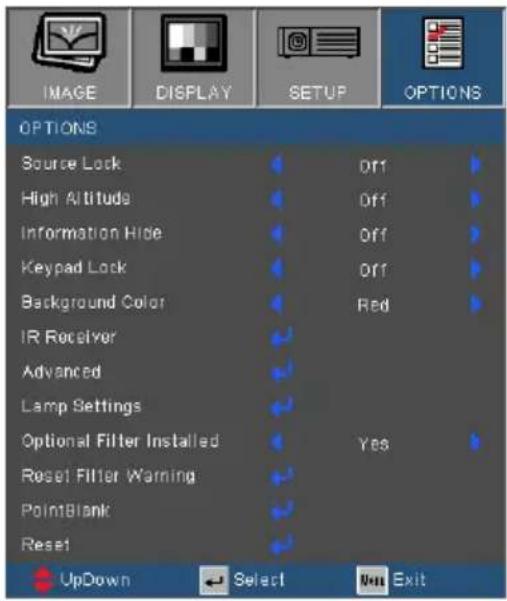

OPTIONS 50

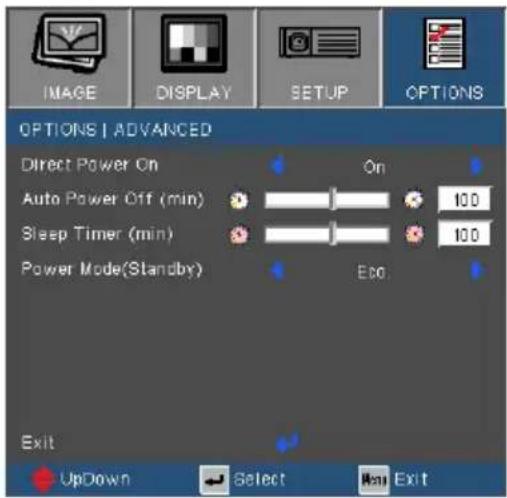

OPTIONS | Advanced 52

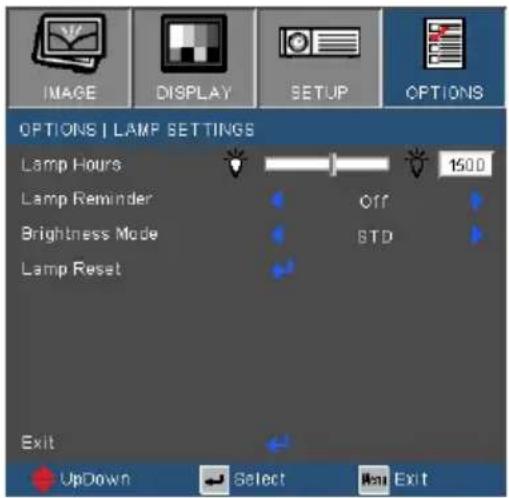

OPTIONS | Lamp Settings 53

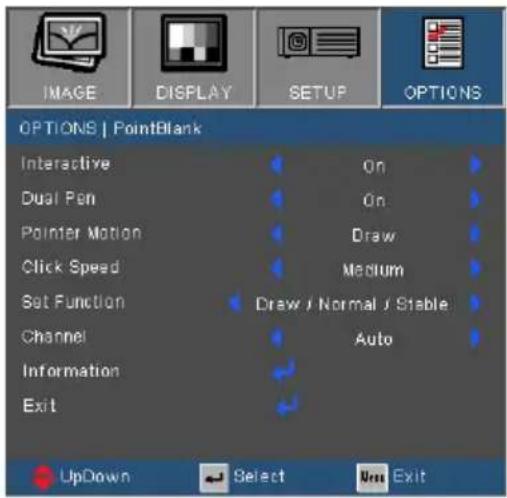

OPTIONS | PointBlank 54

Ruby Introduction ....56

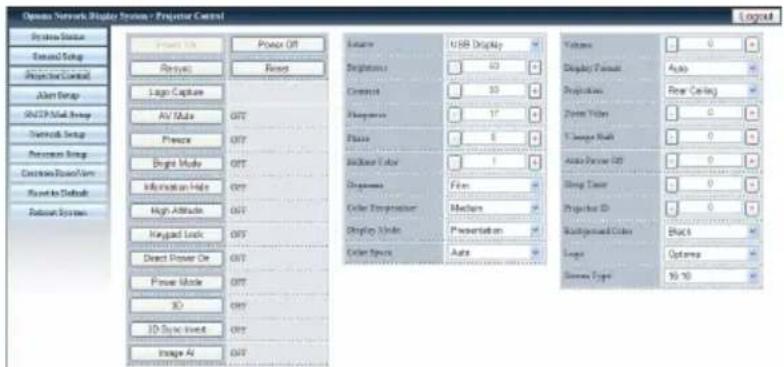

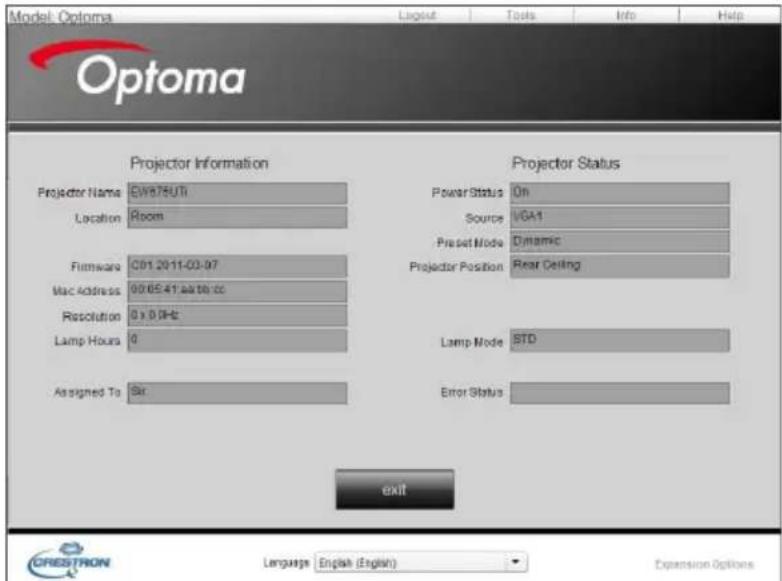

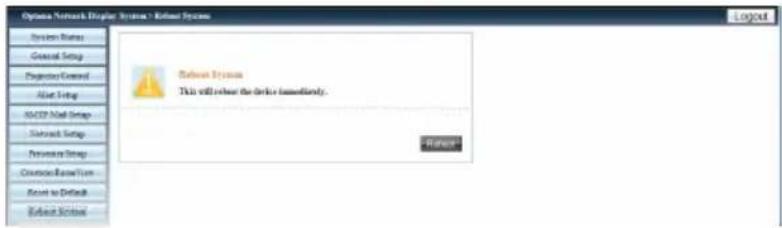

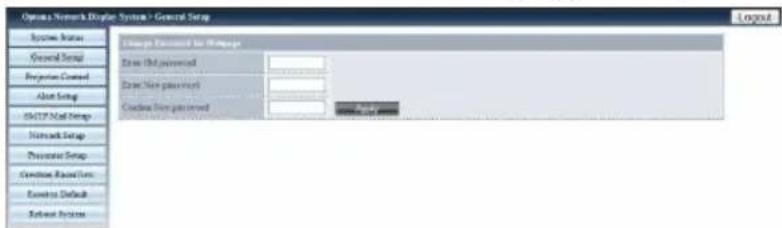

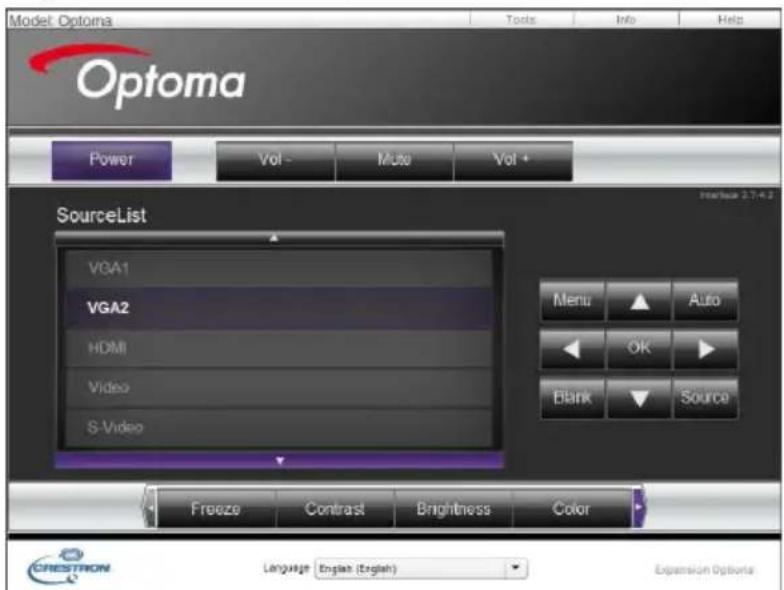

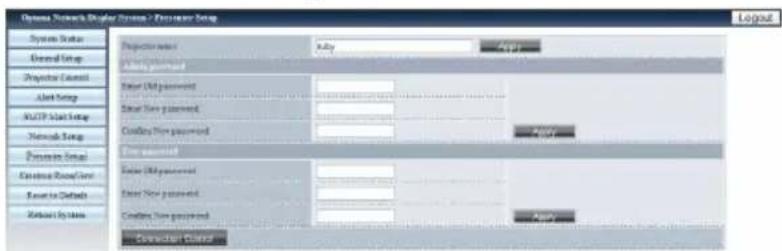

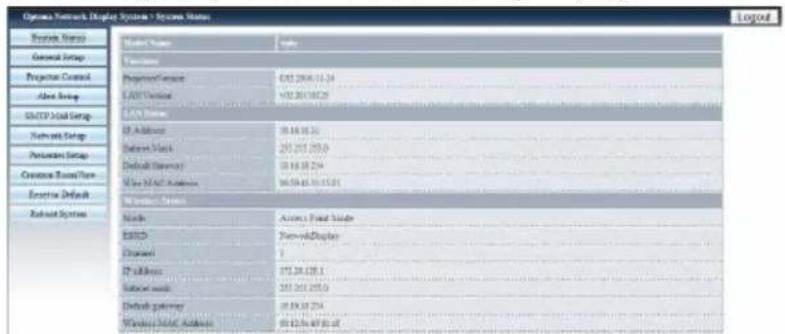

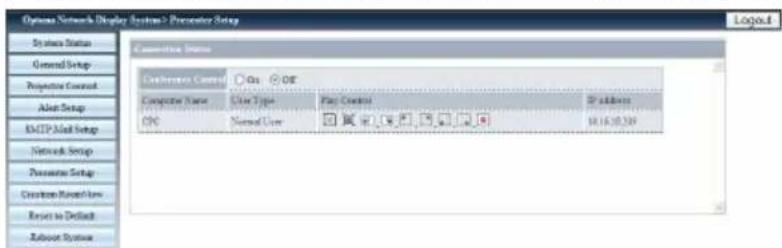

How to use Web Control 56

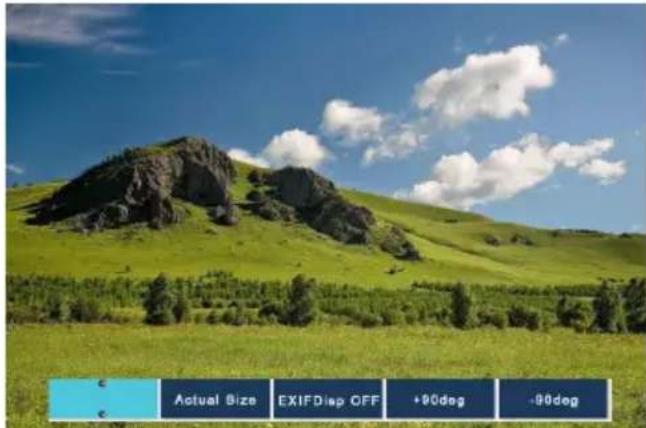

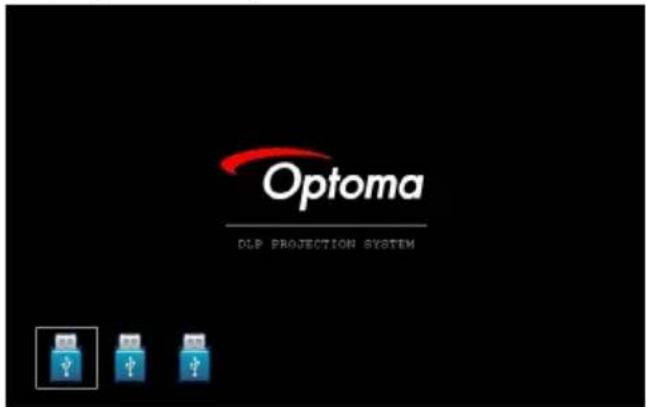

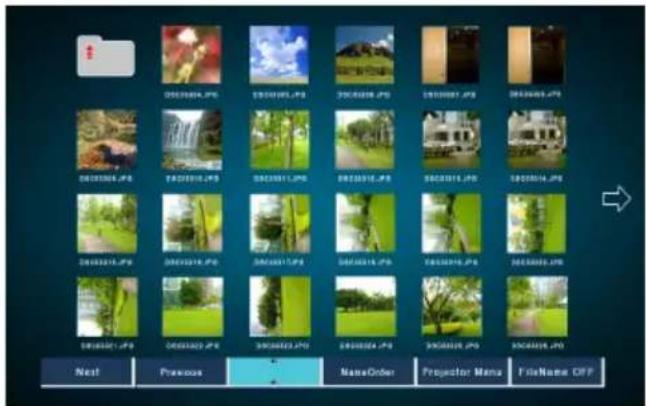

How to use the Card Reader 63

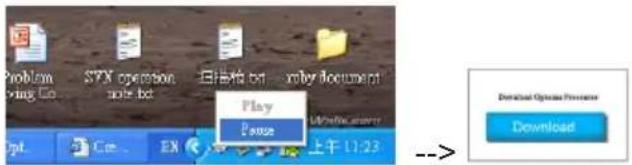

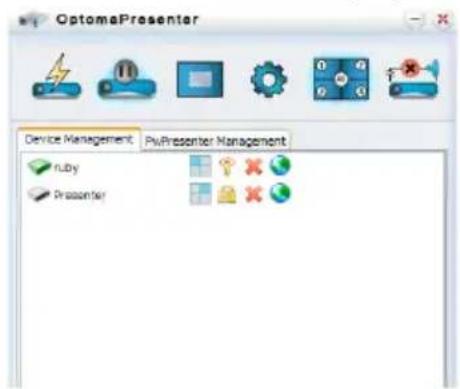

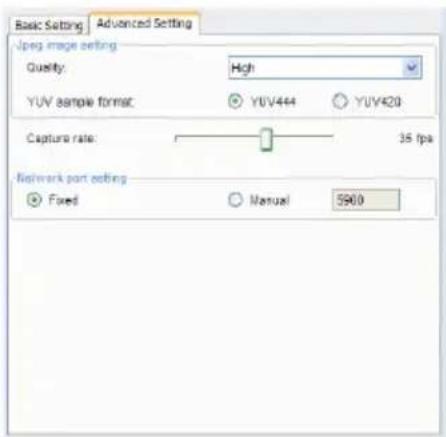

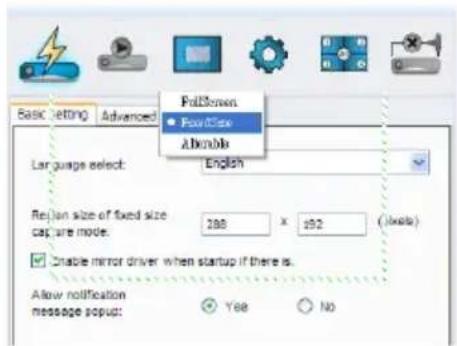

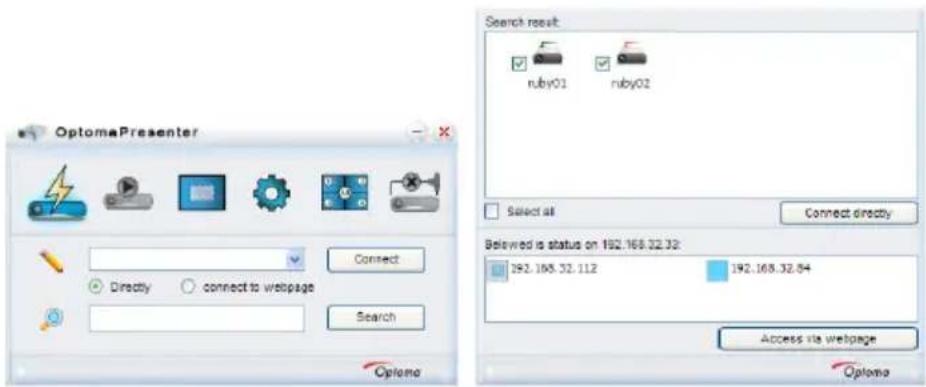

How to use the Optoma Presenter ... 66

Appendices 70

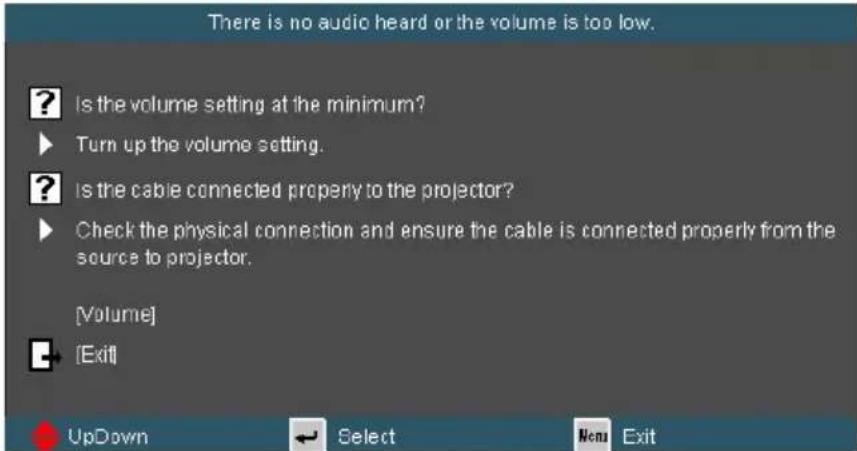

Troubleshooting 70

Replacing the lamp 76

Replacing and cleaning the optional dust filter 78

Compatibility Modes ....79

Computer Compatibility 79

Video Compatibility 80

RS232 Commands and Protocol

Function List 81

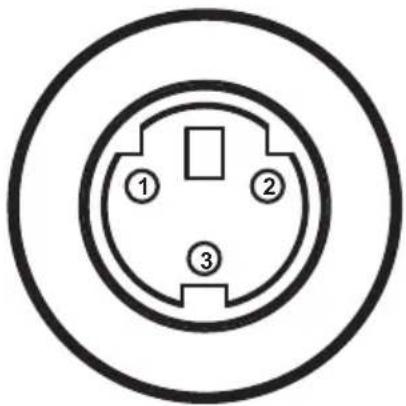

RS232 Pin Assignments 81

RS232 Protocol Function List 82

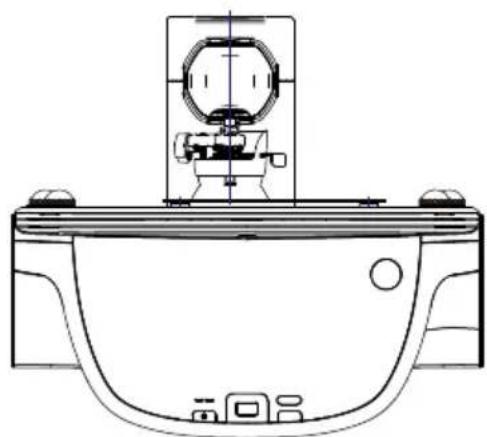

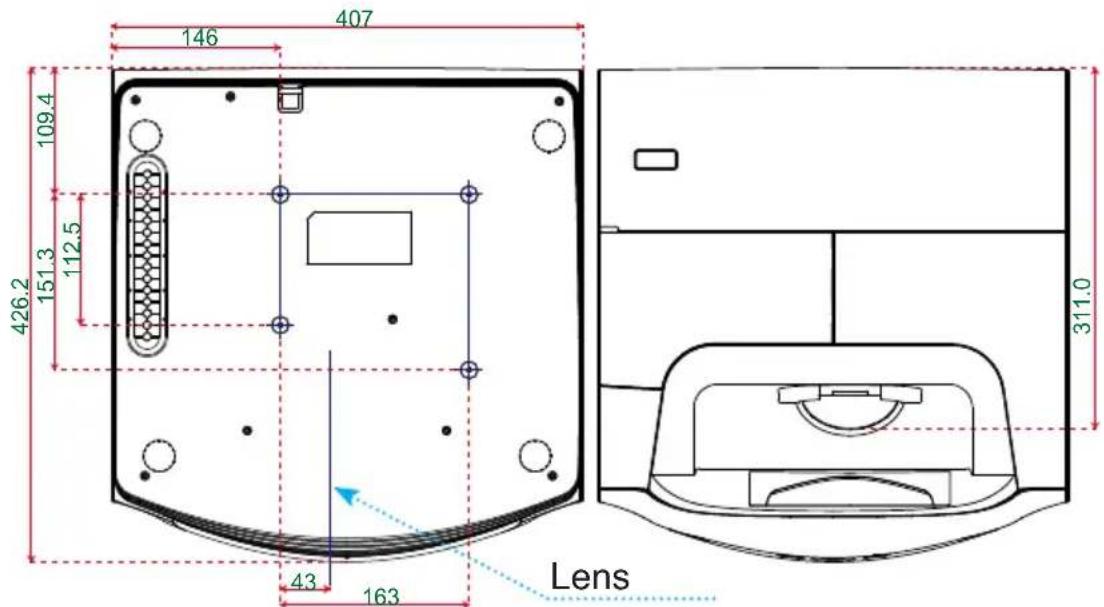

Wall Mount Installation 86

Optoma Global Offices 87

Regulation & Safety Notices ......89

Safety Information

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Class B emissions limits

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
2. Do not use the projector near water or moisture. To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specified by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

Unit has been dropped.
☐ Power supply cord or plug has been damaged.
☐ Liquid has been spilled on to the projector.
☐ Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside. Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.

1. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

2. See projector enclosure for safety related markings.

3. The unit should only be repaired by appropriate service personnel.

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Warning- Do not look into the projector's lens when the lamp is on. The bright light may hurt and damage your eyes.

Warning- To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture.

Warning- Please do not open or disassemble the projector as this may cause electric shock.

Warning- When replacing the lamp, please allow the unit to cool down. Follow instructions as described on pages 76-77.

Warning- This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.

Warning- Reset the "Lamp Reset" function from the on-screen display "OPTIONS | Lamp Settings" menu after replacing the lamp module (refer to page 53).

Warning- When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.

Warning- Do not use lens cap when projector is in operation.

Warning- When the lamp is approaching the end of its lifetime, the message “Lamp Warning: Lamp life exceeded.” will show on the screen. Please contact your local reseller or service center to change the lamp as soon as possible.

Warning- Do not look into or point the laser pointer on your remote control into your or someone's eyes. Laser pointer can cause permanent damage to eyesight.

When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages 76-77.

Do:

Turn off and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Do not:

Block the slots and openings on the unit provided for ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.

▶ Ensure that the ambient room temperature is within 5 - 35°C.
▶ Relative Humidity is 5 - 35°C, 80% (Max.), non-condensing.

• In areas susceptible to excessive dust and dirt.
• Near any appliance generating a strong magnetic field.
• In direct sunlight.

Eye Safety Warnings

Symbolic illustration of a computer monitor with a red X mark and eye symbol inside, enclosed in an oval (no text or numbers)

Avoid staring/facing directly into the projector beam at all times. Keep your back to the beam as much as possible.
When projector is used in a classroom, adequately supervise students when they are asked to point out something on the screen.
In order to minimize the lamp power, use room blinds to reduce ambient light levels.

Product Features

Monitor loop through only support in VGA1-In/SCART/YPbPr.

XGA (1024x768) Native resolution / WXGA (1280x800) Native resolution

HD compatible – 1080p supported

VGA monitor loop through (works on standby mode > 1W)

BrilliantColor ^TM Technology

Security Bar and Kensington Lock

RS232 control

Rapid shutdown

Built-in speakers

Network support

USB display (Don't support Mac OS)

Network display (Don't support Windows 7 64bit)

Package Overview

Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.

Line drawing of a portable electronic device with control panel (no text or symbols)

Projector with lens cap

Coiled cable with two connectors and a strap (no text or symbols)

Power Cord 1.8m

Pure electrical connector diagram without any text, numbers, or symbols

VGA Cable 1.8m

2 × AAA Batteries

IR Remote Control

Due to different applications in each country, some regions may have different accessories.

Documentation :

User's Manual
Warranty Card
Quick Start Card
WEEE Card (for EMEA only)

Product Overview

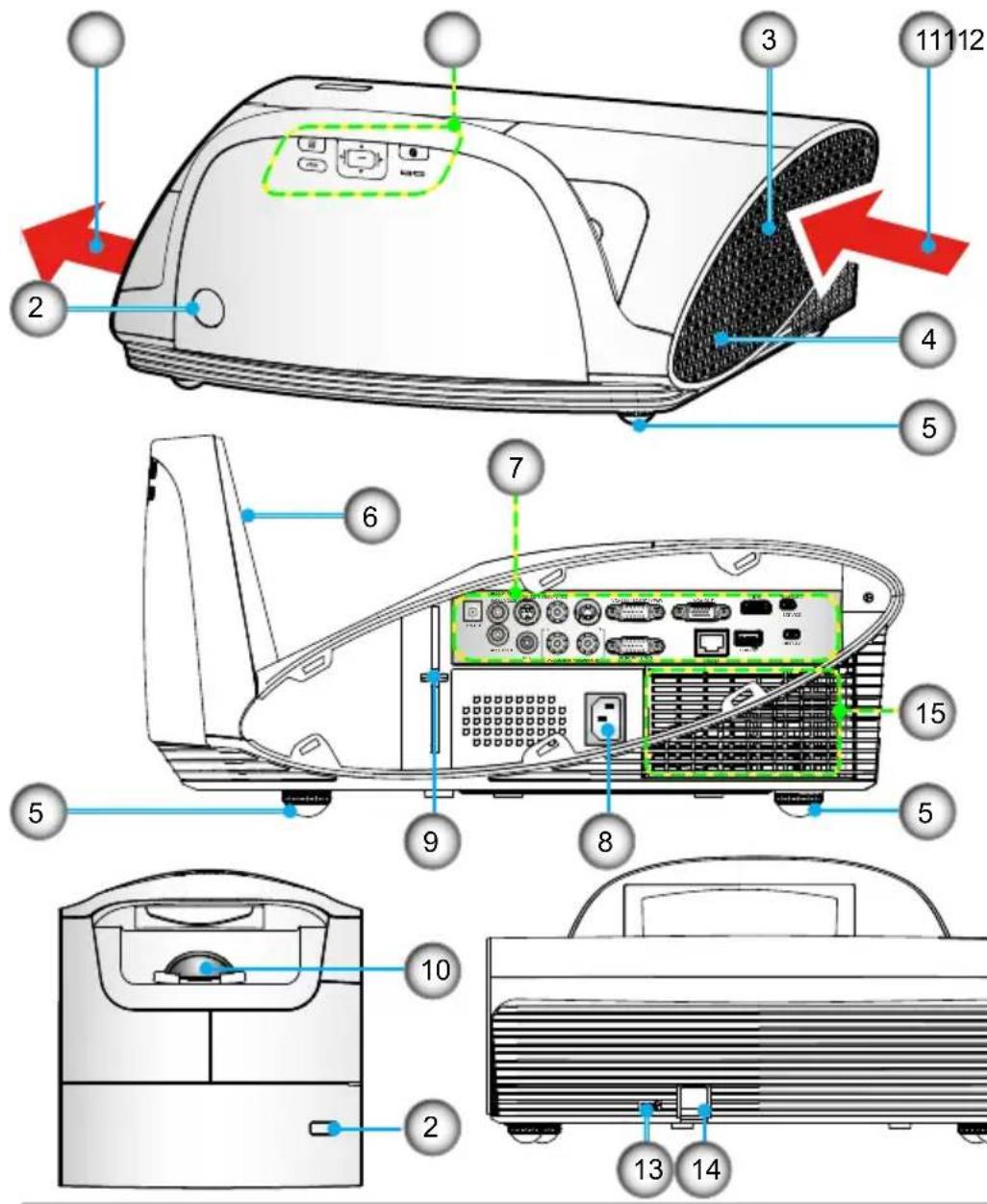

Main Unit

1. Control Panel
2. IR Receivers
3. Cable Cover
4. Speaker
5. Tilt-Adjustment Feet
6. Mirror Cover

7. Input / Output Connections
   8 Power Socket

8. Focus Lever

9. Lens
10. Ventilation (inlet)
11. Ventilation (outlet)
12. Kensington™ Lock Port
13. Security Bar
14. Compartment for optional dust filter

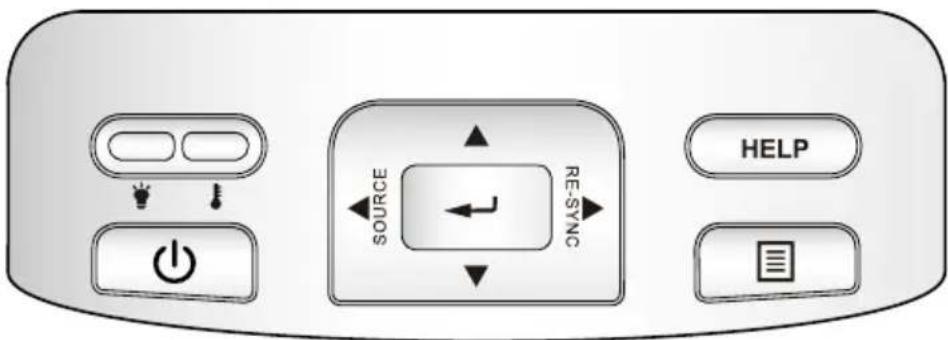

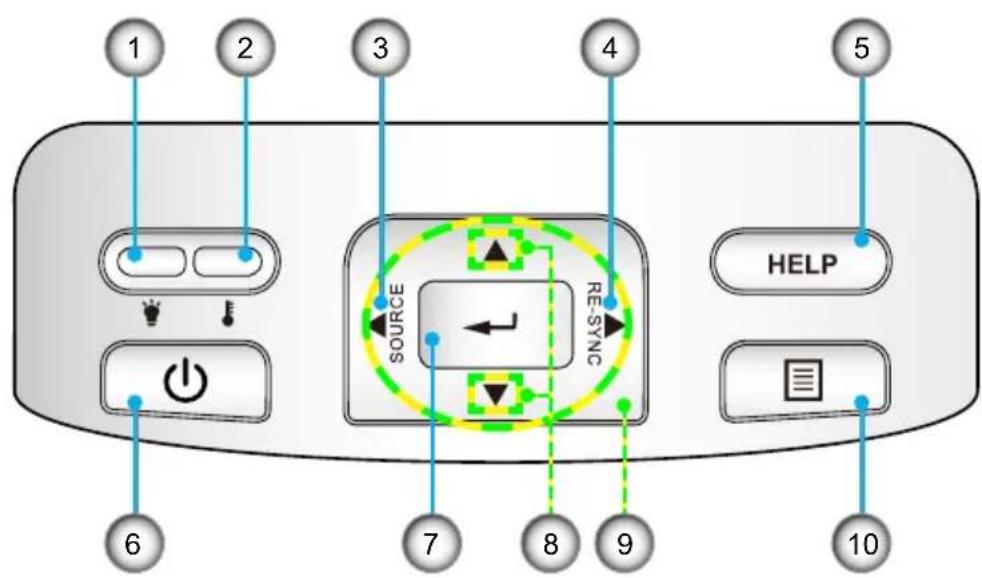

Control Panel

1. Lamp LED
2. Temp LED
3. Source
4. Re-Sync

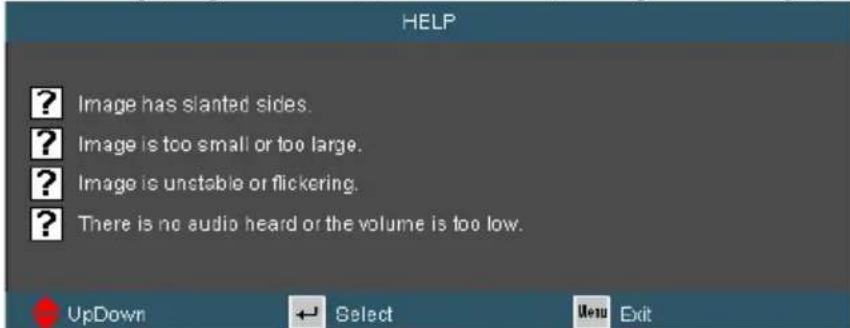

5. Help
6. Power/Standby button and LED
7. Enter
8. Keystone Correction
9. Four Directional Select Keys
10. Menu

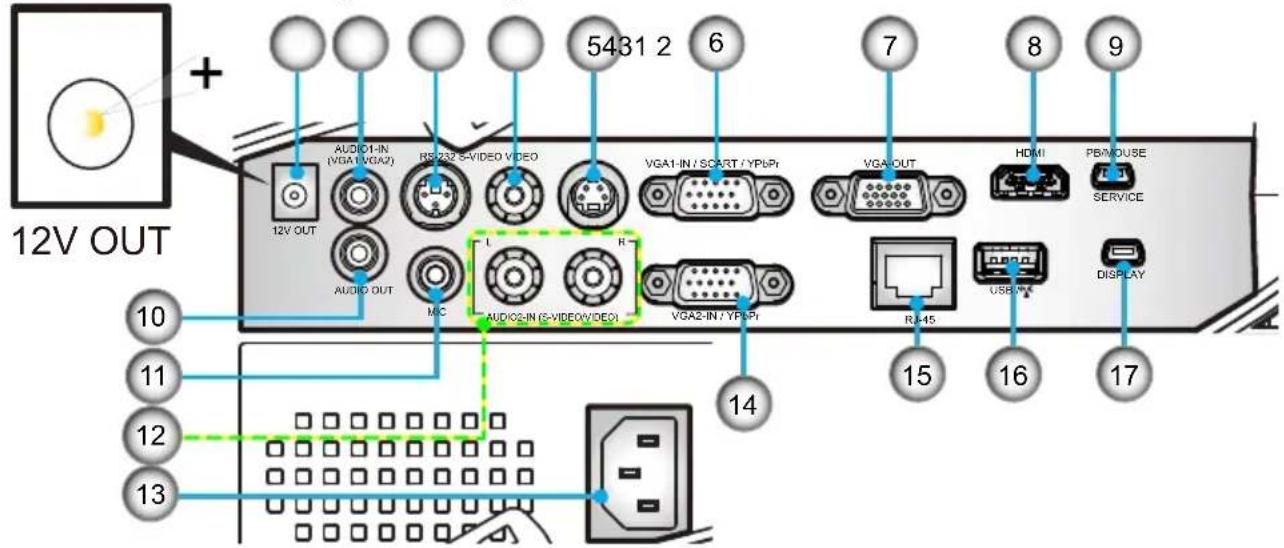

Input/Output Connections

Monitor loop through only support in VGA1-In/SCART/YPbPr.

1. 12V Trigger Relay (12V, 250mA)
2. 3.5mm Mini Jack Audio1 Input for VGA1/VGA2
3. 3pin Mini-din RS232
4. Composite Video Input
5. S-Video Input
6. VGA1/SCART/YPbPr Input
7. VGA-Out (monitor loop through)
8. HDMI v1.3 Input
9. 5pin Mini-USB for interactive function and firmware upgrade
10. 3.5mm Audio Output (Variable)
11. 3.5mm Microphone Input
12. Left/Right RCA Audio2 Input
13. Power Socket
14. VGA2/YPbPr Input
15. RJ45
16. USB for Wireless dongle & Thumb drive
17. 5pin Mini-USB for Display

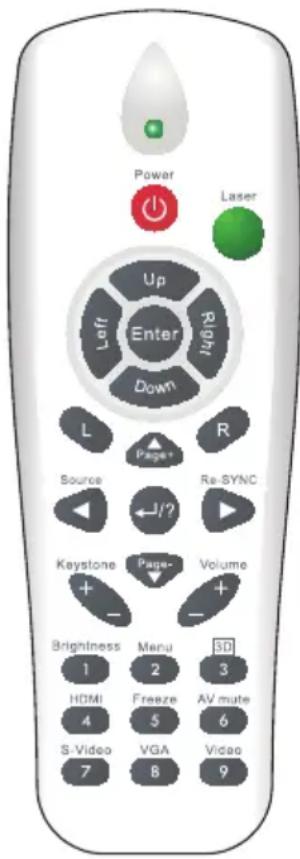

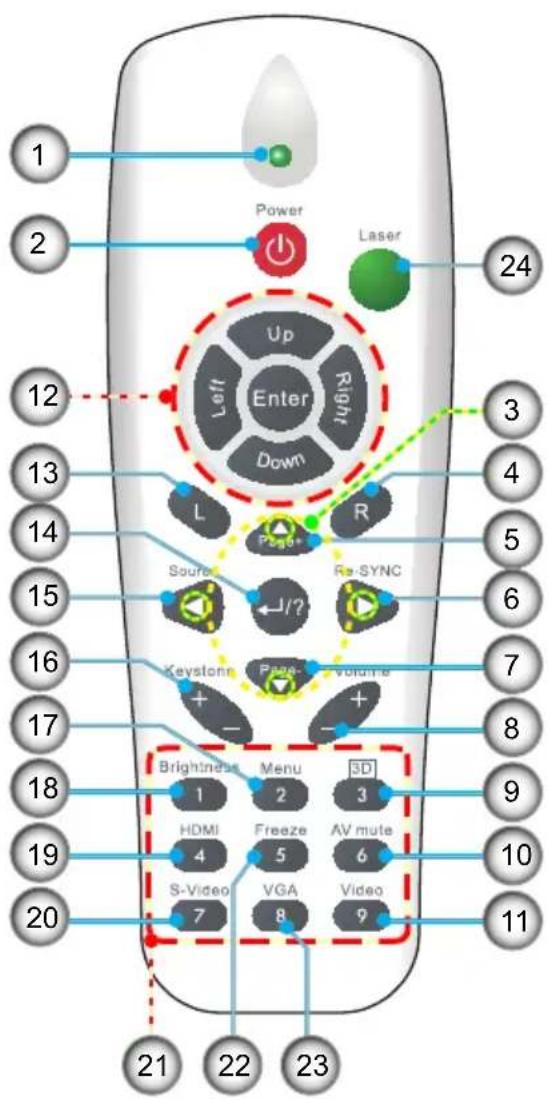

Remote Control

The interface is subject to model's specifications.

1. LED Indicator

2. Power On/Off

3. Four Directional Select Keys

4. Mouse Right Click

5. Page Up

6. Re-Sync

7. Page Down

8. Volume +/-

9. 3D

10. AV mute

11. Video

12. PC/Mouse control

13. Mouse Left Click

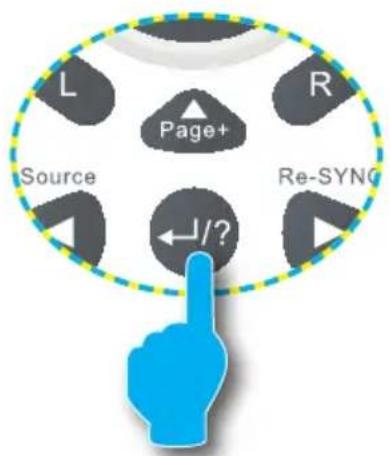

14. Enter/Help

15. Source

16. Keystone +/-

17. Menu

18. Brightness

19. HDMI

20. S-Video

21. Numbered keypad (for password input)

22. Freeze

23. VGA

24. Laser Pointer

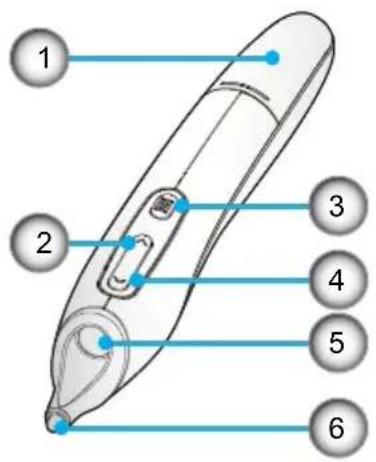

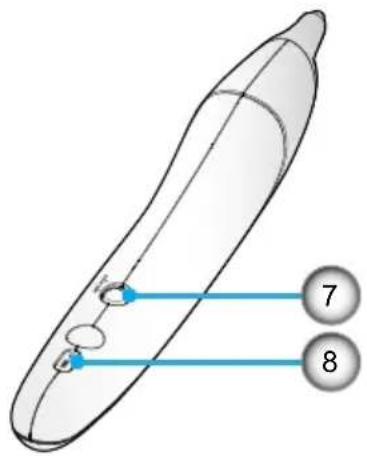

Interactive Pen

The interactive pen is optional accessory.

1. Battery Cover
2. Mouse Right Click
3. Menu

4. Mouse Left Click

5. Lens

6. Nib
7. Power On/Off
8. LED Indicators

Warning:

• Danger of explosion if battery is incorrectly replaced.
• Replace only with the same or equivalent type recommended by the manufacturer.
• Dispose of used batteries according to your local regulations.
• Do not mix different types of batteries or new and old batteries.

Battery Installation:

1. Press firmly and slide the battery cover off. 1
2. Install new batteries (AAA). Ensure that you have the batteries' polarity (+/-) aligned correctly. 2
3. Slip the cover back over the batteries until it snaps into place.

Connecting the Projector

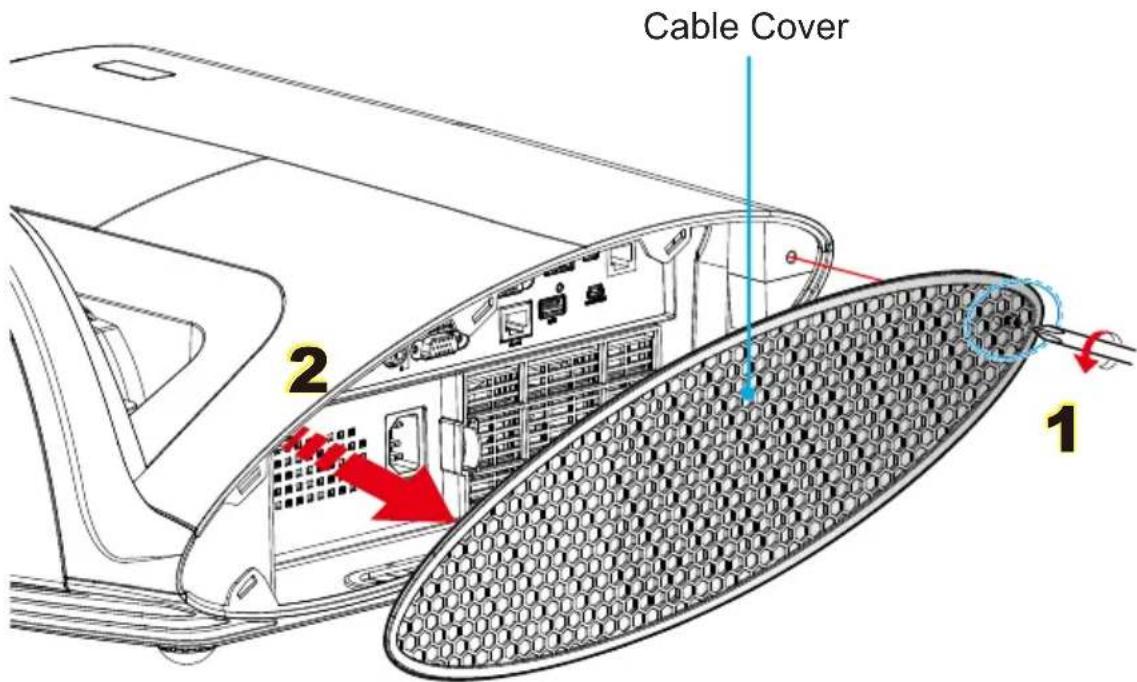

Removing and Attaching the Cable Cover

Procedure for Removing and Attaching the Cable Cover:

1. Unscrew the screw on the cable cover. 1
2. Lift up and remove the cable cover. 2
   Install the cable cover by reversing the previous steps.

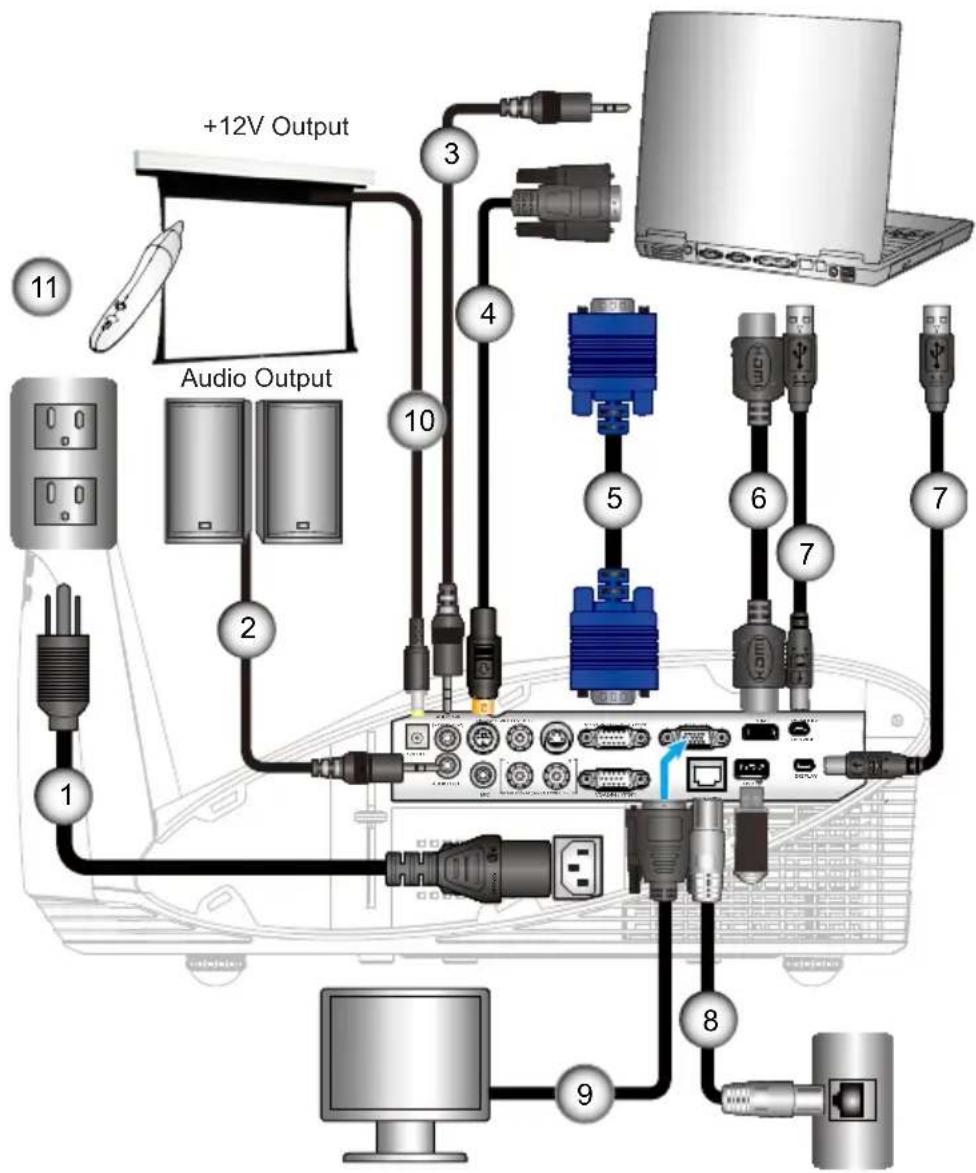

Connect to Computer/Notebook

Due to the difference in applications for each country, some regions may have different accessories.

(*) Optional accessory

1....Power Cord
2. ....*Audio Output Cable
3....*Audio Input Cable
4....*RS232 Cable
5....VGA Cable
6....*HDMI Cable
7....*USB Cable
8....*Network Cable
9....*VGA Output Cable
10....*12V DC Plug
11. ....*Interactive Pen

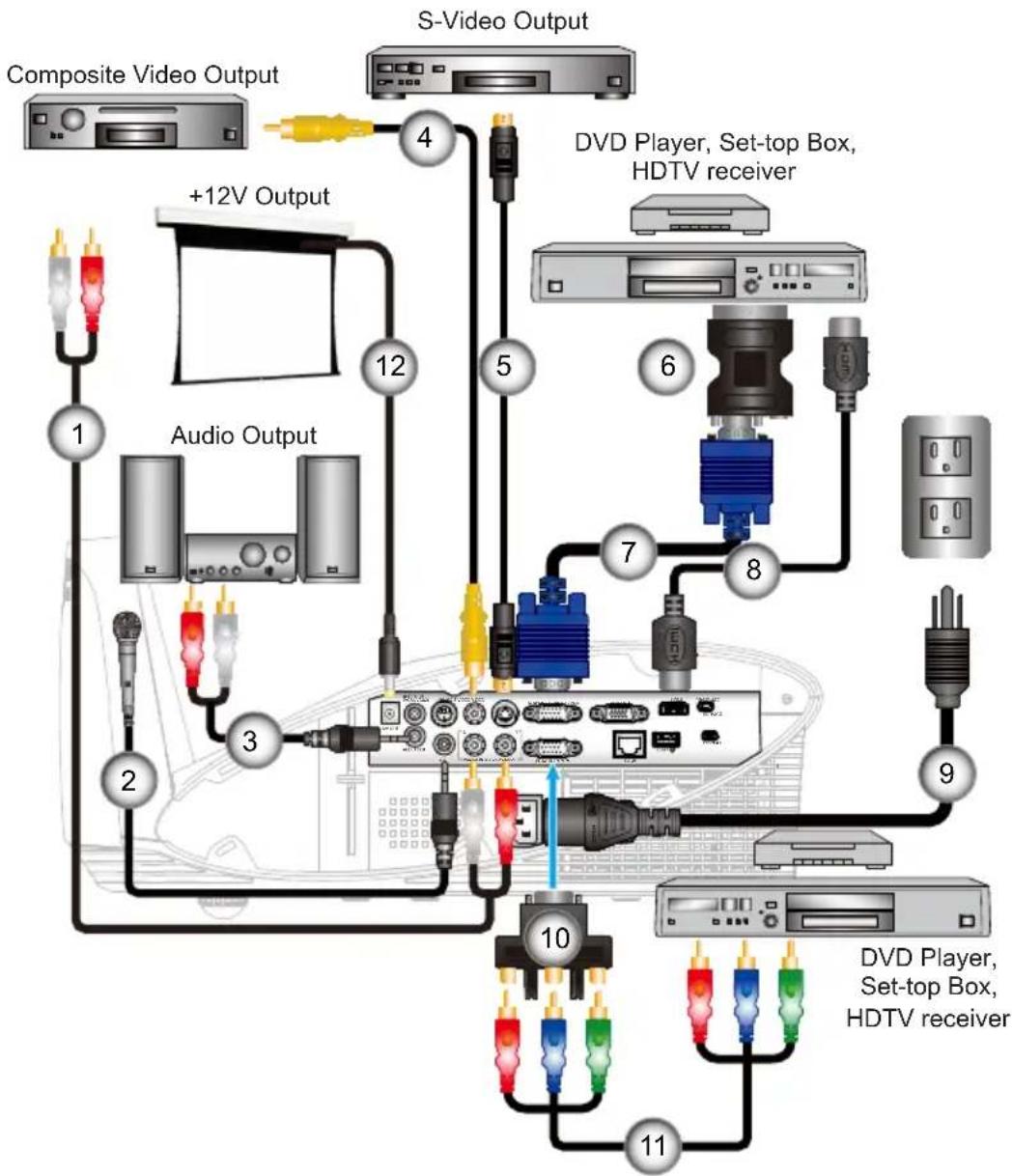

Connect to Video Sources

Due to the difference in applications for each country, some regions may have different accessories.
(*) Optional accessory

1....*Audio Cable RCA/RCA
2....*Microphone Cable
3. *Audio Cable Jack/RCA
4....*Composite Video Cable
5....*S-Video Cable
6....*SCART/VGAAdaptor
7......VGA Cable
8....*HDMI Cable
9....Power Cord
10....*15-Pin to 3 RCA Component/HDTV Adaptor
11....*3 RCA Component Cable
12....*12V DC Plug

Powering the projector On / Off

Powering On the Projector

When Power mode (Standby) is set to Eco (<0.5W), the VGA output, Audio pass-through and RJ45 will be deactivated when the projector is in standby.

1. Securely connect the power cord and signal cable. When connected, the POWER/STANDBY LED will turn Amber.
2. Turn on the lamp by pressing "button either on the top of the projector or on the remote. The POWER/STANDBY LED will now turn Green.

The startup screen will display in approximately 10 seconds. The first time you use the projector, you will be asked to select the preferred language and power saving mode.

1. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, push menu button and go to "OPTIONS". Make sure that the "Source Lock" has been set to "Off".

If you connect multiple sources at the same time, press the "SOURCE" button on the control panel or direct source keys on the remote control to switch between inputs.

Turn on the projector first and then select the signal sources.

or

Powering Off the Projector

1. Press the "button" on the remote control or on the control panel to turn off the projector. The following message will be displayed on the screen.

Press the “button again to confirm otherwise the message will disappear after 15 seconds. When you press the “button for the second time, the projector will display countdown timer and will shut down.

1. The cooling fans continue to operate for about 10 seconds for cooling cycle and the POWER/STANDBY LED will Flash Green. When the POWER/STANDBY LED lights solid Amber, the projector has entered standby mode.

If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press "button to restart the projector.

1. Disconnect the power cord from the electrical outlet and the projector.
2. Do not turn on the projector immediately following a power off procedure.

Warning Indicator

When the warning indicators (see below) come on, the projector will automatically shutdown:

Contact the nearest service center if the projector displays these symptoms. See pages 87-88 for more information.

“LAMP” LED indicator is lit red and if “POWER/STANDBY” indicator flashes amber.
“TEMP” LED indicator is lit red and if “POWER/STANDBY” indicator flashes amber. This indicates the projector has overheated. Under normal conditions, the projector can be switched back on.
“TEMP” LED indicator flashes red and if “POWER/STAND-BY” indicator flashes amber.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up again, please contact your nearest service center for assistance.

Adjusting the Projected Image

Adjusting the Projector's Height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to modify on the underside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining feet as needed.

Adjusting the Projector's Focus

To focus the image, rotate the focus ring until the image is clear.

XGA series: The projector will focus at distances from 1.58 to 2.17 feet (475 to 662 mm).
WXGA series: The projector will focus at distances from 1.58 to 2.17 feet (495 to 661 mm).

Adjusting Projection Image Size

XGA series: Projection Image Size from 63" to 85" (1.60 to 2.16 meters).
- WXGA series: Projection Image Size from 77" to 100" (1.96 to 2.54 meters).

B=>Vertical distance between lens center and screen center

C,E=>Throw distance

D=>Vertical distance between lens center and bottom of screen (top of screen for ceiling mount)

α=>Throw angle

XGA

Screen Size						(B) (C) (D) (E)								(α)
Diagonal Width (W) Height (H)
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	degree
63 160	0 50 1280	38 960 29	749 5 133	11 269	19 475 55.3
65 165	1 52 1321	39 991 30	773 6 150	11 277	19 492 55.3
70 177	8 56 1422	42 1067 33	832 8 192	12 299	21 534 55.3
75 190	5 60 1524	45 1143 35	892 9 235	13 320	23 577 55.3
77 195	6 62 1565	46 1173 36	915 10 251	13 329	23 594 55.3
80 203	2 64 1626	48 1219 37	951 11	277	13 341 24	619 55.3
85 215	9 68 1727	51 1295 40	1010	13 320	14 363 26	662 55.3

WXGA

Screen Size						(B) (C) (D) (E)								(α)
Diagonal Width (W) Height (H)
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	degree
77 195	6 65 1659	41 1037 31	777 6 153	10 259	19 495 55.3
80 203	2 68 1723	42 1077 32	808 7 174	11 269	20 516 55.3
85 215	9 72 1831	45 1144 34	858 8 214	11 286	22 568 55.3
87.2 22	15 74 1873	46 1174	35 880 9 226	12 293	22 569 55.3
90 228	6 76 1939	48 1212 36	909 10 246	12 303	23 588 55.3
95 241	3 81 2046	50 1279 38	959 11	283	13 320 25	625 55.3
100	2540 85	2154 53	1346 40 10	10 18	319 13	837 26 66	1 55.3

This table is for user's reference only.

Control Panel & Remote Control

Control Panel

Using the Control Panel

Power/ Standby but- ton and LED		Refer to the “Power On/Off the Projector” section on pages 15-16. Indicate the projector's status.
RE-SYNC		Automatically synchronize the projector to the input source.
Enter		Confirm your item selection.
SOURCE		Press “SOURCE” to select an input signal.
Menu		Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, Press “Menu” again.
Four Directional Select Keys		Use ▲▼to select items or make adjust-ments to your selection.
Keystone		Use ▲toadjust image distortion caused by tilting the projector. (±40 degrees)
HELP		Help Menu (refer to page 23).
Lamp LED	###	Indicate the projector's lamp status.
Temp LED	###	Indicate the projector's temperature status.

Remote Control

Using the Remote Control
Power	Refer to the “Power On/Off the Projector” section on pages 15-16.
L Button	Mouse left click.
R Button	Mouse right click.
Page +	Use this button to page up.
Page -	Use this button to page down.
Enter
Source	Press “Source” to select an input signal.
Re-SYNC
Four Directional Select Keys	Use ▲ ▶ect items or make adjustments to your selection.
Keystone +/-	Adjust image distortion caused by tilting the projector.
Volume +/-	Adjust to increase / decrease the volume.
Brightness	Adjust the brightness of the image.
3D	Press the “3D” to turn the 3D OSD menu on/off.
Menu	Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, press “Menu” again.
HDMI	Press “HDMI” to choose HDMI source.
Freeze	Press “Freeze” to pause the screen image. Press this button again to unlock.

Using the Remote Control

AV mute	Momentarily turns off/on the audio and video.
S-Video Press “S-Video” to choose S-Video source.
VGA	Press “VGA” to choose VGA sources.
Video	Press “Video” to choose Composite video source.

Interactive Pen

Using the Interactive Pen
ON/OFF	Power On/Off the Interactive Pen.
LED	Indicate the interactive pen's status.
LED	Indicate the interactive pen's battery consumption.
Nib	Press the nib to draw or write.
Mouse Left Click ↗	Mouse left click.
Mouse Right Click ↙	Mouse right click.
Menu	Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, press “Menu” again.

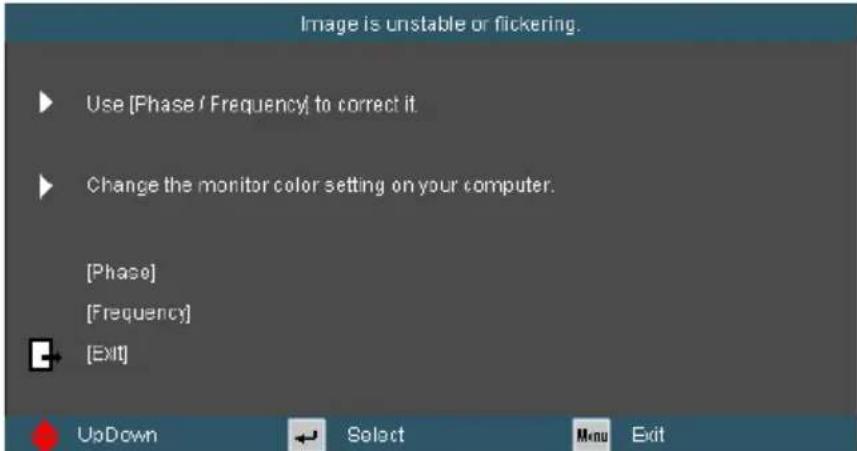

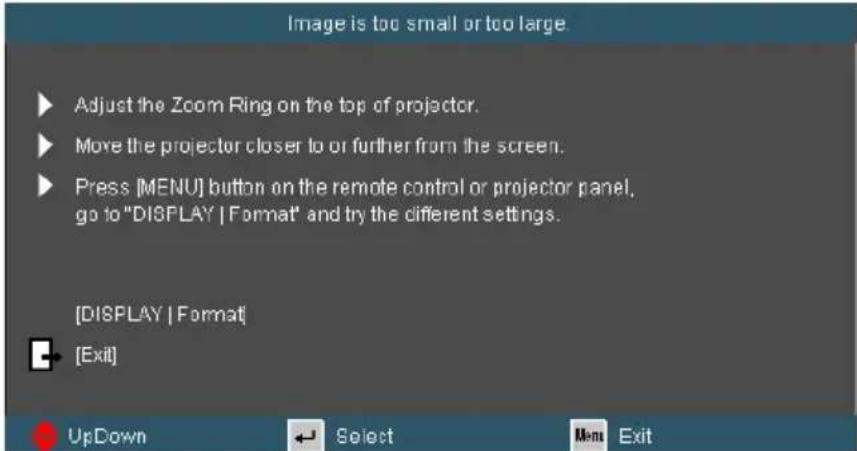

Using the HELP button

The HELP function ensures easy setup and operation.

Press the “?” button on the remote control or press the “HELP” button on the control panel to open the Help Menu.

User Controls

Please refer to the "Troubleshooting" section on pages 70-75 for more details.

▶ Help menu button functions only when no input source is detected.

If input source is detected and help button is pressed, the following pages will appear to help diagnose any problems.

On-screen Display Menus

The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings.

How to operate

1. To open the OSD menu, press "Menu" on the Remote Control or Projector Keypad.

2 When OSD is displayed, use ◀▶ keys to select any item in the main menu. While making a selection on a particular page, press ▼ or "Enter" key to enter sub menu.

1. Use ▲▼ keys to select the desired item and adjust the settings using ◀▶ key.

2. Select the next item to be adjusted in the sub menu and adjust as described above.

3. Press "Enter" to confirm, and the screen will return to the main menu.

4. To exit, press "MENU" again. The OSD menu will close and the projector will automatically save the new settings.

Menu Tree
Main Menu Sub Menu Settings

Image	Display Mode		Presentation / Bright / Movie / sRGB / Blackboard / Classroom / User / 3D
	Brightness -50~50
	Contrast -50~50
	Sharpness 1~15
	*1 Color -50~50
	*1 Tint -50~50

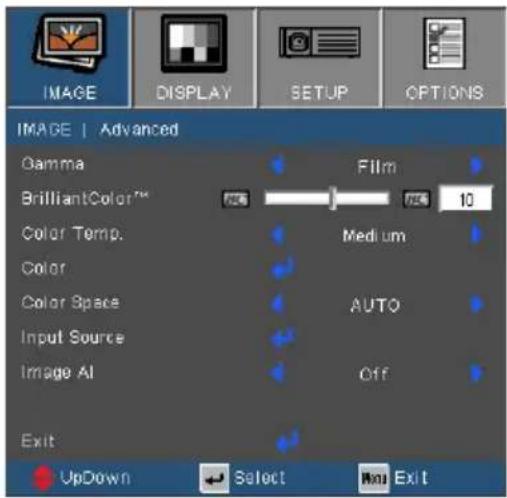

	Advanced Gamma Film / Video / Graphics / PC
		BrilliantColorTM 0~10
		Color Temp. Warm / Medium	Cold
		Color Settings	Red Gain / Green Gain / Blue Gain / Red Bias / Green Bias / Blue Bias / Cyan / Magenta / Yellow / Reset / Exit
		Color Space AUTO / RGB / Y	IV
		Input Source VGA1 / VGA2 / V	deo / S-Video / HDMI
		Image AI On / Off
		Exit
Display	Format 4:3 / 16:9-I / 16:9-II / Native / AUTO
			4:3 / 16:9 or 16:10 / LBX / Native / AUTO
	Edge Mask 0~10
	Zoom		5~25 (80%~200%)
	H Image Shift		50~50
	V Image Shift		50~50
	V Keystone		40~40
	3D 3D	Off / DLP-Link / IR
		*4 3D Sync. Invert	On / Off
		Exit
Setup	Language		English / Deutsch / Français / Italiano / Español / Português / Svenska / Nederlands / Norsk/Dansk / Polski / Suomi / Русский / ελληνικά / Magyar / Čeština / عرب / 樊體中文 / 筒体中文 / 日本語 / 한국어 / じん / Türkçe / Việt / Bahasa Indonesia
	*3 Screen Type		16:10 / 16:9
	Projection
	Menu Location
	*5 Signal	Automatic	On / Off
		Phase (VGA)	0~31
		Frequency (VGA)	5~5
		H. Position (VGA)	5~5
		V. Position (VGA)	5~5
		Exit
	Security	Security	On / Off
		Security Timer	Month / Day / Hour
		Change Password
		Exit

Main Menu Sub Menu Settings

Setup	Projector ID 0~99
	Mute On / Off
	Volume 0~10
	Audio Input	*Default / Audio1 (Phone jack) / Audio2 (RCA R/L)
	Advanced Logo	Optoma / Neutral / User
		Logo Capture
		Closed Captioning Off / CC1 / CC2
		Exit

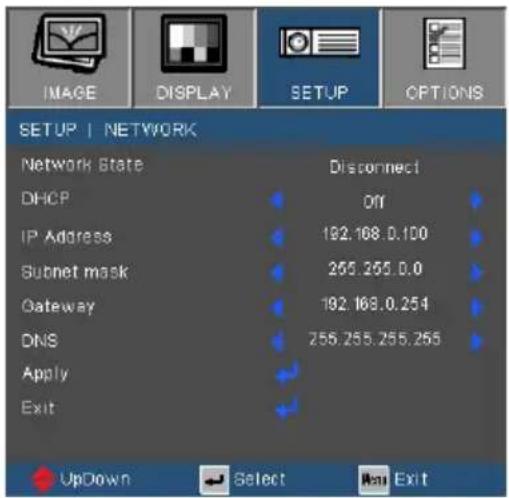

	Network Network State
		DHCP
		IP Address
		Subnet mask
		Gateway
		DNS
		Apply Yes / No
		Exit
Options	Source Lock On / Off
	High Altitude On / Off
	Information Hide On / Off
	Keypad Lock On / Off
	Background Color Black / Red / Blue / Green / White
	IR Receiver Front Receiver	On / Off
		Top Receiver On / Off
	Advanced Direct Power On	On / Off
		Auto Power Off (min.) 0~180
		Sleep Timer (min.) 0~995
		Power Mode (Standby) Eco. / Active
		Exit
	Lamp Settings	Lamp Hours
		Lamp Reminder On / Off
		Brightness Mode STD / Bright / Image AI
		Lamp Reset Yes / No
		Exit
	Optional Filter Installed	Yes / No
	Reset Filter Warning	Yes / No
	PointBlank	Interactive On / Off
		Dual Pen On / Off
		Pointer Motion Normal / Draw / Stable
		Click Speed Fast / Medium / Low
		Set function Pointer Motion / PowerPoint Annotation / Switch Windows (Alt+Tab) / Esc / Show Desktop (Cmd+D) / Open Window Explorer (Cmd+E) / Double Click / Disable
		Channel Automatic / Channel
		Information
		Exit
	Reset

Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using.

( #1 ) "Color" and "Tint" are only supported in Video mode.
(#2) For XGA model only.
(#3) For WXGA model only. 16:9 or 16:10 depend on "Screen Type" setting.
(#4) "3D Sync Invert" is only available when 3D is enabled.
(#5) "Signal" is only supported in Analog VGA (RGB) signal.
(6) MIC volume can also be controlled by "Setup → Volume" in OSD.
When PoinkBlank is enable, "Display Mode" only support "Presentation", "Bright", "User" and "3D" mode.

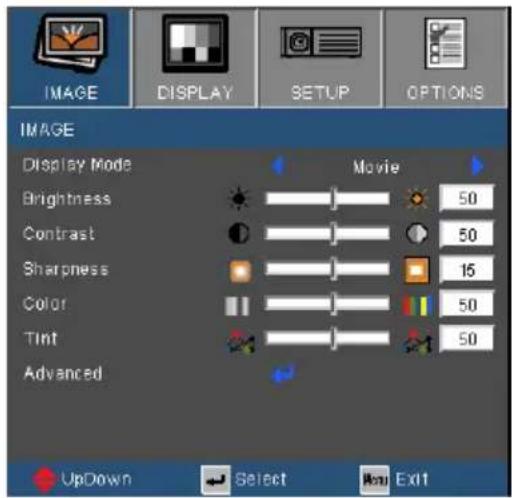

Display Mode

There are many factory presets optimized for various types of images.

Presentation: Good color and brightness from PC input.
Bright: Maximum brightness from PC input.
▶ Movie: For home theater.
sRGB: Standardised accurate color.
Blackboard: This mode should be selected to achieve optimum color settings when projecting onto a blackboard (green).
Classroom: This mode is recommended for projecting in a classroom.
User: User's settings.
3D: Recommend setting for 3D mode enabled. Any further adjustments by the user in 3D will be saved in this mode for further use.

Brightness

Adjust the brightness of the image.

Press the ◀o darken image.
▶ Press the ▶ to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Press the ◀ to decrease the contrast.
Press the ▶ to increase the contrast.

“Color” and “Tint” functions are only supported under Video mode.

Sharpness

Adjust the sharpness of the image.

Press the ◀ to decrease the sharpness.
Press the ▶ to increase the sharpness.

Color

Adjust a video image from black and white to fully saturated color.

Press the ◀ to decrease the amount of saturation in the image.
Press the ▶ to increase the amount of saturation in the image.

Tint

Adjust the color balance of red and green.

Press the ◀ to increase the amount of green in the image.
Press the ▶ to increase the amount of red in the image.

IMAGE | Advanced

Gamma

This allows you to choose a degamma table that has been fine-tuned to bring out the best image quality for the input.

Film: for home theater.
▶ Video: for video or TV source.
▶ Graphics: for image source.
PC: for PC or computer source.

BrilliantColor™

This adjustable item utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in picture. The range is from "0" to "10". If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.

Color Temp

If set to cold temperature, the image looks more blue. (cold image) If set to warm temperature, the image looks more red.

(warm image)

Color Settings

Press ← into the next menu as below and then use select item.

Red Gain/Green Gain/Blue Gain/Red Bias/Green Bias/Blue Bias/Cyan/Magenta/Yellow: Use ▶ to select Red, Green, Blue, Cyan, Magenta and Yellow Colors.
Reset: Choose "Yes" to return the factory default settings for color adjustments.

Color Space

Select an appropriate color matrix type from AUTO, RGB or YUV.

Input Source

Use this option to enable / disable input sources. Press ▶to enter the sub menu and select which sources you require. Press "Enter" to finalize the selection. The projector will not search for inputs that are not selected.

Image AI

Image AI improves the contrast of the picture by optimizing the brightness of the lamp according to the picture content.

On: The dynamic image performance manager is active in making sure your greatest pleasure from seeing a movie dynamically with the most dark details revealed, vivid and bright image performed all the way.
Off: The dynamic image performance manager is on standby.

DISPLAY

Format

Use this function to choose your desired aspect ratio.

XGA

4:3: This format is for 4×3 input sources.
16:9-I: This format is for 16×9 input sources, like HDTV and DVD enhanced for Wide screen TV. (576i/p)
16:9-II: This format is for 16×9 input sources, like HDTV and DVD enhanced for Wide screen TV. (480i/p)
Native: This format displays the original image without any scaling.
▶ AUTO: Automatically selects the appropriate display format. When input is 4:3, the image is displayed as 4:3. When input is 16:9 above, the image is displayed as 16:9- I

Aspect ratio (source detected)	Resize image
	XGA model
4:3 1024 x 7	68 center
16:9-I 1024 x	576 center
16:9-II 854 x 4	80 center
Native	No resize image, 1:1 mapping and centered. This format shows the original image without scaling.

16:9 or 16:10 depend on "Screen Type" setting.

WXGA

4:3: This format is for 4×3 input sources.
16:9: This format is for 16×9 input sources, like HDTV and DVD enhanced for Wide screen TV.
16:10: This format is for 16×10 input sources, like widescreen laptops.
LBX: This format is for non-16x9, letterbox source and for users who use external 16x9 lens to display 2.35:1 aspect ratio using full resolution.
Native: This format displays the original image without any scaling.
▶ AUTO: Automatically selects the appropriate display format.

16:10 Screen 480i/p 576i/p 1080i/p 720p PC
4:3 1066 x 800 center
16:10 1280 x 800 center
LBX	1280 x 960 center, then get the central 1280 x 800 image to display
Native	1:1 mapping centered.	1:1 map-ping (960 x 540) display 1280 x 800	1280 x 720 center	1:1 mapping centered.

16:9 Screen 480i/p 576i/p 1080i/p 720p PC
4:3 960 x	720 center
16:9 1280	x 720 center
LBX	1280 x 960 center, then get the central 1280 x 720 image to display
Native	1:1 mapping centered.	1:1 map-ping (960 x 540) display 1280 x 720	1280 x 720 center	1:1 mapping centered.

User Controls

Each I/O has different setting of "Edge mask".
“Edge mask” and “Zoom” can’t work at same time.

Edge Mask

Edge mask function removes the noise in a video image. Edge mask the image to remove video encoding noise on the edge of video source.

Zoom

Press the ◀ to reduce the size of an image.
Press the ▶ to magnify an image on the projection screen.

H Image Shift

Shift the projected image position horizontally.

V Image Shift

Shift the projected image position vertically.

V Keystone

Press the ◄ or ▶ adjust image distortion vertically. If the image looks trapezoidal, this option can help make the image rectangular.

DISPLAY | 3D

• “IR” options may vary according to model.
  “3D Sync Invert” is only available when 3D is enabled and this mode 3D is for DLP link glass only.
  Compatible 3D source, 3D content and active shutter glasses are required for 3D viewing.

3D

Off: Select "Off" to turn 3D settings off for 3D images.
DLP Link: Select "DLP Link" to use optimized settings for DLP Link 3D images.
IR: Select "IR" to use optimized settings for IR-based 3D images.

3D Sync. Invert

Press the "On" to invert left and right frame contents.
Press the "Off" for default frame contents.

SETUP

Language

Choose the multilingual OSD menu. Press ▶or ▶to the sub menu and then use the ▶or ▶key to select your preferred language. Press "Enter" to finalize the selection.

"Screen Type" is for WXGA only.

Screen Type

Choose the screen type from 16:10 or 16:9.

Projection

Rear-Desktop and Rear-Ceiling are to be used with a translucent screen.

Front-Desktop

This is the default selection. The image is projected straight on the screen.

Rear-Desktop

When selected, the image will appear reversed.

Front-Ceiling

When selected, the image will turn upside down.

Rear-Ceiling

When selected, the image will appear reversed in upside down position.

Menu Location

Choose the menu location on the display screen.

Projector ID

ID definition can be set up by menu (range 0\~99), and allow user control an individual projector by RS232. Refer to page 81\~85 for the complete list of RS232 commands.

Mute

Choose the "On" to turn mute on.
Choose the "Off" to turn mute off.

SETUP

Volume

Volume adjustment can also control MIC volume.

Press the ◀ to decrease the volume.
Press the ▶ to increase the volume.

Audio Input

The default audio settings are on the back panel of the projector. Use this option to reassign any of the Audio Inputs (1 or 2) to the current image source. Each Audio input can be assigned to more than one video source.

Audio 1: VGA 1 and VGA 2.
Audio 2: S-Video/Video.
MIC: (No default video source)

SETUP | Signal (RGB)

"Signal" is only supported in Analog VGA (RGB) signal.

Automatic

Automatically selects the signal. If you use this function, the Phase, frequency items are grayed out, and if Signal is not automatic, the phase, frequency items will appear for user to manually tune and saved in settings after that for next time projector turns off and on again.

Phase

Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

Frequency

Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if the image appears to flicker vertically.

H. Position

Press the ◀ to move the image left.
Press the ▶ to move the image right.

V. Position

Press the ◀ to move the image down.
Press the ▶ to move the image up.

SETUP | Security

Security

On: Choose "On" to use security verification when the turning on the projector.
Off: Choose "Off" to be able to switch on the projector without password verification.

Password default value is "1234" (first time).

Security Timer

Use this function to set the how long (Month/Day/Hour) the projector can be used. Once this time has elapsed you will be requested to enter your password again.

Change Password

First time:

1. Press "←" to set the password.
2. The password has to be 4 digits.
3. Use number button on the remote to enter your new password and then press "←key to confirm your password.

Change Password:

1. Press "←" to input old password.
2. Use number button to enter current password and then press "←" to confirm.
3. Enter new password (4 digits in length) using the number buttons on the remote, then press “←” to confirm.
4. Enter new password again and press "←" to confirm.

If the incorrect password is entered 3 times, the projector will automatically shut down.
If you have forgotten your password, please contact your local office for support.

SETUP | Advanced

Logo

Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.

Optoma: The default startup screen.
Neutral: Logo is not displayed on startup screen.
User: Use stored picture from "Logo Capture" function.

For successful logo capture, please ensure that the on-screen image does not exceed the projector's native resolution. (XGA:1024x768 or WXGA:1280x800).

Logo Capture

Press to capture an image of the picture currently displayed on screen.

Closed Captioning

Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.

Off: select "off" to turn off the closed captioning feature.
CC1:CC1 language: American English.
CC2:CC2 language (depending on the TV channel of the user):Spanish, French, Portuguese, German, Danish.

SETUP | Network

Network State

Display the network connection status.

DHCP

Use this function to select your desired startup screen. If you change the setting from one to another, when you exit the OSD menu, the new setting will take effect on next open.

On: Assign an IP address to the projector from an external DHCP server automatically.
Off: Assign an IP address manually.

IP Address

Select an IP address.

Subnet Mask

Select subnet mask number.

Gateway

Select the default gateway of the network connected to the projector.

DNS

Select DNS number.

Apply

Press “◀” and then choose “Yes” to apply the selection.

User Controls

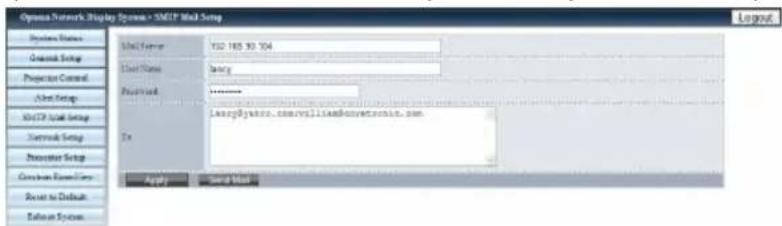

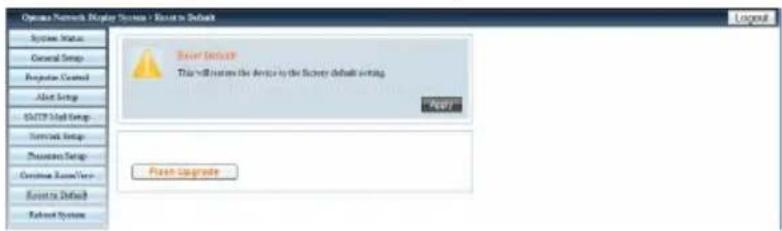

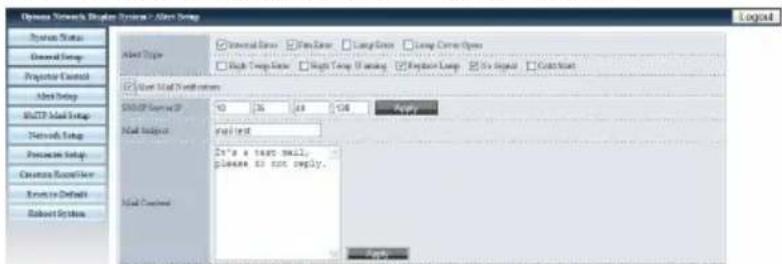

How to use web browser to control your projector

1. Turn on DHCP to allow the DHCP server to automatically assign an IP, or manually enter the required network information.

1. Then choose apply and press "←" button to complete the configuration process.

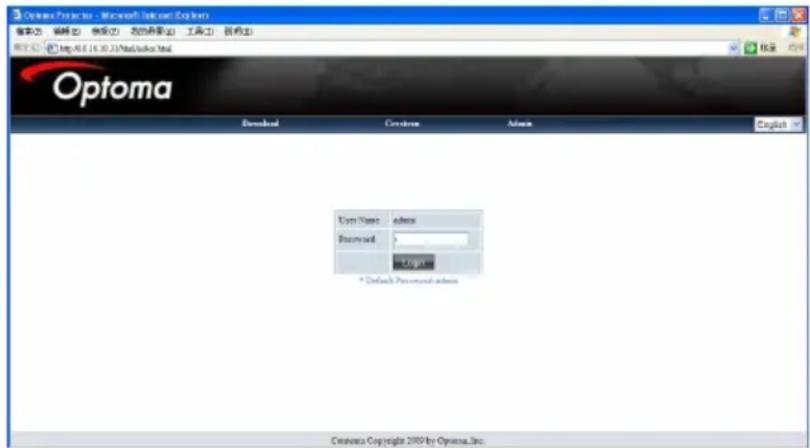

2. Open your web browser and type in from the OSD LAN screen then the web page will display as below:

When you used the projector IP address, you will can not link to your service server.

1. Based on network web-page for the input-string in [tools] tab, the limitation for Input-Length is in the below list ("space" and the other punctuation key included):

Category Item		Input-Length (characters)
Crestron Control	IP Address 15
	IP ID 2
	Port 5
Projector	Projector Name 10
	Location 9
	Assigned To 9
Network Configuration	DHCP (Enabled) (N/A)
	IP Address 15
	Subnet Mask	15
	Default Gateway	15
	DNS Server	15
User Password	Enabled	(N/A)
	New Password	15
	Confirm	15
Admin Password	Enabled	(N/A)
	New Password	15
	Confirm	15

When making a direct connection from your computer to the projector

Step 1: Find an IP Address (192.168.0.100) from LAN function of projector.

IP Address

192.168.0.100

Step 2: Select apply and press "Enter" button to submit function or press "menu" key to exit.

Step 3: To open Network Connections, click Start, click Control Panel, click Network and Internet Connections, and then click Network Connections. Click the connection you want to configure, and then, under Network Tasks , click Change settings of this connection.

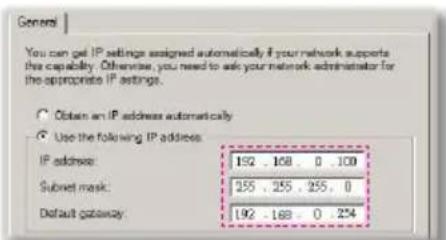

Step 4: On the General tab, under This connection uses the following items, click Internet Protocol (TCP/IP), and then click "Properties."

Step 5: Click Use the following IP address, and type in as below:

1) IP address: 192.168.0.100
2) Subnet mask: 255.255.255.0
3) Default gateway:192.168.0.254

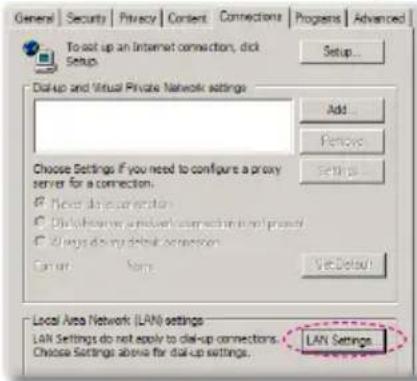

Step 6: To open Internet Options, click IE web browser, click Internet Options, click the Connections tab and click "LAN Settings..."

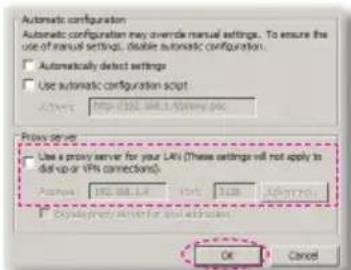

Step 7: The Local Area Network (LAN) Setting dialog box appears, In the Proxy Server area, cancel the Use a proxy server for your LAN check box., then click "OK" button twice.

Step 8: Open your IE and type in the IP address of 192.168.0.100 in the URL then press "Enter" key.

User Controls

Crestron RoomView Control Tool

Crestron RoomView™ provides a central monitoring station for 250+ control systems on a single Ethernet network (more are possible, the number depends on the combination of IP ID and IP address). Crestron RoomView monitors each projector, including projector's online status, system power, lamp life, network setting and hardware faults, plus any custom attribute as defined by the Administrator. The Administrator can add, delete, or edit room information, contact information and events, which are logged automatically by the software for all users. (Operation UI as following image)

1. Main Screen

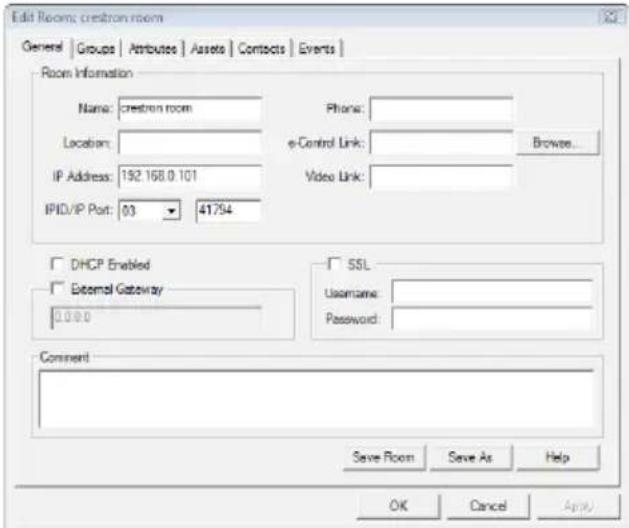

2. Edit Room

Crestron Room-View function support is dependent on models.

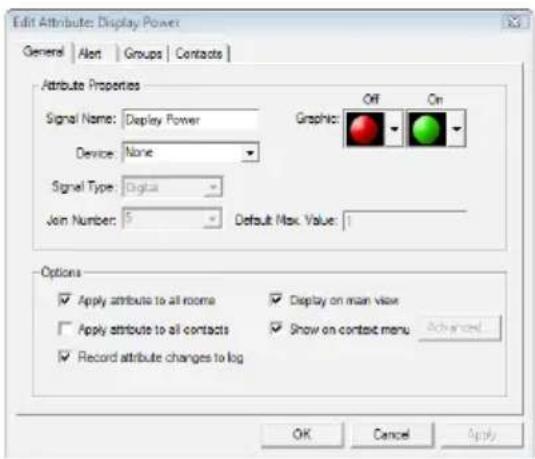

3. Edit Attribute

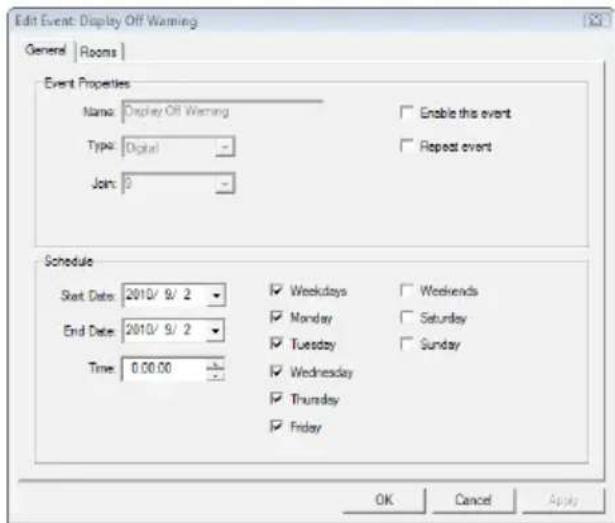

4. Edit Event

For more information, please visit

http://www.crestron.com & www.crestron.com/getroomview.

OPTIONS

Source Lock

On: The projector will only search current input connection.
▶ Off: The projector will search for other signals if the current input signal is lost.

High Altitude

When "On" is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Information Hide

On: Choose "On" to hide the info message.
Off: Choose "Off" to show the "searching" message.

To turn off the keypad lock, press and hold "Enter" key on top of the projector for 5 seconds.

Keypad Lock

When the keypad lock function is "On", the control panel will be locked however, the projector can be operated by the remote control. By selecting "Off", you will be able to reuse the control panel.

Background Color

Use this feature to display a "Black", "Red", "Blue", "Green" or "White", screen when no signal is available.

IR Receiver

Front Receiver: Choose "On" to start the receiver. Choose "Off" to close the receiver.
Top Receiver: Choose "On" to start the receiver. Choose "Off" to close the receiver.

Optional Filter Installed

Select "Yes" to display warning message after 500 hours of use.

Select "No" to turn off warning message.

Reset Filter Warning

Select "Yes" to reset the dust filter hour counter after replacing or cleaning the dust filter.

Reset

Choose "Yes" to return the display parameters on all menus to the factory default settings.

OPTIONS | Advanced

Direct Power On

Choose "On" to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the "key" on the projector control panel or on the remote control.

Auto Power Off (min)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

When Power mode (Standby) is set to Eco (<0.5W), the VGA output, Audio pass-through and RJ45 will be deactivated when the projector is in standby.

Sleep Timer (min)

Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Power Mode (Standby)

Eco.: Choose "Eco." to save power dissipation further < 0.5W.
Active: Choose "Active" to return to normal standby and the VGA out port will be enabled.

OPTIONS | Lamp Settings

Lamp Hours

Display the projection time.

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed.

The message will appear 30 hours before suggested replacement of lamp.

When ambient temperature is over 35^ C in operating, the projector will switch to STD automatically.

Brightness Mode

▶ STD: Choose "STD" to dim the projector lamp which will lower power consumption and extend the lamp life.
BRIGHT: Choose "BRIGHT" to increase the brightness.
Image AI: Choose "Image AI" to improve the contrast of the picture.

Lamp Reset

Reset the lamp hour counter after replacing the lamp.

OPTIONS | PointBlank

Interactivity is supported only in the following input modes: VGA and HDMI from a PC, and Wireless Display, USB Display, and LAN Display
Interactive Pen is supported in 3D source of 120Hz DLP-Link.
The response time lag of Dual Pen operation is 180ms.

Interactive

Choose "On" to enable Interactive and activate the Interactive menu.

Dual Pen

Choose "On" to enable dual pen simultaneously.

Pointer Motion

Choose this function to select the Pointer Motion mode: "Normal", "Draw", and "Stable".

Normal: In this mode, press Mouse Left Click button of the interactive pen can hold the position of the pointer for a moment. This mode is best to use the Interactive Pen like a mouse, i.e., for left click and double click functions.
▶ Draw: In this mode, the pointer can move freely for drawing. This mode is best for drawing or writing on the screen
Stable: In this mode, press and hold the Mouse Left Click button of the interactive pen to limit the pointer to vertical or horizontal moves. If the Mouse Left Click button is released, the pointer can resume to move freely. This mode is best for drawing vertical or horizontal lines on the screen.

Click Speed

Choose this function to select the mouse pause time. This function is only available in Normal mode. The available options are: "Fast", "Medium" and "Low".

Set Function

Choose this function to select the function of the Menu button on the interactive pen.

Pointer Motion: Function as toggling among "Normal", "Draw", and "Stable" mode
PowerPoint Annotation: Function as annotating in the PowerPoint slide show.
Switch Windows (Alt+Tab): Function as toggling among windows, acting as the keyboard shortcut Alt+Tab.
Esc: Function as the keyboard Esc button.
Show Desktop (Cmd+D): Function as showing desktop, minimizing all windows.
Open Windows Explorer (Cmd+E): Choose the function as opening the Windows Explorer.
Middle Mouse: Choose the function as the scroll wheel of the mouse.
Double Click: Choose the function as double-clicking.
▶ Disable: Disable the Function button.

Channel

Auto: Channel is selected automatically.
Manual: Channel is selected manually. A total of 15 channels are available.

Information

View the information about the interactive pen.

Ruby Introduction

Ruby is a embedded project which can bring the high performance in network projection. Base on network protocol, user can configure the projector remotely. It supports to connect the PC with Projector by USB, Ethernet, and Wireless. This project makes full use of the network capability. It allows the administrator to control all the projectors in one building by one PC. When some emergencies happen, the projector can send out alert information to administrator by email and web page. It can read more than one USB device directly and show all the images in it

This project consists of three software applications which make full use of the network and USB capability

• Web Control
• Card Reader
• Optoma Presenter

How to use Web Control

The Web Control application allows user to configure the projector remotely base on various network protocol. It is convenient for administrator to control the whole projectors in one building by one PC.

1. Start the web browser, and enter the IP address of the projector in URL: http://IP-address, the log-in web page is displayed.

2 There are 3 options in this page.

• Click "Download", it displays the interface to download the software of "Optoma Presenter".
• Click "Crestron", to enter the control page of Flash UI.

• Click "Admin", the log-in page shows up.

• Enter the password and click [Login] button, and then main page is displayed. The default password is "admin" when target system is brand new. The maximum password is 8 characters with any characters except "space".

• Click "Logout", it returns back to log-in page.

System Status

This page indicates the information of Model Name, Versions, LAN Status and Wireless Status.

General Setup

Password of entering control web page can be changed here. Old password is requested when changing a new password.

Projector Control

All items in this page is the detail options about how to control the projector more smoothly. Example: Power On/OFF, Source change, Brightness, ....This page will refresh the status currently of all the items in few seconds.

User Controls

Alert Setup

This page is to set up the alert notification for kinds of error types by sending mail. Alert type is multi-options.

SMTP Mail Setup

This page is to set up the details of mail sending, ex. mail server IP address, user name, password and mail address of receivers. (Note: Multi-receivers are separated by semicolon.)

Network Setup

This page is to set up network parameters of IP, DHCP Server, and wireless.

• IP Setup: Click "Obtain an IP address automatically" as auto mode; click "Use the following IP Address" as static mode, IP Address/Subnet Mask/Default Gateway/ DNS Server are required to be filled and then click "Apply" button.
• DHCP Server Setup: Enable/Disable, Start IP, End IP, Subnet Mask, Default Gateway, DNS server.
• Wireless Setup: Connect with wireless dongle, and then setup WLAN mode, SSID, KEY, Channel etc.

Presenter Setup

Admin password/User password is used to change the password for admin/user in target side.

Click "Connection Control" to enter "Connection Status"

- Conference Control: Click "On" or "Off" to enable/disable conference control mode.

User Controls

Click the following icons under "Play Control"

• Click to disconnect host PC.
• Click to switch session to background.
• Click to change display region.

Crestron RoomView

This is the control page of Flash UI.

Click "Power" to control power on/off of projector.

Click "Vol-, Mute, Vol+" to control volume.

In the SourceList, it includes all sources that the projector can process.

Click "Menu" to open menu; click "Source" to choose next source; click "Auto" to detect the source automatically; click "Blank" for AV mute function.

"Contrast, Brightness, Color, Sharpness, Zoom, Freeze" can be adjusted in the control panel below.

Click "Tools", the following items are included:

• Crestron Control: the basic network information of the control system device.
• Projector: the ID of each projector in a building for Administrator to control.
• User Password: change user's password.
• Default Language: set the default language.
• DHCP: enable/disable DHCP and the details of network card.
• Admin Password: change administrator's password.
  After change each items, click "Send" button to make it effect.

Click "Info" to show information and status of this projector.

User Controls

Click "Help" to inform administrator to do related protection or operation.

Reset to Default

Click "Apply" to reset system to the default settings.

Click "Flash Upgrade" to upgrade the Firmware from USB disk, which has been inserted in projector.

Reboot System

Click "Reboot" to reboot system.

How to use the Card Reader

The Card Reader application can display packaged images in a USB flash device.

1. Plugging the USB device into USB port of projector, source of Flash Drive is detected, and then USB Flash Devices Detection Screen is displayed. It supports 3 USB devices at the same time.

1. Press "Enter" to enter Thumbnail mode, different photos in different folders can be chosen; press "Menu" to open menu. The following buttons are supported in the user interface:

• Previous: Move the selected item left. (Go to previous page when this is the most left item)
• Next: Move the selected item right. (Go to next page when this is the most right item.)
  • Display: Display the selected image or folder.
• Thumbnail: Enter the Thumbnail Display Mode.
• Slide Show: Enter the Slide Show Mode.
• Name Order: Sort files/folders in name order.
• Extend Order: Sort files/folders in extended order.
• SizeOrder: Sort files/folders in size order.
  • TimeOrder: Sort files/folders in time order.
• Projector Menu: Enter OSD menu.

User Controls

- File Name On/OFF: Enable/Disable file name display in Thumbnail Display Mode.

Press Up/Down/Left/Right key to choose different functions and press Enter key to make it effect.

1. In the menu of Thumbnail mode, choose Display function, or choose file and press "Enter" to enter Display mode. The following buttons are supported in the user interface:

• Display: Enter the Image Display Mode.
- Thumbnail: Enter the Thumbnail Display Mode.
- Slide Show: Enter the Slide Show Mode.
• Actual Size: Display in actual size of the image.
- Best Fit: Display the image in best fit to the screen.
- EXIF Disp OFF/On: Enable/Disable EXIF information display.
• +90/-90 deg: Rotate 90/-90 degree.

Press Up/Down/Left/Right key to choose different functions and press Enter key to make it effect.

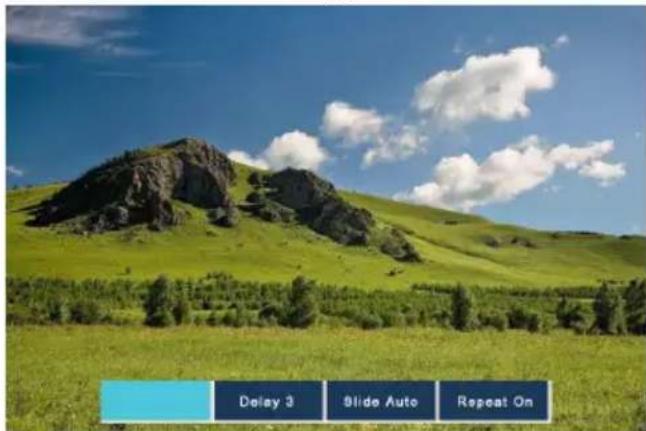

1. Press the SlideShow key to enter the Slide Show Mode. The following buttons are supported in the user interface:

When the image file is large, slide show time will be longer more than the general picture, such as BMP format.

• Stop: Stop Slide Show Mode.
• Delay 3/4/5: Slide Show delay in seconds.
• Slide Effect: Following modes are supported. (Slide Right/Slide Down/Slide Up/Slide Auto)
• Repeat ON/OFF: Enable/Disable Slide Show Repeat Mode.

Press Up/Down/Left/Right key to choose different functions and press Enter key to make it effect.

When the image can NOT be displayed due to memory limitation or can NOT support image format, the specific image is displayed on the center of the screen.

Completely black image with a small white square in the center, no visible text or symbols.

How to use the Optoma Presenter

Optoma Presenter application allows remote desktop from a host PC to be displayed on the network display through Ethernet, USB, or Wireless transports. It can adapt to different network settings (DHCP, fixed IP, and direct link by USB/Ethernet cable).

This software can be downloaded from web page.

Before using this function, a USB cable is needed to connect the Projector and PC Host directly. When the connection is OK, the PC will show a USB device disk.

Select "Optoma Presenter", and then run "autorun.exe" to start USB Display.

1. Press the Autorun icon in the right-down region to pause or play the USB display.

1. After installation in PC, double click the program of Optoma Presenter to enter main window.

• Connect and search network display.
• Stop/Start displaying desktop contents to connected network display.
• Select display region.
• Configure Optoma Presenter.
  • Manage all connected network displays.
  • : Disconnect all connections.

Click the button to enter Connect and Search Menu.

1. Enter IP address of projector, select the option "Directly", and then click "Connect" button to enter log-in interface; or Click "Search" button to search the projectors on network and select projectors to connect.

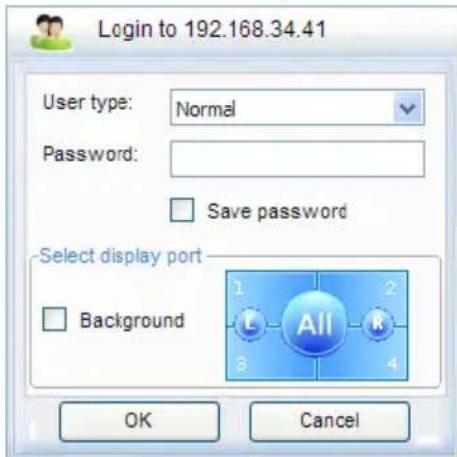

1. Input "User type" and "Password" in log-in interface. Display port can be selected, default is "Full screen".

1. After log-in, Optoma Presenter will modify PC resolution to Ruby supported resolution, and the buttons of and become available.

Click the button to select the size of projection region, including Full screen, Fixed Size and Alterable mode.

User Controls

- Fixed size mode: FIXED mode allows the user to place a frame on the desktop and only the image enclosed inside the frame is transferred to remote network display. The user can change the width and height of the frame by setting up in page "Parameter Setting"->"Basic Setting" or change the size of frame in ALTER-ABLE mode and move the frame by dragging the frame with mouse.

- Alterable size mode: ALTERABLE mode the only region capture is the one enclose by the frame. The difference with FIXED mode is the frame in ALTERABLE mode can be enlarged or downsized by dragging the eight small black squares scattered on eight edges of the frame.

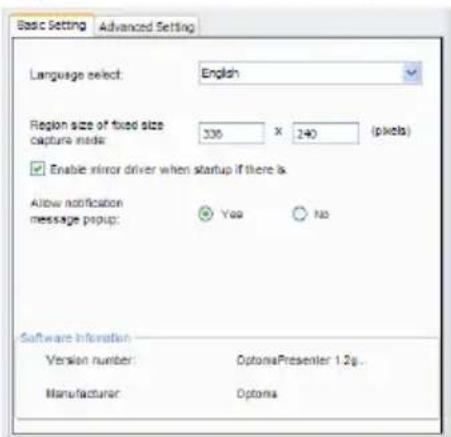

Click the button to enter Setting interface, including Basic Setting and Advanced Setting.

• Basic Setting: Select Language, Region size of fixed size capture mode and allow notification message popup.
• Advanced Setting: select JPEG image quality, YUV sample format and network port.

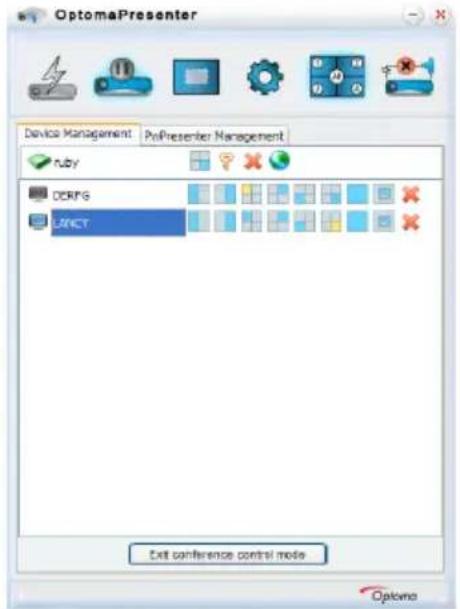

Click the button to control all the users and all the projectors connected to the same projector.

• For Administrator user login.
• For Normal user login.
• Status of the connection for connected
• Status of the connection for not connected.
- For the status and display position of local screen on the network display, change it by clicking on it and a dialog box appears.
- Click this unlock icon, the password can be changed. (Password change to target network display, only a connection with an Administrator user logged in can change the password.)
- Click this lock icon will result in no response.
• ✗ Disconnect with target network display.
- Connect the target network display via a webpage front end.

User of Admin type is able to view a menu page with a list of PCs connected to the target network display.

• For the other PCs.
- For the current PC.
- Options of display port in which the highlight one is the current status, click on one of them to change the display port.
• ✗ Disconnect the PC from a network display.

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

No image appears on-screen

▶ Ensure all the cables and power connections are correctly and securely connected as described in the “Installation” section.
▶ Ensure all the pins of connectors are not bent or broken.
▶ Check if the projection lamp has been securely installed. Please refer to the “Replacing the lamp” section.
Make sure you have removed the lens cap and the projector is switched on.
▶ Ensure that the “AV mute” feature is not turned on.

? Partial, scrolling or incorrectly displayed image

Press "Re-SYNC" on the remote.
▶ If you are using a PC:

For Windows 95, 98, 2000, XP, Windows 7:

1. Open the "My Computer" icon, the "Control Panel" folder, and then double click on the "Display" icon.
2. Select the "Settings" tab.
3. Verify that your display resolution setting is lower than or equal to UXGA (1600 × 1200).
4. Click on the "Advanced Properties" button.

If the projector is still not projecting the whole image, you will also need to change the monitor display you are using. Refer to the following steps.

1. Verify the resolution setting is lower than or equal to UXGA (1600 × 1200).

2. Select the "Change" button under the "Monitor" tab.

3. Click on "Show all devices". Next, select "Standard monitor types" under the SP box; choose the resolution mode you need under the "Models" box.

4. Verify that the resolution setting of the monitor display is lower than or equal to UXGA (1600 × 1200).

▶ If you are using a Notebook:

1. First, follow the steps above to adjust resolution of the computer.
2. Press the appropriate keys listed below for your notebook manufacturer to send signal out from notebook to projector. Example: [Fn]+[F4]

Acer [Fn]+[F5] IBM/Lenovo [Fn]+[F7] Asus [Fn]+[F8] HP/Compaq [Fn]+[F4] Dell [Fn]+[F8] NEC [Fn]+[F3] Gateway [Fn]+[F4] Toshiba [Fn]+[F5]

Mac Apple:

System Preference Display Arrangement Mirror display

If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.
The screen of the Notebook or PowerBook computer is not displaying your presentation
If you are using a Notebook PC

Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information.

? Image is unstable or flickering

Use "Phase" to correct it. See page 41 for more information.
Change the monitor color setting on your computer.

? Image has vertical flickering bar

Use "Frequency" to make an adjustment. See page 41 for more information.
▶ Check and re-configure the display mode of your graphic card to make it compatible with the projector.

? Image is out of focus

▶ Make sure the lens cap is removed.
Adjust the Focus Ring on the projector lens.
Make sure the projection screen is between the required distance. See page 18.

The image is stretched when displaying 16:9 DVD title

When you play anamorphic DVD or 16:9 DVD, the projector will show the best image when the projector display mode is set to 16:9 in the OSD.
If you play 4:3 format DVD titles, please change the format to 4:3 in the projector OSD.
If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

? Image is too small or too large

Move the projector closer to or further from the screen.
Press "Menu" button on the remote control or projector panel, go to "DISPLAY → Format" and try the different settings.

? Image is reversed

Select "SETUP → Projection" from the OSD and adjust the projection direction.

The projector stops responding to all controls

If possible, turn off the projector, then unplug the power cord and wait at least 60 seconds before reconnecting power.
Check that "Keypad Lock" is not activated by trying to control the projector with the remote control.

Lamp burns out or makes a popping sound

When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the “Replacing the Lamp” section on pages 76-77.

? LED lighting message

Message	POWER/STAND-BY LED	Temp-LED	Lamp-LED
	(Green/Amber) (Red) (Red)
Standby State (Input power cord)	Amber	○	○
Power on (Warming)	Flashing Green	○	○
Lamp lighting Green		○	○
Power off (Cooling)	Flashing Green	○	○
Error (Over Temp.)	Flashing Amber		○
Error (Fan fail)	Flashing Amber	Flashing	○
Error (Lamp fail)	Flashing Amber	○

Steady light

No light ○

* POWER/STANDBY LED be ON when OSD appears, be OFF when OSD disappears.

On Screen Messages

▶ Temperature warning:

Fan failed:

Lamp warning:

▶ Out of display range:

Filter warning:

If the remote control does not work

▶ Check the operating angle of the remote control is within ±15^ both horizontally and vertically of one of the IR receivers on the projector.
Make sure there are not any obstructions between the remote control and the projector. Move to within 7 m ( ±0^ ) of the projector.
Make sure the batteries are inserted correctly.
Replace batteries if they are exhausted.

If the Interactive pen does not work

▶ Check the input source is PC (VGA, HDMI, Wireless and LAN source)
▶ Check the Interactive function is turned On.
When using Wireless or LAN connection, and the Pen does not work, check if the Wireless/Network function is turned On.
If more than one Pen point toward the screen at the same time, none can function.
▶ Check the Nib, If the Nib is worn out, replace with a new Nib.
Make sure the batteries are inserted correctly.
▶ Replace batteries if they are exhausted.
Make sure there are not any obstructions between the Interactive pen and the projector. Move to within 10m (0°) / 8m (20°) / 5m (45°) of the projector.

Replacing the lamp

The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a warning message.

Lamp Warning

Lamp life exceeded

When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

CAUTION!

HIGH PRESSURE LAMP MAY EXPLODE IF IMPROPERLY HANDED. REFER TO LAMP REPLACEMENT INSTRUCTIONS.

ATTENTION:

Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. "Caution must be used to prevent any loose parts from falling out of projector."

Warning: Lamp compartment may be hot! Allow it to cool down before changing the lamp!

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

The screws on the lamp cover and the lamp cannot be removed.
The projector cannot be turned on if the lamp cover has not been placed back on the projector.
Do not touch the glass area of the lamp. Hand oil can cause the lamp to shatter. Use a dry cloth to clean the lamp module if it was accidentally touched.

Lamp Replacement Procedure:

1. Switch off the power to the projector by pressing the ⬤ button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Unscrew the one screw on the cover. 1
5. Lift up and remove the cover. 2
6. Unscrew the three screws on the lamp module. 3
7. Lift up the lamp handle and remove the lamp module slowly and carefully. 4
   To replace the lamp module, reverse the previous steps.
8. Turn on the projector and use "Lamp Reset" after the lamp module is replaced.

Lamp Reset: (i) Press "Menu" → (ii) Select "OPTIONS" → (iii) Select "Lamp Settings" → (iv) Select "Lamp Reset" → (v) Select "Yes".

Replacing and cleaning the optional dust filter

If the dust filter is installed, proper maintenance will prevent overheating and related damage to the projector.

We recommend cleaning the dust filter after every 500 hours of use, clean it more often if the projector is used in a dusty environment.

Clean or replace the dust filter.

When you see this message, please find following steps for cleaning procedure:

Cleaning the Dust Filter Procedure:

1. Switch off the power to the projector by pressing the "button."
2. Disconnect the power cord.
3. Unscrew the one screw on the cable cover. 1
4. Lift up and remove the cable cover. 2
5. Push the latch by the arrow direction. 3
6. Remove the dust filter slowly and carefully. 4
7. Clean or replace the dust filter. 5

To install the dust filter, reverse the previous steps.

1. Turn on the projector and use "Reset Dust Filter" after the dust filter is replaced.

Filter Reset: (i) Press "Menu" → (ii) Select "OPTIONS" → (iii) Select "Reset Dust Filter" → (iv) Select "Yes".

Compatibility Modes

Computer Compatibility

For widescreen resolution (WXGA), the compatibility support is dependent on Notebook/PC models.
120Hz input signals may be dependent on graphics cards support.
Please note that using resolutions other than native 1024 x 768 (XGA model), 1280 x 800 (WXGA model) may result in some loss of image clarity.
For WXGA model only.

Mode Resolution		V-Sync (Hz) H-Sync (KHz)
		Analog Digital Analog Digital
VGA 640	× 350 70 70 31.50	31.50
VGA 640	× 350 85 85 37.90	37.90
VGA 640	× 400 85 85 37.90	37.90
VGA 640	× 480 60 60 31.50	31.50
VGA 640	× 480 67 67 - -
VGA 640	× 480 72 72 37.90	37.90
VGA 640	× 480 75 75 37.50	37.50
VGA 720	× 400 70 70 31.50	31.50
VGA 720	× 400 85 85 37.90	37.90
SVGA 800	× 600 56 56 35.20	35.20
SVGA 800	× 600 60 60 37.90	37.90
SVGA 800	× 600 72 72 48.10	48.10
SVGA 800	× 600 75 75 46.90	46.90
SVGA 800	× 600 120 120 - -
	832 × 624 75	75 - -
XGA 1024	× 768 60 60 48.40	48.40
XGA 1024	× 768 70 70 56.50	56.50
XGA 1024	× 768 75 75 60.00	60.00
XGA 1024	× 768	120 120 - -
	1152 × 870 75	75 - -
WXGA	1280 × 800 60	60 49.68 49.64
WSXGA+(*)	1680 × 1050	60 60 65	.00	65.00
SXGA 1280	× 1024	60 60 63.98 63	.98
UXGA	1600 × 1200	60 60 75	.00	75.00
HD	1280 × 720 60	60 45.00	45.00
HD	1280 × 720	120 120 - -
HD	1920 × 1080	30 30 33	.80	33.80

Computer Compatibility

Mode Resolution V-Sync (Hz) H-Sync (KHz)
MAC LC 13" 640 × 480 66.66 34.98
MAC II 13" 640 × 480 66.68 35.00
MAC 16" 832 × 624 74.55 49.73
MAC 19" 1024 × 768 75 60.24
MAC 1152 × 870 75.06 68.68
MAC G4 640 × 480 60 31.35
i MAC DV 1024 × 768 75 60.00
i MAC DV 1152 × 870 75 68.49

Video Compatibility

NTSC M (3.58MHz), 4.43 MHz
PAL	B, D, G, H, I, M, N
SECAM	B, D, G, K, K1, L
SDTV	480i/p, 576i/p,
HDTV 720p	@50Hz/60Hz, 1080i@50Hz/60Hz, 1080p@24Hz/50Hz/60Hz

RS232 Commands and Protocol Function List

RS232 Pin Assignments

Pure electrical socket diagram without any text or symbols

RS232 shell is grounded.

Pin no.	Spec.(from projector side)
1 TXD
2 RXD
3 GND

RS232 Protocol Function List

1. There is a after all ASCII commands.
2. 0D is the HEX code for in ASCII code.

Baud Rate : 9600

Data Bits: 8

Parity: None

Stop Bits: 1

Flow Control : None

UART16550 FIFO: Disable

Projector Return (Pass): P

Projector Return (Fail): F

XX=00-99, projector's ID,

XX=00 is for all projectors

SEND to projector

232 ASCII Code	HEX Code	Function	Description
~XX00 1 7E 30 30 30 30 20 31 0D Power ON
~XX00 0 7E 30 30 30 30 20 30 0D Power OFF
~XX00 1 ~nnnn	7E 30 30 30 30 20 31 20 a 0D	Power ON with Password	~nnnn = ~0000 (a=7E 30 30 30 30) - ~9999(a=7E 39 39 39 39)
~XX01 1 7E 30 30 30 31 20 31 0D Resync
~XX02 1 7E 30 30 30 32 20 31 0D AV Mute	On
~XX02 0 7E 30 30 30 32 20 30 0D	Off
~XX03 1 7E 30 30 30 33 20 31 0D Mulc	On
~XX03 0 7E 30 30 30 33 20 30 0D	Off
~XX04 1 7E 30 30 30 34 20 31 0D Freeze
~XX04 0 7E 30 30 30 34 20 30 0D Unfreeze
~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus
~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus
~XX07 1 7E 30 30 30 37 20 31 0D Up (Pan under zoom)
~XX08 1 7E 30 30 30 38 20 31 0D Down (Pan under zoom)
~XX09 1 7E 30 30 30 39 20 31 0D Lcft (Pan under zoom)
~XX10 1 7E 30 30 31 30 20 31 0D Right (Pan under zoom)
~XX12 1 7E 30 30 31 32 20 31 0D Direct Source Command	HDMI
~XX12 5 7E 30 30 31 32 20 35 0D	VGA 1
~XX12 6 7E 30 30 31 32 20 36 0D	VGA 2
~XX12 9 7E 30 30 31 32 20 39 0D	S-Video
~XX12 10 7E 30 30 31 32 20 31 30 0D	Video
~XX12 11 7E 30 30 31 32 20 31 31 0D	Flash Drive
~XX12 12 7E 30 30 31 32 20 31 32 0D	Presenter
~XX12 13 7E 30 30 31 32 20 31 33 0D	USB Display
~XX20 1 7E 30 30 32 30 20 31 0D Display Mode	Presentation
~XX20 2 7E 30 30 32 30 20 32 0D	Bright
~XX20 3 7E 30 30 32 30 20 33 0D	Movie
~XX20 4 7E 30 30 32 30 20 34 0D	sRGB
~XX20 5 7E 30 30 32 30 20 35 0D	User
~XX20 7 7E 30 30 32 30 20 37 0D	Blackboard
~XX20 8 7E 30 30 32 30 20 38 0D	Classroom
~XX20 9 7E 30 30 32 30 20 39 0D	3D
~XX21 n	7E 30 30 32 31 20 a 0D Brightness		n = 0 (a=30) ~ 100 (a=31 30 30)
~XX22 n	7E 30 30 32 32 20 a 0D Contrast		n = 0 (a=30) ~ 100 (a=31 30 30)
~XX23 n	7E 30 30 32 33 20 a 0D Sharpness		n = 0 (a=30) ~ 31 (a=33 31)
~XX24 n	7E 30 30 32 34 20 a 0D Color		n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX25 n	7E 30 30 32 35 20 a 0D		n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX26 n	7E 30 30 32 36 20 a 0D		n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX27 n	7E 30 30 32 37 20 a 0D		n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX28 n	7E 30 30 32 38 20 a 0D		n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX29 n	7E 30 30 32 39 20 a 0D		n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX30 n	7E 30 30 33 30 20 a 0D		n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX31 n	7E 30 30 33 31 20 a 0D		n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX32 n	7E 30 30 33 32 20 a 0D		n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX33 1	7E 30 30 33 33 20 31 0D		n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX34 n 7E 30 30 33 34 20 a 0D BrilliantColor TM			n = 0 (a=30) ~ 10 (a=31 30)
~XX35 1 7E 30 30 33 35 20 31 0D Degamma Film
~XX35 2 7E 30 30 33 35 20 32 0D Video
~XX35 3 7E 30 30 33 35 20 33 0D Graphics
~XX35 4 7E 30 30 33 35 20 34 0D PC
~XX36 1 7E 30 30 33 36 20 31 0D Color Temp. Warm
~XX36 2 7E 30 30 33 36 20 32 0D Medium
~XX36 3 7E 30 30 33 36 20 33 0D Cold
~XX37 1	7E 30 30 33 37 20 31 0D Color Space		Auto * HDMI w/o Color Space item
~XX37 2 7E 30 30 33 37 20 32 0D RGB
~XX37 3 7E 30 30 33 37 20 33 0D YUV
~XX39 5 7E 30 30 33 39 20 35 0D Input Source VGA1
~XX39 6 7E 30 30 33 39 20 35 0D VGA2
~XX39 9 7E 30 30 33 39 20 39 0D S-Video
~XX39 10 7E 30 30 33 39 20 31 30 0D Video
~XX39 1 7E 30 30 33 39 20 31 0D HDMI

\~XX39 11 7E 30 30 33 39 20 31 31 0D Flash Drive
\~XX39 12 7E 30 30 33 39 20 31 32 0D Presenter(LAN+Wireless)
\~XX39 13 7E 30 30 33 39 20 31 33 0D USB Display
\~XX44 n 7E 30 30 34 34 20 a 0D Tint n = 0 (a=30) \~ 100 (a=31 30 30)
\~XX45 n 7E 30 30 34 35 20 a 0D Color (Saturation) n = 0 (a=30) \~ 100 (a=31 30 30)

(EW675UT/UTi only)

\~XX60 1 7E 30 30 36 30 20 31 0D Format 4:3

\~XX60 2 7E 30 30 36 30 20 32 0D 16:9/16:10

\~XX60 5 7E 30 30 36 30 20 35 0D LBX

\~XX60 6 7E 30 30 36 30 20 36 0D Native

\~XX60 7 7E 30 30 36 30 20 37 0D AUTO

(EX665UT/UTi only)

\~XX60 1 7E 30 30 36 30 20 31 0D Format 4:3

\~XX60 2 7E 30 30 36 30 20 32 0D 16:9-1

\~XX60 3 7E 30 30 36 30 20 35 0D 16:9-11

\~XX60 6 7E 30 30 36 30 20 36 0D Native

\~XX60 7 7E 30 30 36 30 20 37 0D AUTO

\~XX61 n 7E 30 30 36 31 20 a 0D Edge Mask n = 0 (a=30) \~ 10(a=31 30)

\~XX62 n 7E 30 30 36 32 20 a 0D Zoom n = -5 (a=2D 35) \~ 25 (a=32 35)

\~XX63 n 7E 30 30 36 33 20 a 0D H Image Shift n = -50 (a=2D 35 30) \~ +50 (a=35 30)

\~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = -50 (a=2D 35 30) \~ +50 (a=35 30)

\~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -40 (a=2D 34 30) \~ 40 (a=34 30)

\~XX230 1 7E 30 30 32 33 30 20 31 0D 3D Mode On

\~XX230 0 7E 30 30 32 33 30 20 30 0D 3D Mode Off

\~XX231 1 7E 30 30 32 33 31 20 31 0D 3D Sync Invert On

\~XX231 0 7E 30 30 32 33 31 20 30 0D 3D Sync Invert Off

\~XX70 1 7E 30 30 37 30 20 31 0D Language English

\~XX70 2 7E 30 30 37 30 20 32 0D German

\~XX70 3 7E 30 30 37 30 20 33 0D French

\~XX70 4 7E 30 30 37 30 20 34 0D Italian

\~XX70 5 7E 30 30 37 30 20 35 0D Spanish

\~XX70 6 7E 30 30 37 30 20 36 0D Portuguese

\~XX70 7 7E 30 30 37 30 20 37 0D Polish

\~XX70 8 7E 30 30 37 30 20 38 0D Dutch

\~XX70 9 7E 30 30 37 30 20 39 0D Swedish

\~XX70 10 7E 30 30 37 30 20 31 30 0D Norwegian/Danish

\~XX70 11 7E 30 30 37 30 20 31 31 0D Finnish

\~XX70 12 7E 30 30 37 30 20 31 32 0D Greek

\~XX70 13 7E 30 30 37 30 20 31 33 0D Traditional Chinese

\~XX70 14 7E 30 30 37 30 20 31 34 0D

\~XX70 15 7E 30 30 37 30 20 31 35 0D Japanese

\~XX70 16 7E 30 30 37 30 20 31 36 0D Korean

\~XX70 17 7E 30 30 37 30 20 31 37 0D Russian

\~XX70 18 7E 30 30 37 30 20 31 38 0D Hungarian

\~XX70 19 7E 30 30 37 30 20 31 39 0D Czechoslovak

\~XX70 20 7E 30 30 37 30 20 32 30 0D Arabic

\~XX70 21 7E 30 30 37 30 20 32 31 0D Thai

\~XX70 22 7E 30 30 37 30 20 32 32 0D Turkish

\~XX70 23 7E 30 30 37 30 20 32 33 0D Farsi

\~XX70 25 7E 30 30 37 30 20 32 35 0D Vietnamese

\~XX70 26 7E 30 30 37 30 20 32 36 0D Romanian

\~XX70 27 7E 30 30 37 30 20 32 37 0D Indonesia

\~XX71 1 7E 30 30 37 31 20 31 0D Projection

\~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop

\~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling

\~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling

\~XX72 1 7E 30 30 37 32 20 31 0D Menu Location

\~XX72 2 7E 30 30 37 32 20 32 0D Top Right

\~XX72 3 7E 30 30 37 32 20 33 0D Centre

\~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left

\~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right

Simplified Chinese

Front-Desktop

Top Left

(EW675UT/UTi only)

\~XX90 1 7E 30 30 39 31 20 31 0D Screen Type 16:10

\~XX90 0 7E 30 30 39 31 20 30 0D 16:9

~XX91 1	7E 30 30 39 31 20 31 0D	Signal	Automatic	On
~XX91 0	7E 30 30 39 31 20 30 0D		Automatic	Off
~XX73 n	7E 30 30 37 33 20 a 0D		Frequency	n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX74 n	7E 30 30 37 34 20 a 0D		Phase	n = 0 (a=30) ~ 31 (a=33 31) By signal
~XX75 n	7E 30 30 37 35 20 a 0D		H. Position	n = -5 (a-2D 35) ~ 5 (a-35) By timing
~XX76 n	7E 30 30 37 36 20 a 0D		V. Position	n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX77 n	7E 30 30 37 37 20 aabbcc 0D	Security	Security Timer	Month/Day/1Hour n = mm/dd/hh

\~XX78 1 7E 30 30 37 38 20 31 0D Security On

\~XX78 0 7E 30 30 37 38 20 32 0D

\~XX79 n 7E 30 30 37 39 20 a 0D Projector ID

\~XX80 1 7E 30 30 38 30 20 31 0D Mute

\~XX80 0 7E 30 30 38 30 20 30 0D Off

Off (0/2 for backward compatible)

\~XX81 n 7E 30 30 38 31 20 a 0D Volume n = 0 (a=30) \~ 20 (a=32 30)

\~XX82 1 7E 30 30 38 32 20 31 0D Logo Optoma

\~XX82 2 7E 30 30 38 32 20 32 0D User

\~XX83 1 7E 30 30 38 33 20 31 0D Logo Capture

\~XX88 0 7E 30 30 38 38 20 30 0D Closed Captioning Off

\~XX88 1 7E 30 30 38 38 20 31 0D cc1

\~XX88 2 7E 30 30 38 38 20 32 0D cc2

\~XX100 1 7E 30 30 31 30 30 20 31 0D Source Lock On

\~XX100 0 7E 30 30 31 30 30 20 30 0D Off

\~XX100 3 7E 30 30 31 30 30 20 33 0D Next Source

\~XX101 1 7E 30 30 31 30 31 20 31 0D High Altitude On

\~XX101 0 7E 30 30 31 30 31 20 30 0D Off

\~XX102 1 7E 30 30 31 30 32 20 31 0D Information Hide

\~XX102 0 7E 30 30 31 30 32 20 30 0D Off

\~XX103 1 7E 30 30 31 30 33 20 31 0D Keypad Lock

\~XX103 0 7E 30 30 31 30 33 20 30 0D Off

\~XX104 1 7E 30 30 31 30 34 20 31 0D

\~XX104 2 7E 30 30 31 30 34 20 32 0D

\~XX104 3 7E 30 30 31 30 34 20 33 0D

\~XX104 4 7E 30 30 31 30 34 20 34 0D

\~XX104 5 7E 30 30 31 30 34 20 35 0D

\~XX105 1 7E 30 30 31 30 35 20 31 0D

\~XX105 0 7E 30 30 31 30 35 20 30 0D

\~XX106 n 7E 30 30 31 30 36 20 a 0D

\~XX107 n 7E 30 30 31 30 37 20 a 0D

\~XX114 1 7E 30 30 31 31 34 20 31 0D Power Mode(Standby)

\~XX114 0 7E 30 30 31 31 34 20 30 0D

\~XX109 1 7E 30 30 31 30 39 20 31 0D Lamp Reminder

\~XX109 0 7E 30 30 31 30 39 20 30 0D Off

\~XX110 0 7E 30 30 31 31 30 20 31 0D Brightness Mode

\~XX110 1 7E 30 30 31 31 30 20 30 0D Bright

\~XX110 2 7E 30 30 31 31 30 20 30 0D ImageAI

\~XX111 17E 30 30 31 31 31 20 31 0D Lamp Reset

\~XX111 0 7E 30 30 31 31 31 20 30 0D

\~XX112 1 7E 30 30 31 31 32 20 31 0D Reset

\~XX120 0 7E 30 30 31 32 30 20 30 0D PointBlank

\~XX120 1 7E 30 30 31 32 30 20 31 0D On

\~XX121 0 7E 30 30 31 32 31 20 30 0D Dual Pen

\~XX121 0 7E 30 30 31 32 31 20 31 0D

\~XX122 0 7E 30 30 31 32 32 20 30 0D Pointer Motion

\~XX122 1 7E 30 30 31 32 32 20 31 0D

\~XX122 2 7E 30 30 31 32 32 20 32 0D

\~XX123 0 7E 30 30 31 32 33 20 30 0D

\~XX123 1 7E 30 30 31 32 33 20 31 0D

\~XX123 2 7E 30 30 31 32 33 20 32 0D

\~XX124 0 7E 30 30 31 32 34 20 30 0D Set Function

\~XX124 1 7E 30 30 31 32 34 20 31 0D

\~XX124 2 7E 30 30 31 32 34 20 32 0D

\~XX124 3 7E 30 30 31 32 34 20 33 0D

\~XX124 4 7E 30 30 31 32 34 20 34 0D

\~XX124 5 7E 30 30 31 32 34 20 35 0D

\~XX124 6 7E 30 30 31 32 34 20 36 0D

\~XX124 7 7E 30 30 31 32 34 20 37 0D

\~XX124 8 7E 30 30 31 32 34 20 38 0D

\~XX125 n 7E 30 30 31 32 35 20 a 0D

\~XX126 | 7E 30 30 31 32 36 20 31 0D Information

\~XX127 1 7E 30 30 31 32 37 20 31 0D Reset Dust Filter

\~XX128 0 7E 30 30 31 32 38 20 30 0D IR Receiver

\~XX128 | 7E 30 30 31 32 38 20 31 0D

\~XX129 0 7E 30 30 31 32 39 20 30 0D Front Receiver

\~XX129 1 7E 30 30 31 32 39 20 31 0D

\~XX130 0 7E 30 30 31 33 30 20 30 0D Audio Input

\~XX130 1 7E 30 30 31 33 31 20 31 0D AUDIO1

\~XX130 2 7E 30 30 31 33 32 20 32 0D AUDIO2

\~XX210 n

7E 30 30 32 30 30 20 n 0D

Display message on the OSD

n: 1-30 characters

SEND as Remote Control Key

~XX140 1 7E 30 30 31 34 30 20 31 0D Powcr

~XX140 3 7E 30 30 31 34 30 20 33 0D

~XX140 4 7E 30 30 31 34 30 20 34 0D

~XX140 5 7E 30 30 31 34 30 20 35 0D

~XX140 6 7E 30 30 31 34 30 20 36 0D

~XX140 7 7E 30 30 31 34 30 20 37 0D

~XX140 8 7E 30 30 31 34 30 20 38 0D

~XX140 9 7E 30 30 31 34 30 20 39 0D

\~XX140 10 7E 30 30 31 34 30 20 31 30 0D

\~XX140 11 7E 30 30 31 34 30 20 31 31 0D

\~XX140 12 7E 30 30 31 34 30 20 31 32 0D

\~XX140 13 7E 30 30 31 34 30 20 31 33 0D

\~XX140 14 7E 30 30 31 34 30 20 31 34 0D

Mouse Up

Mouse Left

Mouse Enter

Mouse Right

Mouse Down

Mouse Left Click

Mouse Right Click

Up/Page +

Left/Source

Enter (for projection MENU)

Right/Re-SYNC

Down/Page -

~XX140 15 7E 30 30 31 34 30 20 31 35 0D	Keystone +
~XX140 16 7E 30 30 31 34 30 20 31 36 0D	Keystone -
~XX140 17 7E 30 30 31 34 30 20 31 37 0D	Volume -
~XX140 18 7E 30 30 31 34 30 20 31 38 0D	Volume +
~XX140 19 7E 30 30 31 34 30 20 31 39 0D	Brightness (1)
~XX140 20 7E 30 30 31 34 30 20 32 30 0D	Menu (2)
~XX140 21 7E 30 30 31 34 30 20 32 31 0D	3D(3)
~XX140 22 7E 30 30 31 34 30 20 32 32 0D	HDMI (4)
~XX140 23 7E 30 30 31 34 30 20 32 33 0D	Frecze (5)
~XX140 24 7E 30 30 31 34 30 20 32 34 0D	AV Mute (6)
~XX140 25 7E 30 30 31 34 30 20 32 35 0D	S-Video (7)
~XX140 26 7E 30 30 31 34 30 20 32 36 0D	VGA (8)
~XX140 27 7E 30 30 31 34 30 20 32 37 0D	Video (9)

SEND from projector automatically

232 ASCII Code HEX Code Function Projector Return Description

System status INFOn n : 0/1/2/3/4/6/7/8 = Standby/Warming/Cooling/Out of Range/

Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out

READ from projector
232 ASCII Code HEX Code Function Projector Return Description

~XX121 1	7E 30 30 31 32 31 20 31 0D	Input Source		OKn	n: 0/1/2/3/4/5/6/7/8 = None / VGA1 / VGA2 / S-Video / Video / HDMI / Flash Drive/Presenter/USB Display
~XX122 1	7E 30 30 31 32 32 20 31 0D	Software Version		OKdddd	dddd: FW version
~XX123 1	7E 30 30 31 32 33 20 31 0D	Display Mode		OKn	n: 0/1/2/3/4/5/6/7/8 = None/Presentation/Bright/Movie/sRGB/ Uscr/Blackboard/Classroom/3D
~XX124 1	7E 30 30 31 32 34 20 31 0D	Power State		OKn	n: 0/1 = Off/On
~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness			OKn
~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast			OKn
~XX127 1	7E 30 30 31 32 37 20 31 0D	Aspect Ratio		OKn	(EW675UT/UTi) n: 0/1/2/3/4 = 4:3 / 16:9 or 16:10 * / LBX / Native / AUTO(EX665UT/UTi) n: 0/1/2/3/4 = 4:3 / 16:9-I / 16:9-II / Native / AUTO* 16:9 or 16:10 depend on Screen Type setting
~XX128 1	7E 30 30 31 32 38 20 31 0D	Color Temperature		OKn	n: 0/1/2 - Warm/Medium/Cold
~XX129 1	7E 30 30 31 32 39 20 31 0D	Projection Mode		OKn	n: 0/1/2/3 = Front-Desktop/Rear-Desktop/Front-Ceiling/Rear-Ceiling
~XX150 1 7E 30 30 31 35 30 20 31 0D Information			OKabbbbccdddde
					a: 0/1 = Off/On
					bbbb: LampHour
					cc: source 00/01/02/03/04/05/06/07/08 - None/VGA1/ VGA2/S-Video/Video/HDMI/Flash Drive/ Presenter/USB Display
					dddd: FW version
					e: Display mode 0/1/2/3/4/5/6/7/8
					None/Presentation/Bright/Movie/sRGB/User/ Blackboard/Classroom/3D
~XX151 1	7E 30 30 31 35 31 20 31 0D	Model name		OKn	n: 17/18/19 - EX665UT(UTi) / EW675UT(UTi) / EX565UT
~XX108 1	7E 30 30 31 30 38 20 31 0D	Lamp Hours		OKbbbb	bbbb: LampHour
~XX108 2	7E 30 30 31 30 38 20 31 0D	Cumulative Lamp Hours		OKbbbb	bbbb: (5 digits) Total Lamp Hours

Wall Mount Installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

Please note that damage resulting from incorrect installation will void the warranty.

Screw type: M4*4
▶ Maximum screw length: 11mm
▶ Minimum screw length: 8mm

Warning:

1. If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.
2. Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
3. Avoid installing the projector near a heat source.

Technical line drawing of a bathroom sink with mirror and fixtures (no text or symbols)

Unit: mm

Optoma Global Offices

For service or support please contact your local office.

USA

3178 Laurelview Ct. 888-289-6786

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Canada

2420 Meadowpine Blvd., Suite #105 (888-289-6786)

Mississauga, ON, L5N 6S2, Canada 1510-897-8601

www.optoma.ca [e-mail]

Europe

42 Caxton Way, The Watford Business Park

Watford, Hertfordshire,

WD18 8QZ, UK [phone]

www.optoma.eu [phone]

Service Tel : [phone] [e-mail]

France

Germany [e-mail]

Scandinavia

Lerpeveien 25

3040 Drammen

Norway

PO.BOX 9515

3038 Drammen

Norway

( ) [phone]

[phone]

[e-mail]

Benelux BV

Randstad 22-123 [phone]

1316 BW Almere [phone]

The Netherlands www.optoma.nl

Latin America

3178 Laurelview Ct. 888-289-6786

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Korea

WOOMI TECH.CO.,LTD.

4F, Minu Bldg.33-14, Kangnam-Ku, +82+2+34430004

seoul,135-815, KOREA +82+2+34430005

Japan

東京都足立区綾瀬3-25-18

5F., No. 108, Minchiuan Rd. [phone]

Shindian City, [phone]

Taipei Taiwan 231, R.O.C. [e-mail]

www.optoma.com.tw asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street, [phone]

Cheung Sha Wan, [phone]

Kowloon, Hong Kong www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd., [phone]

Changning District [phone]

Shanghai, 200052, China www.optoma.com.cn

Regulation & Safety Notices

This appendix lists the general notices of your projector.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2004/108/EC (including amendments)
- Low Voltage Directive 2006/95/EC
• R & TTE Directive 1999/5/EC (if product has RF function)

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
