Product Type	PLC Adaptor Starter Pack (Set of 2)
Model Number	BL-PA300KTA
Brand	Panasonic
Communication Standard	HD-PLC
Transmission Speed (PHY Rate)	Max. 210 Mbps
Actual Transmission Speed (UDP)	Max. 90 Mbps
Actual Transmission Speed (TCP)	Max. 65 Mbps
Encryption	AES 128-bit
Modulation	Wavelet OFDM (16 PAM–2 PAM)
Frequency Band	2–28 MHz
LAN Interface	IEEE 802.3/802.3u, 10 Base-T/100 Base-TX, Auto MDI/MDI-X
Number of Adaptors per Network	Up to 16 (including master)
Devices per Adaptor	Up to 8 (with switching hub)
Dimensions (W x D x H)	Approx. 55 mm x 33 mm x 90 mm (2 3/16 in x 1 5/16 in x 3 9/16 in)
Weight	150 g (0.33 lb)
Power Supply	Input 120 V AC, 60 Hz
Power Consumption (Normal)	3 W
Power Consumption (Power Save)	Less than 1 W
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	20%–85% (without condensation)
Included Items	2 PLC Adaptors (1 Master, 1 Terminal), 2 LAN Cables, Getting Started Guide, Operating Instructions
Security Features	AES encryption, registration with SETUP button, reset function to prevent unauthorized access
Additional Features	Power Save Mode, Network Speed Test Button, Adaptor Maintenance Screen via web browser
Certification	FCC Part 15 Class B
Maintenance	Wipe with soft cloth; do not use benzine, thinner, or abrasive powder; unplug when unused for long periods

Frequently Asked Questions - BL-PA300KTA PANASONIC

How do I set up the Panasonic BL-PA300KTA PLC adaptor starter pack?

Plug the master adaptor directly into a wall outlet near your router and connect it to the router using the included LAN cable. Plug the terminal adaptor into a wall outlet in another room and connect it to your device. The adaptors are pre-registered, so they should automatically connect. If needed, press the SETUP button on both adaptors within 3 seconds to register them.

How can I add additional adaptors to the network?

To add a new terminal adaptor, first reset it by pressing the FACTORY DEFAULT RESET button for 3 seconds. Then plug the master and the new terminal into the same power strip (without noise filter), set the terminal's mode selector to TERMINAL, and press the SETUP button on both adaptors within 3 seconds. The PLC indicator will flash green and then light green when registration is successful.

What should I do if the PLC indicator does not light green?

First, ensure the adaptor is plugged directly into a wall outlet and receiving power. Check that the wall outlet has a power switch turned on. If using a power strip, make sure it has no noise filter or surge protector. Try a different wall outlet. If the issue persists, reset the adaptor and re-register it following the registration procedure.

How do I reset an adaptor to factory defaults?

Use a pointed object to press and hold the FACTORY DEFAULT RESET button on the adaptor for about 3 seconds. All indicators will flash, then turn off. Wait about 30 seconds before unplugging. Resetting erases the adaptor's registration, so you will need to register it again to use it.

Why is my network speed slow and how can I improve it?

Slow speeds can be caused by electrical noise from other devices or long wiring distances. Test the terminal's network speed by pressing its SETUP button for 1 second. If the speed is poor, try plugging the adaptor into a different wall outlet. Identify and unplug potential noise sources like battery chargers, hair dryers, or dimmer switches. Also ensure you are not using power strips with noise filters or surge protectors.

Can I use the adaptor with a power strip?

Yes, but with precautions. The power strip must not have a noise filter or surge protector, as these can interfere with performance. Use a power strip with an AC cord as short as possible, and do not connect a power strip to another power strip. For best results, plug the adaptor directly into a wall outlet.

How does Power Save Mode work?

If a terminal adaptor's LAN port is inactive for more than 20 minutes (i.e., no connected network device or device is off), it automatically enters Power Save mode. Power consumption drops to less than 1 W, and the LAN indicator turns off. Power Save is deactivated when an active network device is connected, a connected device is turned on, or the SETUP button is pressed.

How do I secure my HD-PLC network?

The adaptor uses AES 128-bit encryption for data transmission. Only registered terminals can communicate with the master. Registration requires pressing the SETUP button on both the master and terminal within 3 seconds. For additional security, reset your adaptors if you suspect an unauthorized registration, and change the default password via the Adaptor Maintenance Screen accessible through a web browser.

What appliances might cause interference with the adaptor?

Devices that emit electrical noise can interfere with performance. Common culprits include battery chargers, AC adaptors, hair dryers, vacuum cleaners, lights with dimmer switches or touch-sensitive controls, and power drills. If you experience issues, try moving the appliance to a different wall outlet or connecting it to a noise filtering power strip.

What is covered by the limited warranty?

The limited warranty covers defects in materials or workmanship for one year for both parts and labor from the date of original purchase. Panasonic will repair or replace the product at its option. The warranty does not cover normal wear, cosmetic damage, or failures caused by misuse, accidents, or unauthorized service. For service, call 1-800-272-7033 or visit the Panasonic website.

USER MANUAL BL-PA300KTA PANASONIC

Two identical gray electronic devices labeled 'Pensata' with control knobs and indicator lights (no visible text beyond labels)

Operating Instructions

PLC Adaptor Starter Pack

Power Line Communication

Model No. BL-PA300KTA

Set of 2 Adaptors (Master and Terminal)

Operating Instructions 2

Customer services 61

Table of Contents

Introduction

IMPORTANT SAFETY INSTRUCTIONS 6

Electrical environment information....7

Security information....9

Security notices for when sending an adaptor for service .....10

How does it work? 11

Main unit....13

Installation

Placing the adaptors....15

Power Save Mode ....15

Connecting adaptors to network devices....16

Useful Information

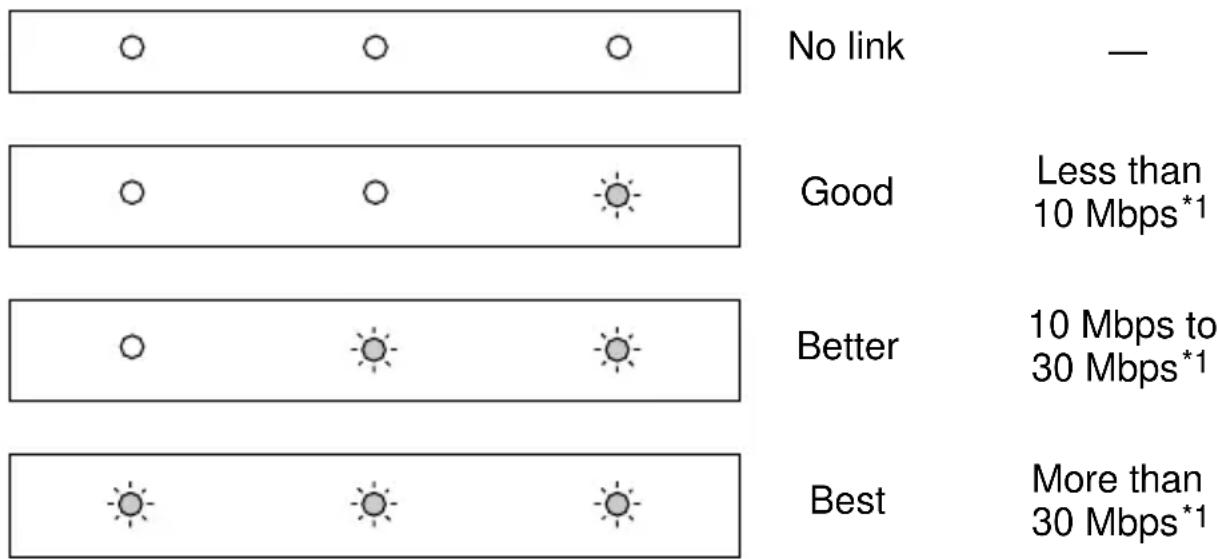

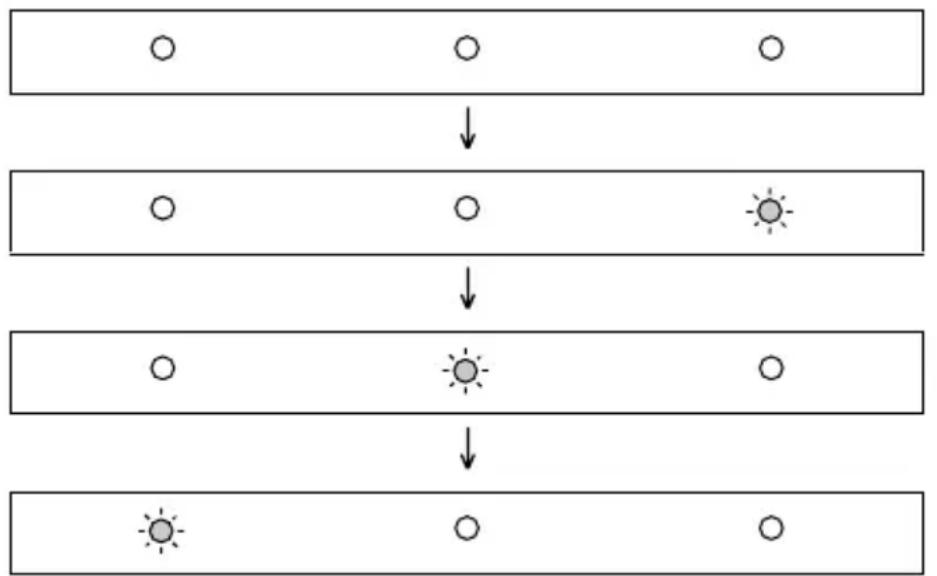

Testing a terminal's network speed 17

Understanding the indicators....19

Resetting an adaptor 20

Registration....21

Troubleshooting 23

Specifications....26

Adaptor Maintenance Screen....28

FCC and other information ....29

IMPORTANT NOTES:

For best results, connect this product directly to a wall outlet.

This product may not function normally in certain electrical environments.

See page 7 for more information.

Please read this document before use and save this document for future reference.

Thank you for purchasing a Panasonic HD-PLC product.

Main features

Flexible and stable network access anywhere in your home

The BL-PA300A offers the next generation in home networking: High Definition Power Line Communication (HD-PLC). High-speed network access and high performance data transfers are now available in any room.

Every AC outlet becomes a home network access point

Because HD-PLC technology makes use of the existing electrical wiring in your home, there's no need to run cables between rooms.

Easy to expand

Up to 16 adaptors in all can be used, which means you can add additional adaptors whenever you need to add a network connection in another room of the house.

Simple network speed testing

You can confirm the speed of each adaptor's HD-PLC connection by simply pressing a button.

Fast, reliable, and secure

With speeds of up to 210 Mbps (PHY rate) ^*1 , advanced error correction, and AES 128-bit encryption, the BL-PA300A provides peace of mind at the speed of light.

Power Save Mode

The BL-PA300A in normal operation has power consumption of around 3 W, however, if a terminal's LAN port is inactive for more than 20 minutes, the adaptor automatically enters Power Save mode, and power consumption is reduced to less than 1 W.

For more information about how HD-PLC works, see page 11.

Included items

Confirm that the following items are included with this product. Additional items can be ordered by calling 1-800-332-5368.

PLC Adaptor......2(1 Master and 1 Terminal)	LAN Cable......2Order No.: PQJA10138Z
Getting Started......1	Operating Instructions(this document)......1

Available accessories

You can add additional adaptors as necessary. Up to 16 adaptors in all (including the 2 adaptors included with this product) can be used.

BL-PA300A (PLC Adaptor Add-on Unit)

BL-PA100A (PLC Adaptor Add-on Unit)

Abbreviations

- This product is referred to as "the adaptor" in this document.

Trademarks

• L i ^® is the registered trademark of Linus Torvalds in the U.S. and other countries.
• HD-PLC or HD-PLC mark is a registered trademark or trademark of Panasonic Corporation in Japan and in other countries.
• All other trademarks identified herein are the property of their respective owners.

IMPORTANT SAFETY INSTRUCTIONS

When using this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury.

1. Read and understand all instructions. Keep this document for future reference.
2. Follow all instructions in this document and heed all warnings.
3. Do not install this product near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat.
4. This product is used as the main disconnect device. Ensure that the AC outlet is installed near this product and is easily accessible.
5. The adaptor must remain connected at all times.
6. To prevent the risk of fire or electrical shock, do not expose this product to rain or any type of moisture, and do not plug it in upside-down (i.e., with the LAN jack pointing up).
7. Do not touch the product during lightning storms.
8. Unplug this product when unused for a long period of time.
9. Refer all servicing to qualified service personnel. Servicing is required when the unit does not operate normally, has been damaged in any way, or after the unit has been dropped.
10. Do not use this product outdoors.
11. Unplug this unit from power outlets if it emits smoke, an abnormal smell or makes unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped and contact an authorized service center.

SAVE THESE INSTRUCTIONS

Electrical environment information

HD-PLC adaptors communicate with each other using the existing electrical wiring in your home, and may be affected by electrical noise or the length of your home's wiring. Keep the following in mind when placing each adaptor.

AC outlets

For best results, we recommend connecting the adaptors directly to a wall outlet. Avoid connecting high power-consuming appliances to the same wall outlet. Additionally, connecting an adaptor to a uninterruptable power supply (UPS) or backup power supply device is not recommended.

While connecting the adaptors to a wall outlet is recommended, keep the following in mind if you must connect an adaptor to a power strip:

• Make sure the power strip does not have a noise filter or a surge protector, as these features may interfere with the performance of your adaptors.
• Do not connect the adaptor to a power strip that receives power from another power strip.
• Use a power strip with an AC cord that is as short as possible.

Electrical interference

Certain electrical devices emit electrical noise. If this noise is passed on to the electrical wiring in your home, it may interfere with the performance, speed, and reliability of your adaptors. For best results, we recommend connecting an electrical noise filter to noise emitting appliances.

The following appliances are more likely to produce noise:

• Battery chargers (including cell phone chargers)
• AC adaptors (including AC adaptors for modems, routers, notebook computers, etc.)
• Hair dryers
• Vacuum cleaners
• Lights or lamps which have a dimmer switch or a touch-sensitive on/off feature
• Power drills

Additionally, this product may interfere with the following appliances:

• Short wave radios
• Lights or lamps which have a touch-sensitive on/off feature
• Wireless devices (including wireless mice, etc.)

Introduction

Electrical wiring

HD-PLC adaptors communicate with each other using the existing electrical wiring in your home. If 2 wall outlets are separated by a great length of electrical wiring, the adaptors connected to those outlets may not be able to communicate with each other.

For more information, refer to the troubleshooting section (see page 23) or access the Panasonic PLC Support Site at:

http://panasonic.co.jp/pcc/products/en/plc/

After you have placed the adaptors where you plan to use them and plugged them into the wall outlets, test the terminal's network speed (see page 17).

Security information

1. With any network connection, security is a concern. The BL-PA300A provides security to prevent unauthorized access to your network.

2. Only terminals that are registered to the master adaptor can communicate with the network.

3. A terminal may be registered to the master only if the SETUP buttons on the master and terminal are pressed within 3 seconds of each other.

4. Data sent and received over the HD-PLC network employs AES 128-bit encryption, however we cannot guarantee that data will not be intercepted by a third party.

5. For security, reset your adaptors (see page 20) in the following situations.

6. If you are concerned that another adaptor may have been accidentally registered to your master (for example, the adaptor of someone who lives in the same apartment building as you), reset each of your adaptors and register them again.

7. If you discard an adaptor, give an adaptor to someone else to use, or send an adaptor for servicing, reset the adaptor first.

8. If you lose an adaptor, reset your remaining adaptors and register them again.

9. The adaptor does not have a firewall feature. To prevent unauthorized external access to the network, we recommend performing the following steps.

10. Setup security measures for the router and computers accessing the network.

11. Change the default password on the Adaptor Maintenance Screen.

Refer to the Panasonic PLC Support Site

(http://panasonic.co.jp/pcc/products/en/plc/) for information about changing the default password.

Security notices for when sending an adaptor for service

Please note the following when sending an adaptor for servicing.

• Reset the adaptor before sending it for servicing.
  • After your master adaptor is serviced, you must register all your terminals to the master again.
  • After a terminal adaptor is serviced, you must register the terminal to the master again.

How does it work?

PLC adaptors allow you to create a home network without installing LAN connection points or wireless routers. They connect to the wall outlets in your home, and communicate with each other using your home's existing electrical wiring. By connecting a network device (such as your broadband router, hub, computer, network printer, or network camera) to the LAN jack of each adaptor, you can create a home network that links all the network devices connected to the adaptors.

Once your adaptors are registered, simply plug them into the wall outlets around your home. (The included adaptors are already registered. To register additional adaptors, see page 21.) Finally, connect the master adaptor to your broadband internet router or modem, and then connect the other adaptors to your network devices (computers, network printers, network cameras, etc.). When you're finished, your network devices will be able to access the internet as well as each other.

Example of an integrated HD-PLC network

Note

- Only connect the adaptor to a switching hub (repeater hubs cannot be used).

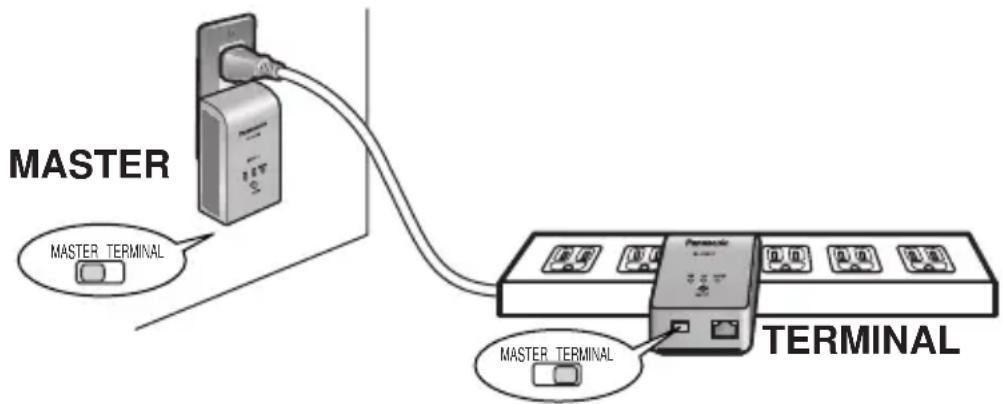

Master and terminal adaptors

Before using your adaptors, it is important to understand the concept of a “master” adaptor and a “terminal” adaptor.

An HD-PLC network contains at least 2 adaptors. One (and only one) adaptor must be configured as the master. All other adaptors are configured as terminals. (A maximum of 15 terminals per network is recommended.) An adaptor is configured as either a master or a terminal during registration (see page 21). For simplicity, we recommend configuring the adaptor that is directly connected to one of your router's LAN ports as the master.

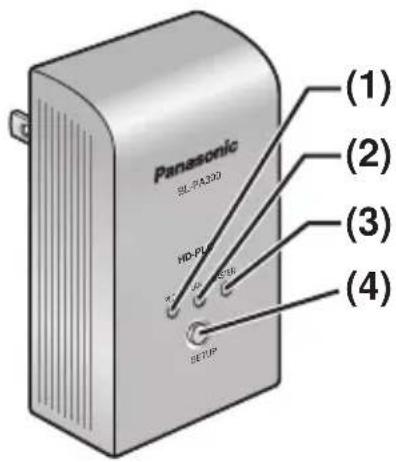

Main unit

(1) PLC Indicator

Lights to indicate that the adaptor is connected to the HD-PLC network. For more information, see page 19.

(2) LAN Indicator

Lights when a LAN cable is connected to the adaptor, and flashes when data is being sent or received. For more information, see page 19.

(3) MASTER Indicator

Lights when the adaptor is configured as the master. For more information, see page 19.

(4) SETUP Button

Used to register the adaptor (see page 21) or test the terminal's network speed (see page 17).

(5) Mode Selector

The position of this selector during registration (see page 21) determines whether the adaptor is configured as the master or as a terminal.

(6) LAN Jack

Connects the adaptor to a network device, such as a broadband router, hub, computer, etc. (see page 16).

(7) FACTORY DEFAULT RESET Button

Used to reset the adaptor and erase its registration (see page 20).

Placing the adaptors

Refer to the information on page 7 when selecting a location to place your adaptors.

Note

- If you have purchased additional adaptors, make sure you have registered them to the master (see page 21) before placing them where you plan to use them.

1. Connect the adaptor to a wall outlet in the room where you plan to use it.
2. Confirm that the PLC indicator of each adaptor lights in green when you plug the adaptors into the wall outlets.

• If the PLC indicators do not light in green, see page 23.

After you have plugged the adaptors into the wall outlets in the rooms where you plan to use them, test the terminal's network speed (see page 17).

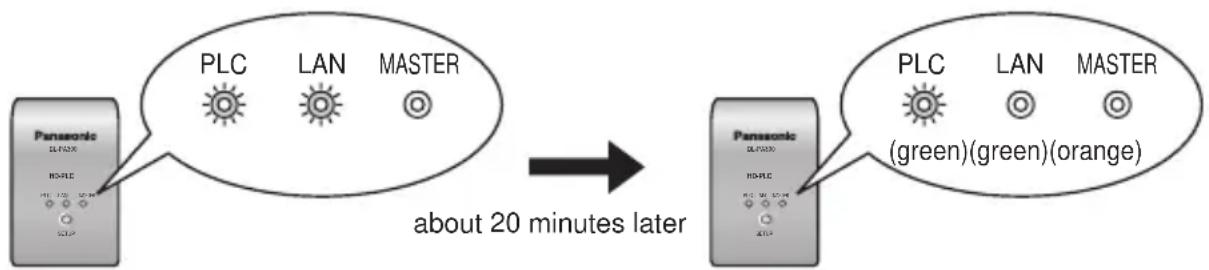

Power Save Mode

If a terminal's LAN port is inactive for more than 20 minutes (i.e., if its LAN indicator is orange for more than 20 minutes), the terminal automatically enters Power Save mode, and its power consumption is reduced. While in Power Save mode, the adaptor's LAN indicator is turned off.

Power Save mode is only activated for terminal adaptors that are linked to the HD-PLC network.

Terminal Adaptor Power Save Mode

Power Save is deactivated when:

• An active network device is connected to the terminal.
• A network device connected to the terminal is turned on.
• The adaptor's SETUP button is pressed.

Connecting adaptors to network devices

Once you have placed the adaptors where you plan to use them and are satisfied with the network speed test results for your terminals (see page 17), follow the procedure below to connect your adaptors to your network devices (broadband router, hub, computer, network printer, network camera, etc.). This will integrate your HD-PLC network with your home network.

1. Confirm that each adaptor is plugged in correctly to the wall outlet.

- Do not plug adaptors in upside-down (i.e., with the LAN jack facing up).

1. Connect a LAN cable to each adaptor's LAN jack.

• T h e LAN indicator of each adaptor turns green.
- If an adaptor's LAN indicator does not turn green, see page 23.

1. Connect the other end of each LAN cable to a network device.

2. Up to 16 adaptors can be connected to the same network. If a hub is used, up to 8 devices can be connected to each adaptor.

3. Avoid connecting more than one adaptor to the same hub or router.
4. Refer to the illustration on page 11 for an example of an integrated HD-PLC network.

You are now ready to use your computers, network printers, network cameras, etc.

Testing a terminal's network speed

Once you have connected the adaptors where you plan to use them, follow the procedure below to test the speed of each terminal's network connection to the master. Make sure that the terminal has already been registered to a master (see page 21).

1. Press and hold the terminal's SETUP button for about 1 second.

- The indicators light one at a time.

PLC LAN MASTER

1. After a few seconds, the network speed test result is displayed.
2. Refer to the chart below to determine the network speed.

PLC LAN MASTER Result Speed

*1 Approximate data transmission speed when transmitting data using the UDP protocol.
4. If you are not satisfied with the speed test result, connect the terminal to a different wall outlet and repeat the test.

Note

• The fastest and slowest speeds are displayed by the indicators alternatively for about 6 seconds. If there is little difference between the fastest and slowest speeds, they will be displayed as the same speed.
• At least one indicator (“Good” network speed) must be lit in order to use the terminal.
• If you are not satisfied with the speed test result and have tried connecting the terminal to different wall outlets, refer to the troubleshooting section (see page 23).
• If the electrical conditions in your home change, network speed may also change.

Once you are satisfied with the terminal's speed test result, you are ready to connect each adaptor to a network device (broadband router, hub, computer, network printer, network camera, etc.; see page 16).

Understanding the indicators

PLC	Green, lit	The adaptor is successfully connected to the HD-PLC network.
	Green, flashing	The terminal is being registered to the master.
	Green, flashes once every 5 seconds	The adaptor is registered to the master, but it is not connected to the HD-PLC network.
	Red, lit for 5 seconds	There was an error during registration. Try again.
	Red, lit The adaptor	Itor is not functioning properly and cannot communicate over the HD-PLC network. Contact an authorized Panasonic service center.
	Off The adaptor	is not plugged in.The adaptor is not connected to the HD-PLC network (no other adaptors found, not configured, etc.).
LAN Green	lit A LAN cable	is connected to the adaptor.
	Green, flashing	Data is being sent/received.
	Orange, lit There	is no network device connected to the adaptor via the LAN cable, or the network device is not turned on.
	Off The adaptor	is not plugged in.Power Save is active. (See page 15)
MASTER	Green, lit	The adaptor is configured as the master.
	Green, flashes for 10 seconds	A terminal has been successfully registered to the master.
	Off The adaptor	is not configured as the master.

Resetting an adaptor

Normally an adaptor does not need to be reset, however, you may need to reset an adaptor if:

• You are concerned that another adaptor may have been accidentally registered to your master. (For example, the adaptor of someone who lives in the same apartment building as you.)
• An error occurs while registering a terminal to the master.
• You are registering an adaptor.

Note

• Resetting a terminal erases its registration to the master. It must be registered to the master again in order to be used.
• If the master is reset, all terminals must be registered to the master again in order to be used.

Follow the procedure below to reset an adaptor.

1. With a pointed object press the FACTORY DEFAULT RESET button on the adaptor for about 3 seconds.

- All the adaptor's indicators will begin flashing.

1. Once all the adaptor's indicators stop flashing, the adaptor has been reset.

- Do not unplug the adaptor for about 30 seconds.

Registration

Follow the procedure below when you want to:

• Add an additional terminal to your HD-PLC network.

• Re-register the master and terminal after resetting the master.

• Confirm that the mode selector of the master adaptor is set to MASTER.

• Confirm that the mode selector of the terminal adaptor that you want to register is set to TERMINAL.

• Plug the master adaptor and a power strip into the same wall outlet.

• Registration may not be successful if the master and power strip are connected to different wall outlets during registration.

• Make sure the power strip is turned on. Do not use a power strip with a noise filter or surge protector feature.

• Plug the terminal adaptor into the power strip.

1. Reset the terminal by pressing the FACTORY DEFAULT RESET button on the terminal for about 3 seconds (see page 20).

- Check the position of the adaptor's mode selector (see page 13) and make sure that you reset the terminal adaptor (not the master).

1. Press the SETUP button on both adaptors for about 1 second. The order in which they are pressed does not matter.

2. The PLC indicator of each adaptor will begin to flash in green.

3. Make sure you press the SETUP button on each adaptor within 3 seconds of each other.

4. When the PLC indicator of each adaptor lights in green, registration was successful.

• If the PLC indicators do not light in green, see page 23.

1. Wait about 30 seconds, then unplug the adaptors and place them where you plan to use them (see page 15).

Note

- While registering an additional terminal, communication between all other adaptors may be disrupted for about 10 seconds.

Troubleshooting

Performance issues

The troubleshooting notes in this section are provided to resolve the following types of performance issues.

• Inability to transmit data over the HD-PLC network
• Slow data transmission speeds (interrupted video or audio, slow download speeds, etc.)
• Intermittent or varied performance (faster at certain times, slower at others)
  • Interference caused by an adaptor
• The PLC indicator is not lit in green even though you have registered the adaptor.

Troubleshooting notes

In most cases, performance issues such as those listed above can be resolved by performing the steps in the following troubleshooting notes. Each note contains several steps. After you perform each step, test the terminal's network speed (see page 17) to see if the issue has been resolved. For more information, access the Panasonic PLC Support Site at: http://panasonic.co.jp/pcc/products/en/plc/

Troubleshooting note #1:

Adaptor issues

Perform each step until the performance issue is solved.

1. Unplug the master and terminal adaptors, then plug them into the wall outlets again. The indicators on the adaptors will light if the adaptors are receiving power. If a wall outlet has a power switch, make sure it is turned on.
2. Confirm that all LAN cables are securely connected to each adaptor. Use high-quality LAN cables. Also confirm that other network devices (routers, hubs, etc.) are turned on as well as properly connected and configured.

3. Try connecting the master and/or terminal adaptor to a different wall outlet.

4. If you are not able to plug an adaptor directly into a wall outlet and must use a power strip, make sure the power strip is plugged directly into a wall outlet and not to another power strip.

5. Make sure the power strip does not have a noise filter or a surge protector, as these features may interfere with the performance of your adaptors.
6. Use a power strip with an AC cord that is as short as possible.
7. Re-register the terminal following the procedure on page 21.

If the performance issue is not solved, continue to the next troubleshooting note.

Troubleshooting note #2:

Eliminating interference caused by other appliances

Perform each step until the performance issue is solved.

1. Identify potential electrical noise emitting appliances, and unplug them (if possible) briefly while you test the adaptor's network speed. The following appliances are more likely to produce noise:

2. Battery chargers (including cell phone chargers)

3. AC adaptors (including AC adaptors for modems, routers, notebook computers, etc.)
4. Hair dryers
5. Vacuum cleaners
6. Lights or lamps which have a dimmer switch or a touch-sensitive on/off feature

7. Power drills

8. If unplugging a device seems to resolve the adaptor's performance issue, connect the device to a different wall outlet.

9. If connecting the device to a different wall outlet does not resolve the performance issue, connect the device to a noise filtering power strip with an AC cord that is as short as possible.

Troubleshooting note #3:

Eliminating interference caused by an adaptor

This product may interfere with the following appliances:

• Short wave radios
• Lights or lamps which have a touch-sensitive on/off feature
• Other PLC adaptors which do not use the HD-PLC standard
• Wireless devices (including wireless mice, etc.)

Perform each step until the performance issue is solved. If the following steps do not resolve the issue, refer to the Panasonic PLC Support Site at: http://panasonic.co.jp/pcc/products/en/plc/ or call our customer call center at 1-800-272-7033.

1. Move the appliance away from any nearby adaptors.
2. Connect the appliance to a power strip.

3. For short wave radios, place the radio near a window.

4. Make sure that the appliance is not plugged into the same wall outlet as an adaptor.

Specifications

All specifications are subject to change without notice.

Power Line Communication interface

Standard HD-PLC
Actual transmission speed*1	UDP: Max. 90 MbpsTCP*2: Max. 65 Mbps
Maximum recommended no.of adaptors per network*3	16 (including the master)
Maximum recommended no.of devices connected to each adaptor*4	8 (when using a hub*5)

*1 Speed between BL-PA300A adaptors. Results may vary depending on electrical conditions, network environment, and other factors. For information on how transmission speed is measured, access the Panasonic PLC Support Site at: http://panasonic.co.jp/pcc/products/en/plc/
*2 Using Linux FTP.
*3 Performance may be affected as more adaptors are added to the network.
*4 Connecting more network devices to an adaptor may increase network traffic and affect performance.
*5 Only use switching hubs.

LAN interface

Standard IEEE 802.3/IEEE 80	2.3u
Interface 10 Base-T	100 Base-TXAuto MDI/MDI-X
Protocol IPv4, IPv6, TCP, UDP
Access method CSMA/CD

User interface

Indicators PLC (green, red)	LAN (green, orange)MASTER (green)
Other	Mode Selector (MASTER or TERMINAL switch)SETUP buttonFACTORY DEFAULT RESET button

General

Operational environment 0–40	°C (32–104 °F)20%–85% humidity (without condensation)
Dimensions (W x D x H) Approx.	55 mm x 33 mm x 90 mm(2 3/16 in. x 1 5/16 in. x 3 9/16 in.)
Weight 150 g (0.33 lb)
Power supply Input 120 V AC	60 Hz
Power consumption In normal	mode: 3 WIn Power Save mode: less than 1 W

HD-PLC interface

Frequency band 2–28 MHz
Modulation Wavelet OFDM (16 PAM–2 PAM)
Transmission PHY rate	Max. 210 Mbps*1
Access method CSMA/CA
Error correction	Reed-Solomon encoder/decoderConvolutional encoder/Viterbi decoder
Encryption	AES 128-bit encryption
Communication distance	Approx. 200 m (650 ft.)*2

*1 This is the theoretical maximum data transmission speed of the HD-PLC standard.
*2 Varies depending on the electrical environment. For more information, see page 7.

Adaptor Maintenance Screen

You can access an adaptor's maintenance screen using your computer's web browser to perform the following tasks:

• Update adaptor firmware
• Remove terminal adaptor registration
• Confirm adaptor status and network information
• Change adaptor IP addresses
• Change adaptor access passwords

Refer to the Panasonic PLC Support Site

(http://panasonic.co.jp/pcc/products/en/plc/) for information about accessing and operating the adaptor maintenance screen.

FCC and other information

This equipment has been tested and found to comply with the limit for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television, reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.

NOTICE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Responsible Party

Panasonic Corporation of North America

One Panasonic Way, Secaucus, New Jersey 07094

Phone number: 1-800-211-PANA (7262)

Environment

Do not place the unit in a room where the temperature is less than 0 °C ( 32 °F ) or greater than 40 °C ( 104 °F ). Allow 10 cm (4 in.) clearance around the unit for proper ventilation. Avoid excessive smoke, dust, mechanical vibration, shock, or direct sunlight.

Routine Care

Wipe the unit with a soft cloth. Do not use benzine, thinner, or any abrasive powder. When you leave the unit unused for a long period of time, unplug the adaptor from the outlet.

In the Event of Trouble

Consult an authorized Panasonic Factory Service Center.

Panasonic®

Two identical Panasonic electronic devices with control knobs and indicator lights (no visible text or symbols)

Modelo No. BL-PA300KTA

San Gabriel Industrial Park,

Panasonic PLC Adaptor Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as "the warrantor") will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("warranty period"), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Parts

Labor

One (1) year One (1) year

During the "Labor" limited warranty period there will be no charge for labor. During the "Parts" limited warranty period, there will be no charge for parts. You must carry-in or mail-in your product pre-paid during the limited warranty period. This limited warranty excludes both parts and labor for batteries, antennas and cosmetic parts (cabinet). This limited warranty only applies to products purchased and serviced in the United States or Puerto Rico. This limited warranty is extended only to the original purchaser and only applies to products purchased as new. A purchase receipt or other proof of the original purchase date is required for limited warranty service.

Carry-In or Mail-In Service

For Carry-In or Mail-In Service in the United States, call 1-800-272-7033

or visit the Panasonic web site: http://www.panasonic.com

For assistance in Puerto Rico, call Panasonic Puerto Rico, Inc.

(787)-750-4300 or fax [phone].

The warrantor or authorized service is not responsible for the removal or re-installation of this product.

Limited Warranty Limits And Exclusions

This limited warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The limited warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of removal or re-installation of this product, travel to and from the servicer, or loss of images, data or other memory content. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This limited warranty gives you specific legal rights and you may also have others rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

To obtain service or technical assistance within the USA:

DIAL TOLL FREE: 1-800-272-7033

Customer services

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/consumersupport

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at: 1-800-272-7033,

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

TTY users (hearing or speech impaired users) can call 1-877-833-8855.

Accessory purchases

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:

http://www.pasc.panasonic.com

or, send your request by E-mail to:

[e-mail]

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)

(Monday - Friday 9 am to 9 pm, EST.)

Panasonic Services Company

20421 84th Avenue South, Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

TTY users (hearing or speech impaired users) can call 1-866-605-1277.

Service in Puerto Rico

Panasonic Puerto Rico, Inc.

• Panasonic Service Centers are listed in the service center directory.
• Call 1-800-272-7033 for the location of an authorized service center.
• This product is designed for use in the United States of America.
  Sale or use of this product in other countries/areas may violate local laws.

When you ship the product

• Carefully pack your unit, preferably in the original carton.
• Attach a letter, detailing the symptom, to the outside of the carton.

Symptom

• Send the unit to an authorized service center, prepaid and adequately insured.
• Do not send your unit to the Panasonic Consumer Electronics Company listed below or to executive or regional sales offices. These locations do not repair consumer products.

The information in this document is subject to change without notice.

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus, New Jersey 07094

Panasonic Puerto Rico, Inc.

San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5, Carolina, Puerto Rico 00985

Copyright:

This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.

© Panasonic Communications Co., Ltd. 2008
