Product Type	Pole mount for multiple displays
Model	KTG445B (part of KTG-Series)
Supported Displays	Multiple displays up to 4 (dual or triple arrays)
Mounting Method	Freestanding pole or grommet mount through flat surface
Pole Options	14", 28", or 42" poles
Adjustability	Horizontal slide, pitch (±15°), roll, and 360° rotation
Materials	Steel pole, aluminum array rails, nylon spacers
Tools Required	Drill with 1/2" bit, Phillips screwdriver, 3/4" wrench, hex keys (3/32", 5/32", 7/32", 3/16")
Included Hardware	Hex keys, M4 screws (12/20/30mm), nylon spacers, pole clamps, grommets, cable sheath
Weight Capacity	Not specified; designed for standard flat-panel displays
Dimensions (Pole Diameter)	1.75" OD pole, with pipe cap
Cable Management	Integrated cable clips on array rail, 8" sheath for pole routing
Compatibility	VESA patterns using M4 screws (spacers for recessed mounts)
Installation Type	Freestanding floor mount or through-desk grommet mount
Center Head	Centris head assembly for secure display attachment
Array Rail Options	Dual 27" or 34", Triple 42" or 54"
Maintenance	Periodic check and tightening of screws; clean with damp cloth
Safety Features	End locks prevent displays from sliding off rail; caution against wrong screws
Warranty	Not specified; contact manufacturer

Frequently Asked Questions - KTG445B Chief

What tools are needed to install the KTG445B mount?

You will need a drill with a 1/2" bit, a Phillips head screwdriver, a 3/4" wrench, and hex keys in sizes 3/32", 5/32", 7/32", and 3/16". The 5/32" and 7/32" hex keys are provided in the kit.

Can the KTG445B be mounted on a desk or table?

Yes, it can be installed using a grommet mount. You drill a 1/2" hole through the surface, then use the included grommets and a 3/8-16 x 6" screw to secure the pole.

How many displays does the KTG445B support?

The KTG445B is part of the KTG-Series and can support up to 4 displays using dual or triple array assemblies. The specific number depends on the model variant (e.g., KTG-440 supports 4 monitors).

What is the maximum display weight capacity?

The manual does not specify a weight limit, but it is designed for standard flat-panel monitors. Ensure your displays are within typical VESA mount weight limits and use the correct screws.

How do I adjust the horizontal position of the displays?

Loosen the Centris bracket rear adjustment knob, slide the display left or right along the array rail, then tighten the knob. This allows fine horizontal adjustment.

Can I tilt or rotate the displays?

Yes. Loosen the front adjustment knob on the Centris bracket to tilt up/down (up to 15° pitch) or adjust roll. The mount also allows full 360° rotation.

What screws do I use to attach displays to the mount?

For flush mounts, use M4 x 12mm screws (item 160). For recessed mounts, use M4 x 20mm (170) or M4 x 30mm (180) screws with the corresponding nylon spacers (3/8" or 3/4").

How do I route cables neatly?

Connect cables to the displays, then route them through the cable clips on the array rail. Run cables down the pole and secure them with the provided 8" cable sheath (item 80).

What should I do if my display uses non-standard screw sizes?

CAUTION: Do not use the included screws if they don't match your display. Using wrong screws can damage the monitor. Contact the display manufacturer for correct mounting hardware.

How do I attach the Centris head to a recessed display?

Place the display face down, install four nylon spacers over the mounting holes, align the Centris bracket, and secure with M4 x 20mm or 30mm screws. Then slide the bracket onto the array rail and reinstall the end locks.

USER MANUAL KTG445B Chief

INSTALLATION INSTRUCTIONS

Horizontal And Vertical Table Stands and Accessories

Model: KTG-Series

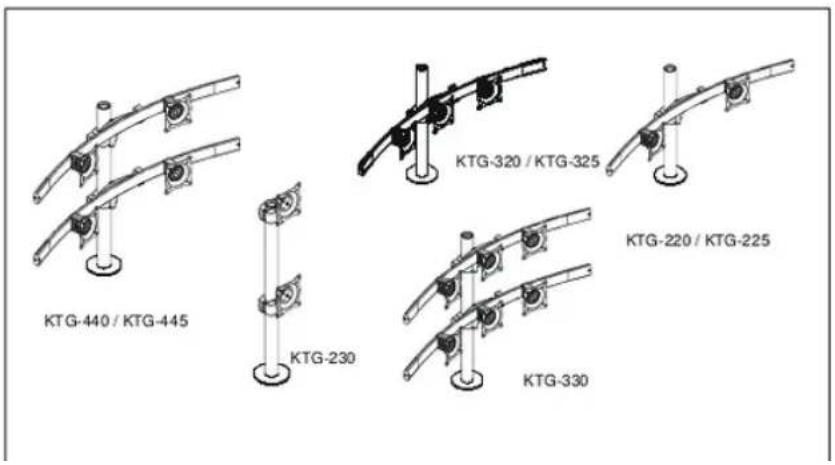

The KTG-Series is a free standing, pole mount solution for multiple displays.

TOOLS REQUIRED FOR INSTALLATION

• Drill and 1/2" drill bit (larger if mounting through a flat surface and using cable management)
  • Phillips Head Screw Driver
• 3/4" Wrench
  • 3/32" Hex Key (provided)
• 5/32" Hex Key (provided)
• 7/32" Hex Key (provided)

INSPECT MOUNT BEFORE ASSEMBLY

Carefully inspect components for shipping damage. If damage is apparent, call your carrier claims agent and do not continue with installation until the carrier has reviewed the damage.(see Figure 1)

Table 1: Parts

		QUANTITY By MODEL
ITEM	DESCRIPTION 220 225 230 320 325 330 440 445
10 CENTRIS HEAD ASSEMBLY, Pole Mount 2
20 ARRAY ASSEMBLY, Dual, 27" 1 1 2
	ARRAY ASSEMBLY, Dual, 34" 2
30 ARRAY ASSEMBLY, Triple, 42" 1 1
	ARRAY ASSEMBLY, Triple, 54" 1
40	PIPE CAP, 1.75 OD	1	1	1	1	1	1	1	1
50	POLE, Freestand, 14"	1	1		1	1
60 POLE, Freestand, 28"				1			1 1 1
70*	POLE, Freestand, 42"
80	SHEATH, Cable Management, 8"	1	1	2	1	1	2	2	2
90		N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
100	SCREW, Cable Management Grommet Mounting, 3/8-16 x 6"	1	1	1	1	1	1	1	1
110	GROMMET, Mounting	2	2	2	2	2	2	2	2
120	KEY, Hex, 5/32"	1	1	1	1	2	1	1	1
130	KEY, Hex, 3/16"	1	1	1	1	2	1	1	1
140	KEY, Hex, 7/32"			1
160**	SCREW, Phillips Pan Head, M4 x 12mm	8	8	8	12	12	24	16	16
170**	SCREW, Phillips Pan Head, M4 x 20mm	8	8	8	12	12	24	16	16
180**	SCREW, Phillips Pan Head, M4 x 30mm	8	8	8	12	12	24	16	16
190**	SPACER, Nylon, 3/8" (used with item 170)	8	8	8	12	12	24	16	16
200**	SPACER, Nylon, 3/4" (used with item 180)	8	8	8	12	12	24	16	16
210	CLAMP, Front, Pole Mount			2
220	CLAMP, Rear, Pole Mount			2
230	SCREW, Button Head Cap, 1/4-20 x 1 1/4"			6			6
240	CLAMP, Back, Array mounting	1	1		1	1	2	2	2
250	WASHER, Flat, 1/4"	2	2		2	2	4	4	4
260	SCREW, Button Head Cap, 1/4-20 x 3/4"	2	2		2	2	4	4	4
* Indicates an available optional accessory not included with above models. For additional information pertaining to available accessories contact a Chief Customer Service represenatative or visit us at www.chiefmfg.com.** Quantity varies depending upon the number of displays being installed.

Figure 1: Parts

ASSEMBLY AND INSTALLATION

Grommet Mount Installation

To install on a flat surface:

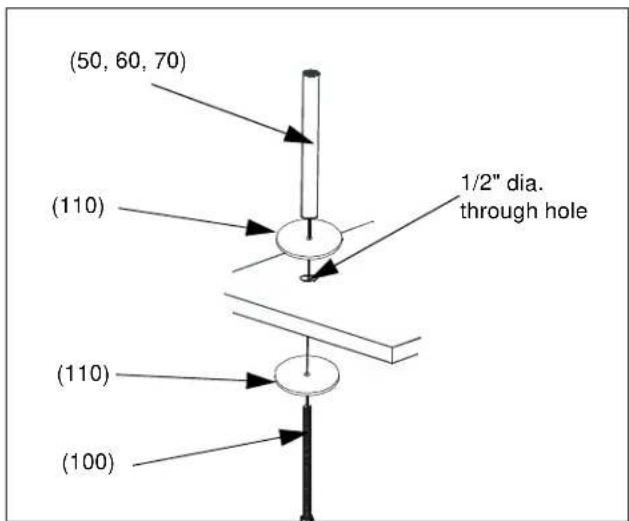

1. Locate desired point on surface where mount is to be installed. (see Figure 2)
2. Drill a 1/2" dia. hole through surface.
3. Slide one 3/8-16 x 6" HHCS (100) upward through lower grommet (110), through hole in surface and through upper grommet (110).
4. Place pole (50, 60, 70) onto upper grommet (110) aligning threaded hole in pole bottom with threaded end of 3/8-16 x 6" HHCS (100).
5. Thread 3/8-16 x 6" HHCS (100) into pole bottom (50, 60, 70) and tighten to secure pole and grommets (110) to surface.
6. Add pipe cap (40) to top of pole.
7. Mount Centris head assembly or array assembly to rail following the instructions outlined in KTG-220, 320, And 440 Assembly section of this document.

Figure 2: Grommet installation

Mount Assembly

KTG-230 Assembly

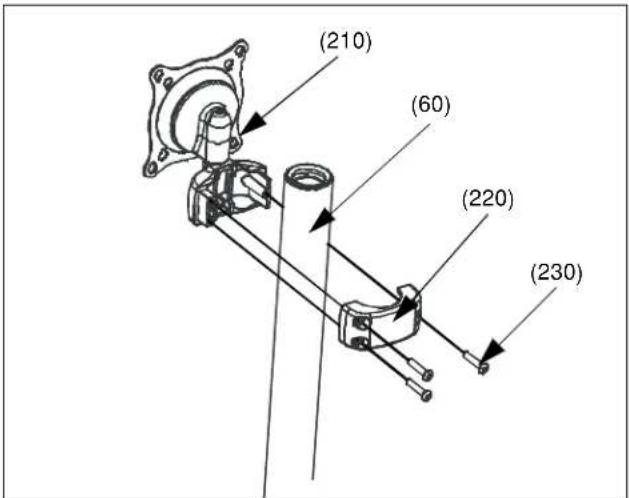

1. Place front pole clamp with Centris Head (210) against pole in approximate mounting location.
2. Place three BHCS (230) into rear pole clamp (220) and place against pole aligning with front pole clamp (210). (see Figure 3)

Figure 3: Mount Centris Head with Pole Clamp

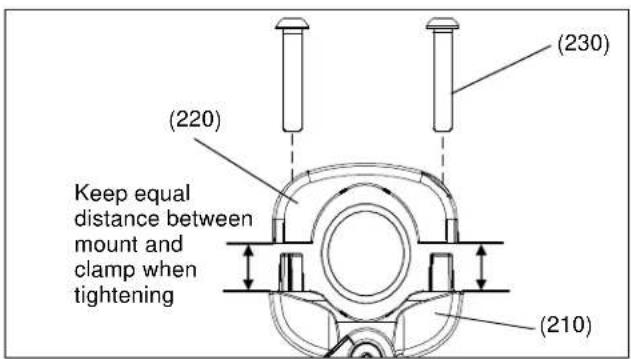

NOTE: Equally tighten screws (230) against front pole mount (210) and the rear pole clamp (220). (see Figure 4)

Figure 4: Tightening clamp to mount
10. Secure rear pole clamp (220) to front pole mount (210) and pole by tightening three BHCS (230) using 5/32" hex key (120). (see Figure 3)

KTG-220, 320, And 440 Assembly

To assemble the KTG-220, 320, and 440:

NOTE: If mount is being installed without the base through a flat surface, proceed to Grommet Mount Installation.

1. Assemble pole (50) to base (40) using one 3/8-16 x 1" FHCS (90). (see Figure 2)

2. Assemble pole clamp back (240) to pole mount front using two FW (250) and two BHCS (260) using a 5/32" hex key. (see Figure 5)

3. Secure pole mount back (240) to pole mount front and pole by tightening two BHCS (260) using a 5/32" hex key.

Figure 5: Assemble Array Rail to Pole

Display Installation

Attach Centris Head to Flush Mount Display

CAUTION!

CAUTION: If display uses a screw size other than those included in the kit, DO NOT use the screws provided. Using the wrong screws could result in damage to your monitor.

1. Install two M4 x 12mm Phillips pan head screws (160) into two upper mounting holes in display back. (see Figure 6)

NOTE: DO NOT fully tighten at this time.

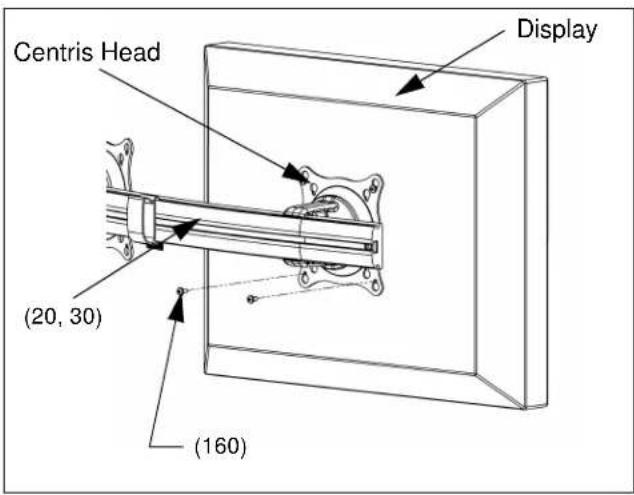

1. Hang display on Centris head. (see Figure 7)

2. Install bottom two M4 x 12mm Phillips pan head screws (160) through Centris head mounting holes and into lower mounting holes in display back.

3. Tighten ALL four M4 x 12mm Phillips pan head screws (160). (see Figure 8)

Figure 6: Prepare Display

Figure 7: Hang Display

Figure 8: Secure Display to Centris Bracket

Attach Centris Head to Recessed Mount Display

NOTE: Refer to Table 1 to select the applicable screw and spacer combination.

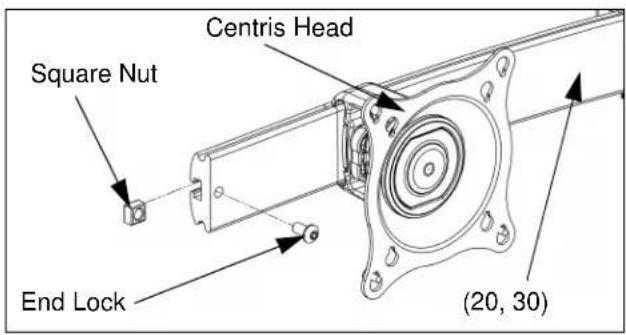

1. Uninstall end lock using the 5/32" hex key (120). (see Figure 9)

2. Remove Centris head from array rail (20, 30).

Figure 9: Remove End Lock(s)

Figure 10: Slide Centris Bracket off Array Rail

1. Place display face down on a clean dry surface.

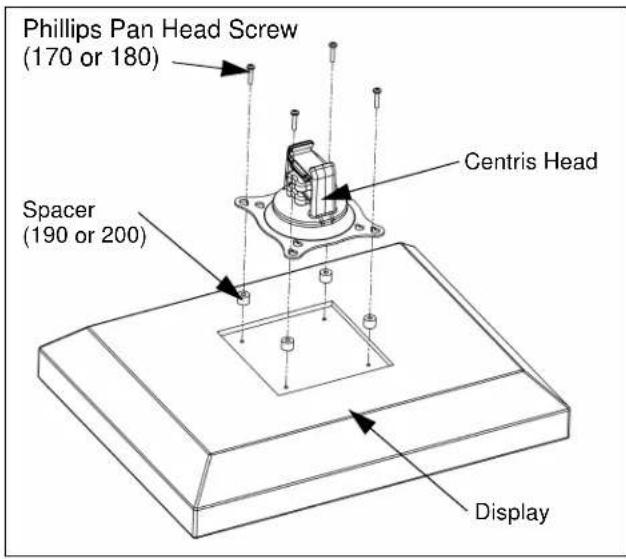

2. Place four 3/8" or 3/4" nylon spacers (190 or 200) over four mounting holes in display back (see Figure 11).

3. Align Centris head mounting holes with four nylon spacers (see Figure 11).

4. Secure Centris head to display using four M4 x 20mm Phillips pan head screws (170), or four M4 x 30mm Phillips pan head screws (180) (see Figure 11).

Figure 11: Mount Centris Bracket to Display

1. Slide display with Centris bracket onto array rail (20, 30) (see Figure 12).

NOTE: Repeat previous steps for each additional display.

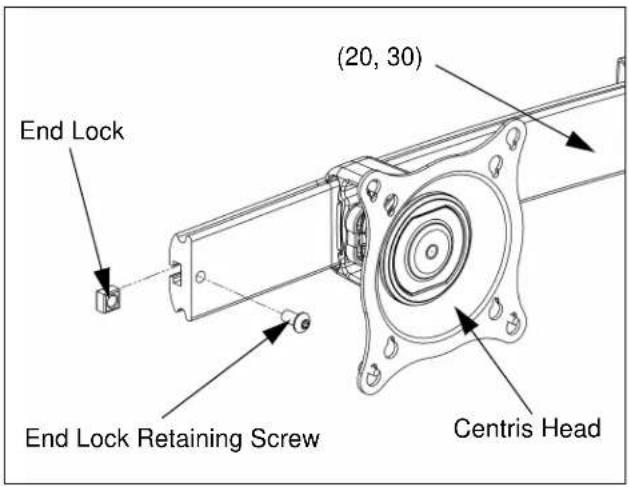

1. Reinstall end locks into mounting rail using the 5/32" hex key (120) (see Figure 13).

Figure 12: Mount Display with Centris Bracket to Array Rail

Figure 13: Reinstall End Lock(s)

ADJUSTMENTS

Display Adjustment

The KTG Series mount allows horizontal, pitch, and rotational adjustment of each display.

The KTG Series mount also allows a full 360 deg. of display rotation with a maximum pitch range of 15^ up and 15^ down.

Display Horizontal Position Adjustment

To adjust display horizontal position:

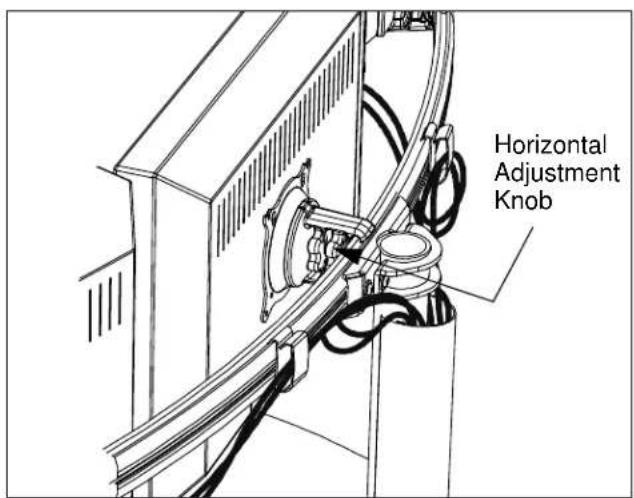

1. Loosen Centris bracket rear adjustment knob (see Figure 14).
2. Slide Centris bracket with display left or right until properly positioned on array rail.
3. Tighten Centris bracket rear adjustment knob.

Figure 14: Display Horizontal Adjustment

Display Pitch and Roll Adjustment

To adjust display pitch or roll position:

1. Loosen Centris bracket front adjustment knob. (see Figure 15)
2. Tilt display up or down, or adjust display roll left or right until properly positioned.
3. Tighten Centris bracket front adjustment knob.

Figure 15: Display Pitch and Roll Adjustment

CABLE MANAGEMENT

The KTG Series mount includes cable management features used to properly route and secure display cables.

To use the cable management features:

1. Connect cables to display.
2. Route cables through cable clips on array rail.
3. Route cables down pole and away from mount and secure to pole using sheath (80).

Figure 16: Cable Management
