MKE platinum-C

The MKE platinum-C is a high-quality, sub-miniature, sweat-resistant clip-on condenser microphone designed for all areas of live work. It features excellent sound quality and rugged design. The MKE platinum-C is fitted with a very thin (only 1 mm) yet rugged cable, making this microphone an ideal partner for all live sound applications.

Characteristics

• Sub-miniature microphone ideal for unobtrusive attachment to clothing or directly to the head or body.
  • High maximum sound pressure level.
• Wide frequency response with treble response adapted to the requirements of live stage work
• Thin (only 1 mm), flexible and rugged cable, low in handling noise.
• Largely insensitive to penetration of sweat due to the patented Umbrella Diaphragm™. This design comprises two individual diaphragms installed on both sides of the diaphragm ring.

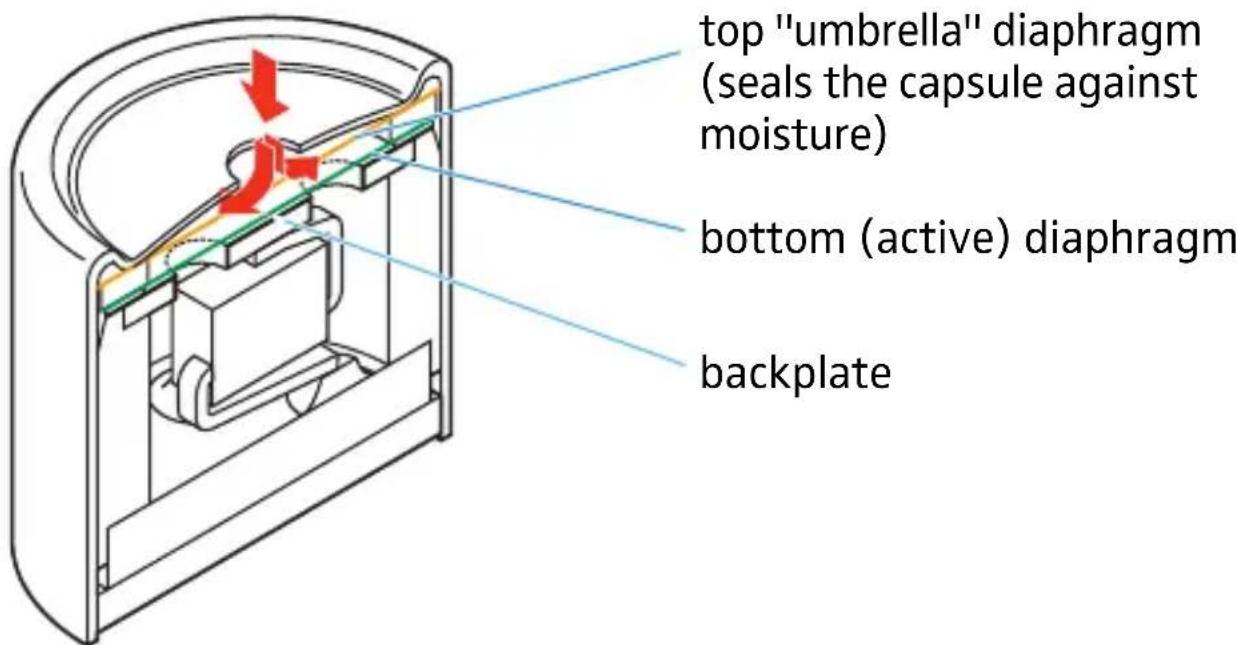

top "umbrella" diaphragm (seals the capsule against moisture) bottom (active) diaphragm backplate

The bottom diaphragm is electrically active and forms the capacitive electroacoustic transducer together with the back plate. The top diaphragm is passive and seals the microphone against sweat and moisture. Robust sealing of the housing is ensured by a silicone ring. Since the diaphragms are extremely small and thin (less than 1 m), the fact that they are made of different materials does not influence their acoustic properties – over a wide frequency range, these diaphragms oscillate in tandem.

High-note emphasis

Your microphone is delivered with two slip-on caps of different lengths. You may use these caps for high-note emphasis.

Slip the cap on the head of the microphone until it locks into place. Please refer to the frequency diagrams on the page 39.

• Short slip-on cap: MZC platinum-1
• Long slip-on cap: MZC platinum-2

Makeup protection

Illustration of a hand inserting a plug into two connected audio/video connectors (no text or symbols)

Please protect your MKE platinum-C by means of the makeup protection, if you attach your MKE platinum-C to your body and want to put on makeup. The makeup protection is easy to install: just slip it on the microphone (with or without slip-on cap). The makeup protection prevents makeup from penetrating into the gauze. Remove the makeup protection shortly before you enter the stage.

The makeup protection is available as accessory.

Attachment of the microphone

Depending on the field of application, you may attach the MKE platinum-C in different ways to either articles of clothing or your body.

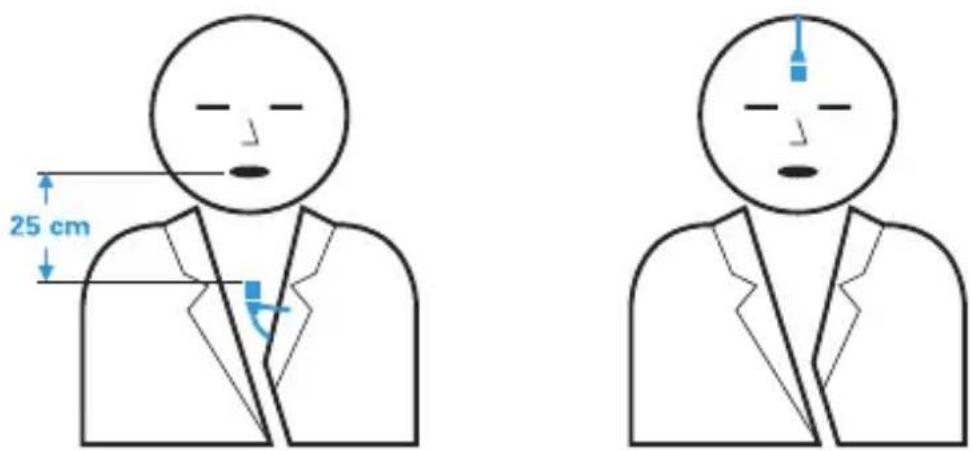

25 cm

Attachment to articles of clothing

You may use the MZQ 02 clip to attach the microphone to your lapel, tie, collar, a button hole, etc. For better attachment of the cable, snap the cable tube into the microphone holder. You may rotate the microphone holder in the clip in steps of 90^ .

Diagram illustrating four different cable or connector configurations with red arrows indicating movement or change.

For thin clothes (e.g. silk), please use the outer hole where the clip's contact pressure is the highest.

Illustration of a hand holding a tool with a red arrow indicating direction (no text or symbols present)

Line drawing of a mechanical clamp or bracket with two metal clips (no text or symbols)

Technical line drawing of two mechanical components: a ring with attached fasteners and a separate ring (no text or symbols)

You may also use the ZH 102 pin to attach the microphone to articles of clothing made of fabric that will not be damaged by the pin. The pin attachment withstands high mechanical loads and is also a very convenient solution, if the articles of clothing do not have collars or edges to which the MZQ 02 clip can be attached.

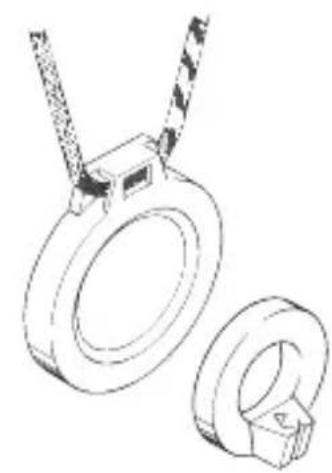

The MZM 10 and MZM 2 magnetic clips can be used for unobtrusive attachment of the microphone to articles of clothing. The frictional force between the microphone and the fabric is often sufficient to ensure that the microphone is not displaced. For smooth and soft clothes, the neckstrap (included) ensures that the microphone is not displaced from its proper position.

Examples of use

Technical diagram illustrating the installation of a jewelry neck component with labeled parts and exploded views.

Wind-shields

Wind noise impairs the quality of outdoor recording and close-up miking. The MZW 2 and MZW 02 wind-shields considerably reduce the wind noise.

Illustration showing two-step procedure of a device being inserted into a microphone, with no text or symbols present.

Please install the MZW 2 wind-shield, first. This wind-shield reduces the wind noise by a maximum of 20 dB.

You may further reduce the wind noise by 10 dB by means of the additional MZW 02 foam-net wind-shield.

MZW 2 and MZW 02 are available as accessories.

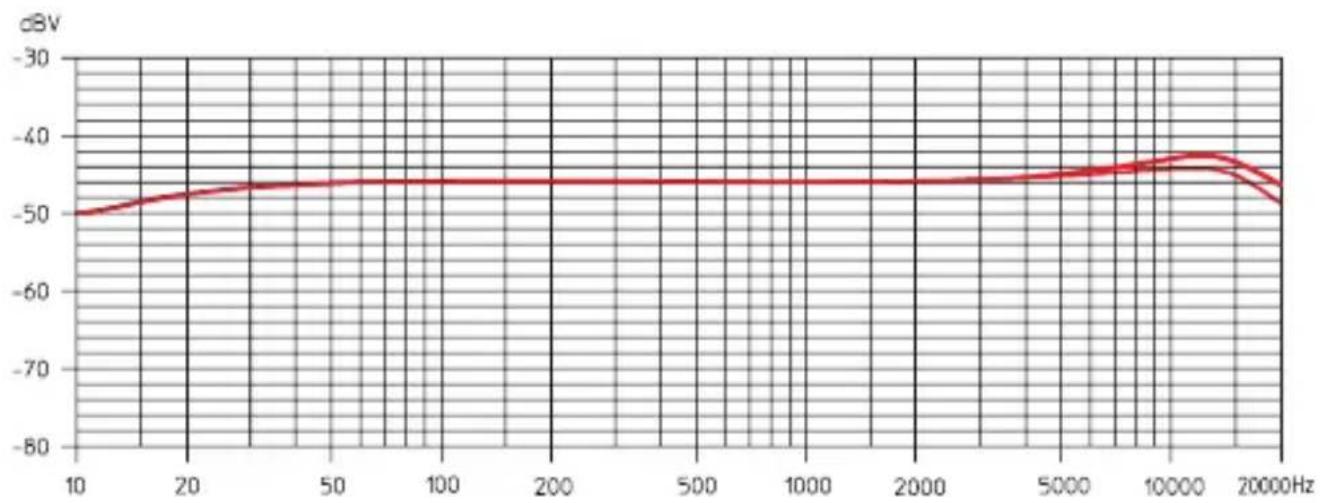

Freefield frequency-response free

Microfone placed in the middle of the forehead
capsule only with MZC2-1 with MZC2-2
with MZW2 with MZC2 and MZW02

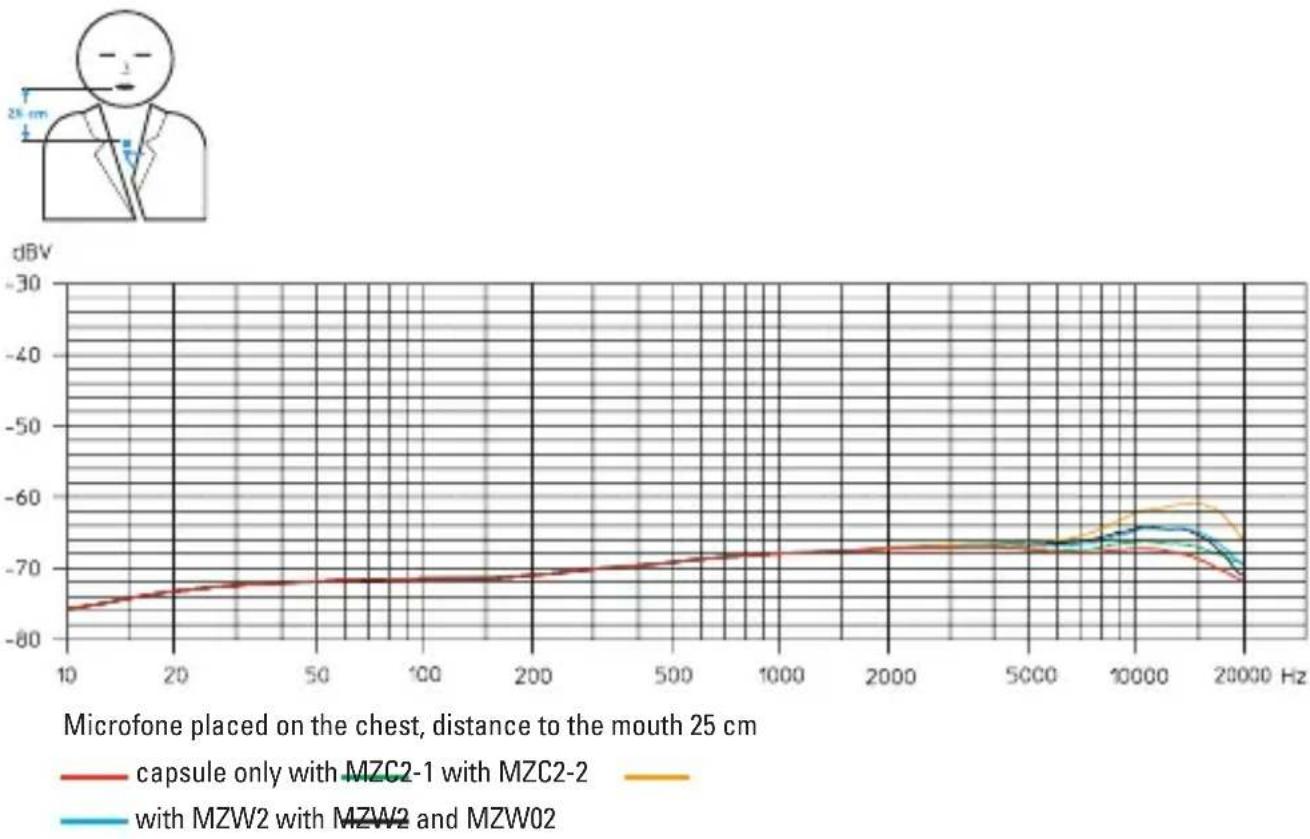

Microfone placed on the chest, distance to the mouth 25 cm
capsule only with MZC2-1 with MZC2-2
with MZW2 with MZW2 and MZW02

MKE platinum-C - Technical data

MKE platinum -4 -4-3 -5 -5-3

Directional- omni-directional characteristic

Transmission range 20-20000 Hz ± 2.5 dB

Freefield- 6.3 mV/Pa ± 2.5 dB open-Circuit sensitiv (1kHz)

Ratedimpedance 1000 Ω

Min. terminating- 4.7 K impedance Ω

Equivalent noise level A-weighted (DIN IEC 651) 26 dB

CCIR-weighted 39 dB (CCIR 468-1)

Sound pressure 142 dB level limit

Feed via SK 50, SK 5012 transmitter – –

Plug 3-pin special connetcor open-ended cable

Colour	anthracite	beige	anthracite	beige
Cable length	1.6 m	1.6 m	4 m	4 m
Diameter of the microphone		4.8 mm
Weight (without plug+cable)		1 g

Delivery includes

MZC platinum-1 1 slip-on cap

MZC platinum-2 1 slip-on cap

Instructions for use 1

Manufacturer declarations

Warranty

2 years

Approval

Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations.

WEEE Declaration

Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling centre for such equipment.
