H-CDM8016 - Car Radio HYUNDAI - Free user manual and instructions

Product Type	Car Radio / CD/MP3/USB Receiver
Brand	Hyundai
Model	H-CDM8016
Dimensions (L x W x H)	178 x 163 x 50 mm
Power Supply	12 V DC (max. 10A)
Maximum Power Output	50 W x 4 channels
Frequency Range (FM)	87.5 - 108.0 MHz
FM Preset Stations	18
Frequency Range (MW/AM)	522 - 1620 kHz
MW Preset Stations	12
Audio Frequency Response	20 Hz - 20 kHz
Signal-to-Noise Ratio	60 dB
Line Output	4-channel RCA (2V)
Compatible Disc Formats	CD, CD-R, CD-RW (CDDA/MP3/WMA)
USB/SD/MMC Playback	Yes (MP3/WMA, up to 4 GB)
Electronic Shock Protection	45 sec (Audio CD), 120 sec (MP3), 300 sec (WMA)
DSP Equalizer Modes	Classic, Rock, Pop, Flat
RDS Functions	AF, TA, PTY, EON
AUX Input	Yes (3.5mm jack on front panel)
Remote Control	Included (CR2025 battery)
Anti-Theft System	Detachable front panel with protective case
Operating Temperature	-10°C to +60°C
Installation Angle	Up to 30° from horizontal

Frequently Asked Questions - H-CDM8016 HYUNDAI

How do I reset the unit?

Press the OPEN button to detach the front panel, then use a thin object to press the RESET button on the inner panel. This restores factory settings.

How do I set the clock?

Press DISP until the clock is displayed. Then press and hold DISP for 2 seconds until the time blinks. Rotate VOL knob to adjust hours (clockwise) and minutes (anticlockwise). Press DISP again to save.

Why is there no sound and how to fix it?

Check that the volume is not at minimum, the unit is not muted (MUTE button), and the wiring connections are secure. Also ensure the speaker wires are not shorted.

How do I use the RDS functions (AF, TA, PTY)?

Press AF to enable alternative frequencies for the current station. Press TA to seek traffic announcements. Press PTY to select a program type (Music or Speech) and then a number button (1-6) to choose the specific type.

Can I play music from a USB flash drive?

Yes, connect your USB drive (up to 4 GB, FAT12/16/32) to the USB adapter cable and insert it into the USB jack on the front panel. Playback starts automatically. Only MP3/WMA files are supported.

How do I detach the front panel for anti-theft?

Press POWER to turn off the unit. Press OPEN to flip down the panel. When horizontal, slide the panel to the left and pull it out. Store it in the supplied protective case.

What should I do if a CD is not reading?

Ensure the disc is inserted with the printed side facing up. Clean the disc with a soft cloth from center to edge. If the disc is scratched or the temperature inside the car is too high/low, try a different disc or wait for normal temperature.

How to use the remote control?

Insert one CR2025 lithium battery (3V) with the (+) mark facing upward into the battery tray, then insert the tray into the remote. Point the remote at the RC sensor on the unit. Replace the battery if range decreases.

What audio file formats are supported?

The unit supports MP3 and WMA files with the .mp3 or .wma extension. For CDs, it also plays standard audio CDs (CDDA). ID3 tags (title, artist, album) are displayed for Latin alphabet characters.

How should I clean the unit and discs?

Wipe the cabinet with a soft cloth slightly dampened with a weak soap solution. For discs, wipe gently from the center to the edge with a soft cloth. Never use benzine, record cleaner, or anti-static spray.

USER MANUAL H-CDM8016 HYUNDAI

CD/MP3/USB RECEIVER

Instruction manual

CD/MP3/USB-РЕСИВЕР

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents....2

Important safeguards....3

Accessories....4

Installation/connection....5

Panel controls 10

LCD layout....14

General operations....15

Digital tuner operations....18

CD/SD/MMC/USB operations....20

MP3/WMA overview....24

Handling discs 26

Cleaning 26

Troubleshooting guide 27

Specification....29

Important safeguards

• Read carefully through this manual to familiarize yourself with this high-quality sound system.
• The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature.
• Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result in outage.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Do not attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
• Do not use the unit in places where it can be exposed to water, moisture and dust.
• Do not open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified technician check the system.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please confirm it before installation.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.

Accessories

Receiver 1 pc

Front panel 1 pc

Front panel case 1 pc

Remote controller 1 pc

ISO cable 1 pc

USB adapter cable 1 pc

Mounting parts:

Screw M4X5 4 pcs

Screw M5X5 4 pcs

Screw ST5X25 1 pc

Nut M5 1 pc

Washer 2pcs

Mounting strap 1 pc

Release key 2 pcs

Customer information

Warranty card

Instruction manual 1 pc

1 pc

1 pc

Installation/connection

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring and make sure that the unit works properly.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
• If installation angle exceeds 30^ from horizontal, the unit may not perform properly.
• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

Din Front/Rear-Mount

This unit can be properly installed either from 'Front' (conventional DIN Front-mount) or 'Rear' (DIN Rear-mount installation, utilizing threaded screw Holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

DIN FRONT-MOUNT (Method A)

1. Car dashboard
   2 Sleeve
2. Screw
3. Nut (5 mm)
4. Spring washer
5. Screw (5 x 25 mm)
6. Metal strap
7. Flat washer

1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation.
2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture. You can bend the strap to the needed angle with your hands.
4. Make the necessary wire connections. Ensure the connections are correct.
5. Install the unit into the sleeve until the side locks are fixed.

Dismantling the unit

a - Trim frame
b-Frame uninstall direction
c - Release key insertion

1. Switch off the unit and detach the front panel.
2. Insert your fingers into the groove in the front side of the trim frame (apply some effort to detach the frame). Pull the frame to detach it.
3. Insert the supplied release keys into the both sides of the unit body to click, as shown in the picture. To extract the unit from the dashboard, pull the release keys or the unit body to pull it out. Before detaching the unit, ensure it is not fixed with the metal strap.

Trim frame installation

To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.

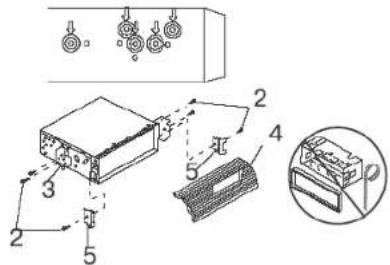

2. DIN REAR-MOUNT (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets.

1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).

Note: The outer trim frame and mounting sleeve are not used for method of installation.

Installing the front panel

Insert the left side of the panel then, and insert the right side. Close the panel.

Press OPEN button to detach the panel. When the front panel is in horizontal position hold and slide the panel to left and then pull it out.

Pure mechanical component diagram without any text, numbers, or symbols

OPEN

Diagram of a hand pressing down on a mechanical component with directional arrows (no text or symbols)

Anti-theft system

The front panel of this unit can be stored in the included protective case when not in used and carried away when you leave the vehicle to deter theft. To open the protective case, take it with both hands and twist as shown in the picture.

Remove the panel

1. Press POWER button to switch off the power of the unit.

2. Press OPEN button to flip down the panel. When the front panel is in horizontal position hold and slide the panel to left and then pull it out.

3. Put it to the protective case and take it with you.

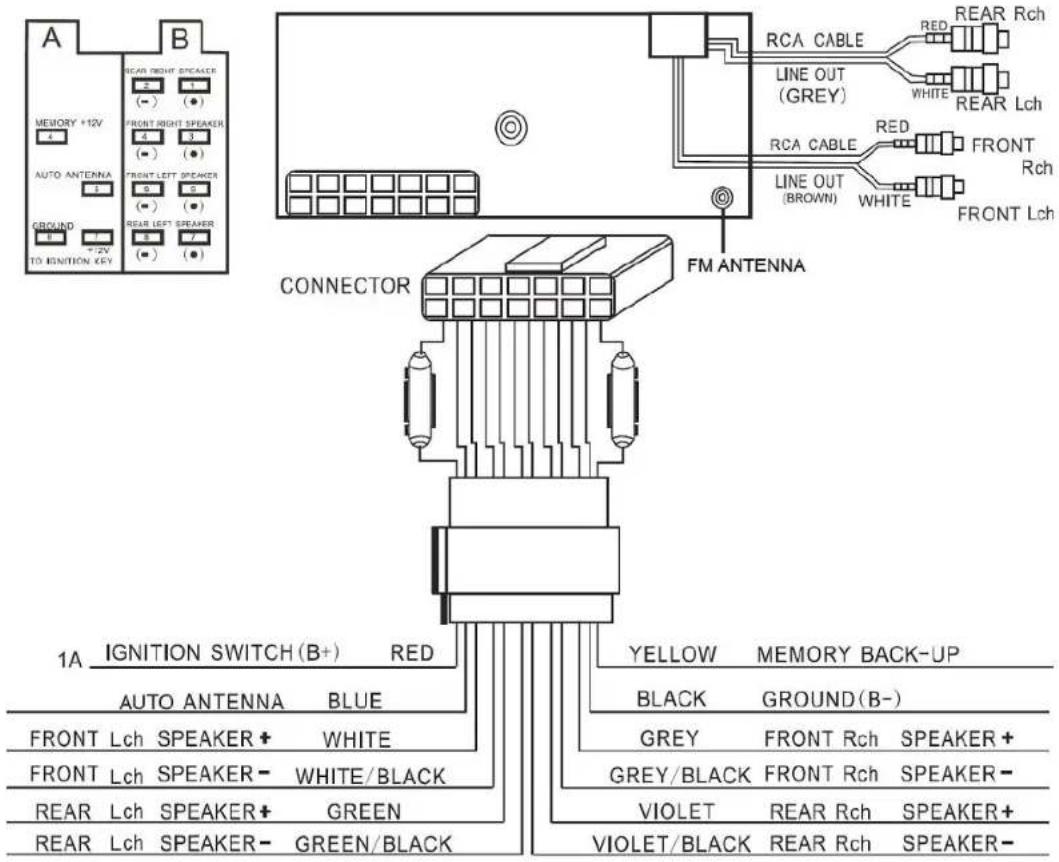

Electrical connections

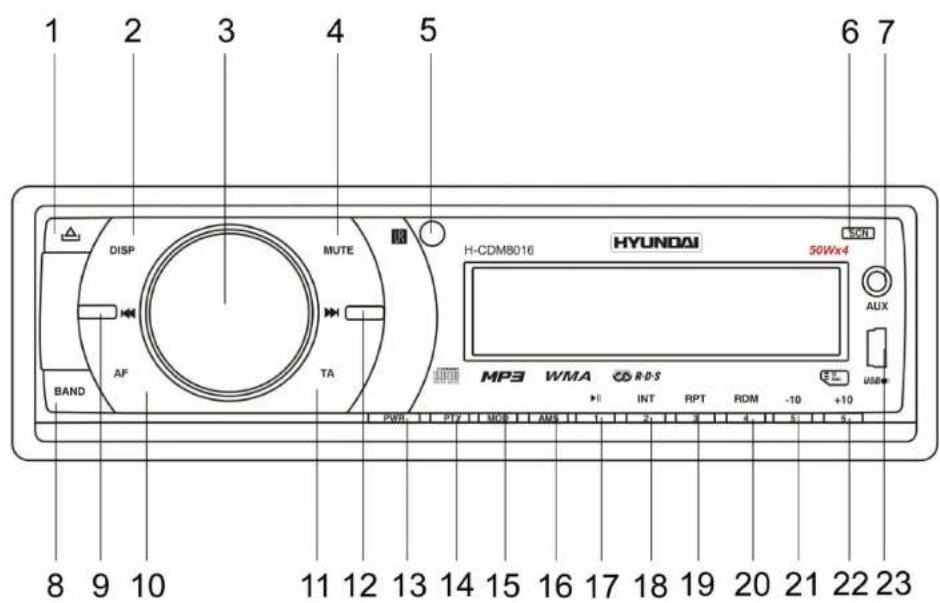

Panel controls

1. OPEN button
2. DISP button
3. VOL knob/SEL button
4. MUTE button
5. RC sensor
6. SCN button
7. AUX IN jack
8. BAND button
9. PREVIOUS button
10. AF button
11. TA button
12. NEXT button
13. POWER button
14. PTY button
15. MODE button
16. AMS button
17. PLAY/PAUSE/Preset button 1
18. INT/Preset button 2
19. RPT/Preset button 3
20. RDM/Preset button 4
21. -10/preset button 5
22. +10/preset button 6
23. Mini USB jack

Front panel

1. EJECT button
2. Flashing LED
3. CD slot
4. RESET button
5. SD/MMC Slot

Inner panel

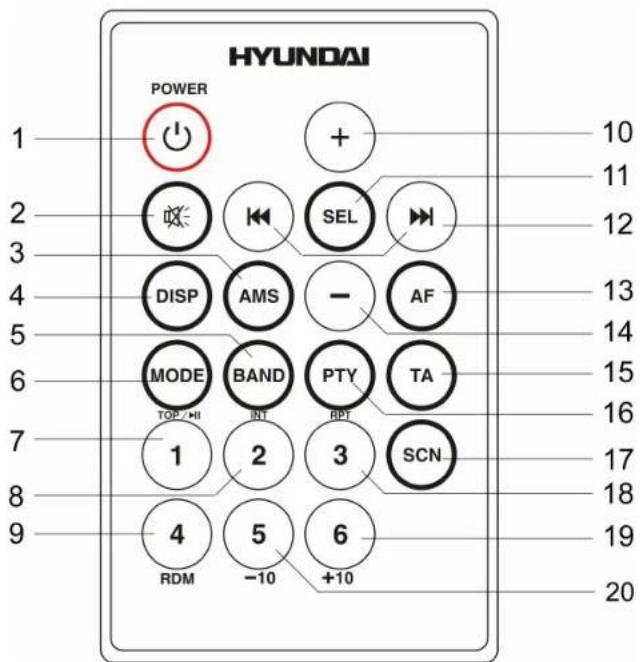

Remote control

1. POWER button
2. MUTE button
3. AMS button
4. DISP button
5. BAND button
6. MODE button
7. TOP/PLAY/PAUSE/Preset button 1
8. INT/Preset button 2
9. RDM/Preset button 4
10. VOL+ button
11. SEL button
12. PREVIOUS/NEXT buttons
13. AF button
14. VOL- button
15. TA button
16. PTY button
17. SCN button
18. RPT/Preset button 3
19. +10/preset button 6
20. -10/preset button 5

Changing the battery

1. Pull out the battery tray. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward.

1. Insert the battery tray into the remote control.

Warning: Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

Do not recharge, short, disassemble or heat the battery or dispose it in a fire.

Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.

When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.

LCD layout

1. Track play indicator

2. Album name ON

3. Artist name ON

4. Song name ON

5. Loud function indicator

6. Stereo reception indicator

7. AF function indicator

8. TP function indicator

9. TA function indicator

10. EON function indicator

11. MP3 file being played

12. Intro playback indicator

13. PTY function indicator

14. Random playback indicator

15. Mute function indicator

16. Repeat playback indicator

17. Local reception indicator 23. Track second time display/radio frequency

18. DSP (equalizer) mode indicator 24. Disc number display

19. Subwoofer indicator (not active) 25. Folder name ON

20. Stereo signal indicator 26. File name ON

21. Track number display/current band 27. USB/Memory card indicator

22. Track minute time display/radio frequency

1. On: disc being played/Flashing: disc pause

General operations

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button on the panel to detach the panel take it off and press the RESET button with thin hard object to restore the unit to the original factory settings.

Power ON/OFF

Press any button to turn the unit on. Press and hold POWER button to turn off the unit.

Note: After the unit is off, radio current settings will be memorized, and when you turn the unit on it will resume the stored status, which you set.

Display (DISP)

Press DISP button to switch between display information such as radio frequencies, clock, track and other information depending on the playing MODE.

To adjust the time:

• Press DISP button until clock is showed, press the DISP button and hold for 2 seconds. Time will start blinking.
• Rotate VOL knob clockwise to adjust hours.
• Rotate VOL knob anticlockwise to adjust minutes.
• Press DISP button again to save setting.

Mode

By pressing this button, user can select: AUX/TUNER/S-CDP(CD-MP3) (active if a CD is inside)/USB (active if a USB is connected)/MMC/SD (active if a memory card is inside).

Mute

Press this button to mute the sound at once. Press again to return to the previous volume level.

Volume control/select

Rotating VOL knob, you can adjust VOL/BASS/TRE/BAL/FAD. To select the functions, press SEL button shortly until the desired functions are shown on the display. Increase or decrease the volume by turn VOL knob right or left. These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER.

Note: Bass and treble adjustment is not available when DSP (equalizer) is on.

Other functions

To choose the corresponding mode, press and hold SEL knob for 2 seconds, and then press it repeatedly until the display shows the mode. Rotate VOL knob to choose the needed value. After choosing, please leave the unit idle to activate.

TA SEEK/TA ALARM

In TA SEEK mode, the unit will seek for traffic announcement program when TA is pressed; in TA ALARM mode the alarm is set off.

MASK DPI/MASK ALL

During MASK DPI mode, the unit will mask only the AF which has different PI, this is the default mode; during mode, the unit will mask the AF which has different PI and no RDS signal with high field strength.

RETUNE S/L - SHORT/LONG

“RETUNE” refers to the time period the unit allows for radio scan when reception is interrupted. “S” represents a time period of 30 seconds and “L” represents a time period of 90 seconds.

AUDIO DSP CONTROLS

Choose equalizer mode: POP M => ROCK M => CLASS M => FLAT M => DSP OFF.

LOUDNESS CONTROLS

Select LOUD ON or OFF. In ON mode the bass and treble response will be boosted. Recommended to activate when listening at a low volume level.

ESP (Electronic Shock Protection) MODE

Choose the value for CD disc (45 sec. for Audio-CD, 120 sec for MP3, 300 sec for WMA).

BEEP MODE

BEEP ON: BEEP sound can be heard from speaker when the buttons are pressed.

SEEK MODE (for radio mode)

SEEK 1: When SEEK 1 mode is activated, AUTO SEEK SCAN is stopped when station is detected even user still push SEEK button.

SEEK 2: Auto SEEK SCAN is not stopped even if station is detected if user pushes SEEK button. When releases SEEK button, then stop when station is detected.

STEREO/MONO (for radio mode)

When FM stations are weak and are disturbed, listening can be improved by selecting MONO.

LOCAL/DX (for radio mode)

“Local” position in areas with strong signals to let radio stop at only strong stations during manual tuning (LOC appears). Select Distant position in areas with weak signals to listen to all stations.

VOL LAST/ADJUST

This function allows to set the volume level of the unit after it was turned off and then turned on again. Choose VOL LAST if you want the volume level to be the same as it was before turning off. VOL ADJUST allows to choose volume level.

AUX mode

This unit has an AUX in jack enabling connection of external devices as signal sources.

Note: Do not flip down the front panel while using the AUX in jack.

Digital tuner operations

Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either.

MODE

Press MODE button to turn on tuner mode.

BAND

Press BAND button. Each band is toggled cyclically by pressing this key FM1--FM2--FM3--MW1 (AM1)--MW2 (AM2).

AUTOMATIC OR MANUAL TUNING

Press and hold NEXT button to start automatic search of programs upwards; press and hold PREVIOUS button to start automatic search downwards. Press the buttons repeatedly for manual search of programs.

Note: The unit will scan the frequency range, making stop on each available station for 5 second if you press SCN button.

AUTO SEEK SEARCH TUNING (AMS)

By pressing shortly AMS button, the radio searches for each preset station. By pressing longer than 1 sec, and then 6 strongest stations are preset to the corresponding preset number. When AS operation is finished, the radio executes the preset scan.

SCAN AUTOMATIC TUNING CONTROL (SCN)

This button is operated as RADIO SCAN. The operation is similar as normal search but different thing is holding 5 seconds on every station detected in RADIO SCAN mode.

TA (TRAFFIC ALARM) FUNCTION

- Briefly press the TA button to turn on or turn off the TA function.

- When TA is enabled (on), the tuner starts searching the traffic announcement.

AF (ALTERNATIVE FREQUENCIES) FUNCTION

Briefly press the AF button to turn on or turn off the AF function.

The RDS program will be automatically searched and received. The unit will search another frequency with this RDS program.

PTY (PROGRAM TYPE) FUNCTION

When PTY is selected, the radio starts to search corresponding PTY information and stops when the corresponding PTY information is detected. If corresponding PTY information is not found, NO PTY is displayed.

Press PTY button once to choose Music mode, then press number buttons (1-6) to choose the needed program.

Press PTY button twice to choose Speech mode, then press number buttons (1-6) to choose the needed program.

MUSIC

1. POPM, ROCK M	1 NEWS, AFFAIRS, INFO
2. EASY M, LIGHT M	2 SPORT, EDUCATE, DRAMA
3. CLASSICS, OTHER M	3 CULTURE, SCIENCE, VARIED
4. JAZZ, COUNTRY	4 WEATHER, FINANCE, CHILDREN
5. NATION M, OLDIES	5 SOCIAL, RELIGION, PHONE IN
6. FOLK M	6 TRAVEL, LEISURE, DOCUMENT

Note: When pressed shortly, number buttons select a preset station directly. When pressed longer than 1 sec., current station is stored in preset memory bank.

CD/SD/MMC/USB operations

Discs for playback

This unit can play disc types: CD/CD-R/-RW.

Compatible with formats: CDDA/MP3/WMA.

Loading and ejecting a disc

1. Turn the power on.
2. Press OPEN button
3. Insert the disc with the printed side facing upward into the slot.
4. Press EJECT button to eject the disc.

Multi-media card MMC/SD card slot

Support MP3/WMA ID3 format music only. Press OPEN button. Carefully insert the SD/MMC card into the card slot on the inner panel. Close the panel. Unit starts playback automatically.

USB jack

Carefully connect the USB driver to the USB adapter cable and then insert it into the USB jack on the front panel. Unit starts playback automatically.

Note: Do not flip down the front panel during playback of USB files.

USB/SD/MMC notes:

USB functions (flash memory type) MP3 music play.

1. SD/MMC card support.
2. FAT 12/ FAT 16/ FAT 32 is possible

- FAT 12/16 (dir: 200 support, file:500 support),

- FAT 32 (dir: 200 support, file:500 support).

1. Filename: 32 byte/ Dir name: 32byte.

2. Tag

- Title/ Artist/ Album: 32 byte support.

Note: The unit supports ID3 tags and file names in the Latin alphabet. The Cyrillic alphabet is possibly supported only if coded in Windows 1251.

1. Multi card reader not support.
2. USB 2.0 support.

Notes:

USB format supports 2.0. Capacity: up to 4 GB.

SD cards brands: Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: up to 4 GB.

MMC cards brands: Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, etc. Capacity: up to 4 GB.

Note: Because of the great variety of products with SD and MMC card slots and their sometimes quite manufacturer-specific functions the producer can neither guarantee that all devices will be recognized nor that all operating options that are possible in theory will actually work.

ID3 Tag information

As long as the current playing MP3/WMA music contains relevant ID3 tag information supported by this unit, the info such: file name, folder name, song title, artist and album will be scrolling on the LCD display; otherwise, they will not.

NEXT/PREVIOUS

Press NEXT/PREVIOUS buttons to choose next or previous track. Press longer than 1 sec., to choose forward playback or backward playback.

PLAY/PAUSE

Press PLAY/PAUSE/1 button to pause the playback, press one more time to resume the normal playback.

Press and hold this button to start the playback from the very beginning of the storage device.

INTRO (Preview all Tracks)

When INT/2 button is pressed, "INT ON" indication is displayed and the first several seconds of each track of the storage device is played. Press again to stop intro and listen to track.

REPEAT

When RPT/3 button is pressed, "RPT ON" indication is displayed and playback of the selected track will be continually repeated until the track repeat mode is cancelled by pressing RPT button again.

RANDOM

When RDM/4 button is pressed, "RDM ON" indication is displayed and each track of the disc is played in random instead of normal order. To cancel RANDOM mode, press RDM button again.

TRACK DOWN/UP SELECT (In case of MP3/WMA files)

-10/5 button: 10 Track down

+10/6 button: 10 Track up

Selection of MP3/WMA files (only for files and folders named in Latin alphabet)

1. Searching Track:

• Press AMS, then searching track is activated.
• Press VOL knob, then the first digit is blinking.
• Turn VOL knob to right or left, select first digit you want.
- Press VOL. knob, then the first digit is fixed and second digit is blinking.
- Turn VOL knob to right or left, select 2'nd 3'rd and 4'th respectively.
• Then automatically the song you selected will start.

2. Searching File Name:

- Press AMS twice, then file search is activated.

- Press VOL knob, then the first directory is displayed.

- Turn VOL knob to right or left, you can select the directory you want.

- Press VOL knob again, then the directory is fixed and the first file name is displayed.

• Turn VOL knob to right or left, you can select the file you want.

- Press VOL knob, then the song you selected will start.

1. Searching Character:

• Press AMS 3 times, then character search mode is activated.

- Press VOL knob, then "A" character is displayed.

• Turn VOL knob to right or left, you can select the letter you want.

- Press VOL knob longer than 2 sec.

• The song which has same character you selected is displayed. If no such file is found, NOT FND will be displayed.

• Turn VOL knob to right or left, you can select the song you want.

- Press VOL knob, then the song you selected will start.

Note: The character search only supports Latin capital A-Z letters and Arabic numerals 0-9.

MP3/WMA overview

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
• This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs.
- The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
- The unit can not read an MP3 file that has a file extension other than ".mp3".
- If you play a non-MP3 file that has the ".mp3" extension, you may hear some noise.
- In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.
• Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 256.
• The unit may not play tracks in the order of Track numbers.
• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
- When playing a disc of 8 kbps or "VBR", the elapsed playing time in the display window will not be correct and also the intro play may not function properly. "VBR": Variable Bit Rate.
- The unit supports the playback of WMA files. The playback of ID3 tags for WMA format is not guaranteed, it depends on versions and availability of Cyrillic alphabet.
- WMA (Windows Media Audio) – music data compression format, created by Microsoft Corporation. This format uses coding algorithm for compression of initial audio-record, greatly decreasing the file size, but, saving the good sound quality even when the bit rate is low (for example, 64 Kbit/s).
- Remember that the unit may not play the tracks in order they are written on disc.

Notes on creating your own CD-R or CD-RW containing MP3 files:

• To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit

rate of 128 kbps.

• DO NOT store more than 256 MP3 files per disc.

- For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

• When CD-R disc is used, playback is possible only for discs, which have been finalized.
  • Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.
• You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
• With some CD-R or CD-RW media, data may not be properly written depending on its manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended.
• Up to 16 characters are displayed for the name of an Album or a Track.
  • Note that the unit may not play Tracks in the order that you wrote them to the disc.

Handling discs

• Dirty, scratched or warped discs may cause skip ping or noise.
• Handle the disc only by the edges. To keep clean do not touch its surface.
  • Discs should be stored in their cases after use to avoid scratches.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).
• Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.
• Do not touch the unlabeled side. Do not attach any seal, label or data protection sheet to either side of a disc.

Cleaning

Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Troubleshooting guide

Symptom Cause Solution
No power	The car ignition is not on.The fuse is blown.	If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.Replace the fuse.
Disc cannot be loaded.	Presence of disc inside the player.	Remove the disc in the player then put a new upward.
Disc cannot be read. Inserting the disc in upside down.Compact disc is extremely dirty or defective.Temperature inside the car is too high/low.		Insert the compact disc with the label facing upward.Clean the disc or try to play a new one.Cool off until the ambient temperature returns to normal.
No sound Volume is in minimum.Wiring is not properly connected.		Adjust volume to a desired level.Check wiring connection.
The buttons do not work. The built-in microcomputer is not operating properly due to noise.Front panel is not properly fix into its place.		Press the RESET button.Reinstall the front panel.
Sound skips. The installation angle is more than 30 degrees.The disc is extremely dirty or defective.		Adjust the installation angle to less than 30 degrees.Clean the compact disc/try to play a new one.
The radio does not work, the radio station automatic selection does not work.	The antenna cable is not connected the signals are too weak.	Insert the antenna cable firmly select a station manually.

Error table

Error CD-player USB
Error 1 Turn to the service center -
Error 2 Turn to the service center -
Error 3 Turn to the service center -
Error 4 Turn to the service center -
Error 5 Turn to the service center -
Error 6 Turn to the service center -
Error 7 Turn to the service center -
Error 8 MP3/WMA no file -
Error 9 MP3/WMA read -
Error 15 - TMC Error (Can Not Read Error)
Error 16 - TMC No File Error (No File)

Specification

General
Disc/Flash	CD/CD-R/CD-RW/USB/SD/MMC
Compatible with	CDDA/MP3/WMA
Power supply	12 V DC
Current consumption	max. 10A
Maximum power output	50 W x 4 channels
Dimensions (L x W x H)	178 x 163x 50 mm
Working temperature range	-10°C - +60°C
ESP	45 sec. ESP for Audio-CD, 120 sec ESP for MP3, 300 sec ESP for WMA
FM Stereo Radio
Frequency range	87.5 - 108.0 MHz
Preset memory stations	18
MW (AM) section
Frequency range	522 kHz - 1620 kHz
Preset memory stations	12
Audio specification
Maximum output	2 Vrms (+/- 3 dB)
Frequency response	20 Hz - 20 KHz
S/N ratio (A-vtd)	60 dB
DSP sound effect	Classic, Rock, Pop, Flat
Line out
Output	4 channel RCA line-out (2V)

Specifications are subject to change without notice. Dimensions are approximate.

Снятие устройства
