Product Type	Car Radio
Brand	Hyundai
Model	H-CDM8010
Power Supply	12V DC
Fuse Rating	10 A and 1 A
Max Power Output	50W x 4
Dimensions (W x H x D)	178 x 51 x 178 mm
Supported Discs	CD, CD-R, CD-RW
Supported Formats	CDDA, MP3, WMA
FM Frequency Range	87.5 – 108.0 MHz
MW Frequency Range	522 kHz – 1620 kHz
FM Preset Memory	18 stations (3 bands x 6)
MW Preset Memory	12 stations (2 bands x 6)
Frequency Response	20 Hz – 20 kHz
Signal-to-Noise Ratio	>80 dB
Line Output	2 channels RCA (2V)
Electronic Shock Protection (ESP)	Audio-CD: 45 sec, MP3: 120 sec, WMA: 300 sec
Installation Size	1 DIN
Rear Mounting	Supplied bolt and strap
Cleaning Cabinet	Soft cloth with mild soap solution
Cleaning Discs	Wipe from center to edge with soft cloth

Frequently Asked Questions - H-CDM8010 HYUNDAI

How do I turn the unit on and off?

Press any button to turn the unit on. To turn it off, press and hold the PWR button.

How do I set the clock?

Press the CLK button, then press and hold it for 3 seconds until the time blinks. Rotate the SEL knob clockwise to adjust hours and counter-clockwise for minutes. Press CLK again or wait to confirm.

How do I save a radio station as a preset?

Tune to the desired station, then press and hold one of the preset buttons (1-6) until you hear a beep. The station is now saved for the current band.

How do I use RDS functions like AF and TA?

Press AF to enable alternative frequency search for the strongest signal. Press TA to activate traffic announcements. Use the SEL knob to access deeper RDS settings like PTY and MASK.

How do I play MP3 files?

Insert an MP3 disc with the label side up. The unit will automatically read the disc. You can use search modes (Simple, Track, File, Character) by pressing F/PS to find specific songs.

How do I adjust sound settings like bass and treble?

Press the SEL knob repeatedly to cycle through Bass, Treble, Balance, and Fader. Rotate the knob to adjust the selected parameter.

What should I do if there is no sound?

Check that the volume is not set to minimum. Ensure all wiring connections are secure. Also verify the correct speaker impedance (4-8 ohms) and that speaker wires are not shorted.

How do I clean the unit and discs?

For the cabinet, use a soft cloth slightly dampened with mild soapy water. For discs, wipe gently from the center to the edge with a soft cloth. Do not use chemicals like benzine or record cleaner.

How do I install the radio?

Disconnect the negative battery terminal. Remove the old unit using the supplied keys. Connect the wiring according to the diagram, then slide the unit into the mounting sleeve and secure with the rear strap and bolt.

What should I do if the disc cannot be loaded or read?

First, check if a disc is already inside by pressing EJECT. Ensure the disc is inserted with the label side up. If the disc is dirty or scratched, clean it or try a different disc. If the temperature is extreme, wait for it to normalize.

USER MANUAL H-CDM8010 HYUNDAI

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

The unit is recommended for installation in cars by Hyundai, Kia, as well as other cars equipped with installation place for 1 DIN head units.

Table of contents

Table of contents	2
Important safeguards	3
Accessories	4
Installation/Connections	5
Panel controls	11
General operations	12
Radio operations	15
RDS operations	17
CD/MP3/WMA operations	19
MP3 Overview	22
Handling discs	24
Cleaning	24
Troubleshooting guide	26
Specification	28

Important safeguards

• Using the device at temperature below -10°C may cause the breakage of the device. Before using please heat up the passenger compartment to the recommended temperature!
• Read carefully through this manual to familiarize yourself with this high-quality system.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Do not attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
• Do not open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified technician check the system.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please confirm it before installation.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.
• Do not install the detachable panel before connecting the wire.

Accessories

1. Nut 5 mm 1 pc.
2. Spring washer 2 pcs.
3. Screw M5x25 mm 1 pc.
4. Screw 1 pc.
5. Plain washer 2 pcs.
6. Strap 1 pc.
7. Operating instructions 1 pc.
8. Key 2 pcs.
9. Mounting collar 1 pc.
10. Wire connector 1 pc.
11. Trim plate 1 pc.
12. Warranty card 1 pc.
13. Customer information 1 pc.
14. ISO connector 1 pc.

Installation/Connections

First complete the electrical connections, and then check them for correctness. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed.

Before installation

1. Remove the old unit from the dashboard.

- Insert the keys supplied with the old unit into both sides of the unit as shown in figure below until they click. Pull to remove the old unit from the dashboard. Do not disconnect wires at this time!

1. Mark polarity of the speaker wires.

Marking the polarity of the speaker wires will make it easier to connect the existing speakers to your unit. Consult wiring diagram of existing head unit before disconnecting any wires. If you are not positive of the polarity of the existing wires from the speakers to the head unit, install new wires.

- While the old unit is playing, disconnect the wires from one speaker.

• Take a length of masking tape and fold it around the wire so it forms a flag.
- On the masking tape mark the polarity of the speaker wires (+ and -), as well as left or right, and front or rear.
- Repeat this procedure for all of the speakers.
• Mark the power, ground, and any other wires also.

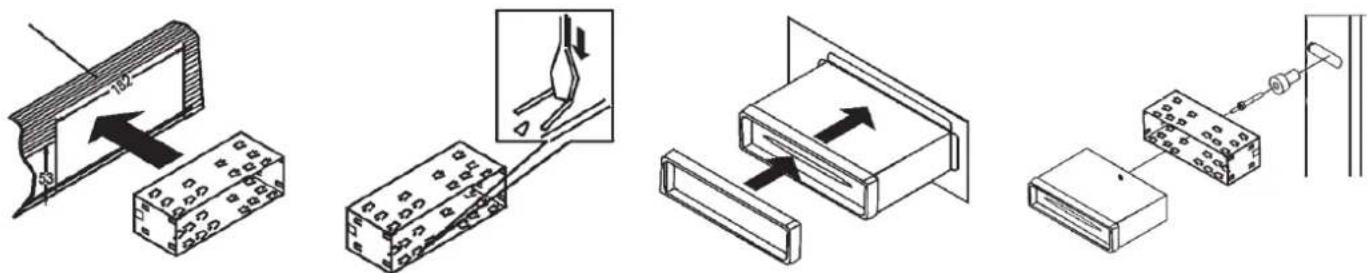

Installation method A

WARNING: Disconnect negative battery terminal from battery before starting installation. Consult the vehicle's owner's manual for proper instructions.

1. After removing the old unit and mounting sleeve, insert supplied mounting sleeve in the opening.
2. Bend the tabs on the mounting sleeve to keep the mounting sleeve firmly in place.
3. Attach wires from the unit to existing wires. See wiring connections diagram. Insert the unit into dashboard. Then apply the trim frame to outside of the unit.
4. Support the unit using supplied rear mounting bolt and steel bar.

Installation method B

Note: Outer trim frame, hook, and mounting sleeve are not used for this installation.

This is only intended as a general guide; contact the vehicle's manufacturer for specific instructions.

This method of installation uses the screw holes at the sides of the unit and the holes of the existing vehicle mounting bracket.

1. Remove the hooks on both sides.
2. Align the screw holes of the mounting bracket supplied with the car and the screw holes of the main unit. Tighten the 2 screws on each side of the unit. Then fasten the brackets to the car.
3. Attach wires of the unit to existing speaker wires. See wiring diagram.

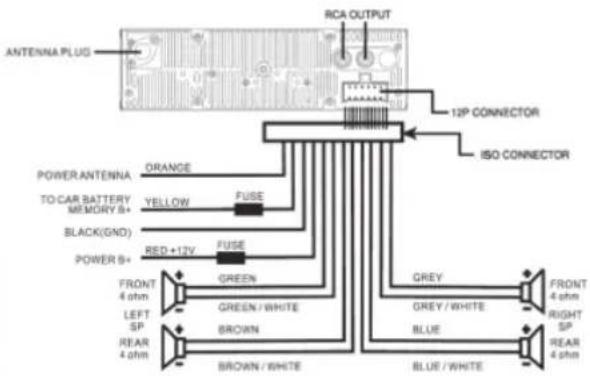

Electrical connections

Speaker Wiring Notes

Follow the above wiring diagram to install the head unit with new or existing speakers.

• This unit is designed for use with four (4) speakers with the impedance between 4 Ohms to 8 Ohms.
• An impedance load of less than 4 Ohms could damage the unit.
• Never bridge or combine the speaker wire outputs. When not using four speakers, use electrical tape to tape the ends of the unused speaker outputs to prevent a short circuit.
• Never ground the negative speaker terminals to chassis ground.

Using the ISO Connector

Diagram showing three stages of electrical connector assembly with wires and connectors (no text or labels)

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

Cut the connector; connect the colored leads of the power cord to the car battery as shown in the color code table below for speaker and power cable connections.

Location	Function
	Connector A Connector	B
1 Rear	Right (+)---Blue
2 Rear	Right (-)---Blue/White Stripe
3 Front	Right (+)---Grey
4 Battery	12V (+)/yellow Front Right (-)---Grey/White Stripe
5 Auto	Antenna/orange Front Left (+)--Green
6 Panel	light/white Front Left ((-)--Green/White Stripe
7 ACC	+/red Rear Left (+)--Brown
8 Ground/black	Rear Left	(-)--Brown/White Stripe

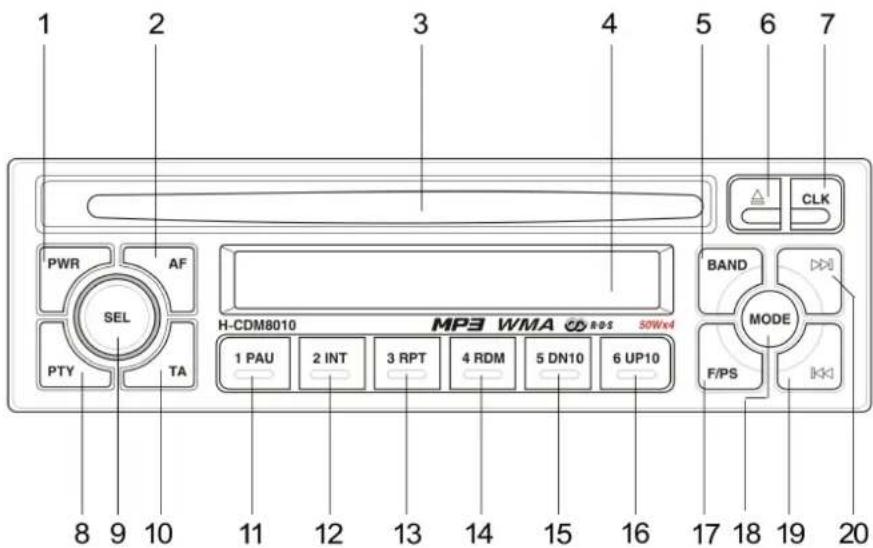

Panel controls

Front panel

1. PWR button
2. AF button
3. Disc slot
4. LCD display
5. BAND button
6. EJECT button
7. CLK button
8. PTY button
9. SEL knob
10. TA button
11. 1/PAU button
12. 2/INT button
13. 3/RPT button
14. 4/RDM button
15. 5/DN10 button
16. 6/UP10 button
17. F/PS button
18. MODE button
19. PREV button
20. NEXT button

General operations

Turning On/Off

Press any button to turn the unit on, the display will show a message “WELCOME” to indicate it is ready to use. Press and hold PWR button to turn the unit off.

Mode selection

Press MODE button to switch between Radio and CD play mode.

Volume control

The volume level can be adjusted by rotating SEL knob in any mode.

LOUD mode

Press and hold SEL knob till the display shows “TA SEEK”, then press SEL knob till “LOUD OFF” is shown. Rotate SEL knob to switch between LOUD ON or LOUD OFF. This mode is to emphasize the bass output.

Bass, treble, balance and fader control

Press SEL knob to select bass, treble, balance or fader mode. The corresponding word appears on the display. Rotate SEL knob to adjust the selected parameter. When DSP is on, treble and bass control is not available. Balance is to adjust the balance between the left and right speakers. Fader is to adjust the balance between the rear and front speakers.

BEEP function

Press and hold SEL knob for 2 seconds; the display will show “TA SEEK”. Press SEL knob repeatedly until the display shows “BEEP OFF”, rotate SEL knob to toggle between BEEP ON and BEEP OFF, then leave the unit idle for your desired setting to take effect.

Clock setting

The clock can be set anytime when the power is on. Press CLK button and then press and hold CLK button for 3 seconds, the time will blink on the display.

1. Rotate SEL knob clockwise to adjust the hour.
2. Rotate SEL knob anti-clockwise to adjust the minute.
3. Press CLK button again or leave the unit idle for new setting to take effect.

Press CLK button anytime to view the time display.

DSP mode

Press and hold SEL knob for 2 seconds, the display will show “TA SEEK”. Press SEL knob repeatedly until the display shows “DSP OFF”. Rotate SEL knob to select DSP effect.

After you have selected your desired effect, leave the unit idle in order for the new setting to take effect.

Preset volume level

Press and hold SEL knob till the display shows “TA SEEK”. Then press SEL knob repeatedly till “VOL LAST” is displayed. In this mode the unit will be turned on with the same volume level at which the unit was shut down last time.

You can rotate SEL knob to switch to “VOL ADJ”. Press SEL knob to confirm, then “A-VOL” will be displayed. At this time, rotate SEL knob to set the volume level you need. This will be the preset sound level for unit. Then every time the unit will be turned on with this volume level. Leave the unit idle for the new setting to take effect.

RCA output

The RCA output jack is on the back of the unit. This output is for connecting amplifier, equalizer, or other audio device. Follow the manufacturers instructions for the audio device that you are connecting.

Radio operations

Choose Radio Band

Press BAND button to activate the Radio mode. The unit is equipped with 3 FM bands (FM1, FM2 and FM3) and 2 AM bands (MW1 and MW2). Each of the bands can store up to 6 preset stations, making total 30 preset memory stations.

Radio Tune/Seek Function

In Radio mode, press PREV/NEXT buttons to manually adjust the radio frequency.

Auto seek modes

Press and hold SEL knob until “TA SEEK” is shown on the display, then press SEL knob to cycle through the menu selections until “SEEK 1” is shown. Rotate SEL knob to select either “SEEK 1” or “SEEK 2”.

1. Seek 1: press and hold PREV/NEXT buttons for more than 1 second. The unit will seek the next strong and clear frequency station. Repeat to seek more stations in your listening area with a strong signal.
2. Seek 2: press and hold PREV/NEXT buttons for station search. The search will not cease until you release the button.

Mono/Stereo Reception Control

In FM radio mode, press and hold SEL knob till the display shows “TA SEEK”, then press SEL knob repeatedly until the display shows “MONO”. Rotate the SEL button to toggle between mono reception or stereo reception. The display will show “MONO” or “STEREO”. Improvement of reception of distant stations can be done by selecting “MONO” operation, which may cut down some reception noise.

Save Your Preset Stations

There are six numbered preset buttons, which can store and recall stations for each band. While listening to a radio station you would like to save as a preset, press and hold one of the buttons numbered 1-6 until you hear a beep. The button you pressed is now the preset button for that station.

Automatic Store/Preset Scan

1. Automatic scan and store: while listening to the FM Radio, press F/PS button. The receiver will automatically scan the saved stations of that FM band. While listening to the AM radio, press F/PS button. The receiver will automatically scan and save stations for that AM bands.

2. Scan saved stations: press F/PS button once to perform the scanning functions. In FM mode, press F/PS button and the stations in that FM band will be scanned; press this button in AM mode and scan that AM band stations.

Local/Distance reception control

In radio mode, press and hold SEL knob till the display shows “TA SEEK”, then press SEL knob repeatedly until the display shows “DX”. Rotate SEL knob to toggle between “LOCAL” (local reception) and “DX” (distance reception). Local and distance reception setting can facilitate the radio reception, depending on the location in which the radio is being used.

RDS operations

Following functions are available for radio FM band mode.

RDS-EON Control

This unit is equipped with the latest technology of EON control, so that when you are listening to Radio or CD, if there is any travel announcement from a nearby local station, the radio will already know the frequency of that radio station. Then it will receive the station, turn up the volume, or interrupt the playback of the music for the duration of the announcement. At the end of the announcement the radio will return to its previous state ready for the next announcement.

AF - Alternative frequency

Press AF button, the unit will choose the strongest FM signal for the selected station, so that you do not have to re-tune the stations when driving between different transmitter coverage areas. When AF is on, it means RDS information is received; when AF is flashing, it means RDS information is not yet received.

TA – Traffic announcement

Press TA button, the unit will be activated for reception of traffic announcement from local radio stations. To choose the TA mode, press and hold SEL knob for 2 seconds, the display will show “TA SEEK”. Rotate the knob to choose between “TA SEEK” and “TA ALARM”; after choosing, please leave the unit idle for the mode to activate. In TA SEEK mode, the unit will seek for traffic announcement program when TA is pressed; in TA ALARM mode, no TA/TP is displayed and the alarm is set off.

PTY – Program type

This radio will allow you to select the type of program required, and will search for a station broadcasting that type of program. Press PTY button once to show the music type. Then press numbered 1-6 buttons to choose different music types available. Press the PTY button twice to show the speech type program. Then press 1-6 button to choose the different speech type program. Each number button will show 3 different speech program for you to choose.

MASK DPI/MASK ALL

Press and hold SEL knob for 2 seconds, the display will show “TA SEEK”. Press the knob again so that the unit will show “MASK DPI”. Rotate the knob to toggle between “MASK DPI” and “MASK ALL” modes. Then leave the unit idle for the mode to take effect. During MASK DPI mode, the unit will mask only the AF which has different PI, this is the default mode; during MASK ALL mode, the unit will mask the AF which has different PI and no RDS signal with high field strength.

RETUNE S/L - SHORT/LONG

This function is to set the initial duration of automatic TA Search. Press and hold SEL knob until “TA SEEK” is shown on the LCD, then press the knob to cycle through the menu selections until “RETUNE_S” is shown, rotate the SEL knob to choose “RETUNE_S” or “RETUNE_L”. The default is “RETUNE_S”. “RETUNE” refers to the time period the unit allows for radio scan when reception is interrupted. “S” represents a time period of 30 seconds and “L” represents a time period of 90 seconds.

Electronic Shock Protection (ESP)

The electronic shock protection is ideal for driving uneven road.

For MP3 discs

Electronic Skip Protection for MP3 discs is a default feature. Please note that this feature supports the CDs with songs encoded by 96 Kb/s and 32000 Hz. For songs encoded in higher quality, the anti-shock duration will decrease proportionally to the file size.

For CD discs

Press and hold SEL knob for 2 seconds, the display will show “TA SEEK”. Press the knob again, “ESP 12” will be shown on the display indicating that Electronic Shock Protection (ESP) will be activated for 12 seconds. When the display shows “ESP 12”, rotate SEL knob so that the setting will be changed to “ESP 45”, indicating that Electronic Shock Protection for 45 seconds is activated. Please leave the unit idle for the new setting to take effect.

Insert/Eject discs

Insert a disc into the disc slot with label side up. The disc will be automatically loaded into the unit, even when it is off or in radio mode. For MP3 discs, the word “MP3 DISC” will be displayed as the CD is loaded. The first file in the root folder will be played. As the file is playing “ROOT” will be displayed first, then if there is any ID3 information that will be displayed as the file is playing. For CD discs, the word “LOAD” will blink on the display and the CD will play automatically. Press EJECT button to eject the disc from the slot. If the disc is not removed from the slot within 5 seconds, it will automatically be loaded into the slot again. When the disc is ejected and removed, the unit will automatically switch to radio mode.

MP3 Track search mode

You can use the 4 search modes to find your favorite MP3 songs. The search modes work only with MP3 discs.

Simple search

Press PREV/NEXT buttons to choose your song. Press the 5/DN10 and 6/UP10 button to advance 10 songs up or down.

Track search

Press F/PS button and the display will show “TRK SCH”. At this moment, press SEL knob so that “TRK” will blink on the display. Then rotate the knob to choose your desired track and press the knob again to confirm the selection. The selected track will be searched and play.

File search

Press F/PS button twice and the display will show “FILE SCH”. At this moment, press SEL knob to enter the root folder of the disc. Rotate the knob to choose a folder in the root folder, and press the knob to confirm. The selected folder will be opened.

Character search

Press F/PS button three times and the display will show “CHAR SCH”. This is for searching files by file names moment, press SEL knob so that the initial character will blink on the display. Rotate the knob to select the character and press the knob once to confirm the selection advance to the next character. After you have input the name, press and hold the knob to confirm. The song nearest alphabetically to your input name will be searched and played.

Multi-session CD reading

This unit can read multi-session CDs. Press and hold SEL knob until “TA SEEK” is shown on the display, then press the knob to cycle through the menu selections until “MULT OFF” is shown. Rotate the knob to choose “MULT ON” or “MULT OFF”. The default is MULT OFF.

Selecting tracks/Fast Forward/Rewind

Press NEXT button to advance to the next track. Track numbers will be shown on the display. Press and hold NEXT button to fast forward.

Press PREV button to go to a previous track. Track numbers will be shown on the display. Press and hold the PREV button to fast reverse. Disc will play normally when the PREV/NEXT button is released.

Play/Pause disc

Press 1/PAU button to pause the CD. Press this button again to resume playback.

Scanning tracks

Press 2/INT button to play the first 10 seconds of each track. Press this button again to resume playback.

Repeat

Press 3/RPT button to repeat the same track continuously. "RPT ON" will appear on the display. Press this button again to stop repeating.

Random playback

Press 4/RDM button to play all the tracks in random order. “RDM” (for MP3 disc) or “RDM ON” (for CD disc) will appear on the display. Press the button again to stop random play.

ID3 tag

If an MP3/WMA file has ID3 Tag information, it will be displayed on the LCD. If there is no ID3 Tag information, nothing will show on LCD. The sequence of ID3 Tag information will be shown as follows: File => Folder => Music => Album => Artist.

MP3 Overview

Notes on MP3

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
  • This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs.
• The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
• The unit can not read an MP3 file that has a file extension other than ".mp3".
• If you play a non-MP3 file that has the “.mp3” extension, you may hear some noise.
• In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.
• Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 256.
  • The unit may not play tracks in the order of Track numbers.
• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
• When playing a disc of 8 kbps or "VBR", the elapsed playing time in the display window will not be correct and also the intro play may not function properly. "VBR": Variable Bit Rate.

Notes on creating your own CD-Rs or CD-RWs containing MP3 files

• To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps.

• Do not store more than 256 MP3 files per disc.

• For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

• When CD-R disc is used, playback is possible only for discs, which have been finalized.
  • Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.
• You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
• With some CD-R or CD-RW media, data may not be properly written depending on their manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended.
• Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required.
• Note that the unit may not play Tracks in the order that you wrote them to the disc.

Handling discs

• Dirty, scratched or warped discs may cause skip ping or noise.
• Handle the disc only by the edges. To keep clean do not touch its surface.
  • Discs should be stored in their cases after use to avoid scratches.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).
• Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.
• Do not touch the unlabeled side.
• Do not attach any seal, label or data protection sheet to either side of a disc.

Cleaning

Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so

gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Troubleshooting guide

Symptom Cause Solution
GeneralNo power	The car ignition is not on.The fuse is blown.	If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.Replace the fuse.
DiscDisc cannot be loaded.	Presence of disc inside the player. Remove	the disc in the player then put a new upward.
Disc cannot be read. Inserting the disc in upside down.Compact disc is extremely dirty or defective.Temperature inside the car is too high.		Insert the compact disc with the label facing upward.Clean the disc or try to play a new one.Cool off until the ambient temperature returns to normal.
No sound Volume is in minimum.Wiring is not properly connected.		Adjust volume to a desired level.Check wiring connection.
The operation buttonso not work.	The built-in microcomputer is not operating properly due to noise.Front panel is not properly fix into its place.	Reinstall the front panel.
Sound skips. The installation angle is more than 30 degrees.The disc is extremely dirty or defective.	Adjust the installation angle to less than 30 degrees.Clean the compact disc/try to play a new one.
The radio does not work, the radio station automatic selection does not work.	The antenna cable is not connected the signals are too weak.	Insert the antenna cable firmly.Select a station manually.

Specification

General
Power supply: 12V DC
Fuse: 10 A and 1 A
Maximum power output: 50W x 4
Dimensions (W x H x D): 178 x 51 x 178 mm
ESP function 45 sec. for Audio-CD, 120 sec for MP3, 300 sec for WMA
Supported discs CD/CD-R/CD-RW
Supported formats CDDA/MP3/WMA
FM stereo radio
Frequency range: 87.5 – 108.0 MHz
Sensitivity: 12dBu
Preset memory: 18 stations
MW section
Frequency range: 522 kHz – 1620 kHz
Preset memory: 12 stations
Audio specification
Frequency response: 20 Hz to 20 KHz
Signal to Noise ratio: >80dB
Line out
Output: 2 channels RCA line-out (2V)

Specifications are subject to change without notice. Dimensions are approximate.

Four technical diagrams showing connected devices and components, no text or symbols present

Способ установки Б
