USER MANUAL V11W ACER

Copyright © 2013. Acer Incorporated. All Rights Reserved.

Acer Projector User's Guide Original Issue: 10/2013

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your projector. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Model number: ____

Serial number: ____

Date of purchase: ____

Place of purchase: ____

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

"HDMI™, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

Information for your safety and comfort

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Turning the product off before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Caution for plug as disconnecting device

Observe the following guidelines when connecting and disconnecting power to the external power supply unit:

• Install the power supply unit before connecting the power cord to the AC power outlet.
- Unplug the power cord before removing the power supply unit from the projector.
- If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.

Caution for Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.

Warnings!

• Do not use this product near water.
• Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
• Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface.

This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

- Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.

iv

• To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.
• Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices, lamp.

Using electrical power

• This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
• If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
• Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.

- This product's AC adapter is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

- Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, VDE approved or its equivalent, 4.5 meters (15 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

• the power cord or plug is damaged, cut or frayed
- liquid was spilled into the product
• the product was exposed to rain or water
• the product has been dropped or the case has been damaged
• the product exhibits a distinct change in performance, indicating a need for service
- the product does not operate normally after following the operating instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Warning! For safety reasons, do not use non-compliant parts when adding or changing components. Consult your reseller for purchase options.

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Additional safety information

• Do not look into the projector's lens when the lamp is on. The bright may hurt your eyes.
• Turn on the projector first and then signal sources

• Do not place the product in following environments:

• Space that is poorly ventilated or confined. At least 50cm clearance from walls and free flow of air around the projector is necessary.

• Locations where temperatures may become excessively high, such as inside of a car with all windows rolled up.
• Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the life span and darkening the image.
• Locations near fire alarms.
• Locations with an ambient temperature above 40^ / 104^ .
• Locations where the altitudes are higher than 10000 feet.

- Unplug immediately if there is something wrong with your projector. Do not operate if smoke, strange noise or odor comes out of your projector. It

vi

might cause fire or electric shock. In this case, unplug immediately and contact your dealer.

- Do not keep using this product to break or drop it. In this case contact your dealer for inspection.

- Do not face the projector lens to the sun. It can lead to fire.

- When switching the projector off, suggest to ensure the projector completes its cooling cycle before disconnecting power.

- Do not frequently turn off the main power abruptly or unplug the projector during operation. The best way is to wait for the fan to turn off before turning main power off.

- Do not touch air outlet grille and bottom plate which becomes hot.

- Clean the air filter frequently if have. The temperature inside may rise and cause damage when the filter/ventilation slots clogged with dirt or dust.

- Do not look into the air outlet grille when projector is operating. It may hurt your eyes.

- Always open the lens shutter or remove the lens cap when the projector is on.

- Do not block the projector lens with any object when the projector is under operation as this could cause the object to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press HIDE on the remote control.

- The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

- Do not operate lamps beyond the rated lamp life. It could cause it to break on rare occasions.

- Never replace the lamp assembly or any electronic components unless the projector is unplugged.

- The product will detect the life of the lamp itself. Please be sure to change the lamp when is showing warning message.

- When changing the lamp, please allow unit to cool down, and follow all changing instructions.

- Reset the "Lamp Hour Reset" function from the Onscreen display "Management" menu after replacing the lamp module.

- Do not attempt to disassemble this projector. There are dangerous high voltages inside which may hurt you. The only user serviceable part is the lamp which has its own removable cover. Refer servicing only to suitable qualified professional service personnel.

- Do not stand the projector on end vertically. It may cause the projector to fall over, causing injury or damage.

- This product is capable of displaying inverted images for ceiling mount installation. Only use acer ceiling mount kit for mounting the projector and ensure it is securely installed.

Caution for Listening

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear clearly and comfortably.
• Do not increase the volume level after your ears have adjusted.
• Do not listen to music at high volumes for extended periods.
• Do not increase the volume to block out noisy surroundings.
• Decrease the volume if you can't hear people speaking near you.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.acer-group.com/public/Sustainability/sustainability01.htm

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display:

"Lamp(s) contain Mercury, Dispose Properly."

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org

viii

First things first

Usage Notes

Do:

• Turn off the product before cleaning.
• Use a soft cloth moistened with mild detergent to clean the display housing.
• Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Don't:

• Block the slots and openings on the unit provided for ventilation.
• Use abrasive cleaners, waxes or solvents to clean the unit.
• Use under the following conditions:

• In extremely hot, cold or humid environments.
• In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic field.
- Place In direct sunlight.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

Warning:

- Do not look into the projector's lens when the lamp is on. The bright light may hurt your eyes.

• To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

- Please do not open or disassemble the product as this may cause electric shock.

- When changing the lamp, please allow unit to cool down, and follow all changing instructions.

- This product will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.

- Reset the "Lamp Hour Reset" function from the Onscreen display "Management" menu after replacing the lamp module.

- When switching the projector off, please ensure the projector completes its cooling cycle before disconnecting power.

- Turn on the projector first and then the signal sources.

- Do not use lens cap when projector is in operation.

- When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under "Replacing the Lamp".

Information for your safety and comfort iii

First things first viii

Usage Notes viii

Precautions viii

Introduction 1

Product Features 1

Package Overview 2

Projector Overview 3

Projector Outlook 3

Control Panel 4

Remote Control Layout 5

MHL (Mobile High-Definition Link) Control 7

Getting Started 8

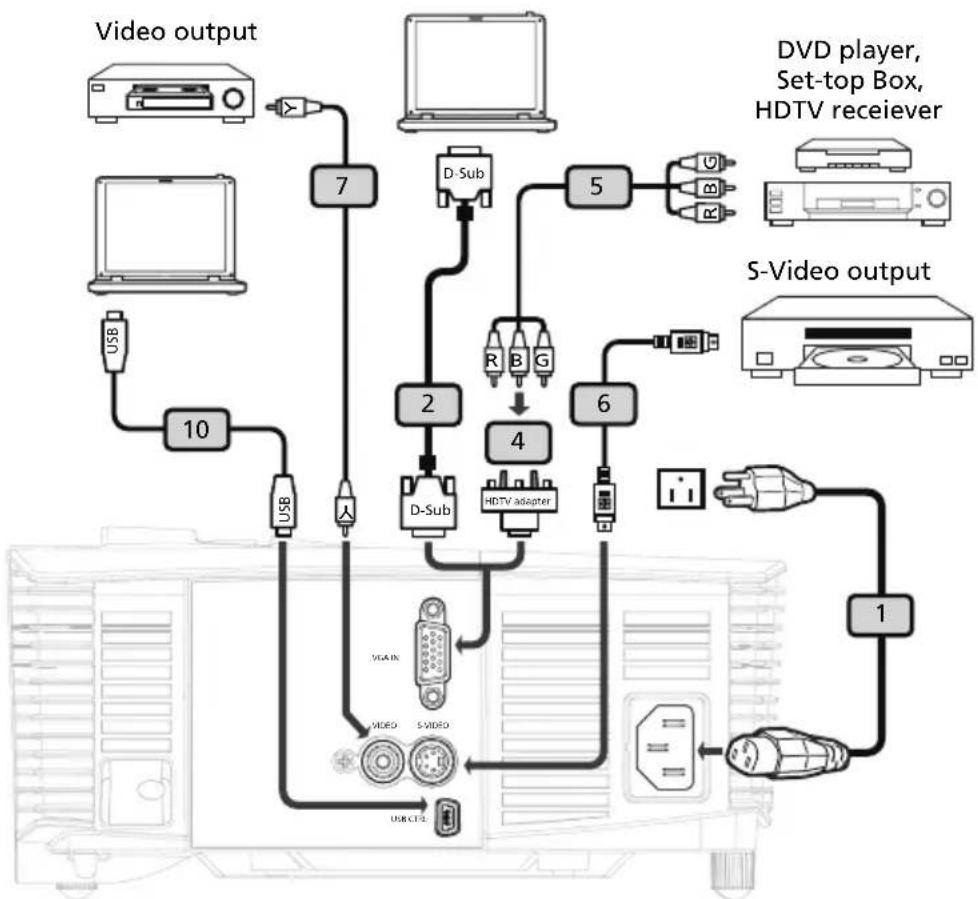

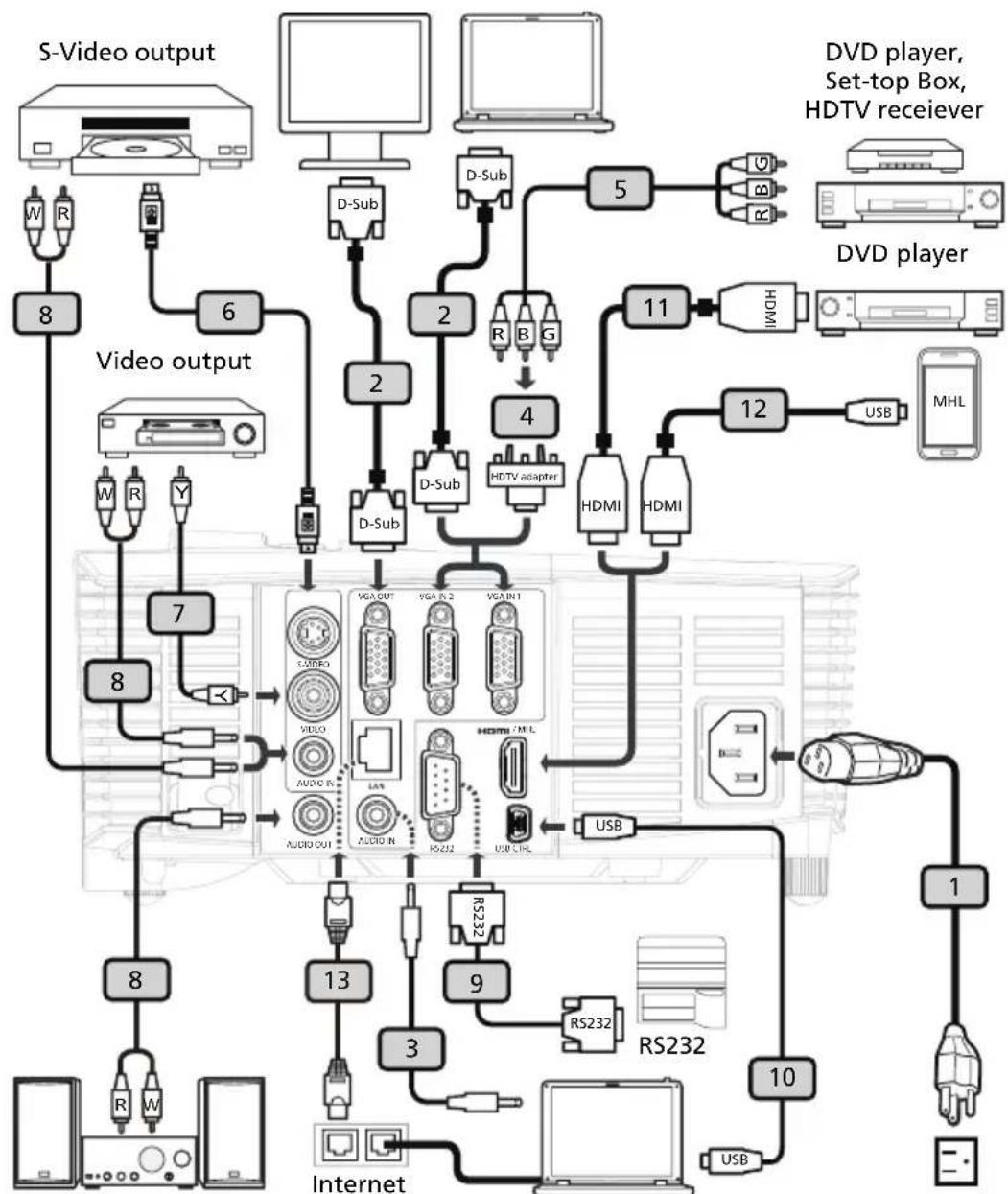

Connecting the Projector 8

Turning the Projector On/Off 10

Turning on the Projector 10

Turning the projector off 11

Adjusting the Projected Image 12

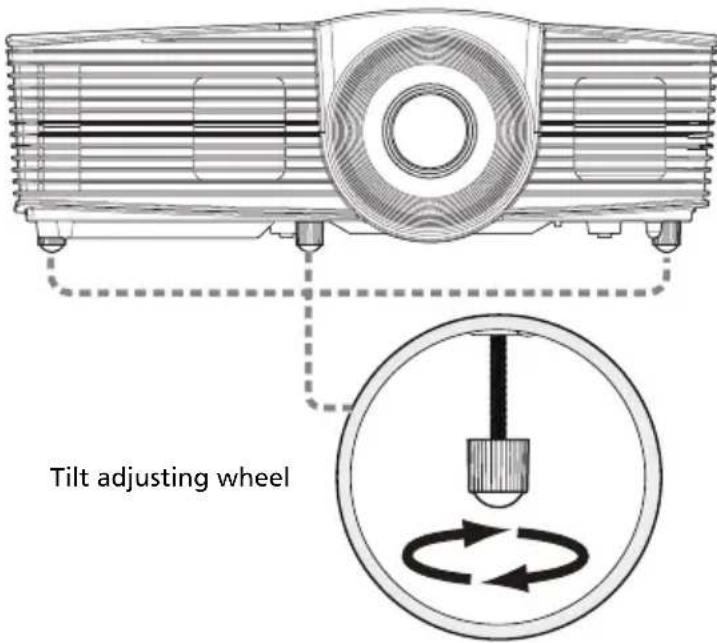

Adjusting the Height of Projected Image 12

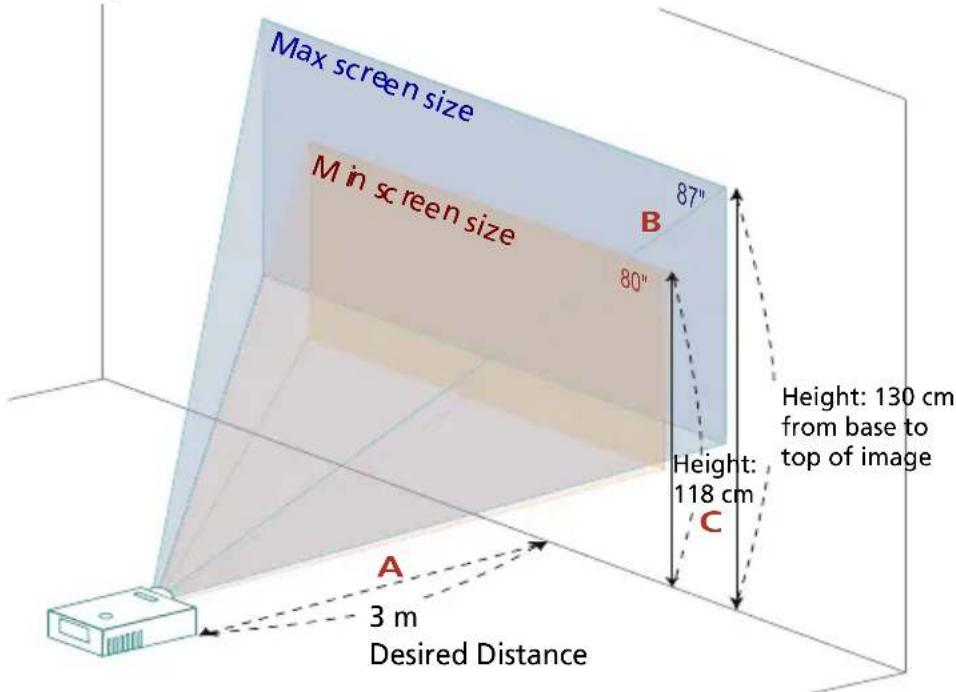

How to optimize image size and distance 13

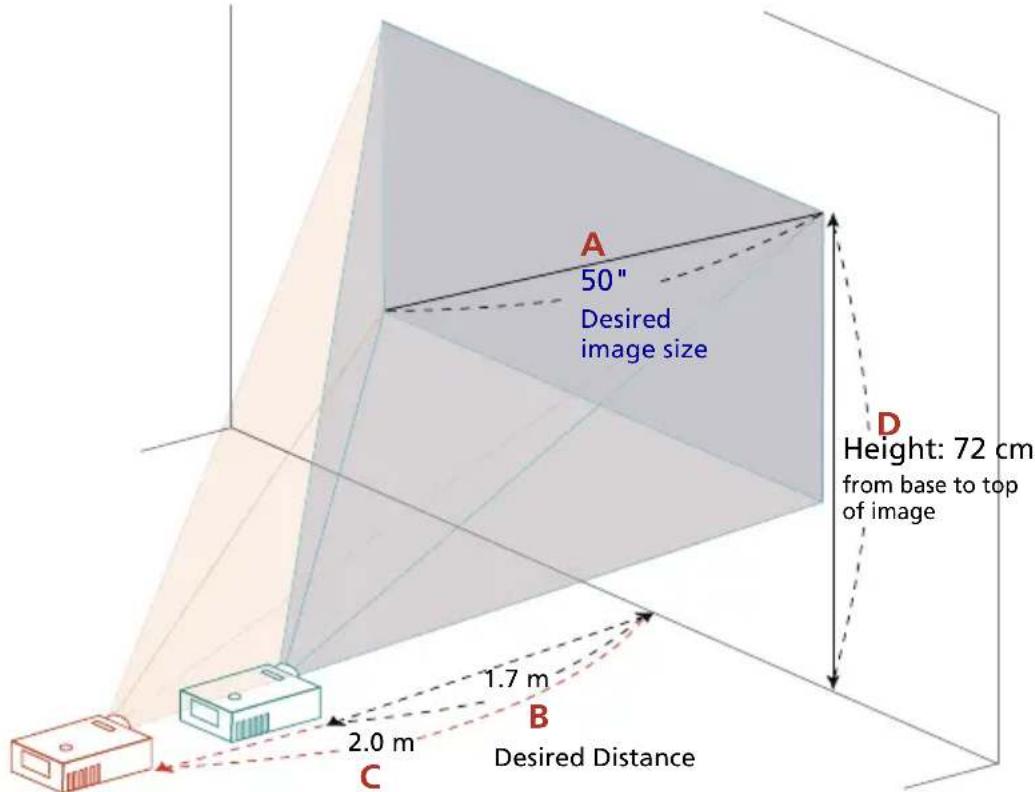

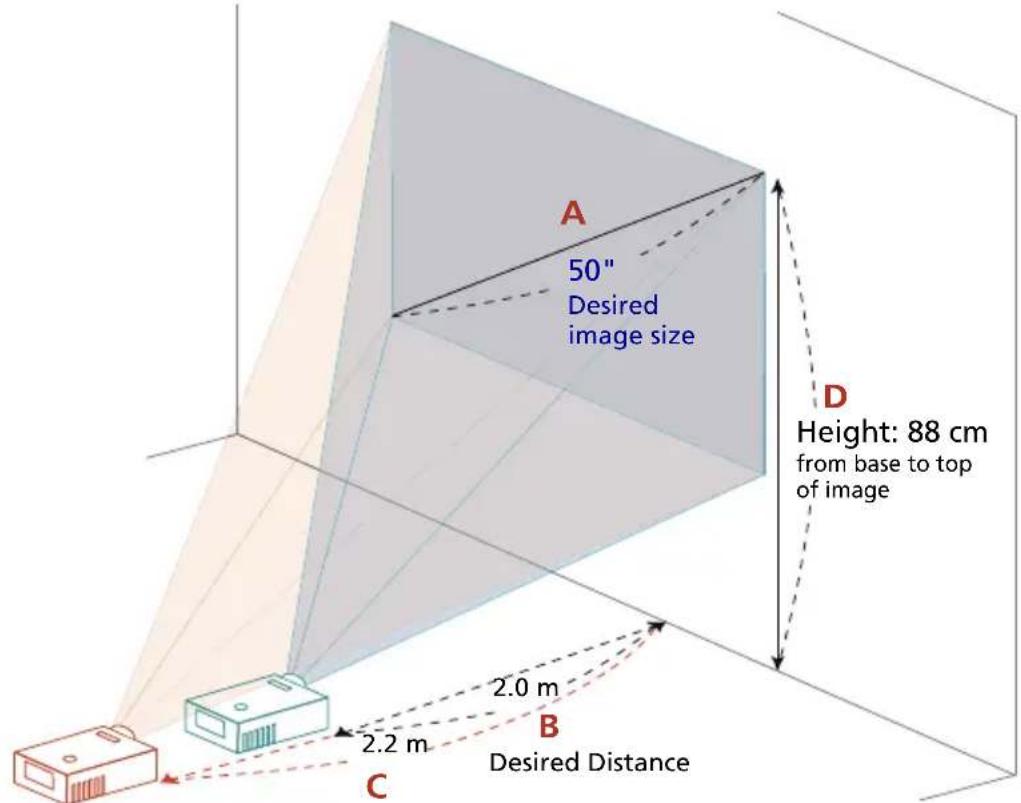

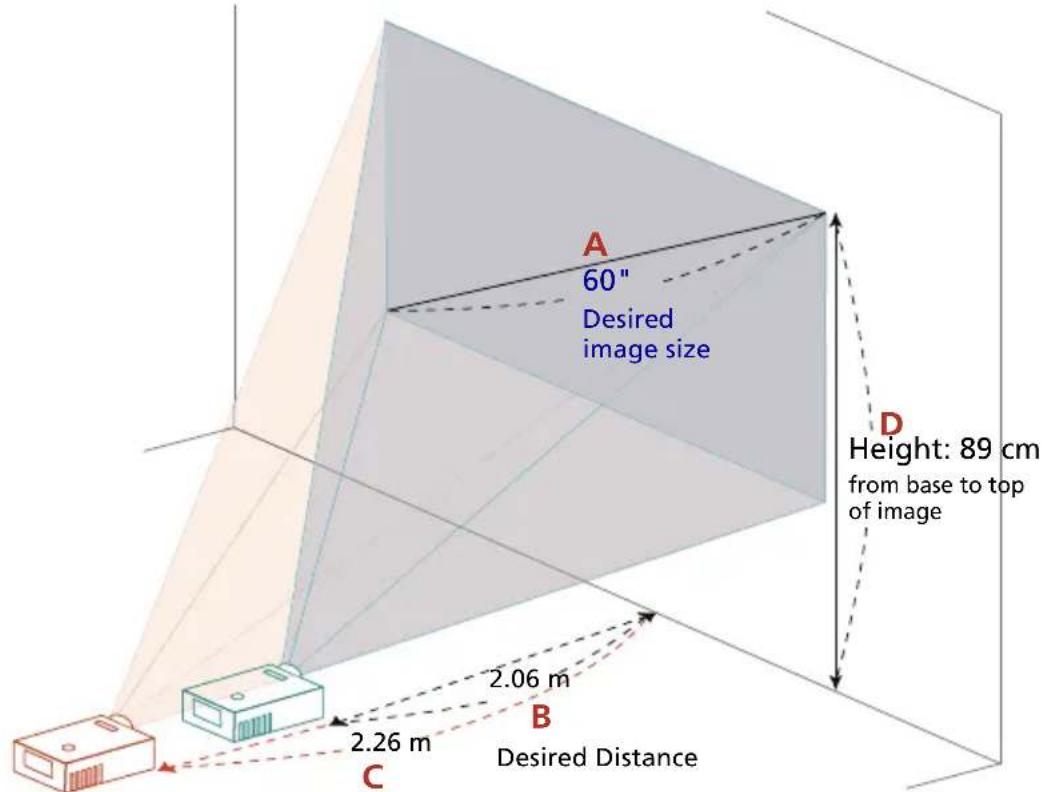

How to get a preferred image size by adjusting distance and zoom 17

User Controls 21

Installation menu 21

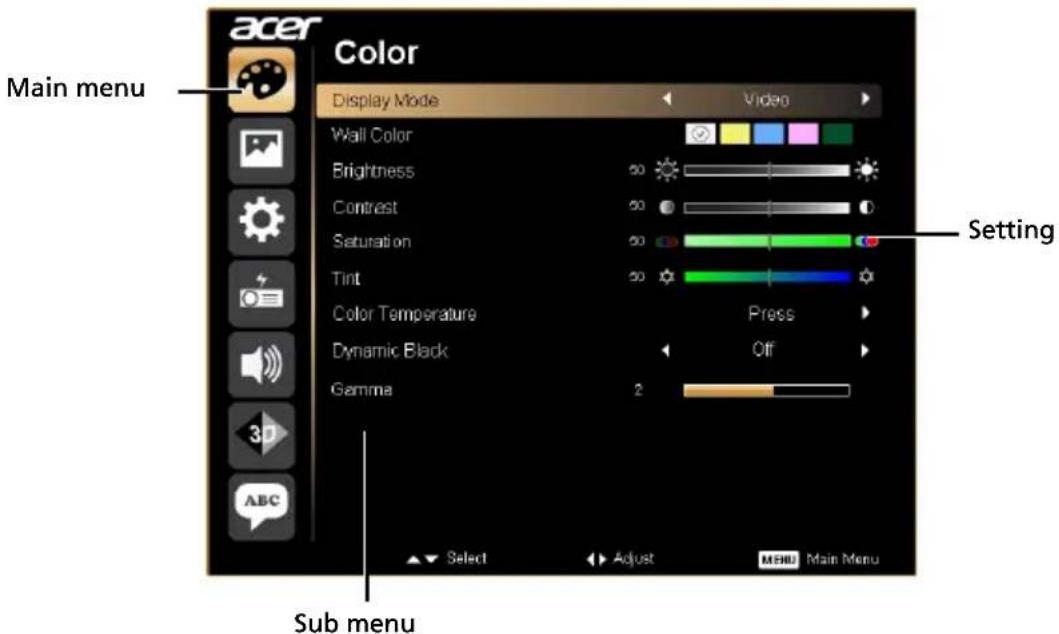

Onscreen Display (OSD) Menus 22

Color 23

Image 25

Setting 27

Management 30

Audio 31

3D 32

Language 32

Acer LAN webpage management 33

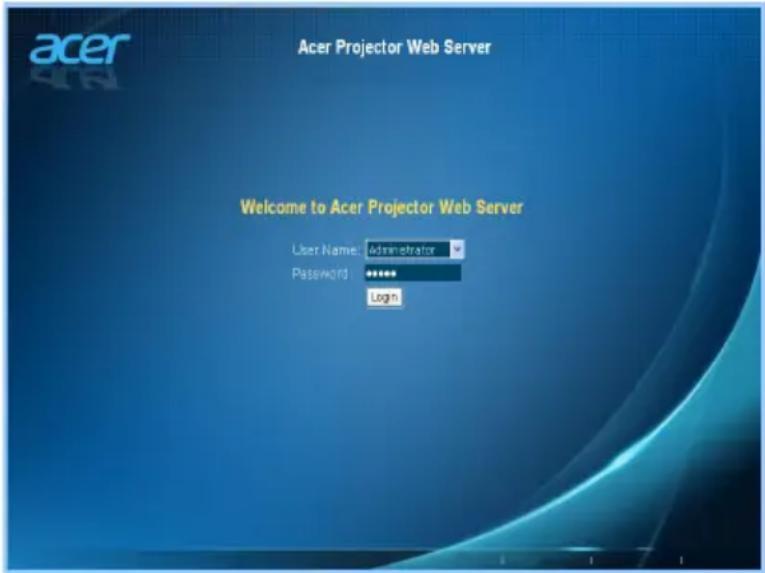

How to login in 33

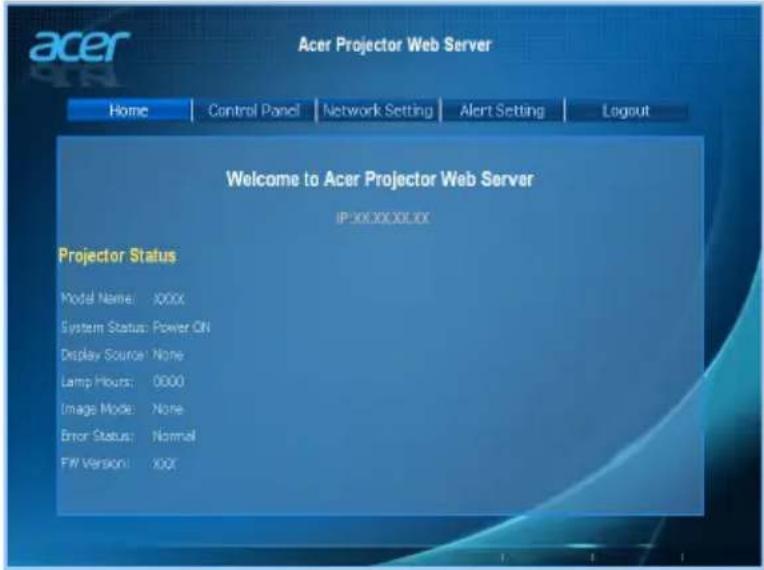

Home 34

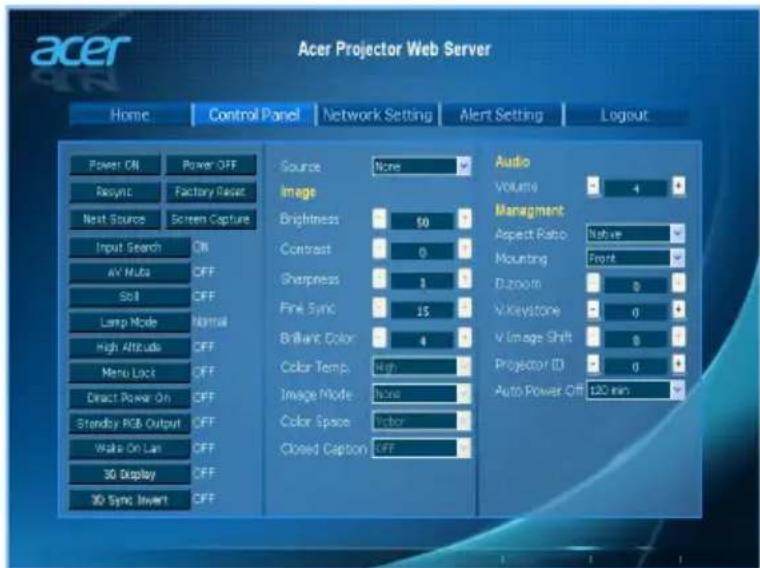

Control Panel 34

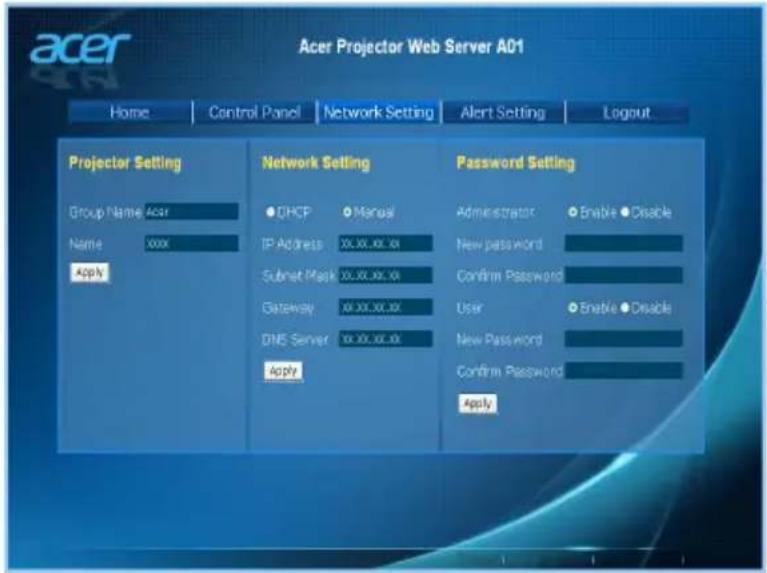

Network Setting 35

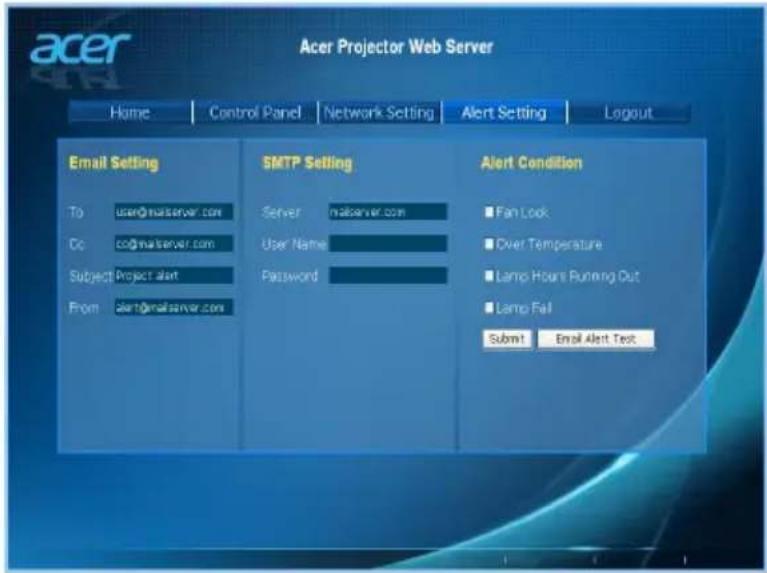

Alert Setting 35

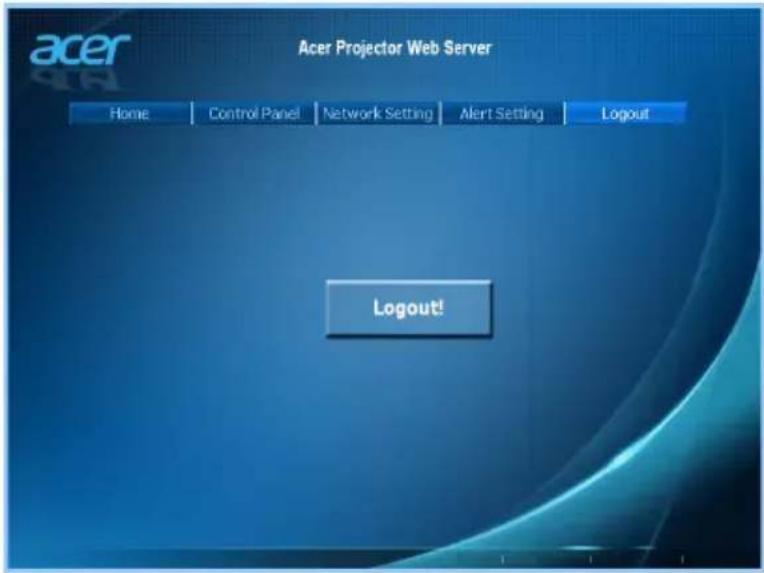

Logout 36

Appendices 37

Troubleshooting 37

LED & Alarm Definition Listing 41

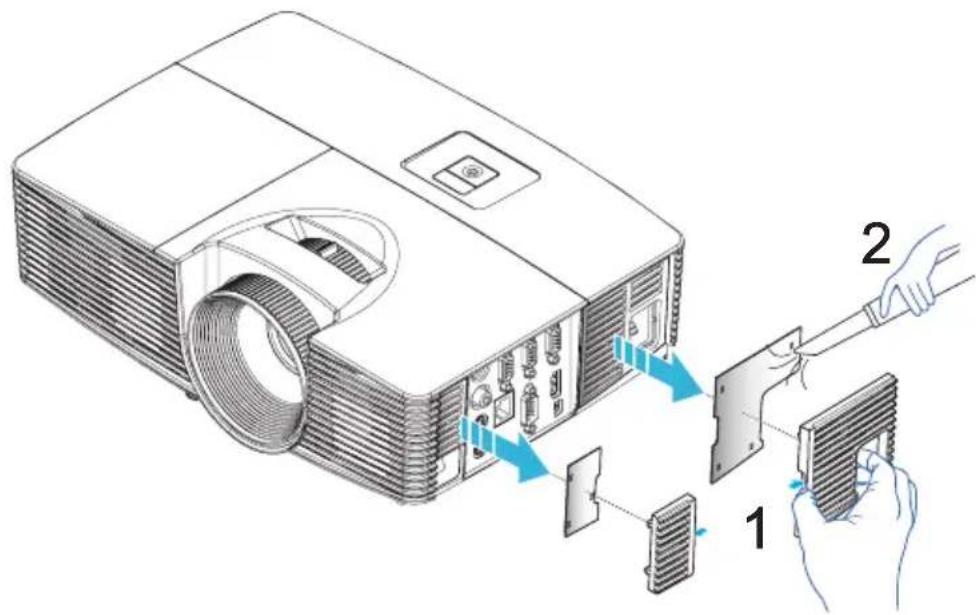

Cleaning and replacing the dust filters 42

Replacing the Lamp 43

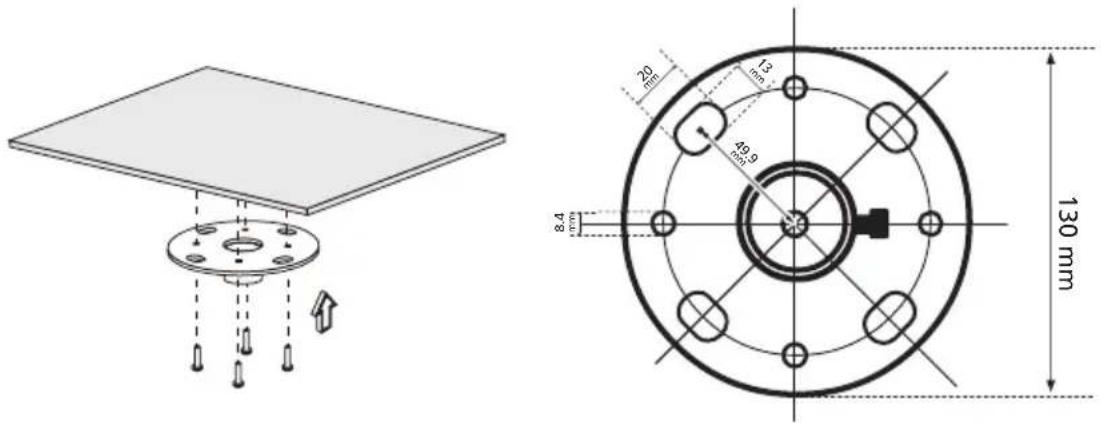

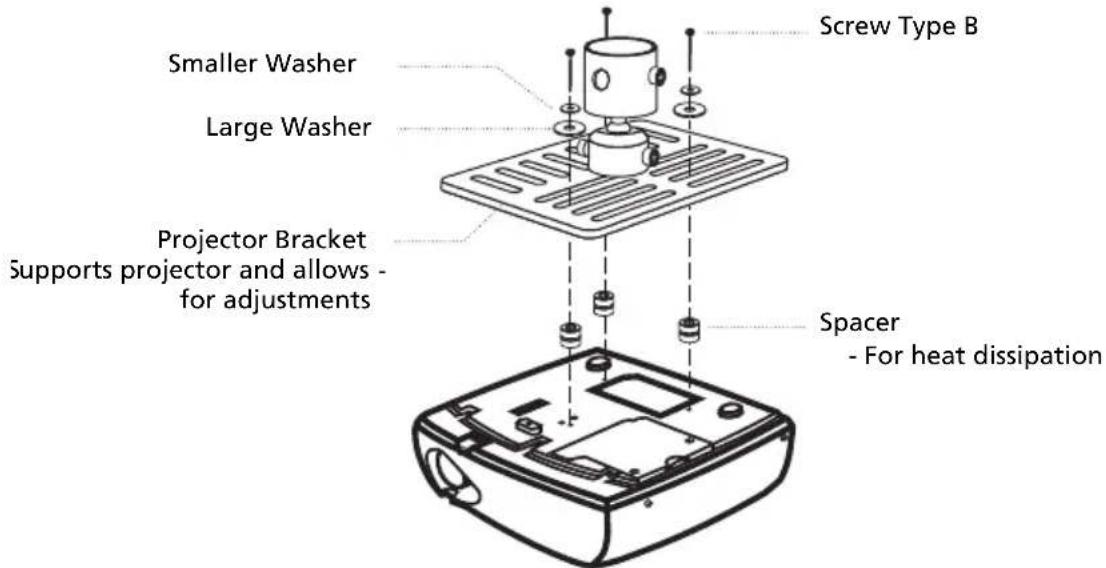

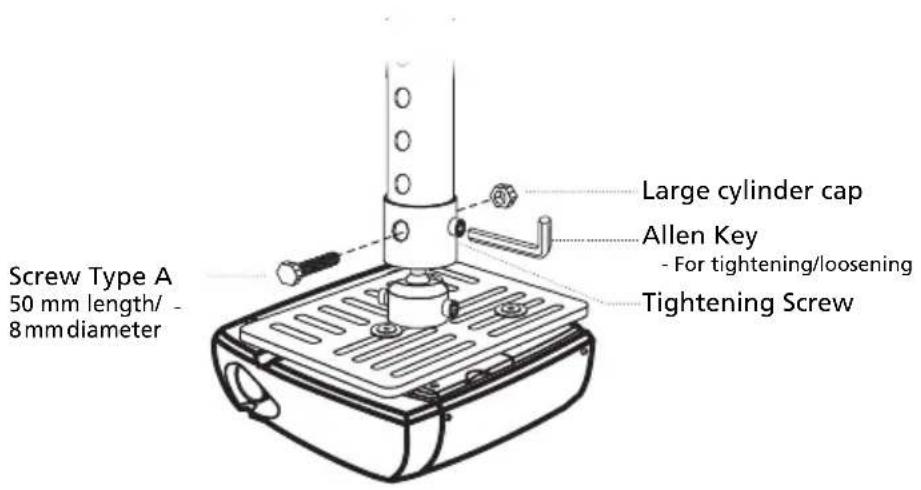

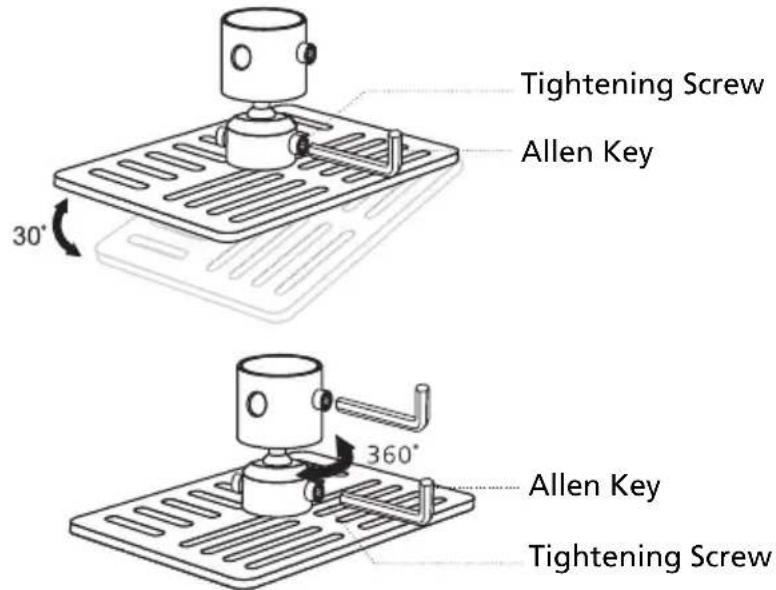

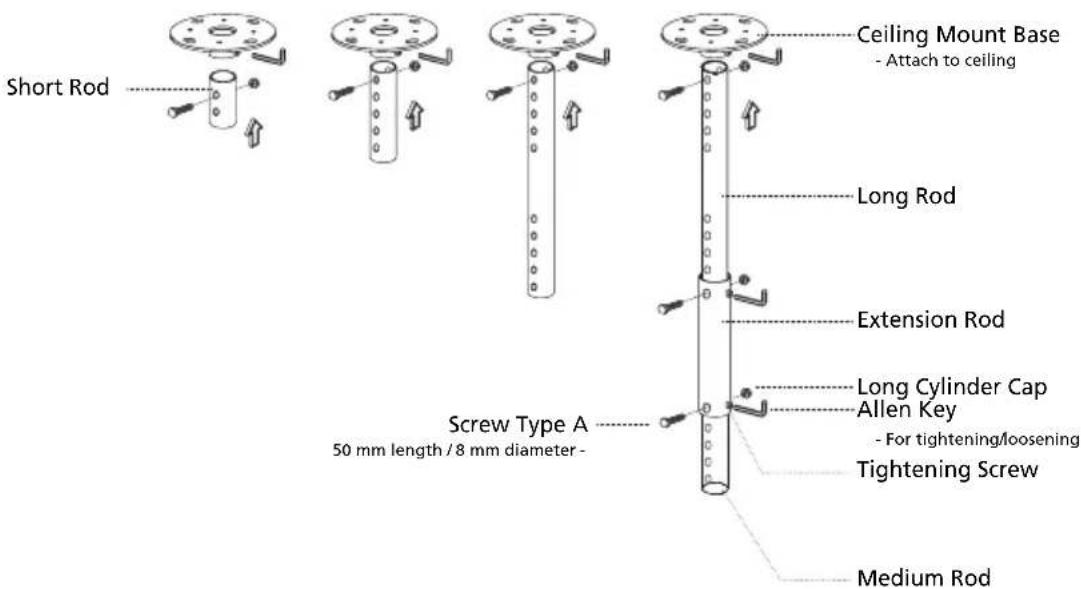

Ceiling Mount Installation 44

Specifications 47

Compatibility modes 51

Regulations and safety notices

Introduction

Product Features

This product is a single-chip DLP ^® projector. Outstanding features include:

•DLP ^® technology
• P1183/M403/PE-S42/X1183A/D603P/EV-S62T/X114/X1183/D603/EV-S62/X113/D600/EV-S60/V10S/AS201 series: Native 800 x 600 SVGA resolution P1283/M413/PE-X42/V12X/AX316/P1283n/M413T/PE-X42G/X1283/X1280/D613/EV-X62 series: Native 1024 x 768 XGA resolution P1383W/X1383WH/M423/PE-W42/V12W/AW316/P1380W/X1380WH/M420/PE-W40/V11W/AW216 series: Native 1280 x 800 WXGA resolution H5380BD/E230/HE-720 series: 1280x720 720p resolution P1510/M450/PE-840 series: 1920x1080 1080p resolution Full/4:3/16:9/L.Box aspect ratio supported
- Enables projecting 3D content via DLP Link Technology
- Acer ColorBoost technology delivers nature's true colors for vivid, life-like images
• High brightness and contrast ratio
- Versatile display modes (Bright, Presentation, Standard, Video, Game, Education, Movie, Dark Cinema, Sports, User) enable optimum performance in any situation
- NTSC / PAL / SECAM compatible and HDTV (720p, 1080i, 1080p) supported
- Lower power consumption and economy (ECO) mode extends lamp life
- Acer EcoProjection Technology delivers Intelligent power management approach and physical efficiency improvement
• Equipped with HDMI™ & MHL connection supporting HDCP
• Advanced digital keystone correction optimizes presentations
- Smart detection delivers quick, intelligent source detection
- Multi-language onscreen display (OSD) menus
- Manual focus projection lens zooms up to 1.1x
- 2x digital zoom and pan function
- Microsoft ^ Windows ^ 2000, XP, Vista ^ , Windows 7, Windows 8, Macintosh ^ OS compliant

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if any thing is missing.

Illustration of a projector with a circular lens (no text or symbols)

Projector Power cord VGA cable

2 x Batteries (option)

acer Acber Projector Security Card

Security card User's guide

Acer Engineer ACR ACR ACR ACR

Quick start guide Carrying case

(option)

Two abstract geometric shapes with shaded surfaces, no text or symbols present

Dust filters (option)

Remote control (option)

Remote control (option)

Projector Overview

Projector Outlook

Front / upper side

4 3 2 1 5 6 7 8

# Description # Description
1 Remote control receiver 5 Zoom lever
2 Power button 6 Focus ring
3 Control panel 7 Projection lens
4 Lamp cover 8 Tilt adjusting wheels

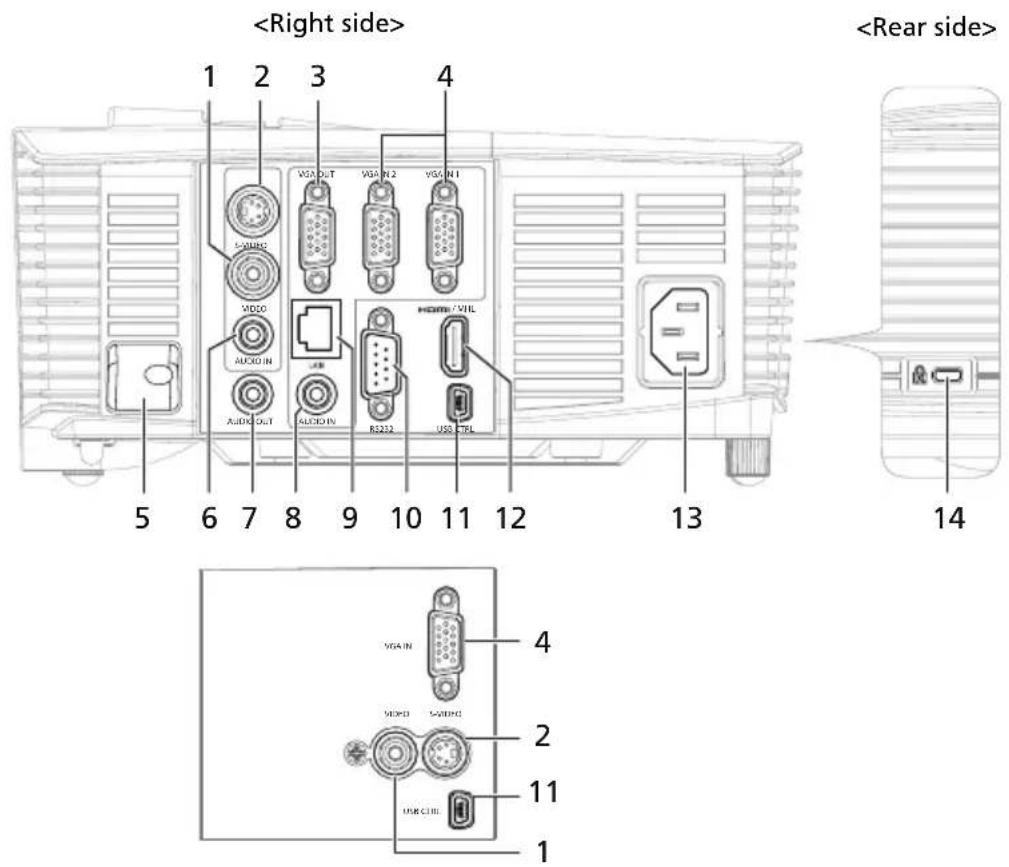

Right / Rear side

1 2 3 4 VGA OUT VGA IN2 VGA IN1 SODC MDDO AUDIO IN AUDIO IN RS232 HDMI / VHL AUDIO OUT 12 13 5 6 7 8 9 10 11 12 14 VGA IN MDDO SODC 2 USB C:BL 11 1

# Description # Description
1 Composite video input connector 8			Audio in connector (VGA IN 1, VGA IN 2)
2 S-Video input connector 9 LAN (RJ45 Port for 10/100M Ethernet)
3	Monitor loop-through output connector (for VGA IN 2 only)	10	RS232 connector
4 PC	analog signal/HDTV/component video input connector (VGA IN/VGA IN 1/VGA IN 2)	11	Mini USB connector
5 Security bar 12 HDMI/MHL connector
6	Audio input connector (S-Video, Composite)	13	Power socket
7 Audio out connector 14			KensingtonTM lock port

Note: Functions vary depending on model definition.

Control Panel

1 2 LAMP TEMP 3

# Icon Function Description
1 POWER Power Indicator LED			See the contents in "Turning the Projector On/Off" section.
			Source Changes the active source, short press the button.
2 LAMP		Lamp Indicator LED
3 TEMP		Temp Indicator LED

Remote Control Layout

1 2 3 4 5 MEDIA M SOURCE 7 SETUP MODE HIDE 8 ZOOM RATIO FREEZE 9 10 11 12 13 MENU 14 15 ENTER RACK 16 17 PgUp 18 19 4 5 6 PgOn VGA COMPONENT VIDEO 1-VIDEO 20 21 7 8 9 0 SDUSB A HDMI/VI LAN/WI USB B 22 23 24 25 26 Maser No. L-2017E Rating: DC XV Sema MAX. CE FC Made in China MG-2017E Made No. L-2017E Rating: DC XV Sema MAX. CE FC Made in China MG-2017E ACER ACER

# Icon Function Description
1 Infrared	ared	transmitter	Sends signals to the projector.
2		POWER	Refer to the "Turning the Projector On/Off" section.
3 3D	Press "3D"	3D" to select 3D	models.
4 SOURCE Changes the active source.
5 MODE Press "MODE" to select the display mode from Bright,Presentation, Standard, Video, Game, Education and User.
6		HIDE	Momentarily turns off the video. Press "HIDE" to hide the image, press again to display the image.
7 MEDIA_SETUP No function.
8 RATIO To choose the desired aspect ratio.
9 ZOOM Zooms the projector display in or out.
10		FREEZE	To pause the screen image.
11 MENU			•Press "MENU" to launch the Onscreen display (OSD) menu, back to the previous step for the OSD menu operation or exit the OSD menu.•Confirm your selection of items.
12 KEYSTONE Adjusts the image to compensate for distortion caused by tilting the projector ( ± 40 degrees).
#	Icon	Function	Description
13 Four		directional select keys	Use up, down, left, right buttons to select items or make adjustments to your selection.
14 Pre/Rewind No function.
15		KeyPad 0~9	Press "0~9" to input a password in the "Security" OSD.
16 PgUp/PgDn For computer mode only. Use this button to select the next or previous page. This function is only available when USB Ctrl connector (mini type B) is connected to a computer via a USB cable.
17 COMPONENT No function.
18 VIDEO To change source to COMPOSITE VIDEO.
19		VGA	Press "VGA" to change source to the VGA connector. This connector supports analog RGB, YPbPr (480p/576p/720p/1080i), YCbCr (480i/576i) and RGBsync.
20 S-VIDEO To change source to S-Video.
21 SD/USB A No function.
22 USB B For USB control and firmware upgrade.
23 HDMI/DVI To change source to HDMI/MHL. (no DVI function)
24 LAN/WiFi No function.
25		Laser pointer A m the remote at the viewing screen.
26 Laser button Aim the remote at the viewing screen, press and hold this button to activate the laser pointer.This function is not supported in Japanese market.

Note: Functions vary depending on model definition.

MHL (Mobile High-Definition Link) Control

1 MEDIA SETUP MODE SOURCE 2 3 MENI MENU 4 5 6 7 8 ACER enter BACK 1 2 3 PgUp 4 5 6 PgDn VGA COMPONENT VIDEO S VIDEO 7 8 9 0 SD/USB A HDMI/DVI LAN/WIFI USB B MHL Control Mode Navigation Source Next Mode Made Exit MHL Control MHL Control Mode Numeric Source Next Mode Mode Exit MHL Control

# Icon Component Description
1		M	Press "MODE" button for one second to activate the MHL Control Mode.To exit, press the "MODE" button again.
2 SOURCE Press the "SOURCE"			button to toggle between Navigation or Numeric mode.
3 MENU Press to launch the root memu.(only for Navigation mode)
4 Direction Keys Use up, down, left, right buttons to select items or make adjustments to your selection.(only for Navigation mode)
5 Select To select the file. (only for Navigation mode)
6 Exit To exit the file. (only for Navigation mode)
7 PgUp/PgDn Use the button to select the next or previous page. (only for Navigation mode)
8 KeyPad 0~9 Number buttons. (only for Numeric mode)

Getting Started

Connecting the Projector

# Description # Description
1 Power cord 8 Audio cable jack/RCA
2 VGA cable 9 RS232 cable
3 Audio cable jack/jack 10 USB cable
4 VGA to component/HDTV adapter 11 HDMI cable
5 3 RCA component cable 12 MHL cable (MicroUSB to HDMI)
6 S-Video cable 13 RJ45 cable
7 Composite video cable

Note: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector.

Note: Functions vary depending on model definition.

Note: USB cable needs powered extender if the length is over 5 m.

Note: VGA OUT loops through for VGA IN 2 only.

Note: Some smartphones require a converter (supplied by smartphone maker) to enable the MHL function.

Turning the Projector On/Off

Turning on the Projector

1 Ensure that the power cord and signal cable are securely connected. The Power indicator LED will flash red.
2 Turn on the projector by pressing "Power" button on the control panel or remote control, and the Power indicator LED will turn blue.
3 Turn on your source (computer, notebook, video player, etc.). The projector will detect your source automatically.

• If the screen displays "Lock" and "Source" icons, it means the projector is locked onto a specific source type and there is no such type of input signal detected.
• If the screen displays "No Signal", please make sure the signal cables are securely connected.
• If you connect to multiple sources at the same time, use the "Source" button on the remote control or direct source key on the remote control to switch between inputs.

Power button

Turning the projector off

1 To turn the projector off, press and hold the power button. This message appears: "Please press the power button again to complete the shutdown process." Press the power button again.
2 The LED power indicator will turn RED and blink rapidly after the projector is turned off, and the fan(s) will continue to operate for about 2 minutes to ensure that the system cools properly. (only supported under "Instant Resume" mode)
3 As long as the power cord remains plugged in, you can press the power button to turn the projector immediately back on anytime during the 2-minute shutdown process. (only supported under "Instant Resume" mode)
4 Once the system has finished cooling, the LED power indicator will stop blinking and turn solid red to indicate standby mode.
5 It is now safe to unplug the power cord.

Warning indicators:

• "Projector Overheated. Lamp will automatically turn off soon."
  This onscreen message indicates that the projector has overheated. The lamp with automatically turn off, the projector will automatically shut down, and the LED temp indicator will turn solid red. Contact your local dealer or service center.
• "Fan failed. Lamp will automatically turn off soon."
  This onscreen message indicates that the fan has failed. The lamp will automatically turn off, the projector will automatically shut down, and the LED temp indicator will blink. Contact your local dealer or service center.

Note: Whenever the projector automatically shuts down and the LED lamp indicator turns solid red, contact your local reseller or service center.

Note: Functions vary depending on model definition.

Adjusting the Projected Image

Adjusting the Height of Projected Image

The projector is equipped with elevator feet for adjusting the height of image.

To raise/lower the image:

Use Tilt adjusting wheel to fine-tune the display angle.

Tilt adjusting wheel

How to optimize image size and distance

Consult the table below to find the optimal image sizes achievable when the projector is positioned at a desired distance from the screen.

•SVGA/XGA series

If the projector is 2.0 m from the screen, good image quality is possible for image sizes between 46" and 50".

Note: Remind as below figure, the space of 88 cm height is required when located at 2.0 m distance.

Max screen size 50" Mi n screen size 40" B Height: 88 cm from base to top of image Height: 80 cm C A 2.0 m Desired Distance

Desired Distance (m)	Screen size		Top	Screen size		Top
	(Min zoom) (Max zoom)
	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)
1 23 47 x 35 40		25 51 x 38 44
2 46 93 x 70 80		50 103 x 77 88
2.5 57	116 x 87 1	00 63 128 x 96	111
3	69	140 x 105	120	76	154 x 115	133
3.5	80	163 x 122	140	88	179 x 135	155
4	92	186 x 140	160	101	205 x 154	177
4.5	103	209 x 157	181	114	231 x 173	199
5	114	233 x 174	201	126	256 x 192	221
6	137	279 x 209	241	151	308 x 231	265
7	160	326 x 244	281	177	359 x 269	310
8	183	372 x 279	321	202	410 x 308	354
9	206	419 x 314	361	227	462 x 346	398
10	229	465 x 349	401	252	513 x 385	442

Zoom Ratio: 1.1x

- WXGA series

If the projector is 2.0 m from the screen, good image quality is possible for image sizes between 55" and 60".

Note: Remind as below figure, the space of 91 cm height is required when located at 2.0 m distance.

Max screen size Min screen size 60" 55" B Height: 91 cm from base to top of image 83 cm C A 2.0 m Desired Distance

Desired Distance (m)	Screen size Top Screen size Top
	(Min zoom) (Max zoom)
	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)
1 27 5	9 x 37 41	30 65 x 40 45
1.5 41	88 x 55 62	45 97 x 60 68
2 55 1	18 x 74 83	60 129 x 81 91
2.5 68	147 x 92 1	03 75 161 x 101	113
3 82 1	76 x 110	24 90 194 x 121	136
3.5 96	206 x 129	145 105 226 x 14	1 159
4	109 23	5 x 147 165	120 258 x 1	161 181
4.5 123	265 x 165	186	135	290 x 181 204
5	137 29	4 x 184 207	150 323 x 2	202 227
6	164 35	3 x 221 248	180 387 x 2	42 272
7	191 41	2 x 257 289	210 452 x 2	282 317
8	218 47	1 x 294 331	240 516 x 3	23 363
9	246 52	9 x 331 372	270 581 x 3	363 408
10	273 58	8 x 368 413	300 645 x 4	403 453

Zoom Ratio: 1.1x

- 720p series

If the projector is 3 m from the screen, good image quality is possible for image sizes between 80" and 87".

Note: Remind as below figure, the space of 130 cm height is required when located at 3 m distance.

Max screen size M in screen size 87" B 80" Height: 130 cm from base to top of image Height: 118 cm C A 3 m Desired Distance

Desired Distance (m)	Screen size		Top	Screen size		Top
	(Min zoom) (Max zoom)
	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)
0.9 24	53 x 30 36	26 58 x 33 39
1 27 5	9 x 33 39	29 65 x 36 43
1.5 40	88 x 50 59	44 97 x 54 65
2 53 1	18 x 66 79	58 129 x 73	87
2.5 66	147 x 83 9	9 73 161 x 91	108
3	80	176 x 99	118	87	194 x 109	130
3.5	93	206 x 116	138	102	226 x 127	152
4	106	235 x 132	158	117	258 x 145	173
4.5	120	265 x 149	178	131	290 x 163	195
5	133	294 x 165	197	146	323 x 181	216
6	159	353 x 199	237	175	387 x 218	260
7	186	412 x 232	276	204	452 x 254	303
9	239	529 x 298	355	262	581 x 327	390
10	266	588 x 331	395	291	645 x 363	433
10.5	279	618 x 347	414	306	677 x 381	455
11.8	314	694 x 390	466	34	761 x 428	511

Zoom Ratio: 1.1x

• 1080p series

If the projector is 3 m from the screen, good image quality is possible for image sizes between 74" and 90".

Note: Remind as below figure, the space of 130 cm height is required when located at 3 m distance.

Max screen size Min screen size 90" 74" B Height: 130 cm from base to top of image 107 cm C A 3 m Desired Distance

Desired Distance (m)	Screen size		Top	Screen size		Top
	(Min zoom) (Max zoom)
	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)
1.5 37	82 x 46 53	45 99 x 56 65
2 49	109 x 61 71	60 132 x 75	86
2.5 62	137 x 77 8	9 75 166 x 93	108
3	74	164 x 92	107	90	199 x 112	130
3.5	86	191 x 108	125	105	232 x 130	151
4	99	219 x 123	143	120	265 x 149	173
4.5	111	246 x 138	160	135	298 x 168	194
5	123	273 x 154	178	150	331 x 186	216
6	148	328 x 184	214	179	397 x 224	259
7	173	383 x 215	250	209	464 x 261	302
8	197	437 x 246	285	239	530 x 298	346
9	222	492 x 277	321	269	596 x 335	389
10	247	546 x 307	357	299	662 x 373	432

Zoom Ratio: 1.2x

How to get a preferred image size by adjusting distance and zoom

The table below shows how to achieve a desired image size by adjusting either the position or the zoom ring.

- SVGA/XGA series

To obtain an image size of 50" set the projector at a distance 2.0 m and 2.2 m from the screen.

A 50" Desired image size D Height: 88 cm from base to top of image 2.0 m B 2.2 m C Desired Distance

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
30 61 x 46	1.2 1.3 53
40 81 x 61	1.6 1.7 70
50 102 x 76	2.0 2.2 88
60 122 x 91	2.4 2.6 105
70 142 x 107	2.8 3.1 123
80 163 x 122	3.2 3.5 140
90 183 x 137	3.6 3.9 158
100 203 x 152	4.0 4.4 175
120 244 x 183	4.8 5.2 210
150 305 x 229	5.9 6.6 263
180 366 x 274	7.1 7.9 315
200 406 x 305	7.9 8.7 351
250 508 x 381	9.9 10.9 438
300 610 x 457	11.9		526

Zoom Ratio: 1.1x

- WXGA series

To obtain an image size of 60" set the projector at a distance 2.0 m and 2.2 m from the screen.

A 60" Desired image size D Height: 91 cm from base to top of image 2.0 m 2.2 m C Desired Distance

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
30 65 x 40	1.0 1.1 45
40 86 x 54	1.3 1.5 61
50 108 x 67	1.7 1.8 76
60 129 x 81	2.0 2.2 91
70 151 x 94	2.3 2.6 106
80 172 x 108	2.7 2.9 121
90 194 x 121	3.0 3.3 136
100 215 x 135	3.3 3.7 151
120 258 x 162	4.0 4.4 182
150 323 x 202	5.0 5.5 227
180 388 x 242	6.0 6.6 272
200 431 x 269	6.7 7.3 303
250 538 x 387	8.3 9.2 378
300 646 x 404	10.0 11.0	454

Zoom Ratio: 1.1x

- 720p series

To obtain an image size of 60" set the projector at a distance 2.06 m and 2.26 m from the screen.

A 60" Desired image size D Height: 89 cm from base to top of image B Desired Distance C 2.26 m 2.06 m

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
26.57 59 x 38	0.91 1.00 39
30 66 x 37	1.03 1.13 45
40 89 x 50	1.37 1.51 59
60 133 x 75	2.06 2.26 89
70 155 x 87	2.40 2.63 104
80 177 x 100	2.75 3.01 119
90 199 x 112	3.09 3.39 134
100 221 x 125	3.43 3.76 149
120 266 x 149	4.12 4.52 178
150 332 x 187	5.15 5.65 223
180 398 x 224	6.18 6.77 267
250 553 x 311	8.58 9.41 371
300 664 x 374	10.29 11.29 446
306 677 x 381	10.50 11.52 455

Zoom Ratio: 1.1x

• 1080p series

To obtain an image size of 50" set the projector at a distance 1.7 m and 2.0 m from the screen.

A 50" Desired image size D Height: 72 cm from base to top of image B 1.7 m Desired Distance C 2.0 m

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
30 66 x 37	1.0 1.2 43
40 89 x 50	1.3 1.6 58
50 111 x 62	1.7 2.0 72
60 133 x 75	2.0 2.4 87
70 155 x 87	2.3 2.8 101
80 177 x 100	2.7 3.2 116
90 199 x 112	3.0 3.6 130
100 221 x 125	3.3 4.1 144
120 266 x 149	4.0 4.9 173
150 332 x 187	5.0 6.1 217
180 398 x 224	6.0 7.3 260
200 443 x 249	6.7 8.1 289
250 553 x 311	8.4 10.1 361
300	664 x 374	10.0	***	433

Zoom Ratio: 1.2x

User Controls

Installation menu

The installation menu provides an onscreen display (OSD) for projector installation and maintenance. Use the OSD only when the message "No signal input" is displayed on the screen.

The menu options include settings and adjustments for screen size and distance, focus, keystone correction and more.

1 Turn on the projector by pressing "Power" button on the control pad.
2 Press the "MENU" button on the control pad to launch the OSD for projector installation and maintenance.

acer Installation Description Mode Preceptor Location Auto/Keyboard Minimal Variables Language Reset English Pass Select Adjust Cut

3 The background pattern acts as a guide to adjusting the calibration and alignment settings, such as screen size and distance, focus and more.
4 The Installation menu includes the following options:

• Projection Mode
• Projection Location
  •Auto Keystone settings
• Manual Keystone settings
• Language settings
• Reset to factory default function

Use the up and down arrow keys to select an option, the left and right arrow keys to adjust selected option settings, and the right arrow key to enter a submenu for feature setting. The new settings will be saved automatically upon exiting the menu.

5 Push the menu button anytime to exit the menu and return to the Acer welcome screen.

Note: Functions vary depending on model definition.

Onscreen Display (OSD) Menus

The projector has multilingual OSD that allow you to make image adjustments and change a variety of settings.

Using the OSD menus

• To open the OSD menu, press "MENU" on the remote control or control panel.
• When the OSD is displayed, use the keys to select any item in the main menu. After selecting the desired main menu item, press to enter submenu for feature setting.
• Use the keys to select the desired item and adjust the settings by using the keys
• Select the next item to be adjusted in the submenu and adjust as described above.
• Press "MENU" on the remote control or control panel, the screen will return to the main menu.
• To exit OSD, press "MENU" on the remote control or control panel again. The OSD menu will close and the projector will automatically save the new settings.

acer Color Main menu Display Mode Video Wall Color Brightness 50 Contrast 50 Saturation 50 Tint 50 Color Temperature Press Dynamic Black Off Gamma 2 Sub menu Select Adjust MENU Main Menu

Note: Some of the following OSD settings may not be available. Please refer to the actual OSD of your projector.

Note: Functions vary depending on model definition.

Color

Display Mode	There are many factory presets optimized for various types of images.·Bright: For brightness optimization.·Presentation: For meeting presentation.·Standard: For common environment.·Video: For playing video in a bright environment.·Game: For game content.·Education: For education environment.·Movie: For brighter and general movie/video/photo playing.·Dark Cinema: For dark movie content.·Sports: For sport picture.·User: Memorize user's settings.
Wall color	Use this function to choose a proper color according to the wall. There are several choices, including white, light yellow, light blue, pink, dark green. It will compensate the color deviation due to the wall color to show the correct image tone.
Brightness	Adjust the brightness of the image.·Press to darken the image.·Press to lighten the image.
Contrast	"Contrast" controls the difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.·Press to decrease the contrast.·Press to increase the contrast.
Saturation	Adjusts a video image from black and white to fully saturated color.·Press to decrease the amount of color in the image.·Press to increase the amount of color in the image.
Tint	Adjusts the color balance of red and green.·Press to increase the amount of green in the image.·Press to increase the amount of red in the image.
Color Temperature	ModeUse this function to choose CT1, CT2 (Native), CT3, User mode.
	R GainAdjusts the red gain for color temperature optimization.
	G GainAdjusts the green gain for color temperature optimization.
	B GainAdjusts the blue gain for color temperature optimization.
	R BiasAdjusts the red bias for color temperature optimization.
	G BiasAdjusts the green bias for color temperature optimization.
	B BiasAdjusts the blue bias for color temperature optimization.
Dynamic Black	Choose "On" to automatically optimize the display of dark movie scenes enabling them to be shown in incredible detail.
Gamma	Effects the representation of dark scenery. With greater gamma value, dark scenery looks brighter.
Advanced	Ind. Color ManagementAdjusts the red, green, blue, cyan, yellow and magenta colors.
	Ind. HueAdjusts the color balance of red and green.
	Ind. SaturationAdjusts the selected color to be less or more saturated color.
	Ind. GainAdjusts the selected color's contrast.
	Brilliant ColorProduces an expanded on-screen color spectrum that delivers enhanced color saturation for bright, true-to-life images.
	White PeakingIncreases the brightness of whites that are near 100%. (video sources only)
	Film ModeSets the image optimized to 24-frame True Film mode.
	Noise ReductionAdjusts signal noise reduction."0" means the noise reduction is off,">0" increase noise reduction.
	Black ExtensionThis ensures optimum black level for each analog source.

Note: "Saturation" and "Tint" functions are not supported under computer or HDMI mode.

Note: Functions vary depending on model definition.


Projection	Front-Desktop: The factory default setting.Rea-Desktop: When you select this function, the projector reverses the image so you can project from behind a translucent screen.Rea-Ceiling: When you select this function, the projector reverses and inverts the image at same time. You can project from behind a translucent screen with ceiling mounted projection.Front-Ceiling: When you select this function, the projector inverts the image for ceiling-mounted projection.
Projection Mode	Front:The factory default setting.Rea-Reverses the image so you can project from behind a translucent screen.
Projection Location	Automatically adjusts projection location of image.DesCecillTurns the image upside down for ceiling-mounted projection.
Aspect Ratio Use th	is function to choose your desired aspect ratio.Auto: Keep the image with original width-higth ratio and maxi mize the image to fit native horizontal or vertical pixels.Full: Resize image to fit full screen by width (1280 pixels) and height (800 pixels).4:3: The image will be scaled to fit the screen and displayed using a 4:3 ratio.16:9: The image will be scaled to fit the width of the screen and the height adjusted to display the image using a 16:9 ratio.L.Box: Keep original signal aspect ratio and zoom in by 1.333 times.
Auto Keystone Automatically adjusts vertical image.
Manual Keystone Adjust	Adjust image distortion caused by tilting projection. ( ± 40 degrees)The Manual Keystone function is unavailable under Auto Keystone setting to "On".
Sharpness Adjusts	the sharpness of the image.Press to decrease the sharpness.Press to increase the sharpness.
H. Keystone	Press the button to adjust image distortion horizontally and makes a squarer image.
V. Keystone	Press the 📄 button to adjust image distortion vertically and makes a squarer image.
H. Position (Horizontal position)	• Press to move the image left.• Press to move the image right.
V. Position (Vertical position)	• Press to move the image down.• Press to move the image up.
Frequency "Frequency" changes the projector's refresh rate to match the frequency of your computer's graphics card. If you can see a vertical flickering bar in the projected image, use this function to make the necessary adjustments.
Tracking Synchronizes the signal timing of the projector with the graphics card. If you experience an unstable or flickering image, use this function to correct it.
HDMI Color Range	Adjust the color range of the HDMI image data to correct color display error.• Auto: Automatically adjust by information from player.Limited Range: Prosess the input image as limited color range data.Full Range: Prosess the input image as full color range data.
HDMI Scan Info Adjust the overscan ratio of the HDMI image on screen.• Auto: Automatically adjust by information from player.Underscan: Always no overscan on HDMI image.Overscan: Always keep overscan on HDMI image.

Note: "H. Position", "V. Position", "Frequency" and "Tracking" functions are not supported under HDMI or Video mode.

Note: "HDMI Color Range" and "HDMI Scan Info" functions are only supported under HDMI mode.

Note: Functions vary depending on model definition.

Setting

Startup Screen Use this function to select your desired startup screen. If you change the setting, the changes will take effect when you exit the OSD menu.Acer: The default startup screen of your Acer projector.User: Use memorize picture from "Screen Capture" function.
Screen Capture	Use this function to customize the startup screen. To capture the image that you want to use as the startup screen, follow the instructions below.Notice:Before proceeding with the following steps, make sure that the "Keystone" is set to the default value 0 and the aspect ratio is set to 4:3. For details, refer to the "Image" section.Change the "Startup Screen" from the default setting "Acer" to "User".Press "Screen Capture" to customize the startup screen.A dialog box appears to confirm the action. Choose "Yes" to use the current image as your customized startup screen. The capture range is the red rectangular area. Choose "No" to cancel the screen capture and exit the onscreen display (OSD).A message appears, stating that the screen capture is in progress.When the screen capture is finished, the message disappears and the original display is shown.The customized startup screen, as shown below, takes effect when there is a new input signal or when you restart the projector.
Source Lock When source lock is turned "Off", the projector will search for other signals if the current input signal is lost. When source lock is turned "On", it will "lock" the current source channel unless you press "Source" button on the remote control for the next channel.
Closed Caption	Selects a preferred closed captioning mode from CC1, CC2, CC3, CC4, (CC1 displays captions in the primary language in your area). Select "Off" to turn off the captioning feature. This function is only available when a composite video or S-Video input signal is selected and its system format is NTSC.Set your screen aspect ratio to 4:3. This function is not available when the aspect ratio is "16:9" or "Auto".
VGA OUT (Standby) Default is "Off". Choose "On" to enable VGA OUT connection.
Reset	•Press the button and choose "Yes" to return the parameters on all menus to the factory default settings.
Security Security	This projector provides a useful security function for the administrator to manage usage of the projector.Presstochange the "Security" setting. If the security function is enabled, your must enter the "Administrator Password" first before changing the security settings.Select "On" to enable the security function. The user has to enter a password to operate the projector. Please refer to the "User Password" section for details.If "Off" is selected, then the user can turn on the projector without password.
	Timeout(Min.)Once "Security" is activated to "On", the administrator can set timeout function.Press ortoselectthe timeout interval.The range is from 10 minute to 990 minutes.When the time is up, the projector will prompt the user to enter the password again.The factory default setting of "Timeout(Min.)" is "Off".Once the security function is enabled, the projector will request user to enter password when switch on the projector. Both "User Password" and "Administrator Password" can be accepted for this dialogue.
	User PasswordPress to setup or change the "User Password".Press number keys to set your password on the remote control and press "MENU" to confirm.Press to delete character.Enter the password when you see "Confirm Password" displayed.The password should be between 4 and 8 characters long.If you select "Request password only when plugging the power cord in.", the projector will prompt the user to enter the password every time the power cord is plugged.If you select "Always request password while projector turns on.", the user has to enter the password every time when the projector is turned on.
	Administrator PasswordThe "Administrator Password" can be used in both the "Enter Administrator Password" and "Enter Password" dialog boxes.Press to change the "Administrator Password".The factory default of "Administrator Password" is "1234".If you forgot your administrator password, do the following to retrieve the administrator password:An unique 6-digit "Universal Password" which is printed on the Security Card (please check accessory in the box). This unique password is the number which will be accepted by projector anytime no matter what the Administrator Password is.If losing this security card and number, please contact with an Acer service center.
	Lock to user startup screenDefault Lock User Startup Screen is "Off". If lock user startup screen is "On", users cannot change startup screen anymore and avoid other users change that arbitrarily. Choose "Off" to unlock startup screen.
LAN LAN	Default is "Off". Choose "On" to enable LAN connection.
	If users want to do LAN control under standby mode, change VGA OUT (Standby) from Off to On.
	LAN IP/MaskIdentify IP and Mask address.
	LAN ResetReset LAN function.

Note: Functions vary depending on model definition.

Management

ECO Mode Choose "On" to dim the projector lamp which will lower power consumption, extend the lamp life and reduce noise. Choose "Off" to return normal mode.
High Altitude Choose	"On" to turn on High Altitude mode. Operate the fans at full speed continuously to allow for proper high altitude cooling of the projector.
Turn Off Mode	•Instant Off: Shuts down the projector without fan cooling.•Instant Resume: Resumes the system when the Power button is pressed again within 2 minutes.•Standard: Properly shuts down the projector after fan cooling.
Auto Shutdown The	projector will automatically shutdown when there is no signal input after the allocated time. (default is 120 minutes)
Lamp Hour Elapse Dis	plays the lamp's elapsed operating time (in hours).
Lamp Reminding Acti	ivate this function to display a reminder to change the lamp 30 hours before its expected end-of-life.
Lamp Hour Reset	Press the Button and choose "Yes" to turn the lamp hour counter to 0 hours.

Note: Functions vary depending on model definition.

Audio

Volume	•Press to decrease the volume.•Press to increase the volume.
Mute	•Choose "On" to mute the volume.•Choose "Off" to restore the volume.
Power On/Off Volume	Select this function to adjust the notification volume when turning the projector on/off.

Note: Functions vary depending on model definition.

3D

3D Choose "On" to enable DLP 3D function.• On: Choose this item while using DLP 3D glasses, 120Hz 3D capable graphics cards and HQFS format file or DVD with corresponding SW player.• Off: Turn off 3D mode.

3D Format If the 3D content is not displayed correctly, you can select a 3D format that suits the 3D content you are viewing and obtain the best result.

3D L/R Invert If you see a discrete or overlapping image while wearing DLP 3D glasses, you may need to execute "Invert" to get best match of left/right image sequence to get the correct image (for DLP 3D).

3D Warning Message Choose "On" to display the 3D warning message.Note: 3D display is now enabled.1. Please make sure you have the correct 3D signals and glasses.2. Remember to turn 3D off if you don't want to see 3D images.3. If the 3D display isn't correct, please try to enable 3D Sync Invert.4. Display mode options will be disabled while in 3D mode.

Note: It needs correct settings on graphic card 3D application program for correct 3D display.

Note: The SW players, such as Stereoscopic Player and DDD TriDef Media Player can support 3D format files. You can download these three players on web page below,

- Stereoscopic Player (Trial): http://www.3dtv.at/Downloads/Index_en.aspx

- DDD TriDef Media Player (Trial): http://www.tridef.com/download/TriDef-3-D-Experience-4.0.2.html

Note: "3D L/R Invert" is only available when 3D is enabled.

Note: There has reminder screen if 3D still enable when power on projector. Please adjust setting depended on your purpose.

Language

Language

Choose the multilingual OSD menu. Use the c [2y8x] to select your preferred menu language.•Press to confirm the selection.

Acer LAN webpage management

How to login in

Open browser and enter the Server IP address by 192.168.100.10 to find below homepage of acer LAN webpage management. A password is needed to login in before using.

Select a user. Administrator is with high authority that can process more operations such as network setting and alert setting. Default password of administrator is "admin". And User is with normal authority with default password by "user". Click Login button to enter into homepage with correct password.

acer Acer Projector Web Server Welcome to Acer Projector Web Server User Name: Administrator Password: ***** Login

Home

Home page shows connection status and you can find three main functions listed, Control Panel, Networking Setting and Alert Setting.

Acer Projector Web Server Home Cancel Panel Network Setting Alert Setting Logout Welcome to Acer Projector Web Server IP:XXXXXXXXX Projector Status Model Name: XXXX System Status: Power ON Display Source: None Lamp Hours: 0000 Image Mode: None Error Status: Normal FW Version: XXXX

Note: Control Panel and Network Setting are only for Administrator account.

Control Panel

Enduser can control and adjust projector setting value via this page.

Acer Projector Web Server Home Control Panel Network Setting Alert Setting Logout Power ON Power OFF Sync Factory Reset Next Source Screen Capture Input Search ON AV Muts OFF Shift OFF Lamp Mode Normal High Attitudes OFF Menu Lock OFF Direct Power On OFF Standby RGB Output OFF Walk On Lan OFF 3D Display OFF 3D Sync Invert OFF Source None Image Brightness 50 Contrast 0 Sharpness 1 Fine Sync 15 Brilliant Color 4 Color Temp.High Image Mode None Color Space Factor Closed Caption OFF Audio Volume 4 Management Aspect Ratio Higher Mounting Front Dzoom 0 V-Keystone 0 V-Image Shift 0 Projector ID 0 Auto Power Off 120 min

Network Setting

Enduser can set IP address, group name and password as wish. After change network configurations or password, projector will reboot automatically after press "Apply".

Acer Projector Web Server A01 Home | Control Panel | Network Setting | Alert Setting | Logout Projector Setting Group Name Acer Name xxxx Apply Network Setting ● DHCP ● Manual IP Address 30.00.xx.xx Subset Mask 30.00.xx.xx Gateway 30.00.xx.xx DNS Server 30.00.xx.xx Apply Password Setting Administrator ○ Enable ● Disable New password Confirm Password User ○ Enable ● Disable New Password Confirm Password Apply

Note: Group Name and projector Name must be less then 32 characters.

Alert Setting

Enduser can send mail with error message right away if projector has problem.

Acer Projector Web Server Home Control Panel Network Setting Alert Setting Logout Email Setting SMTP Setting Alert Condition To [e-mail] Server maltserver.com ■ Fan Look Cc [e-mail] User Name ■ Over Temperature Subject Project alert Password ■ Lamp Hours Running Out From [e-mail] Submit Email Alert Test

Logout

After tap Logout, you will return to login page within 5 seconds.

acer Acer Projector Web Server Home | Control Panel | Network Setting | Alert Setting | Logout Logout!

Note: Functions vary depending on model definition.

Appendices

Troubleshooting

If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center.

Image Problems and Solutions

# Problem Solution
1 No image appears onscreen	Connected as described in the "Getting Started" section.Ensure none of the connector pins are bent or broken.Check if the projector lamp has been securely installed. Please refer to the "Replacing the Lamp" section.Make sure you have removed the lens cap and the projector is switched on.
2 Partial, scrolling or incorrectly displayed image (for PC (Windows 2000/XP/Vista/ Windows 7/ Windows 8))	Press "RESYNC" on the remote control or control panel.For an incorrectly displayed image:Open "My Computer," open the "Control Panel," and then double-click the "Display" icon.Select the "Settings" tab.Verify that your display resolution setting is lower than or equal to WUXGA-RB (1920 x 1200).Click the "Advanced Properties" button. If the problem still appears, change the monitor display you are using and follow the steps below:Verify that the resolution setting is lower than or equal to WUXGA-RB (1920 x 1200).Click the "Change" button under the "Monitor" tab.Click "Show all devices". Next, select "Standard monitor types" under the SP box, and choose the resolution mode you need under the "Models" box.Verify that the resolution setting of the monitor display is lower than or equal to WUXGA-RB (1920 x 1200).
3 Partial, scrolling or incorrectly displayed image (For notebooks)	•Press "RESYNC" on the remote control or control panel.•For an incorrectly displayed image:•Follow the steps for item 2 (above) to adjust the resolution of your computer.•Press the toggle output settings. Example: [Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8], Gateway [Fn]+[F4], IBM [Fn]+[F7], HP [Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5]•If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.
4 The screen of the notebook computer is not displaying your presentation	•If you are using a Microsoft® Windows® based notebook: Some notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information.•If you are using an Apple® Mac® OS based notebook: In System Preferences, open Display and select Video Mirroring "On".
5 Image is unstable or flickering	•Adjust the "Tracking" to correct it. Refer to the "Image" section for more information.•Change the display color depth settings on your computer.
6 Image has vertical flickering bar	•Use "Frequency" to make an adjustment. Refer to the "Image" section for more information.•Check and reconfigure the display mode of your graphics card to make it compatible with the projector.
7 Image is out of focus	•Make sure the lens cap is removed.•Adjusts the focus ring on the projector lens.•Make sure the projection screen is within the required distance of 3.9 to 39.0 feet (1.2 to 11.9 meters) (SVGA/XGA series) / 3.3 to 32.9 feet (1.0 to 10.0 meters) (WXGA series) / 3.3 to 33.8 feet (1.0 to 10.3 meters) (720p series) / 4.9 to 32.9 feet (1.5 to 10.0 meters) (1080p series) from the projector. Refer to the "How to Get a Preferred Image Size by Adjusting Distance and Zoom" section for more information.
8 Image is stretched when displaying a "widescreen" DVD title	When you play a DVD encoded in anamorphic or 16:9 aspect ratio you may need to adjust the following settings:If you play a 4:3 format DVD title, please change the format to 4:3 in the projector OSD.If the image is still stretched, you will also need to adjust the aspect ratio. Set up the display format to 16:9 (wide) aspect ratio on your DVD player.If you play an Letterbox (LBX) format DVD title, please change the format to Letterbox (LBX) in the projector OSD.
9 Image is too small or too large	Adjust the zoom lever on the top of the projector.Move the projector closer to or further from the screen.Press "MENU" on the remote control. Go to "Image -> Aspect Ratio" and try different settings or press"Aspect Ratio" on the remote control to adjust directly.
10 Image has slanted sides	If possible, reposition the projector so that it is centered on the screen.Press the "Keystone / " button on the remote control until the sides are vertical.Press "MENU" on the remote control. Go to "Image -> Auto Keystone" and choose "Off" on the OSD, if "Keystone" button is not available on the remote control.
11 Image is reversed	Select "Image --> Projection" on the OSD and adjust the projection direction.

OSD Messages

# Condition Message Reminder

1 Message Fan Fail - the system fan is not working.

Problems with the Projector

# Condition Solution
1 The projector stops responding to all controls	If possible, turn off the projector, then unplug the power cord and wait at least 30 seconds before reconnecting power.
2 Lamp burns out or makes a popping sound	When the lamp reaches the end of its useful life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp" section.

LED & Alarm Definition Listing

LED Messages

Message	Lamp_LED Temp_LED Power LED
	Red Red Red Blue
Input power plug Flash ON to OFF 100ms		Flash ON to OFF 100ms	Flash ON to OFF 100ms	--
Standby -- -- ON --
Power button ON -- -- -- ON
Lamp retry -- -- -- Quick				Flashing
Power off (Cooling state) -- Quick			Flashing	--
Power button OFF (cooling completed; standby mode)	-- -- ON --
Error (thermal failure)	--	ON -- ON
Error (fan lock)	--	Quick Flashing	-- ON
Error (lamp breakdown)	ON	-- -- ON
Error (color wheel fail)	Quick Flashing	-- -- ON

Cleaning and replacing the dust filters

Cleaning the dust filters

Clean the dust filters after every 1000 hours of use. If they are note cleaned periodically, they can become clogged with dust, preventing proper ventilation. This can cause overheating and damage the projector.

Diagram showing a projector with labeled parts and a hand inserting a card into it, illustrating the process of adding or removing components.

Follow these steps:

1 Turn the projector off. Wait for the Power LED to stop flashing then unplug the power cord.

2 Allow the projector at least 30 mins to cool down.

3 Pull out the dust filter. (Illustration #1)

4 To clean the dust filters, use a small vacuum cleaner designed for computers and other office equipment. (Illustration #2)

5 If the dirt is difficult to remove or the filter is broken, please contact your local dealer or service center to obtain a new filter.

Replacing the Lamp

Use a screwdriver to remove the screw(s) from the cover, and then pull out the lamp.

The projector will detect the lamp life. You will be shown a warning message "Lamp is approaching the end of its useful life in full power operation.

Replacement suggested!" When you see this message, change the lamp as soon as possible. Make sure the projector has been cooling down for at least 30 minutes before changing the lamp.

Warning: The lamp compartment is hot! Allow it to cool down before changing the lamp.

Diagram illustrating the step-by-step installation of a projector with labeled parts and instructions in Chinese.

To Change the Lamp

Turn off the projector by pressing the Power button.

Allow the projector at least 30 minutes to cool down.

Disconnect the power cord.

1 Use a screwdriver to remove the screw from the cover. (Illustration #1) Push up and remove the cover. (Illustration #2)

2 Remove the screw that secure the lamp module. (Illustration #3)

Pull out the lamp plug. (Illustration #4) Lift the handle so that it stands up. (Illustration #5)

3 Lift the handle so that it stands up. Pull out the lamp module by force. (Illustration #6)

To replace the lamp module, use a new lamp and reverse the above steps.

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

Ceiling Mount Installation

If you wish to install the projector using a ceiling mount, please refer to the steps below:

1 Drill four holes into a solid, structurally sound part of the ceiling, and secure the mount base.

Technical diagram showing a solar panel installation and its circular component with dimensional annotations in millimeters.

Note: Screws are not included. Please obtain the appropriate screws for your type of ceiling.

2 Secure the ceiling rod using the appropriate type of four-cylinder screws.

Short Rod Ceiling Mount Base - Attach to ceiling Long Rod Extension Rod Long Cylinder Cap Allen Key - For tightening/loosening Tightening Screw Screw Type A 50 mm length / 8 mm diameter - Medium Rod

3 Use the appropriate number of screws for the projector size to attach the projector to the ceiling mount bracket.

Smaller Washer Large Washer Projector Bracket Supports projector and allows - for adjustments Screw Type B Spacer - For heat dissipation

Note: It is recommended that you keep a reasonable space between the bracket and the projector to allow for proper heat distribution. Use two washers for extra support, if deemed necessary.

4 Attach the ceiling bracket to the ceiling rod.

Screw Type A 50 mm length/ 8mm diameter Large cylinder cap Allen Key - For tightening/loosening Tightening Screw

5 Adjust the angle and positioning as necessary.

Tightening Screw Allen Key 30° 360° Allen Key Tightening Screw

Note: The appropriate type of screw and washer for each model is listed in the table below. 4 mm diameter screws are enclosed in the screw pack.

Screw Type B Washer Type
Diameter (mm) Length (mm) Large Small
4	2	5	V

SCREW SPEC. M4 x 25 mm 82.30 mm 63 81 mm 85.00 mm 55.00 mm

Specifications

The specifications listed below are subject to change without notice. For final specs, please refer to Acer's published marketing specifications.

Projection system	DLP®
Resolution	•P1183/M403/PE-S42/X1183A/D603P/EV-S62T/X114/X1183/D603/EV-S62/X113/D600/EV-S60/V10S/AS201 series: Native 800 x 600 SVGA resolution•P1283/M413/PE-X42/V12X/AX316/P1283n/M413T/PE-X42G/X1283/X1280/D613/EV-X62 series: Native 1024 x 768 XGA resolution•P1383W/X1383WH/M423/PE-W42/V12W/AW316/P1380W/X1380WH/M420/PE-W40/V11W/AW216 series: Native 1280 x 800 WXGA resolution•H5380BD/E230/HE-720 series: 1280x720 720p resolution•P1510/M450/PE-840 series: 1920x1080 1080p resolution•Maximum: UXGA (1600 x 1200), WSXGA+(1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)
Computer compatibility IBM PC and compatibles, Apple Macintosh, iMac and VESA standards: SXGA, XGA, VGA, SVGA, SXGA+, WXGA, WXGA+, WSXGA +
Video compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)
Aspect ratio Full, 4:3, 16:9, L.Box
Displayable colors 16.7 million colors
Projection lens	•P1183/M403 PE-S42/X1183A/D603P/EV-S62T/X114/X1183/D603/EV-S62/X113/D600/EV-S60/V10S/AS201/P1283/M413/PE-X42/V12X/AX316/P1283n/M413T/PE-X42G/X1283/X1280/D613/EV-X62 series:F = 2.41 ~ 2.55, f = 2.79~23.99 mm, 1.1X manual zoom and manual focus•P1383W/X1383WH/M423/PE-W42/V12W/AW316/P1380W/X1380WH/M420/PE-W40/V11W/AW216 series:F = 2.5 ~ 2.67, f = 21.80 ~ 23.98 mm, 1.1X manual zoom and manual focus•H5380BD/E230/HE-720 series:F = 2.5 ~ 2.67, f = 21.86 mm ~ 24.00 mm, 1.1X manual zoom and manual focus•P1510/M450/PE-840 series:F = 2.55 ~ 2.87, f = 22.41 mm ~ 26.82 mm, 1.2X manual zoom and manual focus
Projection screen size (diagonal)	•P1183/M403 PE-S42/X1183A/D603P/EV-S62T/X114/X1183/D603/EV-S62/X113/D600/EV-S60/V10S/AS201/P1283/M413/PE-X42/V12X/AX316/P1283n/M413T/PE-X42G/X1283/X1280/D613/EV-X62 series: 27" (70 cm) ~ 300" (762 cm)
	•P1383W/X1383WH/M423/PE-W42/V12W/AW316/P1380W/X1380WH/M420/PE-W40/V11W/AW216 series: 27" (69 cm) ~ 300" (762 cm)
	•H5380BD/E230/HE-720 series: 27" (67 cm) ~ 300" (762 cm)
	•P1510/M450/PE-840 series: 37" (94 cm) ~ 300" (762 cm)
Projection distance	•P1183/M403 PE-S42/X1183A/D603P/EV-S62T/X114/X1183/D603/EV-S62/X113/D600/EV-S60/V10S/AS201/P1283/M413/PE-X42/V12X/AX316/P1282n/M413T/PE-X42G/X1283/X1280/D613/EV-X62 series: 3.9' (1.2 m) ~ 39.0' (11.9 m)
	•P1383W/X1383WH/M423/PE-W42/V12W/AW316/P1380W/X1380WH/M420/PE-W40/V11W/AW216 series: 3.3' (1.0 m) ~ 32.9' (10.0 m)
	•H5380BD/E230/HE-720 series: 3.3' (1.0 m) ~ 33.8' (10.3 m)
	•P1510/M450/PE-840 series: 4.9' (1.5 m) ~ 32.9' (10.0 m)
Throw ratio	•P1183/M403 PE-S42/X1183A/D603P/EV-S62T/X114/X1183/D603/EV-S62/X113/D600/EV-S60/V10S/AS201/P1283/M413/PE-X42/V12X/AX316/P1281n/M413T/PE-X42G/X1283/X1280/D613/EV-X62 series: 50"@2 m (1.95 ~ 2.15:1)
	•P1383W/X1383WH/M423/PE-W42/V12W/AW316/P1380W/X1380WH/M420/PE-W40/V11W/AW216 series: series: 60"@2 m (1.55 ~ 1.70:1)
	•H5380BD/E230/HE-720 series: 58"@2m (1.55 ~ 1.70:1)
	•P1510/M450/PE-840 series: 60"@2m (1.51 ~ 1.83:1)
Horizontal scan rate 30k - 100 kHz
Vertical refresh scan rate 50-120 Hz
Lamp type 190W user-replaceable lamp
Keystone correction	±40 degrees
Audio Internal speaker with 2 W output
Weight 2.5 Kg (5.51 lbs)
Dimensions (W x D x H) 314 mm X 223.4 mm X 93.4 mm (12.4" x 8.8" x 3.7")
Digital Zoom 2X
Power supply AC input 100 - 240 V auto-switching power supply

Power consumption

•P1183/M403/PE-S42/X1183A/D603P/EV-S62T/X114/X1183/D603/EV-S62/X113/D600/EV-S60/V10S/AS201/P1283/M413/PE-X42/V12X/AX316/P1283n/M413T/PE-X42G/X1283/X1280/D613/EV-X62/P1383W/X1383WH/M423/PE-W42/V12W/AW316/P1380W/X1380WH/M420/PE-W40/V11W/AW216/H5380BD/E230/HE-720:
Normal mode: 235W ± 10% @ 110VAC
ECO mode: 197W ± 10% @ 110VAC
Standby mode < 0.5W
•P1510/M450/PE-840 series:
Normal mode: 320W ± 10% @ 110VAC
ECO mode: 270W ± 10% @ 110VAC
Standby mode < 0.5W

Operating temperature 0°C to 40°C / 32°F to 104°F

Standard package contents

• AC power cord x1
  •VGA cable x1
• Remote control x1
• Battery x2 (for remote control) (option)
  -User's guide (CD-ROM) x1
• Quick start guide x1
  •Security card x1
• Carrying case x1 (option)

I/O connectors	X113/D600/EV-S60/V10S/AS201/X114/X1183/D603/EV-S62	X1183A/X1280/D603P/EV-S62T/X1283/D613/EV-X62	P1183/M403/PE-S42/P1283/M413/PE-X42/V12X/AX316/P1383W/X1383WH/M423/PE-W42/V12W/AW316/P1380W/X1380WH/M420/PE-W40/V11W/AW216/H5380BD/E230/HE-720	P1283n/M413T/PE-X42G	P1510/M450/PE-840
Power socket V V V V	V
VGA IN V X X X X
VGA IN 1 X V V V V
VGA IN 2 X V V V V
VGA output X V V V V
3.5 mm audio jack input 1	X	V	V	V	V
S-Video V V V V V
Composite video	V V V V V
3.5 mm audio jack input 2	X	V	V	V	V
3.5 mm audio jack output	X	V	V	V	V
RJ45 LAN input X X X	V X
RS232 X V V V V
HDMI /MHL X X V V V
HDMI X X X X V
Mini USB x1 (for firmware upgrade)	V	V	V	V	V

Note: Design and specifications are subject to change without notice.

Compatibility modes

A. VGA Analog

1 VGA Analog - PC Signal

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
VGA 640x480 60 31.5
	640x480 72 37.9
	640x480 75 37.5
	640x480 85 43.3
	640x480 120 61.9
SVGA 800x600 56 35.1
	800x600 60 37.9
	800x600 72 48.1
	800x600 75 46.9
	800x600 85 53.7
	800x600 120 77.4
XGA 1024x768 60 48.4
	1024x768 70 56.5
	1024x768 75 60.0
	1024x768 85 68.7
	1024x768 120 99.0
SXGA 1152x864 70 63.8
	1152x864 75 67.5
	1152x864 85 77.1
	1280X1024 60 64.0
	1280X1024 72 77.0
	1280X1024 75 80.0
	1280X1024 85 91.1
QuadVGA 1280x960 60 60.0
	1280x960 75 75.2
SXGA+ 1400x1050 60 65.3
UXGA	1600x1200 60 75.0
PowerBook G4	640x480 60 31.4
PowerBook G4	640x480	66.6(67)	34.9
PowerBook G4	800x600 60 37.9
PowerBook G4	1024x768 60 48.4
PowerBook G4	1152x870 75 68.7
PowerBook G4	1280x960 75 75.0
i Mac DV (G3)	1024x768 75 60.0

2 VGA Analog - Extended Wide timing

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
WXGA 1280x768 60 47.8
	1280x768 75	60.3
	1280x768 85	68.6
	1280x720 60	44.8
	1280x720 120	92.9
	1280x800 60	49.6
	*1280x800-RB 1	19.909 101.6
	1440x900 60	59.9
WSXGA+ 1680x1050 60 65.3
	1920x1080(1080P)	60 67.5
	1366x768 60	47.7
WUXGA 1920x1200-RB 59.94		74.04

3 VGA Analog -Component Signal

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
480i	720x480(1440x480)	59.94 (29.97)	15.7
576i	720x576(1440x576)	50(25)	15.6
480p	720x480	59.94	31.5
576p	720x576	50	31.6
720p	1280x720	60	45.0
720p	1280x720	50	37.5
1080i	1920x1080	60(30)	33.8
1080i	1920x1080	50(25)	28.1
1080p	1920x1080	23.97/24	27.0
1080p	1920x1080	60	67.5
1080p	1920x1080	50	56.3

B. HDMI Digital

1 HDMI - PC Signal

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
VGA	640x480	60	31.5
	640x480	72 37.9
	640x480	75 37.5
	640x480	85 43.3
	640x480 120	61.9

SVGA 800x600 56 35.1
	800x600 60 37.9
	800x600 72 48.1
	800x600 75 46.9
	800x600 85 53.7
	800x600 120 77.4
XGA 1024x768 60 48.4
	1024x768 70 56.5
	1024x768 75 60.0
	1024x768 85 68.7
	1024x768 120 99.0
SXGA 1152x864 70 63.8
	1152x864 75 67.5
	1152x864 85 77.1
	1280X1024 60 64.0
	1280X1024 72 77.0
	1280X1024 75 80.0
	1280X1024 85 91.1
QuadVGA 1280x960 60 60.0
	1280x960 75 75.2
SXGA+ 1400x1050 60 65.3
UXGA 1600x1200 60 75.0
PowerBook G4 640x480 60 31.4
PowerBook G4 640x480 66.6(67)	34.9
PowerBook G4	800x600 60 37.9
PowerBook G4	1024x768 60 48.4
PowerBook G4	1152x870 75 68.7
PowerBook G4	1280x960 75 75.0
i Mac DV (G3)	1024x768 75 60.0

2 HDMI - Extended Wide timing

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
WXGA 1280x768 60 47.8
	1280x768 75	60.3
	1280x768 85	68.6
	1280x720 60	44.8
	1280x720 120	92.9
	1280x800 60	49.6
	*1280x800-RB	119.909	101.6
	1440x900 60	59.9
WSXGA+	1680x1050 60	65.3
	1920x1080(1080P)	60 67.5
	1366x768 60	47.7
WUXGA 1920x	1200-RB 59.94 74	.04

3 HDMI - Video Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
480i 720x480(1440x480) 59.94 (29.97) 15.7
576i 720x576(1440x576) 50(25) 15.6
480p	720x480	59.94	31.5
576p	720x576	50	31.6
720p	1280x720	60	45.0
720p	1280x720	50	37.5
1080i	1920x1080	60(30)	33.8
1080i	1920x1080	50(25)	28.1
1080p	1920x1080	23.97/24	27.0
1080p	1920x1080	60	67.5
1080p	1920x1080	50	56.3

4 HDMI - 1.4a 3D Timing

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
720p (Frame Packing)	1280 x 720	50	37.5
720p (Frame Packing)	1280 x 720	60	45.0
1080p (Frame Packing )	1920 x1080	24	27.0
720p (Frame Packing)	1280 x 720	50	37.5
720p (Frame Packing)	1280 x 720	60	45.0
1080i (Top and Bottom)	1920 x1080	50 (25)	28.1
1080i (Top and Bottom)	1920 x1080	60 (30)	33.8
1080p (Top and Bottom)	1920 x1080	24	27.0
1080p (Top and Bottom)	1920 x1080	50	56.3
1080p (Top and Bottom)	1920 x1080	60	67.5
720p (Side by Side (Half))	1280 x 720	60	45.0
1080i (Side by Side (Half))	1920 x1080	50 (25)	28.1
1080i (Side by Side (Half))	1920 x1080	60 (30)	33.8
1080p (Side by Side (Half))	1920 x1080	50	56.3
1080p (Side by Side (Half))	1920 x1080	60	67.5
Graphic source monitor range limits	Horizontal scan rate:		15k-100kHz
	Vertical scan rate:		24-120 Hz
	Max. pixel rate:		165 MHz

C. MHL Digital

Modes Resolution		V.Frequency [Hz]	H.Frequency [KHz]
VGA 640x480 59.94/60 31.5
480i 720x480 (1440x480) 59.94/60 15.7
576i 720x576 (1440x576) 50(25) 15.6
480p 720x480 59.94/60 31.5
480p_2x 1440x480 59.94/60 31.5
576p 720x576 50 31.3
576p_2x 1440x576 50 31.3
720p 1280x720 59.94/60 45.0
720p 1280x720 50 37.5
1080i	1920x1080	60(30)	33.8
1080i 1920x1080 50(25) 28.1
1080p	1920x1080	23.97/24	27.0
1080p	1920x1080 25 28.1
1080p	1920x1080	29.97/30 33.8
Graphic source monitor range limits	Horizontal scan rate:	15k-50 kHz
	Vertical scan rate:	24-60 Hz
	Max. pixel rate:	Digital: 75 MHz

Note: * Functions vary depending on model definition.

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this device.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

Acer hereby declares that this projector series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Compliant with Russian regulatory certification

ME61
UA.TR.002

Radio device regulatory notice

Note: The regulatory information below is for models with wireless LAN and/or Bluetooth only.

General

This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules).

Canada — Low-power license-exempt radio communication devices (RSS-210)

a Common information

Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

b Operation in 2.4 GHz band

To prevent radio interference to the licensed service, this device is intended to be operated indoors and installation outdoors is subject to licensing.

List of applicable countries

This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact the local office in the country of use. Please see http://ec.europa.eu/enterprise/rtte/implem.htm for the latest country list.

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone]

www.acer.it

Declare under our own responsibility that the product:

Product:

DLP

jector

Pro

Trade Name: Acer

Model Number: D1P1327/H7P1320/DWX1305/DWX1304/DNX1303/

DNX1330/DSV1319/DNX1302/DSV1316/DSV1315/DSV1301

P1183/M403/PE-S42/X1183A/D603P/EV-S62T/X114/X1183/

D603/EV-S62/X113/D600/EV-S60/V10S/AS201/P1283/M413/

PE-X42/V12X/AX316/P1283n/M413T/PE-X42G/X1283/

D613/EV-X62/P1383W/X1383WH/M423/PE-W42/V12W/

AW316/P1380W/X1380WH/M420/PE-W40/V11W/

AW216/H5380BD/E230/HE-720/P1510/M450/PE-840

To which this declaration refers conforms to the relevant standard or other standardizing documents:

• EN55022:2010 Class B; EN 55024:2010
• EN61000-3-2:2006+A1:2009+A2:2009, Class A
• EN61000-3-3:2008
• EN 60950-1:2006/A11:2009/A1:2010+A12:2011
• Regulation (EC) No. 1275/2008; EN 62301:2005
• EN50581:2012

We hereby declare above product is in compliance with the essential requirements and other relevant provisions of EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC and RoHS Directive 2011/65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

Year to begin affixing CE marking 2013.

RU Jan / Sr. Manager

Regulation, Acer Inc.

Oct. 1, 2013

Date

Suite 1500

San Jose, CA 95110

U. S. A.

Fax: [phone]

www.accr.com

Tel: [phone]

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer / Importer is responsible for this declaration:

Product:

DLP Projector

Model Number:

D1P1327/H7P1320/DWX1305/DWX1304/

DNX1303/DNX1330/DSV1319/DNX1302/

DSV1316/DSV1315/DSV1301

Machine Type:

P1183/M403/PE-S42/X1183A/D603P/EV-S62T/

X114/X1183/D603/EV-S62/X113/D600/EV-S60/

V10S/AS201/P1283/M413/PE-X42/V12X/

AX316/P1283n/M413T/PE-X42G/X1283/

D613/EV-X62/P1383W/X1383WH/M423/

PE-W42/V12W/AW316/P1380W/X1380WH/

M420/PE-W40/V11W/AW216/H5380BD/E230/

HE-720/P1510/M450/PE-840

Name of Responsible Party: Acer America Corporation

Address of Responsible Party: 333 West San Carlos St.

Suite 1500

San Jose, CA 95110

U.S.A.

Contact Person: Acer Representative

Phone No.: 254-298-4000

Fax No.: 254-298-4147
