USER MANUAL AX-CH-SSO AXESS

Collection of automotive electrical connectors and modules with colored wires (no visible text or symbols)

Chrysler Stop/Start Override Interface 2015-Up

INTERFACE FEATURES

• Allows the override of the STOP/START engine feature
  • The factory STOP/START button can resume the STOP/START feature
• Can be used with either a factory or aftermarket radio
• Vehicle type configured through the Axxess Updater software program
• Simple plug n' play installation, no wiring required

INTRODUCTION

The AX-CH-SSO is designed to disengage the STOP/START feature of the vehicle, and keep that feature disengaged even after the key has been cycled. The AX-CH-SSO will work with either an aftermarket radio, or a factory radio. A simple plug n' play installation is all that is required to install the device in the vehicle, and programming through a Windows 10 computer via the Axxess Updater software program.

APPLICATIONS

Chrysler

Pacifica 2018-Up

Dodge

Durango 2016-Up

Jeep

Cherokee 2016-Up

Grand Cherokee 2015-Up

Wrangler (JK) 2018-Up

Wrangler (JL) 2018

TABLE OF CONTENTS

Programming 2

Connections 3

Operation 4

INTERFACE COMPONENTS

• AX-CH-SSO interface
• AX-CH-SSO harness (qty. 2)

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Zip ties • Cutters (for zip ties)
• Micro-B USB cable

(Axxess part number USB-MINI-CAB)

Product Info

PROGRAMMING

(Figure A) (Figure B) (Figure C)

1.

Download and install the Axxess Updater software program from: axxessinterfaces.com/resources/updater-software

3.

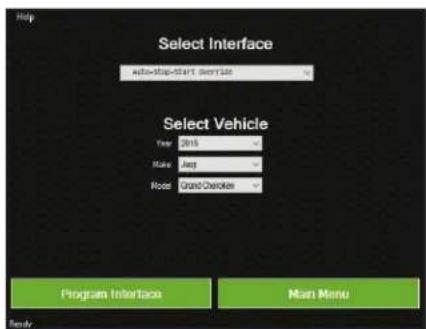

On the next screen that opens, select the year, make, and model of the vehicle, then press Program Interface. (Figure B)

2.

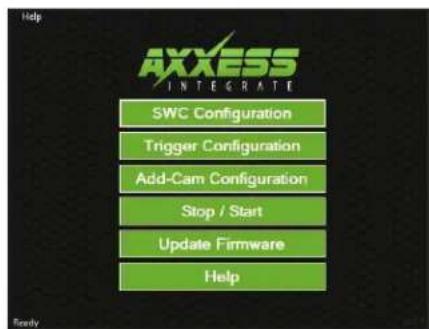

Connect the micro-B USB cable (sold separately) to the computer and AX-CH-SSO interface. Open the Axxess Updater software program and wait until the word Ready is shown in the bottom left of the screen. Select Stop / Start. (Figure A)

4.

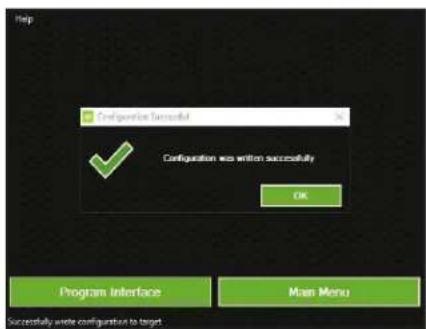

When the Configuration Successful box pops up, the programming process is complete. (Figure C)

Continue to Installation

INSTALLATION

These vehicles will connect to the wiring harness located at the radio location.

Chrysler

Pacifica 2017

• Disassembly instructions: metraonline.com/part/99-6543HG

Dodge

Durango 2016-up

• Disassembly instructions: metraonline.com/part/99-6537B

Jeep

Cherokee 2016-up

• Disassembly instructions: metraonline.com/part/99-6518B

Grand Cherokee 2015-up

• Disassembly instructions: metraonline.com/part/99-6536S

Wrangler (JK) 2018

• Disassembly instructions: metraonline.com/part/95-6511

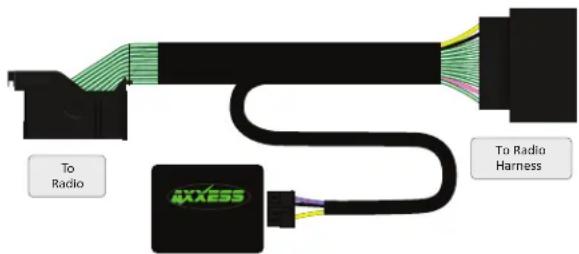

From the wiring harness in the vehicle behind the radio:

1. Unplug the main connector from the radio.
2. Plug the AX-CH-SSO harness in between the radio and radio harness.
3. Plug the AX-CH-SSO harness into the AX-CH-SSO interface.

These vehicles will connect to the hazard switch in the dashboard.

Chrysler

Pacifica 2018-up

• Disassembly instructions: metraonline.com/part/99-6543HG

Jeep

Wrangler (JL) 2018-up
• Disassembly instructions: metraonline.com/part/107-CH3B

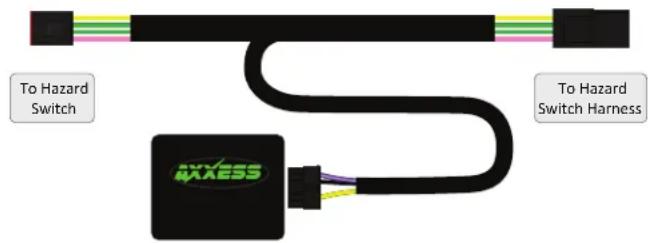

From the hazard switch:

1. Unplug the connector from the hazard switch.
2. Plug the AX-CH-SSO harness in between the hazard switch and hazard switch harness.
3. Plug the AX-CH-SSO harness into the AX-CH-SSO interface.

OPERATION

Re-engaging the STOP/START feature

1.

Press the factory STOP/START button to re-engage the STOP/START feature.
