Brand	AEG-ELECTROLUX
Model	EWA 3100
Product type	Electric kettle
Power supply	Voltage and frequency according to the rating plate (230 V ~ 50 Hz typical)
Capacity	Not specified (approximately 1.7 L usual)
Power	Not specified (approximately 2000-2400 W usual)
Materials	Plastic body with stainless steel (spout and interior)
Color	Not specified
Main functions	Water heating, automatic shut-off at boil, visible water level indicator, removable anti-limescale filter in the spout, separate base with detachable cord (cordless)
Safety	Automatic shut-off when water boils or when kettle is removed from base; dry-boil protection (stops if little or no water); locked lid to prevent splashing
Care and cleaning	Clean the exterior with a damp cloth; rinse the interior with clean water; descale regularly with a descaling product (do not boil the solution); clean the anti-limescale filter by removing it
Spare parts and repairability	Removable replaceable anti-limescale filter; separate base; replaceable power cord; repair by the manufacturer or a qualified professional
Warranty	24 months for domestic use, 12 months for professional or occasional use
Country of manufacture	Not specified
Dimensions (L × W × H)	Not specified
Weight	Not specified

Frequently Asked Questions - EWA 3100 AEG-ELECTROLUX

How to use the kettle for the first time?

Before first use, wipe the exterior of the appliance. Open the lid by pressing the button, fill with water up to the Max mark, then close the lid properly. Place the kettle on the base and lower the On/Off switch. The indicator light turns on and the water heats up. The automatic shut-off activates when boiling.

What to do if the appliance stops before the water boils?

This is generally due to excessive limescale on the base of the kettle. Perform a complete descaling with a suitable descaling product, following the manufacturer's instructions.

How to clean the anti-limescale filter?

Unplug the appliance and let it cool down. Remove the filter by pulling it upward. Rinse it under running water or use a soft brush. Replace it by pushing it in until it clicks.

How often should I descale the kettle?

The frequency depends on the hardness of your water. As a general rule, descale every 1 to 3 months to prevent limescale buildup and extend the life of the appliance.

Why does the power indicator not light up?

Check that the kettle is correctly placed on the base and that the switch is properly lowered. Also ensure that the electrical outlet works and that the cord is not damaged.

Can I use the kettle with water other than tap water?

The kettle is designed only for heating water. Do not pour milk, soup, or other liquids into it, as this could damage the appliance and void the warranty.

How to clean the exterior of the kettle?

Unplug the appliance and let it cool down. Wipe the exterior with a damp cloth. Do not use abrasive or caustic products, and never immerse the kettle or base in water.

What to do if the lid does not lock properly?

Make sure no debris is blocking the locking mechanism. If the lid remains improperly closed, do not force it; the automatic shut-off system may not work. Contact customer service for a replacement.

Is the appliance under warranty?

Yes, the warranty is 24 months for domestic use from the delivery date. For professional use, it is 12 months. Keep your proof of purchase. The warranty covers manufacturing defects, but not damage due to misuse.

Where can I find the complete manual?

The user manual and instructions are available free in PDF format on our site notice-facile.com. You can also request a translation by email by choosing your language.

USER MANUAL EWA 3100 AEG-ELECTROLUX

GB Instruction book.11-15

Before using the appliance for the first time, please read the safety advice on page 12 carefully.

D

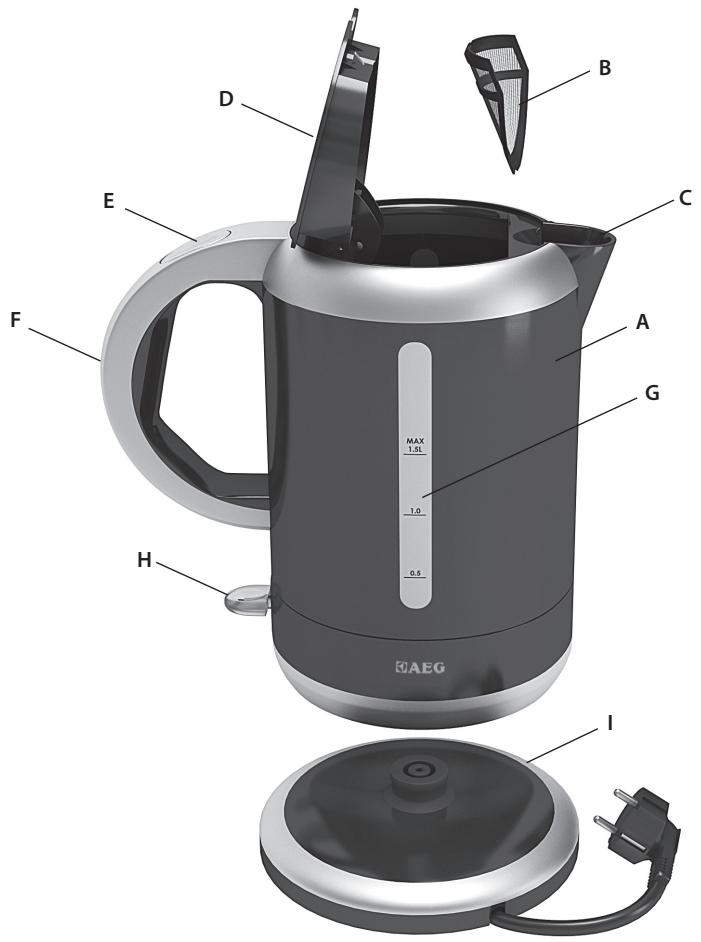

Teile

A. Jug
B. Removable mesh filter
C. Spout
D. Lid
E. Opening lid button
F. Handle
G. Water level indicator
H. ON/OFF switch with indicator light
1. Separate base and mains cable

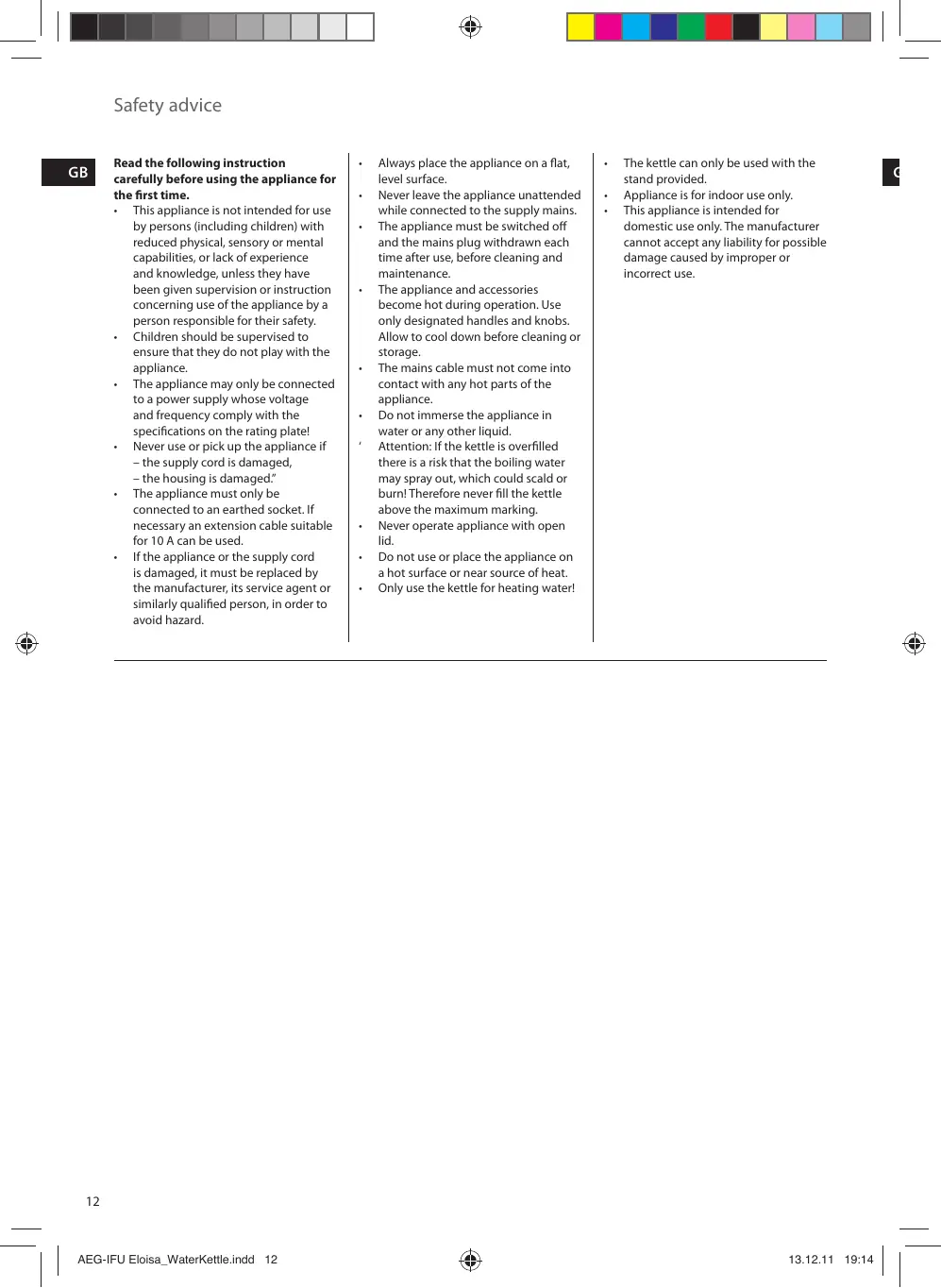

Safety advice

GB

Read the following instruction carefully before using the appliance for the first time.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if - the supply cord is damaged, - the housing is damaged."
• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

Always place the appliance on a flat, level surface.
- Never leave the appliance unattended while connected to the supply mains.
- The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.
- The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
- The mains cable must not come into contact with any hot parts of the appliance.
- Do not immerse the appliance in water or any other liquid.
Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn! Therefore never fill the kettle above the maximum marking.
- Never operate appliance with open lid.
- Do not use or place the appliance on a hot surface or near source of heat.
Only use the kettle for heating water!

• The kettle can only be used with the stand provided.
• Appliance is for indoor use only.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

Getting started

GB

1. Before first use, wipe the inside and outside of the kettle with a damp cloth.

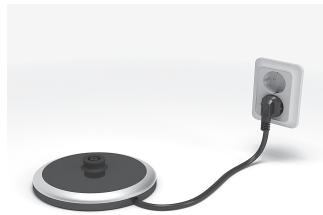

2. Place the base unit on a firm and flat surface. Plug the mains plug into a wall socket. Redundant cord can be wound up at the bottom of base unit.

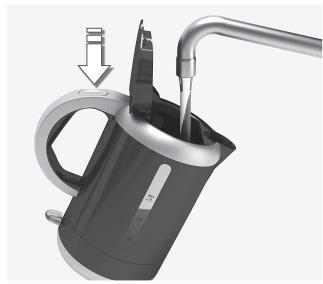

3. Press the button to open the lid, pour water into the kettle. Make sure water level is visible in the water level indicator, but not exceeding the Max. mark.

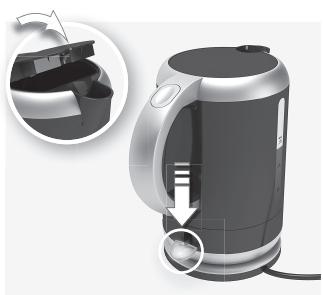

4. Close the lid and make sure it snaps in correctly. Otherwise the auto switch off function will not work reliably. Place the kettle onto the base. Press down the ON/OFF switch; the indicator light will illuminate and the kettle will start to heat up.

5. The automatic switch off function.

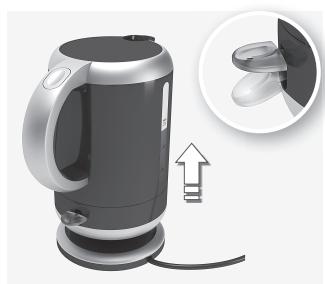

When the water has boiled or the kettle is moved from the base, it will switch off automatically. If you wish to stop the heating process before the water is boiling, simply lift up the ON/OFF switch to the OFF position.

Cleaning

GB

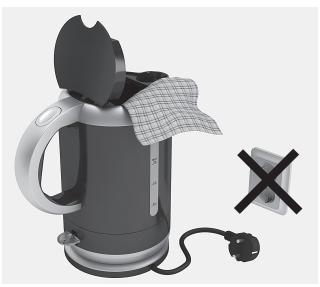

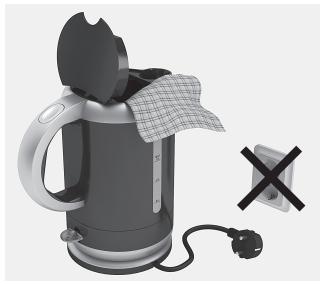

1. Before cleaning, always unplug the appliance. Never rinse or immerse the kettle or base unit in water. Just wipe with a damp cloth, using no abrasive detergents. Occasionally rinse out the kettle with clean water.

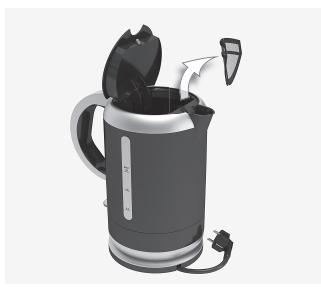

1. To clean the mesh filter, grab the strainer insert and lift out. Cleaning the base unit - superficial spots of rust may appear on the base unit. Remove with a stainless steel cleaning agent.

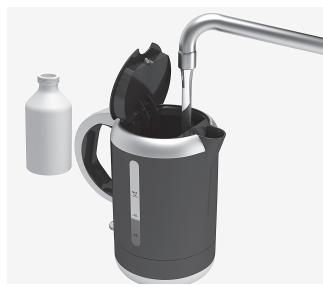

1. Decalcifying is recommended regularly, depending on water hardness. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it could foam over. Afterwards, rinse kettle thoroughly with fresh water.

Troubleshooting

GB

Problem	Possible cause	Solution
The appliance switches off before boiling.	Too much lime scale at the base of the kettle.	Run the decalcifying procedure.
The appliance does not switch off.		Close lid until it locks.
		Instert the strainer correctly.
The appliance cannot be switched on.	After operating with little or no water, the appliance has not cooled down sufficiently.	Allow to cool a short time and try again.

Disposal

GB

Disposal

Packaging materials

The packaging materials are environmentally friendly and can be recycled.

The plastic components are identified by markings, e.g. >PE < , >PS < , etc.

Please dispose the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

on the product orindicates that thisbe treated as householdshall be handed overcollection point forelectrical and electronicsuring this productrectly, you will helpnegative consequencesand human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

⑤ Deutschland

Electrolux Home Products Belgium

Divisie Floor Care

Bergensesteenweg, 719

1502 LEMBEEK

Tel.: [phone]

Belgique

Electrolux Home Products Belgium

Division Floor Care

Bergensesteenweg, 719

1502 LEMBEEK

Tel.: [phone]

Printed on recycled paper

3482 A EWA31xx02031211
