USER MANUAL MOD STQ Adj

Technical line drawing of a mechanical component with circular cutouts and a central star-shaped feature (no text or symbols)

MOD STQ

User Instructions

©2023 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies.

ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.

ADJ PRODUCTS LLC World Headquarters

6122 S. Eastern Ave. | Los Angeles, CA 90040 USA

Tel: [phone] | Fax: [phone] | www.adj.com [e-mail]

ADJ Supply Europe B.V.

Junostraat 2 | 6468 EW Kerkrade | Netherlands

Tel: [phone] | Fax: [phone] | www.americandj.eu | [e-mail]

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the environment. Please turn off all electrical products when they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power when not in use. Thank you!

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document may be available online.

Please check www.adj.com for the latest revision/update of this manual before beginning installation and/or programming.

Date	Document Version	Software Version	DMX Channels Notes
10/01/19 1	1.00 4/5/7/8	9/12/13/15	Initial Version
09/01/20 2	1.02 No Change Updated Primary/Secondary
05/22/23 3	N/C No Change Updated Format

CONTENTS

General Information 4

Key Features | Warranty Returns 5

Limited Warranty (USA Only) 6

Safety Guidelines 7

Overview 9

UC IR Remote Control 10

Installation 11

Installation: Frost Filters 13

System Menu 14

Primary-Secondary Setup Multiple Unit Power Linking 17

Dimmer Curves and Dimmer Modes 18

DMX Setup 19

DMX Addressing 21

DMX Traits 22

Color Macro Chart 24

Cleaning, Maintenance, & Troubleshooting 25

Specifications 26

GENERAL INFORMATION

INTRODUCTION

Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this device. These instructions contain important safety and use information.

This product is intended for use by professionally trained personnel only, and is not suitable for private use.

UNPACKING

Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton is damaged, carefully inspect the device for damage, and be sure all accessories necessary to install and operate the device have arrived intact. In the event damage has been found or parts are missing, please contact our customer support team for further instructions. Please do not return this device to your dealer without first contacting customer support. Please do not discard the shipping carton in the trash. Please recycle whenever possible.

CUSTOMER SUPPORT

Contact ADJ Service for any product related service and support needs.

Also visit forums.adj.com with questions, comments or suggestions.

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

323-582-2650 | Fax: [phone] | [e-mail]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

[phone] | Fax: [phone] | [e-mail]

REPLACEMENT PARTS please visit parts.adj.com

IMPORTANT NOTICE!

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.

DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURER'S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER'S WARRANTY AND ARE NOT SUBJECT TO WARRANTY CLAIMS AND/OR REPAIRS.

It is strongly recommended to power the fixture down completely when not in use. Doing so will reduce wear on the fixture due to sustained or extended operational periods, thereby maximizing its operational lifespan.

KEY FEATURES

• Multi-Colors
  • Electronic Dimming 0-100%
• Built in Microphone
• DMX-512 protocol
• Locking 3-Pin & 5-Pin XLR Connections In/Out
  • 8 DMX Channel Modes: 4 / 5 / 7 / 8 / 9 / 12 / 13 / 15
• ADJ UC IR compatible
  • Multiple Unit Power Linking

INCLUDED ITEMS:

• Scissor Yoke
• Locking Power Cable
  • 3x Frost Filters (20/40/60 Degrees)

WARRANTY REGISTRATION

Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief description of the problem as well as the R.A. number must also be written down on a piece of paper included in the shipping carton. If the unit is under warranty, you must provide a copy of your proof of purchase invoice. You may obtain an R.A. number by contacting our customer support team on our customer support number. All packages returned to the service department not displaying an R.A. number on the outside of the package will be retlurned to the shipper.

LIMITED WARRANTY (USA ONLY)

A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner's responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, you must obtain a Return Authorization number (RA#) before sending back the product-please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for loss of or damage to any such accessories, or for the safe return thereof.
C. This warranty is void of the serial number has been altered or removed; if the product is modified in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product, if the product has been repaired or service by anyone other than ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.
D. This is not a service contact, and this warranty does not include maintenance, cleaning or periodic check up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense with new or refurbished parts, and will absorb all expenses for warrant service and repair labor by reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable law, all implied warranties made by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty period set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or fitness, shall apply to this product after said period has expired. The consumer's and/or Dealer's sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
G. This warranty is the only written warranty applicable to ADJ Products, LLC Products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

LIMITED WARRANTY PERIODS

• Non L.E.D. Lighting Products = 1-year (365 days) Limited Warranty (Such as: Special Effect Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands etc. excluding LED and lamps)
• Laser Products = 1 Year (365 Days) Limited Warranty (excludes laser diodes which have 6 month limited warranty)
• L.E.D. Products = 2-year (730 days) Limited Warranty (excluding batteries which have a 180 day limited warranty) Note: 2 Year Warranty only applies to purchases within the United States.
  • StarTec Series = 1 Year Limited Warranty (excluding batteries which have a 180 day limited warranty)
• ADJ DMX Controllers = 2 Year (730 Days) Limited Warranty

SAFETY GUIDELINES

For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit!

This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ Products, LLC is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of this fixture, and only the original rigging parts included with this fixture should be used for installation. Any modifications to the fixture and/or the included mounting hardware will void the original manufacturer's warranty and increase the risk of damage and/or personal injury.

PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURER'S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER'S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.

DO NOT PLUG FIXTURE INTO A DIMMER PACK! NEVER OPEN THIS FIXTURE WHILE IN USE! UNPLUG POWER BEFORE SERVICING FIXTURE! MAXIMUM AMBIENT OPERATING TMEPERATURE IS 104°F (40°C)! NEVER TOUCH FIXTURE WITH BARE HANDS DURING OPERATION, AS SURFACE TEMPERATURE DURING OPERATION MAY REACH 167°F (75°C)! KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

SAFETY GUIDELINES

• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit when it's cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6" (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• During long periods of non-use, disconnect the unit's main power.
  • Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See page 23 for cleaning details.
• Heat -The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
• The device should be serviced by qualified service personnel when:
  A. The power-supply cord or the plug has been damaged.
  B. Objects have fallen on, or liquid has been spilled into, the device.
  C. The charging devices or fixture have been exposed to rain or water.
  D. The appliance does not appear to operate normally or exhibits a marked change in performance.

OVERVIEW

UC IR REMOTE CONTROL

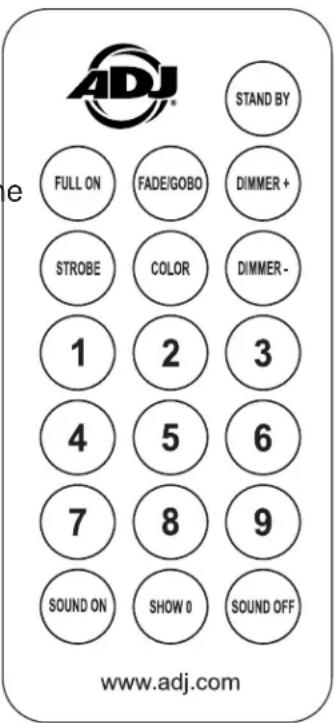

The UC IR infrared remote gives you control of various functions (See below). To control the fixture you must aim the remote at the front of the fixture and be no more than 30 feet away.

CONTROLS

STAND BY - Pressing this button will blackout the fixture. Press the button again to return to the initial state.

FULL ON - Press this button down to fully light up the unit. Press any button to exit this mode.

FADE/GOBO - This button activate's the internal program mode. Use the numeral buttons 0-9 to select the program number (0-16). Use the dimmer buttons to adjust the output intensity.

NOTE: Running speed and fade speed is not adjustable using the IR control functions.

“DIMMER +” and “DIMMER -” - Use these buttons to adjust the output intensity.

STROBE - Press this button to activate and deactivate strobing. Use buttons 1-4 to adjust the strobe speed. "1" being the slowest, "4" being the fastest. Press this button again to stop strobing.

COLOR - Press this button to activate color macro mode. Use the numeral buttons 1-9 to select your desired color (0-64). Use the dimmer buttons to adjust the output intensity.

Example: Press the numeral buttons "1+3" to activate color "13".

SOUND ON & OFF - Use these buttons to activate and deactivate sound active mode. Use the dimmer buttons to adjust the output intensity.

NOTE: Sound sensitivity is not adjustable using the IR control functions.

SHOW 0 - Press this button to select show "0" or color "0" when either internal program mode or color macro mode is active.

INSTALLATION

CLAMP INSTALLATION

When installing the unit, the trussing or area of installation must be able to hold 10 times the weight without any deformation. When installing the unit must be secured with a secondary safety attachment, e.g. and appropriate safety cable. Never stand directly below the unit when mounting, removing, or servicing the unit.

Overhead mounting requires extensive experience, including calculating working load limits, installation material being used, and periodic safety inspection of all installation material and unit. If you lack these qualifications, do not attempt the installation yourself.

These installation should be checked by a skilled person once a year.

NOTICE: The suitable environmental temperature for this lighting fixture is between -25^ C to 45^ C . Do not place this lighting fixture in an environment where the temperatures are under or above the temperatures stated above. This will allow the fixture to run at its best and help prolong the fixture life.

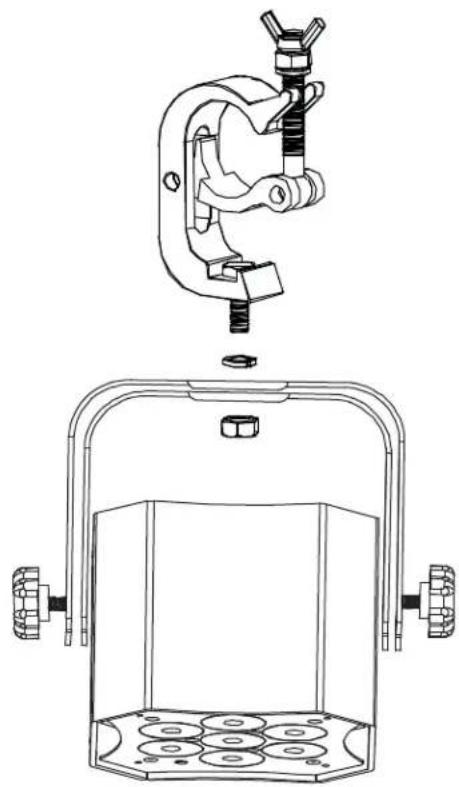

Screw one clamp via a M12 screw and nut into the bracket. Pull a safety cable through the opening(s) located on either side of the bracket and over the trussing system or a safe fixation spot. Insert the end in the carabiner, and tighten the safety screw.

Technical line drawing of a mechanical clamp device with mounting base and housing (no text or symbols)

INSTALLATION

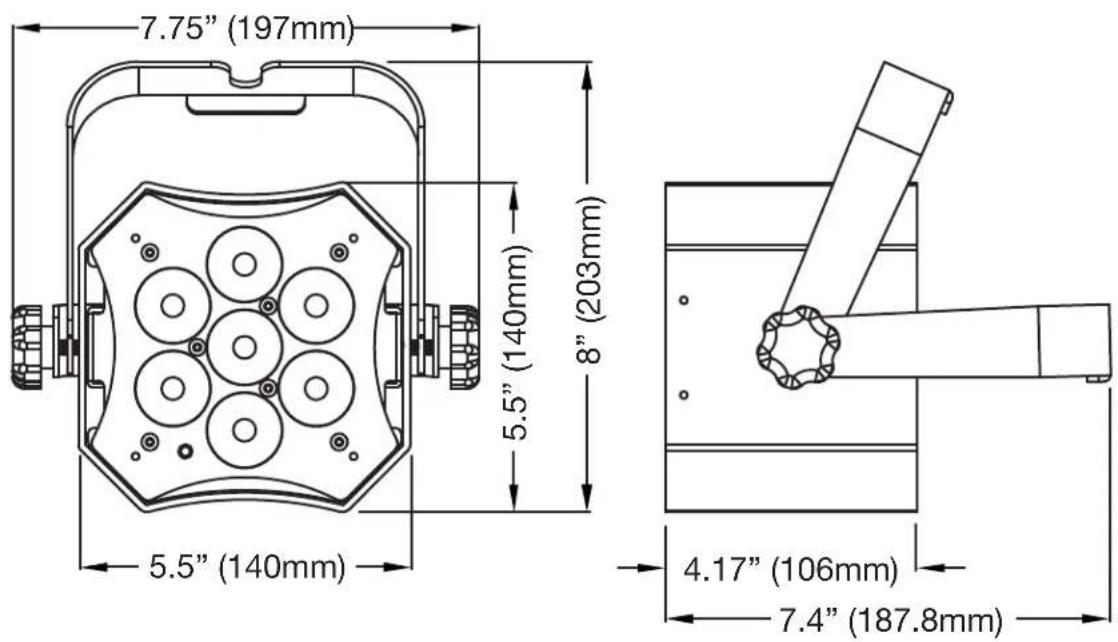

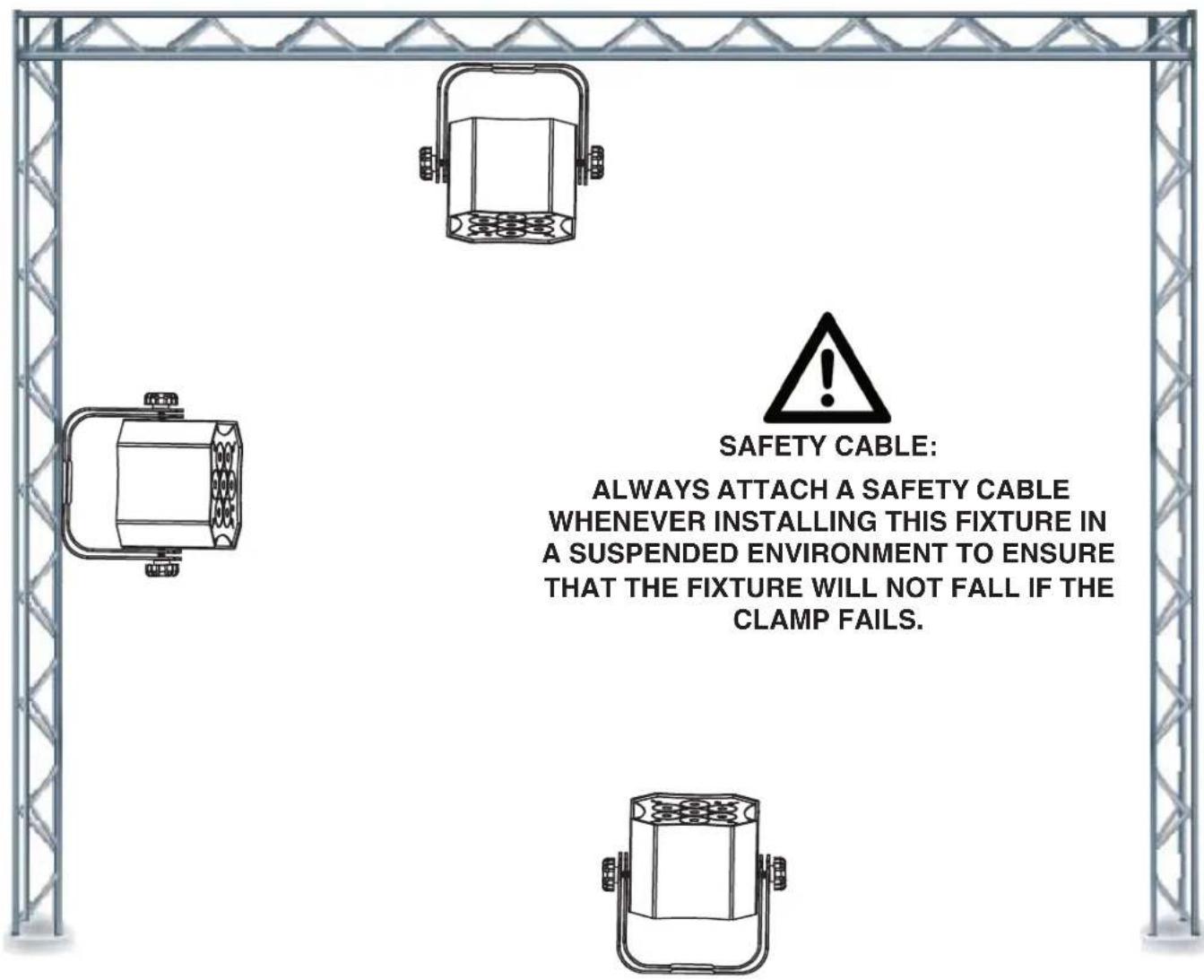

The MOD STQ is fully operational in three different mounting positions, hanging upside-down from a ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails (see next page). Never use the carrying handles for secondary attachment.

RIGGING

Overhead rigging requires extensive experience, including but not limited to: calculating working load limits, understanding the installation material being used, and periodic safety inspection of all installation material and the fixture itself. If you lack these qualifications, do not attempt to perform the installation yourself. Improper installation can result in bodily injury.

INSTALLATION: FROST FILTER

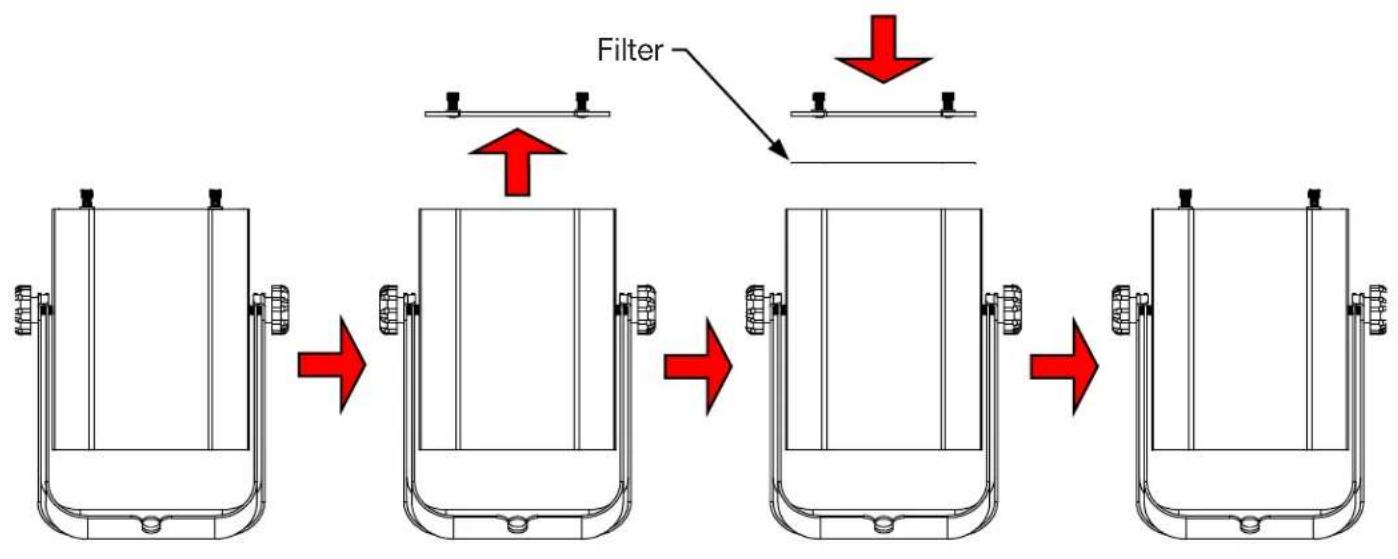

The MOD STQ comes with 3 interchangeable frost filters. The degree of the individual filters is stamped into the corner of each filter. To install the frost filter, unscrew the four thumb screws holding the lens in place. Remove the lens and install the filter inside the unit. Line up the thumb screw holes on the edges of filter with screw holes of the unit. Screw the thumb screws back into place securing the frost filter and lens.

SYSTEM MENU

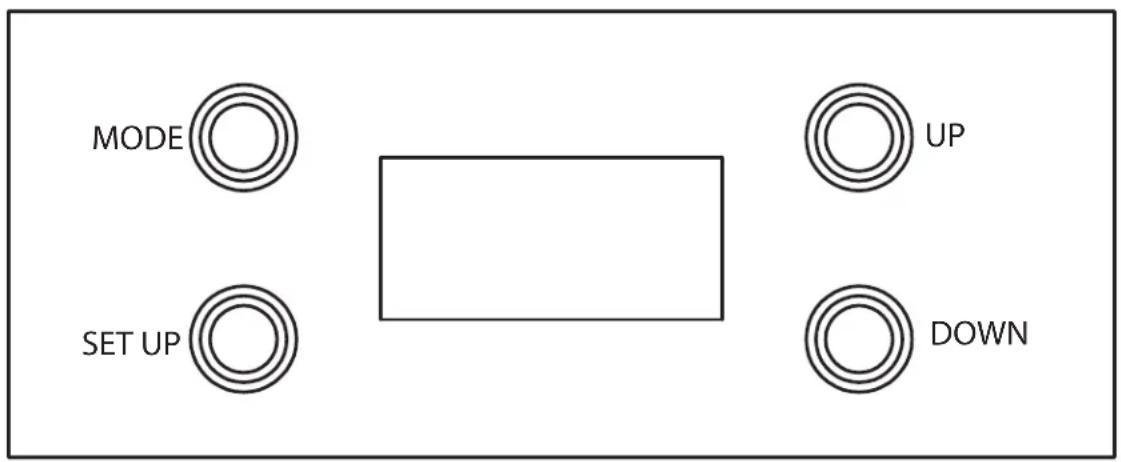

The fixture includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made. (See image below) During normal operation, pressing the MODE button once will access the fixture's main menu. Once in the main menu, you can navigate through the different functions and access the sub-menus with the UP and DOWN buttons. When you reach a field that requires adjusting, press the ENTER button to access that field and use the UP and DOWN buttons to adjust the field. Pressing the ENTER button once more will confirm your setting. You may exit the main menu at any time without making any adjustments by pressing the MODE button.

SYSTEM MENU

MENU SUBMENU OPTIONS DESCRIPTION
DMX MODE	ADDR: 001-XXX DMX Addressing
	CHAN: 4/5/7/8/9/12/13, 15 DMX Channel Mode Selection
	NO: HOLD/BLACK/PROG DMX Lost Status
PERSON(Personality)	PRIMARY ON/OFF Primary Setting
	SECONDARY ON/OFF Secondary Setting
	1200, 900-1500, 2500, 4000, 5000, 6000, 10000, 15000, 20000, 25000(Hz)		LED Refresh Rate Setting
	GMA: 1.0, 2.0, 2.2, 2.4, 2.6, 2.8 Gamma Brightness
	BACK: OFF~10M Display Shutoff Time
	LOCK: OFF~10M Display Control Lock
	CALI: YES/NO (Pass Code = 11)		Calibration Adjustment
	REST YES/NO (Pass Code = 11)		Restore Factory Settings
MANUAL	RED 000-255		Manual Control Settings
	GREN (Green) 000-255
	BLUE 000-255
	WHIT (White) 000-255
	CLRMA (Color Macro) 0-64
	CRTP (Color Temp.) 0-21
	STROB (Strobe) 0-16
	DIM (Master Dimmer) 000-255
	AtPr (Auto Program) 0-16
	SPEED (Prog. Speed) 0-16
	FADE (Prog. Fade) 0-16
IntProgs(Internal Programs)	Program 0 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 0 with Adjustments
	Program 1 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 1 with Adjustments
	Program 2 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 2 with Adjustments
	Program 3 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 3 with Adjustments
	Program 4 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 4 with Adjustments
	Program 5 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 5 with Adjustments
	Program 6 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 6 with Adjustments
	Program 7 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 7 with Adjustments
	Program 8 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 8 with Adjustments
	Program 9 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 9 with Adjustments
	Program 10 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 10 with Adjustments
	Program 11 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 11 with Adjustments
	Program 12 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 12 with Adjustments
	Program 13 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 13 with Adjustments
	Program 14 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 14 with Adjustments
	Program 15 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 15 with Adjustments
	Program 16 Speed: 0~16 Fade: 0~16 Sound: ON/OFF		Program 16 with Adjustments
PwronHr1: XXXXXXXH			Total Power On Time(Not Resettable)
PwronHr2: XXXXXXXH			Current Power On Time(Resettable)
PwronRst: Pass Code = 050			Reset Current Power On Time
INFORMAT TMP: XXX F / XXX C			Current Temperature
INFORMAT: VX.XX			Current Software Version

SYSTEM MENU

DMX MODE - The submenus listed under DMX MODE are as follows: ADDR (Address), CHAN (Channel Mode), and NO (No DMX Status).

• ADDR - In this submenu you are able to find and set your desired DMX address.
  • CHAN - In this submenu you are able to find and set your desired DMX channel mode.
• NO - This setting is used as a precaution mode in case the DMX signal is lost or interrupted. The operating mode chosen is the running mode the fixture will go into when the DMX signal is lost. Listed below are the 3 modes.
  • HOLD - This setting will have the fixture stay in the last DMX setup.
• BLACK - This setting will have the fixture automatically go into blackout mode.
  • PROG - This setting will have the fixture automatically run 1 of 17 (0-16) internal programs.

PERSON (PERSONALITY) - The submenus listed under PERSON (PERSONALITY) are as follows: PRIMARY, SECONDRY (Secondary), Dim Mode, LED Refresh Rate (LEDRfrsh), Gamma, Display, and Service.

• PRIMARY - Set the unit to act as the primary unit in a primary-secondary set up.

- SECONDRY (Secondary) - Set the unit to act as the secondary unit in a primary-secondary set up.

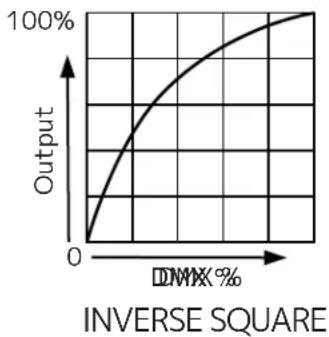

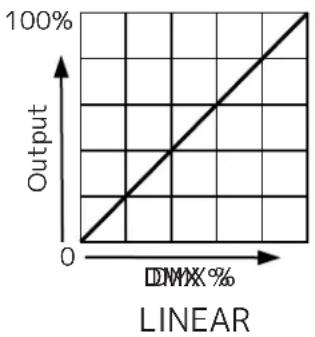

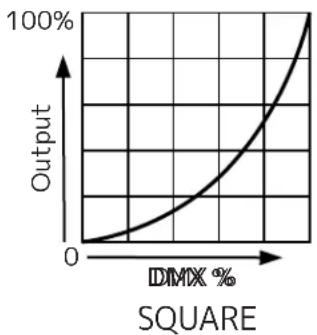

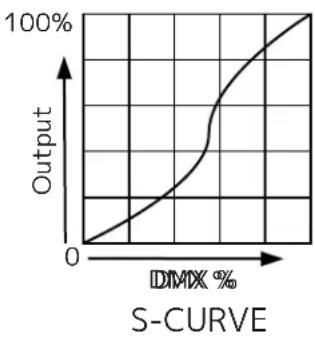

- Dimming Modes & Dimming Speed Settings - In this submenu you are able to set your desired dimmer mode or dimming speed.

• LED Refresh Rate Setting - In this submenu you are able to set your desired LED refresh rate.

• GMA (Gamma) - In this submenu you are able to set your desired gamma brightness.

- BACK (Display Blackout) - In this submenu you are able to adjust and set the display backlight blackout time.

- LOCK (Display Lock) - In this submenu you are able to adjust the display/system lock time.

• CALI (Calibration Adjustment) - In this submenu you are able to adjust the calibration settings.

- REST (Factory Settings) - In this submenu you are able to reset the unit to its factory/default settings.

MANUAL - This submenu is for manual control and testing.

INTPROGS (INTERNAL PROGRAMS) - This menu allows you to select 1 of 16 (0-16) internal programs to run. The internal program speed and fade speeds are adjustable. The internal programs can also be run as sound active.

INFORMATION - The submenus listed under INFORMATION are as follows: Fixture Hours, Fixture Temperature, and Software Version.

• HOURS (FIXTURE HOURS)
- PwrOnHr1 -The TOTAL power ON running time of the unit is displayed. This time CANNOT be reset.
- PwrOnHr2 - The CURRENT power ON running time of the unit is displayed. This running time may not be the same as the total power ON running time displayed under “Power On Time”. This time CAN be reset.
- PwrOnRst - Reset the current power ON running time that is displayed under "PwrOnHr2".
• INFORMAT TMP (FIXTURE TEMPERATURE) XXX F / XXX C - Current temperature
• INFORMAT VX.XX (Software Version) - Current software version is displayed.

PRIMARY-SECONDARY SETUP

This function will allows the user to link units together to run in a Primary-Secondary set-up. In a

Primary-Secondary set up, one unit will act as the controlling unit and the others will react to the controlling units operating mode. Any unit can act as a Primary or as a Secondary fixture, however, only one unit in a series can be programmed to act as the “Primary.”

Primary-Secondary Connections and Settings:

1. Daisy chain your units via the XLR connector on the rear of the unit. Use standard XLR data cables to link your units together. Remember that the Male XLR connector is the input and the Female XLR connector is the output. The first unit in the chain (primary) will use the female XLR connector only. The last unit in the chain will use the male XLR connector only.
2. Connect the first "Secondary" unit to the "Primary."
3. "Primary" Unit: Activate the "Primary" setting located in the "PERSNLTY" menu.
4. "Secondary" Unit(s): Activate the "Secondary" setting located in the "PERSNLTY" menu.
5. Set the "Primary" unit to your desired mode of operation.
6. The secondary unit(s) will now follow the primary unit.

MULTIPLE UNIT POWER LINKING

With this feature you can connect the fixtures to one another using the power cable input and output sockets.

NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE! CHECK SILK SCREEN FOR MAX AMPS.

DIMMER CURVES AND DIMMER MODES

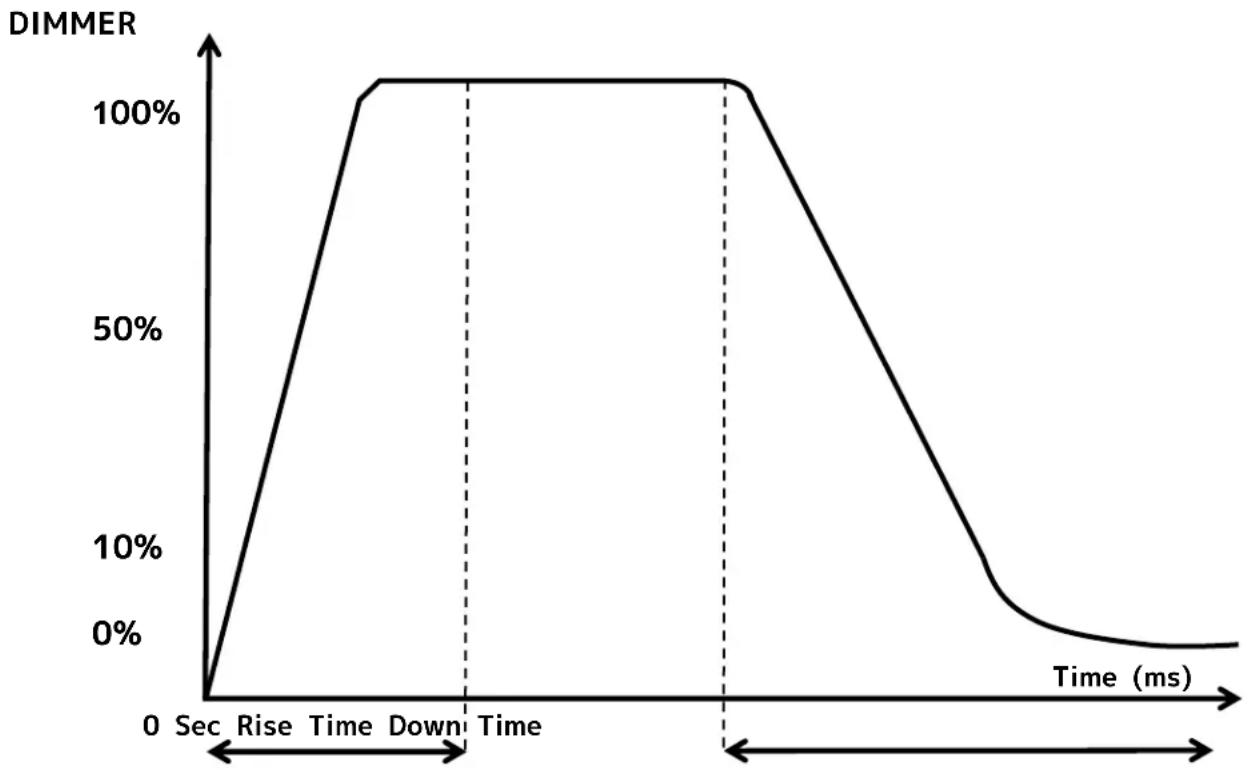

Dimming CurveRamp Effect	0 sec Fade Time 1 sec Fade Time
	255
	Rise Time (ms)	Down Time (ms)	Rise Time (ms)	Down Time (ms)
Standard (default)	0 0 0 0
Stage 780 1100	1540 1660
TV 1180 1520 1860 1940
Architectural 1380 1730 2040 2120
Theatre 1580 1940 2230 2280
Stage 2	0	1100	0	1660

DMX SETUP

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA "IN" and DATA "OUT" XLR terminals located on all DMX fixtures (most controllers only have a DATA "OUT" terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible when using several DMX fixtures. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation): The MOD STQ can be controlled via DMX-512 protocol, and features multiple DMX channel modes. Your unit and your DMX controller can operate with either a 3-pin or 5-pin XLR connector for data input and data output. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all professional lighting stores). Your cables should be made with a male XLR connector at one end and a female XLR connector at the other. Also remember that DMX cable must be daisy chained and cannot be split.

Close-up of two black electronic connectors with metallic pins (no text or symbols visible)

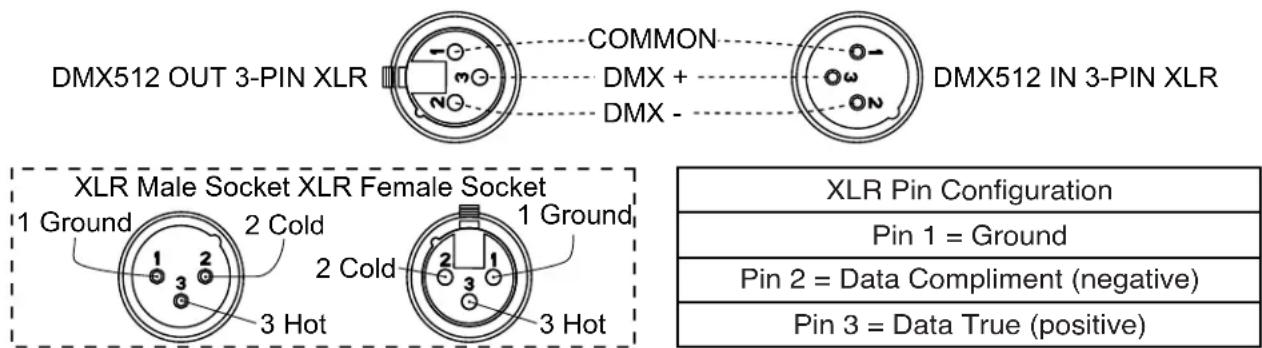

Notice: Be sure to follow figures two and three when making your own cables. Do not use the ground lug on the XLR connector. Do not connect the cable's shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR's outer casing. Grounding the shield could cause a short circuit and erratic behavior.

DMX SETUP

Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior.

A DMX512 terminator reduces signal errors, avoiding most signal reflection interference. Connect PIN 2 (DMX-) and PIN 3 (DMX+) of the last fixture in series with a 120 Ohm, 1/4 W Resistor to terminate the DMX512.

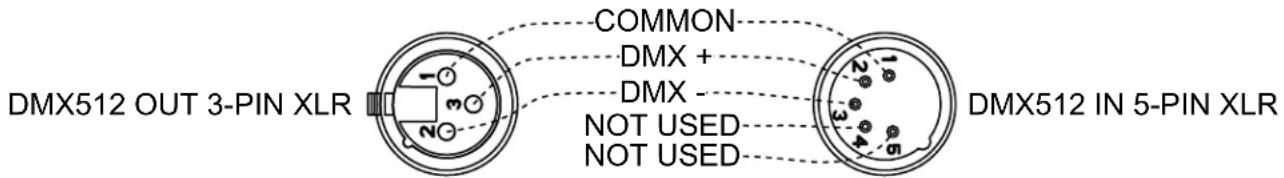

5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-512 data cables for DATA transmission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. The chart below details a proper cable conversion.

3-Pin XLR to 5-Pin XLR Conversion
Ground/Shield Pin 1 Pin 1
Data Compliment (- signal) Pin 2 Pin 2
Data True (+ signal) Pin 3 Pin 3
Not Used Do Not Use
Not Used Do Not Use

DMX ADDRESSING

All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control signal sent out from the DMX controller. This starting DMX address is assigned by setting the correct DMX address on the digital control display on the fixture.

You can set the same starting address for all fixtures or a group of fixtures, or set different addresses for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react in the same way. In this case, please note that changing the settings of one channel will affect all the fixtures simultaneously.

If you set each fixture to a different DMX address, each unit will start to "listen" to the channel number you have set, based on the quantity of DMX channels of each fixture. That means changing the settings of one channel will only affect the selected fixture.

In the case of the MOD STQ, when in 4 Channel mode, you should set the starting DMX address of the first unit to 1, the second unit to 5 (4 + 1), the third unit to 9 (5 + 4), and so on. (See chart below for more details.)

Channel Mode Unit 1 Addr		Unit 2 Addr	Unit 3 Addr	Unit 4 Addr
4-Channels 1 5	9 13
5-Channels 1 6	11 16
7-Channels 1 8	15 22
8-Channels 1 9	17 25
9-Channels 1 10	19 28
12-Channels 1 11	3 25 37
13-Channels 1 11	4 27 40
15-Channels 1 11	6 31 46

DMX TRAITS

CHANNEL								DMX VALUES	FUNCTION
4 CH 5	CH 7 C	H 8 CH	9 CH 12	CH 13	CH 15 Ch
1 1 1	1 1 1 1	1 000-2	55 RED	0% - 10	0%
2 2 2	2 2 2 2	2 000-2	55 GREEN	0% -	100%
3 3 3	3 3 3 3	3 000-2	55 BLUE	0% - 1	00%
4 4 4	4 4 4 4	4 000-2	55 WHITE	0% -	100%
	5 5 5	5 5 5 0	00-255	COLOR	MACROS (See Macro Chart)
				6 6 6	6 000-255	COLOR TEMPERATURE			2700K - 6500K
		5 6 7	7 7 7						SHUTTER & STROBE
								000-031 C	osed
								032-063 Open
								064-095 Strobing Slow-Fast
								096-127 Open
								128-159 Pulse Effect
								160-191 Open
								192-223 Random Strobing Slow-Fast
								224-255 Open
		6 7 8	8 8 8 0	00-255	MASTER DIMMER 0-100%
		7 8 9	9 9 9 0	00-255	MASTER DIMMER FINE
					10 10 10				AUTO PROGRAMS
								000-010 No Function
								011-020 Auto Program 1
								021-030 Auto Program 2
								031-040 Auto Program 3
								041-050 Auto Program 4
								051-060 Auto Program 5
								061-070 Auto Program 6
								071-080 Auto Program 7
								081-090 Auto Program 8
								091-100 Auto Program 9
								101-110 Auto Program 10
								111-120 Auto Program 11
								121-130 Auto Program 12
								131-140 Auto Program 13
								141-150 Auto Program 14
								151-160 Auto Program 15
								161-170 Auto Program 16
								171-255 No Function
									AUTO PROGRAM SPEED Slow-Fast
									AUTO PROGRAM FADELess-More or Slow-Fast

DMX TRAITS

CHANNEL DMX								VALUES	FUNCTION
4 CH $	CH 7 C	H 8 CH	9 CH 12	CH 13	CH 15 Ch
						13 13			DIMMER MODES
								000-020 S andard
								021-040 St age
								041-060 TV
								061-080 Architectural
								081-100 Theatre
								101-120 St age 2
									DIMMER DELAY TIME
								121 0.1 Sec.
								122 0.2 Sec.
								123 0.3 Sec.
								124 0.4 Sec.
								125 0.5 Sec.
								126 0.6 Sec.
								127 0.7 Sec.
								128 0.8 Sec.
								129 0.9 Sec.
								130 1.0 Sec.
								131 1.5 Sec.
								132 2.0 Sec.
								133 3.0 Sec.
								134 4.0 Sec.
								135 5.0 Sec.
								136 6.0 Sec.
								137 7.0 Sec.
								138 8.0 Sec.
								139 9.0 Sec.
								140 10 Sec.
								141-255 Default to Unit Setting
							14		REFRESH RATES
								000-015 Default to Unit Setting
								016-030 900Hz
								031-045 1000Hz
								046-060 1100Hz
								061-075 1200Hz
								076-090 1300Hz
								091-105 1400Hz
								106-120 1500Hz
								121-135 2500Hz
								136-150 4000Hz
								151-165 5000Hz
								166-180 10000Hz
								181-195 15000Hz
								196-210 20000Hz
								211-225 25000Hz
								226-255 Np Function
									GAMMA
								000-020 Default to Unit Setting
								021-040 2.0
								041-060 2.2
								061-080 2.4
								081-100 2.6
								101-120 2.8
								121-255 Np Function

COLOR MACRO CHART

Color DMX	Value	RGBW COLOR INTENSITY				Color DMX	Value	RGBW COLOR INTENSITY
		RED	GREEN	BLUE	W/A RED				GREEN	BLUE	WHITE
Off 0 0 0	0 0 Color Macro 33	129-132	255 206	143 0
Color Macro 1	1-4	80	255	234	80	Color Macro 34	133-136	254	177	153	0
Color Macro 2	5-8	80	255	164	80	Color Macro 35	137-140	254	192	138	0
Color Macro 3	9-12	77	255	112	77	Color Macro 36	141-144	254	165	98	0
Color Macro 4	13-16	117	255	83	83	Color Macro 37	145-148	254	121	0	0
Color Macro 5	17-20	160	255	77	77	Color Macro 38	149-152	176	17	0	0
Color Macro 6	21-24	223	255	83	83	Color Macro 39	153-156	96	0	11	0
Color Macro 7	25-28	255	243	77	77	Color Macro 40	157-160	234	139	171	0
Color Macro 8	29-32	255	200	74	74	Color Macro 41	161-164	224	5	97	0
Color Macro 9	33-36	255	166	77	77	Color Macro 42	165-168	175	77	173	0
Color Macro 10	37-40	255	125	74	74	Color Macro 43	169-172	119	130	199	0
Color Macro 11	41-44	255	97	77	71	Color Macro 44	173-176	147	164	212	0
Color Macro 12	45-48	255	74	77	71	Color Macro 45	177-180	88	2	163	0
Color Macro 13	49-52	255	83	134	83	Color Macro 46	181-184	0	38	86	0
Color Macro 14	53-56	255	93	182	93	Color Macro 47	185-188	0	142	208	0
Color Macro 15	57-60	255	96	236	96	Color Macro 48	189-192	52	148	209	0
Color Macro 16	61-64	238	93	255	93	Color Macro 49	193-196	1	134	204	0
Color Macro 17	65-68	163	87	255	87	Color Macro 50	197-200	0	145	212	0
Color Macro 18	69-72	150	90	255	90	Color Macro 51	201-204	0	121	192	0
Color Macro 19	73-76	100	77	255	77	Color Macro 52	205-208	0	129	184	0
Color Macro 20	77-80	77	100	255	77	Color Macro 53	209-212	0	83	115	0
Color Macro 21	81-84	67	148	255	67	Color Macro 54	213-216	0	97	166	0
Color Macro 22	85-88	77	195	255	77	Color Macro 55	217-220	1	100	167	0
Color Macro 23	89-92	77	234	255	77	Color Macro 56	221-224	0	40	86	0
Color Macro 24	93-96	158	255	144	144	Color Macro 57	225-228	209	219	182	0
Color Macro 25	97-100	255	251	153	153	Color Macro 58	229-232	42	165	85	0
Color Macro 26	101-104	255	175	147	147	Color Macro 59	233-236	0	46	35	0
Color Macro 27	105-108	255	138	186	138	Color Macro 60	237-240	8	107	222	0
Color Macro 28	109-112	255	147	251	147	Color Macro 61	241-244	255	0	0	0
Color Macro 29	113-116	151	135	255	138	Color Macro 62	245-248	0	255	0	0
Color Macro 30	117-120	99	0	255	100	Color Macro 63	249-252	0	0	255	0
Color Macro 31	121-124	138	169	255	138	Color Macro 64	253-255	0	0	0	255
Color Macro 32	128-128	255 255 255

CLEANING, MAINTENANCE, & TROUBLESHOOTING

WARNING! DISCONNECT UNIT FROM POWER BEFORE PERFORMING ANY CLEANING OR MAINTENANCE PROCEDURES!

ALWAYS ALLOW THE FIXTURE TO COOL FOR AT LEAST 15 MINUTES BEFORE PERFORMING ANY CLEANING OR MAINTENANCE!

CLEANING

Frequent cleaning is recommended to ensure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky, or particularly dirty environments can cause greater accumulation of dirt on the fixture's optics. Clean periodically with a soft cloth to avoid dirt/debris accumulation.

NEVER use alcohol, solvents, or ammonia-based cleaners.

MAINTENANCE

Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from an authorized ADJ dealer.

Please refer to the following points during routine inspections:

• A detailed electrical check by an approved electrical engineer every three months, to make sure the circuit contacts are in good condition and prevent overheating.
• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out during normal operation, resulting in damage or injury as larger parts could fall.
• Check for any deformations on the housing, color lenses, rigging hardware and rigging points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to enter into the fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and seriously injure a person(s).
  • Electric power supply cables must not show any damage, material fatigue or sediments.

TROUBLESHOOTING

Listed below are a few common problems the user may encounter, with solutions.

Unit not responding to DMX:

1. Check that the DMX cables are connected properly and are wired correctly (pin 3 is "hot"; on some other DMX devices pin 2 may be 'hot'). Also, check that all cables are connected to the right connectors; it does matter which way the inputs and outputs are connected.

Unit does not respond to sound:

1. Quiet or high pitched sounds will not activate the unit.
2. Make sure that Sound mode is activated.

SPECIFICATIONS

Light Source:

• 7x 8-Watt RGBW (4-IN-1 – Red, Green, Blue & White) LEDs
  • 50,000 Hour Average LED Life

Features:

• Compact, black gloss metal housing
• Includes 3 frost filters to change beam angle: 20-degree, 40-degree or 60-degree
• Scissor yoke included

Output:

• Total Lumens: >2500
• LUX: 2952 @ 3M (9.8 ft.)
- Beam angle: 17-degrees

Connections:

• Power: Twist locking power input and output
• DMX: 3-pin & 5-pin In/Out
- With Wired Digital Communication Network

Control:

• UC IR wireless remote included
• 8 DMX Channel Modes: 4, 5, 7, 8, 9, 12, 13 or 15
• 64 built-in Color Macros
- 5 operational modes
- 4-button control menu with display
• Electronic Dimming: 0-100%
- Variable strobe control
- 6 dimming curve modes
- Adjustable LED Refresh Rate and Gamma Control

Electrical:

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Max Power Draw: 57W
• Locking power in/out to daisy chain up to: 7 Fixtures Max@ 120V, 12 Fixtures Max@ 240V

Dimensions/Weight:

• Dimensions (LxWxH): 7.75" x 7.4" x 8" / 197 x 187.8 x 203mm
  • Weight: 4.3 lbs. / 1.95 kg.

What's in the Box (Included):

• UC IR wireless remote
- Power Cable
- Twist locking power output adapter (so you can make your own power linking cables)

Accessories (sold separately):

- Black metal Barn Doors

DIMENSIONS

Dimensions not to scale.
