HD 9280 - Hair Dryers GRUNDIG - Free user manual and instructions

Product Type	Hair Dryer
Brand	Grundig
Model	HD 9280
Power Consumption	2000 W
Heat Settings	3 (Low, Medium, High)
Speed Settings	2 (Normal, Turbo)
Cool Shot Function	Yes
Ionic Technology	Yes (Reduces frizz)
Attachments	Concentrator nozzle, diffuser
Weight	Approx. 0.5 kg (1.1 lbs)
Dimensions (LxWxH)	25 x 8 x 18 cm
Cord Length	1.8 m
Housing Material	Plastic
Overheating Protection	Yes
Hanging Loop	Yes
Voltage	220-240 V, 50/60 Hz
Filter Type	Removable rear filter
Cleaning	Clean filter regularly with a brush
Repairability	Spare parts available for key components

Frequently Asked Questions - HD 9280 GRUNDIG

How do I clean the filter on my Grundig HD 9280 hair dryer?

Unplug the dryer and remove the rear filter cover. Clean the filter with a soft brush or cloth. Do not use water. Reattach the cover before use.

Can I use the HD 9280 with a diffuser?

Yes, the dryer comes with a diffuser attachment for curly or wavy hair. Simply snap it onto the nozzle.

What does the cool shot button do?

The cool shot button releases a burst of cold air to set your hairstyle in place after drying. It helps reduce frizz and adds shine.

How do I select the right heat and speed setting?

Use the slide switches: choose low heat for fine hair, high for thick hair. Speed can be set to normal or turbo for faster drying.

Is the Grundig HD 9280 suitable for travel?

The dryer has a standard cord and may not be dual voltage. Check the voltage rating (220-240V) before using abroad. A voltage converter may be needed.

Why does my hair dryer overheat and shut off?

This is a safety feature. The dryer has overheating protection. Turn it off, unplug it, and let it cool for 10-15 minutes. Also clean the filter if clogged.

Can I use the concentrator nozzle for precise styling?

Yes, the concentrator nozzle focuses airflow for targeted drying, ideal for straightening or detailing sections of hair.

How often should I clean the filter?

Clean the filter every 2-4 weeks to maintain performance. If you use the dryer daily, clean it more frequently.

Does the HD 9280 have ionic technology?

Yes, it features ionic technology to reduce static and frizz, leaving hair smoother and shinier.

Where can I find replacement parts for my Grundig HD 9280?

Visit the Grundig website or authorized service centers. Common spare parts include filters, buttons, and power cords.

USER MANUAL HD 9280 GRUNDIG

Professional Hair Dryer

User Manual

Abstract line drawing of a human head profile with curved lines (no text or symbols)

HD 9280

EN - TR

ENGLISH 04-08

TÜRKÇE 09-17

GRUNDIG HIGH PROFESSIONAL CALIFORNIA 2200 € A B C D E F G H

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use!

- Keep the instruction manual for future use. Should a third party be given the appliance, please ensure the instruction manual is included.

■ This appliance is intended for domestic use only.

■ Never use the appliance in the bath, shower or over a wash basin filled with water; nor should it be operated with wet hands.

■ Do not immerse the appliance in water or let it come into contact with water, even during cleaning.

■ Do not use the appliance near water in bathtubs, wash basins or other vessels.

■ If the appliance is used in the bathroom, it is essential that the power plug is pulled out after use, as water close to the appliance can still constitute a danger, even if the appliance is switched off.

If not already in use, installing a residual current-operated protective device (RCD) is recommended for additional protection with a rated residual operating current not exceeding 30 mA in the electrical circuit of your bathroom. Ask your electrician for advice.

■ Never place the appliance on soft cushions or blankets during operation.

■ Ensure that the air induction and output openings are not covered during operation.

■ The appliance is equipped with an overheating protection system.

■ Unplug the appliance after use. Do not disconnect the plug by pulling on the cord.

■ Never use the appliance if it or the power cord is visibly damaged.

■ Never wind the power cord around the appliance, as this can result in damage. Check the power cord and the appliance regularly for visible damage.

- Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by a service centre to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.

■ Always keep the appliance out of the reach of children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by incorrect handling.

■ A warm flow of air is required to achieve a perfect result. Please note that a metallised brush can become extremely hot during prolonged or intensive use. To avoid injury, adjust the usage time of the appliance to the accessory being used.

Dear customer,

Congratulations on the purchase of your HD 9280 High Professional hair dryer.

Read the following user notes carefully to ensure full enjoyment of your quality Grundig product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers. We also attach great importance to the efficient use of raw materials

with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.

For a future worth living.

For a good reason. Grundig.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

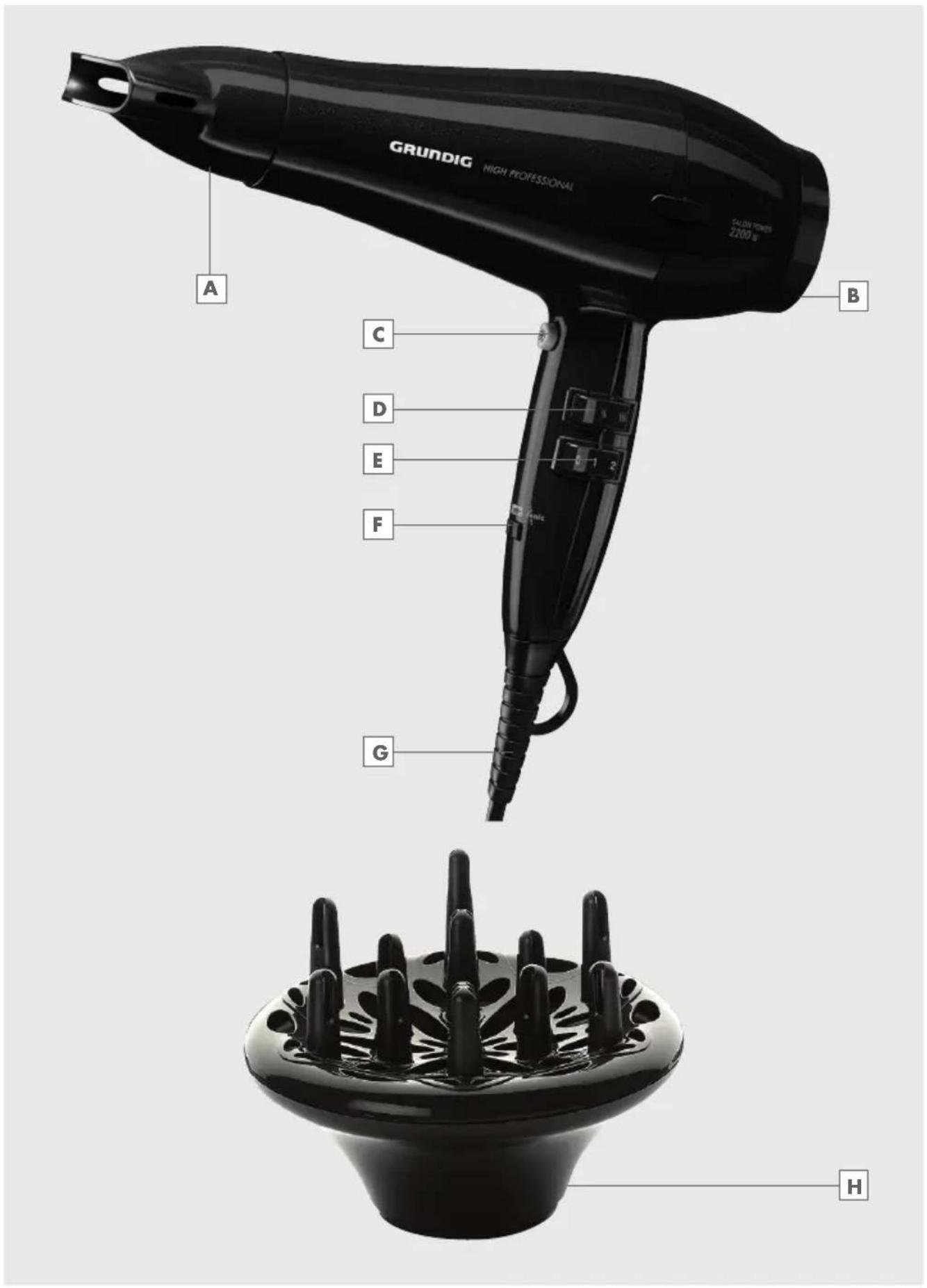

Controls and parts

See the figure on page 3.

A Slim concentrator nozzle
B Detachable air inlet grille
C Cool Shot
D Temperature level
E Blower level
F lon connection
G Power cord
H Soft finger volume diffuser

Settings

Your appliance has the following settings :

Ion connection F

- Ionic : switches the ion supply on and off.

Blower level E

• 0 : off
• 1 : gentle air flow
• 2: strong air flow

Temperature level D

• Ⅱ : Cool air
• II : Moderate temperature for gently drying and styling
• III: high temperature for fast drying

Cool shot c

- *interrupts the hot air supply with a cold air flow

Operation

1 Towel dry your hair thoroughly after washing.
2 If required attach the slim concentrator nozzle A or the soft finger volume diffuser H.

- The diffuser ensures more volume as well as maximum positioning on the strand of hair.

3 Plug the power cord G into the wall socket.

Note

• Check if the mains voltage on the type plate on the handle of the appliance corresponds to your local mains supply.
  4 Turn on the appliance with switch E and set the blower level.
  5 Set the temperature level with switchD.
  6 While drying, you can interrupt the hot air flow by pressing and holding down Ⓞ (Cool Shot).

Note

■ The Cool Shot interrupts the hot air with a flow of cold air. This allows you to fix your hairstyle better and more lastingly.
7 If required, switch on the ion supply while drying by pressing the F button.

- If the ion supply is switched on, the display lights up blue in the F button.

8 After use, switch off the appliance with the E button and pull out the power cord G from the wall socket.

Caution

■ Never wind the power cord around the appliance, as this can result in damage. Check the power cord and the appliance regularly for visible damage.

Cleaning and care

1 Turn the appliance off and unplug the power cord G from the wall socket.
2 Before cleaning, allow the appliance to cool down. The appliance can become very hot.
3 Remember to clean the air inlet grille regularly with a soft brush to remove any hair and dust.
4 Clean the housing of the appliance only with a soft damp cloth.

Caution

■ Never put the appliance or power cord in water or any other liquid. Do not use any cleaning agents.
■ Always allow the appliance to cool down on a heat resistant, safe and flat surface.

Note

■ Before using the appliance after cleaning, dry all parts carefully with a soft cloth or paper towel.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
■ Make sure that it is unplugged, has completely cooled down and is completely dry.
- Do not wrap the power cord around the appliance.
- Keep the appliance in a cool, dry place.
■ Make sure that the appliance is kept out of the reach of children.

Tips for energy saving

Turn off and unplug the appliance after each use.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply: 230 - 240 V\~, 50 Hz

Power: 2000-2200 W

Electrical insulation class: II

Technical and design modifications reserved.
