CITY

combi stroller

Illustration of a baby stroller with four wheels and a canopy (no text or symbols)

MANUAL INSTRUCTION

SAFETY REQUIREMENT

1. The stroller may turn over if something is hanged on the handle or put on the canopy!
2. Stroller should always be used under the supervision of an adult!
3. Do not allow children to suspend him/herself or play in the stroller!
4. Do not allow children to stand in the stroller!
5. Use brakes if you do not hold the stroller with hand!
6. Use the brakes when placing the child in a wheelchair!
7. Do not use the stroller on uneven surfaces near fire or other dangerous places!
8. Do not use the stroller on stairs and escalators!
9. Do not allow your child to stand on the seat and foot rest!
10. Do not use accessories not approved by the manufacturer!
11. Adjustment of the backrest should be performed only by an adult!
12. Do not leave the stroller on hills or inclined surfaces even if you have activated the brake systems!
13. Do not leave the child unattended!
14. Please, use the brake systems even when you not using the stroller to avoid emergency.
15. Always use the safety belt systems!
16. Oil wheels and metal parts regularly to make sure the stroller works well.
17. Do not let your child play with stroller parts in order to avoid injury!
18. Always dry and air the stroller if it has got wet.
19. Any additional load or incorrect operation may cause damage or incident.
20. The person assembling the stroller must be acquainted with the functionality of the stroller.
21. Be very careful on the streets. Always fold the stroller before going upstairs or downstairs.
22. Do not use functions or ways of exploitation not mentioned in this instruction!
23. The height of carried child should not exceed 96 cm.
24. Do not use inappropriate accessories with the stroller.
25. The stroller is designed to bear total load up to 15 kg.
26. The storage basket bear load up to 2 kg.
27. This stroller can be used only for 1 child.
28. This stroller is suitable for children up to 3 years old.
29. The summer basket is not suitable for children under 6 months.

WARNING

WARNING! It may be dangerous to leave your child unattended!

WARNING! Ensure that all locking devices are engaged before use!

WARNING! Do not add a mattress thicker than 10 mm!

WARNING! Start to use safety belts as soon as your child is capable to sit without assistance!

WARNING! Any load attached to the handle affects the stability of the pram/pushchair!

WARNING! Check that the pram body or seat unit attachment devices are correctly engaged before use!

WARNING! Newborn child is not able to sit and hold his head up unassisted. Therefore, do not fix the backrest in sitting position! Lower it to maximum lying down!

WARNING! Always use safety belts when the child is in the stroller! Always use the crotch belt in combination with the waist belt! To prevent injury from a fall or a slip off always use the shoulder straps!

WARNING! Regularly check for loose parts!

WARNING! When you adjust the cart, beware the child is not close to moving parts of the stroller.

WARNING! Do not hang on any bags and packages!

WARNING! This vehicle is designed for children from 0 months and weight up to 15 kg!

WARNING! This product is not suitable for running or skating!

EN 1888:2003

MAINTENANCE AND CARE

1. To clean the metal parts use damp cloth and then dry them.
2. To clean the plastic parts use cloth, water and soft detergent.
3. To clean the woven fabric use upholstery cleaner.
4. Any additional load affects stroller's stability!
5. When storing never place other items on or in the stroller. This will damage it!
6. Oil caster bolts and wheels regularly.
7. Check for damaged parts regularly and replace immediately!

Black-and-white photo of a person using a walking backpack with a hand holding the handle (no text or symbols visible)

Person using a walker to lift a backpack, showing motion arrows (no text or symbols)

Black-and-white photo of a stroller with attached straps and a mesh cover (no text or symbols visible)

Close-up of a person using a bicycle shift lever, showing hand positioning and motion arrows (no text or symbols)

Close-up of a mechanical component with a white arrow pointing to a specific part (no visible text or symbols)

Close-up of a mechanical device with a circular annotation and arrow pointing to a component (no visible text or symbols)

Illustration of a wheel and a mechanical component with no visible text or symbols

Close-up of a mechanical component with a central knob and circular features, marked with an arrow (no text or symbols)

Close-up of a mechanical component with multiple circular features and a central spherical feature (no visible text or symbols)

Mechanical assembly diagram showing a shaft and wheel with directional arrows indicating motion (no text or symbols)

Close-up of a hand holding a small circular object with a metallic ring, possibly a mechanical component or tool (no visible text or symbols)

Mechanical diagram showing a person adjusting a stroller with wheels and a back cover (no text or symbols)

Mechanical assembly diagram showing a hand operating a car with wheels, labeled 9 and 9a (no text or symbols on the main components)

Close-up of a hand holding a small white object, possibly a tool or component, against a dark background (no visible text or symbols)

Close-up of hands adjusting a car wheel component (no visible text or symbols)

Close-up of hands adjusting a mechanical component with arrows indicating movement (no visible text or symbols)

Close-up of a hand holding a black plastic seat cover, no visible text or symbols

Close-up of a hand adjusting a black mechanical component (no visible text or symbols)

Close-up of a hand adjusting a stroller with a lightning bolt (no text or symbols visible)

Close-up of a small car with wheels and a side-mounted sensor, no visible text or symbols

Close-up of a child's stroller with wheels and a hand adjusting the seat (no text or symbols visible)

Person using a computer to press a button on a cushioned seat, with arrows indicating motion (no text or symbols visible)

Black-and-white photo of a person using a walker to fold clothing, showing fabric and patterned shirt (no text or symbols visible)

Close-up of hands adjusting a small mechanical component with directional arrows (no text or symbols visible)

Diagram of two mechanical arms with belt belts and fasteners, showing alignment (no text or symbols)

Close-up of hands adjusting a mechanical component with a numbered label '22' (no visible text or symbols on the main subject)

Close-up of a person using a tool to adjust or install a car engine compartment (no visible text or symbols)

Black-and-white photo of a baby stroller with a hand holding a bag, no visible text or symbols

Person in wheelchair chair being assisted by hand, no visible text or symbols

Close-up of a hand adjusting a mechanical component with a black arrow indicating direction (no visible text or symbols)

Close-up of a hand inserting a small black object into a dark rectangular device (no visible text or symbols)

Close-up of hands adjusting a medical device with a curved clip (no visible text or symbols)

Close-up of hands holding a motorcycle seat with a black arrow pointing to the handle (no visible text or symbols)

Close-up of hands assembling or adjusting mechanical parts (no visible text or symbols)

Close-up of hands assembling a mechanical component with arrows indicating assembly (no visible text or symbols)

Close-up of a hand holding a textured surface with directional arrows indicating movement or force (no text or symbols visible)

Close-up of hands adjusting a dark object on a wooden surface, no visible text or symbols

Close-up of a hand holding a mechanical component with a white arrow pointing to it, no visible text or symbols.

Three-panel black-and-white photo showing a hand operating a mechanical device with numbered callouts (35, 36, 37), no visible text or symbols.

UNFOLDING OF THE STROLLER

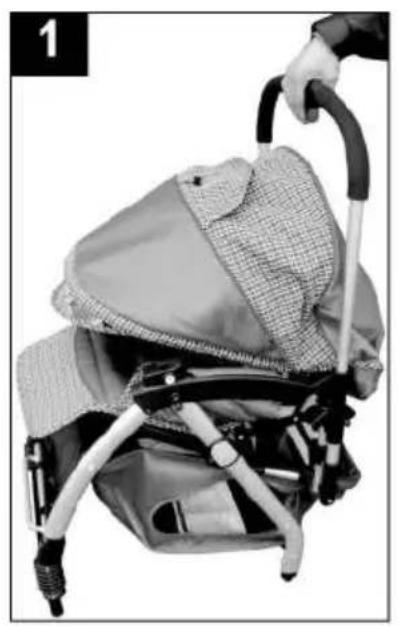

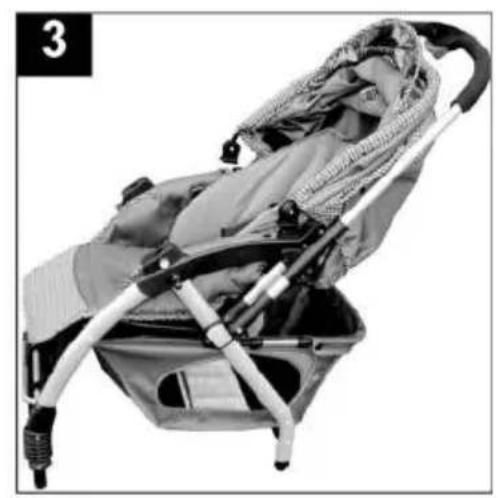

1. Folded stroller. (picture 1)

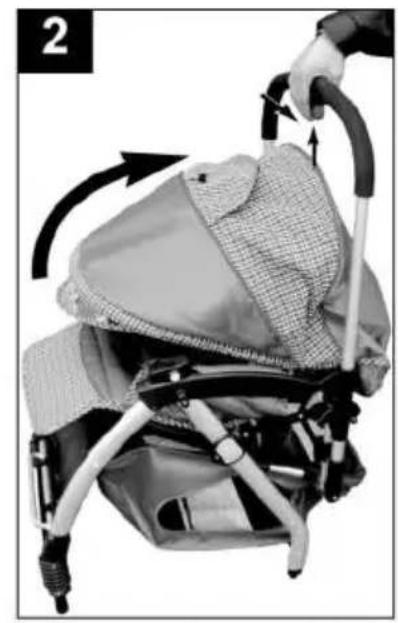

2. Slide and press the red button on the parental handle to the left and press to unlock the mechanism. Pull the handle towards you. Stroller will "click" when is completely unfolded and locked. (pictures 2 and 3)

ASSEMBLING OF THE STROLLER

INSTALLATION OF THE PARENTAL HANDLE

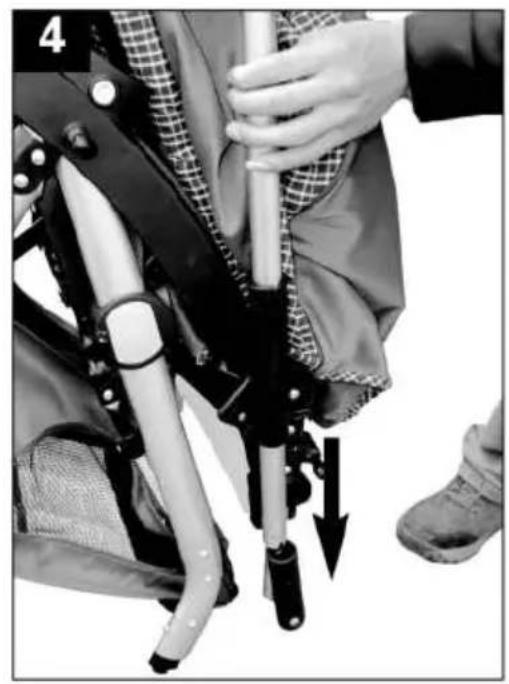

1. Insert the metal pipes of parental handle into the holes made for this purpose until the spring pushes out the metal pin. (picture 4)

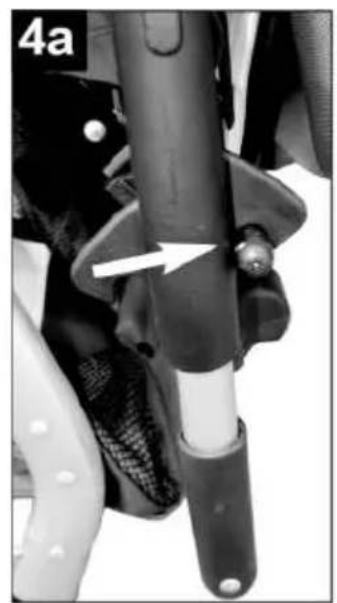

2. Install the mechanisms for reversal of parental handle. (picture 4a)

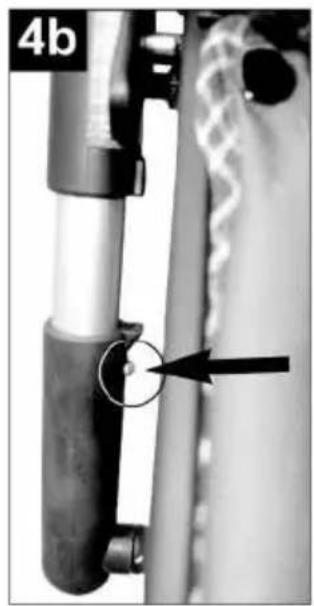

3. When dismantling press the metal button to remove the handle. (picture 4b)

INSTALLATION OF THE REAR WHEELS

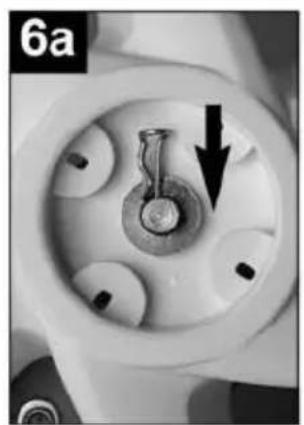

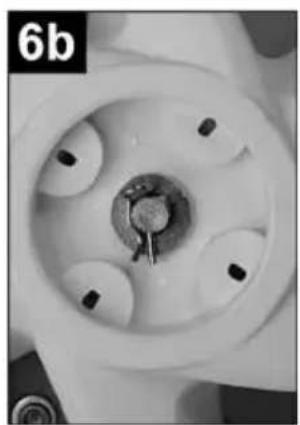

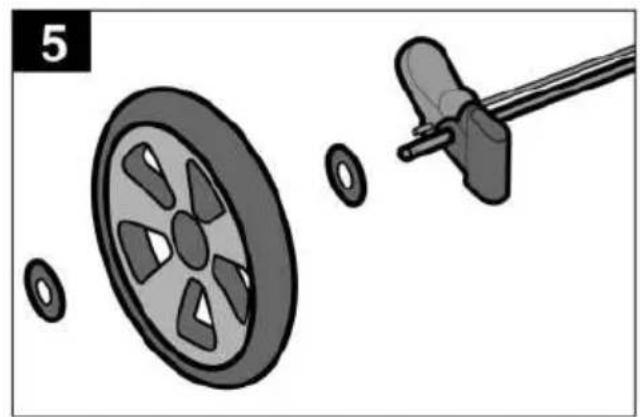

1. Remove the cotter pin and one washer from the axle leaving the other washer on its place. Place the wheel (with spokes out) in the axis. Place the second washer. (picture 5)
2. Insert the straight side of the cotter pin through the hole in the axle. (pictures 6, 6a and 6b)
3. To install the second wheel please, repeat steps 1 and 2.

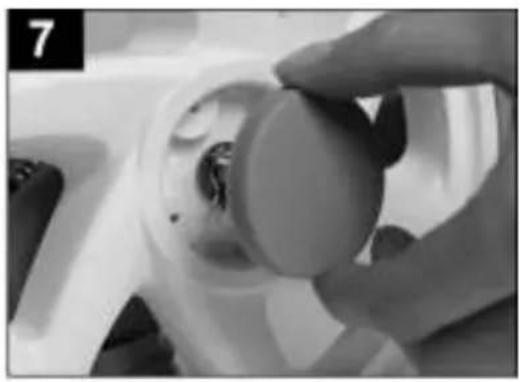

4. Place the caps on the both wheels. (picture 7)

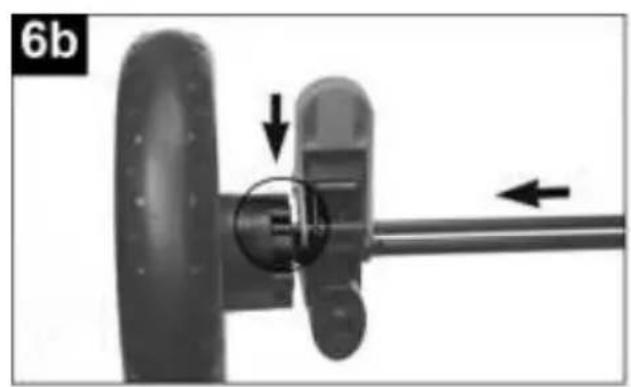

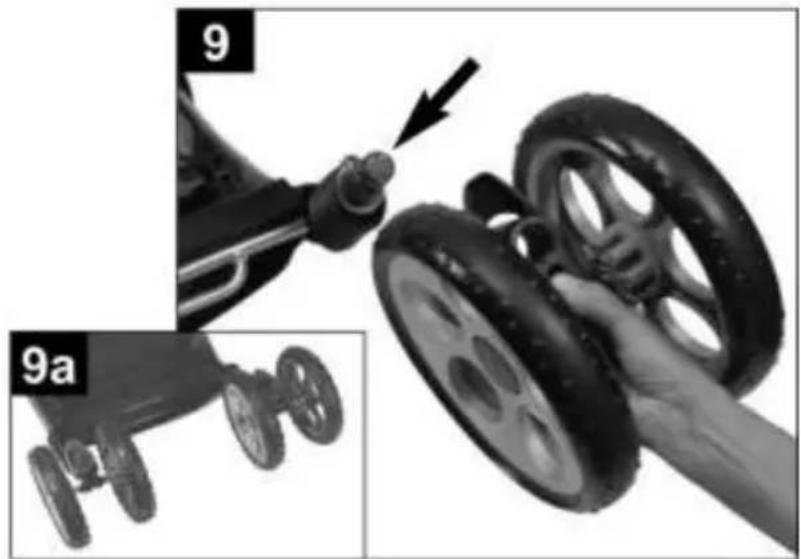

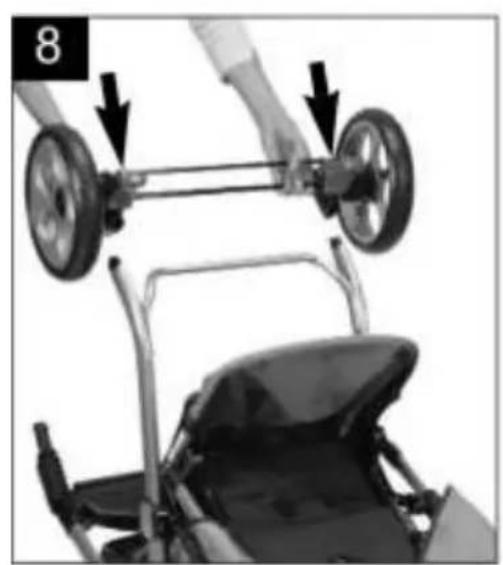

5. Turn the stroller upside down. Hold the axle with the wheels and in the same time the brakes have to be in the direction of the handle. Insert the holes into the pipes of the construction until "click".

INSTALLATION OF THE FRONT WHEELS

1. Insert the front wheel into the pipe of the metal frame. Wheel will "click" if it is installed properly. (picture 9)
2. Repeat the same operation to install and the other front wheel. (picture 9a)

INSTALLATION OF THE SHOPPING BASKET

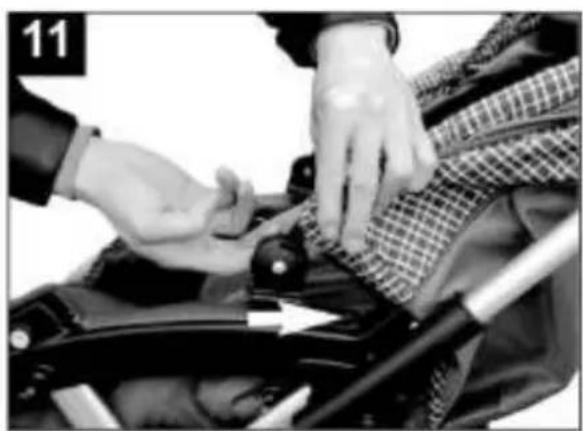

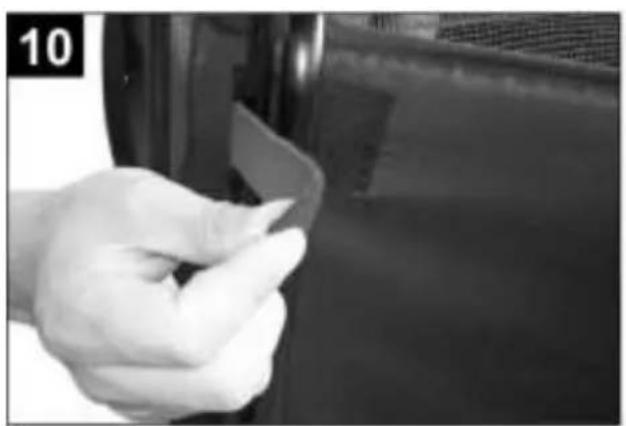

1. Install the shopping basket by using the velcro straps located on its bottom side. (picture 10)

INSTALLATION OF THE CANOPY

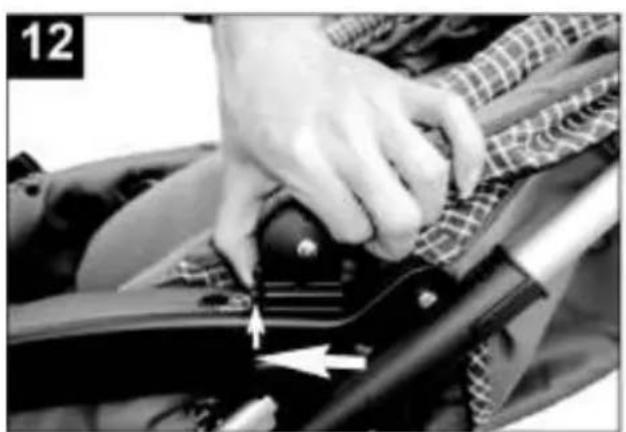

1. Insert the pin of the canopy into the hole made for this purpose. (picture 11)
2. To remove the canopy lift the button and pull up. (picture 12)

INSTALLATION OF THE TRAY

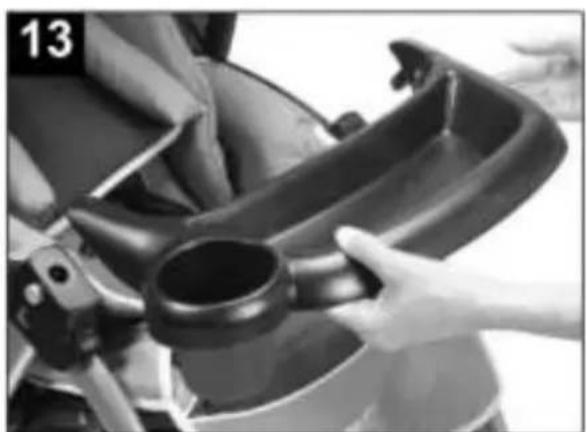

1. Insert the tray pins into the holes in the frame of the stroller. Press until tray "clicks" into place. (picture 13)

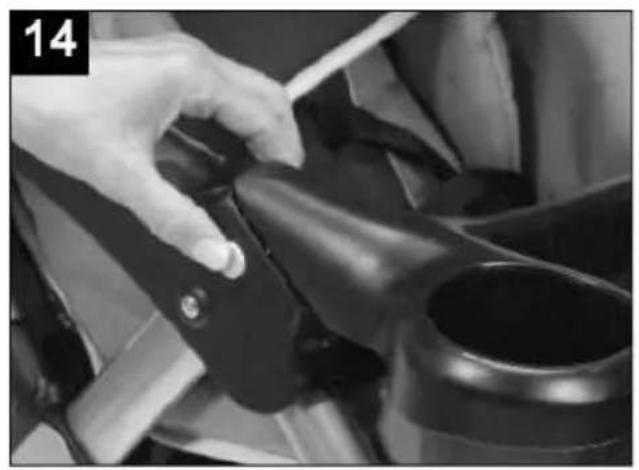

2. To remove the tray press the release buttons on the both sides and pull the tray out. (picture 14)

INSTALLATION OF THE FOOTREST

1. Place the footrest between the both metal pipes in the front part of the frame of the stroller. Install the footrest on the horizontal frame and press until it "clicks". (picture 15)

SERVICE USE

USING THE REAR BRAKES

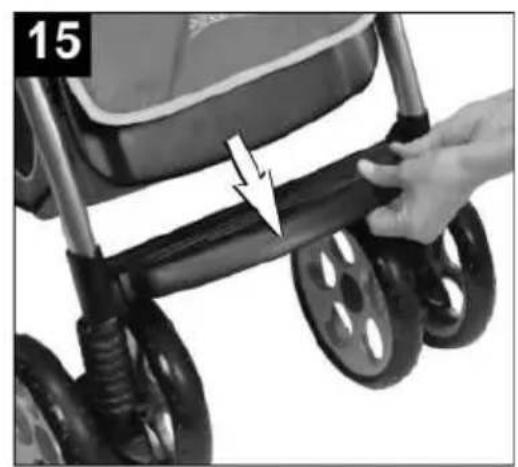

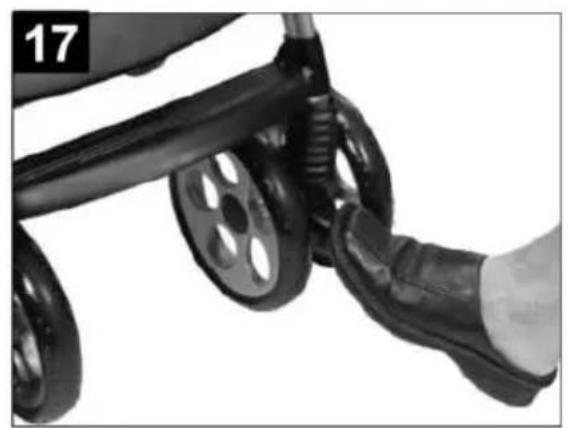

1. Step on the red lever close to the rear wheel to activate the brake. (picture 16)
2. Lift the lever up to unlock the brake.

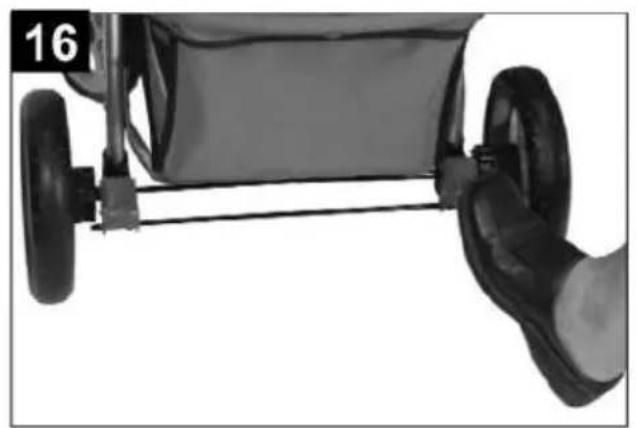

1. Step on the lever between the both front wheels to lock their movement only forward. (picture 17)
2. Lift the lever up to release the wheels to turn in all directions.

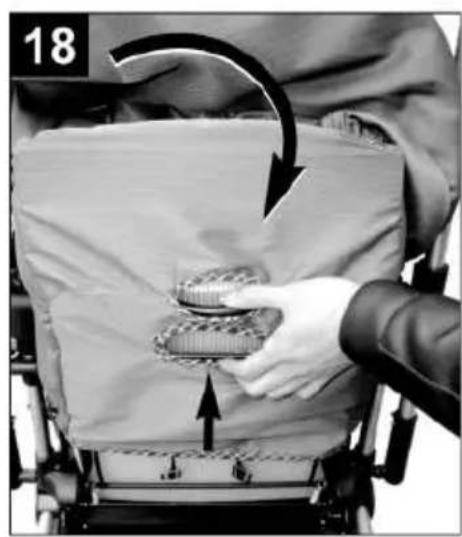

1. The backrest has 3 position. To change the position of the backrest you have to use the mechanism located on back side. Trying to adjust the backrest without unlocking the mechanism will be damage it and this is not subject to warranty! (picture 18)

ADJUSTING THE POSITION OF THE FOOTREST

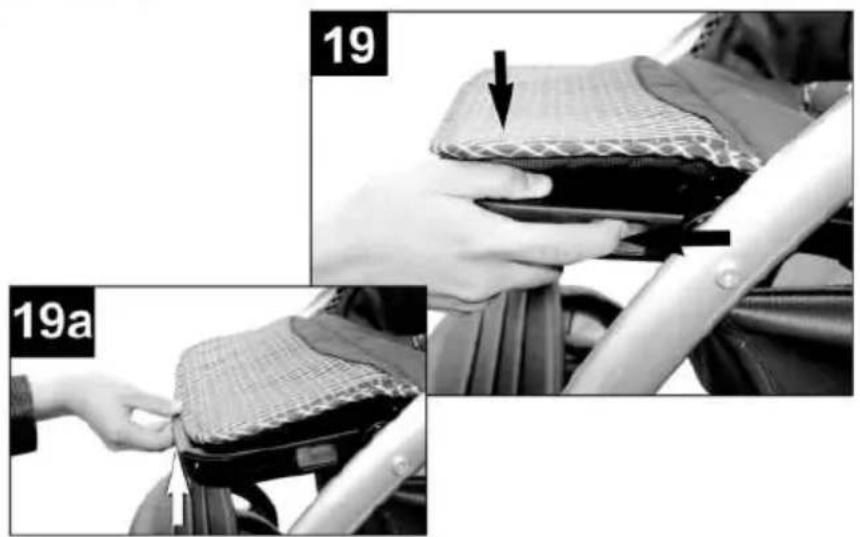

1. To adjust the position of the footrest you have to use the mechanisms located on its both sides. (pictures 19 and 19a)

ADJUSTING THE POSITION OF THE CANOPY

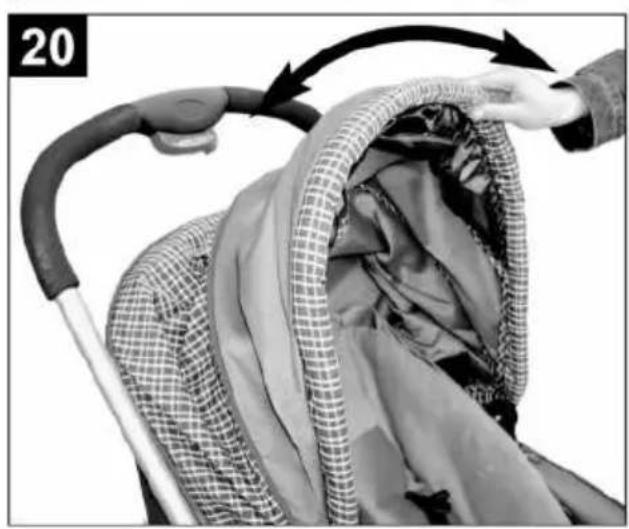

1. To adjust the position of the canopy you have to pull it forward or backward depending on your needs. (picture 20)

USING THE SAFETY BELT

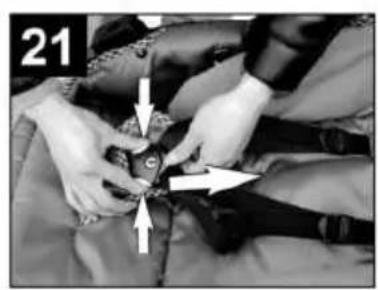

1. To unlock the safety belt press simultaneously the both mechanisms and pull it out. (picture 21)
2. To lock the safety belt bring together the both plastic mechanisms and place them in the locking buckle. (picture 22)

CHANGING THE POSITION OF THE PARENTAL HANDLE

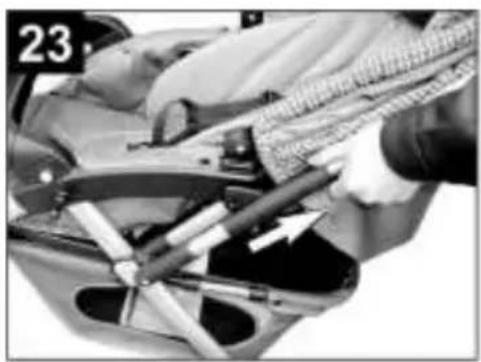

1. To change the position of the handle first lift the plastic mechanisms on its both sides. Then change the position of the handle until the locking mechanisms "click". Make sure they are locked well! (pictures 23 and 24)

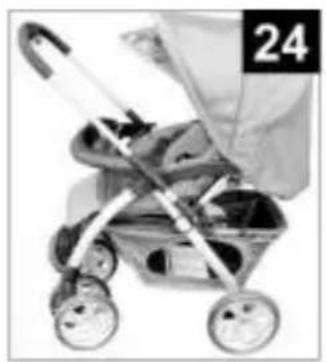

FUNCTION AS A NEWBORN BASKET

1. Place the backrest of the stroller in the lowest position.
2. Remove the tray.

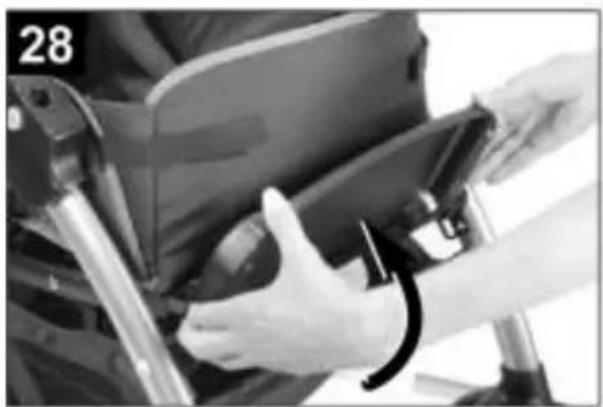

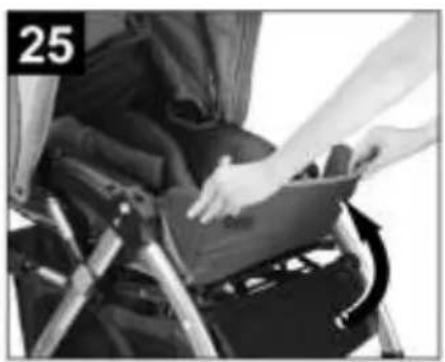

3. Lift the soft pad for the foot up and fold the both side parts inward. (picture 25)
4. Pass each of the velcro straps through the slot in the fabric from inside of the stroller. (picture 26)
5. Tighten each of the velcro straps to fix the footrest in this position. (picture 27)
6. Press the releasing mechanisms on both sides of the footrest. Lift until it is locked. (picture 28)
   Notice: Make sure the footrest is locked well.

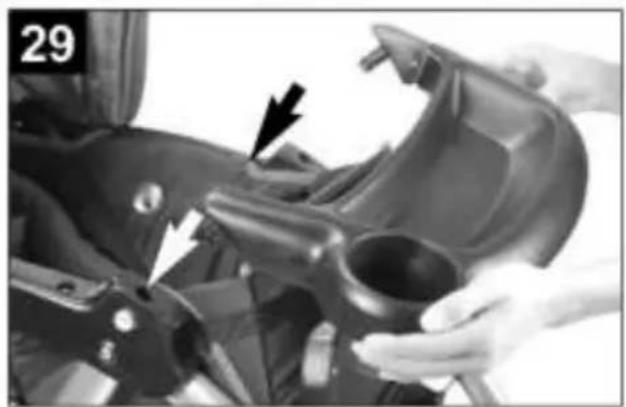

7. Place the tray. (picture 29)

REMOVING THE TEXTILE PART OF THE STROLLER FOR CLEANING

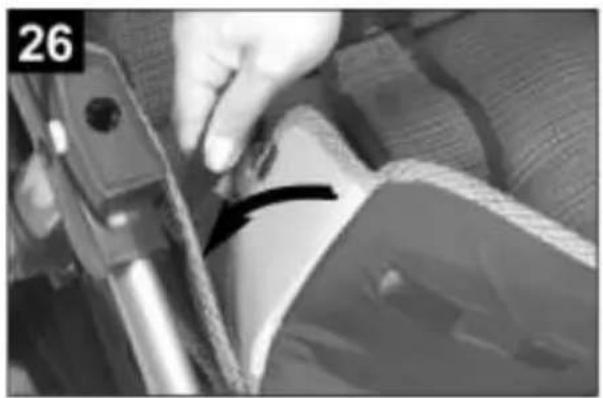

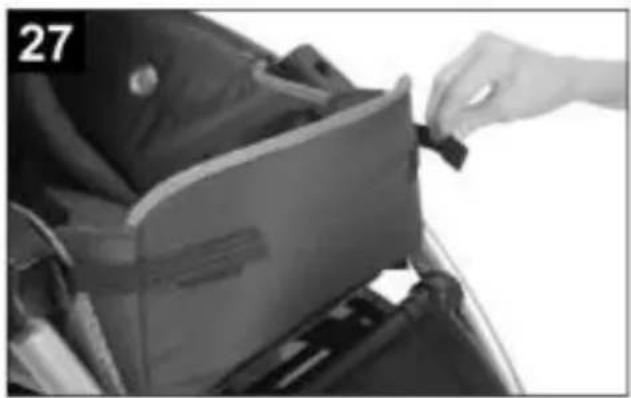

1. Release all fixing elements of the textile part from the stroller. (picture 30)
   Notice: Pull the textile part following the direction of the arrows to release the fixing elements. (picture 31)

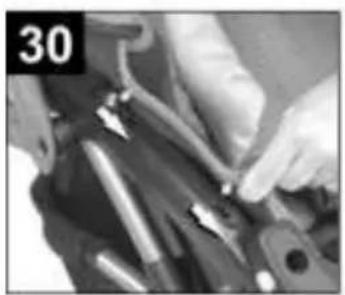

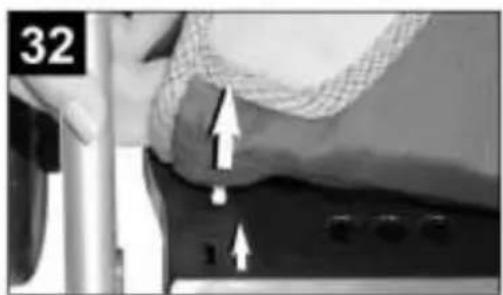

2. Pull the textile part up to release the pins underneath the seat. (picture 32)

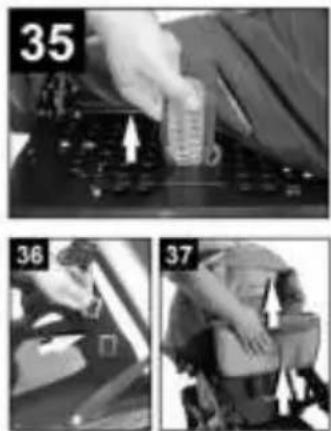

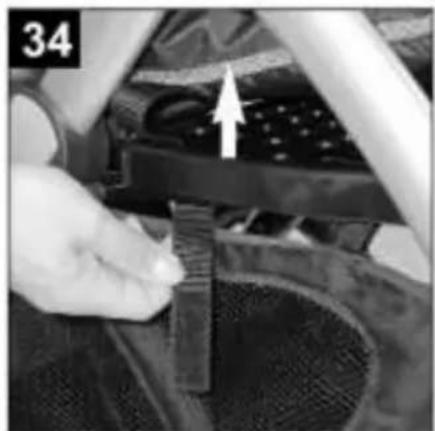

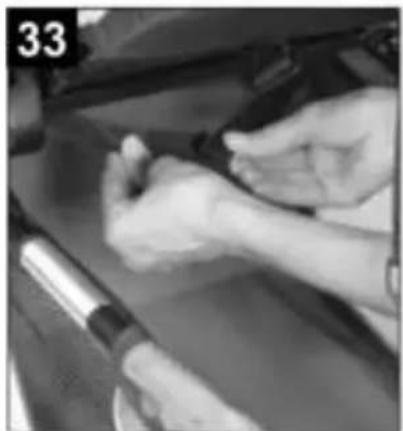

3. Release the velcro straps under the seat. Pass them through the holes in the seat. (pictures 33 and 34)
4. Lift the seat up and find the slots below. Pass the buckle through the slot. (picture 35)
5. Release the velcro straps and push the both metal elements through the backside of the stroller. (picture 36)
6. Pull the textile part up off the plastic elements. (picture 37)

To place the textile part back repeat the same steps from “REMOVING THE TEXTILE PART OF THE STROLLER” in reverse order.

WARNING!

• For proper installation of the restraint system make sure that the both metal elements are in one plane with the backside of the stroller.
• Never use the stroller without the both metal elements and the strap.

Notice: Before folding the stroller lock the rear brakes and take your child out of the stroller. Fold the canopy and remove any additional load from the basket.

1. Slide and press the red button on the parental handle. Press forward and down until you lock the stroller. The stroller will remain fixed in this position.
