USER MANUAL EHGL3XCN AEG-ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Numb

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

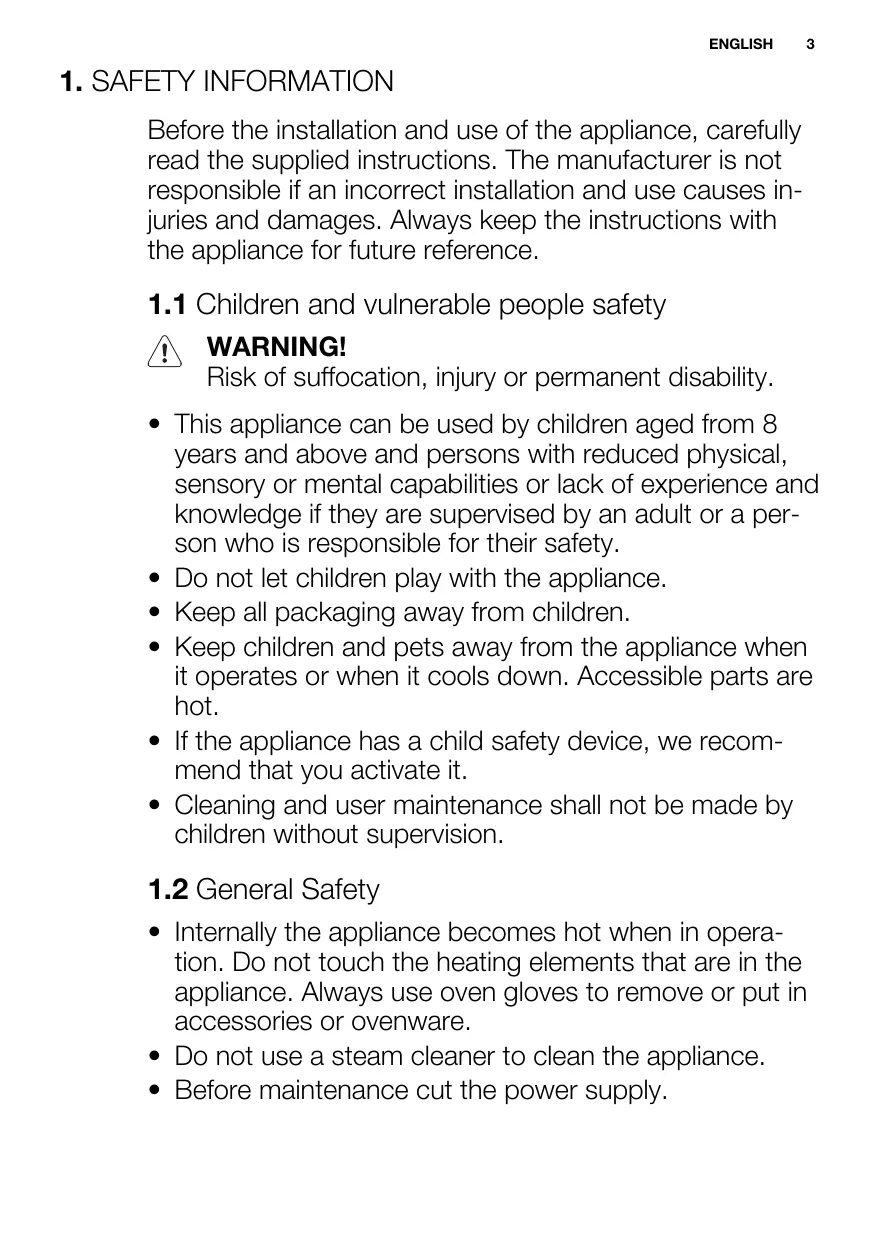

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

1.2 General Safety

• Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.

• Before maintenance cut the power supply.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

• Be careful, when you touch the storage drawer. It can get hot.

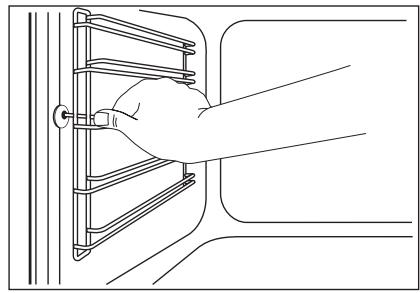

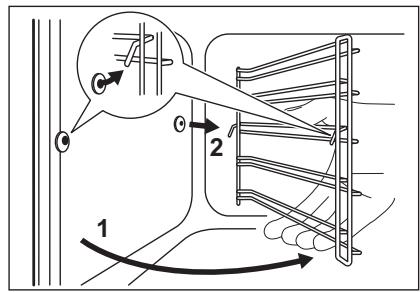

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
  Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Do not pull the appliance by the handle.

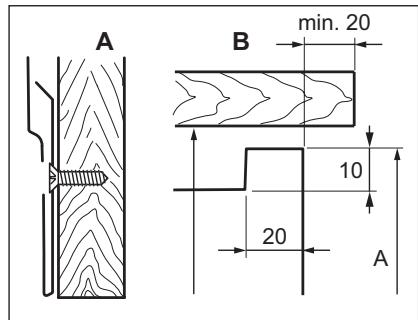

• The kitchen cabinet and the recess must have suitable dimensions.
• Keep the minimum distance from the other appliances and units.
• Make sure that the appliance is installed below and adjacent safe structures.
• Parts of the appliance carry current. Close the appliance with furniture to prevent touching the dangerous parts.
• The sides of the appliance must stay adjacent to appliances or to units with the same height.

Electrical connection

WARNING!

Risk of fire and electrical shock.

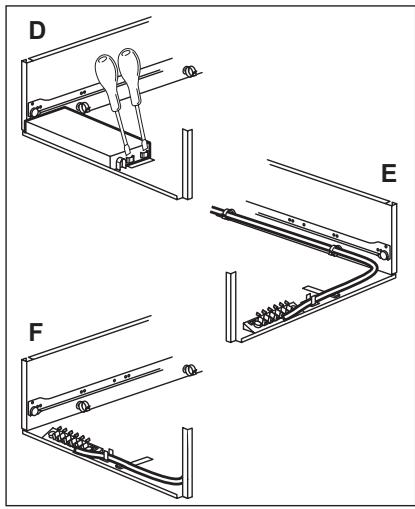

• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
  Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
• Do not let mains cables to come in touch with the appliance door, specially when the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

2.2 Use

WARNING!

Risk of injury, burns or electric shock or explosion.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful, when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Always keep the appliance door closed when the appliance is in operation.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:

• do not put ovenware or other objects in the appliance directly on the bottom.

• do not put aluminium foil directly on the bottom of the appliance.

• do not put water directly into the hot appliance.

• do not keep moist dishes and food in the appliance after you finish the cooking.

• be careful when you remove or install the accessories.

• Discoloration of the enamel has no effect on the performance of the appliance. It is not a defect in the sense of the warranty law.

• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.

2.3 Care and Cleaning

WARNING!

Risk of injury, fire or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Service.

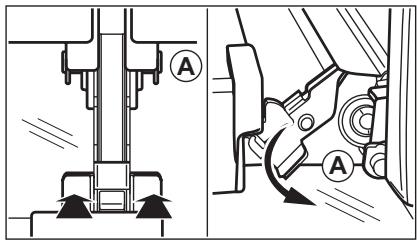

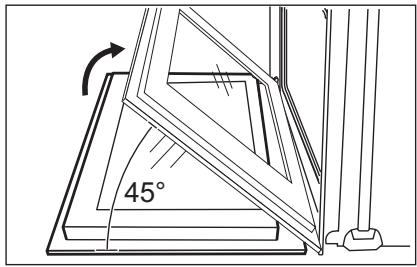

• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Remaining fat or food in the appliance can cause fire.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety instructions on the packaging.
• Do not clean the catalytic enamel (if applicable) with any kind of detergent.

2.4 Internal light

• The type of light bulb or halogen lamp used for this appliance, is only for household appliances. Do not use it for house lighting.

WARNING!

Risk of electrical shock.

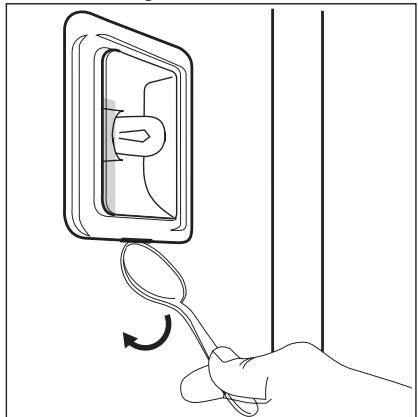

• Before replacing the lamp, disconnect the appliance from the power supply.
• Only use lamps with the same specifications.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent children and pets to get closed in the appliance.
• Dispose of the appliance at any shop that sells new appliances or at the official SENS collection point. You can find the list of the official SENS collection points at www.sens.ch.

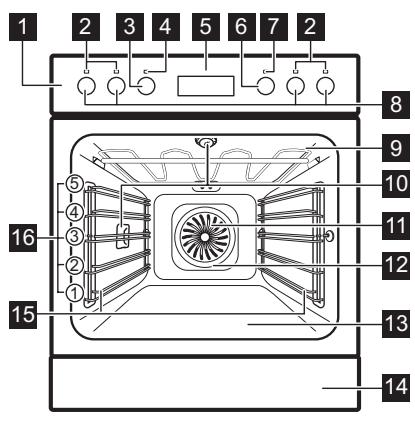

3.PRODUCT DESCRIPTION

1 Control panel
2 Lamps / symbols of the cooking zones
3 Knob for the oven functions
4 Power lamp / symbol
5 Electronic programmer
6 Knob for the temperature
7 Temperature lamp / symbol / indicator
Knobs for the cooking zones
Heating element
10 Lamp
11 Fan
12 Rear wall heating element
13 Bottom heat
14Drawer
15 Shelf support, removable
16 Shelf positions

3.1 Accessories

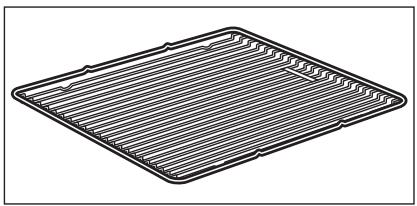

Wire shelf

For cookware, cake tins, roasts.

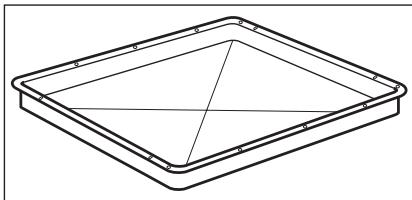

Baking tray

For cakes and biscuits.

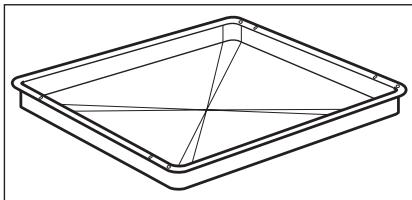

Grill/ Roasting pan

To bake and roast or as a pan to collect fat.

Storage drawer

Below the oven cavity is the storage drawer.

WARNING!

The storage drawer can become hot when the appliance operates. Do not store any flammable materials in the drawer.

4. BEFORE FIRST USE

WARNING!

Refer to the Safety chapters.

4.1 Initial Cleaning

• Remove all parts from the appliance.
• Clean the appliance before first use.

Refer to chapter "Care and Cleaning".

4.2 Setting the time

You must set the time before you operate the appliance.

When you connect the appliance to the electrical supply the indicator for the Time of Day function flashes.

Press the + or - button to set the correct time.

After approximately five seconds, the flashing stops and the display shows the time of day you set.

Useful information:

• To change the time, press the Selection button again and again until the indicator for the Time of Day function flashes. You must not set the Duration or End function at the same time.
• In case of a power cut up to 1 hour, the time of day is shown and the indicator for the Time of Day function flashes. Make sure that the time is correct and press the Selection button to stop the flashing.
• In case of a power cut longer than 1 hour, you must set the time again.

5. DAILY USE

WARNING!

Refer to the Safety chapters.

To use the appliance, press the control knob. The control knob comes out.

5.1 Activating and deactivating the appliance

1. Turn the control knob for the oven functions to select an oven function.
2. Turn the control knob for the temperature to select a temperature.
3. To deactivate the appliance turn the control knobs for the oven functions and temperature to off position.

Knob symbol, indicator or lamp (depends on the model - refer to the appliance overview):

• The indicator comes on when the oven heats up.
• The lamp comes on when the appliance operates.
• The symbol shows whether the knob controls one of the cooking zones, the oven functions or the temperature.

5.2 Oven functions

Oven function		Application
Light		To activate the lamp without a cooking function.
True Fan Cooking		To bake on up to 3 oven levels at the same time and to dry food. Set the oven temperatures 20 - 40 °C lower than when using Conventional Cooking.
Pizza Setting		To bake food on one shelf position for a more intensive browning and a crispy bottom. Set the temperature 20 - 40 °C lower than for Conventional Cooking.
Conventional Cooking		To bake and roast food on one shelf position.
Bottom Heat		To bake cakes with crispy bottom and to preserve food.
Defrost		To defrost frozen food.
Grilling		To grill flat food and to toast bread.
Fast Grilling		To grill flat food in large quantities and to toast bread.
Turbo Grilling		To roast larger meat joints or poultry with bones on one shelf position. Also to make gratins and to brown.

5.3 Electronic programmer

1 Function indicators
Time display
3 Function indicator
4 Button +
5 Selection button
6 Button -

If you do not use the appliance for 3 minutes, the brightness of the display decreases to lower the power consumption. When you press a button, the display goes back to the active mode.

5.4 Cooking zones

i You can operate the hob with the control knobs for the cooking zones. Refer to the user manual for hob.

5.5 Hob cooking zones

The cooking zone lamps (refer to the chapter "Product description") show which zone you set.

Con-trol knob	Function
0	Off position
$	Keep warm setting
1 - 9	Heat settings (1 = lowest heat setting, 9 = highest heat setting)

Control knob

Double zone switch

Operating the hob:

1. Turn the knob to a necessary heat setting.
2. To complete the cooking process, turn the knob to the off position.

5.6 Using the double zone

CAUTION!

To activate the double zone, turn the knob clockwise. Do not turn it through the stop position.

1. Turn the knob clockwise to position 9.
2. Turn the knob slowly to the symbol until you can hear a click.

The two cooking zones are on.

1. To set the necessary heat setting refer to "Heat settings".

6. CLOCK FUNCTIONS

Clock function		Application
I→I	Duration	To set how long the appliance must operate.
→I	End	To set when the appliance must be deactivated.
Minute Minder		To set a countdown time. An acoustic signal sounds after the time period is completed. This function has no effect on the operation of the appliance.
Time of day		To set, change or check the time of day.

You can use Duration and End at the same time to set the time when the appliance must be activated and then deactivated. First set Duration , then End

6.1 Setting the clock functions

1. For Duration and End , set an oven function and temperature. This is not necessary for the Minute Minder
2. Press the Selection button again and again until the indicator for the necessary clock function flashes.
3. Press + or - to set the time for the necessary clock function. The display shows the indicator for the clock function you set. When the set time ends, the indicator flashes

and an acoustic signal sounds for two minutes.

i With the Duration and End functions, the appliance deactivates automatically.

1. Press a button to stop the signal.
2. Turn the knob for the oven functions and the knob for the temperature to the off position.

6.2 Cancelling the clock functions

1. Press the Selection button again and again until the necessary function indicator flashes.
2. Press and hold the button -. The clock function goes out after some seconds.

7. USING THE ACCESSORIES

WARNING!

Refer to the Safety chapters.

7.1 Inserting the accessories

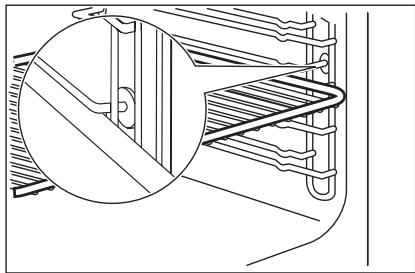

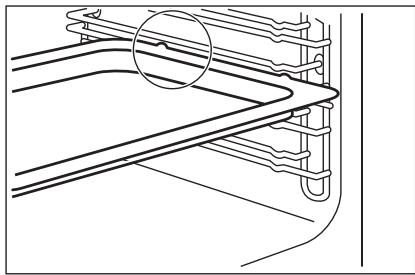

Baking tray:

Push the baking tray between the guide bars of the shelf support.

• All accessories have small indentations at the top of the right and left side to increase safety. The indentations are also anti-tip devices.

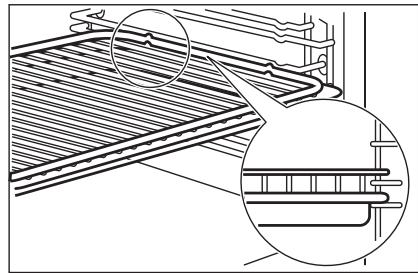

Wire shelf:

Push the shelf between the guide bars of the shelf support and make sure that the feet point down.

Wire shelf and baking tray together:

Push the baking try between the guide bars of the shelf support and the wire shelf on the guide bars above.

OPTIONAL FUNCTIONS

8.1 Cooling fan

When the appliance operates, the cooling fan activates automatically to keep the

• The high rim around the shelf is a device which prevents cookware from slipping.

surfaces of the appliance cool. If you deactivate the appliance, the cooling fan can continue to operate until the appliance cools down.

9. HELPFUL HINTS AND TIPS

For build - under ovens:

9.1 Examples of cooking applications for hob

The data in the table is for guidance only.

Heat set-ting	Use to:	Time (min)	Hints
1 - 2	Hollandaise sauce, melt: butter, chocolate, gelatine	5 - 25	Mix occasionally
1 - 2	Solidify: fluffy omelettes, baked eggs	10 - 40	Cook with a lid on
2 - 3	Simmer rice and milkbased dishes, heating up ready-cooked meals	25 - 50	Add at least twice as much liquid as rice, stir milk dishes part way through
3 - 4	Steam vegetables, fish, meat	20 - 45	Add a few tablespoons of liquid
4 - 5	Steam potatoes	20 - 60	Use max. 1 / 4 l water for 750 g of potatoes
4 - 5	Cook larger quantities of food, stews and soups	60 - 150	Up to 3 l liquid plus ingredients
6 - 7	Gentle fry: escalope, veal cordon bleu, cutlets, ris-soles, sausages, liver, roux, eggs, pancakes, doughnuts	as required	Turn halfway through
7 - 8	Heavy fry, hash browns, loin steaks, steaks	5 - 15	Turn halfway through
9	Boil large quantities of water, cook pasta, sear meat (goulash, pot roast), deep fry chips

The temperature and baking times in the tables are guidelines only. They depend on the recipes, quality and quantity of the ingredients used.

9.2 Baking

General instructions

• Your new appliance may bake or roast differently to the appliance you had before. Adapt your usual settings (temperature, cooking times) and shelf positions to the values in the tables.
• With longer baking times, the appliance can be switched off about 10 minutes before the end of baking time, to use the residual heat.

When you use frozen food, the trays in the appliance can twist during bak

ing. When the trays get cold again, the distortion will be gone.

How to use the Baking Tables

• We recommend to use the lower temperature the first time.
• If you cannot find the settings for a special recipe, look for the one that is almost the same.
• Baking time can be extended by 10 - 15 minutes, if you bake cakes on more than one level.
• Cakes and pastries at different heights do not always brown equally at first. If this occurs, do not change the temperature setting. The differences equalize during the baking procedure.
• Unless otherwise stated, the values in the tables assume that the appliance is cold when the cooking starts.

9.3 Tips on baking

Baking results	Possible cause	Remedy
The bottom of the cake is not browned sufficiently.	The shelf position is incorrect.	Put the cake on a lower shelf.
The cake sinks and becomes soggy, lumpy or streaky.	The oven temperature is too high.	The next time you bake, set a slightly lower oven temperature.
The cake sinks and be-comes soggy, lumpy or streaky.	The baking time is too short.	Set a longer baking time. You cannot decrease baking times by setting higher temperatures.
The cake sinks and be-comes soggy, lumpy or streaky.	There is too much liquid in the mixture.	Use less liquid. Be careful with mixing times, espe-cially if you use a mixing machine.
The cake is too dry.	The oven temperature is too low.	The next time you bake, set a higher oven temper-ature.
The cake is too dry.	The baking time is too long.	The next time you bake, set a shorter baking time.
The cake browns unevenly.	The oven temperature is too high and the baking time is too short.	Set a lower oven temper-ature and a longer baking time.
The cake browns unevenly.	The mixture is unevenly distributed.	Spread the mixture evenly on the baking tray.
The cake is not ready in the baking time given.	The oven temperature is too low.	The next time you bake, set a slightly higher oven temperature.

9.4 Baking on one level:

Baking in tins

Type of baking	Oven function	Shelf position	Temperature (°C)	Time (min)
Ring cake or brio-che	True Fan Cooking	1	150 - 160	50 - 70
Madeira cake / fruit cakes	True Fan Cooking	1	140 - 160	70 - 90
Fatless sponge cake / Fatless sponge cake	True Fan Cooking	2	140 - 150	35 - 50
Fatless sponge cake / Fatless sponge cake	Conventional Cooking	2	160	35 - 50
Flan base - short pastry	True Fan Cooking	2	170 - 180 1)	10 - 25
Flan base - sponge mixture	True Fan Cooking	2	150 - 170	20 - 25
Apple pie / Apple pie (2 tins Ø20 cm, diagonally off set)	True Fan Cooking	2	160	60 - 90
Type of baking	Oven function	Shelf position	Temperature (℃)	Time (min)
Apple pie / Apple pie (2 tins Ø20 cm, diagonally off set)	Conventional Cooking	1	180	70 - 90
Cheesecake	Conventional Cooking	1	170 - 190	60 - 90

1) Preheat the oven.

Cakes / pastries / breads on baking trays

Type of baking	Oven function	Shelf position	Temperature (°C)	Time (min)
Plaited bread / bread crown	Conventional Cooking	3	170 - 190	30 - 40
Christmas stolen	Conventional Cooking	2	160 - 180 1)	50 - 70
Bread (rye bread): 1. First part of baking process. 2. Second part of baking process.	Conventional Cooking	1	1. 230 1) 2. 160 - 180	1. 20 2. 30 - 60
Cream puffs / eclairs	Conventional Cooking	3	190 - 210 1)	20 - 35
Swiss roll	Conventional Cooking	3	180 - 200 1)	10 - 20
Cake with crumble topping (dry)	True Fan Cooking	3	150 - 160	20 - 40
Buttered almond cake / sugar cakes	Conventional Cooking	3	190 - 210 1)	20 - 30
Fruit flans (made with yeast dough / sponge mixture) 2)	True Fan Cooking	3	150	35 - 55
Fruit flans (made with yeast dough / sponge mixture) 2)	Conventional Cooking	3	170	35 - 55
Fruit flans made with short pastry	True Fan Cooking	3	160 - 170	40 - 80
Yeast cakes with delicate toppings (e. g, quark, cream, custard)	Conventional Cooking	3	160 - 180 1)	40 - 80

1) Preheat the oven.
2) Use a deep pan.

Biscuits

Type of baking	Oven function	Shelf position	Temperature (℃)	Time (min)
Short pastry biscuits	True Fan Cooking	3	150 - 160	10 - 20
Short bread / Short bread / Pastry Stripes	True Fan Cooking	3	140	20 - 35
Short bread / Short bread / Pastry Stripes	Conventional Cooking	3	160 1)	20 - 30
Biscuits made with sponge mixture	True Fan Cooking	3	150 - 160	15 - 20
Pastries made with egg white, merun-gues	True Fan Cooking	3	80 - 100	120 - 150
Macaroons	True Fan Cooking	3	100 - 120	30 - 50
Biscuits made with yeast dough	True Fan Cooking	3	150 - 160	20 - 40
Puff pastries	True Fan Cooking	3	170 - 180 1)	20 - 30
Rolls	True Fan Cooking	3	160 1)	10 - 25
Rolls	Conventional Cooking	3	190 - 210 1)	10 - 25
Small cakes / Small cakes (20 per tray)	True Fan Cooking	3	150 1)	20 - 35
Small cakes / Small cakes (20 per tray)	Conventional Cooking	3	170 1)	20 - 30

1) Preheat the oven.

Bakes and gratins

Dish	Oven function	Shelf posi- tion	Temperature (℃)	Time (min)
Pasta bake	Conventional Cooking	1	180 - 200	45 - 60
Lasagne	Conventional Cooking	1	180 - 200	25 - 40
Vegetables au gratin 1)	Turbo Grilling or True Fan Cooking	1	160 - 170	15 - 30
Baguettes top- ped with mel- ted cheese	Turbo Grilling or True Fan Cooking	1	160 - 170	15 - 30
Sweet bakes	Conventional Cooking	1	180 - 200	40 - 60
Fish bakes	Conventional Cooking	1	180 - 200	30 - 60
Stuffed vegeta- bles	Turbo Grilling or True Fan Cooking	1	160 - 170	30 - 60

1) Preheat the oven

9.5 Multileveled Baking

Cakes / pastries / breads on baking trays

Type of baking	True Fan Cooking		Temperature (℃)	Time (min)
	Shelf position
	2 levels	3 levels
Cream puffs / Eclairs	1 / 4	---	160 - 1801)	25 - 45
Dry streusel cake	1 / 4	---	150 - 160	30 - 45

1) Preheat the oven.

Biscuits / small cakes / small cakes / pastries / rolls

Type of baking	True Fan Cooking		Temperature (℃)	Time (min)
	Shelf position
	2 levels	3 levels
Short pastry biscuits	1 / 4	1 / 3 / 5	150 - 160	20 - 40
Short bread / Short bread / Pastry Stripes	1 / 4	1 / 3 / 5	140	25 - 50
Biscuits made with sponge mixture	1 / 4	---	160 - 170	25 - 40
Biscuits made with egg white, meringues	1 / 4	---	80 - 100	130 - 170
Macaroons	1 / 4	---	100 - 120	40 - 80
Biscuits made with yeast dough	1 / 4	---	160 - 170	30 - 60
Puff pastries	1 / 4	---	170 - 180 1)	30 - 50
Rolls	1 / 4	---	180	30 - 55
Small cakes / Small cakes (20 per tray)	1 / 4	---	1501)	25 - 40

1) Preheat the oven.

9.6 Pizza Setting

Type of baking	Shelf position	Temperature (°C)	Time (min)
Pizza (thin crust)	2	200 - 230 1) 2)	15 - 20
Pizza (with a lot of topping)	2	180 - 200	20 - 30
Tarts	1	180 - 200	40 - 55
Spinach flan	1	160 - 180	45 - 60
Quiche Lorraine	1	170 - 190	45 - 55
Swiss Flan	1	170 - 190	45 - 55
Apple cake, covered	1	150 - 170	50 - 60
Vegetable pie	1	160 - 180	50 - 60
Unleavened bread	2	230 - 250 1)	10 - 20
Puff pastry flan	2	160 - 180 1)	45 - 55
Flammekuchen (Pizza-like dish from Alsace)	2	230 - 250 1)	12 - 20
Piroggen (Russian version of cal-zone)	2	180 - 200 1)	15 - 25

1) Preheat the oven.
2) Use a deep pan.

9.7 Roasting

Roasting dishes

• Use heat-resistant ovenware to roast (refer to the instructions of the manufacturer).
• You can roast large roasting joints directly in the deep pan (if present) or on the wire shelf above the deep pan.
• Roast lean meats in the roasting tin with the lid. This keeps the meat more succulent.

• All types of meat that can be browned or have crackling can be roasted in the roasting tin without the lid.

• We recommend that you cook meat and fish weighing 1kg and above in the appliance.

• To prevent the meat juices or fat from burning onto the pan, put some liquid into the deep pan.
• If necessary, turn the roast (after 1 / 2 - 2 / 3 of the cooking time).
• Baste large roasts and poultry with their juices several times during roasting. This gives better roasting results.
• You can deactivate the appliance approximately 10 minutes before the end of the roasting time, and use the residual heat.

9.8 Roasting with Turbo Grilling

Beef

Type of meat	Quantity	Oven function	Shelf position	Temperature (℃)	Time (min)
Pot roast	1 - 1.5 kg	Conventional Cooking	1	230	120 - 150
Roast beef or fillet: rare	per cm of thickness	Turbo Grill- ing	1	190 - 200 1)	5 - 6
Roast beef or fillet: medium	per cm of thickness	Turbo Grill- ing	1	180 - 190 1)	6 - 8
Roast beef or fillet: well done	per cm of thickness	Turbo Grill- ing	1	170 - 180 1)	8 - 10

1) Preheat the oven

Pork

Type of meat	Quantity	Oven function	Shelf position	Tempera-ture (℃)	Time (min)
Shoulder, neck, ham joint	1 - 1.5 kg	Turbo Grill-ing	1	160 - 180	90 - 120
Chop, spare rib	1 - 1.5 kg	Turbo Grill-ing	1	170 - 180	60 - 90
Meat loaf	750 g - 1 kg	Turbo Grill-ing	1	160 - 170	50 - 60
Porkknuckle (precooked)	750 g - 1 kg	Turbo Grill-ing	1	150 - 170	90 - 120

Veal

Type of meat	Quantity	Oven function	Shelf position	Temperature (℃)	Time (min)
Roast veal	1 kg	Turbo Grill- ing	1	160 - 180	90 - 120
Knuckle of veal	1.5 - 2 kg	Turbo Grill- ing	1	160 - 180	120 - 150

Lamb

Type of meat	Quantity	Oven function	Shelf position	Temperature (°C)	Time (min)
Leg of lamb, roast lamb	1 - 1.5 kg	Turbo Grill- ing	1	150 - 170	100 - 120
Saddle of lamb	1 - 1.5 kg	Turbo Grill- ing	1	160 - 180	40 - 60

Game

Type of meat	Quantity	Oven function	Shelf position	Temperature (℃)	Time (min)
Saddle of hare, leg of hare	up to 1 kg	Conventional Cooking	1	230 1)	30 - 40
Saddle of venison	1.5 - 2 kg	Conventional Cooking	1	210 - 220	35 - 40
Haunch of venison	1.5 - 2 kg	Conventional Cooking	1	180 - 200	60 - 90

1) Preheat the oven

Poultry

Type of meat	Quantity	Oven function	Shelf position	Temperature (°C)	Time (min)
Poultry portions	200 - 250 g each	Turbo Grill-ing	1	200 - 220	30 - 50
Half chicken	400 - 500 g each	Turbo Grill-ing	1	190 - 210	35 - 50
Chicken, poulard	1 - 1.5 kg	Turbo Grill-ing	1	190 - 210	50 - 70
Duck	1.5 - 2 kg	Turbo Grill-ing	1	180 - 200	80 - 100
Goose	3.5 - 5 kg	Turbo Grill-ing	1	160 - 180	120 - 180
Turkey	2.5 - 3.5 kg	Turbo Grill-ing	1	160 - 180	120 - 150
Turkey	4 - 6 kg	Turbo Grill-ing	1	140 - 160	150 - 240

Fish (steamed)

Type of meat	Quantity	Oven function	Shelf position	Temperature (℃)	Time (min)
Whole fish	1 - 1.5 kg	Conventional Cooking	1	210 - 220	40 - 60

9.9 Grilling

• Always grill with the maximum temperature setting.
• Set the shelf in the shelf position as recommended in the grilling table.

• Always set the pan to collect the fat into the first shelf position.

• Grill only flat pieces of meat or fish.
  Always preheat the empty oven with the grill functions for 5 minutes.

CAUTION!

Always grill with the oven door closed.

Grilling

Food to be grilled	Shelf position	Temperature (°C)	Time (min)
			1st side	2nd side
Roast beef	2	210 - 230	30 - 40	30 - 40
Filet of beef	3	230	20 - 30	20 - 30
Back of pork	2	210 - 230	30 - 40	30 - 40
Back of veal	2	210 - 230	30 - 40	30 - 40
Back of lamb	3	210 - 230	25 - 35	20 - 25
Whole Fish, 500 - 1000g	3 / 4	210 - 230	15 - 30	15 - 30

Fast Grilling

Food to be grilled	Shelf posi- tion	Time (min)
		1st side	2nd side
Burgers / Burgers	4	8 - 10	6 - 8
Pork fillet	4	10 - 12	6 - 10
Sausages	4	10 - 12	6 - 8
Fillet steaks, veal steaks	4	7 - 10	6 - 8
Toast / Toast 1)	5	1 - 3	1 - 3
Toast with topping	4	6 - 8	---

1) Preheat the oven

9.10 Convenience food

True Fan Cooking

Convenience food	Shelf position	Temperature (°C)	Time (min)
Pizza, frozen	2	200 - 220	15 - 25
Pizza American, frozen	2	190 - 210	20 - 25
Pizza, chilled	2	210 - 230	13 - 25
Pizza Snacks, frozen	2	180 - 200	15 - 30
French Fries, thin	3	200 - 220	20 - 30
French Fries, thick	3	200 - 220	25 - 35
Wedges / Croquettes	3	220 - 230	20 - 35
Hash Browns	3	210 - 230	20 - 30
Lasagne / Cannello-ni, fresh	2	170 - 190	35 - 45
Lasagne / Cannello-ni, frozen	2	160 - 180	40 - 60
Oven baked cheese	3	170 - 190	20 - 30
Chicken Wings	2	190 - 210	20 - 30

Frozen Ready Meals

Food to be cooked	Oven functions	Shelf position	Temperature (°C)	Time (min)
Frozen pizza	Conventional Cooking	3	as per manu-facturer's in-structions	as per manufac-turer's instruc-tions
Chips 1)(300 - 600 g)	Conventional Cooking or Tur-bo Grilling	3	200 - 220	as per manufac-turer's instruc-tions
Baguettes	Conventional Cooking	3	as per manu-facturer's in-structions	as per manufac-turer's instruc-tions
Fruit flans	Conventional Cooking	3	as per manu-facturer's in-structions	as per manufac-turer's instruc-tions

1) Turn chips 2 or 3 times during cooking

9.11 Defrosting

Remove the food packaging. Put the food on a plate.

Do not cover it with a bowl or a plate. This can extend the defrost time. Use the first oven shelf position. The one on the bottom.

Dish	Weight (g)	Defrosting time (min)	Further de-frosting time (min)	Comment
Chicken	1000	100 - 140	20 - 30	Place the chicken on an upturned saucer placed on a large plate Turn halfway through
Meat	1000	100 - 140	20 - 30	Turn halfway through
Meat	500	90 - 120	20 - 30	Turn halfway through
Trout	150	25 - 35	10 - 15	---
Strawberries	300	30 - 40	10 - 20	---
Butter	250	30 - 40	10 - 15	---
Cream	2 x 200	80 - 100	10 - 15	Cream can also be whipped when still slightly frozen in pla-ces
Gateau	1400	60	60	---

9.12 Preserving - Bottom Heat

Things to note:

• Use only preserve jars of the same dimensions available on the market.
• Do not use jars with twist-off and bayonet type lids, or metal tins.
• Use the first shelf from the bottom for this function.

• Put no more than six one-litre preserve jars on the baking tray.

• Fill the jars up to the same level and close with a clamp.

• The jars cannot touch each other.
• Put approximately 1 / 2 litre of water into the baking tray to give sufficient moisture in the oven.
• When the liquid in the jars starts to simmer (after approx. 35 - 60 minutes with one-litre jars), stop the oven or decrease the temperature to 100^ (see the table).

Soft fruit

Preserve	Temperature (℃)	Cooking time until simmering (min)	Continue to cook at 100 °C (min)
Strawberries, blue-berries, raspberries, ripe gooseberries	160 - 170	35 - 45	---

Stone fruit

Preserve	Temperature (℃)	Cooking time until simmering (min)	Continue to cook at 100 ℃ (min)
Pears, guinces, plums	160 - 170	35 - 45	10 - 15

Vegetables

Preserve	Temperature (℃)	Cooking time until simmering (min)	Continue to cook at 100 °C (min)
Carrots 1)	160 - 170	50 - 60	5 - 10
Cucumbers	160 - 170	50 - 60	---
Mixed pickels	160 - 170	50 - 60	5 - 10
Kohlrabi, peas, as-paragus	160 - 170	50 - 60	15 - 20

1) Leave standing in oven when switched off.

9.13 Drying - True Fan Cooking

Cover the oven shelves with baking parchment.

For best results: deactivate the appliance after half the time required. Open the appliance door and let the appliance cool down. After that finish the drying process.

Vegetables

Food to be dried	Shelf position		Temperature (°C)	Time (h)
	1 level	2 levels
Beans	3	1 / 4	60 - 70	6 - 8
Peppers	3	1 / 4	60 - 70	5 - 6
Vegetables for sour	3	1 / 4	60 - 70	5 - 6
Mushrooms	3	1 / 4	50 - 60	6 - 8
Herbs	3	1 / 4	40 - 50	2 - 3

Fruit

Food to be dried	Shelf position		Temperature (°C)	Time (h)
	1 level	2 levels
Plums	3	1 / 4	60 - 70	8 - 10
Apricots	3	1 / 4	60 - 70	8 - 10
Apple slices	3	1 / 4	60 - 70	6 - 8
Pears	3	1 / 4	60 - 70	6 - 9

10. CARE AND CLEANING

WARNING!

Refer to the Safety chapters.

Notes on cleaning:

• Clean the front of the appliance with a soft cloth with warm water and a cleaning agent.
• To clean metal surfaces, use a usual cleaning agent.
• Clean the oven interior after each use. Then you can remove dirt more easily and it does not burn on.
• Clean all oven accessories after each use and let them dry.
• If you have nonstick accessories, do not clean them using aggressive agents, sharp-edged objects or a dishwasher. It can cause a damage to the nonstick coating.

10.1 Catalytic walls

The walls with a catalytic coating are self-cleaning. They absorb fat which collects on walls while the appliance operates.

To support this self-cleaning process heat the appliance without any food regularly:

• Turn the lamp on.
• Remove accessories from the appliance.
• Clean the oven floor with warm water and washing up liquid, then dry it.
• Set the function.
• Set the oven temperature to 250^ and let appliance operate for 1 hour.
• Clean the cavity with a soft and damp sponge.

WARNING!

Do not attempt to clean catalytic surface with oven sprays, abrasive cleaners, soap or other cleaning agents. This will damage the catalytic surface.

Spots or discolouration of the catalytic surface have no effect on the catalytic properties.

10.2 Shelf supports

Removing the shelf supports

You can remove the shelf supports to clean the side walls.

1. Pull the front of the shelf support away from the side wall.

1. Pull the rear end of the shelf support away from the side wall and remove it.

Installing the shelf supports

Install the shelf supports in the opposite sequence.

10.3 Removing / inserting the door

To clean the door remove it.

CAUTION!

Be careful when you remove the door from the appliance. The door is heavy. There is a risk of injury or damage to the appliance.

Removing the door

1. Open the door as far as it goes.
2. Press down the clamping levers (A) on the two door hinges.

10.4 Lamp

WARNING!

Danger of electrocution! Disconnect the fuse before you replace the lamp. The lamp and the lamp glass cover can be hot.

Before you change the lamp:

• Deactivate the appliance.
• Remove the fuses from the fuse box or deactivate the circuit breaker.

CAUTION!

Put a cloth on the bottom of the interior of the appliance. It prevents damage to the lamp glass cover and the cavity. Always use the same lamp type.

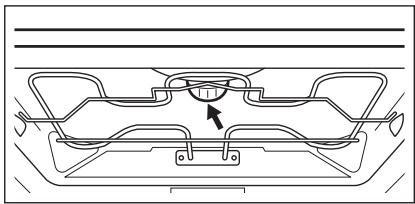

Replacing the top lamp:

1. Turn the lamp glass cover counterclockwise to remove it.

1. Clean the glass cover.

2. Close the door until it is at an angle of approximately 45^ .

3. Hold the door with one hand on each side and pull it away from the appliance at an upwards angle.

Put the door with the outer side down on a soft and level surface to prevent scratches.

Inserting the door

To insert the door do the above steps in the opposite sequence.

1. Replace the lamp with a halogen, 230 V, 40 W, 300^ heat resistant oven lamp.
2. Install the glass cover.

Replacing the side lamp:

1. Remove the left shelf support to get access to the lamp.
2. Use a narrow, blunt object (e.g. a teaspoon) to remove the glass cover. Clean the glass cover.

1. Replace the lamp with a halogen, 230 V, 25 W, 300^ heat resistant oven lamp.
2. Install the glass cover.
3. Install the shelf support.

11. WHAT TO DO IF...

WARNING!

Refer to the Safety chapters.

Problem	Possible cause	Remedy
The cooking zone do not operate.	Refer to the user manual for the hob.
The appliance does not heat up.	The appliance is not activated.	Activate the appliance. Refer to the chapter "Dai-ly use".
The appliance does not heat up.	The clock is not set.	Set the clock. Refer to "Setting the time".
The appliance does not heat up.	The necessary settings are not set.	Make sure that the settings are correct.
The appliance does not heat up.	The fuse in the fuse box is released.	Do a check of the fuse. If the fuse is released more than one time, contact a qualified electrician.
The lamp does not operate.	The lamp is defective.	Replace the lamp.
The display shows 12.00.	There was a power cut.	Set the clock.
Steam and condensation settle on the food and in the appliance.	You left the dish in the appliance for too long.	Do not keep the dishes in the appliance for longer than 15 - 20 minutes after the cooking ends.
If you cannot find a solution to the problem yourself, contact your dealer or the service centre.	The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the appliance cavity.
We recommend that you write the data here: Model (Mod.) Product number (PNC) Serial number (Serie:)	.............. .............. .............. .............. ..............

12. INSTALLATION

WARNING!

Refer to the Safety chapters.

The handle profile can be replaced to match the décor of your kitchen. The change must be done by an authorized person. Use only genuine replacement parts.

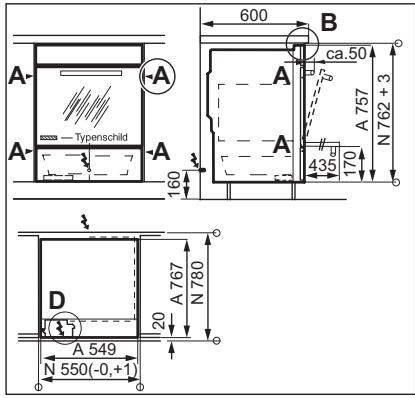

12.1 Installing the oven under a work surface

WARNING!

Installation into flammable material must agree with NIN SEV 1000 (Association of Cantonal Fire Insurers) fire protection guidelines and regulations.

A = appliance

N = recess

1. Install the hotplates according to the installation instruction no.

374307900 / 374307901 so that the hotplate socket connections can be carried out before the cooker is inserted. Make sure the correct socket connections are used.

A separate earthing is not required.

1. Install the glass ceramic cooking surface and hobs according to the separate installation instructions.
2. Pull the appliance drawer out as far as it goes, take hold of it and remove it.
3. Use the side handles to hold the oven and slide it flush into the recess.

CAUTION!

Make sure the cable is free when you move the appliance.

1. Use at least 2 screws to fix the oven on both sides (Detail A).

WARNING!

When installing next to a wood-fuelled boiler, a heatproof and heat-insulating plate must be mounted at the height of the appliance and at least 30 cm deep.

12.2 Electrical connection

Use a power cable of H05VV-F or higher. Connect the appliance to a socket supply line. If there is no socket supply line, the electrical installation must have an isolation device which lets you disconnect the appliance from the power supply. The iso

lation device must have a contact opening width of minimum 3 mm (in reference to NIN SEV 1000). The customer must have a socket for the electrical connection that is accessible and outside the coordination room. The length of the connection cable must be approximately 120~cm with lines connected directly to the power supply.

! Only a qualified person can connect the appliance to the electricity supply.

1. Open the mains terminal cover (D).
2. Put the connection cable into the supplied rings (E). This is to prevent the cable from rubbing against the drawer. The connection cable is on the housing side.
3. Install the cable grip (F).
4. Connect the terminal as in the illustration.
5. Put the cable into the strain relief clamp.
6. Close the mains terminal cover.

12.3 Connection diagram 400 V

Phase definitions: L1, L2, L3 (or R, S,T)

WARNING!

If service is required always disconnect the appliance from the power supply.

13. GARANTIE, GARANZIA, GUARANTEE

13.1 Kundendienst, service-clientèle, Servizio clienti, Customer Service Centres

Servicestellen	Points de Serv-ice	Servizio dato vendita	Point of Service
5506 Mägenwil/Zürich Industriestrasse 10	3018 Bern Mor-genstrasse 131	1028 Pré-ences Le Trési 6	6928 Manno Via Violino 11
9000 St. Gallen Zürcher-strasse 204e	Service-Helpline 0848 848 111 [e-mail]
4052 Basel St. Jakob-Turm Birssstrasse 320B
6020 Emmenbrücken See-talstrasse 11
7000 Chur Comercial-strasse 19

Ersatzteilverkauf/Points de vente de rechange/Vendita pezzi di ricambio/ spare parts service:

5506 Mägenwil, Industriestrasse 10, Tel. [phone]

Fachberatung/Verkauf/Demonstration/Vente/Consulente (cucina)/Ven-dita

8048 Zürich, Badenerstrasse 587, Tel. [phone]

Warranty For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof). The guarantee covers the costs of materials, labour and travel. The guarantee will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

14. ENVIRONMENT CONCERNS

Recycle the materials with the symbol . Put the packaging in applicable

containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical

and electronic appliances. Do not dispose appliances marked with the symbol

with the household waste. Return the product to your local recycling facility or contact your municipal office.
