USER MANUAL SG224 AEG-ELECTROLUX

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux. Visit our website for: Get usage advice, brochures, trouble shooter, service information: www.electrolux.com Register your product for better service: www.electrolux.com/productregistration Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice. ENGLISH

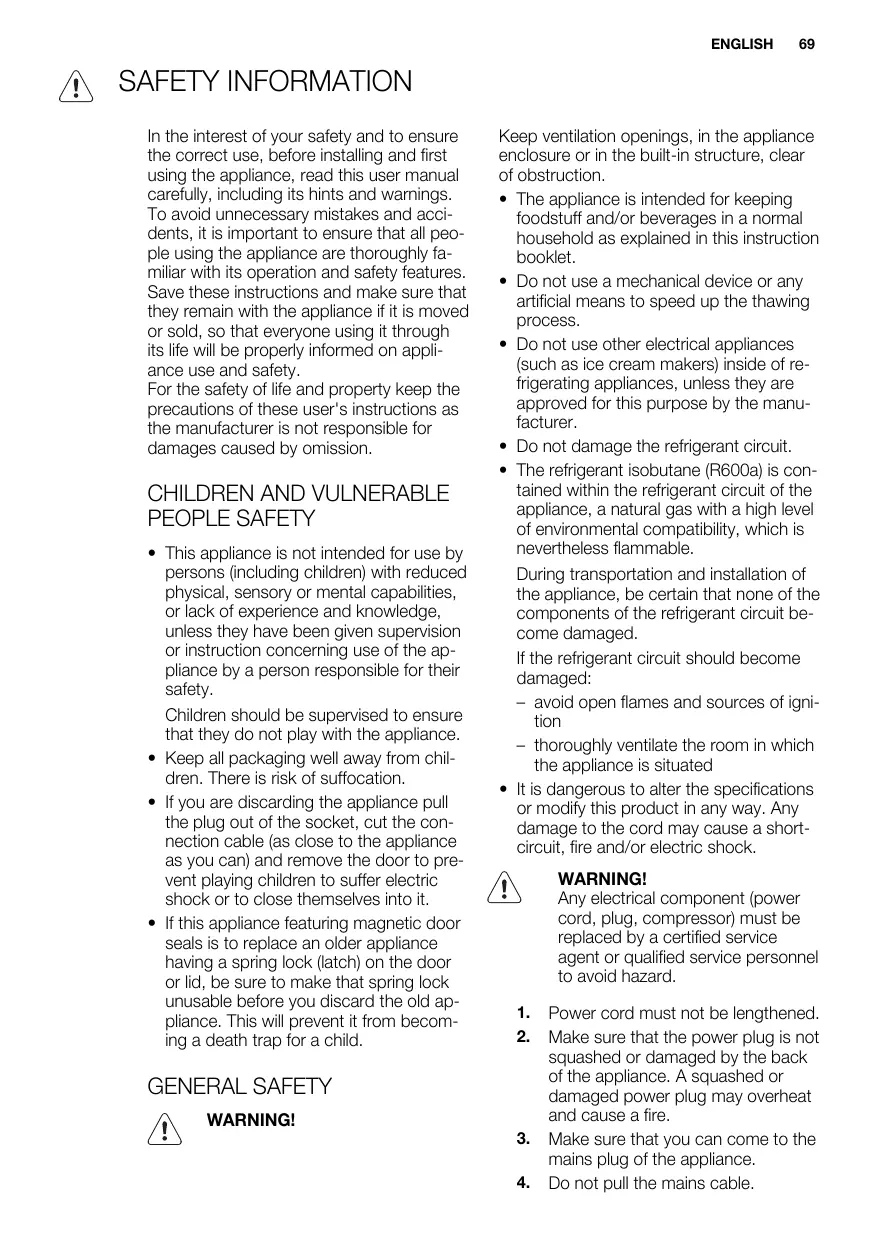

SAFETY INFORMATION In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

CHILDREN AND VULNERABLE

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged. If the refrigerant circuit should become damaged: – avoid open flames and sources of ignition – thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a shortcircuit, fire and/or electric shock. WARNING! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

Power cord must not be lengthened. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire. Make sure that you can come to the mains plug of the appliance. Do not pull the mains cable. 70 www.electrolux.com

If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance

without the lamp cover (if foreseen) of interior lighting. This appliance is heavy. Care should be taken when moving it. Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns. Avoid prolonged exposure of the appliance to direct sunlight. Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination. DAILY USE

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Do not place food products directly against the air outlet on the rear wall. (If the appliance is Frost Free)
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.

• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Never use a hair drier or other heating appliances to speed up defrosting. Excessive heat may damage the plastic interior, and humidity could enter the electric system making it live. INSTALLATION For electrical connection carefully follow the instructions given in specific paragraphs.
• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If a water connection is foreseen). SERVICE
• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used. ENGLISH ENVIRONMENT PROTECTION This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symare recyclable. bol

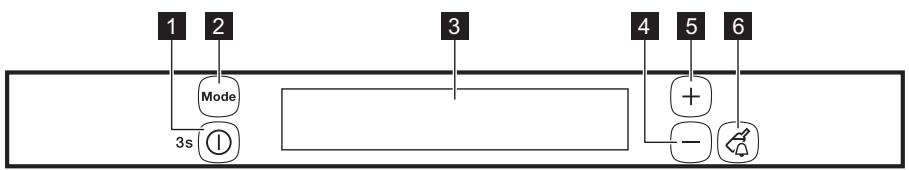

6 Drink Chill button It is possible to change predefined sound of buttons to a loudly one by pressing together Mode button and Temperature colder button for some seconds. Change is reversible. DISPLAY

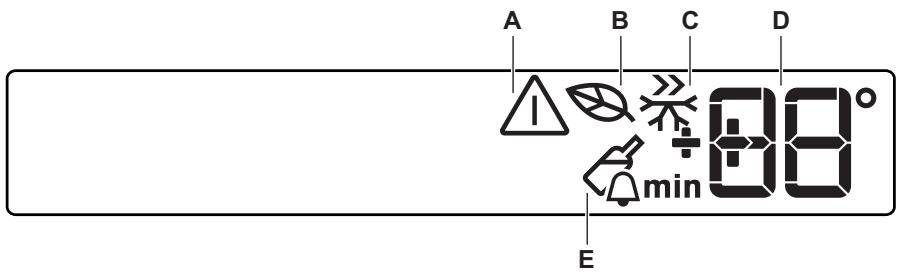

Alarm indicator EcoMode ActionFreeze mode DrinksChill and Temperature indicator DrinksChil mode SWITCHING ON To switch on the appliance do these steps:

1. Connect the mains plug to the power

2. Press the ON/OFF button if the display

3. The alarm buzzer could operate after

few seconds. To reset the alarm refer to "High temperature alarm".

4. If DEMO appears on the display, the

appliance is in demonstration mode. Refer to "What to do if..." paragraph.

5. The temperature indicators show the

set default temperature. To select a different set temperature refer to "Temperature regulation". SWITCHING OFF To switch off the appliance do these steps:

1. Press the ON/OFF button for 3 seconds.

2. The display switches off.

3. To disconnect the appliance from the

power disconnect the mains plug from the power socket. TEMPERATURE REGULATION The set temperature of the freezer may be adjusted by pressing the temperature button. Set default temperature:

• -18°C for the freezer The temperature indicator shows the set temperature. The set temperature will be reached within 24 hours. ENGLISH After a power failure the set temperature remains stored. ECOMODE For optimal food storage select the EcoMode . To switch on the function:

1. Press the Mode button until the corresponding icon appears.

The EcoMode indicator flashes for few seconds. The temperature indicator shows the set temperature: – for the freezer: -18°C The EcoMode indicator is shown. To switch off the function:

1. Press the Mode button until the EcoMode indicator flashes.

2. The EcoMode indicator goes off.

The function switches off by selecting a different set temperature.

2. Press the Temperature colder button

and Temperature warmer button to change the Timer set value from 1 to 90 minutes.

3. The Timer start to flash (min).

At the end of the countdown the DrinksChill indicator flashes and an audible alarm sounds:

1. Remove any drinks contained in the

freezer compartment.

2. Press the DrinkChill button to switch

off the sound and terminate the function. It is possible to deactivate the function at any time during the countdown:

1. Press the DrinkChill button.

2. The DrinksChill indicator goes off.

It is possible to change the time during the countdown and at the end by pressing the Temperature colder button and the Temperature warmer button. ACTIONFREEZE MODE

HIGH TEMPERATURE ALARM

To switch on the function:

1. Press the Mode button until the corresponding icon appears.

The ActionFreeze indicator flashes for few seconds. This function stops automatically after 52 hours. To switch off the function before its automatic end:

1. Press the Mode button until the ActionFreeze indicator flashes.

2. The ActionFreeze indicator goes off.

Temperature increase in the freezer compartment (for example due to an earlier power failure or door is open) is indicated by:

• flashing the alarm and freezer temperature indicators
• sounding of buzzer. To reset the alarm:

1. Press any button.

2. The buzzer switches off.

3. The freezer temperature indicator

shows the highest temperature reached for a few seconds. Then show again the set temperature.

4. The alarm indicator continue to flash

until the normal conditions are restored. The function switches off by selecting a different freezer set temperature. DRINKSCHILL MODE The DrinksChill mode is to be used to set an acoustic alarm at the preferred time, useful for example when a recipe requires to cool down a mixture for a certain period of time, or when a reminder is needed in order not to forget the bottles placed in the freezer for fast cooling. To switch on the function:

1. Press the DrinkChill button.

The DrinksChill indicator appears.

An acoustic alarm will sound if the door is left open for a few minutes. The door open alarm conditions are indicated by:

• flashing alarm indicator
• acoustic buzzer. When normal conditions are restored (door closed), the alarm will stop. 74 www.electrolux.com During the alarm phase, the buzzer can be switched off by pressing any button. ENGLISH

THAWING The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. To freeze small amount of fresh foods it is not necessary to change the present setting. To freeze fresh food activate the Action Freeze function 24 hours before placing the food to be frozen in the freezer compartment. Place the fresh food to be frozen in the two top compartments. The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance. The freezing process lasts 24 hours: during this period do not add other food to be frozen. Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

STORAGE OF FROZEN FOOD

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours. The freezer baskets ensure that it is quick and easy to find the food package you want. If large quantities of food are to be stored, remove all drawers except for the bottom basket which needs to be in place to provide good air circulation. On all shelves except for the top shelf it is possible to place food that protrude 15 mm from the door. In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooling). COLD ACCUMULATORS One or more cold accumulators are supplied in the freezer; these increase the length of time for which food will keep in the event of a power failure or breakdown.

CLEANING THE INTERIOR

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly. Do not use detergents or abrasive powders, as these will damage the finish. 76 www.electrolux.com REMOVAL OF FREEZING BASKETS FROM THE FREEZER

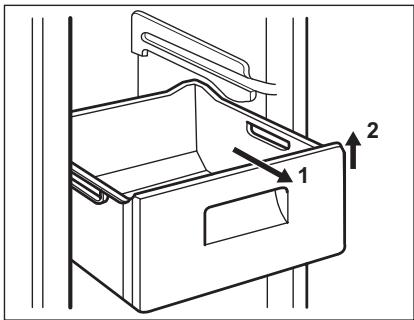

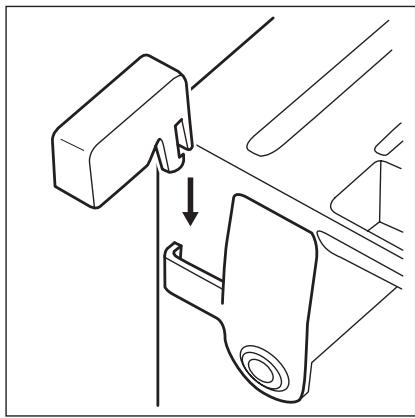

The freezing baskets have a limit stop to prevent their accidental removal or falling out. At the time of its removal from the freezer, pull the basket towards yourself and, upon reaching the end point, remove the basket by tilting its front upwards. At the time of putting it back, slightly lift the front of the basket to insert it into the freezer. Once you are over the end points, push the baskets back in their position. ENGLISH

HELPFUL HINTS AND TIPS

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

HINTS FOR STORAGE OF

FROZEN FOOD To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly and cannot be refrozen;
• do not exceed the storage period indicated by the food manufacturer.

CAUTION! Unplug the appliance before carrying out any maintenance operation. This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians. PERIODIC CLEANING The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly. Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odor.

DEFROSTING THE FREEZER

A certain amount of frost will always form on the freezer shelves and around the top compartment. Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm. To remove the frost, follow the instructions below:

• switch off the appliance and pull out the plug from the wall socket
• remove any stored food, wrap it in several layers of newspaper and put it in a cool place
• remove the freezer drawers
• put insulating material around the drawers, e.g. blankets or newspapers. Defrosting can be accelerated by placing bowls with hot water (not boiling) inside the freezer.
• Loosen the drainage channel from its resting position, push it in according to the illustration and collect a water container. Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save energy consumption. Take care of not to damage the cooling system. When moving the cabinet, lift it by the front edge to avoid scratching the floor. Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason use a soft cloth rinsed in warm water and neutral soap emulsion for cleaning external surfaces. Do not use detergents or abrasive paste as these will damage the paint, or stainless steel anti finger print coating. After cleaning, reconnect the equipment to the mains supply.

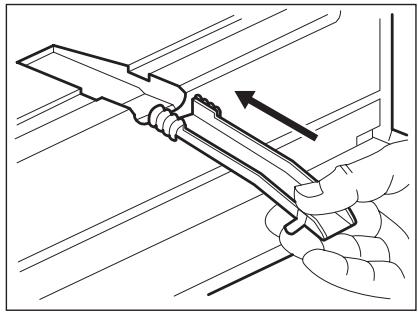

• carefully scrape off the ice when it starts to thaw. Use a wood or a plastic scraper
• when all the ice has melted, clean and wipe the cabinet dry, then put the drainage channel back in place.
• switch on the cabinet, insert the plug into the wall socket and replace the frozen foodstuff. ENGLISH Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

disconnect the appliance from electricity supply remove all food defrost and clean the appliance and all accessories leave the door/doors open to prevent unpleasant smells. If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

PERIODS OF NON-OPERATION

When the appliance is not in use for long periods, take the following precautions:

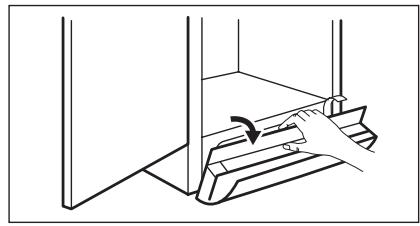

CLEANING THE VENTILATION GRILLE

The ventilation grille can be removed for washing. Make sure the door is open and then:

• Loosen the upper edge of the grille by pulling outward/downward.
• Pull the grille straight out to completely remove it.
• Vacuum clean under the cabinet. 80 www.electrolux.com

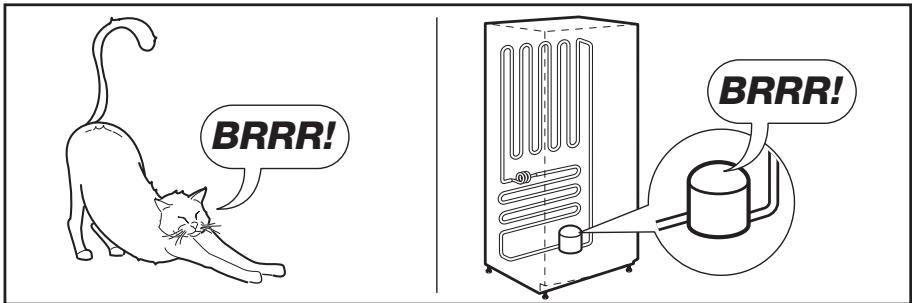

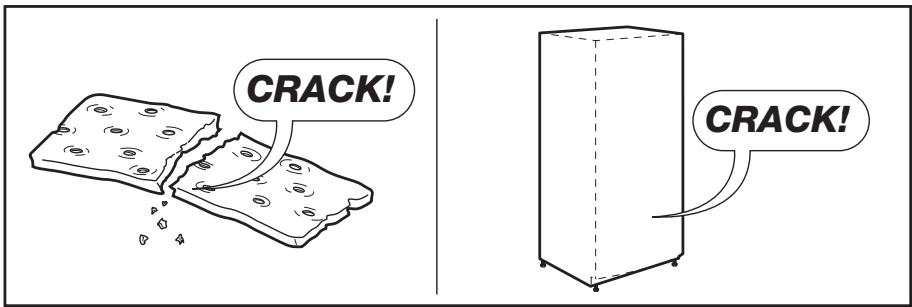

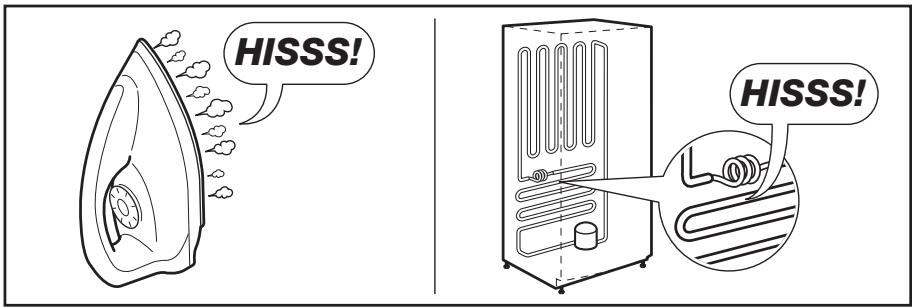

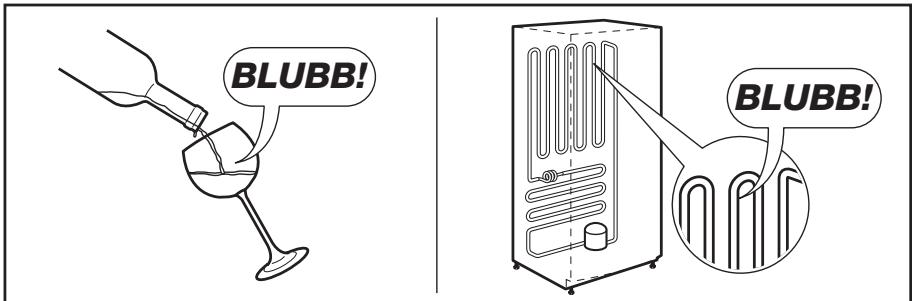

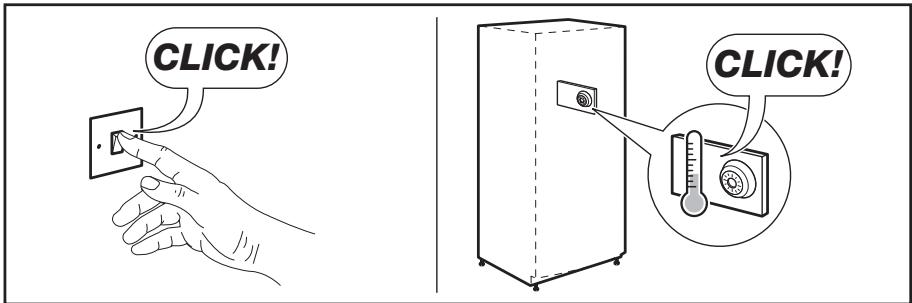

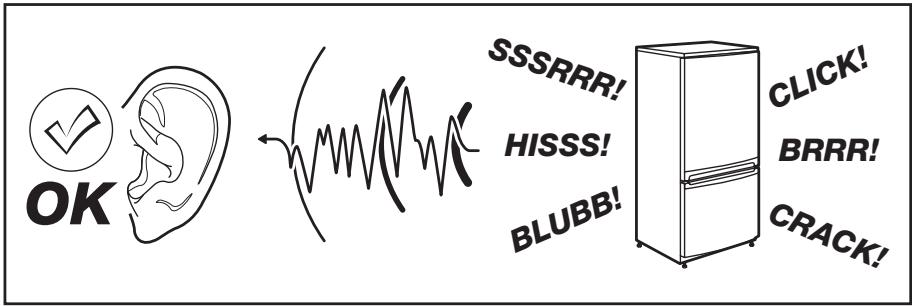

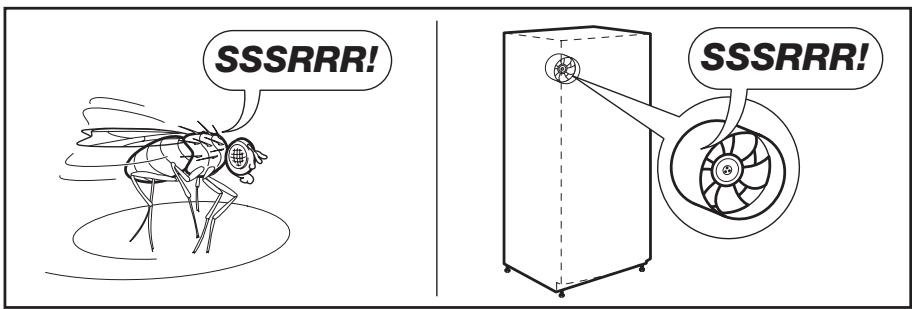

During operation of the appliance some smaller but annoying trouble can often occur, which does not require calling a technician out. In the following chart information is given about them to avoid unnecessary charges on service. The appliance operates discontinuously, so the stopping of compressor does not mean being no current. That is why you must not touch the electrical parts of the appliance before breaking the circuit. The operation of the appliance goes with certain sounds (compressor and circulating sound). This not means a trouble, but a normal operation. Problem Possible cause Solution The appliance is noisy. The appliance is not supported properly. Check if the appliance stands stable (all feet and wheels should be on the floor). Refer to "Levelling". The buzzer sounds. The temperature in the The Alarm icon flash- freezer is too high. ing. The door is not closed correctly. Upper or lower square is shown in the temperature display Refer to "High Temperature Alarm". Refer to "Door open alarm". An error has occurred in Call your service representameasuring the temperature. tive (the cooling system will continue to keep food products cold, but temperature adjustment will not be possible). The compressor runs The Temperature regulator continuously. may be set incorrectly. Set a warmer temperature. The door is not closed correctly. Refer to "Closing the door". The door has been opened too frequently. Do not keep the door open longer than necessary. The food temperature is too high. Let the food temperature decrease to room temperature before storage. The room temperature is too high. Decrease the room temperature. The door is not closed correctly. Refer to "Closing the door". The door gasket is deformed or dirty. Refer to "Closing the door". The Temperature regulator may be set incorrectly. Set a warmer temperature. There is too much frost and ice. The temperature in the appliance is too cold. ENGLISH

Problem Possible cause Solution The temperature in the appliance is too warm. The Temperature regulator may be set incorrectly. Set a colder temperature. The door is not closed correctly. Refer to "Closing the door". The food temperature is too high. Let the food temperature decrease to room temperature before storage. Food is too near to each other. Store food so that there is cold air circulation. The temperature in the freezer is too warm. Large quantities of food to Insert smaller quantities of be frozen were put in at the food to be frozen at the same time. same time. The appliance does not operate. The appliance is switched off. Switch on the appliance. The mains plug is not connected to the mains socket correctly. Connect the mains plug to the mains socket correctly. The appliance has no pow- Connect another electrical er. There is no voltage in appliance to the mains sockthe mains socket. et. Check fuse. Contact a qualified electrician. The lamp does not work. The lamp is defective. Refer to "Replacing the lamp". The door has been open to Close the door. long. Door interferes with ventilation grill. The appliance is not levelled. Refer to "Levelling". Misaligned door. The appliance is not levelled. Refer to "Levelling". DEMO appears on the Display The appliance is in demonstration mode (DEMO). Keep pressed approximately 10 sec the Mode button since a long sound of buzzer is heard and the Display shut off for a short while: appliance start works regularly. As much as the advice does not lead to result, call the nearest brand-mark service.

The appliance is equipped with a longlife LED interior light. Only service is allowed to replace the lighting device. Contact your Service Center .

Clean the door gaskets. If necessary, adjust the door. Refer to "Installation". If necessary, replace the defective door gaskets. Contact the Service Center. 82 www.electrolux.com INSTALLATION WARNING! Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance. POSITIONING Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: Climate class Ambient temperature

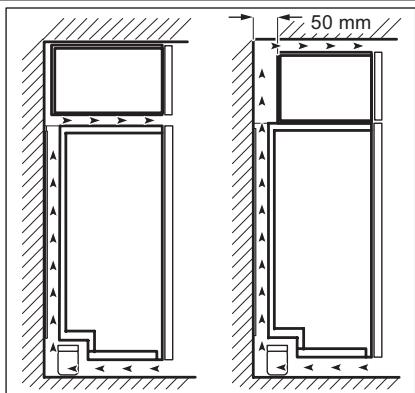

+16°C to + 43°C LOCATION 50 mm ELECTRICAL CONNECTION Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 40 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. The ventilation space can be:

• directly above the appliance
• behind and above the top cupboard. In this case, the space behind the top cupboard must be at least 50 mm deep. supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives. ENGLISH

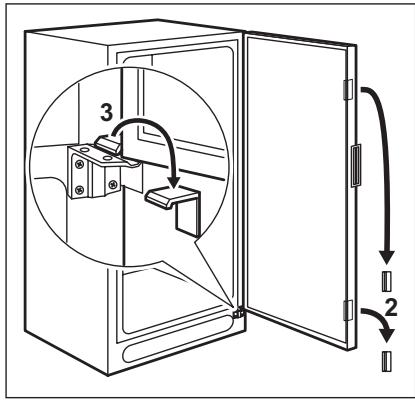

REMOVING THE TRANSPORT SUPPORT

Your appliance is equipped with transport support to secure the door during transportation. To remove them do these steps:

• Remove the transport support from the door sides.
• Remove the transport support from the lower hinge (some models).

Some models are fitted with a silencing pad under the cabinet. Do not remove this pad. SPACERS Install the spacers provided within the accessory bag as shown in the figures. When two appliances are placed beside each other, attach the adhesive spacers between the appliances. Install the spacers on the back side of the panel.

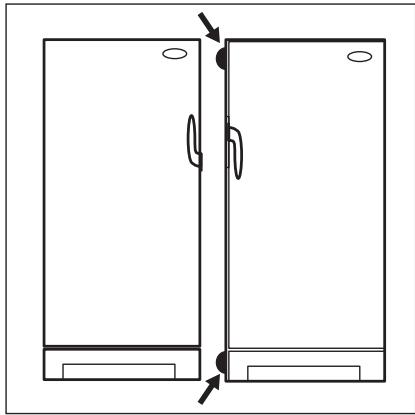

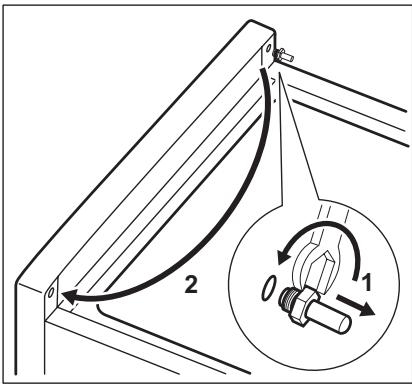

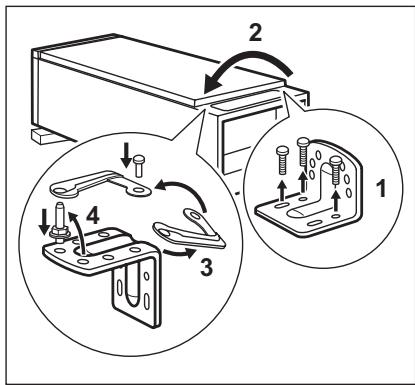

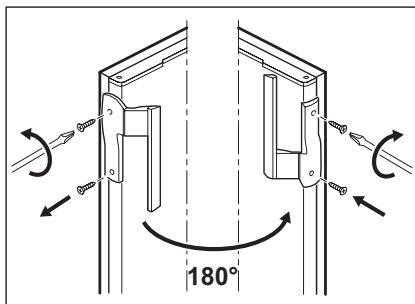

To change the opening direction of the door, do these steps:

• Remove the plug from the power.
• Remove the ventilation grille. Remove the filling and install it on the opposite side of the grille.
• Lay down the appliance back side down on a wooden support.
• Unscrew the lower hinge.
• Remove the door closure device from the hinge and move the pin to the other side. Re-screw the door closure device provided within the accessory bag on the opposite side.
• Remove the door closure device on the door.
• Re-screw the door closure device provided within the accessory bag on the opposite side.

• Unscrew and move the pin to the opposite side.
• Re-screw the lower hinge.

• Unscrew the handle. On the opposite side remove the hole covers by driving a 3-4 mm drift or drill into them.
• Install the handle. Fit the handle on to the opposite side by turning it on half circle.
• Install the hole covers provided within the accessory bag.

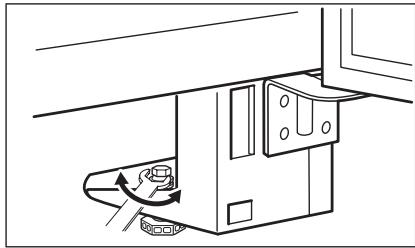

• Put the cabinet in position. 180° WARNING! Reposition, level the appliance, wait for at least four hours and then connect it to the power socket. Do a final check to make sure that:
• All screws are tightened.
• The edges of the doors run parallel to the side edge of the appliance.
• The magnetic seal adheres to the cabinet.
• The door opens and closes correctly. WARNING! If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket. 86 www.electrolux.com NOISES There are some sounds during normal running (compressor, refrigerant circulation). SSS RRR HISSS!

Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. 90 www.electrolux.com ENGLISH
