USER MANUAL PF300011M AEG-ELECTROLUX

4 SAFETY INFORMATION
5 PRODUCT DESCRIPTION
6 OPERATING INSTRUCTIONS
7 HELPFUL HINTS AND TIPS
8 CARE AND CLEANING
9 WHAT TO DO IF...
0 INSTALLATION INSTRUCTIONS
4 GARANTIE, GARANZIA, GUARANTEE

ENVIRONMENT CONCERNS

Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

VISIT OUR WEBSITE FOR:

• Products
• Brochures
  -User manuals
• Trouble shooter
• Service information

www.aeg.com

LEGEND

Warning - Important Safety information.
i General information and tips
Environmental information

Subject to change without notice.

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you'll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags...

Visit the webshop at: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available. The information can be found on the rating plate.

Model

PNC

Serial Number

SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

SAFETY DURING OPERATION

Only a qualified person must install this appliance.

• Do not let the electricity bounds touch the appliance or hot cookware, when you connect the appliance to the near sockets.
• Do not let the electricity bounds tangle.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. Do not use water spray and steam to clean the appliance.
• Only adults can use this appliance. Children must get supervision to make sure that they do not play with the appliance.
• Fire danger! Overheated fats and oils can ignite very quickly.
• If there is a damage in the appliance or the front panel is removed, disconnect power supply to prevent electric shock.

Correct use

Only use the appliance for operating the hob.

PRODUCT DESCRIPTION

GENERAL OVERVIEW

1 Control knobs

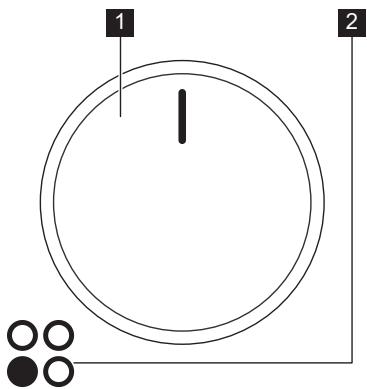

THE CONTROL KNOB

1 Control knob
2 Assignment of the control knob

OPERATING INSTRUCTIONS

To use the appliance, push the control knob. The control knob comes out.

To switch on and increase the heat setting turn the knob clockwise. To decrease the heat setting turn the knob counter-clockwise. To switch off turn the knob to the 0.

0	The zone is off
$	Keep warm
1	Minimum heat setting
9	Maximum heat setting

ACTIVATION AND DEACTIVATION OF THE OUTER RINGS

If you connect the appliance to the hob with the multiple cooking zones, you can adjust the surface you cook to the dimension of the cookware.

You can activate it only for the right rear and left front cooking zone.

To activate the outer ring turn the knob clockwise, through a light resistance.

Then turn the knob counterclockwise to the necessary heat setting. To deactivate turn the knob to the 0.

Do the procedure again to deactivate the outer ring.

HELPFUL HINTS AND TIPS

EXAMPLES OF COOKING APPLICATIONS

The data in the table is for guidance only.

Heat setting	Use to:	Time	Hints
$ -1	Keep cooked foods warm	as required	Cover the food
1-2	Hollandaise sauce, melt: butter, chocolate, gelatine	5-25 min	Mix occasionally
1-2	Solidify: fluffy omelettes, baked eggs	10-40 min	Cook with a lid on
2-3	Simmer rice and milkbased dishes, heating up ready-cooked meals	25-50 min	Add at least twice as much liquid as rice, stir milk dishes part way through
3-4	Steam vegetables, fish, meat	20-45 min	Add a few tablespoons of liq-uid
4-5	Steam potatoes	20-60 min	Use max. ¼l water for 750 g of potatoes
4-5	Cook larger quantities of food, stews and soups	60-150 min	Up to 3 l liquid plus ingredient-ents
6-7	Gentle fry: escalope, veal cordon bleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts	as required	Turn halfway through
7-8	Heavy fry, hash browns, loin steaks, steaks	5-15 min	Turn halfway through
9	Boil large quantities of water, cook pasta, sear meat (goulash, pot roast), deep fry chips

CARE AND CLEANING

• Clean the front of the appliance with a soft cloth and a solution of hot water and some detergent.
• For metal fronts use some detergent for stainless steel.
• Do not use scouring agents and abrasive sponges.

WHAT TO DO IF...

Problem	Possible cause and remedy
The appliance does not operate.	·Set the heat setting. ·Examine the fuse in the electrical system of the house in the fuse box. If the fuses blow time after time, speak to an authorized electrician.

If you tried the above solutions and cannot repair the problem, speak to your dealer or the Customer Care Department. Give the data from the rating plate, three-digit-letter code for the glass ceramic (it is in the corner of the cooking surface) and an error message that comes on. If you operated the appliance incorrectly, the servicing by a customer service technician or dealer will not be free of charge, even during the warranty period. The instructions about the customer service and conditions of guarantee are in the guarantee booklet.

INSTALLATION INSTRUCTIONS

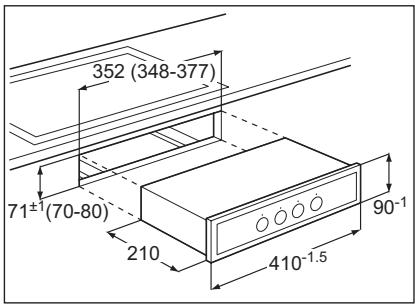

TECHNICAL DATA

Dimensions

Height/Width 90mm/410mm

WARNING!

During installation in combustible matter, NIN SEV 1000 and fire protection guidelines and regulations of the Association of Cantonai Fire Insurance shall be strictly adhered to.

SAFETY INSTRUCTIONS

WARNING!

You must read these! Fully obey the laws, ordinances, directives and standards in force in the country where you use the appliance (safety regulations, recycling regulations, electrical safety rules etc.):

Only a qualified electrician must install the appliance!

Keep the minimum distances to other appliances and units! Install anti-shock protection, for example install the drawers only with a protective floor directly below the appliance!

Protect the cut surfaces of the worktop against moisture with a correct sealant!

Seal the appliance to the work top with no space left with a correct sealant!

Protect the bottom of the appli- ance from steam and moisture, e.g. from a dishwasher or oven!

Do not install the appliance adjacent to doors and below windows! If not, hot cookware can be hit off the hob when you open doors or windows.

WARNING!

Risk of injury from electrical current.

The combination appliance is live.

• Observe electrical safety rules.
• Rated voltage of the combined appliances must match.
• Fit plug and socket connections together properly.
  Install correctly to give anti-shock protection.
• Loose and incorrect plug and socket connections can make the terminal become too hot.

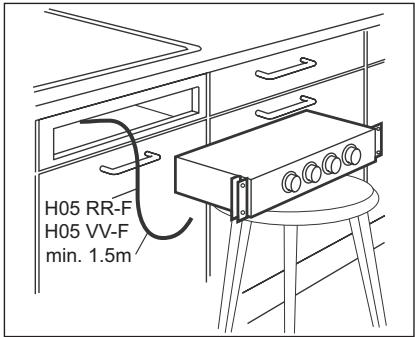

• A qualified electrician must install the clamping connections correctly. Install the appliance with a socket supply line. If there is no socket supply line, the fixed home electrical system must include an isolating device with at least a 3 mm-contact separation to enable a simultaneous and all-pole cut off from the mains (according to NIN SEV 1000).

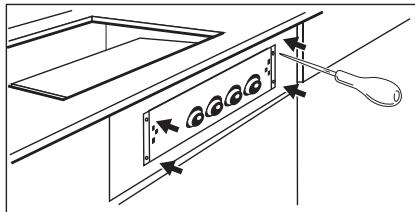

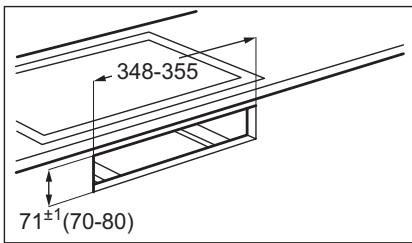

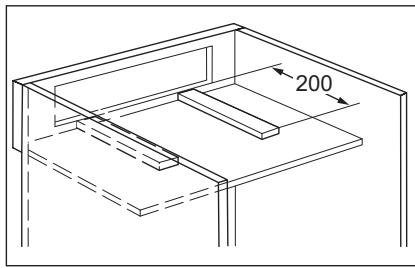

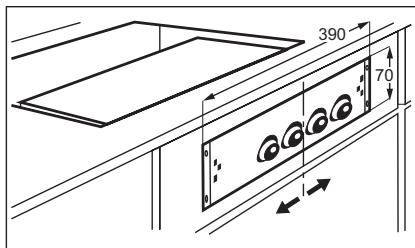

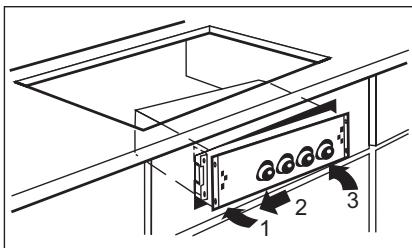

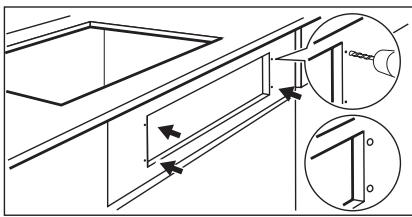

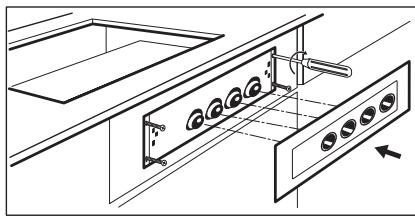

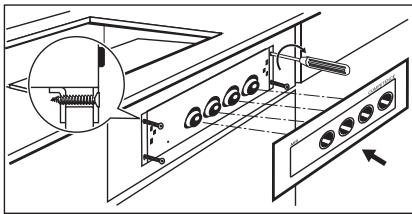

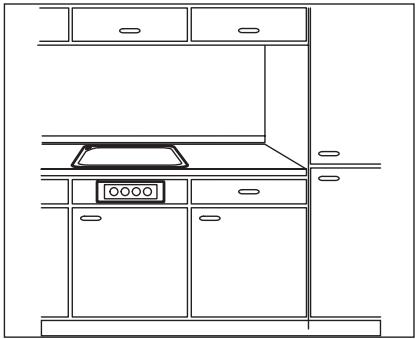

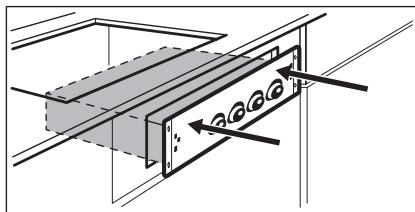

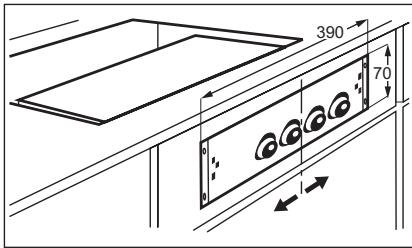

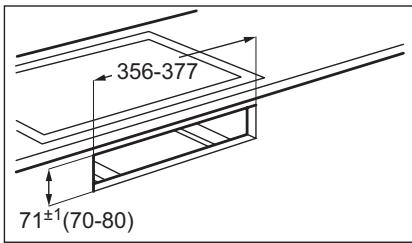

Assembly

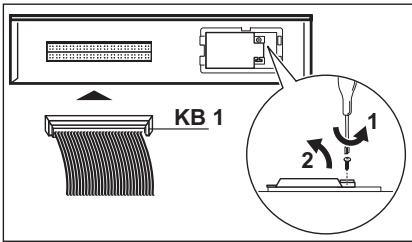

Install the metal sheet part if you want to connect the appliance with the induction hob.
