Product Type	Audio/video extension (HDBaseT wall plate transmitter)
Brand	Atlona
Model	AT-HDVS-200-TX-WP-BLK
Color	Black
Input Connector	HDMI (Type A, female)
Output Connector	RJ45 (HDBaseT)
Video Resolution Support	Up to 4K@60Hz (4:4:4, 8-bit)
Audio Support	PCM, Dolby Digital, DTS
Power Supply	PoE (Power over Ethernet) from compatible receiver or external power adapter (not included)
Dimensions (W x H x D)	4.2 in x 2.8 in x 1.1 in (107 mm x 71 mm x 28 mm)
Weight	0.5 lb (227 g)
Operating Temperature	32 °F to 104 °F (0 °C to 40 °C)
Mounting Type	Wall plate (single gang US standard)
Maximum Transmission Distance	230 ft (70 m) over Cat6a/7
HDCP Compliance	HDCP 2.2
LED Indicators	Power, Link, HDMI signal
IR Pass-through	Yes (via IR receiver/emitter)
RS-232 Pass-through	Yes (via terminal block)
Maintenance & Cleaning	Wipe with a dry, soft cloth. Do not use liquids or abrasive cleaners.
Safety	Operate in dry indoor environment. Avoid moisture and extreme temperatures.
Spare Parts & Repairability	No user-serviceable parts. Contact Atlona support for warranty repair.
Warranty	Limited lifetime warranty
Compliance	CE, FCC

Frequently Asked Questions - AT-HDVS-200-TX-WP-BLK Atlona

What is the maximum video resolution supported by the AT-HDVS-200-TX-WP-BLK?

The transmitter supports resolutions up to 4K@60Hz with 4:4:4 chroma subsampling and 8-bit color depth.

How is the transmitter powered?

The unit supports Power over Ethernet (PoE) when connected to a compatible HDBaseT receiver. An external power adapter (not included) can also be used if PoE is unavailable.

What is the maximum transmission distance?

Using Cat6a or Cat7 cable, the maximum distance is 230 feet (70 meters).

Does it support HDR or Dolby Vision?

The transmitter can pass HDR10 and Dolby Vision up to 4K@60Hz. However, 4:4:4 10-bit may require lower resolution or chroma subsampling depending on the receiver.

Can I use a non-PoE receiver with this transmitter?

Yes, if the receiver does not provide PoE, you must connect an external 5V DC power adapter to the transmitter.

How do I clean the device?

Clean the exterior with a dry, soft cloth. Do not use liquid cleaners, sprays, or abrasive materials.

What connectors are available on the unit?

The rear panel has an HDMI input, an RJ45 (HDBaseT) output, an IR input, an IR output, and an RS-232 terminal block.

Is it compatible with all HDBaseT receivers?

It is compatible with standard HDBaseT receivers from Atlona and most brands that follow HDBaseT Class A specification.

Does it support audio return (ARC)?

No, this transmitter does not support ARC (Audio Return Channel). It only transmits HDMI audio from source to display.

How do I mount the transmitter?

The device is designed for single gang wall box installation. Secure it with the included screws (US standard) and connect cables.

USER MANUAL AT-HDVS-200-TX-WP-BLK Atlona

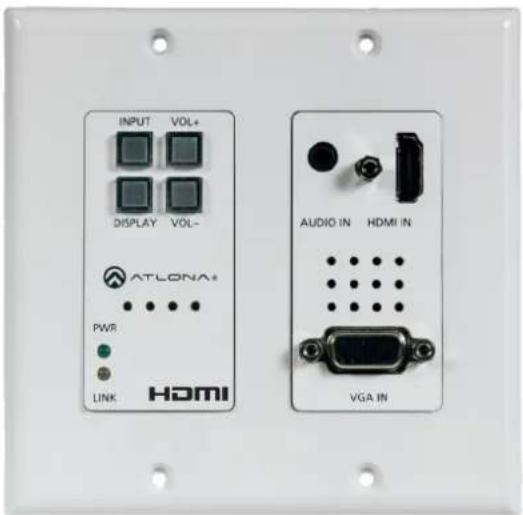

Wallplate Switcher for HDMI and VGA

with Ethernet-Enabled HDBaseT Output

INPUT VOL+ DISPLAY VOL- ATLONA* PWR LINK HDMI AUDIO IN HDMI IN VGA IN

INPUT VOL+ DISPLAY VOL- ATLONA® PWR LINK HDMI AUDIO IN HDMI IN VGA IN

Version Information

Version Release Date Notes
3 07/17 New	format

Sales, Marketing, and Customer Support

Main Office

Atlona Incorporated

70 Daggett Drive

San Jose, CA 95134

United States

Office: +1.877.536.3976 (US Toll-free)

Office: +1.408.962.0515 (US/International)

Sales and Customer Service Hours

Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST)

http://www.atlona.com/

International Headquarters

Atlona International AG

Ringstrasse 15a

8600 Dübendorf

Switzerland

Office: [phone]

Sales and Customer Service Hours

Monday - Friday: 09:00 - 17:00 (UTC +1)

Operating Notes

IMPORTANT: Visit http://www.atlona.com/product/AT-HDVS-200-TX-WP and http://www.atlona.com/product/AT-HDVS-200-TX-WP-BLK for the latest firmware updates and User Manual.

- Consumer Electronics Control (CEC): Atlona has confirmed proper CEC functionality with several current models of Samsung, Panasonic, and Sony displays. However, it is not guaranteed that CEC will work with all displays. Many manufacturers do not support the CEC “off” command, and older displays use proprietary commands. Atlona only supports displays that use the CEC command structure defined in HDMI 1.2a. It is recommended that dealers request an evaluation product from Atlona, before designing a system using the CEC protocol. If this is not possible, then other control methods will need to be considered, in order to control displays using Atlona products.

Warranty

To view the product warranty, use the following link or QR code:

https://atlona.com/warranty/.

Safety and Certification

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCT THE RISK OF

ELECTRIC SHOCK

DO NOT OPEN ENCLOSURE OR EXPOSE

TO RAIN OR MOISTURE.

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product.

The information bubble is intended to alert the user to helpful or optional operational instructions in the literature accompanying the product.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of a polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
11. Only use attachments/accessories specified by Atlona.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
13. Unplug this product during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Compliance

FCC Compliance and Advisory Statement: This hardware device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Copyright, Trademark, and Registration

© 2024 Atlona Inc. All rights reserved. "Atlona" and the Atlona logo are registered trademarks of Atlona Inc. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Table of Contents

Introduction 6

Features 6

Package Contents 6

Panel Description 7

Installation 8

RS-232 Connector 8

Connection Instructions 8

Faceplate Removal and Assembly 9

Connection Diagram 10

IP Configuration 11

Using the Front Panel 11

Using Commands 11

Using the Web GUI 12

The Web GUI 14

Introduction to the Web GUI 14

Menu Bar 15

Toggles 16

Sliders 16

Buttons 17

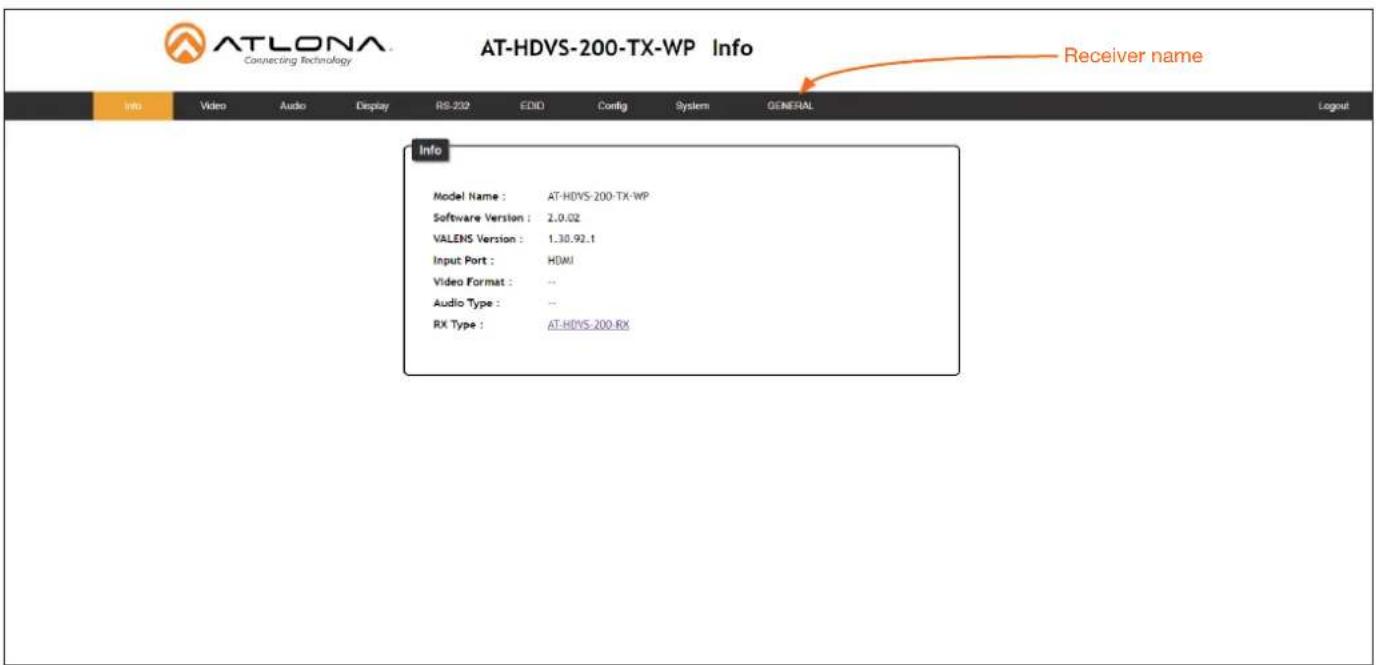

Info page 18

Video page 19

Audio page 20

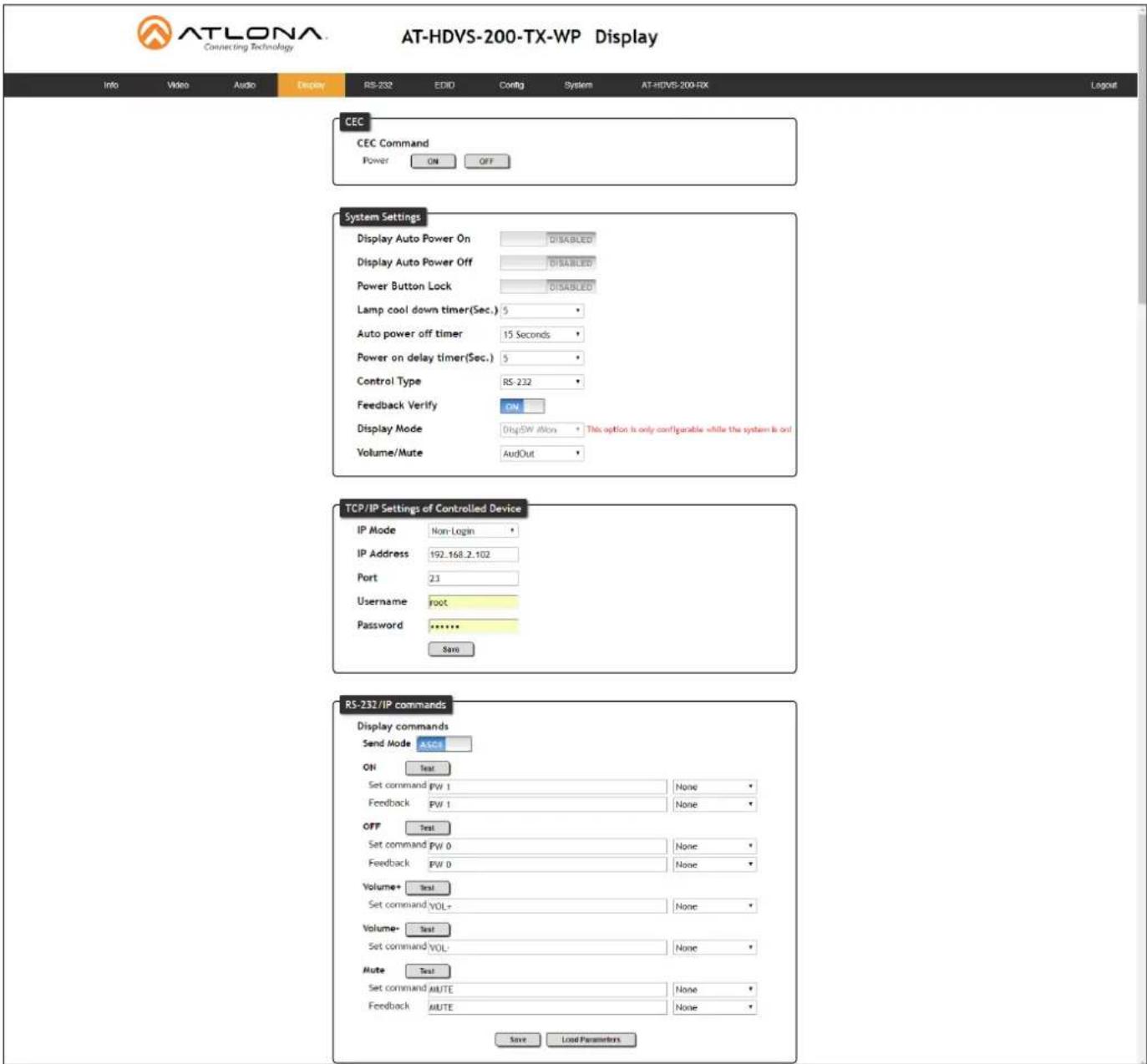

Display page 22

CEC 22

System Settings 23

TCP/IP Settings of Controlled Devices 24

RS-232 / IP Commands 25

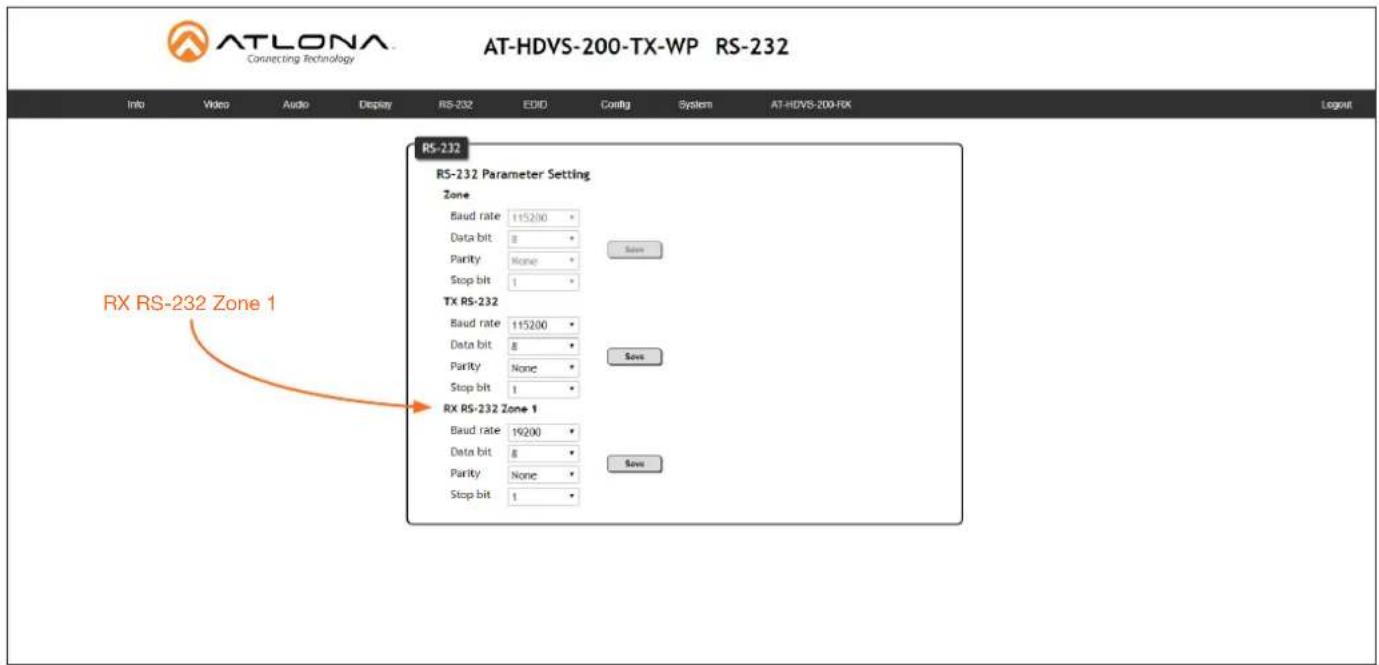

RS-232 page 26

EDID page 27

Config page 28

System page 29

Kit Mode 31

Video 31

Audio 33

RS-232 34

Appendix 35

Updating the Firmware 35

Using the Web GUI 35

Using USB 36

Default Settings 38

Specifications 39

Introduction

The Atlona AT-HDVS-200-TX-WP is a 2×1 switcher and HDBaseT transmitter with an HDMI input plus a VGA input with audio. The HDVS-200-TX-WP features a US two-gang, Decora-style wallplate form factor. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100 meters). The two-channel audio input can be assigned to either video input and embedded for HDBaseT transmission. The HDVS-200-TX-WP is designed for use with the AT-HDVS-200-RX receiver and HD scaler, but can also be used with the AT-UHD-EX-100CE-RX-PSE receiver for 4K/UHD extension, as well as Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the HDVS-200-RX or other Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).

The Atlona AT-HDVS-200-TX-WP-BLK is identical to the AT-HDVS-200-TX-WP, except for the addition of interchangeable black and white wallplates and faceplates.

Both products provides control to a display through TCP/IP, RS-232, or CEC, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-200-TX-WP-BLK can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-200-TX-WP-BLK forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-200-TX-WP-BLK display control capability can also be triggered by an external control system.

A power button on the front panel can be used for manual on/off control of either the HDVS-200-TX-WP-BLK or the display. Front panel volume controls are also available to control the display's internal audio, or another device with volume control, such as a DSP or another switcher.

Features

• US two-gang enclosure for Decora®-style wallplate openings
• 2×1 HDBaseT™ switcher with HDMI® and VGA inputs
• Ideal for the AT-HDVS-200-RX scaling receiver and Atlona HDBaseT-equipped switchers
• HDBaseT transmitter for AV, Ethernet, power, and control up to 330 feet (100 meters)
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with the AT-UHD-EX-100CE-RX-PSE receiver)
• Remotely powered via PoE (Power over Ethernet)
  • Automatic input selection and automatic display control
• Front panel input selection, display on/off, and volume control
  • TCP/IP and RS-232 control

Package Contents

AT-HDVS-200-TX-WP AT-HDVS-200-TX-WP-BLK

1 x AT-HDVS-200-TX-WP

1 x Captive screw connector, 3-pin

1 x Faceplate, w/ LAN port exposed

1 x Installation Guide

1 x AT-HDVS-200-TX-WP-BLK

1 x Captive screw connector, 3-pin

1 x Black faceplate, w/ LAN port exposed

1 x Installation Guide

Panel Description

INPUT VOL+ DISPLAY VOL- ATLONA6 PWM LINK HDMI 1 2 3 4 5 7 8 AUDIO IN HDMI IN VGA IN

Front Left Rear

10

Diagram of a power supply unit with fan, terminal blocks, and a green connector (no text or symbols)

6 12119

1 INPUT

Press this button to toggle between each of the available inputs: HDMI IN and VGA IN.

2 DISPLAY

Press this button to turn on/off video output for the switcher. This button can also be programmed to send a display on/off command over CEC, RS-232, or TCP/IP, to controllable displays or other connected devices, or send trigger commands over RS-232 or TCP/IP.

3 PWR

This LED indicator will glow bright green when the switcher is powered.

4 LINK

This LED indicator will glow bright amber when a link exists between the AT-HDVS-200-TX-WP and a PoE-compatible receiver.

5 VOL+ / VOL-

Press these buttons to increase or decrease the volume level on the display.

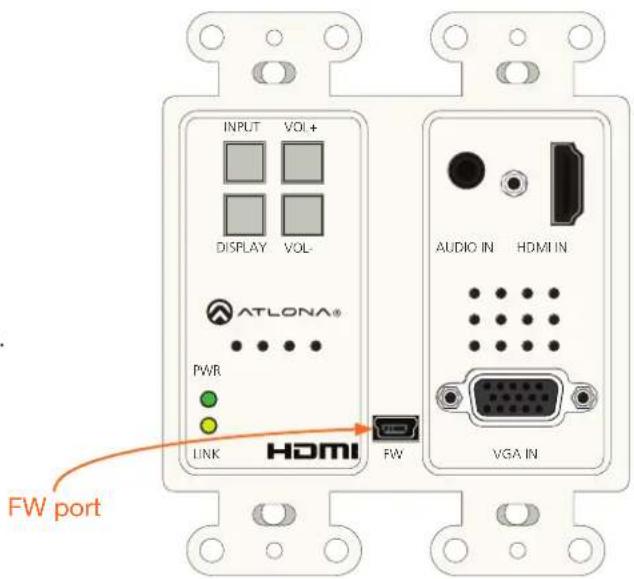

6 FW

Connect a mini USB to USB-A type cable from this port to a computer to update the firmware.

Refer to Updating the Firmware (page 35) for more information.

7 AUDIO IN

Connect a 3.5mm mini-stereo audio cable, from an analog audio source, to this port.

8 HDMI IN

Connect an HDMI cable from this port to an HD source.

9 VGA IN

Connect a VGA cable from this port to a VGA source.

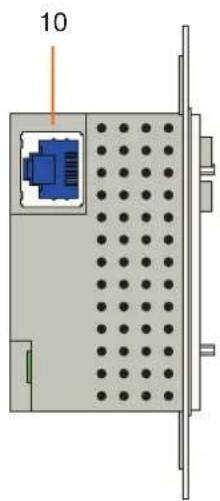

10 HDBaseT

Use an Ethernet cable to connect an HDBaseT PoE-compatible receiver to this port.

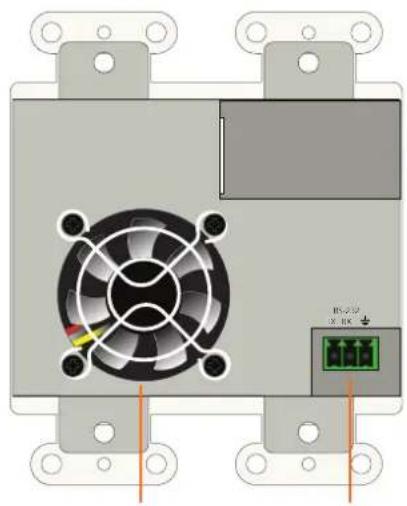

11 Cooling Fan Assembly

Provides active cooling for the switcher by expelling warm air from the enclosure. To prevent overheating, make sure this vent is not blocked.

12 RS-232

Connect the included 3-pin captive-screw terminal block from this connector to an RS-232 control device.

Installation

RS-232 Connector

The AT-HDVS-200-TX-WP provides RS-232 control between an automation system and an RS-232 device. This step is optional.

1. Use wire strippers to remove a portion of the cable jacket.

2. Remove at least 3/16" (5 mm) from the insulation of the RX, TX, and GND wires.

3. Insert the TX, RX, and GND wires into correct terminal on the included Phoenix block. If using non-tinned stranded wire, presss the orange tab, above the terminal, while inserting the exposed wire. Repeat this step for the TX, RX, and GND connections.

Green 3D mechanical component with three circular holes (no text or symbols)

TX RX GND

Connection Instructions

1. Determine the proper faceplate to be used for installation. If using the LAN port, then refer to Faceplate Removal and Assembly (page 9) for information on changing the faceplate.
2. Connect an Ethernet cable, up to 230 feet (70 meters), from the HDBaseT port on the switcher to a PoE-compatible transmitter (not included). Ethernet cables should use EIA/TIA-568B termination. CAT6a/7 solid core cables should be used for best results.
3. Complete the installation of the AT-HDVS-200-TX-WP into the electrical box or mudring. Refer to the Connection Diagram (page 10) if necessary.
4. Connect an HDMI cable between the HD source and the HDMI IN port on the switcher.
5. Connect a VGA cable from a VGA source to the VGA IN port on the switcher.
6. Connect a 3.5 mm mini-stereo cable from the AUDIO IN port on the switcher to the analog audio source. The AT-HDVS-200-TX-WP can pass audio either with or without a video signal. Refer to the Audio Freerun Status option under the Audio page (page 20).
7. OPTIONAL: Connect an RS-232 control device to the RS-232 port on the switcher. This port is used to control functions of the AT-HDVS-200-TX-WP, such as volume up/down, display on/off, etc.

No power supply is required for the AT-HDVS-200-TX-WP. This unit will be powered over the Ethernet cable, from an HDBaseT receiver.

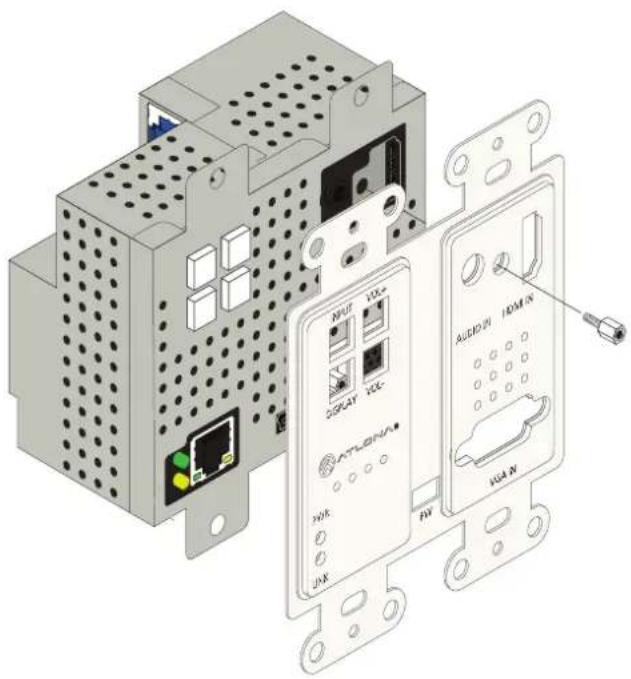

Faceplate Removal and Assembly

The AT-HDVS-200-TX-WP comes with an additional faceplate, which allows an Ethernet cable to be connected through the front panel. Removal of the faceplate requires that the AT-HDVS-200-TX-WP be removed from the electrical box or mud ring.

1. Remove the wall plate from the electrical box and slide out the AT-HDVS-200-TX-WP assembly, as shown. It is recommended that the Ethernet cable, connected to the HDBaseT port, be disconnected from the AT-HDVS-200-TX-WP, to allow for easy installation of the new faceplate.

Wall cross-section

Technical diagram of an electronic device showing labeled components including network ports, I/O ports, and audio/ HDMI connectors.

1. Unscrew the hex bolt, next to the HDMI connector on the front panel. Once the hex bolt is removed, gently remove the faceplate by pulling it toward you.
2. Attach the new faceplate and secure it using the hex bolt.
3. Install the AT-HDVS-200-TX-WP into the electrical box or mud ring. If the Ethernet cable was disconnected from the AT-HDVS-200-TX-WP during disassembly, make sure to reconnect it before reinstalling the unit into the electrical box.
4. Reattach the wallplate, securing the assembly in place.

Installation

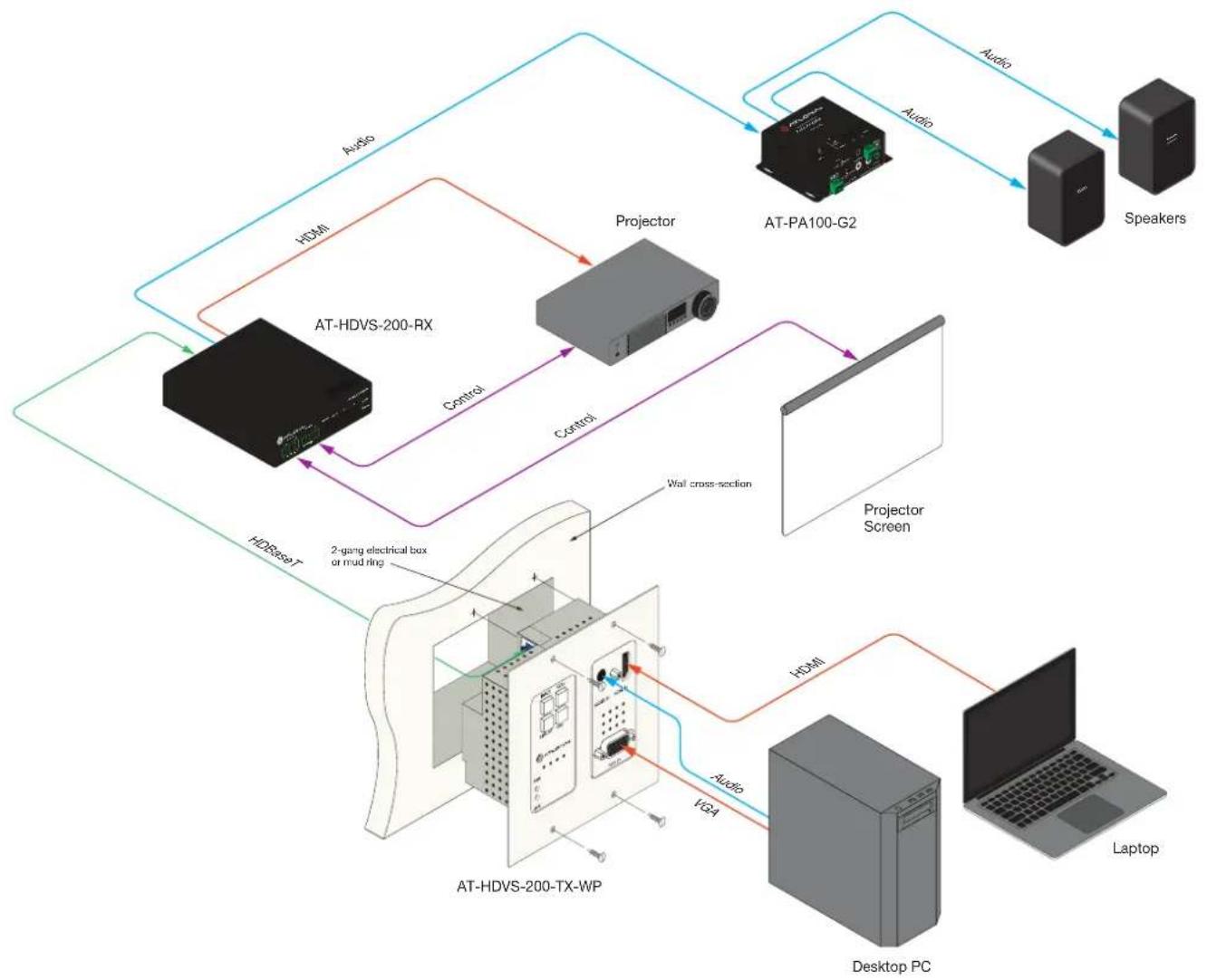

Connection Diagram

IP Configuration

The AT-HDVS-200-TX-WP is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. Use an IP scanner, along with the MAC address on the back the unit, to identify both the unit and its IP address on the network. If a static IP address is desired, the unit can be switched to static IP mode. Use one of the following procedures to switch between DHCP and static IP mode. The default static IP address of the AT-HDVS-200-TX-WP is 192.168.1.254.

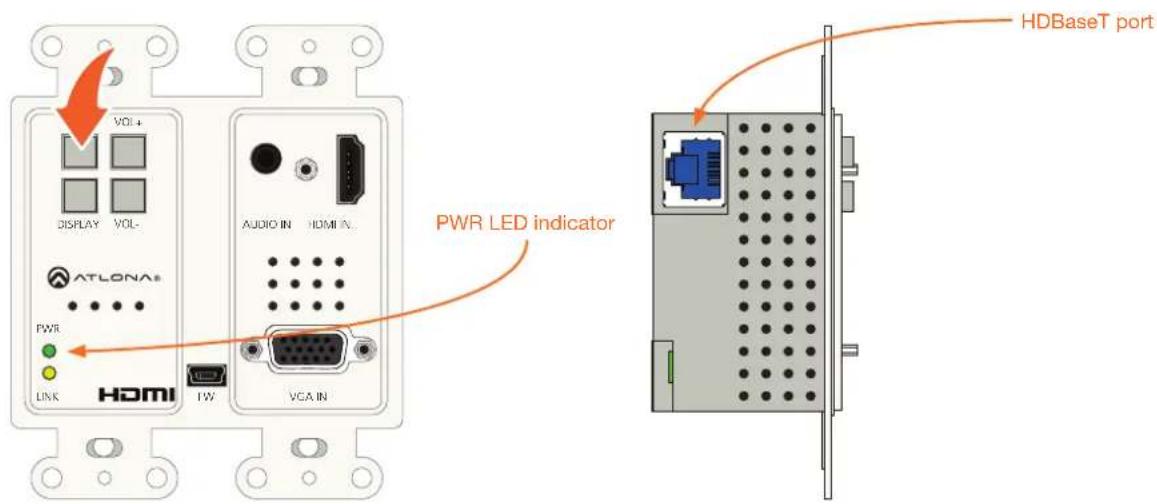

Using the Front Panel

1. Make sure the AT-HDVS-200-TX-WP is powered, by connecting it to a PoE-compatible receiver, such as the AT-HDVS-200-RX. Both power and IP control is carried over the HDBaseT port.
2. Press and hold the INPUT button for approximately 15 seconds.

HDBaseT port PWR LED indicator DISPLAY VOL- AUDIO IN HDMI IN ATLONA® PWR LINK HDMI VCA IN HDBaseT port

1. Release the INPUT button once the PWR LED indicator begins to flash. The number of flashes will indicate the currently selected IP mode.

PW LED flashes Description
Two Static IP mode
Four DHCP mode

Using Commands

Use the IPStatic and IPDHCP commands to switch between DHCP and IP mode through RS-232 or Telnet. Refer to the API documentation more information. All commands and their arguments are case-sensitive.

- Setting static IP mode

1. Connect to the AT-HDVS-200-TX-WP using RS-232 or Telnet.
2. At the command line, execute the IPDHCP command using the off argument, as shown.

IPDHCP off

Installation

1. Execute the IPStatic command. This command requires three arguments: the desired IP address of the AT-HDVS-200-TX-WP, the subnet mask, and the gateway address. All arguments must be entered in dot-decimal notation. The following is an example:

IPStatic 192.168.1.112 255.255.255.0 192.168.1.1

- Setting DHCP mode

1. Connect to the AT-HDVS-200-TX-WP using RS-232 or Telnet.

2. At the command line, execute the IPDHCP command using the on argument, as shown. All characters are case-sensitive.

IPDHCP on

Once DHCP is enabled, the unit will be assigned an IP address by the DHCP server (if present).

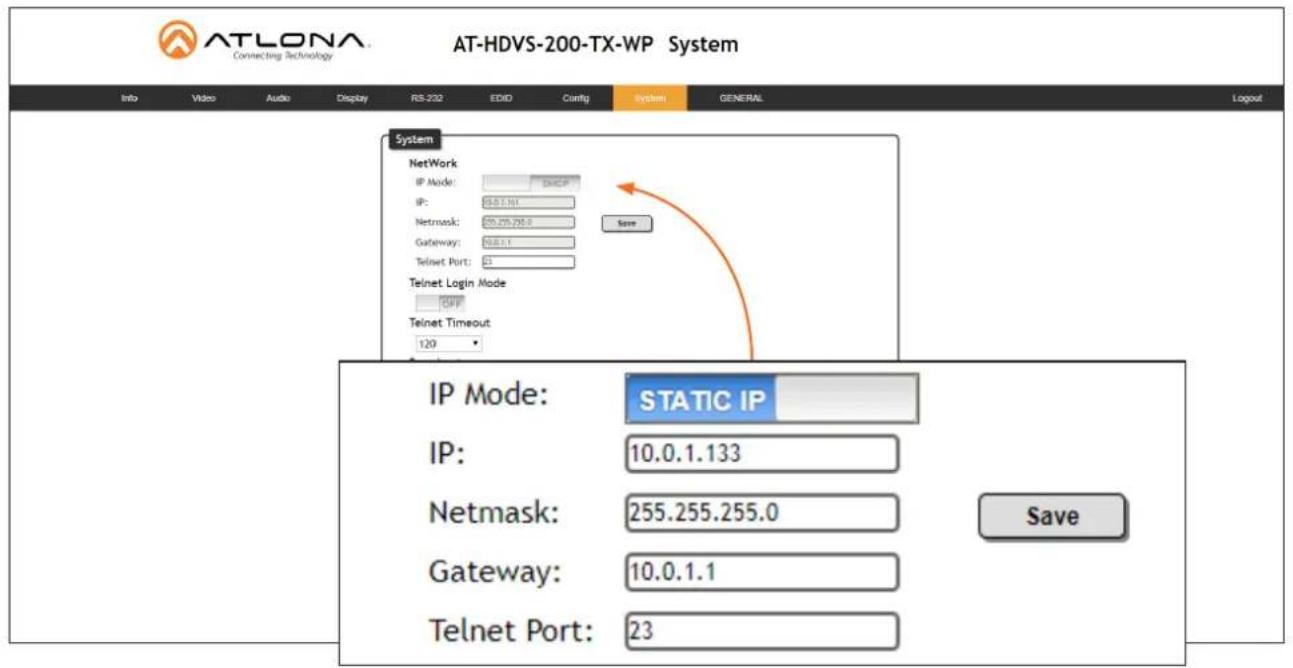

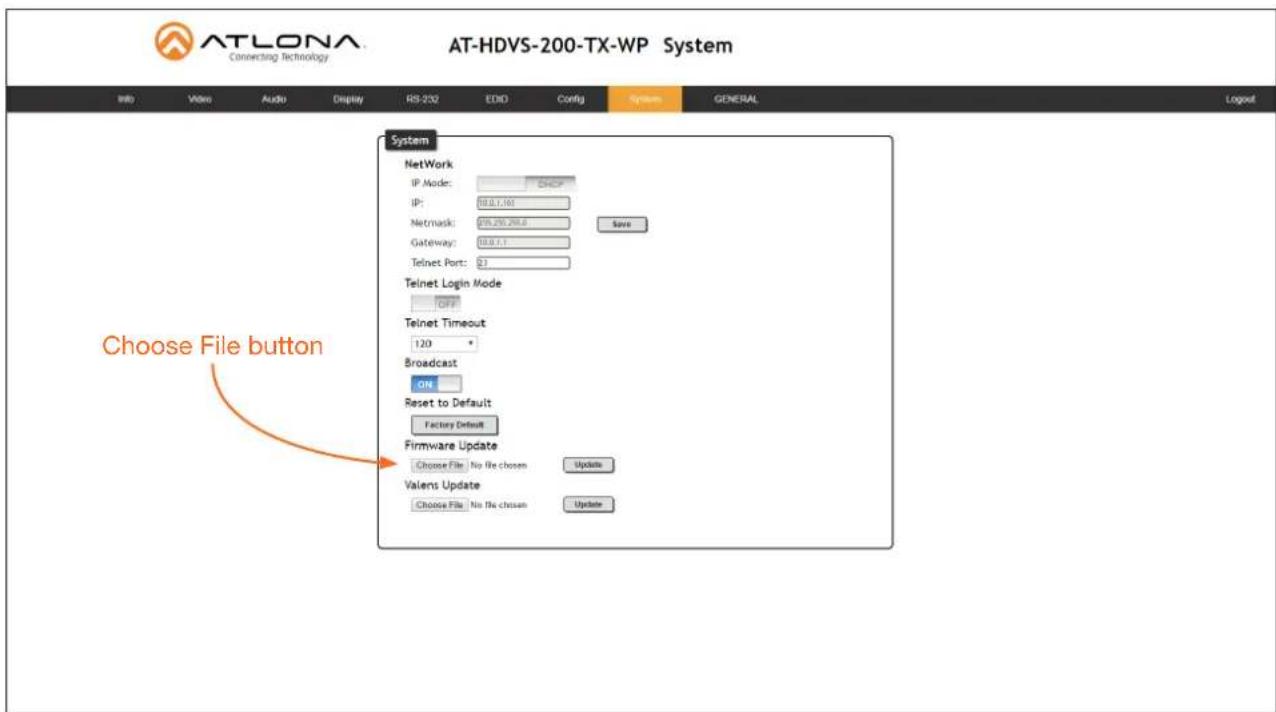

Using the Web GUI

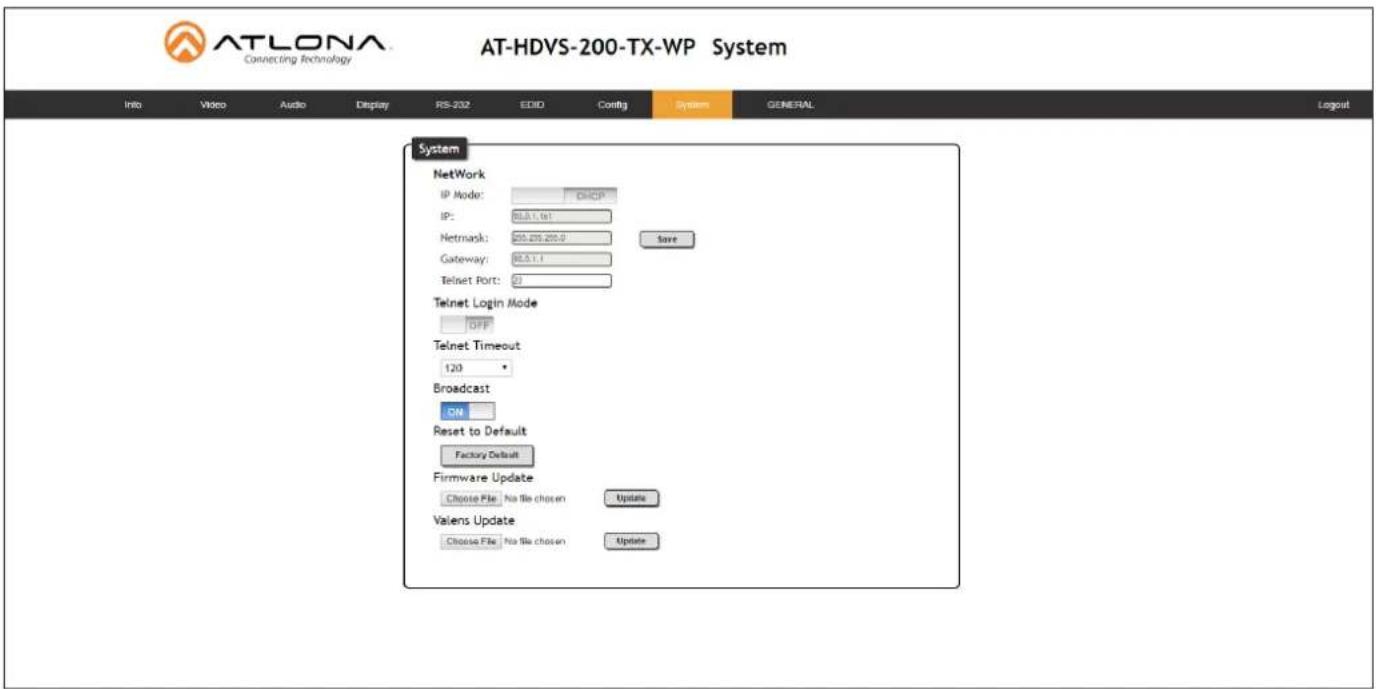

The System page (page 29), in the web GUI, allows the AT-HDVS-200-TX-WP to use either DHCP or static IP mode. In order to access the web GUI, the IP address of the AT-HDVS-200-TX-WP must be known.

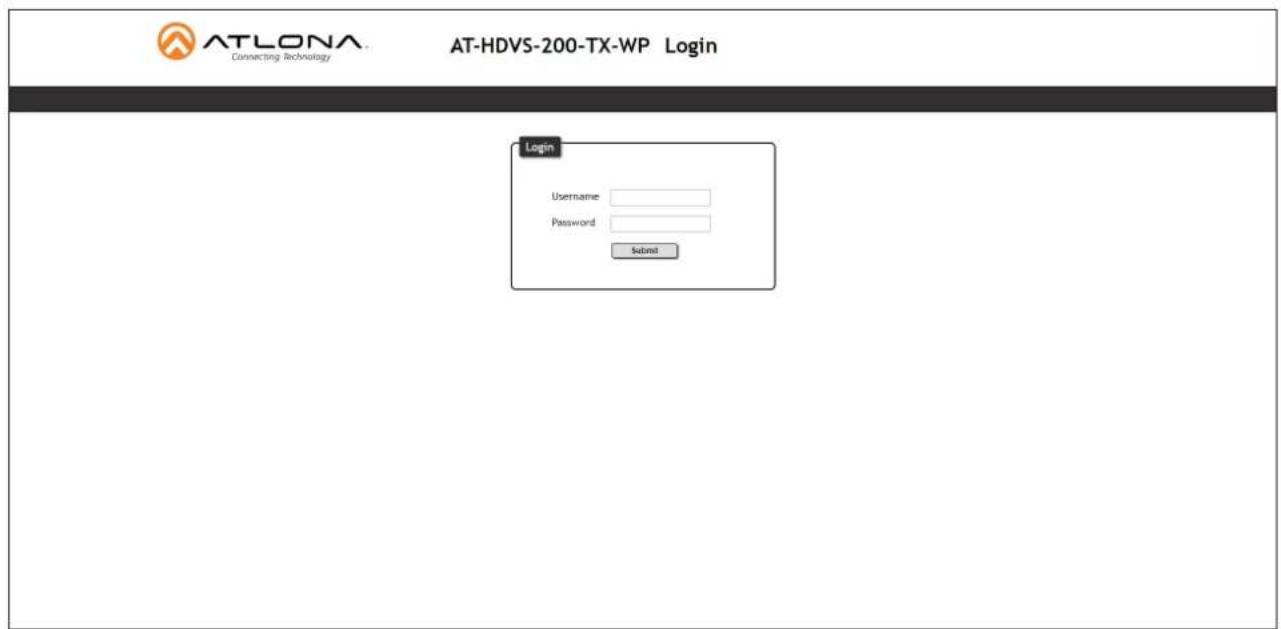

1. Open the desired web browser and enter the IP address of the AT-HDVS-200-TX-WP.

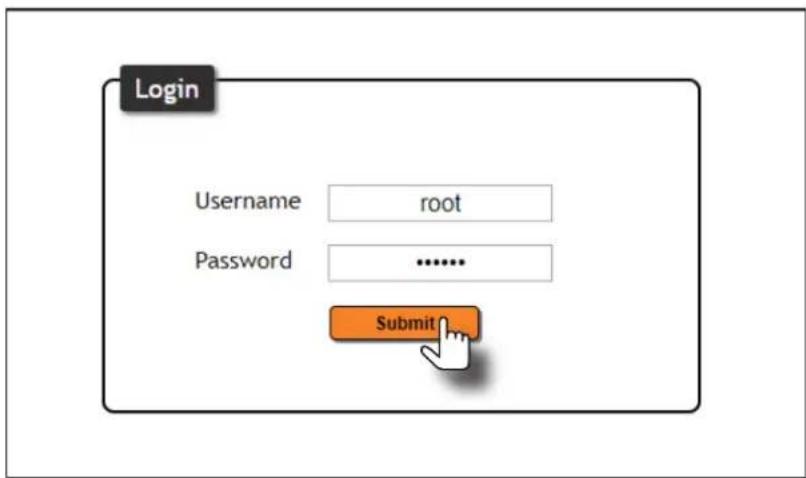

2. Log in, using the required credentials. The factory-default username and password are listed below:

Username: root

Password: Atlona

1. Click the System tab.

AT-LONA Connecting Technology AT-HDVS-200-TX-WP System Info Video Audio Display RS 232 EDD Config System GENERAL Logout System NetWork IP Mode: DHCP IP: 88.5.161 Netmask: 20.275.295.0 Save Gateway: 88.5.1 Telnet Port: 0 Telnet Login Mode GWP Telnet Timeout 120 IP Mode: STATIC IP IP: 10.0.1.133 Netmask: 255.255.255.0 Save Gateway: 10.0.1.1 Telnet Port: 23

Installation

1. Click the IP Mode toggle to switch between the DHCP and STATIC IP setting.
   When set to STATIC IP, the IP, Netmask, and Gateway fields can be modified.

2. Click the Save button to save the changes.

The Web GUI

Introduction to the Web GUI

The AT-HDVS-200-TX-WP includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-HDVS-200-TX-WP, as it provides intuitive management of all features.

The AT-HDVS-200-TX-WP is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit. Use an IP scanner to determine the IP address of the AT-HDVS-200-TX-WP. If a static IP address is desired, refer to IP Configuration (page 11). The default static IP address of the AT-HDVS-200-TX-WP is 192.168.1.254.

NOTE: The web GUI can only be accessed if the AT-HDVS-200-TX-WP is connected to a compatible PoE receiver unit, such as the AT-HDVS-200-RX, using the HDBaseT port. The receiver must be connected to the network.

1. Launch a web browser.

2. Use one of the following methods to access the IP address of the AT-HDVS-200-TX-WP:

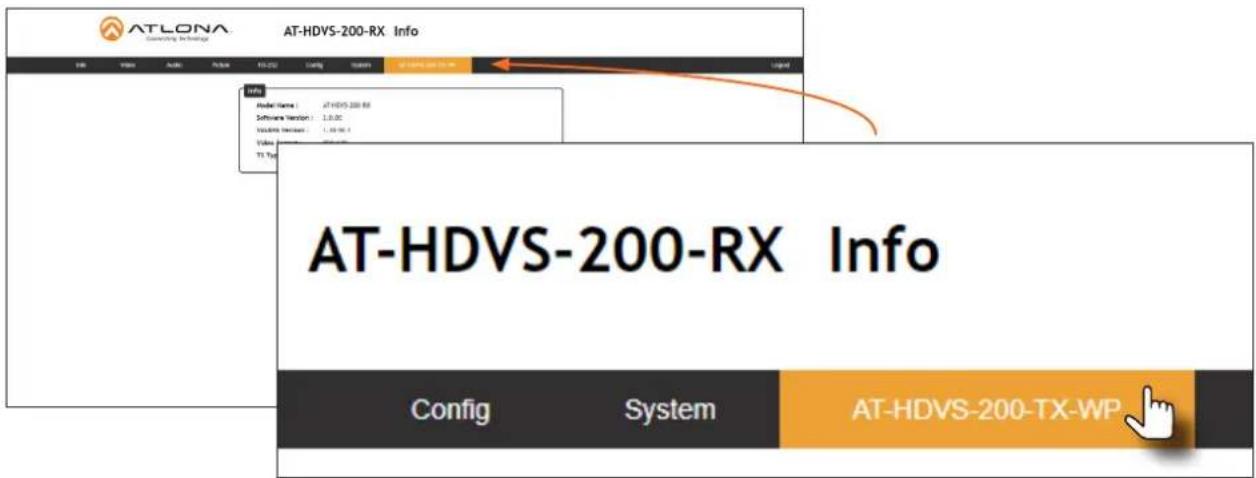

a. Login to the web GUI of the receiver unit that is connected to the AT-HDVS-200-TX-WP. Once logged in, click the link for the AT-HDVS-200-TX-WP, as shown:

AT-LONA Connecting Technology AT-HDVS-200-RX Info Info Model Name: AT-HDVS-200-RX Software Version: 1.0.0C VOLUME Version: 1.08 MB T1 Top AT-HDVS-200-RX Info Config System AT-HDVS-200-TX-WP

b. Use an IP scanner to locate the IP address of the AT-HDVS-200-TX-WP on the network. The MAC address, on the back of the unit, can be used to identify the unit with the IP address.

1. The Login page for the receiver will be displayed.

ATLONA Connecting Technology AT-HDVS-200-TX-WP Login Login Username: Retrieval Name:

The Web GUI

1. Type root, using lower-case characters, in the Username field.
2. Type Atlona in the Password field. This is the default password. The password field is case-sensitive. When the password is entered, it will be masked. The password can be changed, if desired. Refer to the Config page (page 28) for more information.
3. Click the Submit button or press the ENTER key on the keyboard.

Login Username root Password .......... Submit

1. The Info page will be displayed.

AT-LONA IT-HDVS-200-TX-WP Info Model Name: AT-HDVS-200-TX-WP Software Version: 1.0 GB WLDMS Version: 1.35 GB Input Format: HDMI Video Format: ... Audio Type: Alt Type: at work-100 x8

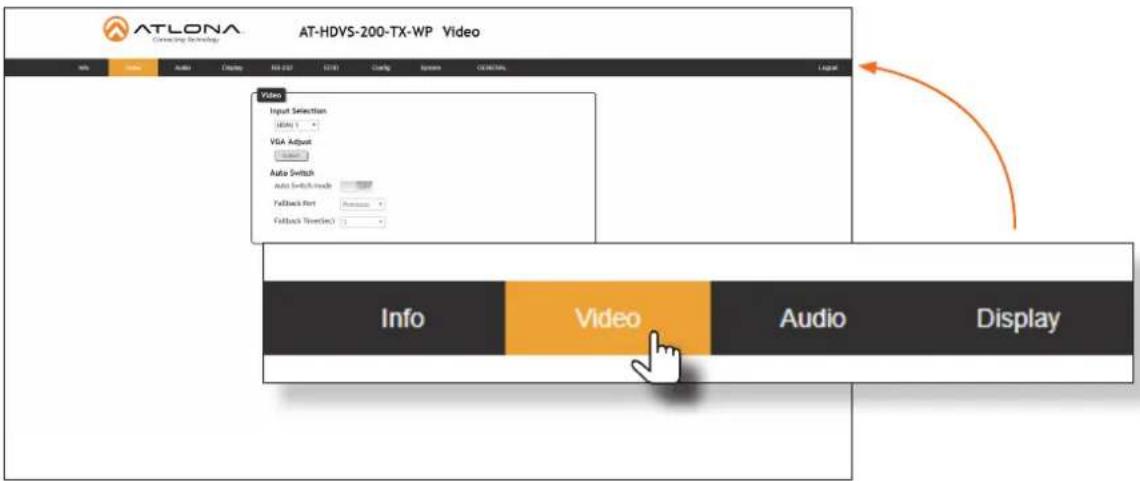

Menu Bar

The dark-colored bar, near the top of the screen, is the menu bar. When the mouse is moved over each menu element, it will be highlighted in light orange. Once the desired menu element is highlighted, click the left mouse button to access the settings within the menu.

ATLONA IT-HDYS-200-TX-WP info Model Name: atHDYS-200-TX-WP Software Version: 1.3.47 Video Version: 1.3.47 Input Port: 1000 Video Format: - Audio Type: - RT Type: atHDYS-200-WP Info Video Audio Menu bar

The Web GUI

In this example, clicking Video, in the menu bar, will display the Video page.

AT-LONA Testing Technology AT-HDVS-200-TX-WP Video Info Audio Display RGB (RGB) (RGB) Config System CMOSities Logical Video Input Selection LOGI 1 VGA Adjust Auto Switch Auto Switch Mode Fallback Sort Fallback Select(S) Info Video Audio Display

Toggles

Several settings within the Web GUI use toggles, which enable, disable, or assign one of two settings. Generally, when the toggle is blue, it means that the feature is enabled or ON. If a feature is disabled, then the toggle will appear gray and be labeled as OFF. Toggle buttons may also indicate its current setting and, when enabled or set to a particular state, may also provide access to another set of controls or text fields within the Web GUI, as shown with the IP Mode toggle.

IP Mode: STATIC IP IP: 10.0.1.133 Netmask: 255.255.255.0 Gateway: 10.0.1.1 Telnet Port: 23 Telnet Login Mode OFF Save

Sliders

Click and drag slider controls to change their value.

Output Bass 0 Output Treble 0

The Web GUI

Buttons

Buttons are used to execute an action or setting. Several pages within the Web GUI include a Save button. Clicking the Save button will apply and save all settings in the current page. Other buttons, such as the Factory Defaults button, under the System page, will reset the AT-HDVS-200-TX-WP to factory-default settings.

Reset to Default Factory Default Firmware Update Choose File No file chosen Update

Info page

After logging in, the Info page will be displayed. The Info page provides basic information about the receiver, including the model name, software version, input video timing, and the device being using as the transmitter.

AT-LONA Connecting Technology AT-HDVS-200-TX-WP Info Info Video Audio Display RS-202 EDD Config System GENERAL Logout Info Model Name : AT-HDVS 200-TX-WP Software Version : 2.0.02 VALENS Version : 1.38.92.1 Input Port : HDMI Video Format : -- Audio Type : -- RX Type : AT-HDVS 200-RX Receiver name

Model Name

The model SKU of this product.

Software Version

The version of firmware that the AT-HDVS-200-TX-WP is running. Always make sure to check the AT-HDVS-200-TX-WP product page, on the Atlona web site, for the latest version of firmware.

VALENS Version

The version of firmware used by the Valens chipset.

Input Port

Displays the active video input port.

Video Format

Displays the input resolution of the source device.

Audio Type

Displays the input audio format.

RX Type

The model of the connected receiver unit. If the AT-HDVS-200-TX-WP is connected to either a PoE-compatible projector or a device that is unable to communicate over HDBaseT, then the text "GENERAL" will be displayed in the menu ribbon. When the AT-HDVS-200-TX-WP is connected to the AT-HDVS-200-RX, the system will be placed in kit mode. In kit mode, the name of the receiver will be displayed and additional options will be available under both the Video page and the RS-232 page. Refer to Kit Mode (page 31) for more information.

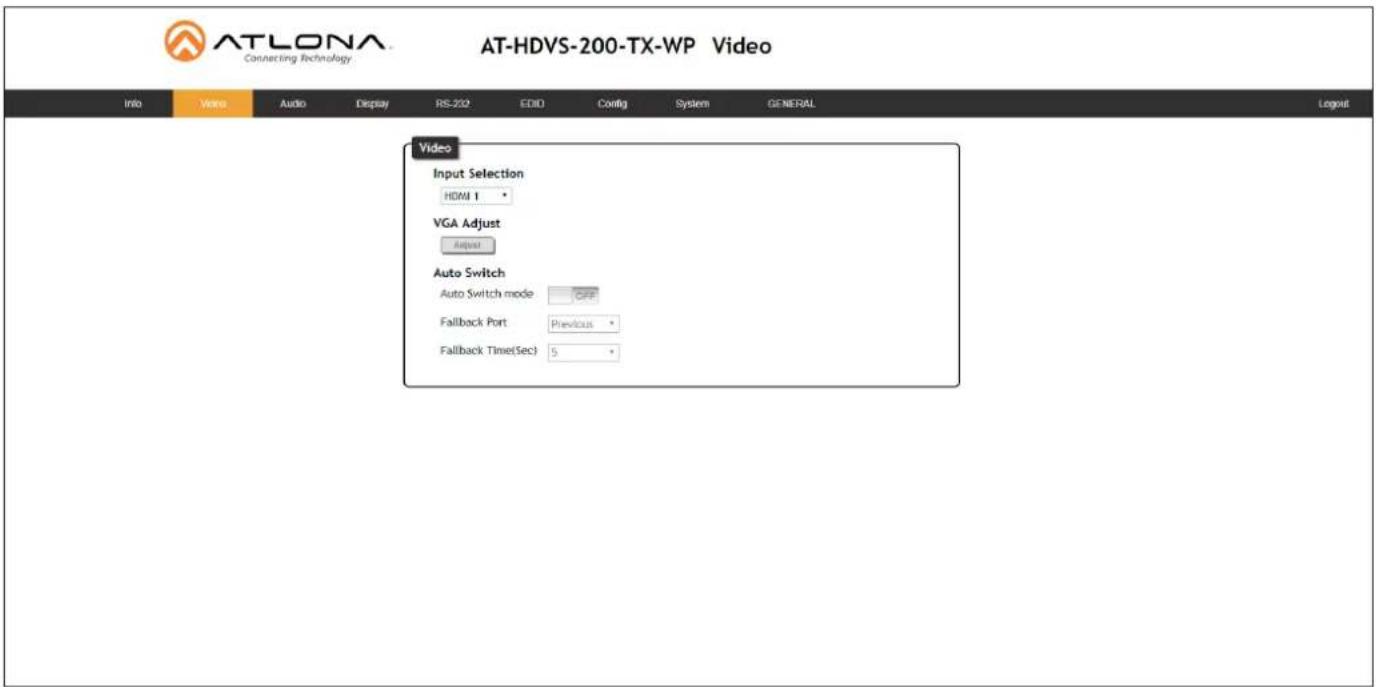

Video page

AT-LONA Connecting Technology AT-HDVS-200-TX-WP Video Info Video Audio Display RS-232 EDDI Config System GENERAL Logout Video Input Selection HDMI 1 VGA Adjust Adjust Auto Switch Auto Switch mode CFF Fallback Port Previous Fallback Time(Sec) 5

Input Selection

Click this drop-down list to select the desired input.

VGA Adjust

In most situations, adjustment of the VGA signal should not necessary. However, if the VGA signal does not appear correctly, click the Adjust button to automatically correct the clock and phase.

Auto Switch

Three controls are available under the Auto Switch feature.

• Click the Auto Switch mode toggle to enable or disable auto-switching.
• Click the Fallback Port drop-down list to select the fallback port. If the source is disconnected from the active port, then the switcher can be configured to automatically switch to the desired port. Click the Auto Switch mode toggle to enable or disable auto-switching.

Setting Description
HDMI 1 Automatically switches	to HDMI 1.
VGA Automatically switches to VGA.

- Click the Fallback Time (Sec) drop-down list and select the time interval before the switcher attempts to search for the next port. Range: 3 to 600.

When the system is in kit mode, additional options will be available. Refer to Kit Mode (page 31) for more information.

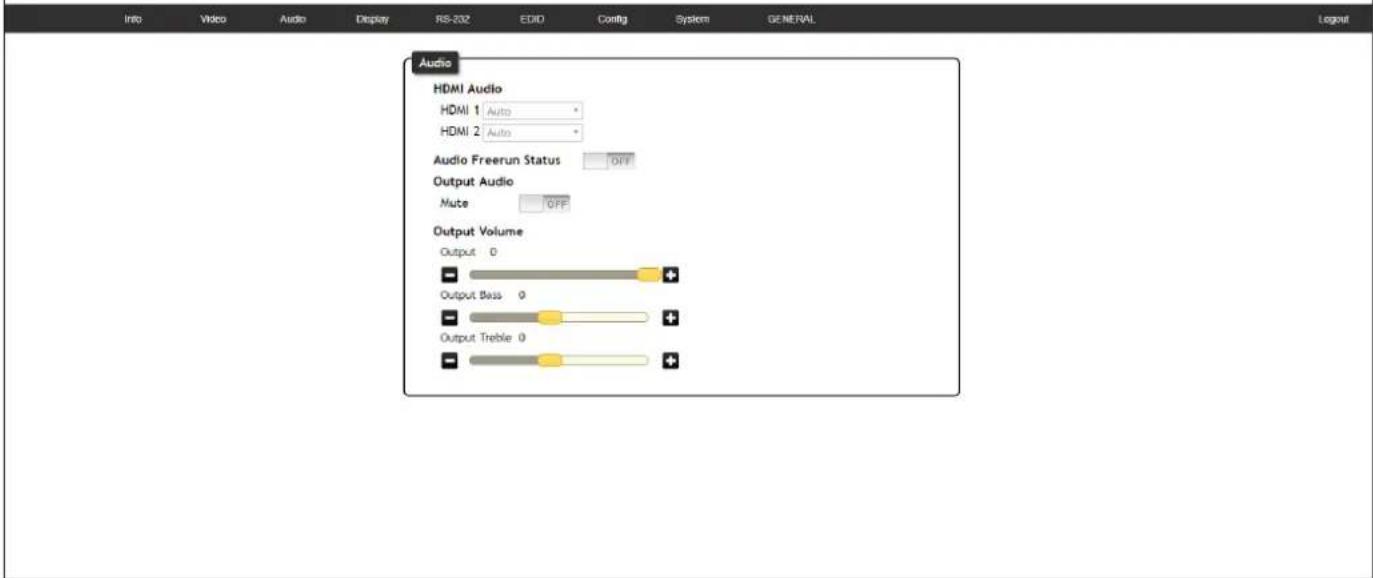

Audio page

ATLONA Connecting Technology

AT-HDVS-200-TX-WP Audio

Audio HDMI Audio HDMI 1 Auto HDMI 2 Auto Audio Freerun Status OFF Output Audio Mute OFF Output Volume Output 0 Output Bass 0 Output Treble 0

HDMI Audio

These drop-down lists are only available when the system is in kit mode. Refer to Kit Mode (page 31) for more information.

Audio Freerun Status

Audio can be passed, without the presence of a video signal. To enable this functionality, click the Audio Freerun Status toggle to the ON position. To pass both video and audio, this toggle must be set to the OFF position.

IMPORTANT: Setting the Audio Freerun Status to ON is not recommended. When set to ON, both video auto switching and display control are disabled.

Mute

Click this toggle to the OFF position to mute all audio on the output.

Output

Click and drag this slider bar to adjust the output audio volume. Range: -80 to 0.

Output Bass

Click and drag this slider bar to adjust the bass of the audio output. Range: -12 to 15.

Output Treble

Click and drag this slider bar to adjust the treble of the audio output. Range: -12 to 15.

The Web GUI

L/R Audio

Click this toggle to the OFF position to mute only the analog audio.

Output

Click and drag this slider bar to adjust the output audio volume. Range: -80 to 0.

Output Bass

Click and drag this slider bar to adjust the bass of the audio output. Range: -12 to 15.

Output Treble

Click and drag this slider bar to adjust the treble of the audio output. Range: -12 to 15.

Display page

AT-LONA Connecting Technology AT-HDVS-200-TX-WP Display Info Video Audio Display RS-232 EDD Config System AT-HDVS-200-RX Logout CEC CEC Command Power ON OFF System Settings Display Auto Power On DISABLED Display Auto Power Off DISABLED Power Button Lock DISABLED Lamp cool down timer(Sec.) 5 Auto power off timer 15 Seconds Power on delay timer(Sec.) 5 Control Type RS-232 Feedback Verify ON Display Mode DispSW dMon This option is only configurable while the system is out Volume/Mute AudOut TCP/IP Settings of Controlled Device IP Mode Non-Login IP Address 192.168.2.102 Port 2.3 Username root Password .......... Save RS-232/IP commands Display commands Send Mode ASCI ON Test Set command PW 1 None Feedback PW 1 None OFF Test Set command PW 0 None Feedback PW 0 None Volume+ Test Set command VOL- None Volume- Test Set command VOL- None Mute Test Set command ALUTE None Feedback ALTE None Save Load Parameters

CEC

CEC Command

Click the ON button to send the power-on command to the display device. Click the OFF button to toggle the power state to off.

Consumer Electronics Control (CEC): Atlona has confirmed proper CEC functionality with several current models of Samsung, Panasonic, and Sony displays. However, it is not guaranteed that CEC will work with all displays. Many manufacturers do not support the CEC “off” command, and older displays use proprietary commands. Atlona only supports displays that use the CEC command structure defined in HDMI 1.2a. It is recommended that dealers request an evaluation product from Atlona, before designing a system using the CEC protocol. If this is not possible, then other control methods will need to be considered, in order to control displays using Atlona products.

The Web GUI

System Settings

Display Auto Power On

Sends the command to power-on the display when an A/V signal is detected. Click the toggle to enable or disable this feature. Otherwise, set to DISABLED.

Display Auto Power Off

Sends the command to power-off the display when an A/V signal is no longer present. Click the toggle to enable or disable this feature. Otherwise, set to DISABLED.

Power Button Lock

Allows the DISPLAY button, on the front panel, to be locked, preventing accidental operation when the product is in use. Click the toggle to enable or disable this feature.

Lamp Cool Down Timer

Sets the cool-down interval, in seconds, before the projector can be powered-off. During this time interval, the projector will not accept any commands until the "power off" command has been processed and the projector lamp has completed the cool-down cycle. Range: 0 to 300.

Display Warm Up Timer

Sets the time interval, in seconds, between when the display is powered on and when the DISPLAY button, on the front panel, will be locked. Range: 0 to 300.

Auto Power Off Timer

Sets the time interval, in seconds, between when the loss of A/V signal is detected and when the "Display Off" command is sent. Range: 5 seconds to 1 hour.

Control Type

Sets the control method for sending commands. The following options are available: RS-232, IP, CEC.

Setting Description
RS-232 RS-232 is used to send commands.
IP Commands are sent over IP.
CEC Uses CEC to send commands.

Feedback Verify

Sets the feedback verification state. Click the toggle to enable or disable this feature. The following options are available.

Setting Description
On This is the default setting.	The AT-HDVS-200-TX-WP will make four attempts to send the command, if the feedback string is not acknowledged. After the fourth attempt, the process will fail.
Off Sends the command and ignores the feedback string.

The Web GUI

Display Mode

Click this drop-down list to select the display mode.

Setting Description
DispSW AVon Display switches	on/off, source audio/video signal always on.
DispSW AVSW Display switches	on/off, source audio/video signal switches on/off.
AV SW Display is always on, source audio/video signal switches on/off

Volume / Mute

Click this drop-down list to select the control method for volume and muting.

Setting Description
AudOut Volume and mute buttons will control volume level of the output.
RS-232 Volume/Mute buttons will send the commands using RS-232 to compatible extenders and displays.
IP Volume/Mute buttons will send the commands over Ethernet using the LAN connection.

TCP/IP Settings of Controlled Devices

IP Mode

Click this drop-down list to select the control method for volume and muting.

Setting Description
Non-login Does not require a username and password when using TCP/IP to control the display.
RS-232 Requires a username and password to control the display through TCP/IP.

IP Address

Enter the IP address of the display in this field.

Port

Enter the listening port of the device in this field.

Username

Enter the username for login.

Password

Enter the password for login.

The Web GUI

RS-232 / IP Commands

Send Mode

Sets the type of commands that are sent to the display, either ASCII or Hex.

On/Off/Volume+/Volume-/Mute

- Set command

Enter the command in this field.

- Feedback

Enter the feedback string in this field.

- CR-LF

Click this drop-down list to select the desired end-of-line characters to be sent.

Setting Description
None No end-of-line characters included
CR Carriage return
LF Line feed
CR-LF Carriage return + Line feed
Space Space character
STX Start-of-text character
ETX End-of-text character
Null Null character (binary zero)

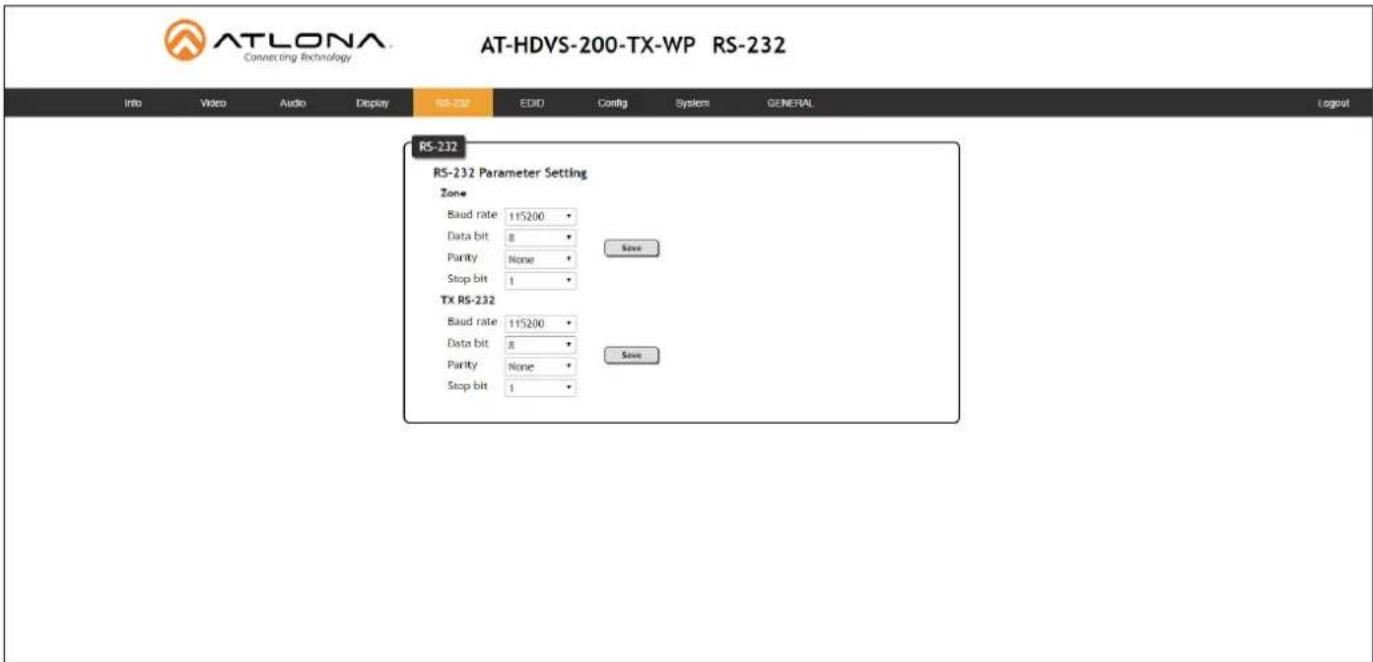

RS-232 page

AT-LONA Connecting Technology AT-HDVS-200-TX-WP RS-232 Info Video Audio Display RS-232 EDITION Config System GENERAL Logout RS-232 RS-232 Parameter Setting Zone Baud rate 115200 Data bit 8 Purity None Stop bit 1 TX RS-232 Baud rate 115200 Data bit 8 Purity None Stop bit 1 Save Save

Zone

When the AT-HDVS-200-TX-WP is connected to the AT-HDVS-200-RX, the system is placed in kit mode. In this mode, the drop-down list boxes will be disabled and the HDBaseT baud rate will be locked at 115200.

If the AT-HDVS-200-TX-WP is connected to another HDBaseT device, such as the AT-UHD-CLSO-824, each of these drop-down list boxes can be set to the baud rate of the HDBaseT RS-232 settings on the corresponding device.

TX RS-232

The RS-232 settings of the RS-232 port on the AT-HDVS-200-TX-WP. Click the Save button to save the settings.

Setting Description
Baud rate Sets the baud rate.	The following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200.
Data bit Sets the number of data bits used to represent each character of data. The following options are available: 7 or 8.
Parity Sets the parity bit, which can be included with each character to detect errors during the transmission of data. The following options are available: None, Odd, or Even.
Stop bit Sets the stop bit. Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2.

EDID page

AT-LONA Connecting Technology AT-HDVS-200-TX-WP EDID Info Video Audio Display RS-202 EDD Config System GENERAL Logout EDID Prefer Timing(HDMI) 1920x1080 Prefer Timing(VGA) 1920x1080 Input HDCP Compliant

Perfer Timing (HDMI)

Adjusts the brightness setting of the output signal. Range: 0 - 128.

Prefer Timing (VGA)

Adjusts the contrast setting of the output signal. Contrast is the difference between the lightest and darkest area of an image. Range: 0 - 128.

Input HDCP

Provides control over the transmission of HDCP content for the HDMI IN port. The following options are available:

• Compliant - Forces detection of HDCP-compliant sink devices. If the sink device is not HDCP-compliant, then no content will be transmitted.
• Noncompliant - Suppresses detection of HDCP-compliant sink devices, allowing non-HDCP content to be transmitted.
• Auto - Automatically detects the presence of HDCP-compliant sink devices. If an HDCP-compliant display is detected, then HDCP content will be sent. Otherwise, non-HDCP content will be sent.

NOTE: The HDCP control feature does not provide decryption of HDCP content to non-HDCP sink devices.

Config page

ATLONA Connecting Technology

AT-HDVS-200-TX-WP Config

Info Video Audio Display RS-202 EDD Config System GENERAL Logout Configuration Web & Telnet Login Settings Old Username root Old Password New Username root Save New Password Confirm New Password All User Login Settings Username Password Edit Del Add Remove Add Remove Add Remove

Old Username

This field cannot be changed. "root" is the administrator user.

Old Password

Enter the current password for the "root" username in this field. The default password is "Atlona".

New Username

This field cannot be changed.

Save

Click this button to save all changes.

New Password

Enter the new password fro the "root" username in this field.

Confirm New Password

Verify the new password by retyping it in this field.

All User Login Settings

- Username

Displays the username.

- Password

Displays the password for the associated username.

- Edit

Click the Add button, in this column, to edit the username and password in the row.

• Del

Click the Remove button to delete the user in the row. This button will only be available if a username and password have been created.

System page

AT-LONA Connecting Technology AT-HDVS-200-TX-WP System Info Video Audio Display RS-202 EDD Config Systems GENERAL Logout System NetWork IP Mode: DHCP IP: BLA1.161 Netmask: 250,255,255.0 Save Gateway: BLA1.1 Telnet Port: 23 Telnet Login Mode OFF Telnet Timeout 120 Broadcast ON Reset to Default Factory Default Firmware Update Choose File No file chosen Update Valens Update Choose File No file chosen Update

IP Mode

Click this toggle to set the IP mode of the AT-HDVS-200-TX-WP. By default, the AT-HDVS-200-TX-WP is set to DHCP mode. Available settings: STATIC IP, DHCP.

IP

Enter the IP address of the AT-HDVS-200-TX-WP in this field. This field will only be available if IP Mode is set to STATIC IP. The default IP address is 192.168.1.254.

Netmask

Enter the subnet mask in this field. This field will only be available if IP Mode is set to STATIC IP.

Gateway

Enter the gateway (router) address in this field. This field will only be available if IP Mode is set to STATIC IP.

Telnet Port

Enter the Telnet port in this field.

Telnet Login Mode

Click this toggle to set the login mode to ON or OFF. If this feature is set to ON, then the AT-HDVS-200-TX-WP will prompt for both the username and password. Use the same credentials as the web GUI.

Telnet Timeout

Click this drop-down list to select the timeout interval, in seconds, before the Telnet connection is automatically closed after no activity. Range: 1 to 3600 (seconds).

Broadcast

By default, broadcast mode is set to off. When set to on, changes in the web GUI will also be affected on the control system (if connected), via TCP/IP. To separate control between web GUI and Telnet, set this feature off.

The Web GUI

Reset to Default

Click the Factory Default button to set the AT-HDVS-200-TX-WP to factory-default settings.

Firmware Update

Click the Choose File button to select the firmware file, when upgrading the firmware on the AT-HDVS-200-TX-WP. Once the firmware file is selected, click the Update button. Refer to Updating the Firmware (page 35) for more information.

Valens Update

Click the Choose File button to select the Valens firmware file, when upgrading the Valens chip on the AT-HDVS-200-TX-WP. Once the firmware file is selected, click the Update button.

Kit Mode

If the AT-HDVS-200-TX-WP is connected to the AT-HDVS-200-RX, the system will be placed in kit mode.

This section covers features only available in kit mode. Note that when in kit mode, the text "GENERAL" is replaced with the name of receiver that is connected.

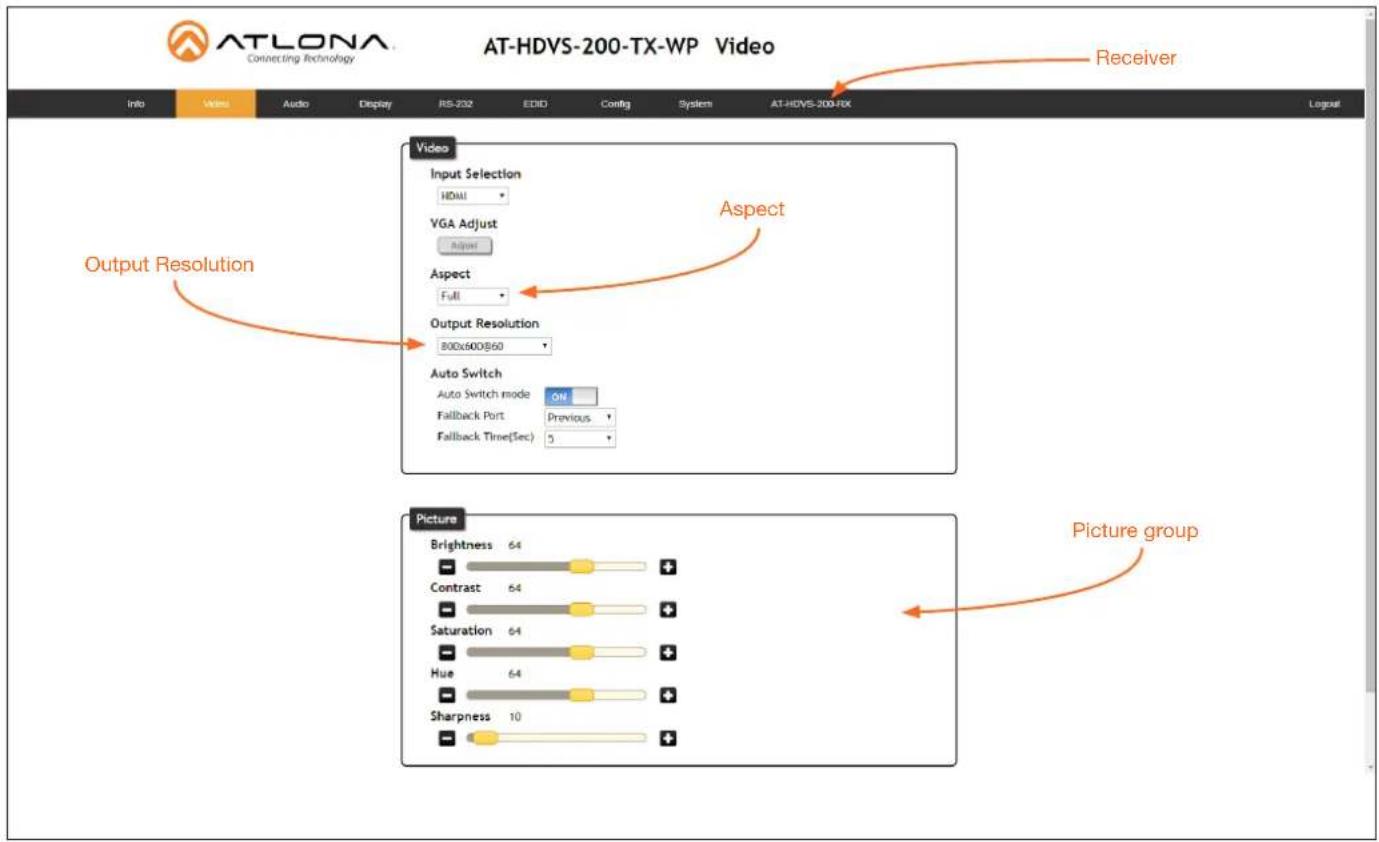

Video

AT-LONA Connecting Technology AT-HDVS-200-TX-WP Video Info Video Audio Display JIS-202 EDIO_Config System AT-HDVS-200-FBX Receiver Video Input Selection HDMI VGA Adjust Adjust Aspect Full Output Resolution 800x600B60 Auto Switch Auto Switch mode ON Fallback Port Previous Fallback Time(Sec) 5 Picture Brightness 64 Contrast 64 Saturation 64 Hue 64 Sharpness 10 Picture group

Aspect

Click the Aspect drop-down list and select the desired aspect ratio.

Aspect Ratio Description
Full The input signal is adjusted to fill the screen.
16:9 Set the aspect ratio to	16:9; common aspect ratio for HD and widescreen formats; also notated as 1:77.1
16:10 Set the aspect ratio to	16:10; typical aspect ratio for computer and tablet displays.
4:3	Sets the aspect ratio to 4:3; if the input signal is 16:9 or 16:10, up to 30% of the vertical resolution is lost.
Keep Ratio The output aspect ratio is the same as the input.

The Web GUI

Output Resolution

Click the Output Resolution drop-down list and select the desired resolution. The default resolution is 720p.

Output Resolutions
800x600@60 1024x768@60	1280x800@60 1280x1024@60
1366x768@60 1400x1050@60	1600x900@60RB 1600x1200@60
1680x1050@60 1920x1200@60RB	720p25 720p29.97
720p30 720p50 720p59.94	720p60
1080i50 1080i59.94 1080i60	1080p23.98
1080p24 1080p25 1080p29.97	1080p30
1080p50 1080p59.94 1080p60	Input
Native

Brightness

Adjusts the brightness setting of the output signal. Range: 0 - 128

Contrast

Adjusts the contrast setting of the output signal. Contrast is the difference between the lightest and darkest area of an image. Range: 0 - 128

Saturation

Adjusts the color saturation of the output signal. Range: 0 - 128

Hue

Adjusts the hue of the output signal. Range: 0 - 128

Sharpness

Adjusts the sharpness of the output signal. Range: 0 - 128

Reset all Picture

Click this button to reset the above picture settings to their factory-default settings.

Audio

AT-LONA Connecting Technology AT-HDVS-200-TX-WP Audio Info Video Audio Display RS-232 EDIO Config System AT-HDVS-200-FX Logout Audio HDMI Audio HDMI Auto Audio Freerun Status OFF Output Audio Mute OFF HDMI Audio ON L/R Audio ON HDMI Audio (mute) L/R Audio (mute) Output Volume Output -23 Output Bass 0 Output Treble 0

HDMI Audio

Click the drop-down list for HDMI 1 and HDMI 2 to select the input audio source used by each HDMI input.

Setting Description
Auto Automatically detects	the audio source. If an HDMI cable with embedded audio is connected, the system will use the digital audio on the HDMI cable. If a cable, which does not support audio (such as a DVI cable) is connected to the HDMI port, then the analog audio from theAUDIO INport will be used.
Digital The HDMI audio will	be used as the source.
Analog	The analog source, connected to theAUDIO INport, will be used.

HDMI Audio

Click this toggle to the OFF position to mute only the HDMI audio.

L/R Audio

Click this toggle to the OFF position to mute all audio on the output.

RS-232

AT-LONA Connecting Technology AT-HDVS-200-TX-WP RS-232 Info Video Audio Display RS-232 EDD Config System AT-HDVS-200-RX Logout RS-232 RS-232 Parameter Setting Zone Baud rate 115200 * Data bit 8 * Parity None * Stop bit 1 * Tx RS-232 Baud rate 115200 * Data bit 8 * Parity None * Stop bit 1 * RX RS-232 Zone 1 Baud rate 19200 * Data bit 8 * Parity None * Stop bit 1 * Save Save Save

RX RS-232 Zone 1

Each of these drop-down lists refer to the setting for the RS-232 1 port on the receiver. Click the Save button to save the settings.

Setting Description
Baud rate Sets the baud rate.	The following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200.
Data bit Sets the number of data bits used to represent each character of data.	The following options are available: 7 or 8.
Parity Sets the parity bit, which can be included with each character to detect errors during the transmission of data.	The following options are available: None, Odd, or Even.
Stop bit Sets the stop bit.	Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2.

NOTE: In the illustration above, note that the Zone RS-232 settings are "locked" because the system is in kit mode.

Appendix

Updating the Firmware

Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, if a network connection is not available, the AT-HDVS-200-TX-WP firmware can be updated using a USB-A to USB mini-B cable

Using the Web GUI

Requirements

• AT-HDVS-200-TX-WP
- Firmware file
- Computer

1. Connect an Ethernet cable from the computer, containing the firmware, to the same network where the AT-HDVS-200-TX-WP is connected.
2. Go to the System page (page 29) in the web GUI.

AT-LONA Connecting Technology AT-HDVS-200-TX-WP System Initi Video Audio Display RS-230 EDIO Config Systems GENERAL Logout System Network IP Mode: DHP IP: 01.0.7.160 Save Netmask: 255,250,258.0 Gateway: 01.0.7.1 Telnet Port: 01 Telnet Login Mode OFF Telnet Timeout 120 * Broadcast ON Reset to Default Factory Default Firmware Update Choose File No file chosen Update Valens Update Choose File No file chosen Update

1. Click the Choose File button, under the Firmware Update section.

IMPORTANT: When updating the firmware, make sure to select the Choose File button under Firmware Update. The Valens Update section does not apply to this procedure.

1. Browse to the location of the firmware file, select it, and click the Open button.
2. Click the Update button, under the Firmware Update section.

Appendix

1. The following message box will be displayed.

10.0.1.107 says: Are you Sure want to update Firmware? OK Cancel

1. Click the OK button to begin the firmware update process. Click the Cancel button to cancel the process.
2. After the firmware update process is complete, the Login screen will be displayed.

AT-LONA Connecting Technology AT-HDVS-200-TX-WP Login Login Username: Password: Submit

Using USB

Requirements

• AT-HDVS-200-TX-WP
- Firmware file
• Computer running Windows
• USB-A to USB mini-B cable

1. Disconnect power from the AT-HDVS-200-TX-WP.
2. Remove the wall plate from the AT-HDVS-200-TX-WP.
3. Locate the FW port on the front panel.

INPUT VOL+ DISPLAY VOL- ATLONA® PWR LINK HDMI FW AUDIO IN HDMI IN VGA IN FW port

Appendix

1. Press and hold the INPUT button, on the front panel, while connecting power to the AT-HDVS-200-TX-WP.
2. The USB UPDATE folder will be displayed.

If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer.

Screenshot of a file explorer window showing USB UPDATE files with a context menu listing categories like Documents, Downloads, Music, and Public.

1. Delete all files from the USB UPDATE drive, if any are present.
2. Drag-and-drop the firmware file to the drive.
3. After the file has been copied, disconnect the USB cable from both the computer and the AT-HDVS-200-TX-WP.
4. Power-cycle the AT-HDVS-200-TX-WP by disconnecting then reconnecting the power supply.
5. The firmware update process is complete.

Default Settings

The following tables list the factory-default settings for the AT-HDVS-200-TX-WP.

Feature Settings
Video Input Selection		HDMI 1
	Aspect	Full
	Auto Switch mode	OFF
	Fallback Port	Previous
	Fallback Time (Sec)	5
Audio HDMI 1		Auto
	HDMI 2	Auto
	Audio Freerun Status	OFF
	Mute	OFF
	Output Volume	0
	Output Bass	0
	Output Treble	0
Display Display Auto Power On		DISABLED
	Display Auto Power Off	DISABLED
	Power Button Lock	DISABLED
	Lamp cool down timer (sec)	5
	Auto power off timer (sec)	15
	Power on delay time (sec)	5
	Control Type	RS-232
	Feedback Verify	ON
	Display Mode	DispSW AVon
	Volume / Mute	AudOut
RS-232 Zone		115200, 8, N, 1
	TX RS-232	115200, 8, N, 1
EDID Prefer Timing (HDMI)		1920x1080
	Prefer Timing (VGA)	1920x1080
	Input1 HDCP	Compliant
	Input2 HDCP	Compliant
Config Username (default)		root
	Password (default)	Atlona
System IP Mode		DHCP
	Static IP Address (default)	192.168.1.254
	Netmask	255.255.255.0
	Gateway	192.168.1.1
	Telnet Port	23
	Telnet Login Mode	Off
	Telnet Timeout	120 (seconds)
	Broadcast	On

Specifications

Video
HD/SD 4096×2160@24/25/30/50	0^*/60Hz^* , 3840×2160@24/25/30/50^*/60Hz^* , 2048×1080p , 1080p@23.98/24/25/29.97/30/50/59.94/60Hz , 1080i@50/59.94/60Hz , 720p@50/59.94/60Hz , 576p , 576i , 480p , 480i
VESA 2560×2048, 2560×1600,	2048×1536 , 1920×1200 , 1680×1050 , 1600×1200 , 1600×900 , 1440×900 , 1400×1050 , 1366×768 , 1360×768 , 1280×1024 , 1280×800 1280×768 , 1152×768 , 1024×768 , 800×600 , 640×480
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0*
Color Depth 8-bit, 10-bit, 12-bit

Audio
Analog IN	PCM 2Ch
HDMI IN / HDBaseT OUT	PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS® 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master AudioTM
Sample Rate	32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Rate	24-bit (max.)

Resolution / Distance	4K/UHD - Feet / Meters		1080p - Feet / Meters
HDMI IN / OUT	15	5	30	10
CAT-5e / CAT-6	230	70	330	100
CAT-6a / CAT-7	230	70	330	100

Resolution / Distance	4K/UHD - Feet / Meters		1080p - Feet / Meters
HDMI IN / OUT	15	5	30	10
CAT-5e / CAT-6	230	70	330	100
CAT-6a / CAT-7	230	70	330	100

Signal
Bandwidth 10.2 Gbps
CEC	Yes
HDCP	1.4

Temperature Fahrenheit Celsius
Operating 32 to 122 0 to 50
Storage -4 to 140 -20 to 60
Humidity (RH) 20% to 90%, non-condensing

Power
Consumption	30 W (when paired)
BTU/h	102.3

Dimensions
Wall	2 gang

Weight Pounds	Kilograms
Device	0.5	0.23

Certification
Unit	CE, FCC

Appendix

Compliance
NDAA-889 Yes
TAA Yes
Warranty
3 years View the full warranty information here:https://atlona.com/warranty____
