USER MANUAL MS60MV Memphis Audio

Blue square logo with a white circular emblem containing the letter 'M' (no text or symbols beyond the design)

MS

MS60MV

MS69MV

SIHdW3W

WOOFER MS INPUT CROSSOVER OUTPUT AMP

1. SCREW MCLIP INTO L-BRACKET
2. SLIDE CROSSOVER ONTO CLIP

Technical line drawing of a mechanical device with no visible text or symbols

1. SCREW L-BRACKET INTO CORRESPONDING HOLES ON BACK OF WOOFER MAGNET

Technical line drawing of a mechanical component with wires and connectors (no text or symbols)

Technical line drawing of an electric motor stator assembly (no text or symbols)

1. CROSSOVER CAN BE QUICKLY REMOVED FROM M-CLIP BY SLIDING UPWARDS AWAY FROM MAGNET

MS

MClass Speaker Warranty

Memphis Audio offers a limited warranty on Memphis Audio products on the following terms:

Length of Warranty

Memphis Audio warranties this product for defects in material or workmanship for 3 years from the date of purchase when installed by an authorized Memphis Audio Dealer. If purchased from but not installed by an authorized dealer, the warranty is year. This warranty is void if the product has been physically damaged by improper use or abuse, or if repairs have been attempted outside of a Memphis Audio repair facility.

What Is Covered

This warranty applies only to Memphis Audio products sold to consumers by Authorized Memphis Audio Dealers in the United States of America or its possessions.

Who Is Covered

This warranty covers only the original purchaser of Memphis Audio product purchased from an Authorized Memphis Audio Dealer in the United States. In order to receive service, the purchaser must provide Memphis Audio with a copy of the receipt stating the consumer name, dealer name, product purchased, and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Memphis Audio's discretion.

What Is Not Covered

1. Damage caused by accident, abuse, improper operation or installation, water, theft, shipping.
2. Any cost or expense related to the removal or reinstallation of product.
3. Service performed by anyone other than Memphis Audio.
4. Any product which has had the serial number defaced, altered, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the US.
7. Any product not purchased from an authorized Memphis Audio Dealer.

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Memphis Audio any other liability in connection with the sale of the product.

EU Warranty

This product meets the current EU warranty requirements. See your Authorized dealer for details.

How To Obtain Service

Contact the Authorized Memphis Audio Dealer you purchased this product from.

If you need further assistance, call 800-489-2300 for Memphis Audio's Customer Service.

YOU MUST OBTAIN A RETURN AUTHORIZATION (RA#) TO RETURN ANY PRODUCT TO MEMPHIS AUDIO'S WARRANTY FACILITY. NO PRODUCT WILL BE ACCEPTED WITHOUT THIS RETURN AUTHORIZATION!

You are responsible for shipment of product to Memphis Audio. Repaired and replaced product will be returned freight prepaid.

FOR MORE INFORMATION, PLEASE VISIT: WWW.MEMPHISCARAUDIO.COM

Blue circular logo with a stylized white 'M' and black outline, no text or symbols present.

CONTACT INFO

122 GAYOSO AVE

MEMPHIS, TN USA 38101

TECH SUPPORT

800-903-6979

SHOW US YOUR INSTALL

WWW.MEMPHISCARAUDIO.USA

@MEMPHISCARAUDIO

@MEMPHISCARAUDIOUSA

MEMPHIS

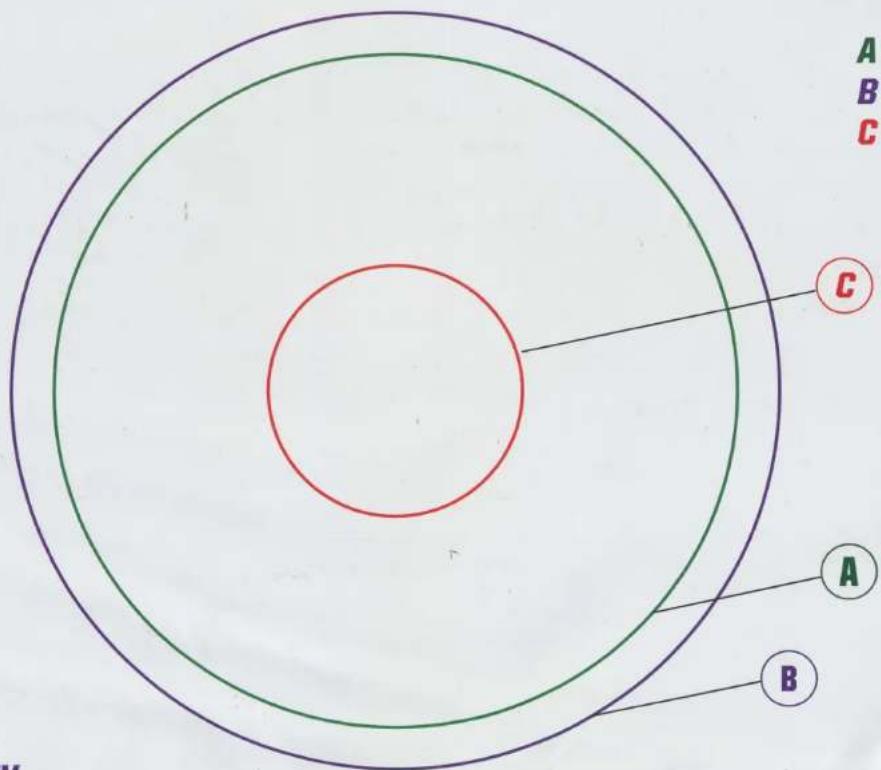

MS62V, MS60V/MS60MV, MSA1V Mounting Templates

A B C C A B

Mounting Holes

A — 129 mm / 5.078"

B—145mm/5.708"

C—54mm/2.125"

A = MS62V

B = MS60V/MS60MV

C = MSA1V

Established 1965, Memphis, TN, USA

Abstract logo design featuring a stylized letter 'M' within a circular frame (no text or symbols)

MEMPHIS

AUDIO SINCE 1935

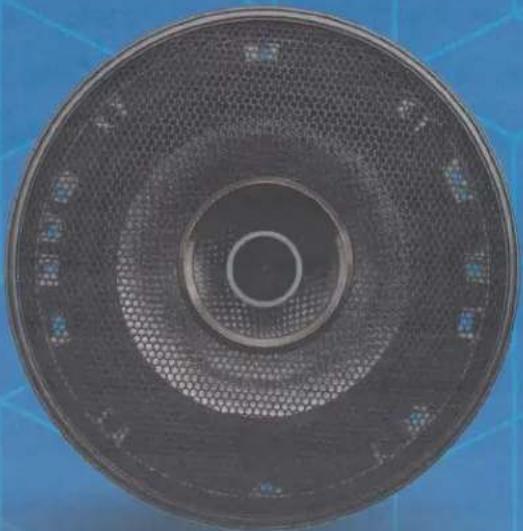

Top-down view of a circular mechanical component with concentric rings and mesh texture (no text or symbols visible)

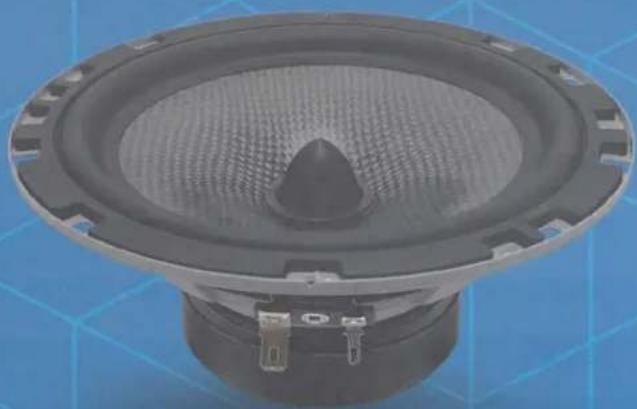

Close-up of a speaker cone with mesh grille and mounting bracket (no text or symbols visible)

FEATURES

• Convertible mounting design [coax or comp]
• Carbon fiber cone
  • External passive crossovers
  • MClip crossover mounting solution
• Rubber surround

Abstract logo design with a stylized letter 'M' inside a circular frame (no text or symbols)

MEMPHIS

AUDIO SINCE 1965

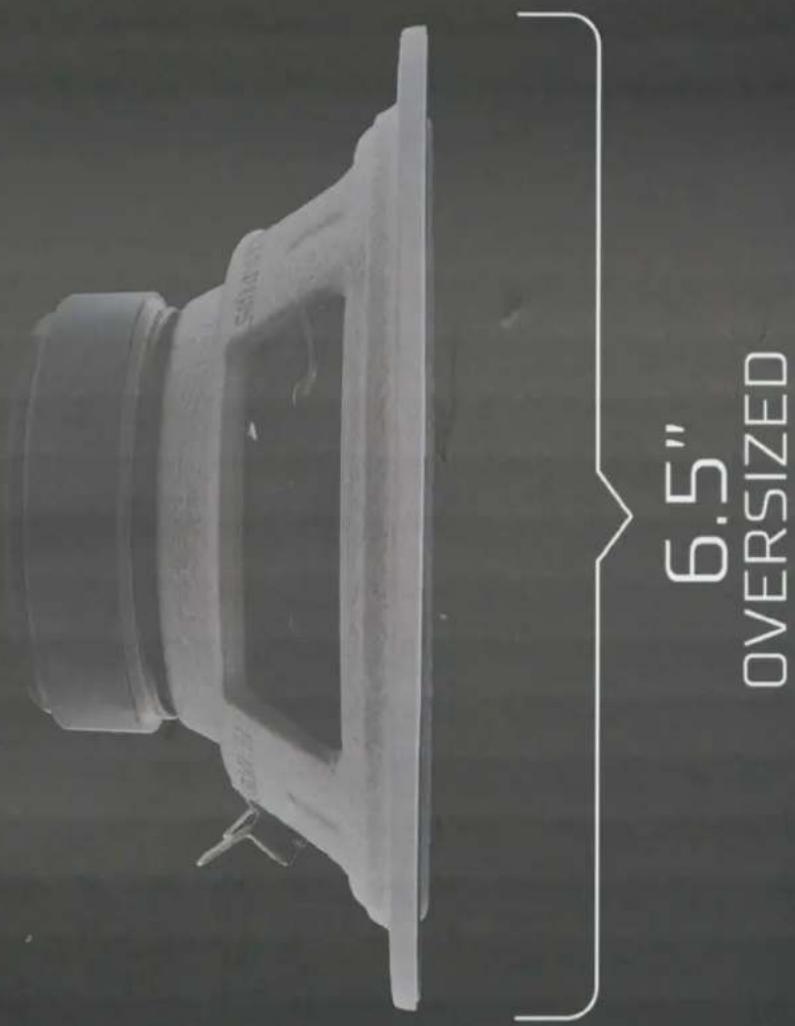

6.5" OVERSIZED

MS60MV

6.5" OVERSIZED CONVERTIBLE SPEAKER

Size (in)	6.5"
RMS / PEAK (w)	65/130
Sensitivity (dB)	89
Magnet Size (oz)	10
Mounting Depth (in)	2.25

www.memphiscaraudio.com
