PMPRA213PK - Megaphone Pyle - Free user manual and instructions

Product Type	Portable Megaphone
Brand	Pyle
Model	PMPRA213PK
Color	Red/Black (Pink accent)
Dimensions (L x W x H)	Approx. 10.5 x 9.0 x 14.5 inches
Weight	Approx. 2.3 lbs (1.04 kg)
Power Source	AC Adapter (110-240V) or 8x D-cell batteries (not included)
Output Power	25 Watts RMS
Max Range	Up to 600 yards (548 meters)
Speaker Type	Built-in 8-inch dynamic speaker
Microphone	Detachable handheld microphone with PU cable
Controls	Volume, Siren, Talk, Press-to-Talk button
Special Functions	Siren alarm, voice projection, whistling tone
Construction Material	High-impact ABS plastic with metalized horn
Carrying Strap	Adjustable shoulder strap included
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use solvents.
Storage	Store in a cool, dry place away from direct sunlight
Safety Precautions	Do not expose to moisture or extreme temperatures. Keep out of reach of children.
Battery Notes	Remove batteries if not used for long periods to prevent leakage
Included Accessories	Megaphone, microphone, shoulder strap, user manual
Repairability	Contact Pyle support for spare parts or service
General Information	Ideal for coaching, crowd control, emergency, and outdoor events

Frequently Asked Questions - PMPRA213PK Pyle

What batteries does the Pyle PMPRA213PK megaphone use?

The megaphone requires 8 D-cell batteries (not included) for portable operation. It also works with the AC adapter (included).

How far can the PMPRA213PK project sound?

It can project your voice up to 600 yards (548 meters) under ideal conditions with the 25-watt output.

Does the megaphone have a siren function?

Yes, it features a siren alarm function in addition to voice projection and a whistling tone.

What is the weight of the Pyle PMPRA213PK?

It weighs approximately 2.3 lbs (1.04 kg) without batteries.

Can I use the megaphone while charging?

Yes, you can operate the megaphone while it is connected to the AC adapter. The batteries are not required when using AC power.

How do I clean the megaphone?

Wipe the exterior with a dry, soft cloth. Do not use any solvents or water, as they may damage the electronics.

Is the microphone detachable?

Yes, the handheld microphone is detachable and connects via a PU cable with a standard connector.

What should I do if the sound is distorted?

Lower the volume control and ensure batteries are fresh or the adapter is securely connected. Also, avoid speaking too close to the microphone.

Can I attach a tripod or mount?

The megaphone has a built-in tripod mount on the bottom, allowing you to use a standard camera tripod for stationary use.

Where can I get spare parts or repairs?

Contact Pyle customer support via their website for spare parts and authorized repair centers.

USER MANUAL PMPRA213PK Pyle

Lightweight and Portable Bullhorn Megaphone

Aux (3.5mm) Input for MP3/Music, Automatic Siren,

20-Watt, MIC/TALK (Pink)

PYLE

PyleUSA.com

USER GUIDE

This user manual contains important information for safe operation and optimal megaphone performance. Please carefully read and follow safety notes and instructions. Save this manual for future reference. Ensure it is available to all persons using this device.

PRECAUTIONS

• Ensure correct polarity of cells used. Insert the batteries correctly by aligning the (-) marks on the batteries with the spring in the back cover.
• Use new batteries/cells whenever possible.
• When the megaphone is not in use for a long period, remove the dry cells and replace them. Drained cells or rechargeable batteries may result in insufficient sound volume.

SAFETY

This megaphone is intended to be used only as described in this user manual. Any other use or use under different operating conditions is considered improper and may result in personal injury or device damage. Please use the megaphone as described and supervise its use when used by children or minors.

• Ensure that plastic bags, packaging, etc., are removed.
• Never let children use electrical devices unattended.
• Observe proper polarity when inserting batteries. Incorrectly inserted batteries may cause damage & the risk of fire.
• Leaking batteries can cause permanent damage to the device.
• Remove batteries if the megaphone will not be used for long periods.

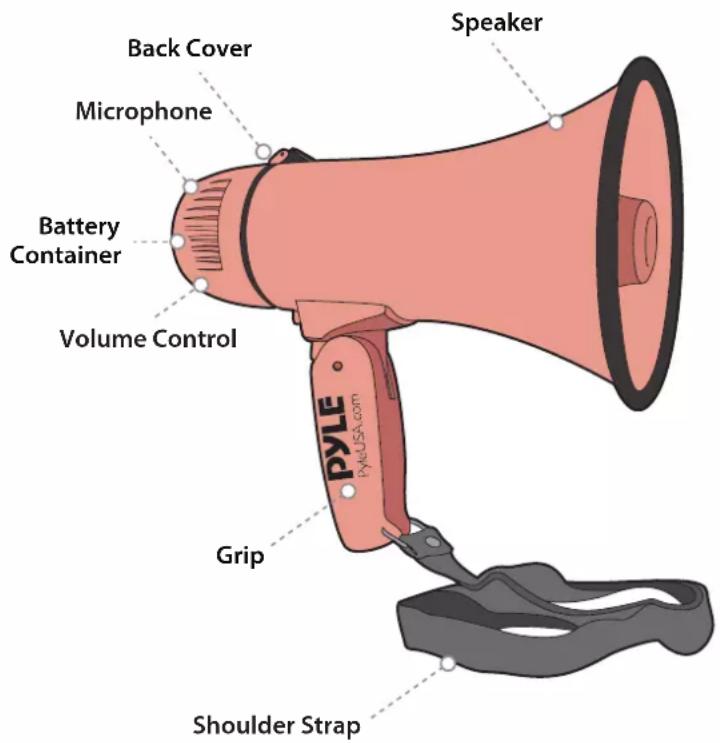

Back Cover Microphone Battery Container Volume Control Speaker PYLE MyUSA.com Grip Shoulder Strap

Battery Insertion

Press the button located near the back, underside of the megaphone. The button will release the lid to reveal the battery compartment.

Observe the correct battery direction placement on the top side of the opening battery compartment lid. Insert batteries, close the cover, and secure the clip to lock it in place.

NOTE:

Make sure the batteries are inserted correctly, observing the correct polarity.

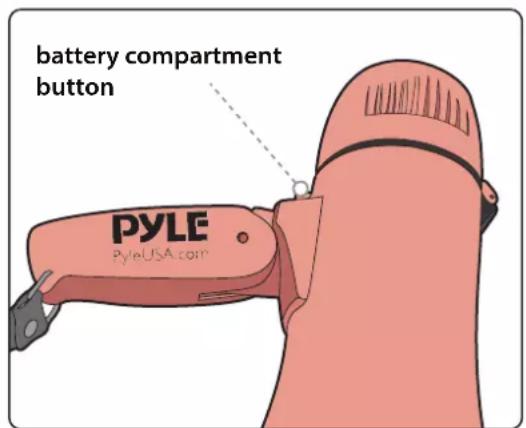

battery compartment button PYLE PyleUSA.com

OPERATING INSTRUCTIONS

1. Open the back cover by pressing down on the 'battery compartment button'.
2. Insert (4) x 'D' Batteries, then close the back cover until it locks into position. Your megaphone is now ready to operate.
3. To activate the megaphone, press the 'ON/OFF' button on the back cover.
4. When using the megaphone, place your lips as close as possible to the megaphone when speaking. Adjust the 'Volume Control' to the desired level without causing howling or feedback.
5. Press the 'SIREN' button to activate emergency siren/alarm.
6. Adjust the volume control to the min. before recording.
7. To record, press the RECORD button. Now your megaphone is ready for recording. The longest record time is about 60 seconds. Press the RECORD button again after recording is done.
8. Press the PLAY button to activate the recorded materials circularly.

Microphone ON/OFF button AUX POWER SIREN RECORD PLAY V- V+ Volume control

Voice Mode

• Slide the switch on the rear of the megaphone to voice.
• Adjust the desired volume level using the rear slider switch on the megaphone.

Siren Mode

• Slide the switch on the rear of the megaphone to siren.
• Adjust the desired volume level using the rear slider switch on the megaphone.

Features:

• Audio Modes: Talk, Siren, Music, Whistle, Record 60 seconds
• Aux (3.5mm) Input Connector Jack
• Stream MP3 & Digital Audio Files
- Includes Plug-in Handheld Microphone
- Button Activated Automatic Siren Alarm
- Adjustable Volume Control and Shoulder Strap
- Ergonomic Pistol Grip and Lightweight Chassis For Indoor/Outdoor Use

• Built-in Automatic Siren Function
• Talk, Music, and Siren Switch
- Ability to Connect External Devices
(iPhone, Android, Smartphone, iPad, Tablet, etc.)

Technical Specs:

• Constructional Materials: ABS
• Power Output: 20-Watt MAX
• Bell Width: 8.66" -inches
• Projection Range: Up to 400 Square Yards
- Battery Powered: Requires 4 x 'C' Batteries, Not Included
• Number of Battery: 4 pcs.
- Item Weight: 0.96 lbs.
- Product Dimensions (L x W x H): 5.43" x 5.43" x 8.66" -inches
