USER MANUAL VicStrip Square Vicoustic

Pure diagram of vertical lines without any text, numbers, or symbols

Included

Pure geometric pattern of vertical lines without any text, numbers, or symbols

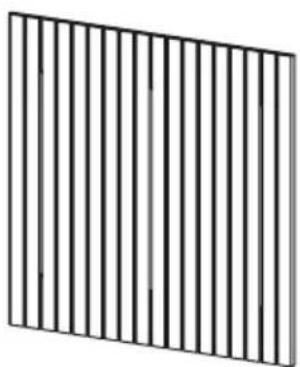

VicStrip

Screws

Not Included

Screwdriver

Technical line drawing of a mechanical device with internal components (no text or symbols)

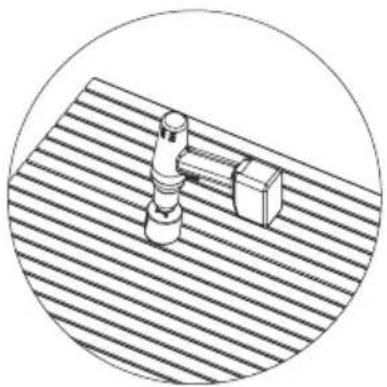

Circular saw

Level

Line drawing of a syringe with handle and spout (no text or symbols)

Flexi Glue Ultra

Hole saw

Box cutter

Measuring Tape

1

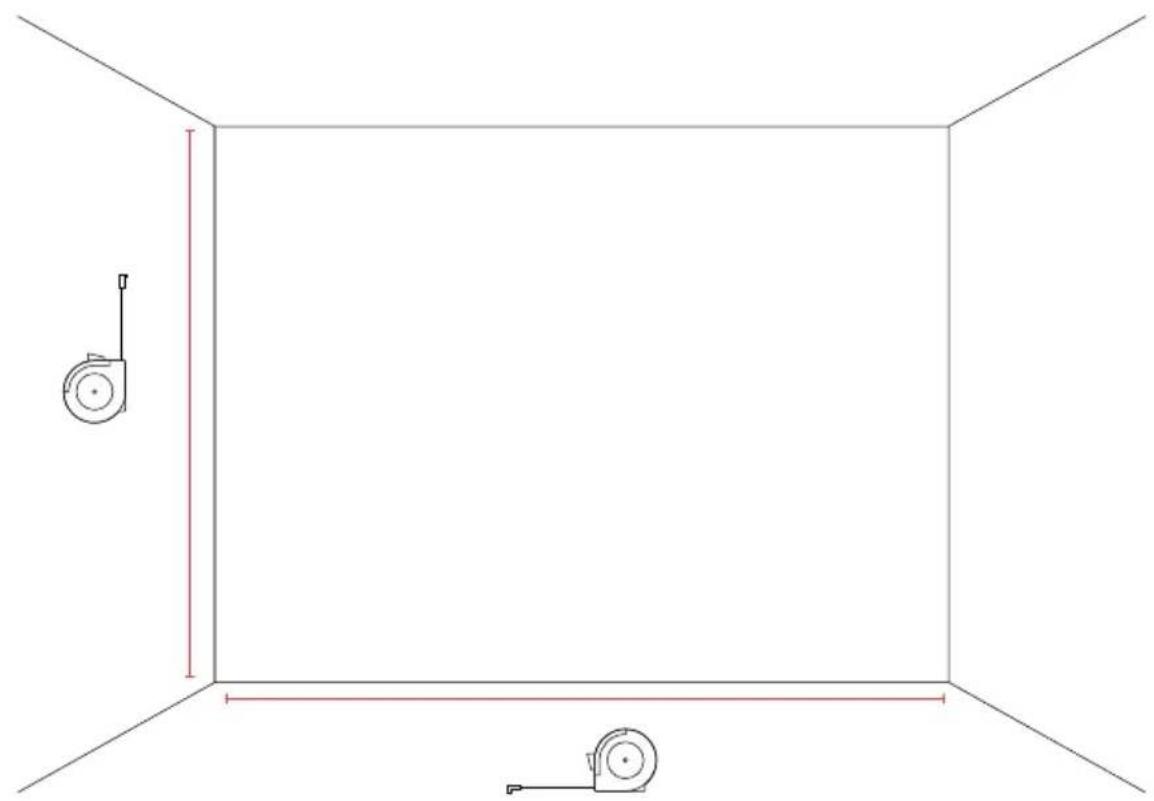

Before installing the panels, measure the wall where you are going to apply them. If necessary, make the necessary cuts to ensure a proper installation.

The cuts can be done as indicated below.

Simple line drawing of a room with two wall-mounted devices and a horizontal dimension line (no text or symbols)

Technical line drawing of a mechanical component mounted on a vertical panel (no text or symbols)

Technical line drawing of a mechanical assembly with a circular outline (no text or symbols)

Technical line drawing of a mechanical assembly with threaded components and a rectangular block on a striped surface (no text or symbols)

• Longitudinal cut following the PET grove, with the help of a box cutter.
• Longitudinal cut on the laminated area, with the help of a circular saw with \~ 60-Tooth blade.
• Transversal cut with the help of a circular saw with \~ 60-Tooth blade.
• Round hole with the help of a hole saw.

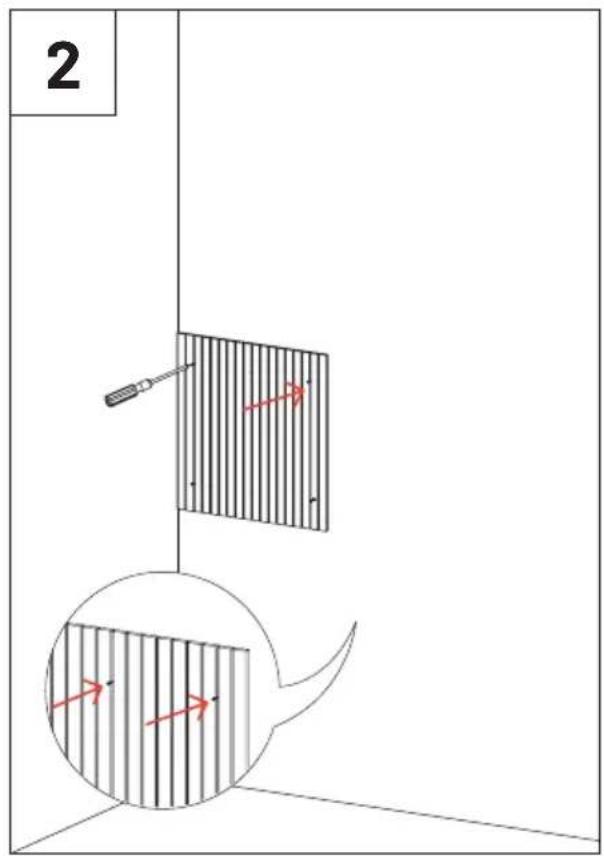

Wall installation with screws - For application to plasterboard walls or wooden structures, install the VicStrip with the screws provided, inserting them into the panel grooves and attaching them to the supporting wall or wooden structure.

1

2

3

Wall installation with glue - For application on masonry or concrete walls, it is recommended to apply glue (not included).

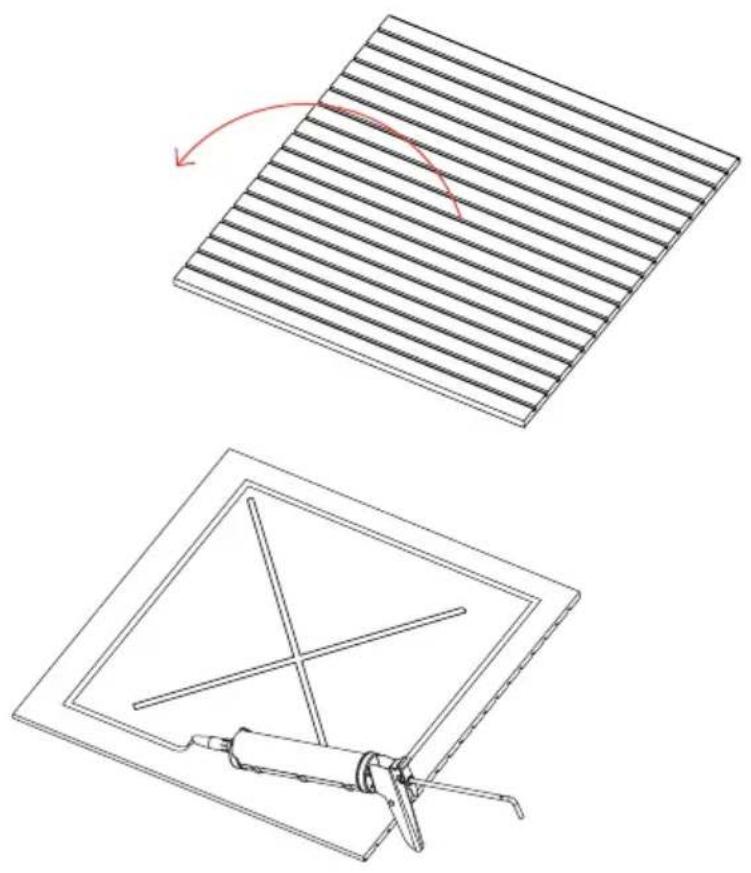

Apply the glue on the back of the acoustic panel, according to the diagram. Place the panel on the suitably chosen position on the wall. Once in the desired place, press it firmly against the wall.

Technical illustration showing two views of a striped panel with a red curved arrow indicating rotation or deformation (no text or symbols present)

To ensure that you maximise the strength of the glue, don't make any adjustments to the panel after bonding.

Wall and ceiling surfaces should be examined prior to installation, ensuring they are clean, smooth, and dry. If you have unpainted gypsum board surfaces, these should be primed with a drywall primer (or another material manufactured especially for the purpose), to equalize the absorption between the gypsum board face paper, joint compound, and skin coating materials. You should then apply the paint, and allow air circulation in order to dry the paint within the time frame specified by the paint manufacturer. Please ensure the paint is dry before installing the panel. Make sure the room has all the necessary conditions to receive the panels.
