Product Type	Fiber Optic Cable Assembly
Brand	Panduit
Model	FXTHP6NLDSNM012
Connector Type A	MPO (field-configurable gender)
Connector Type B	LC Uniboot (field-configurable polarity)
Fiber Count	12 fibers (typical)
Cable Length	2 meters (typical)
Cable Jacket Type	LSZH (Low Smoke Zero Halogen)
Insertion Loss (MPO)	≤ 0.75 dB
Return Loss	≥ 20 dB
Operating Temperature Range	-10°C to +60°C
Compliance	RoHS, TIA/EIA-568
Polarity Configuration	Field-configurable (Method A, pair flipping)
Gender Changeover	Yes, via pin retraction tool (MPO)
Cable Transition Features	Tak-Ty compatible slot for cable management
Color	Aqua (typical for OM3/OM4)
Warranty	Limited lifetime warranty
Usage	High-density data center cabling
Cleaning	Clean with lint-free wipes and isopropyl alcohol
Safety	Avoid bending radius less than 10x cable diameter

Frequently Asked Questions - FXTHP6NLDSNM012 Panduit

How do I change the MPO gender (male to female or vice versa)?

Squeeze both sides of the outer housing at the back end evenly until you hear an audible click, then pull off the connector. Locate the hole in the inner housing on the slotted side and position the pin retraction tool over the hole. Insert the tool, press down gently, and push backward to retract the connector pins to the female state. Repeat in the opposite direction to extract pins for male state. Re-install the outer housing ensuring the key is in the proper orientation.

How do I change the polarity on the LC Uniboot connector?

Squeeze both sides of the LC Uniboot cover evenly and pull back to disengage the tab on the opposite side. Slide the cover back away from the connectors and rotate it 180°. Then rotate each LC connector downward 180°. Re-install the cover until you hear an audible click.

Can I use a cable tie to secure the cable transition to a rack?

Yes. The slot features in the cable transition allow for the use of a Tak-Ty (cable tie) to secure the cable harness to a rack feature such as cable management fingers, or to more robustly secure multiple cable transitions that are interlocked together.

What tool is required for changing MPO gender?

A pin retraction tool is required. This tool is inserted into the hole on the slotted side of the inner housing to retract or extract the pins.

Where can I find installation instructions in other languages?

Visit www.panduit.com/resources/install_maintain.asp for instructions in local languages and technical support.

Is this cable compatible with standard MPO adapters?

Yes, the MPO connector is designed to work with standard MPO adapters and cassettes, provided the polarity and gender are correctly configured.

What is the typical fiber count for this model?

While the manual does not specify, the model number and typical Panduit configurations suggest a 12-fiber MPO to 2x6 LC Uniboot duplex breakout cable. Check the product label for exact fiber count.

Can multiple cable transitions be used together?

Yes, multiple cable transitions can be interlocked together and further secured using Tak-Ty cable ties for a robust installation.

How do I clean the connectors?

Use a lint-free wipe moistened with isopropyl alcohol to gently clean the ferrule end faces. Avoid touching the end faces after cleaning. For MPO connectors, use a specialized cleaning tool if available.

What is the recommended bend radius for this cable?

To avoid signal loss or damage, do not bend the cable tighter than 10 times the cable diameter. For typical 2.0 mm cable, the minimum bend radius is 20 mm.

USER MANUAL FXTHP6NLDSNM012 Panduit

Cable Transition Usage

Tak-Ty Option

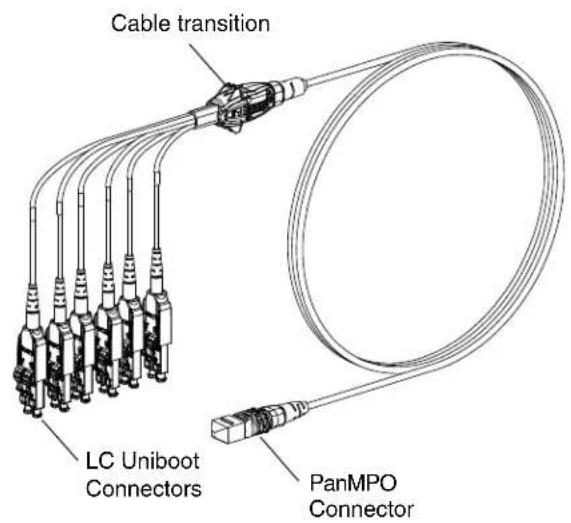

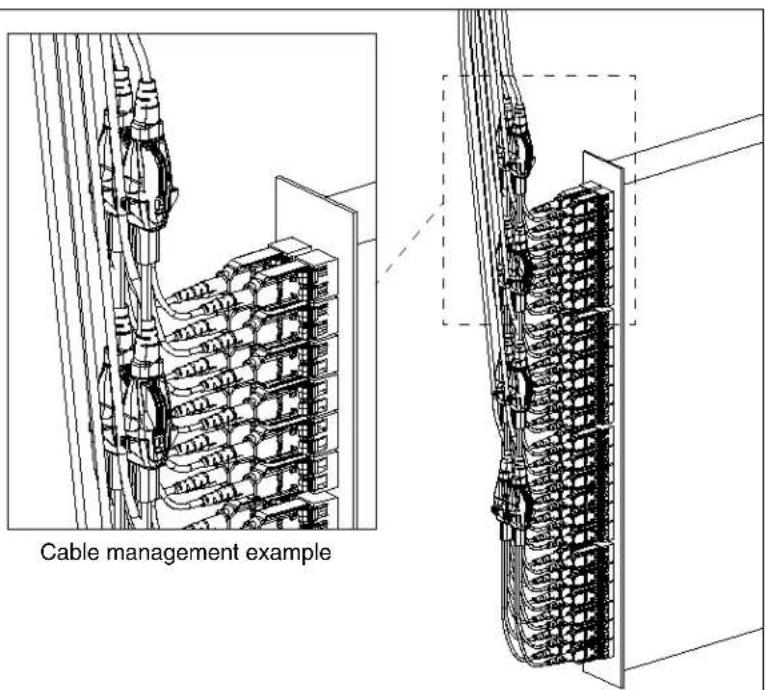

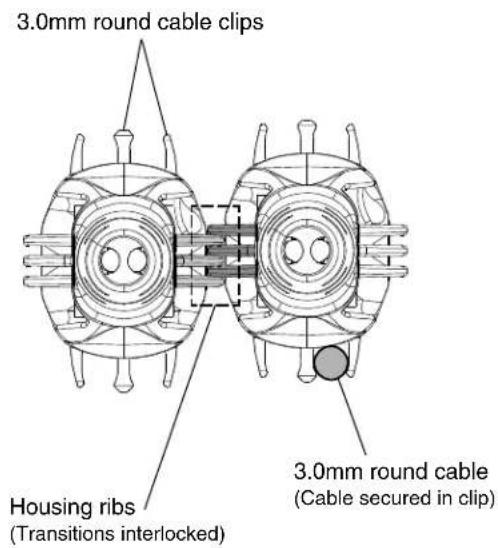

Slot features in the cable transition allows for the use of a Tak-Ty to either secure the cable harness to a rack feature, such as cable management fingers, or to more robustly secure multiple cable transitions that are interlocked together.

Cable Clips & Housing Ribs Option

PanMPO Gender Changeover

Squeeze both sides of the outer housing at the back end evenly until you hear an audible click. Pull off connector to remove.

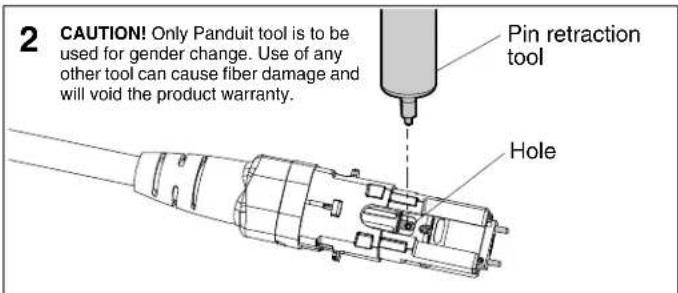

Locate hole in the inner housing on the slotted side and position pin retraction tool over the hole.

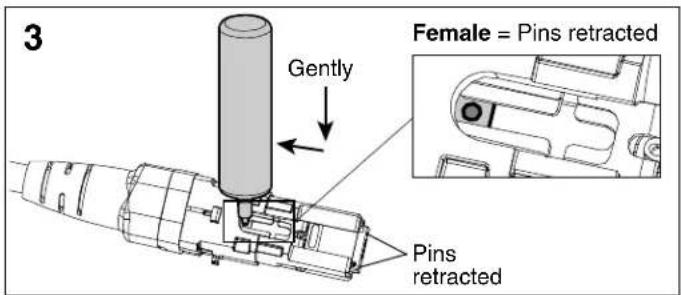

Insert tool into hole, press down gently, and push backward to retract connector pins to the female state. Repeat process in opposite direction to extract pins for male state.

Technical line drawing of a connector with an arrow indicating direction (no text or symbols present)

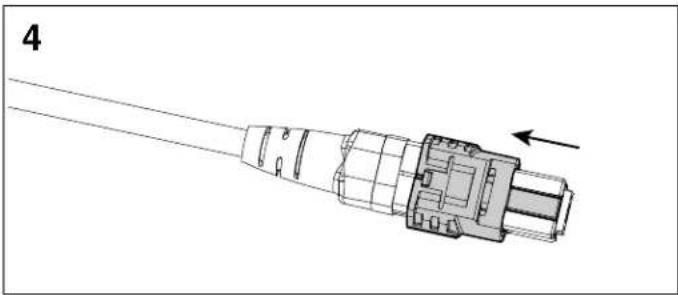

Re-install the outer housing. Ensure the key is in the proper orientation. See PanMPO polarity changeover instructions on page 2 of FS041* for more details.

LC Uniboot Polarity Changeover - Pair Flipping

Technical illustration of a mechanical component with directional arrows indicating assembly or movement (no text or symbols present)

Squeeze both sides of the LC Uniboot cover evenly and pull back to disengage the tab on the opposite side.

Mechanical assembly diagram showing a component being inserted into a housing, with arrows indicating direction of motion (no text or symbols present)

Slide the LC Uniboot cover back away from connectors and rotate 180°.

Mechanical assembly diagram showing a connector with internal components and directional arrows (no text or symbols)

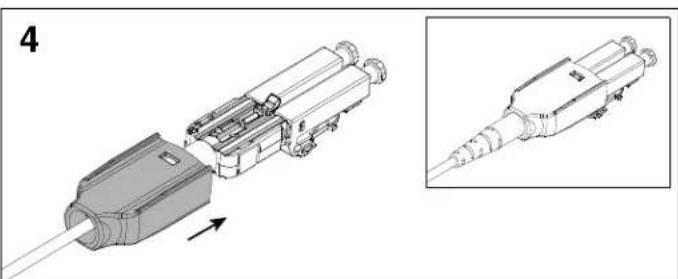

Rotate each LC connector downward 180°. Re-install the LC Uniboot cover until you hear an audible click.

Technical illustration of a mechanical connector assembly with an inset showing detailed detail (no text or symbols)

*Denotes instruction sheet revision letter.

For Instructions in Local Languages and Technical Support:

www.panduit.com/resources/install_maintain.asp
