USER MANUAL PE3810-M AEG-ELECTROLUX

CONTENTS INTRODUCTION Symbols used in these instructions Letters in brackets … Troubleshooting and repairs . SAFETY .................... Fundamental safety warnings. Designated use Instructions … DESCRIPTION Description of the appliance Description of the control panel. PRELIMINARY CHECKS . Controls after transport Installing the appliance. Connecting the applianc: DISPOSAL BUILT-IN INSTALLATION 10

USING THE APPLIANCE FOR THE

FIRST TIME Installing the filter Replacing the filte: Removing the filtel

CHANGING THE QUANTITY OF HOT

PARAMETERS ......................... 18 CLEANING Cleaning the coffee maker Cleaning the waste coffee containel Cleaning the drip tray … Cleaning the water tank Cleaning the spouts …. Cleaning the pre-ground coffee funnel Cleaning the inside of the coffee make: Cleaning the brewing unit Cleaning the coffee jug.

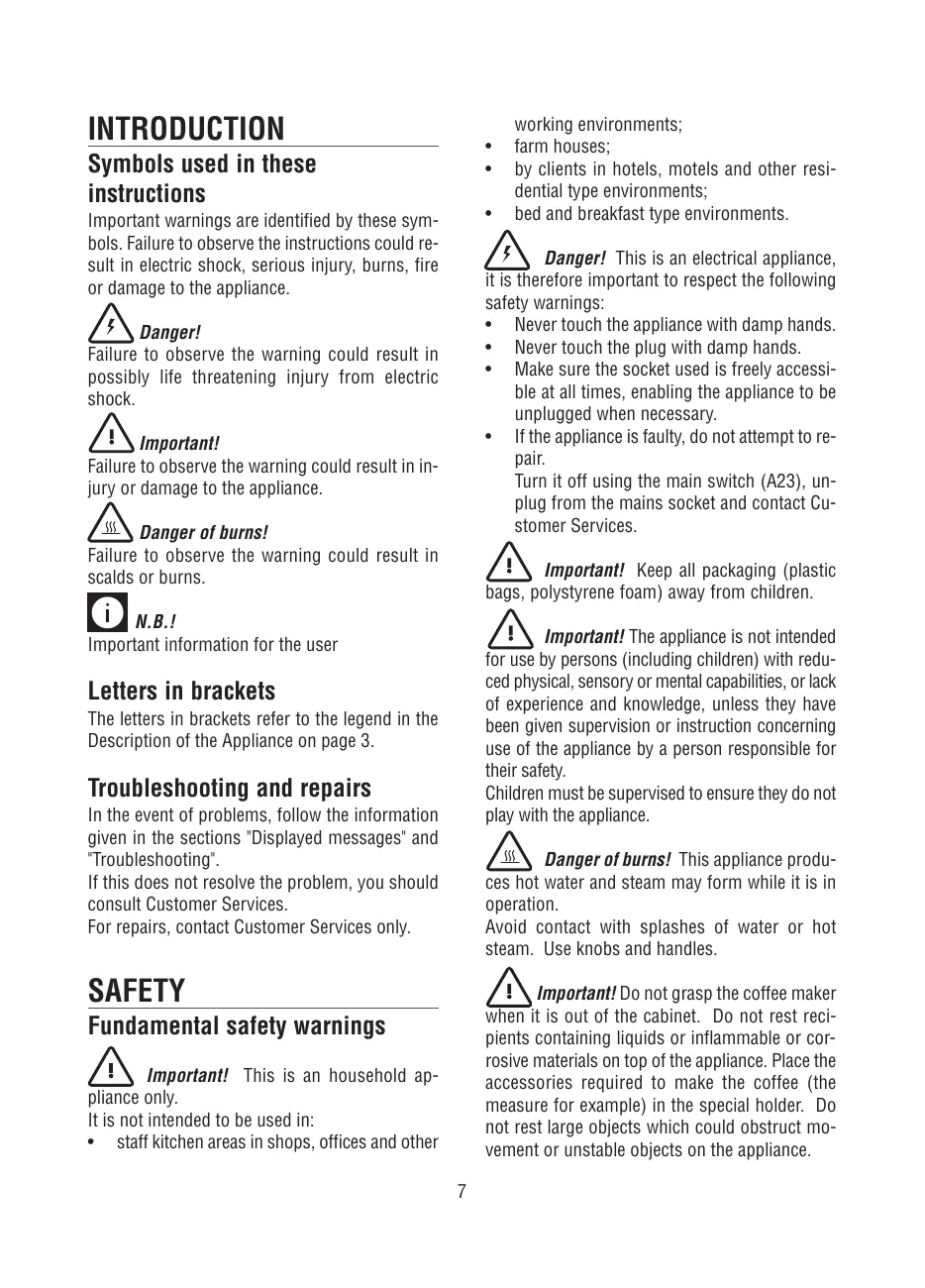

INTRODUCTION Symbols used in these instructions Important warnings are identified by these sym- bols. Failure to observe the instructions could re- sult in electric shock, serious injury, burns, fire or damage to the appliance. Danger! Failure to observe the warning could result in possibly life threatening injury from electric shock. A Important! Failure to observe the warning could result in in- jury or damage to the appliance. Danger of burns! Failure to observe the warning could result in scalds or burns. [© AB. Important information for the user Letters in brackets The letters in brackets refer to the legend in the Description of the Appliance on page 3. Troubleshooting and repairs In the event of problems, follow the information given in the sections "Displayed messages" and “Troubleshooting". Ifthis does not resolve the problem, you should consult Customer Services. For repairs, contact Customer Services only. SAFETY working environments; + farmhouses; + by clients in hotels, motels and other resi- dential type environments; + bed and breakfast type environments. VAN Danger! This is an electrical appliance, itis therefore important to respect the following safety \varnings: + Never touch the appliance with damp hands. + Never touch the plug with damp hands. + Make sure the socket used is freely accessi- ble at all times, enabling the appliance to be unplugged when necessary. + Ifthe appliance is faulty, do not attempt to re- pair. Turn it off using the main switch (A23), un- plug from the mains socket and contact Cu- stomer Services. VAN Important! Keep all packaging (plastic bags, polystyrene foam) away from children. VAN Important! The appliance is not intended for use by persons (including children) with redu- ced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure they do not play with the appliance. VAN Danger of burns! This appliance produ- ces hot water and steam may form while it is in operation. Avoid contact with splashes of water or hot steam. Use knobs and handles. AN Important! Do not grasp the coffee maker Fundamental safety warnings VAN Important! This is an household ap- pliance only. Itis not intended to be used in: + staff kitchen areas in shops, offices and other when it is out of the cabinet. Do not rest reci- pients containing liquids or inflammable or cor- rosive materials on top of the appliance. Place the accessories required to make the coffee (the measure for example) in the special holder. Do not rest large objects which could obstruct mo- vement or unstable objects on the appliance.

VAN Amportant! Do not use the appliance when extracted. Make sure the appliance is inac- tive before extracting it. | N.B.! Use original or manufacturer re- commended accessories and spare parts only. Designated use This appliance is designed and made to prepare coffee and heat drinks. All other use is considered improper. This appliance is not suitable for commercial use. The manufacturer is not liable for damage deri- ving from improper use of the appliance. This appliance can be installed over a built-in oven if the latter is fitted with a cooling fan at the rear (maximum microwave power: 3 KW). Instructions Read these instructions carefully before using the appliance. + Keep these instructions + Failure to respect these instructions may re- sult in burns or damage to the appliance. The manufacturer is not liable for damage deriving from failure to respect these in- structions. | N.B.! The appliance has a cooling fan. This comes on whenever coffee, steam or hot water is delivered. After several minutes, the fan goes off automatically. DESCRIPTION Description of the appliance (page 3 - A) A. Cup tray A2. Service door A3. Coffee guide A4. Waste coffee container A5. Brewing unit A6. Cup tray lights A7. On/OFF/stand-by button A8. Control panel A9. Jug A10. Cappuccino maker (removable) A1. Cappuccino maker nozzle A12. Water tank A13. Coffee spout (adjustable height) A4. Drip tray A15. Bean container lid A16. Bean container A17. Grinding adjustment knob A18. Pre-ground coffee funnel door A19. Measure A20. Compartment for measure A21. Pre-ground coffee funnel A22. Power cable A23. Main switch A24. Tray A25. Terminal board A26. Water softener filter Description of the control panel (page 3 - B) N.B.1 Only the icons relating to the con- trols enabled for the particular function currently being used \will be lit on the touch screen. O| N.B.! A light touch is enough to activate the icon. B1. Display: guides the user in using the ap- pliance. B2. CAicon to activate or deactivate menu parameter setting mode B3. % icon totum light A6 on and off B4. @ icon to select the coffee taste B5. @lPicon to select the type of coffee (espresso, small cup, medium cup, large cup, mug) B6. ESC icon to exit the selected mode B7-B8. icons to scroll forwards or backwards through the menu and display the various modes B9. OK icon to confirm the selected function B10. © icon to deliver a cup of coffee B11. (Ch icon to deliver two cups of coffee B12. & icon to deliver steam B13. icon to deliver hot water

B14. ty ‘jug' icon to make a number of cups of coffee directly in the jug (provided) PRELIMINARY CHECKS Controls after transport After removing the packaging, make sure the pro- duct is complete and undamaged and that all ac- cessories are present. Do not use the appliance if it is visibly damaged. Contact Customer Services. Installing the appliance Important! +__ Installation must be performed by a qualified professional in compliance with legislation in force in the country of installation (see Built- in installation). + The packing elements (plastic bags, polysty- rene foam, etc.) should be kept out of reach of children. + Do not install the appliance in rooms where the temperature may drop to 0°C or lower. + Customise the water hardness as soon as possible following the instructions in the "Setting water hardness" section. Connecting the appliance VAN Danger! Check that the mains power Supply voltage corresponds to the value indicated on the rating plate on the bottom of the ap- pliance. Connect the appliance to an efficiently earthed and correctly installed socket with a minimum current rating of 10A only. If the power socket does not match the plug on the appliance, have the socket replaced \vith a suitable type by a qualified professional. To comply with safety directives, an omnipolar switch with a minimum contact distance of 3 mm must be installed. Do not use multiple sockets or extensions. VAN Important! Safety cutout devices must be included in the mains power supply in compliance with the installation regulations in the country con- cerned. DISPOSAL X Electrical appliances must not be dispo- sed of as household waste. Appliances with this symbol are covered = by European Directive 2002/96/EC. All unused electric and electronic appliances must be disposed of separately from household waste by taking them to state authorised special centres. Disposing of the unused appliance correctly avoids damage to the environment and a risk to health. For more information on disposing of the unu- sed appliance, contact the local administration, the waste disposal department or the shop where the appliance was bought.

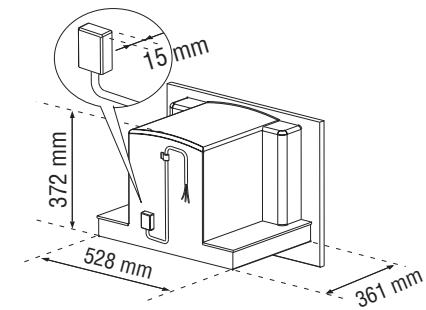

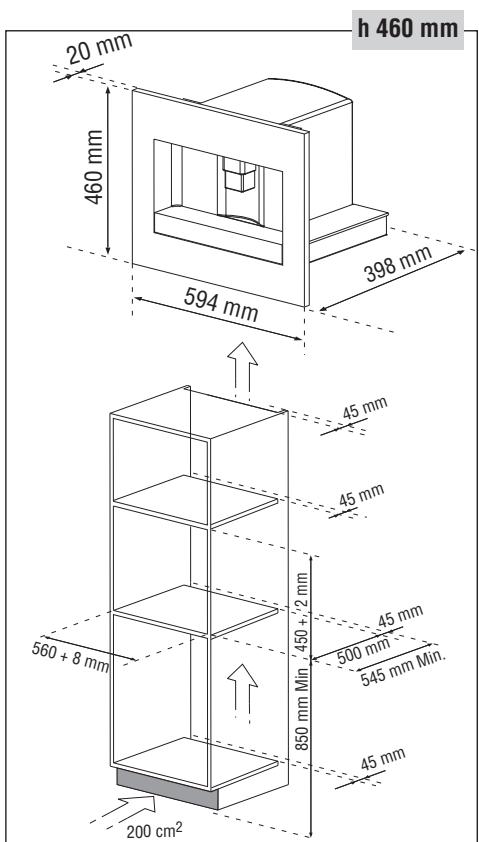

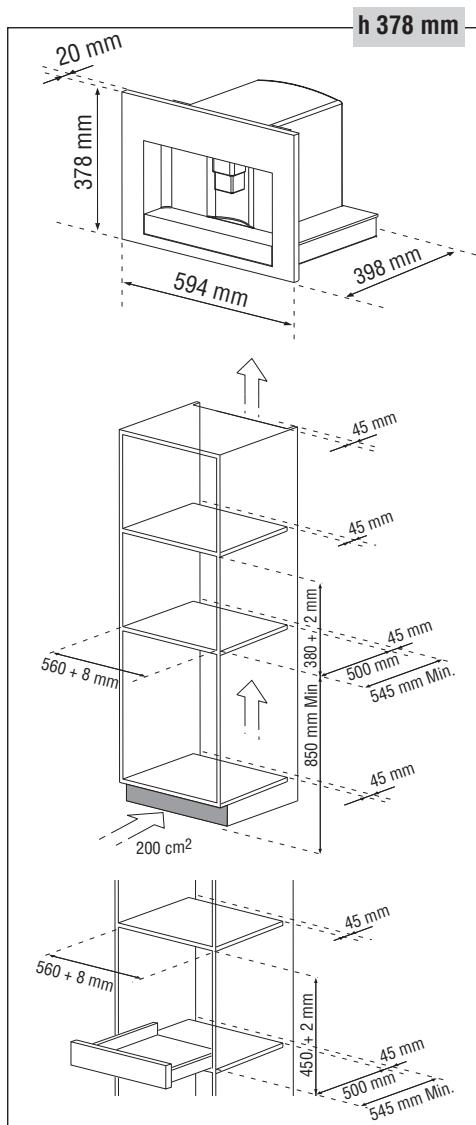

BUILT-IN INSTALLATION Verify the minimum measurements required for correct installation of the appliance. The coffee maker must be installed in a column and the column must be firmly fixed to the wall with commercially available brackets. Important: + Important: all installation or maintenance operations must be performed with the ap- pliance disconnected from the mains electri- city supply. + Kitchen furniture in direct contact with the appliance must be heat resistant (65°C min). + To guarantee correct ventilation, leave a gap at the bottom of the cabinet (see measure- ments in figure). 227200 em?

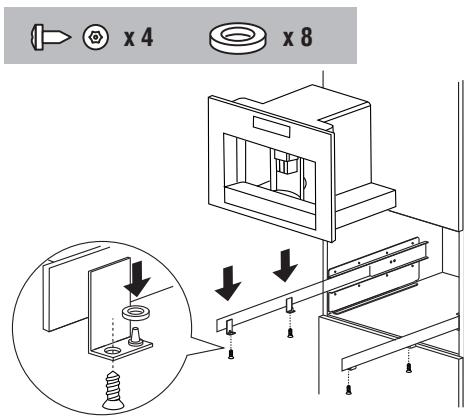

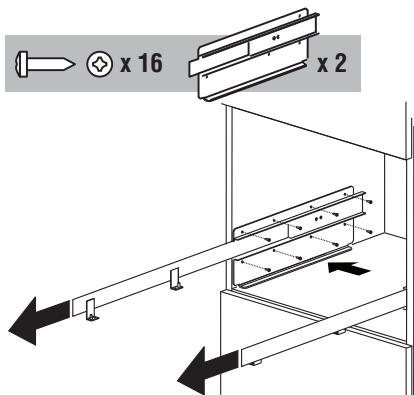

Position the rails on the sides of the cabinet as shown in the figure. Fix with the screws, then extract them completely. If the coffee maker is installed over a warmer drawer, use the top sur- face of this as a reference to position the rails. In this case, there will be no surface to rest the rails on. Fix the power cable with the clip. The power cable must be long enough to allow the appliance to be extracted from the cabinet to fill the coffee bean container. The appliance must be earthed in compliance with legislation. Electrical connections must be performed by a qualified electrician following the instructions.

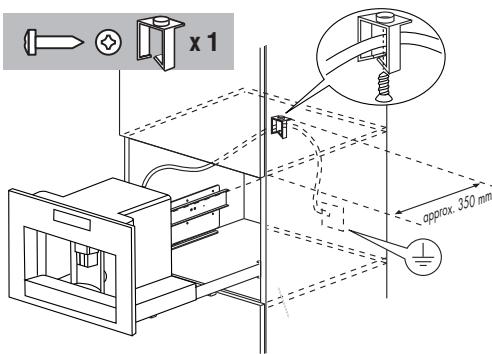

Position the appliance on the rails, making sure the pins are correctly inserted in the housings, then fix it with the screws supplied. Ifthe height of the appliance requires adjusting, use the spacer disks provided.

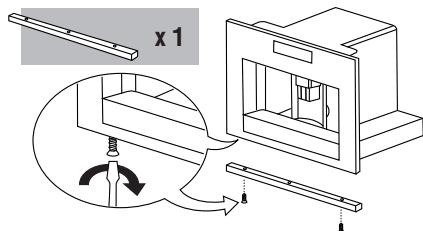

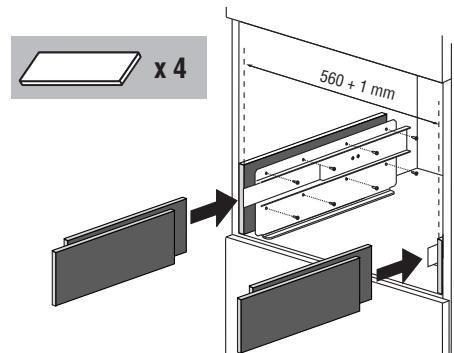

ARE If necessary, fit the trim at the bottom of the frame to compensate for differences in alignment with other appliances. If necessary, correct alignment of the appliance by positioning the spacers supplied under or at the sides of the support.

Coffee has been used to factory test the ap- pliance and it is therefore completely normal for there to be traces of coffee in the mill. + Customise water hardness as soon as pos- sible following the instructions in the "Setting water hardness" section.

1. Connect the appliance to the mains supply.

Set the required language.

2. To set the language, use the, = icons (B7

and B8) to choose the required language (fig. 2). When the message ‘PRESS OK TO CHOOSE ENGLISH" is displayed, press the OK icon (B9) (fig. 3) for 3 seconds until "EN- GLISH INSTALLED" is displayed. If you set the wrong language, follow the instructions in the ‘Setting the language" section. If your language is not available, select one from those displayed. The instructions refer to the English version. Then follow the instructions displayed:

3. After 5 seconds, the appliance displays "FILL

TANK". Extract the water tank (fig. 4), rinse and fill with fresh water without exceeding the MAX line. Replace and push as far as it Will go. À water softener filter can be instal- led in the tank (fig. 29).

4. Place a cup under the cappuccino maker (fig.

5). The appliance displays: "HOT WATER PRESS OK". Press the OK icon (B9) (fig. 3) and after a few seconds a little water comes out of the cappuccino maker.

5. The machine now displays TURNING OFF...

PLEASE WAIT' and goes off.

6. Extract the appliance by pulling it out using

the handles (fig. 6). Open the lid and fill the container with coffee beans, then close the lid and push the appliance in. The coffee maker is now ready for normal use. Important! Never introduce pre-ground coffee, freeze dried coffee, caramelised beans or anything else which could damage the appliance. © N.B.1 When using the appliance for the first time, you need to make 4-5 cups of coffee and 4-5 cappuccinos before the appliance gives satisfactory results. O| N.B.! Each time you turn the coffee maker on by the ON/OFF switch (A23), it performs a SELF-DIAGNOSIS cycle and then goes off. To turn it on again, press the ON/OFF button (A7) (fig. 1) Installing the filter Some models are fitted with a water softener fil- ter to improve the quality of the water used and extend the working life of the appliance. To install, proceed as follows:

1. Remove the filter from the packaging;

2. Slide the date indicator pointer (see fig. 29)

until the months of use are displayed. | N.B.! The filter lasts about two months if the appliance is used normally. If the coffee maker is left unused with the filter installed, it will last a maximum of three weeks.

3. Fillthe tank with a little water up to the level

shown in the figure:

4. Insert the filter in the water tank and press it

until it touches the bottom of the tank (see fig. 29);

5. Fill the water tank and insert in the coffee

7. Press the icon (B2) to enter the menu:

8. Pressthe -V icons (B7) and (B8) until

“INSTALL FILTER" is displayed: Press the OK icon (B9); . The message "INSTALL FILTER PLEASE CONFIRM' is displayed. . Press the OK ICON (B9) to confirm the se- lection (or ESC (B6) to cancel). "HOT WATER PRESS OK" is displayed.

12. Press the OK icon (B9) again. The appliance

begins delivering hot water and the message "PLEASE WAIT... ‘is displayed. When delivery stops, the appliance automa- tically displays the basic modes set again. N.B.1The appliance may request the ope- ration to be repeated a number of times until the air is completely elminated from the hydraulic cir- cuit. Replacing the filter ("FILTER RESET") When "REPLACE FILTER" is displayed or after 2 months of use (see date indicator), the filter must be replaced:

1. Remove the exhausted filter;

2. Remove the new filter from the packaging.

3. Slide the pointer of the date indicator (see fig.

29) until the months of use are displayed (the

filter lasts about 2 months);

4. Insert the filter in the water tank and press it

until it touches the bottom of the tank (see fig. 29);

5. Fill the water tank and insert in the coffee

6. Turn the cappuccino maker outwards and

8. Press the <V icons (B7) and (B8) until

"FILTER RESET' is displayed; Press the OK icon (B9); . The message "FILTER RESET CONFIRM' is displayed. . Press the OK icon (B9) to confirm the selec- tion (or ESC (B6) to cancel). "HOT WATER PRESS OK" is displayed. . Press the OK icon (B9) again. The appliance begins delivering hot water and the message "PLEASE WAIT... is displayed. When delivery stops, the appliance automa- tically displays the basic modes set again.

Removing the filter To use the appliance without a filter, you must re- move it and notify the appliance of its removal as follows:

1. Press the icon (B2) to enter the menu;

2. Press the = icons (B7) and (B8) until IN-

STALL FILTER" is displayed:

6. Whenthe asterisk has disappeared from the top

right of the display, press ESC (B6) to exit the menu. O| N.B.! Use the filters recommended by the manufacturer only. Use of unsuitable filters could damage the appliance.

TURNING ON AND HEATING

Each time the appliance is turned on, it performs an automatic preheat and rinse cycle which can- not be interrupted. The appliance is ready for use only after comple- tion of this cycle. VAN Danger of burns! During rinsing, a little hot water flows from the coffee spouts. To turn the appliance on, press the ON/OFF/Sstand-by button (A7) (fig. 1). The mes- sage "HEATING UP... PLEASE WAIT' is displayed. When heating is complete, the message changes to "RINSING"; The appliance is at temperature \when the mes- sage "MEDIUM CUP NORMAL TASTE" is displa- yed. If no icon is pressed within about 2 minutes, the time (if set, see the "Setting the clock" section) is displayed. If the time has not been set, the appliance di- Splays the last functions set. When any icon is pressed, "MEDIUM CUP NOR- MAL TASTE" is displayed again. The appliance is ready to make coffee again.

COFFEE BEANS The appliance is preset to make coffee with a normal taste. You can also choose coffee with an extra- mild, mild, strong or extra-strong taste. There is also a pre-ground coffee option. To choose the required taste, press the @ icon (B4) (fig. 7). The required coffee taste is displayed.

2. Place 1 cup under the spouts to make 1 cof-

fee (fig. 8) or 2 cups for 2 coffees (fig. 9). Lower the spouts as near as possible to the cup for a creamier coffee (fig. 10).

3. Press the ol? icon (B5) (fig. 11) to select

the type of coffee: espresso, small cup, me- dium cup, large cup, mug. Now press the CPicon (B10) (fig. 12) if you want to make a coffee and the Œp icon (811) (fig. 13) if you want to make 2 coffees. The appliance now grinds the beans and Starts delivering the coffee into the cup. Once the set amount of coffee has been deli- vered, the machine stops delivery automati- cally and expels the exhausted waste coffee into the waste coffee container.

4. After a few seconds, the appliance is ready

5. To turn the appliance off, press the

ON/OFF/Sstand-by button (A7) (fig. 1). (Before going off, the appliance performs an automatic rinse cycle. Take care to avoid scalds). NOTE 1: Ifthe coffee is delivered a drop at a time or not at all, see the "Adjusting the coffee mill' section. NOTE 2: If the coffee is delivered too fast and the cream is not satisfactory, see the "Adjusting the coffee mill' section. NOTE 3: Tips for a hotter coffee: + Proceed as described in the section "Chan- ging and setting menu parameters", "Rinse" function. + Unless preheated, do not use excessively thick cups as they will absorb too much heat. + Preheat the cups by rinsing them with hot water. NOTE 4: Coffee delivery can be interrupted at any moment by re-pressing the previously selected icon which remains lit during the operation. NOTE 5: As soon as delivery is finished, to in- crease the quantity of coffee in the cup, just keep pressing the previously selected icon within 3 se- conds after delivery has finished. NOTE 6: When the appliance displays "FILL TANK', fill the tank with water or the appliance will not deliver coffee. {It is normal for there to be a little water left in the tank). NOTE 7: After about 14 single (or 7 double) cof- fees, the appliance displays "EMPTY WASTE COFFEE CONTAINER". To clean, open the service door on the front of the appliance by pulling the spout (fig. 16), ex- tract the drip tray (fig. 17) and clean. When cleaning, always extract the drip tray completely. VAN Important! When extracting the drip tray, the waste coffee container MUST always be em- ptied. If this is not done, the machine may be clogged. NOTE 8: Never extract the water tank while the machine is delivering coffee. If it is removed, it will not be possible to make the coffee and the appliance will display "GROUND TOO FINE ADJUST MILL AND PRESS OK" and then "FILL TANK". Check the level of

water in the tank and replace in the appliance. To turn the machine on again, press the OK icon (B9). "HOT WATER PRESS OK'is displayed. Press the OK icon (B9) within a few seconds and deliver water from the cappuccino maker for about 30 seconds. When delivery stops, the basic modes are displayed again. N.B.: The coffee maker may request the operation to be repeated a number of times until the air is completely elminated from the hydrau- lic circuit. B.: if this operation is not performed Correctly or ifthe machine is turned off, the basic modes may be displayed, although the problem is in fact still present.

CHANGING THE QUANTITY

The appliance is set by default to automatically make the following types of coffee: + espresso +. small cup +. medium cup + large cup °_ mug To change the quantity, proceed as follows: + Pressthe icon (B2) to enter the menu (fig. 15). Press the = icons (B7) and (B8) (fig. 2) until" PROGRAM COFFÉE" is di- splayed. + Press the OK icon (B9). + Select the type of coffee you want to change by pressing the VV icons (B7) and (B8). + Press the OK icon (B9) to confirm the type of coffee you want to make. + Usethe /<V icons (B7) and (B8) to change the quantity of coffee. The progress bar shows the quantity of cof- fee selected. + Press the OK icon (B9) again to confirm (or the ESC icon (B6) to cancel the operation). + Pressthe ESC icon (B6) (fig. 18) twice to exit the menu. The appliance is now reprogrammed with the new settings and is ready.

ADJUSTING THE COFFEE

MILL The coffee mill is preset in the factory and should not require adjusting. However, if after making the first few coffees you find that delivery is either too fast or too slow (a drop at a time), this can be corrected by adjusting the grinding adjustment knob (fig. 14). importante grinding adjustment knob must only be turned when the coffee mill is in operation. For slower delivery and creamier coffee, turn one click anticlockwise (finer pre-ground coffee). For faster delivery (not a drop at a time), turn one click clockwise (coarser pre-ground coffee).

Press the @ icon (B4) (fig. 7) and select the pre-ground coffee function. + Extract the machine by pulling it outwards using the handles. + Liftthe central lid, place one measure of pre- ground coffee in the funnel (fig. 19), push the appliance in then proceed as described in the section "Making coffee using coffee beans”. N.B.: You can make just one coffee at a time by pressing the CP icon (B10) (fig. 12). + After using the machine with pre-ground cof- fee, to go back to making coffee using beans, deactivate the pre-ground coffee function by pressing the @ icon (B4) (fig. 7). NOTE 1: Never introduce pre-ground coffee when the machine is off or it could spread through the inside of the appliance. NOTE 2: Never add more than 1 measure, other- wise the appliance will not make the coffee. NOTE 3: Use the measure provided only.

NOTE 4: Introduce only pre-ground coffee for espresso coffee machines into the funnel. NOTE 5: If more than one measure of pre-ground coffee is used and the fun- nel clogs, push the coffee down with a knife (fig. 21) then remove and clean the brewing unit and machine as described in the "Clea- ning the brewing unit’ section.

DELIVERING HOT WATER

Always make sure the appliance is ready. + Turn the cappuccino maker outwards and place a container underneath (fig. 5). + Pressthe ZA icon (B13) (fig. 20). The appliance displays: "HOT WATER PRESS OK". Press the OK icon (B9) again and hot water is delivered from the cappuccino maker into the container underneath. You should not deliver hot water for more than 2 minutes at a time. To interrupt, press the ESC icon (B6). The appliance stops delivery once the set quantity is reached. icon (B13) or the

CHANGING THE QUANTITY

The machine is set by default to automatically de- livery 200 ml of hot water. To change these quantities, proceed as follows: + Place a container underneath the cappuccino maker (fig. 3). + Press the FÆicon (B2) to enter the menu (fig. 15) or press the = icons (B7) and (B8) (fig. 2) until "PROGRAM HOT WATER" is displayed. + Press the OK icon (B9) to confirm. + Selectthe required quantity of water by pres- sing the = icons (B7) and (B8). The progress bar shows the quantity of water selected. + Press the OK icon (B9) to confirm (or the ESC icon (B6) to cancel the operation. + Press the ESC icon (B6) (fig. 18) twice to exit the menu. + The appliance is now reprogrammed with the new settings and is ready. MAKING CAPPUCCINO

FUNCTION) Turn the cappuccino maker towards the centre (fig. 5). + Take a container, fill it with about 100 g of milk for each cappuccino to be made and place it under the cappuccino maker. In choosing the size of the recipient, bear in mind that the milk doubles or triples in volume. You are recom- mended to use partially skimmed milk at refri- gerator temperature. + Pressthe & icon (B12) (fig. 22). "STEAM PRESS OK" is displayed. + Press the OK icon (B9). + Tointerrupt steam delivery, press the & (B12) again or the ESC icon (B6). + Immerse the cappuccino maker in the milk con- tainer (fig. 23), taking care not to immerse it for more than half its length. Press the & icon (B12) (take care to avoid scalds) and press the OK icon (B9). Steam comes out of the cappuccino maker. For a creamier froth, immerse the cappuccino maker in the milk and move the container with slow upward movements. You should not deliver steam for more than 2 minutes at a time. + When the required temperature is reached, in- terrupt steam delivery by pressing the & icon (B12) again or the ESC icon (B6). + Make the coffee as described above using suf- ficiently large cups, then fill them with the fro- thed milk prepared previously. icon

IMPORTANT: always clean the cappuccino sy- stem immediately after use. Proceed as follows: °_ Pressthe & icon (B12) and then press the OK button (B9) to discharge a small amount of steam for a few seconds. This empties the steam spout of all traces of milk. IMPORTANT: to ensure the hygiene of the ap- pliance, you are recommended to carry out this procedure each time you make cappuccino to avoid stale milk remaining in the circuit. + Wait for the cappuccino maker to cool down, then holding the cappuccino maker lever firmly in one hand, unscrew the cappuccino maker it- self with the other, turning it anticlockwise and removing it downwards (fig. 24). + Remove the cappuccino maker nozzle by pul- ling it downwards. + Wash the cappuccino maker and nozzle tho- roughly in hot water. + Make sure the two holes shown in figure 25 are not blocked. If necessary, clean with a pin. + Replace the nozzle by inserting it upwards into the cappuccino maker. + Replace the cappuccino maker by pushing it upwards and rotating it clockwise.

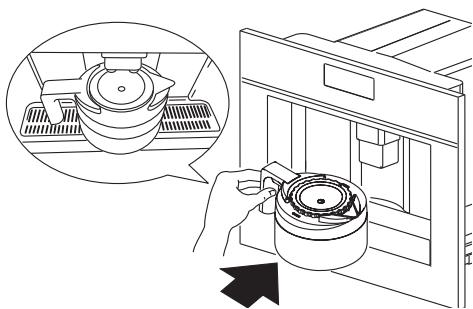

JUG FUNCTION Using this function you can automatically make à number of cups of coffee (4, 6) directly in the jug (A9) to keep the coffee hot. + Turnthe jug lid until the arrow lines up with the word OPEN and remove the lid. Rinse the jug and lid. + Close the jug by turning the lid towards CLOSE until it is tightly closed and then place it under the coffee spout. Always position the jug with the handle fa- cing to the right or left as shown in the figure. The coffee spout (A13) must be fully raised to enable the jug to be inserted. "FILL BEAN CONT. AND WATER TANK, EMPTY WASTE CONT., PRESS OK" is displa- yed. Make sure the water tank is full, the bean container is full enough and the waste coffee container is completely empty. + Press the OK icon (B9). The type of coffee selected, for example “EXTRA-MILD JUGr, and the number of cups you want to make with the jug are displayed, for example "JUG 4 CUPS". + Confirm by pressing the TT icon (B14). The display shows a progress bar which in- dicates coffee making process. When the progress bar is complete, the ap- pliance finishes the process and automati- cally goes back to the coffee jug function. If on the other hand an incomplete progress bar is displayed, this means that the cycle has not been completed correctly. Remove the jug and check the message which appe- ars on the display, consulting the section "DI- SPLAYED MESSAGES". + Remove jug and leave the lid in the CLOSE position to keep the coffee hot. + To pour the coffee, turn the lid anticlockwise until the arrow is lined up with the spout of the jug. Important! When the coffee beans are in- sufficient to complete the required function, the appliance stops the process and waits for the bean container to be filled again and the Tr'icon (B14) to be pressed. For example, when you want to make 4 cups of coffee but the beans are

insufficient, the appliance makes 2 cups then tops making coffee. Fill the bean container and press the tr icon (B14). Once the container has been filled, the appliance makes the 2 remaining cups only to reach the required number of 4 cups. If there is not enough water in the tank to complete the required function or the waste cof- fee container is full, the appliance interrupts the process. To fill the water tank or empty the waste coffee container, you must remove the jug. This interrupts the programme. After rectifying the problem, the programme must be started again. In this case, you must take the amount of coffee already delivered into account to avoid the jug overflowing.

CHANGING JUG FUNCTION

PARAMETERS The jug programme is factory set with default va- lues. These can be modified to suit your personal taste and saved. You can select 5 different types of coffee from extra-mild to extra-strong and, with the aid of a graphic bar, 10 quantities of coffee. To make these adjustments, proceed as follows: + Press the FÆbutton (B2) to enter the menu. Press the = V/icons (B7) and (B8) until “PROGRAM JUG" is displayed. + Press the OK icon (B9) and then the = icons (B7) and (B8) until JUG COFFEE TASTE" is displayed. + Press the OK icon (B9). + Press the XV icons (B7) and (B8) to se- lect a different coffee taste from extra-mild to extra-strong. + Confirm the required taste by pressing the OK icon (B9). + To change the quantity of coffee, press the ASS7icons (B7) and (B8) until "JUG LEVEL" is displayed. + Press the OK icon (B9) to confirm. + A bar representing the quantity of coffee de- livered for each cup is displayed and can be made shorter or longer. A completely full bar corresponds to the ma- ximum quantity of coffee per cup. + Whenthe bar indicates the quantity of coffee required, press the OK icon (B9) to confirm. + To change the quantity of cups, press the AAS7icons (87) and (8) until "NR OF CUPS IN JUG" is displayed. + Select the OK icon (B9) and then press the AV icons (B7) and (B8) to select the num- ber of cups required (4, 6). “JUG 4 CUPS” or “JUG 6 CUPS" is displayed. + Press the OK icon (B9) to confirm. + Press the ESC icon (B6) to exit the program- ming menu. CLEANING Cleaning the coffee maker Do not use solvents or abrasive detergents to clean the coffee maker. À soft damp cloth \vill suf- fice. Never wash any of the components of the coffee maker in the dishwasher. The following parts of the machine must be clea- ned regularly: + Waste coffee container (A4). + Driptray (A14). + Water tank (A12). + Coffee (A13), hot water (A11) and cappuc- cino maker spouts (A10). + Pre-ground coffee funnel (A21). + Inside of the machine, accessible after ope- ning the service door (A2). + Brewing unit (A5). + Coffee jug. Cleaning the waste coffee container When "EMPTY WASTE COFFEE CONTAINER" is displayed, the waste coffee container must be emptied and cleaned. To clean: + open the service door on the front of the ap- pliance (fig. 16), extract the drip tray (fig. 17) and clean. + Clean the waste coffee container thoroughly.

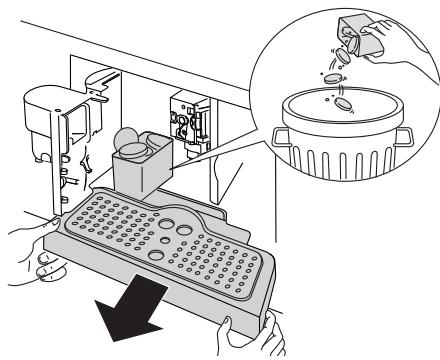

VAN Important! When extracting the drip tray, the waste coffee container must always be em- ptied. Cleaning the drip tray VAN Important! |f the drip tray is not emptied the water might overflow. This could damage the machine. The drip tray is fitted with a level indi- cator (red) showing the level of water it contains (fig. 27). Before the indicator protrudes from the cup tray, the drip tray must be emptied and clea- ned. To remove the tray:

1. Open the service door (fig. 16).

2. Remove the drip tray and the waste coffee

container (fig. 17).

3. Clean the drip tray and waste coffee container

4. Replace the drip tray and waste coffee con-

5. Close the service door.

Cleaning the water tank

1. Clean the water tank (A12) regularly (about

once a month) with a damp cloth and a little mild washing up liquid.

2. Remove all traces of washing up liquid.

Gleaning the spouts Clean the nozzles periodically using a sponge (fig. 28).

2. Check regularly that the holes in the coffee

spout are not blocked. If necessary, remove coffee deposits with a toothpick (fig. 26). Cleaning the pre-ground coffee funnel + Check regularly (about once a month) that the pre-ground coffee funnel is not blocked (fig. 21). LP vanger! Before performing any cleaning operations, the machine must be turned off by pressing the main switch (A23) and unplugged from the mains power supply. Never immerse the coffee maker in water. Cleaning the inside of the coffee maker

1. Check regularly (about once a week) that the

inside of the appliance is not dirty. If necessary, remove coffee deposits with a sponge.

2. Remove the residues with a vacuum cleaner

(fig. 30). Cleaning the brewing unit The brewing unit must be cleaned at least once a month. VAN Important! The brewing unit (A5) must not be removed when the appliance is on. Do not use force to remove the brewing unit.

1. Make sure the machine is correctly turned off

(see ‘Turning the appliance off).

2. Open the service door (fig. 16).

3. Remove the drip tray and waste coffee con-

4. Press the two red release buttons inwards

and at the same time pull the brewing unit outwards (fig. 31). Important! Do not use washing up liquid to clean the brewing unit. It would remove the lu- bricant applied to the inside of the piston.

5. Soak the brewing unit in water for about 5

minutes, then rinse.

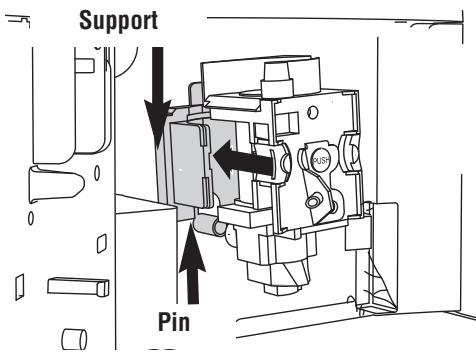

6. After cleaning, replace the brewing unit (A5)

by sliding it onto the internal support and pin at the bottom, then push the PUSH symbol fully in until it clicks into place.

© N.B.1 If the brewing unit is difficult to in- sert, you must first adapt it to the right dimen- sions by pressing it forcefully from the bottom and top as shown in the figure.

7. Once inserted, make sure the two red buttons

8. Replace the drip tray and waste coffee con-

9. Close the service door.

Cleaning the coffee jug Clean the jug with a damp cloth and mild washing up liquid. Q N.B.1 To avoid damaging the appearance of the jug, do not wash in a dishwasher.

CHANGING AND SETTING

MENU PARAMETERS When the appliance is ready, you can use the in- ternal menu to modify the following parameters and functions: Choose language Rinsing Shut-off time Set clock Start time Auto-start Temperature Water hardness Program coffee Program jug Program water Descale Reset to default Statistics Install filter Reset filter Buzzer Contrast Setting the language To change the language on the display, proceed as follows: + Pressthe icon (B2) to enter the menu. "CHOOSE LANGUAGE" is displayed. + Press the OK icon (B9). + Pressthe XC- icons (B7) and (B8) until the required language is displayed. + Press the OK icon (B9) to confirm. + Press the ESC icon (B6) to exit the menu. N.B.1 [If you choose the wrong language, you can access the menu directly to modify the pa- rameter. + Press the FÆlicon button (B2) for at least 7 seconds until the appliance displays the va- rious languages. + Choose the required language as described in the section “Using the appliance for the first time”.

Rinsing This function enables you to obtain hotter coffee. Proceed as follows: + When you turn the appliance on, if you want to make a small cup of coffee (less than 60 cc), preheat the cup by rinsing it with hot water. +__lfonthe other hand more than 2/3 minutes have passed since the last coffee was made, before requesting another coffee, you must preheat the brewing unit by first pressing the icon (B2) to enter the menu then the AXS7icons (B7) and (B8) to select the "RIN- SING" function. Press the OK icon (B9). CONFIRM' is displayed. Press the OK icon (B9) again. Deliver the water into the underlying drip tray or alternatively use this water to fill (and then empty) the cup to be used for the coffee to preheat it. "RINSING... PLEASE Changing the length of time the appliance remains on The appliance is set by default to go off automa- tically 30 minutes after the last coffee has been made. To change this interval (max. 120 min), proceed as follows: + Pressthe FAicon (B2) to enter the menu and then the =v-icons (B7) and (B8) until "SHUT-OFF TIME" is displayed. + Press the OK icon (B9) to confirm. + Pressthe XV icons (B7) and (B8) to set the time after which the appliance will go off (after 1/2 hour, 1 hour, 2 hours). + Press the OK icon (B9) to confirm. + Press the ESC icon (B6) to exit. Setting the clock Press the icon (B2) to enter the menu and then the. = icons (B7) and (B8) until "SET CLOCK" is displayed. + Press the OK icon (B9). +. Use the.= icons (B7) and (B8) to set the hour, then press the OK icon (B9) to confirm.

+ Usethe = icons (B7) and (B8) to setthe minutes, then press the OK icon (B9) to con- firm. + Press the ESC icon (B6) to exit the menu. Setting auto-start time This function programmes the time the machine will come on automatically. + Make sure the clock on the appliance has been set. + Press the icon (B2) to enter the menu and then the.=Vicons (B7) and (B8) until "START TIME" is displayed. + Press the OK icon (B9). +. Usethe =V-icons (B7) and (B8) to set the auto-start time, then press the OK icon (B9) to confirm. +. Usethe.= icons (B7) and (B8) to set the minutes, then press the OK icon (B9) to con- firm. + Press the.= icons (B7) and (B8) to acti- vate the auto-start function until "AUTO START" is displayed. + Press the OK icon (B9) to confirm. The 4 symbol appears on the display. + Press the ESC icon (B6) to exit the menu. Changing coffee temperature To change coffee temperature, proceed as fol- lows: + Press the icon (B2) to enter the menu and then the = icons (B7) and (B8) until'TEMPERATURE" is displayed. + Press the OK icon (B9). + Press the = V icons (B7) and (B8) to se- lect the required coffee temperature from low, medium and high. + Press the OK button (B9) to confirm the tem- perature selected. + Press the ESC icon (B6) to exit the menu. Setting water hardness The operating period can be extended if required, making descaling less frequent by programming the machine on the basis of the real lime content in the water used.

Proceed as follows: + remove the ‘Total Hardness Test" strip (atta- ched to page 2) from its packaging then dip it fully in the water for a few seconds, Then remove and wait about 30 seconds (until it changes colour and forms red squa- res). + turn the appliance on by pressing the ON/OFF/stand-by button (A7). + Pressthe icon (B2) to enter the menu and then the =icons (B7) and (B8) until "WATER HARDNESS" is displayed. + Press the OK icon (B9). + Pressthe AC icons (B7) and (B8) until the number coincides with the number of red squares on the test strip (for example, if there are 3 red squares on the test strip, select the message "WATER HARDNESS 3". + Press the OK icon (B9) to confirm. The coffee maker is now programmed to pro- vide the descale warning when actually ne- cessary. Programming coffee For instructions on programming coffee, see the "CHANGING THE QUANTITY OF COFFEE IN THE CUP" section. Programming the jug For instructions on programming the jug, see the section " CHANGING JUG FUNCTION PARAME- TERS". Programming water For instructions, see the "CHANGING THE QUAN- TITY OF HOT WATER" section. Descaling VAN Important! Descaler contains acids. Re- spect the safety warnings provided by the manu- facturer and given on the descaler pack. O| N.B.! Use the descaler recommended by the manufacturer only. Use of other descalers in- validates the guarantee. Failure to descale the ap-

pliance as described also invalidates the guaran- tee. VAN Important! Before descaling, make sure the water softener filter has been removed. When "PLEASE DESCALE lis displayed, the ma- chine requires descaling. Proceed as follows: + make sure the machine is ready; + Press the FA icon (B2) to enter the menu and then the= icons (B7) and (B8) until "DESCALE" is displayed. + Press the OK icon (B9) and the appliance di- splays "DESCALE PLEASE CONFIRM". + Press the OK icon (B9). The message "ADD DESCALER PLEASE CONFIRM' is displayed. + Press the OK icon (B9) to start the descale programme. + Emptythe tank of water, pour the contents of the descaler bottle into the tank respecting the instructions given on the descaler pack, then add water up to the MAX level marked on the water tank. Position a container with a capacity of about 2 litres under the hot water spout. + Press the OK icon (B9). Descaler flows out of the hot water spout into the container below. The appliance displays: "DESCALING". + The descale programme automatically per- forms a series of deliveries and pauses. + After about 30 minutes "DESCALE COM- PLETE PLEASE CONFIRM' is displayed. + Press the OK icon (B9)."RINSING FILL TANK' is displayed. + Empty the water tank, rinse to eliminate de- caler residues, then fill with clean water. + Replace the tank. "RINSING PLEASE CONFIRM' is displayed. + Empty the full container and put back under the hot water spout. + Press the OK icon (B9) again. Hot water flows out of the spout into the con- tainer below and "RINSING' is displayed. + Wait until "PLEASE CONFIRM' is displayed.

+ Press the OK icon (B9). ‘FILL TANK' is di- splayed. Fill the tank again with clean water. + The descale programme is now terminated and the appliance is ready to make coffee again. NOTE: If descaling is interrupted before com- pletion, the process must be begun again from the beginning. A Important! FAILURE TO DESCALE THE

APPLIANCE REGULARLY INVALIDATES THE

GUARANTEE. Resetting default values (reset) E’ possibile ritornare alle impostazioni originali della macchina (anche dopo che l’utente le ha modificate) procedendo nel seguente modo: + Pressthe icon (B2) to enter the menu and then the = icons (B7) and (B8) until "RESET TO DEFAULT" is displayed. + Press the OK icon (B9) and the appliance di- splays "RESET TO DEFAULT PLEASE CON- FIRM'. +__ press the OK button (B9) to reset the default values; Statistics This displays statistics relating to the machine. To display, proceed as follows: + Pressthe icon (B2) to enter the menu and then the = icons (B7) and (B8) until "STATISTICS" is displayed. + Press the OK icon (B9). + Pressthe AV icons (B7) and (B8) to ve- rify: - How many coffees have been made. - How many times the machine has been de- scaled. - The total number of litres of water delivered. + Press the ESC icon (B6) once to exit the fun- ction or twice to exit the menu. Buzzer This activates or deactivates the buzzer emitted by the machine each time an icon is pressed or an accessory is inserted/removed.

© N.B.1 The buzzer is active by default. + Press the icon (B2) to enter the menu and then the = icons (B7) and (B8) until "BUZZER' is displayed. + Press the OK icon (B9). CONFIRM' is displayed. + Press the ESC icon (B6) to disable or the OK icon (B9) to enable the buzzer. + Press the ESC icon (B6) to exit the menu. "BUZZER PLEASE Adjusting contrast To increase or reduce the contrast of the display, proceed as follows: Press the FA icon (B2) to enter the menu and then the = icons (B7) and (B8) until "CONTRAST" is displayed. + Press the OK icon (B9). + Pressthe -<V icons (B7) and (B8) until the required display contrast is reached. The progressive bar indicates the level of contrast selected. + Press the OK icon (B9) to confirm. + Press the ESC icon (B6) once to exit the fun- ction or twice to exit the menu. Water filter For instructions on the water softener filter, see the section "INSTALLING THE FILTER".

TURNING THE APPLIANCE

OFF Each time the appliance is turned off, it performs an automatic rinse cycle which cannot be inter- rupted. LNvanger of burns! During rinsing, à little hot water flows from the coffee spouts. Avoid contact with splashes of water. To turn the appliance off, press the ON/OFF but- ton (A7). The appliance performs the rinse cycle then goes off.

+__ Low Voltage Directive 2006/95/EC and sub- sequent amendments; + EMC Directive 2004/108/EC and subsequent amendments The appliance complies with the follo- wing EC directives: Materials and accessories coming into contact with food conform to European regulation (EC) no. 1935/2004.

ELECTRICAL CONNECTION (UK ONLY) À) your appliance comes fitted with a plug, K will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below.

WARNING: Very carefully dispose of the cut

off plug after removing the fuse: do not in- sert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when chan- ging the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug. If your appliance is not fitted \vith a plug, please follow the instructins provided below: WARNING - THIS APPLIANCE MUST BE EAR- THED IMPORTANT The wires in the mains lead are coloured in ac- cordance with the following code: Green and yellow: Earth Blue: Neutral Brown: Live As the colours of the wvires in the mains lead may not correspond \vith the coloured markings iden- tifying the terminals in your plug, proceed as fol- lows: The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol + or coloured green or green and yellow. The blue wire must be connected to the terminal marked with the letter N or coloured black. The brown wire must be connected to the termi- nal marked with the letter L'or coloured red.

DISPLAYED MESSAGES FILL TANK + The water tankis empty or + Fill the tank with water positioned incorrectly. and/or insert it correctly, pushing it as far as it will go. GROUND TOO FINE ADJUST + The grinding is too fine + Turn the grinding adju- MILL AND and the coffee is delivered stment knob one click (alternating with) too slowly. clockwise towards "7". PRESS OK + The machine cannot make + Make sure the filter (26) coffee as there is air in the is propertly installed and hydraulic circuit that the installation has Possible cause: the filter been carried out correctly. has not been installed cor- rectly. GROUND TOO FINE ADJUST + The tank has been remo- + Insert the tank and press MILL AND ved during delivery. the OK icon (B9). "HOT (alternating with) WATER PRESS OK" is di- PRESS OK splayed. (then) FILL TANK EMPTY WASTE COFFEE + The waste coffee contai- + Empty the waste coffee CONTAINER ner (A4) is too full or container and clean, then more than 3 days have replace. passed since you last Important: when remo- made coffee (this guaran- ving the drip tray, the tees correct hygiene of the waste coffee container machine). MUST be emptied, even if it is not completely full. If this is not done, when you make the next cof- fees, the waste coffee container may fill up more than expected and clog the machine. INSERT WASTE COFFEE + After cleaning, the waste + Openthe service door and CONTAINER coffee container has not insert the waste coffee been replaced. container.

POSSIBLE CAUSE The ‘pre-ground coffee function has been selec- ted without placing any pre-ground coffee in the funnel. The funnel (A21) is bloc- ked. REMEDY Extract the appliance and place pre-ground coffee in the funnel. Empty the funnel with the help of a knife as descri- bed in the section "Clea- ning the pre-ground coffee funnel". PLEASE DESCALE! The machine must be de- scaled. The descaling procedure described in the "Desca- ling' section needs to be performed as soon as possible. LESS COFFEE Too much coffee has been used. Select a milder taste or re- duce the quantity of pre- ground coffee, then make the coffee again.

The coffee beans have run out. Fill bean container

The brewing unit has not been replaced after clea- ning. Insert the brewing unit as described in the section “Cleaning the brewing unit. CLOSE DOOR The service door is open Close the service door. GENERAL ALARM! The inside of the ap- pliance is very dirty. Clean the inside of the ap- pliance thoroughly, as de- scribed in the section “Cleaning and mainte- nance”. If the message is still displayed after clea- ning, contact a customer services. REPLACE FILTER! The \water softener filter (A26) must be replaced.

You must immediately re- place the filter following the instructions in the section “Replacing the fil- ter”.

TROUBLESHOOTING Below is a list of some of the possible malfunctions. Ifthe problem cannot be resolved as described, contact Customer Services.

PROBLEM POSSIBLE CAUSE REMEDY

The coffee is not hot + The cups were not pre- + Warmthe cups by rinsing heated. them with hot water. + The brewing unit has coo- + Before making coffee, led down because 2/3 mi- preheat the brewing unit nutes have elapsed since by selecting the RINSING the last coffee was made. function in the menu. + The temperature set is too + Change the set tempera- low. ture (see paragraph “Changing coffee tempe- rature"). The coffee is not creamy + The coffee is ground too + Turn the grinding adju- enough coarsely. Stment knob one click an- ticlockwise towards "1" while the coffee mill is in operation (fig. 11). + Wrong type of coffee + Use a type of coffee for espresso coffee makers. The coffee is delivered too + The coffee is ground too + Turn the grinding adju- slowly or a drop at a time. finely. stment knob one click clockwise towards "7" while the coffee mill is in operation (fig. 11). Continue one click at a time until coffee delivery is satisfactory. The effect is only visible after delivering two cof- fees.

PROBLEM The coffee is delivered too quickly. POSSIBLE CAUSE + The coffee is ground too coarsely. REMEDY Turn the grinding adju- stment knob one click an- ticlockwise towards "1" while the coffee mill is in operation (fig. 11). Avoid turning the grinding adjustment knob excessi- vely otherwise when you select 2 cups, the coffee may be delivered a drop at a time. The effect is only visible after delivering two cof- fees. Coffee does not come out of one ofthe spouts. + The spouts are blocked Clean the spouts with a toothpick (fig. 23). The coffee does not come out of the spouts, but from around the service door (A2). + The holes in the spouts are clogged with dry cof- fee dust. + The coffee guide (A3) in- side the service door is blocked and cannot Swing. If necessary, remove cof- fee deposits with a too- thpick, sponge or stiff bristled kitchen brush (fig. 23). Thoroughly clean the cof- fee guide (A3), particu- larly near the hinges. Water comes out of the spouts instead of coffee + The pre-ground coffee may be blocked in the fun- nel (A21).

Clean the funnel (A21) with a wooden or plastic fork, clean the inside of the machine.
