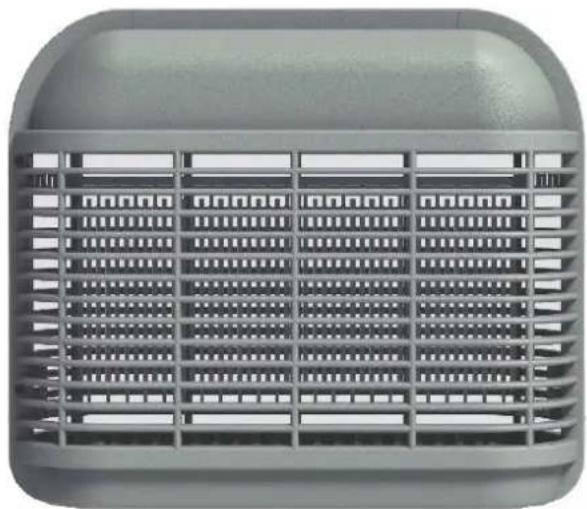

LO-LED 30.0 - Insecticide Ravanson - Free user manual and instructions

Brand	Ravanson
Model	LO-LED 30.0
Product Type	Electric Insect Killer
Technology	UV LED Light Attraction + High-Voltage Grid
Power Source	AC 220-240V, 50/60Hz
Power Consumption	6W (LED) + 2W (grid) = 8W total
Coverage Area	Up to 30 m²
Dimensions (W x H x D)	30 x 20 x 10 cm
Net Weight	1.5 kg
Material	ABS Plastic (flame-retardant)
LED Wavelength	365 nm (UV-A)
LED Lifespan	30,000 hours
Grid Voltage	800V DC (non-lethal)
Safety Features	Protective outer grid, auto shut-off when opened, CE certified
Usage	Indoor / outdoor (covered area)
Maintenance	Clean grid with brush monthly; replace LEDs every 3 years
Cleaning	Unplug before cleaning. Use dry cloth. Do not use water.
Accessories Included	Hanging chain, cleaning brush, user manual
Country of Origin	China

Frequently Asked Questions - LO-LED 30.0 Ravanson

How does the LO-LED 30.0 work?

The device uses UV LED light to attract flying insects. Once they approach, they are electrocuted by a high-voltage grid (800V DC). The protective outer grid prevents accidental contact.

Is the device safe to use around children and pets?

Yes, the outer grid is designed to prevent direct contact with the high-voltage interior. However, it is recommended to place the unit out of reach of small children and pets to avoid any risk.

How do I clean the insect remains?

Unplug the device before cleaning. Use the included brush to gently sweep debris from the grid. Do not use water or liquids. Clean every 2-4 weeks for optimal performance.

Can I use this insect killer outdoors?

It can be used outdoors in covered areas (e.g., porch, gazebo) but not exposed to rain or direct moisture. It is not waterproof.

How long do the LEDs last?

The UV LEDs have an average lifespan of 30,000 hours (about 3.5 years of continuous use). Replacement bulbs are not available; entire unit may need replacement if LEDs fail.

Does the device emit any chemicals or odor?

No, it operates purely with UV light and electric current. There are no chemicals, smells, or ozone emissions.

What type of insects does it attract?

It is effective against flies, mosquitoes, moths, gnats, and other small flying insects attracted to UV light.

Can the device be left on overnight?

Yes, it is designed for continuous operation. Energy consumption is only about 8W, so it is economical to run 24/7.

What should I do if the grid stops working?

First, check the power cord and outlet. If the LED lights work but the grid does not, there may be an internal failure. Contact Ravanson support; do not attempt to repair yourself.

Is the LO-LED 30.0 replaceable or repairable?

The device is not designed for user repair. If defective, contact Ravanson customer service for warranty or replacement options.

USER MANUAL LO-LED 30.0 Ravanson

ENG User's manual Insect killer

Exterior view of a modern office building (no signage)

MODEL:

LO-LED 16.0; LO-LED 30.0

Producent

RAVANSON LTD. Sp. z o.o.

LO-LED 16.0 LO-LED 30.0

Before first use, always read the safety instructions and warnings included in this guide.

Failure to observe the below mentioned safety warnings and safety guidelines for may cause to electric shock, fire and/or serious injuries

Keep safety instructions and warnings at hand for future reference.

The Electronic Insect Killer utilizes the black light (ultra-violet rays) of the wave length, which is proven to be the most effective lure for light sensitive flying insects, such as flies, moths, mosquitoes, and other flying insects. These insects are electrocuted by the electrically-charge metal grids. No chemicals, no smell, no sprays, no mess, pollution free and harmless to humans and pets. It is ideal for using in houses, factories, food outlets, restaurant, canteen, office, hospitals, etc.

GENERAL SAFETY GUIDELINES

Make sure that the power source to which the appliance is to be connected is accordant with the parameters specified on the rating plate

WARNING ! High voltage! Do not touch the inner electric grids.

Never put metal objects inside the grids while in operation.

Disconnect power before repairing or cleaning.

Never put metal objects inside the device while in operation.

Keep away from flammables.

Hang or ceiling on a place where children cannot reach.

Do not submerge the device into water or other liquids.

Do not cover the device while it is using.

Household use only.

The Insect Killer cannot be used in barns, stables and similar locations.

The appliance is not to be used in locations where flammable vapor or explosive dust is likely to exist.

The appliance can be used as Pendant type or Pedestal type. When as pendant type, only use the attached chain and hang on the location which at least 4k bearing supports. When as pedestal type, only place on flat surface.

The lamp in this appliance cannot be replaced. Scrap the appliance when the lamp ceases to operate.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Keep the appliance and its cord out of reach of children

Children cannot play with it. Children should be supervised to ensure that they do not play with the appliance.

The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Keep the appliance and its cord out of reach of children less than 8 years.

Children should be supervised to ensure that they do not play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety

Always switch off the device when you don't use it.

The device is designed for indoor use only. It cannot be used or stored in places exposed to weather factors.

NOTE! The device is not designed to work with external timers or a separate remote control system.

It is recommended to connect the device to the power supply network equipped with a residual current device (RCD) with a switch-off current of 30mA or less.

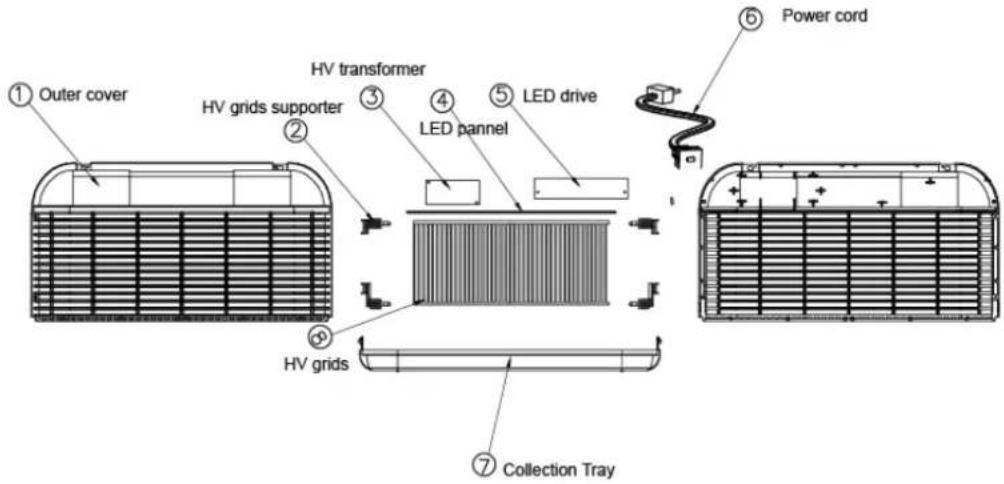

Construction

Maintenance and cleaning:

1. Plug out from the socket, take out the collection tray for cleaning the dead insects regularly, suggest to clean the unit weekly or clean it immediately if insets are full of the collection tray.
2. Use a soft cloth to remove any dust from the bug zapper.
3. If the appliance is excessively dirty, use a soft cloth moistened with water and a mild detergent at a temperature lowers than 50^ C. Let the product dry completely before use.
4. Do not use corrosive detergents or solvents such as petrol. Do not wash the appliance with water. Do not use oils, chemical substances or other items to clean that may damage the surface.

Transport and storage:

Store out of reach of children. Protect against dust, humidity, and mechanical damage.

Transport in the original packaging. Protect against dust, humidity, and mechanical damage.

Always let the device cool down prior to storage or transport

If after purchase the product is found to be damaged, please contact your supplier. Observe the rules provided in the enclosed manual. Do not modify nor make any changes to the product.

Defects:

In case the device refuses to work, disconnect it from the mains. Make sure there is current in the socket to which the device is connected. Do not attempt to repair the device if there is no problem with the external power supply. Contact authorized service.

Parameters:

LO-LED 16.0 LO-LED 30.0

Nominal voltage 220–240 V 220–240 V

Nominal frequency 50/60 Hz 50/60 Hz

Nominal power consumption 6 W 8 W

The manufacturer reserves the right to introduce technical modifications!

The symbol presented below indicates that the used equipment cannot be placed together with other household waste. The user is obliged to bring this item to the waste electrical and electronic equipment collection point where a suitable system is created to allow safe disposal of these items.

Dangerous components present in electrical and electronic equipment have negative consequences for the environment and human health therefore correct handling of the equipment is very important. Certain substances which may adversely affect the environment over the life of the product and after use have been limited in this device.
