| Product Type | Electric Treadmill |
| Model | Electra T50 |
| Brand | Hertz Fitness |
| Motor Power | 2.5 HP (continuous duty) |
| Speed Range | 0.5 - 18 km/h |
| Incline Range | 0% - 15% (electric) |
| Running Surface | 140 x 50 cm |
| Display | LCD with time, distance, speed, calories, pulse |
| Programs | 12 pre-set programs + manual mode |
| Heart Rate Monitor | Hand grip sensors |
| Foldable | Yes, with hydraulic soft-drop system |
| Max User Weight | 130 kg |
| Dimensions (folded) | 100 x 80 x 150 cm |
| Dimensions (unfolded) | 180 x 80 x 130 cm |
| Net Weight | 85 kg |
| Power Supply | 220-240V, 50/60 Hz, 10A |
| Safety Features | Safety key, emergency stop, child lock |
| Warranty | 2 years (motor), 1 year (parts) |
| Maintenance | Lubricate belt every 3 months or 100 km |
| Certifications | CE, RoHS |
Frequently Asked Questions - Electra T50 Hertz Fitness
How do I assemble the Electra T50 treadmill?
Assembly is straightforward. Attach the upright posts to the base frame, then mount the console. Refer to the manual for torque specifications. Use the included tools. It is recommended to have two people for lifting.
How do I lubricate the running belt?
Turn off and unplug the treadmill. Lift the belt and apply silicone lubricant (not oil) to the deck's center. Run the belt at low speed for a few minutes. Lubricate every 3 months or 100 km of use.
What should I do if the treadmill displays an error code?
Common error codes: E1 (motor overheat), E2 (speed sensor), E3 (overload). Reset by unplugging for 30 seconds. If persists, check connections or contact support.
Is the Electra T50 suitable for running?
Yes, with a speed range up to 18 km/h and a 140 cm running surface, it is suitable for both walking and running. The motor is 2.5 HP, sufficient for regular jogging.
How do I fold the treadmill?
Stop the treadmill and unplug. Lift the deck until it locks into the vertical position. Ensure the safety lock clicks. To unfold, release the lock and gently lower the deck.
Can I use the treadmill without the safety key?
No, the treadmill will not start without the safety key inserted. The key acts as an emergency stop. Always attach the clip to your clothing.
What is the maximum user weight?
The maximum user weight is 130 kg (286 lbs). Exceeding this may damage the treadmill and void warranty.
How do I calibrate the speed?
Press and hold the 'Speed +' and 'Start' buttons simultaneously for 3 seconds. The display will show 'CAL'. Run at 5 km/h for 2 minutes. The calibration is automatic.
Does the treadmill require special electrical wiring?
It requires a standard 220-240V, 10A grounded outlet. Do not use an extension cord. A dedicated circuit is recommended to avoid tripping.
What maintenance is required?
Regularly clean the belt and deck, lubricate every 3 months, check bolts for tightness, and keep the motor area dust-free. See manual for detailed schedule.
User questions about Electra T50 Hertz Fitness
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Treadmills in PDF format for free! Find your manual Electra T50 - Hertz Fitness and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Electra T50 by Hertz Fitness.
USER MANUAL Electra T50 Hertz Fitness
BIEŻNIA ELEKTRYCZNA HERTZ ELECTRA T50 (JK1204)
INSTRUKCJA OBSŁUGI


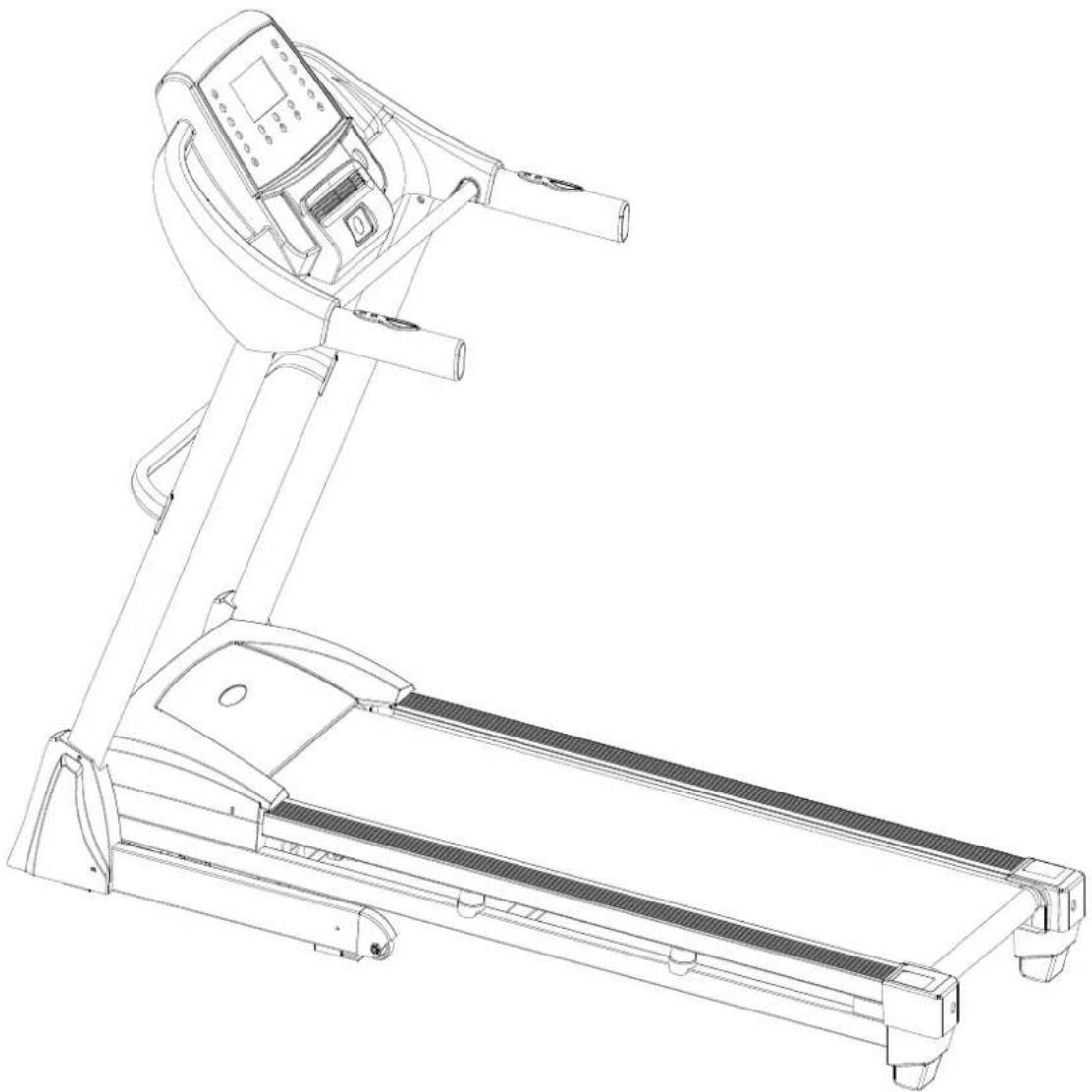

Line drawing of a treadmill with control panel and side-mounted legs (no text or symbols)O PRODUKCIE:


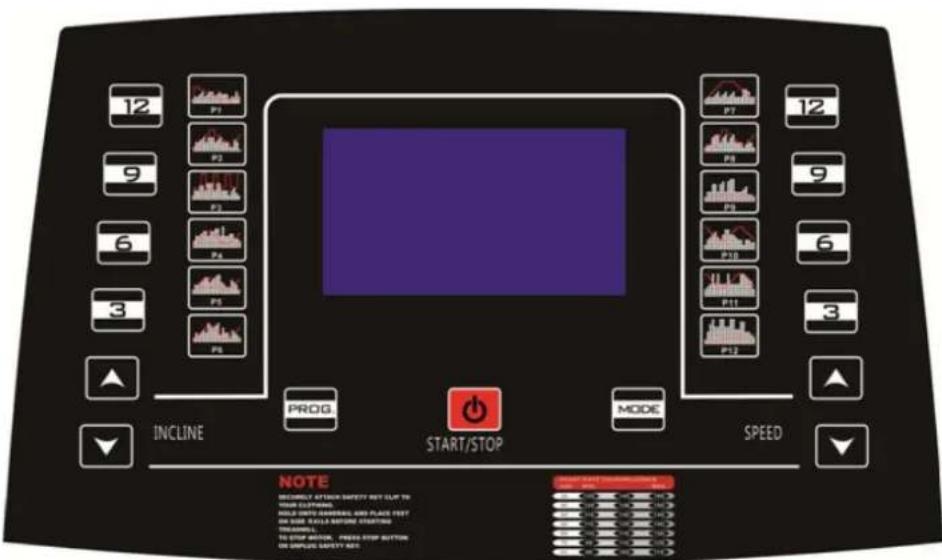

Woman running on a black treadmill using a digital camera (no visible text or symbols)INSTRUKCJA OBSŁUGI PANELU STERUJĄCEGO
Tech info
| Time00:00-99:59 Min | |
| Speed1.0-16.00 km/h | |
| Distance0.00-99.9 km | |
| Calorie0-999 KCAL | |
| Heart rate70-200 / Min | |
| Program autoP1-P12 |
Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)natural_image
Illustration showing a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)OGÓLNE ZALECENIA I CZYSZCZENIE
SERWISOWA LISTA ELEMENTÓW
| 1 Main frame Q235 1 PCS | ||
| 2 Underframe Q235 1 PCS | ||
| 3 Left upright tubes Q235 1 PCS | ||
| 4 Right upright tubes Q235 1 PCS | ||
| 5 Towel rail Q235 1 PCS | ||
| 6 handrail Q235 1 PCS | ||
| 7 Reinforcement bar Q235 1 PCS | ||
| 8 Support frame for auto incline Q235 1 PCS | ||
| 9 Front roller | 1 PCS | |
| 10 Back roller | 1 PCS | |
| 11 Gas spring | 1 PCS | |
| 12 Top motor cover | ABS | 1 PCS |
| 13 Top panel cover ABS | 1 PCS | |
| 14 Bottom panel cover | ABS | 1 PCS |
| 15 Keyboard plate | ABS | 1 PCS |
| 16 Left and right end caps | ABS | 1 sets |
| 17 Decorative caps for wheels | ABS | 2 PCS |
| 18 Oval pipe plug | 2 PCS | |
| 19 Wheel | ABS | 2 PCS |
| 20 Foot rail | 2 PCS | |
| 21 Running board | 1 PCS | |
| 22 Running belt | 1 PCS | |
| 23 Drive belt | 1 PCS | |
| 24 Square foot pad | 4 PCS | |
| 25 Silicon pad | 4 PCS | |
| 26 Cushion rubber | 4 PCS | |
| 27 Sponge sheath | 1 PCS | |
| 28 Sponge sheath | 2 PCS | |
| 29 Motor | 1 PCS | |
| 30 Panel | 1 PCS | |
| 31 Motor for incline | 1 PCS | |
| 32 Flat washer | 12 | 2 PCS |
| 33 Hexagon socket head cap screw | M6 | 2 PCS |
| 34 Pulse sensor | 2 PCS | |
| 35 switch | 1 PCS | |
| 36 Power cord | 1 PCS | |
| 37 Square pipe plug | ABS | 1 PCS |
| 38 Truss head Philips self tapping screw ST4*12 16 PCS | ||
| 39 Truss head Philips self tapping screw ST4*50 4 PCS | ||
| 40 Truss head Philips self tapping screw ST4*25 2 PCS | ||
| 41 Philip's head screw with washer ST4.2*16 13 PCS | ||
| 42 Hexagon socket head cap screw M6*35 2 PCS | ||
| 43 Socket cap screw M6*55 3 PCS | ||
| 44 Hex screw M10*40 1 PCS | ||
| 45 Hex screw M10*120 | 1 PCS | |
| 46 Hex screw M8*30 1 PCS | ||
| 47 Hex screw M8*45 1 PCS | ||
| 48 Hex screw M12*50 2 PCS | ||
| 49 Hex screw M12*65 2 PCS | ||
| 50 Countersunk hexagon socket screw | M8*30 8 PCS | |
| 51 Half-round hexagon socket screw | M8*16 | 8 PCS |
| 52 Half-round hexagon socket screw | M8*45 | 4 PCS |
| 53 Half-round hexagon socket screw | M10*25 | 4 PCS |
| 54 Half-round hexagon socket screw | M10*50 | 2 PCS |
| 55 Self locking nut | M6 | 4 PCS |
| 56 Self locking nut | M8 | 2 PCS |
| 57 Self locking nut | M10 | 8 PCS |
| 58 Self locking nut | M12 | 4 PCS |
| 59 Flat washer | 6 | 3 PCS |
| 60 Curved washer | 8 | 2 PCS |
| 61 Curved washer | 8 | 8 PCS |
| 62 Safety key | 1 PCS | |
| 63 L type wrench | 1 PCS | |
| 64 Decorative caps | 1 SETS | |
| 65 Philip's head screw | 4 PCS |
