Product Type	Car Speaker
Brand	Blaupunkt
Model	MPS 1652 TY
Speaker Size	6.5 inches (165 mm)
Peak Power Handling	300 W
RMS Power Handling	80 W
Impedance	4 ohms
Sensitivity	90 dB
Frequency Response	40 Hz - 20 kHz
Tweeter Type	1-inch Silk Dome
Woofer Cone Material	Polypropylene
Mounting Depth	2.1 inches (53 mm)
Cutout Diameter	5.6 inches (142 mm)
Magnet Type	High-Performance Ferrite
Weight (per pair)	1.5 kg
Color	Black
Maintenance	Clean with dry cloth; avoid liquids
Safety	Ensure proper mounting; avoid short circuits
Spare Parts	Mounting screws, speaker grilles (contact support)

Frequently Asked Questions - MPS 1652 TY BLAUPUNKT

How do I install the Blaupunkt MPS 1652 TY speakers?

Installation requires a suitable mounting location, typically in the car door or rear deck. Use the included screws and brackets. Ensure the speaker cutout diameter is 5.6 inches (142 mm) and mounting depth is at least 2.1 inches (53 mm). Connect the positive and negative wires correctly.

What is the power handling of this speaker?

The peak power handling is 300 W, and the RMS power handling is 80 W. It is recommended to use an amplifier that matches the RMS rating for optimal performance.

Is the MPS 1652 TY waterproof?

These speakers are not designed to be waterproof. They should be installed in a dry location within the vehicle to avoid moisture damage.

What size are the Blaupunkt MPS 1652 TY speakers?

They are 6.5-inch (165 mm) coaxial speakers. The cutout diameter required is 5.6 inches (142 mm), and the mounting depth is 2.1 inches (53 mm).

Can I use these speakers with a factory stereo?

Yes, they can be used with factory stereos, but for best performance, pair them with an aftermarket amplifier. The impedance is 4 ohms, which matches most car audio systems.

What is the frequency response of the MPS 1652 TY?

The frequency response is 40 Hz - 20 kHz, providing good bass and clear highs. The built-in tweeter handles high frequencies.

Are grilles included with the speakers?

Yes, the speakers typically come with protective grilles. If missing, contact Blaupunkt support for replacements.

How do I clean the speakers?

Use a soft, dry cloth to gently wipe the cone and grille. Do not use any liquids or abrasive cleaners as they may damage the speaker.

What warranty does Blaupunkt offer for the MPS 1652 TY?

Blaupunkt offers a limited warranty that covers manufacturing defects. Check the included warranty card or contact support for specific terms.

Can I replace the tweeter in these speakers?

The tweeter is integrated into the coaxial design and is not user-replaceable. If damaged, the entire speaker may need to be replaced.

USER MANUAL MPS 1652 TY BLAUPUNKT

Enjoy it.

Proper system planning is vital in order to maximize the device's performance and road safety. Plan your installation carefully to avoid compromising performance reliability of the system. Consult an authorized Blaupunkt delaler for installation or reparation. Read the manual carefult before operating the device for the first time.

Safety Notes

Ensure to follow below safety notes during installation and wiring connection: -

• Disconnect the negative terminal of the battery. Refer to the safety notes of the vehicle manufacturer.
• Ensure positions of the holes are nowhere near the vehicle component to avoid any damage during drilling.
• Ensure cross section of the cable is no less than 2.5mm^2 if the positive and negative cables are too long.
• Incorrect installation may result in malfunction of the device or the car sound system.

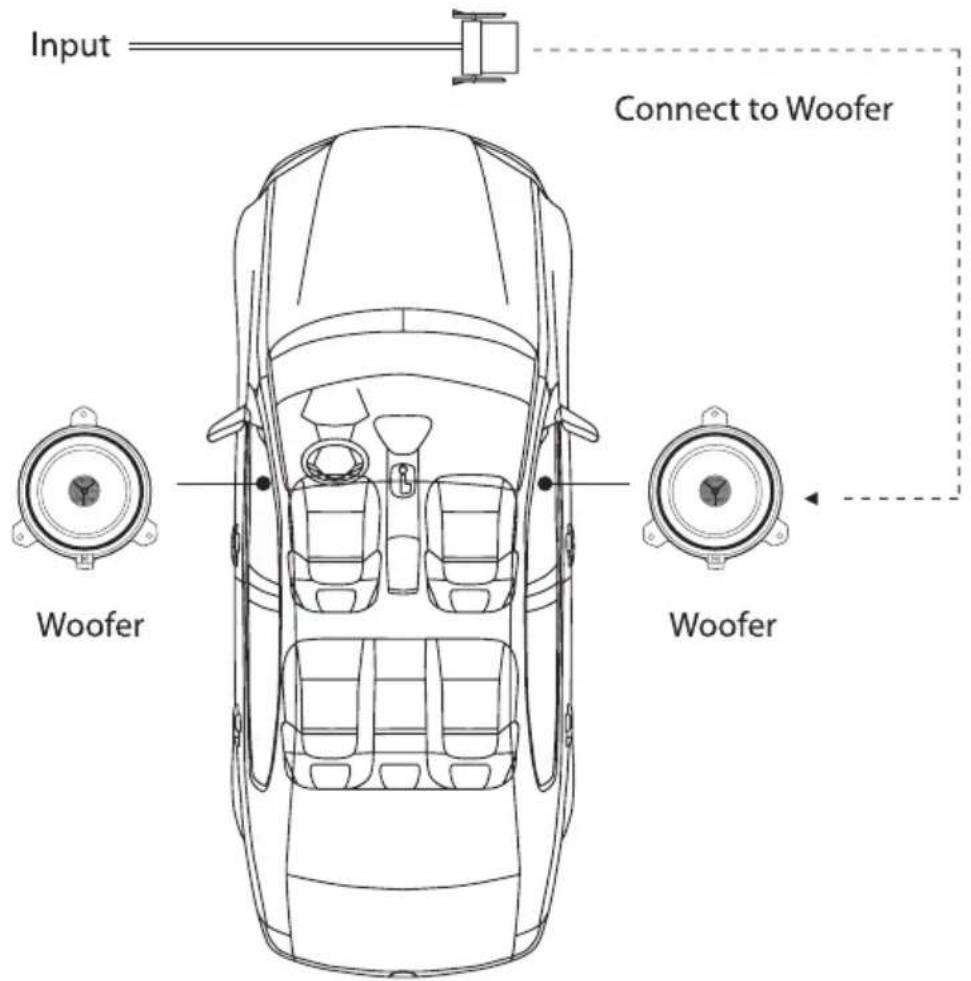

Installation and Connection Instructions

• Select a dry and well-ventilated location to install the device.
• The device must not be installed in overly exposed location such on therear shelf, rear seat etc.
• The installation location must be suitable for screw holes and have stable ground support.

Disclaimer

In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products.

USA & CANADA: This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on as-is basis. No warranty, whether expressed or implied is provided in the U.S. or Canada.

Voltage Supply

• Use the supplied power extension cable to connect to the positive battery terminal.
• Firmly and carefully connect the ground lead to a bare metal point on the vehicle chassis.
• The control of the device should be a two-channel control, either via the preamplifier output of the car sound system.

- A control solely via the right or left channel is also possible since the low-frequency portion of the music is generally identical on both channels.

Recycling and Disposal

Do not dispose of your old unit in the household trash! Use the return and collection systems available to dispose of the old device.

This manual may be updated from time to time without any notice.

Pair of 6.5" Toyota plug & play 2-way coaxial speaker to upgrade OE speaker for selected models with Polypropylene Cone including mounting hardware

• Max. Power Handling : 130W
• Normal Output Power (RMS) : 40W
• Voice Coil : 25mm
• Tweeter Size : 41.5mm
• Impedence: 4ohms
• Frequency Response : 2,000Hz - 20,000Hz
• Sensitivity: 90±3dB

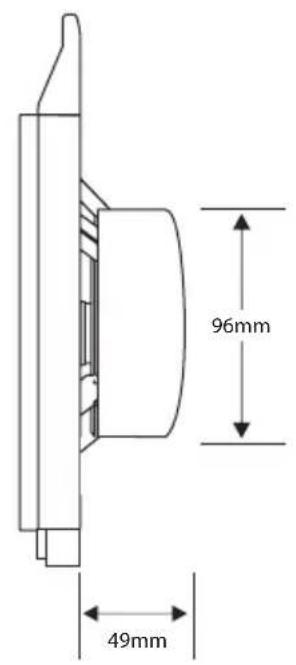

• Mounting Depth : 48.5mm

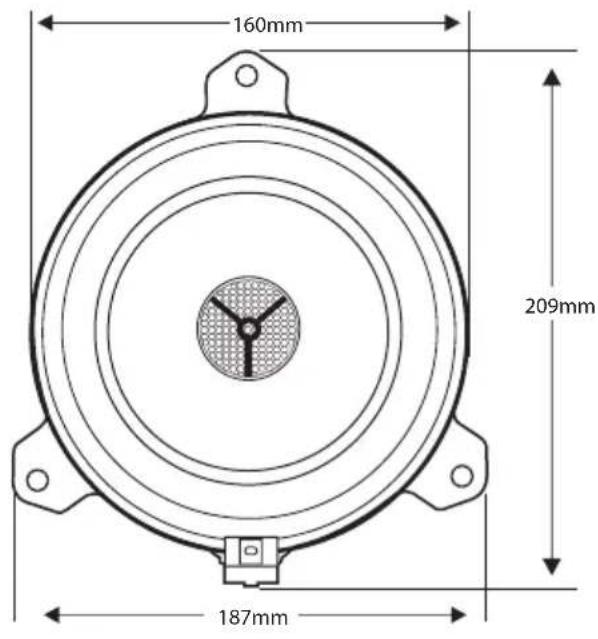

• Mounting Hole Diameter : 133mm

TROUBLESHOOTING

If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist.

Problems	Possible Causes	Solutions
Speaker does not work	Incorrect or loose wiring connection.	Ensure proper wiring connections of speaker.
	Fraying or broken cables.	Repair or replace if the cables are damaged.
	Speaker is damaged.	Replace with a new speaker.
Distorted and hissing sound	Voice coil or speaker cone is damaged.	Replace with a new speaker.

MPS 1652 TY can be installed in the following list of car models :
