GTx 402 ES - Car speaker BLAUPUNKT - Free user manual and instructions

USER MANUAL GTx 402 ES BLAUPUNKT

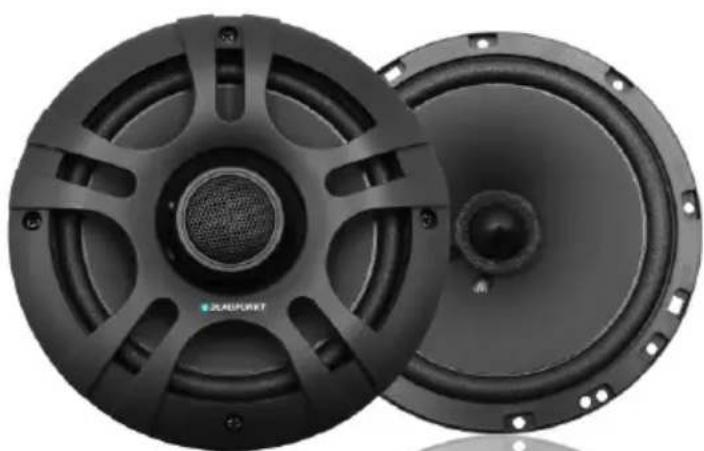

Two black speaker plates with metallic blades, shown from different angles (no text or symbols visible)

Two black speaker plates with visible sound waves and mounting holes (no text or symbols)

Enjoy it.

Icon of a hand holding wrench and wrench, symbolizing mechanical or electrical repair (no text or symbols)

DEUTSCH....3

Einbau....10

We provide a manufacturer's warranty for products bought within the European Union. For devices purchased outside the European Union, the warranty terms issued by our respective responsible domestic agency are valid. The warranty terms can be called up from www.blaupunkt.com.

Safety Notes

Please observe the following safety notes during the installation and connection.

• Disconnect the negative pole of the battery! Observe the safety notes of the vehicle manufacturer.
• When you drill holes, ensure that you do not damage any vehicle components.
• Use cable glands for holes with sharp edges.
• Leave ample clearance between the cables and other harnesses.
• An incorrect installation can result in malfunctions of the electronic vehicle systems or your car sound system.

Recycling and disposal

Please use the return and collection systems available to dispose of the product.

Subject to changes!

FRANÇAIS

Please read these operating instructions before using the equipment for the first time.

Safety Notes

Please observe the following safety notes during the installation and connection.

Disconnect the negative terminal of the battery before carrying out installation and connection work.

Observe the vehicle manufacturer's safety instructions (regarding airbags, alarm systems, trip computers, vehicle immobilisers).

Prior to drilling the mounting holes, make sure that no cables and parts of the vehicle will be damaged.

Leave ample clearance between the cables and other harnesses. Use cable glands for holes with sharp edges.

An incorrect installation can result in malfunctions of the electronic vehicle systems or your car sound system.

Recycling and disposal

Please use the return and collection systems available to dispose of the product.

Subject to changes!

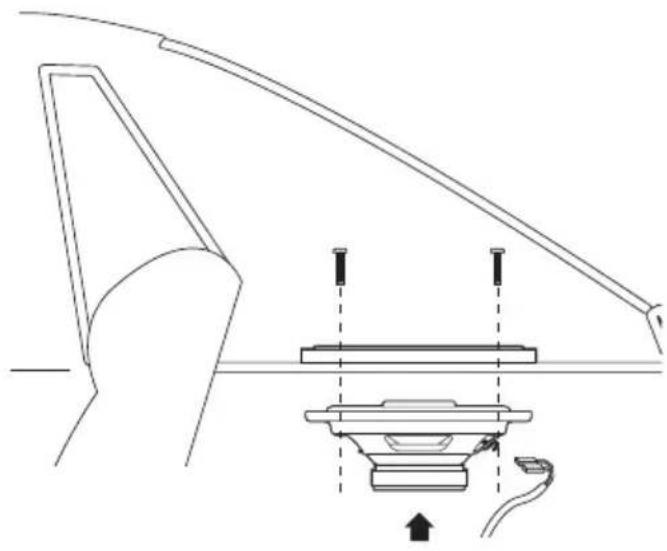

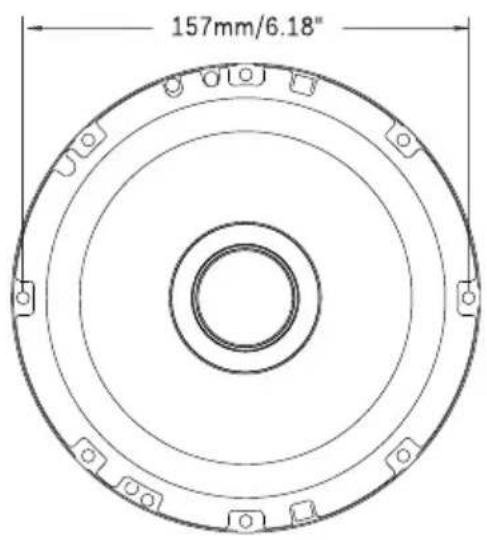

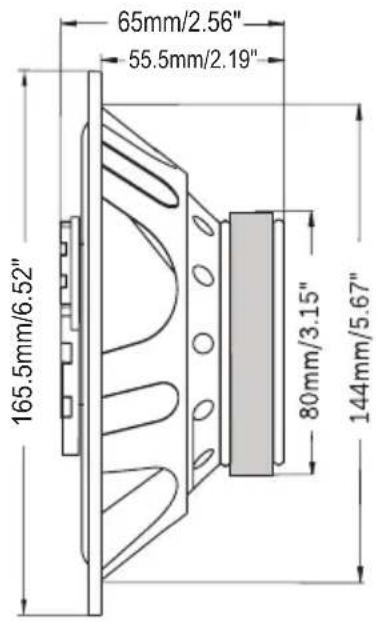

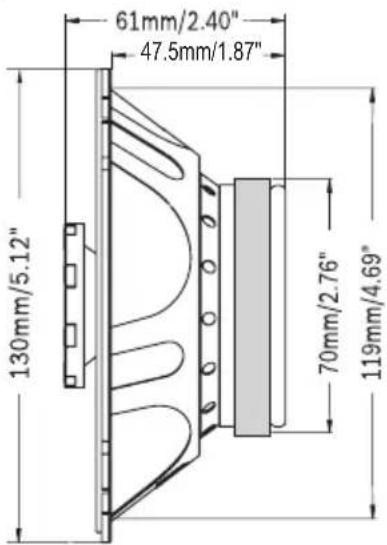

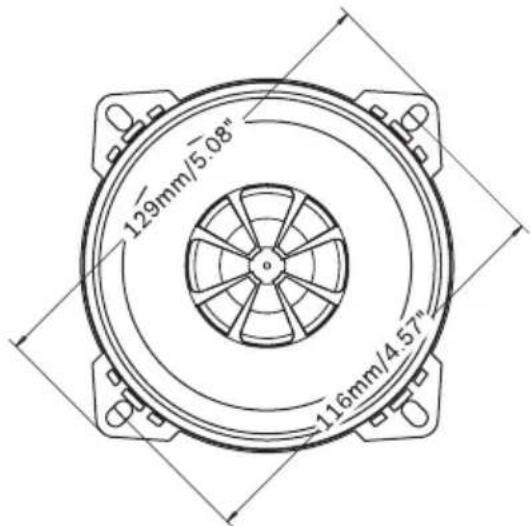

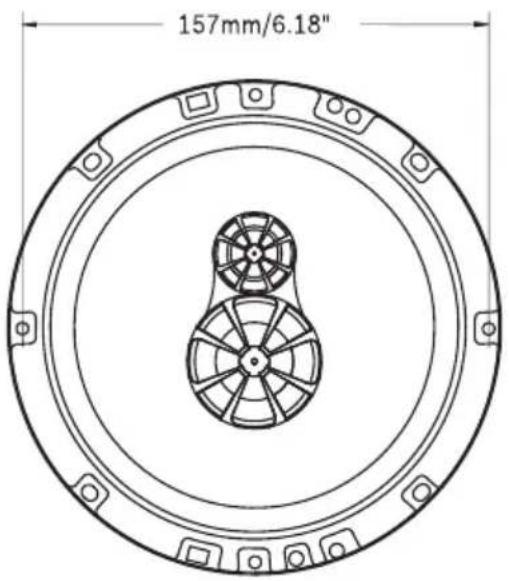

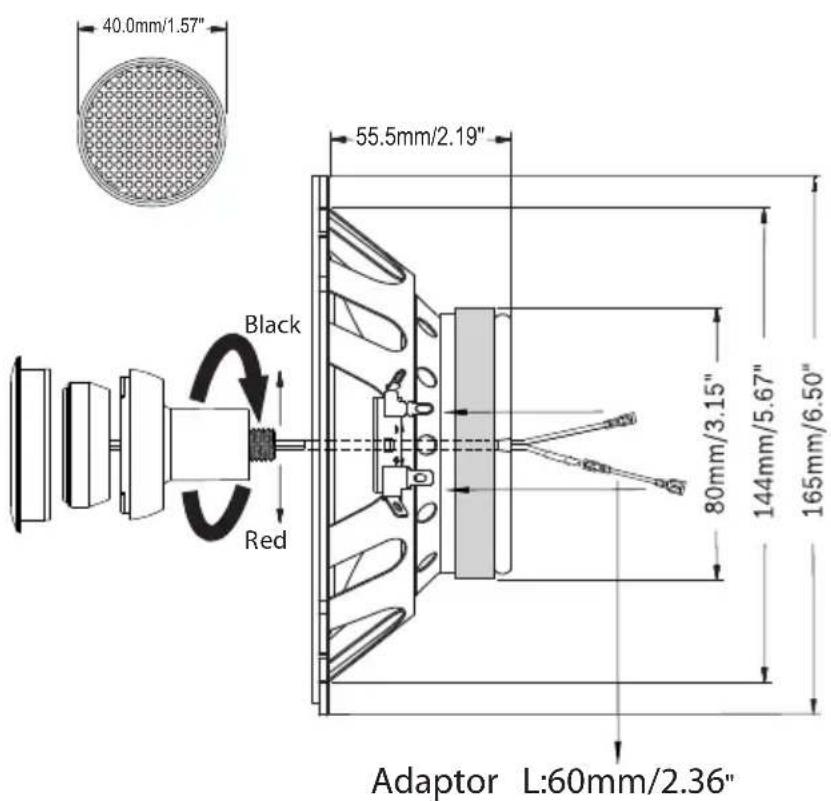

Einbau • Installation • Montage • Instalación • Montagem • Montaggio • Inbouw • Montering • Inmontering • Asennus • Εγκατάσταση • Montaj • Montaż • Montáž • Montáž • Beszerelés • Установка • Montare • Монтаж • Ugradnja • Vgradnja • Ugradnja • Installation

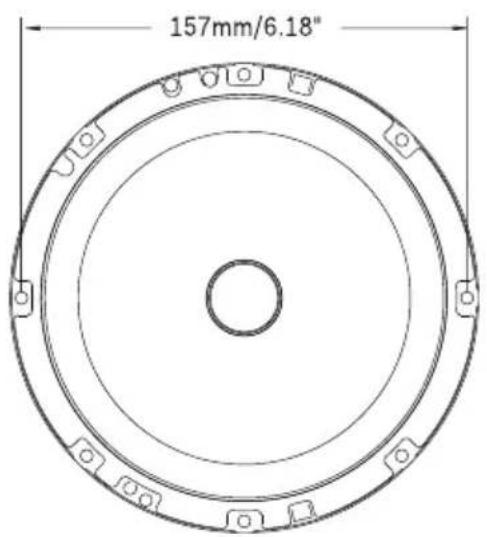

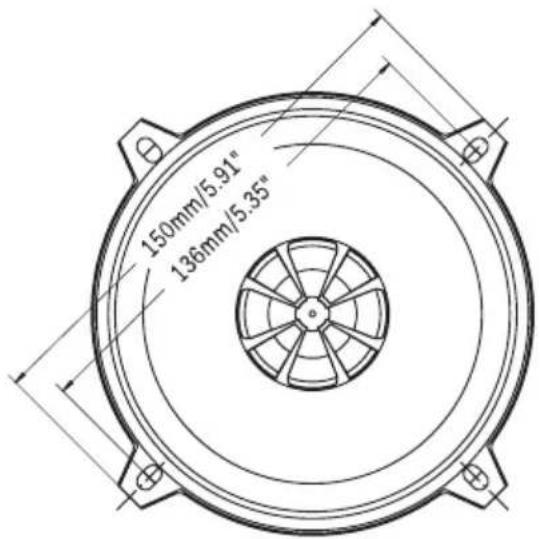

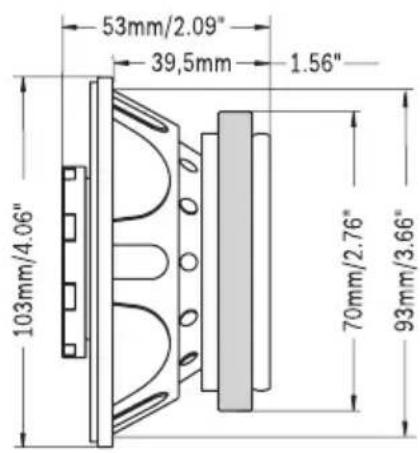

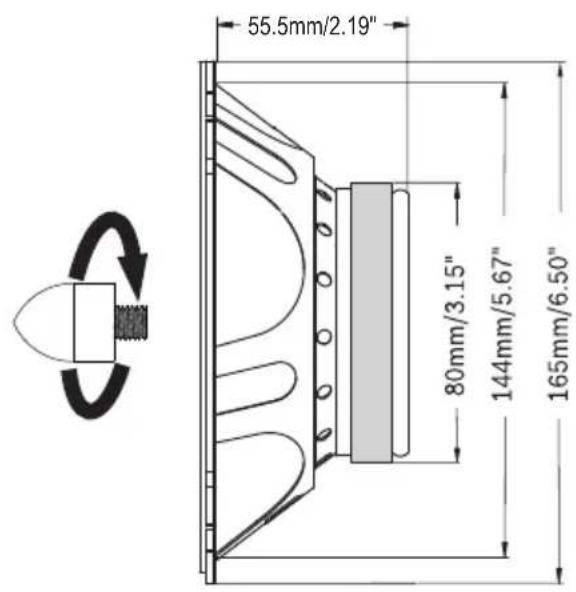

Technical line drawing of a mechanical assembly with no visible text or symbols

GTx 402 ES

GTx 542 ES

GTx 662 ES

The cable must be threaded through the hole

GTx 663 ES

Technische Daten • Technical data • Caractéristiques techniques • Datos técnicos • Dados técnicos • Dati tecnici • Technische gegevens • Tekniske data • Tekniska data • Teknisettiedot • Техника характеристика • Teknik veriler • Dane techniczne • Technické údaje • Technické údaje • Müszaki adatok • Технические характеристики • Date tehnice • Технически данни • Tehnički podaci • Tehnični podatki • Specifi kacije • Technical data

Performance GTx 402 ES		Performance GTx 662 ES
Peak power handling	140 Watt	Peak power handling	220 Watt
RMS power handling	30 Watt	RMS power handling	45 Watt
Impedance	4 ohms	Impedance	4 ohms
Frequency response	90-20.000 Hz	Frequency response	55-22.000 Hz
Sensitivity	90 dB (2.83 V/m)	Sensitivity	92 dB (2.83 V/m)
Performance GTx 542 ES		Performance GTx 663 ES
Peak power handling	180 Watt	Peak power handling	240 Watt
RMS power handling	40 Watt	RMS power handling	50 Watt
Impedance	4 ohms	Impedance	4 ohms
Frequency response	70-20.000 Hz	Frequency response	40-22.000 Hz
Sensitivity	91 dB (2.83 V/m)	Sensitivity	93 dB (2.83 V/m)

Blaupunkt

Competence Center Car Multimedia

Evo-Sales GmbH

Hastenbecker Weg 33

31785 Hameln/Germany

www.blaupunkt-automotive.com
