USER MANUAL BPH S24T-6 PowerPlus
User Manual Battery Pack
1. Important Safety Warnings
Please comply with all warnings and operating instructions in this instruction strictly. Read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.
- Do not try to assemble or repair the unit yourself, contact your local supplier, seek for help of qualified technician
- To eliminate any overheating of the battery box, keep all ventilation openings free from obstruction and do not place any foreign objects on top of the battery bank. Keep the battery box 20 cm away from the wall.
- Make sure the battery box is installed within the proper environment as specified. (0-40°C and 30-90% non-condensing humidity)
- Do not install the battery box under direct sunlight. Your warranty will be void if the batteries fail due to overheating.
- This battery box is not designed for use in dusty, corrosive and salty environment.
- The warranty for this battery bank will be void if water or other liquid is spilled or poured directly onto the battery box. Similarly we do not warrant any damage to the battery box if foreign objects are deliberately or accidentally inserted into the battery box enclosure.
- The battery will discharge naturally if the system is unused for a period of time.
- It should be recharged every 2-3 months if unused. If this is not done, then the warranty will be null and void. During normal operation, the batteries will be automatically remained in charged condition.
- Servicing of batteries should be performed or supervised by trained personnel with knowledge of batteries and the required precautions.
- When replacing batteries, it is necessary to replace ALL batteries with the same quantity, type & capacity.
- CAUTION – Do not dispose of battery or batteries in a fire. The battery may explode.
- CAUTION – Do not open or mutilate the batteries. The electrolyte from the batteries is toxic and harmful to the skin and eyes.
- CAUTION – Risk of Electric Shock – Hazardous voltage may exist between battery terminals and ground. Test before touching with bare hands.
- CAUTION – A battery can present a risk of electrical shock and high short circuit current. The following precaution should be observed when working on batteries:
- Remove watches, rings, or other metal objects.
- Use tools with insulated handles.
- Wear rubber gloves and boots.
- Do not lay tools or metal parts on top of batteries.
- Disconnect charging source prior to connecting or disconnecting battery terminals.
- Do not plug or unplug the battery connector if UPS works in DC (discharging) mode.
Installation and Setup
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use
Storage & Maintenance
The unit contains no user-serviceable parts. If the battery service life (3\~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer.
Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material.
Storage
Before storing, charge the unit 4 hours. Store the unit covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table:
| Storage Temperature Recharge Frequency Charging Duration | |
| -25°C - 40°C Every 3 months 1-2 hours | |
| 40°C - 45°C Every 2 months 1-2 hours | |
How to assemble BP S24T-6x9Ah
Warning:
Be careful when connect batteries, don't make batteries have short circuit.
- The receptacles' wires have been assembled, please do not dismantle them.
a). Put the battery on the plastic package at first.

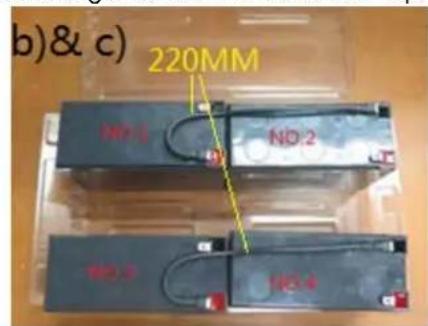

b). The NO.2 battery's cathode connects to NO.1 battery's anode.
c). The NO.4 battery's cathode connects to NO.3 battery's anode.

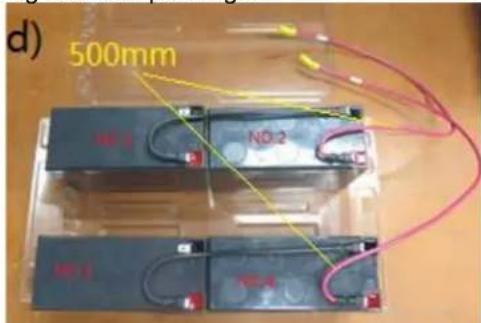

d). The bat receptacle's 2 pcs longer red wire connect to the NO.2 & NO.4 battery's anode.
e). The bat receptacle's 2 pcs longer black wire connect to the NO.1& NO.3 battery's cathode.

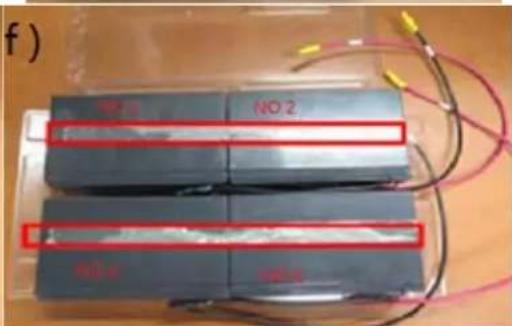

f). Put down the battery and add the double-sided adhesive on the each side of battery.

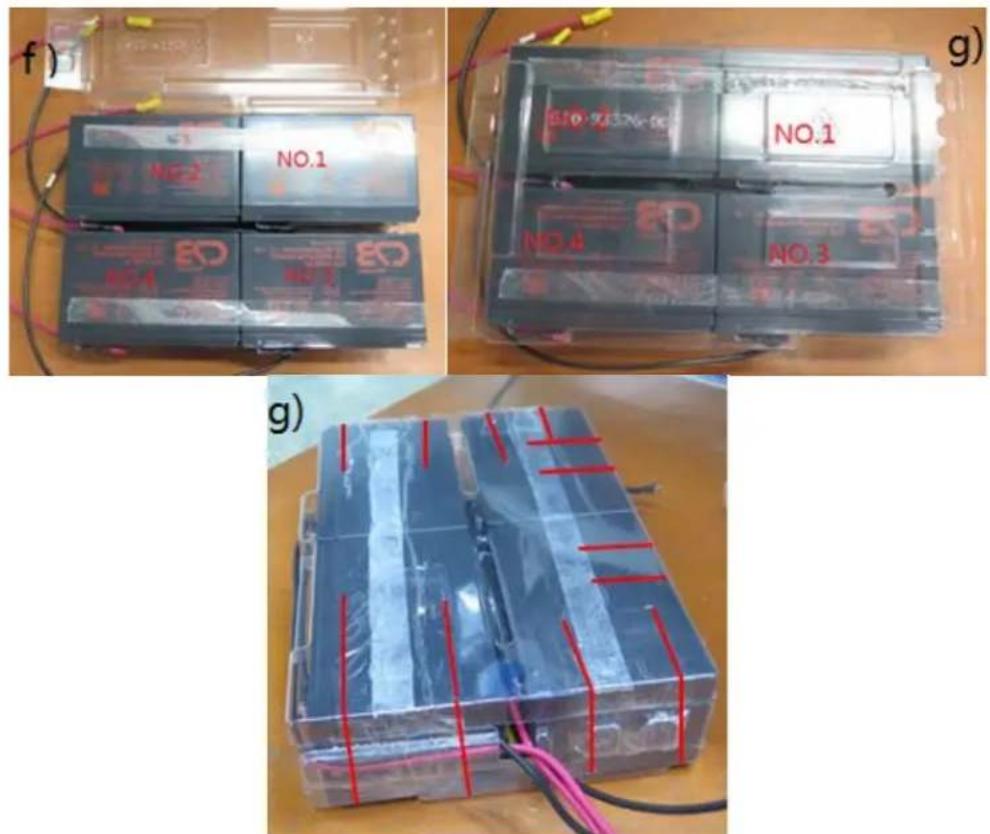

g). Cover the plastic bag and use the cellulose tape to tighten the package.
- Please place the batteries into the Battery Case and fix them as below.

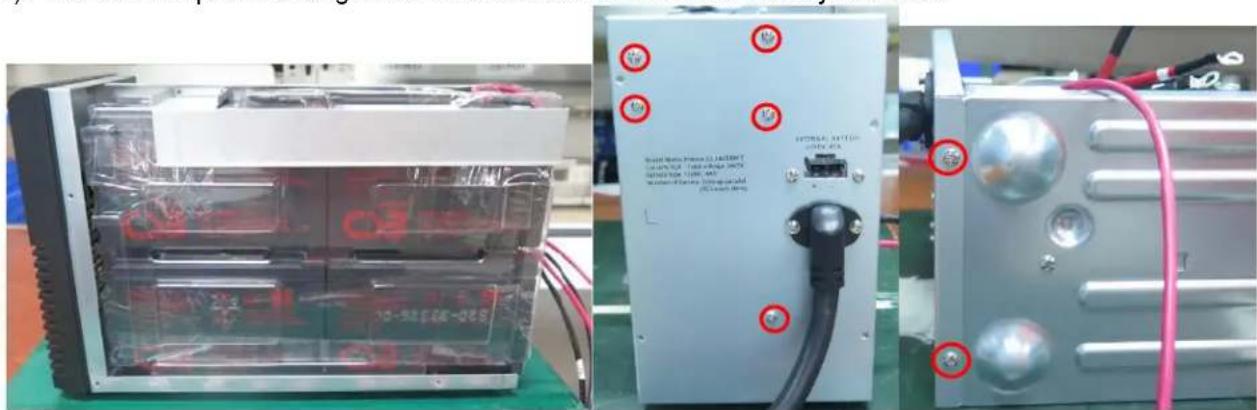

a). Put the battery package into the battery case and lock with it by metal.
b). install and lock the rear with screw.
c). Put the NO.6& NO.5 battery in the battery case on other side.
d). The NO.5 battery's cathode connects to NO.6 battery's anode.
e). The bat receptacle's longer black wire connect to the NO.6 battery's cathode.
f). The bat receptacle's longer red wire connect to the NO.5 battery's anode.

