USER MANUAL microSDHC Class 4 Goodram

Keep out of reach of children and pets.

Swallowing or other misuse may cause suffocation or other injury. Contact a doctor if you suspect a child has swallowed the Product.

Do not disassemble or modify the Product. The manufacturer is not responsible for the loss, destruction or damage of integral and integrated part of the product/set.

Keep away from heat sources such as radiators, stove, fireplace, etc.

Mechanical defects are not subject to the complaint.

If the Product produces an odor, overheats or smokes, immediately turn off the device with which the Product is used, and disconnect the power cord from the outlet. Do not use the Product again.

Only use the Product with general home or office electric appliances. Do not use the Product in equipment or systems that requires extraordinarily high levels of quality and/or system reliability (eg. set-top digital / analog recording function data - on demand) or in equipment the malfunction or failure of which may cause loss of human life, bodily injury, property damage or serious effect to the public.

The Product is labeled based on the memory chip(s) it contains, not the amount of memory capacity available for data storage by the end user. Part of the capacity is reserved for Product functionality.

Approximate usable capacity (1GB = 1,073,741,824 bytes):

57.6GB (64GB Flash card)

28.8GB (32GB Flash card)

14.4GB (16 GB Flash card)

7.2 GB (8GB Flash card)

3.6GB (4GB Flash card)

1.8 GB (2GB Flash card)

Read and write speed may vary depending on user-specific conditions, such as devices used and file size transferred.

Please read your device manual carefully and entirely before using this memory product

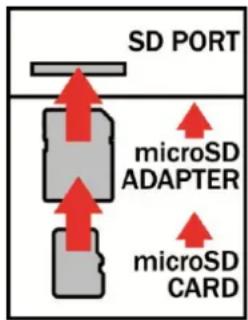

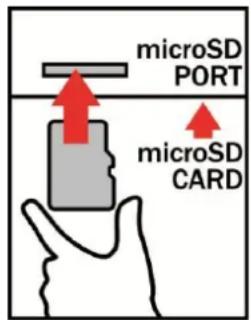

Instructions: Insert the card to appropriate device socket.

Note!

SDXC cards work with the following operating systems:

• Windows Embedded CE 6.0
• Windows Vista with Service Pack 1
• Windows 7

- Windows Server 2008

• Mac OS X Snow Leopard 10.6.5 or later.

- In addition to Windows XP and Windows Server 2003, Microsoft released the relevant update

- Not available for older operating systems than Windows XP

Speed Class and UHS Speed Class* symbols indicate minimum video recording performance. The Speed Classes defined by the SD Association are Class 2, 4, 6 and 10.

	Full SD	miniSD	microSD	SD Card Capacity
SD				up to 2GB
SDHC				High Capacity4GB to 32GB
SDXC				Extended Capacity
				Over 32GB up to 2TB

	Marks	Operable Under	Applications	SD Memory Card
Speed Class		High Speed Bus I/F	Full HD video recordingHD still consecutive recording	SD, miniSD, microSDSDHC, miniSDHC, microSDHC
		Normal Bus I/F	HD ~ Full HD video recording	SDXC, microSDXC
	[C8T1]		SD video recording
UHS Speed Class		UHS-I Bus I/F	Full higher potential of recording real-time broadcasts and capturing large-size HD videos	SDHC UHS-I and SDXC UHS-I

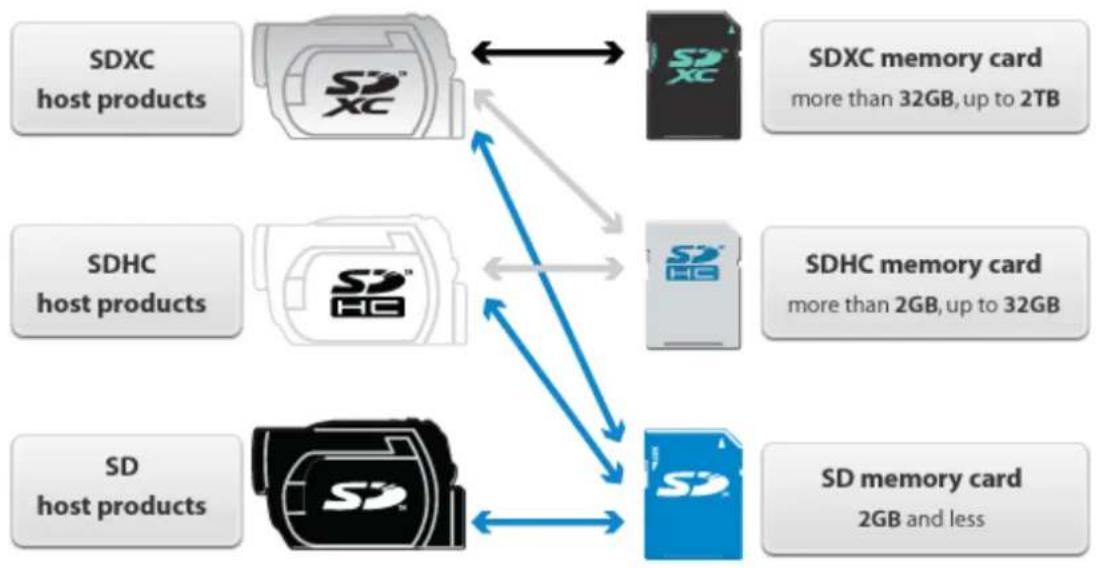


	4 GB	8 GB	16 GB	32 GB	64 GB	128 GB
Standard Quality(MP3, 128kbps)	60+ hrs.	120+ hrs.	240+hrs.	480+hrs.	960+ hrs.	1.920+hrs.
High Quality(MP3, 320kbps)	30+ hrs.	60+ hrs.	120+hrs.	240+hrs.	480+ hrs.	960+ hrs.
Professional Quality(WAV, uncompressed)	6+ hrs.	12+ hrs.	24+ hrs.	48+ hrs.	96+ hrs.	192+ hrs.
