PB06-QC - Mobile Device Charger Valore - Free user manual and instructions

Product Type	Portable Power Bank / Quick Charger
Brand	Valore
Model	PB06-QC
Battery Type	Built-in Polymer Lithium-ion
Battery Capacity	8000mAh
Input	5V/2.0A (max)
Output 1 (Standard USB)	5V/2.0A (max)
Output 2 (Quick Charge)	5V/1.8A, 9V/1.5A, 12V/1.2A (max)
Charging Time	5 hours (with 5V/2.0A adapter)
Recharging Cycles	500 times
Operating Temperature	10°C to 40°C
Material	ABS
Dimensions (H x W x D)	145 x 70 x 15 mm
Weight	184g
Features	Quick Charge 2.0, dual USB outputs, LED torch, 4-level LED indicator, power button
Package Contents	8000mAh Power Bank, Quick Charge USB cable, Soft pouch
Maintenance & Cleaning	Wipe with a dry, soft cloth. Do not use liquids or abrasives.
Safety	Do not disassemble, crush, or expose to water, heat, or metal objects. Use only provided charger.
Repair & Spare Parts	Not user-serviceable. Contact Valore support for issues.
Warranty	Register at www.valore.sg for warranty; technical support at [e-mail].

Frequently Asked Questions - PB06-QC Valore

How do I charge the power bank itself?

Connect the power bank to a USB adapter (5V/2.0A) using the provided charging cable. The LED indicator shows charge level: 4 blue LEDs mean fully charged. For first use, charge for 14-16 hours to maximize battery performance.

How do I charge my mobile device with the power bank?

Connect your device to one of the USB outputs using a compatible cable. Press the power button once to start charging. The standard output (USB 1) provides 5V/2.0A, while the Quick Charge output (USB 2) supports 5V/1.8A, 9V/1.5A, or 12V/1.2A for compatible fast-charging devices.

What is the Quick Charge feature and how do I use it?

The Quick Charge output (labeled with QC) supports Qualcomm Quick Charge 2.0 technology, allowing compatible devices to charge up to 75% faster. Simply connect your fast-charging device to the QC output and press the power button. Non-compatible devices will charge at standard 5V.

How do I use the built-in LED torch?

Press and hold the power button for 3 seconds to turn on the LED torch. Repeat the same action to turn it off. The torch provides portable light in dark environments.

Why is my device not charging when connected?

First, ensure the power bank itself is charged (LED indicator shows some lights). If the power bank is flat, fully charge it. Also check the cable connections and try a different cable. Press the power button once to activate output.

Why does the power bank battery drain quickly?

Running multiple applications or using the power bank while charging a device that is in heavy use (e.g., gaming, video streaming) can cause faster drain. Turn off unnecessary apps on the connected device. Heat generation also increases energy consumption.

What should I do if the power indicator is not flashing?

Check the charging adapter voltage: use a 5V supply with at least 800mA. Ensure the charging cable is firmly connected and not damaged. If the problem persists, contact Valore support.

How can I extend the battery life of the power bank?

Fully charge the power bank before first use (14-16 hours). Recharge it every three months if not in use. Avoid exposing it to extreme temperatures. Do not over-discharge; recharge when the indicator shows low battery.

Can I charge two devices at the same time?

Yes, the power bank has two USB outputs. You can charge one device from the standard output and another from the Quick Charge output simultaneously. The total output current will be shared.

What safety precautions should I follow?

Do not disassemble, crush, or puncture the power bank. Avoid water, heat sources, and short-circuiting with metal objects. Use only the provided charger. Keep away from children. If the battery swells or leaks, stop use immediately and contact support.

USER MANUAL PB06-QC Valore

Thank you for purchasing the Valore Quick Charge 8000mAh Power Bank with LED Torchlight.

Take Qualcomm Quick Charge 2.0 technology on the go with the Valore Quick Charge 8000 Power Bank. Dual ports let you charge two devices concurrently and the quick charge output allows you to charge your fast-charging compatible devices up to 75% faster. In addition, the built-in LED light function means you have a portable torchlight wherever you go.

Important: Please read the user manual thoroughly before using your Power Bank.

Specifications:

• Battery type: Built-in Polymer Lithium-ion
• Battery capacity: 8000mAh
• Input: 5V/2.0A (max)
  • Output 1: 5V/2.0A (max)
• Quick Charge Output 2: 5V/1.8A, 9V/1.5A, 12V/1.2A (max)
• Charging time: 5 hours (5V/2.0A USB adaptor)
• Recharging cycle: 500 times cycle
• Operating temperature: 10^ to 40^
• Material: ABS
• Dimensions (H x W x D): 145 x 70 x 15mm
• Weight: 184g

Package Contents:

• 8000mAh Power Bank
• Quick Charge USB charging cable
• Soft pouch

UNDERSTANDING THE PRODUCT

① Power button
② LED indicator
③ Quick charge USB output (DC5V/1.8A, 9V/1.5A, 12V/1.2A) (max)
④ LED torch
⑤ USB output (DC5V/2.0A) (max)
⑥ Micro USB charging port

START USING THE 8000MAH POWER BANK

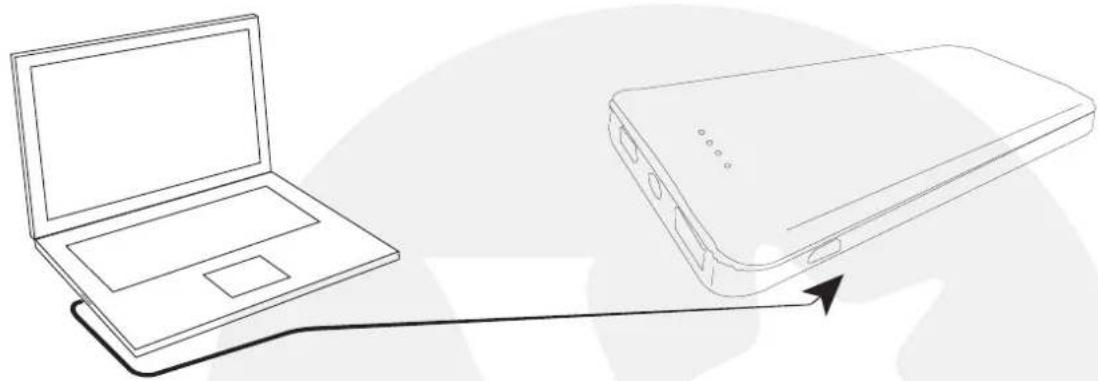

1) Charging the power bank

Connect your power bank to the USB adapter (2.0A) using the charging cable provided. When the LED indicator displays 4 blue LED lights, it indicates that the battery is fully charged.

Line drawing of a laptop connected to a smartphone via an arrow (no text or symbols)

Power level:

One LED: <25%

Two LED: <50%

Three LED: <75%

Four LED: < 100%

*The above mentioned is for reference only

Note: Fully charge the power bank for at least 14-16 hours before first use. This is to maximise the battery performance and prolonging the life of lithium ion batteries. Recharge your power bank once every three months when not in use or seldom used.

2) Charging of devices

Connect your power bank to your mobile device's micro usb port using the USB outputs. The quick charge USB output charge at 9V/1.5A, 12V/1.2A (max) for compatible devices and 5V/2.0A (max) for non compatible devices. Press the power button once to activate charging.

3) LED Torch function

Press and hold the Power button for 3 seconds, the LED torch turns on. To turn it off, press and the Power button for 3 seconds.

Line drawing of a hand pointing at a device component (no text or symbols)

TROUBLESHOOTING

Issue 1:

Power bank is unable to charge your mobile device

Problem 1: Power bank battery is flat

Solution: Fully charge the power bank and resume charging your mobile device.

Issue 2:

Power bank drains off quickly

Problem: Running multiple applications on your mobile device

Solution: Turn off all running applications on the mobile device and leave it to charge till full.

Extra consumption of energy would be due to heat produced during the charging of your mobile device.

Issue 3:

Unable to charge (power indicator is not flashing)

Problem 1: The voltage of the power adapter is too low.

Solution: Use 5V supply with at least 800mAh for charging.

Problem 2: Faulty cable

Solution: Check the cable to ensure that it is well connected or replace damaged cables.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not dismantle or open the power bank
• Do not subject the power bank to mechanical shock such as crushing, bending, puncturing or shredding. Avoid dropping or placing heavy object on the power bank.
• Do not expose the power bank to water or other liquids
• Do not expose the power bank to hear and/or fire. Avoid storage in direct sunlight.
• Do not attempt to insert foreign objects into the power bank. Do not short-circuit the power bank by storing it haphazardly in receptacle where it may be short-circuited by other metallic or conductive objects.
• Do not use any charger* other than that specifically provided for use with the power bank. Battery usage by children should be supervised.
  *The charger may also be known as the adaptor, and is used to charge the power bank
