Product Type	Wireless Speaker with Moodlight Function
Model	BTS21
Dimensions (L x W x H)	150 x 148 x 138 mm
Weight	700 g
Battery Capacity	3000 mAh Lithium-ion
Playback Time	Up to 15 hours
Charging Time	6 hours
Standby Time	140 hours
Power Input	DC 5V/1A
Speaker Output	5W (max)
Wireless Range	Up to 10 m
Bluetooth Version	Not specified (compatible with standard Bluetooth)
Connectivity	Bluetooth, AUX, Micro SD card, TWS
LED Moodlight Modes	7 different modes
Controls	Multi-functional button (M), Play/Pause/Answer, Volume +/-, Previous/Next, Moodlight button
Charging Port	Micro USB
Material	ABS rubber oil + Metal speaker mesh
Included Accessories	Micro USB charging cable (800 mm), Auxiliary cable (800 mm)
Safety & Care	Avoid high temperature, moisture, drops; do not disassemble
Warranty & Support	Email: [e-mail]; Website: www.valore.sg

Frequently Asked Questions - BTS21 Valore

How do I pair the speaker with my phone?

Ensure the speaker is off. Turn on Bluetooth on your phone. Switch the speaker's ON/OFF/TWS switch to ON. Select 'Valore BTS21' from the device list. The LED will turn solid blue when connected.

How do I charge the speaker?

Connect the provided Micro USB cable to the charging port on the back of the speaker and a USB power source. Charge for at least 8 hours before first use. The speaker should be off while charging.

How to use TWS (True Wireless Stereo) mode?

Place both speakers within 3 meters. Set both speakers' ON/OFF/TWS switch to TWS. Wait ~30 seconds until they pair (red and blue flashing). Then connect your phone to 'Valore BTS21'.

What to do if the speaker won't connect?

Make sure the battery is charged, the speaker is within 1 meter of your device, and it is not already connected to another device. Turn the speaker off and on, then try pairing again.

How to change the LED moodlight?

With the speaker ON, press the Moodlight Mode button to cycle through 7 different modes. Long press the button to turn the moodlight on or off.

Can I play music from a Micro SD card?

Yes. Insert a Micro SD card into the slot. Press the M button to switch to Micro SD mode. Music will play automatically.

How to adjust volume and skip tracks?

Short press the Next/Volume+ button to go to next track, short press Previous/Volume- to go to previous track. Long press either to adjust volume up or down.

What should I do if there is no sound?

Check that the volume on both the speaker and your device is turned up. Ensure the music track is in a playable format. Re-pair the Bluetooth connection.

Can I use the speaker while charging?

It is recommended to use the speaker wirelessly without charging. The manual advises switching off the speaker during charging for safety and optimal battery life.

How to clean the speaker?

Wipe with a dry, soft cloth. Do not use water or cleaning agents. Keep away from moisture and liquids.

USER MANUAL BTS21 Valore

Aurora Wireless Speaker With Moodlight Function (BTS21)

VALORE

Thank you for purchasing the Valore Aurora Wireless Speaker With Moodlight Function (BTS21).

Get the party started with the Valore Aurora Wireless Speaker. A statement piece with its unique design and beautiful array of LED moodlight display. Plus, enjoy high-quality stereo sound from the 5W speaker by pairing it with another Aurora speaker.

Important: Please read the user manual thoroughly before using your wireless speaker.

Specifications:

• Wireless range: Up to 10m
• Built-in battery: 3000mAh Lithium-ion battery
- Playback time: 15 hours
- Charging time: 6 hours
• Standby time: 140 hours
• Power input: DC5V/1A
• Power output: 5W (max)
• Material: ABS rubber oil + Metal speaker mesh
• Dimension (L x W x H): 150 x 148 x 138mm
- Weight: 700g

Package Contents:

• Wireless speaker with moodlight function
• Micro USB charging cable (800mm)
  • Auxiliary cable (800mm)

UNDERSTANDING THE PRODUCT

① Moodlight Mode
② Multi-functional button (M)
③ Pause/Play/Answer
④ Previous/Volume -
⑤ Next/Volume +
⑥ AUX in
⑦ Micro SD card slot
⑧ ON/OFF/TWS
⑨ Charging port
⑩ Power indicator

START USING THE WIRELESS SPEAKER

1) Charging the wireless speaker

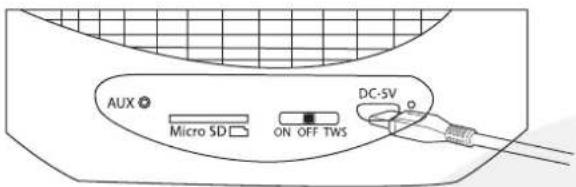

Connect the USB charging cable provided to the Micro USB charging port located at the back of the speaker.

Note: Please charge the speaker for at least 8 hours before first use. Please make sure that the speaker is switched off when charging is in progress.

2) Pairing the wireless speaker (switched off)

Single:

Step 1: Activate Bluetooth function on your mobile device to begin pairing with speaker.

Step 2: Switch on the speaker by shifting the ON/OFF/TWS switch to ON.

Step 3: Connect to the speaker by selecting 'Valore BTS21' under the device list.

Step 4: Once connected, the LED light at the will be solid blue.

Twin Speaker:

Step 1: Place both speaker together (within 3 metres) and shift bothe speaker to TWS. Red and blue led will flash alternatively. Wait about 30 seconds for speakers to finish pairing.

Step 2: Activate Bluetooth function on your mobile device. Select 'Valore BTS21' under the device list to connect.

Note: When in both speakers are connected, turn off either speaker, TWS function will be turn off.

If the pairing is not successful, please turn off wireless speaker first, and then re-pair again. After pairing is successful, paired devices will remember each other. Unless pairing information is deleted because of new pairing, no need to pair when using the next time.

If you want to pair the wireless speaker with other devices, please turn off Bluetooth function of existing source device, and pair the wireless speaker with the new device according to steps 1-4 mentioned above.

3) Wireless speaker controls

Pause/Play/Answer: Short press to play/pause music. Short press to answer. Short press to hang up. Long press to reject call.

Previous/Volume - : Short press to go to previous song. Long press to reduce volume.

Next/Volume + : Short press to go to next song. Long press to increase volume.

Multi-functional button(M) : Short press to switch between Aux, Micro SD and bluetooth mode.

4) LED mode

Under ON mode, press Moodlight Mode button to change LED (7 different LED mode), long press to turn off/on moodlight.

TROUBLESHOOTING

Issue 1: Speaker is unable to connect successfully to your mobile device

Problem 1: Speaker's battery is flat

Solution: Fully charge the speaker (6 hours) and retry connection with your mobile device.

Problem 2: Speaker not paired to your mobile device

Solution: Make sure that the speaker is successfully paired upon selecting ‘Valore BTS21’ in the device list.

Problem 3: Speaker and mobile device too far apart

Solution: Make sure that the speaker is within a metre range during pairing and connection.

Problem 4: Speaker is connected to other mobile device

Solution: Make sure that the speaker has already been disconnected before making a new connection with a new device.

Issue 2: Sound from the speaker is too soft or silent

Problem 1: Speaker's battery is low / flat

Solution: Fully charge the speaker (6 hours) and retry connection with your mobile device.

Problem 2: Speaker or mobile device's volume is too low

Solution: Turn the volume of the speaker or mobile device up to increase the volume.

Problem 3: Music track may not be audible

Solution: Make sure that the music track is of a playable format for the mobile device.

Problem 4: Speaker and mobile device might not be connected properly.

Solution: Repeat the connection step via Bluetooth again to make sure that it is connected properly and try again.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not store the speaker in a high temperature environment.
• Do not place the speaker near a fire or other excessively hot environments.
• Do not expose this speakerto moisture or submerge it in liquid. Keep speaker dry at all times.
• Do not attempt to charge the speaker using any other method or connection other than the headset's provided charging cable.
• Do not disassemble this speaker or attempt to repair or modify it in any manner.
• Be cautious of excessive drops, bumps, abrasions or other impacts to this headset. If there is any damage to the speaker such as dents, punctures, tears, deformities or corrosion, stop using the speaker and contact us immediately via email at [e-mail], or return this product to the store where you have purchased it from.
• If the product produces an abnormal smell, high temperature (low temperature during normal use), discolours or changes shape abnormally, stop using the product and contact us immediately via email at [e-mail].

DISCLAIMER & TRADEMARKS

All information, trademarks, logos, graphics, and images (“Materials”) provided on this user manual are copyrighted or trademarked and are the property of Valore Lifestyle Pte Ltd. Any unauthorized use of any material contained on the instruction manual may violate copyright laws, trademark laws, laws of privacy and communications statutes.

The trademarks, service marks and logos used and displayed in the Materials are registered and unregistered trademarks and service marks of Valore and others. All other registered and unregistered company names, product names and marks mentioned herein the (“Materials”) are the property of their respective owners and may be trademarks or registered trademarks.

Complies with IMDA Standards DA103331
