Contemporary UNG7003B - Wristwatch ORIENT - Free user manual and instructions

Type	Wristwatch
Brand	ORIENT
Model	Contemporary UNG7003B
Movement	Automatic (self-winding)
Case Diameter	40 mm
Case Thickness	12 mm
Case Material	Stainless steel
Strap Material	Leather
Strap Width	20 mm
Dial Color	Black
Crystal	Mineral glass
Water Resistance	50 meters (5 ATM)
Functions	Hour, minute, second; date display
Power Reserve	Approximately 40 hours
Accuracy	-15 to +25 seconds per day
Weight	Approximately 70 g
Warranty	2 years
Country of Origin	Japan

Frequently Asked Questions - Contemporary UNG7003B ORIENT

How do I wind the watch manually?

Turn the crown clockwise gently about 20-30 times until you feel resistance. This winds the mainspring fully.

How do I set the date?

Pull the crown out to the first position. Turn counterclockwise to adjust the date. Avoid setting between 8 PM and 4 AM.

Is the watch water resistant? Can I swim with it?

The watch is water resistant to 50 meters (5 ATM), suitable for swimming and showering, but not for diving.

What type of battery does it use?

This is an automatic watch, so no battery is needed. It powers itself by your wrist movement.

How often should I service the watch?

We recommend a full service every 3-5 years by a qualified watchmaker to maintain accuracy and longevity.

The watch is losing/gaining time. What should I do?

If the watch is consistently off by more than 30 seconds per day, it may need regulation. Contact an authorized service center.

Can I replace the strap myself?

Yes, the strap can be easily removed using a spring bar tool. Ensure the new strap has a 20 mm width.

What does '21 jewels' mean?

Jewels are synthetic rubies used as bearings to reduce friction and wear in the movement. 21 jewels is standard for an automatic caliber.

How do I care for the leather strap?

Avoid water and excessive sunlight. Clean with a dry cloth and apply leather conditioner occasionally.

Where can I find the serial number?

The serial number is engraved on the case back. It is used for warranty registration and identification.

USER MANUAL Contemporary UNG7003B ORIENT

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming imminent danger for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use			Underwater operation of crown and operation of crown with drops of water on it	Exposure to small amounts of water (face-washing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Mixed-gas Diving (using helium gas)
Non water resistant		Without WATER RESISTANT (WATER RESIST)	× ×	× ×	× ×
Water resistant watches	Water resistant for daily life	WATER RESISTANT (WATER RESIST)	×	○	× ×	× ×
	Reinforced water resistance for daily life I	WATER RESISTANT (WATER RESIST) 50m (5bar)	×	○	○	× ×	×
	Reinforced water resistance for daily life II	WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar)	×	○	○	×	×	×
Diver's watches	Diver's watch for Air Diving	AIR DIVER'S 100m / 150m 200m	×	○	○	○		×
	Diver's watch for Mixed-gas Diving	He-GAS DIVER'S 200m / 300m /...	×	○	○	○	○

* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.

CAUTION

① A watch with water resistance for daily life 30m (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50m (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
③ A watch with reinforced water resistance for daily life II 100m or 200m (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.
④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Handling the Battery

① If a button battery or coin battery is ingested, it may cause chemical burns or perforation of mucous membrane even in a short period of time, and in the worst-case scenario, may result in death. Never leave button batteries or coin batteries within the reach of infants or young children.

If a button battery or coin battery is ingested, or there is a possibility that one was ingested, it must be removed at once. Please treat as an emergency situation and contact a doctor immediately.

② Do not remove the battery from the watch. Contact the place of purchase of the watch or your nearest ORIENT authorized service center for assistance when wanting to remove the battery.
③ The battery used in this watch is not a rechargeable battery, so it cannot be recharged and used again. Do not attempt to charge the battery as doing so could cause it to overheat or explode.
④ A skin rash or other symptom may develop if leaking battery fluid comes into contact with skin. Do not leave depleted batteries sitting around for long periods of time.

(3) Replacing the Battery

① Depleted batteries that are left sitting in the watch for long periods of time may begin to leak battery acid, which could lead to malfunction. Be sure to replace depleted batteries as soon as possible.
② Replace the watch battery only with the specified battery type.
③ Battery replacement requires special-purpose tools, techniques, etc. Reversing the polarities when inserting the battery may cause the battery to overheat or explode. Contact the place of purchase or your nearest ORIENT authorized service center for assistance when wanting to replace the battery.

④ The watch comes equipped with a battery end of life indicator. If the small second hand begins to advance two tick marks for every movement, it means that the battery is nearing the end of its life and will need to be replaced.

Contact the place of purchase or your nearest ORIENT authorized service center immediately for assistance with battery replacement.

(4) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.

② Avoid a violent shock such as dropping the watch on the floor.

(5) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.

② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

Simple line drawing of a person using a tool to clean or brush (no text or symbols)

(6) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

(7) Temperature

In the environment below and above the normal temperatures < 5^ C to 35^ C> , the watch may malfunction and stop.

CAUTION

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

Cartoon illustration of a person riding a motorcycle with motion lines indicating speed (no text or symbols)

(8) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(9) About accessory parts

Do not attempt to disassemble or modify the watch.

Store the bracelet/strap pin and other small parts out of the reach of children.

If any small parts are swallowed, immediately contact a doctor.

(10) Allergic reactions

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(11) About "luminous light"

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(12) Water resistant watchband

Some models employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or the case code on the watch's case back.

1. Searching by 10-digit model number

Check the 10-digit model number on the guarantee supplied with your watch. You can also see the number on the product tag put on the watch. Its second and third digits indicate the caliber number of your watch.

Example: If the model number is “☐UB8A002B☐”, the caliber number is “UB”.

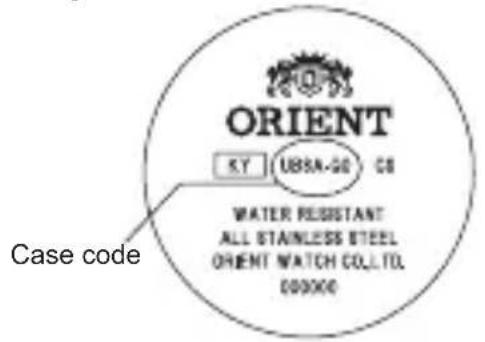

2. Searching by the case code

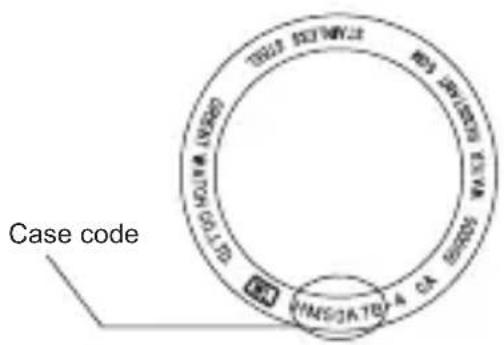

See the case code on the case back of your watch.

A: If the case code is 6 digits, the first two digits indicate the caliber number.
B: If the case code is 8 or 9 digits, the first three digits indicate the movement number. Search the caliber number corresponding to the movement number referring to the correspondence table.

Example A

Example B

Example A : When the case code is "UB8A-Q0", the caliber number is "UB".

Example B: When the case code is "HM50A7B-4", the movement number is "HM5". The caliber number corresponding the number will be found "UB" on the table.

* The place of case code may vary and its letter size may be small and difficult to see depending on the characteristics of watches.

* The pictures and illustrations on this manual may differ from the actual appearance of your watch but the function and operation procedures are the same.

◆ SPECIFICATIONS

(1) Crystal oscillator frequency: 32,768 Hz (Hz = Oscillations per second)

(2) Drive method: Step motor

<2-hands type>

Caliber		Wrist-Worn Accuracy	Operating Temperature Range	Reset Switch Battery		Battery Life (with new battery)
BF J50 ±15sec. -10°C to +60°C				○	SR512SW (MAXELL,SEIZAIKEN) 1 piece	Approx. 2 years
RB J90 ±20sec. -5°C to +50°C				○	SR521SW (SEIZAIKEN) 1 piece	Approx. 3 years Some models, 2 years
UA HM0 ±20sec. -5°C to +50°C				○	SR516SW (SEIZAIKEN) 1 piece	Approx. 3 years

<3-hands type>

Caliber		Wrist-Worn Accuracy	Operating Temperature Range	Additional Functions			Battery	Battery Life (with new battery)
				Reset Switch	Second Hand Control	Battery End of Life Indicator
QB H	Y5 ±20	sec. -5°C to +50°C		○	○	-	SR621SW (SEIZAIKEN) 1 piece	Approx. 3 years
QC RH5	±20	sec. -5°C to +50°C		○	○	-	SR626SW (MAXELL, PANASONIC, SONY) 1 piece	Approx. 4 years
RP H	25 ±15	sec. -10°C to +60°C		○ ○	○		SR421SW (MAXELL) 1 piece	Approx. 2 years
UB H	M5 ±20	sec. -5°C to +50°C		○	○	-	SR521SW (SEIZAIKEN) 1 piece	Approx. 2 years

< 2-hands type with Date Indicator >

Caliber		Wrist-Worn Accuracy	Operating Temperature Range	Additional Functions				Battery	Battery Life (with new battery)
				Reset Switch	Second Hand Control	Battery End of Life Indicator	Date Forwarding Device
GW	JP6 ±20	sec. -5°C to +50°C		○	-	-	○	SR920SW (MAXELL,PA NASONIC,SONY,SEIZAI KEN)1 piece	Approx. 3 years

< 3-hands type with Date Indicator>

Caliber		Wrist-Worn Accuracy	Operating Temperature Range	Additional Functions				Battery	Battery Life (with new battery)
				Reset Switch	Second Hand Control	Battery End of Life Indicator	Date Forwarding Device
SQ LT7 ±20sec. -5°C to +50°C				○	○	-	○	SR927SW (SEIZAIKEN) 1 piece	Approx. 3 years
SZ HE7 ±20sec. -5°C to +50°C				○	○	-	○	SR621SW (SEIZAIKEN) 1 piece	Approx. 3 years Some models, 2 years
UN HT7 ±15sec. -10°C to +60°C				○ ○	○ ○			SR920SW (SEIZAIKEN) 1 piece	Approx. 5 years
WC KJ7 ±20sec -5°C to +50°C				○	○	-	○	SR621SW (SEIZAIKEN) 1 piece	Approx. 3 years

< 3-hans type with Date and Day of the week Indicator >

Caliber		Wrist-Worn Accuracy	Operating Temperature Range	Additional Functions					Battery	Battery Life (with new battery)
				Reset Switch	Second Hand Control	Battery End of Life Indicator	Date Forwarding Device	Day of the week Forwarding Device
UG	HS9	±15sec. Some models, ±20sec.	-10°C to +60°C Some models, -5°C to +50°C	○ ○	○ ○	○			SR920SW (SEIZAIKEN) 1 piece	Approx. 5 years Some models, 3 years
UQ	HE9 ±20sec.		-5°C to +50°C	○	○	-	○	○	SR621SW (SEIZAIKEN) 1 piece	Approx. 3 years Some models, 2 years

* The above specifications are subject to change without notice for improvement.

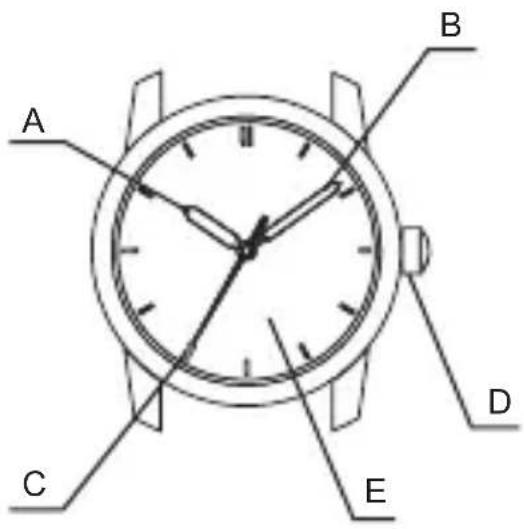

◆ NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

A: Hour hand E: Dial
B: Minute hand F: Date
C: Second hand G: Day of the week
D: Crown

<2 or 3-hands type>

* Some models may not have second hands.

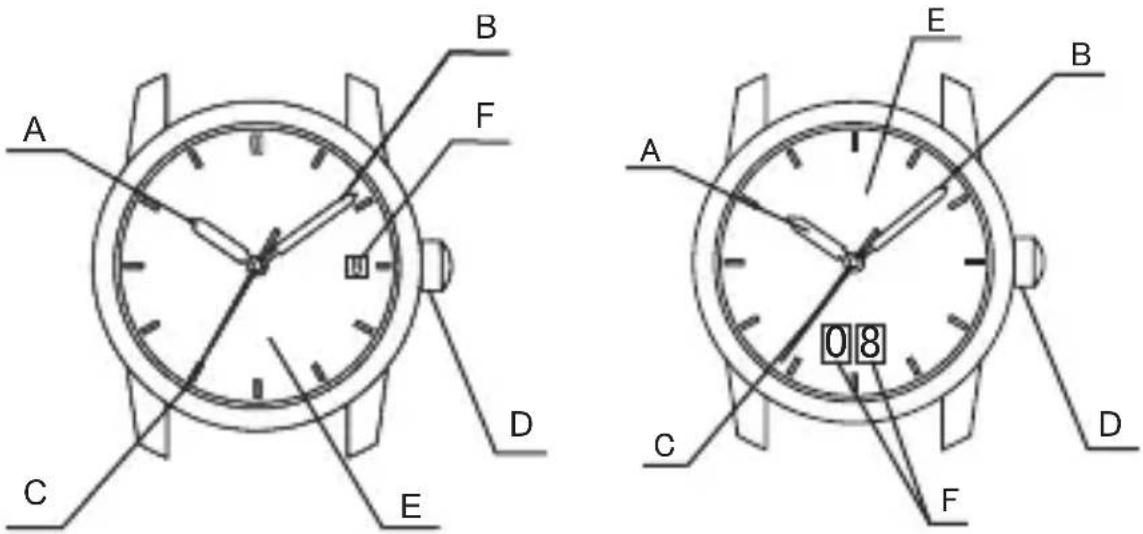

<2 or 3-hands type with Date Indicator>

* Some models may not have second hands.

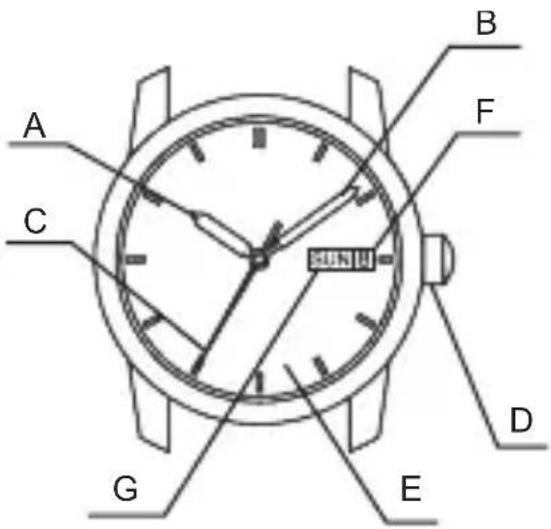

<3-hans type with Date and Day of the week Indicator>

* The position of the crown, date or day of the week indicator etc. may vary on some models.

◆ MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the time or calendar, first turn the crown to the left to loosen the screw lock.
(2) After setting the time or calendar, turn the crown to the right while pressing in, until it stops turning to securely tighten the screw.

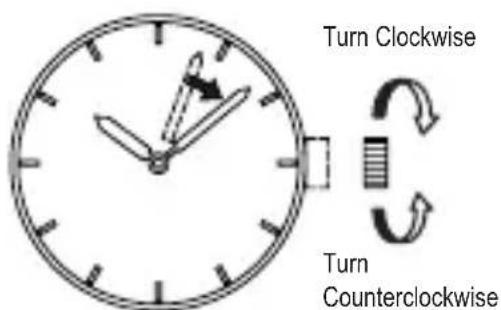

◆ HOW TO SET THE TIME [2 or 3-hands type]

(1) Pull out the crown when the second hand is at the 12 o'clock position. The second hand stops on the spot.
* If your watch has only two hands, pull out the crown any time because it does not have the second hand.
(2) Turn the crown to set the time. When setting the time, first advance it 4 to 5 minutes ahead of the current time, and then turn it back to the exact time.
(3) Push the crown back in to the normal position.

Simple analog clock face with hour and minute hands, showing time measurement (no text or numbers)

Simple analog clock face showing 3 o'clock with hour and minute hands, next to a blank rectangular timer (no text or symbols)

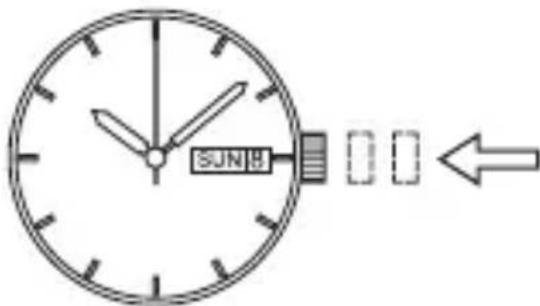

◆ HOW TO SET THE TIME [With Date and Day of the week Indicator]

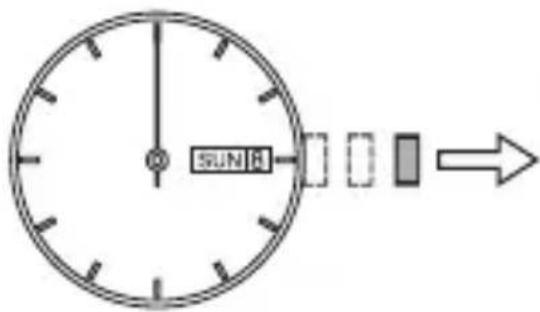

(1) Pull out the crown to the second click when the second hand is at the 12 o'clock position.

The second hand stops on the spot.

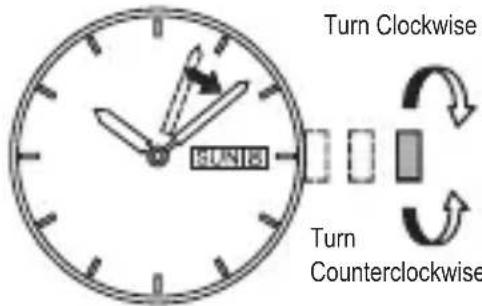

(2) Turn the crown to set the time.

When setting the time, first advance it 4 to 5 minutes ahead of the current time, and then turn it back to the exact time.

(3) Push the crown back in to the normal position.

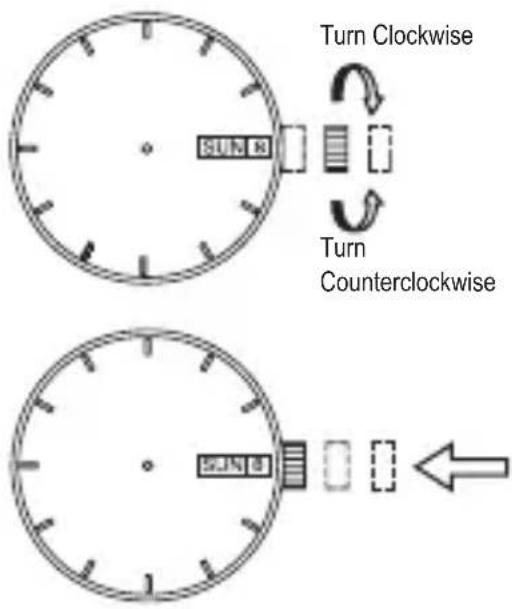

◆ HOW TO SET THE CALENDAR

CAUTION

* Do not set the date during the time period noted below because the date is changing.

Watch with Date Indicator	SQ 9:00 p.m. to 4:00 a.m.
	Others 8:00 p.m. to 2:00 a.m.
Watch with Date and Day of the week Indicator 8:00 p.m. to 5:00 a.m.

If date is set during this time period, the date may not change properly on subsequent days.

* Avoid this time period when setting the date.

(1) Pull the crown out to the first click. The crown on this watch can be pulled out to the first and second clicks.

(2) Turn the crown to adjust the date and day of the week.

* On models with separate date indicators, the tens digit will increase by one whenever the ones digit changes from 9 to 0.
* For the crown turning directions, see the table below.
* Some watches may have crowns that rotate in the direction opposite that shown in the table below.

		Date Correction	Day of the week Correction
Watch with Date Indicator	SQ Turn counterclockwise
	Others	Turn clockwise
Watch with Date and Day of the week Indicator Turn counterclockwise Turn clockwise			clockwise

* The day of the week can be displayed in two languages (only one language may be available depending on the product specifications).

Select your desired language.

(3) Press the crown back in to the normal position.

* About date correction at month's end:

Date correction is necessary for months with 30 days or less. In this case, set the date to the [1st day] on the first day of the next month.

* The position of the crown, date or day of the week indicator may vary on some models.

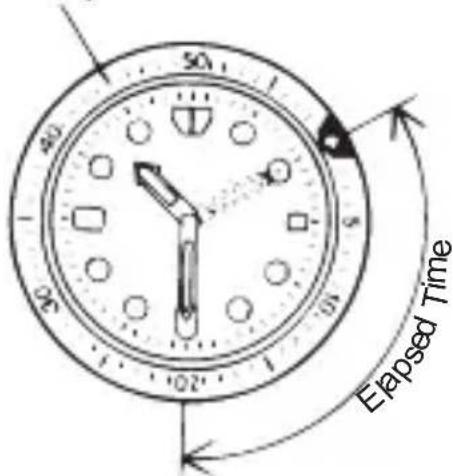

◆ HOW TO USE THE ROTATING INDICATOR BEZEL

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the ▽ mark to the minute-hand. While certain time goes by, you can measure the elapsed time from the distance between minute-hand and figures on the rotating indicator bezel. You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.

You cannot turn the bezel reversely since it comes with a protection mechanism for preventing wrong operation by force or shock. Figures on the bezel could also help you to read the current time easily.

Rotating bezel

The above shows that 20 minutes have elapsed from 10:10.

* Depending on design, anti-reversely and 1 minute "click" sound mechanism on rotating indicator bezel does not apply to some models.

ESPAÑOL

RELOJ CRONÓGRAFO ANALÓGICO

Simple line drawing of a person using a tool to clean or dig (no text or symbols)

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

(7) Temperaturas

Simple analog clock face with hour and minute hands, showing time as approximately 2:30 (no text or symbols beyond clock face markings)

Simple analog clock face with hour and minute hands, no text or symbols present

Illustration of a person using a golf club to walk (no text or symbols)

Cartoon illustration of a person riding a three-wheeled vehicle (no text or symbols)

(7) Температура

Simple analog clock face with hour and minute hands, showing time as the next close-up (no text or symbols)

Simple analog clock face showing 3 o'clock with hour and minute hands, next to a blank rectangular object (no text or symbols)

Simple analog clock face with hour and minute hands, showing time as approximately 2:30 (no text or symbols beyond clock face markings)

Simple analog clock face with hour and minute hands, no text or symbols present

Simple line drawing of a person using a golf club (no text or symbols)

(٤)prec#

Illustration of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)
