Product Type	Docking Station
Brand	Havis
Model	DS-GTC-512-3
Compatible Tablets	Getac RX10 Rugged Tablet
Dimensions (H x W x D)	11.4 x 10.1 x 3.9 in (28.9 x 25.6 x 9.9 cm)
Weight	2.6 lbs (1.2 kg)
Input Voltage	19V DC
Power Supply	Requires certified 95W, 19VDC automotive power supply (e.g., Havis LPS-116)
Operating Temperature	-20°C to 55°C (-4°F to 131°F)
Storage Temperature	-40°C to 71°C (-40°F to 160°F)
Mounting	Four M4 screws (included), torque 20 in-lbs
Port Replication	Replicates tablet ports; includes antenna pass-through (SMA connectors) for wireless
Security	Key lock for theft deterrence
Included Accessories	Hardware kit (screws, washers, zip ties), 2 keys, reference guide (for bundled models)
Safety Warnings	Do not install in airbag deployment zone; do not dock/undock while tablet is powered on
Certifications	CE (EN 50498), FCC Class B, RoHS compliant
Battery Charging	Charges only when docked and temperature between 0°C to 50°C (32°F to 122°F)
Maintenance	Keep dry; avoid liquids and metal objects on top; unplug if malfunction occurs

Frequently Asked Questions - DS-GTC-512-3 Havis

What tablets is the DS-GTC-512-3 compatible with?

The DS-GTC-512-3 is specifically designed for the Getac RX10 Rugged Tablet.

How do I dock the tablet?

First, ensure the tablet is powered off. Align the tablet's alignment sockets with the docking station's alignment posts, lower the tablet into the bottom of the dock, then pivot it forward until the handle snaps into the latch mechanism. Finally, you can lock it with the supplied key.

How do I undock the tablet?

Unlock the docking station if locked. Hold the tablet with one hand, push down on the latch mechanism with your thumb, then carefully rock the top of the tablet forward and lift it out.

Can I use any power supply with this docking station?

No. You must use a certified, automotive-grade, Getac-approved 95W power supply rated for a continuous, regulated 19VDC output (such as Havis part number LPS-116). Using an improper power supply can cause permanent damage not covered by warranty.

Can I dock or undock the tablet while it is on?

No. Always power off the tablet before docking or undocking. Docking or undocking while the tablet is in On, Standby, Hibernation, or Sleep modes can cause permanent damage.

What is the operating temperature range?

The docking station can operate in temperatures from -20°C to 55°C (-4°F to 131°F) and can be stored from -40°C to 71°C (-40°F to 160°F).

Does the docking station charge the tablet's battery?

Yes, when the tablet is docked and powered by the correct power supply, the battery will charge. However, charging only occurs when the ambient temperature is between 0°C and 50°C (32°F to 122°F).

What should I do if the docking station malfunctions?

Immediately unplug the power supply and remove the tablet. Contact Havis support at 1-800-524-9900 or visit www.havis.com for assistance.

Can I install the docking station in a vehicle?

Yes, but never mount it in an airbag deployment zone. Also, do not use the computer while driving. Ensure the power supply is properly rated for automotive use.

What parts are included with the docking station?

The package includes the docking station itself, a hardware kit with 6 zip ties, 2 keys, 5 M4 x 25mm pan head screws, 5 split lock washers, and 5 flat washers. For models with a bundled power supply (like the DS-GTC-512-3), a reference guide is also included.

USER MANUAL DS-GTC-512-3 Havis

Havis Docking Station

For Getac RX10 Rugged Tablet

DS-GTC-510 Series

DS-GTC-511

DS-GTC-513

DS-GTC-516

DS-GTC-511-3

DS-GTC-513-3

DS-GTC-516-3

DS-GTC-512

DS-GTC-515

DS-GTC-512-3

DS-GTC-515-3

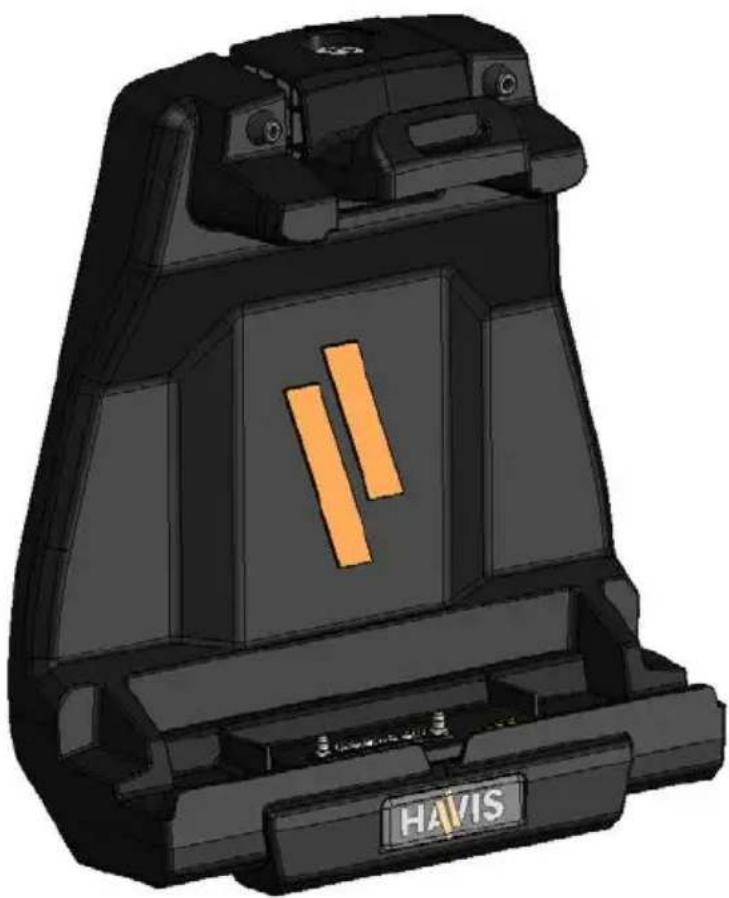

3D model of a mechanical device with orange vertical stripe and 'HAVIS' label (no readable text or symbols beyond branding)

Havis is pleased to provide this Owner's Manual to aid in the proper installation and use of the DS-GTC-510 Series Docking Station for Getac RX10 Rugged Tablets.

For questions regarding the set-up of your DS-GTC-510 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.

This Owner's Manual applies to the following Part Numbers:

DS-GTC-511

DS-GTC-512

DS-GTC-513

DS-GTC-515

DS-GTC-516

DS-GTC-511-3

DS-GTC-512-3

DS-GTC-513-3

DS-GTC-515-3

DS-GTC-516-3

WARNING

• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE AIRBAG DEPLOYMENT ZONE.
  • DO NOT USE COMPUTER WHILE DRIVING.

CAUTION

• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• DO NOT STORE, INSTALL, OR OPERATE THE DOCKING STATION WHERE WATER, MOISTURE, STEAM, DUST, ETC. ARE PRESENT
• DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES CAN CAUSE PERMANENT DAMAGE.
• FOR THE DS-GTC-511, DS-GTC-511-3, DS-GTC-512, DS-GTC-512-3, DS-GTC-515, DS-GTC-515-3, DS-GTC-516, & DS-GTC-516-3 DOCKING STATIONS: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires a certified, automotive grade, Getac approved 95W power source rated for a continuous, regulated 19VDC output (Havis Part Number LPS-116 or equivalent). Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.
• FOR THE DS-GTC-513 & DS-GTC-513-3 DOCKING STATIONS: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Getac RX10 tablet requires a certified, Getac approved power source rated for a continuous, regulated 19VDC output. Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.
• DS-GTC-515. DS-GTC-515-3, DS-GTC-516, & DS-GTC-516-3 ARE EQUIPPED WITH A +5V RS232 SERIAL PORT (PIN #9). BE CERTAIN TO VERIFY THAT YOUR PERIPHERAL DEVICE IS COMPATIBLE WITH A POWERED RS232 PORT.

NOTICE

- FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY (DS-GTC-512, DS-GTC-512-3, DS-GTC-516, DS-GTC-516-3) REFER TO THE SUPPLIED LIND POWER SUPPLY REFERENCE GUIDE.

- WHEN NOTEBOOK IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN 0°C to 50°C (32°F to 122°F). PLEASE REFER TO GETAC RX10 OWNER'S MANUAL FOR MORE INFORMATION.

Table of Contents

Specifications 4

Parts Included 5

Port Replication Capability 6

Antenna Identification....6

Installation 7

Cable Management 8

Operation - Docking 9

Operation - Undoing 10

Precautions

- Do not place metal objects or containers of liquid on top of the Docking Station.

- If a malfunction occurs, immediately unplug the Power Supply and remove the laptop.

- Use only the specified Power Supply (Part # LPS-116) with this Docking Station.

- Do not connect cables into ports other than what they are specified for.

- Do not leave the Docking Station in a high temperature environment (greater than 85^, 185^ ) for an extended period of time.

Power Supply Input 19V DC-In
Dimensions 11.4” (28.9 cm) H x	10.1” (25.6 cm) W x 3.9” (9.9 cm) D
Weight 2.6 lbs (1.2 kg)
Operating Environment -20°C to	55°C (-4°F to 131°F)
Storage Environment -40°C to 71°C (-40°F to 160°F)

EC DECLARATION OF CONFORMITY in accordance with EN 50498

Manufacturers Name: Havis, Inc.

Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA

Declares under our sole responsibility that the product:

Product name: Havis Docking Station For Getac RX10 Rugged Tablet

Model: DS-GTC-51X, where 'X' may be any alphanumeric character and which describes product options.

May be followed by any alphanumeric characters which describe product options.

Product Options: This declaration covers all options of the above product which bear the CE Marking.

Is in conformity with the following standards or other normative documents:

Automotive EMC Directive EN 50498:2010, Electromagnetic compatibility (EMC) -

2004/108/EC: Product family standard for aftermarket electronic equipment in vehicles

Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)

Supplementary Information:

The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8, and 6.9. This product requires the use of a recommended e-Marked automotive power supply when used within vehicles.

Plymouth twp, MI, USA January 29, 2016

Bruce Jonik, Director of Engineering, Havis, Inc.

FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-GTC-51X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment.

Docking Station

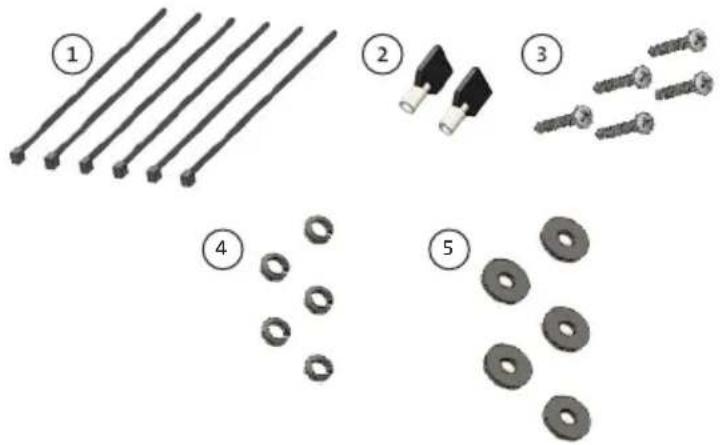

Hardware Kit (HWK-0026)

This Hardware Kit includes:

1. Zip Ties (6)
2. Keys (2)
3. M4 x 0.7 x 25mm long Pan Head Screws (5)
4. Split Lock Washers, M4 (5)
5. Washers, M4 (5)

Tools required for installation:

- #2 Phillips

(For M4 Pan Head Screws)

Illustration of five different types of mechanical components: rods, screw, washers, and washers (no text or symbols present)

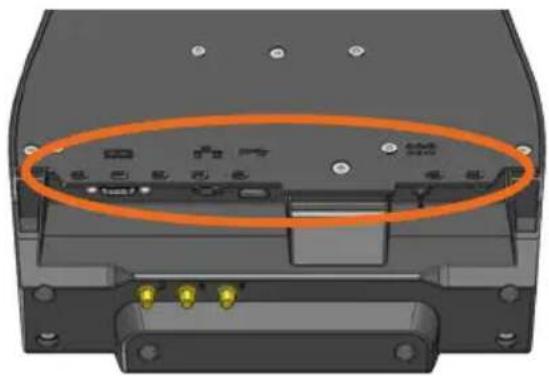

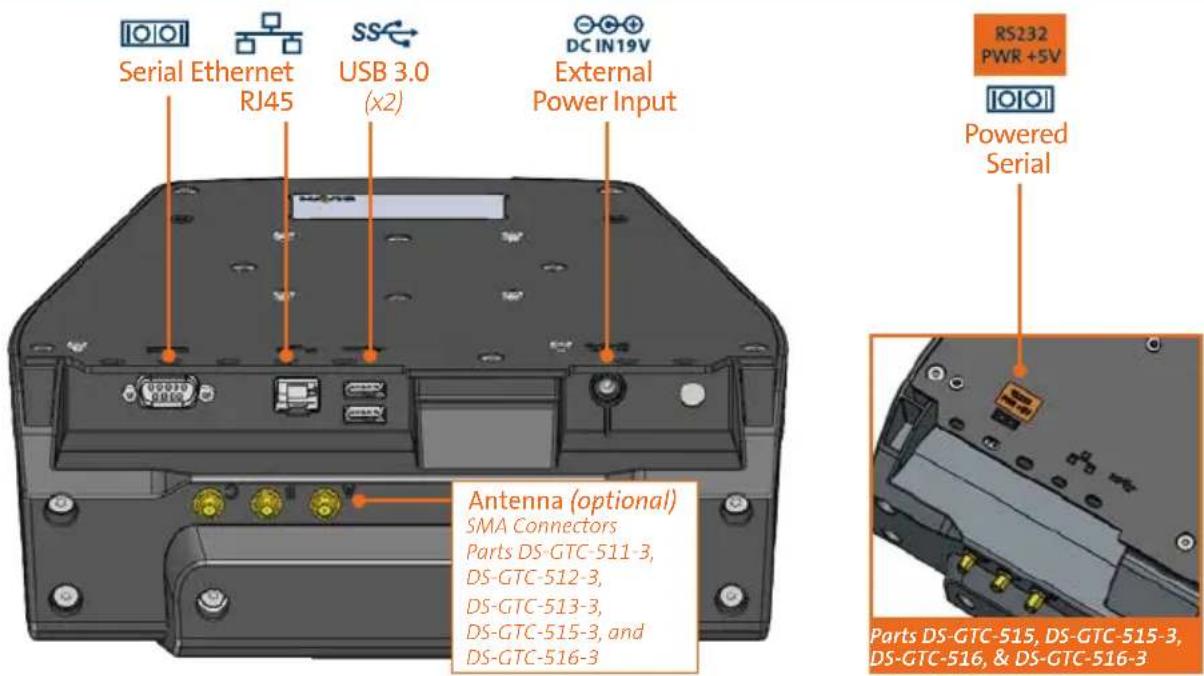

Port Replication Capability

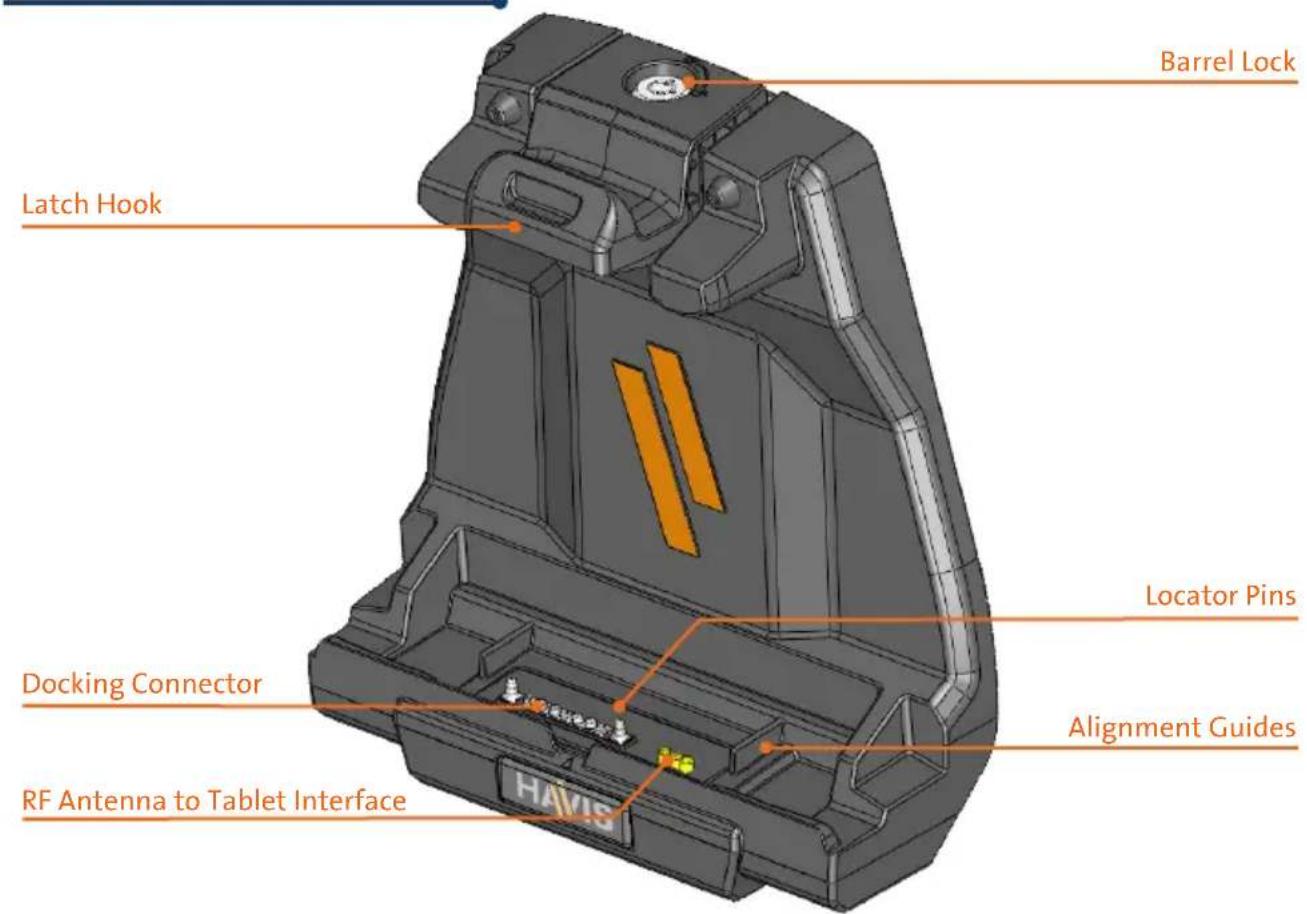

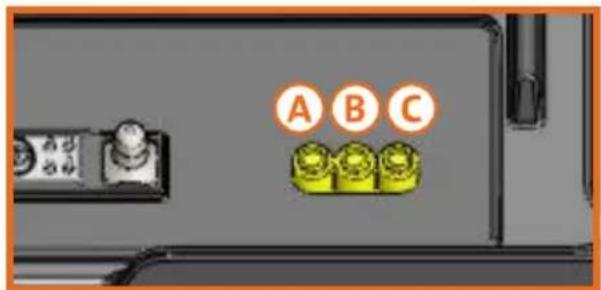

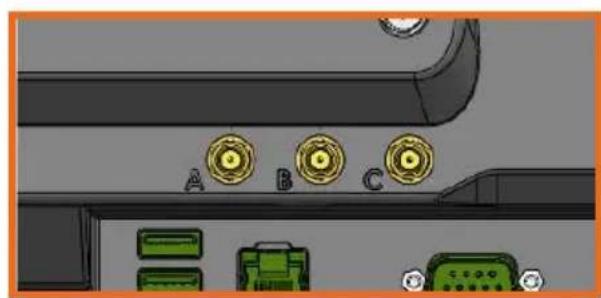

Antenna Identification (DS-GTC-511-3, DS-GTC-512-3, DS-GTC-513-3, DS-GTC-515-3, DS-GTC-516-3)

Close-up of a computer keyboard interface with labeled buttons (A, B, C) and green connectors at the bottom (no readable text or symbols beyond labels)

Tablet InterfaceAntenna Connectors (SMA

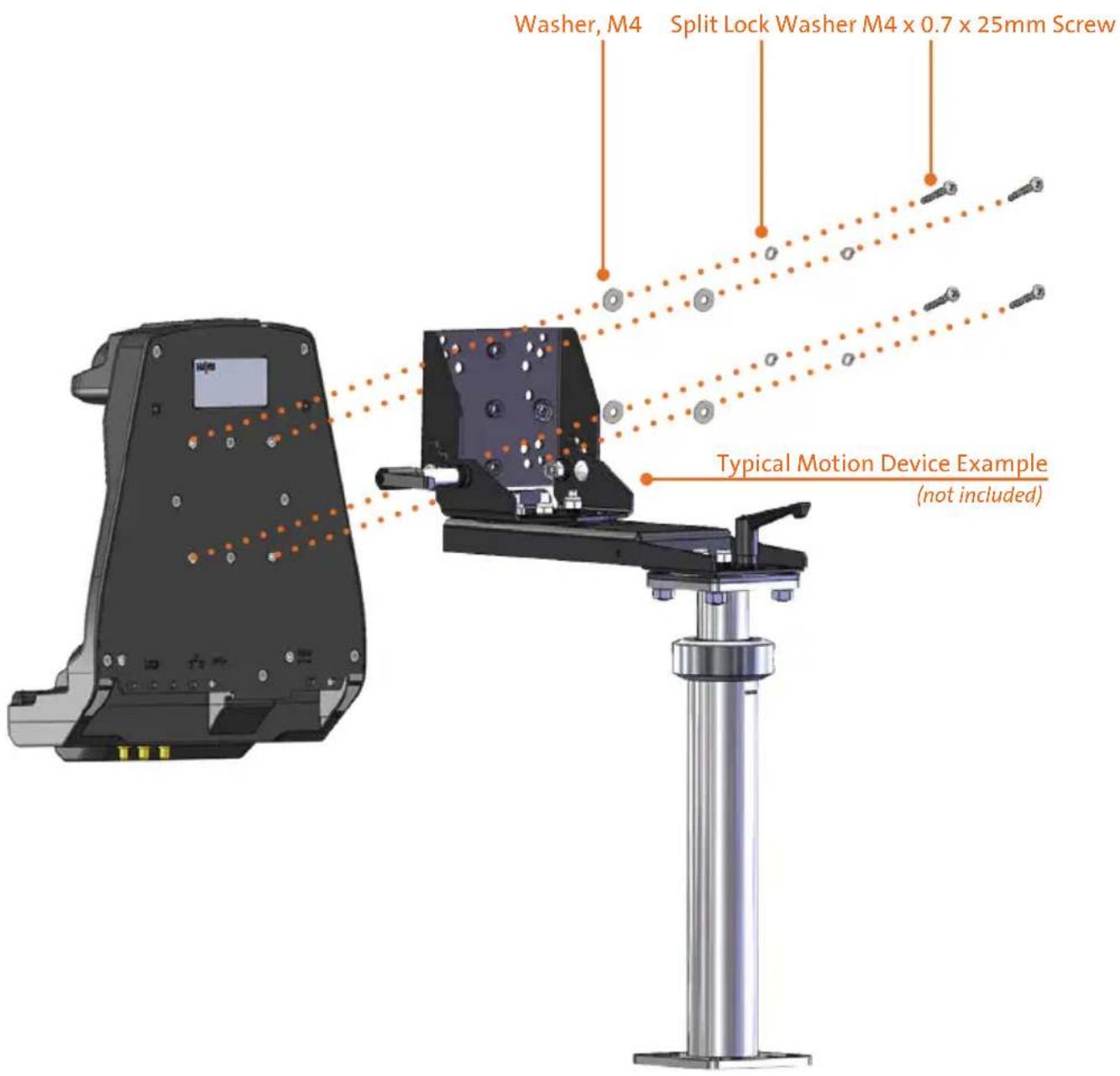

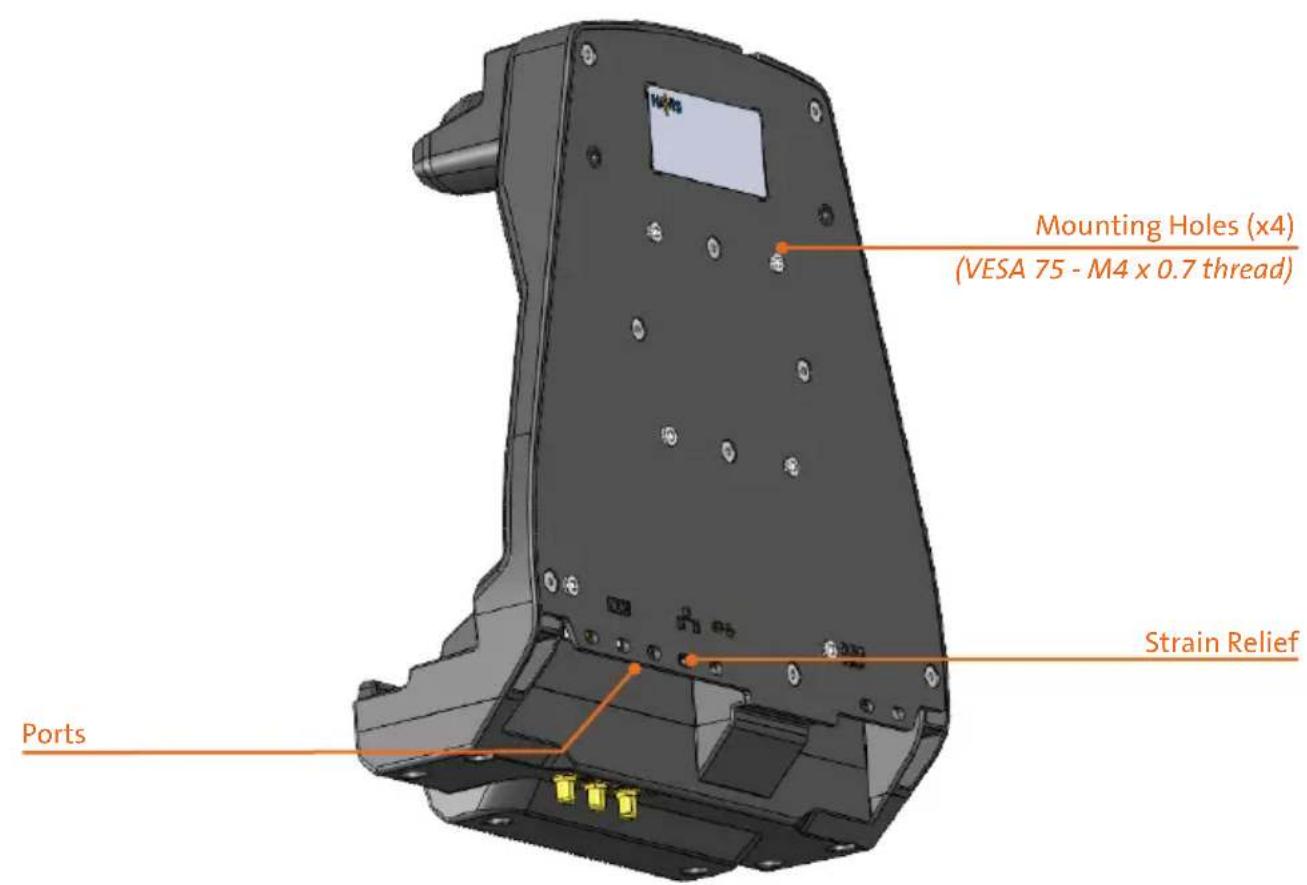

1) Install the Docking Station to the Motion Device using four (4) M4 x 0.7 x 25mm long Pan Head Screws (Hardware Kit Item 3), four (4) Split Lock Washers, M4 (Hardware Kit Item 4), and four (4) Washers, M4 (Hardware Kit Item 5). Torque screws to 20 in-lbs (2.3Nm) ± 10%.

1) Tip the Docking Station to a position that is comfortable to work with.
2) Install all cables that are necessary for computing needs.

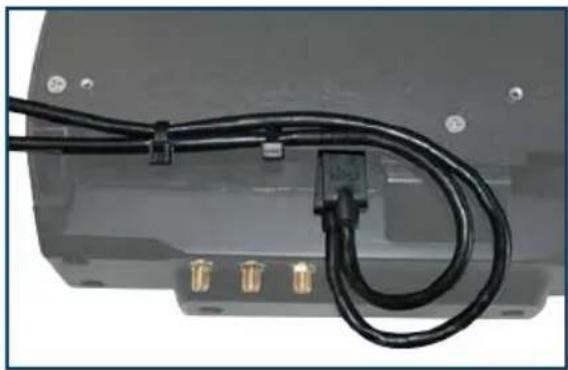

3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points on the bottom of the Docking Station to secure cables and reduce risk of accidental disconnects.

Close-up of a black cable with gold connectors attached to a gray electronic device (no visible text or symbols)

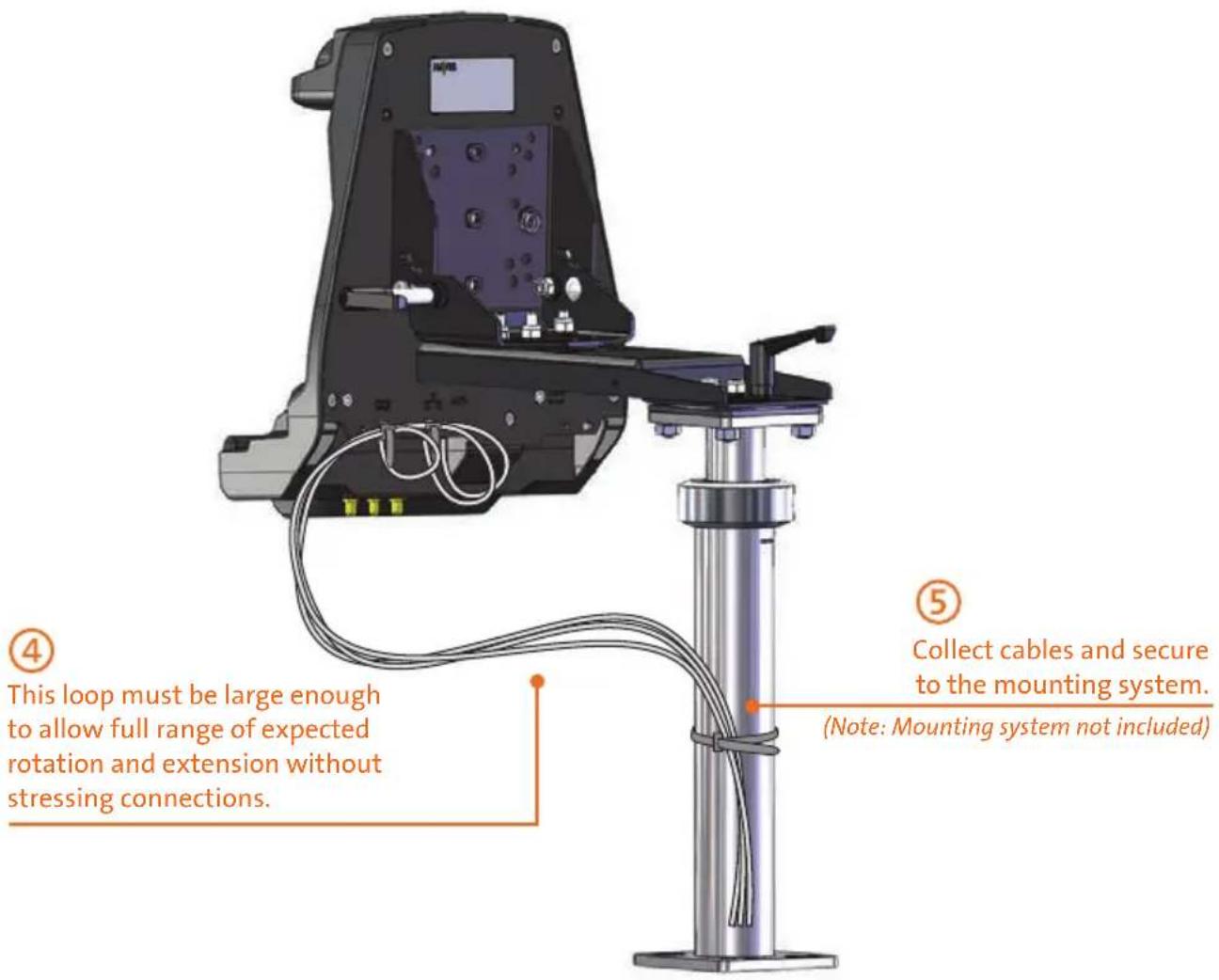

4) Create a service loop with cables to ensure that no tension is on the connectors and to enable intended motion.
5) Tie off cables onto a stationary part of the mounting system.

CAUTION

DO NOT FORCE TABLET ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF TABLET ON DOCKING STATION.

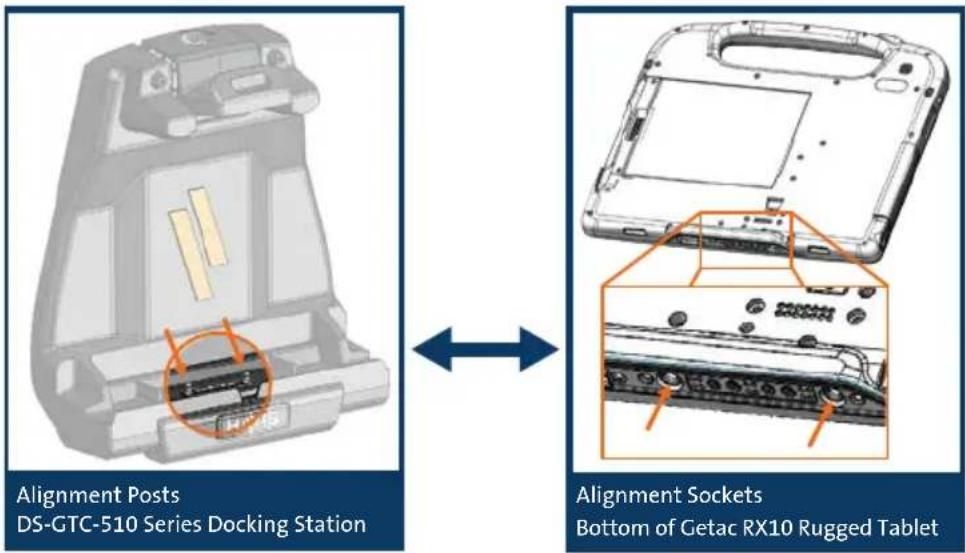

NOTE: Ensure a proper connection by aligning the tablet's Alignment Sockets with the Docking Station's Alignment Posts

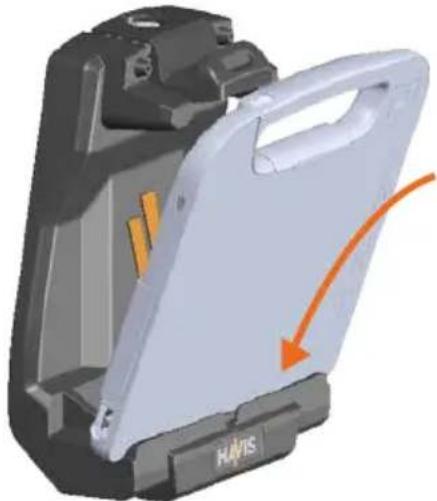

1) Hold computer with bottom angled toward Docking Station. Lower computer into the bottom of the Docking Station.

3D rendering of a white plastic device with orange arrow indicating motion or force, no visible text or symbols

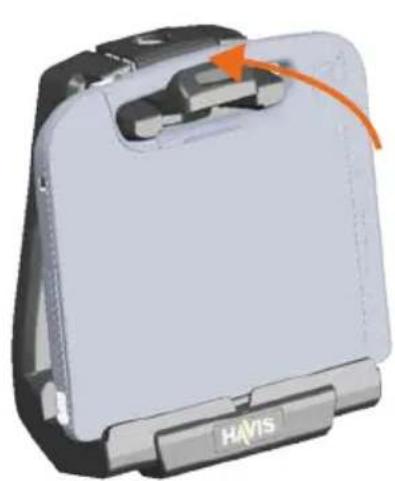

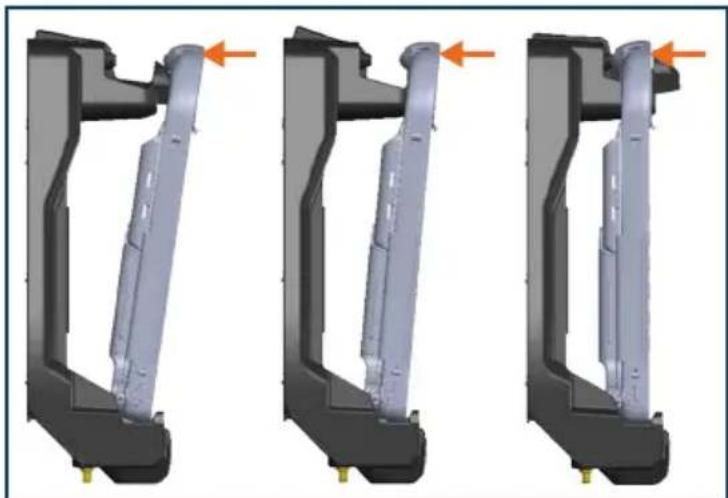

2) While keeping downward pressure on the computer, pivot it into Docking Station so the handle snaps into Latch Mechanism.

3D model of a Havis laptop with an orange arrow indicating the handle (no text or symbols on the device itself)

Three identical mechanical component diagrams showing internal structure with orange arrows indicating direction (no text or symbols)

3) For theft deterrence, secure computer by locking Docking Station with supplied key (Hardware Kit Item 2).

3D rendering of a device's internal components, showing a mechanical assembly with a metallic clip and housing (no text or symbols visible)

Close-up of a lock mechanism with an orange arrow indicating clockwise motion (no text or symbols)

Operation - Undocking

1) If previously locked, unlock Docking Station using supplied key.

3D rendering of a mechanical device with internal components and a small protrusion (no text or symbols visible)

Close-up of a black hard drive with an orange lock icon and a question mark, showing no text or symbols.

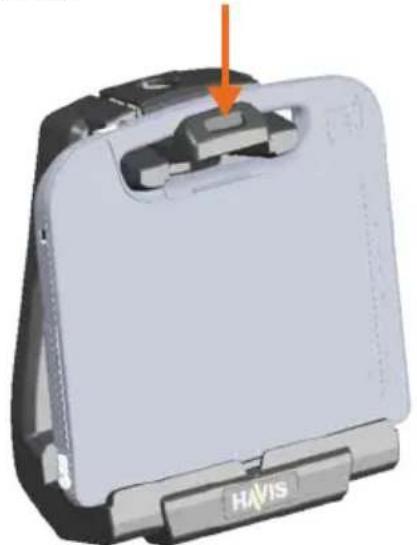

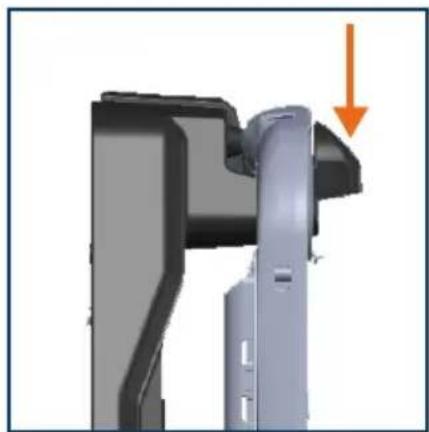

2) While holding computer with one hand, push down on Latch Mechanism with thumb.

3D model of a white ergonomic device with a black handle and orange arrow pointing to a small component, labeled 'HAVIS' at the base (no readable text or symbols beyond branding)

3D mechanical component with a highlighted section and an orange arrow indicating direction (no text or symbols)

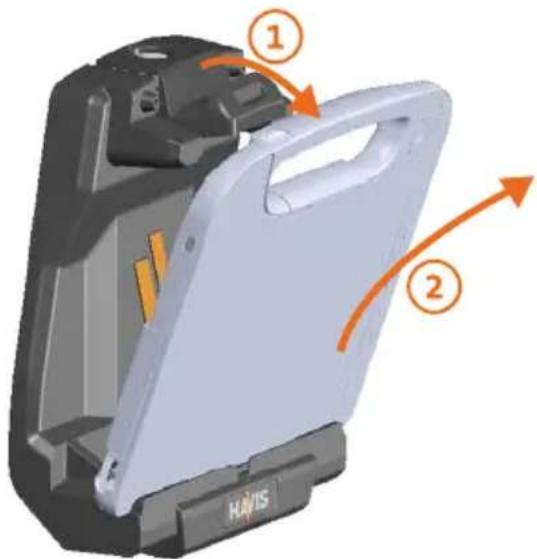

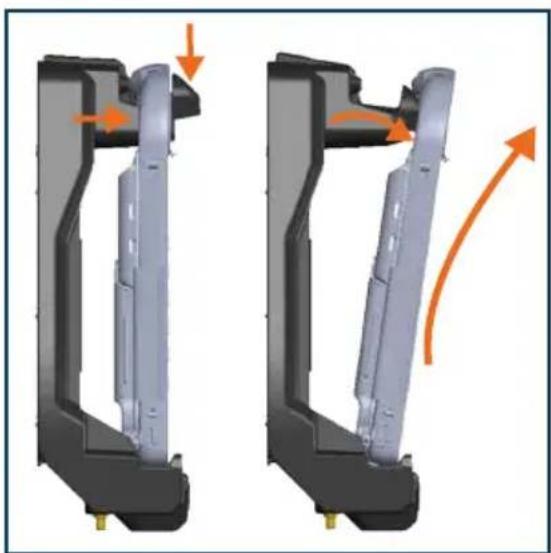

3) While Latch Mechansim is pushed down, carefully rock the top of the computer forward and lift out of Docking Station

Mechanical assembly diagram showing two views of a mechanical component with orange arrows indicating motion direction (no text or symbols)

Related Products

Havis offers a wide variety of accessory products specifically for use with the DS-GTC-510 Series Docking Station. For more information or to order, please visit www.havis.com.

Black electronic device with two cables, no visible text or symbols

LPS-116

95W Power Supply

External in-vehicle power supply and cable for Getac RX10 Rugged Tablet with cigarette lighter adaptor.

Metal bracket with four circular holes, isolated on white background (no text or symbols)

DS-DA-218

Desktop Stand for Tablet Docking Stations

Durable stand for mounting tablet Docking Stations for use in the home or office.

Close-up of a black key with metal bands and a handle, isolated on white background (no text or symbols)

DS-DA-501

Replacement Keys

Set of two (2) replacement keys for DS-GTC-500 Series Docking Stations.

DS-DA-808

Screen Blanking Solution with Tamperproof Cover

Powered by Blank-it, USB Dongle & Tamperproof Cover for DS-GTC-500 Series Docking Stations.
