Operating Notes

• CAT-7 cables should not exceed 100 feet (30 meters).
• Resolutions up to 1920 x 1200 (WUXGA) or 1080p Full HD plus USB are supported when using two CAT-7 cables. Three CAT-7 cables must be used to support 2560 x 1600 (WQXGA) plus USB. See Connecting the DisplayPort KVM Extender over CAT-7 for details.
• The DisplayPort KVM Extender over CAT-7 only supports 8-bit color.
• This product extends DisplayPort video only. It does not support audio.

Features and Packing List

Features

• Extends DisplayPort and USB up to 100 feet (30 meters)
  • Supports resolutions up to 2560 x 1600 and USB over three CAT-7 cables, and up to 1920 x 1200 or 1080p Full HD at 120Hz and USB over two CAT-7 cables
• HDCP compliant
  • Supports DisplayPort 1.1a
  • Supports USB 2.0 at 480 Mbps
• Backward-compatible with USB 1.1
  • 16-position EQ rotary switch to compensate for cable skew
  • HPD Auto-Calibration button
  • Pre-emphasis switch
• Drive level switch
• Boost level switches
  • Power On indicator
  • Independent Video and USB Link indicators
• Locking power supplies
• Surface-mountable
  • Available in Black and White

Packing List

The DisplayPort KVM Extender over CAT-7 ships with the items listed below. If any of these items are not present in the box when you first open it, immediately contact your dealer or Gefen.

• 1 x DisplayPort KVM Extender over CAT-7 (Sender unit)
• 1 x DisplayPort KVM Extender over CAT-7 (Receiver unit)
• 1 x 6 ft. DisplayPort cable (M-M)
- 1 x 6 ft. USB cable (A-B)
- 2 x 5V DC power supplies
• 1 x Quick-Start Guide

Table of Contents

01 Getting Started

Panel Layout 2

Sender Unit (Front) 2

Sender Unit (Back)....3

Receiver Unit (Front)......4

Receiver Unit (Back) 5

Installation....6

Connecting the DisplayPort KVM Extender over CAT-7 6

Sample Wiring Diagram 7

02 Operating the DisplayPort KVM Extender over CAT-7

LED Indicators.... 10

Sender Unit 10

Receiver Unit.... 11

DIP Switch Configuration 12

Hot-Plug Detect (HPD).... 13

Adjusting the Signal Quality 14

03 Appendix

Cable Termination 18

Surface-Mounting Instructions.... 19

Specifications 20

DisplayPort KVM

Extender over CAT-7

01 Getting Started

Panel Layout 2

Sender Unit (Front) 2

Sender Unit (Back)....3

Receiver Unit (Front)......4

Receiver Unit (Back) 5

Installation 6

Connecting the DisplayPort KVM Extender over CAT-7 6

Sample Wiring Diagram 7

Panel Layout

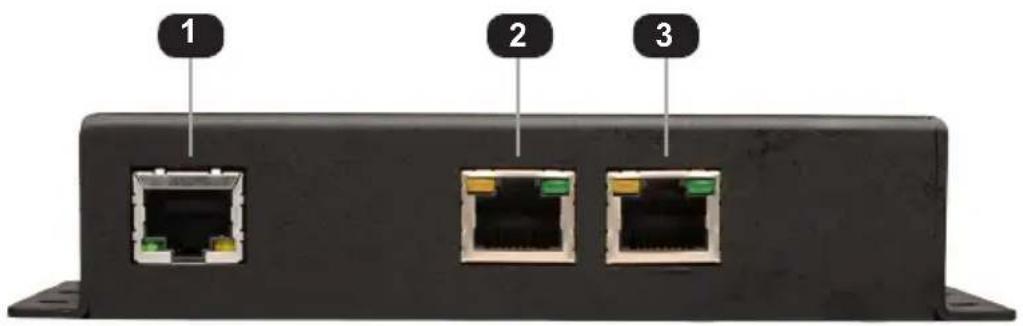

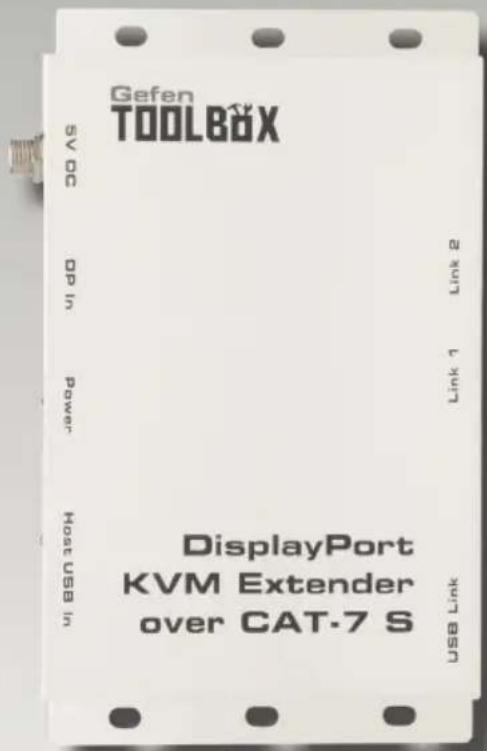

Sender Unit (Front)

ID Name Description

1 USB Link Connect a CAT-7 cable between this jack and the USB Link jack on the Receiver unit. This RJ-45 jack must be used when extending USB.

2 Link 1 Connect a CAT-7 cable between this RJ-45jack and the Link 1 jack on the Receiver unit.

3 Link 2 Connect a CAT-7 cable between this RJ-45 jack and the Link 2 jack on the Receiver unit. Both Link 1 and Link 2 jacks (two CAT-7 cables) must be used when extending video resolutions up to 2560 x 1600.

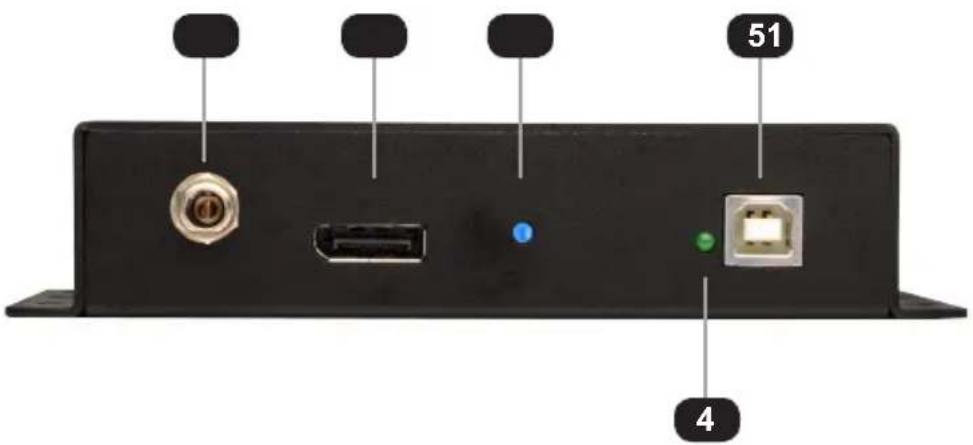

Sender Unit (Back)

ID Name Description

1 5V DC Connect the included 5V DC locking power supply to this connector and plug the AC power cord into an available electrical outlet. Only use the power supply shipped with this unit.

2 DP In Connect a Hi-Def source to this port using a DisplayPort cable.

3 Power This LED indicator will glow bright blue when the unit is powered.

4 Host This LED will glow bright green when the host USB device is connected to the USB In port.

5 USB In Connect the included USB cable between this port and a computer (or other USB host device).

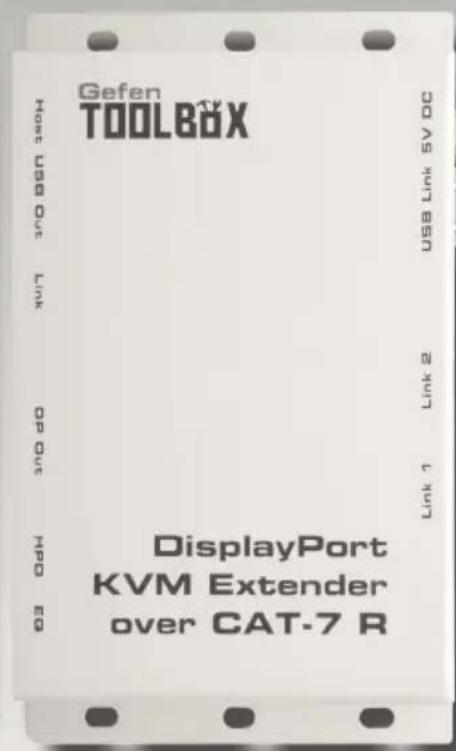

Receiver Unit (Front)

Back panel of a network device showing four Ethernet ports with labeled pins (1, 2, and three) and a connector pin (no text or symbols beyond labels)

ID Name Description

1 Link 1 Connect a CAT-7 cable between this	RJ-45jack and the Link 1 jack on the Sender unit.
2 Link 2 Connect a CAT-7 cable between this	RJ-45jack and the Link 2 jack on the Sender unit.Both Link 1 and Link 2 jacks (two CAT-7 cables) must be used when extending video resolutions up to 2560 x 1600.
3 Link 2 Connect a CAT-7 cable between this	jackand the USB Link jack on the Sender unit. This RJ-45 jack must be used when extending USB.
4 5V DC Connect the included 5V DC locking	powersupply to this connector and plug the AC power cord into an available electrical outlet.Only use the power supply shipped with this unit.

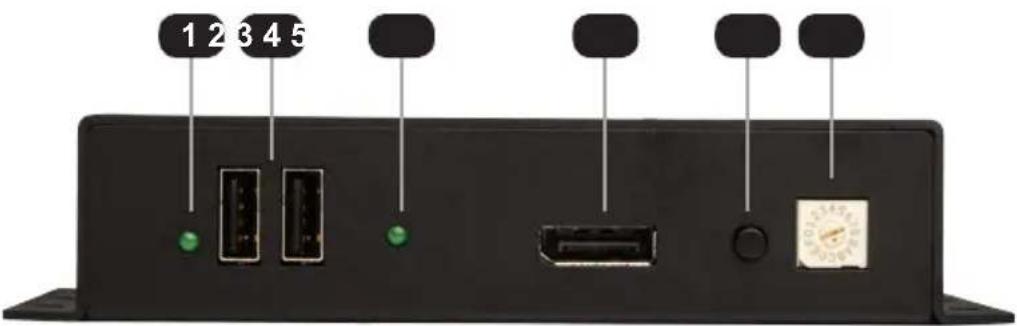

Receiver Unit (Back)

ID Name Description

1 Host This LED will glow bright green when the host USB device is connected to the USB In port.

2 USB Out Connect up to two USB devices (mouse, keyboard, camera, etc.) to these ports.

3 Link This LED indicator will glow bright green when a CAT-7 cable is connected between the USB Link ports on both the Sender and Receiver unit.

4 DP Out Connect a DisplayPort cable from this port to the display.

5 HPD Press this button to cycle the HPD line on the Receiver unit. See Hot-Plug Detect (HPD) for details.

6 EQ Use this EQ rotary switch to adjust the quality of the output signal, based on the length and type of CAT-7 cable that is being used. See Adjusting the Signal Quality for more information.

Connecting the DisplayPort KVM Extender over CAT-7

1. Use the included DisplayPort cable to connect the DisplayPort source to the DP In port on the Sender unit.
2. Connect the Receiver unit to the display using a DisplayPort cable.
3. Use the included USB cable to connect the USB host device to the USB In port on the Sender unit.
4. Connect up to two USB devices (keyboard, mouse, external drive, etc) to the USB Out ports on the Receiver unit.
5. Connect two CAT-7 cables between the Sender and Receiver units. Each connector on the Sender and Receiver unit is identified as Link 1, Link 2, and USB Link. When connecting the CAT-7 cables, make sure that each CAT-7 cable on the Sender unit is connected to the corresponding jacks on Receiver unit (e.g. Link 1 → Link 1, Link 2 → Link 2).

NOTE: The DisplayPort KVM Extender over CAT-7 will support resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD if a single CAT-7 cable is used. Two CAT-7 cables must be used to support resolutions up to 2560 x 1600.

If only a single CAT-7 cable will be used, the CAT-7 cable must be connected between the Link 1 connectors on both the Sender and Receiver unit.

1. Connect a CAT-7 cable between the USB Link jack on the Sender and Receiver unit.
2. Connect the included 5V DC locking power supplies to the Sender and Receiver unit. Do not overtighten the locking connectors.
3. Connect the AC power cords from each power supply to available electrical outlets.

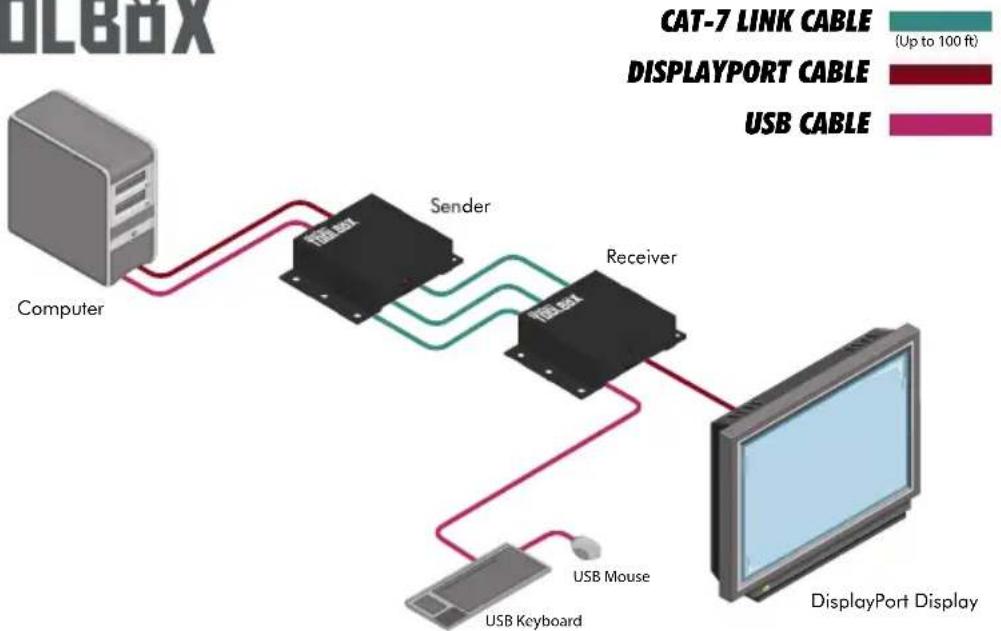

Sample Wiring Diagram

Gefen TOOLBOX
        G["(Up to 100 ft)"]
        H["DISPLAYPORT CABLE"]
        I["USB CABLE"]
    end

GTB-DPKVM-3CAT7

DisplayPort KVM

Extender over CAT-7

02 Operating the DisplayPort KVM Extender over CAT-7

LED Indicators....10

Sender Unit 10

Receiver Unit.... 11

DIP Switch Configuration 12

Hot-Plug Detect (HPD).... 13

Adjusting the Signal Quality 14

LED Indicators

Sender Unit

The LED indicators on the Sender and Receiver unit provide basic information on the current status of the DisplayPort KVM Extender over CAT-7.

LED Status Description
Power	Solid blue	• Power connected to Sender unit.
	Off	○ • No power supplied to Sender unit.
Host USB Solid green • Power connected to the Sender unit.• USB devices connected properly.• USB link integrity between Sender and Receiver unit is good.

Receiver Unit

LED Status Description

USB Link Solid green • Power connected to the Receiver unit.
Off • No power supplied to the Receiver unit.
Flashing green	• USB devices not connected.
Link Solid green • Power connected to the Receiver unit.
Off • No power supplied to the Receiver unit.
Solid red • CAT-7 cable not connected between Link 1 / Link 2 jack on Sender and Receiver unit.
Flashing red	• Receiver unit is attempting to establish a link with the Sender unit.

DIP Switch Configuration

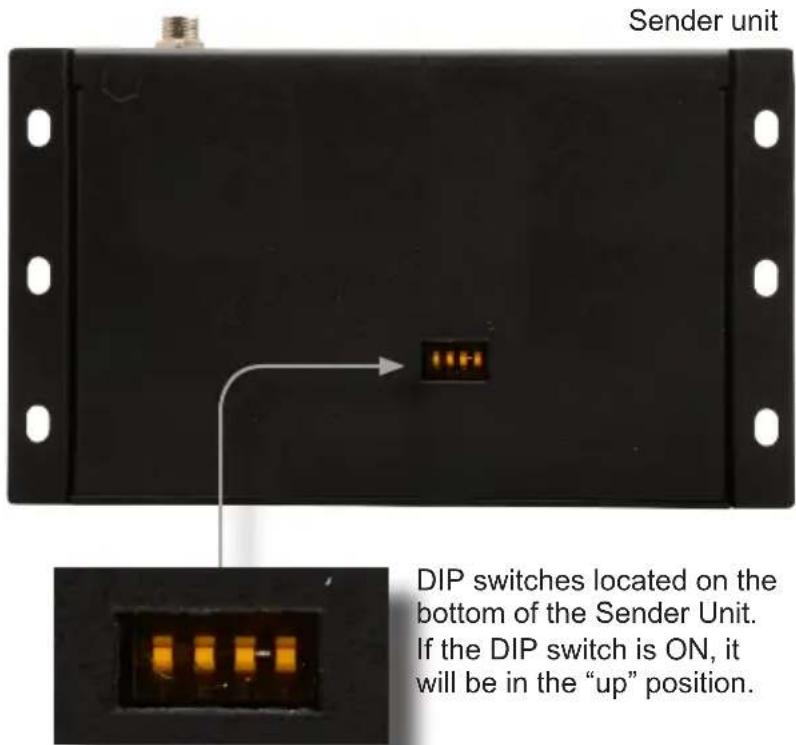

The DisplayPort KVM xtender over CAT-7 contains four DIP switches on the bottom of the Sender unit. Adjust the DIP switch settings based on the type and cable length that is being used.

1 2 3 4

DIP switches located on the bottom of the Sender Unit. If the DIP switch is ON, it will be in the "up" position.

DIP Switch Position Differential Output Voltage
DIP 1 ON (default) 1.2 Vpp
	CENTER 1.0 Vpp
	OFF 600 mVpp

DIP Switch Position Pre-emphasis Select
DIP 2 ON (default) 9 dB
	CENTER 6 dB
	OFF 0 dB

DIP Switch Position		Position	Boost Level (dB) @ 5 GHz
	DIP 3	DIP 4
DIP 3	OFF OFF 2.7 to 7.3 dB
DIP 4	OFF ON 12.2 to 16.6 dB
	ON OFF 20.6 to 24.8 dB
	ON ON 27.6 to 28.9

Hot-Plug Detect (HPD)

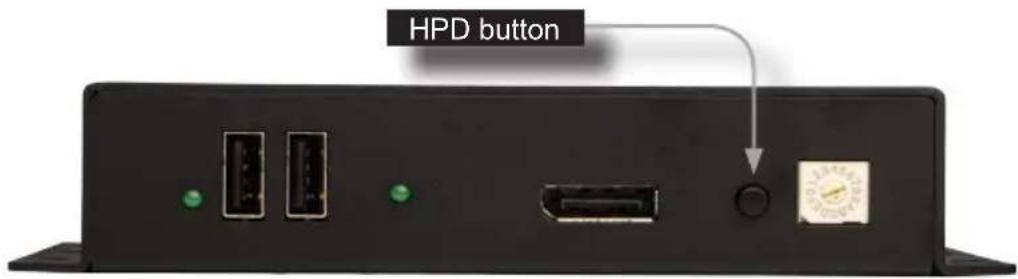

The DisplayPort KVM Extender over CAT-7 has an HPD button on the front of the Receiver unit. Pressing this button will cycle the HPD (Hot-Plug Detect) line on the display (sink) device. This HPD button provides the same effect as disconnecting then reconnecting the DisplayPort cable from the Receiver unit. Cycling the HPD line will cause the Receiver unit to re-read the EDID of the display and send it back to the DisplayPort source.

Receiver unit

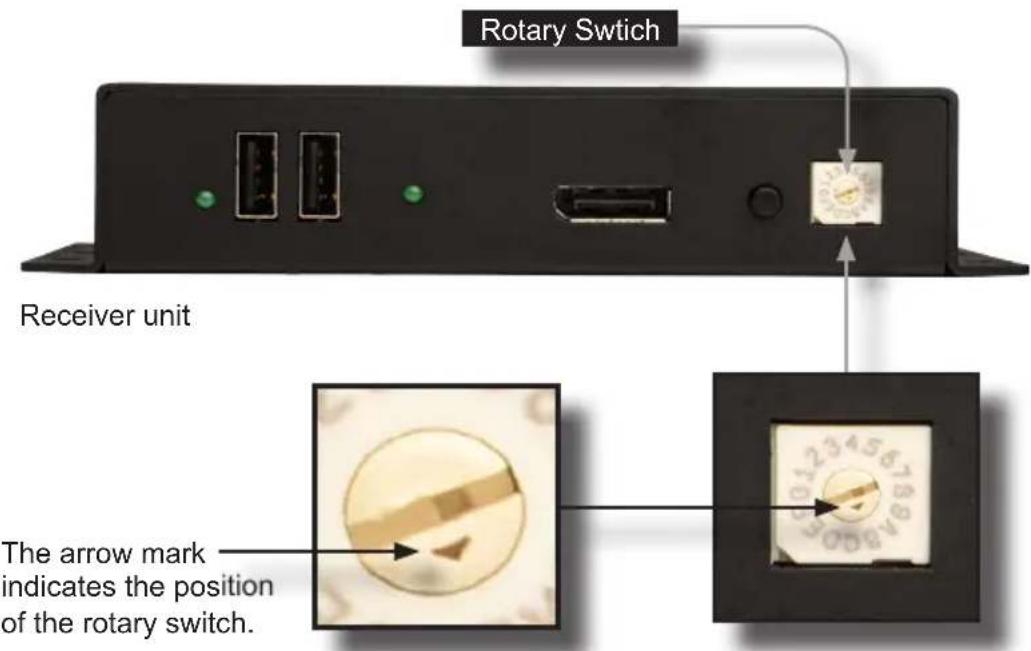

Adjusting the Signal Quality

The DisplayPort KVM Extender over CAT-7 has an equalization device on the front of the Receiver unit. This 16-position rotary switch is used to adjust the boost level depending upon the length of the CAT-7 cable.

1. Insert a small flat-headed tool into the notch on the rotary switch.

The table below provides examples of various cable types and lengths for CAT-6 cabling.

Cable type Length Rotary switch position
Belden CAT-6A, UTP, 10Gx12 - 4PR/23	100 feet (30 meters) 3 through D
Belden CAT-6A, UTP, 10Gx12 - 4PR	130 feet (40 meters) 9 through B
Teldor CAT-6A, FTP, 4x(2x26/7) - 500 Mhz	115 feet (35 meters) A through F
Draka CAT-6A, FTP UC500 4P 09 339765 107271827	100 feet (30 meters) 7 through C

1. Turn the rotary switch clockwise or counterclockwise until it clicks to the next position.
2. Check the image. Continue adjusting the rotary switch if the issue is not resolved.

DisplayPort KVM

Extender over CAT-7

03 Appendix

Cable Termination 18

Surface-Mounting Instructions.... 19

Specifications 20

Cable Termination

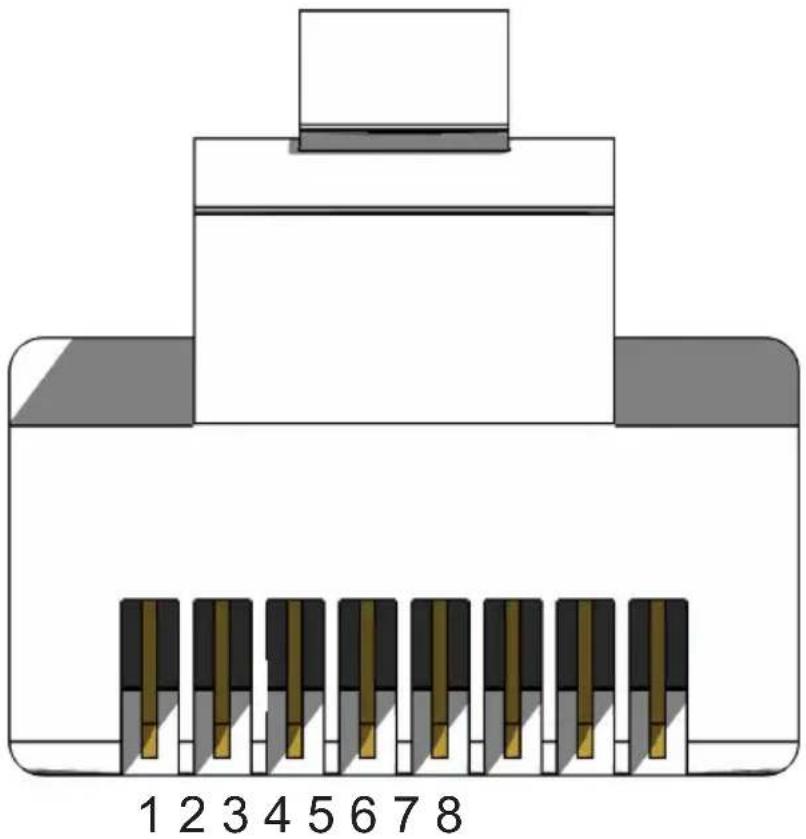

Front of RJ-45 Connector

Diagram of an electronic component with numbered pins (1-8) and a central connector, no text or symbols present.

Gefen recommends the TIA/EIA-568-B wiring option. Use the table below when field-terminating cable for use with Gefen products.

Pin Color Description
1 Orange / White TD+ (Transmit Data, positive differential signal)
2 Orange TD- (Transmit Data, negative differential signal)
3 Green / White RD+ (Receive Data, positive differential signal)
4 Blue Unused
5 Blue / White Unused
6 Green RD- (Receive Data, negative differential signal)
7 Brown / White Unused
8 Brown / White Unused

It is recommended to use one continuous run from one end to the other. Patch cable is not recommended.

Surface-Mounting Instructions

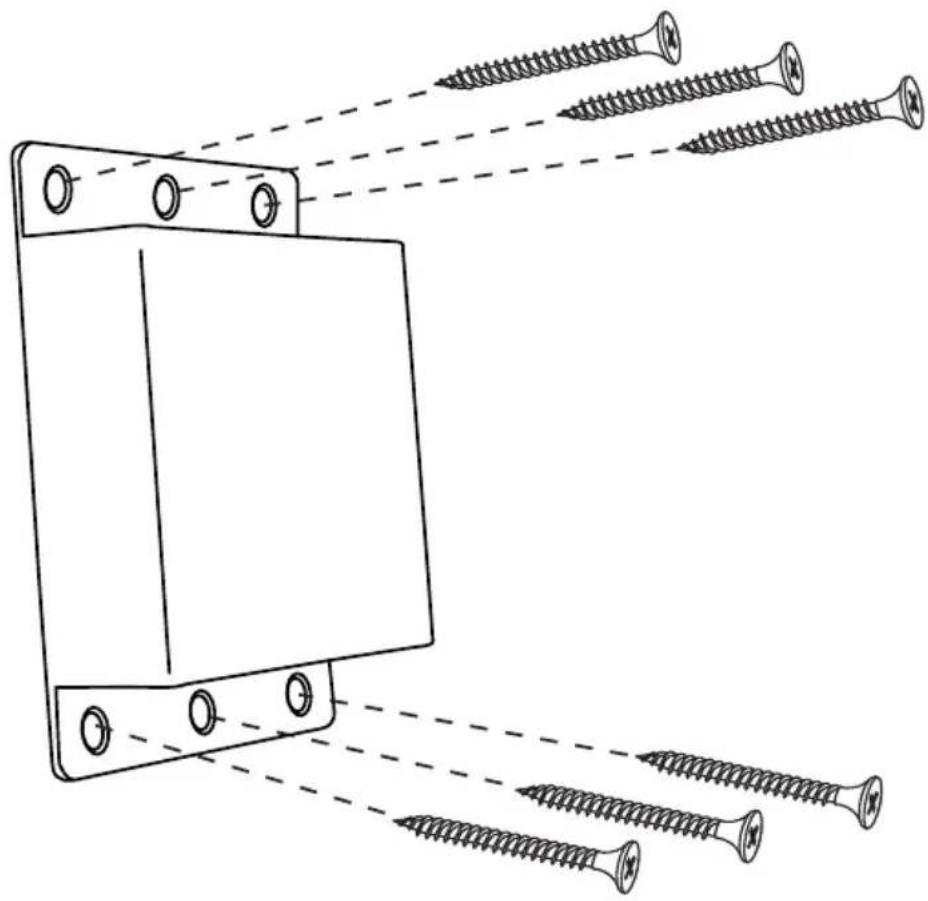

Technical line drawing of a mechanical component with multiple screws and a dashed light path, no text or symbols present

The Gefen DisplayPort KVM Extender over CAT-7 can be mounted on any horizontal or vertical flat surface (e.g. wall or inside / outside a cabinet with wood / drywall screws) as shown in the diagram above. There should be an inch or two of clearance between the edges of the unit and any walls or vertical surfaces to allow for enough clearance for connection and disconnection of the DisplayPort cable.

For installation on a drywall surface, use a #6 drywall screw. When installing, it is recommended to use the center hole on a stud.

Specifications

Supported Formats
Resolutions (max.) • 2560 x 1600	• 1920 x 1200 (WUXGA)• 1080p Full HD

Electrical
Video Data Rate • Up to 2.7 Gb/s
EQ Switch (Receiver) • 1 x 16-position rotary type
HPD Auto Calibration button (Receiver) •	1 x tact-type
Pre-emphasis Switch • 1 x 3-position DIP switch
Boost Level Switches (Sender) • 2 x 3-position DIP switch
Drive level Switch (Sender) • 1 x 3-position DIP switch
Power On Indicator (Sender) • 1 x LED, blue
Link Indicator (Receiver) • 1 x bi-color LED	Green: Good link, Red: No link
USB Link Indicators (Sender / Receiver) •	1 x LED, green

Connectors
Video Input (Sender) • 1 x DisplayPort, 20-pin, female
Video Output (Receiver) • 1 x DisplayPort, 20-pin, female
USB (Sender) • 1 x Type B, female
USB (Receiver) • 2 x Type A, female
Link (Sender / Receiver)	• 2 x RJ-45, shielded
USB Link (Sender / Receiver)	• 1 x RJ-45, shielded

Operational
Power Supply	• 1 x 5V DC, locking
Operating Temperature	• +32 to +104 °F (0 to +40 °C)

Physical
Dimensions (W x H x D)(Sender / Receiver)	• 3.4" x 1.2" x 5.8"(85mm x 30mm x 146mm)
Unit Weight (each unit)	• 0.47 lbs (0.22 kg)

Stretch it. Switch it. Split it. Gefen's got it. ®

20600 Nordhoff St., Chatsworth CA 91311

1-800-545-6900 818-772-9100 fax: [phone]

www.gefentoolbox.com [e-mail]
