USER MANUAL EXT-UHD600-41 Gefen

4x1 Switcher for HDMI w/HDR

4K 60 Hz 4:4:4

HDCP 2.2 & Auto Switching

EXT-UHD600-41

GEFEN 新規電源電源 2.0 高壓 2.0 4K Ultra HD 600 MHz As1 Switchover w/MDW

User Manual

Release A2

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Batteries that may be included with this product and/or accessories should never be exposed to open flame or excessive heat. Always dispose of used batteries according to the instructions.

Gefen warrants the equipment it manufactures to be free from defects in material and workmanship.

If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. Equipment that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. Such repairs are warranted for ninety (90) days from the day of reshipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without limitation, any implied warranty or merchantability or fitness for any particular purpose, all of which are expressly disclaimed.

1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from Gefen.
3. Copper cables are limited to a 30 day warranty and cables must be in their original condition.

The information in this manual has been carefully checked and is believed to be accurate. However, Gefen assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Gefen be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. The technical information contained herein regarding the features and specifications is subject to change without notice.

For the latest warranty coverage information, refer to the Warranty and Return Policy under the Support section of the Gefen Web site at www.gefen.com.

This product uses software that is subject to open source licenses, including one or more of the General Public License Version 2 and Version 2.1, Lesser General Public License Version 2.1 and Version 3, BSD, and BSD-style licenses. Distribution and use of this product is subject to the license terms and limitations of liability provided in those licenses. Specific license terms and Copyright Notifications are provided in the source code.

For three years from date of activation of this product, any party may request, and we will supply, for software covered by an applicable license (e.g. GPL or LGPL), a complete machine-readable copy of the corresponding open source code on a medium customarily used for software interchange. The following software and libraries are included with this product and subject to their respective open source licenses:

• jQuery
• Linux

Technical Support

[phone] [phone]

8:00 AM to 5:00 PM Monday - Friday, Pacific Time

Email

[e-mail]

Web

http://www.gefen.com

Mailing Address

Gefen

Core Brands, LLC

c/o Customer Service

1800 S McDowell Blvd

Petaluma, CA 94954 USA

Product Registration

Register your product here: http://www.gefen.com/kvm/Registry/Registration.jsp

- The Gefen Syner-G Software Suite is a free downloadable application from Gefen that provides a variety of useful tools, including automatic download and installation of firmware upgrades for this product. Always make sure that this product is running the latest firmware.

Important

Cable quality is critical when handling 600 MHz HDMI signals. It is highly recommend that Gefen Locking HDMI cables be used in the installation. Gefen HDMI cables have been designed and tested to work at 600 MHz and reliably transport the full 18 Gbps throughput of HDMI 2.0.

© 2016 Core Brands, LLC. All Rights Reserved. All trademarks are the property of their respective owners.

Gefen and Core Brands LLC reserve the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice.

Features

• Routes up to four Ultra Hi-Def sources to one Ultra HD display
  • Supports resolutions up to 4K DCI-Cinema (4096 x 2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 at 60Hz, 4:4:4), 1080p Full HD, & 1920x1200 (WUXGA)
  • Supports HDCP 2.2 and 1.4
  • Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
  • Supports 12-bit Deep Color at 1080p 60 Hz 4:4:4
• 3DTV pass-through
• Lip Sync pass-through
• Advanced EDID and HDCP Management via Web Server Interface for rapid integration of sources and display
  • Supports uncompressed LPCM digital audio up to 7.1 channels
• Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
  • Supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920x1200 (WUXGA), with HDMI-to-DVI adapters (not included)
• Configurable Automatic Input Switching selects the most recent connected or powered-up source
• Front Panel Push button Input Selector routes one of the 4 connected sources to the display, or "Blocks" (turns off) the input
  • RS-232 Serial interface for use with an automation control system
• IP control via Telnet, UDP, and the built-in web server interface
• IR remote control
• Small surface-mountable IR Extender module allows the switcher to be hidden away behind the display or in the equipment closet
• Gefen Syner-G™ software's Discovery and Show-Me features simplify initial IP configuration
  • In-field firmware update via Web Server Interface
• Long Reach Power (LRP) provides 500 mA at 5V on pin 18 of HDMI output. Enables select extender devices to be powered through their HDMI input port
• Locking power connector ensures reliable operation
• Low-profile, surface-mountable enclosure can be surface mounted, placed on a shelf, or hidden away behind the display

Packing List

The Ultra HD 600 MHz 4x1 Switcher for HDMI w/ HDR ships with the items listed below. The packing contents of the Sender and Receiver unit are listed below. If any of these items are not present in the box when you first open it, immediately contact your dealer or Gefen.

• 1 x Ultra HD 600 MHz 4x1 Switcher for HDMI w/ HDR
• 1 x 5V Power Supply w US/EU/UK/AU plugs
• 1 x IR Extender Module (EXT-RMT-EXTIRN)
• 1 x Hand-held IR Remote
• 2 x Surface Mounting L-Brackets
- 4 x M3 6 mm Machine screws for mounting the L-Brackets to unit
- 2 x 6-32 5 mm Machine screws for mounting the unit to Gefen EXT-RACK-1U-GRY (available separately)
• 4 x Self-Adhesive Rubber Feet
• 1 x Quick-Start Guide

1 Getting Started

Introduction....2

Front Panel....2

Rear Panel 3

IR Remote Control 4

Installing the Batteries....5

Setting the IR Channel 6

Installation 7

Connection Instructions....7

Sample Application Diagram....8

2 Basic Operation

Switching Inputs 12

Using the Front Panel Buttons 12

Using the IR Remote Control 13

The Web Interface....14

Introduction to the Web Interface 14

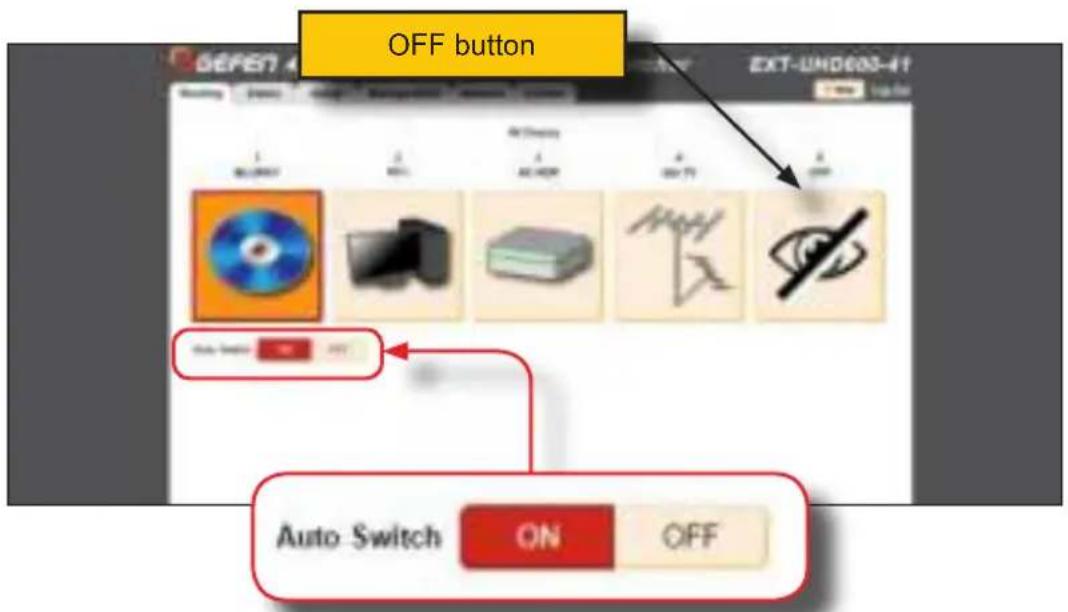

Routing.... 18

Input and Output Status 19

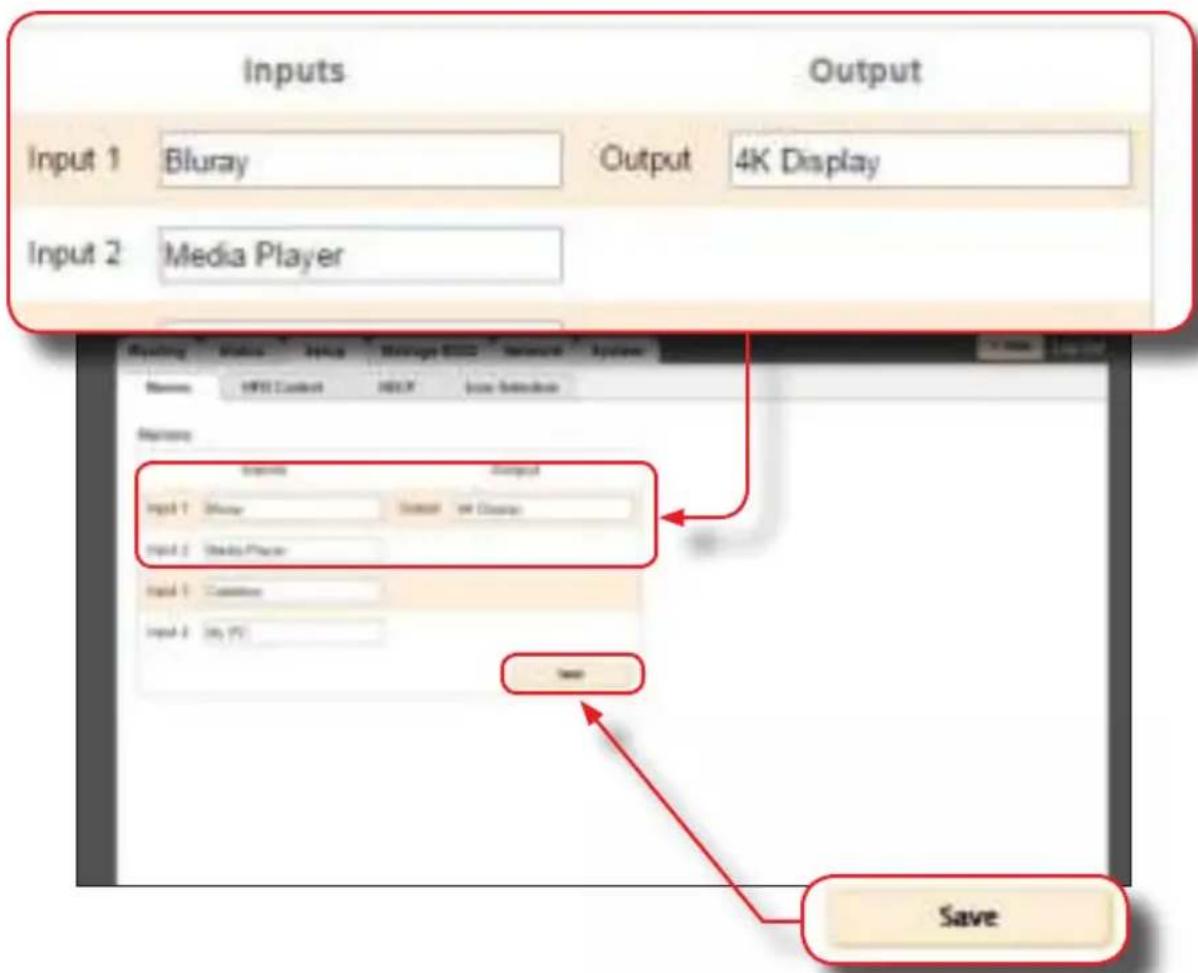

Changing Input and Output Names....20

HPD Control 21

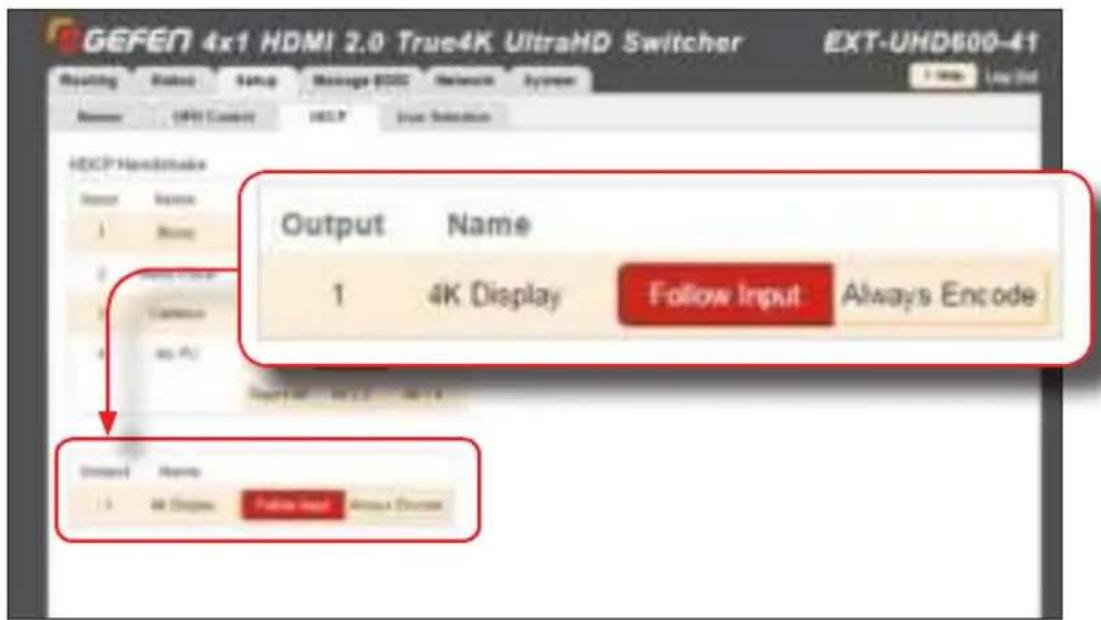

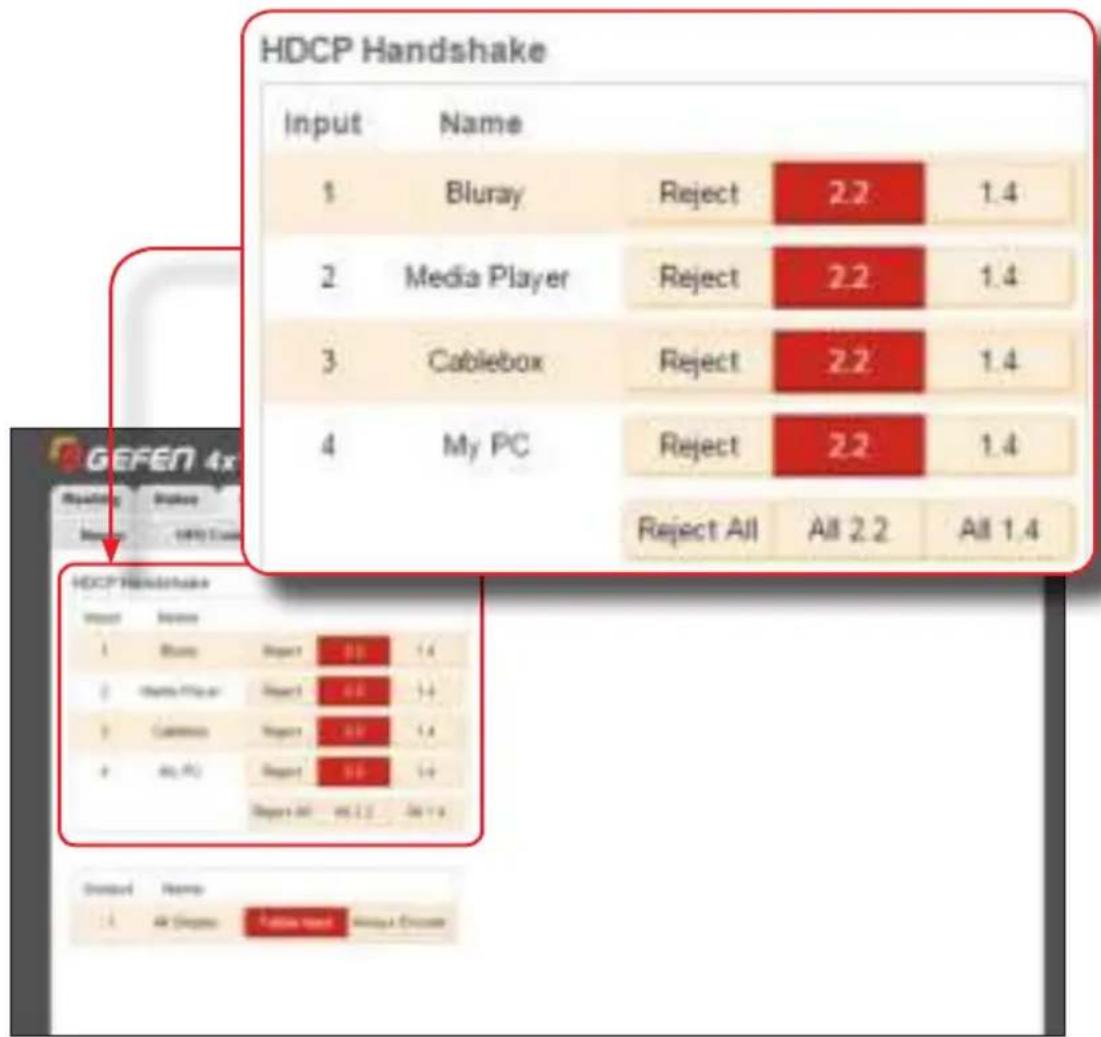

HDCP 22

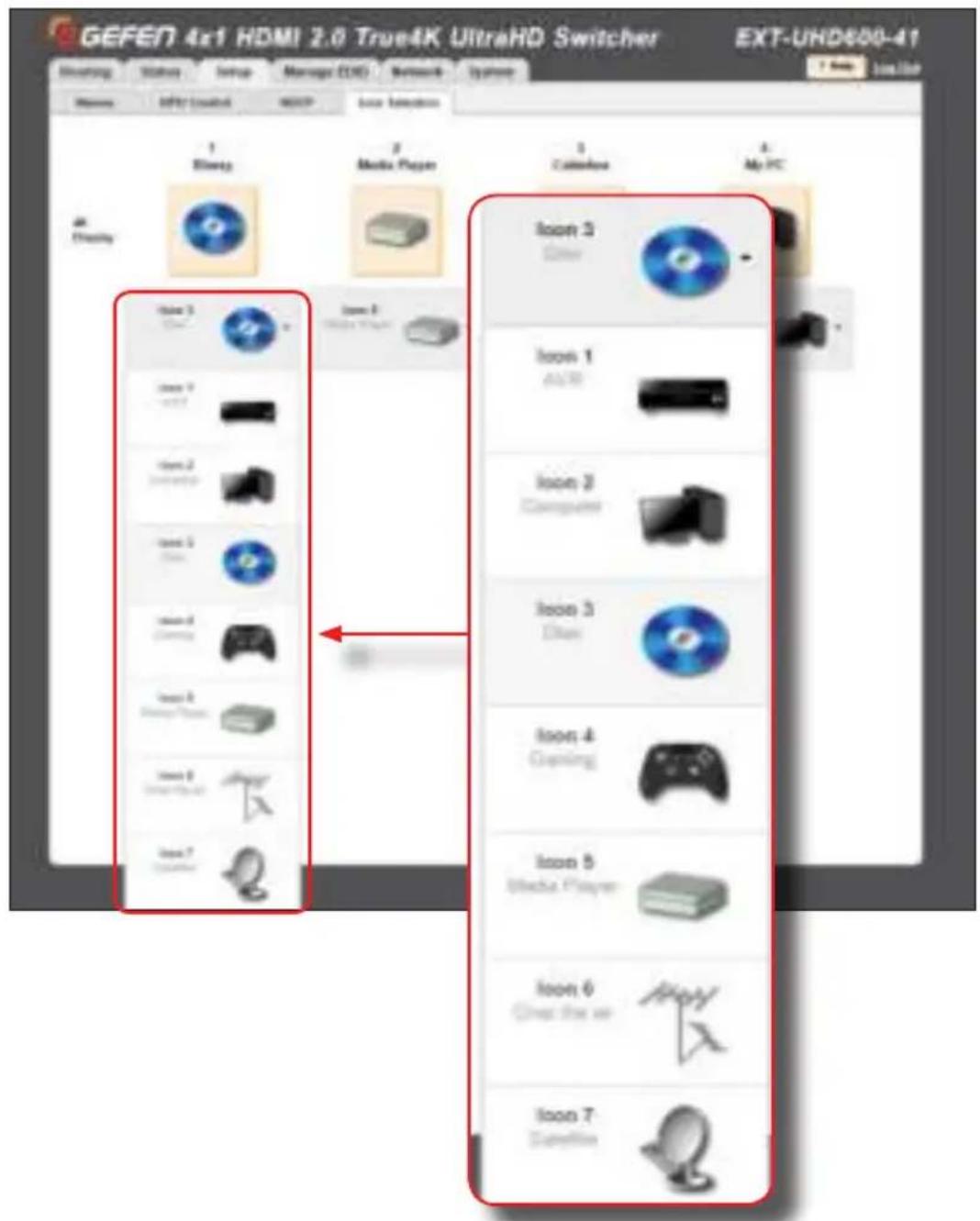

Icon Selection....24

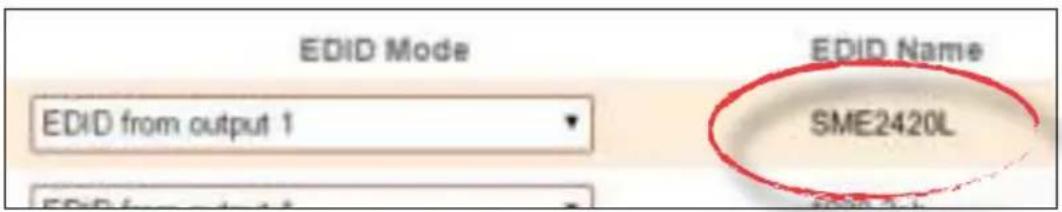

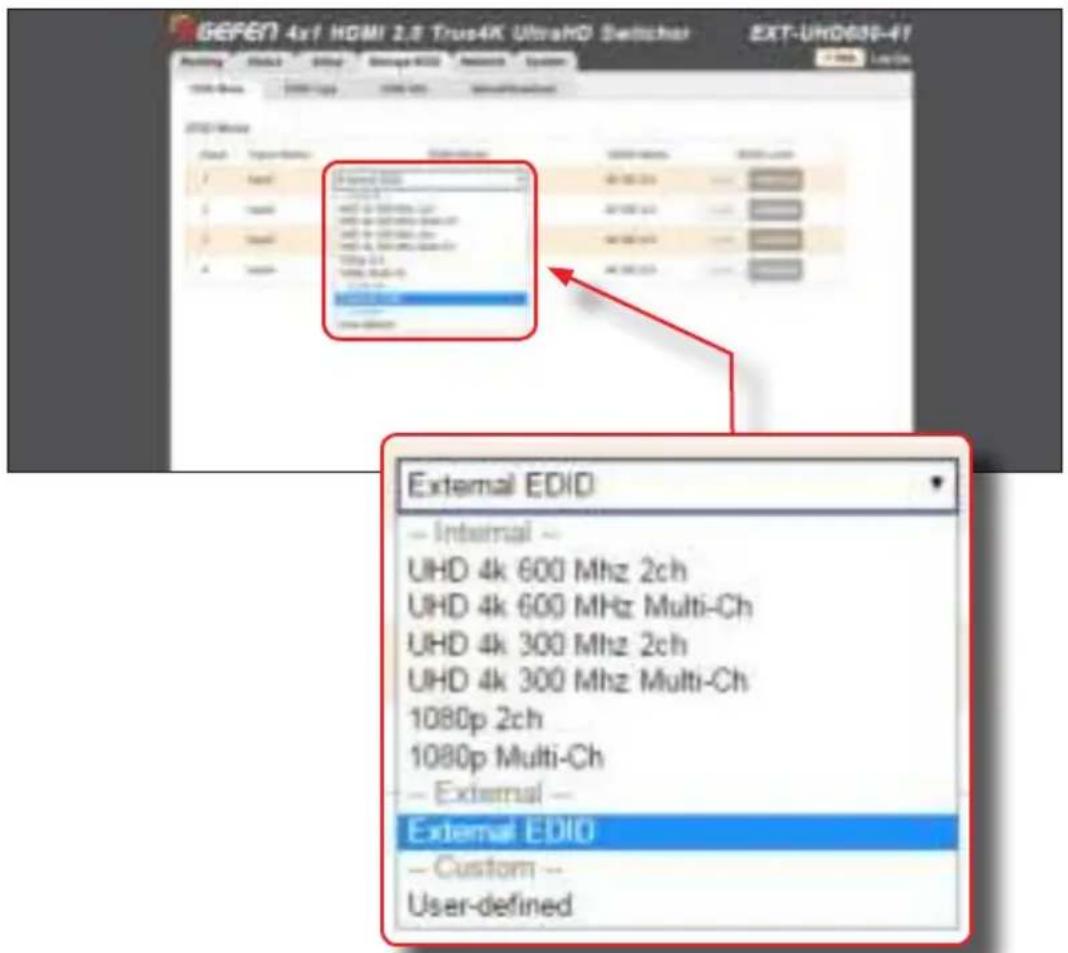

Setting the EDID Mode 25

Copying EDID Data....27

Getting EDID Information 29

Uploading and Downloading EDID Data 30

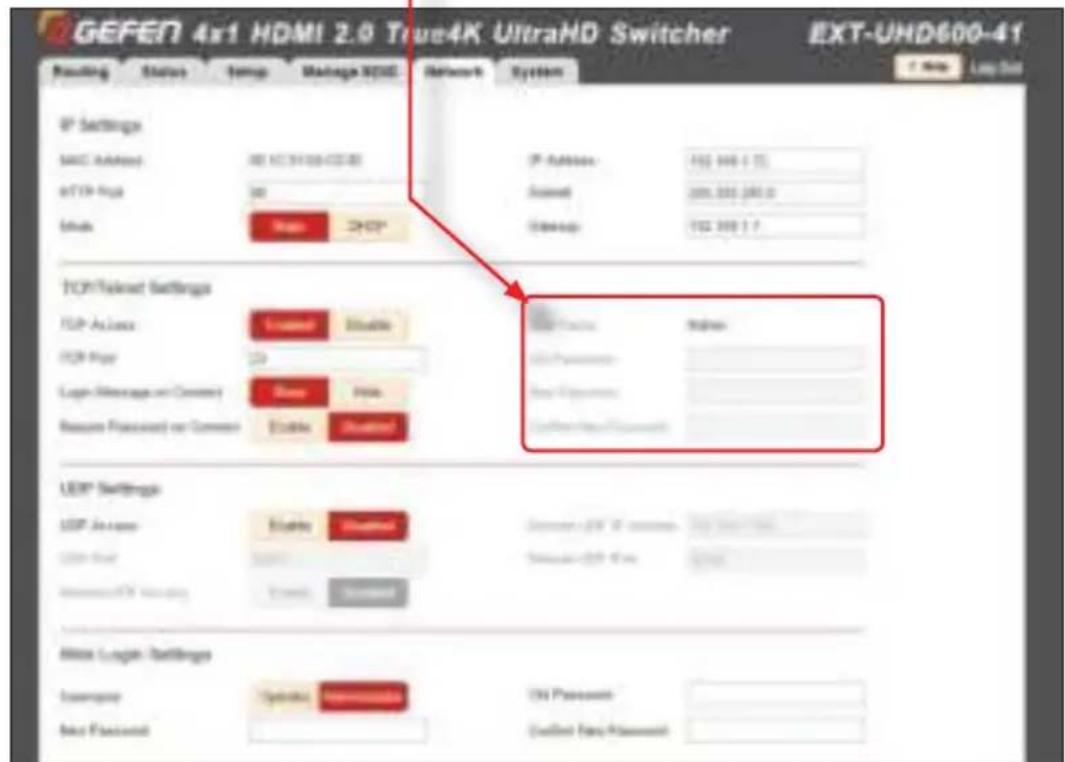

Configuring Network Settings.... 33

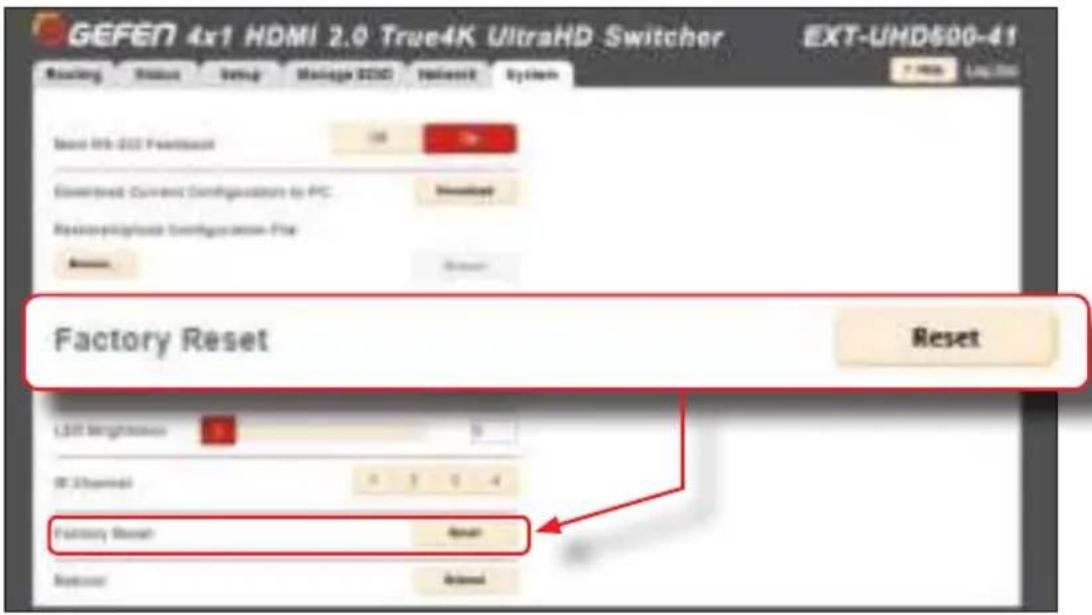

System Settings 39

3 Advanced Operation

Using Telnet, UDP, and RS-232 48

Telnet Configuration....48

UDP Configuration 48

RS-232 Configuration....49

Commands....50

4 Appendix

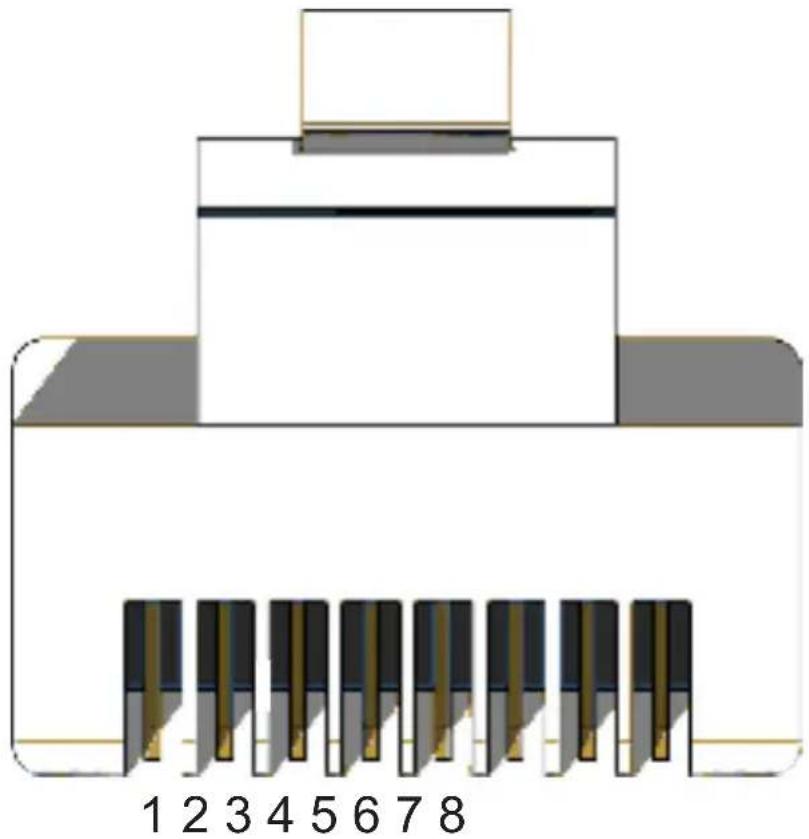

Network Cable Diagram 120

Specifications 121

Index....123

This page left intentionally blank.

600 MHz

4K ULTRA

4x1 Switcher for HDMI w/HDR

1 Getting Started

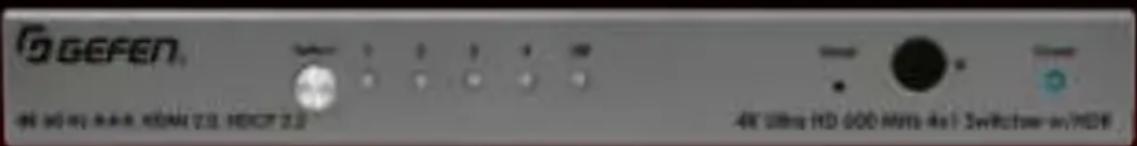

Front Panel

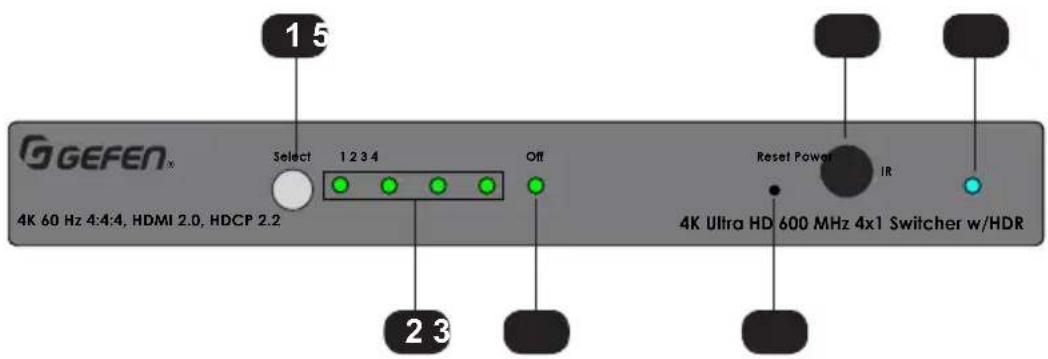

15 Select 1 2 3 4 Off 2 3 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Reset Power IR 4K Ultra HD 600 MHz 4x1 Switcher w/HDR

ID Name Description

1 Select Press and release this button to switch		between each of the inputs and the Off indicator.
2 Input Indicators (1 - 4) Each of these LED indicators represent an input on the rear panel of the switcher. When an input is selected, using the Select button, it will glow bright green. If the selected source is not active, then the indicator will glow amber.
3 Off When this LED indicator is selected, it will		glow bright green. In this state, none of the inputs will be active.
4 Reset Press and hold this button for 3 seconds to reset the switcher to factory-default settings.
5 IR This IR sensor receives signals from the included IR remote control unit.
6 Power This LED indicator will glow bright blue when the included 5V DC power supply is connected from the switcher to an available electrical outlet.

Rear Panel

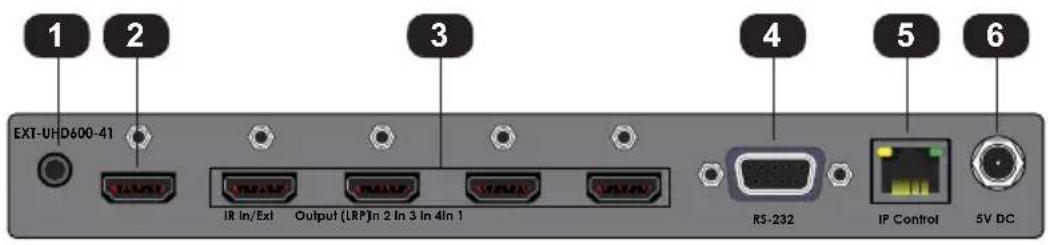

1 2 3 4 5 6 EXT-UHD600-41 IR In/Ext Output (LRP)n 2 In 3 In 4In 1 R5-232 IP Control 5V DC

ID Name Description

1 IR In/Ext Connect an IR extender (Gefen part no.EXT-RMT-EXTIRN) or an electrical IR cable from an automation system to this port.

2 Output (LRP) Connect a locking HDMI cable from thisHDMI port to an Ultra HD display.

3 In 1 - In 4 Connect a locking HDMI cable from an UltraHD source to each of these HDMI ports.

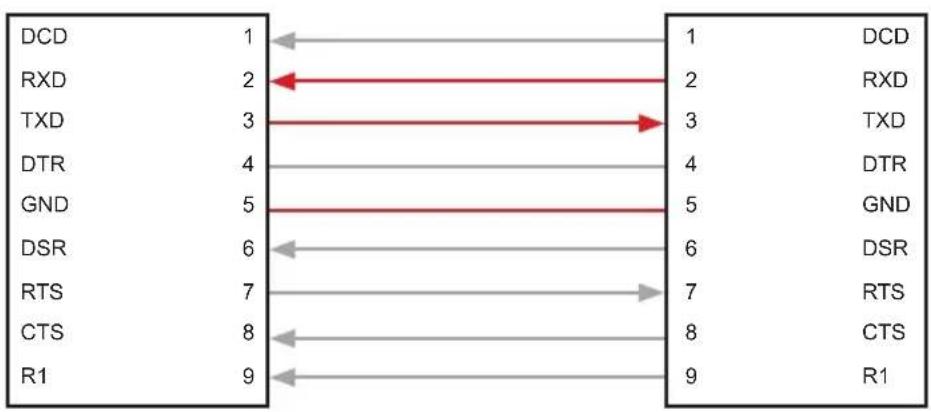

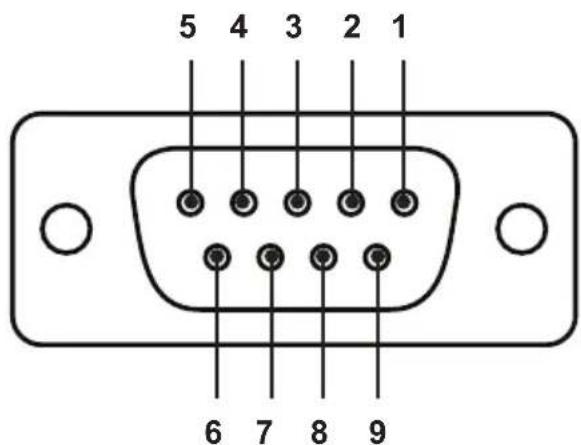

4 RS-232 Connect an RS-232 cable from this port toan RS-232 device. See Using Telnet, UDP, and RS-232 (page 48) for more information.

5 IP Control Connect an Ethernet cable betweenthis jack and a LAN to use IP control.See Using Telnet, UDP, and RS-232 (page 48) for more information.

6 5V DC Connect the included locking 5V DC powersupply to this power receptacle.

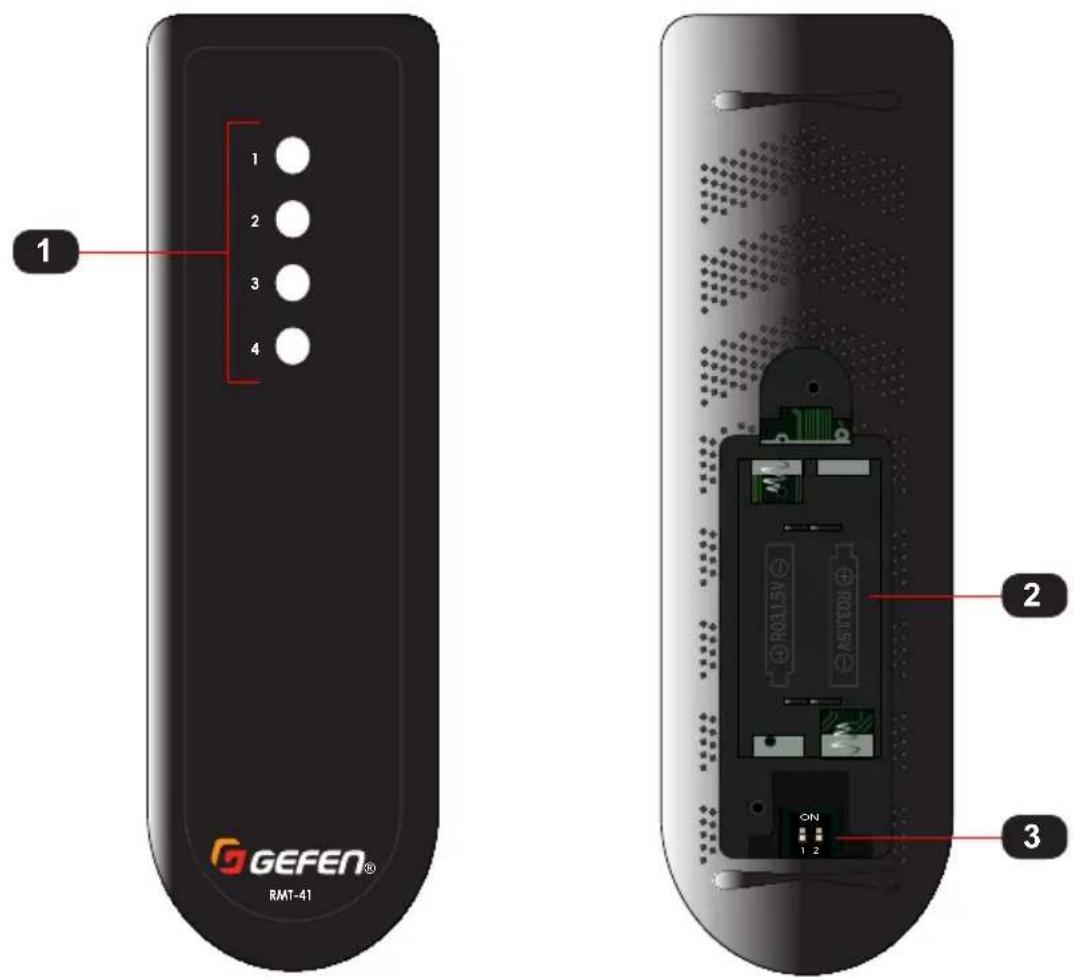

IR Remote Control

1 2 3 4 GEFEN® RMT-41 2 3

ID Name Description

1 Input buttons (1 - 4) Press these buttons to select the desired input when performing routing operations. Each button corresponds to an In port (1 - 4) on the rear panel of the switcher.
2 Battery compartment (shown open)	Accepts two 1.5V AAA-type batteries. See the next page for more information.
3 DIP switches Sets the IR channel of the IR remote control. In order for the IR remote control to communicate with the switcher, both the IR remote control and the switcher must be set to the same IR channel. See System Settings (page 39) for information on setting the IR channel of the switcher.

Installing the Batteries

1. Remove the back cover the IR remote control unit.
2. Insert two 1.5V AAA-type batteries, as shown, within the battery compartment.

R03.15V R03.15V + - + - ON 1 2

1. Replace the back cover.

Warning!

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Setting the IR Channel

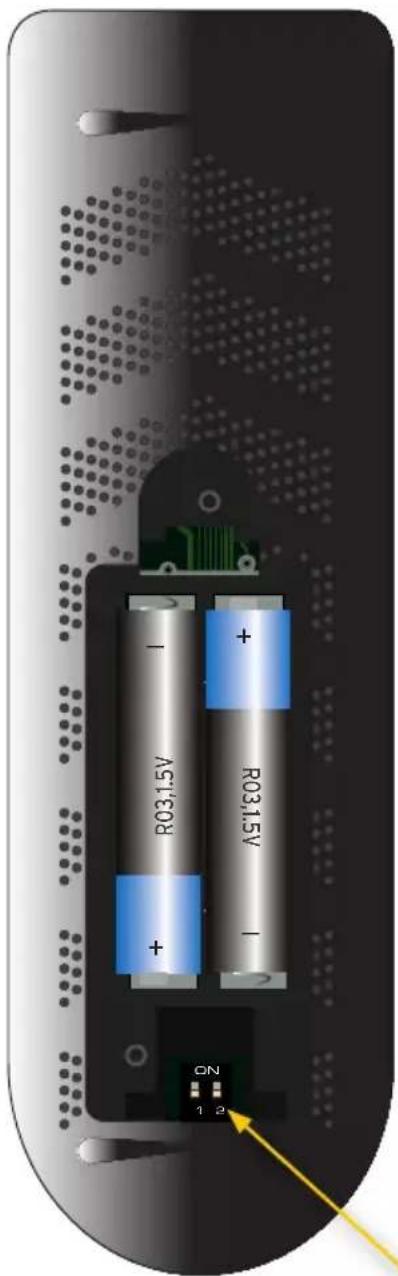

Use the following DIP switch settings to set the IR channel of the IR remote control. In order for the included IR remote control to communicate with the matrix, the IR remote control must be set to the same channel as the matrix. See System Settings (page 39) for more information.

R031.5V R031.5V + - + - ON 1 2

Channel 1 (default):

ON 1 2

DIP1 = OFF
DIP2 = OFF

Channel 2:

ON 1 2

DIP1 = ON
DIP2 = OFF

Channel 3: Channel 4:

ON 1 2

DIP1 = OFF
DIP2 = ON

ON 1 2

DIP1 = ON
DIP2 = ON

DIP switches

Connection Instructions

▶ Video

1. Use an HDMI cable to connect up to four Ultra HD sources to the inputs (In 1 - In 4) on the rear panel of the switcher.

2. Connect the included locking HDMI cable to the Output 1 (LRP) port on the rear panel of the switcher. The HDMI cable can then be connected in any of the following ways:

3. Connect the HDMI cable to an Ultra HD display.

4. Connect the HDMI cable to another EXT-UHD600 switcher or splitter, for cascading purposes.

Important

Cable quality is critical when handling 600 MHz HDMI signals. We highly recommend Gefen Locking HDMI cables. They have been designed and tested to work at 600 MHz and reliably transport the full 18 Gbps throughput of HDMI 2.0.

Power

1. Connect the included 5V DC locking power supply to the 5V DC power receptacle on the rear panel of the switcher.
2. Connect the power supply to an available electrical outlet.

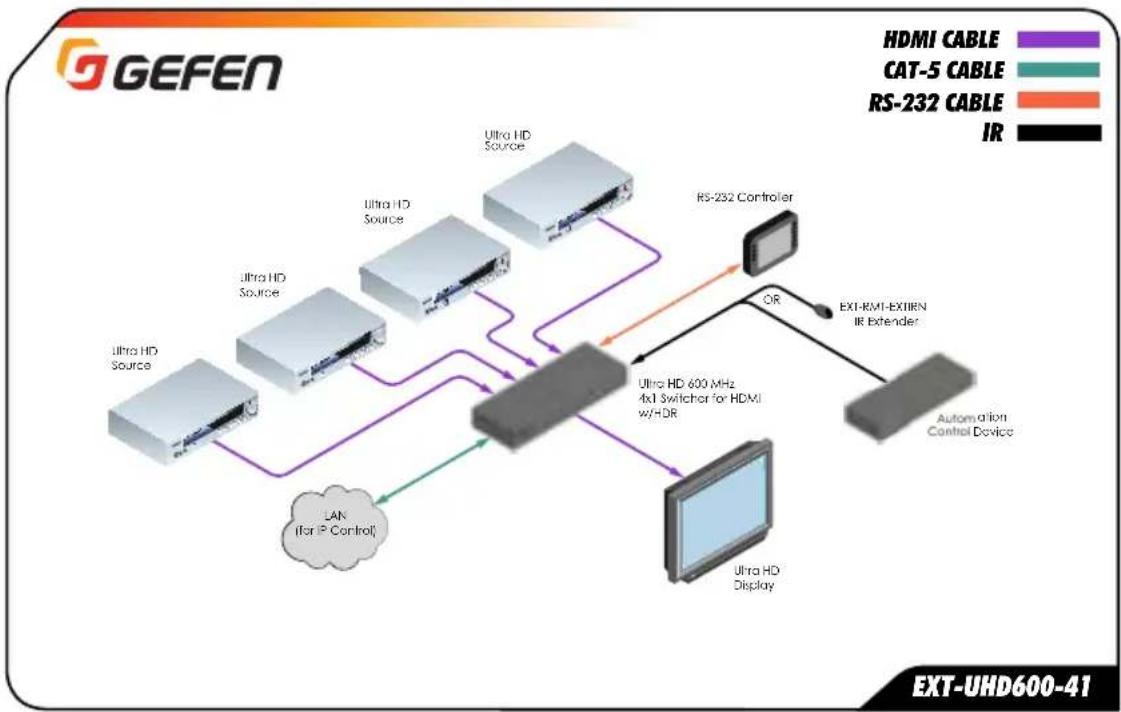

Sample Application Diagram

This page left intentionally blank.

This page left intentionally blank.

600 MHz

4K ULTRA

4x1 Switcher for HDMI w/HDR

2 Basic Operation

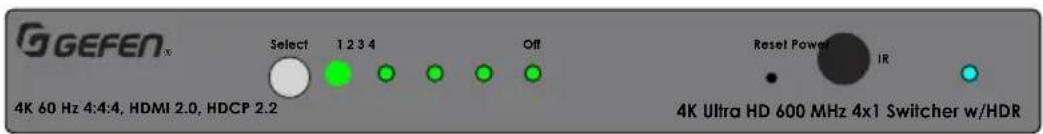

Using the Front Panel Buttons

The front panel of the Ultra HD 600 MHz 4x1 Switcher for HDMI w/HDR has a set of four LED indicators which are associated with each input on the rear panel of the switcher. Press the Input button to cycle through each of the inputs.

1. When the switcher is powered-on for the first time, input 1 will automatically be selected.

GEFEN 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Select 1 2 3 4 Off Reset Power IR 4K Ultra HD 600 MHz 4x1 Switcher w/HDR Select button

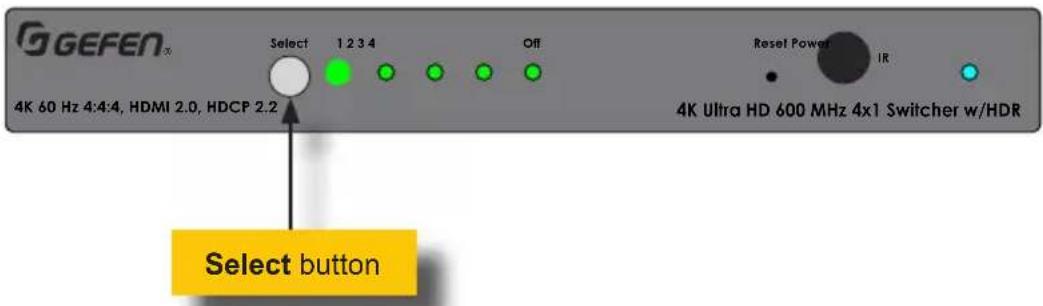

1. Press the Select button to select the next input. In this case, input 2.

GEFEN Select 1 2 3 4 Off Reset Power IR 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 4K Ultra HD 600 MHz 4x1 Switcher w/HDR

1. Consecutively press the Select button until the desired input is selected. Once input 4 is selected, pressing the Select button again will return the switcher to input 1.

GGEFEN Select 1234 Off Reset Power IR 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 4K Ultra HD 600 MHz 4x1 Switcher w/HDR

Using the IR Remote Control

The included IR remote control unit can also be used to switch between each input. The front panel of the Ultra HD 600 MHz 4x1 Switcher for HDMI w/HDR has a set of four (4) LED indicators which are associated with each input on the switcher.

1. When the switcher is powered-on for the first time, Input 1 (In 1) will automatically be selected.
2. Point the included IR remote control unit at the IR sensor on the top panel. If an IR extender is being used, then both IR sensors will be used to receive IR signals.
3. Each button on the IR remote control unit represents an input. Press the desired source button on the IR remote control to switch to that input.

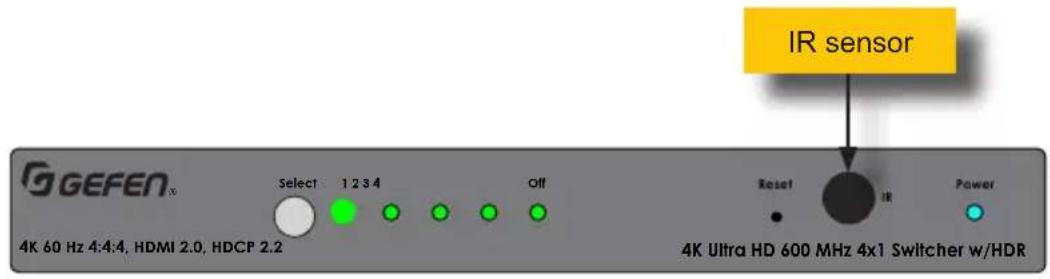

GEFEN Select 1 2 3 4 Off 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 IR sensor Reset IR Power 4K Ultra HD 600 MHz 4x1 Switcher w/HDR

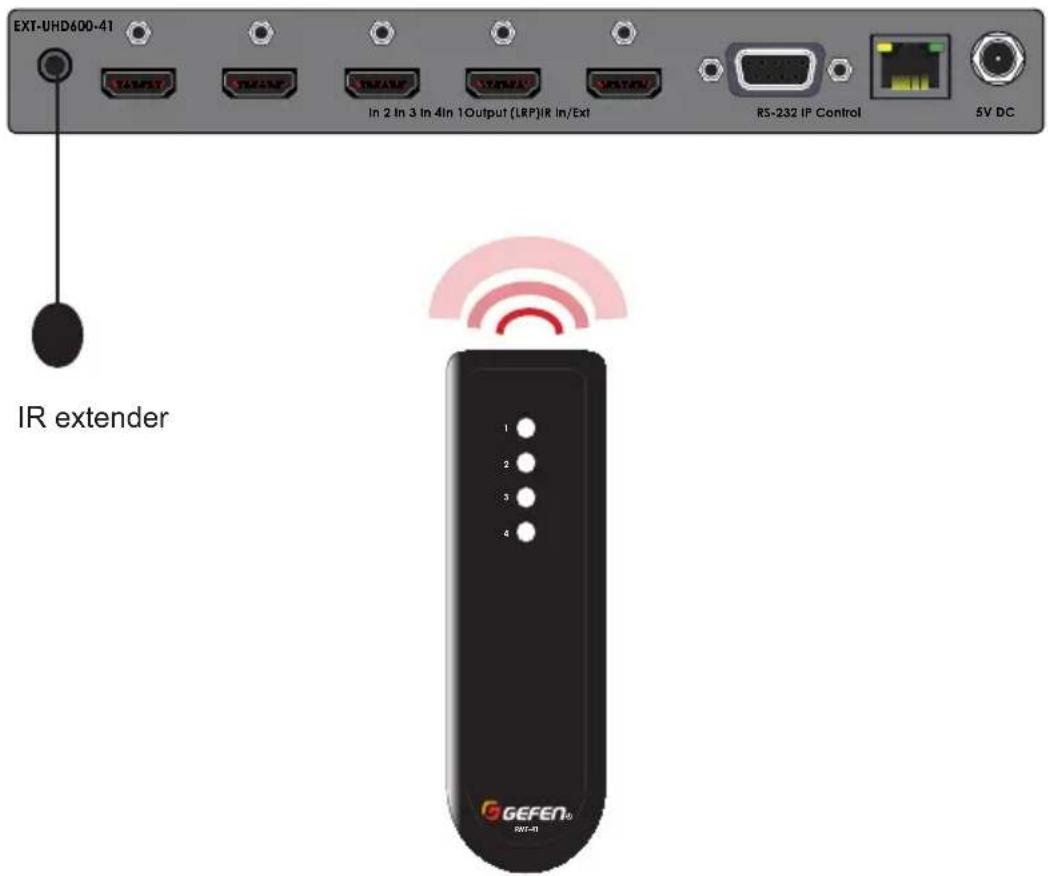

EXT-UHD600-41 In 2 In 3 In 4In 1Output (LRP)IR In/Ext RS-232 IP Control 5V DC IR extender GEFEN® SWT-41

Introduction to the Web Interface

The 4x1 Switcher for HDMI w/HDR includes a built-in web interface. We recommend that the web interface be used to control the switcher as it provides easy management of all features used by the switcher.

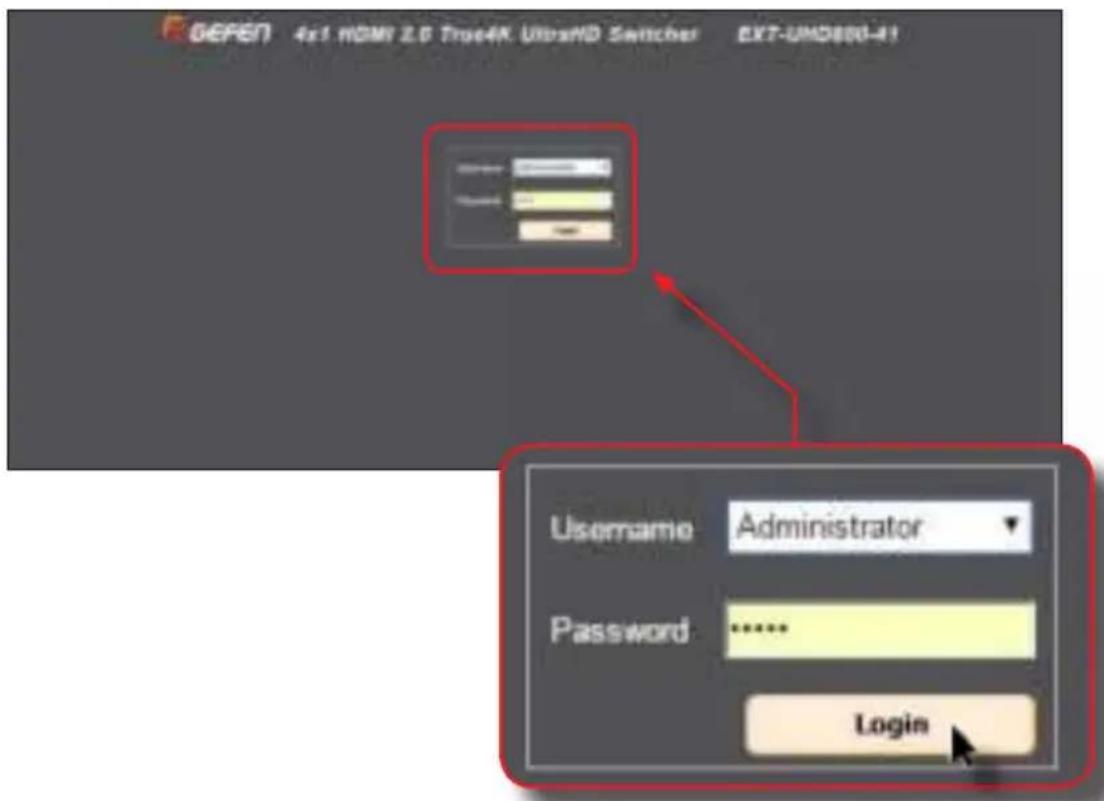

▶ Logging In

1. Launch your favorite web browser.
2. In the address bar, type the IP address of the switcher.
3. The login page will be displayed.
4. Select the user from the Username drop-down list.

GEPEN 4x1 HDMI 2.6 True4K UltraMD Switcher EXT-UM000-01 Username Administrator Password ...... Login

- Operator

The Operator username provides restricted access to the web interface. This username allows access to both the Routing and Status tabs.

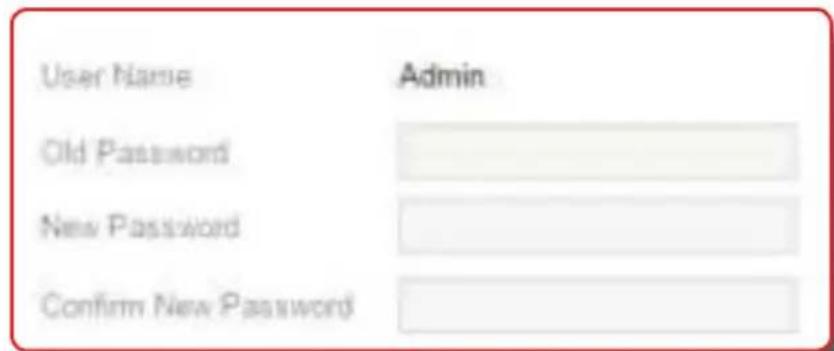

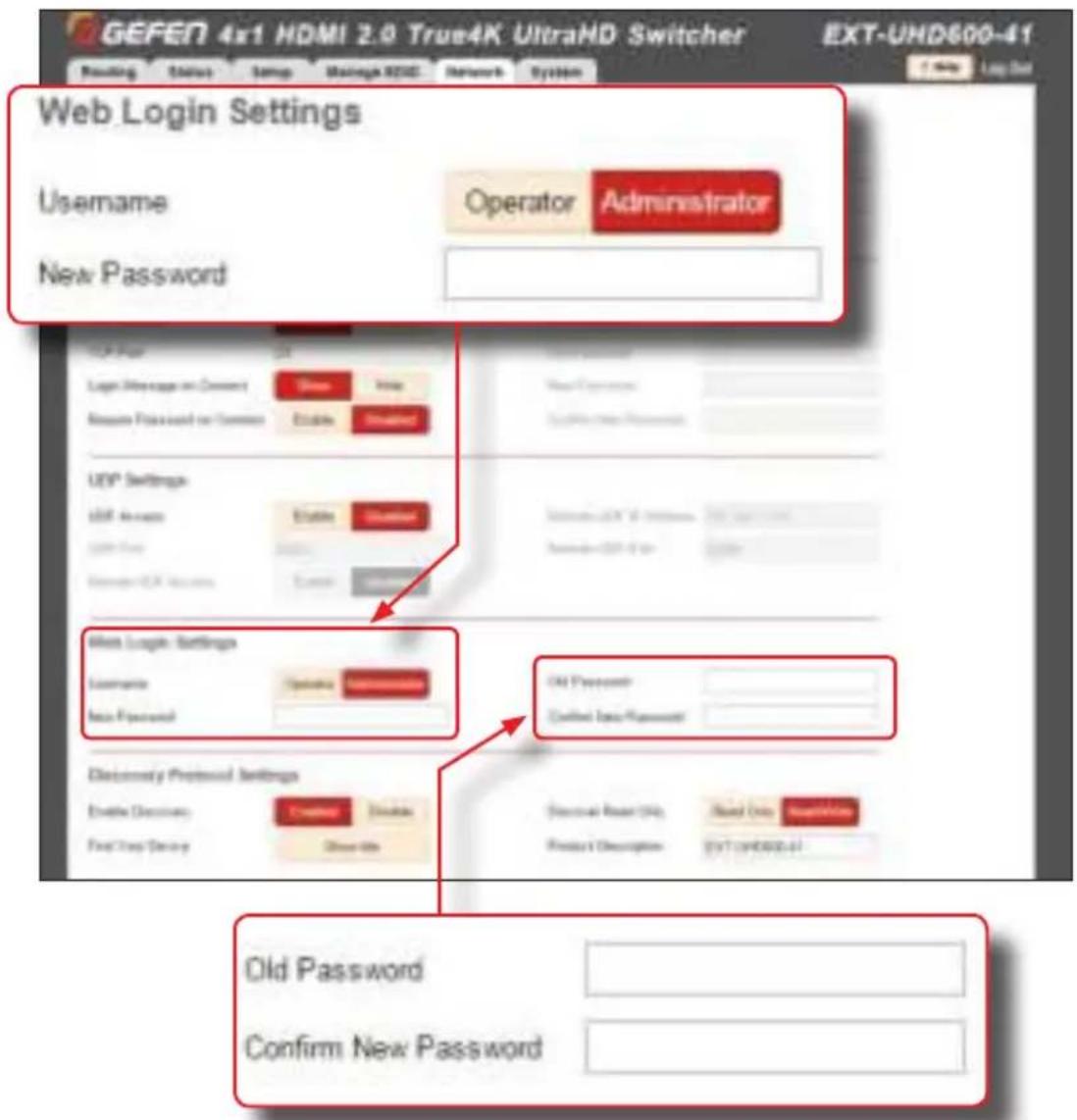

The default password for the Operator user name is Operator. All passwords are case-sensitive. For information on changing the default password, see Configuring Network Settings (page 33).

- Administrator

The Administrator username provides full access to all features within the web interface.

The default password for the Administrator user name is Admin. All passwords are case-sensitive. For information on changing the default password, see Configuring Network Settings (page 33).

1. Enter the password for the selected username.
2. Click the Login button.

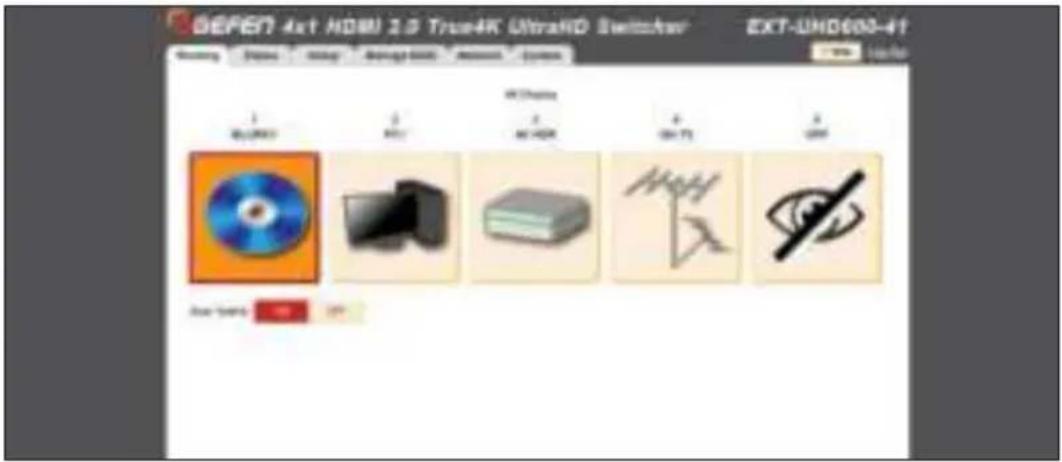

3. The Routing tab will be displayed.

GEFEN 4x10 HDMI 2.0 True4K UltraHD Switcher EXT-UN0600-4T 1 BUTTER 2 RDT 3 ACI-400 4 ON 75 5 GND DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCT-400 DCT-400 DCT-400 DCT-400 DCT-400 DCT-400 DCT-400 DCT-400 DCT-400 DCT-400 DCT-400 DCT-400 DCT-400 DCT-400 DCT-399 DCT-399 DCT-399 DCT-399 DCT-399 DCT-399 DCT-399 DCT-399 DCT-399 DCT-399 DCT-399 DCT-399 DCT-399 DCT-399 DCT-399 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DCI-400 DXC - 1888 DXC - 1888

▶ Administrator vs Operator

As mentioned earlier, logging in as Operator provides restricted access to many of the available features within the web interface. This is summarized in the table below:

Administrator Operator
• Access to all features	• Access toRoutingandStatus tabs, only.• No access to theAuto Switchbutton under theRoutingtab.

▶ Tabs and Sub-tabs

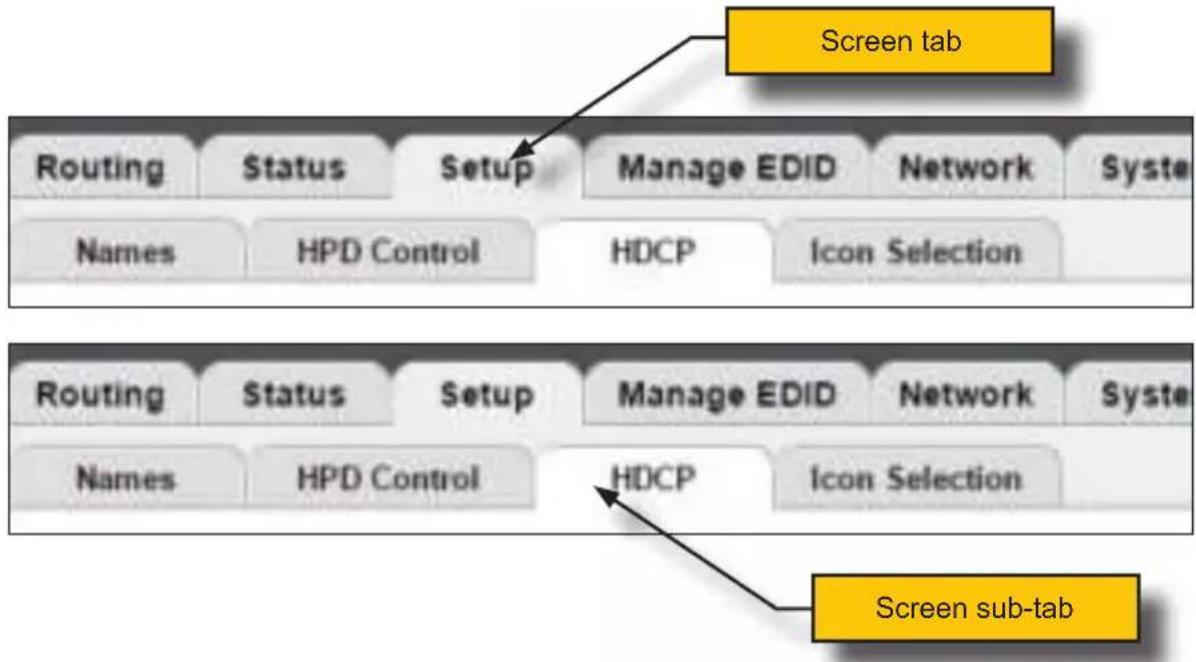

The web interface is organized into tabs, in the top-portion of the screen. Clicking on a tab will display a different screen.

The Setup and Manage EDID tab have their own set of tabs, which we will refer to as "sub-tabs", as shown below.

Screen tab Routing Status Setup Manage EDID Network Syste Names HPD Control HDCP Icon Selection Routing Status Setup Manage EDID Network Syste Names HPD Control HDCP Icon Selection Screen sub-tab

▶ Buttons

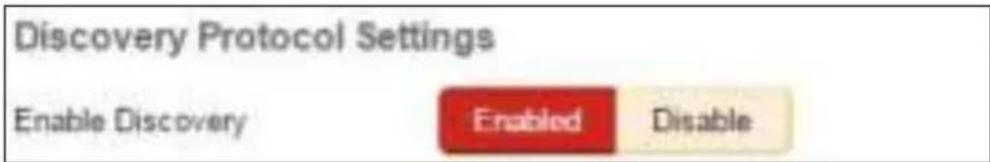

Several screen contain buttons which allow the selection of a particular mode or setting. Click the button for the desired setting. Buttons that are red represent a setting that is "turned on". If the button is pale-yellow, then the feature is "turned off":

• Example of a feature is "turned on"

Discovery Protocol Settings Enable Discovery Enabled Disable

• Example of a feature that is "turned off"

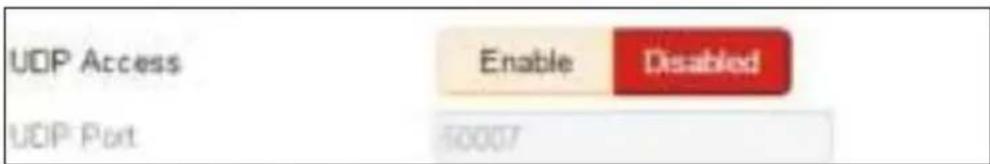

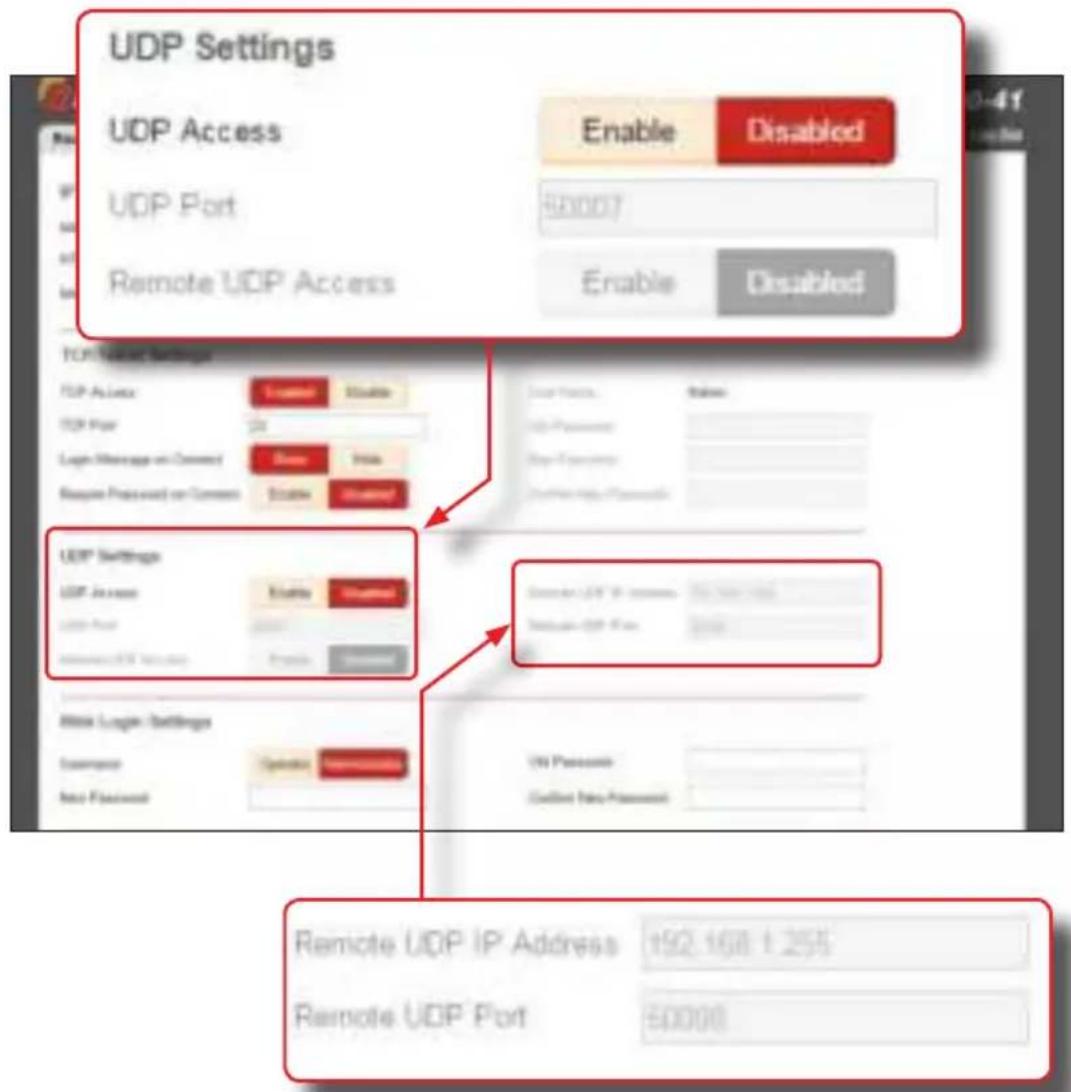

UDP Access Enable Disabled UDP Port 50007

- If a button is light-gray or dark-gray (disabled), then this means that the setting is not available. This usually requires that another setting must be enabled before setting that feature.

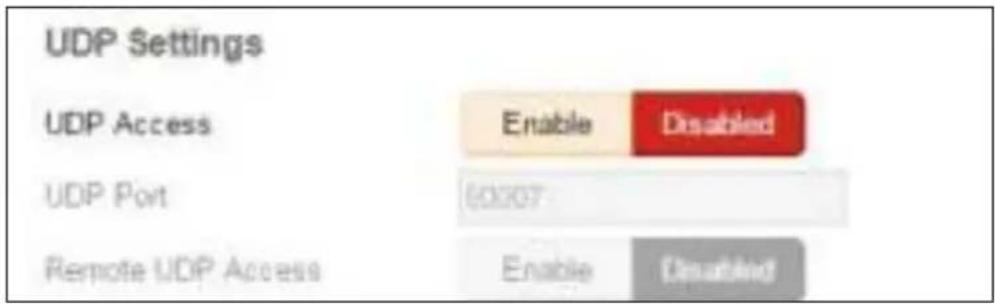

For example, note that both the Remote UDP Access button and the UDP Port field are disabled in the illustration, below:

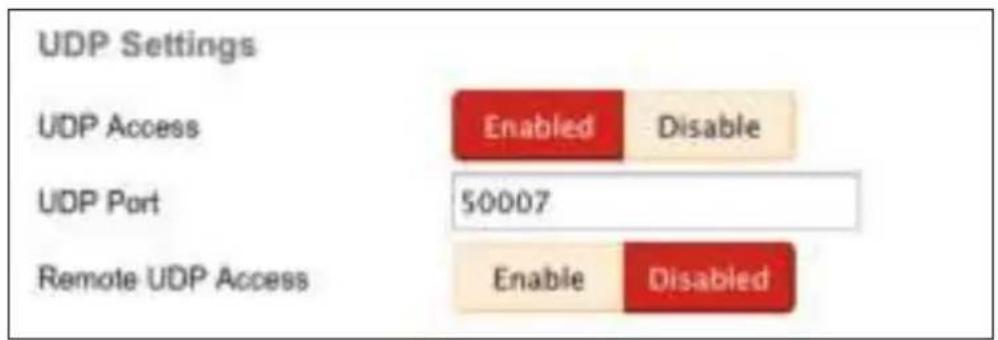

UDP Settings UDP Access Enable Disabled UDP Port 60007 Remote UDP Access Enable Disabled

In order to change either of these settings, UDP Access must be enabled.

After clicking the Enable button, next to UDP Access, the button turns red and reads "Enabled." Since UDP Access is now enabled, we can now enable or disable Remote UDP Access and/or change the UDP Port number:

UDP Settings UDP Access Enabled Disable UDP Port 50007 Remote UDP Access Enable Disabled

Routing

The Routing tab will be the first tab to automatically be displayed after logging in to the web interface.

1. Click the desired input from the list of icons. Once clicked, the icon background will turn orange, indicating that it is the currently-active input.

2. To prevent audio/video from being output, click the OFF button.

OFF button Auto-Switch ON OFF

1. The Auto Switch feature is disabled by default. Click the ON button to enable this feature. When enabled, the device will automatically switch to the input that is receives a hot-plug detect.

2. See Icon Selection (page 24) for information on changing the icon representation of each "input".

Input and Output Status

The Status tab provides video and audio information for all inputs and outputs.

1. Click the Status tab within the built-in web interface.
2. Information on each input is listed in the top portion of the screen.
3. Information on each output is listed in the bottom portion of the screen.

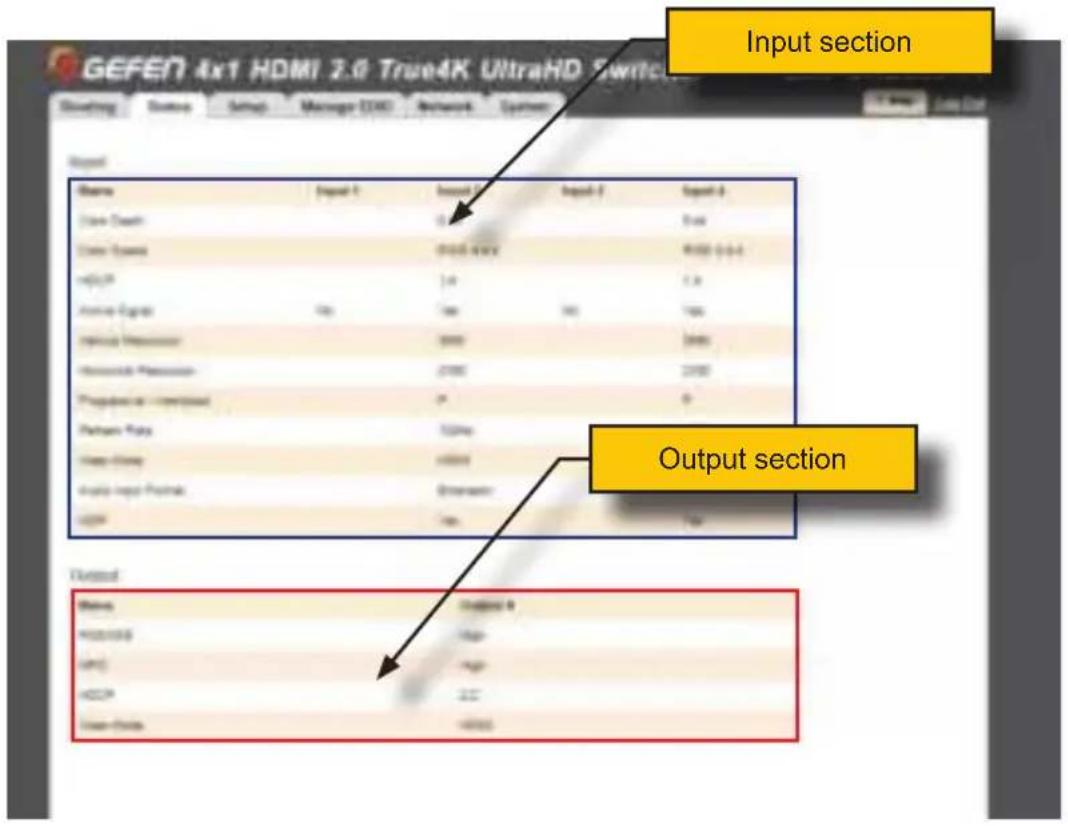

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switch Input section Name Input 1 Output 2 Input 3 Input 4 Train Address 5.0 5.0 Train Address 6.0 6.0 HDD 7.0 7.0 Analog Devices 8.0 8.0 Physical Parameters 9.0 9.0 Electronic Parameters 10.0 10.0 Transplant Parameters 11.0 11.0 Platform Type 12.0 Load Voltage 13.0 Load Input Protocol 14.0 Output section Tested Name Output 9 Performance High GPS High HCP Low Load Power High

The table below outlines the information that is available for each section:

Input Output
Color depthColor spaceHDCPActive SignalVertical resolutionHorizontal ResolutionProgressive / interlacedRefresh rateVideo modeAudio Input FormatHDR	RsenseHDPHDCPVideo mode

Changing Input and Output Names

By default, the names of the output is Output. The default names for each input are Input 1 - Input 4. Each of these names can be changed, as desired, to suit the type of device that is connected to the input or output. This allows easy reference when performing routing operations.

1. Click the Setup tab within the built-in web interface.
2. Click the Names sub-tab.
3. Click in the field of the desired output or input to be changed.

Inputs Output Input 1 Bluray Output 4K Display Input 2 Media Player Blending Status Update Manage DISCUI Software System Blowers INFO Content INFO User Selection Blowers Inputs Output Input 1 Bluray Select and Close Input 2 Audio Player Input 3 Common Input 4 (My PC) Save Save

1. Once all changes have been made, click the Save button.
2. The new names will be displayed within the Routing tab.

HPD Control

A Hot-Plug Detect (HPD) is a +5V signal that is sent from the source to the sink, once it is connected using an HDMI cable. After receiving the signal, the sink device sends a +5V HPD signal back to the source. HPD is used to begin communication between source and sink. Within the web interface, an HPD pulse can manually be sent to the source device from the selected input.

1. Click the Setup tab within the built-in web interface.
2. Click the HPD Control sub-tab.

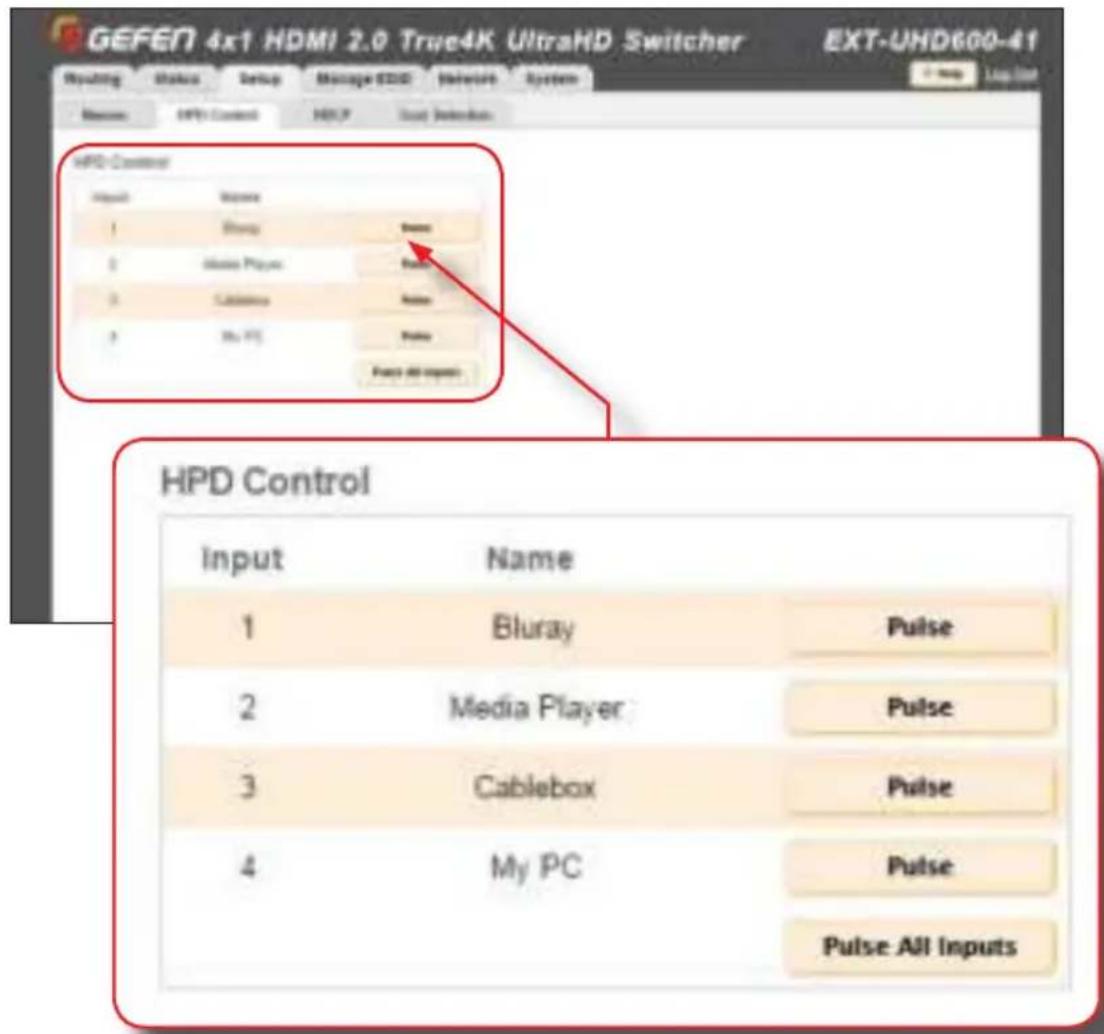

3. Click the Pulse button for the desired input. Click the Pulse All Inputs button to send an HPD signal from all inputs.

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UND600-41 Resulting Status Setup Manage EDD Network System Browse HPD Control HELP Copy Interlock HPD Control Input Name 1 Batch Name 2 Home Player Name 3 Cablebox Name 4 No PC Name Paste all inputs HPD Control Input Name 1 Bluray Pulse 2 Media Player Pulse 3 Cablebox Pulse 4 My PC Pulse Pulse All Inputs

HDCP

This feature allows HDCP content to either be passed-through or rejected on each input. Outputs can either follow the input status or can be set to always encode HDCP. Note that using the "Reject" feature, on an input, does not decrypt HDCP content.

1. Click the Setup tab within the built-in web interface.
2. Click the HDCP sub-tab.
3. For inputs, select the desired button next to the input.

▶ Reject - Does not allow HDCP content to be passed through. Click the Reject All button to set all inputs to Reject.
▶ 2.2 - Click this button if the sink device supports HDCP 2.2. Click the All 2.2 button to set all inputs to 2.2.
▶ 1.4 - Click this button if the sink device only supports HDCP 1.4. Click the All 1.4 button to set all inputs to 1.4.

HDCP Handshake Input Name 1 Bluray Reject 2.2 1.4 2 Media Player Reject 2.2 1.4 3 Cablebox Reject 2.2 1.4 4 My PC Reject 2.2 1.4 Reject All All 2.2 All 1.4 GEFEN 4x Balance Money Balance 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 HDCP Handshake Import Import 1 Blue Report 88 1.4 2 Home Player Report 88 1.4 3 Common Report 88 1.4 4 My PC Report 88 1.4 Report All All 2.2 All 1.4

1. For the output, select either Follow Input of Always Encode.

▶ Follow Input - Click this button to have the output follow the setting used on the input. Click the Follow All button to set all outputs to Follow Input.
▶ Always Encode - Encodes the output signal with HDCP, regardless of the input signal. Use this feature for displays that require HDCP-encoded content. Click the All Encode button to set all outputs to Always Encode.

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UHD600-41 Loading Setup Setup Manage BIOS Security System Name OFFI Control HELP True Switcher HDCP HandShake Output Name 1 2 3 4 5 6 7 Output: 4K Display Follow Input Always Encode Output: 4K Display Follow Input Always Encode

Icon Selection

Use the Icon Selection tab to select the desired icons which best represent each source device in the system.

1. Click the Setup tab within the built-in web interface.
2. Click the Icon Selection sub-tab.
3. Click the arrow, next to the icon, to change its appearance. Each input provides the same icon choices.

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UHD600-41 Shooting Saturn Setup Manage (TWO) Network System Name MPSI Control MSIP Local Telephones 1 Bluesy 2 Media Player 3 Coinbase 4 My PC Icon 3 Icon 4 Icon 5 Icon 1 Icon 2 Icon 3 Icon 4 Icon 5 Icon 6 Icon 7

Setting the EDID Mode

The EDID Mode tab allows the desired EDID mode (internal preset, external, or custom) to be set for each input.

1. Click the Manage EDID tab within the built-in web interface.
2. Click the EDID Mode sub-tab.
3. Select the desired EDID mode for each input using the drop-down list.

GEFEN 4x1 HDMI 2.5 Trus4K UltraHD Switchheader EXT-UH0630-4Y I/O: 1.0 I/O: 1.0 External EDIO -- Internal -- UHD 4k 600 Mhz 2ch UHD 4k 600 MHz Multi-Ch UHD 4k 300 Mhz 2ch UHD 4k 300 Mhz Multi-Ch 1080p 2ch 1080p Multi-Ch -- External -- External EDIO -- Custom -- User-defined

If the EDID Mode is set to External, then the name of the downstream EDID (device) will appear under the EDID Name column, as shown:

EDID Mode EDID from output 1 EDID from output 1 EDID Name SME2420L

▶ Using a Custom EDID

The User-defined setting is used to store a custom EDID in the selected input. To use a custom EDID, follow the instructions below:

1. Select User-defined from the drop-down list of the desired input.

1	Bluray	User-defined
2	Media Player	EDID from output 1
3	Cablebox	EDID from output 1

1. Copy or upload an EDID to the input that is using the Custom mode. See one of the following sections for more information on copying or uploading EDID data:

▶ Copying EDID Data (page 27)

▶ Uploading and Downloading EDID Data (page 30)

1. Set the EDID Lock mode to either Locked or Unlocked:

▶ Locked

Prevents the EDID from being changed on the input..

▶ Unlocked

Allows the EDID to be changed.

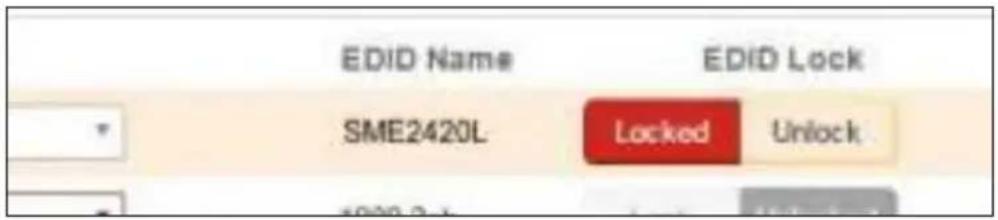

EDID Name EDID Lock SME2420L Locked Unlock

1. The name of the custom EDID will appear under the EDID Name column.

Copying EDID Data

The EDID Copy tab allows an EDID to be copied from an input or output (sink device) to any input. In order to copy an EDID to an input, the input must be set to User-defined mode and then unlocked. See Setting the EDID Mode (page 25) for more information.

1. Click the Manage EDID tab within the built-in web interface.
2. Click the EDID Copy sub-tab.

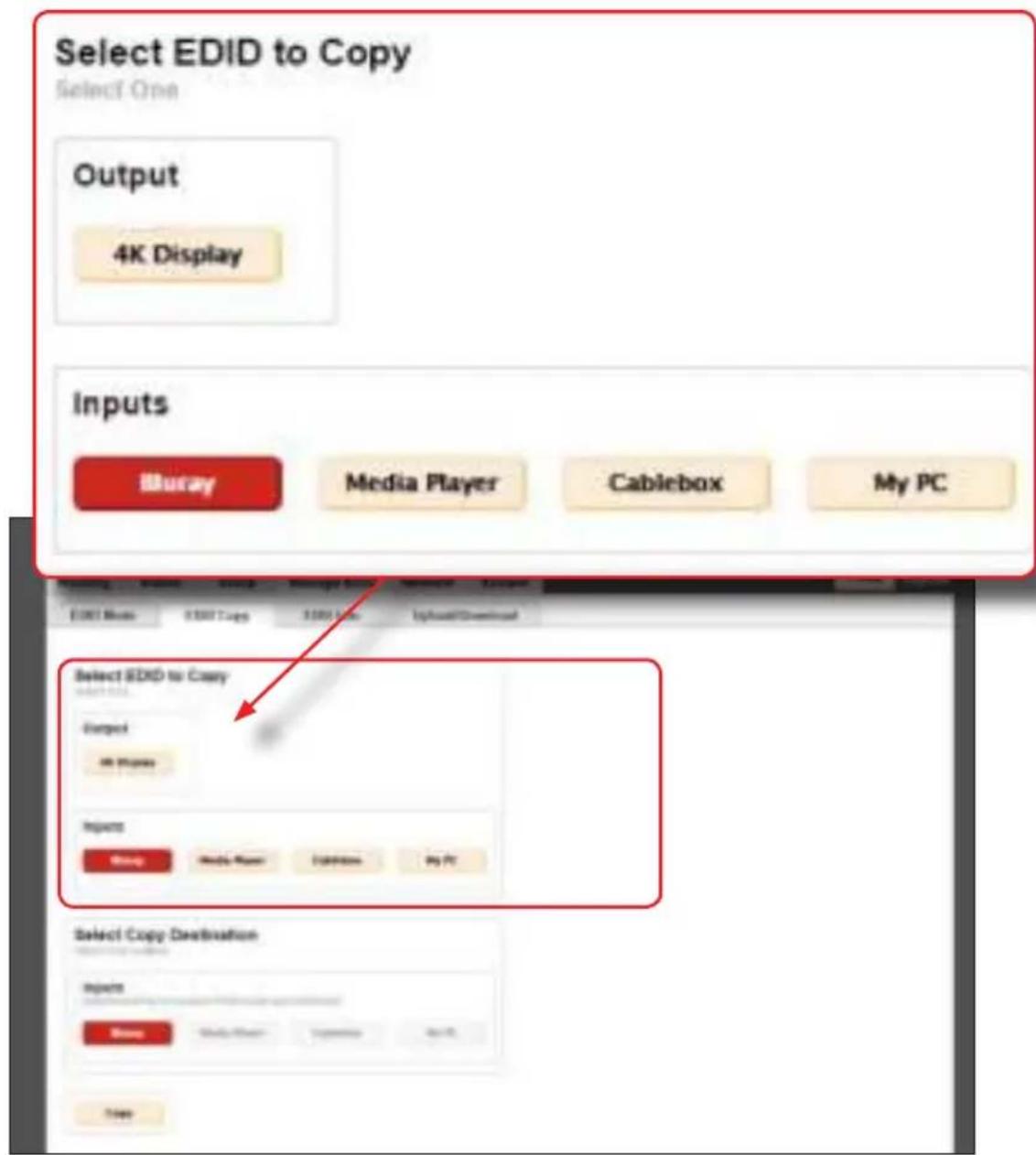

3. Click the button of the output or input from the Select EDID to Copy section. Only one input can be selected at a time.

Select EDID to Copy Select One Output 4K Display Inputs Muray Media Player Cablebox My PC EDID Menu EBIT Caps EBIT Plus Up/Down/Downset Select EDID to Copy Import On Files Imports Bring Media Player Exhibition My PC Select Copy Destination Imports Bring Media Player Subscription Buy

1. After an input or the output is selected, click the button for the corresponding input where the EDID will be copied. One or more inputs can be selected at a time.

Select Copy Destination Select One or More Inputs Inputs must be in custom EVD mode and uploaded Barry Media Player Catdiventex My PC Select Copy Destination Barry Media Player Catdiventex My PC Copy

1. Click the Copy button. The Copy can only be pressed when both the input (the source) and the output (destination) are selected.
2. The EDID copy process is complete. Repeat steps 3 - 5 as desired.

Getting EDID Information

The EDID Info tab allows the EDID information, from an input or sink device, to be displayed.

1. Click the Manage EDID tab within the built-in web interface.
2. Click the EDID Info sub-tab.

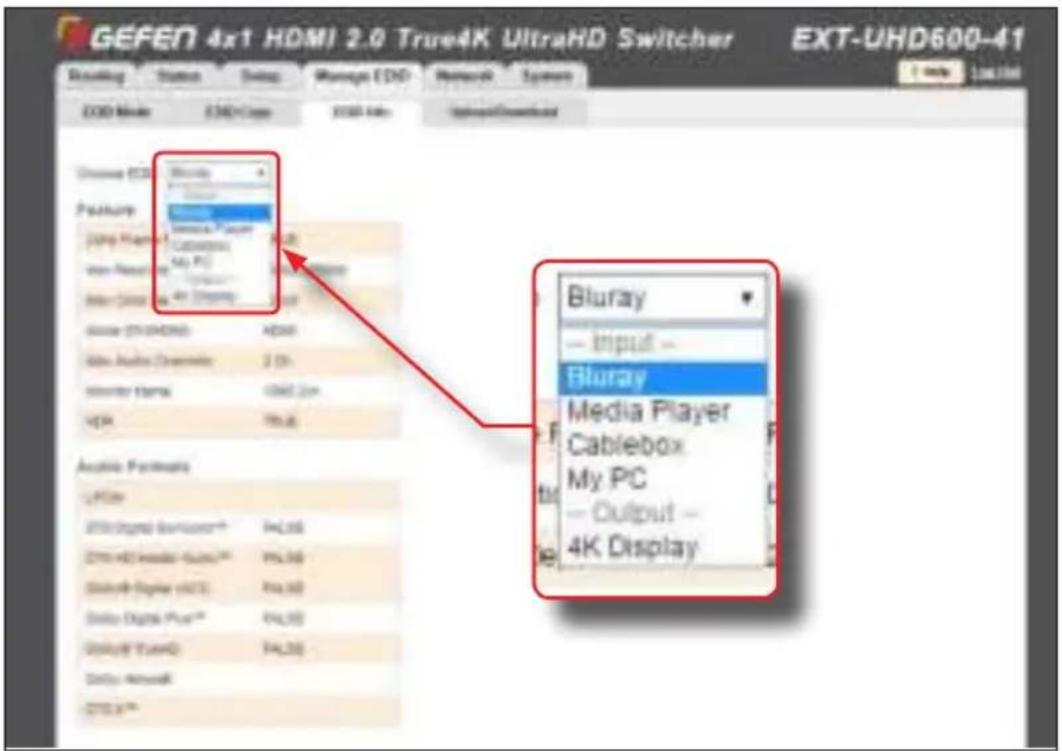

3. Select the desired input or output from the Choose EDID drop-down list.

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UHD600-41 Rendering Status Down Manage EDD Network Systems EDD Mode E3D+Cap E3D Main Uplink/Download Bluray — Input — Bluray Media Player Cablebox My PC — Output — 4K Display Bluray — Input — Bluray Media Player Cablebox My PC — Output — 4K Display

1. The EDID information for the selected input or output will be displayed.

Uploading and Downloading EDID Data

The Upload / Download tab allows EDID data from an input, output, or one of the internal EDID presets, to be downloaded and saved as a file on your computer. An EDID file can also be uploaded to any (unlocked) input.

▶ Downloading an EDID

1. Click the Manage EDID tab within the built-in web interface.
2. Click the Upload/Download sub-tab.

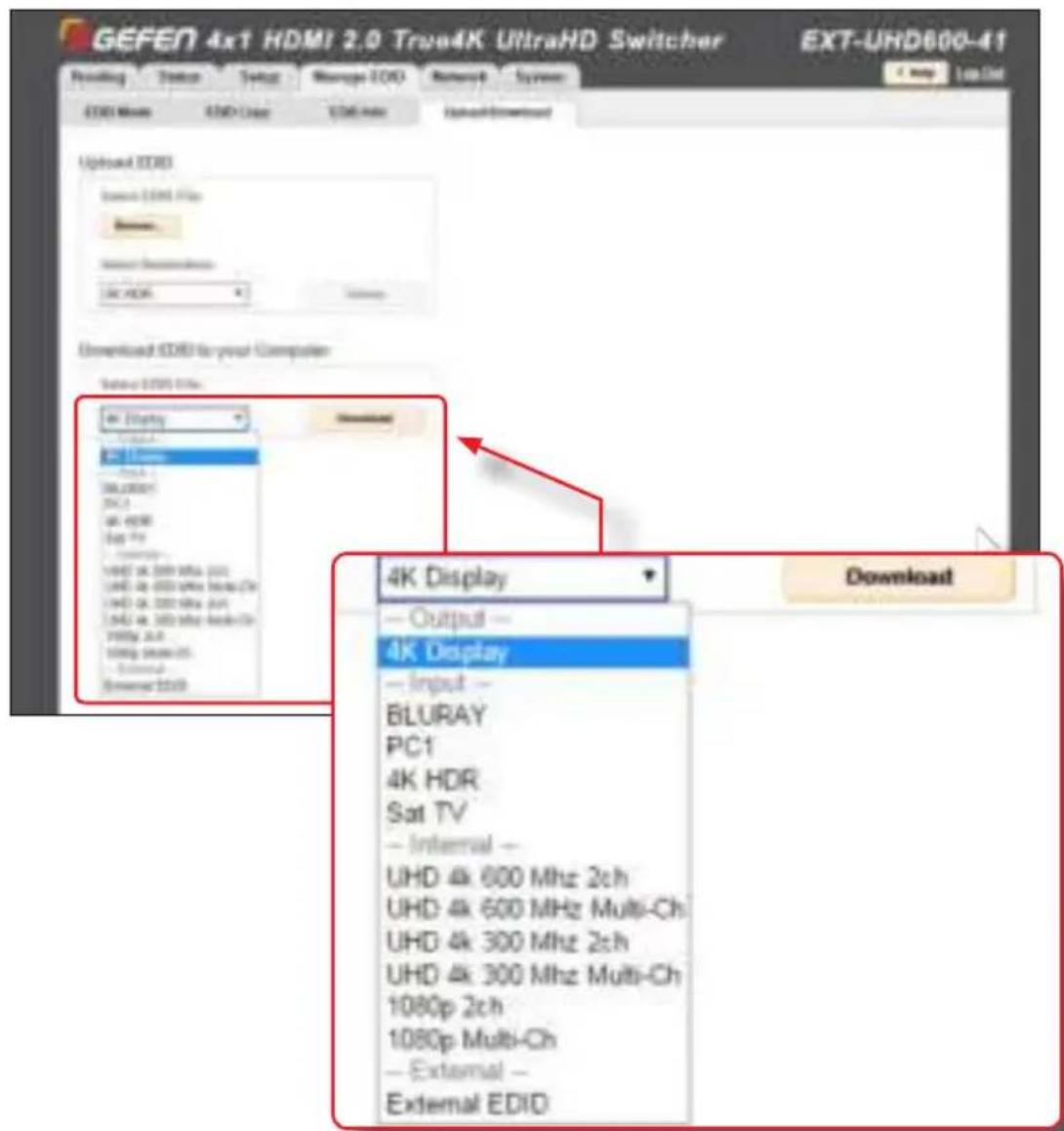

3. Select the desired input, output, or internal EDID preset to be downloaded using the Select EDID File drop-down list.
4. Click the Download button.

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UHD600-41 Loading Status Setup Storage EDD Network System EDD Mode EDD Load EDD mode Upload/Download Upload EDD Search EDD File Search Recommendation: AC HDB Download Download EDD to your Computer Search EDD File: AC Display DC BLURAY PC1 4K HDR Sat TV UHD 4k 300 MHz 2ch UHD 4k 600 MHz Multi-Ch UHD 4k 300 MHz 2ch UHD 4k 300 MHz Multi-Ch 1080p 2ch 1080p Multi-Ch External External EDID 4K Display Output 4K Display Input BLURAY PC1 4K HDR Sat TV Internal UHD 4k 600 MHz 2ch UHD 4k 600 MHz Multi-Ch UHD 4k 300 MHz 2ch UHD 4k 300 MHz Multi-Ch 1080p 2ch External External EDID

1. The following dialog will be displayed:

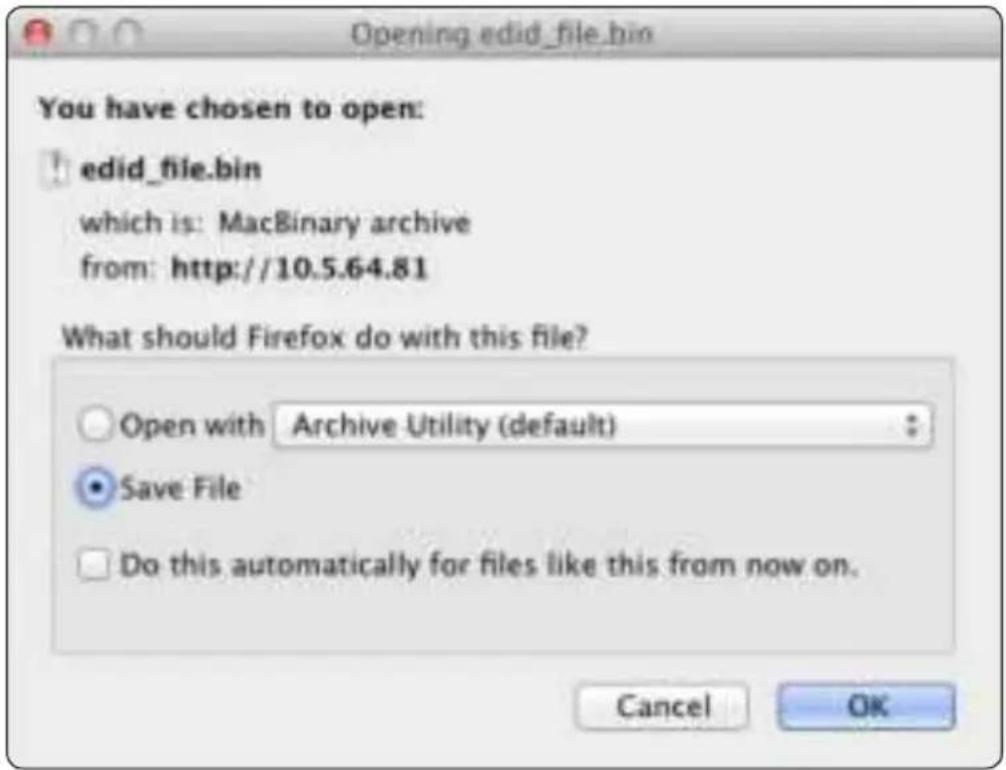

Opening edid_file.bin You have chosen to open: edid_file.bin which is: MacBinary archive from: http://10.5.64.81 What should Firefox do with this file? Open with Archive Utility (default) Save File Do this automatically for files like this from now on. Cancel OK

1. Click the Save File button to save the EDID file to your computer.

• Mac OS X The file will automatically be saved under Macintosh HD\Users[username]\Downloads.

- Windows OS The file will be saved under C:\Users[username]\Downloads.

▶ Uploading an EDID

1. Click the Manage EDID tab within the built-in web interface.
2. Click the Upload/Download tab.
3. Select the input where the EDID file will be uploaded.
4. Set the input to Custom mode. See Setting the EDID Mode (page 25) for more information.
5. Click the Browse... button under Upload EDID section.
6. The File Upload dialog will be displayed.
7. Select the EDID file from your computer. The EDID file must be in .bin format. After the file is selected, click the OK button on the dialog box.
8. Select the input where the EDID will be uploaded using the Select Destination drop-down list. In order for an input to be selected, it must be unlocked and set to Custom. See Setting the EDID Mode (page 25) for more information.

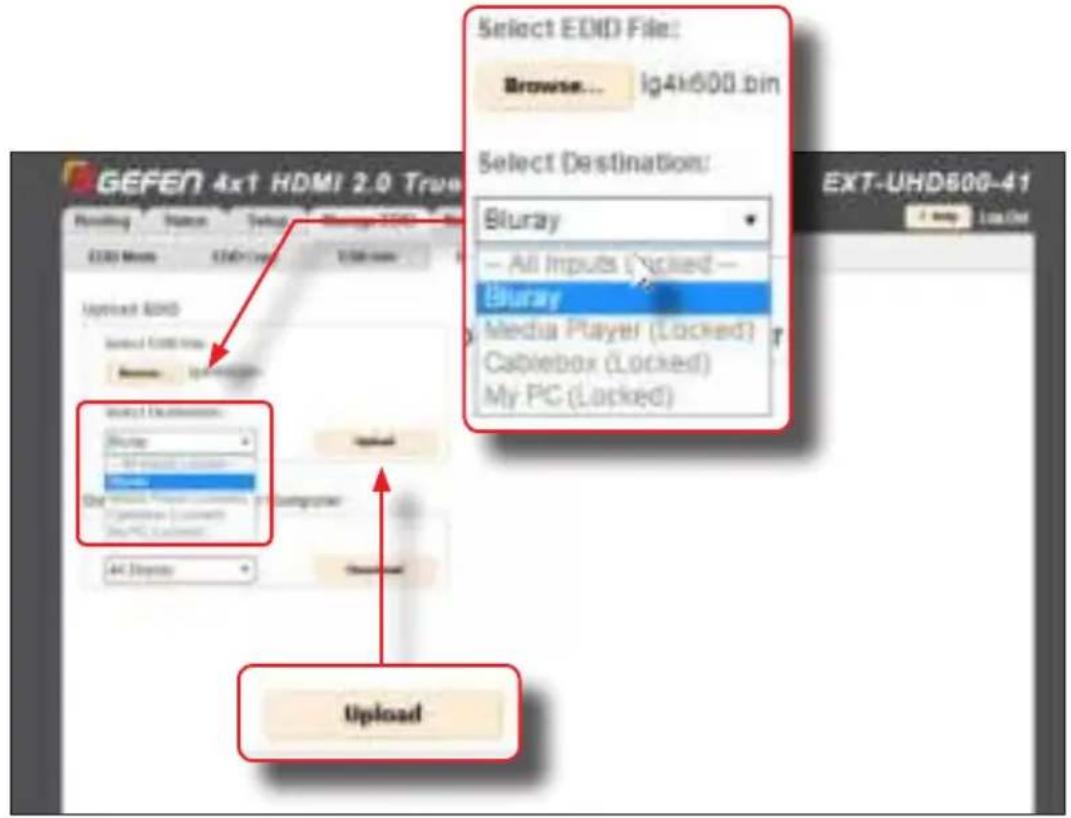

9. Click the Upload button.

GEFEN 4x1 HDMI 2.0 True Browse Status Select Edit Options E3D0 Menu E3D0 v1 USB Next Select E3D0 new USB Next USB Next Destination: Bluray All Inputs Locked - Bluray Media Player (Locked) Cablebox (Locked) My PC (Locked) Get Next Get Next Destination: Bluray All Inputs Locked - Bluray Our Window Help Options Our PC Connection Our PC Connection All Options Upload Select E3D0 File: Browse... lg4k600.bin Select Destination: Bluray — All Inputs Locked — Bluray Media Player (Locked) Cablebox (Locked) My PC (Locked) EXT-UHD500-41 Upload

Configuring Network Settings

Once the switcher is configured on the network using Gefen Syner-G, the network settings can be changed within the built-in web interface. To access the network settings, click the Network tab in the built-in web interface.

When changing any network setting, click the Save button at the bottom of the page. To revert network settings to factory default, click the Set Network Defaults button.

▶ IP Settings

1. Set the network mode by clicking the Static or DHCP button.
2. If set to Static mode, then enter the IP address, subnet mask, and gateway address in the IP Address, Subnet, and Gateway fields, respectively. If set to DHCP mode, the DHCP server will assign these values.
3. Enter the HTTP listening port in the HTTP Port field.

IP Address	192.168.1.72
Subnet	255.255.255.0
Gateway	192.168.1.1

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UHD600-41 Routing Status Temp Manage RTCC Network System IP Settings MAC Address 88 XCHI 569/CD3D IP Address 742 206-1 25 HTTP Port 90 Address 200,582,285.2 Mode State DHCP Gateway 192 206 1.7 TCP/IP subnet Settings TCP Address State Enable High Path Address TCP Port 23 Link Address Open Path Login Knowledge or Currency State Finish Resource Packard or Common State Enable Open Path UDP Settings UDP Address State Enable Open Path / IP Address 00:1C:91:04:C0:00 MAC Address 00:1C:91:04:C0:00 HTTP Port 80 Mode Static DHCP

▶ TCP / Telnet Settings

For details on configuring TCP, see Using Telnet, UDP, and RS-232 (page 48).

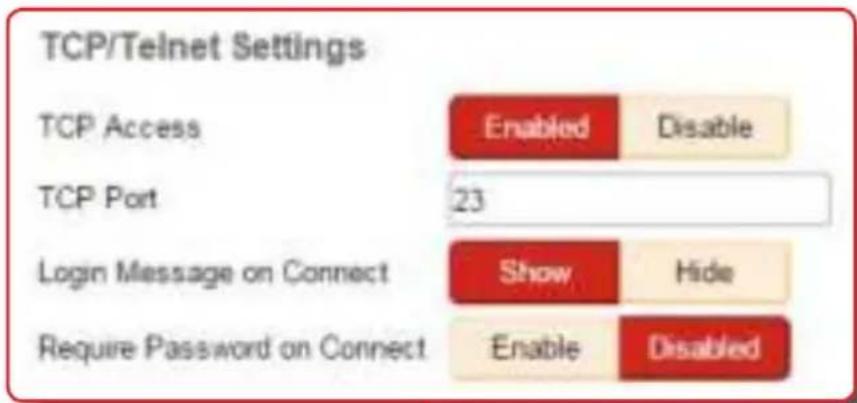

• TCP Access: Click the Enable button to allow Telnet access to the switcher. Otherwise, click the Disable button.
  • TCP Port: Enter the TCP listening port in this field.
• Login Message on Connect: Click the Show button to display the welcome message at the beginning of a Telnet session. Otherwise, click the Hide button.
• Require Password on Connect: Click the Enable button to require password credentials at the beginning of a Telnet session.

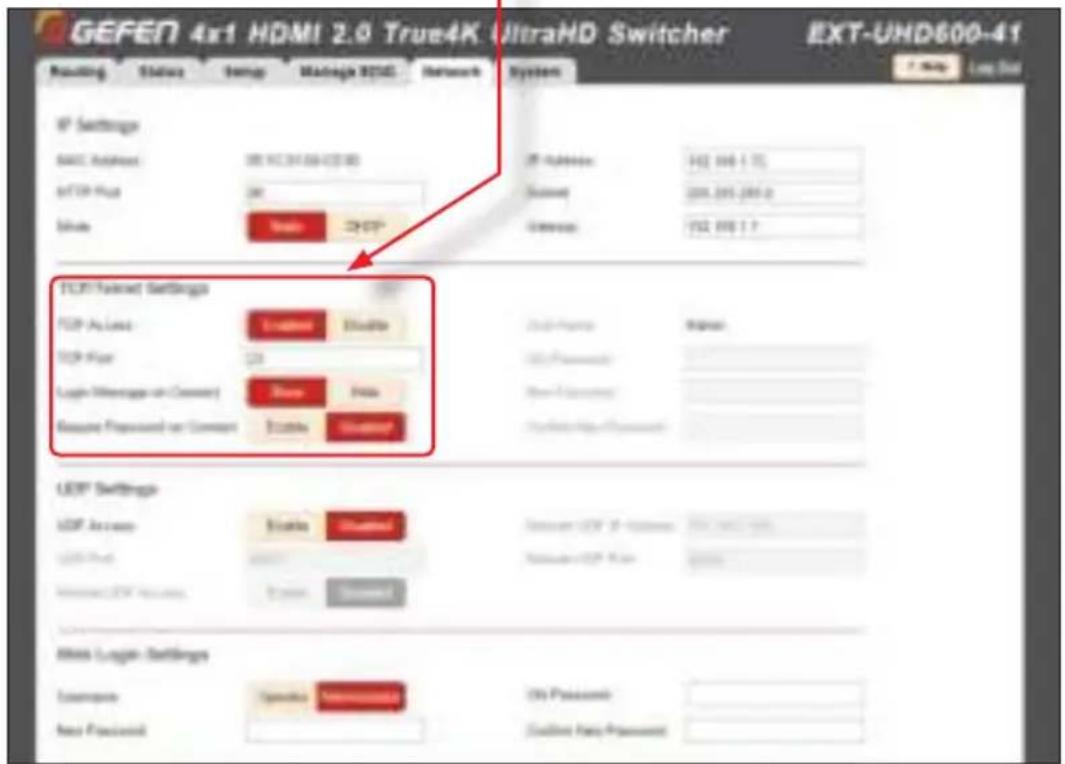

TCP/Telnet Settings TCP Access Enabled Disable TCP Port 23 Login Message on Connect Show Hide Require Password on Connect Enable Disabled

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UHD600-41 Resulting Status Repair Manage BDG Network System IP Settings MACS Interface BFTP Help Shift DHCP IP - Format Settings TCP As Loss TCP Flow Logit Messages on Comment Remove Password on Comment Browse Password UDP Settings UDP Accuracy UDP Print Internet UDP Security QQs Login Settings Customize New Password Download Password TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Format TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic Protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocol TCP - Genetic protocols

• User Name: This field is static and cannot be changed. Telnet sessions are restricted to Admin users.
• Old Password: Enter the old (current) password in this field. The factory-default password is ^ C ã á å .
• New Password: Enter the new password in this field.
• Confirm New Password: Confirm the new password by entering the new password in this field.

Information

Note that all passwords are case-sensitive.

User Name Admin Old Password New Password Confirm New Password

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UHD600-41 Resulting StatusTempManage SISC Network System IP Settings MAC Address ISO 833100-02-02 IP Address 152 398 172 ATYP Plus 30 Small 205.355.240.0 Mabs New DHIP OpenUp 152 398 172 TCP/Internet Settings USB An Access Enable Disable Open USB Plus 20 Disable Login Address or Comment New Free Open Resource Password or Comment Enable Disable Open USB Settings USB An Access Enable Disable Open USB Plus New Disable Open Internet/USB Password Enable Disable Auto Logit Settings Transporter Symbolic Imputation ON Passcount Net Password OpenFirst PassCount OK Run Loop Dot

▶ UDP Settings

For details on configuring UDP, see Using Telnet, UDP, and RS-232 (page 48).

• UDP Access: Click the Enable button to use the UDP protocol with the switcher. Otherwise, click the Disable button.
  • UDP Port: Enter the TCP listening port in this field.
• Remote UDP Access: Click the Enable button to set the remote UDP address and UDP listening port. This feature only needs to be enabled if feedback to the switcher is required. Otherwise, this feature can be disabled.

UDP Settings UDP Access Enable Disabled UDP Port 50007 Remote UDP Access Enable Disabled TCP Server Settings UDP As Loss Enable UDP Port 20 Login Message on Connect Name Trials Request Password on Connect Address UDP Settings UDP As Loss Enable Default UDP Port 2001 Internet UDP Interface Password Block Login Settings Customize Options Download Init Password USB Password Connect New Password Remote UDP IP Address 192.168 1.255 Remote UDP Port 50000

• Remote UDP IP Address: Enter the remote UDP IP address in this field.
- Remote UDP Port: Enter the remote UDP listening port in this field.

▶ Web Login Settings

• Username: To change the password for the Administrator, click the Administrator. Otherwise, click the Operator button.
• New Password: Enter password for the selected username (above), in this field. Passwords are case-sensitive.
• Old Password: Enter the old (current) password in this field. Passwords are case-sensitive.
• Confirm New Password: To confirm the new password, re-enter the new password in this field. Passwords are case-sensitive.

The default password for the Administrator username is ^ Cã á á .

The default password for the Operator username is l é É ê \~ í ç ê .

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UHD600-41 Reading Status Setup Manage XDC Network System Web Login Settings Username Operator Administrator New Password UDP Login Login Messages or Comment Remove Password or Common Enable User Password UDP Settings UDP Accounts Enable User Password Enable UDP Settings UDP Password New Password Edit Login Settings Username Options New Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password Edit Password EditPassword Confirm New Password Old Password

▶ Discovery Protocol Settings

• Enable Discovery: Click the Enable button to enable "discovery" mode. Otherwise, click the Disabled button. In order for Gefen Syner-G to discover the switcher on a network, this feature must be enabled.
  • Find Your Device: Click the Show Me button to physically locate the switcher on a network. In order for the Show Me button to be available, the Enable Discovery button must be set to Enable. When the Show Me button is clicked, the button text will change to Hide Me and all the LED indicators on the front panel will flash.

GEFEN Select 1 2 3 4 Off 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Reset Power IR 4K Ultra HD 600 MHz 4x1 Switcher w/HDR

• Discovery Read Only: When set to Read Only, the IP settings for the switcher will be displayed by Syner-G but they cannot be changed. In order to display and change IP settings from within Gefen Syner-G, click the Read / Write button.
- Product Description: EXT-UHD600-41 is the default product description. This name will be used to identify the switcher when using the Gefen Syner-G software.

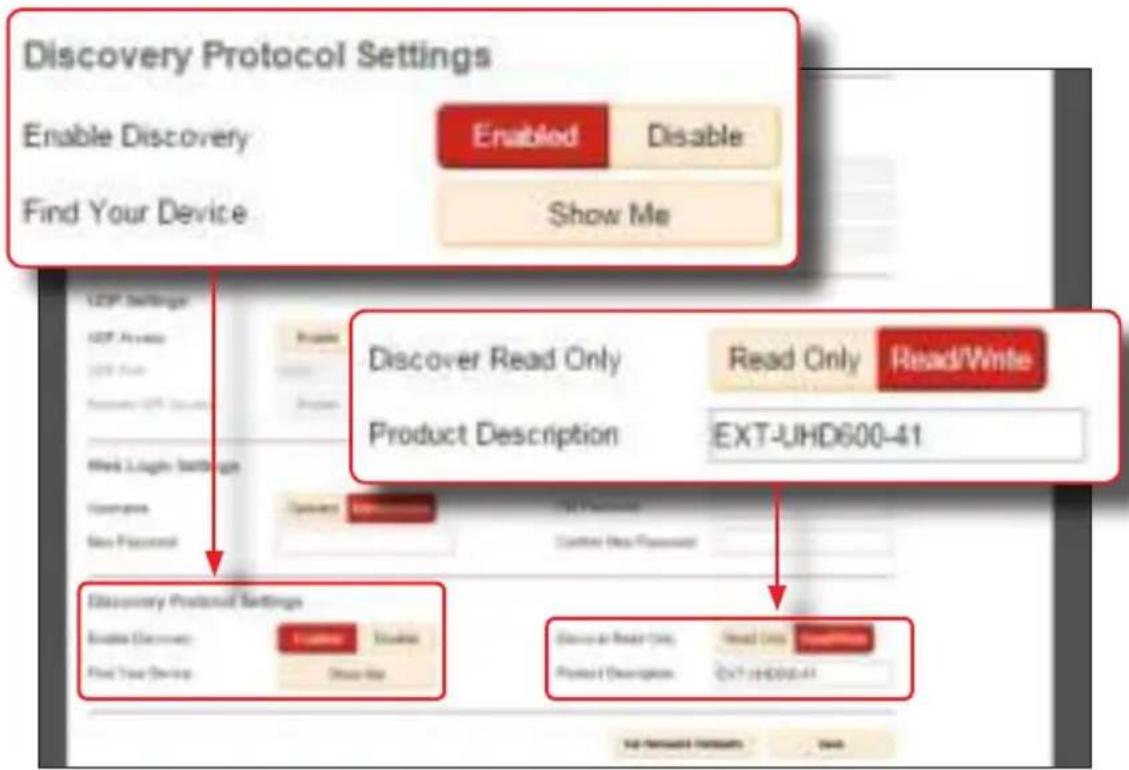

Discovery Protocol Settings Enable Discovery Find Your Device Enabled Disable Show Me UCF Settings UCF Process UCF Link Product Description Read Only Read/Write Product Description EXT-UHD600-41 UOP Settings UOP Process UOP Link Mark Login Settings UOP SaaS Password Product Description Read Only Read/Write Product Description EXT-UHD600-41 Discovery Protocol Settings Enable Discovery Find Your Device Create... Create... Create and Read Only Create Description Read Only Read/Write Read Only Read/Write End Software Network Save

System Settings

The System tab provides controls for various other switcher features. Each of these controls is described below.

▶ Main RS-232 Feedback

By default, RS-232 feedback is set to On, meaning all command will send a response.

1. Click the Off button to disable RS-232 feedback.
2. Click the On button to enable RS-232 feedback.

Main RS-232 Feedback Off On GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UMD500-41 Reading Status Setup Manage BIOS Network System Start VPS-232 Download Download Current Configuration to PC Readout/Adaptive Configuration File Planning: All current settings will be found Download Current Configuration to PC Download

▶ Download Current Configuration to PC

Saves the current switcher configuration to a file on your computer.

1. Click the Download button.
2. The following dialog will be displayed (see following page).

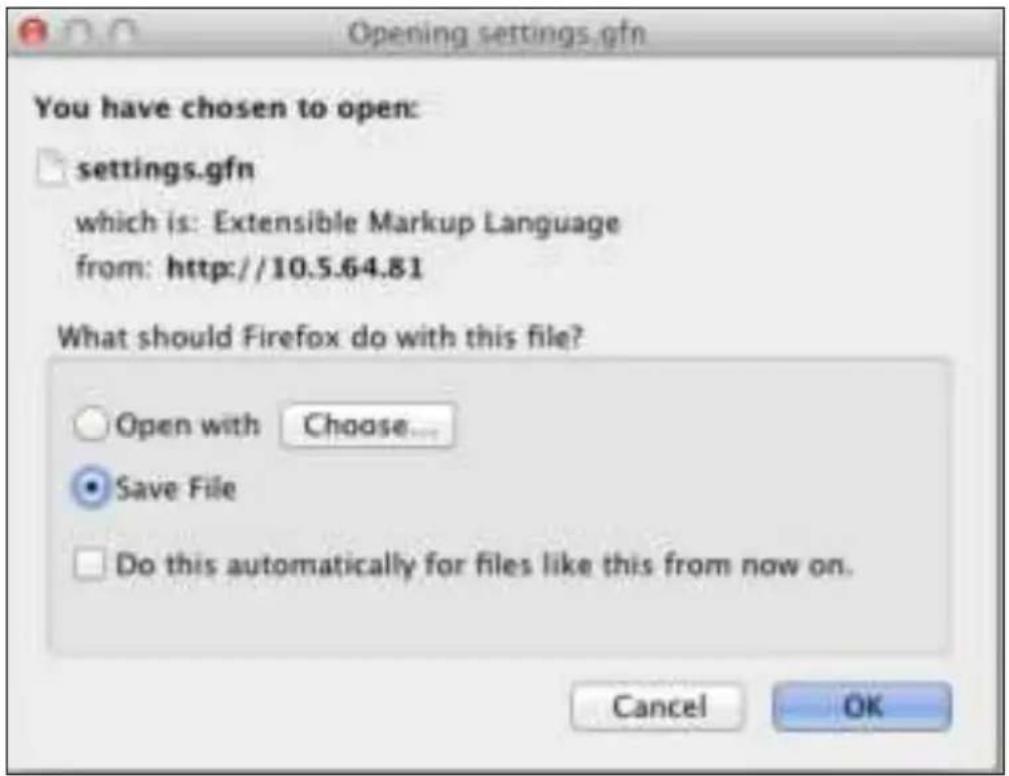

Opening settings.gfn You have chosen to open: settings.gfn which is: Extensible Markup Language from: http://10.5.64.81 What should Firefox do with this file? Open with Choose... Save File Do this automatically for files like this from now on. Cancel OK

1. Click the Save File radio button, then click OK to save the configuration file to your computer.

2. Mac OS X
   The file will automatically be saved under
   Macintosh HD\Users[username]\Downloads

3. Windows OS
   The file will be saved under
   C:\Users[username]\Downloads

▶ Restore / Upload Configuration File

Uploads the selected switcher configuration, from a file on your computer, to the switcher.

1. Click the Browse... button.

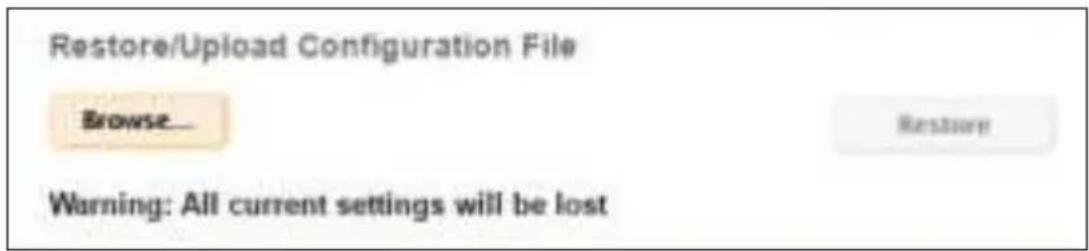

Restore/Upload Configuration File Browse... Warning: All current settings will be lost

1. Select the desired configuration file from your computer. After the file has been selected, the filename will appear next to the Browse... button.
2. Click the Restore button to upload the file.

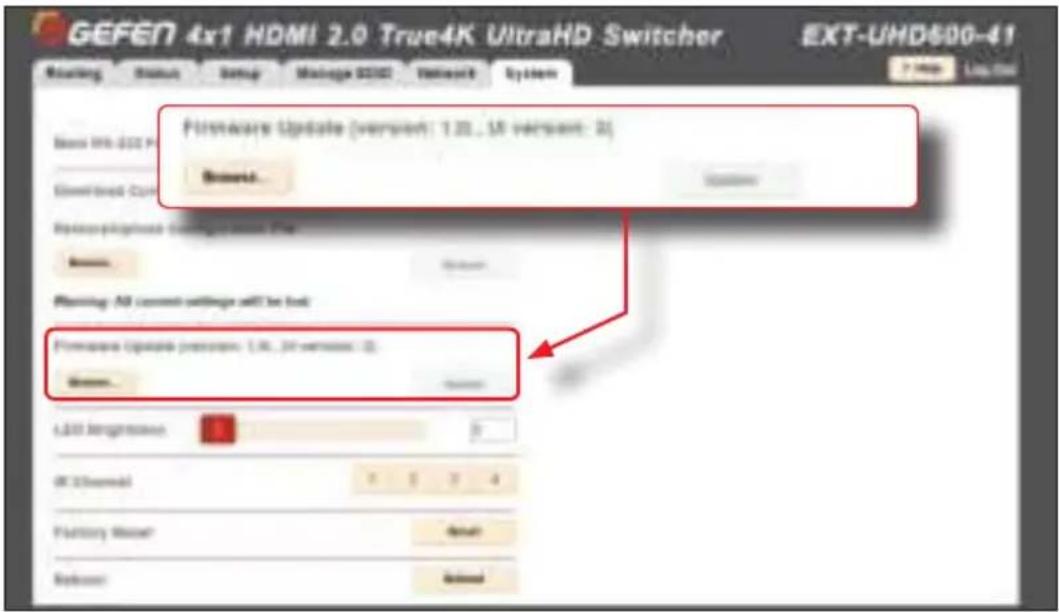

▶ Firmware Update

Uploads and applies the latest firmware file to the switcher.

1. Download the latest firmware from the Gefen web site.
2. Click the Browse... button.

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UHD600-41 Binary Status Setup Message SODC Version System New Up End Base Hb 202 P Download Curr Software Update (version: 1.0L, 3V version: 0) Bened... Options... Preview: All cannot settings will be found Software Update version: 1.0L, 3V version: 0 Bened... LSD Integration OK (Show) 7 5 7 4 Factory Reset Next Next

1. Select the firmware file on your computer.

The firmware must be a .bin file and will have the following naming convention: EXT-UHD600-41([version])(PACK).bin.

1. Click the Update button.

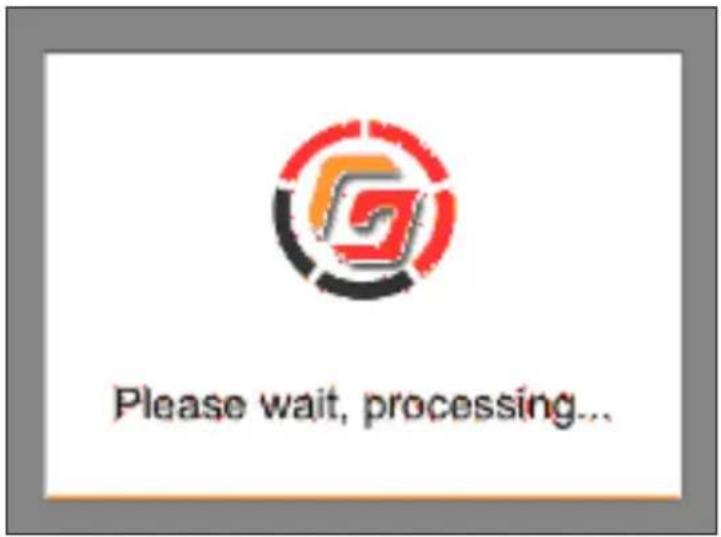

The following message box will be displayed:

WARNING: Updating the firmware may overwrite some of your settings. Consider saving the configuration before updating the firmware. Are you sure you want to continue?

To save the configuration, before continuing, click the Cancel button on the message box. Refer to the section Download Current Configuration to PC.

1. Click the OK button.
2. After a few moments, the following message box will be displayed within the web interface:

Please wait, processing...

1. After the update process completes, the switcher will automatically reboot.

Setting the LED Brightness

Sets the brightness for the LED indicators on the front panel of the switcher.

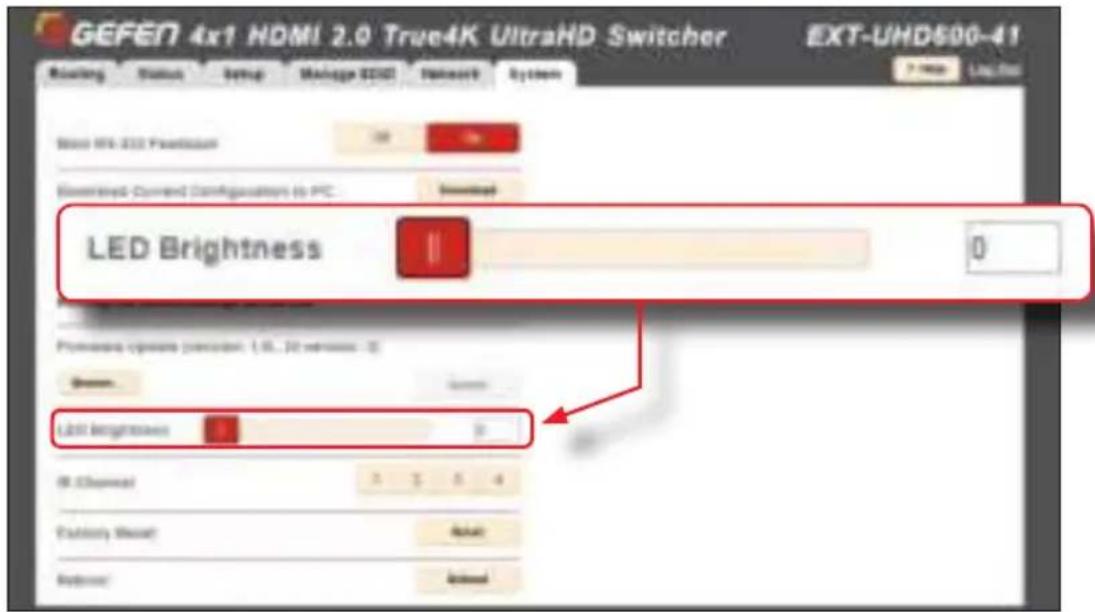

1. Drag the slider to set the LED brightness. The brightness ranges from 0 to 100. The default setting is 50. The brightness value may also be entered directly, in the box, next to the slider bar.

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UHD600-41 Routing Status Setup Manage ECGI Network System Show MTS-232 Platform Reserved Command Configurations to PC LED Brightness 0 Promote options precisions: (A, B) remote - 2 Display: Display: LED Brightness 0 R: Channel 2 3 5 4 Customity Mode: Auto Options: Select

Setting the IR Channel

Sets the IR channel for the switcher. The switcher must be set to the same IR channel as the included IR remote control, in order for the IR remote control to communicate with the switcher.

1. Click the desired IR channel for the switcher by clicking one of the IR Channel buttons (1 - 4). The default IR channel setting is 1.

IR Channel 1 2 3 4

The IR channel setting is automatically saved. Rebooting the switcher is not required.

▶ Performing a Factory Reset

This feature restores the switcher to original factory-default settings.

Important

Performing this function will erase all current setting of the switcher. IP settings will be retained. To save the configuration, before continuing, refer to the section Download Current Configuration to PC.

1. Click the Reset button.

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UMD600-41 Reset Status Setup Manage SCSI Parameters System Main Mb-232 Platform Add Remove Current Configurations to PC Download Reconfig/Update Configuration-Play Reset Factory Reset Reset LSTM Dimensions 5 5 IF 3Channel 0 1 2 3 4 Factory Reset Reset Reset

2. The following message box will be displayed:

Are you sure you want to reset the unit to factory defaults? Cancel OK

▶ Click the OK button to continue with the reset procedure.
▶ Click the Cancel button to abort the reset procedure and return to the web interface.

▶ Rebooting the Switcher

Clicking this button will reboot the switcher.

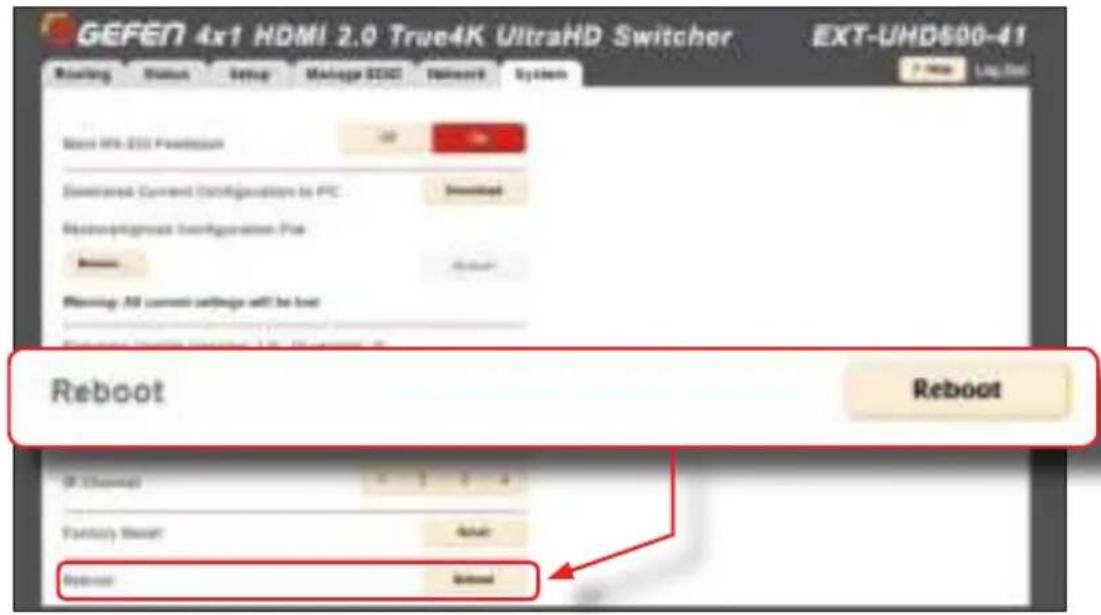

1. Click the Reboot button.

GEFEN 4x1 HDMI 2.0 True4K UltraHD Switcher EXT-UHD600-41 Reboot Reboot OR (Champ) Customs Reset Options Options

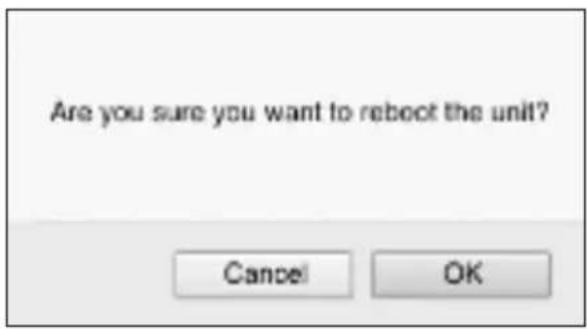

1. The following message box will be displayed:

Are you sure you want to reject the unit? Cancel OK

▶ Click the OK button to continue with the reboot procedure.
▶ Click the Cancel button to abort the reboot procedure and return to the web interface.

This page left intentionally blank.

600 MHz

4K ULTRA

4x1 Switcher for HDMI w/HDR

3 Advanced Operation

Telnet Configuration

1. Launch the desired terminal application. For example, on the Windows operating system, Hyperterminal can be used; on Mac OS X, the Terminal application can be used.
2. After correct settings have been used in the terminal program, information similar to the following will be displayed:

Welcome to EXT-UHD600-41 Telnet

telnet->

1. Type #help for a list of commands or refer to the tables on the following pages.

UDP Configuration

1. Configure the desired control system for UDP.

2. Click the Network tab, within the web interface, and do the following. See Configuring Network Settings (page 33) for more information.

a. Click the Enabled button next to UDP Access.
b. Enter the UDP listening port in the UDP Port field. The default UDP listening port is 50007.
c. Click the Enabled button next to Remote UDP Access. This feature only needs to be enabled if feedback to the switcher is required. Otherwise, this feature can be disabled.
d. If enabling Remote UDP Access, enter the remote UDP IP address in the Remote UDP IP Address field. This IP address should be the same as the control system. The default IP address is 192.168.1.255.
e. If enabling Remote UDP Access, enter the remote UDP listening port in the Remote UDP Port field. The default remote UDP listening port is 50008.
f. Click the Save button at the bottom of the Network screen.

RS-232 Configuration

1. Configure...
2. Selected the desired COM port.
3. Configure the RS-232 port to the following settings. Note that Only TxD, RxD, and GND pins are used.

5 4 3 2 1 6 7 8 9

RS-232 Controller Switcher

Description Setting
Baud rate	19200
Data bits	8
Parity	None
Stop bits	1
Hardware flow control	None

1. Connect the RS-232 cable from the DB9 connector on the controller to the to the RS-232 port on the switcher.
2. Type #help for a list of commands or refer to the tables on the following pages.

Discovery Service

#get_device_desc	Returns the current device-description string
#get_discovery	Returns the current state of the discovery service
#get_discovery_mode	Returns the discovery mode
#get_showme	Returns the status of the “show me” feature
#set_device_desc	Sets the description string of the switcher
#set_discovery	Enables or disables the discovery service
#set_discovery_mode	Sets the “discovery” mode
#set_showme	Enables or disables the “show me” feature

Help

#help

Returns a list of available commands

Input Status

#gets_input_hdcp	Returns the HDCP state on the specified input
#gets_input_hpd	Returns the HPD state on the specified input
#gets_input_mode	Returns the input mode on the specified input
#gets_input_signal	Returns the signal status on the specified input

Manage EDID

#get_ds_edid	Downloads the downstream EDID
#get_edid_mode	Returns the EDID mode on the specified input
#get_ext_edid	Downloads the external EDID
#get_preset_edid	Downloads the specified preset EDID
#set_edid_copy	Copies the specified EDID to the custom EDID
#set_edid_lock	Sets the EDID lock setting on the specified input
#set_edid_mode	Sets the EDID mode

Network Settings

#get_gateway	Returns the gateway IP address of the switcher
#get_http_port	Returns the HTTP listening port
#get_ip_address	Returns the IP address
#get_ip_mode	Returns the IP mode
#get_ipconfig	Returns the IP configuration
#get_mac_addr	Returns the MAC address
#get_netmask	Returns the subnet mask
#get_remote_udp_access	Returns the remote UDP access state
#get_remote_udp_ip	Returns the remote UDP IP address
#get_remote_udp_port	Returns the remote UDP listening port
#get_telnet_access	Returns the Telnet access state
#get_telnet_port	Returns the Telnet listening port
#get_telnet_welcome	Returns the Telnet welcome message
#get_udp_access	Returns the UDP access state
#get_udp_port	Returns the UDP listening port
#set_gateway	Sets the gateway address
#set_http_port	Sets the HTTP listening port
#set_ip_address	Sets the IP address
#set_ip_mode	Sets the IP mode
#set_netmask	Sets the subnet mask
#set_remote_udp_access	Enables or disables remote UDP access
#set_remote_udp_ip	Sets the remote UDP IP address
#set_remote_udp_port	Sets the remote UDP listening port
#set_telnet_access	Enables or disables Telnet access
#set_telnet_port	Sets the Telnet listening port on the switcher
#set_telnet_welcome	Sets the Telnet welcome message
#set_udp_access	Enables or disables UDP access
#set_udp_port	Sets the UDP listening port
#use_telnet_login	Enable or disables Telnet login credentials

Output Status

#gets_output_hdcp	Returns the HDCP state of the output
#gets_output_hpd	Returns the HDP state of the output
#gets_output_rsense	Returns the Rsense state of the output

Routing

#get_auto_switch	Returns the status of the auto-switching feature
#lock_matrix	Locks / unlocks the switcher
#set_auto_switch	Enables / disables the auto-switching feature
r	Routes the specified input to the output

System Settings

#factory_reset	Resets the switcher to factory-default settings
#get_feedback	Returns the RS-232 feedback state
#get_ir_channel	Returns the current IR channel
#get_led_brightness	Returns the LED brightness level
#reboot	Reboots the switcher
#set_feedback	Enables / disables unsolicited RS-232 feedback
#set_ir_channel	Sets the IR channel
#set_led_brightness	Sets the LED brightness level
#show_firmware_version	Returns the current firmware version

#get\_device\_desc

Returns the description of the switcher.

Syntax

get_device_desc

Parameters

None

Example

get_device_desc

DEVICE DESCRIPTION IS EXT-UHD600-41

Related Commands

get_discovery

get_discovery_mode

get_showme

set_device_desc

set_discovery

set_discovery_mode

set_showme

#get\_discovery

Returns the discovery mode setting. The value returned is one of the following:

Value Description

0	"Discovery" mode is disabled
1	"Discovery" mode is enabled

Syntax

get_discovery

Parameters

None

Example

get_discovery

DISCOVERY 1

Related Commands

get_device_desc

get_discovery_mode

get_showme

set_device_desc

set_discovery

set_discovery_mode

set_showme

#get\_discovery\_mode

Returns the current "discovery" mode. The value returned is one of the following:

Value Description

0	Read only
1	Read / Write

Syntax

get_discovery_mode

Parameters

None

Example

get_discovery_mode

get_discovery_mode 1

Related Commands

get_device_desc

get_discovery

get_showme

set_device_desc

set_discovery

set_discovery_mode

set_showme

#get\_showme

Returns the current "show me" state. When the switcher is in "show me" mode, the LED indicators on the front panel will be flash. In this state, the #get_showme command will return a value of 1. Otherwise, a value of 0 will be returned.

Value Description

0 "Show me" disabled
1 "Show me" enabled.

Syntax

#get_showme

Parameters

None

Example

#get_showme
#get_showme 1

Related Commands

#get_device_desc
#get_discovery
#get_discovery_mode
#set_device_desc
#set_discovery
#set_discovery_mode
#set_showme

#set\_device\_desc

Sets the switcher identifier string.

Syntax

set_device_desc name

Parameters

name

Type: STRING

The device description. This value cannot exceed 30 characters in length.

Example

set_device_desc switcher202

DEVICE DESCRIPTION IS SET TO switcher202

Related Commands

#get_device_desc
#get_discovery
#get_discovery_mode
#get_showme
#set_discovery
#set_discovery_mode
#set_showme

#set\_discovery

Enables or disables the "discovery" feature. This feature is enabled by default.

Syntax

#set_discovery state

Parameters

state

Type: INTEGER

Accepts a number from the table below, specifying the desired state:

state Description

0	Disables "Discovery" mode
1	Enables "Discovery" mode

If set to disabled, then the Syner-G Software Suite will be unable to detect the switcher on a network. It is recommended that this feature is enabled, until the switcher has been configured for use on a network.

Example

set_discovery 0

DISCOVERY 0

Related Commands

#get_device_desc
#get_discovery
#get_discovery_mode
#get_showme
#set_device_desc
#set_discovery_mode
#set_showme

#set\_discovery\_mode

Sets the "discovery" mode. This mode is set to read/write by default.

Syntax

set_discovery_mode mode

Parameters

mode

Type: INTEGER

Accepts a number from the table below, specifying the desired state:

mode Description

0	Read-only mode
1	Read / write mode

When set to read-only mode, the IP settings for the switcher will be displayed within the Gefen Syner-G Software Suite but cannot be changed. In order to both display and allow changes to the IP settings within Gefen Syner-G, set this feature to read/write mode.

Example

set_discovery_mode 0

DISCOVERY MODE 0

Related Commands

#get_device_desc
#get_discovery
#get_discovery_mode
#get_showme
#set_device_desc
#set_discovery
#set_showme

#set\_showme

Enables or disables the "Show Me" feature. If the "Show Me" feature is enabled, then all the buttons (with the exception of the Power button), will flash slowly. This feature allows the switcher to be visually identified on the network and is useful when multiple switcher units are being used. The default setting is disabled.

Syntax

set_showme state

Parameters

state

Type: INTEGER

Accepts a number from the table below, corresponding to the desired state.

state Description

0	Disable "Show Me"
1	Enable "Show Me"

Example

set_showme 1

SET_SHOWME 1

Related Commands

#get_device_desc
#get_discovery
#get_discovery_mode
#get_showme
#set_device_desc
#set_discovery
#set_discovery_mode

#help

Returns a list of available commands. The commands listed are specific to either the Sender or Receiver unit.

Syntax

help

Parameters

None

Example

help

#gets\_input\_hdcp

Returns the HDCP mode of the specified input. The value returned is one of the following:

Value Description

0	Reject
1	HDCP 2.2 and below
2	HDCP 1.4 and below

Syntax

gets_input_hdcp input

Parameters

input

Type: INTEGER

The number of the HDMI input (1 - 4) to query.

Example

get_input_hdcp 1

INPUT_HDCP 1 0

Related Commands

gets_input_hpd

gets_input_mode

gets_input_signal

gets_output_hdcp

gets_output_hpd

gets_output_rsense

#gets\_input\_hpd

Returns the HPD status of the specified input.

Value Description

0	HPD low (no source connected)
1	HPD high (source connected)

Syntax

gets_input_hpd input

Parameters

input

Type: INTEGER

The number of the HDMI input (1 - 4) to query.

Example

gets_input_hpd 1

INPUT_HPD 1 0

Related Commands

#gets_input_hdcp
#gets_input_mode
#gets_input_signal
#gets_output_hdcp
#gets_output_hpd
#gets_output_rsense

#gets\_input\_mode

Returns the video mode of the specified input(s). The value returned is one of the following. To return the video mode for all inputs, specify 0 for the input parameter.

Value Description

D	DVI signal detected on HDMI input
H	HDMI signal detected on HDMI input

Syntax

gets_input_mode inputs

Parameters

input

Type: INTEGER

The number of the HDMI input (1 - 4) to query. More than one input can be specified.

Example

#gets_input_mode 1
INPUT_MODE 1 H

#get_input_mode 0
INPUT_MODE 0 H H L H

Related Commands

#gets_input_hdcp
#gets_input_hpd
#gets_input_signal
#gets_output_hdcp
#gets_output_hpd
#gets_output_rsense

#gets\_input\_signal

Returns the active signal status of the specified input(s). The value returned is one of the following.

Value Description

N No clock signal present on HDMI nput
Y Valid clock signal detected on HDMI input

Syntax

#gets_input_signal inputs

Parameters

input

Type: INTEGER

The number of the HDMI input (1 - 4) to query. More than one input can be specified.

Example

#gets_input_signal 0
INPUT_SIGNAL 0 Y Y Y Y
#gets_input_signal 1
INPUT_SIGNAL 1 Y

Related Commands

#gets_input_hdcp
#gets_input_hpd
#gets_input_mode
#gets_output_hdcp
#gets_output_hpd
#gets_output_rsense

#get\_ds\_edid

Downloads the downstream EDID.

Syntax

gets_ds_edid input

Parameters

input

Type: INTEGER

The number of the HDMI input (1 - 4) to query.

Example

gets ds edid 1

00FFFFFFFFFFFFF000421000000000000...

Related Commands

get edid mode

get ext edid

get_preset_edid

set_edid_copy

set_edid_lock

set_edid_mode

#get\_edid\_mode

Returns the EDID mode of the specified input. The value returned is one of the following:

Value Description

1 Internal Mode - UHD 600 4K 2 Channel
2 Internal Mode - UHD 600 4K Multichannel
3 Internal Mode - UHD 300 4K 2 Channel
4 Internal Mode - UHD 300 4K 2 Multichannel
5 Internal Mode - 1080p 2 Channel
6 Internal Mode - 1080p Multichannel
7 Custom Mode - User
8 External

Syntax

#get_edid_mode input

Parameters

input

Type: INTEGER

The number of the HDMI input (1 - 4) to query.

Example

#get_edid_mode 1
#get_edid_mode 1 0

Related Commands

#get_ds_edid
#get_ext_edid
#get_preset_edid
#set_edid_copy
#set_edid_lock
#set_edid_mode

#get\_ext\_edid

Downloads the external EDID.

Syntax

get_ext_edid input

Parameters

input

Type: INTEGER

The number of the HDMI input (1 - 4) to query.

Example

get ext edid 1

00FFFFFFFFFFFFF000421000000000000...

Related Commands

get ds edid

get edid mode

get_preset_edid

set_edid_copy

set_edid_lock

set_edid_mode

#get\_preset\_edid

Returns the EDID mode of the specified input. The value returned is one of the following:

Syntax

Accepts a number from the table below, corresponding to the desired EDID.

edid Description

1	Internal Mode - UHD 600 4K 2Ch
2	Internal Mode - UHD 600 4K Multichannel
3	Custom Mode - UHD 300 4K 2Ch
4	Custom Mode - UHD 300 4K Multichannel
5	Custom Mode - 1080p 2Ch
6	Custom Mode - 1080p Multichannel

Example

get_preset_edid 1

00FFFFFFFFFFFFF000421000000000000...

Related Commands

#get_ds_edid
#get_edid_mode
#get_ext_edid
#set_edid_copy
#set_edid_lock
#set_edid_mode

#set\_edid\_copy

Copies the external, internal, or output EDID to the custom user EDID.

Syntax

#set_edid_copy edid

Parameters

edid

Type: INTEGER

Accepts a number from the table below, corresponding to the desired EDID.

edid Description

1	Internal Mode - UHD 600 4K 2Ch
2	Internal Mode - UHD 600 4K Multichannel
3	Custom Mode - UHD 300 4K 2Ch
4	Custom Mode - UHD 300 4K Multichannel
5	Custom Mode - 1080p 2Ch
6	Custom Mode - 1080p Multichannel
7	External

Example

#set_edid_copy 1
COPY_COMPLETE

Related Commands

#get_ds_edid
#get_edid_mode
#get_ext_edid
#get_preset_edid
#set_edid_lock
#set_edid_mode

#set\_edid\_lock

Locks to unlocks the EDID when using Custom EDID mode. This command only works if the specified input is set to a Custom mode. See the #set_edid_mode command.

Syntax

set_edid_lock input state

Parameters

input

Type: INTEGER

This parameter must be the identifier of an HDMI input (1 - 4).

state

Type: INTEGER

Accepts a number from the table below, specifying the desired state:

state Description

0	Unlock the EDID
1	Lock the EDID

Example

#set_edid_lock 1 0
EDID_LOCK 1 0

Related Commands

#get_ds_edid
#get_edid_mode
#get_ext_edid
#get_preset_edid
#set_edid_copy
#set_edid_mode

#set\_edid\_mode

Sets the EDID mode.

Syntax

#set_edid_mode edid

Parameters

edid

Type: INTEGER

Accepts a number from the table below, corresponding to the desired EDID.

edid Description

1	Internal Mode - UHD 600 4K 2Ch
2	Internal Mode - UHD 600 4K Multichannel
3	Custom Mode - UHD 300 4K 2Ch
4	Custom Mode - UHD 300 4K Multichannel
5	Custom Mode - 1080p 2Ch
6	Custom Mode - 1080p Multichannel
7	Custom Mode - User
8	External

Example

#set_edid_mode 1
EDID_MODE 1

Related Commands

#get_ds_edid
#get_edid_mode
#get_ext_edid
#get_preset_edid
#set_edid_copy
#set_edid_lock

#get\_gateway

Returns the gateway address of the switcher.

Syntax

#get_gateway

Parameters

None

Example

#get_gateway
GATEWAY 10.5.64.1

Related Commands

#get_http_port
#get_ip_address
#get_ip_mode
#get_ipconfig
#get_netmask
#set_gateway
#set_http_port
#set_ip_address
#set_ip_mode
#set_netmask

#get\_http\_port

Returns the HTTP listening port of the switcher.

Syntax

#get_http_port

Parameters

None

Example

#get_http_port
HTTP_PORT 80

Related Commands

#get_gateway
#get_ip_address
#get_ip_mode
#get_ipconfig
#get_netmask
#set_gateway
#set_http_port
#set_ip_address
#set_ip_mode
#set_netmask

#get\_ip\_address

Returns the current IP address of the switcher.

Syntax

#get_ip_address

Parameters

None

Example

#get_ip_address
IP_ADDRESS 10.5.64.81

Related Commands

#get_gateway
#get_http_port
#get_ip_mode
#get_ipconfig
#get_netmask
#set_gateway
#set_http_port
#set_ip_address
#set_ip_mode
#set_netmask

#get\_ip\_mode

Returns the current IP mode of the switcher. The value returned is one of the following:

Value Description

0	Static mode
1	DHCP mode

Syntax

#get_ip_mode

Parameters

None

Example

#get_ip_mode
IP_MODE 0

Related Commands

#get_gateway
#get_http_port
#get_ip_address
#get_ipconfig
#get_netmask
#set_gateway
#set_http_port
#set_ip_address
#set_ip_mode
#set_netmask

#get\_ipconfig

Returns the current IP configuration of the switcher. In addition to providing the MAC address and the broadcast IP address, this command also provides the same information as executing the #get_ip_address, #get_netmask, #get_gateway, and #get_mac_addr ommands.

Syntax

#get_ipconfig

Parameters

None

Example

#get_ipconfig
IP CONFIGURATION IS :
IP: 10.5.64.81
NETMASK: 255.255.255.0
GATEWAY: 10.5.64.1
MAC ADDRESS: 00:1C:91:04:90:03

Related Commands

#get_gateway
#get_http_port
#get_ip_address
#get_ip_mode
#get_netmask
#set_gateway
#set_http_port
#set_ip_address
#set_ip_mode
#set_netmask

#get\_mac\_addr

Returns the MAC address of the switcher.

Syntax

get_mac_addr

Parameters

None

Example

get_mac_addr

MAC ADDRESS IS: 00:1C:91:04:90:03

Related Commands

get_ipconfig

#get\_netmask

Returns the current subnet mask of the switcher.

Syntax

#get_netmask

Parameters

None

Example

#get_netmask
NETMASK 255.255.255.0

Related Commands

#get_gateway
#get_http_port
#get_ip_address
#get_ip_mode
#get_ipconfig
#set_gateway
#set_http_port
#set_ip_address
#set_ip_mode
#set_netmask

#get\_remote\_udp\_access

Returns the remote UDP access state. The value returned is one of the following:

Value Description

0	Remote UDP access disabled
1	Remote UDP access enabled

Syntax

get_remote_udp_access

Parameters

None

Example

get_remote_udp_access

REMOTE_UDP_ACCESS 0

Related Commands

#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_access
#get_udp_port
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_access
#set_udp_port

#get\_remote\_udp\_ip

Returns the remote UDP IP address.

Syntax

get_remote_udp_ip

Parameters

None

Example

get_remote_udp_access

REMOTE_UDP_IP 192.168.1.255

Related Commands

#get_remote_udp_access
#get_remote_udp_port
#get_udp_access
#get_udp_port
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_access
#set_udp_port

#get\_remote\_udp\_port

Returns the remote UDP listening port.

Syntax

get_remote_udp_port

Parameters

None

Example

get_remote_udp_port

REMOTE_UDP_PORT 50008

Related Commands

#get_remote_udp_access
#get_remote_udp_ip
#get_udp_access
#get_udp_port
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_access
#set_udp_port

#get\_telnet\_access

Returns the Telnet access state. Use the #set_telnet_access command to enable or disable Telnet access.

Syntax

get_telnet_access

Parameters

None

Example

get_telnet_access

TELNET_ACCESS 1

Related Commands

get_telnet_port

get_telnet_welcome

set_telnet_access

set_telnet_port

set_telnet_welcome

use_telnet_login

#get\_telnet\_port

Returns the Telnet listening port.

Syntax

#get_telnet_port

Parameters

None

Example

#get_telnet_port
TELNET_PORT 23

Related Commands

#get_telnet_access
#get_telnet_welcome
#set_telnet_access
#set_telnet_port
#set_telnet_welcome
#use_telnet_login

#get\_telnet\_welcome

Returns the Telnet welcome message. Use the #set_telnet_welcome to create a custom welcome message.

Syntax

get_telnet_welcome

Parameters

None

Example

get_telnet_welcome

TELNET WELCOME SCREEN IS ENABLED

Related Commands

get_telnet_access

get_telnet_port

set_telnet_access

set_telnet_port

set_telnet_welcome

use_telnet_login

#get\_udp\_access

Returns the UDP access state. Use the #set_udp_access command to enable or disable UDP access. The value returned is one of the following:

Value Description

0	UDP access disabled
1	UDP access enabled

Syntax

#get_udp_access

Parameters

None

Example

#get_udp_access
UDP_ACCESS 0

Related Commands

#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_port
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_access
#set_udp_port

#get\_udp\_port

Returns the local UDP listening port.

Syntax

get_udp_port

Parameters

None

Example

get_udp_port

UDP_PORT 50007

Related Commands

#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_access
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_access
#set_udp_port

#set\_gateway

Sets the gateway address for the switcher. The gateway address will be changed only if the switcher is in static IP mode. If the switcher is using DHCP mode, then the gateway address is automatically assigned by the DHCP server. The switcher must be rebooted after executing this command.

Syntax

#set_gateway addr

Parameters

addr

Type: IP ADDRESS

The desired gateway address of the switcher. This address must be entered in dot-decimal notation.

Example

set_gateway 10.5.64.1

GATEWAY 10.5.64.1

REBOOT TO APPLY SETTINGS

Related Commands

get_gateway

get_http_port

get_ip_address

get ip mode

get ipconfig

get_netmask

set_http_port

set_ip_address

set_ip_mode

set_netmask

#set\_http\_port

Sets the HTTP listening port for the switcher.

Syntax

#set_http port

Parameters

port

Type: INTEGER

The desired HTTP listening port for the switcher.

Example

#set_http_port 80
HTTP_PORT 80

Related Commands

#get_gateway
#get_http_port
#get_ip_address
#get_ip_mode
#get_ipconfig
#get_netmask
#set_gateway
#set_ip_address
#set_ip_mode
#set_netmask

#set\_ip\_address

Sets the IP address of the switcher. The switcher must be rebooted after executing this command.

Syntax

set_ip_address addr

Parameters

addr

Type: IP ADDRESS

The desired IP address of the switcher. This address must be entered in dot-decimal notation.

Example

#set_ip_address 10.5.64.81
IP_ADDRESS 10.5.64.81
REBOOT TO APPLY SETTINGS

Related Commands

#get_gateway
#get_http_port
#get_ip_address
#get_ip_mode
#get_ipconfig
#get_netmask
#set_gateway
#set_http_port
#set_ip_mode
#set_netmask

#set\_ip\_mode

Sets the IP mode of the switcher. The switcher must be rebooted after executing this command.

Syntax

set_ip_mode mode

Parameters

mode

Type: INTEGER

Accepts a number from the table below, corresponding to the desired IP mode.

mode Description

0	Static
1	DHCP
2	Auto

Example

set ip mode 1

IP MODE 1

REBOOT TO APPLY SETTINGS

Related Commands

get_gateway

get_http_port

get ip address

get_ip_mode

get_ipconfig

get_netmask

set gateway

set_http_port

set_ip_address

set_netmask

#set\_netmask

Sets the network mask address. The switcher must be rebooted after executing this command.

Syntax

set_netmask addr

Parameters

addr

Type: ADDRESS

The desired subnet mask of the switcher. This address must be entered in dot-decimal notation.

Example

set netmask 255.255.255.0

NETMASK 255.255.255.0

REBOOT TO APPLY SETTINGS

Related Commands

get_gateway

get_http_port

get_ip_address

get_ip_mode

get_ipconfig

get netmask

set_gateway

set_http_port

set_ip_address

set_ip_mode

#set\_remote\_udp\_access

Enables or disables remote UDP access.

Syntax

set_remote_udp_access state

Parameters

state

Type: INTEGER

Accepts a number from the table below, corresponding to the desired state.

state Description

0	Disable remote UDP access
1	Enable remote UDP access

Example

set_remote_udp_access 0

REMOTE_UDP_ACCESS 0

Related Commands

#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_access
#get_udp_port
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_access
#set_udp_port

#set\_remote\_udp\_ip

Sets the remote UDP IP address of the switcher.

Syntax

set_remote_udp_ip addr

Parameters

addr

Type: IP ADDRESS

The desired remote UDP IP address of the switcher. The address must be entered in dot-decimal notation.

Example

set_remote_udp_ip 192.168.1.251

REMOTE_UDP_IP 192.168.1.251

Related Commands

#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_access
#get_udp_port
#set_remote_udp_access
#set_remote_udp_port
#set_udp_access
#set_udp_port

#set\_remote\_udp\_port

Sets the remote UDP listening port for the switcher.

Syntax

set_remote_udp_port port

Parameters

port

Type: INTEGER

The desired remote UDP port (0 - 65535) of the switcher.

Example

set remote udp port 50008

REMOTE_UDP_PORT 50008

Related Commands

get_remote_udp_access

get_remote_udp_ip

get_remote_udp_port

get_udp_access

get_udp_port

set_remote_udp_access

set_remote_udp_ip

set_udp_access

set_udp_port

#set\_telnet\_access

Enables or disables Telnet access on the switcher.

Syntax

#set_telnet_access state

Parameters

state

Type: INTEGER

Accepts a number from the table below, corresponding to the desired state.

state Description

0	Disable Telnet access
1	Enable Telnet access

Example

#set_telnet_access 1
TELNET_ACCESS 1

Related Commands

#get_telnet_access
#get_telnet_port
#get_telnet_welcome
#set_telnet_port
#set_telnet_welcome
#use_telnet_login

#set\_telnet\_port

Sets the Telnet listening port on the switcher.

Syntax

#set_telnet_port port

Parameters

port

Type: INTEGER

The desired remote Telnet listening port (0 - 65535) of the switcher.

Example

#set_telnet_port 23
TELNET_PORT 23

Related Commands

#get_telnet_access
#get_telnet_port
#get_telnet_welcome
#set_telnet_access
#set_telnet_welcome
#use_telnet_login

#set\_telnet\_welcome

Enables or disables the Telnet welcome message.

Syntax

#set_telnet_welcome state

Parameters

state

Type: INTEGER

Accepts a number, from table below, corresponding to the desired state.

state Description

0	Disable welcome message
1	Enable welcome message

Example

set_telnet_welcome 1

TELNET WELCOME SCREEN IS ENABLED

Related Commands

#get_telnet_access
#get_telnet_port
#get_telnet_welcome
#set_telnet_access
#set_telnet_port
#use_telnet_login

#set\_udp\_access

Enables or disables UDP access.

Syntax

set_udp_access state

Parameters

state

Type: INTEGER

Accepts a number, from table below, corresponding to the desired state.

state Description

0	Disable UDP access
1	Enable UDP access

Example

set_udp_access 0

UDP_ACCESS 0

Related Commands

#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_access
#get_udp_port
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_port

#set\_udp\_port

Sets the local UDP listening port.

Syntax

set_udp_port port

Parameters

port

Type: INTEGER

The desired UDP listening port (0 - 65535) of the switcher.

Example

set udp port 50007

UDP PORT 50007

Related Commands

get_remote_udp_access

get_remote_udp_ip

get_remote_udp_port

get_udp_access

get_udp_port

set_remote_udp_access

set_remote_udp_ip

set_remote_udp_port

set_udp_access

#use\_telnet\_login

Enables or disables login credentials when starting a Telnet session.

Syntax

use_telnet_login_state

Parameters

state

Type: INTEGER

Accepts a number, from table below, corresponding to the desired state.

state Description

0	Disable Telnet login
1	Enable Telnet login

Example

use_telnet_login 0

USE_TELNET_LOGIN 0

Related Commands

#get_telnet_access
#get_telnet_port
#get_telnet_welcome
#set_telnet_access
#set_telnet_port
#set_telnet_welcome

#gets\_output\_hdcp

Returns the HDCP state of the output. The value returned is one of the following:

Value Description

A	Active
U	Unencrypted
F	Fail

Syntax

get_output_hdcp

Parameters

None

Example

get_output_hdcp

OUTPUT_HDCP A

Related Commands

#gets_input_hdcp
#gets_input_hpd
#gets_input_mode
#gets_input_signal
#gets_output_hpd
#gets_output_rsense

#gets\_output\_hpd

Returns the HPD state of the output. The value returned is one of the following:

Value Description
L	HPD low
H	HPD high

Syntax

get_output_hpd

Parameters

None

Example

get_output_hpd

OUTPUT_HPD H

Related Commands

#gets_input_hdcp
#gets_input_hpd
#gets_input_mode
#gets_input_signal
#gets_output_hdcp
#gets_output_rsense

#gets\_output\_rsense

Returns the HDCP setting of the specified output. The value returned is one of the following:

Value Description

L	HPD low
H	HDP high

Syntax

get_output_rsense

Parameters

None

Example

get_output_rsense

OUTPUT_RSENSE L

Related Commands

#gets_input_hdcp
#gets_input_hpd
#gets_input_mode
#gets_input_signal
#gets_output_hdcp
#gets_output_hpd

#get\_auto\_switch

Returns the status of the Auto-Switch feature.

Value Description
0	Disabled
1	Enabled

Syntax

get_auto_switch

Parameters

None

Example

get_auto_switch

AUTO_SWITCH 0

Related Commands

lock_matrix

set_auto_switch

r

#lock\_matrix

Locks or unlocks the switcher. This command locks the front panel and the built-in web interface of the switcher. Note that if the switcher is locked, settings can still be changed using the command set.

Syntax

#lock_matrix state

Parameters

state

Type: INTEGER

Accepts a number from the table below, specifying the desired state:

state Description

0	Unlocks the switcher
1	Locks the switcher

Example

#lock_matrix 1
LOCK_MATRIX 1

Related Commands

#get_auto_switch
#set_auto_switch
r

#set\_auto\_switch

Returns the HDCP setting of the specified output. The value returned is one of the following:

Syntax

#set_auto_switch state

Parameters

state

Type: INTEGER

Accepts a number, from table below, corresponding to the desired state.

state Description

0	Disable Auto-Switch
1	Enable Auto-Switch

Example

#set_auto_switch 0
AUTO_SWITCH 0

Related Commands

#get_auto_switch
#lock_matrix
r

r

Routes the specified input to the output.

Syntax

r input

Parameters

input

Type: INTEGER / STRING

The number of an HDMI input (1 - 4). This parameter also accepts a string argument of "OFF". The "OFF" argument is not case-sensitive. If "OFF" is specified, then no input is selected. To "turn on" an input that is marked as "OFF", use the number of the HDMI input (1 - 4) as the argument.

Examples

r 1

R 1

r off

R OFF

Related Commands

get auto switch

lock_matrix

set_auto_switch

#factory\_reset

Resets the switcher to factory-default settings. If a factory reset is performed through the built-in web interface or Telnet, then IP settings will be preserved. To reset all, including IP settings, this command must be issued using RS-232.

Syntax

factory_reset

Parameters

None

Example

factory_reset

RESET TO FACTORY DEFAULTS

Related Commands

reboot

#get\_feedback

Returns the RS-232 feedback status.

Value Description
0	Disabled
1	Enabled

Syntax

get_feedback

Parameters

None

Example

get_feedback

FEEDBACK 1

Related Commands

get ir channel

get led brightness

set feedback

set ir channel

set led brightness

show_firmware_version

#get\_ir\_channel

Returns the IR channel of the switcher.

Syntax

#get_ir_channel

Parameters

None

Example

#get_ir_channel
IR_CHANNEL 1

Related Commands

#get_feedback
#get_ir_channel
#get_led_brightness
#set_feedback
#set_ir_channel
#set_led_brightness

#get\_led\_brightness

Returns the brightness level of the LED indicators on the front-panel.

Syntax

get_led_brightness

Parameters

None

Example

get_led_brightness

LED_BRIGHTNESS 60

Related Commands

get_feedback

get_ir_channel

set_feedback

set_ir_channel

set_led_brightness

#reboot

Reboots the switcher.

Syntax

reboot

Parameters

None

Example

reboot

UNIT WILL REBOOT SHORTLY

Related Commands

factory_reset

#set\_feedback

Enables or disables unsolicited RS-232 feedback.

Syntax

set_feedback state

Parameters

state

Type: INTEGER

Accepts a number from the table below, specifying the desired state:

state Description

0	Disable RS-232 feedback
1	Enable RS-232 feedback

Example

set_feedback 1

FEEDBACK 1

Related Commands

#get_feedback
#get_ir_channel
#get_led_brightness
#set_ir_channel
#set_led_brightness

#set\_ir\_channel

Sets the IR channel of the switcher. In order to use the included IR remote control with the switcher, both the switcher and the IR remote control must be set to the same IR channel.

Syntax

set_ir_channel irch

Parameters

irch

Type: INTEGER

Accepts a number from the table below, corresponding to the desired IR channel.

irch Description

1	IR channel 1
2	IR channel 2
3	IR channel 3
4	IR channel 4

Example

set ir channel 2

IR_CHANNEL 2

Related Commands

get_feedback

get_ir_channel

get led brightness

set feedback

set led brightness

#set\_led\_brightness

Sets the brightness level of the LED indicators on the front panel.

Syntax

#set_led_brightness level

Parameters

level

Type: INTEGER

Accepts a number within the range of 0 - 100. The value of 100 represents the brightest setting of the LED indicators.

Example

#set_led_brightness 75
LED_BRIGHTNESS 75

Related Commands

#get_feedback
#get_ir_channel
#get_led_brightness
#set_feedback
#set_ir_channel

#show\_firmware\_version

Returns the firmware version of the switcher. The returned value will depend upon the version of firmware that is currently installed.

Syntax

show firmware version

Parameters

None

Example

show_firmware_version

FIRWMARE VERSION IS 1.0

Related Commands

None

This page left intentionally blank.

600 MHz

4K ULTRA

4x1 Switcher for HDMI w/HDR

4 Appendix

Front of RJ-45 Connector

Diagram of a mechanical or electronic component with numbered pins (1-8) and no visible text or symbols

Gefen recommends the TIA/EIA-568-B wiring option. Use the table below when field-terminating cable for use with Gefen products.

Pin Color Description

1 Orange / White TD+ (Transmit Data, positive differential signal)

2 Orange TD- (Transmit Data, negative differential signal)

3 Green / White RD+ (Receive Data, positive differential signal)

4 Blue Unused

5 Blue / White Unused

6 Green RD- (Receive Data, negative differential signal)

7 Brown / White Unused

8 Brown / White Unused

Information

Shielded CAT-5e (or better) cabling is recommended.

Supported Formats
Resolutions (max.) • 4K DCI-Cinema (4096 x 2160 at 60 Hz,4:4:4 color space)• 4K Ultra HD (3860 x 2160 at 60Hz, 4:4:4color space)• 1080p Full HD• 1920x1200 WUXGA• 3840 x 2160p 60 Hz (4:2:0)
Audio • LPCM 7.1	• Dolby Atmos®, Dolby® TrueHD• DTS:XTM, DTS-HD Master AudioTM

Connectors, Controls, and Indicators

HDMI In • 1 x Type A, 19-pin female, locking

HDMI Out • 4 x Type A, 19-pin female, locking

RS-232 • 1 x DB-9

IP Control • 1 x RJ-45

IR Sensor • 1 x front panel

IR In/Ext • 1 x 3.5mm mini-stereo

Select • 1 x tact switch

Reset • 1 x tact switch, recessed

Power • 1 x LED, blue

Input indicators • 4 x LED, green/amber

Output indicator • 1 x LED, green

Power connector • 1 x locking type

Operational
Maximum pixel clock	600 MHz
Power input	5 V DC
Power consumption	7 W
Operating Temperature	+32 to +122 °F (0 to +50 °C)
Operating Humidity	5% to 90% RH, non-condensing
Storage Temperature	-4 to +185 °F (-20 to +85 °C)
Storage Humidity	0% to 95% RH, non-condensing
Pin 18, HDMI output port 1 and 2	500 mA (max.) @ 5 V
MTBF	300000 hours
Physical
Dimensions (W x H x D) • 8.4" x 1" x 3.7" (213mm x 25mm x 93mm), without connectors or feet
Net Weight • 0.75 lbs (0.3 kg)

A

Auto Switch feature 18

C

Commands 50

factory_reset 109

get_auto_switch 105

get_device_desc 53

get_discovery 54

get_discovery_mode 55

get_ds_edid 66

get_edid_mode 67

get_ext_edid 68

get_feedback 110

get_gateway 73

get_http_port 74

get_ip_address 75

get_ipconfig 77

get_ip_mode 76

get_ir_channel 111

get_led_brightness 112

get_mac_addr 78

get_netmask 79

get_preset_edid 69

get_remote_udp_access 80

get_remote_udp_ip 81

get_remote_udp_port 82

get_showme 56

gets_input_hdcp 62

gets_input_hpd 63

gets_input_mode 64

gets_input_signal 65

gets_output_hdcp 102

gets_output_hpd 103

gets_output_rsense 104

get_telnet_access 83

get_telnet_port 84

get_telnet_welcome 85

get_udp_access 86

get_udp_port 87

help 61

lock matrix 106

r 108

reboot 113

set_auto_switch 107

set_device_desc 57

set_discovery 58

set_discovery_mode 59

set_edid_copy 70

set_edid_lock 71

set_edid_mode 72

set_feedback 114

set_gateway 88

set_http_port 89

set_ip_address 90

set_ip_mode 91

set_ir_channel 115

set_led_brightness 116

set_netmask 92

set_remote_udp_access 93

set_remote_udp_ip 94

set_remote_udp_port 95

set_showme 60

set telnet access 96

set_telnet_port 97

set_telnet_welcome 98

set_udp_access 99

set_udp_port 100

show_firmware_version 117

use_telnet_login 101

D

Discovery Settings 38

E

EDID

copying EDID data 27

custom EDID 26

downloading EDID data 30

EDID mode 25

getting EDID information 29

uploading EDID data 32

F

Features vii

Firmware Update 41

H

HDCP Control 22

HPD Control 21

!

IR Remote Control

description 4

installing batteries 5

setting the IR channel 6

switching using the IR remote 13

L

Licensing iv

N

Network

Discovery settings 38

IP settings 33

TCP / Telnet settings 34

Web login settings 37

0

Operating Notes vi

P

Packing list vii

Password

default 35

setting 35

R

RS-232

configuration 49

feedback 39

S

Safety Instructions ii

Specifications 121

Switching

using the front panel 12

using the IR remote 13

T

Table of Contents ix

Technical Support v

U

UDP

configuration 48

remote UDP access 36

remote UDP address 36

UDP listening port 36

W

Warranty Information iii

Web Interface

changing input and output names 20

customizing icons 24

downloading configuration 39

factory reset 44

HDCP 22

HPD control 21

input and output status 19

introduction 14

buttons 16

logging in 14

tabs and sub-tabs 16

rebooting the switcher 45

restoring configuration 40

RS-232 feedback 39

setting the EDID mode 25

custom EDID 26

setting the IR channel 43

setting the LED brightness 43

updating firmware 41

GEFEN

Core Brands, LLC

1800 S McDowell Blvd. Petaluma CA 94954

[phone] [phone]
