Type	Building dehumidifier (condenser type)
Model	Meaco 50Lm
Dimensions (H x W x D)	680 x 380 x 510 mm
Weight (net)	36.5 kg
Weight (gross)	41.5 kg
Power supply	220-240 V, 50 Hz, single phase
Power consumption	900 W
Refrigerant	R410A, 500 g
Air flow rate	510 m³/h
Drying capacity (30°C, 80% RH)	50 L/24h
Operating temperature range	+5 °C to +35 °C
Operating humidity range	35% to 90% RH
Defrost system	Automatic hot gas defrost
Humidity control	Adjustable rotary dial (OFF, 50%-80%, CO continuous)
Built-in pump	Yes, max lift 3 m
Hour counter	Non-resettable, total hours
Filter type	Washable (clean weekly)
Pump cleaning interval	Every 1000 hours
Power cord	3-wire grounded, 13A BS1363 plug
Warranty	1 year from date of purchase
Safety features	Grounding, overload protection, auto shut-off
Intended use	Construction sites, residential, museums, storage

Frequently Asked Questions - 50Lm Meaco

How do I set the desired humidity level?

Turn the humidity control dial to the desired level between 50% and 80%. The dehumidifier will operate until the room reaches that level, then cycle on/off automatically. For continuous operation, set to 'CO'.

Why is my dehumidifier not collecting water?

Check if the room temperature is below 5°C or above 35°C, or if humidity is below 45%. Also ensure the air filter is clean. If conditions are within range and filter is clean, allow more time.

How often should I clean the air filter?

Check the filter at least weekly. Clean it by vacuuming debris, then washing with lukewarm water and mild detergent. Let it dry completely before reinstalling.

What does the automatic defrost system do?

In low temperatures, frost may form on the evaporator. The unit automatically activates hot gas defrost to clear it. During defrost, the fan may stop temporarily. This is normal.

Can I use an extension cord?

Yes, but the extension cord must be grounded and able to deliver the appropriate voltage (220-240V). Use a heavy-duty cord with a rating suitable for 900W.

How do I drain the water using the built-in pump?

Uncoil the drain hose from the back, ensure no kinks, and place the end into a drain or outdoors. Do not exceed a 3m vertical lift. The pump automatically drains collected water. Press 'PUMP ON' before moving to empty residual water.

What should I do if the unit does not start?

Check that the power cord is plugged into a working, grounded outlet. Ensure the power switch is turned ON. If still not working, the overload protector or capacitor may be defective; contact Meaco service.

How should I store the dehumidifier?

Clean the filter, drain all water from the pump and hose, wind the power cord, and store the hose in its compartment. If stacking, do not stack more than 2 units high.

Is the warranty transferable?

The warranty is valid for the original purchaser with the original, unaltered, date-stamped purchase receipt. It covers material and manufacturing defects for one year.

Can I use the dehumidifier in a basement or garage?

Yes, as long as the temperature is between 5°C and 35°C and humidity between 35% and 90%. It is suitable for construction sites, garages, and storage rooms.

USER MANUAL 50Lm Meaco

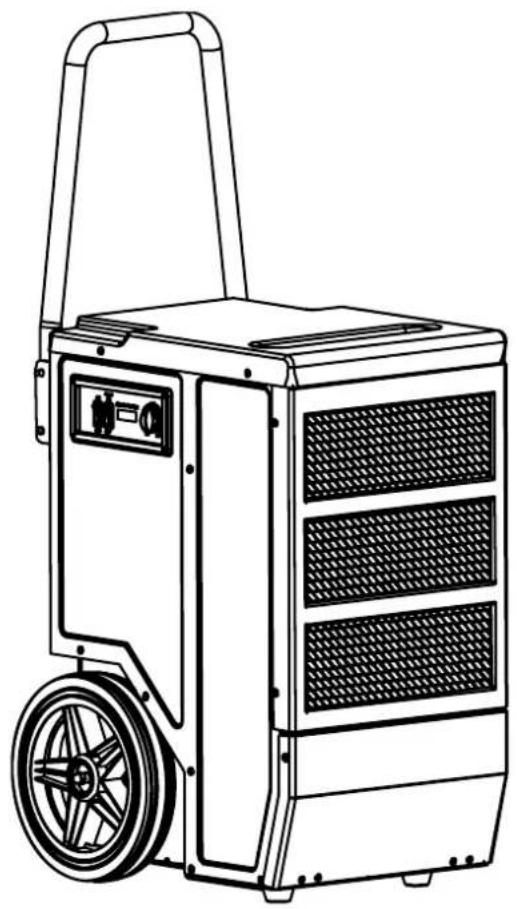

Meaco 50Lm Building Dryer

Line drawing of a portable industrial air purifier with wheels and control panel (no text or symbols)

INSTRUCTION MANUAL [EN]

50Lm

SAFETY INFORMATION

ATTENTION

This dehumidifier must not be used in rooms under the following conditions:

• Potentially explosive atmosphere
• Aggressive atmospheres
• Featuring a high concentration of solvents
• An extremely high ratio of dust

Keep Children Away: Do not allow children to play with or around this unit, which could result in injury. Be sure the unit is inaccessible to children when not attended.

Keep Unit Grounded: Always operate the unit with a grounding plug and a grounded electrical outlet. A grounding plug is an essential safety feature that helps reduce the risk of shock or fire.

Protect Power Cord from Damage: Never operate a unit with a damaged power cord, as this may lead to electrical or fire hazards. If the power supply cord is damaged, it must be replaced by a cord of the same type and amperage rating.

Extension Cords: Extension cords must be grounded and able to deliver the appropriate voltage to the unit.

Handle with Care: Do not drop, throw or crash the dehumidifier. Rough treatment can damage the components or wiring and create a hazardous condition.

Run on Stable Surface: Always operate the unit on a stable, level surface, for example the floor or a strong counter, so that the dehumidifier cannot fall and cause injury. Do not use on a metal floor.

Keep Out of Water: Never operate the unit in pooled or standing water, as this may create a risk of injury from electrical shock. Do not store or operate outdoors. If electrical wiring or components become wet, thoroughly dry them before using the unit. If in doubt do not use the dehumidifier and consult a qualified electrician or a Meaco approved engineer.

Keep Air Intakes Clear: Do not clog or block the air intakes by placing the dehumidifier too close to curtains, walls or anything that will restrict the air inlet. This may cause the unit to overheat and result in a fire or electrical hazard.

Keep Filter Clean: Always use a clean air filter. Do not allow any material to clog the filter, as this may cause the dehumidifier to overheat. Never use without a filter. Always check, and if necessary, clean the filter before switching the dehumidifier on. Do not allow oil, grease, or other contaminants to be drawn into the dehumidifier. Do not clean the dehumidifier with organic solvents.

Keep Electrical Components Dry: Never allow water inside the dehumidifier's electrical components. If these areas become wet for any reason, thoroughly dry them before using the dehumidifier. If in doubt do not use the dehumidifier and consult a qualified electrician or a Meaco approved engineer.

The operator must make the operating instruction available for the user and make sure that the user does understand the manual.

Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains lead are coloured in accordance with the following code:

BLUE - NEUTRAL

BROWN - LIVE

GREEN AND YELLOW – EARTH

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

1. The BLUE wire is the NEUTRAL and must be connected to the terminal which is marked with the letter N or coloured BLACK.
2. The BROWN wire is the LIVE and must be connected to the terminal which is marked with the letter L or coloured RED.
3. The GREEN/YELLOW is the EARTH and must be connected to the terminal which is marked with the letter E or coloured GREEN OR GREEN/YELLOW.
4. Always ensure that the cord grip is positioned and fastened correctly.

If a 13A (BS1363) fused plug is used it must be fitted with a 13A fuse. If in doubt consult a qualified electrician.

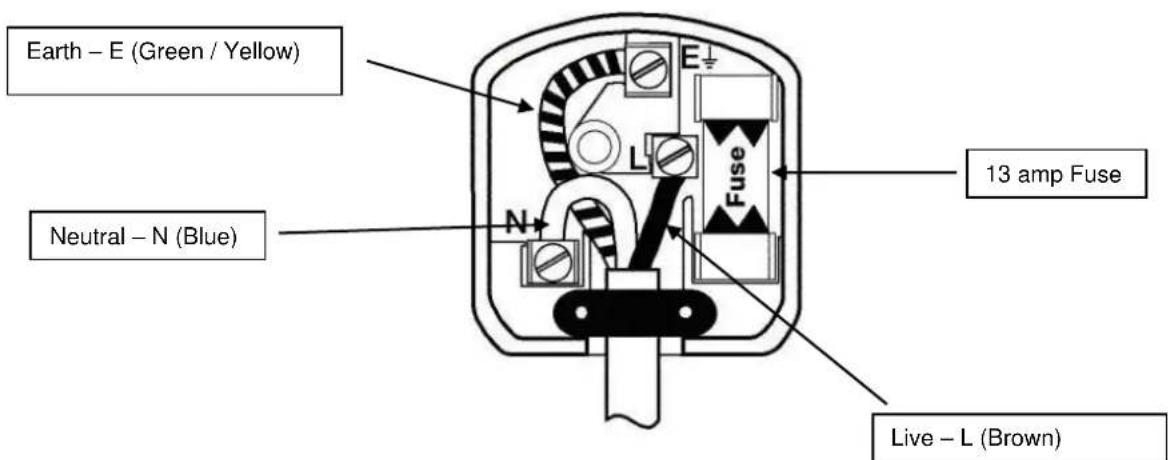

Wiring for a 13Amp Plug (BS1363)

Please note. The Earth Terminal is marked with the letter E or Earth Symbol

1. GENERAL ADVICE

Before putting your dehumidifier into operation for the first time, the instruction manual should be studied carefully.

After receiving the unit, you should check your dehumidifier for any transport damage. In case of damage, you should inform the sender immediately.

Keep the packaging for the dehumidifier in a safe place in order to be able to despatch the dehumidifier safely if it requires a service. In order to save space, you can simply cut through the adhesive tape using a knife and fold up the cardboard box.

2. DEHUMIDIFIER PRINCIPLES

This dehumidifier is designed to reduce humidity from the air in a building or part of a building. The purpose is to prevent humidity damage, and to dry out wet materials such as carpet, floors, walls, furniture, contents, timber, and structural materials.

This dehumidifier can prevent the formation of condensation, reduce air humidity and keep constant a desired relative humidity value. The time necessary for the dehumidifier to dry a room and reach the desired relative humidity depends on the environmental conditions prevailing within the room. For example the number of air changes with outside, any sources of moisture and the room temperature can all either speed up or slow down the dehumidification process.

The dehumidifier functions according to the condensation principle with heat recovery. The fan takes the humid air from the room in and across a filter and then through an evaporator. Here the air is cooled below dew point so that the water vapour of the air forms a condensate on the coils which flows into the internal pump ready to be automatically drained away. The cooled and dried air is heated again by a condenser. By recycling the room air through the dehumidifier over and over again the moisture content and relative humidity of the air is reduced.

3. INSTALLATION AND TRANSPORTATION

For installation and transportation, the following instructions must be considered:

⇒ The air inlet and the air outlet must not be covered whilst the dehumidifier is in operation.
Before any moving the dehumidifier it must be switched off by its ON-OFF switch. The mains plug is to be removed from the socket and the water tank should be emptied.
For transportation the dehumidifier should be secured on a level base only and must be prevented from rolling around.
⇒ The dehumidifier must always be transported vertically.
→ This dehumidifier must be used exclusively for air dry.
If the dehumidifier has been in a horizontal position for any time over a few minutes, you must let it stand in the upright position for at least 30 minutes before operating. This allows the oil to drain back into the compressor.

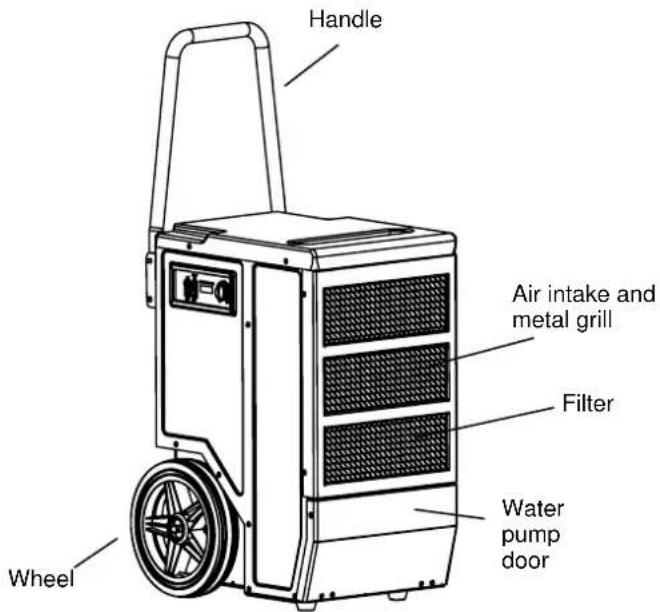

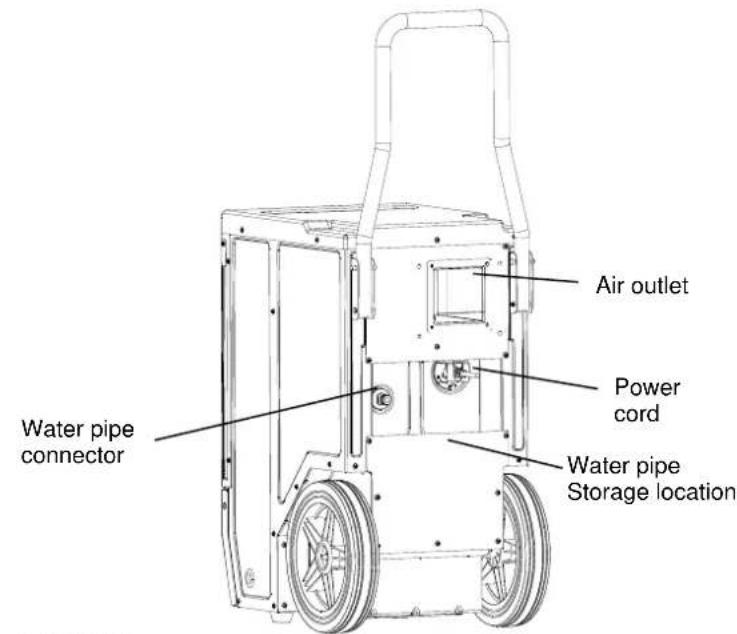

1. PRODUCT INDENTIFICATION


5. CONDENSATE OUTLET

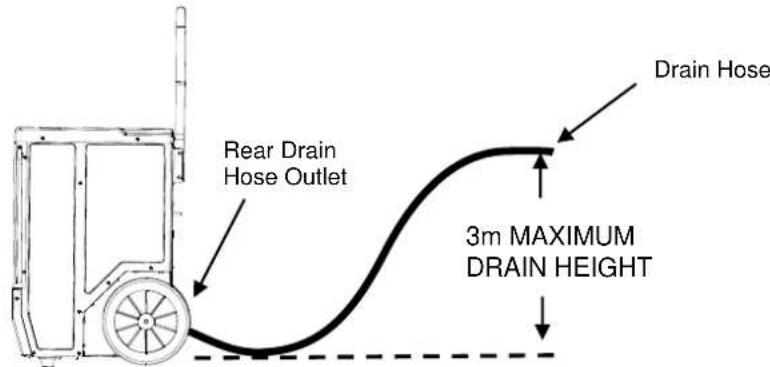

This dehumidifier contains a built-in pump that connects to a drainage hose which is stored in the back of the unit. Uncoil the entire hose to ensure that there are no kinks or restrictions and place the unattached end into a drain or run to the outdoors. Ensure that water piped to the outdoors does not create a slipping hazard. To avoid damaging or overworking the pump, do not exceed a 3m vertical lift height between the pump and drain.

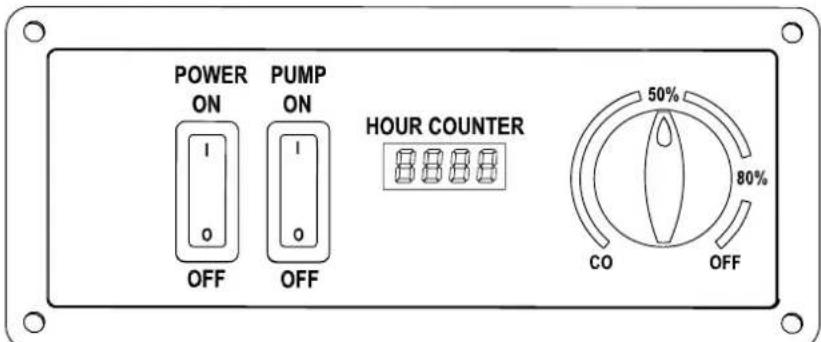

6. CONTROL PANEL

POWER ON/OFF: Press the red switch to turn the unit ON or OFF. The indicator lamp will illuminate when the power is turned on.
→ PUMP ON/OFF: Press the PUMP ON black switch to empty water from the pump reservoir. During normal operation the pump purges automatically when the reservoir is full. Press PUMP ON black switch before moving the machine to avoid water spillage. The pump will close automatically after forty seconds continuous operation.
HUMIDITY CONTROL: Adjustable humidity control between OFF-80%-50%-CO.

"OFF" the dehumidifier is turned off.

"CO" the dehumidifier will operate continuously regardless the ambient humidity level.

→ 8888 Non-resettable hour counter tracking the number of hours that the dehumidifier has been running for in total.

7. OPERATION

Plug in electrical cord: This dehumidifier must be plugged into a grounded polarized 220\~240 VAC/50Hz outlet rated at least 15 amps. Make sure the drain hose is connected and routed to a safe location.
Turn the unit on: Press the "POWER ON" switch to turn the unit on. The unit will start to work if the room relative humidity is greater than the level that the rotary dial is set to or if the dial is set to Continuous.
Turn the unit off: Press the "POWER OFF" switch to turn the dehumidifier off. The water pump will turn on automatically for 40 seconds to drain the residual water in the dehumidifier.
→ Humidity Setting:

➢ Turn the humidity control to CO (Continuous), the dehumidifier operates continuously regardless the room humidity level.
➢ Turn the humidity control to the desired humidity level, the dehumidifier will start operate when the room humidity above the setting level.
When the target relative humidity has been reached the dehumidifier will stop. It is automatically restart when humidity level above setting.
If the relative humidity is stable then the dehumidifier goes to sleep for 30 minutes after which it will wake up and sample the air with just the fan running for 1 minute so that the relative humidity sensor can tell the system when to start collecting water again, but if the relative humidity remains below the target then the dehumidifier will go to sleep again.

IMPORTANT:

To avoid water spillage. Do not move the dehumidifier for at least three minutes after turning the power off. Before transporting, be sure to remove the external drain hose, drain it carefully, and return it to the pocket provided on the front of the unit.

8. AUTOMATIC DEFROSTING SYSTEM

This dehumidifier is equipped with an automatic hot-gas defrosting system. When operating in low temperatures the surface of the evaporator will accumulate frost and this will effect the efficiency of the dehumidifier. When this happens the machine will go into periodic defrosting automatically. Defrost time may vary. It is not recommended to use the dehumidifier in temperatures below 5^ C

9. ELECTRICAL CONNECTIONS

This dehumidifier was designed to operate in a 230V\~50Hz electrical installation. Make sure that the electric sockets are connected to earth and that all safety precautions are taken.

10. OPERATING CONDITIONS

This dehumidifier can be operated within an ambient temperature range from +5°C to +35°C and with a relative humidity from 35% to 90%rh. It is suitable for application on construction sites, residential buildings, museums, archives, garages and storage rooms.

11. SPECIFICATIONS

Model		Meaco 50Lm
Temperature Range		+5 °C / +35°C
Relative Humidity Range		35% - 90%rh
Defrosting System		Hot gas
Air flow		510 cubic metres per hour
Rated Voltage		220 - 240V / 50Hz
Power Consumption		900 watts
Refrigerant		R410A / 500g
Drying Capacity (L/24H)	26.7°C – 60%rh	litres
	30°C – 80%rh	50 litres
	32°C – 90%rh	litres
Dehumidifier Dimensions (mm)		510 x 380 x 680
Box dimensions (mm)		540 x 410 x 740
Nett / Gross Weight (Kgs)		36.5 / 41.5
Hour Counter		Yes

1. TROUBLESHOOTING

Trouble	Cause	Solution
Unit does not operate	No power to the unit	Plug in the unit; check power at outlet
	Switch not turned ON	Turn ON the switch
Doesn't dehumidify	Ambient temperature is lower than +5°C	Under this condition the dehumidifier becomes inefficient. It is recommended to switch off the dehumidifier
	Ambient temperature exceeds 35°C	Under this condition the compressor is overloaded and switches off automatically. It is recommended to switch off the dehumidifier.
	The ambient air humidity is lower than 45%rh	Under this condition the dehumidifier becomes inefficient. It is recommended to switch off the dehumidifier
	The air filter is dirty and blocked	The air filter must be exchanged
	Not enough time to dry	Allow more time to dry
Compressor will not start	Overload protector is defective	Contact a Meaco approved workshop.
	Running capacitor is defective	Contact a Meaco approved workshop.
The fan is out of operation	The dehumidifier is running a defrost cycle	The dehumidifier will switch on the fan automatically after some minutes. If not, the malfunction must be repaired by a Meaco approved workshop.
	Fan not running	Contact a Meaco approved workshop.
Unit continuously in defrost and you can see an ice block on the evaporator	Defective control assembly	Contact a Meaco approved workshop.
	The room temperature is lower than +5°C	Assure that the device is only set up in rooms with temperatures above +5°C.
	Defective bypass relay valve	Contact a Meaco approved workshop.
Unit does not defrost	Defective temperature sensor	Contact a Meaco approved workshop.
	Defective control assembly	Contact a Meaco approved workshop.
	Defective bypass relay valve	Contact a Meaco approved workshop.
Time counter does not run	Switch not turned ON	Turn ON the switch.
	Defective time counter	Contact a Meaco approved workshop.

13. MAINTENANCE

Always turn off the power and disconnect the main cable before performing maintenance procedures. All service procedures below are to be executed with the unit unplugged. Perform before each use or as needed.

INSPECT ELECTRICAL SYSTEM: Inspect the electrical cord for damage at regular intervals.

The working performance of the dehumidifier will be greatly reduced if the filters are blocked with dust. Check the filter at least weekly. Cleaning or replace the filter if it gets clogged.

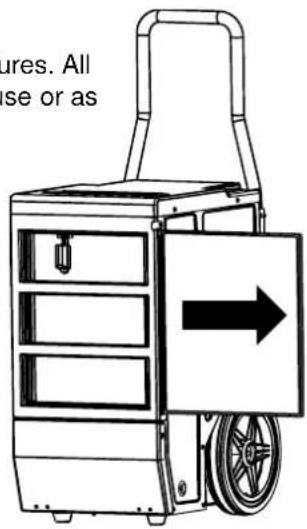

1. Remove the filter as shown.
2. Vacuum any debris from the filter.
3. Using lukewarm water and a mild detergent wash the filter and allow to dry.
4. Once dry, re-install the filter into the dehumidifier.

The item 2, 3 refer only to washable filters.

15. CLEANING THE WATER PUMP

Technical line drawing of a portable air purifier unit with ventilation grilles and wheels (no text or symbols)

Technical line drawing of a mechanical component with a circular top and mounting base (no text or symbols)

Pure electrical circuit lines without any symbols

NOTE: Clean the water pump every 1000 hours running time.

Ensure the dehumidifier is turned OFF and the plug is removed from the power outlet before performing maintenance.

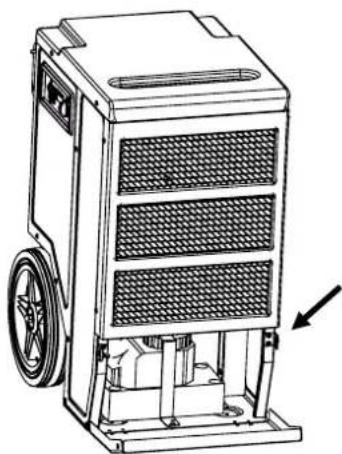

1. Press the lock on the two sides of the water pump door.
2. Pull the water pipe to access the water pump.
3. As per the above diagram on the left remove the one screw to remove the top cover.
4. As per the above diagram on the right remove the four screws to remove the bottom cover.
5. Clean the water pump.
6. Re-install by reversing the above instructions.

16. STORAGE

Follow the guidelines below when storing the unit:

1. Prior to storing the unit, clean the filter and drain the water from the unit.
2. Wind the power cord to the back of the unit.
3. Put the water pipe to the water pipe storage location in the front of the unit.

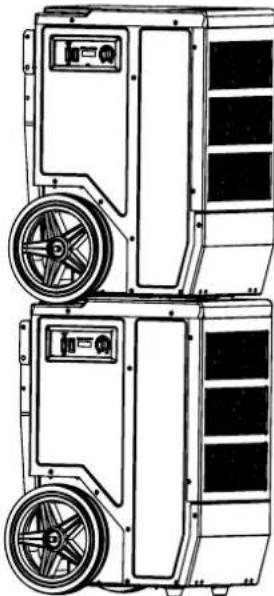

4. If necessary, stack machines as shown.

NOTE:

Do not stack more than 2 machines high. Be sure to secure the machines to ensure they do not fall or move.

Technical line drawing of two industrial electrical cabinets with wheels and control panels (no text or symbols)

17. WARRANTY AND CUSTOMER SERVICE

There is a one year warranty on your dehumidifier from the date of purchase.

All material or manufacturing defects will be repaired free of charge.

The following applies:

• Any repairs or replacement of components during the warranty period will not result in an extension of the warranty period.
• The warranty will expire if any alterations have been made, not genuine components have been fitted or if the dehumidifier has been repaired by a third party.
• Components subject to normal wear and tear, such as the air filter, are not covered by the warranty.
  ● The warranty is only valid on presentation of the original, unaltered, and date-stamped purchase receipt.
• The warranty does not cover damage caused by actions that deviate from those as described in the user's manual or by neglect.
  ● The warranty does not covered faults caused by dirt of third party products.
  ● The warranty does not cover accidental damage.
• All claims for compensation, including consequential damage, will not be entertained.

To prevent unnecessary expenses, we recommend that you always carefully read the user's manual first. If this does not provide a solution, call Meaco and we will be happy to help.

This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

This dehumidifier has been imported into the U.K. by;

Meaco (U.K.) Limited

Meaco House

Parklands

Railton Road

Guildford

GU2 9JX

Telephone: [phone]

Email: [e-mail]

Website: www.meaco.com

Fax: [phone]

Please record, for future reference, your date of purchase and where you bought the dehumidifier from here.

Date of purchase....

Purchased from www.meaco.com (if not then please record the supplier's name below).

Meaco are specialists in dehumidifiers and would welcome your comments and questions on this dehumidifier. If you do develop a fault within the first year then please do call us and if we cannot fix the problem over the phone we will be happy to collect the dehumidifier from you at our expense and repair or replace as appropriate.

Please save the box just in case this happens.
