PGC6511 - Cooker AMICA - Free user manual and instructions

Product Type	Gas Hob (built-in)
Brand	Amica
Model	PGC6511
Dimensions (W x D x H)	600 x 550 x 105 mm
Weight	12.4 kg
Number of Gas Burners	4
Burner Types	1 WOK (3.5 kW), 2 medium (1.75 kW each), 1 small (1 kW)
Energy Efficiency (Gas Hob)	54.5%
Gas Connection	1/2" ISO 228-1 pipe terminal
Gas Types	Natural gas G20 (20 mbar) or LPG G30 (37 mbar)
Appliance Class	II2H3+
Ignition Type	Control knob ignition with leak protection (ZpZt)
Safety Features	Leak protection (gas cut-off if no flame), child safety (in manual)
Materials	Stainless steel or enamel (work panel), cast iron grates
Installation Requirements	Cut-out dimensions in manual, minimum distance to hood 750 mm
Cleaning	Burners and grates washable, work panel with mild detergent, avoid abrasives
Warranty	As per guarantee certificate (standard 2 years)
Manufacturer Declaration	Compliant with EU directives (LVD, EMC, ErP, RoHS, Gas Appliance Regulation)

Frequently Asked Questions - PGC6511 AMICA

What are the dimensions of the Amica PGC6511 gas hob?

The dimensions are 600 mm width, 550 mm depth, and 105 mm height. The weight is 12.4 kg.

How many burners does it have and what are their power ratings?

It has four burners: one WOK burner (3.5 kW), two medium burners (1.75 kW each), and one small burner (1 kW).

What gas types can be used with this hob?

The hob supports natural gas G20 at 20 mbar and LPG G30 at 37 mbar. It can be converted between gas types by replacing nozzles and adjusting the reduced valve flow.

Does the hob have a flame failure safety device?

Yes, the model includes leak protection (Zt). If the flame goes out, the gas supply is automatically shut off after about 60 seconds.

How do I ignite the burners?

Press and turn the corresponding knob anticlockwise to the large flame position. Hold it depressed for about 10 seconds to activate the leak protection, then release and adjust flame size.

What should I do if a burner does not ignite?

Close all knobs and the gas cut-off valve, ventilate the room, then remove and clean the burner cap and slots. Reassemble and try again. If still not igniting, contact a licensed service.

Can I install the hob myself?

Installation must be performed by a qualified, gas-safe registered technician. The hob requires proper cut-out, ventilation, and gas connection to avoid hazards.

How do I clean the hob?

Clean the ceramic (or enamel) panel with warm water and mild detergent; do not use abrasives. Burners and grates can be removed and washed with soapy water. Ensure flame slots are clear.

How can I save energy while cooking?

Use flat-bottomed pans with lids, match pan size to burner, keep burners clean, and avoid preheating longer than needed. This can save up to 60% energy.

What is the warranty period?

The warranty is granted as per the guarantee certificate provided with the product. Typically, standard warranty is 2 years, but check your local conditions.

USER MANUAL PGC6511 AMICA

Product information given in accordance with Commission Regulation (EU) No 66/2014 supplementing Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco-design requirements for household ovens, hobs and range hoods

Household gas hobs

Model identifier		PGC 6511	PGC 6510
		PLCG4.1ZpZtR	PLCG4.0ZpZtR
		1106058	1106057
Hob type (electric / gas / gas-electric)		O / V / O	O / V / O
Number of gas burners		4	4
Energy efficiency for each gas burner (EE gas burner)	FL	54,5	54,5
	RL	54,5	54,5
	RR	54,5	54,5
	FR	54,5	54,5
	C	-	-
Energy efficiency of gas hob (EE gas hob)		54,5	54,5

In order to determine compliance with the eco-design requirements, the measurement methods and calculations of the following standards were applied:

EN 60350-1

EN 60350-2

EN 15181

EN 30-2-1

Outstanding user-friendliness and excellent efficiency make cooktops a perfect choice. Please read this manual thoroughly before you start to use the appliance to avoid any trouble.

The cooktop's safety and functionality was checked at the factory test stations prior to dispatch.

Please read this manual carefully before you start to use this cooktop. This way, you can ensure its proper and correct operation.

Please preserve this manual and store it near the appliance, so that it is available at all times for reference. Observe the instructions contained herein to prevent accidents.

Note

Do not start to use the appliance before you have read and understood the instructions.

This equipment has been designed solely as a cooking appliance. It is strictly prohibited to use it for any other purpose, e.g. heating. Using the appliance for other purposes can be dangerous.

The manufacturer reserves the right to introduce modifications which will not affect the functionalities and operation of the appliance.

TABLE OF CONTENTS

ENVIRONMENT 3

SAFETY INSTRUCTIONS 4

GUIDE TO THE COOKTOP 6

INSTALLATION 8

ADJUSTMENT OF THE REDUCED VALVE FLOW 10

OPERATION 11

CLEANING AND ROUTINE MAINTENANCE 13

GUARANTEE 13

TROUBLESHOOTING 14

ENVIRONMENT

UNPACKING DISPOSAL OF THE APPLIANCE

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are mar-

ked with the appropriate symbol.

Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of reach of children.

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling.

Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you are making a significant contribution to the protection of our environment.

Information on appropriate disposal centres for used devices can be provided by your local authority.

HOW TO SAVE ENERGY

Using energy in a responsible way not only saves money but also helps the environment. So let's save energy! And this is how you can do it:

■ Use appropriate cookware: flat and thick bottom pots and pans will reduce power consumption by up to one third. Do not forget to use lid to reduce power consumption by four times!
■ Select properly sized cookware: make sure the diameter of the pan or pot is not smaller than the size of the burner.
- Keep the burner surfaces and the cookware bottoms clean: Residues hinder heat transfer, and lasting contamination can be removed only by extremely harmful chemicals. Particularly, the flame slots of the burners must be kept clean at all times.
■ Do not put up the cookware lids unless really necessary.
- Do not install the cooktop adjacently to fridges / freezers: this increases power consumption of the cooling appliances.

SAFETY INSTRUCTIONS

Your safety and that of your family are of the utmost importance to us and although some simple safety when cooking is generally observed it is worth reading through the following points to ensure that your hob is operated as safely as possible at all times to prevent any accidents.

As a responsible company we feel it is very important to maintain a very high level of safety and to make this section as clear and highlighted as possible.

Should you have any additional concerns or questions on any safety related matters please feel free to contact our service department on 0844 815 8880 (UK) or 0818 464646 (ROI) and our staff will endeavour to help you with any questions you may have.

• Do not leave children unattended in an area where the appliance is in use.
• Do not allow persons of limited physical, sensual, or psychological capabilities, or persons whose experience in operating similar appliances is limited to operate the cooktop, unless if attended by (adult) caretakers.
• Make sure no part of the power cord comes in contact with hot parts of the hob.
• Leave sufficient space around the socket to ensure the power plug is accessible easily after installation.
• Do not install the hob near cooling appliances.
• Do not leave the hob unattended while in use. Boil-overs cause smoking, and greasy spill-overs may ignite presenting a fire risk.
• Execute caution when the food is boiling. Boil-overs may flood the burner.

• Should a malfunction occur, stop using the appliance. Do not start to use your hob before a Gas Safe engineer has repaired it.

• Make sure all the burners are closed before opening the main gas valve at the network or container connection.

• Do not place cooking pans directly onto the burners.
• Maximum weight of a pan to be placed over a single burner is 5 kg. The overall maximum load of a pan that is to be placed over the entire grate is 10 kg. Do not place a single pan over two burners at the same time.
• Do not impact the burners and knobs.
• It is prohibited to modify or repair the hob by persons who do not possess appropriate training and qualifications.
• Do not set the burner knobs open before you have stricken the match or the ignition appliance.
• Do not extinguish the flame by blowing.
• The user is not allowed to convert the hob to another gas type, relocate the appliance, or modify the supply network himself. Only a duly authorised and Gas Safe is allowed to carry out these activities.
• Do not connect antenna cords (e.g. radio antennae) to the gas pipes.

PLATE PLCG4.0ZpZtR / PGC 6510
    note right of A: Anics

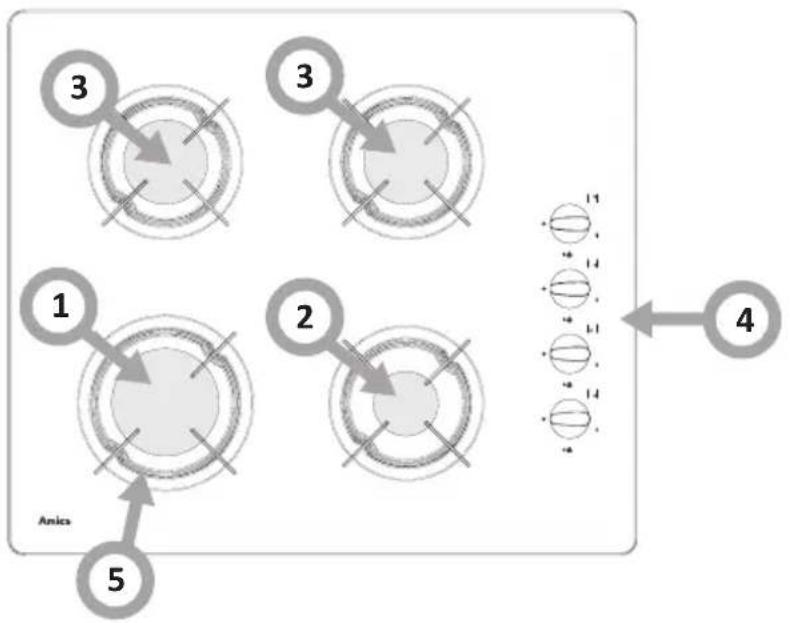

1,2,3 - surface burners

4 - surface burner knobs

5 - grid

TECHNICAL DATA

• heigh 105 mm
• depth 520 mm
• width 600 mm
  ● weight of the cooker 12 kg

The cooker is equipped with burners:

1 - Large burner, heat load - 3 kW
2 - small burner, heat load - 1 kW
3 - medium burners, heat load - 1,75 kW

Appliance class: II2H3+

The cooker is equipped with a pipe terminal - 1/2" ISO 228-1

PLATE PLCG4.1ZpZtR / PGC 6511
1,2,3 - surface burners

4 - surface burner knobs

5 - grid

TECHNICAL DATA

• heigh 105 mm
• depth 550 mm
• width 600 mm
  ● weight of the cooker 12,4 kg

The cooker is equipped with burners:

1 - WOK burner, heat load - 3,5 kW
2 - small burner, heat load - 1 kW
3 - medium burners, heat load - 1,75 kW

Appliance class: II_2H3 +

The cooker is equipped with a pipe terminal - 1/2" ISO 228-1

EN

GUIDE TO THE COOKTOP

Installation work and repairs should only be performed by a qualified technician in accordance with all applicable codes and standards. Repairs and service by unqualified persons could be dangerous and the manufacturer will not be held responsible.

Location

● The kitchen must be dry and well ventilated.

- The kitchen should have a ventilation system including fume exhaust to remove the gases generated by burning gas and direct them out. That system shall comprise a ventilation grill or a hood. Please install hods in accordance with the manufacturers' instructions.

- Fresh air is necessary to ensure gas burning. Minimum gas requirement for the cooktop is 2 cbm per hour per each 1 kW of the burners' capacity. The air can be supplied either directly from the outside by an at least 100 cm2 duct, or directly from the adjacent rooms, provided these are equipped with ventilation system routed to the outside of the building.

● The minimum distance between the burners and the hood exhaust should be 750 mm (see fig. 3).

3

INSTALLATION

Installation of the cooktop:

● Prepare the work top cut-out as shown in the diagram (see fig. 5).
● Remember to maintain the minimum safety distances to combustible surfaces below the cooktop of 130 mm.
● Fix the tape (included) to the cooktop edge at the bottom side of the appliance.
- Connect the appliance to gas and electrical mains as per the operating manual.
- Remove any dust from the work top, remove the protective backing of the tape, insert the cooktop into the cut-out, and press firmly downwards.
- Set the fixing brackets (see fig. 4) perpendicular to the cooktop edge, fix firmly.
- Test the correct operation of the installed cooktop. In particular, check the correct operation of the sealing protection and the ignition system.

Fixing the brackets to the work top

1. Work top
   2.4 screws
2. 4 fixing brackets
3. Installed appliance

Notes for the technician

Instalator powinien:

The fitter should:
● Bear a valid certificate of gas permit
- Have studied the contents of the appliance's type plate containing the suitable type of gas. Compare the data with the characteristics of the gas available in the network.

- Check the following:

• ventilation capacity, incl. air exchange in the kitchen,

- tightness and sealing of the gas fittings,

• effectiveness and correct operation of all the functional elements.

- Adjust the settings of the gas control knobs with the washers included to ensure the igniters work properly and the entire system is leak-proof;

- check the operation of the igniters and leak seal,

- remove the knob if working incorrectly, and adjust bi introducing washer(s) onto the valve spindle,

- check the operation of the igniters and leak seal,

- secure the system with a tight washer and put the knob handle on.

- Issue a certificate of connecting the appliance and inform the user of the operating activities.

NOTE! Installation and service must be performed by a qualified and licensed installer, service agency or gas supplier. All the relevant safety regulations must be observed.

The cooktop is equipped with an R1/2" connecting pipe for gas connection. If the appliance is intended for use with LPG (propane – butane), a ∅ 8 x 1 mm hose coupling is threaded onto the connector.

Make sure the gas connecting pipe does not come in contact with the metal components of the cooktop.

All the couplings and joints must be tightly sealed.

Note. After connecting the appliance check all fittings for gas leaks e.g. with soapy water.

Do not check the fittings with open fire!

Please make sure you have read and understood the entire operating manual. Do follow the instructions to ensure safe and effective operation of your cooktop.

NOTE: The appliance uses gas, which is a flammable and explosive substance. Thus, it is necessary for the cooktop to be connected to a gas network which supplies the gas type for which the appliance is suitable.

Installation and service must be performed by a qualified installer, service agency or gas supplier.

Please check the type plate for the information concerning the suitable gas type for your appliance.

Converting the unit to another gas type

Only a licensed and authorised technician may carry out this job.

If the available gas type is different from that provided in the type plate of the appliance (G 20 (GZ 50) 20 mbar, the burner nozzles should be replaced and flame adjusted.

NOTE

The cooktops delivered by the supplier come with the burners which are suitable for burning the type of gas which is quoted in the type plate and in the guarantee certificate. The type plate is fitted at the bottom panel of the appliance. The following must be carried out if converting to another gas type is required:

● nozzles must be replaced (see assembling table),
● reduced valve flow rate must be adjusted.

Converting the unit to another gas type

Gas type	Nozzle diameter
	Small Medium Large WOK
2H G20/20mbar 0,72 2	x 0,97 1,15 1,35
3B/P G30/37mbar 0,5 2	x 0,65 0,85 0,95

Replacement of burner nozzle: loosen the nozzle with a dedicated wrench (7). Fit the new nozzle, suitable for the required gas type (see table above for reference).

After you have converted the cooktop to another gas type, make sure you have placed a label containing that information on the appliance.

Adjustment of the reduced valve flow

Burners Flame		Converting the cooktop from LPG to natural gas	Converting the cooktop from natural gas to LPG
Regular burners	Full flame	Replace the burner nozzle according to the guidelines in table 1	Replace the burner nozzle according to the guidelines in table 1
	Saving flame	Loosen the adjustment spindle (see fig. 7) and adjust the flame	Loosen the adjustment spindle (see fig. 7) and adjust the flame

Valve adjustment

Valve adjustment should be done with the control knob set at Burner ON saving flame position. Remove the knob, and adjust the flame with a tiny screwdriver (see fig. 7 below).

Pure electrical circuit lines without any symbols

Checking the adjusted flame: heat the burner at full open position for 10 minutes. Then turn the knob into the saving setting. The flame should not extinguish nor move to the nozzle. If it goes off or moves over to the nozzle, readjust the valves.

Note.

It is up to the used to request converting the appliance to another gas type if so required by the local conditions at a licensed gas fitter / service.

OPERATION

Flame selection

At the burners adjusted correctly, the flames should be light blue, and the inner cone should be clearly visible. The size of flame depends on the position of the related burner control knob.

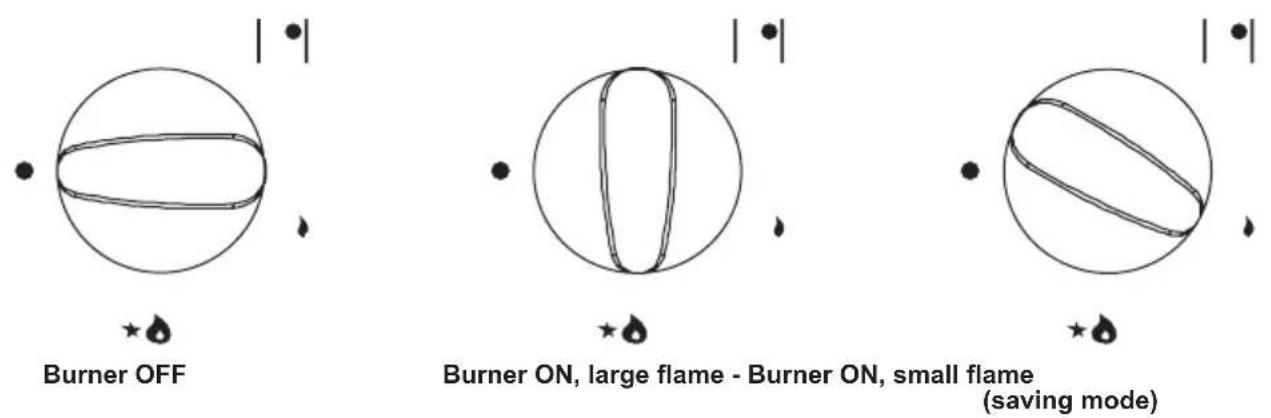

See also fig. 8 for various operating options (flame size selection); the burner should be set at a large flame during the initial phase of cooking to bring the food to boiling, and then the knob should be turned to the saving flame position to maintain the cooking. It is also possible to adjust the flame size stepless.

It is prohibited to adjust the flame in the range between the Burner OFF and Burner ON large flame positions.

Significant quantities of energy can be saved if the appliance is used correctly, parameters set correctly, and appropriate cookware is used. The savings can be as follows:

● Up to 60 per cent savings when proper pots are used,

● Up to 60 per cent savings when the unit is operated correctly and the suitable flame size is chosen.

It is a prerequisite for efficient and energy-saving operation of the cooktop that the burners are kept clean at all times (in particular the flame slots and nozzles).

Suitable pans

Selection of vessels

Bear in mind that the diameter of the pot must be at least slightly larger than that of the flame. Cover the pots with lids. It is recommended to use pots the diameters of which exceed the diameters of the flame by 2.5 – 3 times;

● For the small burner, the most suitable pot will be 90-140 mm in diameter,
● For the medium burner, the most suitable pot will be 140-220 mm in diameter,
● For the large burner, the most suitable pot will be 200-240 mm in diameter,
For the WOK burner, the most suitable pot will be 220-260 mm in diameter,
● The height of the pot should not be larger than its diameter.

Wrong CorrectWrong

Illustration of a cooking pot with crossed black lines indicating resistance (no text or symbols)

Illustration of a cooking pot with crossed black lines indicating resistance or crossed pan (no text or symbols)

Illustration of a cooking pot with a side pan and a stove on top (no text or symbols)

Lids:

Using a lid while cooking will minimize the loss of heat and decrease the cooking time.

Using cooktops with control knob ignition (Zp)

• Press the selected control knob and turn anti-clockwise into Burner ON large flame position.
  ● Hold depressed until gas is on fire
  ● Release the knob and set the required flame size.

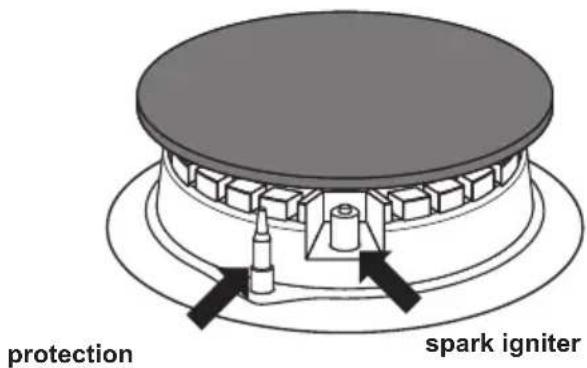

Using cooktops with leak protection (Zt)

Hold the burner's control knob depressed for approx. 10 seconds in Burner ON large flame position. This way, you activate the protection device.

Repeat the attempt if the protection has not activated for the first time.

Leak protection will cut off the gas supply if there is no flame for approx. 60 seconds.

At the Zt cooktops, the gas supply to the burners is adjusted with the knobs equipped with the leak protection.

What to do if surplus gas leak occurs

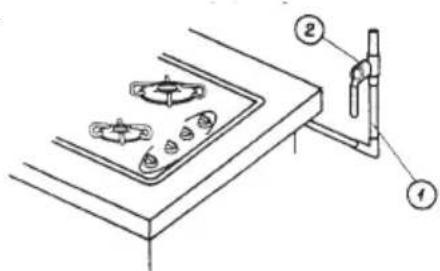

1 - gas network
2 - gas cut off valve
A-valve ON
B-valve OFF

Two mechanical components labeled A and B, showing different orientations (no text or symbols present)

In any emergency, proceed as follows:

• turn the burners off
● set the cut off valve OFF (see fig. 9 B)
● ventilate the kitchen
● report the unit for repair at a service department of a licensed and authorised repair shop
● refrain from using the appliance until it is returned to its operating condition

NOTE

The user can fix some minor malfunctions himself, by following the instructions given in this manual.

The burner does not ignite, and gas is smelled;

• Close burner control knobs
• Close the gas mains / supply cut off valve
  ● Ventilate the kitchen
  ● Take the burner out of the cooktop
  ● Clean and blow the slots
• Insert the burner back in place
• Resume ignition attempt.

If the burner still fails to go on, report for a licensed repair.

CLEANING AND ROUTINE MAINTENANCE

Daily cleaning and proper maintenance have crucial impact on the durability of your ceramic plate.

Clean the ceramic plate observing the same rules as for glass. Never use abrasive or aggressive cleaning agents, scrubbing powders or scratching sponges.

Simple line drawing of three containers crossed by a diagonal line, no text or symbols present

Burners, the burner hob grate.

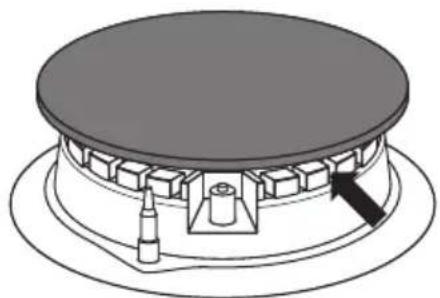

In the case of soiled burners and grate, these elements must be removed from the cooker and washed with warm water and washing – up products intended for fats and soils. Next, wipe them dry. After the grate has been removed, wash the burner hob carefully and wipe with a dry and soft cloth. In particular, ensure flame openings in rings under caps are clean, see the figure below. Do not use steel wire or drill holes.

Burner elements must always be clean. Water particles may hamper gas flow and produce an incorrect burner flame.

Diagram of a mechanical assembly with a central circular component and a black arrow indicating direction (no text or symbols)

Work panel

- Clean the enamel coated work panel only with warm water with a mild solution of dishwashing liquid. Use mild dish washing liquids to remove otherwise resistant contamination.

Periodic inspections

In addition to current maintenance and care, the following shall be arranged for:

• Periodic inspections of control elements and units of the cooktop. Upon expiration of the warranty, service department shall be ordered technical inspections of the appliance at least once every two years.
  ● All operation faults must be repaired.
  ● Cooktop units shall be maintained according to the maintenance schedule.

GUARANTEE

Guarantee

Guarantee service will be granted as per the Guarantee Certificate. The manufacturer cannot be held responsible for any damage caused by improper use or operation of the appliance.

In each case, proceed as follows:

• Turn the burners off
• Disconnect power supply
  • Report for repair
• The user can fix some minor malfunctions himself, according to the guidance given in the tables below. Please check the information below before contacting the service department.

PROBLEM CAUSE REMEDIES
1.The appliance does not work	- power cut	- check the home power fuse, replace if needed
2.Burner will not ignite - flame	slots contaminated	- close the gas cut off valve, close burner control knobs, ventilate the kitchen, take the burner out of the cooktop, blow and clean the flame slots
3.Igniter does not work	- power cut	- check the home power fuse, replace if needed
	- gas supply break - open gas cut off valve
	- contaminated (caked) igniter - clean the igniter
	- control knob released too soon	- hold the control knob depressed until the flame goes on and persists
4.Burner extinguishes - control	knob released too soon	- hold the control knob depressed until the flame goes on and persists

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives and regulations:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC
• Directive 2009/142/EC (to 20.04.2018)
- Regulation (EU) 2016/426 of the European Parliament and of the Council (from 21.04.2018)

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

3

INSTALACJA

Abstract diagram with concentric circles and plus signs, no text or symbols present

Illustration of a cooking pot with crossed black lines indicating resistance (no text or symbols)

Illustration of a cooking pot with crossed lines indicating resistance or crossed pan (no text or symbols)

Illustration of a cooking pot with a stove on top (no text or symbols)

9

Pokrywka garnka:

Two mechanical components labeled A and B, showing internal structures with arrows indicating motion (no text or symbols beyond labels)

Simple line drawing of three containers crossed by a diagonal line, no text or symbols present

Diagram of a mechanical assembly with a central circular component and a black arrow indicating direction (no text or symbols)

Płyta robocza
